Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#139082) — 273 parça

116 39 39 184 39 39 165 39 175 162 173 3 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	CLIP; HOSE,VAC (B) ID=16	5-09707-023-2	02	1	9701-0411
39	CLIP; HOSE,VAC (B) ID=16	5-09707-023-2	02	1	0412-
39	CLIP; HOSE,VAC (A) ID=16	8-94238-568-0	03	1	9701-0411
39	CLIP; HOSE,VAC (A) ID=16	8-94238-568-0	03	1	0412-
39	CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	9701-0411
39	CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	0412-
116	HOSE; VAC,M/VAC TAI	8-97965-341-0	01	1	9701-0411
116	HOSE; VAC,M/VAC TAI	8-97965-341-0	01	1	0412-
162	HOSE; VAC (C) TAI	8-97965-342-1	01	1	9701-0411
162	HOSE; VAC (C) TAI	8-97965-342-1	01	1	0412-
162	HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	9701-9809
162	HOSE; VAC (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	9810-9905
162	HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	9701-9809
162	HOSE; VAC (D)	8-97100-393-0	01	1	9810-9905
162	HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	9701-9809
162	HOSE; VAC (B)	8-97100-402-0	01	1	9810-9905
165	BOLT; BRKT (A) M6X16 FLANGE	0-28680-616-0	02	1	9701-0411
165	BOLT; BRKT (A) M6X16 FLANGE	0-28680-616-0	02	1	0412-0512
165	BOLT; BRKT (A) M6X16 FLANGE	0-28650-616-0	02	1	0601-
165	BOLT; BRKT (B) M6X25 FLANGE	0-28650-625-0	01	1	0611-
173	HOSE; VAC,VAC TANK SIDE	8-97129-872-0	01	1	9701-0411
173	HOSE; VAC,VAC TANK SIDE	8-97129-872-0	01	1	0412-
175	CLIP; BAND,VAC HOSE L=219.5	1-09987-136-0	01	1	9701-0411
175	CLIP; BAND,VAC HOSE L=219.5	1-09987-136-0	01	1	0412-
184	BRACKET; UNION FIX (A)	8-97094-014-3	01	1	9701-0411
184	BRACKET; UNION FIX (A)	8-97094-014-4	01	1	0412-
184	BRACKET; UNION FIX (B) TAI	8-97965-184-0	01	1	9701-0411
184	BRACKET; UNION FIX (B) TAI	8-97965-184-0	01	1	0412-

39 39 39 173 162 201 184 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	CLIP; HOSE,VAC (B) ID=16	5-09707-023-2	02	1	9701-0411
39	CLIP; HOSE,VAC (B) ID=16	5-09707-023-2	02	1	0412-
39	CLIP; HOSE,VAC (A) ID=16	8-94238-568-0	03	1	9701-0411
39	CLIP; HOSE,VAC (A) ID=16	8-94238-568-0	03	1	0412-
39	CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	9701-0411
39	CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	0412-
162	HOSE; VAC (C) TAI	8-97965-342-1	01	1	9701-0411
162	HOSE; VAC (C) TAI	8-97965-342-1	01	1	0412-
162	HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	9701-9809
162	HOSE; VAC (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	9810-9905
162	HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	9701-9809
162	HOSE; VAC (D)	8-97100-393-0	01	1	9810-9905
162	HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	9701-9809
162	HOSE; VAC (B)	8-97100-402-0	01	1	9810-9905
173	HOSE; VAC,VAC TANK SIDE	8-97129-872-0	01	1	9701-0411
173	HOSE; VAC,VAC TANK SIDE	8-97129-872-0	01	1	0412-
184	BRACKET; UNION FIX (A)	8-97094-014-3	01	1	9701-0411
184	BRACKET; UNION FIX (A)	8-97094-014-4	01	1	0412-
184	BRACKET; UNION FIX (B) TAI	8-97965-184-0	01	1	9701-0411
184	BRACKET; UNION FIX (B) TAI	8-97965-184-0	01	1	0412-
200	GROMMET; SCREW H=15	8-94463-268-1	02	1	9701-0411
200	GROMMET; SCREW H=15	8-94463-268-1	02	1	0412-
201	SCREW; BRKT M5X16 TAPPING W/PL WASHER	0-74305-516-0	02	1	9701-0411
201	SCREW; BRKT M5X16 TAPPING W/PL WASHER	0-74305-516-0	02	1	0412-0604
201	SCREW; BRKT M5X16 TAPPING W/PL WASHER	0-74365-516-0	02	1	0605-

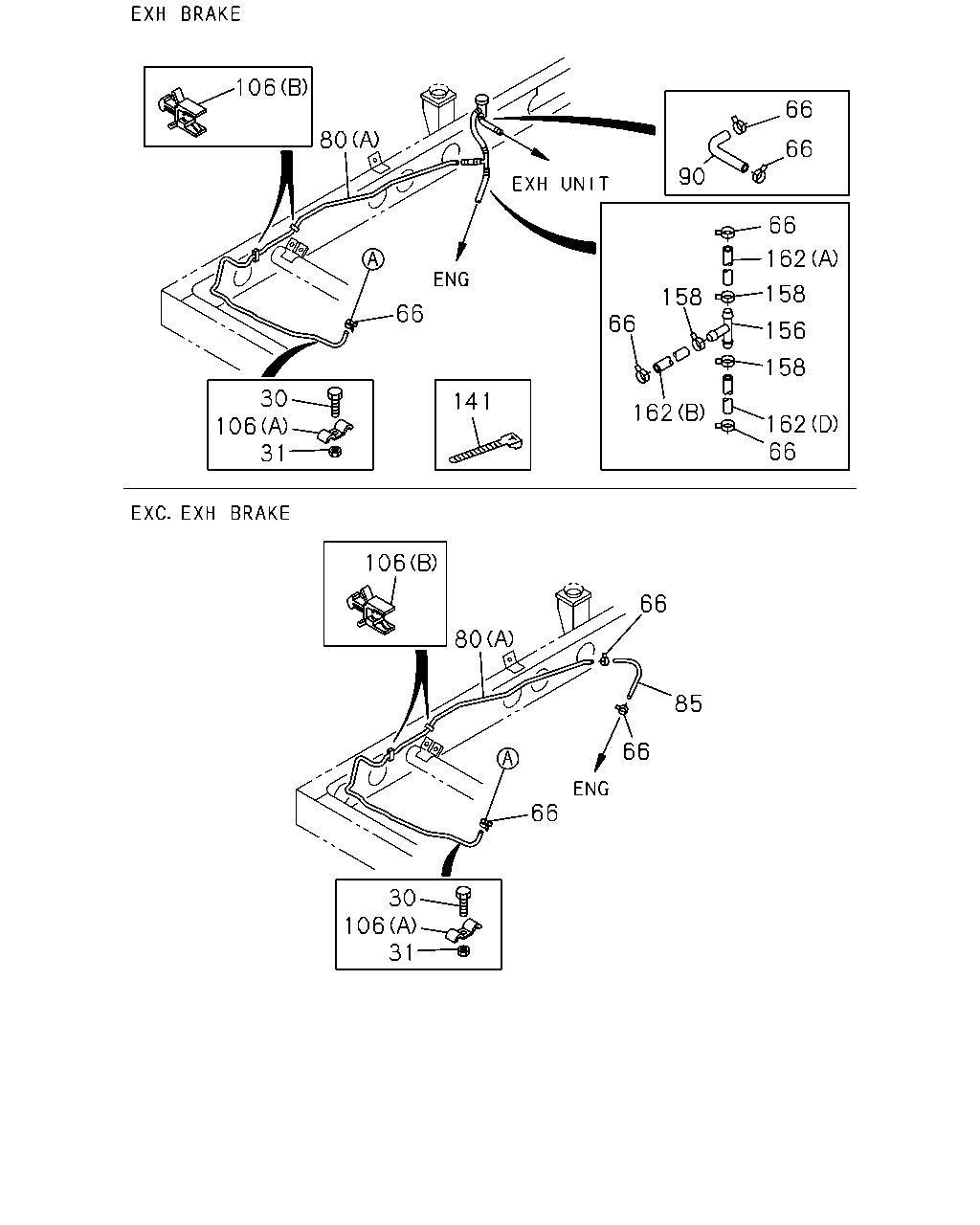

106 66 80 66 90 66 162 158 158 66 66 156 158 30 106 31 141 162 162 66 106 66 80 85 66 66 30 106 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE	0-28080-620-0	01	1	9701-0411
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE	0-28080-620-0	01	1	0412-0512
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE	0-28050-620-0	01	1	0601-
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91150-106-0	01	1	9701-0411
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91150-106-0	01	1	0412-0602
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91180-106-0	01	1	0603-0610
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91180-106-0	01	1	0611-
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91180-106-0	01	1	0611-
66	CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	06	1	9701-9809
66	CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	06	1	9810-9905
66	CLIP; VAC HOSE,M/VAC 4JG2 ENG(RJC) ID=16	8-94238-568-0	05	1	9906-0207
66	CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	05	1	0208-0411
66	CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	05	1	0412-0610
66	CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	03	1	0611-
66	CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	03	1	9701-9809
80	PIPE; VAC,ENG SIDE (A) TAI	8-97965-409-0	01	1	9701-9905
80	PIPE; VAC,ENG SIDE 4JG2 ENG(RJC) (A) TAI	8-97966-680-0	01	1	9906-9906
80	PIPE; VAC,ENG SIDE 4JG2 ENG(RJC) (A)	8-97231-527-0	01	1	9906-0207
80	PIPE; VAC,ENG SIDE 4JH1 ENG(RJX) (A) TAI	8-97967-231-0	01	1	0208-0511
80	PIPE; VAC,ENG SIDE 4JH1-TC ENG(RDM) (A) TAI	8-97967-231-0	01	1	0512-0610
80	PIPE; VAC,ENG SIDE (A) TAI	8-98035-138-0	01	1	0611-
80	PIPE; VAC,ENG SIDE (B) TAI	8-98000-323-2	01	1	0611-
80	PIPE; VAC,ENG SIDE 4JH1 ENG(RJX) (A)	8-97325-988-0	01	1	0412-0511
80	PIPE; VAC,ENG SIDE 4JH1-TC ENG(RDM) (A)	8-97325-988-0	01	1	0512-0610
80	PIPE; VAC,ENG SIDE (A) TAI	8-98000-324-2	01	1	0611-
85	HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	9701-9809
85	HOSE; VAC,ENG SIDE 4JG2 ENG(RJC) L=130	8-94438-246-0	01	1	9906-0207
85	HOSE; VAC,ENG SIDE L=130	8-94438-246-0	01	1	0208-0411
85	HOSE; VAC,ENG SIDE L=130	8-94438-246-0	01	1	0412-0610
85	HOSE; VAC,ENG SIDE	8-98000-966-1	01	1	0611-
90	HOSE; VAC,MAG VLV EXHAUST BRAKE<NF8> L=300 SERVICED BY L=3000	0-08258-300-0	01	1	9701-9809
90	HOSE; VAC,MAG VLV L=300 SERVICED BY L=3000	0-08258-300-0	01	1	9810-9905
106	CLIP; PIPE (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	9701-0207
106	CLIP; PIPE (B) ID=10 H=36	8-94249-686-1	02	1	9701-9905
106	CLIP; PIPE 4JG2 ENG(RJC) (B) ID=10 H=36	8-94249-686-1	02	1	9906-0207
106	CLIP; PIPE (B) ID=10 H=36	8-94249-686-1	02	1	0208-0610
106	CLIP; PIPE (D) ID=10 H=40	8-94462-219-0	01	1	0611-
106	CLIP; PIPE (D) ID=10 H=40	8-94462-219-0	01	1	0611-
106	CLIP; PIPE (E) ID=13 L=20	0-95235-232-0	01	1	0611-
106	CLIP; PIPE (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0611-
141	CLIP; 3 WAY JOINT EXHAUST BRAKE<NF8> L=250 TAI	5-09707-030-1	01	1	9701-9809
141	CLIP; 3 WAY JOINT L=250 TAI	5-09707-030-1	01	1	9810-9905
156	JOINT; 3 WAY EXHAUST BRAKE<NF8> L=430	8-94467-387-0	01	1	9701-9809
156	JOINT; 3 WAY L=430	8-94467-387-0	01	1	9810-9905
158	CLIP; HOSE EXHAUST BRAKE<NF8> ID=14.5	8-94167-480-0	03	1	9701-9809
158	CLIP; HOSE ID=14.5	8-94167-480-0	03	1	9810-9905
158	CLIP; HOSE ID=16	8-94238-568-0	02	1	0611-
162	HOSE; VAC (C) TAI	8-97965-342-1	01	1	9701-0411
162	HOSE; VAC (C) TAI	8-97965-342-1	01	1	0412-
162	HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	9701-9809
162	HOSE; VAC (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	9810-9905
162	HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	9701-9809
162	HOSE; VAC (D)	8-97100-393-0	01	1	9810-9905
162	HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	9701-9809
162	HOSE; VAC (B)	8-97100-402-0	01	1	9810-9905

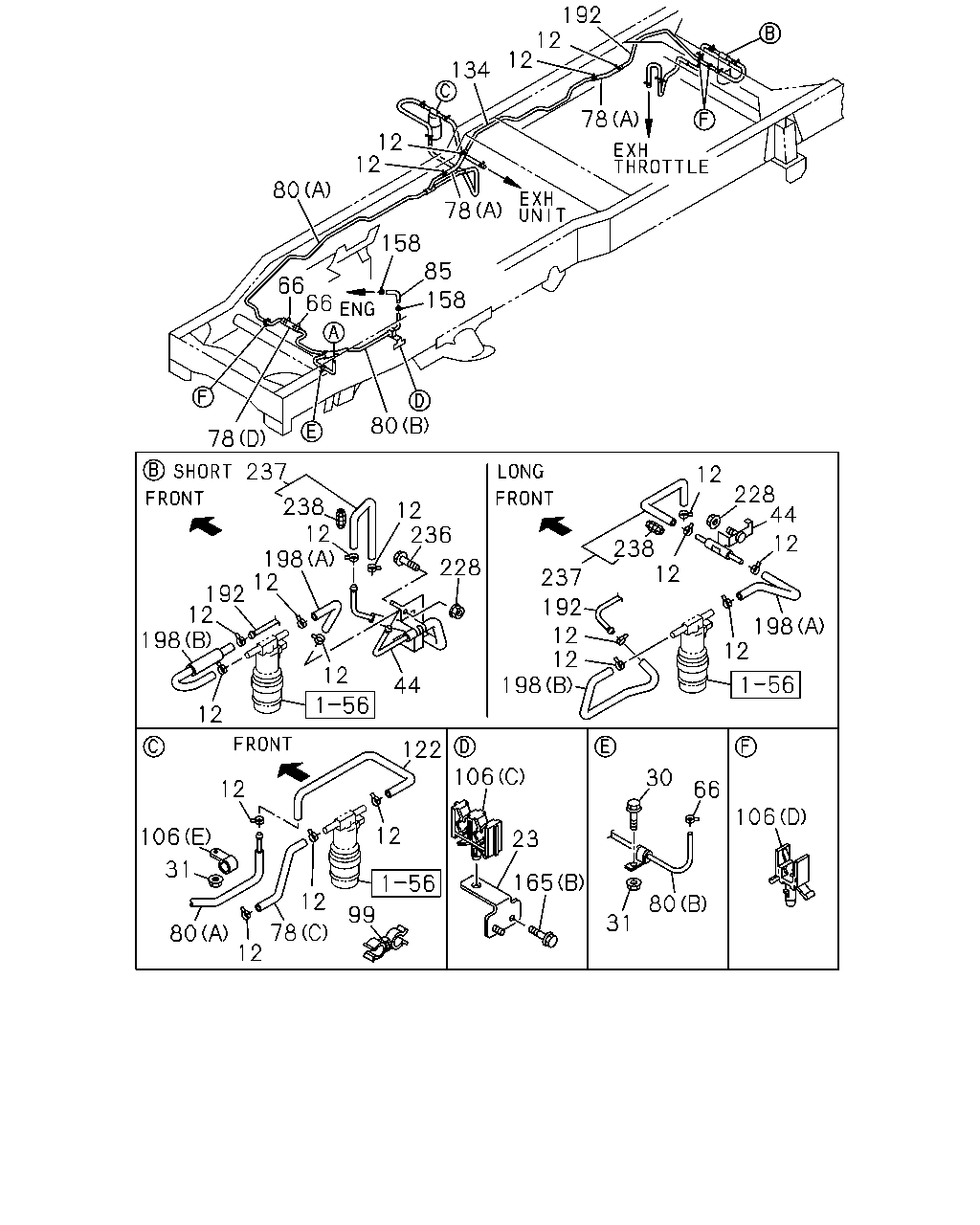

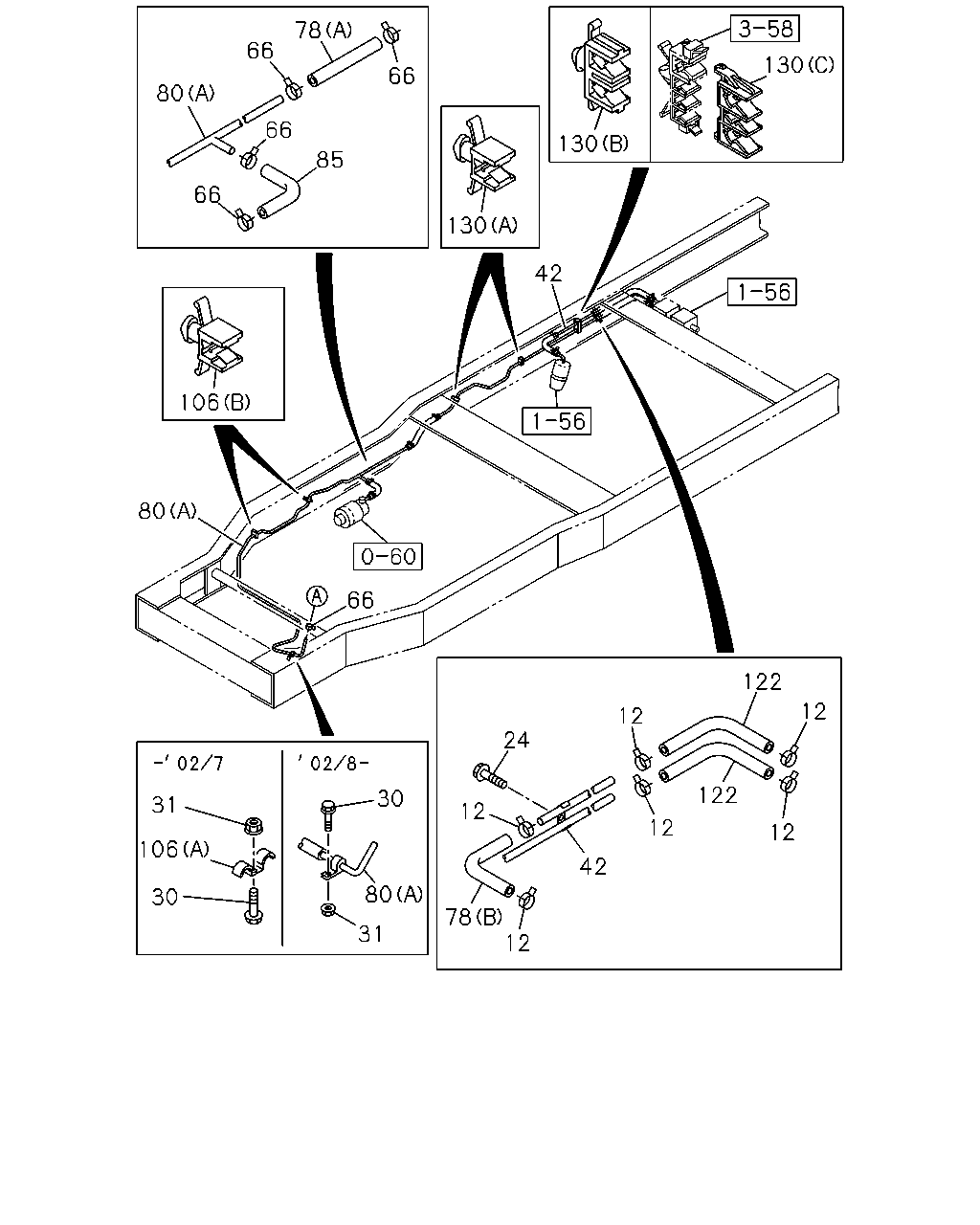

3 58 78 66 130 66 80 66 130 85 66 130 42 1 56 106 1 56 80 60 66 122 12 12 24 122 30 31 12 12 12 106 42 80 30 78 12 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	CLIP; HOSE 4JG2 ENG(RJC) ID=16	8-94238-568-0	06	1	9906-0207
12	CLIP; HOSE ID=16	8-94238-568-0	06	1	0208-0411
12	CLIP; HOSE ID=16	8-94238-568-0	06	1	0412-0610
12	CLIP; HOSE ID=16	8-94238-568-0	12	1	0611-
12	CLIP; HOSE ID=16	8-94238-568-0	02	1	0611-
24	BOLT; BRKT 4JG2 ENG(RJC) M8X25 FLANGE	0-28680-825-0	01	1	9906-0207
24	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0208-0411
24	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0412-0512
24	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-0610
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE	0-28080-620-0	01	1	9701-0411
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE	0-28080-620-0	01	1	0412-0512
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE	0-28050-620-0	01	1	0601-
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91150-106-0	01	1	9701-0411
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91150-106-0	01	1	0412-0602
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91180-106-0	01	1	0603-0610
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91180-106-0	01	1	0611-
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91180-106-0	01	1	0611-
42	PIPE; VAC,UNION TO MAG VLV 4JG2 ENG(RJC) TAI	8-97966-685-0	01	1	9906-0207
42	PIPE; VAC,UNION TO MAG VLV 4JH1 ENG(RJX) TAI	8-97967-232-0	01	1	0208-0511
42	PIPE; VAC,UNION TO MAG VLV 4JH1-TC ENG(RDM) TAI	8-97967-232-0	01	1	0512-0610
42	PIPE; VAC,UNION TO MAG VLV 4JH1 ENG(RJX) TAI	8-97325-999-1	01	1	0412-0511
42	PIPE; VAC,UNION TO MAG VLV 4JH1-TC ENG(RDM) TAI	8-97325-999-1	01	1	0512-0610
66	CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	06	1	9701-9809
66	CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	06	1	9810-9905
66	CLIP; VAC HOSE,M/VAC 4JG2 ENG(RJC) ID=16	8-94238-568-0	05	1	9906-0207
66	CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	05	1	0208-0411
66	CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	05	1	0412-0610
66	CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	03	1	0611-
66	CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	03	1	9701-9809
78	HOSE; VAC,PIPE TO PIPE (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0611-
78	HOSE; VAC,PIPE TO PIPE (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0611-
78	HOSE; VAC,PIPE TO PIPE 4JG2 ENG(RJC) (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	9906-0207
78	HOSE; VAC,PIPE TO PIPE (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0208-0411
78	HOSE; VAC,PIPE TO PIPE (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0412-0610
78	HOSE; VAC,PIPE TO PIPE (D) L=250 SERVICED BY L=3000	0-08258-300-0	01	1	0611-
78	HOSE; VAC,PIPE TO PIPE 4JG2 ENG(RJC) (B) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	9906-0207
78	HOSE; VAC,PIPE TO PIPE 4JH1 ENG(RJX) (B) L=350 SERVICED BY L=3000	0-08258-300-0	01	1	0208-0511
78	HOSE; VAC,PIPE TO PIPE 4JH1-TC ENG(RDM) (B) L=350 SERVICED BY L=3000	0-08258-300-0	01	1	0512-0610
78	HOSE; VAC,PIPE TO PIPE (C) L=350 SERVICED BY L=3000	0-08258-300-0	01	1	0611-
78	HOSE; VAC,PIPE TO PIPE 4JH1 ENG(RJX) (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0412-0511
78	HOSE; VAC,PIPE TO PIPE 4JH1-TC ENG(RDM) (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0512-0610
78	HOSE; VAC,PIPE TO PIPE (C) L=330 SERVICED BY L=3000	0-08258-300-0	01	1	0611-
80	PIPE; VAC,ENG SIDE (A) TAI	8-97965-409-0	01	1	9701-9905
80	PIPE; VAC,ENG SIDE 4JG2 ENG(RJC) (A) TAI	8-97966-680-0	01	1	9906-9906
80	PIPE; VAC,ENG SIDE 4JG2 ENG(RJC) (A)	8-97231-527-0	01	1	9906-0207
80	PIPE; VAC,ENG SIDE 4JH1 ENG(RJX) (A) TAI	8-97967-231-0	01	1	0208-0511
80	PIPE; VAC,ENG SIDE 4JH1-TC ENG(RDM) (A) TAI	8-97967-231-0	01	1	0512-0610
80	PIPE; VAC,ENG SIDE (A) TAI	8-98035-138-0	01	1	0611-
80	PIPE; VAC,ENG SIDE (B) TAI	8-98000-323-2	01	1	0611-
80	PIPE; VAC,ENG SIDE 4JH1 ENG(RJX) (A)	8-97325-988-0	01	1	0412-0511
80	PIPE; VAC,ENG SIDE 4JH1-TC ENG(RDM) (A)	8-97325-988-0	01	1	0512-0610
80	PIPE; VAC,ENG SIDE (A) TAI	8-98000-324-2	01	1	0611-
85	HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	9701-9809
85	HOSE; VAC,ENG SIDE 4JG2 ENG(RJC) L=130	8-94438-246-0	01	1	9906-0207
85	HOSE; VAC,ENG SIDE L=130	8-94438-246-0	01	1	0208-0411
85	HOSE; VAC,ENG SIDE L=130	8-94438-246-0	01	1	0412-0610
85	HOSE; VAC,ENG SIDE	8-98000-966-1	01	1	0611-
106	CLIP; PIPE (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	9701-0207
106	CLIP; PIPE (B) ID=10 H=36	8-94249-686-1	02	1	9701-9905
106	CLIP; PIPE 4JG2 ENG(RJC) (B) ID=10 H=36	8-94249-686-1	02	1	9906-0207
106	CLIP; PIPE (B) ID=10 H=36	8-94249-686-1	02	1	0208-0610
106	CLIP; PIPE (D) ID=10 H=40	8-94462-219-0	01	1	0611-
106	CLIP; PIPE (D) ID=10 H=40	8-94462-219-0	01	1	0611-
106	CLIP; PIPE (E) ID=13 L=20	0-95235-232-0	01	1	0611-
106	CLIP; PIPE (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0611-
122	HOSE; AIR,MAG VLV TO AIR PIPE 4JG2 ENG(RJC) L=330 SERVICED BY L=3000	0-08258-300-0	02	1	9906-0207
122	HOSE; AIR,MAG VLV TO AIR PIPE 4JH1 ENG(RJX) L=300 SERVICED BY L=3000	0-08258-300-0	02	1	0208-0511
122	HOSE; AIR,MAG VLV TO AIR PIPE 4JH1-TC ENG(RDM) L=300 SERVICED BY L=3000	0-08258-300-0	02	1	0512-0610
122	HOSE; AIR,MAG VLV TO AIR PIPE	8-98000-602-1	01	1	0611-
122	HOSE; AIR,MAG VLV TO AIR PIPE 4JH1 ENG(RJX) L=180 SERVICED BY L=3000	0-08258-300-0	02	1	0412-0511
122	HOSE; AIR,MAG VLV TO AIR PIPE 4JH1-TC ENG(RDM) L=180 SERVICED BY L=3000	0-08258-300-0	02	1	0512-0610
122	HOSE; AIR,MAG VLV TO AIR PIPE	8-98000-967-0	01	1	0611-
130	CLIP; VAC PIPE TO FRAME 4JG2 ENG(RJC) (A) ID=10 H=40	8-94462-219-0	02	1	9906-0207
130	CLIP; VAC PIPE TO FRAME 4JH1 ENG(RJX) (A) ID=10 H=40	8-94462-219-0	01	1	0208-0511
130	CLIP; VAC PIPE TO FRAME 4JH1-TC ENG(RDM) (A) ID=10 H=40	8-94462-219-0	01	1	0512-0610
130	CLIP; VAC PIPE TO FRAME 4JG2 ENG(RJC) (B) ID=10X2 H=37.5	8-97018-546-0	01	1	9906-0207
130	CLIP; VAC PIPE TO FRAME (B) ID=10X2 H=37.5	8-97018-546-0	01	1	0208-0610
130	CLIP; VAC PIPE TO FRAME 4JH1 ENG(RJX) (C) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0412-0511
130	CLIP; VAC PIPE TO FRAME 4JH1-TC ENG(RDM) (C) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0512-0610

192 12 12 134 78 12 12 80 78 158 85 66 66 18 80 78 237 12 228 44 238 12 198 12 12 236 12 238 12 228 237 192 12 198 192 12 12 198 198 12 12 1 56 44 1 56 12 122 106 30 12 66 106 12 106 23 31 165 1 56 12 80 99 31 78 12 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	CLIP; HOSE 4JG2 ENG(RJC) ID=16	8-94238-568-0	06	1	9906-0207
12	CLIP; HOSE ID=16	8-94238-568-0	06	1	0208-0411
12	CLIP; HOSE ID=16	8-94238-568-0	06	1	0412-0610
12	CLIP; HOSE ID=16	8-94238-568-0	12	1	0611-
12	CLIP; HOSE ID=16	8-94238-568-0	02	1	0611-
23	BRACKET; VAC PIPE	8-98000-460-1	01	1	0611-
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE	0-28080-620-0	01	1	9701-0411
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE	0-28080-620-0	01	1	0412-0512
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE	0-28050-620-0	01	1	0601-
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91150-106-0	01	1	9701-0411
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91150-106-0	01	1	0412-0602
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91180-106-0	01	1	0603-0610
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91180-106-0	01	1	0611-
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91180-106-0	01	1	0611-
44	PIPE; VAC,MAG VLV	8-98000-455-2	01	1	0611-
44	PIPE; VAC,MAG VLV	8-98019-530-1	01	1	0611-
66	CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	06	1	9701-9809
66	CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	06	1	9810-9905
66	CLIP; VAC HOSE,M/VAC 4JG2 ENG(RJC) ID=16	8-94238-568-0	05	1	9906-0207
66	CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	05	1	0208-0411
66	CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	05	1	0412-0610
66	CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	03	1	0611-
66	CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	03	1	9701-9809
78	HOSE; VAC,PIPE TO PIPE (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0611-
78	HOSE; VAC,PIPE TO PIPE (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0611-
78	HOSE; VAC,PIPE TO PIPE 4JG2 ENG(RJC) (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	9906-0207
78	HOSE; VAC,PIPE TO PIPE (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0208-0411
78	HOSE; VAC,PIPE TO PIPE (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0412-0610
78	HOSE; VAC,PIPE TO PIPE (D) L=250 SERVICED BY L=3000	0-08258-300-0	01	1	0611-
78	HOSE; VAC,PIPE TO PIPE 4JG2 ENG(RJC) (B) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	9906-0207
78	HOSE; VAC,PIPE TO PIPE 4JH1 ENG(RJX) (B) L=350 SERVICED BY L=3000	0-08258-300-0	01	1	0208-0511
78	HOSE; VAC,PIPE TO PIPE 4JH1-TC ENG(RDM) (B) L=350 SERVICED BY L=3000	0-08258-300-0	01	1	0512-0610
78	HOSE; VAC,PIPE TO PIPE (C) L=350 SERVICED BY L=3000	0-08258-300-0	01	1	0611-
78	HOSE; VAC,PIPE TO PIPE 4JH1 ENG(RJX) (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0412-0511
78	HOSE; VAC,PIPE TO PIPE 4JH1-TC ENG(RDM) (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0512-0610
78	HOSE; VAC,PIPE TO PIPE (C) L=330 SERVICED BY L=3000	0-08258-300-0	01	1	0611-
80	PIPE; VAC,ENG SIDE (A) TAI	8-97965-409-0	01	1	9701-9905
80	PIPE; VAC,ENG SIDE 4JG2 ENG(RJC) (A) TAI	8-97966-680-0	01	1	9906-9906
80	PIPE; VAC,ENG SIDE 4JG2 ENG(RJC) (A)	8-97231-527-0	01	1	9906-0207
80	PIPE; VAC,ENG SIDE 4JH1 ENG(RJX) (A) TAI	8-97967-231-0	01	1	0208-0511
80	PIPE; VAC,ENG SIDE 4JH1-TC ENG(RDM) (A) TAI	8-97967-231-0	01	1	0512-0610
80	PIPE; VAC,ENG SIDE (A) TAI	8-98035-138-0	01	1	0611-
80	PIPE; VAC,ENG SIDE (B) TAI	8-98000-323-2	01	1	0611-
80	PIPE; VAC,ENG SIDE 4JH1 ENG(RJX) (A)	8-97325-988-0	01	1	0412-0511
80	PIPE; VAC,ENG SIDE 4JH1-TC ENG(RDM) (A)	8-97325-988-0	01	1	0512-0610
80	PIPE; VAC,ENG SIDE (A) TAI	8-98000-324-2	01	1	0611-
85	HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	9701-9809
85	HOSE; VAC,ENG SIDE 4JG2 ENG(RJC) L=130	8-94438-246-0	01	1	9906-0207
85	HOSE; VAC,ENG SIDE L=130	8-94438-246-0	01	1	0208-0411
85	HOSE; VAC,ENG SIDE L=130	8-94438-246-0	01	1	0412-0610
85	HOSE; VAC,ENG SIDE	8-98000-966-1	01	1	0611-
99	CLIP; VAC HOSE TO VAC HOSE ID=16.5 & 16.5	8-94473-320-0	01	1	0611-
106	CLIP; PIPE (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	9701-0207
106	CLIP; PIPE (B) ID=10 H=36	8-94249-686-1	02	1	9701-9905
106	CLIP; PIPE 4JG2 ENG(RJC) (B) ID=10 H=36	8-94249-686-1	02	1	9906-0207
106	CLIP; PIPE (B) ID=10 H=36	8-94249-686-1	02	1	0208-0610
106	CLIP; PIPE (D) ID=10 H=40	8-94462-219-0	01	1	0611-
106	CLIP; PIPE (D) ID=10 H=40	8-94462-219-0	01	1	0611-
106	CLIP; PIPE (E) ID=13 L=20	0-95235-232-0	01	1	0611-
106	CLIP; PIPE (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0611-
122	HOSE; AIR,MAG VLV TO AIR PIPE 4JG2 ENG(RJC) L=330 SERVICED BY L=3000	0-08258-300-0	02	1	9906-0207
122	HOSE; AIR,MAG VLV TO AIR PIPE 4JH1 ENG(RJX) L=300 SERVICED BY L=3000	0-08258-300-0	02	1	0208-0511
122	HOSE; AIR,MAG VLV TO AIR PIPE 4JH1-TC ENG(RDM) L=300 SERVICED BY L=3000	0-08258-300-0	02	1	0512-0610
122	HOSE; AIR,MAG VLV TO AIR PIPE	8-98000-602-1	01	1	0611-
122	HOSE; AIR,MAG VLV TO AIR PIPE 4JH1 ENG(RJX) L=180 SERVICED BY L=3000	0-08258-300-0	02	1	0412-0511
122	HOSE; AIR,MAG VLV TO AIR PIPE 4JH1-TC ENG(RDM) L=180 SERVICED BY L=3000	0-08258-300-0	02	1	0512-0610
122	HOSE; AIR,MAG VLV TO AIR PIPE	8-98000-967-0	01	1	0611-
134	PIPE; VAC,3 WAY TO HOSE	8-98036-784-0	01	1	0611-
158	CLIP; HOSE EXHAUST BRAKE<NF8> ID=14.5	8-94167-480-0	03	1	9701-9809
158	CLIP; HOSE ID=14.5	8-94167-480-0	03	1	9810-9905
158	CLIP; HOSE ID=16	8-94238-568-0	02	1	0611-
165	BOLT; BRKT (A) M6X16 FLANGE	0-28680-616-0	02	1	9701-0411
165	BOLT; BRKT (A) M6X16 FLANGE	0-28680-616-0	02	1	0412-0512
165	BOLT; BRKT (A) M6X16 FLANGE	0-28650-616-0	02	1	0601-
165	BOLT; BRKT (B) M6X25 FLANGE	0-28650-625-0	01	1	0611-
192	PIPE; VAC,HOSE TO MAG VLV TAI	8-98035-147-0	01	1	0611-
192	PIPE; VAC,HOSE TO MAG VLV TAI	8-98019-526-1	01	1	0611-
198	HOSE; VAC,PIPE TO MAG VLV (B)	8-97373-197-0	01	1	0611-
198	HOSE; VAC,PIPE TO MAG VLV (A)	8-97373-199-0	01	1	0611-
198	HOSE; VAC,PIPE TO MAG VLV (B)	8-98036-849-0	01	1	0611-
198	HOSE; VAC,PIPE TO MAG VLV (A)	8-98036-850-0	01	1	0611-
228	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0611-
236	BOLT; PIPE M8X25 FLANGE	0-28650-825-0	01	1	0611-
237	HOSE; VAC,M/VAC TO EXH THROTTLE	8-98000-603-0	01	1	0611-
237	HOSE; VAC,M/VAC TO EXH THROTTLE	8-98036-851-0	01	1	0611-
238	ORIFICE; VACUUM HOSE	8-97377-521-0	01	1	0611-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
