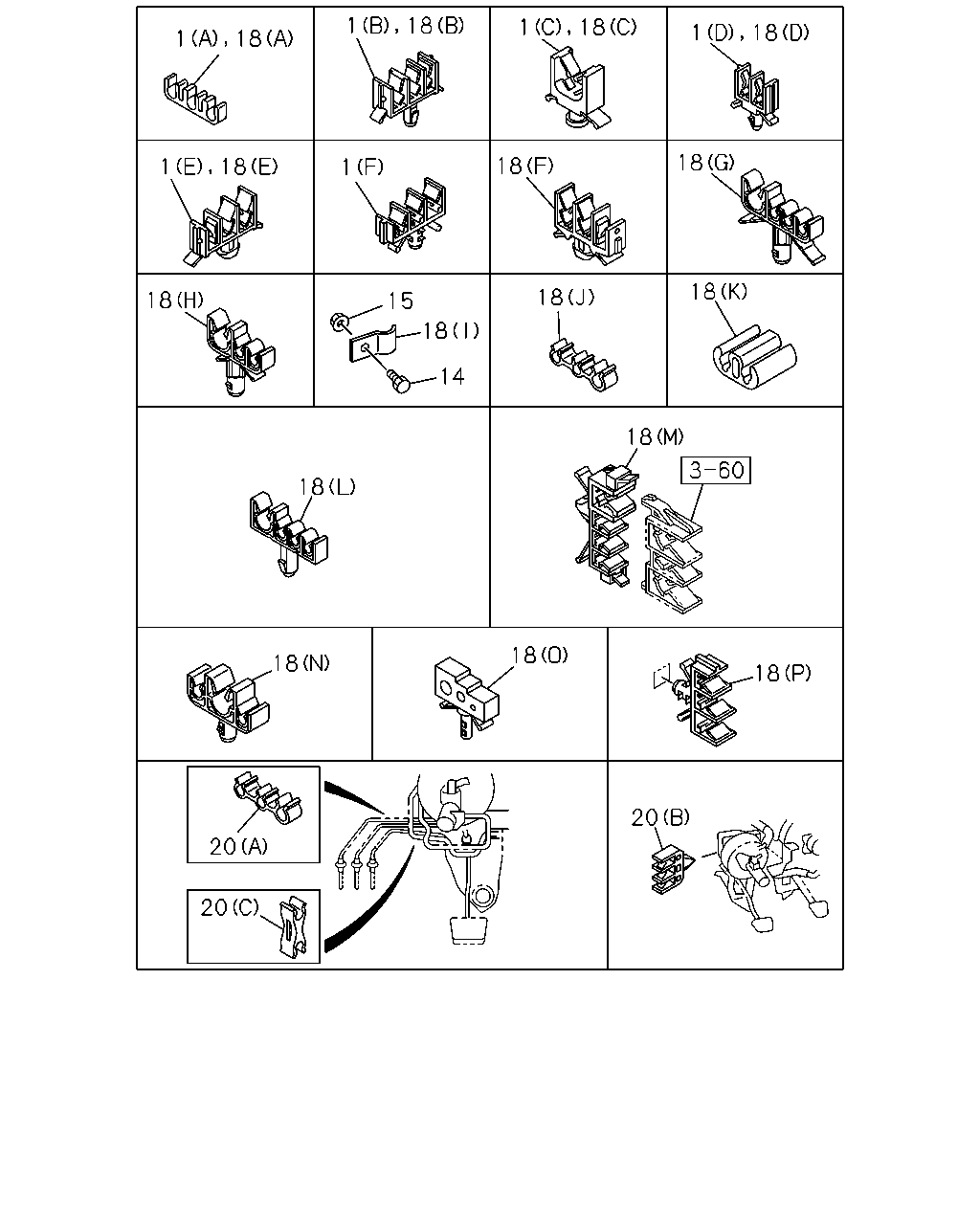

3-58 — FIXING PARTS; OIL PIPING (#139081) — 138 parça

1 18 1 18 1 18 18 1 18 18 1 18 1 18 18 18 15 18 14 18 3 60 18 18 18 18 20 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; OIL PIPE TO BODY (A) ID=4.76X3	8-94122-333-0	01	1	9701-9703
1	CLIP; OIL PIPE TO BODY (C) ID=4.8 H=26	8-94249-685-0	02	1	9701-9905
1	CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC) (C) ID=4.8 H=26	8-94249-685-0	02	1	9906-0207
1	CLIP; OIL PIPE TO BODY (E) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9701-0207
1	CLIP; OIL PIPE TO BODY (C) ID=4.8 H=26	8-94249-685-0	01	1	9701-0207
1	CLIP; OIL PIPE TO BODY (B) ID=6.5 & 4.8X2	8-94131-710-2	01	1	9701-9702
1	CLIP; OIL PIPE TO BODY (D) ID=4.8X2	8-94316-410-0	01	1	9703-9905
1	CLIP; OIL PIPE TO BODY (D) ID=4.8X2	8-94316-410-0	01	1	9703-9905
1	CLIP; OIL PIPE TO BODY (D) ID=4.8X2	8-94316-410-0	01	1	9703-9905
1	CLIP; OIL PIPE TO BODY (B) ID=6.5 & 4.8X2	8-94131-710-2	01	1	9906-0207
1	CLIP; OIL PIPE TO BODY (E) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9701-9905
1	CLIP; OIL PIPE TO BODY (E) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9701-9905
1	CLIP; OIL PIPE TO BODY (E) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9701-9905
1	CLIP; OIL PIPE TO BODY (E) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9906-0207
1	CLIP; OIL PIPE TO BODY (E) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9906-0207
1	CLIP; OIL PIPE TO BODY (D) ID=4.8X2	8-94316-410-0	01	1	9701-9702
1	CLIP; OIL PIPE TO BODY (D) ID=4.8X2	8-94316-410-0	01	1	9701-9702
1	CLIP; OIL PIPE TO BODY (B) ID=6.5 & 4.8X2	8-94131-710-2	01	1	9703-9905
1	CLIP; OIL PIPE TO BODY (B) ID=6.5 & 4.8X2	8-94131-710-2	01	1	9703-9905
1	CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC) (D) ID=4.8X2	8-94316-410-0	01	1	9906-0207
1	CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC) (D) ID=4.8X2	8-94316-410-0	01	1	9906-0207
1	CLIP; OIL PIPE TO BODY (F) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9701-9702
1	CLIP; OIL PIPE TO BODY (F) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9703-9905
1	CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC) (F) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9906-0207
1	CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC) (F) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	9906-0207
14	BOLT; CLIP,OIL PIPE 4JH1 ENG(RJX) M8X20 FLANGE	0-28680-820-0	02	1	0412-0511
14	BOLT; CLIP,OIL PIPE 4JH1-TC ENG(RDM) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
14	BOLT; CLIP,OIL PIPE 4JH1-TC ENG(RDM) M8X20 FLANGE	0-28650-820-0	02	1	0601-0610
14	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0611-
15	NUT; CLIP,OIL PIPE 4JH1 ENG(RJX) M8 FLANGE	0-91150-108-0	02	1	0412-0511
15	NUT; CLIP,OIL PIPE 4JH1-TC ENG(RDM) M8 FLANGE	0-91150-108-0	02	1	0512-0602
15	NUT; CLIP,OIL PIPE 4JH1-TC ENG(RDM) M8 FLANGE	0-91180-108-0	02	1	0603-0610
15	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0611-
18	CLIP; BRK PIPE (P) ID=10 & 6.4 & 4.8	8-97064-484-1	04	1	0611-
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (A) ID=4.76X3	8-94122-333-0	01	1	0208-0511
18	CLIP; BRK PIPE 4JH1-TC ENG(RDM) (A) ID=4.76X3	8-94122-333-0	01	1	0512-0610
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0208-0511
18	CLIP; BRK PIPE 4JH1-TC ENG(RDM) (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0512-0610
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (C) ID=4.8 H=26	8-94249-685-0	02	1	0208-0511
18	CLIP; BRK PIPE 4JH1-TC ENG(RDM) (C) ID=4.8 H=26	8-94249-685-0	02	1	0512-0610
18	CLIP; BRK PIPE (M) ID=10 & 4.76X3	8-97326-158-1	07	1	0611-
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (E) ID=6.5 & 4.8X2 H=29	8-94249-689-2	05	1	0208-0404
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (E) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0405-0411
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (E) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0412-0511
18	CLIP; BRK PIPE 4JH1-TC ENG(RDM) (E) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0512-0610
18	CLIP; BRK PIPE (E) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0611-
18	CLIP; BRK PIPE (E) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0611-
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (D) ID=4.8X2	8-94316-410-0	01	1	0208-0511
18	CLIP; BRK PIPE 4JH1-TC ENG(RDM) (D) ID=4.8X2	8-94316-410-0	01	1	0512-0610
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (F) ID=5 & 6.5 & 8.2	8-94128-316-1	01	1	0208-0511
18	CLIP; BRK PIPE 4JH1-TC ENG(RDM) (F) ID=5 & 6.5 & 8.2	8-94128-316-1	01	1	0512-0610
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (H) ID=12 & 6.35 & 4.76	8-97254-201-0	03	1	0208-0411
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (H) ID=12 & 6.35 & 4.76	8-97254-201-0	03	1	0412-0511
18	CLIP; BRK PIPE 4JH1-TC ENG(RDM) (H) ID=12 & 6.35 & 4.76	8-97254-201-0	03	1	0512-0610
18	CLIP; BRK PIPE TRANSMISSION CONTROL-SMOOTHER<8GF> (O) ID=10X2 & 4.76	8-97305-170-0	02	1	0611-
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (G) ID=10 & 4.76X3	8-97168-820-0	05	1	0208-0511
18	CLIP; BRK PIPE 4JH1-TC ENG(RDM) (G) ID=10 & 4.76X3	8-97168-820-0	05	1	0512-0610
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (E) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	0405-0511
18	CLIP; BRK PIPE 4JH1-TC ENG(RDM) (E) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	0512-0610
18	CLIP; BRK PIPE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (N) ID=12 & 6.35 & 4.76	8-97305-169-1	02	1	0611-
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (I) B=18 L=20	1-09700-372-0	02	1	0412-0511
18	CLIP; BRK PIPE 4JH1-TC ENG(RDM) (I) B=18 L=20	1-09700-372-0	02	1	0512-0610
18	CLIP; BRK PIPE (I) B=18 L=20	1-09700-372-0	02	1	0611-
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (B) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0412-0511
18	CLIP; BRK PIPE 4JH1-TC ENG(RDM) (B) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0512-0610
18	CLIP; BRK PIPE (P) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	0611-0611
18	CLIP; BRK PIPE (P) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	0611-
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (J) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0412-0511
18	CLIP; BRK PIPE 4JH1-TC ENG(RDM) (J) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0512-0610
18	CLIP; BRK PIPE (J) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0611-
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (K) ID=4.8X2	8-94389-060-0	01	1	0412-0511
18	CLIP; BRK PIPE 4JH1-TC ENG(RDM) (K) ID=4.8X2	8-94389-060-0	01	1	0512-0610
18	CLIP; BRK PIPE (K) ID=4.8X2	8-94389-060-0	01	1	0611-
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (L) ID=10 & 4.76X3	8-97168-819-0	04	1	0412-0511
18	CLIP; BRK PIPE 4JH1-TC ENG(RDM) (L) ID=10 & 4.76X3	8-97168-819-0	04	1	0512-0610
18	CLIP; BRK PIPE (L) ID=10 & 4.76X3	8-97168-819-0	04	1	0611-
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (M) ID=10 & 4.76X3	8-97326-158-1	10	1	0412-0511
18	CLIP; BRK PIPE 4JH1-TC ENG(RDM) (M) ID=10 & 4.76X3	8-97326-158-1	10	1	0512-0610
18	CLIP; BRK PIPE (M) ID=10 & 4.76X3	8-97326-158-1	03	1	0611-
20	CLIP; BRK PIPE (A) ID=6.4 & 4.8X2	8-94146-043-0	03	1	9701-0411
20	CLIP; BRK PIPE (A) ID=6.4 & 4.8X2	8-94146-043-0	03	1	0412-0610
20	CLIP; BRK PIPE (A) ID=6.4 & 4.8X2	8-94146-043-0	02	1	0611-
20	CLIP; BRK PIPE (C) ID=4.6X2	8-94241-454-0	01	1	9701-0411
20	CLIP; BRK PIPE (C) ID=4.6X2	8-94241-454-0	01	1	0412-
20	CLIP; BRK PIPE (B) ID=6.35 & 4.76X2	8-94250-923-2	01	1	9701-0411
20	CLIP; BRK PIPE (B) ID=6.35 & 4.76X2	8-94250-923-2	01	1	0412-
20	CLIP; BRK PIPE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0611-

3 55 5 12 18 3 55 12 3 55 12 5 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	BRACKET; OIL PIPE (C)	8-98000-461-2	01	1	0611-
12	BRACKET; OIL PIPE (D)	8-98000-462-2	01	1	0611-
12	BRACKET; OIL PIPE 4JH1 ENG(RJX) (A)	8-97349-917-0	01	1	0412-0511
12	BRACKET; OIL PIPE 4JH1-TC ENG(RDM) (A)	8-97349-917-0	01	1	0512-0610
12	BRACKET; OIL PIPE (B)	8-98000-459-1	01	1	0611-
18	CLIP; BRK PIPE (P) ID=10 & 6.4 & 4.8	8-97064-484-1	04	1	0611-
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (A) ID=4.76X3	8-94122-333-0	01	1	0208-0511
18	CLIP; BRK PIPE 4JH1-TC ENG(RDM) (A) ID=4.76X3	8-94122-333-0	01	1	0512-0610
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0208-0511
18	CLIP; BRK PIPE 4JH1-TC ENG(RDM) (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0512-0610
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (C) ID=4.8 H=26	8-94249-685-0	02	1	0208-0511
18	CLIP; BRK PIPE 4JH1-TC ENG(RDM) (C) ID=4.8 H=26	8-94249-685-0	02	1	0512-0610
18	CLIP; BRK PIPE (M) ID=10 & 4.76X3	8-97326-158-1	07	1	0611-
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (E) ID=6.5 & 4.8X2 H=29	8-94249-689-2	05	1	0208-0404
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (E) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0405-0411
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (E) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0412-0511
18	CLIP; BRK PIPE 4JH1-TC ENG(RDM) (E) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0512-0610
18	CLIP; BRK PIPE (E) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0611-
18	CLIP; BRK PIPE (E) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0611-
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (D) ID=4.8X2	8-94316-410-0	01	1	0208-0511
18	CLIP; BRK PIPE 4JH1-TC ENG(RDM) (D) ID=4.8X2	8-94316-410-0	01	1	0512-0610
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (F) ID=5 & 6.5 & 8.2	8-94128-316-1	01	1	0208-0511
18	CLIP; BRK PIPE 4JH1-TC ENG(RDM) (F) ID=5 & 6.5 & 8.2	8-94128-316-1	01	1	0512-0610
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (H) ID=12 & 6.35 & 4.76	8-97254-201-0	03	1	0208-0411
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (H) ID=12 & 6.35 & 4.76	8-97254-201-0	03	1	0412-0511
18	CLIP; BRK PIPE 4JH1-TC ENG(RDM) (H) ID=12 & 6.35 & 4.76	8-97254-201-0	03	1	0512-0610
18	CLIP; BRK PIPE TRANSMISSION CONTROL-SMOOTHER<8GF> (O) ID=10X2 & 4.76	8-97305-170-0	02	1	0611-
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (G) ID=10 & 4.76X3	8-97168-820-0	05	1	0208-0511
18	CLIP; BRK PIPE 4JH1-TC ENG(RDM) (G) ID=10 & 4.76X3	8-97168-820-0	05	1	0512-0610
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (E) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	0405-0511
18	CLIP; BRK PIPE 4JH1-TC ENG(RDM) (E) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	0512-0610
18	CLIP; BRK PIPE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (N) ID=12 & 6.35 & 4.76	8-97305-169-1	02	1	0611-
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (I) B=18 L=20	1-09700-372-0	02	1	0412-0511
18	CLIP; BRK PIPE 4JH1-TC ENG(RDM) (I) B=18 L=20	1-09700-372-0	02	1	0512-0610
18	CLIP; BRK PIPE (I) B=18 L=20	1-09700-372-0	02	1	0611-
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (B) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0412-0511
18	CLIP; BRK PIPE 4JH1-TC ENG(RDM) (B) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0512-0610
18	CLIP; BRK PIPE (P) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	0611-0611
18	CLIP; BRK PIPE (P) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	0611-
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (J) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0412-0511
18	CLIP; BRK PIPE 4JH1-TC ENG(RDM) (J) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0512-0610
18	CLIP; BRK PIPE (J) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0611-
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (K) ID=4.8X2	8-94389-060-0	01	1	0412-0511
18	CLIP; BRK PIPE 4JH1-TC ENG(RDM) (K) ID=4.8X2	8-94389-060-0	01	1	0512-0610
18	CLIP; BRK PIPE (K) ID=4.8X2	8-94389-060-0	01	1	0611-
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (L) ID=10 & 4.76X3	8-97168-819-0	04	1	0412-0511
18	CLIP; BRK PIPE 4JH1-TC ENG(RDM) (L) ID=10 & 4.76X3	8-97168-819-0	04	1	0512-0610
18	CLIP; BRK PIPE (L) ID=10 & 4.76X3	8-97168-819-0	04	1	0611-
18	CLIP; BRK PIPE 4JH1 ENG(RJX) (M) ID=10 & 4.76X3	8-97326-158-1	10	1	0412-0511
18	CLIP; BRK PIPE 4JH1-TC ENG(RDM) (M) ID=10 & 4.76X3	8-97326-158-1	10	1	0512-0610
18	CLIP; BRK PIPE (M) ID=10 & 4.76X3	8-97326-158-1	03	1	0611-
