Isuzu WW
▶
TRUCKS
▶
NHR
▶
50760 - NHR/NKR TAIWAN
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶

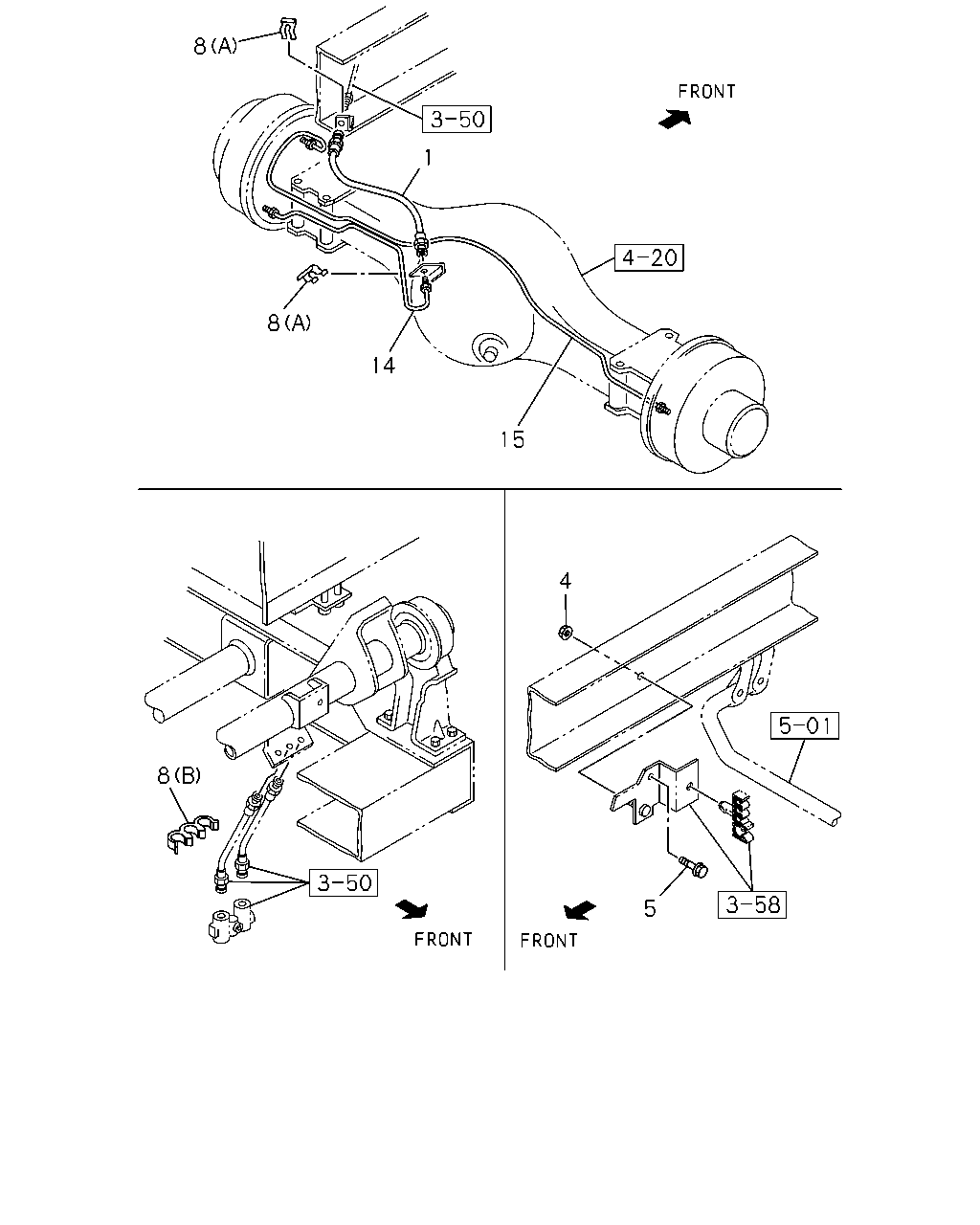

3-55 — BRAKE PIPING; OIL,REAR
(#139080) — 22 parça
8
3
50
1
4
20
8
14
15
4
5
8
3
50
3
58
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=370
8-97035-574-0
01
1
9701-0411
1
HOSE; FLEX,RR BRK
L=370
8-97035-574-0
01
1
0412-
4
NUT; BRKT,FLEX HOSE,RR BRK
4JH1 ENG(RJX) M6 FLANGE
0-91150-106-0
01
1
0412-0511
4
NUT; BRKT,FLEX HOSE,RR BRK
4JH1-TC ENG(RDM) M6 FLANGE
0-91150-106-0
01
1
0512-0602
4
NUT; BRKT,FLEX HOSE,RR BRK
4JH1-TC ENG(RDM) M6 FLANGE
0-91180-106-0
01
1
0603-0610
4
NUT; BRKT,FLEX HOSE,RR BRK
M6 FLANGE
0-91180-106-0
03
1
0611-
5
BOLT; BRKT,FLEX HOSE,RR BRK
4JH1 ENG(RJX) M6X25 FLANGE
0-28680-625-0
01
1
0412-0511
5
BOLT; BRKT,FLEX HOSE,RR BRK
4JH1-TC ENG(RDM) M6X25 FLANGE
0-28680-625-0
01
1
0512-0512
5
BOLT; BRKT,FLEX HOSE,RR BRK
4JH1-TC ENG(RDM) M6X25 FLANGE
0-28650-625-0
01
1
0601-0610
5
BOLT; BRKT,FLEX HOSE,RR BRK
M6X25 FLANGE
0-28650-625-0
01
1
0611-
8
CLIP; RR BRK
(A)
8-94137-662-0
02
1
9701-0411
8
CLIP; RR BRK
(A)
8-94137-662-0
02
1
0412-0610
8
CLIP; RR BRK
(A)
8-97360-054-0
02
1
0611-
8
CLIP; RR BRK
(B)
8-97076-471-0
01
1
9701-0411
8
CLIP; RR BRK
(B)
8-97076-471-0
01
1
0412-
14
PIPE; BRK,FLEX HOSE TO WHEEL CYL
TAI
8-97965-135-1
01
1
9701-0207
14
PIPE; BRK,FLEX HOSE TO WHEEL CYL
TAI
8-97967-319-0
01
1
0208-
14
PIPE; BRK,FLEX HOSE TO WHEEL CYL
TAI
8-97070-590-0
01
1
0412-
15
PIPE; BRK,WHEEL CYL TO WHEEL CYL
TAI
8-97965-133-2
01
1
9701-0207
15
PIPE; BRK,WHEEL CYL TO WHEEL CYL
TAI
8-97967-315-0
01
1
0208-
15
PIPE; BRK,WHEEL CYL TO WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) TAI
8-97034-530-0
01
1
0412-
15
PIPE; BRK,WHEEL CYL TO WHEEL CYL
G.V.W. 5.0-5.5TON(RPT) TAI
8-97070-591-0
01
1
0412-
