3-52 — BRAKE PIPING; OIL,FRONT (#139079) — 123 parça

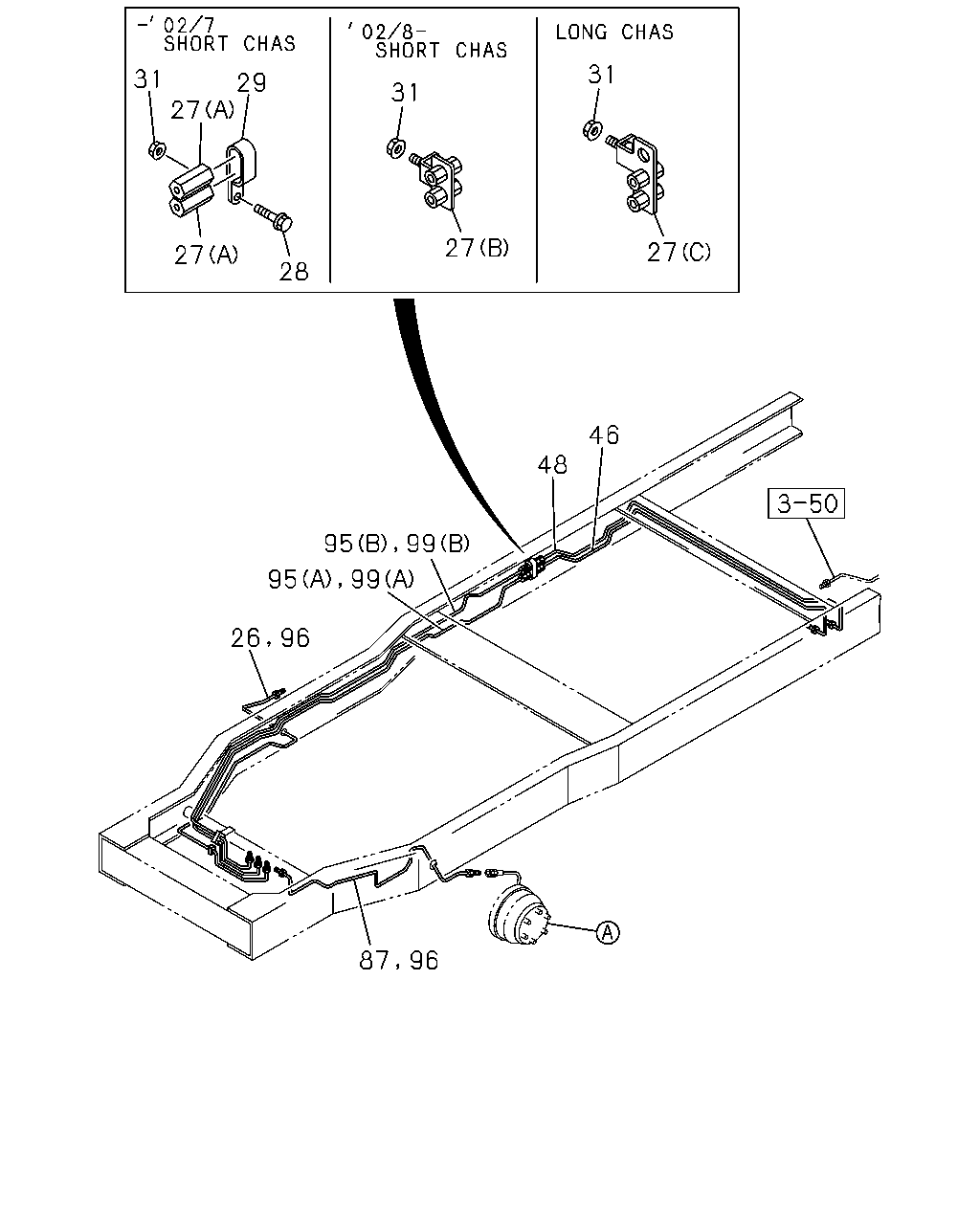

31 31 29 31 27 27 27 27 28 46 48 3 50 95 99 2696 8796

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	PIPE; BRK,JOINT TO 2 WAY TAI	8-97965-134-0	01	1	9701-9905
26	PIPE; BRK,JOINT TO 2 WAY TAI	8-97966-897-0	01	1	9906-0207
27	UNION; BRK PIPE (A) M10 STRAIGHT	9-09227-005-0	02	1	9701-0207
27	UNION; BRK PIPE 4JH1 ENG(RJX) (B)	8-97259-369-0	01	1	0208-0511
27	UNION; BRK PIPE 4JH1-TC ENG(RDM) (B)	8-97259-369-0	01	1	0512-0610
27	UNION; BRK PIPE 4JH1 ENG(RJX) (C)	8-97259-943-0	01	1	0412-0511
27	UNION; BRK PIPE 4JH1-TC ENG(RDM) (C)	8-97259-943-0	01	1	0512-0610
27	UNION; BRK PIPE (C)	8-97259-943-1	01	1	0611-
28	BOLT; UNION CLIP M6X25 FLANGE	0-28680-625-0	01	1	9701-0207
29	CLIP; UNION ID=16X2 L=20	9-09535-533-0	01	1	9701-0207
31	NUT; UNION CLIP M6 FLANGE	0-91150-106-0	01	1	9701-0207
31	NUT; UNION CLIP 4JH1 ENG(RJX) M8 FLANGE	0-91150-108-0	01	1	0208-0511
31	NUT; UNION CLIP 4JH1-TC ENG(RDM) M8 FLANGE	0-91150-108-0	01	1	0512-0602
31	NUT; UNION CLIP 4JH1-TC ENG(RDM) M8 FLANGE	0-91180-108-0	01	1	0603-0610
31	NUT; UNION CLIP 4JH1 ENG(RJX) M6 FLANGE	0-91150-106-0	01	1	0412-0511
31	NUT; UNION CLIP 4JH1-TC ENG(RDM) M6 FLANGE	0-91150-106-0	01	1	0512-0602
31	NUT; UNION CLIP 4JH1-TC ENG(RDM) M6 FLANGE	0-91180-106-0	01	1	0603-0610
31	NUT; UNION CLIP M6 FLANGE	0-91180-106-0	01	1	0611-
46	PIPE; BRK,JOINT TO VLV FRONT TAI	8-97965-131-0	01	1	9701-9905
46	PIPE; BRK,JOINT TO VLV FRONT TAI	8-97966-684-0	01	1	9906-0207
46	PIPE; BRK,JOINT TO VLV 4JH1 ENG(RJX) FRONT TAI	8-97967-326-0	01	1	0208-0511
46	PIPE; BRK,JOINT TO VLV 4JH1-TC ENG(RDM) FRONT TAI	8-97967-326-0	01	1	0512-0610
46	PIPE; BRK,JOINT TO VLV FRONT TAI	8-97325-937-1	01	1	0611-
46	PIPE; BRK,JOINT TO VLV 4JH1 ENG(RJX) FRONT TAI	8-97325-939-0	01	1	0412-0511
46	PIPE; BRK,JOINT TO VLV 4JH1-TC ENG(RDM) FRONT TAI	8-97325-939-0	01	1	0512-0610
46	PIPE; BRK,JOINT TO VLV FRONT TAI	8-98037-744-0	01	1	0611-
48	PIPE; BRK,BYPASS VLV TO CONN REAR TAI	8-97965-138-0	01	1	9701-9905
48	PIPE; BRK,BYPASS VLV TO CONN REAR TAI	8-97966-683-0	01	1	9906-0207
48	PIPE; BRK,BYPASS VLV TO CONN 4JH1 ENG(RJX) REAR TAI	8-97967-327-0	01	1	0208-0511
48	PIPE; BRK,BYPASS VLV TO CONN 4JH1-TC ENG(RDM) REAR TAI	8-97967-327-0	01	1	0512-0610
48	PIPE; BRK,BYPASS VLV TO CONN REAR TAI	8-97325-943-1	01	1	0611-
48	PIPE; BRK,BYPASS VLV TO CONN 4JH1 ENG(RJX) REAR TAI	8-97325-945-0	01	1	0412-0511
48	PIPE; BRK,BYPASS VLV TO CONN 4JH1-TC ENG(RDM) REAR TAI	8-97325-945-0	01	1	0512-0610
48	PIPE; BRK,BYPASS VLV TO CONN REAR TAI	8-98037-745-0	01	1	0611-
87	PIPE; BRK,5 WAY TO UNION TAI	8-97965-137-0	01	1	9701-0207
95	PIPE ASM; BRK,6 WAY 2 WAY (A) FRONT TAI	8-97965-130-0	01	1	9701-9905
95	PIPE ASM; BRK,6 WAY 2 WAY (A) FRONT TAI	8-97966-678-0	01	1	9906-0207
95	PIPE ASM; BRK,6 WAY 2 WAY (B) REAR TAI	8-97965-139-0	01	1	9701-9905
95	PIPE ASM; BRK,6 WAY 2 WAY (B) REAR TAI	8-97966-679-1	01	1	9906-0207
96	PIPE ASM; 6 WAY 4JH1 ENG(RJX) TAI	8-97967-325-0	01	1	0208-0511
96	PIPE ASM; 6 WAY 4JH1-TC ENG(RDM) TAI	8-97967-325-0	01	1	0512-0610
96	PIPE ASM; 6 WAY 4JH1 ENG(RJX) TAI	8-97967-324-0	01	1	0208-0511
96	PIPE ASM; 6 WAY 4JH1-TC ENG(RDM) TAI	8-97967-324-0	01	1	0512-0610
96	PIPE ASM; 6 WAY 4JH1 ENG(RJX) TAI	8-97325-919-1	01	1	0412-0511
96	PIPE ASM; 6 WAY 4JH1-TC ENG(RDM) TAI	8-97325-919-1	01	1	0512-0610
96	PIPE ASM; 6 WAY TAI	8-97325-919-1	01	1	0611-
96	PIPE ASM; 6 WAY 4JH1 ENG(RJX) TAI	8-97325-915-1	01	1	0412-0511
96	PIPE ASM; 6 WAY 4JH1-TC ENG(RDM) TAI	8-97325-915-1	01	1	0512-0610
96	PIPE ASM; 6 WAY TAI	8-98024-950-2	01	1	0611-
99	PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) (A) FRONT TAI	8-97967-229-0	01	1	0208-0511
99	PIPE ASM; 4/5/6 WAY 4JH1-TC ENG(RDM) (A) FRONT TAI	8-97967-229-0	01	1	0512-0610
99	PIPE ASM; 4/5/6 WAY (A) FRONT TAI	8-98025-365-0	01	1	0611-
99	PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) (B) REAR TAI	8-97967-230-0	01	1	0208-0511
99	PIPE ASM; 4/5/6 WAY 4JH1-TC ENG(RDM) (B) REAR TAI	8-97967-230-0	01	1	0512-0610
99	PIPE ASM; 4/5/6 WAY (B) REAR TAI	8-98035-303-0	01	1	0611-
99	PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) (A) FRONT TAI	8-97363-950-0	01	1	0412-0511
99	PIPE ASM; 4/5/6 WAY 4JH1-TC ENG(RDM) (A) FRONT TAI	8-97363-950-0	01	1	0512-0610
99	PIPE ASM; 4/5/6 WAY (A) FRONT TAI	8-97363-950-0	01	1	0611-
99	PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) (B) REAR TAI	8-97363-974-0	01	1	0412-0511
99	PIPE ASM; 4/5/6 WAY 4JH1-TC ENG(RDM) (B) REAR TAI	8-97363-974-0	01	1	0512-0610
99	PIPE ASM; 4/5/6 WAY (B) REAR TAI	8-97363-974-0	01	1	0611-

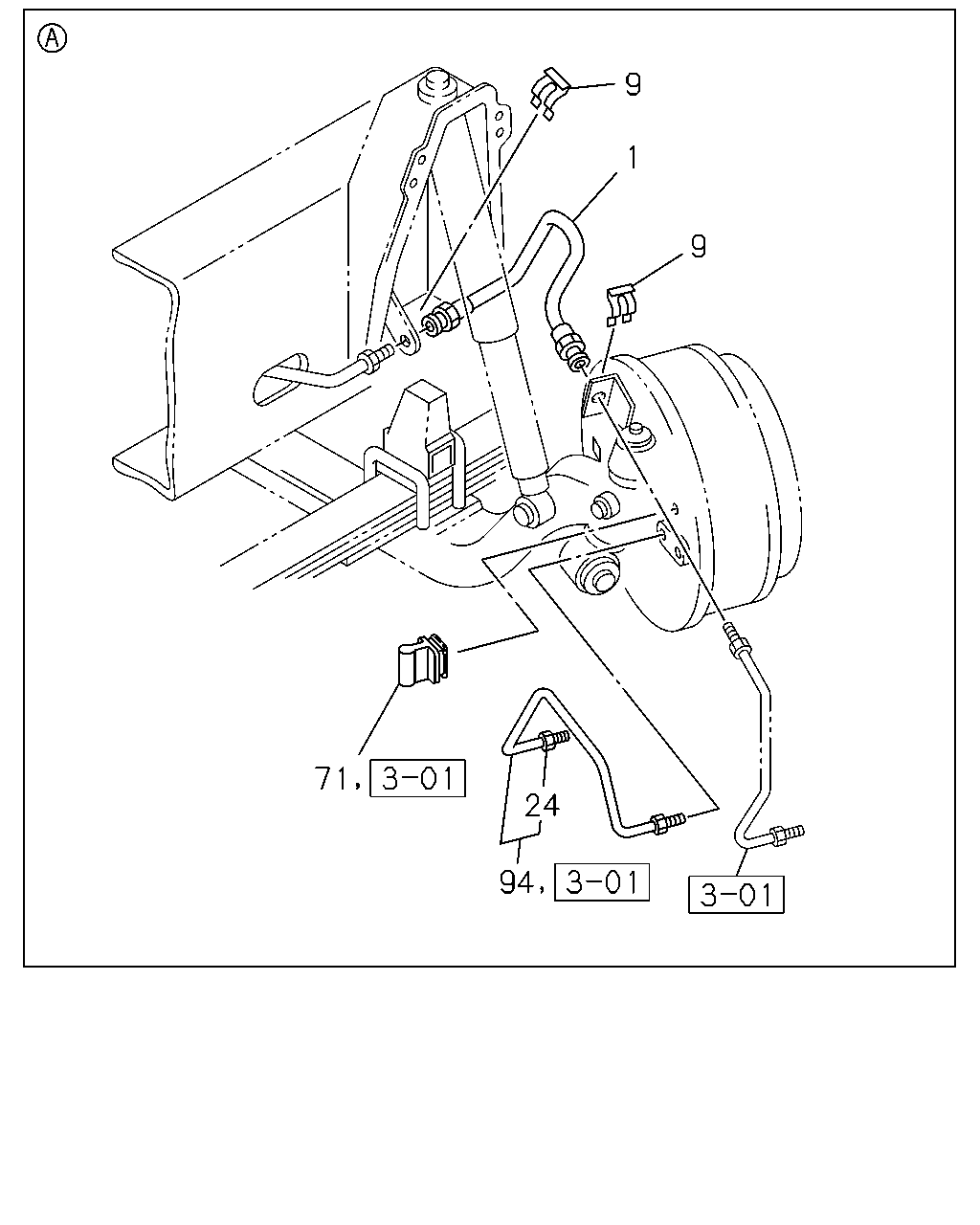

9 1 9 71 3 24 94 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,FRT BRK L=310	8-97035-063-0	02	1	9701-0411
1	HOSE; FLEX,FRT BRK L=310	8-97035-063-1	02	1	0412-
9	CLIP; FLEX HOSE,FRT BRK	8-94137-662-0	02	1	9701-0411
9	CLIP; FLEX HOSE,FRT BRK	8-94137-662-0	02	1	9701-0411
9	CLIP; FLEX HOSE,FRT BRK	8-94137-662-0	02	1	0412-0610
9	CLIP; FLEX HOSE,FRT BRK	8-94137-662-0	02	1	0412-0610
9	CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0611-
9	CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0611-
24	NUT; UNION,OIL PIPE	9-09217-625-0	04	1	9701-9809
24	NUT; UNION,OIL PIPE TAI	8-97966-861-0	04	1	9810-0411
24	NUT; UNION,OIL PIPE TAI	8-97966-861-0	02	1	0412-0610
24	NUT; UNION,OIL PIPE FRT&RR 7R-15-10 5.5FX15-115(58H)	9-09217-625-0	02	1	0412-0412
24	NUT; UNION,OIL PIPE FRT&RR 7R-15-10 15X5.5F-115(CRT)	9-09217-625-0	02	1	0501-0607
24	NUT; UNION,OIL PIPE FRT&RR 7R-15-10 15X5.5F-115(CRT)	0-92107-605-0	02	1	0608-0610
24	NUT; UNION,OIL PIPE	0-92107-605-0	02	1	0611-
24	NUT; UNION,OIL PIPE FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ)	0-92107-605-0	02	1	0611-
26	PIPE; BRK,JOINT TO 2 WAY TAI	8-97965-134-0	01	1	9701-9905
26	PIPE; BRK,JOINT TO 2 WAY TAI	8-97966-897-0	01	1	9906-0207
71	GROMMET; OIL PIPE TAI	8-97966-760-0	02	1	0412-0610
71	GROMMET; OIL PIPE TAI	9-09756-034-0	02	1	0412-0412
71	GROMMET; OIL PIPE FRT&RR 7R-16-12 16X5.5F-115(CRS),FRT&RR 7R-15-10 15X5.5F-115(CRT) TAI	9-09756-034-0	02	1	0501-0610
71	GROMMET; OIL PIPE TAI	9-09756-034-0	02	1	0611-
87	PIPE; BRK,5 WAY TO UNION TAI	8-97965-137-0	01	1	9701-0207
94	PIPE; BRK,W/C TO W/C TAI	8-97019-223-0	01	1	9701-9809
94	PIPE; BRK,W/C TO W/C TAI	8-97966-749-0	01	1	9810-0610
94	PIPE; BRK,W/C TO W/C TAI	8-97019-222-0	01	1	9701-9809
94	PIPE; BRK,W/C TO W/C TAI	8-97966-750-0	01	1	9810-0610
94	PIPE; BRK,W/C TO W/C FRT&RR 7R-15-10 5.5FX15-115(58H) TAI	8-97019-223-0	01	1	0412-0412
94	PIPE; BRK,W/C TO W/C FRT&RR 7R-15-10 15X5.5F-115(CRT) TAI	8-97019-223-0	01	1	0501-0610
94	PIPE; BRK,W/C TO W/C TAI	8-97019-223-0	01	1	0611-
94	PIPE; BRK,W/C TO W/C FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ) TAI	8-97019-223-0	01	1	0611-
94	PIPE; BRK,W/C TO W/C FRT&RR 7R-15-10 5.5FX15-115(58H) TAI	8-97019-222-0	01	1	0412-0412
94	PIPE; BRK,W/C TO W/C FRT&RR 7R-15-10 15X5.5F-115(CRT) TAI	8-97019-222-0	01	1	0501-0610
94	PIPE; BRK,W/C TO W/C TAI	8-97019-222-0	01	1	0611-
94	PIPE; BRK,W/C TO W/C FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ) TAI	8-97019-222-0	01	1	0611-
96	PIPE ASM; 6 WAY 4JH1 ENG(RJX) TAI	8-97967-325-0	01	1	0208-0511
96	PIPE ASM; 6 WAY 4JH1-TC ENG(RDM) TAI	8-97967-325-0	01	1	0512-0610
96	PIPE ASM; 6 WAY 4JH1 ENG(RJX) TAI	8-97967-324-0	01	1	0208-0511
96	PIPE ASM; 6 WAY 4JH1-TC ENG(RDM) TAI	8-97967-324-0	01	1	0512-0610
96	PIPE ASM; 6 WAY 4JH1 ENG(RJX) TAI	8-97325-919-1	01	1	0412-0511
96	PIPE ASM; 6 WAY 4JH1-TC ENG(RDM) TAI	8-97325-919-1	01	1	0512-0610
96	PIPE ASM; 6 WAY TAI	8-97325-919-1	01	1	0611-
96	PIPE ASM; 6 WAY 4JH1 ENG(RJX) TAI	8-97325-915-1	01	1	0412-0511
96	PIPE ASM; 6 WAY 4JH1-TC ENG(RDM) TAI	8-97325-915-1	01	1	0512-0610
96	PIPE ASM; 6 WAY TAI	8-98024-950-2	01	1	0611-

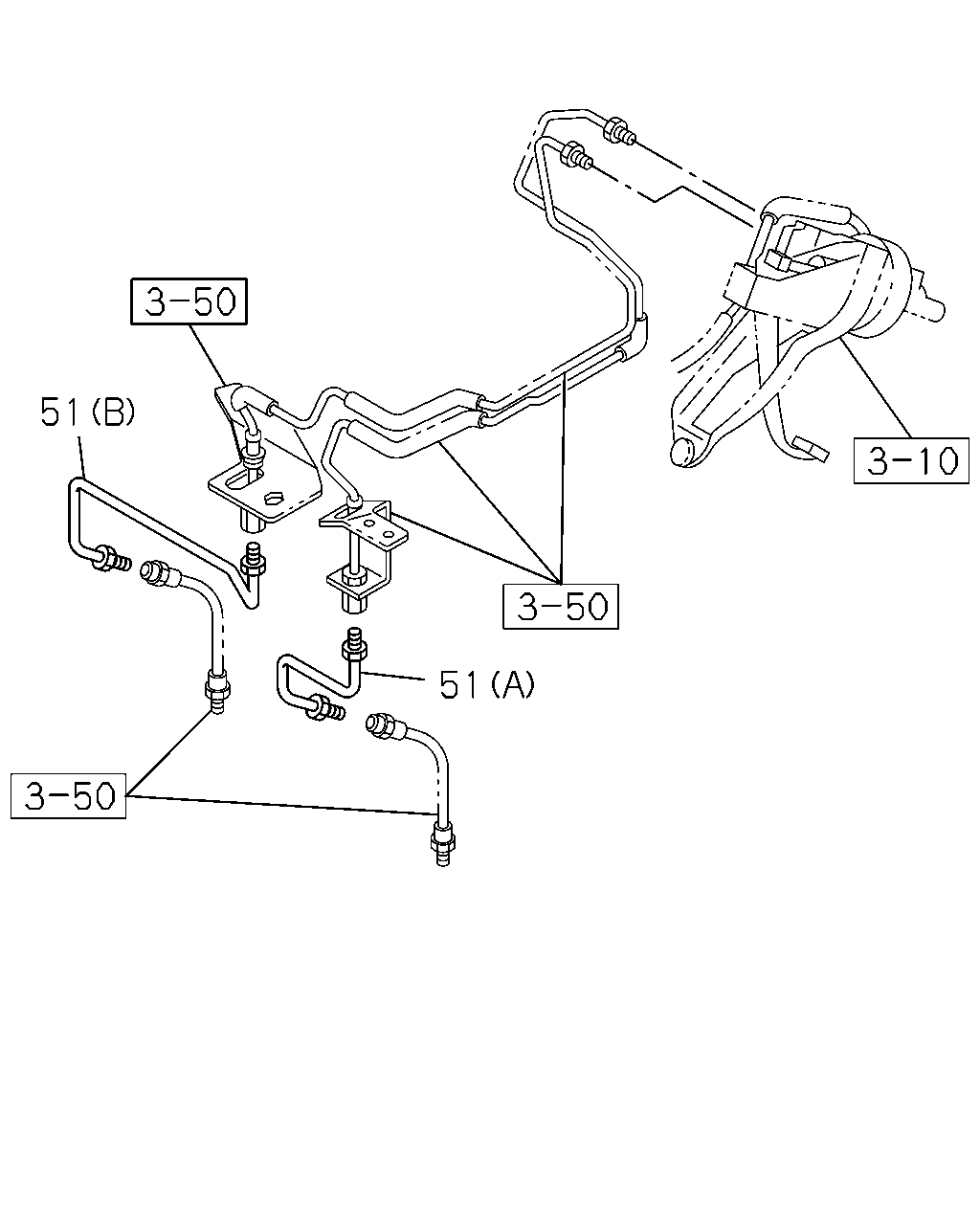

3 50 51 3 10 3 50 51 3 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	PIPE; BRK,JOINT TO 2 WAY TAI	8-97965-134-0	01	1	9701-9905
26	PIPE; BRK,JOINT TO 2 WAY TAI	8-97966-897-0	01	1	9906-0207
51	PIPE; BRK (B) TAI	8-97965-129-0	01	1	9701-0411
51	PIPE; BRK (B) TAI	8-97965-129-0	01	1	0412-
51	PIPE; BRK (A) TAI	8-97965-132-0	01	1	9701-0411
51	PIPE; BRK (A) TAI	8-97965-132-0	01	1	0412-
87	PIPE; BRK,5 WAY TO UNION TAI	8-97965-137-0	01	1	9701-0207
96	PIPE ASM; 6 WAY 4JH1 ENG(RJX) TAI	8-97967-325-0	01	1	0208-0511
96	PIPE ASM; 6 WAY 4JH1-TC ENG(RDM) TAI	8-97967-325-0	01	1	0512-0610
96	PIPE ASM; 6 WAY 4JH1 ENG(RJX) TAI	8-97967-324-0	01	1	0208-0511
96	PIPE ASM; 6 WAY 4JH1-TC ENG(RDM) TAI	8-97967-324-0	01	1	0512-0610
96	PIPE ASM; 6 WAY 4JH1 ENG(RJX) TAI	8-97325-919-1	01	1	0412-0511
96	PIPE ASM; 6 WAY 4JH1-TC ENG(RDM) TAI	8-97325-919-1	01	1	0512-0610
96	PIPE ASM; 6 WAY TAI	8-97325-919-1	01	1	0611-
96	PIPE ASM; 6 WAY 4JH1 ENG(RJX) TAI	8-97325-915-1	01	1	0412-0511
96	PIPE ASM; 6 WAY 4JH1-TC ENG(RDM) TAI	8-97325-915-1	01	1	0512-0610
96	PIPE ASM; 6 WAY TAI	8-98024-950-2	01	1	0611-
