Isuzu WW
▶
TRUCKS
▶
NHR
▶
50760 - NHR/NKR TAIWAN
▶
3 - Brakes, Brake System
▶
3-30 - BRAKE MASTER CYLINDER
▶
3-30 — BRAKE MASTER CYLINDER
(#139075) — 46 parça
◀

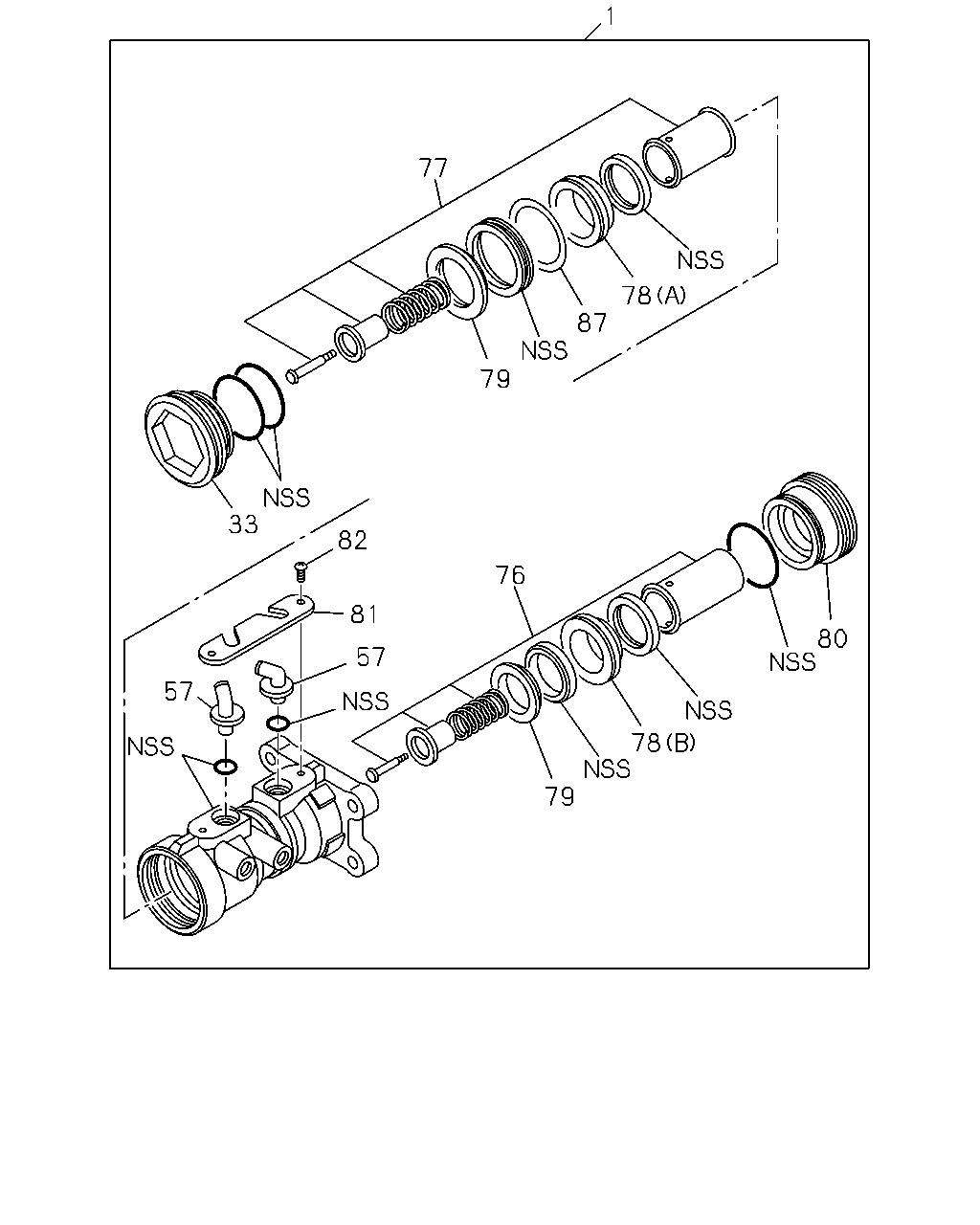

[330A] COMPONENT (43 parça)
[330A] REPAIR KIT (3 parça)
▶
1
77
78
87
79
33
82
76
81
80
57
57
78
79
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER ASM; BRK MASTER
8-97129-691-0
01
1
9701-9710
1
CYLINDER ASM; BRK MASTER
8-97186-686-0
01
1
9711-9812
1
CYLINDER ASM; BRK MASTER
8-97219-307-0
01
1
9901-9901
1
CYLINDER ASM; BRK MASTER
8-97224-374-0
01
1
9902-0207
1
CYLINDER ASM; BRK MASTER
8-97224-374-0
01
1
0208-0411
1
CYLINDER ASM; BRK MASTER
8-97224-374-0
01
1
0412-
33
PLUG; END,M/CYL
8-97130-450-0
01
1
9701-9710
33
PLUG; END,M/CYL
8-97186-696-0
01
1
9711-0207
33
PLUG; END,M/CYL
8-97186-696-0
01
1
0208-0411
33
PLUG; END,M/CYL
8-97186-696-0
01
1
0412-
57
NIPPLE; BRK M/CYL
8-97130-442-0
02
1
9701-0207
57
NIPPLE; BRK M/CYL
8-97130-442-0
02
1
0208-0411
57
NIPPLE; BRK M/CYL
8-97130-442-0
02
1
0412-
76
PISTON ASM; PRIMARY
8-97130-464-0
01
1
9701-9901
76
PISTON ASM; PRIMARY
8-97224-636-0
01
1
9902-0207
76
PISTON ASM; PRIMARY
8-97224-636-0
01
1
0208-0411
76
PISTON ASM; PRIMARY
8-97224-636-0
01
1
0412-
77
PISTON ASM; SECONDARY
8-97130-466-0
01
1
9701-9901
77
PISTON ASM; SECONDARY
8-97224-635-0
01
1
9902-0207
77
PISTON ASM; SECONDARY
8-97224-635-0
01
1
0208-0411
77
PISTON ASM; SECONDARY
8-97224-635-0
01
1
0412-
78
BUSHING; MASTER CYL
(A)
8-97130-454-0
01
1
9701-0207
78
BUSHING; MASTER CYL
(A)
8-97130-454-0
01
1
0208-0411
78
BUSHING; MASTER CYL
(A)
8-97130-454-0
01
1
0412-
78
BUSHING; MASTER CYL
(B)
8-97130-456-0
01
1
9701-9812
78
BUSHING; MASTER CYL
(B)
8-97217-310-0
01
1
9901-0207
78
BUSHING; MASTER CYL
(B)
8-97217-310-0
01
1
0208-0411
78
BUSHING; MASTER CYL
(B)
8-97217-310-0
01
1
0412-
79
SUPPORTER; CUP
8-97130-462-0
02
1
9701-0207
79
SUPPORTER; CUP
8-97130-462-0
02
1
0208-0411
79
SUPPORTER; CUP
8-97130-462-0
02
1
0412-
80
COVER; MASTER CYL
8-97130-448-0
01
1
9701-0207
80
COVER; MASTER CYL
8-97130-448-0
01
1
0208-0411
80
COVER; MASTER CYL
8-97130-448-0
01
1
0412-
81
HOLDER; NIPPLE
8-97130-445-0
01
1
9701-0207
81
HOLDER; NIPPLE
8-97130-445-0
01
1
0208-0411
81
HOLDER; NIPPLE
8-97130-445-0
01
1
0412-
82
SCREW; HOLDER
8-97130-446-0
02
1
9701-0207
82
SCREW; HOLDER
8-97130-446-0
02
1
0208-0411
82
SCREW; HOLDER
8-97130-446-0
02
1
0412-
87
SPACER; CUP
8-97130-458-0
01
1
9701-0207
87
SPACER; CUP
8-97130-458-0
01
1
0208-0411
87
SPACER; CUP
8-97130-458-0
01
1
0412-
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; BRK,M/CYL
8-97130-470-0
01
1
9701-0207
2
REPAIR KIT; BRK,M/CYL
8-97130-470-0
01
1
0208-0411
2
REPAIR KIT; BRK,M/CYL
8-97130-470-0
01
1
0412-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
