3-11 — PARKING BRAKE CONTROL (#139073) — 223 parça

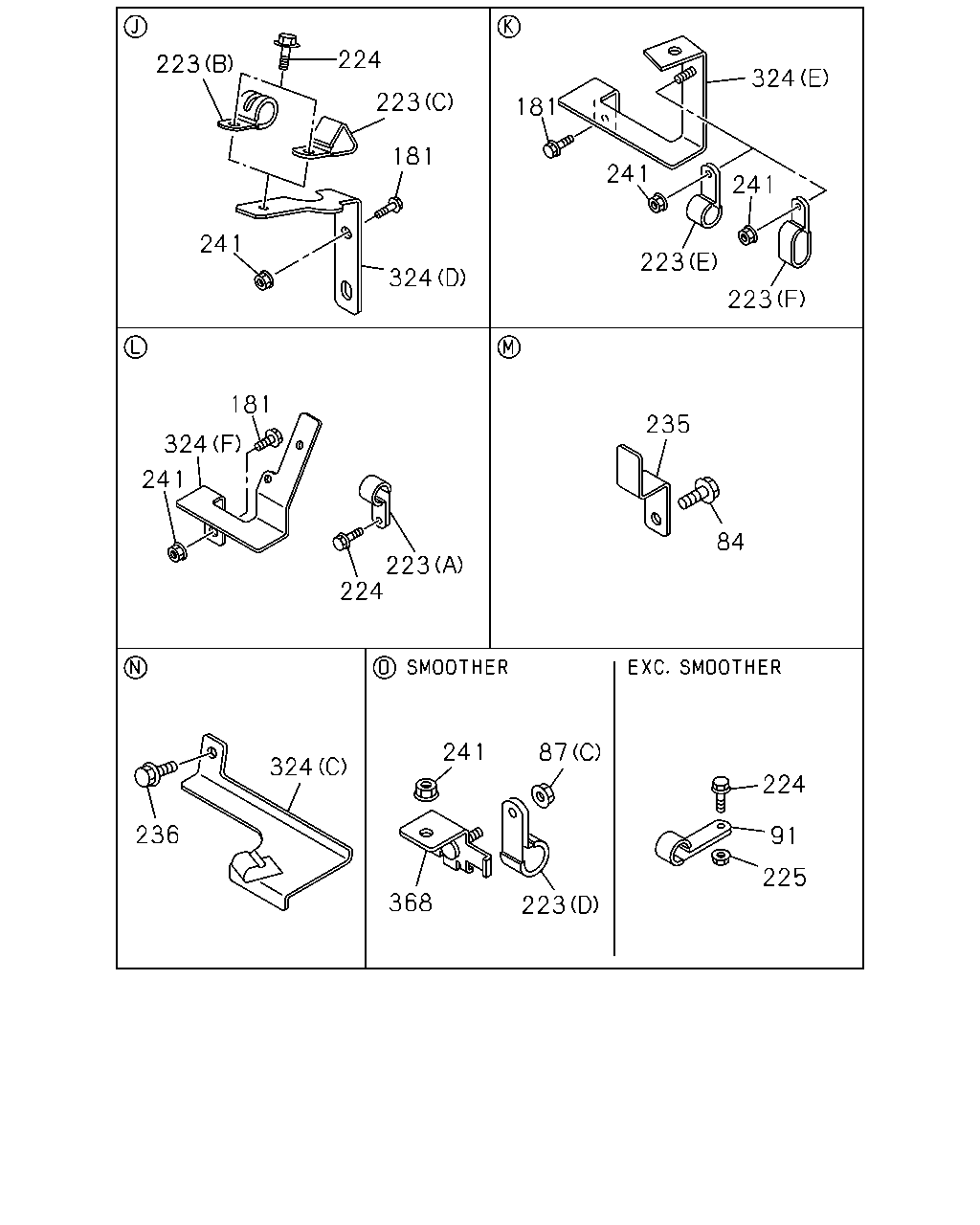

çizim 420422
224 223 324 223 181 181 241 241 241 223 324 223 181 235 324 241 84 223 224 241 87 324 224 236 91 225 368 223
BalonParca AdiParca NoAdetTipApplied Date
84 BOLT; CABLE
TRANSMISSION CONTROL-SMOOTHER<8GF> M8X16 FLANGE 		0-28050-816-0 01 1 0611-
87 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 9701-0411
87 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0412-0602
87 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
87 NUT
(B) M6 		8-97088-730-1 01 1 9701-0310
87 NUT
(B) M6 		1-71996-312-0 01 1 0311-0411
87 NUT
(B) M6 		1-71996-312-0 01 1 0412-0611
87 NUT
(B) M6 		8-98034-313-1 01 1 0612-
87 NUT
TRANSMISSION CONTROL-SMOOTHER<8GF> (C) M10 FLANGE 		0-91180-110-0 01 1 0611-
91 CLIP; PARKING BRK CABLE
ID=13 L=50 		9-09525-286-0 01 1 9701-9905
91 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC) ID=13 L=50 		9-09525-286-0 01 1 9906-0207
91 CLIP; PARKING BRK CABLE
4JH1 ENG(RJX) ID=13 L=20 		1-09701-138-1 01 1 0208-0411
91 CLIP; PARKING BRK CABLE
4JH1 ENG(RJX) ID=13 L=20 		1-09701-138-1 01 1 0412-0511
91 CLIP; PARKING BRK CABLE
4JH1-TC ENG(RDM) ID=13 L=20 		1-09701-138-1 01 1 0512-0610
91 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> ID=13 L=20 		1-09701-138-1 01 1 0611-
181 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 9701-0207
181 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 9701-0207
181 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0208-0411
181 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0412-0512
181 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601-0610
181 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0611-
181 BOLT; BRKT
M6X25 FLANGE 		0-28650-625-0 01 1 0611-
181 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 0611-0702
181 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60) M10X25 FLANGE 		0-28651-025-0 02 1 0703-
223 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) ID=16 L=28 		0-95235-552-0 01 1 0611-
223 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER<8GF> (A) ID=24 L=32 		1-09700-766-1 01 1 0611-
223 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER<8GF> (D) ID=13 L=20 		1-09701-138-1 01 1 0611-
223 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER<8GF> (E) ID=17 L=28 		8-94427-862-0 01 1 0611-
223 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (C) 		8-97036-333-1 01 1 0611-
223 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (F) 		8-97137-589-0 01 1 0611-
224 BOLT; CABLE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 9701-9905
224 BOLT; CABLE CLIP
4JG2 ENG(RJC) M8X25 FLANGE 		0-28680-825-0 01 1 9906-0207
224 BOLT; CABLE CLIP
4JH1 ENG(RJX) M10X25 FLANGE 		0-28681-025-0 01 1 0208-0411
224 BOLT; CABLE CLIP
4JH1 ENG(RJX) M10X25 FLANGE 		0-28681-025-0 01 1 0412-0511
224 BOLT; CABLE CLIP
4JH1-TC ENG(RDM) M10X25 FLANGE 		0-28681-025-0 01 1 0512-0512
224 BOLT; CABLE CLIP
4JH1-TC ENG(RDM) M10X25 FLANGE 		0-28651-025-0 01 1 0601-0610
224 BOLT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M10X25 FLANGE 		0-28651-025-0 01 1 0611-
224 BOLT; CABLE CLIP
M6X20 FLANGE 		0-28650-620-0 01 1 0611-
224 BOLT; CABLE CLIP
TRANSMISSION CONTROL-SMOOTHER<8GF> M8X25 FLANGE 		0-28650-825-0 01 1 0611-
225 NUT; CABLE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9701-9905
225 NUT; CABLE CLIP
4JG2 ENG(RJC) M8 FLANGE 		0-91150-108-0 01 1 9906-0207
225 NUT; CABLE CLIP
4JH1 ENG(RJX) M10 FLANGE 		0-91150-110-0 01 1 0208-0411
225 NUT; CABLE CLIP
4JH1 ENG(RJX) M10 FLANGE 		0-91150-110-0 01 1 0412-0511
225 NUT; CABLE CLIP
4JH1-TC ENG(RDM) M10 FLANGE 		0-91150-110-0 01 1 0512-0602
225 NUT; CABLE CLIP
4JH1-TC ENG(RDM) M10 FLANGE 		0-91180-110-0 01 1 0603-0610
225 NUT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M10 FLANGE 		0-91180-110-0 01 1 0611-
235 BRACKET; CONT CABLE TO FRAME
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98037-097-0 01 1 0611-
236 BOLT; BRKT TO FRAME
4JH1 ENG(RJX) M8X25 FLANGE 		0-28680-825-0 02 1 0208-0411
236 BOLT; BRKT TO FRAME
4JH1 ENG(RJX) M8X25 FLANGE 		0-28680-825-0 02 1 0412-0511
236 BOLT; BRKT TO FRAME
4JH1-TC ENG(RDM) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512
236 BOLT; BRKT TO FRAME
4JH1-TC ENG(RDM) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0610
236 BOLT; BRKT TO FRAME
M8X25 FLANGE 		0-28650-825-0 01 1 0611-
241 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0611-
241 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9701-0411
241 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0412-0602
241 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-0610
241 NUT; BRKT
M10 FLANGE 		0-91180-110-0 02 1 0611-0702
241 NUT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60) M10 FLANGE 		0-91180-110-0 02 1 0703-
241 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0611-
241 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE 		0-91180-108-0 02 1 0611-
324 BRACKET
EXC. AIR CONDITIONER MANUAL CONT(C60) (D) TAI 		8-97966-910-0 01 1 0611-
324 BRACKET
(A) TAI 		8-97965-502-0 01 1 9701-0411
324 BRACKET
(A) TAI 		8-97965-502-0 01 1 0412-
324 BRACKET
4JH1 ENG(RJX) (B) TAI 		8-97289-364-0 01 1 0208-0411
324 BRACKET
4JH1 ENG(RJX) (B) TAI 		8-97289-364-0 01 1 0412-0511
324 BRACKET
4JH1-TC ENG(RDM) (B) TAI 		8-97289-364-0 01 1 0512-0610
324 BRACKET
(C) TAI 		8-98019-522-1 01 1 0611-
324 BRACKET
(E) 		8-98001-270-0 01 1 0611-
324 BRACKET
(F) 		8-98001-271-1 01 1 0611-
368 BRACKET; T/M SIDE
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97372-863-1 01 1 0611-

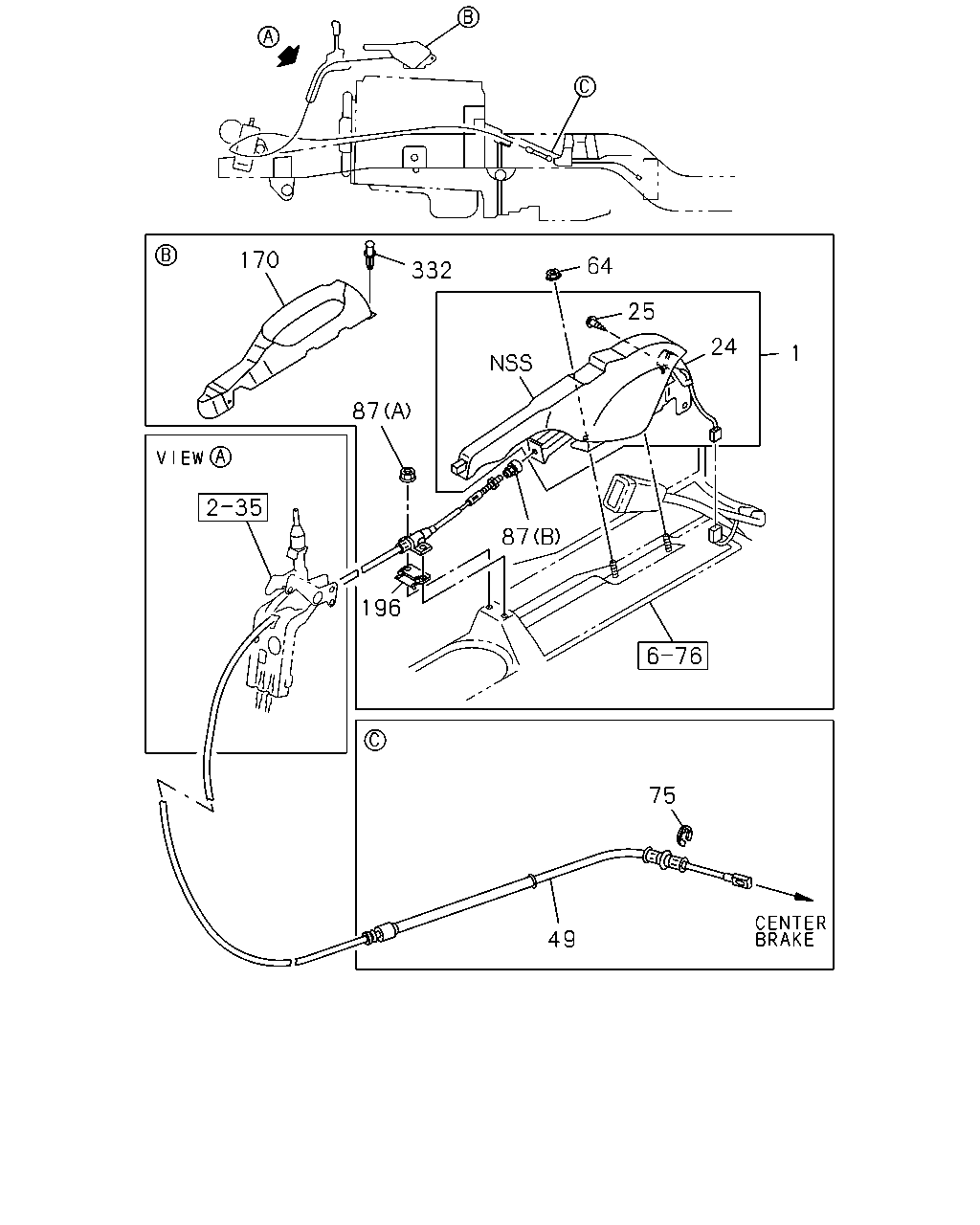

çizim 420480
170 64 332 25 24 1 87 2 35 87 196 6 76 75 49
BalonParca AdiParca NoAdetTipApplied Date
1 STEM ASM; PARKING BRK
DARK BEIGE 		8-97856-338-5 01 1 9701-9710
1 STEM ASM; PARKING BRK
DARK BEIGE 		8-97890-437-0 01 1 9711-9905
1 STEM ASM; PARKING BRK
DARK GRAY 		8-97890-439-1 01 1 9906-0108
1 STEM ASM; PARKING BRK
DARK GRAY 		8-97995-930-0 01 1 0109-0110
1 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-543-1 01 1 0111-0207
1 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-543-2 01 1 0208-0411
1 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-543-2 01 1 0412-0511
1 STEM ASM; PARKING BRK
GRAY 		8-97585-445-2 01 1 0512-0610
1 STEM ASM; PARKING BRK
GRAY 		8-97409-385-0 01 1 0611-
24 SWITCH ASM; PARK BRK 8-97857-198-1 01 1 9701-9710
24 SWITCH ASM; PARK BRK 8-97890-859-0 01 1 9711-9905
24 SWITCH ASM; PARK BRK 8-97890-859-0 01 1 9906-0108
24 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0109-0207
24 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0208-0411
24 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0412-
25 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0111-
49 CABLE; PARKING BRK
TAI 		8-97965-372-0 01 1 9701-9905
49 CABLE; PARKING BRK
4JG2 ENG(RJC) TAI 		8-97965-372-0 01 1 9906-0207
49 CABLE; PARKING BRK
4JH1 ENG(RJX) TAI 		8-97967-302-2 01 1 0208-0411
49 CABLE; PARKING BRK
4JH1 ENG(RJX) TAI 		8-97967-302-2 01 1 0412-0511
49 CABLE; PARKING BRK
4JH1-TC ENG(RDM) TAI 		8-97967-302-2 01 1 0512-0610
49 CABLE; PARKING BRK
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-98001-029-1 01 1 0611-0703
49 CABLE; PARKING BRK
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-592-0 01 1 0704-
49 CABLE; PARKING BRK
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98001-030-1 01 1 0611-0703
49 CABLE; PARKING BRK
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98079-025-0 01 1 0704-
64 NUT; PARKING BRK
M8 W/LK WASHER 		8-94327-073-0 02 1 9701-0411
64 NUT; PARKING BRK
M8 W/LK WASHER 		8-94327-073-0 02 1 0412-0610
64 NUT; PARKING BRK
M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 0611-
75 RING; SNAP,HAND BRK CABLE
ID=12 		9-09185-412-0 01 1 9701-0411
75 RING; SNAP,HAND BRK CABLE
ID=12 		9-09185-412-0 01 1 0412-0604
75 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 0605-
87 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 9701-0411
87 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0412-0602
87 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
87 NUT
(B) M6 		8-97088-730-1 01 1 9701-0310
87 NUT
(B) M6 		1-71996-312-0 01 1 0311-0411
87 NUT
(B) M6 		1-71996-312-0 01 1 0412-0611
87 NUT
(B) M6 		8-98034-313-1 01 1 0612-
87 NUT
TRANSMISSION CONTROL-SMOOTHER<8GF> (C) M10 FLANGE 		0-91180-110-0 01 1 0611-
170 COVER; PARKING BRK LEVER 8-97097-012-0 01 1 9701-9905
170 COVER; PARKING BRK LEVER
TAI 		8-97966-974-0 01 1 9906-0207
170 COVER; PARKING BRK LEVER
TAI 		8-97966-974-0 01 1 0208-0411
170 COVER; PARKING BRK LEVER
TAI 		8-97966-974-0 01 1 0412-0511
170 COVER; PARKING BRK LEVER
TAI 		8-97967-471-0 01 1 0512-
196 SPACER; CABLE TO LEVER 8-97095-464-2 01 1 9701-0411
196 SPACER; CABLE TO LEVER 8-97095-464-2 01 1 0412-
332 CLIP; COVER
D6X12.5 		8-94146-425-0 01 1 9701-0411
332 CLIP; COVER
D6X12.5 		8-94146-425-0 01 1 0412-

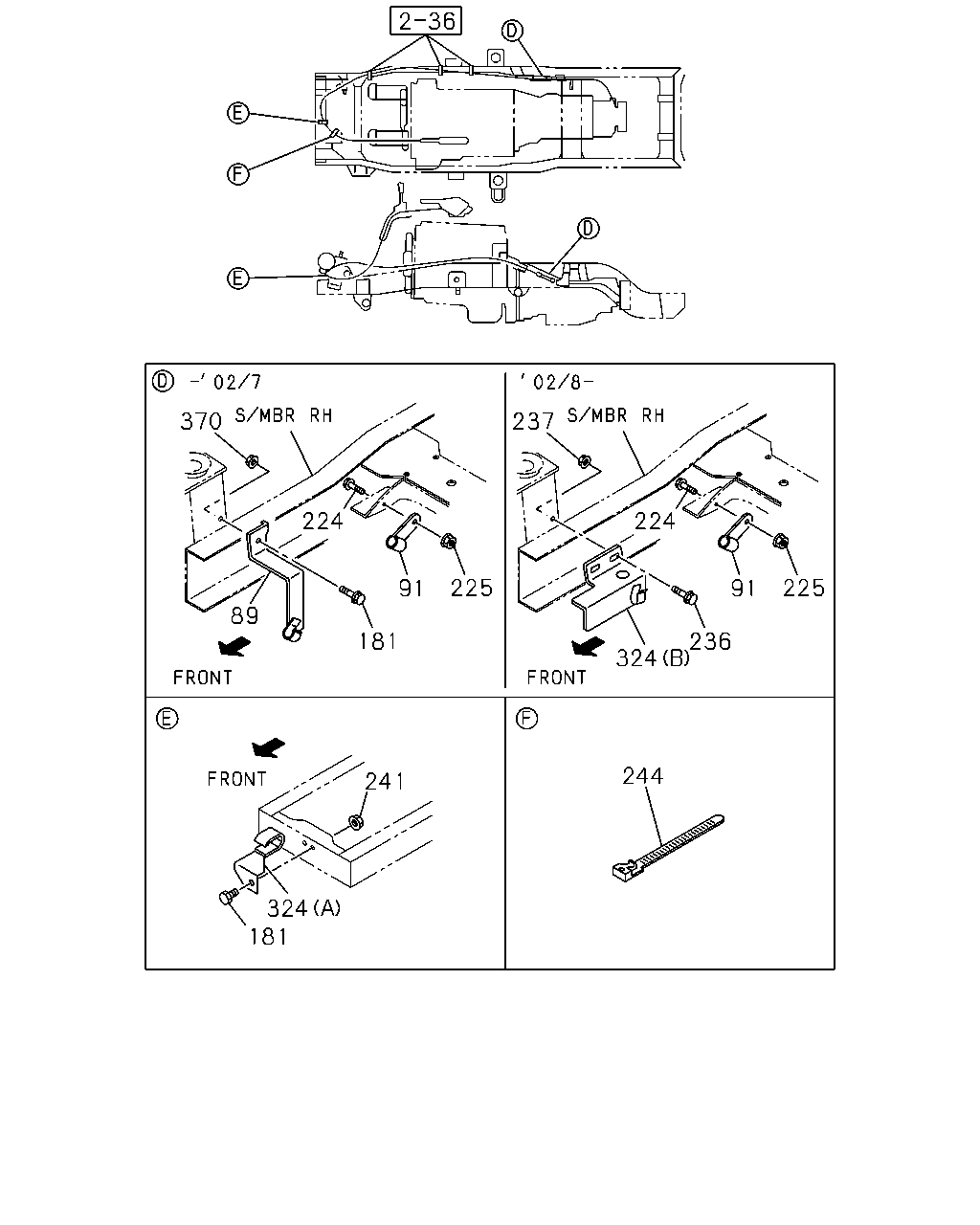

çizim 420481
2 36 370 237 224 224 225 225 91 91 89 181 236 324 244 241 324 181
BalonParca AdiParca NoAdetTipApplied Date
89 BRACKET; CLIP 8-97113-984-1 01 1 9701-9905
89 BRACKET; CLIP
4JG2 ENG(RJC) 		8-97113-984-1 01 1 9906-0207
91 CLIP; PARKING BRK CABLE
ID=13 L=50 		9-09525-286-0 01 1 9701-9905
91 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC) ID=13 L=50 		9-09525-286-0 01 1 9906-0207
91 CLIP; PARKING BRK CABLE
4JH1 ENG(RJX) ID=13 L=20 		1-09701-138-1 01 1 0208-0411
91 CLIP; PARKING BRK CABLE
4JH1 ENG(RJX) ID=13 L=20 		1-09701-138-1 01 1 0412-0511
91 CLIP; PARKING BRK CABLE
4JH1-TC ENG(RDM) ID=13 L=20 		1-09701-138-1 01 1 0512-0610
91 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> ID=13 L=20 		1-09701-138-1 01 1 0611-
181 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 9701-0207
181 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 9701-0207
181 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0208-0411
181 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0412-0512
181 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601-0610
181 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0611-
181 BOLT; BRKT
M6X25 FLANGE 		0-28650-625-0 01 1 0611-
181 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 0611-0702
181 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60) M10X25 FLANGE 		0-28651-025-0 02 1 0703-
224 BOLT; CABLE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 9701-9905
224 BOLT; CABLE CLIP
4JG2 ENG(RJC) M8X25 FLANGE 		0-28680-825-0 01 1 9906-0207
224 BOLT; CABLE CLIP
4JH1 ENG(RJX) M10X25 FLANGE 		0-28681-025-0 01 1 0208-0411
224 BOLT; CABLE CLIP
4JH1 ENG(RJX) M10X25 FLANGE 		0-28681-025-0 01 1 0412-0511
224 BOLT; CABLE CLIP
4JH1-TC ENG(RDM) M10X25 FLANGE 		0-28681-025-0 01 1 0512-0512
224 BOLT; CABLE CLIP
4JH1-TC ENG(RDM) M10X25 FLANGE 		0-28651-025-0 01 1 0601-0610
224 BOLT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M10X25 FLANGE 		0-28651-025-0 01 1 0611-
224 BOLT; CABLE CLIP
M6X20 FLANGE 		0-28650-620-0 01 1 0611-
224 BOLT; CABLE CLIP
TRANSMISSION CONTROL-SMOOTHER<8GF> M8X25 FLANGE 		0-28650-825-0 01 1 0611-
225 NUT; CABLE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9701-9905
225 NUT; CABLE CLIP
4JG2 ENG(RJC) M8 FLANGE 		0-91150-108-0 01 1 9906-0207
225 NUT; CABLE CLIP
4JH1 ENG(RJX) M10 FLANGE 		0-91150-110-0 01 1 0208-0411
225 NUT; CABLE CLIP
4JH1 ENG(RJX) M10 FLANGE 		0-91150-110-0 01 1 0412-0511
225 NUT; CABLE CLIP
4JH1-TC ENG(RDM) M10 FLANGE 		0-91150-110-0 01 1 0512-0602
225 NUT; CABLE CLIP
4JH1-TC ENG(RDM) M10 FLANGE 		0-91180-110-0 01 1 0603-0610
225 NUT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M10 FLANGE 		0-91180-110-0 01 1 0611-
236 BOLT; BRKT TO FRAME
4JH1 ENG(RJX) M8X25 FLANGE 		0-28680-825-0 02 1 0208-0411
236 BOLT; BRKT TO FRAME
4JH1 ENG(RJX) M8X25 FLANGE 		0-28680-825-0 02 1 0412-0511
236 BOLT; BRKT TO FRAME
4JH1-TC ENG(RDM) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512
236 BOLT; BRKT TO FRAME
4JH1-TC ENG(RDM) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0610
236 BOLT; BRKT TO FRAME
M8X25 FLANGE 		0-28650-825-0 01 1 0611-
237 NUT; BRKT TO FRAME
4JH1 ENG(RJX) M8 FLANGE 		0-91150-108-0 02 1 0208-0411
237 NUT; BRKT TO FRAME
4JH1 ENG(RJX) M8 FLANGE 		0-91150-108-0 02 1 0412-0511
237 NUT; BRKT TO FRAME
4JH1-TC ENG(RDM) M8 FLANGE 		0-91150-108-0 02 1 0512-0602
237 NUT; BRKT TO FRAME
4JH1-TC ENG(RDM) M8 FLANGE 		0-91180-108-0 02 1 0603-0610
241 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0611-
241 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9701-0411
241 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0412-0602
241 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-0610
241 NUT; BRKT
M10 FLANGE 		0-91180-110-0 02 1 0611-0702
241 NUT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60) M10 FLANGE 		0-91180-110-0 02 1 0703-
241 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0611-
241 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE 		0-91180-108-0 02 1 0611-
244 CLIP; BAND
L=140 		5-09707-031-1 01 1 9701-0411
244 CLIP; BAND
L=140 		5-09707-031-1 01 1 0412-
324 BRACKET
EXC. AIR CONDITIONER MANUAL CONT(C60) (D) TAI 		8-97966-910-0 01 1 0611-
324 BRACKET
(A) TAI 		8-97965-502-0 01 1 9701-0411
324 BRACKET
(A) TAI 		8-97965-502-0 01 1 0412-
324 BRACKET
4JH1 ENG(RJX) (B) TAI 		8-97289-364-0 01 1 0208-0411
324 BRACKET
4JH1 ENG(RJX) (B) TAI 		8-97289-364-0 01 1 0412-0511
324 BRACKET
4JH1-TC ENG(RDM) (B) TAI 		8-97289-364-0 01 1 0512-0610
324 BRACKET
(C) TAI 		8-98019-522-1 01 1 0611-
324 BRACKET
(E) 		8-98001-270-0 01 1 0611-
324 BRACKET
(F) 		8-98001-271-1 01 1 0611-
370 NUT; BRKT TO C/MTG
4JG2 ENG(RJC) M8 FLANGE 		0-91150-108-0 01 1 9701-0207

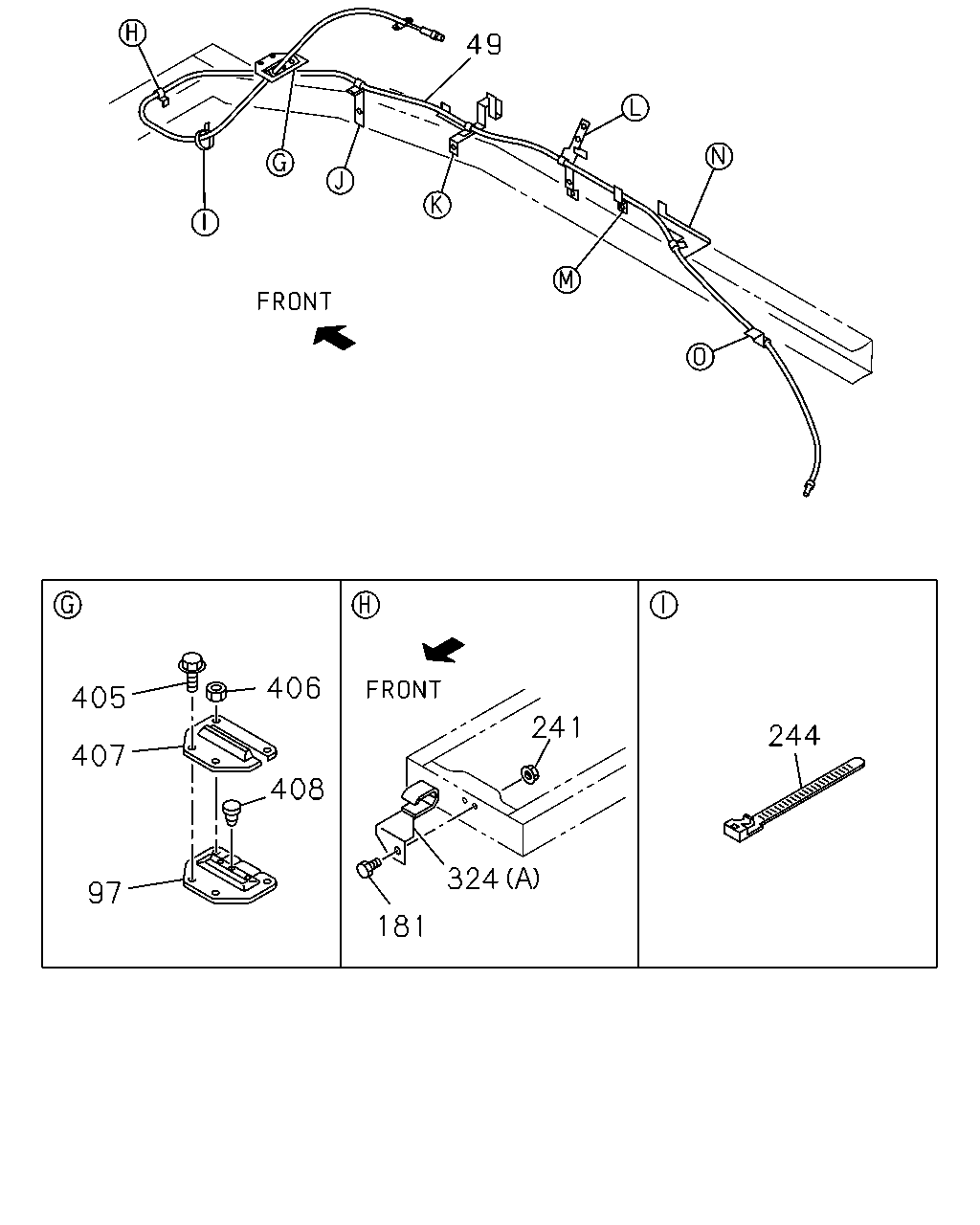

çizim 420501
49 406 405 241 244 407 408 324 97 181
BalonParca AdiParca NoAdetTipApplied Date
49 CABLE; PARKING BRK
TAI 		8-97965-372-0 01 1 9701-9905
49 CABLE; PARKING BRK
4JG2 ENG(RJC) TAI 		8-97965-372-0 01 1 9906-0207
49 CABLE; PARKING BRK
4JH1 ENG(RJX) TAI 		8-97967-302-2 01 1 0208-0411
49 CABLE; PARKING BRK
4JH1 ENG(RJX) TAI 		8-97967-302-2 01 1 0412-0511
49 CABLE; PARKING BRK
4JH1-TC ENG(RDM) TAI 		8-97967-302-2 01 1 0512-0610
49 CABLE; PARKING BRK
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-98001-029-1 01 1 0611-0703
49 CABLE; PARKING BRK
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-592-0 01 1 0704-
49 CABLE; PARKING BRK
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98001-030-1 01 1 0611-0703
49 CABLE; PARKING BRK
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98079-025-0 01 1 0704-
97 GROMMET; PARKING BRK CABLE 8-97089-851-0 01 1 0611-
181 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 9701-0207
181 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 9701-0207
181 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0208-0411
181 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0412-0512
181 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601-0610
181 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0611-
181 BOLT; BRKT
M6X25 FLANGE 		0-28650-625-0 01 1 0611-
181 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 0611-0702
181 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60) M10X25 FLANGE 		0-28651-025-0 02 1 0703-
241 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0611-
241 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9701-0411
241 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0412-0602
241 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-0610
241 NUT; BRKT
M10 FLANGE 		0-91180-110-0 02 1 0611-0702
241 NUT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60) M10 FLANGE 		0-91180-110-0 02 1 0703-
241 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0611-
241 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE 		0-91180-108-0 02 1 0611-
244 CLIP; BAND
L=140 		5-09707-031-1 01 1 9701-0411
244 CLIP; BAND
L=140 		5-09707-031-1 01 1 0412-
324 BRACKET
EXC. AIR CONDITIONER MANUAL CONT(C60) (D) TAI 		8-97966-910-0 01 1 0611-
324 BRACKET
(A) TAI 		8-97965-502-0 01 1 9701-0411
324 BRACKET
(A) TAI 		8-97965-502-0 01 1 0412-
324 BRACKET
4JH1 ENG(RJX) (B) TAI 		8-97289-364-0 01 1 0208-0411
324 BRACKET
4JH1 ENG(RJX) (B) TAI 		8-97289-364-0 01 1 0412-0511
324 BRACKET
4JH1-TC ENG(RDM) (B) TAI 		8-97289-364-0 01 1 0512-0610
324 BRACKET
(C) TAI 		8-98019-522-1 01 1 0611-
324 BRACKET
(E) 		8-98001-270-0 01 1 0611-
324 BRACKET
(F) 		8-98001-271-1 01 1 0611-
405 BOLT; GROMMET
M6X20 FLANGE 		0-28450-620-0 02 1 0611-
406 NUT; GROMMET
M6 FLANGE 		0-91180-206-0 02 1 0611-0711
406 NUT; GROMMET
M6 FLANGE 		0-91180-106-0 02 1 0712-
407 RETAINER; GROMMET
TAI 		8-97966-964-0 01 1 0611-
408 CAP; GROMMET
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97371-108-0 02 1 0611-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
