Sayfa 3-08 - Isuzu EPC

3-08 — PARKING BRAKE (#139071) — 233 parça

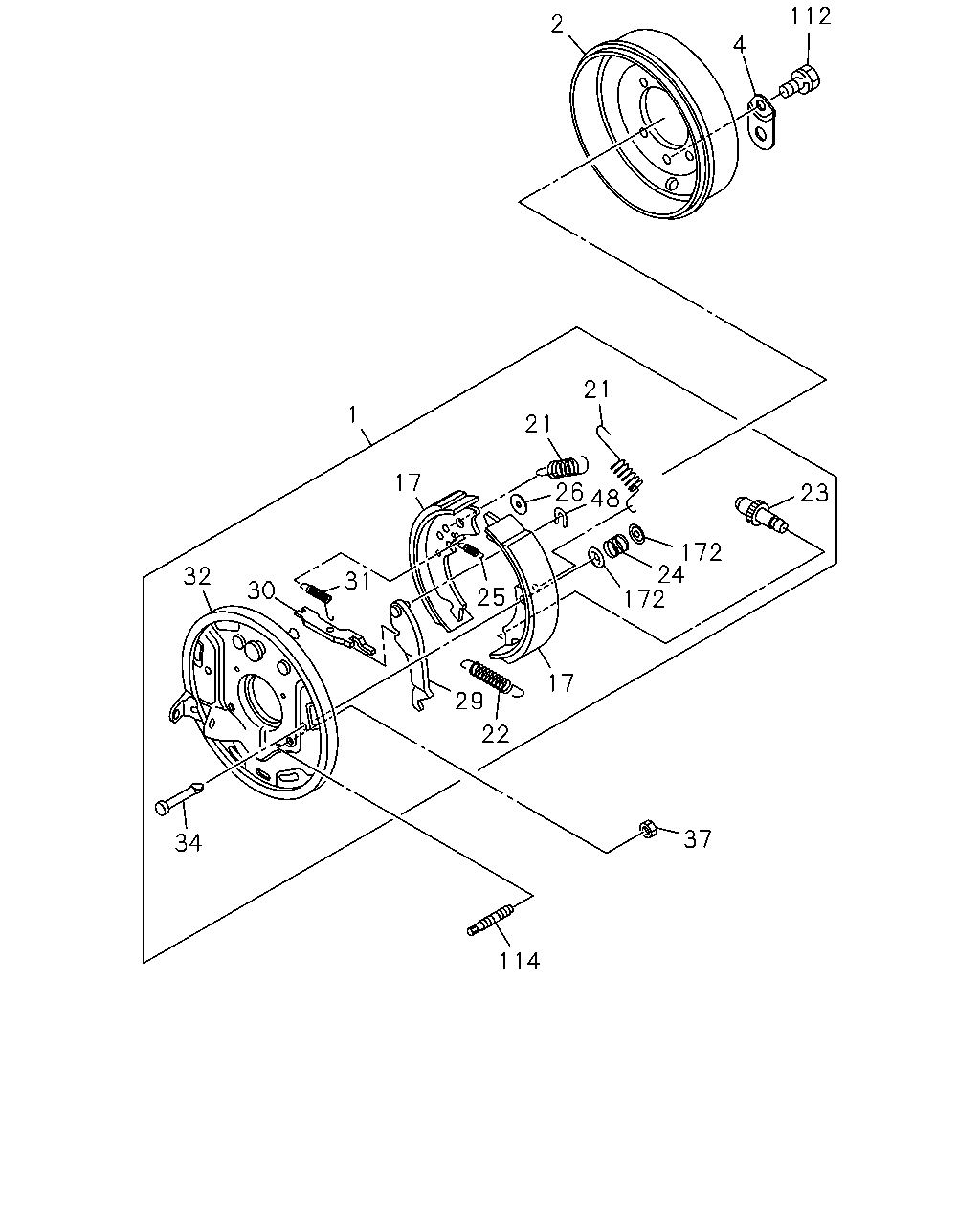

112 2 4 21 1 21 17 26 48 23 172 24 172 31 32 30 25 17 29 22 37 34 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRAKE ASM; CENTER,PARKING	8-97034-553-2	01	1	9701-9905
1	BRAKE ASM; CENTER,PARKING 4JG2 ENG(RJC)	8-97034-553-2	01	1	9906-0207
1	BRAKE ASM; CENTER,PARKING 4JH1 ENG(RJX)	8-97308-175-0	01	1	0208-0411
1	BRAKE ASM; CENTER,PARKING 4JH1 ENG(RJX)	8-97308-175-0	01	1	0412-0511
1	BRAKE ASM; CENTER,PARKING 4JH1-TC ENG(RDM)	8-97308-175-0	01	1	0512-0610
1	BRAKE ASM; CENTER,PARKING 4JJ1 ENG(LFB)	8-97308-175-0	01	1	0611-0611
1	BRAKE ASM; CENTER,PARKING 4JJ1 ENG(LFB)	8-98029-922-0	01	1	0612-
2	DRUM; PARKING BRK TAI	8-97965-316-0	01	1	9701-9905
2	DRUM; PARKING BRK 4JG2 ENG(RJC) TAI	8-97965-316-0	01	1	9906-0207
2	DRUM; PARKING BRK 4JH1 ENG(RJX) TAI	8-97967-303-0	01	1	0208-0411
2	DRUM; PARKING BRK 4JH1 ENG(RJX) TAI	8-97967-303-0	01	1	0412-0511
2	DRUM; PARKING BRK 4JH1-TC ENG(RDM) TAI	8-97967-303-0	01	1	0512-0610
2	DRUM; PARKING BRK 4JJ1 ENG(LFB) TAI	8-97967-303-0	01	1	0611-
4	COVER; ADJ HOLE	5-42319-003-0	01	1	9701-9905
4	COVER; ADJ HOLE 4JG2 ENG(RJC)	5-42319-003-0	01	1	9906-0207
4	COVER; ADJ HOLE 4JH1 ENG(RJX)	5-46219-001-0	01	1	0208-0411
4	COVER; ADJ HOLE 4JH1 ENG(RJX)	5-46219-001-0	01	1	0412-0511
4	COVER; ADJ HOLE 4JH1-TC ENG(RDM)	5-46219-001-0	01	1	0512-0604
4	COVER; ADJ HOLE 4JH1-TC ENG(RDM)	8-98029-820-0	01	1	0605-0610
4	COVER; ADJ HOLE 4JJ1 ENG(LFB)	8-98029-820-0	01	1	0611-
17	SHOE; PARKING BRK	8-97042-933-1	02	1	9701-9905
17	SHOE; PARKING BRK 4JG2 ENG(RJC)	8-97042-933-1	02	1	9906-0207
17	SHOE; PARKING BRK 4JH1 ENG(RJX)	8-97020-250-2	02	1	0208-0411
17	SHOE; PARKING BRK 4JH1 ENG(RJX)	8-97020-250-2	02	1	0412-0511
17	SHOE; PARKING BRK 4JH1-TC ENG(RDM)	8-97020-250-2	02	1	0512-0610
17	SHOE; PARKING BRK 4JJ1 ENG(LFB)	8-97020-250-2	02	1	0611-
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-552-1	01	1	9701-9905
21	SPRING; RETURN,PARKING BRK SHOE 4JG2 ENG(RJC)	9-09942-552-1	01	1	9906-0207
21	SPRING; RETURN,PARKING BRK SHOE 4JH1 ENG(RJX)	8-94132-157-0	02	1	0208-0411
21	SPRING; RETURN,PARKING BRK SHOE 4JH1 ENG(RJX)	8-94132-157-0	02	1	0412-0511
21	SPRING; RETURN,PARKING BRK SHOE 4JH1-TC ENG(RDM)	8-94132-157-0	02	1	0512-0610
21	SPRING; RETURN,PARKING BRK SHOE 4JJ1 ENG(LFB)	8-94132-157-0	02	1	0611-
22	SPRING; ADJ SCREW,PARKING BRK	9-09942-340-1	01	1	9701-9905
22	SPRING; ADJ SCREW,PARKING BRK 4JG2 ENG(RJC)	9-09942-340-1	01	1	9906-0207
22	SPRING; ADJ SCREW,PARKING BRK 4JH1 ENG(RJX)	8-94107-618-0	01	1	0208-0411
22	SPRING; ADJ SCREW,PARKING BRK 4JH1 ENG(RJX)	8-94107-618-0	01	1	0412-0511
22	SPRING; ADJ SCREW,PARKING BRK 4JH1-TC ENG(RDM)	8-94107-618-0	01	1	0512-0610
22	SPRING; ADJ SCREW,PARKING BRK 4JJ1 ENG(LFB)	8-94107-618-0	01	1	0611-
23	SCREW; ADJ,PARKING BRK SHOE	5-47165-025-0	01	1	9701-9905
23	SCREW; ADJ,PARKING BRK SHOE 4JG2 ENG(RJC)	5-47165-025-0	01	1	9906-0207
23	SCREW; ADJ,PARKING BRK SHOE 4JH1 ENG(RJX)	5-47165-025-0	01	1	0208-0411
23	SCREW; ADJ,PARKING BRK SHOE 4JH1 ENG(RJX)	5-47165-025-0	01	1	0412-0511
23	SCREW; ADJ,PARKING BRK SHOE 4JH1-TC ENG(RDM)	5-47165-025-0	01	1	0512-0610
23	SCREW; ADJ,PARKING BRK SHOE 4JJ1 ENG(LFB)	5-47165-025-0	01	1	0611-0611
23	SCREW; ADJ,PARKING BRK SHOE 4JJ1 ENG(LFB)	8-98043-954-0	01	1	0612-
24	SPRING; BRK SHOE	9-09941-062-1	02	1	9701-9905
24	SPRING; BRK SHOE 4JG2 ENG(RJC)	9-09941-062-1	02	1	9906-0207
24	SPRING; BRK SHOE 4JH1 ENG(RJX)	8-94132-155-0	02	1	0208-0411
24	SPRING; BRK SHOE 4JH1 ENG(RJX)	8-94132-155-0	02	1	0412-0511
24	SPRING; BRK SHOE 4JH1-TC ENG(RDM)	8-94132-155-0	02	1	0512-0610
24	SPRING; BRK SHOE 4JJ1 ENG(LFB)	8-94132-155-1	02	1	0611-
25	SPRING; SHOE ALIGNMENT 4JH1 ENG(RJX)	8-94132-156-0	01	1	0208-0411
25	SPRING; SHOE ALIGNMENT 4JH1 ENG(RJX)	8-94132-156-0	01	1	0412-0511
25	SPRING; SHOE ALIGNMENT 4JH1-TC ENG(RDM)	8-94132-156-0	01	1	0512-0610
25	SPRING; SHOE ALIGNMENT 4JJ1 ENG(LFB)	8-94132-156-0	01	1	0611-
26	PLATE; SHOE GUIDE 4JH1 ENG(RJX)	9-09851-986-0	01	1	0208-0411
26	PLATE; SHOE GUIDE 4JH1 ENG(RJX)	9-09851-986-0	01	1	0412-0511
26	PLATE; SHOE GUIDE 4JH1-TC ENG(RDM)	9-09851-986-0	01	1	0512-0610
26	PLATE; SHOE GUIDE 4JJ1 ENG(LFB)	9-09851-986-0	01	1	0611-0611
26	PLATE; SHOE GUIDE 4JJ1 ENG(LFB)	8-98043-959-0	01	1	0612-
29	LEVER; PARKING BRK	8-94128-765-0	01	1	9701-9905
29	LEVER; PARKING BRK 4JG2 ENG(RJC)	8-94128-765-0	01	1	9906-0207
29	LEVER; PARKING BRK 4JH1 ENG(RJX)	8-97027-125-0	01	1	0208-0411
29	LEVER; PARKING BRK 4JH1 ENG(RJX)	8-97027-125-0	01	1	0412-0511
29	LEVER; PARKING BRK 4JH1-TC ENG(RDM)	8-97027-125-0	01	1	0512-0610
29	LEVER; PARKING BRK 4JJ1 ENG(LFB)	8-97027-125-0	01	1	0611-0611
29	LEVER; PARKING BRK 4JJ1 ENG(LFB)	8-98043-949-0	01	1	0612-
30	STRUT; PARKING BRK	5-46251-007-0	01	1	9701-9905
30	STRUT; PARKING BRK 4JG2 ENG(RJC)	5-46251-007-0	01	1	9906-0207
30	STRUT; PARKING BRK 4JH1 ENG(RJX)	8-94311-779-0	01	1	0208-0411
30	STRUT; PARKING BRK 4JH1 ENG(RJX)	8-94311-779-0	01	1	0412-0511
30	STRUT; PARKING BRK 4JH1-TC ENG(RDM)	8-94311-779-0	01	1	0512-0610
30	STRUT; PARKING BRK 4JJ1 ENG(LFB)	8-94311-779-0	01	1	0611-0611
30	STRUT; PARKING BRK 4JJ1 ENG(LFB)	8-98043-953-0	01	1	0612-
31	SPRING; SHOE TO STRUT	9-09942-521-1	01	1	9701-9905
31	SPRING; SHOE TO STRUT 4JG2 ENG(RJC)	9-09942-521-1	01	1	9906-0207
31	SPRING; SHOE TO STRUT 4JH1 ENG(RJX)	8-94132-158-0	01	1	0208-0411
31	SPRING; SHOE TO STRUT 4JH1 ENG(RJX)	8-94132-158-0	01	1	0412-0511
31	SPRING; SHOE TO STRUT 4JH1-TC ENG(RDM)	8-94132-158-0	01	1	0512-0610
31	SPRING; SHOE TO STRUT 4JJ1 ENG(LFB)	8-94132-158-0	01	1	0611-
32	PLATE; SUPPORT,PARKING BRK	9-46213-601-2	01	1	9701-9905
32	PLATE; SUPPORT,PARKING BRK 4JG2 ENG(RJC)	9-46213-601-2	01	1	9906-0207
32	PLATE; SUPPORT,PARKING BRK 4JH1 ENG(RJX)	8-97308-176-0	01	1	0208-0411
32	PLATE; SUPPORT,PARKING BRK 4JH1 ENG(RJX)	8-97308-176-0	01	1	0412-0511
32	PLATE; SUPPORT,PARKING BRK 4JH1-TC ENG(RDM)	8-97308-176-0	01	1	0512-0610
32	PLATE; SUPPORT,PARKING BRK 4JJ1 ENG(LFB)	8-97308-176-0	01	1	0611-
34	PIN; BRK SHOE	9-47162-034-0	02	1	9701-9905
34	PIN; BRK SHOE 4JG2 ENG(RJC)	9-47162-034-0	02	1	9906-0207
34	PIN; BRK SHOE 4JH1 ENG(RJX)	8-94132-159-0	02	1	0208-0411
34	PIN; BRK SHOE 4JH1 ENG(RJX)	8-94132-159-0	02	1	0412-0511
34	PIN; BRK SHOE 4JH1-TC ENG(RDM)	8-94132-159-0	02	1	0512-0610
34	PIN; BRK SHOE 4JJ1 ENG(LFB)	8-94132-159-0	02	1	0611-0611
34	PIN; BRK SHOE 4JJ1 ENG(LFB)	8-98043-955-0	02	1	0612-
37	NUT; SUPPORT PLATE M12	8-97033-122-0	01	1	9701-9905
37	NUT; SUPPORT PLATE 4JG2 ENG(RJC) M12	8-97033-122-0	01	1	9906-0207
37	NUT; SUPPORT PLATE 4JH1 ENG(RJX) M12 LOCK NUT	8-97248-173-0	04	1	0208-0411
37	NUT; SUPPORT PLATE 4JH1 ENG(RJX) M12 LOCK NUT	8-97248-173-0	04	1	0412-0511
37	NUT; SUPPORT PLATE 4JH1-TC ENG(RDM) M12 LOCK NUT	8-97248-173-0	04	1	0512-0604
37	NUT; SUPPORT PLATE 4JH1-TC ENG(RDM) M12 LOCK NUT	8-98029-927-0	04	1	0605-0610
37	NUT; SUPPORT PLATE 4JJ1 ENG(LFB) M12 LOCK NUT	8-98029-927-0	04	1	0611-
48	RETAINER; PIN,PARKING BRK	9-46349-005-1	01	1	9701-9905
48	RETAINER; PIN,PARKING BRK 4JG2 ENG(RJC)	9-46349-005-1	01	1	9906-0207
48	RETAINER; PIN,PARKING BRK 4JH1 ENG(RJX)	9-46349-005-1	01	1	0208-0411
48	RETAINER; PIN,PARKING BRK 4JH1 ENG(RJX)	9-46349-005-1	01	1	0412-0511
48	RETAINER; PIN,PARKING BRK 4JH1-TC ENG(RDM)	9-46349-005-1	01	1	0512-0610
48	RETAINER; PIN,PARKING BRK 4JJ1 ENG(LFB)	9-46349-005-1	01	1	0611-0611
48	RETAINER; PIN,PARKING BRK 4JJ1 ENG(LFB)	8-98043-958-0	01	1	0612-
112	BOLT; COVER TO BRK DRUM M6X16 W/LK WASHER	0-50040-616-0	01	1	9701-0411
112	BOLT; COVER TO BRK DRUM M6X16 W/LK WASHER	0-50040-616-0	01	1	0412-0512
112	BOLT; COVER TO BRK DRUM M6X16 W/LK WASHER	0-50540-616-0	01	1	0601-
114	STUD; SUPPORT PLATE 4JH1 ENG(RJX)	8-97289-280-0	04	1	0208-0411
114	STUD; SUPPORT PLATE 4JH1 ENG(RJX)	8-97289-280-0	04	1	0412-0511
114	STUD; SUPPORT PLATE 4JH1-TC ENG(RDM)	8-97289-280-0	04	1	0512-0604
114	STUD; SUPPORT PLATE 4JH1-TC ENG(RDM)	8-98029-929-0	04	1	0605-0610
114	STUD; SUPPORT PLATE 4JJ1 ENG(LFB)	8-98029-929-0	04	1	0611-
172	CUP; SHOE HOLD	8-94378-404-0	04	1	9701-9905
172	CUP; SHOE HOLD 4JG2 ENG(RJC)	8-94378-404-0	04	1	9906-0207
172	CUP; SHOE HOLD 4JH1 ENG(RJX)	9-47162-033-0	04	1	0208-0411
172	CUP; SHOE HOLD 4JH1 ENG(RJX)	9-47162-033-0	04	1	0412-0511
172	CUP; SHOE HOLD 4JH1-TC ENG(RDM)	9-47162-033-0	04	1	0512-0610
172	CUP; SHOE HOLD 4JJ1 ENG(LFB)	9-47162-033-0	04	1	0611-0611
172	CUP; SHOE HOLD 4JJ1 ENG(LFB)	8-98043-956-0	04	1	0612-

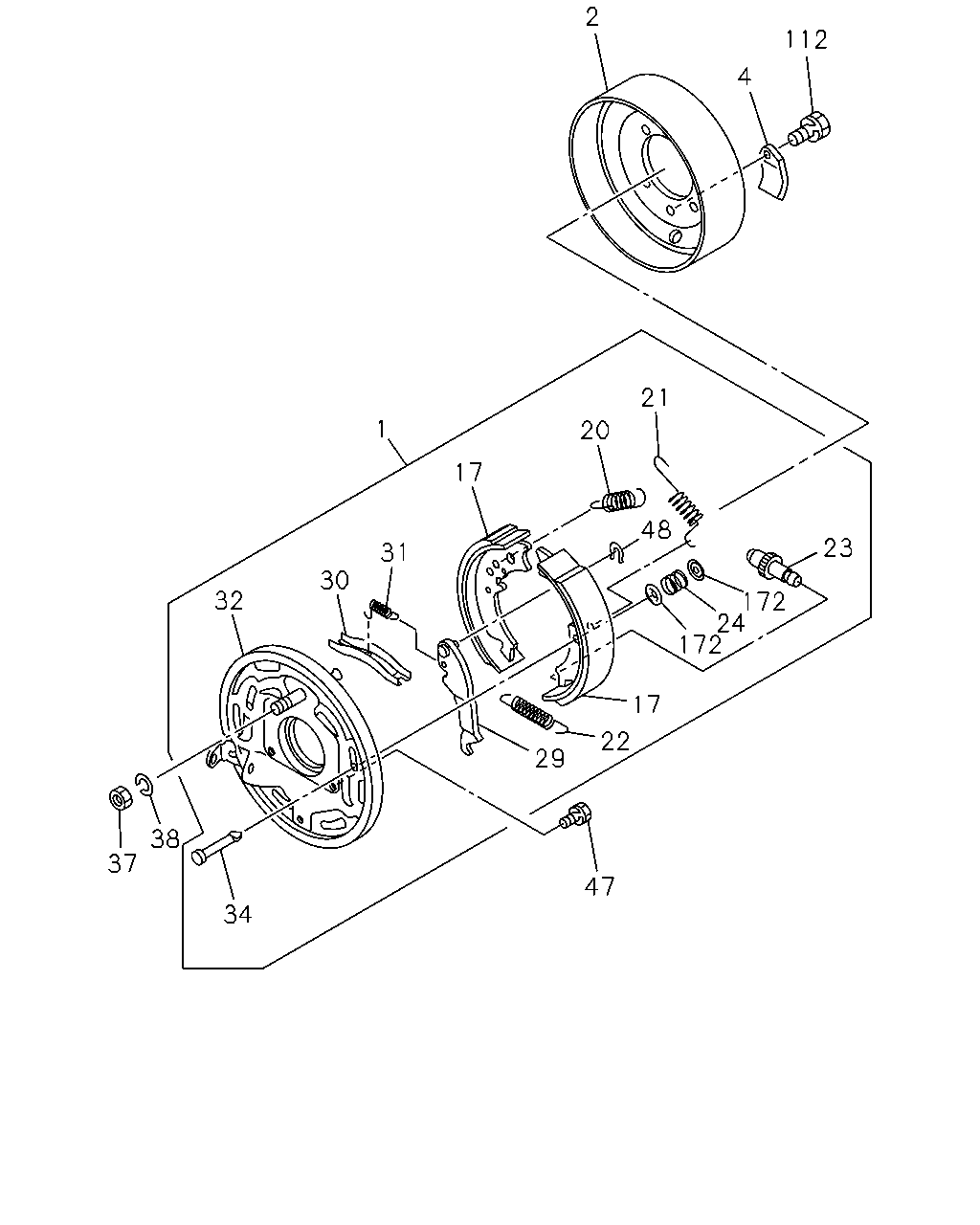

2 11 4 21 1 20 17 48 23 31 30 32 172 24 72 17 22 29 38 37 47 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRAKE ASM; CENTER,PARKING	8-97034-553-2	01	1	9701-9905
1	BRAKE ASM; CENTER,PARKING 4JG2 ENG(RJC)	8-97034-553-2	01	1	9906-0207
1	BRAKE ASM; CENTER,PARKING 4JH1 ENG(RJX)	8-97308-175-0	01	1	0208-0411
1	BRAKE ASM; CENTER,PARKING 4JH1 ENG(RJX)	8-97308-175-0	01	1	0412-0511
1	BRAKE ASM; CENTER,PARKING 4JH1-TC ENG(RDM)	8-97308-175-0	01	1	0512-0610
1	BRAKE ASM; CENTER,PARKING 4JJ1 ENG(LFB)	8-97308-175-0	01	1	0611-0611
1	BRAKE ASM; CENTER,PARKING 4JJ1 ENG(LFB)	8-98029-922-0	01	1	0612-
2	DRUM; PARKING BRK TAI	8-97965-316-0	01	1	9701-9905
2	DRUM; PARKING BRK 4JG2 ENG(RJC) TAI	8-97965-316-0	01	1	9906-0207
2	DRUM; PARKING BRK 4JH1 ENG(RJX) TAI	8-97967-303-0	01	1	0208-0411
2	DRUM; PARKING BRK 4JH1 ENG(RJX) TAI	8-97967-303-0	01	1	0412-0511
2	DRUM; PARKING BRK 4JH1-TC ENG(RDM) TAI	8-97967-303-0	01	1	0512-0610
2	DRUM; PARKING BRK 4JJ1 ENG(LFB) TAI	8-97967-303-0	01	1	0611-
4	COVER; ADJ HOLE	5-42319-003-0	01	1	9701-9905
4	COVER; ADJ HOLE 4JG2 ENG(RJC)	5-42319-003-0	01	1	9906-0207
4	COVER; ADJ HOLE 4JH1 ENG(RJX)	5-46219-001-0	01	1	0208-0411
4	COVER; ADJ HOLE 4JH1 ENG(RJX)	5-46219-001-0	01	1	0412-0511
4	COVER; ADJ HOLE 4JH1-TC ENG(RDM)	5-46219-001-0	01	1	0512-0604
4	COVER; ADJ HOLE 4JH1-TC ENG(RDM)	8-98029-820-0	01	1	0605-0610
4	COVER; ADJ HOLE 4JJ1 ENG(LFB)	8-98029-820-0	01	1	0611-
17	SHOE; PARKING BRK	8-97042-933-1	02	1	9701-9905
17	SHOE; PARKING BRK 4JG2 ENG(RJC)	8-97042-933-1	02	1	9906-0207
17	SHOE; PARKING BRK 4JH1 ENG(RJX)	8-97020-250-2	02	1	0208-0411
17	SHOE; PARKING BRK 4JH1 ENG(RJX)	8-97020-250-2	02	1	0412-0511
17	SHOE; PARKING BRK 4JH1-TC ENG(RDM)	8-97020-250-2	02	1	0512-0610
17	SHOE; PARKING BRK 4JJ1 ENG(LFB)	8-97020-250-2	02	1	0611-
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-553-1	01	1	9701-9905
20	SPRING; RETURN,SECONDARY,PARKING BRK 4JG2 ENG(RJC)	9-09942-553-1	01	1	9906-0207
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-552-1	01	1	9701-9905
21	SPRING; RETURN,PARKING BRK SHOE 4JG2 ENG(RJC)	9-09942-552-1	01	1	9906-0207
21	SPRING; RETURN,PARKING BRK SHOE 4JH1 ENG(RJX)	8-94132-157-0	02	1	0208-0411
21	SPRING; RETURN,PARKING BRK SHOE 4JH1 ENG(RJX)	8-94132-157-0	02	1	0412-0511
21	SPRING; RETURN,PARKING BRK SHOE 4JH1-TC ENG(RDM)	8-94132-157-0	02	1	0512-0610
21	SPRING; RETURN,PARKING BRK SHOE 4JJ1 ENG(LFB)	8-94132-157-0	02	1	0611-
22	SPRING; ADJ SCREW,PARKING BRK	9-09942-340-1	01	1	9701-9905
22	SPRING; ADJ SCREW,PARKING BRK 4JG2 ENG(RJC)	9-09942-340-1	01	1	9906-0207
22	SPRING; ADJ SCREW,PARKING BRK 4JH1 ENG(RJX)	8-94107-618-0	01	1	0208-0411
22	SPRING; ADJ SCREW,PARKING BRK 4JH1 ENG(RJX)	8-94107-618-0	01	1	0412-0511
22	SPRING; ADJ SCREW,PARKING BRK 4JH1-TC ENG(RDM)	8-94107-618-0	01	1	0512-0610
22	SPRING; ADJ SCREW,PARKING BRK 4JJ1 ENG(LFB)	8-94107-618-0	01	1	0611-
23	SCREW; ADJ,PARKING BRK SHOE	5-47165-025-0	01	1	9701-9905
23	SCREW; ADJ,PARKING BRK SHOE 4JG2 ENG(RJC)	5-47165-025-0	01	1	9906-0207
23	SCREW; ADJ,PARKING BRK SHOE 4JH1 ENG(RJX)	5-47165-025-0	01	1	0208-0411
23	SCREW; ADJ,PARKING BRK SHOE 4JH1 ENG(RJX)	5-47165-025-0	01	1	0412-0511
23	SCREW; ADJ,PARKING BRK SHOE 4JH1-TC ENG(RDM)	5-47165-025-0	01	1	0512-0610
23	SCREW; ADJ,PARKING BRK SHOE 4JJ1 ENG(LFB)	5-47165-025-0	01	1	0611-0611
23	SCREW; ADJ,PARKING BRK SHOE 4JJ1 ENG(LFB)	8-98043-954-0	01	1	0612-
24	SPRING; BRK SHOE	9-09941-062-1	02	1	9701-9905
24	SPRING; BRK SHOE 4JG2 ENG(RJC)	9-09941-062-1	02	1	9906-0207
24	SPRING; BRK SHOE 4JH1 ENG(RJX)	8-94132-155-0	02	1	0208-0411
24	SPRING; BRK SHOE 4JH1 ENG(RJX)	8-94132-155-0	02	1	0412-0511
24	SPRING; BRK SHOE 4JH1-TC ENG(RDM)	8-94132-155-0	02	1	0512-0610
24	SPRING; BRK SHOE 4JJ1 ENG(LFB)	8-94132-155-1	02	1	0611-
29	LEVER; PARKING BRK	8-94128-765-0	01	1	9701-9905
29	LEVER; PARKING BRK 4JG2 ENG(RJC)	8-94128-765-0	01	1	9906-0207
29	LEVER; PARKING BRK 4JH1 ENG(RJX)	8-97027-125-0	01	1	0208-0411
29	LEVER; PARKING BRK 4JH1 ENG(RJX)	8-97027-125-0	01	1	0412-0511
29	LEVER; PARKING BRK 4JH1-TC ENG(RDM)	8-97027-125-0	01	1	0512-0610
29	LEVER; PARKING BRK 4JJ1 ENG(LFB)	8-97027-125-0	01	1	0611-0611
29	LEVER; PARKING BRK 4JJ1 ENG(LFB)	8-98043-949-0	01	1	0612-
30	STRUT; PARKING BRK	5-46251-007-0	01	1	9701-9905
30	STRUT; PARKING BRK 4JG2 ENG(RJC)	5-46251-007-0	01	1	9906-0207
30	STRUT; PARKING BRK 4JH1 ENG(RJX)	8-94311-779-0	01	1	0208-0411
30	STRUT; PARKING BRK 4JH1 ENG(RJX)	8-94311-779-0	01	1	0412-0511
30	STRUT; PARKING BRK 4JH1-TC ENG(RDM)	8-94311-779-0	01	1	0512-0610
30	STRUT; PARKING BRK 4JJ1 ENG(LFB)	8-94311-779-0	01	1	0611-0611
30	STRUT; PARKING BRK 4JJ1 ENG(LFB)	8-98043-953-0	01	1	0612-
31	SPRING; SHOE TO STRUT	9-09942-521-1	01	1	9701-9905
31	SPRING; SHOE TO STRUT 4JG2 ENG(RJC)	9-09942-521-1	01	1	9906-0207
31	SPRING; SHOE TO STRUT 4JH1 ENG(RJX)	8-94132-158-0	01	1	0208-0411
31	SPRING; SHOE TO STRUT 4JH1 ENG(RJX)	8-94132-158-0	01	1	0412-0511
31	SPRING; SHOE TO STRUT 4JH1-TC ENG(RDM)	8-94132-158-0	01	1	0512-0610
31	SPRING; SHOE TO STRUT 4JJ1 ENG(LFB)	8-94132-158-0	01	1	0611-
32	PLATE; SUPPORT,PARKING BRK	9-46213-601-2	01	1	9701-9905
32	PLATE; SUPPORT,PARKING BRK 4JG2 ENG(RJC)	9-46213-601-2	01	1	9906-0207
32	PLATE; SUPPORT,PARKING BRK 4JH1 ENG(RJX)	8-97308-176-0	01	1	0208-0411
32	PLATE; SUPPORT,PARKING BRK 4JH1 ENG(RJX)	8-97308-176-0	01	1	0412-0511
32	PLATE; SUPPORT,PARKING BRK 4JH1-TC ENG(RDM)	8-97308-176-0	01	1	0512-0610
32	PLATE; SUPPORT,PARKING BRK 4JJ1 ENG(LFB)	8-97308-176-0	01	1	0611-
34	PIN; BRK SHOE	9-47162-034-0	02	1	9701-9905
34	PIN; BRK SHOE 4JG2 ENG(RJC)	9-47162-034-0	02	1	9906-0207
34	PIN; BRK SHOE 4JH1 ENG(RJX)	8-94132-159-0	02	1	0208-0411
34	PIN; BRK SHOE 4JH1 ENG(RJX)	8-94132-159-0	02	1	0412-0511
34	PIN; BRK SHOE 4JH1-TC ENG(RDM)	8-94132-159-0	02	1	0512-0610
34	PIN; BRK SHOE 4JJ1 ENG(LFB)	8-94132-159-0	02	1	0611-0611
34	PIN; BRK SHOE 4JJ1 ENG(LFB)	8-98043-955-0	02	1	0612-
37	NUT; SUPPORT PLATE M12	8-97033-122-0	01	1	9701-9905
37	NUT; SUPPORT PLATE 4JG2 ENG(RJC) M12	8-97033-122-0	01	1	9906-0207
37	NUT; SUPPORT PLATE 4JH1 ENG(RJX) M12 LOCK NUT	8-97248-173-0	04	1	0208-0411
37	NUT; SUPPORT PLATE 4JH1 ENG(RJX) M12 LOCK NUT	8-97248-173-0	04	1	0412-0511
37	NUT; SUPPORT PLATE 4JH1-TC ENG(RDM) M12 LOCK NUT	8-97248-173-0	04	1	0512-0604
37	NUT; SUPPORT PLATE 4JH1-TC ENG(RDM) M12 LOCK NUT	8-98029-927-0	04	1	0605-0610
37	NUT; SUPPORT PLATE 4JJ1 ENG(LFB) M12 LOCK NUT	8-98029-927-0	04	1	0611-
38	WASHER; LK,SUPPORT PLATE ID=8.2	9-09150-808-0	02	1	9701-9905
38	WASHER; LK,SUPPORT PLATE 4JG2 ENG(RJC) ID=8.2	9-09150-808-0	02	1	9906-0207
47	BOLT; SUPPORT PLATE	9-02060-814-0	02	1	9701-9905
47	BOLT; SUPPORT PLATE 4JG2 ENG(RJC)	9-02060-814-0	02	1	9906-0207
48	RETAINER; PIN,PARKING BRK	9-46349-005-1	01	1	9701-9905
48	RETAINER; PIN,PARKING BRK 4JG2 ENG(RJC)	9-46349-005-1	01	1	9906-0207
48	RETAINER; PIN,PARKING BRK 4JH1 ENG(RJX)	9-46349-005-1	01	1	0208-0411
48	RETAINER; PIN,PARKING BRK 4JH1 ENG(RJX)	9-46349-005-1	01	1	0412-0511
48	RETAINER; PIN,PARKING BRK 4JH1-TC ENG(RDM)	9-46349-005-1	01	1	0512-0610
48	RETAINER; PIN,PARKING BRK 4JJ1 ENG(LFB)	9-46349-005-1	01	1	0611-0611
48	RETAINER; PIN,PARKING BRK 4JJ1 ENG(LFB)	8-98043-958-0	01	1	0612-
172	CUP; SHOE HOLD	8-94378-404-0	04	1	9701-9905
172	CUP; SHOE HOLD 4JG2 ENG(RJC)	8-94378-404-0	04	1	9906-0207
172	CUP; SHOE HOLD 4JH1 ENG(RJX)	9-47162-033-0	04	1	0208-0411
172	CUP; SHOE HOLD 4JH1 ENG(RJX)	9-47162-033-0	04	1	0412-0511
172	CUP; SHOE HOLD 4JH1-TC ENG(RDM)	9-47162-033-0	04	1	0512-0610
172	CUP; SHOE HOLD 4JJ1 ENG(LFB)	9-47162-033-0	04	1	0611-0611
172	CUP; SHOE HOLD 4JJ1 ENG(LFB)	8-98043-956-0	04	1	0612-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
