Sayfa 2-36 - Isuzu EPC

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#139064) — 376 parça

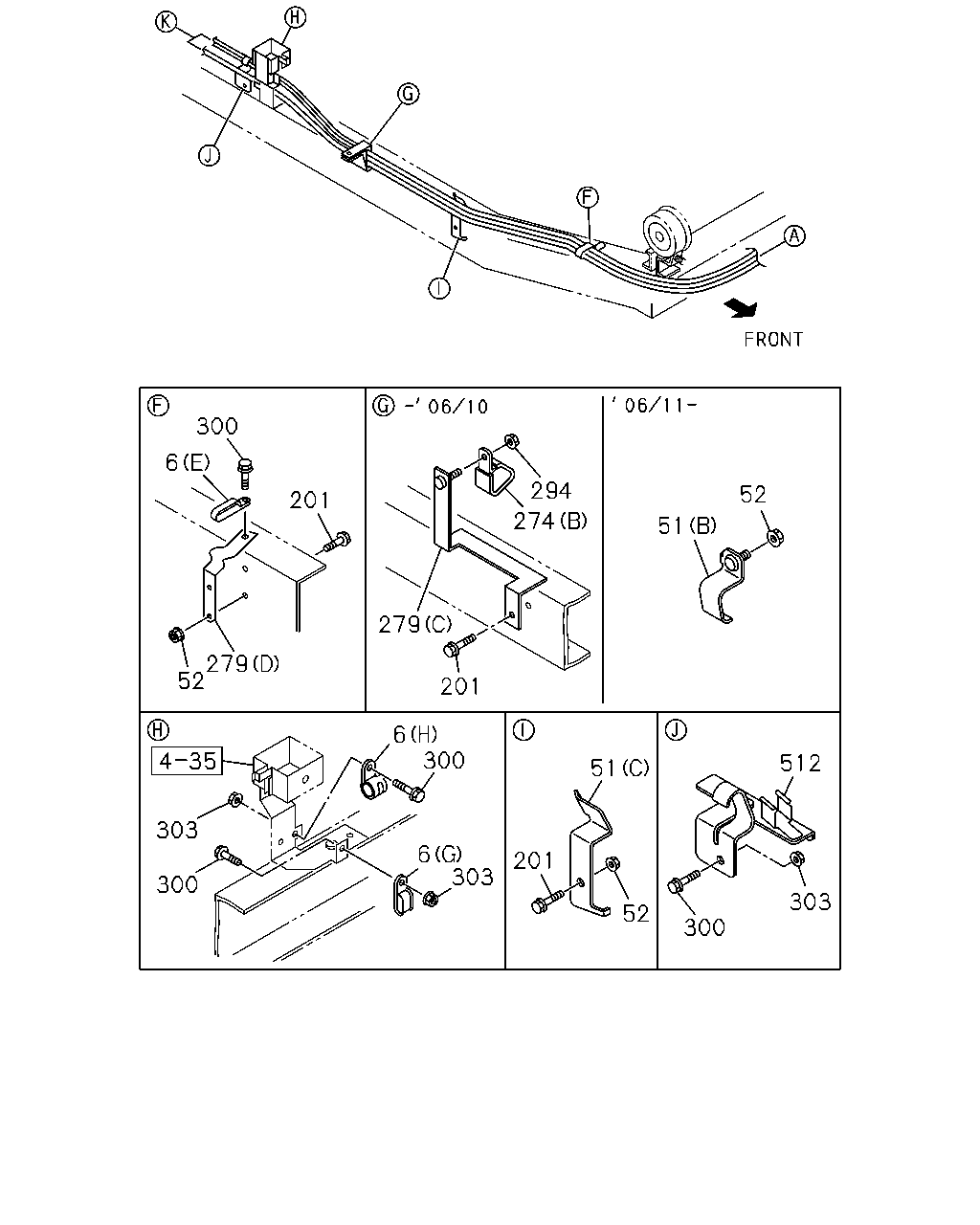

300 6 294 52 201 274 51 279 279 52 201 6 300 4 35 512 51 303 6 303 201 300 303 52 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	CLIP; CABLE (A) ID=19.2	8-94365-914-2	02	1	9701-9808	●
6	CLIP; CABLE (A) ID=19.2	8-97211-011-0	02	1	9809-0207	●
6	CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	0208-0610		●
6	CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) ID=19.2	8-97211-011-0	01	1	0611-		●
6	CLIP; CABLE (B)	8-97011-448-0	02	1	9701-0207	●
6	CLIP; CABLE (B)	8-97011-448-0	02	1	0208-0610		●
6	CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-97011-448-0	02	1	0611-		●
6	CLIP; CABLE (C)	8-97036-329-2	01	1	9701-0207	●
6	CLIP; CABLE 4JH1 ENG(RJX) (G)	8-94458-385-1	01	1	0208-0511		●
6	CLIP; CABLE 4JH1-TC ENG(RDM) (G)	8-94458-385-1	01	1	0512-0610		●
6	CLIP; CABLE (D)	8-97036-332-1	01	1	9701-0207	●
6	CLIP; CABLE 4JH1 ENG(RJX) (H) ID=21 L=24	8-94176-807-1	01	1	0208-0511		●
6	CLIP; CABLE 4JH1-TC ENG(RDM) (H) ID=21 L=24	8-94176-807-1	01	1	0512-0610		●
6	CLIP; CABLE (E)	8-97137-589-0	01	1	9701-0207	●
6	CLIP; CABLE (E)	8-97137-589-0	01	1	0208-0610		●
6	CLIP; CABLE (F) ID=22.2	1-09701-209-1	01	1	0208-0610		●
6	CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (F) ID=22.2	1-09701-209-1	01	1	0611-		●
51	BRACKET; GEAR CONT (A)	8-97029-286-0	01	1	9701-0207	●
51	BRACKET; GEAR CONT EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (C) TAI	8-98030-604-0	01	1	0611-0703	●	●
51	BRACKET; GEAR CONT (C) TAI	8-98030-604-0	01	1	0704-	●	●
51	BRACKET; GEAR CONT EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) TAI	8-98032-072-0	01	1	0611-	●	●
52	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE	0-91180-108-0	01	1	0704-	●	●
52	NUT; BRKT M10 FLANGE	0-91150-110-0	02	1	9701-0207	●
52	NUT; BRKT 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) M10 FLANGE	0-91150-110-0	02	1	0208-0511		●
52	NUT; BRKT 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) M10 FLANGE	0-91150-110-0	02	1	0512-0602		●
52	NUT; BRKT 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) M10 FLANGE	0-91180-110-0	02	1	0603-0610		●
52	NUT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE	0-91180-108-0	02	1	0611-	●	●
201	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	9701-0207	●
201	BOLT; BRKT M10X28	0-28481-028-0	02	1	9701-9905	●
201	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	9906-0207	●
201	BOLT; BRKT 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) M10X25 FLANGE	0-28681-025-0	02	1	0208-0511		●
201	BOLT; BRKT 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) M10X25 FLANGE	0-28681-025-0	02	1	0512-0512		●
201	BOLT; BRKT 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) M10X25 FLANGE	0-28651-025-0	02	1	0601-0610		●
201	BOLT; BRKT EXC. POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	9701-0207	●
201	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0208-0411		●
201	BOLT; BRKT 4JH1 ENG(RJX) M8X25 FLANGE	0-28680-825-0	01	1	0412-0511		●
201	BOLT; BRKT 4JH1-TC ENG(RDM) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512		●
201	BOLT; BRKT 4JH1-TC ENG(RDM) M8X25 FLANGE	0-28650-825-0	01	1	0601-0610		●
201	BOLT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M8X20 FLANGE	0-28650-820-0	01	1	0611-0703		●
201	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0704-	●	●
274	CLIP; CONT CABLE (A)	8-97093-491-1	01	1	9701-9905	●
274	CLIP; CONT CABLE (B)	8-97036-333-1	01	1	0208-0411		●
274	CLIP; CONT CABLE 4JH1 ENG(RJX) (B)	8-97036-333-1	01	1	0412-0511		●
274	CLIP; CONT CABLE 4JH1-TC ENG(RDM) (B)	8-97036-333-1	01	1	0512-0610		●
279	BRACKET; CABLE TO FRAME (A)	8-97101-709-1	01	1	9701-9905	●
279	BRACKET; CABLE TO FRAME (A) TAI	8-97966-910-0	01	1	9906-0207	●
279	BRACKET; CABLE TO FRAME (C)	8-97289-620-0	01	1	0208-0411		●
279	BRACKET; CABLE TO FRAME 4JH1 ENG(RJX) (C)	8-97289-620-0	01	1	0412-0412		●
279	BRACKET; CABLE TO FRAME EXC. POWER STEERING<N40> (B)	8-97103-234-0	01	1	9701-0207	●
279	BRACKET; CABLE TO FRAME 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97966-910-0	01	1	0208-0511		●
279	BRACKET; CABLE TO FRAME 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97966-910-0	01	1	0512-0610		●
279	BRACKET; CABLE TO FRAME LONG CHAS(NH*F & NK*F) 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) (C)	8-97351-828-0	01	1	0412-0412		●
279	BRACKET; CABLE TO FRAME 4JH1 ENG(RJX) (C)	8-97351-828-0	01	1	0501-0511		●
279	BRACKET; CABLE TO FRAME 4JH1-TC ENG(RDM) (C)	8-97351-828-0	01	1	0512-0610		●
294	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0208-0411		●
294	NUT; CLIP 4JH1 ENG(RJX) M8 FLANGE	0-91150-108-0	01	1	0412-0511		●
294	NUT; CLIP 4JH1-TC ENG(RDM) M8 FLANGE	0-91150-108-0	01	1	0512-0602		●
294	NUT; CLIP 4JH1-TC ENG(RDM) M8 FLANGE	0-91180-108-0	01	1	0603-0610		●
300	BOLT; CLIP M6X20	0-28280-620-0	01	1	9701-0207	●
300	BOLT; CLIP M6X20 FLANGE	0-28680-620-0	01	1	0208-0512		●
300	BOLT; CLIP M6X20 FLANGE	0-28650-620-0	01	1	0601-0610		●
300	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	02	1	9701-0207	●
300	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0208-0411		●
300	BOLT; CLIP 4JH1 ENG(RJX) M8X25 FLANGE	0-28680-825-0	01	1	0412-0511		●
300	BOLT; CLIP 4JH1-TC ENG(RDM) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512		●
300	BOLT; CLIP 4JH1-TC ENG(RDM) M8X25 FLANGE	0-28650-825-0	01	1	0601-0610		●
300	BOLT; CLIP 4JH1 ENG(RJX) M8X20 FLANGE	0-28680-820-0	01	1	0208-0511		●
300	BOLT; CLIP 4JH1-TC ENG(RDM) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512		●
300	BOLT; CLIP 4JH1-TC ENG(RDM) M8X20 FLANGE	0-28650-820-0	01	1	0601-0610		●
300	BOLT; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M8X25 FLANGE	0-28650-825-0	01	1	0611-		●
303	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9701-0207	●
303	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0208-0411		●
303	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0208-0411		●
303	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0412-0511		●
303	NUT; CLIP 4JH1 ENG(RJX) M8 FLANGE	0-91150-108-0	01	1	0412-0511		●
303	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0512-0602		●
303	NUT; CLIP 4JH1-TC ENG(RDM) M8 FLANGE	0-91150-108-0	01	1	0512-0602		●
303	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-0610		●
303	NUT; CLIP 4JH1-TC ENG(RDM) M8 FLANGE	0-91180-108-0	01	1	0603-0610		●
303	NUT; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE	0-91180-108-0	01	1	0611-		●
512	GUIDE; CABLE,GEAR CONT EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98023-054-2	01	1	0611-	●	●

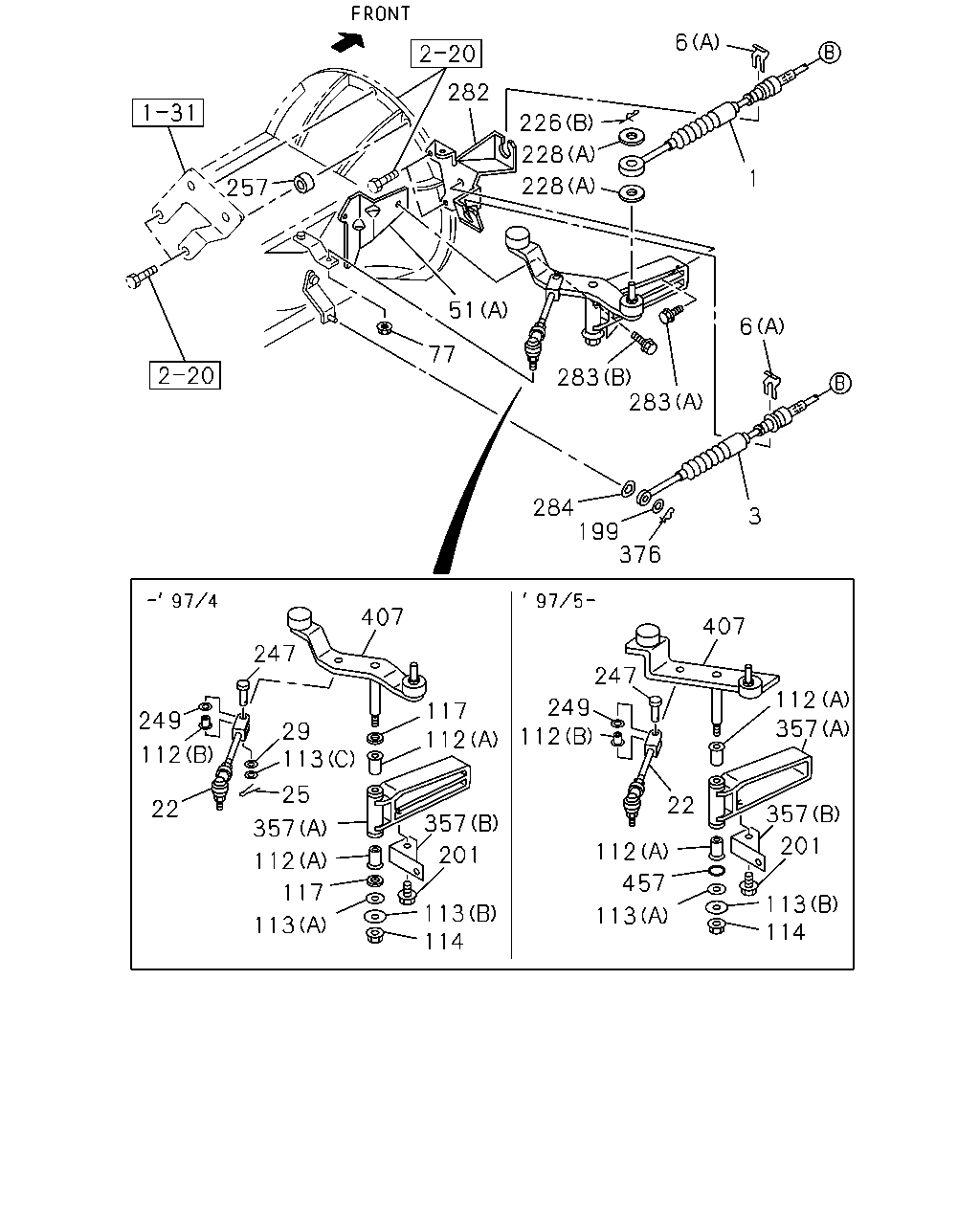

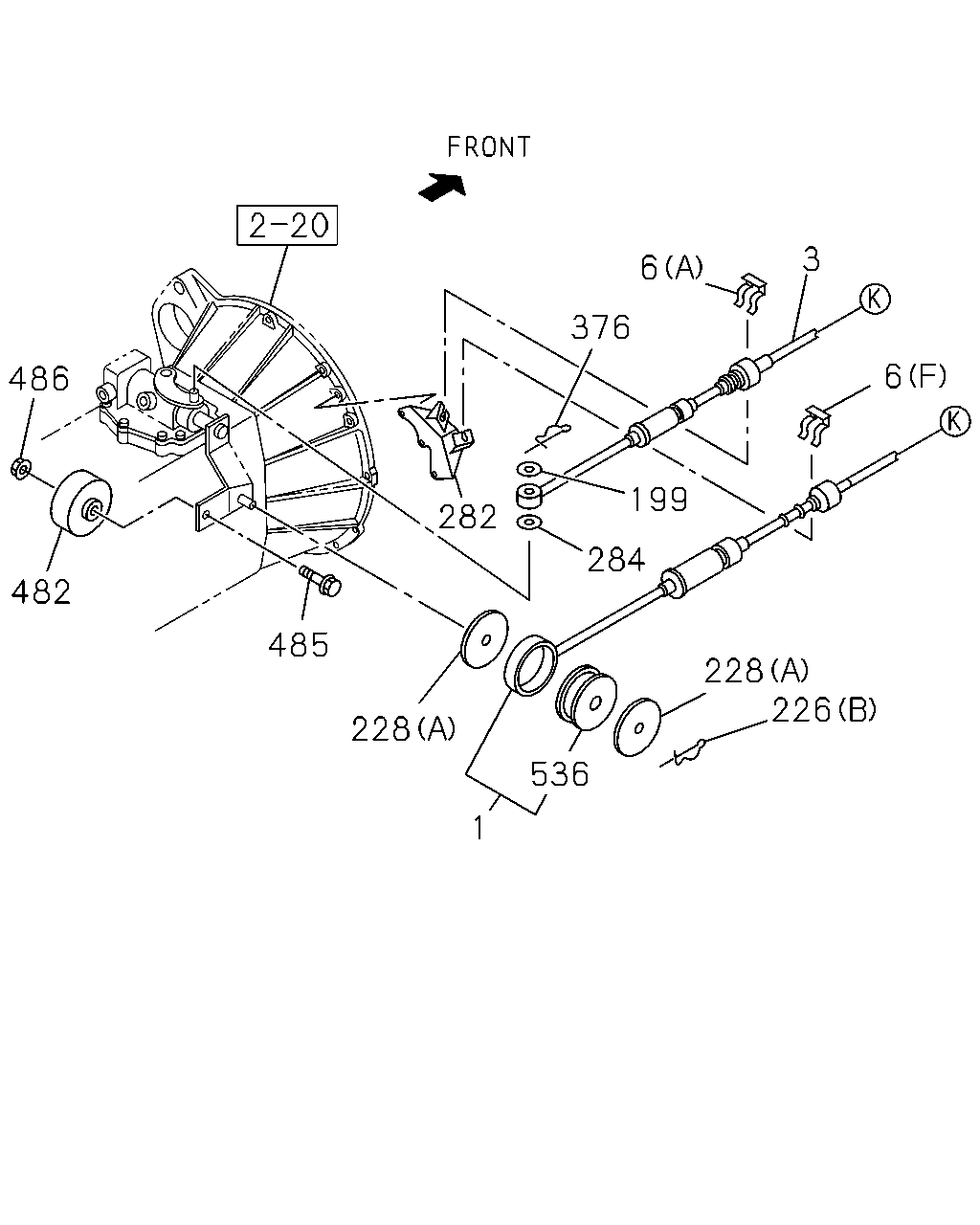

2 20 3 6 376 6 486 199 282 284 482 485 228 226 228 536 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT L=2540 TAI	8-97965-141-0	01	1	9701-9712	●
1	CABLE; SHIFT,TRANS CONT L=2540	8-97089-986-3	01	1	9801-9905	●
1	CABLE; SHIFT,TRANS CONT L=2540	8-97220-047-0	01	1	9906-0207	●
1	CABLE; SHIFT,TRANS CONT 4JH1 ENG(RJX) L=2674	8-97309-853-1	01	1	0208-0511		●
1	CABLE; SHIFT,TRANS CONT 4JH1-TC ENG(RDM) L=2674	8-97309-853-1	01	1	0512-0610		●
1	CABLE; SHIFT,TRANS CONT 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> L=2695	8-97388-717-2	01	1	0611-		●
3	CABLE; SELECT,TRANS CONT L=2684 TAI	8-97965-142-0	01	1	9701-9712	●
3	CABLE; SELECT,TRANS CONT L=2684	8-97089-987-2	01	1	9801-9905	●
3	CABLE; SELECT,TRANS CONT L=2684	8-97220-048-0	01	1	9906-0207	●
3	CABLE; SELECT,TRANS CONT 4JH1 ENG(RJX) L=2720	8-97309-854-0	01	1	0208-0511		●
3	CABLE; SELECT,TRANS CONT 4JH1-TC ENG(RDM) L=2720	8-97309-854-0	01	1	0512-0610		●
3	CABLE; SELECT,TRANS CONT 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> L=2785	8-97388-726-2	01	1	0611-		●
6	CLIP; CABLE (A) ID=19.2	8-94365-914-2	02	1	9701-9808	●
6	CLIP; CABLE (A) ID=19.2	8-97211-011-0	02	1	9809-0207	●
6	CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	0208-0610		●
6	CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) ID=19.2	8-97211-011-0	01	1	0611-		●
6	CLIP; CABLE (B)	8-97011-448-0	02	1	9701-0207	●
6	CLIP; CABLE (B)	8-97011-448-0	02	1	0208-0610		●
6	CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-97011-448-0	02	1	0611-		●
6	CLIP; CABLE (C)	8-97036-329-2	01	1	9701-0207	●
6	CLIP; CABLE 4JH1 ENG(RJX) (G)	8-94458-385-1	01	1	0208-0511		●
6	CLIP; CABLE 4JH1-TC ENG(RDM) (G)	8-94458-385-1	01	1	0512-0610		●
6	CLIP; CABLE (D)	8-97036-332-1	01	1	9701-0207	●
6	CLIP; CABLE 4JH1 ENG(RJX) (H) ID=21 L=24	8-94176-807-1	01	1	0208-0511		●
6	CLIP; CABLE 4JH1-TC ENG(RDM) (H) ID=21 L=24	8-94176-807-1	01	1	0512-0610		●
6	CLIP; CABLE (E)	8-97137-589-0	01	1	9701-0207	●
6	CLIP; CABLE (E)	8-97137-589-0	01	1	0208-0610		●
6	CLIP; CABLE (F) ID=22.2	1-09701-209-1	01	1	0208-0610		●
6	CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (F) ID=22.2	1-09701-209-1	01	1	0611-		●
199	WASHER; PL,SELECT ID=8.4	9-09160-508-0	01	1	9701-0207	●
199	WASHER; PL,SELECT ID=8.4	9-09160-508-0	01	1	0208-0605		●
199	WASHER; PL,SELECT ID=8.4 OD=16	0-91610-508-0	01	1	0606-0610		●
199	WASHER; PL,SELECT EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> ID=8.4 OD=16	0-91610-508-0	01	1	0611-		●
226	PIN; SHIFT CABLE (A) L=27.7	8-94111-137-0	01	1	9701-0207	●
226	PIN; SHIFT CABLE (A) L=27.7	8-94111-137-0	01	1	0208-0610		●
226	PIN; SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) L=27.7	8-94111-137-0	01	1	0611-		●
226	PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	9701-0207	●
226	PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0208-0610		●
226	PIN; SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) L=23	8-94170-378-0	01	1	0611-		●
228	WASHER; PL,SHIFT CABLE (A) ID=8 T=2.3	8-94368-403-1	02	1	9701-9707	●
228	WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	9708-0207	●
228	WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0208-0610		●
228	WASHER; PL,SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) ID=8.2 OD=40	8-97182-975-0	02	1	0611-		●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4	9-09164-508-0	01	1	9701-0207	●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4	9-09164-508-0	01	1	0208-0605		●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4 OD=16	0-91614-508-0	01	1	0606-0610		●
228	WASHER; PL,SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) ID=8.4 OD=16	0-91614-508-0	01	1	0611-		●
282	BRACKET; TRANS SIDE	8-97034-142-1	01	1	9701-9905	●
282	BRACKET; TRANS SIDE TAI	8-97966-911-0	01	1	9906-0207	●
282	BRACKET; TRANS SIDE 4JH1 ENG(RJX) TAI	8-97967-227-0	01	1	0208-0511		●
282	BRACKET; TRANS SIDE 4JH1-TC ENG(RDM) TAI	8-97967-227-0	01	1	0512-0610		●
282	BRACKET; TRANS SIDE 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI	8-97967-227-0	01	1	0611-		●
284	WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	9701-0207	●
284	WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	0208-0610		●
284	WASHER; WAVE,SELECT CABLE,CAB EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> ID=8.4 OD=14	5-09550-002-0	01	1	0611-		●
376	PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	9701-0207	●
376	PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	0208-0610		●
376	PIN; SNAP,SELECT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> L=23	8-94170-378-0	01	1	0611-		●
482	WEIGHT; SHIFT CABLE	8-97066-730-2	01	1	0208-0305		●
485	BOLT; WEIGHT M12X60 FLANGE	0-28091-260-0	01	1	0208-0305		●
486	NUT; WEIGHT M12 FLANGE	8-94436-194-0	01	1	0208-0305		●
536	DAMPER; CABLE 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98097-681-0	01	1	0611-		●

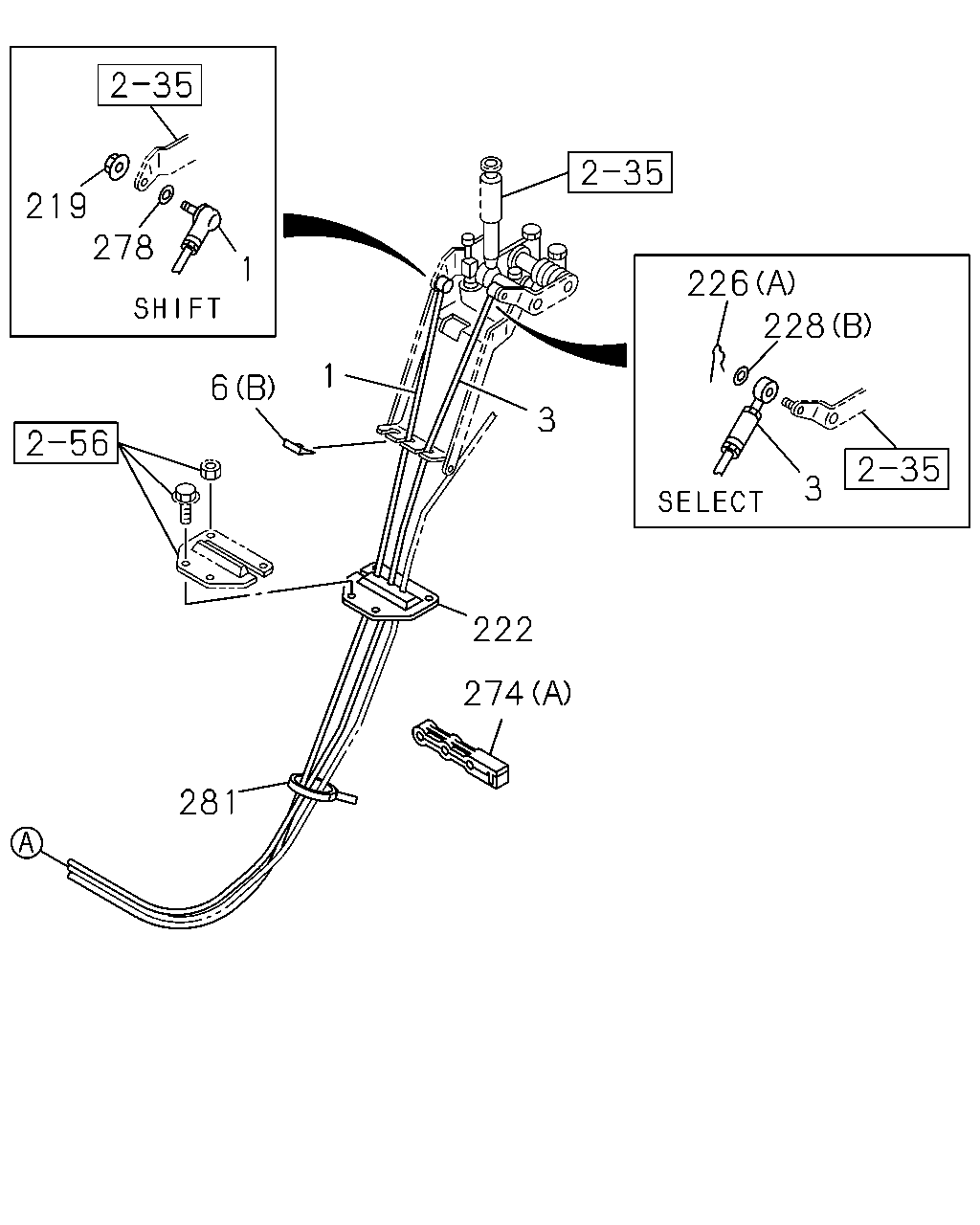

2 35 2 35 219 278 1 226 228 1 6 3 2 56 2 35 3 222 274 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT L=2540 TAI	8-97965-141-0	01	1	9701-9712	●
1	CABLE; SHIFT,TRANS CONT L=2540	8-97089-986-3	01	1	9801-9905	●
1	CABLE; SHIFT,TRANS CONT L=2540	8-97220-047-0	01	1	9906-0207	●
1	CABLE; SHIFT,TRANS CONT 4JH1 ENG(RJX) L=2674	8-97309-853-1	01	1	0208-0511		●
1	CABLE; SHIFT,TRANS CONT 4JH1-TC ENG(RDM) L=2674	8-97309-853-1	01	1	0512-0610		●
1	CABLE; SHIFT,TRANS CONT 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> L=2695	8-97388-717-2	01	1	0611-		●
3	CABLE; SELECT,TRANS CONT L=2684 TAI	8-97965-142-0	01	1	9701-9712	●
3	CABLE; SELECT,TRANS CONT L=2684	8-97089-987-2	01	1	9801-9905	●
3	CABLE; SELECT,TRANS CONT L=2684	8-97220-048-0	01	1	9906-0207	●
3	CABLE; SELECT,TRANS CONT 4JH1 ENG(RJX) L=2720	8-97309-854-0	01	1	0208-0511		●
3	CABLE; SELECT,TRANS CONT 4JH1-TC ENG(RDM) L=2720	8-97309-854-0	01	1	0512-0610		●
3	CABLE; SELECT,TRANS CONT 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> L=2785	8-97388-726-2	01	1	0611-		●
6	CLIP; CABLE (A) ID=19.2	8-94365-914-2	02	1	9701-9808	●
6	CLIP; CABLE (A) ID=19.2	8-97211-011-0	02	1	9809-0207	●
6	CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	0208-0610		●
6	CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) ID=19.2	8-97211-011-0	01	1	0611-		●
6	CLIP; CABLE (B)	8-97011-448-0	02	1	9701-0207	●
6	CLIP; CABLE (B)	8-97011-448-0	02	1	0208-0610		●
6	CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-97011-448-0	02	1	0611-		●
6	CLIP; CABLE (C)	8-97036-329-2	01	1	9701-0207	●
6	CLIP; CABLE 4JH1 ENG(RJX) (G)	8-94458-385-1	01	1	0208-0511		●
6	CLIP; CABLE 4JH1-TC ENG(RDM) (G)	8-94458-385-1	01	1	0512-0610		●
6	CLIP; CABLE (D)	8-97036-332-1	01	1	9701-0207	●
6	CLIP; CABLE 4JH1 ENG(RJX) (H) ID=21 L=24	8-94176-807-1	01	1	0208-0511		●
6	CLIP; CABLE 4JH1-TC ENG(RDM) (H) ID=21 L=24	8-94176-807-1	01	1	0512-0610		●
6	CLIP; CABLE (E)	8-97137-589-0	01	1	9701-0207	●
6	CLIP; CABLE (E)	8-97137-589-0	01	1	0208-0610		●
6	CLIP; CABLE (F) ID=22.2	1-09701-209-1	01	1	0208-0610		●
6	CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (F) ID=22.2	1-09701-209-1	01	1	0611-		●
219	NUT; FLANGE,SHAFT CABLE M8 T=8.0	8-94363-045-0	01	1	9701-0207	●
219	NUT; FLANGE,SHAFT CABLE M8 T=8.0	8-94363-045-0	01	1	0208-0610		●
219	NUT; FLANGE,SHAFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M8 T=8.0	8-94363-045-0	01	1	0611-		●
222	GROMMET; CABLE	8-97089-851-0	01	1	9701-0207	●
222	GROMMET; CABLE	8-97089-851-0	01	1	0208-0610		●
226	PIN; SHIFT CABLE (A) L=27.7	8-94111-137-0	01	1	9701-0207	●
226	PIN; SHIFT CABLE (A) L=27.7	8-94111-137-0	01	1	0208-0610		●
226	PIN; SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) L=27.7	8-94111-137-0	01	1	0611-		●
226	PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	9701-0207	●
226	PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0208-0610		●
226	PIN; SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) L=23	8-94170-378-0	01	1	0611-		●
228	WASHER; PL,SHIFT CABLE (A) ID=8 T=2.3	8-94368-403-1	02	1	9701-9707	●
228	WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	9708-0207	●
228	WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0208-0610		●
228	WASHER; PL,SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) ID=8.2 OD=40	8-97182-975-0	02	1	0611-		●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4	9-09164-508-0	01	1	9701-0207	●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4	9-09164-508-0	01	1	0208-0605		●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4 OD=16	0-91614-508-0	01	1	0606-0610		●
228	WASHER; PL,SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) ID=8.4 OD=16	0-91614-508-0	01	1	0611-		●
274	CLIP; CONT CABLE (A)	8-97093-491-1	01	1	9701-9905	●
274	CLIP; CONT CABLE (B)	8-97036-333-1	01	1	0208-0411		●
274	CLIP; CONT CABLE 4JH1 ENG(RJX) (B)	8-97036-333-1	01	1	0412-0511		●
274	CLIP; CONT CABLE 4JH1-TC ENG(RDM) (B)	8-97036-333-1	01	1	0512-0610		●
278	WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	9701-0207	●
278	WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	0208-0604		●
278	WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	0605-0610		●
278	WASHER; LK,SHIFT WIRE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	0611-		●
281	CLIP; BAND L=140	5-09707-031-1	01	1	9701-0207	●
281	CLIP; BAND L=140	5-09707-031-1	01	1	0208-0610		●
281	CLIP; BAND EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> L=140	5-09707-031-1	01	1	0611-		●

300 6 201 279 6 52 300 203 303 6 4 35 303 300 300 279 6 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	CLIP; CABLE (A) ID=19.2	8-94365-914-2	02	1	9701-9808	●
6	CLIP; CABLE (A) ID=19.2	8-97211-011-0	02	1	9809-0207	●
6	CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	0208-0610		●
6	CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) ID=19.2	8-97211-011-0	01	1	0611-		●
6	CLIP; CABLE (B)	8-97011-448-0	02	1	9701-0207	●
6	CLIP; CABLE (B)	8-97011-448-0	02	1	0208-0610		●
6	CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-97011-448-0	02	1	0611-		●
6	CLIP; CABLE (C)	8-97036-329-2	01	1	9701-0207	●
6	CLIP; CABLE 4JH1 ENG(RJX) (G)	8-94458-385-1	01	1	0208-0511		●
6	CLIP; CABLE 4JH1-TC ENG(RDM) (G)	8-94458-385-1	01	1	0512-0610		●
6	CLIP; CABLE (D)	8-97036-332-1	01	1	9701-0207	●
6	CLIP; CABLE 4JH1 ENG(RJX) (H) ID=21 L=24	8-94176-807-1	01	1	0208-0511		●
6	CLIP; CABLE 4JH1-TC ENG(RDM) (H) ID=21 L=24	8-94176-807-1	01	1	0512-0610		●
6	CLIP; CABLE (E)	8-97137-589-0	01	1	9701-0207	●
6	CLIP; CABLE (E)	8-97137-589-0	01	1	0208-0610		●
6	CLIP; CABLE (F) ID=22.2	1-09701-209-1	01	1	0208-0610		●
6	CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (F) ID=22.2	1-09701-209-1	01	1	0611-		●
52	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE	0-91180-108-0	01	1	0704-	●	●
52	NUT; BRKT M10 FLANGE	0-91150-110-0	02	1	9701-0207	●
52	NUT; BRKT 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) M10 FLANGE	0-91150-110-0	02	1	0208-0511		●
52	NUT; BRKT 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) M10 FLANGE	0-91150-110-0	02	1	0512-0602		●
52	NUT; BRKT 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) M10 FLANGE	0-91180-110-0	02	1	0603-0610		●
52	NUT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE	0-91180-108-0	02	1	0611-	●	●
201	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	9701-0207	●
201	BOLT; BRKT M10X28	0-28481-028-0	02	1	9701-9905	●
201	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	9906-0207	●
201	BOLT; BRKT 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) M10X25 FLANGE	0-28681-025-0	02	1	0208-0511		●
201	BOLT; BRKT 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) M10X25 FLANGE	0-28681-025-0	02	1	0512-0512		●
201	BOLT; BRKT 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) M10X25 FLANGE	0-28651-025-0	02	1	0601-0610		●
201	BOLT; BRKT EXC. POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	9701-0207	●
201	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0208-0411		●
201	BOLT; BRKT 4JH1 ENG(RJX) M8X25 FLANGE	0-28680-825-0	01	1	0412-0511		●
201	BOLT; BRKT 4JH1-TC ENG(RDM) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512		●
201	BOLT; BRKT 4JH1-TC ENG(RDM) M8X25 FLANGE	0-28650-825-0	01	1	0601-0610		●
201	BOLT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M8X20 FLANGE	0-28650-820-0	01	1	0611-0703		●
201	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0704-	●	●
203	NUT; BRKT FIX EXC. POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	9701-0207	●
279	BRACKET; CABLE TO FRAME (A)	8-97101-709-1	01	1	9701-9905	●
279	BRACKET; CABLE TO FRAME (A) TAI	8-97966-910-0	01	1	9906-0207	●
279	BRACKET; CABLE TO FRAME (C)	8-97289-620-0	01	1	0208-0411		●
279	BRACKET; CABLE TO FRAME 4JH1 ENG(RJX) (C)	8-97289-620-0	01	1	0412-0412		●
279	BRACKET; CABLE TO FRAME EXC. POWER STEERING<N40> (B)	8-97103-234-0	01	1	9701-0207	●
279	BRACKET; CABLE TO FRAME 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97966-910-0	01	1	0208-0511		●
279	BRACKET; CABLE TO FRAME 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) (D) TAI	8-97966-910-0	01	1	0512-0610		●
279	BRACKET; CABLE TO FRAME LONG CHAS(NH*F & NK*F) 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) (C)	8-97351-828-0	01	1	0412-0412		●
279	BRACKET; CABLE TO FRAME 4JH1 ENG(RJX) (C)	8-97351-828-0	01	1	0501-0511		●
279	BRACKET; CABLE TO FRAME 4JH1-TC ENG(RDM) (C)	8-97351-828-0	01	1	0512-0610		●
300	BOLT; CLIP M6X20	0-28280-620-0	01	1	9701-0207	●
300	BOLT; CLIP M6X20 FLANGE	0-28680-620-0	01	1	0208-0512		●
300	BOLT; CLIP M6X20 FLANGE	0-28650-620-0	01	1	0601-0610		●
300	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	02	1	9701-0207	●
300	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0208-0411		●
300	BOLT; CLIP 4JH1 ENG(RJX) M8X25 FLANGE	0-28680-825-0	01	1	0412-0511		●
300	BOLT; CLIP 4JH1-TC ENG(RDM) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512		●
300	BOLT; CLIP 4JH1-TC ENG(RDM) M8X25 FLANGE	0-28650-825-0	01	1	0601-0610		●
300	BOLT; CLIP 4JH1 ENG(RJX) M8X20 FLANGE	0-28680-820-0	01	1	0208-0511		●
300	BOLT; CLIP 4JH1-TC ENG(RDM) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512		●
300	BOLT; CLIP 4JH1-TC ENG(RDM) M8X20 FLANGE	0-28650-820-0	01	1	0601-0610		●
300	BOLT; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M8X25 FLANGE	0-28650-825-0	01	1	0611-		●
303	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9701-0207	●
303	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0208-0411		●
303	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0208-0411		●
303	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0412-0511		●
303	NUT; CLIP 4JH1 ENG(RJX) M8 FLANGE	0-91150-108-0	01	1	0412-0511		●
303	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0512-0602		●
303	NUT; CLIP 4JH1-TC ENG(RDM) M8 FLANGE	0-91150-108-0	01	1	0512-0602		●
303	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-0610		●
303	NUT; CLIP 4JH1-TC ENG(RDM) M8 FLANGE	0-91180-108-0	01	1	0603-0610		●
303	NUT; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE	0-91180-108-0	01	1	0611-		●

114 113 112 247 407 112 357 357 201 113 22 112 376 199 3 284 457 249 112 407 117 357 201 113 114 113 112 117 357 113 25 29 247 249 112 22 283 283 77 6 1 228 228 226 6 51 257 282

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT L=2540 TAI	8-97965-141-0	01	1	9701-9712	●
1	CABLE; SHIFT,TRANS CONT L=2540	8-97089-986-3	01	1	9801-9905	●
1	CABLE; SHIFT,TRANS CONT L=2540	8-97220-047-0	01	1	9906-0207	●
1	CABLE; SHIFT,TRANS CONT 4JH1 ENG(RJX) L=2674	8-97309-853-1	01	1	0208-0511		●
1	CABLE; SHIFT,TRANS CONT 4JH1-TC ENG(RDM) L=2674	8-97309-853-1	01	1	0512-0610		●
1	CABLE; SHIFT,TRANS CONT 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> L=2695	8-97388-717-2	01	1	0611-		●
3	CABLE; SELECT,TRANS CONT L=2684 TAI	8-97965-142-0	01	1	9701-9712	●
3	CABLE; SELECT,TRANS CONT L=2684	8-97089-987-2	01	1	9801-9905	●
3	CABLE; SELECT,TRANS CONT L=2684	8-97220-048-0	01	1	9906-0207	●
3	CABLE; SELECT,TRANS CONT 4JH1 ENG(RJX) L=2720	8-97309-854-0	01	1	0208-0511		●
3	CABLE; SELECT,TRANS CONT 4JH1-TC ENG(RDM) L=2720	8-97309-854-0	01	1	0512-0610		●
3	CABLE; SELECT,TRANS CONT 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> L=2785	8-97388-726-2	01	1	0611-		●
6	CLIP; CABLE (A) ID=19.2	8-94365-914-2	02	1	9701-9808	●
6	CLIP; CABLE (A) ID=19.2	8-97211-011-0	02	1	9809-0207	●
6	CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	0208-0610		●
6	CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) ID=19.2	8-97211-011-0	01	1	0611-		●
6	CLIP; CABLE (B)	8-97011-448-0	02	1	9701-0207	●
6	CLIP; CABLE (B)	8-97011-448-0	02	1	0208-0610		●
6	CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-97011-448-0	02	1	0611-		●
6	CLIP; CABLE (C)	8-97036-329-2	01	1	9701-0207	●
6	CLIP; CABLE 4JH1 ENG(RJX) (G)	8-94458-385-1	01	1	0208-0511		●
6	CLIP; CABLE 4JH1-TC ENG(RDM) (G)	8-94458-385-1	01	1	0512-0610		●
6	CLIP; CABLE (D)	8-97036-332-1	01	1	9701-0207	●
6	CLIP; CABLE 4JH1 ENG(RJX) (H) ID=21 L=24	8-94176-807-1	01	1	0208-0511		●
6	CLIP; CABLE 4JH1-TC ENG(RDM) (H) ID=21 L=24	8-94176-807-1	01	1	0512-0610		●
6	CLIP; CABLE (E)	8-97137-589-0	01	1	9701-0207	●
6	CLIP; CABLE (E)	8-97137-589-0	01	1	0208-0610		●
6	CLIP; CABLE (F) ID=22.2	1-09701-209-1	01	1	0208-0610		●
6	CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (F) ID=22.2	1-09701-209-1	01	1	0611-		●
22	ROD; CONT,SHIFT	8-97085-158-0	01	1	9701-9704	●
22	ROD; CONT,SHIFT	8-97174-058-0	01	1	9705-0207	●
25	PIN; SNAP,CONT ROD,RELAY LEVER L=27.7	8-94210-407-0	01	1	9701-9704	●
29	WASHER; LK,RELAY LEVER ID=8.5 T=0.3	5-09509-001-0	01	1	9701-9704	●
51	BRACKET; GEAR CONT (A)	8-97029-286-0	01	1	9701-0207	●
51	BRACKET; GEAR CONT EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (C) TAI	8-98030-604-0	01	1	0611-0703	●	●
51	BRACKET; GEAR CONT (C) TAI	8-98030-604-0	01	1	0704-	●	●
51	BRACKET; GEAR CONT EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) TAI	8-98032-072-0	01	1	0611-	●	●
77	NUT; LK,BALL JOINT,CONT ROD M8 T=8.0	8-94363-045-0	01	1	9701-0207	●
112	BUSHING; RELAY LEVER (A) ID=14 OD=16 TAI	8-94252-671-0	02	1	9701-9704	●
112	BUSHING; RELAY LEVER (A)	8-97174-057-0	02	1	9705-0207	●
112	BUSHING; RELAY LEVER (B)	8-97085-157-0	01	1	9701-9704	●
112	BUSHING; RELAY LEVER (B)	8-97174-060-0	01	1	9705-0207	●
113	WASHER; RELAY LEVER (A)	8-97061-437-0	02	1	9701-9704	●
113	WASHER; RELAY LEVER (A) ID=10.5 OD=22	9-09160-610-0	02	1	9705-0207	●
113	WASHER; RELAY LEVER (B)	8-97089-693-0	01	1	9701-9704	●
113	WASHER; RELAY LEVER (B) ID=15 OD=36	9-09164-714-0	01	1	9705-0207	●
113	WASHER; RELAY LEVER (C) ID=8.4 OD=22	9-09160-708-0	01	1	9701-9704	●
114	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	01	1	9701-0207	●
117	SEAL; DUST,RELAY LEVER	8-97061-438-0	02	1	9701-9704	●
199	WASHER; PL,SELECT ID=8.4	9-09160-508-0	01	1	9701-0207	●
199	WASHER; PL,SELECT ID=8.4	9-09160-508-0	01	1	0208-0605		●
199	WASHER; PL,SELECT ID=8.4 OD=16	0-91610-508-0	01	1	0606-0610		●
199	WASHER; PL,SELECT EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> ID=8.4 OD=16	0-91610-508-0	01	1	0611-		●
201	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	9701-0207	●
201	BOLT; BRKT M10X28	0-28481-028-0	02	1	9701-9905	●
201	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	9906-0207	●
201	BOLT; BRKT 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) M10X25 FLANGE	0-28681-025-0	02	1	0208-0511		●
201	BOLT; BRKT 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) M10X25 FLANGE	0-28681-025-0	02	1	0512-0512		●
201	BOLT; BRKT 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) M10X25 FLANGE	0-28651-025-0	02	1	0601-0610		●
201	BOLT; BRKT EXC. POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	9701-0207	●
201	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0208-0411		●
201	BOLT; BRKT 4JH1 ENG(RJX) M8X25 FLANGE	0-28680-825-0	01	1	0412-0511		●
201	BOLT; BRKT 4JH1-TC ENG(RDM) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512		●
201	BOLT; BRKT 4JH1-TC ENG(RDM) M8X25 FLANGE	0-28650-825-0	01	1	0601-0610		●
201	BOLT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M8X20 FLANGE	0-28650-820-0	01	1	0611-0703		●
201	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0704-	●	●
226	PIN; SHIFT CABLE (A) L=27.7	8-94111-137-0	01	1	9701-0207	●
226	PIN; SHIFT CABLE (A) L=27.7	8-94111-137-0	01	1	0208-0610		●
226	PIN; SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) L=27.7	8-94111-137-0	01	1	0611-		●
226	PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	9701-0207	●
226	PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0208-0610		●
226	PIN; SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) L=23	8-94170-378-0	01	1	0611-		●
228	WASHER; PL,SHIFT CABLE (A) ID=8 T=2.3	8-94368-403-1	02	1	9701-9707	●
228	WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	9708-0207	●
228	WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0208-0610		●
228	WASHER; PL,SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) ID=8.2 OD=40	8-97182-975-0	02	1	0611-		●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4	9-09164-508-0	01	1	9701-0207	●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4	9-09164-508-0	01	1	0208-0605		●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4 OD=16	0-91614-508-0	01	1	0606-0610		●
228	WASHER; PL,SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) ID=8.4 OD=16	0-91614-508-0	01	1	0611-		●
247	PIN; CONT ROD TO LEVER	9-09876-059-1	01	1	9701-0207	●
249	WASHER; RUBBER,CONT ROD TO LEVER ID=8.5 T=1.5	9-09851-889-0	01	1	9701-0207	●
257	PIECE; DIST,RELAY LEVER	8-94369-173-0	01	1	9701-0207	●
282	BRACKET; TRANS SIDE	8-97034-142-1	01	1	9701-9905	●
282	BRACKET; TRANS SIDE TAI	8-97966-911-0	01	1	9906-0207	●
282	BRACKET; TRANS SIDE 4JH1 ENG(RJX) TAI	8-97967-227-0	01	1	0208-0511		●
282	BRACKET; TRANS SIDE 4JH1-TC ENG(RDM) TAI	8-97967-227-0	01	1	0512-0610		●
282	BRACKET; TRANS SIDE 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI	8-97967-227-0	01	1	0611-		●
283	BOLT; RELAY LEVER (A) M10X25 W/LK&PL WASHER	0-50141-025-0	01	1	9701-9703	●
283	BOLT; RELAY LEVER (A) M10X25 FLANGE	0-28681-025-0	01	1	9704-0207	●
283	BOLT; RELAY LEVER (B) M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9701-9703	●
283	BOLT; RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	01	1	9704-0207	●
284	WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	9701-0207	●
284	WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	0208-0610		●
284	WASHER; WAVE,SELECT CABLE,CAB EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> ID=8.4 OD=14	5-09550-002-0	01	1	0611-		●
357	BRACKET; RELAY LEVER (A)	8-97089-691-0	01	1	9701-9704	●
357	BRACKET; RELAY LEVER (A)	8-97174-056-0	01	1	9705-9706	●
357	BRACKET; RELAY LEVER (A)	8-97182-166-0	01	1	9707-0207	●
357	BRACKET; RELAY LEVER (B)	8-97089-692-0	01	1	9701-0207	●
376	PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	9701-0207	●
376	PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	0208-0610		●
376	PIN; SNAP,SELECT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> L=23	8-94170-378-0	01	1	0611-		●
407	LEVER; RELAY,SHIFT	8-97089-690-1	01	1	9701-9704	●
407	LEVER; RELAY,SHIFT	8-97174-055-1	01	1	9705-0207	●
457	GASKET ID=13.8	9-09561-114-0	02	1	9705-0207	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
