Sayfa 2-35 - Isuzu EPC

2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#139063) — 215 parça

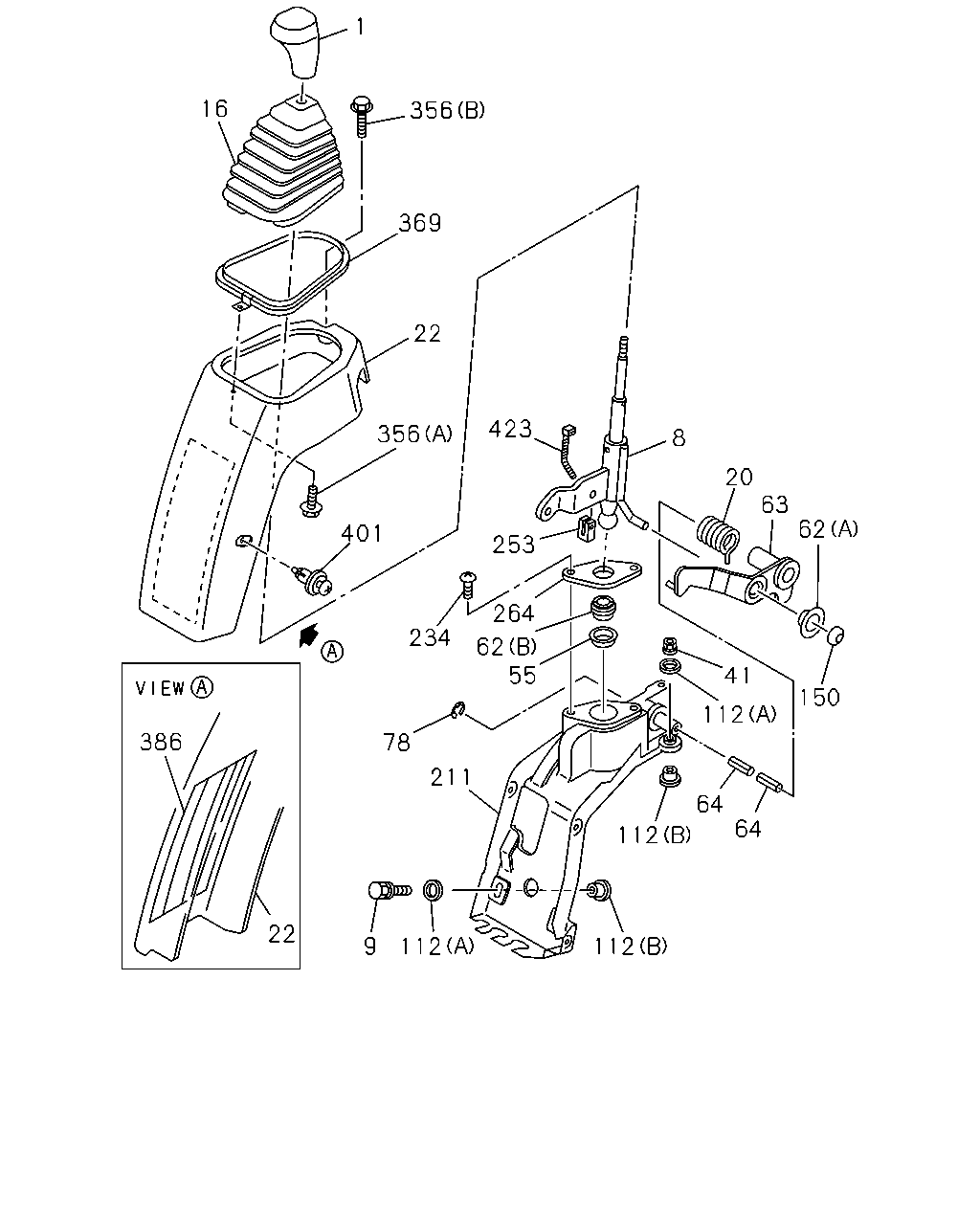

1 16 356 369 22 423 356 8 20 63 62 401 253 264 234 62 55 41 150 112 386 78 211 64 64 112 22 112 9 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	KNOB; CHANGE LEVER DARK BEIGE	8-97009-441-0	01	1	9701-9905	●
1	KNOB; CHANGE LEVER DARK GRAY TAI	8-97966-978-0	01	1	9906-0207	●
1	KNOB; CHANGE LEVER DARK GRAY TAI	8-97967-354-0	01	1	0208-0511		●
1	KNOB; CHANGE LEVER BLACK TAI	8-97967-472-0	01	1	0512-0610		●
1	KNOB; CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> BLACK TAI	8-97967-472-0	01	1	0611-		●
1	KNOB; CHANGE LEVER TRANSMISSION CONTROL-SMOOTHER<8GF> DARK GRAY	8-97398-495-2	01	1	0611-		●
8	LEVER; CHANGE	8-97093-841-1	01	1	9701-9802	●
8	LEVER; CHANGE	8-97204-506-0	01	1	9803-0207	●
8	LEVER; CHANGE	8-97204-506-0	01	1	0208-0610		●
8	LEVER; CHANGE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97204-506-0	01	1	0611-		●
8	LEVER; CHANGE TRANSMISSION CONTROL-SMOOTHER<8GF> DARK GRAY	8-97400-772-0	01	1	0611-		●
9	BOLT; CHANGE LEVER M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	9701-0207	●
9	BOLT; CHANGE LEVER M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	0208-		●
16	BOOT; CHANGE LEVER	8-97066-287-1	01	1	9701-9905	●
16	BOOT; CHANGE LEVER TAI	8-97840-355-0	01	1	9906-0207	●
16	BOOT; CHANGE LEVER TAI	8-97840-355-0	01	1	0208-0610		●
16	BOOT; CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI	8-97840-355-0	01	1	0611-		●
20	SPRING; CHANGE LEVER	8-97091-424-0	01	1	9701-9802	●
20	SPRING; CHANGE LEVER	8-97204-514-0	01	1	9803-0207	●
20	SPRING; CHANGE LEVER	8-97204-514-1	01	1	0208-0610		●
20	SPRING; CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97204-514-1	01	1	0611-		●
22	COVER; DUST,CHANGE LEVER DARK BEIGE	8-97098-667-1	01	1	9701-9905	●
22	COVER; DUST,CHANGE LEVER DARK GRAY TAI	8-97840-357-0	01	1	9906-0207	●
22	COVER; DUST,CHANGE LEVER DARK GRAY TAI	8-97840-357-0	01	1	0208-0511		●
22	COVER; DUST,CHANGE LEVER GRAY TAI	8-97967-488-0	01	1	0512-0610		●
22	COVER; DUST,CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> GRAY TAI	8-97967-488-0	01	1	0611-		●
41	NUT; CHANGE LEVER M8 W/LK WASHER TAI	8-97065-435-0	02	1	9701-0110	●
41	NUT; CHANGE LEVER M8 FLANGE TAI	8-97046-127-0	02	1	0111-0207	●
41	NUT; CHANGE LEVER M8 W/LK WASHER TAI	8-97065-435-0	02	1	0208-0401		●
41	NUT; CHANGE LEVER M8 FLANGE TAI	8-97046-127-0	02	1	0402-0610		●
41	NUT; CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE TAI	8-97046-127-0	02	1	0611-0611	●	●
41	NUT; CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M8 W/DISHED WASHER	8-97329-625-0	02	1	0611-		●
41	NUT; CHANGE LEVER TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE	0-91180-108-0	02	1	0611-		●
55	SEAT; RUBBER,SELECT SPRING	8-97083-150-0	01	1	9701-9802	●
62	SEAT; BALL,CHANGE LEVER (A)	8-97049-148-0	01	1	9701-9802	●
62	SEAT; BALL,CHANGE LEVER (C)	8-97011-895-1	01	1	9803-0207	●
62	SEAT; BALL,CHANGE LEVER (C)	8-97011-895-1	01	1	0208-0610		●
62	SEAT; BALL,CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (C)	8-97011-895-1	01	1	0611-		●
62	SEAT; BALL,CHANGE LEVER (B)	8-97091-423-0	01	1	9701-9802	●
63	LEVER; RELAY,SELECT	8-97143-199-0	01	1	9701-0207	●
63	LEVER; RELAY,SELECT	8-97143-199-0	01	1	0208-0610		●
63	LEVER; RELAY,SELECT EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97143-199-0	01	1	0611-		●
64	BUSHING; SELECT LEVER	8-97083-149-0	02	1	9701-9802	●
78	RING; SNAP,CHANGE LEVER ID=10	9-09185-410-0	01	1	9701-9802	●
78	RING; SNAP,CHANGE LEVER ID=10	9-09185-410-0	01	1	0208-0604		●
78	RING; SNAP,CHANGE LEVER ID=10	0-91805-510-0	01	1	0605-0610		●
78	RING; SNAP,CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> ID=10	0-91805-510-0	01	1	0611-		●
112	RUBBER; CUSHION (A)	8-97091-426-0	04	1	9701-0207	●
112	RUBBER; CUSHION (A)	8-97091-426-0	04	1	0208-0610		●
112	RUBBER; CUSHION EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A)	8-97091-426-0	04	1	0611-		●
112	RUBBER; CUSHION (B)	8-97091-427-0	04	1	9701-0207	●
112	RUBBER; CUSHION (B)	8-97091-427-0	04	1	0208-0610		●
112	RUBBER; CUSHION EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-97091-427-0	04	1	0611-		●
150	BALL; DETENT,CONT LEVER	8-97049-147-0	01	1	9701-0207	●
150	BALL; DETENT,CONT LEVER	8-97049-147-0	01	1	0208-0610		●
150	BALL; DETENT,CONT LEVER EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97049-147-0	01	1	0611-		●
211	BRACKET; CHANGE LEVER	8-97143-198-0	01	1	9701-9802	●
211	BRACKET; CHANGE LEVER	8-97204-505-0	01	1	9803-0207	●
211	BRACKET; CHANGE LEVER	8-97204-505-1	01	1	0208-0610		●
211	BRACKET; CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97204-505-1	01	1	0611-		●
234	BOLT; BRKT	8-97011-898-0	02	1	9701-9802	●
234	BOLT; BRKT	8-97204-512-0	02	1	9803-0207	●
234	BOLT; BRKT	8-97204-512-0	02	1	0208-0310		●
234	BOLT; BRKT M6X12 FLANGE	1-33739-842-0	02	1	0311-0610		●
234	BOLT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M6X12 FLANGE	1-33739-842-0	02	1	0611-		●
253	STOPPER; CHANGE LEVER	8-97026-014-0	01	1	9701-9802	●
253	STOPPER; CHANGE LEVER	8-97204-510-0	01	1	9803-0207	●
253	STOPPER; CHANGE LEVER	8-97204-510-0	01	1	0208-0610		●
253	STOPPER; CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97204-510-0	01	1	0611-		●
264	PLATE; COVER	8-97083-151-0	01	1	9701-9802	●
264	PLATE; COVER	8-97204-511-0	01	1	9803-0207	●
264	PLATE; COVER	8-97204-511-0	01	1	0208-0610		●
264	PLATE; COVER EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97204-511-0	01	1	0611-		●
356	SCREW; COVER (B) M6X12	8-97094-854-0	01	1	9701-0207	●
356	SCREW; COVER (B) M6X12	8-97094-854-0	01	1	0208-0612		●
356	SCREW; COVER (B) M6X12 HEXALOBULAR SOCKET	0-38050-612-0	01	1	0701-		●
356	SCREW; COVER (A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9701-0207	●
356	SCREW; COVER (A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	0208-0604		●
356	SCREW; COVER (A) M5X14 TAPPING W/PL WASHER	0-74160-514-0	01	1	0605-0610		●
356	SCREW; COVER TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M5X14 TAPPING W/PL WASHER	0-74160-514-0	01	1	0611-		●
369	RETAINER; REINF	8-97066-288-0	01	1	9701-9905	●
369	RETAINER; REINF TAI	8-97840-356-0	01	1	9906-0207	●
369	RETAINER; REINF TAI	8-97840-356-0	01	1	0208-0610		●
369	RETAINER; REINF EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI	8-97840-356-0	01	1	0611-	●	●
386	INSULATION; CHANGE LEVER	8-97867-282-0	01	1	9701-9807	●
401	CLIP; COVER DARK BEIGE	8-97009-447-0	03	1	9701-9905	●
401	CLIP; COVER DARK GRAY	8-97098-523-0	03	1	9906-0207	●
401	CLIP; COVER DARK GRAY	8-97098-523-0	03	1	0208-0511		●
401	CLIP; COVER GRAY	8-97582-240-0	03	1	0512-		●
423	CLIP; BAND	8-97062-120-0	01	1	9701-9802	●

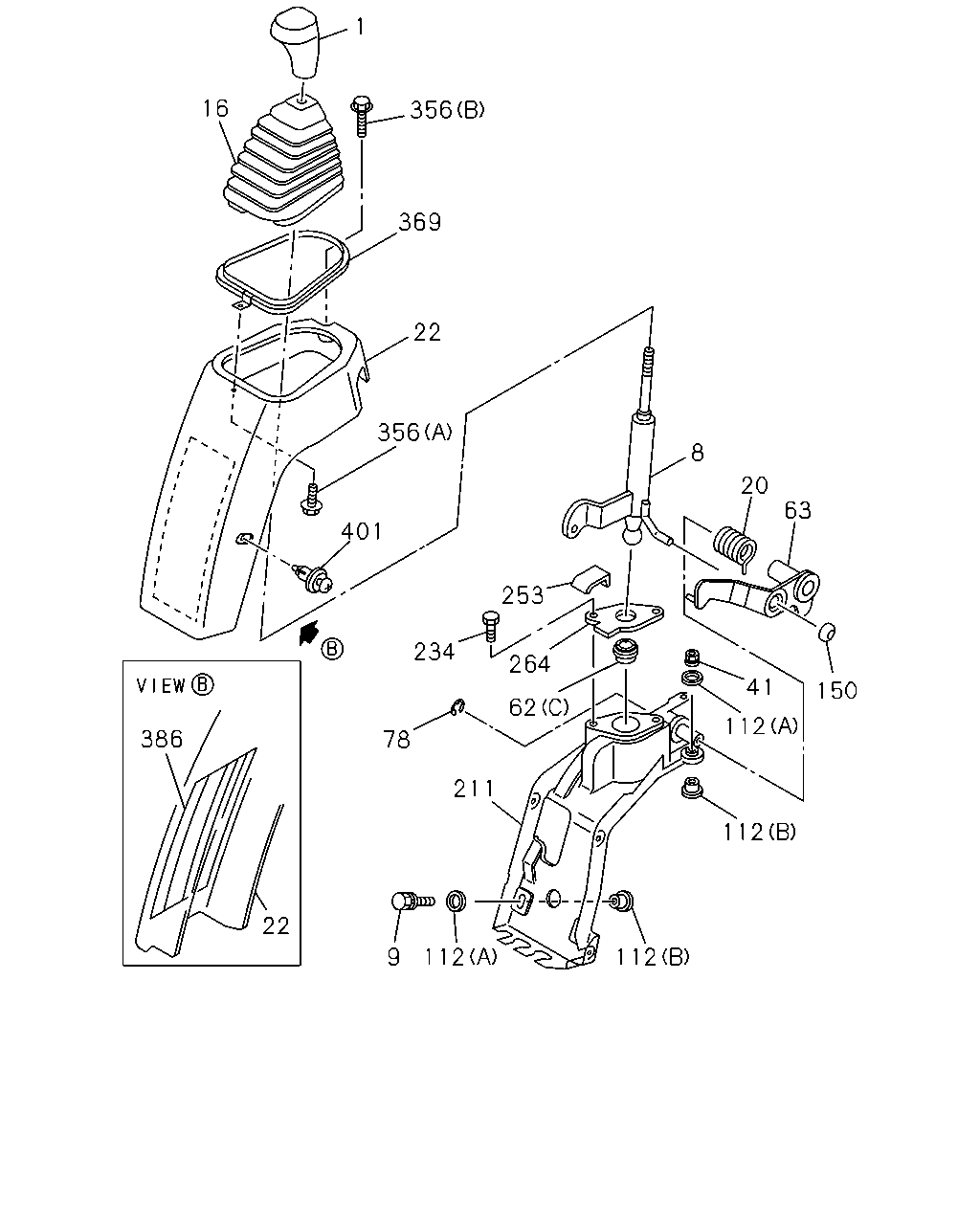

1 16 356 369 22 356 8 20 63 401 253 234 264 41 150 62 112 386 78 211 112 22 9 112 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	KNOB; CHANGE LEVER DARK BEIGE	8-97009-441-0	01	1	9701-9905	●
1	KNOB; CHANGE LEVER DARK GRAY TAI	8-97966-978-0	01	1	9906-0207	●
1	KNOB; CHANGE LEVER DARK GRAY TAI	8-97967-354-0	01	1	0208-0511		●
1	KNOB; CHANGE LEVER BLACK TAI	8-97967-472-0	01	1	0512-0610		●
1	KNOB; CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> BLACK TAI	8-97967-472-0	01	1	0611-		●
1	KNOB; CHANGE LEVER TRANSMISSION CONTROL-SMOOTHER<8GF> DARK GRAY	8-97398-495-2	01	1	0611-		●
8	LEVER; CHANGE	8-97093-841-1	01	1	9701-9802	●
8	LEVER; CHANGE	8-97204-506-0	01	1	9803-0207	●
8	LEVER; CHANGE	8-97204-506-0	01	1	0208-0610		●
8	LEVER; CHANGE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97204-506-0	01	1	0611-		●
8	LEVER; CHANGE TRANSMISSION CONTROL-SMOOTHER<8GF> DARK GRAY	8-97400-772-0	01	1	0611-		●
9	BOLT; CHANGE LEVER M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	9701-0207	●
9	BOLT; CHANGE LEVER M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	0208-		●
16	BOOT; CHANGE LEVER	8-97066-287-1	01	1	9701-9905	●
16	BOOT; CHANGE LEVER TAI	8-97840-355-0	01	1	9906-0207	●
16	BOOT; CHANGE LEVER TAI	8-97840-355-0	01	1	0208-0610		●
16	BOOT; CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI	8-97840-355-0	01	1	0611-		●
20	SPRING; CHANGE LEVER	8-97091-424-0	01	1	9701-9802	●
20	SPRING; CHANGE LEVER	8-97204-514-0	01	1	9803-0207	●
20	SPRING; CHANGE LEVER	8-97204-514-1	01	1	0208-0610		●
20	SPRING; CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97204-514-1	01	1	0611-		●
22	COVER; DUST,CHANGE LEVER DARK BEIGE	8-97098-667-1	01	1	9701-9905	●
22	COVER; DUST,CHANGE LEVER DARK GRAY TAI	8-97840-357-0	01	1	9906-0207	●
22	COVER; DUST,CHANGE LEVER DARK GRAY TAI	8-97840-357-0	01	1	0208-0511		●
22	COVER; DUST,CHANGE LEVER GRAY TAI	8-97967-488-0	01	1	0512-0610		●
22	COVER; DUST,CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> GRAY TAI	8-97967-488-0	01	1	0611-		●
41	NUT; CHANGE LEVER M8 W/LK WASHER TAI	8-97065-435-0	02	1	9701-0110	●
41	NUT; CHANGE LEVER M8 FLANGE TAI	8-97046-127-0	02	1	0111-0207	●
41	NUT; CHANGE LEVER M8 W/LK WASHER TAI	8-97065-435-0	02	1	0208-0401		●
41	NUT; CHANGE LEVER M8 FLANGE TAI	8-97046-127-0	02	1	0402-0610		●
41	NUT; CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE TAI	8-97046-127-0	02	1	0611-0611	●	●
41	NUT; CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M8 W/DISHED WASHER	8-97329-625-0	02	1	0611-		●
41	NUT; CHANGE LEVER TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE	0-91180-108-0	02	1	0611-		●
62	SEAT; BALL,CHANGE LEVER (A)	8-97049-148-0	01	1	9701-9802	●
62	SEAT; BALL,CHANGE LEVER (C)	8-97011-895-1	01	1	9803-0207	●
62	SEAT; BALL,CHANGE LEVER (C)	8-97011-895-1	01	1	0208-0610		●
62	SEAT; BALL,CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (C)	8-97011-895-1	01	1	0611-		●
62	SEAT; BALL,CHANGE LEVER (B)	8-97091-423-0	01	1	9701-9802	●
63	LEVER; RELAY,SELECT	8-97143-199-0	01	1	9701-0207	●
63	LEVER; RELAY,SELECT	8-97143-199-0	01	1	0208-0610		●
63	LEVER; RELAY,SELECT EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97143-199-0	01	1	0611-		●
78	RING; SNAP,CHANGE LEVER ID=10	9-09185-410-0	01	1	9701-9802	●
78	RING; SNAP,CHANGE LEVER ID=10	9-09185-410-0	01	1	0208-0604		●
78	RING; SNAP,CHANGE LEVER ID=10	0-91805-510-0	01	1	0605-0610		●
78	RING; SNAP,CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> ID=10	0-91805-510-0	01	1	0611-		●
112	RUBBER; CUSHION (A)	8-97091-426-0	04	1	9701-0207	●
112	RUBBER; CUSHION (A)	8-97091-426-0	04	1	0208-0610		●
112	RUBBER; CUSHION EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A)	8-97091-426-0	04	1	0611-		●
112	RUBBER; CUSHION (B)	8-97091-427-0	04	1	9701-0207	●
112	RUBBER; CUSHION (B)	8-97091-427-0	04	1	0208-0610		●
112	RUBBER; CUSHION EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-97091-427-0	04	1	0611-		●
150	BALL; DETENT,CONT LEVER	8-97049-147-0	01	1	9701-0207	●
150	BALL; DETENT,CONT LEVER	8-97049-147-0	01	1	0208-0610		●
150	BALL; DETENT,CONT LEVER EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97049-147-0	01	1	0611-		●
211	BRACKET; CHANGE LEVER	8-97143-198-0	01	1	9701-9802	●
211	BRACKET; CHANGE LEVER	8-97204-505-0	01	1	9803-0207	●
211	BRACKET; CHANGE LEVER	8-97204-505-1	01	1	0208-0610		●
211	BRACKET; CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97204-505-1	01	1	0611-		●
234	BOLT; BRKT	8-97011-898-0	02	1	9701-9802	●
234	BOLT; BRKT	8-97204-512-0	02	1	9803-0207	●
234	BOLT; BRKT	8-97204-512-0	02	1	0208-0310		●
234	BOLT; BRKT M6X12 FLANGE	1-33739-842-0	02	1	0311-0610		●
234	BOLT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M6X12 FLANGE	1-33739-842-0	02	1	0611-		●
253	STOPPER; CHANGE LEVER	8-97026-014-0	01	1	9701-9802	●
253	STOPPER; CHANGE LEVER	8-97204-510-0	01	1	9803-0207	●
253	STOPPER; CHANGE LEVER	8-97204-510-0	01	1	0208-0610		●
253	STOPPER; CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97204-510-0	01	1	0611-		●
264	PLATE; COVER	8-97083-151-0	01	1	9701-9802	●
264	PLATE; COVER	8-97204-511-0	01	1	9803-0207	●
264	PLATE; COVER	8-97204-511-0	01	1	0208-0610		●
264	PLATE; COVER EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97204-511-0	01	1	0611-		●
356	SCREW; COVER (B) M6X12	8-97094-854-0	01	1	9701-0207	●
356	SCREW; COVER (B) M6X12	8-97094-854-0	01	1	0208-0612		●
356	SCREW; COVER (B) M6X12 HEXALOBULAR SOCKET	0-38050-612-0	01	1	0701-		●
356	SCREW; COVER (A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9701-0207	●
356	SCREW; COVER (A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	0208-0604		●
356	SCREW; COVER (A) M5X14 TAPPING W/PL WASHER	0-74160-514-0	01	1	0605-0610		●
356	SCREW; COVER TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M5X14 TAPPING W/PL WASHER	0-74160-514-0	01	1	0611-		●
369	RETAINER; REINF	8-97066-288-0	01	1	9701-9905	●
369	RETAINER; REINF TAI	8-97840-356-0	01	1	9906-0207	●
369	RETAINER; REINF TAI	8-97840-356-0	01	1	0208-0610		●
369	RETAINER; REINF EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI	8-97840-356-0	01	1	0611-	●	●
386	INSULATION; CHANGE LEVER	8-97867-282-0	01	1	9701-9807	●
401	CLIP; COVER DARK BEIGE	8-97009-447-0	03	1	9701-9905	●
401	CLIP; COVER DARK GRAY	8-97098-523-0	03	1	9906-0207	●
401	CLIP; COVER DARK GRAY	8-97098-523-0	03	1	0208-0511		●
401	CLIP; COVER GRAY	8-97582-240-0	03	1	0512-		●

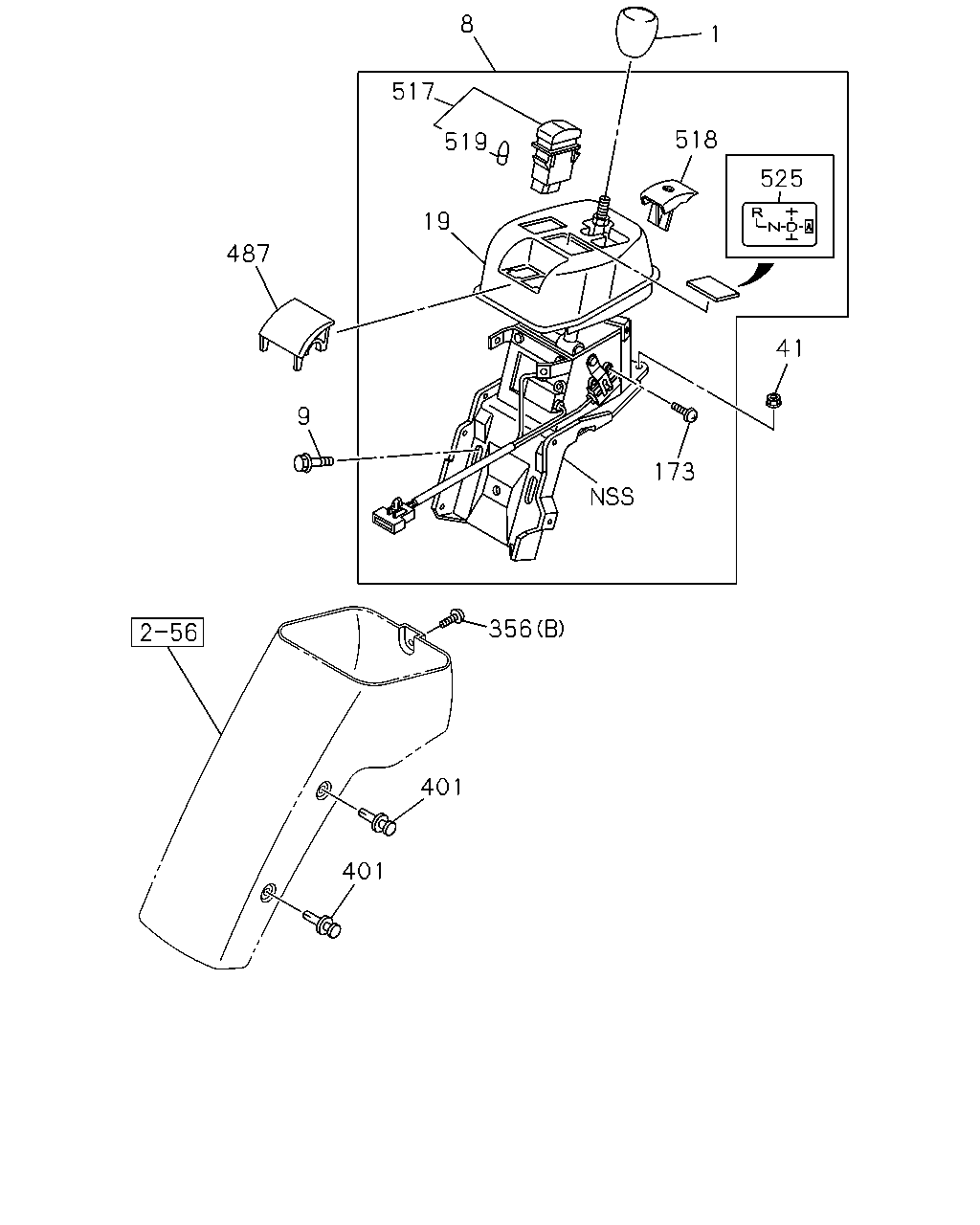

8 1 517 518 519 525 19 487 41 9 173 356 2 56 401 401

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	KNOB; CHANGE LEVER DARK BEIGE	8-97009-441-0	01	1	9701-9905	●
1	KNOB; CHANGE LEVER DARK GRAY TAI	8-97966-978-0	01	1	9906-0207	●
1	KNOB; CHANGE LEVER DARK GRAY TAI	8-97967-354-0	01	1	0208-0511		●
1	KNOB; CHANGE LEVER BLACK TAI	8-97967-472-0	01	1	0512-0610		●
1	KNOB; CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> BLACK TAI	8-97967-472-0	01	1	0611-		●
1	KNOB; CHANGE LEVER TRANSMISSION CONTROL-SMOOTHER<8GF> DARK GRAY	8-97398-495-2	01	1	0611-		●
8	LEVER; CHANGE	8-97093-841-1	01	1	9701-9802	●
8	LEVER; CHANGE	8-97204-506-0	01	1	9803-0207	●
8	LEVER; CHANGE	8-97204-506-0	01	1	0208-0610		●
8	LEVER; CHANGE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97204-506-0	01	1	0611-		●
8	LEVER; CHANGE TRANSMISSION CONTROL-SMOOTHER<8GF> DARK GRAY	8-97400-772-0	01	1	0611-		●
9	BOLT; CHANGE LEVER M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	9701-0207	●
9	BOLT; CHANGE LEVER M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	0208-		●
19	COVER; CHANGE LEVER TRANSMISSION CONTROL-SMOOTHER<8GF> DARK GRAY	8-97397-324-1	01	1	0611-		●
41	NUT; CHANGE LEVER M8 W/LK WASHER TAI	8-97065-435-0	02	1	9701-0110	●
41	NUT; CHANGE LEVER M8 FLANGE TAI	8-97046-127-0	02	1	0111-0207	●
41	NUT; CHANGE LEVER M8 W/LK WASHER TAI	8-97065-435-0	02	1	0208-0401		●
41	NUT; CHANGE LEVER M8 FLANGE TAI	8-97046-127-0	02	1	0402-0610		●
41	NUT; CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE TAI	8-97046-127-0	02	1	0611-0611	●	●
41	NUT; CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M8 W/DISHED WASHER	8-97329-625-0	02	1	0611-		●
41	NUT; CHANGE LEVER TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE	0-91180-108-0	02	1	0611-		●
173	SCREW; COVER TRANSMISSION CONTROL-SMOOTHER<8GF> M5X10 W/PL WASHER	9-03900-510-0	04	1	0611-		●
356	SCREW; COVER (B) M6X12	8-97094-854-0	01	1	9701-0207	●
356	SCREW; COVER (B) M6X12	8-97094-854-0	01	1	0208-0612		●
356	SCREW; COVER (B) M6X12 HEXALOBULAR SOCKET	0-38050-612-0	01	1	0701-		●
356	SCREW; COVER (A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9701-0207	●
356	SCREW; COVER (A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	0208-0604		●
356	SCREW; COVER (A) M5X14 TAPPING W/PL WASHER	0-74160-514-0	01	1	0605-0610		●
356	SCREW; COVER TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M5X14 TAPPING W/PL WASHER	0-74160-514-0	01	1	0611-		●
401	CLIP; COVER DARK BEIGE	8-97009-447-0	03	1	9701-9905	●
401	CLIP; COVER DARK GRAY	8-97098-523-0	03	1	9906-0207	●
401	CLIP; COVER DARK GRAY	8-97098-523-0	03	1	0208-0511		●
401	CLIP; COVER GRAY	8-97582-240-0	03	1	0512-		●
487	COVER; SWITCH TRANSMISSION CONTROL-SMOOTHER<8GF> DARK GRAY	8-97399-499-2	01	1	0611-		●
517	SWITCH; ECONOMY & 1ST TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97367-148-0	01	1	0611-		●
518	COVER; CHANGE LEVER INNER TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97373-100-0	01	1	0611-		●
519	BULB ASM TRANSMISSION CONTROL-SMOOTHER<8GF> 28V 40MA	8-97116-331-0	02	1	0611-		●
525	LABEL; SHIFT POSITION TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98056-775-0	01	1	0612-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
