2-30 — GEAR SHIFTER AND QUADRANT BOX (#139062) — 325 parça

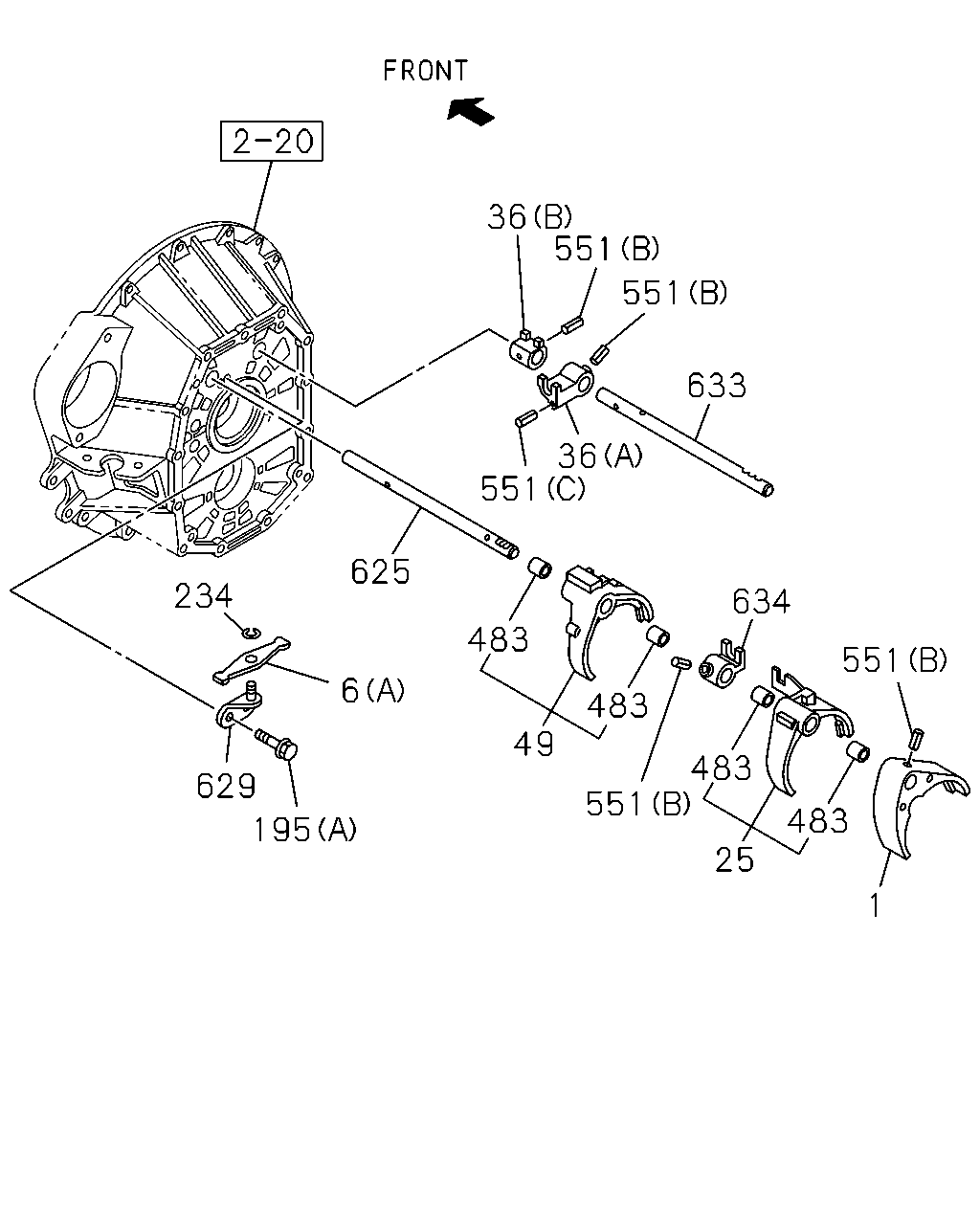

çizim 420459
2 20 36 551 551 633 36 551 625 234 634 483 551 6 483 49 483 551 629 483 195 25 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 0208- ●
6 LEVER; RELAY
(A) 		8-97241-344-0 01 1 0208- ●
6 LEVER; RELAY
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-97379-995-0 01 1 0611- ●
25 ARM; SHIFT,2ND & 3RD 8-97355-690-0 01 1 0208-0404 ●
25 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 0405- ●
36 BLOCK; SHIFT,4TH & 5TH
(A) 		8-97241-329-1 01 1 0208- ●
36 BLOCK; SHIFT,4TH & 5TH
(B) 		8-97241-330-0 01 1 0208- ●
49 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 0208- ●
195 BOLT
(A) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0208-0604 ●
195 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0605- ●
195 BOLT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M8X20 FLANGE 		0-28650-820-0 02 1 0611- ●
234 RING; SNAP
ID=12 		8-94460-357-0 01 1 0208- ●
483 BUSHING; SHIFT ARM 8-97241-326-2 04 1 0208- ●
551 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0208-0610 ●
551 PIN; SPRING
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (D) L=30 OD=4 		1-09748-031-0 02 1 0611- ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 0208- ●
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0208- ●
551 PIN; SPRING
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) L=25 OD=5 		1-09748-032-0 01 1 0611- ●
551 PIN; SPRING
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (A) L=25 OD=5 		1-09748-032-0 01 1 0611- ●
551 PIN; SPRING
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (F) OD=5 		8-97184-905-0 03 1 0611- ●
551 PIN; SPRING
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (E) 		8-97379-991-0 01 1 0611- ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 8-97241-333-3 01 1 0208-0404 ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 8-97362-741-0 01 1 0405- ●
629 BRIDGE; LEVER 8-97237-107-1 01 1 0208- ●
633 ROD; GEAR SHIFT,4TH,5TH 8-97241-336-1 01 1 0208-0209 ●
633 ROD; GEAR SHIFT,4TH,5TH 8-97358-832-0 01 1 0210-0404 ●
633 ROD; GEAR SHIFT,4TH,5TH 8-97362-743-0 01 1 0405- ●
634 BLOCK; SHIFT,LOW,REV 8-97241-327-1 01 1 0208- ●

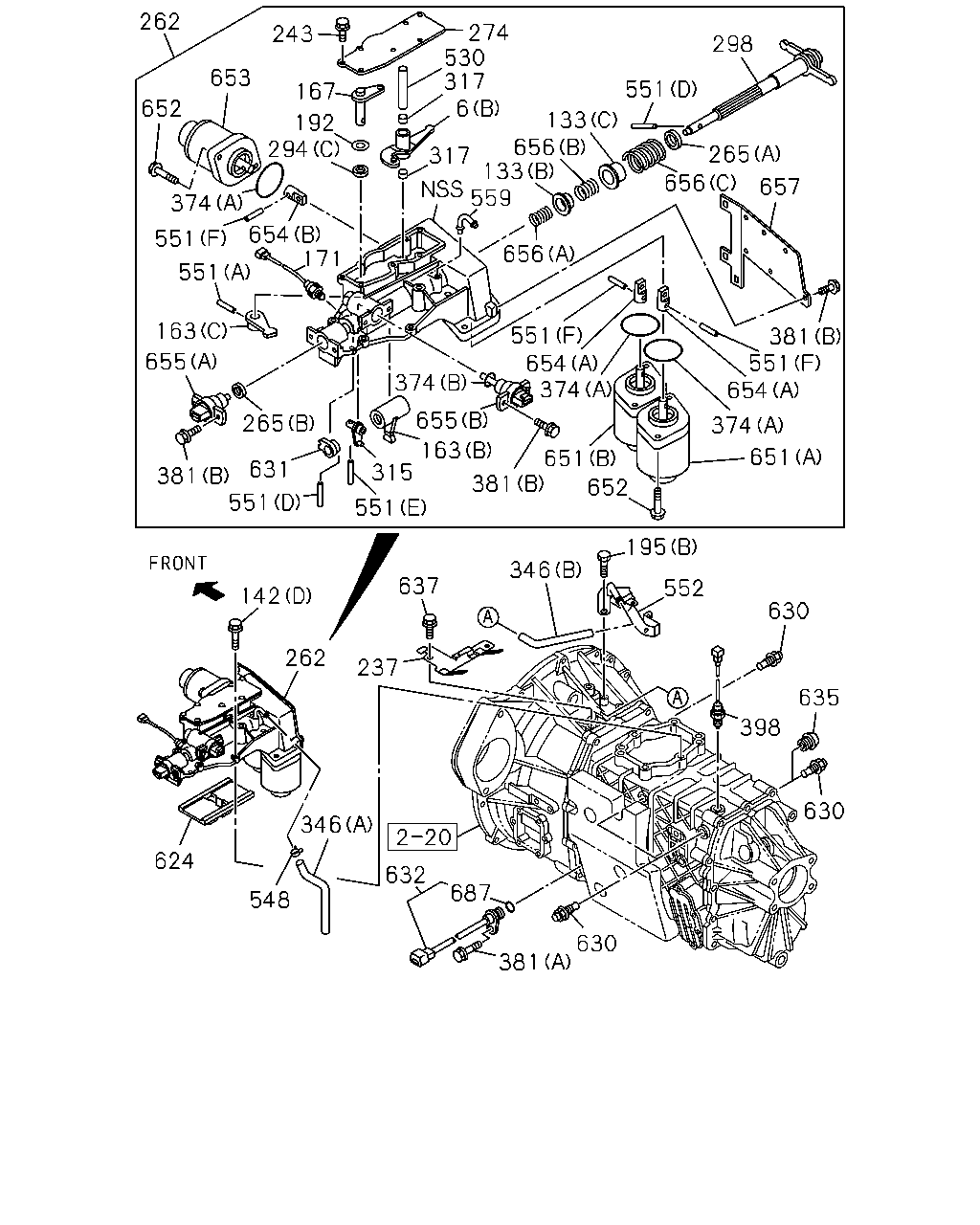

çizim 420626
262 274 530 317 6 243 298 653 551 167 652 133 656 133 559 192 294 265 317 656 657 374 654 171 551 656 551 163 381 551 654 551 654 374 655 374 655 265 374 163 315 651 651 381 631 381 551 652 551 195 346 637 552 142 630 262 237 635 398 630 346 2 20 624 632 687 548 381 630
BalonParca AdiParca NoAdetTipApplied Date A B
6 LEVER; RELAY
(A) 		8-97241-344-0 01 1 0208- ●
6 LEVER; RELAY
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-97379-995-0 01 1 0611- ●
133 SEAT; SPR
(A) 		8-97305-667-0 01 1 0208-0610 ●
133 SEAT; SPR
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) 		8-97305-667-0 01 1 0611- ●
133 SEAT; SPR
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-97379-988-0 01 1 0611- ●
133 SEAT; SPR
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (C) 		8-97379-989-0 01 1 0611- ●
142 BOLT; QUAD BOX
(A) M8X25 		8-94128-786-0 08 1 9701-0207 ●
142 BOLT; QUAD BOX
(C) M8X22 FLANGE 		8-94448-815-3 04 1 0208-0604 ●
142 BOLT; QUAD BOX
(C) M8X22 FLANGE 		8-97365-376-0 04 1 0605-0610 ●
142 BOLT; QUAD BOX
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (C) M8X22 FLANGE 		8-97365-376-0 04 1 0611- ●
142 BOLT; QUAD BOX
(B) M8X30 		8-97029-705-0 02 1 9701-0207 ●
142 BOLT; QUAD BOX
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (D) M8X35 FLANGE 		8-97364-971-0 03 1 0611-0611 ●
142 BOLT; QUAD BOX
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (D) M8X35 FLANGE 		8-98020-384-0 03 1 0611- ●
142 BOLT; QUAD BOX
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (D) M8X75 FLANGE 		8-97364-972-0 03 1 0611-0611 ●
142 BOLT; QUAD BOX
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (D) M8X75 FLANGE 		8-98020-385-0 03 1 0611- ●
163 LEVER; SELECT,INTERNAL
(D) 		8-94159-268-1 01 1 9701-0207 ●
163 LEVER; SELECT,INTERNAL
(A) 		8-97305-663-0 01 1 0208-0610 ●
163 LEVER; SELECT,INTERNAL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) 		8-97305-663-0 01 1 0611- ●
163 LEVER; SELECT,INTERNAL
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-97379-979-0 01 1 0611- ●
163 LEVER; SELECT,INTERNAL
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (C) 		8-97379-990-0 01 1 0611- ●
167 LEVER; SELECT,EXTERNAL 8-97035-560-1 01 1 9701-0207 ●
167 LEVER; SELECT,EXTERNAL 8-97306-648-0 01 1 0208-0302 ●
167 LEVER; SELECT,EXTERNAL 8-97333-847-0 01 1 0303-0610 ●
167 LEVER; SELECT,EXTERNAL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97333-847-0 01 1 0611-0611 ●
167 LEVER; SELECT,EXTERNAL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98039-436-0 01 1 0612- ●
167 LEVER; SELECT,EXTERNAL
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97379-994-0 01 1 0611- ●
171 SWITCH; NEUTRAL 8-97165-946-0 01 1 9701-9710 ●
171 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> 		8-97165-946-0 01 1 9711-9809 ●
171 SWITCH; NEUTRAL 8-97165-946-1 01 1 9810-0207 ●
171 SWITCH; NEUTRAL 8-97316-688-1 01 1 0208-0610 ●
171 SWITCH; NEUTRAL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97316-688-1 01 1 0611-0611 ●
171 SWITCH; NEUTRAL
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98023-050-0 01 1 0611-0611 ●
171 SWITCH; NEUTRAL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98023-050-0 01 1 0612- ●
171 SWITCH; NEUTRAL
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98023-050-0 01 1 0612- ●
192 WASHER; PL 8-97305-661-0 02 1 0208-0303 ●
192 WASHER; PL 8-97305-661-0 01 1 0304-0610 ●
192 WASHER; PL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97305-661-0 01 1 0611- ●
192 WASHER; PL
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		1-09503-280-0 01 1 0611- ●
195 BOLT
(A) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0208-0604 ●
195 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0605- ●
195 BOLT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M8X20 FLANGE 		0-28650-820-0 02 1 0611- ●
237 BRACKET; CABLE,TRANS
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97369-186-1 01 1 0611-0611 ●
237 BRACKET; CABLE,TRANS
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98018-905-1 01 1 0612- ●
243 BOLT; COVER
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> M6X12 FLANGE 		0-28050-612-0 11 1 0611- ●
262 BOX ASM; SHIFT CONT 8-97256-825-7 01 1 0208-0302 ●
262 BOX ASM; SHIFT CONT 8-97310-609-2 01 1 0303-0404 ●
262 BOX ASM; SHIFT CONT 8-97362-753-1 01 1 0405-0610 ●
262 BOX ASM; SHIFT CONT
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97362-753-2 01 1 0611- ●
262 BOX ASM; SHIFT CONT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98048-804-0 01 1 0611-0611 ●
262 BOX ASM; SHIFT CONT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98020-399-6 01 1 0611- ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (A) 		8-97363-225-0 01 1 0611- ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-97379-981-0 01 1 0611- ●
274 COVER; SHAFT,QUAD BOX
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97380-000-0 01 1 0611-0611 ●
274 COVER; SHAFT,QUAD BOX
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98020-711-0 01 1 0611- ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-09625-599-0 01 1 0208-0303 ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 0304-0610 ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) 		8-97363-225-0 01 1 0611- ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 0208-0610 ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-97305-662-0 01 1 0611- ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (C) 		1-09625-600-0 01 1 0611- ●
298 SHAFT; SHIFT LEVER
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97379-978-0 01 1 0611- ●
315 LEVER; SELECT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97379-998-0 01 1 0611- ●
317 BUSHING; LEVER
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97379-997-0 02 1 0611- ●
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 0208- ●
346 HOSE; AIR
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-97373-381-0 01 1 0611- ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (A) 		8-97349-571-0 03 1 0611- ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-97349-573-0 01 1 0611- ●
381 BOLT
(A) M6X16 FLANGE 		0-28680-616-0 01 1 0208-0512 ●
381 BOLT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0601- ●
381 BOLT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M6X12 FLANGE 		0-28050-612-0 04 1 0611- ●
398 SWITCH; REV LAMP 8-97165-947-1 01 1 9701-0207 ●
398 SWITCH; REV LAMP 8-97316-688-1 01 1 0208-0604 ●
398 SWITCH; REV LAMP 8-98023-050-0 01 1 0605- ●
530 SHAFT; SELECT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97379-996-0 01 1 0611- ●
548 CLIP; HOSE 8-97031-674-0 01 1 0208- ●
551 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0208-0610 ●
551 PIN; SPRING
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (D) L=30 OD=4 		1-09748-031-0 02 1 0611- ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 0208- ●
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0208- ●
551 PIN; SPRING
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) L=25 OD=5 		1-09748-032-0 01 1 0611- ●
551 PIN; SPRING
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (A) L=25 OD=5 		1-09748-032-0 01 1 0611- ●
551 PIN; SPRING
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (F) OD=5 		8-97184-905-0 03 1 0611- ●
551 PIN; SPRING
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (E) 		8-97379-991-0 01 1 0611- ●
552 BRACKET
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97349-914-1 01 1 0611- ●
559 PIPE; BREATHER 8-97305-517-0 01 1 0208-0604 ●
559 PIPE; BREATHER 8-97358-318-0 01 1 0605-0610 ●
559 PIPE; BREATHER
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97358-318-0 01 1 0611- ●
559 PIPE; BREATHER
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97379-999-0 01 1 0611-0611 ●
559 PIPE; BREATHER
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98020-710-0 01 1 0611- ●
624 PLATE; INTER LOCK 8-97241-317-3 01 1 0208- ●
630 DETENT ASM 8-97241-341-0 03 1 0208-0604 ●
630 DETENT ASM 8-98019-536-0 03 1 0605- ●
631 STOPPER; SPRING 8-97305-666-0 01 1 0208-0610 ●
631 STOPPER; SPRING
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97305-666-0 01 1 0611- ●
631 STOPPER; SPRING
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97379-984-0 01 1 0611- ●
632 SENSOR; TRANS,REV
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97315-604-1 01 1 0611- ●
635 PLUG; DETENT 8-97229-313-2 01 1 0208-0611 ●
635 PLUG; DETENT 8-97380-892-0 01 1 0612- ●
637 BOLT; BRACKET
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> M8X20 FLANGE 		0-28650-820-0 01 1 0611- ●
651 SOLENOID ASM; SHIFT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (A) 		8-97324-828-2 01 1 0611-0611 ●
651 SOLENOID ASM; SHIFT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (A) 		8-98002-759-0 01 1 0611- ●
651 SOLENOID ASM; SHIFT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-97365-922-1 01 1 0611-0611 ●
651 SOLENOID ASM; SHIFT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-98002-760-0 01 1 0611- ●
652 BOLT; SORENOID
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> M10X25 FLANGE 		0-28151-025-0 06 1 0611- ●
653 SOLENOID ASM; SELECT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97324-830-1 01 1 0611-0611 ●
653 SOLENOID ASM; SELECT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98002-761-0 01 1 0611- ●
654 JOINT; SOLENOID,CASE
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (A) 		8-97349-473-0 02 1 0611- ●
654 JOINT; SOLENOID,CASE
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-97380-419-0 01 1 0611- ●
655 SENSOR; STROKE
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (A) 		8-97324-826-0 01 1 0611- ●
655 SENSOR; STROKE
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-97324-827-0 01 1 0611- ●
656 SPRING; SHAFT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (A) 		8-97379-985-0 01 1 0611- ●
656 SPRING; SHAFT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-97379-986-0 01 1 0611- ●
656 SPRING; SHAFT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (C) 		8-97379-987-0 01 1 0611- ●
657 PLATE; SIDE
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97380-001-0 01 1 0611-0611 ●
657 PLATE; SIDE
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98020-712-0 01 1 0611- ●
687 GASKET; SENSOR
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		9-09567-113-0 01 1 0611- ●

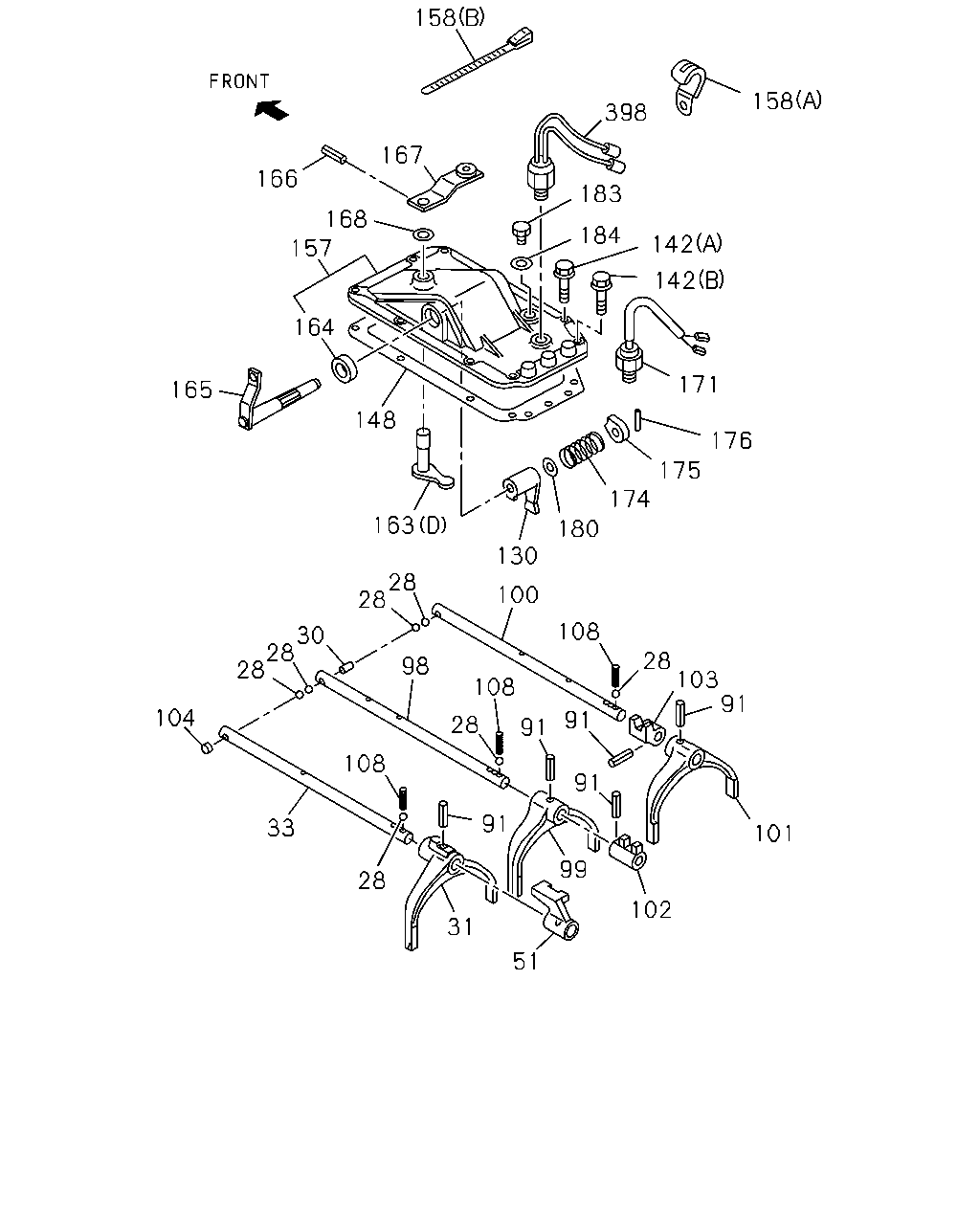

çizim 420680
158 158 398 167 166 183 168 157 184 142 142 164 171 165 148 176 175 174 163 180 130 28 28 100 108 30 28 28 28 103 91 98 108 104 91 28 91 108 91 91 33 101 99 28 102 31 51
BalonParca AdiParca NoAdetTipApplied Date A B
28 BALL; INTER LK 9-00097-010-0 07 1 9701-0207 ●
30 PIN; INTER LK 5-33534-001-0 01 1 9701-0207 ●
31 ARM; SHIFT,LOW & 2ND 8-97011-365-1 01 1 9701-0207 ●
33 ROD; SHIFT,LOW & 2ND 8-97011-370-1 01 1 9701-0207 ●
51 BLOCK; SHIFT,1ST & 2ND 8-97022-837-2 01 1 9701-0207 ●
91 PIN; SPR,SHIFT ARM
L=25 OD=5 		8-94135-771-0 06 1 9701-0207 ●
98 ROD; SHIFT,TOP & 3RD 8-97011-371-1 01 1 9701-0207 ●
99 ARM; SHIFT,4TH & 3RD 8-97011-366-1 01 1 9701-0207 ●
100 ROD; SHIFT,REV & 5TH 8-94316-923-0 01 1 9701-0207 ●
101 ARM; SHIFT,REV & 5TH 8-97107-545-0 01 1 9701-0207 ●
102 BLOCK; SHIFT,3RD & 4TH 8-97017-573-1 01 1 9701-0207 ●
103 BLOCK; SHIFT,REV TO OD 8-94135-719-4 01 1 9701-0207 ●
104 PLUG; PLATE
OD=16 		9-09201-316-0 01 1 9701-9905 ●
108 SPRING; LOCK BALL
OD=6.8 L=31.6 		9-09740-114-0 03 1 9701-0207 ●
130 LEVER; SHIFT,INTERNAL 8-94105-141-2 01 1 9701-0207 ●
130 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 0208-0610 ●
130 LEVER; SHIFT,INTERNAL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97306-647-0 01 1 0611- ●
142 BOLT; QUAD BOX
(A) M8X25 		8-94128-786-0 08 1 9701-0207 ●
142 BOLT; QUAD BOX
(C) M8X22 FLANGE 		8-94448-815-3 04 1 0208-0604 ●
142 BOLT; QUAD BOX
(C) M8X22 FLANGE 		8-97365-376-0 04 1 0605-0610 ●
142 BOLT; QUAD BOX
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (C) M8X22 FLANGE 		8-97365-376-0 04 1 0611- ●
142 BOLT; QUAD BOX
(B) M8X30 		8-97029-705-0 02 1 9701-0207 ●
142 BOLT; QUAD BOX
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (D) M8X35 FLANGE 		8-97364-971-0 03 1 0611-0611 ●
142 BOLT; QUAD BOX
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (D) M8X35 FLANGE 		8-98020-384-0 03 1 0611- ●
142 BOLT; QUAD BOX
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (D) M8X75 FLANGE 		8-97364-972-0 03 1 0611-0611 ●
142 BOLT; QUAD BOX
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (D) M8X75 FLANGE 		8-98020-385-0 03 1 0611- ●
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-94257-162-0 01 1 9701-0207 ●
157 BOX; QUAD,TRANS 8-94340-145-0 01 1 9701-9710 ●
157 BOX; QUAD,TRANS
EXHAUST BRAKE<NF8> 		8-94340-145-0 01 1 9711-9809 ●
157 BOX; QUAD,TRANS 8-94340-145-0 01 1 9810-0207 ●
157 BOX; QUAD,TRANS
EXC. EXHAUST BRAKE<NF8> 		8-94340-146-0 01 1 9711-9809 ●
158 CLIP; HARNESS
(A) ID=8.5 		5-09700-275-0 01 1 9701-0207 ●
158 CLIP; HARNESS
(B) L=140 		5-09707-031-0 01 1 9701-9710 ●
158 CLIP; HARNESS
EXHAUST BRAKE<NF8> (B) L=140 		5-09707-031-1 01 1 9711-9809 ●
158 CLIP; HARNESS
(B) L=140 		5-09707-031-1 01 1 9810-0207 ●
163 LEVER; SELECT,INTERNAL
(D) 		8-94159-268-1 01 1 9701-0207 ●
163 LEVER; SELECT,INTERNAL
(A) 		8-97305-663-0 01 1 0208-0610 ●
163 LEVER; SELECT,INTERNAL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) 		8-97305-663-0 01 1 0611- ●
163 LEVER; SELECT,INTERNAL
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-97379-979-0 01 1 0611- ●
163 LEVER; SELECT,INTERNAL
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (C) 		8-97379-990-0 01 1 0611- ●
164 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). OD=27 		8-94128-784-0 02 1 9701-0011 ●
164 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). OD=27 		8-97304-068-0 02 1 0012-0207 ●
165 LEVER; SHIFT 8-97036-221-0 01 1 9701-9710 ●
165 LEVER; SHIFT
EXHAUST BRAKE<NF8> 		8-97036-221-0 01 1 9711-9809 ●
165 LEVER; SHIFT 8-97036-221-0 01 1 9810-0207 ●
165 LEVER; SHIFT
EXC. EXHAUST BRAKE<NF8> 		8-97035-557-0 01 1 9711-9809 ●
166 PIN; SPR,SELECT LEVER
L=25 OD=5 		8-94135-771-0 01 1 9701-0207 ●
167 LEVER; SELECT,EXTERNAL 8-97035-560-1 01 1 9701-0207 ●
167 LEVER; SELECT,EXTERNAL 8-97306-648-0 01 1 0208-0302 ●
167 LEVER; SELECT,EXTERNAL 8-97333-847-0 01 1 0303-0610 ●
167 LEVER; SELECT,EXTERNAL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97333-847-0 01 1 0611-0611 ●
167 LEVER; SELECT,EXTERNAL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98039-436-0 01 1 0612- ●
167 LEVER; SELECT,EXTERNAL
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97379-994-0 01 1 0611- ●
168 WASHER; LK,SELECT LEVER 8-94249-250-1 01 1 9701-0207 ●
171 SWITCH; NEUTRAL 8-97165-946-0 01 1 9701-9710 ●
171 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> 		8-97165-946-0 01 1 9711-9809 ●
171 SWITCH; NEUTRAL 8-97165-946-1 01 1 9810-0207 ●
171 SWITCH; NEUTRAL 8-97316-688-1 01 1 0208-0610 ●
171 SWITCH; NEUTRAL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97316-688-1 01 1 0611-0611 ●
171 SWITCH; NEUTRAL
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98023-050-0 01 1 0611-0611 ●
171 SWITCH; NEUTRAL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98023-050-0 01 1 0612- ●
171 SWITCH; NEUTRAL
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98023-050-0 01 1 0612- ●
174 SPRING; REV 8-97031-927-0 01 1 9701-0207 ●
175 RING; STOPPER,SHIFT LEVER 8-94249-048-2 01 1 9701-9710 ●
175 RING; STOPPER,SHIFT LEVER
EXHAUST BRAKE<NF8> 		8-94249-048-2 01 1 9711-9809 ●
175 RING; STOPPER,SHIFT LEVER 8-94249-048-2 01 1 9810-0207 ●
176 PIN; SPR,STOPPER
L=30 OD=4 		9-09678-549-0 02 1 9701-9710 ●
176 PIN; SPR,STOPPER
EXHAUST BRAKE<NF8> L=30 OD=4 		9-09678-549-0 02 1 9711-9809 ●
176 PIN; SPR,STOPPER
L=30 OD=4 		9-09678-549-0 02 1 9810-0207 ●
176 PIN; SPR,STOPPER
EXC. EXHAUST BRAKE<NF8> L=30 OD=4 		9-09678-549-0 01 1 9711-9809 ●
180 WASHER; REV STOP SPRING 8-94249-244-0 01 1 9701-0207 ●
183 PLUG; SCREW,OIL FILTER
M18 		8-94337-946-1 01 1 9701-0207 ●
184 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=15.3 		8-94336-511-0 01 1 9701-0207 ●
398 SWITCH; REV LAMP 8-97165-947-1 01 1 9701-0207 ●
398 SWITCH; REV LAMP 8-97316-688-1 01 1 0208-0604 ●
398 SWITCH; REV LAMP 8-98023-050-0 01 1 0605- ●

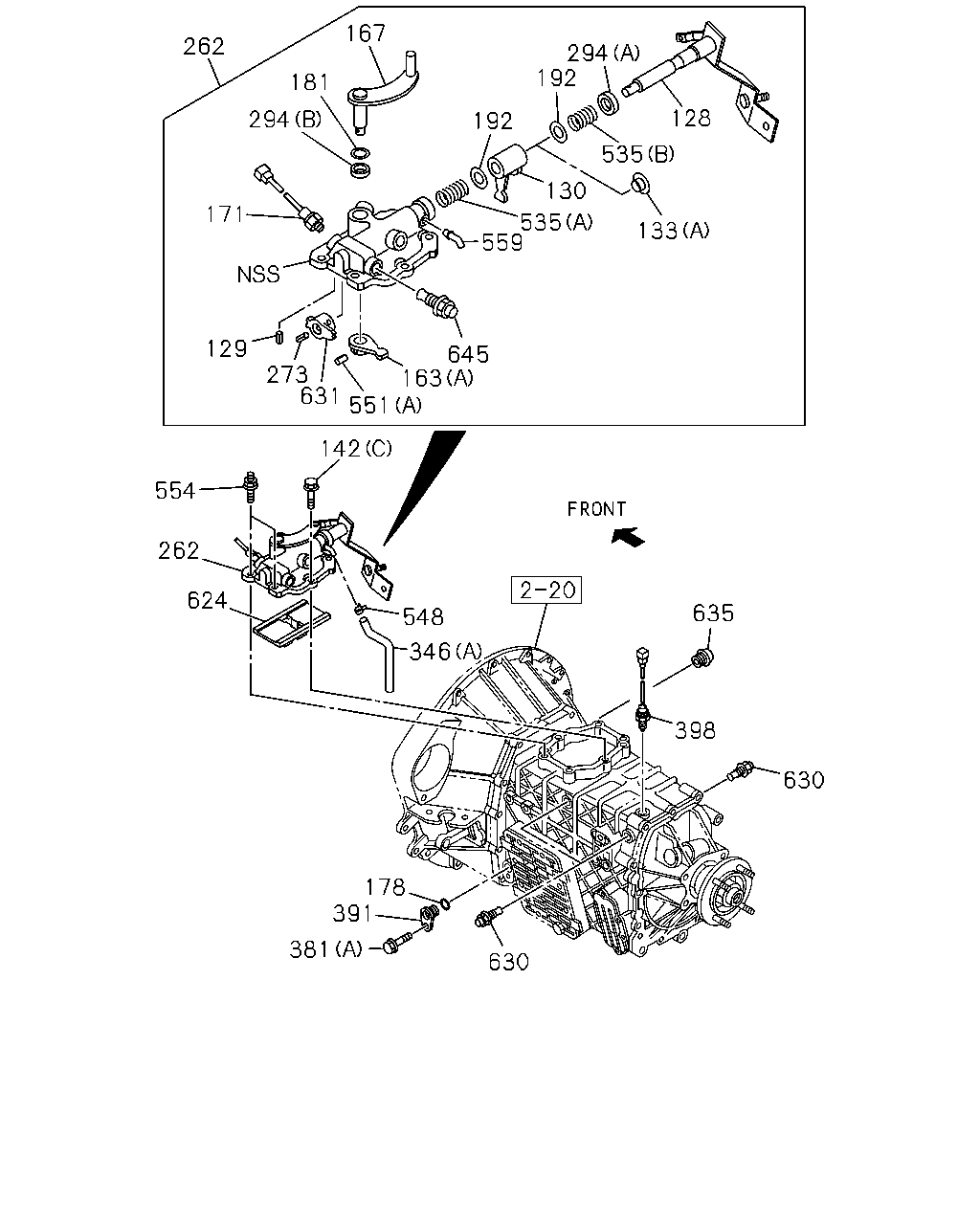

çizim 420696
167 262 294 192 181 128 294 192 535 130 171 535 559 133 129 645 163 551 273 631 142 554 262 2 20 624 635 548 346 398 630 178 391 381 630
BalonParca AdiParca NoAdetTipApplied Date A B
128 LEVER; SHIFT,EXTERNAL 8-97305-725-0 01 1 0208-0610 ●
128 LEVER; SHIFT,EXTERNAL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97305-725-0 01 1 0611- ●
129 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 0208-0610 ●
129 PIN; SPR,SHIFT
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> L=30 OD=4 		1-09748-031-0 01 1 0611- ●
130 LEVER; SHIFT,INTERNAL 8-94105-141-2 01 1 9701-0207 ●
130 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 0208-0610 ●
130 LEVER; SHIFT,INTERNAL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97306-647-0 01 1 0611- ●
133 SEAT; SPR
(A) 		8-97305-667-0 01 1 0208-0610 ●
133 SEAT; SPR
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) 		8-97305-667-0 01 1 0611- ●
133 SEAT; SPR
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-97379-988-0 01 1 0611- ●
133 SEAT; SPR
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (C) 		8-97379-989-0 01 1 0611- ●
142 BOLT; QUAD BOX
(A) M8X25 		8-94128-786-0 08 1 9701-0207 ●
142 BOLT; QUAD BOX
(C) M8X22 FLANGE 		8-94448-815-3 04 1 0208-0604 ●
142 BOLT; QUAD BOX
(C) M8X22 FLANGE 		8-97365-376-0 04 1 0605-0610 ●
142 BOLT; QUAD BOX
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (C) M8X22 FLANGE 		8-97365-376-0 04 1 0611- ●
142 BOLT; QUAD BOX
(B) M8X30 		8-97029-705-0 02 1 9701-0207 ●
142 BOLT; QUAD BOX
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (D) M8X35 FLANGE 		8-97364-971-0 03 1 0611-0611 ●
142 BOLT; QUAD BOX
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (D) M8X35 FLANGE 		8-98020-384-0 03 1 0611- ●
142 BOLT; QUAD BOX
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (D) M8X75 FLANGE 		8-97364-972-0 03 1 0611-0611 ●
142 BOLT; QUAD BOX
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (D) M8X75 FLANGE 		8-98020-385-0 03 1 0611- ●
163 LEVER; SELECT,INTERNAL
(D) 		8-94159-268-1 01 1 9701-0207 ●
163 LEVER; SELECT,INTERNAL
(A) 		8-97305-663-0 01 1 0208-0610 ●
163 LEVER; SELECT,INTERNAL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) 		8-97305-663-0 01 1 0611- ●
163 LEVER; SELECT,INTERNAL
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-97379-979-0 01 1 0611- ●
163 LEVER; SELECT,INTERNAL
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (C) 		8-97379-990-0 01 1 0611- ●
167 LEVER; SELECT,EXTERNAL 8-97035-560-1 01 1 9701-0207 ●
167 LEVER; SELECT,EXTERNAL 8-97306-648-0 01 1 0208-0302 ●
167 LEVER; SELECT,EXTERNAL 8-97333-847-0 01 1 0303-0610 ●
167 LEVER; SELECT,EXTERNAL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97333-847-0 01 1 0611-0611 ●
167 LEVER; SELECT,EXTERNAL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98039-436-0 01 1 0612- ●
167 LEVER; SELECT,EXTERNAL
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97379-994-0 01 1 0611- ●
171 SWITCH; NEUTRAL 8-97165-946-0 01 1 9701-9710 ●
171 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> 		8-97165-946-0 01 1 9711-9809 ●
171 SWITCH; NEUTRAL 8-97165-946-1 01 1 9810-0207 ●
171 SWITCH; NEUTRAL 8-97316-688-1 01 1 0208-0610 ●
171 SWITCH; NEUTRAL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97316-688-1 01 1 0611-0611 ●
171 SWITCH; NEUTRAL
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98023-050-0 01 1 0611-0611 ●
171 SWITCH; NEUTRAL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98023-050-0 01 1 0612- ●
171 SWITCH; NEUTRAL
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98023-050-0 01 1 0612- ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 0208-0610 ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		9-09567-113-0 01 1 0611- ●
181 WASHER; PL,SELECT LEVER 1-09503-280-0 01 1 0208-0303 ●
181 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 0304-0610 ●
181 WASHER; PL,SELECT LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97367-327-0 01 1 0611- ●
192 WASHER; PL 8-97305-661-0 02 1 0208-0303 ●
192 WASHER; PL 8-97305-661-0 01 1 0304-0610 ●
192 WASHER; PL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97305-661-0 01 1 0611- ●
192 WASHER; PL
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		1-09503-280-0 01 1 0611- ●
262 BOX ASM; SHIFT CONT 8-97256-825-7 01 1 0208-0302 ●
262 BOX ASM; SHIFT CONT 8-97310-609-2 01 1 0303-0404 ●
262 BOX ASM; SHIFT CONT 8-97362-753-1 01 1 0405-0610 ●
262 BOX ASM; SHIFT CONT
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97362-753-2 01 1 0611- ●
262 BOX ASM; SHIFT CONT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98048-804-0 01 1 0611-0611 ●
262 BOX ASM; SHIFT CONT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98020-399-6 01 1 0611- ●
273 PIN; SPR,STOPPER
D=4.2 L=25 		8-97103-142-0 01 1 0208-0303 ●
273 PIN; SPR,STOPPER
D=4.2 L=25 		8-97103-142-0 01 1 0304-0610 ●
273 PIN; SPR,STOPPER
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> D=4.2 L=25 		8-97103-142-0 01 1 0611- ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-09625-599-0 01 1 0208-0303 ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 0304-0610 ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) 		8-97363-225-0 01 1 0611- ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 0208-0610 ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-97305-662-0 01 1 0611- ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (C) 		1-09625-600-0 01 1 0611- ●
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 0208- ●
346 HOSE; AIR
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-97373-381-0 01 1 0611- ●
381 BOLT
(A) M6X16 FLANGE 		0-28680-616-0 01 1 0208-0512 ●
381 BOLT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0601- ●
381 BOLT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M6X12 FLANGE 		0-28050-612-0 04 1 0611- ●
391 PLUG; SW HOLE 8-97300-273-1 01 1 0208-0610 ●
391 PLUG; SW HOLE
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97300-273-1 01 1 0611- ●
398 SWITCH; REV LAMP 8-97165-947-1 01 1 9701-0207 ●
398 SWITCH; REV LAMP 8-97316-688-1 01 1 0208-0604 ●
398 SWITCH; REV LAMP 8-98023-050-0 01 1 0605- ●
535 SPRING; LEVER
(A) 		8-97323-771-0 01 1 0208-0610 ●
535 SPRING; LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) 		8-97323-771-0 01 1 0611- ●
535 SPRING; LEVER
(B) 		8-97323-772-0 01 1 0208-0610 ●
535 SPRING; LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-97323-772-0 01 1 0611- ●
548 CLIP; HOSE 8-97031-674-0 01 1 0208- ●
551 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0208-0610 ●
551 PIN; SPRING
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (D) L=30 OD=4 		1-09748-031-0 02 1 0611- ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 0208- ●
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0208- ●
551 PIN; SPRING
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) L=25 OD=5 		1-09748-032-0 01 1 0611- ●
551 PIN; SPRING
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (A) L=25 OD=5 		1-09748-032-0 01 1 0611- ●
551 PIN; SPRING
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (F) OD=5 		8-97184-905-0 03 1 0611- ●
551 PIN; SPRING
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (E) 		8-97379-991-0 01 1 0611- ●
554 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97352-677-0 02 1 0208-0604 ●
554 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 02 1 0605-0610 ●
554 STUD; CONT BOX
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M8X15,M8X25 L=49 		8-97365-378-0 02 1 0611- ●
559 PIPE; BREATHER 8-97305-517-0 01 1 0208-0604 ●
559 PIPE; BREATHER 8-97358-318-0 01 1 0605-0610 ●
559 PIPE; BREATHER
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97358-318-0 01 1 0611- ●
559 PIPE; BREATHER
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97379-999-0 01 1 0611-0611 ●
559 PIPE; BREATHER
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98020-710-0 01 1 0611- ●
624 PLATE; INTER LOCK 8-97241-317-3 01 1 0208- ●
630 DETENT ASM 8-97241-341-0 03 1 0208-0604 ●
630 DETENT ASM 8-98019-536-0 03 1 0605- ●
631 STOPPER; SPRING 8-97305-666-0 01 1 0208-0610 ●
631 STOPPER; SPRING
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97305-666-0 01 1 0611- ●
631 STOPPER; SPRING
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97379-984-0 01 1 0611- ●
635 PLUG; DETENT 8-97229-313-2 01 1 0208-0611 ●
635 PLUG; DETENT 8-97380-892-0 01 1 0612- ●
645 DETENT ASM 8-97241-341-0 01 1 0405-0604 ●
645 DETENT ASM 8-98019-536-0 01 1 0605-0610 ●
645 DETENT ASM
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98019-536-0 01 1 0611- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
