2-26 — MANUAL TRANSMISSION GEAR (#139061) — 238 parça

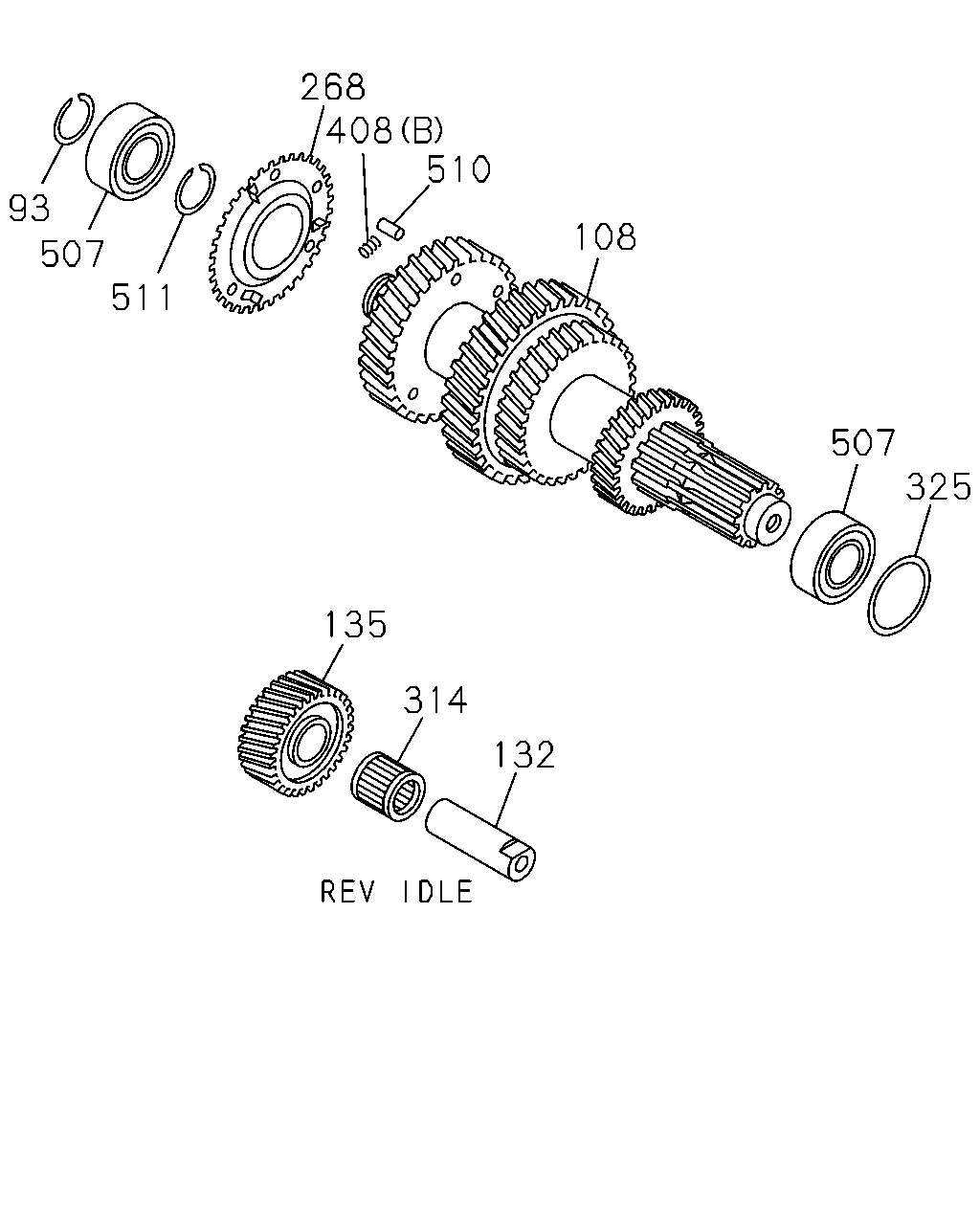

çizim 420451
68 408 510 93 108 507 511 507 325 135 314 132
BalonParca AdiParca NoAdetTipApplied Date A B
93 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=1.9 		8-97254-734-0 01 1 0208- ●
93 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.1 		8-97254-740-0 01 1 0208- ●
93 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.3 		8-97254-742-0 01 1 0208- ●
108 SHAFT; COUNTER
Z=45-49-33-20 		8-97326-590-0 01 1 0208-0404 ●
108 SHAFT; COUNTER
Z=45-49-33-20 		8-97380-630-1 01 1 0405-0610 ●
108 SHAFT; COUNTER
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> Z=45-49-33-20 		8-97380-630-1 01 1 0611- ●
108 SHAFT; COUNTER
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> Z=45-49-33-20 		8-97326-590-1 01 1 0611- ●
132 SHAFT; REV 9-33351-604-1 01 1 9701-0207 ●
132 SHAFT; REV 8-97252-655-0 01 1 0208- ●
135 GEAR; REV IDLER
Z=29 		8-97081-539-3 01 1 9701-0207 ●
135 GEAR; REV IDLER
Z=25 		8-97241-293-0 01 1 0208-0512 ●
135 GEAR; REV IDLER
Z=25 		8-98031-869-1 01 1 0601- ●
268 PLATE; ANTI LASH,COUNTER 8-97257-300-1 01 1 0208-0610 ●
268 PLATE; ANTI LASH,COUNTER
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97257-300-1 01 1 0611- ●
314 BEARING; NEEDLE,REV GEAR
NSK 		5-09811-014-0 01 1 9701-9905 ●
314 BEARING; NEEDLE,REV GEAR
NSK 		8-97207-174-0 01 1 9906-0207 ●
314 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 0208- ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.41 		8-97252-668-0 01 1 0208- ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.47 		8-97252-669-0 01 1 0208- ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.53 		8-97252-670-0 01 1 0208- ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.59 		8-97252-671-0 01 1 0208- ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.65 		8-97252-672-0 01 1 0208- ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.71 		8-97252-673-0 01 1 0208- ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.77 		8-97252-674-0 01 1 0208- ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.83 		8-97252-675-0 01 1 0208- ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.89 		8-97257-622-0 01 1 0208- ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.95 		8-97320-549-0 01 1 0208-0404 ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.29 		8-97252-666-0 01 1 0405- ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=3.01 		8-97320-550-0 01 1 0208-0404 ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.35 		8-97252-667-0 01 1 0405- ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=3.07 		8-97320-551-0 01 1 0208-0404 ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.11 		8-97306-188-0 01 1 0405- ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=3.13 		8-97320-552-0 01 1 0208-0404 ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.17 		8-97306-189-0 01 1 0405- ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=3.19 		8-97320-553-0 01 1 0208-0404 ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.23 		8-97306-190-0 01 1 0405- ●
408 SPRING
(A) 		8-97081-577-0 01 1 9701-0207 ●
408 SPRING
(B) 		8-94148-196-0 03 1 0208-0610 ●
408 SPRING
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-94148-196-0 03 1 0611- ●
408 SPRING
(C) 		8-94422-075-0 02 1 0208-0404 ●
408 SPRING
(C) 		8-97366-040-1 02 1 0405- ●
507 BEARING; COUNTER SHAFT,FRT & RR 8-97253-107-0 02 1 0208- ●
510 PIN; STRAIGHT,ANTI LASH 9-08160-825-0 03 1 0208-0610 ●
510 PIN; STRAIGHT,ANTI LASH
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		9-08160-825-0 03 1 0611- ●
511 RING; SNAP,ANTI LASH PLATE 8-97254-767-0 01 1 0208-0610 ●
511 RING; SNAP,ANTI LASH PLATE
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97254-767-0 01 1 0611- ●

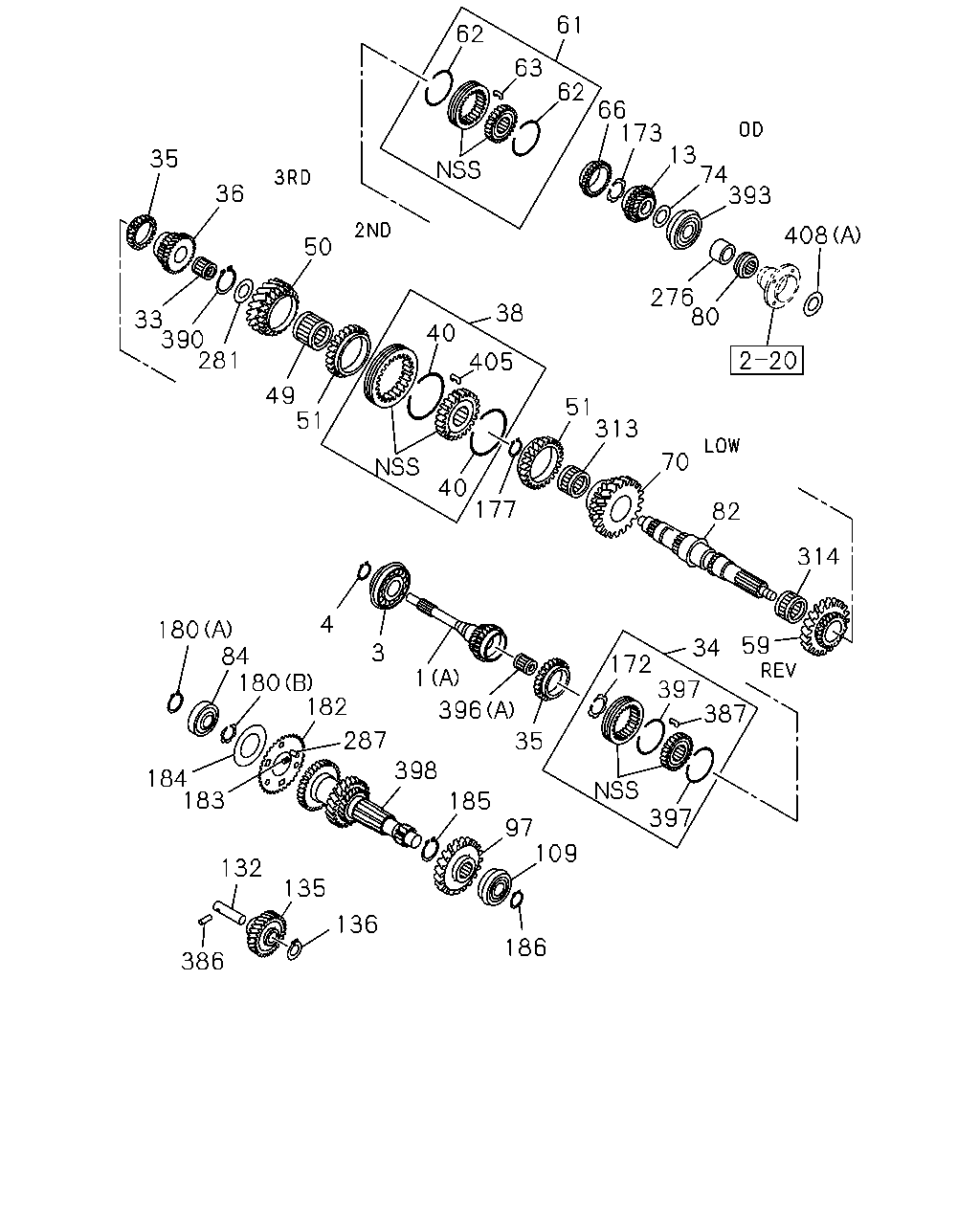

çizim 420667
61 62 63 62 66 173 13 74 393 35 36 408 50 276 80 38 33 390 281 40 2 20 405 49 51 51 313 70 40 177 82 314 4 180 84 180 182 59 34 3 172 397 387 1 396 287 35 398 184 183 397 185 97 109 132 135 136 186 386
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; TOP GEAR,TRANS
(A) Z=30 		8-97103-632-0 01 1 9701-0207 ●
1 SHAFT; TOP GEAR,TRANS
(B) Z=28 		8-97252-924-1 01 1 0208-0610 ●
1 SHAFT; TOP GEAR,TRANS
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) Z=28 		8-97252-924-1 01 1 0611- ●
1 SHAFT; TOP GEAR,TRANS
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (C) Z=28 		8-97253-543-2 01 1 0611- ●
3 BEARING; TOP GEAR SHAFT
NSK 		8-94178-732-1 01 1 9701-0207 ●
3 BEARING; TOP GEAR SHAFT
NSK 		8-97253-098-1 01 1 0208- ●
3 BEARING; TOP GEAR SHAFT
JTEKT 		8-94462-615-0 01 1 9701-0207 ●
4 RING; SNAP,BRG TO TOP GEAR SHAFT
ID=37.0 		9-09180-040-0 01 1 9701-0207 ●
13 GEAR; 5TH,MAINSHAFT
Z=25 		8-97147-817-0 01 1 9701-9905 ●
13 GEAR; 5TH,MAINSHAFT
Z=25 		8-97206-012-0 01 1 9906-0207 ●
33 BEARING; NEEDLE,3RD GEAR 8-94317-158-0 01 1 9701-0207 ●
34 SYNCHRONIZER; 4TH & 3RD 8-97048-745-2 01 1 9701-0207 ●
35 RING; BLOCK,4TH & 3RD
Z=36 		8-94128-775-2 02 1 9701-0207 ●
36 GEAR; 3RD,MAINSHAFT
Z=33 		8-94316-761-2 01 1 9701-0203 ●
36 GEAR; 3RD,MAINSHAFT
Z=33 		8-97324-853-0 01 1 0204-0207 ●
36 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-234-0 01 1 0208- ●
38 SYNCHRONIZER; LOW & 2ND 8-97048-748-0 01 1 9701-0207 ●
40 SPRING; INSERT,LOW & 2ND 8-97023-708-0 02 1 9701-0207 ●
49 BEARING; NEEDLE,2ND GEAR
NSK 		5-09811-014-0 01 1 9701-0207 ●
50 GEAR; 2ND,MAINSHAFT
Z=36 		8-94316-766-3 01 1 9701-0207 ●
50 GEAR; 2ND,MAINSHAFT
Z=38 		8-97241-237-1 01 1 0208- ●
51 RING; BLOCK,LOW & 2ND
Z=42 		8-97074-619-2 02 1 9701-0207 ●
59 GEAR; REV MAINSHAFT
Z=41 		8-97115-777-0 01 1 9701-9905 ●
59 GEAR; REV MAINSHAFT
Z=41 		8-97206-006-0 01 1 9906-0207 ●
59 GEAR; REV MAINSHAFT
Z=41 		8-97241-244-0 01 1 0208- ●
61 SYNCHRONIZER; REV & 5TH 8-97048-750-0 01 1 9701-9905 ●
61 SYNCHRONIZER; REV & 5TH 8-97206-010-0 01 1 9906-0207 ●
62 SPRING; INSERT,REV & 5TH 8-97023-710-0 02 1 9701-0207 ●
63 INSERT; SYN,REV & 5TH 9-33263-613-0 03 1 9701-0207 ●
66 RING; BLOCK,SYN
Z=36 		8-94128-775-2 01 1 9701-0207 ●
70 GEAR; 1ST,MAINSHAFT
Z=43 		8-97014-033-3 01 1 9701-0207 ●
70 GEAR; 1ST,MAINSHAFT
Z=43 		8-97241-242-1 01 1 0208-0404 ●
70 GEAR; 1ST,MAINSHAFT
Z=43 		8-97350-010-0 01 1 0405-0610 ●
70 GEAR; 1ST,MAINSHAFT
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> Z=43 		8-97350-010-0 01 1 0611- ●
70 GEAR; 1ST,MAINSHAFT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> Z=43 		8-97352-815-0 01 1 0611- ●
74 WASHER; THRUST,REV GEAR 9-33271-607-1 01 1 9701-9905 ●
74 WASHER; THRUST,REV GEAR 8-97207-176-0 01 1 9906-0207 ●
80 GEAR; SPD DRIVE
Z=4 		8-97011-350-0 01 1 9701-9905 ●
80 GEAR; SPD DRIVE
Z=4 		8-97207-146-0 01 1 9906-0207 ●
80 GEAR; SPD DRIVE
Z=4 		8-97253-556-0 01 1 0208- ●
82 SHAFT; MAIN,TRANS
Z=27-40-31-24 		8-97045-932-1 01 1 9701-9905 ●
82 SHAFT; MAIN,TRANS
Z=27-40-37-27 		8-97207-119-0 01 1 9906-0207 ●
82 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-97253-117-3 01 1 0208- ●
84 BEARING; COUNTER SHAFT,FRT
NSK 		5-09800-062-1 01 1 9701-0207 ●
97 GEAR; 5TH,COUNTER
Z=53 		8-97077-341-1 01 1 9701-0207 ●
109 BEARING; COUNTER SHAFT,RR 8-97095-913-0 01 1 9701-0207 ●
132 SHAFT; REV 9-33351-604-1 01 1 9701-0207 ●
132 SHAFT; REV 8-97252-655-0 01 1 0208- ●
135 GEAR; REV IDLER
Z=29 		8-97081-539-3 01 1 9701-0207 ●
135 GEAR; REV IDLER
Z=25 		8-97241-293-0 01 1 0208-0512 ●
135 GEAR; REV IDLER
Z=25 		8-98031-869-1 01 1 0601- ●
136 WASHER; THRUST,REV IDLE,RR 8-97081-579-2 01 1 9701-0207 ●
172 RING; SNAP,CLU HUB
T=1.75 		8-94402-405-0 01 1 9701-0207 ●
172 RING; SNAP,CLU HUB
T=1.80 		8-94402-406-0 01 1 9701-0207 ●
172 RING; SNAP,CLU HUB
T=1.85 		8-94402-407-0 01 1 9701-0207 ●
173 RING; SNAP,OVERDRIVE GEAR
T=1.85 		8-94151-522-0 01 1 9701-0207 ●
173 RING; SNAP,OVERDRIVE GEAR
T=1.90 		8-94151-523-0 01 1 9701-0207 ●
173 RING; SNAP,OVERDRIVE GEAR
T=1.95 		8-94151-524-0 01 1 9701-0207 ●
173 RING; SNAP,OVERDRIVE GEAR
T=2.00 		8-94157-747-0 01 1 9701-0207 ●
177 RING; SNAP,CLU HUB
T=1.75 		8-94402-405-0 01 1 9701-9905 ●
177 RING; SNAP,CLU HUB
T=1.75 		5-09589-010-0 01 1 9906-0207 ●
177 RING; SNAP,CLU HUB
T=1.80 		8-94402-406-0 01 1 9701-9905 ●
177 RING; SNAP,CLU HUB
T=1.85 		8-94402-407-0 01 1 9701-9905 ●
180 RING; SNAP,CLUSTER GEAR
(B) ID=38.5 		8-94146-483-0 01 1 9701-0207 ●
180 RING; SNAP,CLUSTER GEAR
(A) ID=32.2 		9-09180-035-0 01 1 9701-0207 ●
182 PLATE; CLUSTER GEAR 8-97095-984-0 01 1 9701-0207 ●
183 SPRING; PLATE,CLUSTER GEAR 8-94132-168-0 03 1 9701-0207 ●
184 SPRING; CLUSTER GEAR 8-94128-790-1 01 1 9701-0207 ●
185 RING; SNAP,CLUSTER GEAR
ID=41.5 		9-09180-045-0 01 1 9701-0207 ●
186 RING; SNAP,CLUSTER GEAR
ID=29.6 		9-09180-032-0 01 1 9701-0207 ●
268 PLATE; ANTI LASH,COUNTER 8-97257-300-1 01 1 0208-0610 ●
268 PLATE; ANTI LASH,COUNTER
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97257-300-1 01 1 0611- ●
276 SPACER; BRG TO DRIVE GEAR 9-33235-606-1 01 1 9701-9905 ●
276 SPACER; BRG TO DRIVE GEAR 8-97207-175-0 01 1 9906-0207 ●
281 WASHER; THRUST,MAINSHAFT 5-33271-007-0 01 1 9701-0207 ●
287 PIN; COUNTER GEAR 8-94402-462-0 01 1 9701-0207 ●
313 BEARING; NEEDLE,LOW GEAR
NSK 		8-94317-161-0 01 1 9701-0207 ●
313 BEARING; NEEDLE,LOW GEAR
JTEKT 		8-97010-547-0 01 1 9701-0207 ●
314 BEARING; NEEDLE,REV GEAR
NSK 		5-09811-014-0 01 1 9701-9905 ●
314 BEARING; NEEDLE,REV GEAR
NSK 		8-97207-174-0 01 1 9906-0207 ●
314 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 0208- ●
386 PIN; REV SHAFT 8-94128-794-0 01 1 9701-0207 ●
387 INSERT; SYN,4TH & 3RD 5-33263-001-0 03 1 9701-0207 ●
390 RING; SNAP,CLU HUB
T=1.75 		8-94151-520-0 01 1 9701-0207 ●
390 RING; SNAP,CLU HUB
T=1.80 		8-94151-521-0 01 1 9701-0207 ●
390 RING; SNAP,CLU HUB
T=1.85 		8-94151-522-0 01 1 9701-0207 ●
393 BEARING; MAINSHAFT END 8-97095-913-0 01 1 9701-9905 ●
393 BEARING; MAINSHAFT END 8-97207-512-0 01 1 9906-0207 ●
393 BEARING; MAINSHAFT END 8-97253-105-1 01 1 0208- ●
396 BEARING; NEEDLE,MAINSHAFT
(A) 		9-00096-606-0 01 1 9701-0207 ●
396 BEARING; NEEDLE,MAINSHAFT
(C) 		8-97253-102-1 01 1 0208- ●
396 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 0208- ●
397 SPRING; INSERT,4TH & 3RD 8-97023-710-0 02 1 9701-0207 ●
398 GEAR; COUNTER
Z=49-34-22-14 		8-97077-337-0 01 1 9701-0203 ●
398 GEAR; COUNTER
Z=49-34-22-14 		8-97324-857-0 01 1 0204-0207 ●
405 INSERT; SYN,LOW & 2ND 5-33263-001-0 03 1 9701-0207 ●
408 SPRING
(A) 		8-97081-577-0 01 1 9701-0207 ●
408 SPRING
(B) 		8-94148-196-0 03 1 0208-0610 ●
408 SPRING
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-94148-196-0 03 1 0611- ●
408 SPRING
(C) 		8-94422-075-0 02 1 0208-0404 ●
408 SPRING
(C) 		8-97366-040-1 02 1 0405- ●

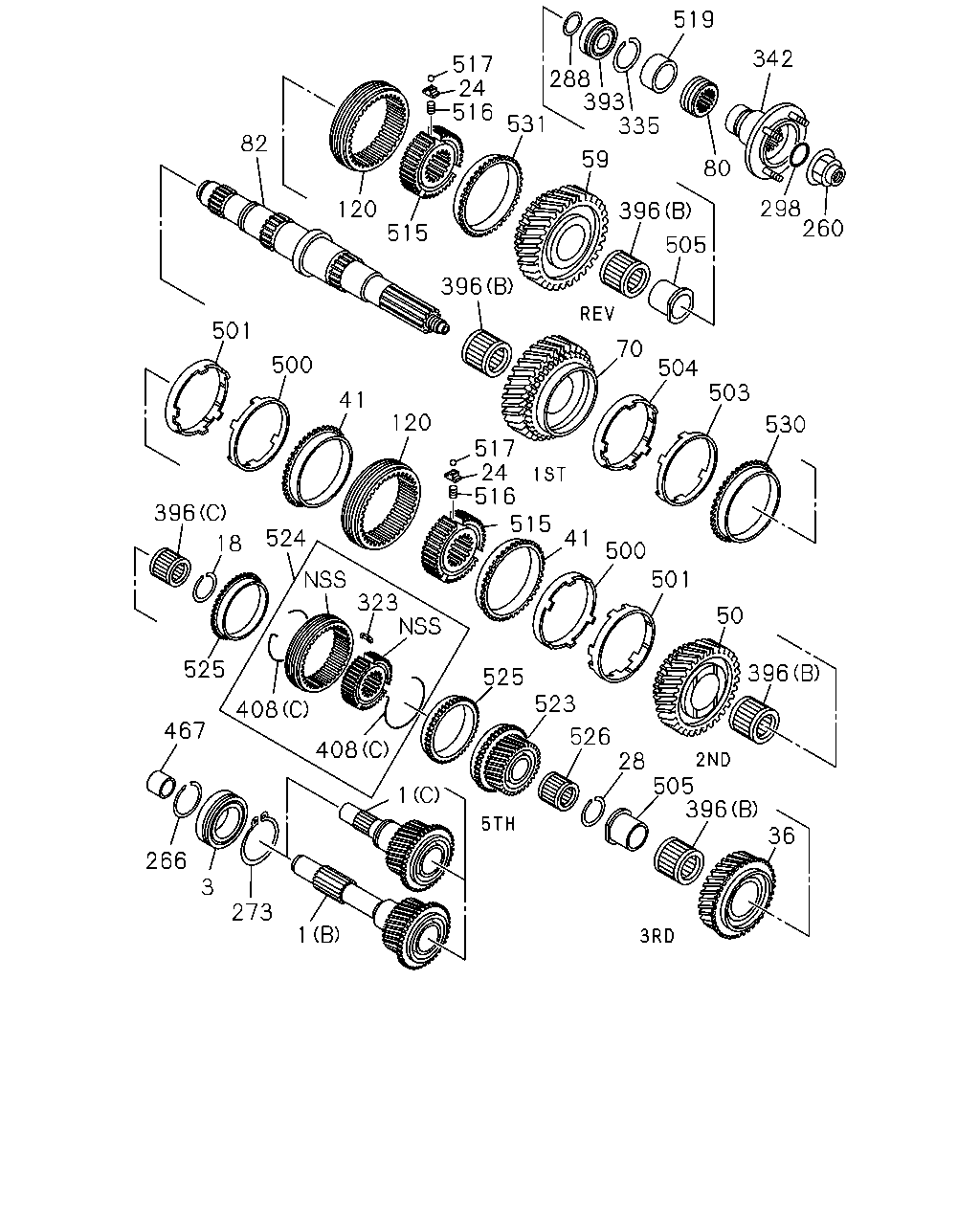

çizim 420714
519 342 517 24 516 288 393 335 531 82 59 80 298 260 120 396 515 505 396 501 70 500 504 503 41 120 530 517 24 516 515 396 524 41 18 500 501 323 50 396 525 525 523 408 467 526 28 505 396 36 408 1 266 3 273 1 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; TOP GEAR,TRANS
(A) Z=30 		8-97103-632-0 01 1 9701-0207 ●
1 SHAFT; TOP GEAR,TRANS
(B) Z=28 		8-97252-924-1 01 1 0208-0610 ●
1 SHAFT; TOP GEAR,TRANS
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) Z=28 		8-97252-924-1 01 1 0611- ●
1 SHAFT; TOP GEAR,TRANS
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (C) Z=28 		8-97253-543-2 01 1 0611- ●
3 BEARING; TOP GEAR SHAFT
NSK 		8-94178-732-1 01 1 9701-0207 ●
3 BEARING; TOP GEAR SHAFT
NSK 		8-97253-098-1 01 1 0208- ●
3 BEARING; TOP GEAR SHAFT
JTEKT 		8-94462-615-0 01 1 9701-0207 ●
18 RING; SNAP,CLU HUB
ID=30.7 T=1.8 		8-97254-728-0 01 1 0208- ●
24 BLOCK; INDEX,SYN 8-97241-313-1 06 1 0208-0610 ●
24 BLOCK; INDEX,SYN
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97241-313-1 03 1 0611- ●
24 BLOCK; INDEX,SYN
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97241-313-1 03 1 0611- ●
24 BLOCK; INDEX,SYN
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97241-313-1 03 1 0611- ●
28 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 0208- ●
36 GEAR; 3RD,MAINSHAFT
Z=33 		8-94316-761-2 01 1 9701-0203 ●
36 GEAR; 3RD,MAINSHAFT
Z=33 		8-97324-853-0 01 1 0204-0207 ●
36 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-234-0 01 1 0208- ●
41 RING; BLOCK,2ND & 3RD
Z=45 		8-97241-306-1 02 1 0208- ●
50 GEAR; 2ND,MAINSHAFT
Z=36 		8-94316-766-3 01 1 9701-0207 ●
50 GEAR; 2ND,MAINSHAFT
Z=38 		8-97241-237-1 01 1 0208- ●
59 GEAR; REV MAINSHAFT
Z=41 		8-97115-777-0 01 1 9701-9905 ●
59 GEAR; REV MAINSHAFT
Z=41 		8-97206-006-0 01 1 9906-0207 ●
59 GEAR; REV MAINSHAFT
Z=41 		8-97241-244-0 01 1 0208- ●
70 GEAR; 1ST,MAINSHAFT
Z=43 		8-97014-033-3 01 1 9701-0207 ●
70 GEAR; 1ST,MAINSHAFT
Z=43 		8-97241-242-1 01 1 0208-0404 ●
70 GEAR; 1ST,MAINSHAFT
Z=43 		8-97350-010-0 01 1 0405-0610 ●
70 GEAR; 1ST,MAINSHAFT
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> Z=43 		8-97350-010-0 01 1 0611- ●
70 GEAR; 1ST,MAINSHAFT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> Z=43 		8-97352-815-0 01 1 0611- ●
80 GEAR; SPD DRIVE
Z=4 		8-97011-350-0 01 1 9701-9905 ●
80 GEAR; SPD DRIVE
Z=4 		8-97207-146-0 01 1 9906-0207 ●
80 GEAR; SPD DRIVE
Z=4 		8-97253-556-0 01 1 0208- ●
82 SHAFT; MAIN,TRANS
Z=27-40-31-24 		8-97045-932-1 01 1 9701-9905 ●
82 SHAFT; MAIN,TRANS
Z=27-40-37-27 		8-97207-119-0 01 1 9906-0207 ●
82 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-97253-117-3 01 1 0208- ●
120 SLEEVE
Z=45 		8-94421-871-1 01 1 0611- ●
120 SLEEVE
Z=45 		8-97241-296-1 02 1 0208-0610 ●
120 SLEEVE
4JJ1 ENG(LFB) Z=45 		8-97241-296-1 01 1 0611- ●
120 SLEEVE
4JJ1 ENG(LFB) Z=45 		8-97241-296-1 01 1 0611- ●
260 NUT; MAINSHAFT END
M27 H=25 		8-97253-126-0 01 1 0208-0604 ●
260 NUT; MAINSHAFT END
M27 H=25 		8-97360-410-0 01 1 0605- ●
266 RING; SNAP,BRG INNER 8-97286-916-0 01 1 0208- ●
268 PLATE; ANTI LASH,COUNTER 8-97257-300-1 01 1 0208-0610 ●
268 PLATE; ANTI LASH,COUNTER
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97257-300-1 01 1 0611- ●
273 RING; SNAP,BRG OUTER 8-97254-610-0 01 1 0208- ●
288 SPACER; BRG,MAINSHAFT 8-97252-942-0 01 1 0208- ●
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 		8-94481-411-0 01 1 0208-0507 ●
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 		8-98028-226-0 01 1 0508- ●
323 INSERT 8-94448-202-2 03 1 0208- ●
335 RING; SNAP,BEARING 8-97254-722-0 01 1 0208- ●
342 FLANGE; OUTPUT 8-97252-814-1 01 1 0208-0604 ●
342 FLANGE; OUTPUT 8-98031-640-0 01 1 0605- ●
393 BEARING; MAINSHAFT END 8-97095-913-0 01 1 9701-9905 ●
393 BEARING; MAINSHAFT END 8-97207-512-0 01 1 9906-0207 ●
393 BEARING; MAINSHAFT END 8-97253-105-1 01 1 0208- ●
396 BEARING; NEEDLE,MAINSHAFT
(A) 		9-00096-606-0 01 1 9701-0207 ●
396 BEARING; NEEDLE,MAINSHAFT
(C) 		8-97253-102-1 01 1 0208- ●
396 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 0208- ●
408 SPRING
(A) 		8-97081-577-0 01 1 9701-0207 ●
408 SPRING
(B) 		8-94148-196-0 03 1 0208-0610 ●
408 SPRING
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-94148-196-0 03 1 0611- ●
408 SPRING
(C) 		8-94422-075-0 02 1 0208-0404 ●
408 SPRING
(C) 		8-97366-040-1 02 1 0405- ●
467 COLLAR; SHAFT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97255-183-1 01 1 0611- ●
500 RING; OUTSIDE,3RD & 2ND 8-97241-309-1 02 1 0208- ●
501 RING; INSIDE,3RD & 2ND 8-97241-312-1 02 1 0208- ●
503 RING; OUTSIDE,LOW & REV 8-97241-309-1 01 1 0208-0610 ●
503 RING; OUTSIDE,LOW & REV
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97241-309-1 01 1 0611- ●
504 RING; INSIDE,LOW & REV 8-97241-312-1 01 1 0208-0610 ●
504 RING; INSIDE,LOW & REV
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97241-312-1 01 1 0611- ●
505 COLLAR; 3RD & REV 8-97253-119-2 02 1 0208- ●
515 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-2 02 1 0208-0610 ●
515 HUB; CLU,1ST & REV,2ND & 3RD
4JJ1 ENG(LFB) 		8-97241-298-3 01 1 0611- ●
515 HUB; CLU,1ST & REV,2ND & 3RD
4JJ1 ENG(LFB) 		8-97241-298-3 01 1 0611- ●
516 SPRING; SYNCHRO,INDEX 8-97254-835-0 06 1 0208-0610 ●
516 SPRING; SYNCHRO,INDEX
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97254-835-0 03 1 0611- ●
516 SPRING; SYNCHRO,INDEX
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97254-835-0 03 1 0611- ●
516 SPRING; SYNCHRO,INDEX
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97254-835-0 03 1 0611- ●
517 BALL; SYNCHRO,INDEX 8-97252-935-0 06 1 0208-0610 ●
517 BALL; SYNCHRO,INDEX
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97252-935-0 03 1 0611- ●
517 BALL; SYNCHRO,INDEX
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97252-935-0 03 1 0611- ●
517 BALL; SYNCHRO,INDEX
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97252-935-0 03 1 0611- ●
519 COLLAR; MAINSHAFT END,5TH 8-97252-940-0 01 1 0208- ●
523 GEAR; OD,MAINSHAFT
Z=22 		8-97241-231-0 01 1 0208- ●
524 SLEEVE & HUB ASM; TOP-4TH,OD 8-97300-195-0 01 1 0208-0404 ●
524 SLEEVE & HUB ASM; TOP-4TH,OD 8-97366-526-0 01 1 0405- ●
525 RING; BLOCK,TOP & 4TH,OD
Z=45 		8-97309-532-0 02 1 0208- ●
526 BEARING; NEEDLE,4TH & 5TH 8-97253-112-0 01 1 0208- ●
530 RING; BLOCK,LOW
Z=45 		8-97241-306-1 01 1 0208-0610 ●
530 RING; BLOCK,LOW
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> Z=45 		8-97241-306-1 01 1 0611- ●
531 RING; BLOCK,REV
Z=45 		8-97328-151-1 01 1 0208-0305 ●
531 RING; BLOCK,REV
Z=45 		8-97368-343-0 01 1 0306-0610 ●
531 RING; BLOCK,REV
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> Z=45 		8-97368-343-0 01 1 0611- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
