◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50760 - NHR/NKR TAIWAN ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#139060) — 84 parça

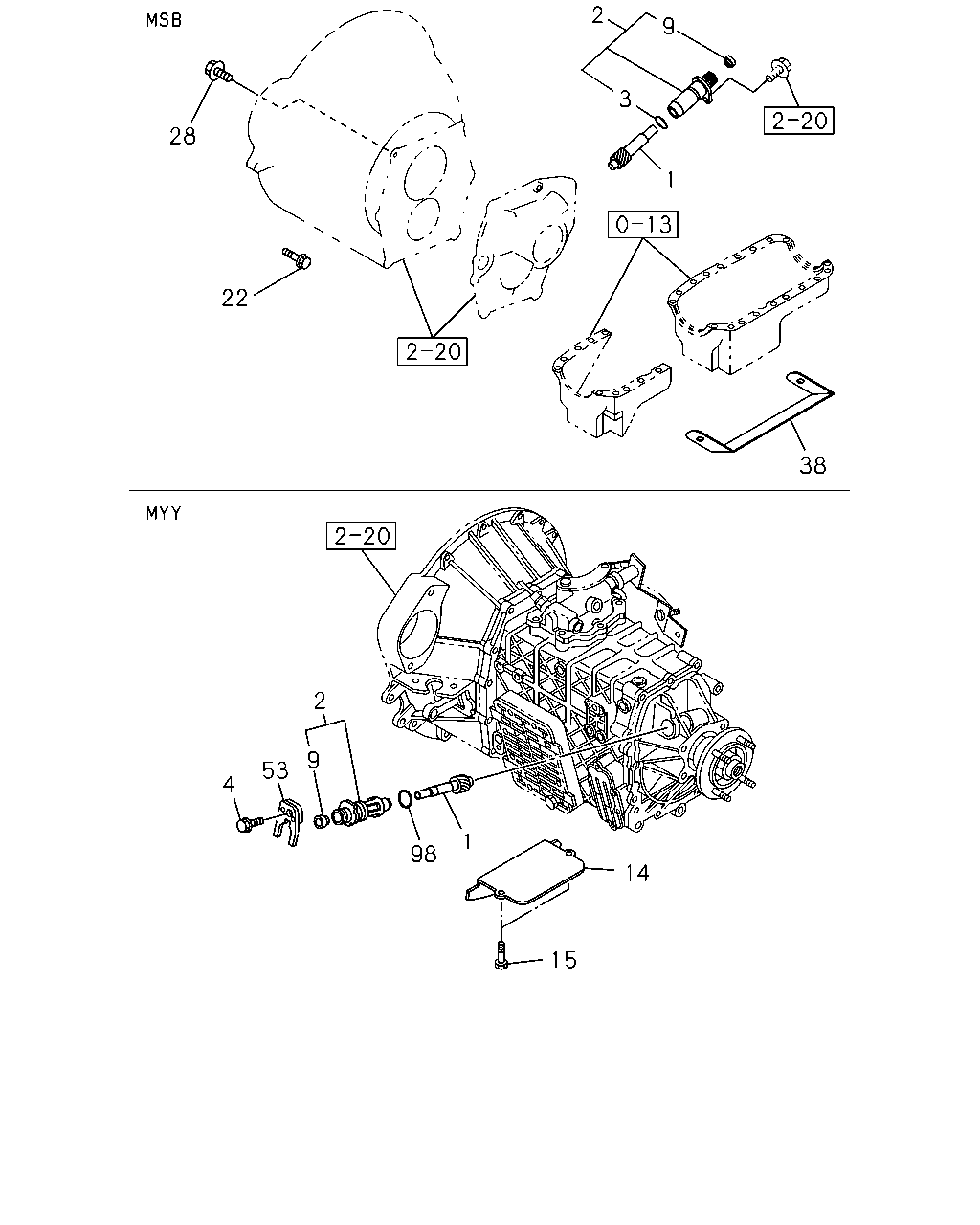

çizim 420450
2 9 3 2 20 28 1 13 22 2 20 38 2 20 2 9 53 4 1 98 14 15
BalonParca AdiParca NoAdetTipApplied Date
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/7(GV1) Z=17 		8-94249-065-0 01 1 9701-9809
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/7(GV1) FRT 7R-15-10 RR 175-14-8(ATG) Z=17 		8-94249-065-0 01 1 9810-9905
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/8(RV9) Z=15 		8-94249-063-0 01 1 9701-9809
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/8(RV9) FRT 7R-15-10 RR 175-14-8(ATG) Z=15 		8-94249-063-0 01 1 9810-0207
1 GEAR; DRIVEN,SPD
M/T MYY5T(RSM) Z=16 		8-97253-558-1 01 1 0208-0610
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8(RU1) Z=16 		8-94249-064-0 01 1 9701-9804
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 37/7(7WR) Z=16 		8-94249-064-0 01 1 9805-9809
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8(RU1) FRT 7R-15-10 RR 175-14-8(ATG) Z=16 		8-94249-064-0 01 1 9810-9905
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 37/7(7WR) FRT 7R-15-10 RR 175-14-8(ATG),FRT 7-15-10 RR 6-14-8(AZB) Z=16 		8-94249-064-0 01 1 9810-9905
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 37/7(7WR) FRT 7R-15-10 RR 175-14-8(ATG),FRT 7-15-10 RR 6-14-8(AZB) Z=16 		8-94249-064-0 01 1 9906-0207
1 GEAR; DRIVEN,SPD
M/T MYY5T(RSM) FRT&RR 7R-15-10 5.5FX15-115(58H) Z=15 		8-97253-560-1 01 1 0412-0412
1 GEAR; DRIVEN,SPD
M/T MYY5T(RSM) FRT&RR 7R-15-10 15X5.5F-115(CRT) Z=15 		8-97253-560-1 01 1 0501-0501
1 GEAR; DRIVEN,SPD
M/T MYY5T(RSM) FINAL GEAR RATIO 39/7(GV1) FRT&RR 7R-15-10 15X5.5F-115(CRT) Z=15 		8-97253-560-1 01 1 0501-0610
1 GEAR; DRIVEN,SPD
M/T MYY5T(RSM) FINAL GEAR RATIO 41/7(R41) FRT&RR 7R-16-12 16X5.5F-115(CRS) Z=15 		8-97253-560-1 01 1 0501-0610
1 GEAR; DRIVEN,SPD
M/T MYY5T(RSM) Z=12 		8-97253-563-1 01 1 0611-
1 GEAR; DRIVEN,SPD
M/T MYY5T(RSM) FINAL GEAR RATIO 41/9(HC6) FRT&RR 195/85R16 16X5.5J-116.5 SILVER(CTA) Z=12 		8-97253-563-1 01 1 0611-
1 GEAR; DRIVEN,SPD
M/T MYY5T(RSM) FINAL GEAR RATIO 43/10(S7C) FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ) Z=12 		8-97253-563-1 01 1 0611-
1 GEAR; DRIVEN,SPD
M/T MYY5T(RSM) FRT&RR 7R-16-10 16X5.5F-115(07H) Z=14 		8-97253-561-1 01 1 0412-0412
1 GEAR; DRIVEN,SPD
M/T MYY5T(RSM) FRT&RR 7R-16-12 16X5.5F-115(CRS) Z=14 		8-97253-561-1 01 1 0501-0501
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/7(GV1) Z=17 MARK "7" 		8-97080-363-1 01 1 9701-9809
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/7(GV1) FRT 7R-15-10 RR 175-14-8(ATG) Z=17 MARK "7" 		8-97080-363-1 01 1 9810-9905
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/8(RV9) Z=15 MARK "5" 		8-97080-361-1 01 1 9701-9809
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/8(RV9) FRT 7R-15-10 RR 175-14-8(ATG) Z=15 MARK "5" 		8-97080-361-1 01 1 9810-0207
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM) MARK "10,11,16,17" 		8-97253-124-0 01 1 0208-0610
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/8(RU1) Z=16 MARK "6" 		8-97080-362-1 01 1 9701-9804
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 37/7(7WR) Z=16 MARK "6" 		8-97080-362-1 01 1 9805-9809
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/8(RU1) FRT 7R-15-10 RR 175-14-8(ATG) Z=16 MARK "6" 		8-97080-362-1 01 1 9810-9905
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 37/7(7WR) FRT 7R-15-10 RR 175-14-8(ATG),FRT 7-15-10 RR 6-14-8(AZB) Z=16 MARK "6" 		8-97080-362-1 01 1 9810-9905
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 37/7(7WR) FRT 7R-15-10 RR 175-14-8(ATG),FRT 7-15-10 RR 6-14-8(AZB) Z=16 MARK "6" 		8-97080-362-1 01 1 9906-0207
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM) FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-10 5.5FX15-115(58H) MARK "12,13,14,15" 		8-97253-125-0 01 1 0412-0412
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM) FRT&RR 7R-16-12 16X5.5F-115(CRS),FRT&RR 7R-15-10 15X5.5F-115(CRT) MARK "12,13,14,15" 		8-97253-125-0 01 1 0501-0501
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM) FINAL GEAR RATIO 39/7(GV1) FRT&RR 7R-15-10 15X5.5F-115(CRT) MARK "12,13,14,15" 		8-97253-125-0 01 1 0501-0610
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM) FINAL GEAR RATIO 41/7(R41) FRT&RR 7R-16-12 16X5.5F-115(CRS) MARK "12,13,14,15" 		8-97253-125-0 01 1 0501-0610
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM) MARK "12,13,14,15" 		8-97253-125-0 01 1 0611-
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM) FINAL GEAR RATIO 41/9(HC6) FRT&RR 195/85R16 16X5.5J-116.5 SILVER(CTA) MARK "12,13,14,15" 		8-97253-125-0 01 1 0611-
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM) FINAL GEAR RATIO 43/10(S7C) FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ) MARK "12,13,14,15" 		8-97253-125-0 01 1 0611-
3 GASKET; BUSHING
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) 		9-09920-852-0 01 1 9701-9804
3 GASKET; BUSHING
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) 		9-09920-852-0 01 1 9805-9809
3 GASKET; BUSHING
FINAL GEAR RATIO 37/7(7WR) FRT 7R-15-10 RR 175-14-8(ATG),FRT 7-15-10 RR 6-14-8(AZB) 		9-09920-852-0 01 1 9810-9905
3 GASKET; BUSHING
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) FRT 7R-15-10 RR 175-14-8(ATG) 		9-09920-852-0 01 1 9810-9905
3 GASKET; BUSHING
FINAL GEAR RATIO 39/8(RV9) FRT 7R-15-10 RR 175-14-8(ATG) 		9-09920-852-0 01 1 9906-0207
3 GASKET; BUSHING
FINAL GEAR RATIO 37/7(7WR) FRT 7R-15-10 RR 175-14-8(ATG),FRT 7-15-10 RR 6-14-8(AZB) 		9-09920-852-0 01 1 9906-0207
4 BOLT; RET,DRIVEN GEAR
M/T MYY5T(RSM) M8X20 FLANGE 		0-28680-820-0 01 1 0208-0411
4 BOLT; RET,DRIVEN GEAR
M/T MYY5T(RSM) M8X20 FLANGE 		0-28680-820-0 01 1 0412-0512
4 BOLT; RET,DRIVEN GEAR
M/T MYY5T(RSM) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
9 SEAL; OIL,DRIVEN GEAR
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) NOK 		8-97080-507-0 01 1 9701-9804
9 SEAL; OIL,DRIVEN GEAR
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9),FINAL GEAR RATIO 37/7(7WR) NOK 		8-97080-507-0 01 1 9805-9809
9 SEAL; OIL,DRIVEN GEAR
FINAL GEAR RATIO 37/7(7WR) FRT 7R-15-10 RR 175-14-8(ATG),FRT 7-15-10 RR 6-14-8(AZB) NOK 		8-97080-507-0 01 1 9810-9905
9 SEAL; OIL,DRIVEN GEAR
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) FRT 7R-15-10 RR 175-14-8(ATG) NOK 		8-97080-507-0 01 1 9810-9905
9 SEAL; OIL,DRIVEN GEAR
FINAL GEAR RATIO 39/8(RV9) FRT 7R-15-10 RR 175-14-8(ATG) NOK 		8-97080-507-0 01 1 9906-0207
9 SEAL; OIL,DRIVEN GEAR
FINAL GEAR RATIO 37/7(7WR) FRT 7R-15-10 RR 175-14-8(ATG),FRT 7-15-10 RR 6-14-8(AZB) NOK 		8-97080-507-0 01 1 9906-0207
9 SEAL; OIL,DRIVEN GEAR
M/T MYY5T(RSM) 		8-97131-328-1 01 1 0208-0411
9 SEAL; OIL,DRIVEN GEAR
M/T MYY5T(RSM) 		8-97131-328-1 01 1 0412-0412
9 SEAL; OIL,DRIVEN GEAR
M/T MYY5T(RSM) FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-10 5.5FX15-115(58H) 		8-97131-328-1 01 1 0412-0412
9 SEAL; OIL,DRIVEN GEAR
M/T MYY5T(RSM) NOK 		8-97131-328-1 01 1 0501-0501
9 SEAL; OIL,DRIVEN GEAR
M/T MYY5T(RSM) FRT&RR 7R-16-12 16X5.5F-115(CRS),FRT&RR 7R-15-10 15X5.5F-115(CRT) NOK 		8-97131-328-1 01 1 0501-0501
9 SEAL; OIL,DRIVEN GEAR
M/T MYY5T(RSM) NOK 		8-97131-328-1 01 1 0501-0610
9 SEAL; OIL,DRIVEN GEAR
M/T MYY5T(RSM) FINAL GEAR RATIO 39/7(GV1) FRT&RR 7R-15-10 15X5.5F-115(CRT) NOK 		8-97131-328-1 01 1 0501-0610
9 SEAL; OIL,DRIVEN GEAR
M/T MYY5T(RSM) FINAL GEAR RATIO 41/7(R41) FRT&RR 7R-16-12 16X5.5F-115(CRS) NOK 		8-97131-328-1 01 1 0501-0610
9 SEAL; OIL,DRIVEN GEAR
M/T MYY5T(RSM) NOK 		8-97131-328-1 01 1 0611-
9 SEAL; OIL,DRIVEN GEAR
M/T MYY5T(RSM) FINAL GEAR RATIO 41/9(HC6) FRT&RR 195/85R16 16X5.5J-116.5 SILVER(CTA) NOK 		8-97131-328-1 01 1 0611-
9 SEAL; OIL,DRIVEN GEAR
M/T MYY5T(RSM) FINAL GEAR RATIO 43/10(S7C) FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ) NOK 		8-97131-328-1 01 1 0611-
14 COVER; UNDER,TRANS
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97308-233-0 01 1 0611-
15 BOLT; UNDER COVER TO TRANS
TRANSMISSION CONTROL-SMOOTHER<8GF> M6X16 FLANGE 		0-28650-616-0 02 1 0611-
22 BOLT; TRANS CASE TO ENG
M10X40 W/LK&PL WASHER 		0-50141-040-0 04 1 9701-9905
22 BOLT; TRANS CASE TO ENG
4JG2 ENG(RJC) M10X40 W/LK&PL WASHER 		0-50141-040-0 04 1 9906-0207
28 BOLT; TRANS CASE TO HSG
M12X35 FLANGE 		8-94249-246-0 06 1 9701-9905
28 BOLT; TRANS CASE TO HSG
4JG2 ENG(RJC) M/T MSB5S(R45) M12X35 FLANGE 		8-94249-246-0 06 1 9906-0207
38 BRACKET; SPACE RUBBER 8-97095-937-1 01 1 9701-9905
38 BRACKET; SPACE RUBBER
4JG2 ENG(RJC) 		8-97095-937-1 01 1 9906-0207
53 PLATE; LOCK,DRIVEN GEAR
M/T MYY5T(RSM) 		8-97252-679-2 01 1 0208-0411
53 PLATE; LOCK,DRIVEN GEAR
M/T MYY5T(RSM) 		8-97252-679-2 01 1 0412-0604
53 PLATE; LOCK,DRIVEN GEAR
M/T MYY5T(RSM) 		8-98046-217-0 01 1 0605-
98 SEAL; OIL,BUSH
M/T MYY5T(RSM) 		9-09561-324-0 01 1 0208-0411
98 SEAL; OIL,BUSH
M/T MYY5T(RSM) 		9-09561-324-0 01 1 0412-0412
98 SEAL; OIL,BUSH
M/T MYY5T(RSM) FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-10 5.5FX15-115(58H) 		9-09561-324-0 01 1 0412-0412
98 SEAL; OIL,BUSH
M/T MYY5T(RSM) 		9-09561-324-0 01 1 0501-0501
98 SEAL; OIL,BUSH
M/T MYY5T(RSM) FRT&RR 7R-16-12 16X5.5F-115(CRS),FRT&RR 7R-15-10 15X5.5F-115(CRT) 		9-09561-324-0 01 1 0501-0501
98 SEAL; OIL,BUSH
M/T MYY5T(RSM) 		9-09561-324-0 01 1 0501-0610
98 SEAL; OIL,BUSH
M/T MYY5T(RSM) FINAL GEAR RATIO 39/7(GV1) FRT&RR 7R-15-10 15X5.5F-115(CRT) 		9-09561-324-0 01 1 0501-0610
98 SEAL; OIL,BUSH
M/T MYY5T(RSM) FINAL GEAR RATIO 41/7(R41) FRT&RR 7R-16-12 16X5.5F-115(CRS) 		9-09561-324-0 01 1 0501-0610
98 SEAL; OIL,BUSH
M/T MYY5T(RSM) 		9-09561-324-0 01 1 0611-
98 SEAL; OIL,BUSH
M/T MYY5T(RSM) FINAL GEAR RATIO 41/9(HC6) FRT&RR 195/85R16 16X5.5J-116.5 SILVER(CTA) 		9-09561-324-0 01 1 0611-
98 SEAL; OIL,BUSH
M/T MYY5T(RSM) FINAL GEAR RATIO 43/10(S7C) FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ) 		9-09561-324-0 01 1 0611-
