Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#139059) — 380 parça

1 1

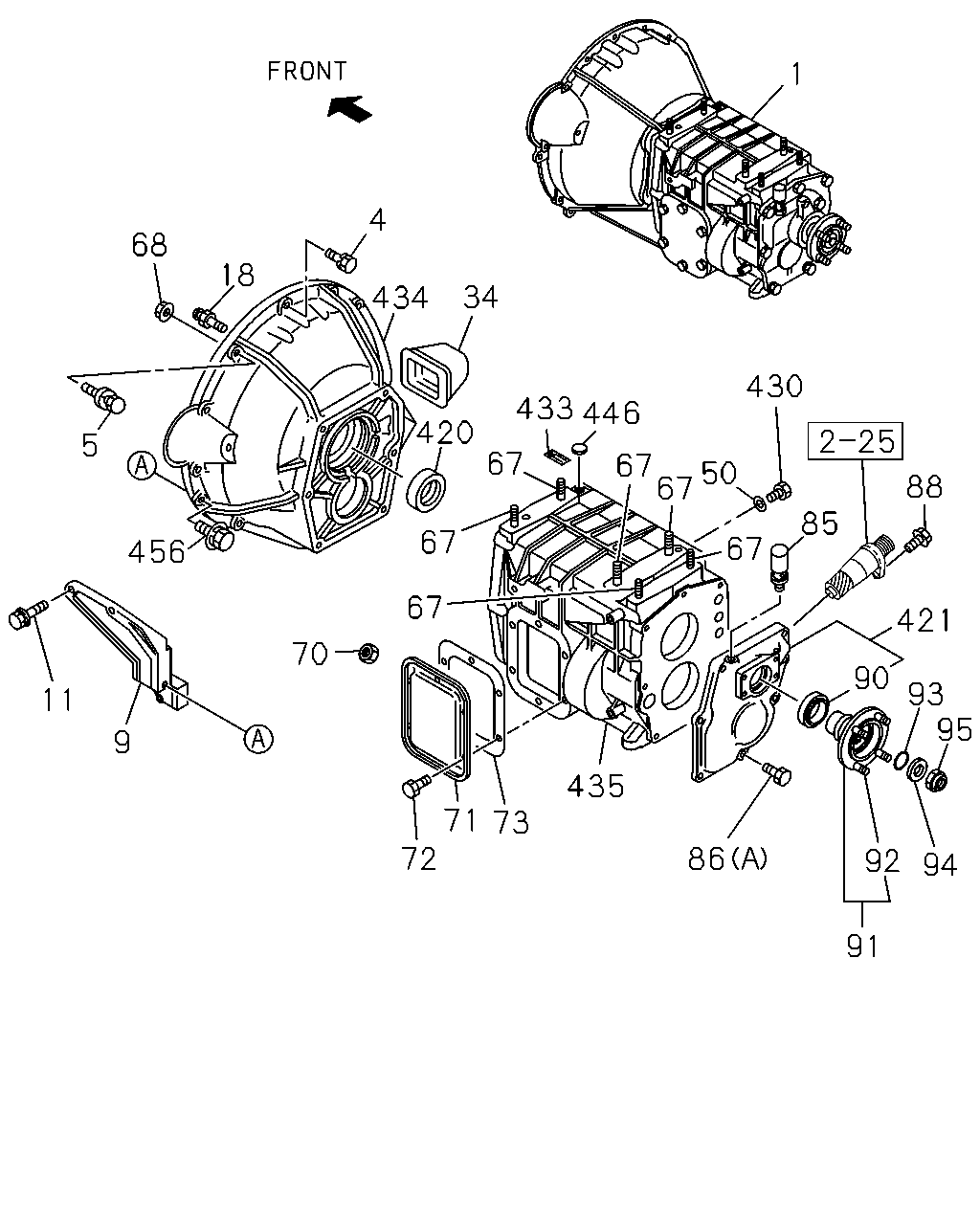

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL	8-97035-097-0	01	1	9701-9710	●
1	TRANSMISSION ASM; MANUAL EXHAUST BRAKE<NF8>	8-97106-340-0	01	1	9711-9809	●
1	TRANSMISSION ASM; MANUAL	8-97106-340-0	01	1	9810-9905	●
1	TRANSMISSION ASM; MANUAL	8-97204-113-1	01	1	9906-0207	●
1	TRANSMISSION ASM; MANUAL	8-97326-588-0	01	1	0208-0302		●
1	TRANSMISSION ASM; MANUAL	8-97350-621-0	01	1	0303-0404		●
1	TRANSMISSION ASM; MANUAL	8-97373-919-0	01	1	0405-0610		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97373-919-0	01	1	0611-		●
1	TRANSMISSION ASM; MANUAL EXC. EXHAUST BRAKE<NF8>	8-97108-782-0	01	1	9711-9809	●
1	TRANSMISSION ASM; MANUAL 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98019-520-0	01	1	0611-		●
1	TRANSMISSION ASM; MANUAL 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> EXC. KD PREPARATORY PACK<6HF>	8-98019-520-0	01	1	0611-		●

1 4 68 18 34 434 430 433 446 420 2 25 5 67 67 50 67 88 85 67 67 456 67 421 70 90 93 95 11 9 435 71 72 73 86 92 94 91

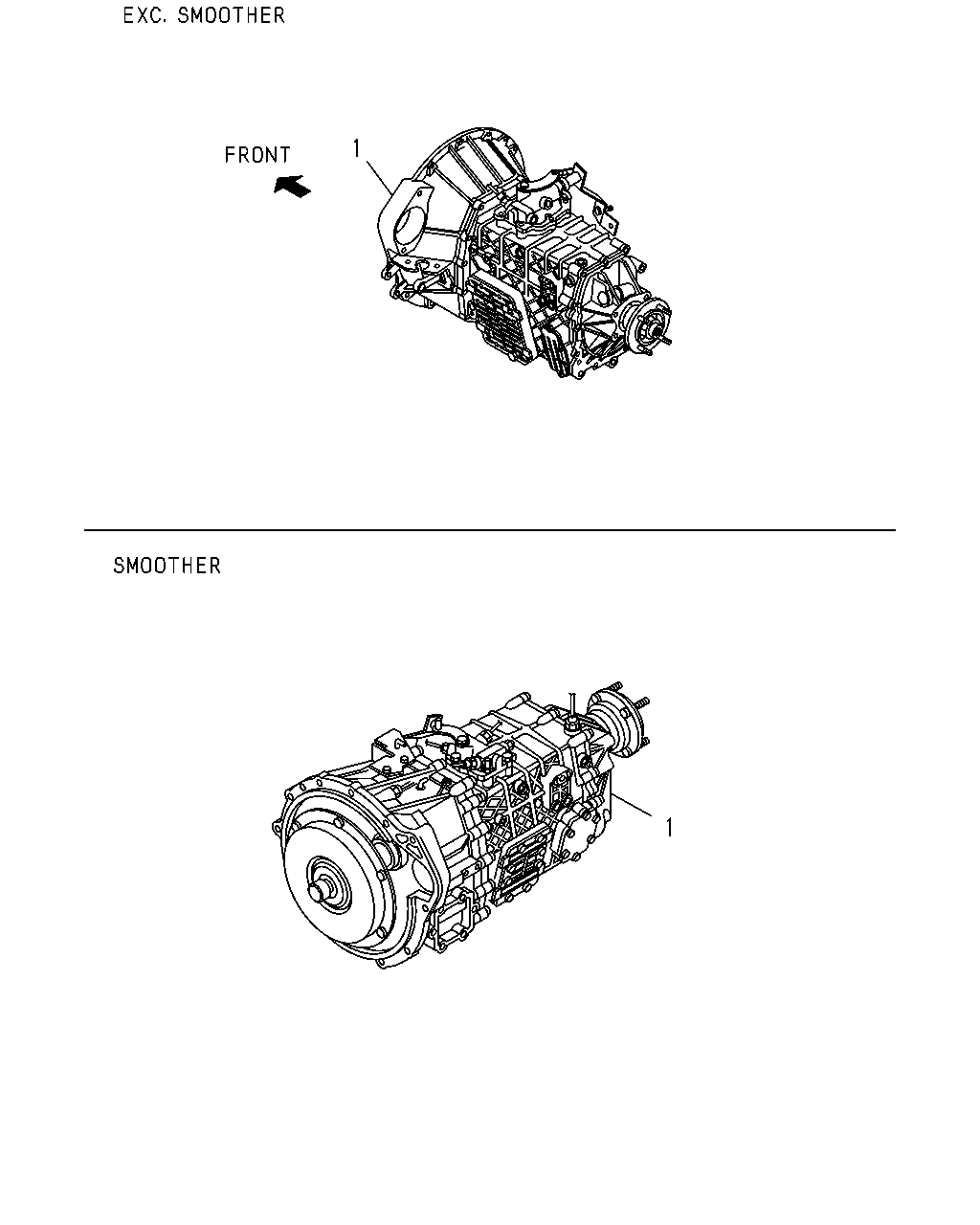

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL	8-97035-097-0	01	1	9701-9710	●
1	TRANSMISSION ASM; MANUAL EXHAUST BRAKE<NF8>	8-97106-340-0	01	1	9711-9809	●
1	TRANSMISSION ASM; MANUAL	8-97106-340-0	01	1	9810-9905	●
1	TRANSMISSION ASM; MANUAL	8-97204-113-1	01	1	9906-0207	●
1	TRANSMISSION ASM; MANUAL	8-97326-588-0	01	1	0208-0302		●
1	TRANSMISSION ASM; MANUAL	8-97350-621-0	01	1	0303-0404		●
1	TRANSMISSION ASM; MANUAL	8-97373-919-0	01	1	0405-0610		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97373-919-0	01	1	0611-		●
1	TRANSMISSION ASM; MANUAL EXC. EXHAUST BRAKE<NF8>	8-97108-782-0	01	1	9711-9809	●
1	TRANSMISSION ASM; MANUAL 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98019-520-0	01	1	0611-		●
1	TRANSMISSION ASM; MANUAL 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> EXC. KD PREPARATORY PACK<6HF>	8-98019-520-0	01	1	0611-		●
4	BOLT; FLYWHEEL HSG M10X35 FLANGE	0-28081-035-0	01	1	9701-0207	●
4	BOLT; FLYWHEEL HSG M10X30 FLANGE	0-28181-030-0	02	1	0208-0404		●
4	BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) M10X30 FLANGE	0-28181-030-0	02	1	0405-0511		●
4	BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M10X30 FLANGE	0-28181-030-0	02	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M10X30 FLANGE	0-28151-030-0	02	1	0601-0610		●
4	BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M10X30 FLANGE	0-28151-030-0	03	1	0611-		●
4	BOLT; FLYWHEEL HSG M10X40 FLANGE	0-28081-040-0	01	1	9701-0207	●
4	BOLT; FLYWHEEL HSG M10X35 FLANGE	0-28181-035-0	03	1	0208-0404		●
4	BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) M10X35 FLANGE	0-28181-035-0	03	1	0405-0511		●
4	BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M10X35 FLANGE	0-28181-035-0	03	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M10X35 FLANGE	0-28151-035-0	03	1	0601-0610		●
4	BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M10X35 FLANGE	0-28151-035-0	03	1	0611-		●
4	BOLT; FLYWHEEL HSG M10X45 FLANGE	0-28081-045-0	01	1	9701-0207	●
4	BOLT; FLYWHEEL HSG M14X60 FLANGE	0-28981-460-0	02	1	0208-0404		●
4	BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) M14X60 FLANGE	0-28981-460-0	02	1	0405-0511		●
4	BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M14X60 FLANGE	0-28981-460-0	02	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M14X60 FLANGE	0-28951-460-0	02	1	0601-0610		●
4	BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M10X50 FLANGE	0-28151-050-0	01	1	0611-		●
4	BOLT; FLYWHEEL HSG M10X120 FLANGE	0-28186-012-0	02	1	0208-0404		●
4	BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) M10X120 FLANGE	0-28186-012-0	02	1	0405-0511		●
4	BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M10X120 FLANGE	0-28186-012-0	02	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M10X120 FLANGE	0-28156-012-0	02	1	0601-0610		●
4	BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M10X120 FLANGE	0-28156-012-0	01	1	0611-		●
4	BOLT; FLYWHEEL HSG M10X140 FLANGE	0-28186-014-0	02	1	0208-0404		●
4	BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) M10X140 FLANGE	0-28186-014-0	02	1	0405-0511		●
4	BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M10X140 FLANGE	0-28186-014-0	02	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M10X140 FLANGE	0-28156-014-0	02	1	0601-0610		●
4	BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M10X140 FLANGE	0-28156-014-0	01	1	0611-		●
4	BOLT; FLYWHEEL HSG TRANSMISSION CONTROL-SMOOTHER<8GF> M10X50 FLANGE	0-28151-050-0	05	1	0611-		●
4	BOLT; FLYWHEEL HSG TRANSMISSION CONTROL-SMOOTHER<8GF> M10X140 FLANGE	0-28156-014-0	02	1	0611-		●
5	BOLT; REAR PLATE M10X35 FLANGE	0-28081-035-0	01	1	9701-0207	●
9	STIFFENER; C/BL TAI	8-97965-419-0	01	1	9701-0207	●
9	STIFFENER; C/BL TAI	8-97967-334-0	01	1	0208-0411		●
9	STIFFENER; C/BL 4JH1 ENG(RJX) TAI	8-97967-334-0	01	1	0412-0511		●
9	STIFFENER; C/BL 4JH1-TC ENG(RDM) TAI	8-97967-334-0	01	1	0512-0610		●
9	STIFFENER; C/BL TAI	8-97965-416-0	01	1	9701-0207	●
9	STIFFENER; C/BL TAI	8-97967-333-0	01	1	0208-0411		●
9	STIFFENER; C/BL 4JH1 ENG(RJX) TAI	8-97967-333-0	01	1	0412-0511		●
9	STIFFENER; C/BL 4JH1-TC ENG(RDM) TAI	8-97967-333-0	01	1	0512-0610		●
11	BOLT; BRKT M8X16 W/LK WASHER	0-50040-816-0	02	1	9701-0207	●
11	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER<8GF> M10X20 FLANGE	0-28761-020-0	02	1	0611-		●
18	SUPPORT; DRAW LEVER L=47.5	5-31345-002-1	01	1	9701-9903	●
18	SUPPORT; DRAW LEVER L=47.5	8-97225-469-1	01	1	9904-0207	●
34	COVER; DUST,SHIFT FORK	8-97034-880-0	01	1	9701-0207	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=15.3	8-94336-511-0	01	1	9701-0207	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0208-		●
67	STUD; CASE TRANS	9-09631-004-0	04	1	9701-9905	●
67	STUD; CASE TRANS	9-09631-004-0	06	1	9906-0207	●
68	NUT; REAR PLATE M10 FLANGE	0-91150-110-0	01	1	9701-0207	●
70	NUT; REAMER BOLT M10 FLANGE	0-91150-110-0	01	1	9701-0207	●
71	COVER; SIDE,TRANS CASE	9-33141-601-2	01	1	9701-9710	●
71	COVER; SIDE,TRANS CASE	8-97106-371-0	01	1	9711-9903	●
71	COVER; SIDE,TRANS CASE	9-33141-601-2	01	1	9904-0207	●
71	COVER; SIDE,TRANS CASE	8-97252-625-0	01	1	0208-		●
72	BOLT; SIDE COVER M10X12 FLANGE	8-94128-791-0	06	1	9701-9710	●
72	BOLT; SIDE COVER M10X20 FLANGE	0-28081-020-0	06	1	9711-9903	●
72	BOLT; SIDE COVER M10X12 FLANGE	8-94128-791-0	06	1	9904-9905	●
72	BOLT; SIDE COVER M10X20 FLANGE	0-28081-020-0	06	1	9906-0207	●
72	BOLT; SIDE COVER M10X20 FLANGE	8-97254-833-0	06	1	0208-0604		●
72	BOLT; SIDE COVER M10X20 FLANGE	8-98014-142-0	06	1	0605-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	9-33142-601-0	01	1	9701-0207	●
85	BREATHER; RR COVER	8-97165-939-0	01	1	9701-0207	●
86	BOLT; RR COVER (A) M8X25	8-94128-786-0	07	1	9701-0207	●
86	BOLT; RR COVER (C) M10X40 FLANGE	0-28181-040-0	10	1	0208-0512		●
86	BOLT; RR COVER (C) M10X40 FLANGE	0-28151-040-0	10	1	0601-		●
86	BOLT; RR COVER (B) M10X40 FLANGE	8-97305-392-0	02	1	0208-0604		●
86	BOLT; RR COVER (B) M10X40 FLANGE	8-97365-377-0	02	1	0605-		●
88	SCREW; SPEEDOMETER BUSHING M8X12	8-94128-785-0	01	1	9701-0207	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97036-167-0	01	1	9701-9709	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97074-651-0	01	1	9710-0008	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97257-296-0	01	1	0009-0207	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	0208-		●
91	DRIVER; COUPLING	8-97011-346-2	01	1	9701-9905	●
91	DRIVER; COUPLING	8-97207-215-0	01	1	9906-0207	●
92	BOLT; COUPLING DRIVER M10X33	8-97109-696-1	04	1	9701-0207	●
93	GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T).	8-94421-576-0	01	1	9701-9905	●
93	GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T).	8-94178-725-0	01	1	9906-0207	●
94	WASHER; COUPLING DRIVER	8-94249-240-0	01	1	9701-0207	●
95	NUT; MAINSHAFT M24 FLANGE	8-97087-750-0	01	1	9701-0207	●
420	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-94326-441-0	01	1	9701-0207	●
421	COVER; RR,TRANS	8-97112-986-2	01	1	9701-0207	●
421	COVER; RR,TRANS	8-97252-621-0	01	1	0208-0507		●
421	COVER; RR,TRANS	8-98020-029-0	01	1	0508-		●
430	PLUG; OIL DRAIN	8-94336-512-1	01	1	9701-0207	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0208-0604		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0605-		●
433	LABEL; TRANS	8-97076-909-0	01	1	9701-0207	●
434	HOUSING; CLU	8-97034-879-2	01	1	9701-0207	●
434	HOUSING; CLU	8-97237-099-5	01	1	0208-0610		●
434	HOUSING; CLU EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97237-099-5	01	1	0611-		●
434	HOUSING; CLU 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98032-146-0	01	1	0611-		●
435	CASE; TRANS	8-97072-004-0	01	1	9701-9905	●
435	CASE; TRANS	8-97206-005-0	01	1	9906-0110	●
435	CASE; TRANS	8-97240-847-0	01	1	0111-0207	●
435	CASE; TRANS	8-97252-623-7	01	1	0208-0403		●
435	CASE; TRANS	8-97379-375-0	01	1	0404-		●
446	PLUG; CASE,TRANS OD=16	9-09201-316-0	01	1	9906-0207	●
456	BOLT; STIFFENER M12X35 FLANGE	0-28081-235-0	04	1	9701-0207	●
456	BOLT; STIFFENER M10X35 FLANGE	0-28681-035-0	04	1	0208-0411		●
456	BOLT; STIFFENER 4JH1 ENG(RJX) M10X35 FLANGE	0-28681-035-0	04	1	0412-0511		●
456	BOLT; STIFFENER 4JH1-TC ENG(RDM) M10X35 FLANGE	0-28681-035-0	04	1	0512-0512		●
456	BOLT; STIFFENER 4JH1-TC ENG(RDM) M10X35 FLANGE	0-28651-035-0	04	1	0601-0610		●

587 2 30 454 453 4 4 434 434 13 388 256 388 256 33 33 256 316 256 316 33 2 25 24 25 429 417 45 429 435 324 256 609 86 257 610 611 265 256 3 71 50 86 72 319 90 430 317 421

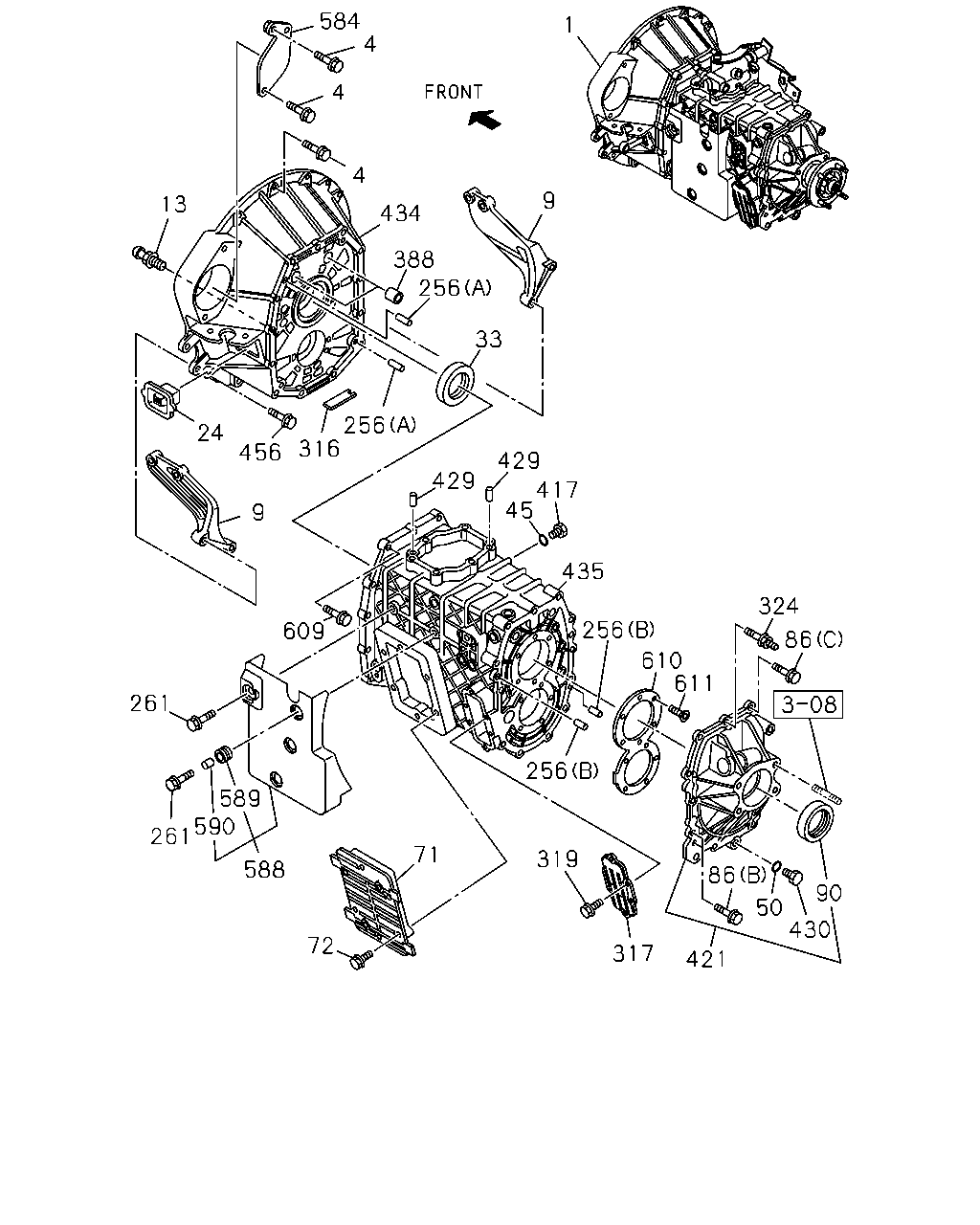

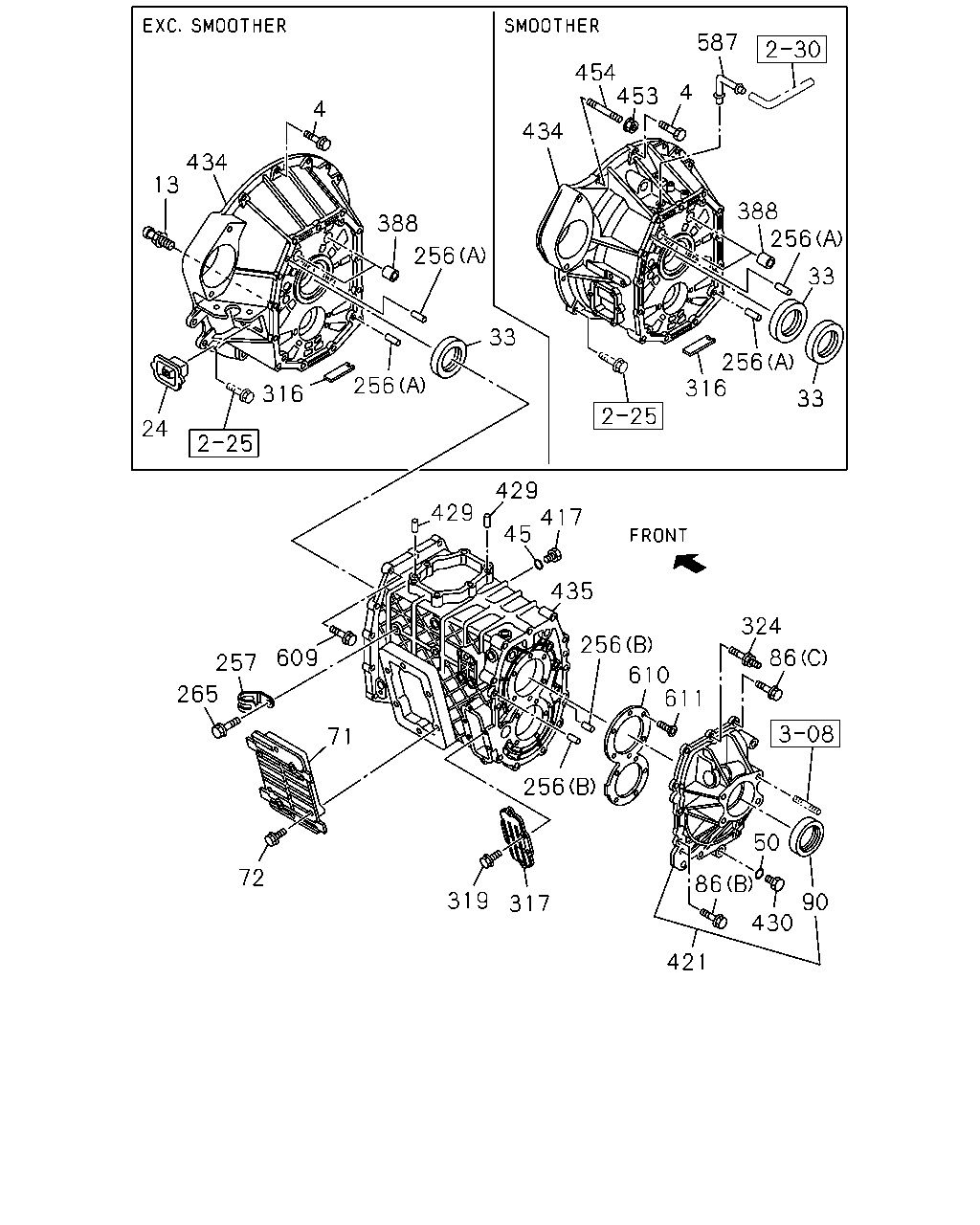

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOLT; FLYWHEEL HSG M10X35 FLANGE	0-28081-035-0	01	1	9701-0207	●
4	BOLT; FLYWHEEL HSG M10X30 FLANGE	0-28181-030-0	02	1	0208-0404		●
4	BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) M10X30 FLANGE	0-28181-030-0	02	1	0405-0511		●
4	BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M10X30 FLANGE	0-28181-030-0	02	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M10X30 FLANGE	0-28151-030-0	02	1	0601-0610		●
4	BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M10X30 FLANGE	0-28151-030-0	03	1	0611-		●
4	BOLT; FLYWHEEL HSG M10X40 FLANGE	0-28081-040-0	01	1	9701-0207	●
4	BOLT; FLYWHEEL HSG M10X35 FLANGE	0-28181-035-0	03	1	0208-0404		●
4	BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) M10X35 FLANGE	0-28181-035-0	03	1	0405-0511		●
4	BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M10X35 FLANGE	0-28181-035-0	03	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M10X35 FLANGE	0-28151-035-0	03	1	0601-0610		●
4	BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M10X35 FLANGE	0-28151-035-0	03	1	0611-		●
4	BOLT; FLYWHEEL HSG M10X45 FLANGE	0-28081-045-0	01	1	9701-0207	●
4	BOLT; FLYWHEEL HSG M14X60 FLANGE	0-28981-460-0	02	1	0208-0404		●
4	BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) M14X60 FLANGE	0-28981-460-0	02	1	0405-0511		●
4	BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M14X60 FLANGE	0-28981-460-0	02	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M14X60 FLANGE	0-28951-460-0	02	1	0601-0610		●
4	BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M10X50 FLANGE	0-28151-050-0	01	1	0611-		●
4	BOLT; FLYWHEEL HSG M10X120 FLANGE	0-28186-012-0	02	1	0208-0404		●
4	BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) M10X120 FLANGE	0-28186-012-0	02	1	0405-0511		●
4	BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M10X120 FLANGE	0-28186-012-0	02	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M10X120 FLANGE	0-28156-012-0	02	1	0601-0610		●
4	BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M10X120 FLANGE	0-28156-012-0	01	1	0611-		●
4	BOLT; FLYWHEEL HSG M10X140 FLANGE	0-28186-014-0	02	1	0208-0404		●
4	BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) M10X140 FLANGE	0-28186-014-0	02	1	0405-0511		●
4	BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M10X140 FLANGE	0-28186-014-0	02	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M10X140 FLANGE	0-28156-014-0	02	1	0601-0610		●
4	BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M10X140 FLANGE	0-28156-014-0	01	1	0611-		●
4	BOLT; FLYWHEEL HSG TRANSMISSION CONTROL-SMOOTHER<8GF> M10X50 FLANGE	0-28151-050-0	05	1	0611-		●
4	BOLT; FLYWHEEL HSG TRANSMISSION CONTROL-SMOOTHER<8GF> M10X140 FLANGE	0-28156-014-0	02	1	0611-		●
13	SUPPORT; SHIFT FORK	8-97255-384-1	01	1	0208-0610		●
13	SUPPORT; SHIFT FORK EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97255-384-1	01	1	0611-		●
24	COVER; CHECK HOLE,DUST	8-97255-201-0	01	1	0208-0610		●
24	COVER; CHECK HOLE,DUST EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97255-201-0	01	1	0611-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	0208-0610		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97253-550-0	01	1	0611-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97255-187-0	02	1	0611-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0208-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=15.3	8-94336-511-0	01	1	9701-0207	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0208-		●
71	COVER; SIDE,TRANS CASE	9-33141-601-2	01	1	9701-9710	●
71	COVER; SIDE,TRANS CASE	8-97106-371-0	01	1	9711-9903	●
71	COVER; SIDE,TRANS CASE	9-33141-601-2	01	1	9904-0207	●
71	COVER; SIDE,TRANS CASE	8-97252-625-0	01	1	0208-		●
72	BOLT; SIDE COVER M10X12 FLANGE	8-94128-791-0	06	1	9701-9710	●
72	BOLT; SIDE COVER M10X20 FLANGE	0-28081-020-0	06	1	9711-9903	●
72	BOLT; SIDE COVER M10X12 FLANGE	8-94128-791-0	06	1	9904-9905	●
72	BOLT; SIDE COVER M10X20 FLANGE	0-28081-020-0	06	1	9906-0207	●
72	BOLT; SIDE COVER M10X20 FLANGE	8-97254-833-0	06	1	0208-0604		●
72	BOLT; SIDE COVER M10X20 FLANGE	8-98014-142-0	06	1	0605-		●
86	BOLT; RR COVER (A) M8X25	8-94128-786-0	07	1	9701-0207	●
86	BOLT; RR COVER (C) M10X40 FLANGE	0-28181-040-0	10	1	0208-0512		●
86	BOLT; RR COVER (C) M10X40 FLANGE	0-28151-040-0	10	1	0601-		●
86	BOLT; RR COVER (B) M10X40 FLANGE	8-97305-392-0	02	1	0208-0604		●
86	BOLT; RR COVER (B) M10X40 FLANGE	8-97365-377-0	02	1	0605-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97036-167-0	01	1	9701-9709	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97074-651-0	01	1	9710-0008	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97257-296-0	01	1	0009-0207	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	0208-		●
256	PIN; KNOCK (A) OD=10 L=20 USA	8-97135-423-0	02	1	0208-		●
256	PIN; KNOCK (B) ID=6 L=12	9-08160-612-0	02	1	0208-		●
257	CLIP; HARNESS 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0611-		●
265	BOLT; CLIP 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> M8X12 FLANGE	0-28050-812-0	01	1	0611-		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0208-		●
317	COVER; CASE	8-97252-626-0	01	1	0208-		●
319	BOLT; COVER M8X20 FLANGE	0-28080-820-0	06	1	0208-0512		●
319	BOLT; COVER M8X20 FLANGE	0-28050-820-0	06	1	0601-		●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97309-013-0	01	1	0208-0604		●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97365-379-0	01	1	0605-		●
388	BUSHING; CLU HSG	8-97241-326-2	02	1	0208-		●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0208-0604		●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0605-		●
421	COVER; RR,TRANS	8-97112-986-2	01	1	9701-0207	●
421	COVER; RR,TRANS	8-97252-621-0	01	1	0208-0507		●
421	COVER; RR,TRANS	8-98020-029-0	01	1	0508-		●
429	PIN; STRAIGHT OD=10 L=20 USA	8-97135-423-0	02	1	0208-		●
430	PLUG; OIL DRAIN	8-94336-512-1	01	1	9701-0207	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0208-0604		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0605-		●
434	HOUSING; CLU	8-97034-879-2	01	1	9701-0207	●
434	HOUSING; CLU	8-97237-099-5	01	1	0208-0610		●
434	HOUSING; CLU EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97237-099-5	01	1	0611-		●
434	HOUSING; CLU 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98032-146-0	01	1	0611-		●
435	CASE; TRANS	8-97072-004-0	01	1	9701-9905	●
435	CASE; TRANS	8-97206-005-0	01	1	9906-0110	●
435	CASE; TRANS	8-97240-847-0	01	1	0111-0207	●
435	CASE; TRANS	8-97252-623-7	01	1	0208-0403		●
435	CASE; TRANS	8-97379-375-0	01	1	0404-		●
453	NUT; CLU HSG TRANSMISSION CONTROL-SMOOTHER<8GF> M10 FLANGE	0-91180-210-0	02	1	0611-		●
454	STUD; CLU HSG TRANSMISSION CONTROL-SMOOTHER<8GF> M10X50 L=99	0-49241-050-0	02	1	0611-		●
587	PIPE; BREATHER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97358-318-0	01	1	0611-		●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28181-040-0	13	1	0208-0512		●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28151-040-0	13	1	0601-		●
610	RETAINER; BRG	8-97241-315-1	01	1	0208-		●
611	SCREW M10X27	8-97254-834-2	11	1	0208-0604		●
611	SCREW M10X27 TORQUES	8-97365-354-0	11	1	0605-		●

584 4 1 4 4 9 13 434 388 256 33 256 316 24 456 429 429 417 45 9 435 324 256 609 86 610 611 256 261 3 589 590 261 86 71 319 588 90 50 430 72 317 421

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL	8-97035-097-0	01	1	9701-9710	●
1	TRANSMISSION ASM; MANUAL EXHAUST BRAKE<NF8>	8-97106-340-0	01	1	9711-9809	●
1	TRANSMISSION ASM; MANUAL	8-97106-340-0	01	1	9810-9905	●
1	TRANSMISSION ASM; MANUAL	8-97204-113-1	01	1	9906-0207	●
1	TRANSMISSION ASM; MANUAL	8-97326-588-0	01	1	0208-0302		●
1	TRANSMISSION ASM; MANUAL	8-97350-621-0	01	1	0303-0404		●
1	TRANSMISSION ASM; MANUAL	8-97373-919-0	01	1	0405-0610		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97373-919-0	01	1	0611-		●
1	TRANSMISSION ASM; MANUAL EXC. EXHAUST BRAKE<NF8>	8-97108-782-0	01	1	9711-9809	●
1	TRANSMISSION ASM; MANUAL 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98019-520-0	01	1	0611-		●
1	TRANSMISSION ASM; MANUAL 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> EXC. KD PREPARATORY PACK<6HF>	8-98019-520-0	01	1	0611-		●
4	BOLT; FLYWHEEL HSG M10X35 FLANGE	0-28081-035-0	01	1	9701-0207	●
4	BOLT; FLYWHEEL HSG M10X30 FLANGE	0-28181-030-0	02	1	0208-0404		●
4	BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) M10X30 FLANGE	0-28181-030-0	02	1	0405-0511		●
4	BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M10X30 FLANGE	0-28181-030-0	02	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M10X30 FLANGE	0-28151-030-0	02	1	0601-0610		●
4	BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M10X30 FLANGE	0-28151-030-0	03	1	0611-		●
4	BOLT; FLYWHEEL HSG M10X40 FLANGE	0-28081-040-0	01	1	9701-0207	●
4	BOLT; FLYWHEEL HSG M10X35 FLANGE	0-28181-035-0	03	1	0208-0404		●
4	BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) M10X35 FLANGE	0-28181-035-0	03	1	0405-0511		●
4	BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M10X35 FLANGE	0-28181-035-0	03	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M10X35 FLANGE	0-28151-035-0	03	1	0601-0610		●
4	BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M10X35 FLANGE	0-28151-035-0	03	1	0611-		●
4	BOLT; FLYWHEEL HSG M10X45 FLANGE	0-28081-045-0	01	1	9701-0207	●
4	BOLT; FLYWHEEL HSG M14X60 FLANGE	0-28981-460-0	02	1	0208-0404		●
4	BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) M14X60 FLANGE	0-28981-460-0	02	1	0405-0511		●
4	BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M14X60 FLANGE	0-28981-460-0	02	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M14X60 FLANGE	0-28951-460-0	02	1	0601-0610		●
4	BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M10X50 FLANGE	0-28151-050-0	01	1	0611-		●
4	BOLT; FLYWHEEL HSG M10X120 FLANGE	0-28186-012-0	02	1	0208-0404		●
4	BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) M10X120 FLANGE	0-28186-012-0	02	1	0405-0511		●
4	BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M10X120 FLANGE	0-28186-012-0	02	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M10X120 FLANGE	0-28156-012-0	02	1	0601-0610		●
4	BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M10X120 FLANGE	0-28156-012-0	01	1	0611-		●
4	BOLT; FLYWHEEL HSG M10X140 FLANGE	0-28186-014-0	02	1	0208-0404		●
4	BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) M10X140 FLANGE	0-28186-014-0	02	1	0405-0511		●
4	BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M10X140 FLANGE	0-28186-014-0	02	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M10X140 FLANGE	0-28156-014-0	02	1	0601-0610		●
4	BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M10X140 FLANGE	0-28156-014-0	01	1	0611-		●
4	BOLT; FLYWHEEL HSG TRANSMISSION CONTROL-SMOOTHER<8GF> M10X50 FLANGE	0-28151-050-0	05	1	0611-		●
4	BOLT; FLYWHEEL HSG TRANSMISSION CONTROL-SMOOTHER<8GF> M10X140 FLANGE	0-28156-014-0	02	1	0611-		●
9	STIFFENER; C/BL TAI	8-97965-419-0	01	1	9701-0207	●
9	STIFFENER; C/BL TAI	8-97967-334-0	01	1	0208-0411		●
9	STIFFENER; C/BL 4JH1 ENG(RJX) TAI	8-97967-334-0	01	1	0412-0511		●
9	STIFFENER; C/BL 4JH1-TC ENG(RDM) TAI	8-97967-334-0	01	1	0512-0610		●
9	STIFFENER; C/BL TAI	8-97965-416-0	01	1	9701-0207	●
9	STIFFENER; C/BL TAI	8-97967-333-0	01	1	0208-0411		●
9	STIFFENER; C/BL 4JH1 ENG(RJX) TAI	8-97967-333-0	01	1	0412-0511		●
9	STIFFENER; C/BL 4JH1-TC ENG(RDM) TAI	8-97967-333-0	01	1	0512-0610		●
13	SUPPORT; SHIFT FORK	8-97255-384-1	01	1	0208-0610		●
13	SUPPORT; SHIFT FORK EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97255-384-1	01	1	0611-		●
24	COVER; CHECK HOLE,DUST	8-97255-201-0	01	1	0208-0610		●
24	COVER; CHECK HOLE,DUST EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97255-201-0	01	1	0611-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	0208-0610		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97253-550-0	01	1	0611-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97255-187-0	02	1	0611-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0208-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=15.3	8-94336-511-0	01	1	9701-0207	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0208-		●
71	COVER; SIDE,TRANS CASE	9-33141-601-2	01	1	9701-9710	●
71	COVER; SIDE,TRANS CASE	8-97106-371-0	01	1	9711-9903	●
71	COVER; SIDE,TRANS CASE	9-33141-601-2	01	1	9904-0207	●
71	COVER; SIDE,TRANS CASE	8-97252-625-0	01	1	0208-		●
72	BOLT; SIDE COVER M10X12 FLANGE	8-94128-791-0	06	1	9701-9710	●
72	BOLT; SIDE COVER M10X20 FLANGE	0-28081-020-0	06	1	9711-9903	●
72	BOLT; SIDE COVER M10X12 FLANGE	8-94128-791-0	06	1	9904-9905	●
72	BOLT; SIDE COVER M10X20 FLANGE	0-28081-020-0	06	1	9906-0207	●
72	BOLT; SIDE COVER M10X20 FLANGE	8-97254-833-0	06	1	0208-0604		●
72	BOLT; SIDE COVER M10X20 FLANGE	8-98014-142-0	06	1	0605-		●
86	BOLT; RR COVER (A) M8X25	8-94128-786-0	07	1	9701-0207	●
86	BOLT; RR COVER (C) M10X40 FLANGE	0-28181-040-0	10	1	0208-0512		●
86	BOLT; RR COVER (C) M10X40 FLANGE	0-28151-040-0	10	1	0601-		●
86	BOLT; RR COVER (B) M10X40 FLANGE	8-97305-392-0	02	1	0208-0604		●
86	BOLT; RR COVER (B) M10X40 FLANGE	8-97365-377-0	02	1	0605-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97036-167-0	01	1	9701-9709	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97074-651-0	01	1	9710-0008	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97257-296-0	01	1	0009-0207	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	0208-		●
256	PIN; KNOCK (A) OD=10 L=20 USA	8-97135-423-0	02	1	0208-		●
256	PIN; KNOCK (B) ID=6 L=12	9-08160-612-0	02	1	0208-		●
261	BOLT; COVER M8X25 FLANGE	0-28680-825-0	04	1	0208-0302		●
261	BOLT; COVER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> M6X35 FLANGE	0-28650-635-0	06	1	0611-		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0208-		●
317	COVER; CASE	8-97252-626-0	01	1	0208-		●
319	BOLT; COVER M8X20 FLANGE	0-28080-820-0	06	1	0208-0512		●
319	BOLT; COVER M8X20 FLANGE	0-28050-820-0	06	1	0601-		●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97309-013-0	01	1	0208-0604		●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97365-379-0	01	1	0605-		●
388	BUSHING; CLU HSG	8-97241-326-2	02	1	0208-		●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0208-0604		●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0605-		●
421	COVER; RR,TRANS	8-97112-986-2	01	1	9701-0207	●
421	COVER; RR,TRANS	8-97252-621-0	01	1	0208-0507		●
421	COVER; RR,TRANS	8-98020-029-0	01	1	0508-		●
429	PIN; STRAIGHT OD=10 L=20 USA	8-97135-423-0	02	1	0208-		●
430	PLUG; OIL DRAIN	8-94336-512-1	01	1	9701-0207	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0208-0604		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0605-		●
434	HOUSING; CLU	8-97034-879-2	01	1	9701-0207	●
434	HOUSING; CLU	8-97237-099-5	01	1	0208-0610		●
434	HOUSING; CLU EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97237-099-5	01	1	0611-		●
434	HOUSING; CLU 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98032-146-0	01	1	0611-		●
435	CASE; TRANS	8-97072-004-0	01	1	9701-9905	●
435	CASE; TRANS	8-97206-005-0	01	1	9906-0110	●
435	CASE; TRANS	8-97240-847-0	01	1	0111-0207	●
435	CASE; TRANS	8-97252-623-7	01	1	0208-0403		●
435	CASE; TRANS	8-97379-375-0	01	1	0404-		●
456	BOLT; STIFFENER M12X35 FLANGE	0-28081-235-0	04	1	9701-0207	●
456	BOLT; STIFFENER M10X35 FLANGE	0-28681-035-0	04	1	0208-0411		●
456	BOLT; STIFFENER 4JH1 ENG(RJX) M10X35 FLANGE	0-28681-035-0	04	1	0412-0511		●
456	BOLT; STIFFENER 4JH1-TC ENG(RDM) M10X35 FLANGE	0-28681-035-0	04	1	0512-0512		●
456	BOLT; STIFFENER 4JH1-TC ENG(RDM) M10X35 FLANGE	0-28651-035-0	04	1	0601-0610		●
584	COVER; STARTER HOLE	8-97260-364-1	01	1	0208-0404		●
584	COVER; STARTER HOLE 4JH1 ENG(RJX)	8-97260-364-1	01	1	0405-0511		●
584	COVER; STARTER HOLE 4JH1-TC ENG(RDM)	8-97260-364-2	01	1	0512-0610		●
588	COVER ASM; TRANS	8-97317-663-1	01	1	0208-0302		●
589	MOUNTING; RUBBER OD=22	8-94140-428-1	04	1	0208-0302		●
590	BUSHING; RUBBER OD=13 T=9.5	8-94140-427-1	04	1	0208-0302		●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28181-040-0	13	1	0208-0512		●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28151-040-0	13	1	0601-		●
610	RETAINER; BRG	8-97241-315-1	01	1	0208-		●
611	SCREW M10X27	8-97254-834-2	11	1	0208-0604		●
611	SCREW M10X27 TORQUES	8-97365-354-0	11	1	0605-		●

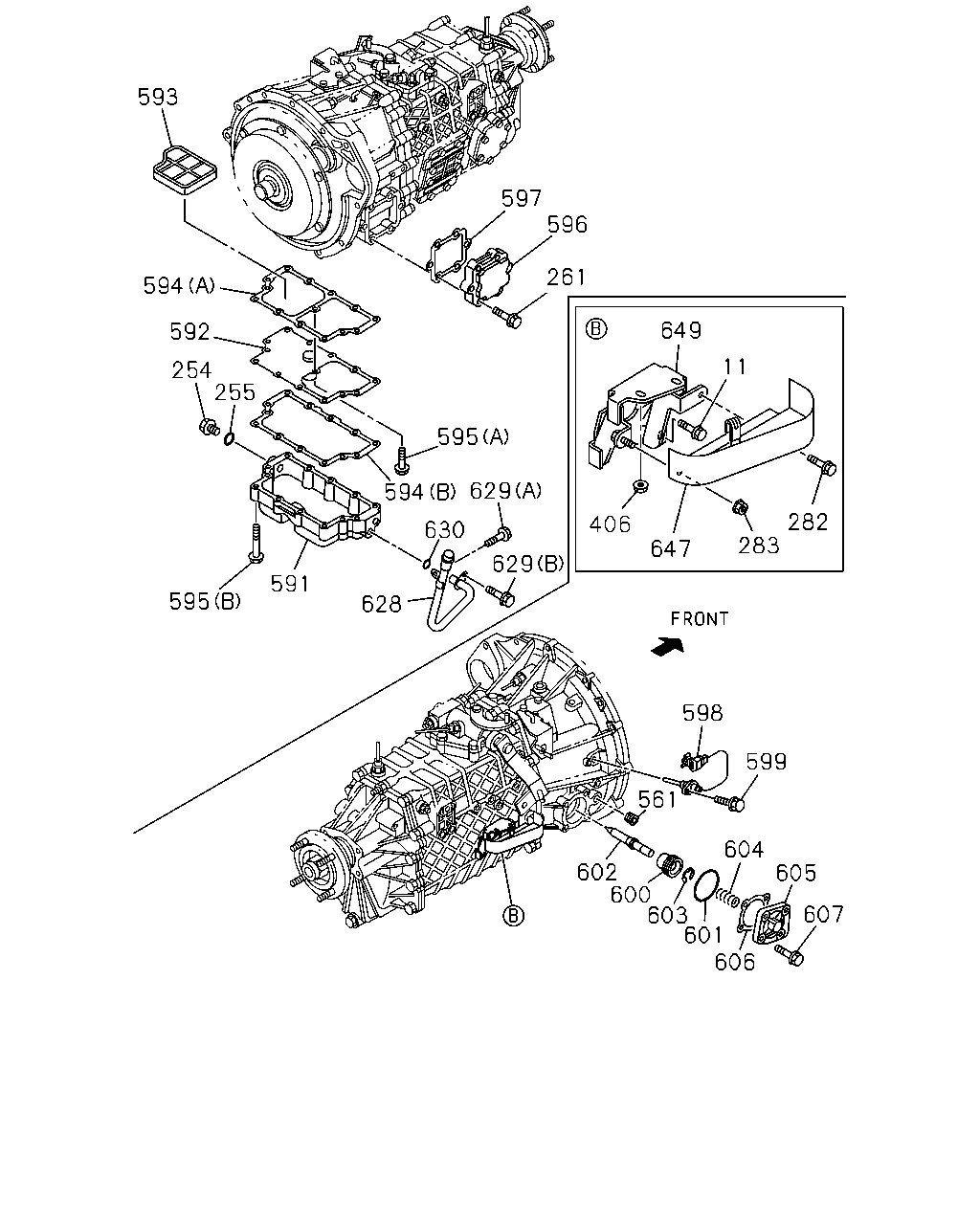

593 597 596 261 594 649 592 11 254 255 595 594 629 282 283 406 630 647 629 591 595 628 598 599 561 604 602 600 603 601 606 605 607

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT M8X16 W/LK WASHER	0-50040-816-0	02	1	9701-0207	●
11	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER<8GF> M10X20 FLANGE	0-28761-020-0	02	1	0611-		●
254	PLUG; DRAIN,OIL 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97372-997-0	01	1	0611-0611		●
254	PLUG; DRAIN,OIL 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98020-377-0	01	1	0611-		●
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> ID=17	8-97115-712-0	01	1	0611-		●
261	BOLT; COVER M8X25 FLANGE	0-28680-825-0	04	1	0208-0302		●
261	BOLT; COVER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> M6X35 FLANGE	0-28650-635-0	06	1	0611-		●
282	BOLT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER<8GF> M8X20 FLANGE	0-28650-820-0	01	1	0611-		●
283	NUT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE	0-91180-108-0	01	1	0611-		●
406	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER<8GF> M10 FLANGE	0-91180-210-0	02	1	0611-		●
561	PLUG 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97320-204-0	01	1	0611-		●
591	PAN; OIL 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97256-429-2	01	1	0611-		●
592	COVER; STRAINER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97289-771-1	01	1	0611-		●
593	FILTER; STRAINER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97256-438-1	01	1	0611-		●
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (A)	8-97256-430-1	01	1	0611-		●
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-97289-772-0	01	1	0611-		●
595	BOLT; OIL PAN 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M6X16 FLANGE	0-28650-616-0	01	1	0611-		●
595	BOLT; OIL PAN 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M6X35 FLANGE	0-28650-635-0	13	1	0611-		●
596	COVER; OIL PAN 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97289-773-0	01	1	0611-		●
597	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97289-774-0	01	1	0611-		●
598	SENSOR; TURBINE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97316-495-1	01	1	0611-		●
599	BOLT; SENSOR 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> M6X16 FLANGE	0-28650-616-0	01	1	0611-		●
600	PISTON; BRAKE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97254-652-1	01	1	0611-		●
601	SEAL; PISTON ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97254-755-0	01	1	0611-		●
602	PLUNGER; BRAKE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97254-653-0	01	1	0611-		●
603	RING; SNAP 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> ID=8	9-09185-008-0	01	1	0611-		●
604	SPRING; PISTON 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97254-752-0	01	1	0611-		●
605	COVER; CYLINDER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97254-756-0	01	1	0611-		●
606	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97254-757-0	01	1	0611-		●
607	BOLT; COVER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> M8X30 FLANGE	0-28650-830-0	04	1	0611-		●
628	TUBE; OIL FILLER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98018-773-0	01	1	0611-		●
629	BOLT; OIL FILLER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M10X16 FLANGE	0-28151-016-0	01	1	0611-		●
629	BOLT; OIL FILLER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M6X16 FLANGE	0-28650-616-0	01	1	0611-		●
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF> ID=15.8	8-97305-656-0	01	1	0611-		●
647	PROTECTOR; HEAT TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97329-465-0	01	1	0611-		●
649	BRACKET; SOLENOID TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97357-175-1	01	1	0611-0611		●
649	BRACKET; SOLENOID TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97387-237-0	01	1	0611-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
