◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50760 - NHR/NKR TAIWAN ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#139057) — 86 parça

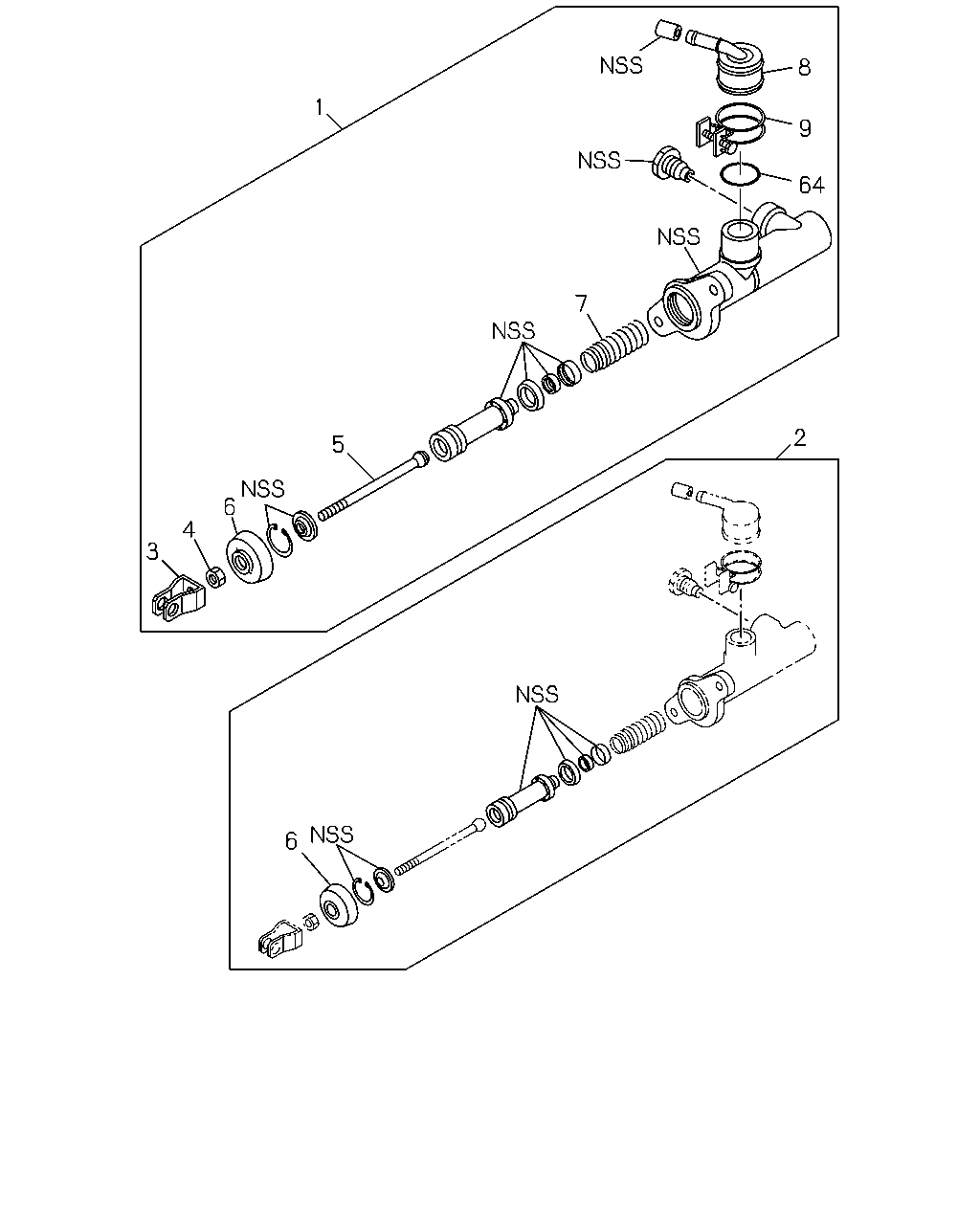

çizim 420444
8 1 9 64 7 2 5 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CYLINDER ASM; CLUTCH MASTER 8-97167-406-0 01 1 9701-0207 ●
1 CYLINDER ASM; CLUTCH MASTER 8-97300-211-0 01 1 0208-0511 ●
1 CYLINDER ASM; CLUTCH MASTER 8-97300-211-0 01 1 0512-0610 ●
1 CYLINDER ASM; CLUTCH MASTER
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97300-211-0 01 1 0611- ●
2 REPAIR KIT; CLU M/CYL 5-87831-597-0 01 1 9701-0207 ●
2 REPAIR KIT; CLU M/CYL 5-87831-597-0 01 1 0208-0511 ●
2 REPAIR KIT; CLU M/CYL 5-87831-597-0 01 1 0512-0610 ●
2 REPAIR KIT; CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		5-87831-597-0 01 1 0611- ●
3 JOINT; JAW,CLU M/CYL 8-97167-770-0 01 1 9701-0207 ●
3 JOINT; JAW,CLU M/CYL 8-97167-770-0 01 1 0208-0511 ●
3 JOINT; JAW,CLU M/CYL 8-97167-770-0 01 1 0512-0610 ●
3 JOINT; JAW,CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97167-770-0 01 1 0611- ●
4 NUT; JAW JOINT
M8 		9-09111-408-0 01 1 9701-0207 ●
4 NUT; JAW JOINT
M8 		9-09111-408-0 01 1 0208-0511 ●
4 NUT; JAW JOINT
M8 		0-91111-508-0 01 1 0512-0610 ●
4 NUT; JAW JOINT
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M8 		0-91111-508-0 01 1 0611- ●
5 ROD; PUSH,CLU M/CYL 8-97167-768-0 01 1 9701-0207 ●
5 ROD; PUSH,CLU M/CYL 8-97167-768-0 01 1 0208-0511 ●
5 ROD; PUSH,CLU M/CYL 8-97167-768-0 01 1 0512-0610 ●
5 ROD; PUSH,CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97167-768-0 01 1 0611- ●
6 BOOT; CLU M/CYL 8-94412-200-0 01 1 9701-0207 ●
6 BOOT; CLU M/CYL 8-94412-200-0 01 1 0208-0511 ●
6 BOOT; CLU M/CYL 8-94412-200-0 01 1 0512-0610 ●
6 BOOT; CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-94412-200-0 01 1 0611- ●
7 SPRING ASM; CLU M/CYL 8-97167-780-0 01 1 9701-0207 ●
7 SPRING ASM; CLU M/CYL 8-97167-780-0 01 1 0208-0511 ●
7 SPRING ASM; CLU M/CYL 8-97167-780-0 01 1 0512-0610 ●
7 SPRING ASM; CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97167-780-0 01 1 0611- ●
8 CONNECTOR; PIPE,CLU M/CYL 8-97167-766-0 01 1 9701-0207 ●
8 CONNECTOR; PIPE,CLU M/CYL 8-97167-766-0 01 1 0208-0511 ●
8 CONNECTOR; PIPE,CLU M/CYL 8-97167-766-0 01 1 0512-0610 ●
8 CONNECTOR; PIPE,CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97167-766-0 01 1 0611- ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 9701-0207 ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 0208-0511 ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 0512-0610 ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97167-773-0 01 1 0611- ●
64 GASKET; CONNECTOR 8-97167-767-0 01 1 9701-0207 ●
64 GASKET; CONNECTOR 8-97167-767-0 01 1 0208-0511 ●
64 GASKET; CONNECTOR 8-97167-767-0 01 1 0512-0610 ●
64 GASKET; CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97167-767-0 01 1 0611- ●

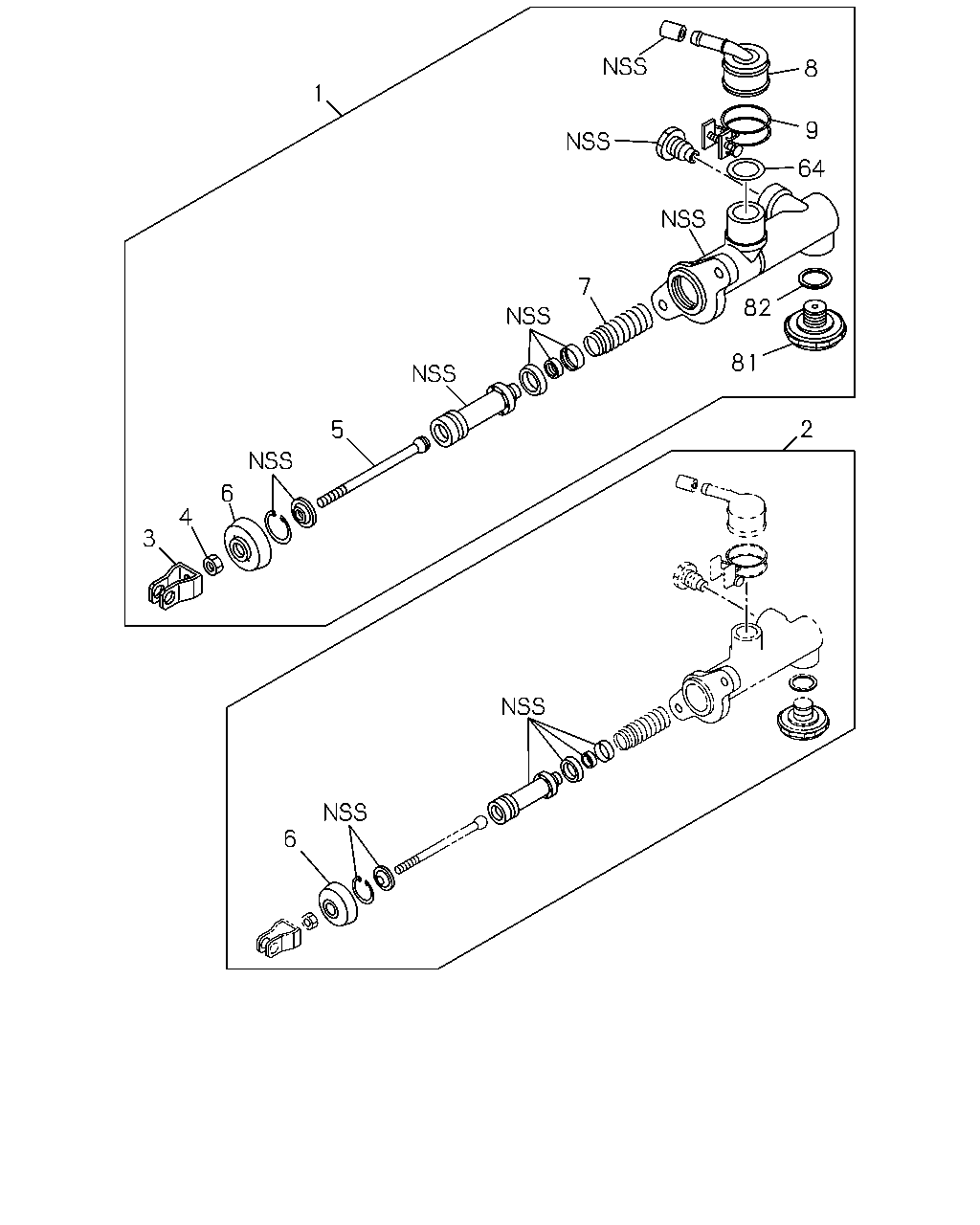

çizim 420445
8 1 9 64 7 82 81 2 5 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CYLINDER ASM; CLUTCH MASTER 8-97167-406-0 01 1 9701-0207 ●
1 CYLINDER ASM; CLUTCH MASTER 8-97300-211-0 01 1 0208-0511 ●
1 CYLINDER ASM; CLUTCH MASTER 8-97300-211-0 01 1 0512-0610 ●
1 CYLINDER ASM; CLUTCH MASTER
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97300-211-0 01 1 0611- ●
2 REPAIR KIT; CLU M/CYL 5-87831-597-0 01 1 9701-0207 ●
2 REPAIR KIT; CLU M/CYL 5-87831-597-0 01 1 0208-0511 ●
2 REPAIR KIT; CLU M/CYL 5-87831-597-0 01 1 0512-0610 ●
2 REPAIR KIT; CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		5-87831-597-0 01 1 0611- ●
3 JOINT; JAW,CLU M/CYL 8-97167-770-0 01 1 9701-0207 ●
3 JOINT; JAW,CLU M/CYL 8-97167-770-0 01 1 0208-0511 ●
3 JOINT; JAW,CLU M/CYL 8-97167-770-0 01 1 0512-0610 ●
3 JOINT; JAW,CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97167-770-0 01 1 0611- ●
4 NUT; JAW JOINT
M8 		9-09111-408-0 01 1 9701-0207 ●
4 NUT; JAW JOINT
M8 		9-09111-408-0 01 1 0208-0511 ●
4 NUT; JAW JOINT
M8 		0-91111-508-0 01 1 0512-0610 ●
4 NUT; JAW JOINT
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M8 		0-91111-508-0 01 1 0611- ●
5 ROD; PUSH,CLU M/CYL 8-97167-768-0 01 1 9701-0207 ●
5 ROD; PUSH,CLU M/CYL 8-97167-768-0 01 1 0208-0511 ●
5 ROD; PUSH,CLU M/CYL 8-97167-768-0 01 1 0512-0610 ●
5 ROD; PUSH,CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97167-768-0 01 1 0611- ●
6 BOOT; CLU M/CYL 8-94412-200-0 01 1 9701-0207 ●
6 BOOT; CLU M/CYL 8-94412-200-0 01 1 0208-0511 ●
6 BOOT; CLU M/CYL 8-94412-200-0 01 1 0512-0610 ●
6 BOOT; CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-94412-200-0 01 1 0611- ●
7 SPRING ASM; CLU M/CYL 8-97167-780-0 01 1 9701-0207 ●
7 SPRING ASM; CLU M/CYL 8-97167-780-0 01 1 0208-0511 ●
7 SPRING ASM; CLU M/CYL 8-97167-780-0 01 1 0512-0610 ●
7 SPRING ASM; CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97167-780-0 01 1 0611- ●
8 CONNECTOR; PIPE,CLU M/CYL 8-97167-766-0 01 1 9701-0207 ●
8 CONNECTOR; PIPE,CLU M/CYL 8-97167-766-0 01 1 0208-0511 ●
8 CONNECTOR; PIPE,CLU M/CYL 8-97167-766-0 01 1 0512-0610 ●
8 CONNECTOR; PIPE,CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97167-766-0 01 1 0611- ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 9701-0207 ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 0208-0511 ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 0512-0610 ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97167-773-0 01 1 0611- ●
64 GASKET; CONNECTOR 8-97167-767-0 01 1 9701-0207 ●
64 GASKET; CONNECTOR 8-97167-767-0 01 1 0208-0511 ●
64 GASKET; CONNECTOR 8-97167-767-0 01 1 0512-0610 ●
64 GASKET; CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97167-767-0 01 1 0611- ●
81 DAMPER; MASTER CYL 8-97190-913-0 01 1 0208-0511 ●
81 DAMPER; MASTER CYL 8-97190-913-0 01 1 0512-0610 ●
81 DAMPER; MASTER CYL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97190-913-0 01 1 0611- ●
82 GASKET; DAMPER 8-97191-396-0 01 1 0208-0511 ●
82 GASKET; DAMPER 8-97191-396-0 01 1 0512-0610 ●
82 GASKET; DAMPER
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97191-396-0 01 1 0611- ●
