2-05 — CLUTCH PIPING (#139055) — 105 parça

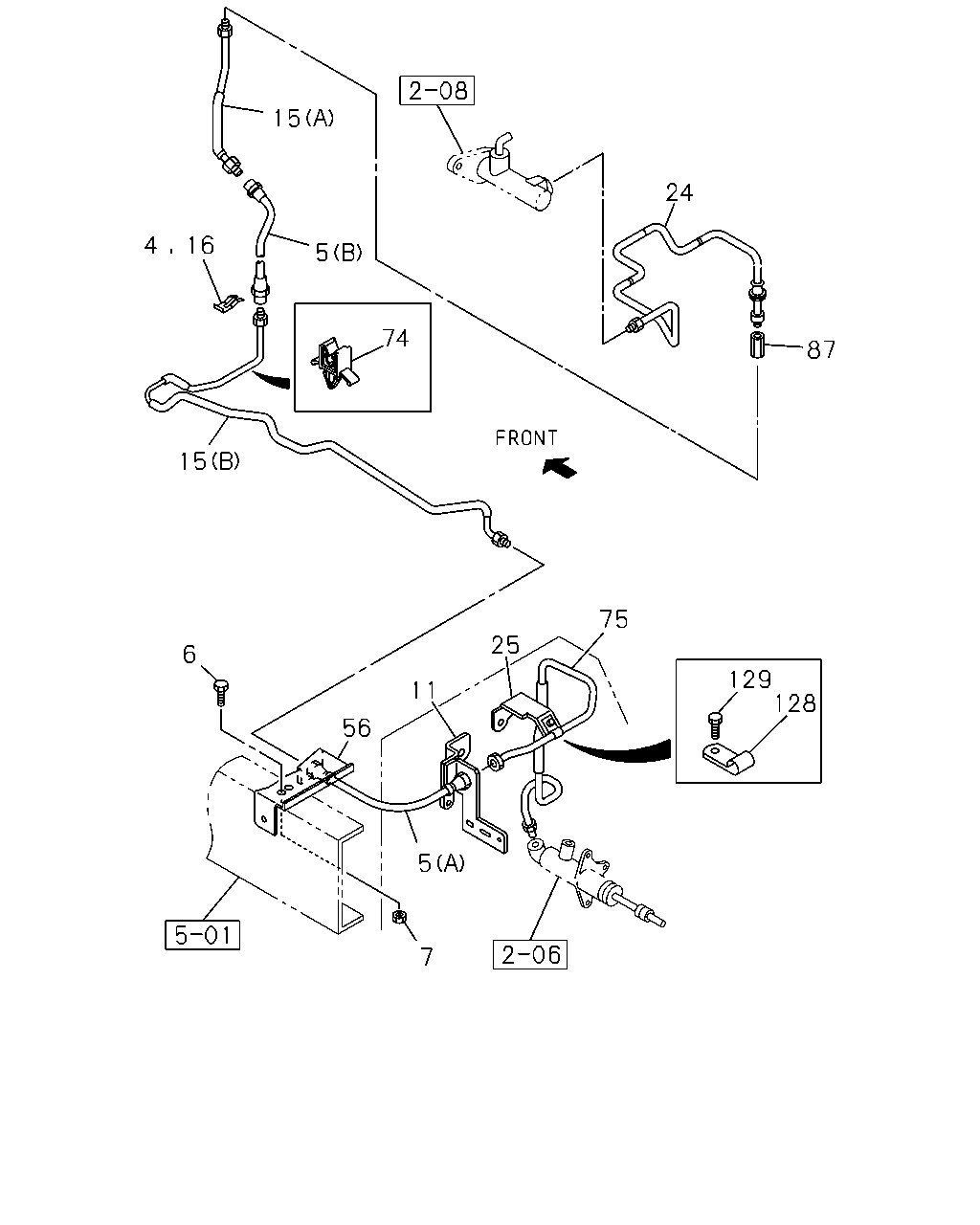

çizim 420443
2 15 24 16 4 5 74 87 15 75 25 6 129 128 11 56 5 5 2 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 9701-0207 ●
4 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0208-0511 ●
4 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0512-0610 ●
4 CLIP; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-94167-006-0 02 1 0611-0611 ●
4 CLIP; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97365-304-0 02 1 0611- ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 9701-0207 ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0208-0511 ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0512-0609 ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-98004-775-0 01 1 0610-0610 ●
5 HOSE; FLEX,CLU PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-98004-775-0 01 1 0611-0706 ●
5 HOSE; FLEX,CLU PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-98090-655-0 01 1 0707- ●
5 HOSE; FLEX,CLU PIPE
(A) 		8-94374-552-1 01 1 9701-0207 ●
5 HOSE; FLEX,CLU PIPE
(C) 		8-97304-979-0 01 1 0208-0511 ●
5 HOSE; FLEX,CLU PIPE
(C) 		8-97304-979-0 01 1 0512-0610 ●
5 HOSE; FLEX,CLU PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (C) 		8-98026-093-0 01 1 0611- ●
6 BOLT; BRKT,FLEX HOSE
M8X20 FLANGE 		0-28680-820-0 01 1 9701-0207 ●
7 NUT; FLEX HOSE,CLU CONT
M8 FLANGE 		0-91150-108-0 01 1 9701-0207 ●
11 BRACKET; FLEX HOSE,CLU 8-97091-929-0 01 1 9701-9707 ●
11 BRACKET; FLEX HOSE,CLU
TAI 		8-97965-869-0 01 1 9708-0207 ●
15 PIPE; CLU,FLEX HOSE
(A) TAI 		8-97965-143-0 01 1 9701-0111 ●
15 PIPE; CLU,FLEX HOSE
(A) TAI 		8-97967-356-0 01 1 0112-0207 ●
15 PIPE; CLU,FLEX HOSE
(C) TAI 		8-97967-356-0 01 1 0208-0511 ●
15 PIPE; CLU,FLEX HOSE
(C) TAI 		8-97967-356-0 01 1 0512-0610 ●
15 PIPE; CLU,FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (C) TAI 		8-97967-356-0 01 1 0611- ●
15 PIPE; CLU,FLEX HOSE
(B) TAI 		8-97965-144-0 01 1 9701-0207 ●
15 PIPE; CLU,FLEX HOSE
SHORT CHAS(NH***C) (D) TAI 		8-97967-329-0 01 1 0208-0511 ●
15 PIPE; CLU,FLEX HOSE
SHORT CHAS(NH***C) (D) TAI 		8-97967-329-0 01 1 0512-0610 ●
15 PIPE; CLU,FLEX HOSE
LONG CHAS(NH***F & NK***F) (D) TAI 		8-97326-005-0 01 1 0412-0511 ●
15 PIPE; CLU,FLEX HOSE
LONG CHAS(NH***F & NK***F) (D) TAI 		8-97326-005-0 01 1 0512-0610 ●
15 PIPE; CLU,FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (D) TAI 		8-98000-400-3 01 1 0611- ●
16 CLIP; FLEX HOSE 8-94167-006-0 02 1 9701-0207 ●
24 PIPE ASM; CLU,M/CYL TO UNION
TAI 		8-97965-170-0 01 1 9701-0207 ●
24 PIPE ASM; CLU,M/CYL TO UNION
TAI 		8-97965-170-0 01 1 0208-0511 ●
24 PIPE ASM; CLU,M/CYL TO UNION
TAI 		8-97965-170-0 01 1 0512-0610 ●
24 PIPE ASM; CLU,M/CYL TO UNION
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97965-170-0 01 1 0611- ●
25 BRACKET; OIL PIPE 8-97013-211-1 01 1 9701-9707 ●
25 BRACKET; OIL PIPE
TAI 		8-97965-882-0 01 1 9708-0207 ●
56 BRACKET; FLEX HOSE 8-97090-299-0 01 1 9701-9905 ●
56 BRACKET; FLEX HOSE
TAI 		8-97966-916-0 01 1 9906-0207 ●
74 CLIP; CLU OIL PIPE
H=28.5 		8-94486-808-0 02 1 9701-0207 ●
74 CLIP; CLU OIL PIPE
SHORT CHAS(NH***C) H=28.5 		8-94486-808-0 01 1 0208-0511 ●
74 CLIP; CLU OIL PIPE
SHORT CHAS(NH***C) H=28.5 		8-94486-808-0 01 1 0512-0610 ●
75 PIPE ASM; CLU,HSG
TAI 		8-97965-505-0 01 1 9701-0207 ●
87 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 9701-0207 ●
87 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0208-0511 ●
87 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0512-0607 ●
87 UNION; OIL PIPE
M12 STRAIGHT 		0-92107-006-0 01 1 0608-0610 ●
87 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M12 STRAIGHT 		0-92107-006-0 01 1 0611- ●
128 CLIP; AIR PIPE
ID=7 L=16 		9-09524-622-0 02 1 9701-0207 ●
129 BOLT; PIPE CLIP
M6X12 FLANGE 		0-28080-612-0 02 1 9701-0207 ●
çizim 420733
2 15 24 4 5 87 15 74 5 2 20 19 177 3 3 18
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 GASKET; FLEX HOSE,CLU
ID=10.2 OD=16.0 		9-09571-410-0 02 1 0208-0511 ●
3 GASKET; FLEX HOSE,CLU
ID=10.2 OD=16.0 		9-09571-410-0 02 1 0512-0610 ●
3 GASKET; FLEX HOSE,CLU
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> ID=10.2 OD=16.0 		9-09571-410-0 02 1 0611- ●
4 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 9701-0207 ●
4 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0208-0511 ●
4 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0512-0610 ●
4 CLIP; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-94167-006-0 02 1 0611-0611 ●
4 CLIP; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97365-304-0 02 1 0611- ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 9701-0207 ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0208-0511 ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0512-0609 ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-98004-775-0 01 1 0610-0610 ●
5 HOSE; FLEX,CLU PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-98004-775-0 01 1 0611-0706 ●
5 HOSE; FLEX,CLU PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-98090-655-0 01 1 0707- ●
5 HOSE; FLEX,CLU PIPE
(A) 		8-94374-552-1 01 1 9701-0207 ●
5 HOSE; FLEX,CLU PIPE
(C) 		8-97304-979-0 01 1 0208-0511 ●
5 HOSE; FLEX,CLU PIPE
(C) 		8-97304-979-0 01 1 0512-0610 ●
5 HOSE; FLEX,CLU PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (C) 		8-98026-093-0 01 1 0611- ●
15 PIPE; CLU,FLEX HOSE
(A) TAI 		8-97965-143-0 01 1 9701-0111 ●
15 PIPE; CLU,FLEX HOSE
(A) TAI 		8-97967-356-0 01 1 0112-0207 ●
15 PIPE; CLU,FLEX HOSE
(C) TAI 		8-97967-356-0 01 1 0208-0511 ●
15 PIPE; CLU,FLEX HOSE
(C) TAI 		8-97967-356-0 01 1 0512-0610 ●
15 PIPE; CLU,FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (C) TAI 		8-97967-356-0 01 1 0611- ●
15 PIPE; CLU,FLEX HOSE
(B) TAI 		8-97965-144-0 01 1 9701-0207 ●
15 PIPE; CLU,FLEX HOSE
SHORT CHAS(NH***C) (D) TAI 		8-97967-329-0 01 1 0208-0511 ●
15 PIPE; CLU,FLEX HOSE
SHORT CHAS(NH***C) (D) TAI 		8-97967-329-0 01 1 0512-0610 ●
15 PIPE; CLU,FLEX HOSE
LONG CHAS(NH***F & NK***F) (D) TAI 		8-97326-005-0 01 1 0412-0511 ●
15 PIPE; CLU,FLEX HOSE
LONG CHAS(NH***F & NK***F) (D) TAI 		8-97326-005-0 01 1 0512-0610 ●
15 PIPE; CLU,FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (D) TAI 		8-98000-400-3 01 1 0611- ●
18 DAMPER ASM; CLU OIL 8-97304-970-0 01 1 0208-0511 ●
18 DAMPER ASM; CLU OIL 8-97304-970-0 01 1 0512-0610 ●
18 DAMPER ASM; CLU OIL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97304-970-0 01 1 0611- ●
19 BOLT; CLU DAMPER
M8X25 FLANGE 		0-28680-825-0 02 1 0208-0511 ●
19 BOLT; CLU DAMPER
M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ●
19 BOLT; CLU DAMPER
M8X25 FLANGE 		0-28650-825-0 02 1 0601-0610 ●
19 BOLT; CLU DAMPER
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M8X25 FLANGE 		0-28650-825-0 02 1 0611- ●
20 NUT; CLU OIL DAMPER
M8 FLANGE 		0-91150-108-0 02 1 0208-0511 ●
20 NUT; CLU OIL DAMPER
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
20 NUT; CLU OIL DAMPER
M8 FLANGE 		0-91180-108-0 02 1 0603-0610 ●
24 PIPE ASM; CLU,M/CYL TO UNION
TAI 		8-97965-170-0 01 1 9701-0207 ●
24 PIPE ASM; CLU,M/CYL TO UNION
TAI 		8-97965-170-0 01 1 0208-0511 ●
24 PIPE ASM; CLU,M/CYL TO UNION
TAI 		8-97965-170-0 01 1 0512-0610 ●
24 PIPE ASM; CLU,M/CYL TO UNION
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97965-170-0 01 1 0611- ●
74 CLIP; CLU OIL PIPE
H=28.5 		8-94486-808-0 02 1 9701-0207 ●
74 CLIP; CLU OIL PIPE
SHORT CHAS(NH***C) H=28.5 		8-94486-808-0 01 1 0208-0511 ●
74 CLIP; CLU OIL PIPE
SHORT CHAS(NH***C) H=28.5 		8-94486-808-0 01 1 0512-0610 ●
87 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 9701-0207 ●
87 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0208-0511 ●
87 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0512-0607 ●
87 UNION; OIL PIPE
M12 STRAIGHT 		0-92107-006-0 01 1 0608-0610 ●
87 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M12 STRAIGHT 		0-92107-006-0 01 1 0611- ●
177 BOLT; EYE,FLEX HOSE TO M/CYL
M10X22 USA 		5-09675-017-0 01 1 0208-0507 ●
177 BOLT; EYE,FLEX HOSE TO M/CYL
M10X22 		8-97381-454-0 01 1 0508-0511 ●
177 BOLT; EYE,FLEX HOSE TO M/CYL
M10X22 		8-97381-454-0 01 1 0512-0610 ●
177 BOLT; EYE,FLEX HOSE TO M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M10X22 		8-97381-454-0 01 1 0611- ●
