◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50760 - NHR/NKR TAIWAN ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#139054) — 117 parça

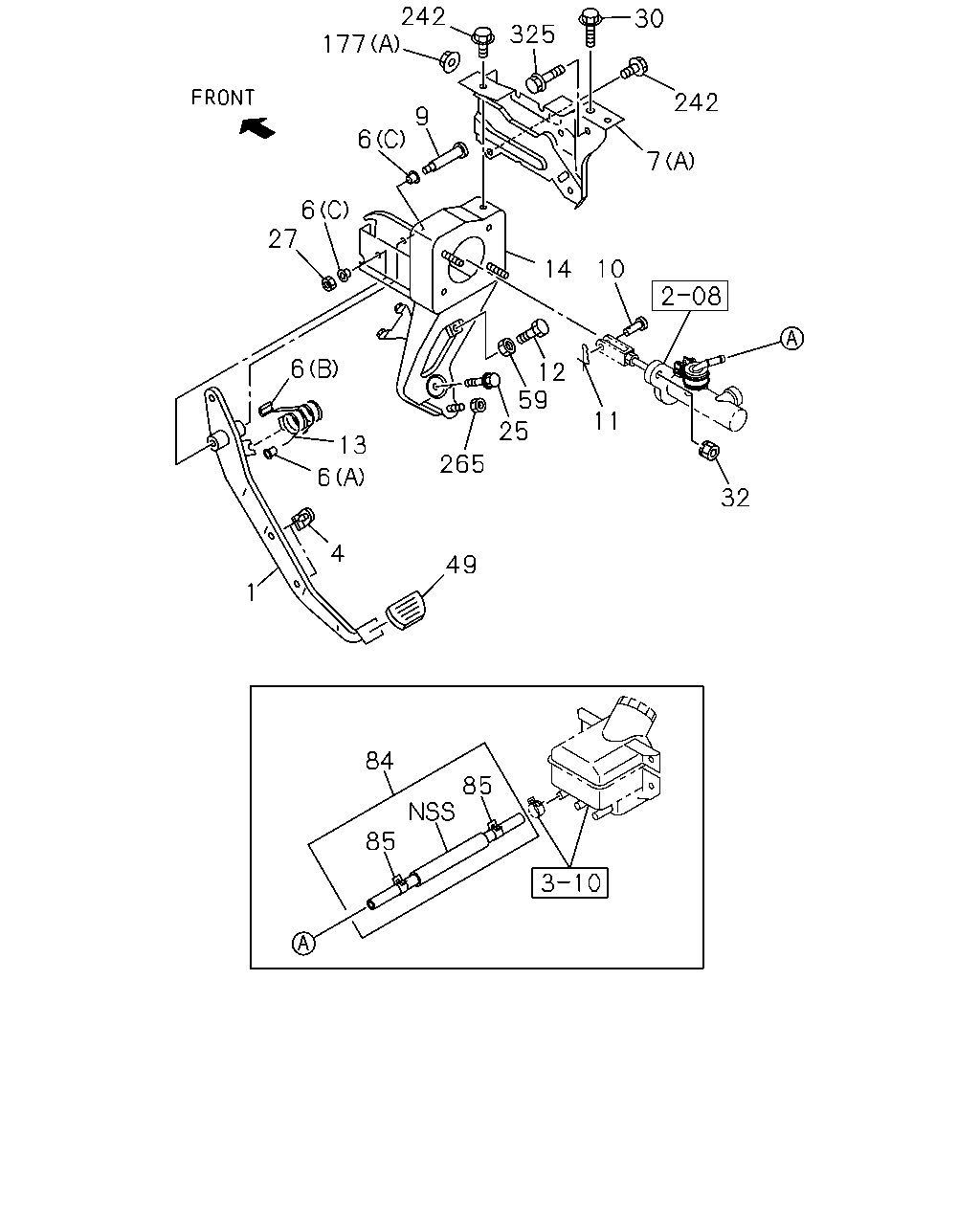

çizim 420437
242 30 325 177 242 9 6 7 6 27 10 14 2 6 12 59 11 25 13 265 6 32 4 49 1 84 85 85 3 10
BalonParca AdiParca NoAdetTipApplied Date
1 PEDAL; CLU
TAI 		8-97853-219-1 01 1 9701-9905
1 PEDAL; CLU
TAI 		8-97840-344-0 01 1 9906-0411
1 PEDAL; CLU
TAI 		8-97840-344-0 01 1 0412-0610
1 PEDAL; CLU
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97853-219-2 01 1 0611-
4 STOPPER; CLU PEDAL
TAI 		8-97853-534-0 02 1 9701-9905
4 STOPPER; CLU PEDAL
TAI 		8-97840-349-0 02 1 9906-0411
4 STOPPER; CLU PEDAL
TAI 		8-97840-349-0 02 1 0412-0610
4 STOPPER; CLU PEDAL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97853-534-1 02 1 0611-
6 BUSHING; CLU PEDAL
(C) USA 		8-94238-596-0 02 1 9701-9905
6 BUSHING; CLU PEDAL
(A) TAI 		8-97853-619-0 02 1 9701-9905
6 BUSHING; CLU PEDAL
(B) TAI 		8-97853-620-0 01 1 9701-9905
6 BUSHING; CLU PEDAL
(C) TAI 		8-97840-348-0 02 1 9906-0411
6 BUSHING; CLU PEDAL
(C) TAI 		8-97840-348-0 02 1 0412-0610
6 BUSHING; CLU PEDAL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (C) USA 		8-94238-596-0 02 1 0611-
6 BUSHING; CLU PEDAL
(A) TAI 		8-97840-350-0 02 1 9906-0207
6 BUSHING; CLU PEDAL
(B) TAI 		8-97840-351-0 01 1 9906-0411
6 BUSHING; CLU PEDAL
(B) TAI 		8-97840-351-0 01 1 0412-0610
6 BUSHING; CLU PEDAL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) TAI 		8-97853-620-0 01 1 0611-
6 BUSHING; CLU PEDAL
(A) TAI 		8-97840-350-0 02 1 0208-0411
6 BUSHING; CLU PEDAL
(A) TAI 		8-97840-350-0 02 1 0412-0610
6 BUSHING; CLU PEDAL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) TAI 		8-97853-619-0 02 1 0611-
7 BRACKET; CLU PEDAL
(A) TAI 		8-97856-307-2 01 1 9701-9905
7 BRACKET; CLU PEDAL
(A) TAI 		8-97840-352-0 01 1 9906-0411
7 BRACKET; CLU PEDAL
(A) TAI 		8-97840-352-0 01 1 0412-0610
7 BRACKET; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-97868-177-1 01 1 0611-
7 BRACKET; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER<8GF> (C) 		8-98052-042-0 01 1 0611-
7 BRACKET; CLU PEDAL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) 		8-97856-307-3 01 1 0611-
9 PIN; CLU PEDAL
TAI 		8-97866-667-0 01 1 9701-9905
9 PIN; CLU PEDAL
TAI 		8-97840-347-0 01 1 9906-0411
9 PIN; CLU PEDAL
TAI 		8-97840-347-0 01 1 0412-0610
9 PIN; CLU PEDAL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97866-667-0 01 1 0611-
10 PIN; CLU PEDAL 8-94410-276-0 01 1 9701-0411
10 PIN; CLU PEDAL 8-94410-276-0 01 1 0412-0511
10 PIN; CLU PEDAL 8-97359-812-0 01 1 0512-0610
10 PIN; CLU PEDAL
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-94410-276-0 01 1 0611-
11 PIN; SNAP,PUSH ROD TO PEDAL 8-94279-912-0 01 1 9701-0411
11 PIN; SNAP,PUSH ROD TO PEDAL 8-94279-912-0 01 1 0412-0610
11 PIN; SNAP,PUSH ROD TO PEDAL
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-94279-912-0 01 1 0611-
12 BOLT; CLU PEDAL ADJ
EXC. EXHAUST BRAKE<NF8> M10X35 		0-20801-035-0 01 1 9701-9809
13 SPRING; ASSIST,CLU PEDAL
TAI 		8-97853-221-1 01 1 9701-9905
13 SPRING; ASSIST,CLU PEDAL
TAI 		8-97840-346-0 01 1 9906-0411
13 SPRING; ASSIST,CLU PEDAL
TAI 		8-97840-346-0 01 1 0412-0610
13 SPRING; ASSIST,CLU PEDAL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97853-221-1 01 1 0611-
14 BRACKET ASM; CLU PEDAL MTG
TAI 		8-97868-003-0 01 1 9701-9903
14 BRACKET ASM; CLU PEDAL MTG
TAI 		8-97892-851-0 01 1 9904-9905
14 BRACKET ASM; CLU PEDAL MTG
TAI 		8-97840-339-0 01 1 9906-0411
14 BRACKET ASM; CLU PEDAL MTG
TAI 		8-97840-339-0 01 1 0412-0610
14 BRACKET ASM; CLU PEDAL MTG
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98030-646-0 01 1 0611-
25 BOLT; PEDAL
M10X22 W/WASHER 		8-94279-099-0 01 1 9701-0110
25 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 01 1 0111-0411
25 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 01 1 0412-
27 NUT; FULCRUM PIN
M10 FLANGE USA 		1-09440-022-0 01 1 9701-0411
27 NUT; FULCRUM PIN
M10 FLANGE USA 		1-09440-022-0 01 1 0412-0610
27 NUT; FULCRUM PIN
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M10 FLANGE USA 		1-09440-022-0 01 1 0611-
30 BOLT; CLU MTG BRKT
M10X25 FLANGE 		0-28691-025-0 01 1 9701-0411
30 BOLT; CLU MTG BRKT
M10X25 FLANGE 		0-28691-025-0 01 1 0412-0512
30 BOLT; CLU MTG BRKT
M10X25 FLANGE 		0-28661-025-0 01 1 0601-
32 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER USA 		8-94279-050-0 02 1 9701-0411
32 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER USA 		8-94279-050-0 02 1 0412-0610
32 NUT; BRKT TO CLU M/CYL
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M8 W/LK WASHER USA 		8-94279-050-0 02 1 0611-
49 RUBBER; PAD,CLU PEDAL
TAI 		8-97853-413-1 01 1 9701-9905
49 RUBBER; PAD,CLU PEDAL
TAI 		8-97840-345-0 01 1 9906-0411
49 RUBBER; PAD,CLU PEDAL
TAI 		8-97840-345-0 01 1 0412-0610
49 RUBBER; PAD,CLU PEDAL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97853-413-2 01 1 0611-
59 NUT; CLU PEDAL ADJ
EXC. EXHAUST BRAKE<NF8> M10 		9-09110-410-0 01 1 9701-9809
84 HOSE; RUBBER,CLU LINE
TAI 		8-97965-371-0 01 1 9701-0411
84 HOSE; RUBBER,CLU LINE
TAI 		8-97965-371-0 01 1 0412-0610
84 HOSE; RUBBER,CLU LINE
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97965-371-0 01 1 0611-
85 CLIP; HOSE TO M/CYL
TAI 		8-97130-480-0 02 1 9701-0411
85 CLIP; HOSE TO M/CYL
TAI 		8-97130-480-0 02 1 0412-0610
85 CLIP; HOSE TO M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97130-480-0 02 1 0611-
177 NUT; BRKT
(A) M8 W/LK WASHER USA 		8-94279-050-0 02 1 9701-0411
177 NUT; BRKT
(A) M8 W/LK WASHER USA 		8-94279-050-0 02 1 0412-
177 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M8 FLANGE 		0-91180-208-0 02 1 0611-
242 BOLT; BRKT,CLUTCH
M8X16 FLANGE 		0-28480-816-0 02 1 9701-0411
242 BOLT; BRKT,CLUTCH
M8X16 FLANGE 		0-28480-816-0 02 1 0412-0512
242 BOLT; BRKT,CLUTCH
M8X16 FLANGE 		0-28450-816-0 02 1 0601-0610
242 BOLT; BRKT,CLUTCH
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M8X16 FLANGE 		0-28450-816-0 02 1 0611-
242 BOLT; BRKT,CLUTCH
TRANSMISSION CONTROL-SMOOTHER<8GF> M6X12 FLANGE 		0-28050-612-0 01 1 0611-
265 NUT; BRKT,COLUMN SUPT TO C.PDL
M8 FLANGE TAI 		8-97046-127-0 01 1 9701-0411
265 NUT; BRKT,COLUMN SUPT TO C.PDL
M8 FLANGE TAI 		8-97046-127-0 01 1 0412-0610
265 NUT; BRKT,COLUMN SUPT TO C.PDL
M8 W/DISHED WASHER 		8-97329-625-0 01 1 0611-
325 BOLT; BRKT,STRG SUPPORT
M8X20 FLANGE 		0-28680-820-0 01 1 9906-0411
325 BOLT; BRKT,STRG SUPPORT
M8X20 FLANGE 		0-28680-820-0 01 1 0412-0512
325 BOLT; BRKT,STRG SUPPORT
M8X20 FLANGE 		0-28650-820-0 01 1 0601-

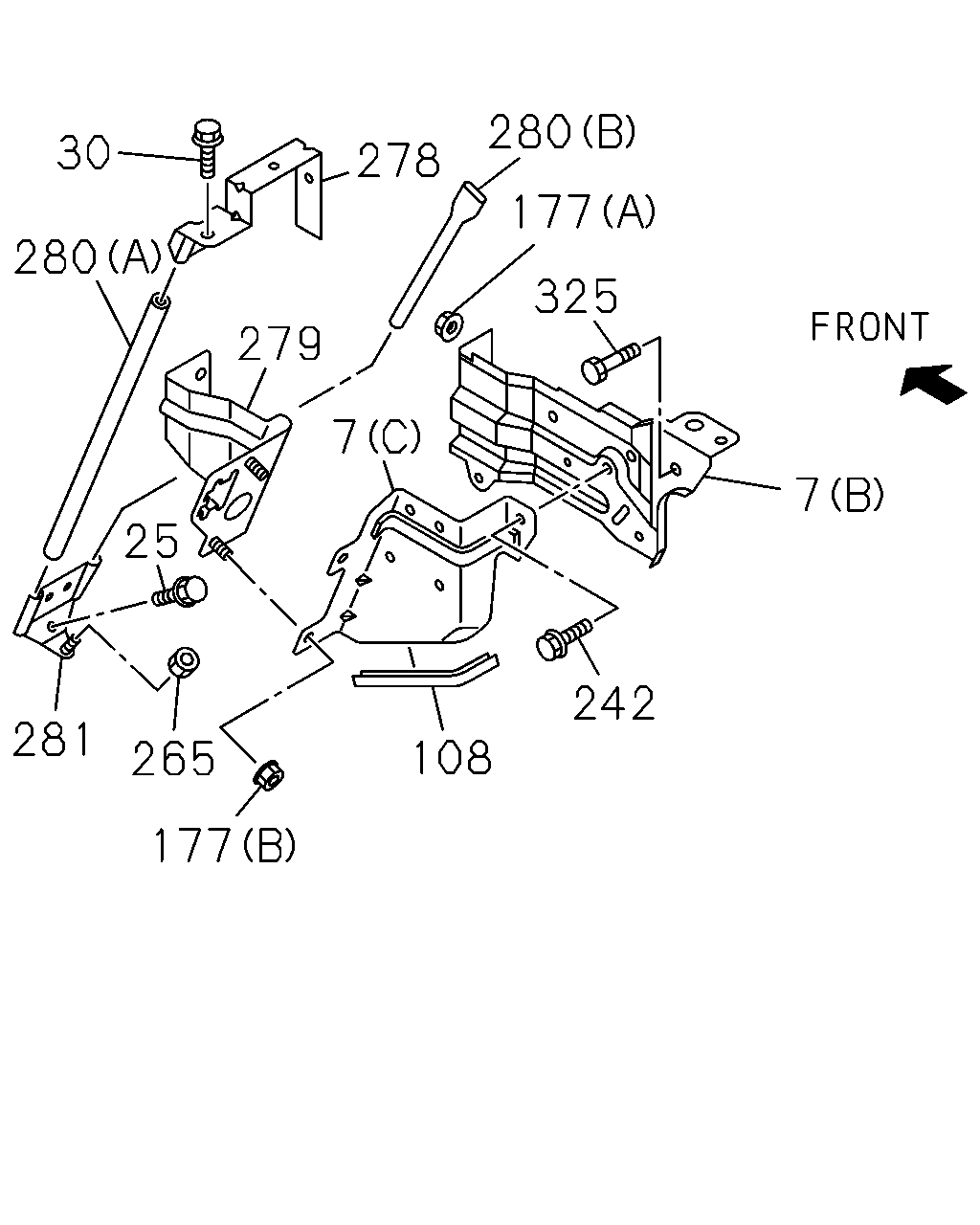

çizim 420438
280 30 278 177 280 325 279 7 7 25 242 281 108 265 177
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CLU PEDAL
(A) TAI 		8-97856-307-2 01 1 9701-9905
7 BRACKET; CLU PEDAL
(A) TAI 		8-97840-352-0 01 1 9906-0411
7 BRACKET; CLU PEDAL
(A) TAI 		8-97840-352-0 01 1 0412-0610
7 BRACKET; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-97868-177-1 01 1 0611-
7 BRACKET; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER<8GF> (C) 		8-98052-042-0 01 1 0611-
7 BRACKET; CLU PEDAL
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) 		8-97856-307-3 01 1 0611-
25 BOLT; PEDAL
M10X22 W/WASHER 		8-94279-099-0 01 1 9701-0110
25 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 01 1 0111-0411
25 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 01 1 0412-
30 BOLT; CLU MTG BRKT
M10X25 FLANGE 		0-28691-025-0 01 1 9701-0411
30 BOLT; CLU MTG BRKT
M10X25 FLANGE 		0-28691-025-0 01 1 0412-0512
30 BOLT; CLU MTG BRKT
M10X25 FLANGE 		0-28661-025-0 01 1 0601-
108 PROTECTOR; EDGE,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98052-043-0 01 1 0611-
177 NUT; BRKT
(A) M8 W/LK WASHER USA 		8-94279-050-0 02 1 9701-0411
177 NUT; BRKT
(A) M8 W/LK WASHER USA 		8-94279-050-0 02 1 0412-
177 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M8 FLANGE 		0-91180-208-0 02 1 0611-
242 BOLT; BRKT,CLUTCH
M8X16 FLANGE 		0-28480-816-0 02 1 9701-0411
242 BOLT; BRKT,CLUTCH
M8X16 FLANGE 		0-28480-816-0 02 1 0412-0512
242 BOLT; BRKT,CLUTCH
M8X16 FLANGE 		0-28450-816-0 02 1 0601-0610
242 BOLT; BRKT,CLUTCH
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M8X16 FLANGE 		0-28450-816-0 02 1 0611-
242 BOLT; BRKT,CLUTCH
TRANSMISSION CONTROL-SMOOTHER<8GF> M6X12 FLANGE 		0-28050-612-0 01 1 0611-
265 NUT; BRKT,COLUMN SUPT TO C.PDL
M8 FLANGE TAI 		8-97046-127-0 01 1 9701-0411
265 NUT; BRKT,COLUMN SUPT TO C.PDL
M8 FLANGE TAI 		8-97046-127-0 01 1 0412-0610
265 NUT; BRKT,COLUMN SUPT TO C.PDL
M8 W/DISHED WASHER 		8-97329-625-0 01 1 0611-
278 REINFORCEMENT; VAC BRK
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97855-297-1 01 1 0611-
279 SUPPORT; VAC BRKT
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97855-299-2 01 1 0611-
280 ARM; VAC
TRANSMISSION CONTROL-SMOOTHER<8GF> (A) 		8-97855-301-0 01 1 0611-
280 ARM; VAC
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-97855-302-0 01 1 0611-
281 STAY; VAC
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97855-303-1 01 1 0611-
325 BOLT; BRKT,STRG SUPPORT
M8X20 FLANGE 		0-28680-820-0 01 1 9906-0411
325 BOLT; BRKT,STRG SUPPORT
M8X20 FLANGE 		0-28680-820-0 01 1 0412-0512
325 BOLT; BRKT,STRG SUPPORT
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
