2-01 — CLUTCH (#139053) — 64 parça

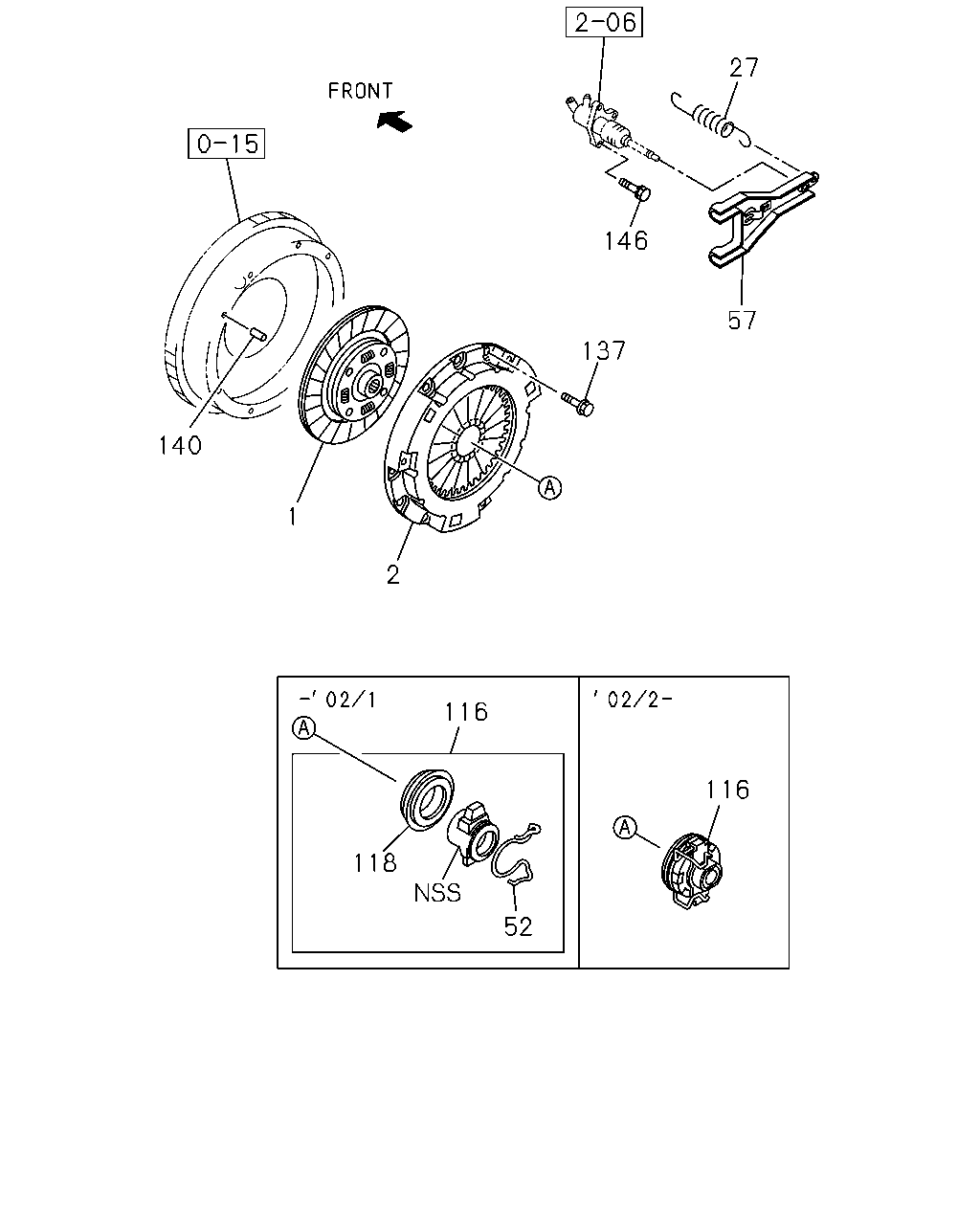

çizim 420421
2 27 15 146 57 137 140 1 2 116 116 118 52
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DISC; CLUTCH 8-97135-492-0 01 1 9701-9806 ●
1 DISC; CLUTCH 8-97207-245-0 01 1 9807-9809 ●
1 DISC; CLUTCH 8-97217-985-0 01 1 9810-0008 ●
1 DISC; CLUTCH 8-97257-124-0 01 1 0009-0207 ●
1 DISC; CLUTCH 8-97320-355-0 01 1 0208-0412 ●
1 DISC; CLUTCH 8-97377-149-0 01 1 0501-0511 ●
1 DISC; CLUTCH 8-97377-149-0 01 1 0512-0610 ●
1 DISC; CLUTCH
KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98037-004-2 01 1 0611- ●
2 PLATE ASM; PRESSURE,CLU 8-97109-246-0 01 1 9701-0207 ●
2 PLATE ASM; PRESSURE,CLU 8-97259-693-0 01 1 0208-0511 ●
2 PLATE ASM; PRESSURE,CLU 8-97259-693-0 01 1 0512-0610 ●
2 PLATE ASM; PRESSURE,CLU
KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98040-093-0 01 1 0611- ●
27 SPRING; RETURN,SHIFT FORK 8-94321-406-1 01 1 9701-9712 ●
27 SPRING; RETURN,SHIFT FORK 8-97184-358-0 01 1 9801-0207 ●
27 SPRING; RETURN,SHIFT FORK 8-97184-359-0 01 1 0208-0511 ●
27 SPRING; RETURN,SHIFT FORK 8-97184-359-0 01 1 0512-0610 ●
27 SPRING; RETURN,SHIFT FORK
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97184-359-0 01 1 0611- ●
52 SPRING; SHIFT BLOCK TO FORK 8-97017-094-0 01 1 9701-0201 ●
57 FORK; SHIFT,CLU 8-97033-701-0 01 1 9701-0207 ●
57 FORK; SHIFT,CLU 8-97255-303-0 01 1 0208-0511 ●
57 FORK; SHIFT,CLU 8-97255-303-0 01 1 0512-0610 ●
57 FORK; SHIFT,CLU
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97255-303-0 01 1 0611- ●
116 BLOCK; SHIFT,CLU 8-97033-699-0 01 1 9701-0201 ●
116 BLOCK; SHIFT,CLU 8-97316-602-0 01 1 0202-0207 ●
116 BLOCK; SHIFT,CLU 8-97255-313-0 01 1 0208-0511 ●
116 BLOCK; SHIFT,CLU 8-97255-313-0 01 1 0512-0610 ●
116 BLOCK; SHIFT,CLU
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97255-313-0 01 1 0611- ●
118 BEARING; CLU RELEASE
JTEKT 		8-94379-499-0 01 1 9701-0201 ●
137 BOLT; CLU COVER
M8X16 FLANGE 		0-28080-816-0 06 1 9701-0207 ●
137 BOLT; CLU COVER
M10X16 FLANGE 		0-28081-016-0 10 1 0208-0511 ●
137 BOLT; CLU COVER
M10X16 FLANGE 		0-28081-016-0 10 1 0512-0512 ●
137 BOLT; CLU COVER
M10X16 FLANGE 		0-28051-016-0 10 1 0601-0610 ●
137 BOLT; CLU COVER
KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M10X16 FLANGE 		0-28051-016-0 10 1 0611- ●
140 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 02 1 9701-0207 ●
140 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0208-0511 ●
140 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0512-0610 ●
140 PIN; STRAIGHT
KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> L=25 		8-94410-361-0 02 1 0611- ●
146 BOLT; SLAVE CYL TO TRANS CASE
M8X30 FLANGE 		0-28680-830-0 02 1 9701-0207 ●
146 BOLT; SLAVE CYL TO TRANS CASE
M8X30 FLANGE 		0-28680-830-0 02 1 0208-0511 ●
146 BOLT; SLAVE CYL TO TRANS CASE
M8X30 FLANGE 		0-28680-830-0 02 1 0512-0512 ●
146 BOLT; SLAVE CYL TO TRANS CASE
M8X30 FLANGE 		0-28650-830-0 02 1 0601-0610 ●
146 BOLT; SLAVE CYL TO TRANS CASE
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M8X30 FLANGE 		0-28650-830-0 02 1 0611- ●
çizim 420430
296 2 26 209 297 296 292 299 299 2 20 293 294 295 300 298 298 302 2 41 306 291 305 301 303
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 PLATE ASM; PRESSURE,CLU 8-97109-246-0 01 1 9701-0207 ●
2 PLATE ASM; PRESSURE,CLU 8-97259-693-0 01 1 0208-0511 ●
2 PLATE ASM; PRESSURE,CLU 8-97259-693-0 01 1 0512-0610 ●
2 PLATE ASM; PRESSURE,CLU
KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98040-093-0 01 1 0611- ●
209 CLUTCH ASM
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98044-525-0 01 1 0611- ●
291 COUPLING; FLUID
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98030-634-0 01 1 0611-0707 ●
291 COUPLING; FLUID
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98087-659-1 01 1 0708- ●
292 RING; SEAL
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97255-329-0 01 1 0611- ●
293 BAND; BRAKE
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97254-651-0 01 1 0611- ●
294 PIN; ANCHOR
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97255-703-0 01 1 0611- ●
295 BOLT; ANCHOR PIN
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER<8GF> M8X20 FLANGE 		0-28650-820-0 01 1 0611- ●
296 BEARING; THRUST
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER<8GF> (A) 		8-97255-688-0 01 1 0611- ●
296 BEARING; THRUST
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-97255-689-0 01 1 0611- ●
297 WASHER; THRUST
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97300-070-0 01 1 0611- ●
298 PUMP ASM; OIL
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98002-361-3 01 1 0611- ●
299 RING; SEAL
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97255-330-0 02 1 0611- ●
300 BOLT; OIL PUMP
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER<8GF> M8X40 FLANGE 		0-28650-840-0 11 1 0611- ●
301 SEAL; OIL PUMP
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97289-811-0 01 1 0611- ●
302 RING; OIL PUMP
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97255-188-0 01 1 0611- ●
303 HARNESS ASM; OIL PUMP
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97316-621-1 01 1 0611- ●
305 BOLT; BRACKET
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER<8GF> M6X12 FLANGE 		0-28050-612-0 02 1 0611- ●
306 CLIP; BAND
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97138-392-0 01 1 0611- ●
