Sayfa 1-55 - Isuzu EPC

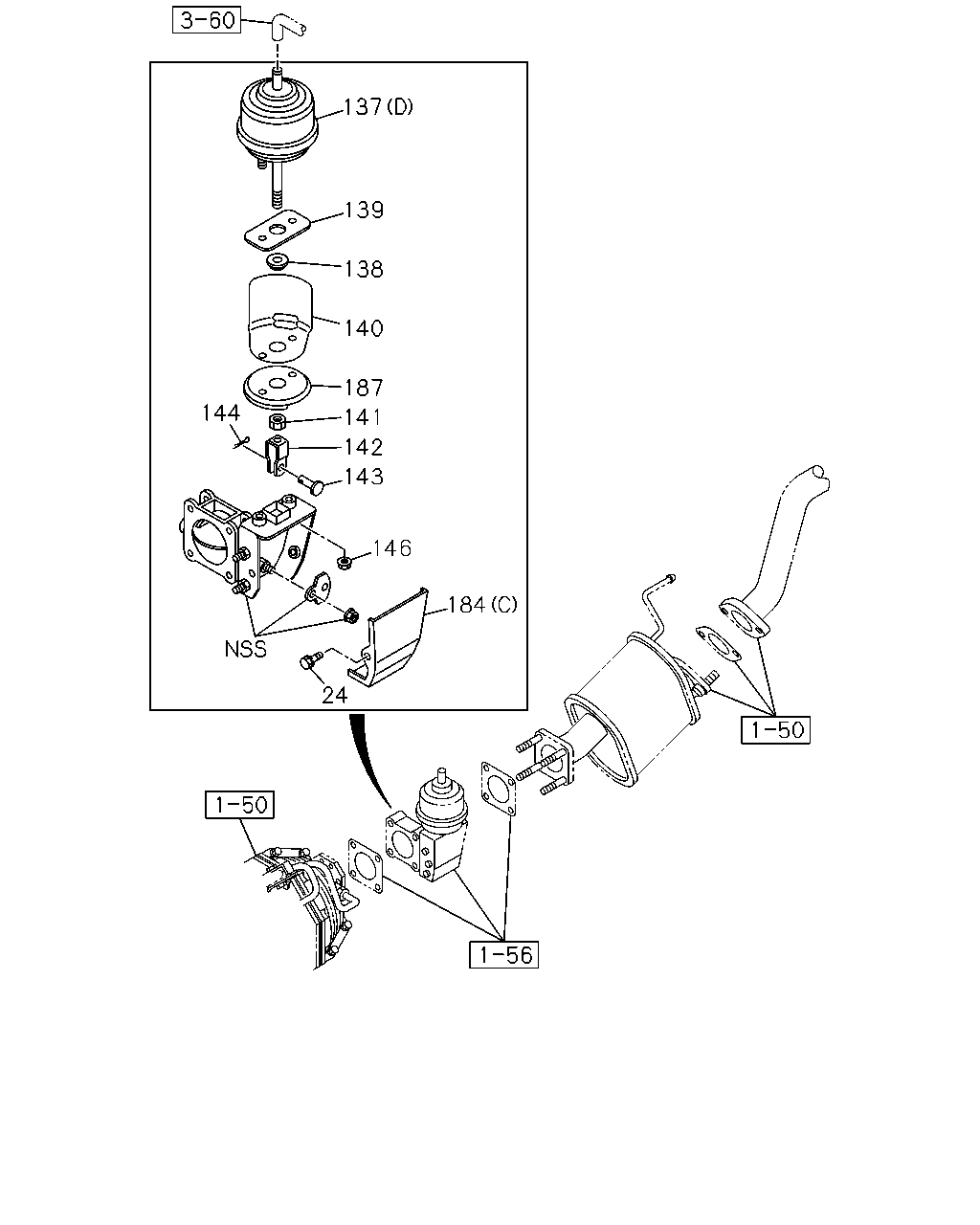

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#139051) — 349 parça

74 137 139 140 138 180 141 142 180 144 143 6 146 1 56 1 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	VALVE; EXH BRAKE EXHAUST BRAKE<NF8>	8-97173-325-0	01	1	9701-9809
6	VALVE; EXH BRAKE	8-97173-325-0	01	1	9810-9905
6	VALVE; EXH BRAKE 4JG2 ENG(RJC)	8-97177-309-0	01	1	9906-0207
6	VALVE; EXH BRAKE 4JH1 ENG(RJX)	8-97177-309-0	01	1	0208-0511
6	VALVE; EXH BRAKE 4JH1-TC ENG(RDM)	8-97177-309-0	01	1	0512-0610
6	VALVE; EXH BRAKE 4JH1 ENG(RJX)	8-97360-025-0	01	1	0412-0511
6	VALVE; EXH BRAKE 4JH1-TC ENG(RDM)	8-97360-025-0	01	1	0512-0610
6	VALVE; EXH BRAKE 4JJ1 ENG(LFB)	8-98043-594-0	01	1	0611-0611
6	VALVE; EXH BRAKE 4JJ1 ENG(LFB)	8-98067-485-0	01	1	0611-0611
6	VALVE; EXH BRAKE 4JJ1 ENG(LFB)	8-98069-291-0	01	1	0612-
74	CONNECTOR; EXH BRK VLV EXHAUST BRAKE<NF8>	8-94311-454-0	01	1	9701-9809
74	CONNECTOR; EXH BRK VLV	8-94311-454-0	01	1	9810-9905
137	CHAMBER; POWER EXHAUST BRAKE<NF8> (A)	8-94158-416-0	01	1	9701-9809
137	CHAMBER; POWER (A)	8-94158-416-0	01	1	9810-9905
137	CHAMBER; POWER 4JG2 ENG(RJC) (B)	8-97173-327-0	01	1	9906-0207
137	CHAMBER; POWER 4JH1 ENG(RJX) (B)	8-97173-327-0	01	1	0208-0511
137	CHAMBER; POWER 4JH1-TC ENG(RDM) (B)	8-97173-327-0	01	1	0512-0610
137	CHAMBER; POWER 4JJ1 ENG(LFB) (C)	8-98043-596-0	01	1	0611-
137	CHAMBER; POWER 4JH1 ENG(RJX) (B)	8-97257-279-0	01	1	0412-0511
137	CHAMBER; POWER 4JH1-TC ENG(RDM) (B)	8-97257-279-0	01	1	0512-0610
137	CHAMBER; POWER 4JJ1 ENG(LFB) (D)	8-98038-348-0	01	1	0611-
138	BEARING; EXH BRK VLV EXHAUST BRAKE<NF8>	5-22189-004-0	01	1	9701-9809
138	BEARING; EXH BRK VLV	5-22189-004-0	01	1	9810-9905
138	BEARING; EXH BRK VLV 4JG2 ENG(RJC)	8-94311-446-0	01	1	9906-0207
138	BEARING; EXH BRK VLV 4JH1 ENG(RJX)	8-94311-446-0	01	1	0208-0411
138	BEARING; EXH BRK VLV 4JH1 ENG(RJX)	8-94311-446-0	01	1	0412-0511
138	BEARING; EXH BRK VLV 4JH1-TC ENG(RDM)	8-94311-446-0	01	1	0512-0610
138	BEARING; EXH BRK VLV 4JJ1 ENG(LFB)	5-22189-004-0	02	1	0611-
139	GASKET; EXH BRK VLV EXHAUST BRAKE<NF8>	8-94328-234-0	01	1	9701-9809
139	GASKET; EXH BRK VLV	8-94328-234-0	01	1	9810-9905
139	GASKET; EXH BRK VLV 4JG2 ENG(RJC)	8-94328-234-0	01	1	9906-0207
139	GASKET; EXH BRK VLV 4JH1 ENG(RJX)	8-94328-234-0	01	1	0208-0411
139	GASKET; EXH BRK VLV 4JH1 ENG(RJX)	8-94328-234-0	01	1	0412-0511
139	GASKET; EXH BRK VLV 4JH1-TC ENG(RDM)	8-94328-234-0	01	1	0512-0610
139	GASKET; EXH BRK VLV 4JJ1 ENG(LFB)	8-94328-234-0	02	1	0611-
140	INSULATOR; EXH BRK VLV EXHAUST BRAKE<NF8>	8-97093-854-0	01	1	9701-9809
140	INSULATOR; EXH BRK VLV	8-97093-854-0	01	1	9810-9905
140	INSULATOR; EXH BRK VLV 4JG2 ENG(RJC)	8-97093-854-0	01	1	9906-0207
140	INSULATOR; EXH BRK VLV 4JH1 ENG(RJX)	8-97093-854-0	01	1	0208-0511
140	INSULATOR; EXH BRK VLV 4JH1-TC ENG(RDM)	8-97093-854-0	01	1	0512-0610
140	INSULATOR; EXH BRK VLV 4JH1 ENG(RJX)	8-97257-283-0	01	1	0412-0511
140	INSULATOR; EXH BRK VLV 4JH1-TC ENG(RDM)	8-97257-283-0	01	1	0512-0610
140	INSULATOR; EXH BRK VLV 4JJ1 ENG(LFB)	8-98037-494-0	01	1	0611-
141	NUT; CLEVIS,EXH BRK VLV EXHAUST BRAKE<NF8>	9-88510-258-0	01	1	9701-9802
141	NUT; CLEVIS,EXH BRK VLV EXHAUST BRAKE<NF8>	9-88510-009-0	01	1	9803-9809
141	NUT; CLEVIS,EXH BRK VLV	9-88510-009-0	01	1	9810-9905
141	NUT; CLEVIS,EXH BRK VLV 4JG2 ENG(RJC)	9-88510-009-0	01	1	9906-0207
141	NUT; CLEVIS,EXH BRK VLV 4JH1 ENG(RJX)	9-88510-009-0	01	1	0208-0411
141	NUT; CLEVIS,EXH BRK VLV 4JH1 ENG(RJX)	9-88510-009-0	01	1	0412-0511
141	NUT; CLEVIS,EXH BRK VLV 4JH1-TC ENG(RDM)	9-88510-009-0	01	1	0512-0610
141	NUT; CLEVIS,EXH BRK VLV 4JJ1 ENG(LFB)	8-94311-428-0	02	1	0611-
142	CLEVIS; EXH BRK VLV EXHAUST BRAKE<NF8>	8-94158-418-0	01	1	9701-9802
142	CLEVIS; EXH BRK VLV EXHAUST BRAKE<NF8>	8-97177-310-0	01	1	9803-9809
142	CLEVIS; EXH BRK VLV	8-97177-310-0	01	1	9810-9905
142	CLEVIS; EXH BRK VLV 4JG2 ENG(RJC)	8-97177-311-0	01	1	9906-0207
142	CLEVIS; EXH BRK VLV 4JH1 ENG(RJX)	8-97177-311-0	01	1	0208-0411
142	CLEVIS; EXH BRK VLV 4JH1 ENG(RJX)	8-97177-311-0	01	1	0412-0511
142	CLEVIS; EXH BRK VLV 4JH1-TC ENG(RDM)	8-97177-311-0	01	1	0512-0610
142	CLEVIS; EXH BRK VLV 4JJ1 ENG(LFB)	8-97177-311-0	02	1	0611-
143	PIN; EXH BRK VLV EXHAUST BRAKE<NF8>	5-22189-008-0	01	1	9701-9809
143	PIN; EXH BRK VLV	5-22189-008-0	01	1	9810-9905
143	PIN; EXH BRK VLV 4JG2 ENG(RJC)	8-94311-452-0	01	1	9906-0207
143	PIN; EXH BRK VLV 4JH1 ENG(RJX)	8-94311-452-0	01	1	0208-0411
143	PIN; EXH BRK VLV 4JH1 ENG(RJX)	8-94311-452-0	01	1	0412-0511
143	PIN; EXH BRK VLV 4JH1-TC ENG(RDM)	8-94311-452-0	01	1	0512-0610
143	PIN; EXH BRK VLV 4JJ1 ENG(LFB)	8-94311-452-0	02	1	0611-
144	PIN; SPLIT,EXH BRK VLV EXHAUST BRAKE<NF8> OD=1.8 L=20	9-08112-020-0	01	1	9701-9802
144	PIN; SPLIT,EXH BRK VLV EXHAUST BRAKE<NF8>	8-97010-295-1	01	1	9803-9809
144	PIN; SPLIT,EXH BRK VLV	8-97010-295-1	01	1	9810-9905
144	PIN; SPLIT,EXH BRK VLV 4JG2 ENG(RJC)	8-97029-428-0	01	1	9906-0207
144	PIN; SPLIT,EXH BRK VLV 4JH1 ENG(RJX)	8-97029-428-0	01	1	0208-0411
144	PIN; SPLIT,EXH BRK VLV 4JH1 ENG(RJX)	8-97029-428-0	01	1	0412-0511
144	PIN; SPLIT,EXH BRK VLV 4JH1-TC ENG(RDM)	8-97029-428-0	01	1	0512-0610
144	PIN; SPLIT,EXH BRK VLV 4JJ1 ENG(LFB)	8-97029-428-0	02	1	0611-
146	NUT; EXH BRK VLV 4JJ1 ENG(LFB) M8 FLANGE	0-91180-108-0	02	1	0612-
146	NUT; EXH BRK VLV EXHAUST BRAKE<NF8> M8 W/LK WASHER USA	8-94279-050-0	02	1	9701-9809
146	NUT; EXH BRK VLV M8 W/LK WASHER USA	8-94279-050-0	02	1	9810-9905
146	NUT; EXH BRK VLV 4JG2 ENG(RJC) M8 W/LK WASHER USA	8-94279-050-0	02	1	9906-0201
146	NUT; EXH BRK VLV 4JG2 ENG(RJC) M8 FLANGE	0-91150-108-0	02	1	0202-0207
146	NUT; EXH BRK VLV 4JH1 ENG(RJX) M8 FLANGE	0-91150-108-0	02	1	0208-0411
146	NUT; EXH BRK VLV 4JH1 ENG(RJX) M8 FLANGE	0-91150-108-0	02	1	0412-0511
146	NUT; EXH BRK VLV 4JH1-TC ENG(RDM) M8 FLANGE	0-91150-108-0	02	1	0512-0610
146	NUT; EXH BRK VLV 4JJ1 ENG(LFB) M8 FLANGE	0-91150-108-0	04	1	0611-0611
146	NUT; EXH BRK VLV 4JJ1 ENG(LFB) M8 FLANGE	0-91150-108-0	02	1	0612-
180	COLLAR; EXH BRK VLV EXHAUST BRAKE<NF8>	8-97018-597-0	02	1	9803-9809
180	COLLAR; EXH BRK VLV	8-97018-597-0	02	1	9810-9905

137 142 139 184 144 138 24 141 143 146 186 6 186 1 56 1 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	VALVE; EXH BRAKE EXHAUST BRAKE<NF8>	8-97173-325-0	01	1	9701-9809
6	VALVE; EXH BRAKE	8-97173-325-0	01	1	9810-9905
6	VALVE; EXH BRAKE 4JG2 ENG(RJC)	8-97177-309-0	01	1	9906-0207
6	VALVE; EXH BRAKE 4JH1 ENG(RJX)	8-97177-309-0	01	1	0208-0511
6	VALVE; EXH BRAKE 4JH1-TC ENG(RDM)	8-97177-309-0	01	1	0512-0610
6	VALVE; EXH BRAKE 4JH1 ENG(RJX)	8-97360-025-0	01	1	0412-0511
6	VALVE; EXH BRAKE 4JH1-TC ENG(RDM)	8-97360-025-0	01	1	0512-0610
6	VALVE; EXH BRAKE 4JJ1 ENG(LFB)	8-98043-594-0	01	1	0611-0611
6	VALVE; EXH BRAKE 4JJ1 ENG(LFB)	8-98067-485-0	01	1	0611-0611
6	VALVE; EXH BRAKE 4JJ1 ENG(LFB)	8-98069-291-0	01	1	0612-
24	BOLT; COVER 4JG2 ENG(RJC)	8-97065-029-0	02	1	9906-0207
24	BOLT; COVER 4JH1 ENG(RJX)	8-97065-029-0	02	1	0208-0411
24	BOLT; COVER 4JH1 ENG(RJX)	8-97065-029-0	02	1	0412-0511
24	BOLT; COVER 4JH1-TC ENG(RDM)	8-97065-029-0	02	1	0512-0610
24	BOLT; COVER 4JJ1 ENG(LFB)	8-97065-029-0	04	1	0611-
137	CHAMBER; POWER EXHAUST BRAKE<NF8> (A)	8-94158-416-0	01	1	9701-9809
137	CHAMBER; POWER (A)	8-94158-416-0	01	1	9810-9905
137	CHAMBER; POWER 4JG2 ENG(RJC) (B)	8-97173-327-0	01	1	9906-0207
137	CHAMBER; POWER 4JH1 ENG(RJX) (B)	8-97173-327-0	01	1	0208-0511
137	CHAMBER; POWER 4JH1-TC ENG(RDM) (B)	8-97173-327-0	01	1	0512-0610
137	CHAMBER; POWER 4JJ1 ENG(LFB) (C)	8-98043-596-0	01	1	0611-
137	CHAMBER; POWER 4JH1 ENG(RJX) (B)	8-97257-279-0	01	1	0412-0511
137	CHAMBER; POWER 4JH1-TC ENG(RDM) (B)	8-97257-279-0	01	1	0512-0610
137	CHAMBER; POWER 4JJ1 ENG(LFB) (D)	8-98038-348-0	01	1	0611-
138	BEARING; EXH BRK VLV EXHAUST BRAKE<NF8>	5-22189-004-0	01	1	9701-9809
138	BEARING; EXH BRK VLV	5-22189-004-0	01	1	9810-9905
138	BEARING; EXH BRK VLV 4JG2 ENG(RJC)	8-94311-446-0	01	1	9906-0207
138	BEARING; EXH BRK VLV 4JH1 ENG(RJX)	8-94311-446-0	01	1	0208-0411
138	BEARING; EXH BRK VLV 4JH1 ENG(RJX)	8-94311-446-0	01	1	0412-0511
138	BEARING; EXH BRK VLV 4JH1-TC ENG(RDM)	8-94311-446-0	01	1	0512-0610
138	BEARING; EXH BRK VLV 4JJ1 ENG(LFB)	5-22189-004-0	02	1	0611-
139	GASKET; EXH BRK VLV EXHAUST BRAKE<NF8>	8-94328-234-0	01	1	9701-9809
139	GASKET; EXH BRK VLV	8-94328-234-0	01	1	9810-9905
139	GASKET; EXH BRK VLV 4JG2 ENG(RJC)	8-94328-234-0	01	1	9906-0207
139	GASKET; EXH BRK VLV 4JH1 ENG(RJX)	8-94328-234-0	01	1	0208-0411
139	GASKET; EXH BRK VLV 4JH1 ENG(RJX)	8-94328-234-0	01	1	0412-0511
139	GASKET; EXH BRK VLV 4JH1-TC ENG(RDM)	8-94328-234-0	01	1	0512-0610
139	GASKET; EXH BRK VLV 4JJ1 ENG(LFB)	8-94328-234-0	02	1	0611-
141	NUT; CLEVIS,EXH BRK VLV EXHAUST BRAKE<NF8>	9-88510-258-0	01	1	9701-9802
141	NUT; CLEVIS,EXH BRK VLV EXHAUST BRAKE<NF8>	9-88510-009-0	01	1	9803-9809
141	NUT; CLEVIS,EXH BRK VLV	9-88510-009-0	01	1	9810-9905
141	NUT; CLEVIS,EXH BRK VLV 4JG2 ENG(RJC)	9-88510-009-0	01	1	9906-0207
141	NUT; CLEVIS,EXH BRK VLV 4JH1 ENG(RJX)	9-88510-009-0	01	1	0208-0411
141	NUT; CLEVIS,EXH BRK VLV 4JH1 ENG(RJX)	9-88510-009-0	01	1	0412-0511
141	NUT; CLEVIS,EXH BRK VLV 4JH1-TC ENG(RDM)	9-88510-009-0	01	1	0512-0610
141	NUT; CLEVIS,EXH BRK VLV 4JJ1 ENG(LFB)	8-94311-428-0	02	1	0611-
142	CLEVIS; EXH BRK VLV EXHAUST BRAKE<NF8>	8-94158-418-0	01	1	9701-9802
142	CLEVIS; EXH BRK VLV EXHAUST BRAKE<NF8>	8-97177-310-0	01	1	9803-9809
142	CLEVIS; EXH BRK VLV	8-97177-310-0	01	1	9810-9905
142	CLEVIS; EXH BRK VLV 4JG2 ENG(RJC)	8-97177-311-0	01	1	9906-0207
142	CLEVIS; EXH BRK VLV 4JH1 ENG(RJX)	8-97177-311-0	01	1	0208-0411
142	CLEVIS; EXH BRK VLV 4JH1 ENG(RJX)	8-97177-311-0	01	1	0412-0511
142	CLEVIS; EXH BRK VLV 4JH1-TC ENG(RDM)	8-97177-311-0	01	1	0512-0610
142	CLEVIS; EXH BRK VLV 4JJ1 ENG(LFB)	8-97177-311-0	02	1	0611-
143	PIN; EXH BRK VLV EXHAUST BRAKE<NF8>	5-22189-008-0	01	1	9701-9809
143	PIN; EXH BRK VLV	5-22189-008-0	01	1	9810-9905
143	PIN; EXH BRK VLV 4JG2 ENG(RJC)	8-94311-452-0	01	1	9906-0207
143	PIN; EXH BRK VLV 4JH1 ENG(RJX)	8-94311-452-0	01	1	0208-0411
143	PIN; EXH BRK VLV 4JH1 ENG(RJX)	8-94311-452-0	01	1	0412-0511
143	PIN; EXH BRK VLV 4JH1-TC ENG(RDM)	8-94311-452-0	01	1	0512-0610
143	PIN; EXH BRK VLV 4JJ1 ENG(LFB)	8-94311-452-0	02	1	0611-
144	PIN; SPLIT,EXH BRK VLV EXHAUST BRAKE<NF8> OD=1.8 L=20	9-08112-020-0	01	1	9701-9802
144	PIN; SPLIT,EXH BRK VLV EXHAUST BRAKE<NF8>	8-97010-295-1	01	1	9803-9809
144	PIN; SPLIT,EXH BRK VLV	8-97010-295-1	01	1	9810-9905
144	PIN; SPLIT,EXH BRK VLV 4JG2 ENG(RJC)	8-97029-428-0	01	1	9906-0207
144	PIN; SPLIT,EXH BRK VLV 4JH1 ENG(RJX)	8-97029-428-0	01	1	0208-0411
144	PIN; SPLIT,EXH BRK VLV 4JH1 ENG(RJX)	8-97029-428-0	01	1	0412-0511
144	PIN; SPLIT,EXH BRK VLV 4JH1-TC ENG(RDM)	8-97029-428-0	01	1	0512-0610
144	PIN; SPLIT,EXH BRK VLV 4JJ1 ENG(LFB)	8-97029-428-0	02	1	0611-
146	NUT; EXH BRK VLV 4JJ1 ENG(LFB) M8 FLANGE	0-91180-108-0	02	1	0612-
146	NUT; EXH BRK VLV EXHAUST BRAKE<NF8> M8 W/LK WASHER USA	8-94279-050-0	02	1	9701-9809
146	NUT; EXH BRK VLV M8 W/LK WASHER USA	8-94279-050-0	02	1	9810-9905
146	NUT; EXH BRK VLV 4JG2 ENG(RJC) M8 W/LK WASHER USA	8-94279-050-0	02	1	9906-0201
146	NUT; EXH BRK VLV 4JG2 ENG(RJC) M8 FLANGE	0-91150-108-0	02	1	0202-0207
146	NUT; EXH BRK VLV 4JH1 ENG(RJX) M8 FLANGE	0-91150-108-0	02	1	0208-0411
146	NUT; EXH BRK VLV 4JH1 ENG(RJX) M8 FLANGE	0-91150-108-0	02	1	0412-0511
146	NUT; EXH BRK VLV 4JH1-TC ENG(RDM) M8 FLANGE	0-91150-108-0	02	1	0512-0610
146	NUT; EXH BRK VLV 4JJ1 ENG(LFB) M8 FLANGE	0-91150-108-0	04	1	0611-0611
146	NUT; EXH BRK VLV 4JJ1 ENG(LFB) M8 FLANGE	0-91150-108-0	02	1	0612-
184	COVER; BRKT 4JG2 ENG(RJC) (A)	8-97311-447-0	01	1	9906-0207
184	COVER; BRKT 4JH1 ENG(RJX) (A)	8-97311-447-0	01	1	0208-0411
184	COVER; BRKT 4JH1 ENG(RJX) (A)	8-97311-447-0	01	1	0412-0511
184	COVER; BRKT 4JH1-TC ENG(RDM) (A)	8-97311-447-0	01	1	0512-0610
184	COVER; BRKT 4JJ1 ENG(LFB) (B)	8-97370-068-0	01	1	0611-
184	COVER; BRKT 4JJ1 ENG(LFB) (C)	8-98037-493-0	01	1	0611-
186	GASKET; EXH BRK VLV,BODY 4JJ1 ENG(LFB)	8-98022-713-0	02	1	0611-

3 60 137 139 138 140 187 144 141 142 143 146 184 24 1 50 1 50 1 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BOLT; COVER 4JG2 ENG(RJC)	8-97065-029-0	02	1	9906-0207
24	BOLT; COVER 4JH1 ENG(RJX)	8-97065-029-0	02	1	0208-0411
24	BOLT; COVER 4JH1 ENG(RJX)	8-97065-029-0	02	1	0412-0511
24	BOLT; COVER 4JH1-TC ENG(RDM)	8-97065-029-0	02	1	0512-0610
24	BOLT; COVER 4JJ1 ENG(LFB)	8-97065-029-0	04	1	0611-
137	CHAMBER; POWER EXHAUST BRAKE<NF8> (A)	8-94158-416-0	01	1	9701-9809
137	CHAMBER; POWER (A)	8-94158-416-0	01	1	9810-9905
137	CHAMBER; POWER 4JG2 ENG(RJC) (B)	8-97173-327-0	01	1	9906-0207
137	CHAMBER; POWER 4JH1 ENG(RJX) (B)	8-97173-327-0	01	1	0208-0511
137	CHAMBER; POWER 4JH1-TC ENG(RDM) (B)	8-97173-327-0	01	1	0512-0610
137	CHAMBER; POWER 4JJ1 ENG(LFB) (C)	8-98043-596-0	01	1	0611-
137	CHAMBER; POWER 4JH1 ENG(RJX) (B)	8-97257-279-0	01	1	0412-0511
137	CHAMBER; POWER 4JH1-TC ENG(RDM) (B)	8-97257-279-0	01	1	0512-0610
137	CHAMBER; POWER 4JJ1 ENG(LFB) (D)	8-98038-348-0	01	1	0611-
138	BEARING; EXH BRK VLV EXHAUST BRAKE<NF8>	5-22189-004-0	01	1	9701-9809
138	BEARING; EXH BRK VLV	5-22189-004-0	01	1	9810-9905
138	BEARING; EXH BRK VLV 4JG2 ENG(RJC)	8-94311-446-0	01	1	9906-0207
138	BEARING; EXH BRK VLV 4JH1 ENG(RJX)	8-94311-446-0	01	1	0208-0411
138	BEARING; EXH BRK VLV 4JH1 ENG(RJX)	8-94311-446-0	01	1	0412-0511
138	BEARING; EXH BRK VLV 4JH1-TC ENG(RDM)	8-94311-446-0	01	1	0512-0610
138	BEARING; EXH BRK VLV 4JJ1 ENG(LFB)	5-22189-004-0	02	1	0611-
139	GASKET; EXH BRK VLV EXHAUST BRAKE<NF8>	8-94328-234-0	01	1	9701-9809
139	GASKET; EXH BRK VLV	8-94328-234-0	01	1	9810-9905
139	GASKET; EXH BRK VLV 4JG2 ENG(RJC)	8-94328-234-0	01	1	9906-0207
139	GASKET; EXH BRK VLV 4JH1 ENG(RJX)	8-94328-234-0	01	1	0208-0411
139	GASKET; EXH BRK VLV 4JH1 ENG(RJX)	8-94328-234-0	01	1	0412-0511
139	GASKET; EXH BRK VLV 4JH1-TC ENG(RDM)	8-94328-234-0	01	1	0512-0610
139	GASKET; EXH BRK VLV 4JJ1 ENG(LFB)	8-94328-234-0	02	1	0611-
140	INSULATOR; EXH BRK VLV EXHAUST BRAKE<NF8>	8-97093-854-0	01	1	9701-9809
140	INSULATOR; EXH BRK VLV	8-97093-854-0	01	1	9810-9905
140	INSULATOR; EXH BRK VLV 4JG2 ENG(RJC)	8-97093-854-0	01	1	9906-0207
140	INSULATOR; EXH BRK VLV 4JH1 ENG(RJX)	8-97093-854-0	01	1	0208-0511
140	INSULATOR; EXH BRK VLV 4JH1-TC ENG(RDM)	8-97093-854-0	01	1	0512-0610
140	INSULATOR; EXH BRK VLV 4JH1 ENG(RJX)	8-97257-283-0	01	1	0412-0511
140	INSULATOR; EXH BRK VLV 4JH1-TC ENG(RDM)	8-97257-283-0	01	1	0512-0610
140	INSULATOR; EXH BRK VLV 4JJ1 ENG(LFB)	8-98037-494-0	01	1	0611-
141	NUT; CLEVIS,EXH BRK VLV EXHAUST BRAKE<NF8>	9-88510-258-0	01	1	9701-9802
141	NUT; CLEVIS,EXH BRK VLV EXHAUST BRAKE<NF8>	9-88510-009-0	01	1	9803-9809
141	NUT; CLEVIS,EXH BRK VLV	9-88510-009-0	01	1	9810-9905
141	NUT; CLEVIS,EXH BRK VLV 4JG2 ENG(RJC)	9-88510-009-0	01	1	9906-0207
141	NUT; CLEVIS,EXH BRK VLV 4JH1 ENG(RJX)	9-88510-009-0	01	1	0208-0411
141	NUT; CLEVIS,EXH BRK VLV 4JH1 ENG(RJX)	9-88510-009-0	01	1	0412-0511
141	NUT; CLEVIS,EXH BRK VLV 4JH1-TC ENG(RDM)	9-88510-009-0	01	1	0512-0610
141	NUT; CLEVIS,EXH BRK VLV 4JJ1 ENG(LFB)	8-94311-428-0	02	1	0611-
142	CLEVIS; EXH BRK VLV EXHAUST BRAKE<NF8>	8-94158-418-0	01	1	9701-9802
142	CLEVIS; EXH BRK VLV EXHAUST BRAKE<NF8>	8-97177-310-0	01	1	9803-9809
142	CLEVIS; EXH BRK VLV	8-97177-310-0	01	1	9810-9905
142	CLEVIS; EXH BRK VLV 4JG2 ENG(RJC)	8-97177-311-0	01	1	9906-0207
142	CLEVIS; EXH BRK VLV 4JH1 ENG(RJX)	8-97177-311-0	01	1	0208-0411
142	CLEVIS; EXH BRK VLV 4JH1 ENG(RJX)	8-97177-311-0	01	1	0412-0511
142	CLEVIS; EXH BRK VLV 4JH1-TC ENG(RDM)	8-97177-311-0	01	1	0512-0610
142	CLEVIS; EXH BRK VLV 4JJ1 ENG(LFB)	8-97177-311-0	02	1	0611-
143	PIN; EXH BRK VLV EXHAUST BRAKE<NF8>	5-22189-008-0	01	1	9701-9809
143	PIN; EXH BRK VLV	5-22189-008-0	01	1	9810-9905
143	PIN; EXH BRK VLV 4JG2 ENG(RJC)	8-94311-452-0	01	1	9906-0207
143	PIN; EXH BRK VLV 4JH1 ENG(RJX)	8-94311-452-0	01	1	0208-0411
143	PIN; EXH BRK VLV 4JH1 ENG(RJX)	8-94311-452-0	01	1	0412-0511
143	PIN; EXH BRK VLV 4JH1-TC ENG(RDM)	8-94311-452-0	01	1	0512-0610
143	PIN; EXH BRK VLV 4JJ1 ENG(LFB)	8-94311-452-0	02	1	0611-
144	PIN; SPLIT,EXH BRK VLV EXHAUST BRAKE<NF8> OD=1.8 L=20	9-08112-020-0	01	1	9701-9802
144	PIN; SPLIT,EXH BRK VLV EXHAUST BRAKE<NF8>	8-97010-295-1	01	1	9803-9809
144	PIN; SPLIT,EXH BRK VLV	8-97010-295-1	01	1	9810-9905
144	PIN; SPLIT,EXH BRK VLV 4JG2 ENG(RJC)	8-97029-428-0	01	1	9906-0207
144	PIN; SPLIT,EXH BRK VLV 4JH1 ENG(RJX)	8-97029-428-0	01	1	0208-0411
144	PIN; SPLIT,EXH BRK VLV 4JH1 ENG(RJX)	8-97029-428-0	01	1	0412-0511
144	PIN; SPLIT,EXH BRK VLV 4JH1-TC ENG(RDM)	8-97029-428-0	01	1	0512-0610
144	PIN; SPLIT,EXH BRK VLV 4JJ1 ENG(LFB)	8-97029-428-0	02	1	0611-
146	NUT; EXH BRK VLV 4JJ1 ENG(LFB) M8 FLANGE	0-91180-108-0	02	1	0612-
146	NUT; EXH BRK VLV EXHAUST BRAKE<NF8> M8 W/LK WASHER USA	8-94279-050-0	02	1	9701-9809
146	NUT; EXH BRK VLV M8 W/LK WASHER USA	8-94279-050-0	02	1	9810-9905
146	NUT; EXH BRK VLV 4JG2 ENG(RJC) M8 W/LK WASHER USA	8-94279-050-0	02	1	9906-0201
146	NUT; EXH BRK VLV 4JG2 ENG(RJC) M8 FLANGE	0-91150-108-0	02	1	0202-0207
146	NUT; EXH BRK VLV 4JH1 ENG(RJX) M8 FLANGE	0-91150-108-0	02	1	0208-0411
146	NUT; EXH BRK VLV 4JH1 ENG(RJX) M8 FLANGE	0-91150-108-0	02	1	0412-0511
146	NUT; EXH BRK VLV 4JH1-TC ENG(RDM) M8 FLANGE	0-91150-108-0	02	1	0512-0610
146	NUT; EXH BRK VLV 4JJ1 ENG(LFB) M8 FLANGE	0-91150-108-0	04	1	0611-0611
146	NUT; EXH BRK VLV 4JJ1 ENG(LFB) M8 FLANGE	0-91150-108-0	02	1	0612-
184	COVER; BRKT 4JG2 ENG(RJC) (A)	8-97311-447-0	01	1	9906-0207
184	COVER; BRKT 4JH1 ENG(RJX) (A)	8-97311-447-0	01	1	0208-0411
184	COVER; BRKT 4JH1 ENG(RJX) (A)	8-97311-447-0	01	1	0412-0511
184	COVER; BRKT 4JH1-TC ENG(RDM) (A)	8-97311-447-0	01	1	0512-0610
184	COVER; BRKT 4JJ1 ENG(LFB) (B)	8-97370-068-0	01	1	0611-
184	COVER; BRKT 4JJ1 ENG(LFB) (C)	8-98037-493-0	01	1	0611-
187	PROTECTOR; EXH BRK VLV 4JJ1 ENG(LFB)	8-98037-495-0	01	1	0611-

137 139 140 138 141 143 142 144 146 24 184 6 1 56 1 56 1 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	VALVE; EXH BRAKE EXHAUST BRAKE<NF8>	8-97173-325-0	01	1	9701-9809
6	VALVE; EXH BRAKE	8-97173-325-0	01	1	9810-9905
6	VALVE; EXH BRAKE 4JG2 ENG(RJC)	8-97177-309-0	01	1	9906-0207
6	VALVE; EXH BRAKE 4JH1 ENG(RJX)	8-97177-309-0	01	1	0208-0511
6	VALVE; EXH BRAKE 4JH1-TC ENG(RDM)	8-97177-309-0	01	1	0512-0610
6	VALVE; EXH BRAKE 4JH1 ENG(RJX)	8-97360-025-0	01	1	0412-0511
6	VALVE; EXH BRAKE 4JH1-TC ENG(RDM)	8-97360-025-0	01	1	0512-0610
6	VALVE; EXH BRAKE 4JJ1 ENG(LFB)	8-98043-594-0	01	1	0611-0611
6	VALVE; EXH BRAKE 4JJ1 ENG(LFB)	8-98067-485-0	01	1	0611-0611
6	VALVE; EXH BRAKE 4JJ1 ENG(LFB)	8-98069-291-0	01	1	0612-
24	BOLT; COVER 4JG2 ENG(RJC)	8-97065-029-0	02	1	9906-0207
24	BOLT; COVER 4JH1 ENG(RJX)	8-97065-029-0	02	1	0208-0411
24	BOLT; COVER 4JH1 ENG(RJX)	8-97065-029-0	02	1	0412-0511
24	BOLT; COVER 4JH1-TC ENG(RDM)	8-97065-029-0	02	1	0512-0610
24	BOLT; COVER 4JJ1 ENG(LFB)	8-97065-029-0	04	1	0611-
137	CHAMBER; POWER EXHAUST BRAKE<NF8> (A)	8-94158-416-0	01	1	9701-9809
137	CHAMBER; POWER (A)	8-94158-416-0	01	1	9810-9905
137	CHAMBER; POWER 4JG2 ENG(RJC) (B)	8-97173-327-0	01	1	9906-0207
137	CHAMBER; POWER 4JH1 ENG(RJX) (B)	8-97173-327-0	01	1	0208-0511
137	CHAMBER; POWER 4JH1-TC ENG(RDM) (B)	8-97173-327-0	01	1	0512-0610
137	CHAMBER; POWER 4JJ1 ENG(LFB) (C)	8-98043-596-0	01	1	0611-
137	CHAMBER; POWER 4JH1 ENG(RJX) (B)	8-97257-279-0	01	1	0412-0511
137	CHAMBER; POWER 4JH1-TC ENG(RDM) (B)	8-97257-279-0	01	1	0512-0610
137	CHAMBER; POWER 4JJ1 ENG(LFB) (D)	8-98038-348-0	01	1	0611-
138	BEARING; EXH BRK VLV EXHAUST BRAKE<NF8>	5-22189-004-0	01	1	9701-9809
138	BEARING; EXH BRK VLV	5-22189-004-0	01	1	9810-9905
138	BEARING; EXH BRK VLV 4JG2 ENG(RJC)	8-94311-446-0	01	1	9906-0207
138	BEARING; EXH BRK VLV 4JH1 ENG(RJX)	8-94311-446-0	01	1	0208-0411
138	BEARING; EXH BRK VLV 4JH1 ENG(RJX)	8-94311-446-0	01	1	0412-0511
138	BEARING; EXH BRK VLV 4JH1-TC ENG(RDM)	8-94311-446-0	01	1	0512-0610
138	BEARING; EXH BRK VLV 4JJ1 ENG(LFB)	5-22189-004-0	02	1	0611-
139	GASKET; EXH BRK VLV EXHAUST BRAKE<NF8>	8-94328-234-0	01	1	9701-9809
139	GASKET; EXH BRK VLV	8-94328-234-0	01	1	9810-9905
139	GASKET; EXH BRK VLV 4JG2 ENG(RJC)	8-94328-234-0	01	1	9906-0207
139	GASKET; EXH BRK VLV 4JH1 ENG(RJX)	8-94328-234-0	01	1	0208-0411
139	GASKET; EXH BRK VLV 4JH1 ENG(RJX)	8-94328-234-0	01	1	0412-0511
139	GASKET; EXH BRK VLV 4JH1-TC ENG(RDM)	8-94328-234-0	01	1	0512-0610
139	GASKET; EXH BRK VLV 4JJ1 ENG(LFB)	8-94328-234-0	02	1	0611-
140	INSULATOR; EXH BRK VLV EXHAUST BRAKE<NF8>	8-97093-854-0	01	1	9701-9809
140	INSULATOR; EXH BRK VLV	8-97093-854-0	01	1	9810-9905
140	INSULATOR; EXH BRK VLV 4JG2 ENG(RJC)	8-97093-854-0	01	1	9906-0207
140	INSULATOR; EXH BRK VLV 4JH1 ENG(RJX)	8-97093-854-0	01	1	0208-0511
140	INSULATOR; EXH BRK VLV 4JH1-TC ENG(RDM)	8-97093-854-0	01	1	0512-0610
140	INSULATOR; EXH BRK VLV 4JH1 ENG(RJX)	8-97257-283-0	01	1	0412-0511
140	INSULATOR; EXH BRK VLV 4JH1-TC ENG(RDM)	8-97257-283-0	01	1	0512-0610
140	INSULATOR; EXH BRK VLV 4JJ1 ENG(LFB)	8-98037-494-0	01	1	0611-
141	NUT; CLEVIS,EXH BRK VLV EXHAUST BRAKE<NF8>	9-88510-258-0	01	1	9701-9802
141	NUT; CLEVIS,EXH BRK VLV EXHAUST BRAKE<NF8>	9-88510-009-0	01	1	9803-9809
141	NUT; CLEVIS,EXH BRK VLV	9-88510-009-0	01	1	9810-9905
141	NUT; CLEVIS,EXH BRK VLV 4JG2 ENG(RJC)	9-88510-009-0	01	1	9906-0207
141	NUT; CLEVIS,EXH BRK VLV 4JH1 ENG(RJX)	9-88510-009-0	01	1	0208-0411
141	NUT; CLEVIS,EXH BRK VLV 4JH1 ENG(RJX)	9-88510-009-0	01	1	0412-0511
141	NUT; CLEVIS,EXH BRK VLV 4JH1-TC ENG(RDM)	9-88510-009-0	01	1	0512-0610
141	NUT; CLEVIS,EXH BRK VLV 4JJ1 ENG(LFB)	8-94311-428-0	02	1	0611-
142	CLEVIS; EXH BRK VLV EXHAUST BRAKE<NF8>	8-94158-418-0	01	1	9701-9802
142	CLEVIS; EXH BRK VLV EXHAUST BRAKE<NF8>	8-97177-310-0	01	1	9803-9809
142	CLEVIS; EXH BRK VLV	8-97177-310-0	01	1	9810-9905
142	CLEVIS; EXH BRK VLV 4JG2 ENG(RJC)	8-97177-311-0	01	1	9906-0207
142	CLEVIS; EXH BRK VLV 4JH1 ENG(RJX)	8-97177-311-0	01	1	0208-0411
142	CLEVIS; EXH BRK VLV 4JH1 ENG(RJX)	8-97177-311-0	01	1	0412-0511
142	CLEVIS; EXH BRK VLV 4JH1-TC ENG(RDM)	8-97177-311-0	01	1	0512-0610
142	CLEVIS; EXH BRK VLV 4JJ1 ENG(LFB)	8-97177-311-0	02	1	0611-
143	PIN; EXH BRK VLV EXHAUST BRAKE<NF8>	5-22189-008-0	01	1	9701-9809
143	PIN; EXH BRK VLV	5-22189-008-0	01	1	9810-9905
143	PIN; EXH BRK VLV 4JG2 ENG(RJC)	8-94311-452-0	01	1	9906-0207
143	PIN; EXH BRK VLV 4JH1 ENG(RJX)	8-94311-452-0	01	1	0208-0411
143	PIN; EXH BRK VLV 4JH1 ENG(RJX)	8-94311-452-0	01	1	0412-0511
143	PIN; EXH BRK VLV 4JH1-TC ENG(RDM)	8-94311-452-0	01	1	0512-0610
143	PIN; EXH BRK VLV 4JJ1 ENG(LFB)	8-94311-452-0	02	1	0611-
144	PIN; SPLIT,EXH BRK VLV EXHAUST BRAKE<NF8> OD=1.8 L=20	9-08112-020-0	01	1	9701-9802
144	PIN; SPLIT,EXH BRK VLV EXHAUST BRAKE<NF8>	8-97010-295-1	01	1	9803-9809
144	PIN; SPLIT,EXH BRK VLV	8-97010-295-1	01	1	9810-9905
144	PIN; SPLIT,EXH BRK VLV 4JG2 ENG(RJC)	8-97029-428-0	01	1	9906-0207
144	PIN; SPLIT,EXH BRK VLV 4JH1 ENG(RJX)	8-97029-428-0	01	1	0208-0411
144	PIN; SPLIT,EXH BRK VLV 4JH1 ENG(RJX)	8-97029-428-0	01	1	0412-0511
144	PIN; SPLIT,EXH BRK VLV 4JH1-TC ENG(RDM)	8-97029-428-0	01	1	0512-0610
144	PIN; SPLIT,EXH BRK VLV 4JJ1 ENG(LFB)	8-97029-428-0	02	1	0611-
146	NUT; EXH BRK VLV 4JJ1 ENG(LFB) M8 FLANGE	0-91180-108-0	02	1	0612-
146	NUT; EXH BRK VLV EXHAUST BRAKE<NF8> M8 W/LK WASHER USA	8-94279-050-0	02	1	9701-9809
146	NUT; EXH BRK VLV M8 W/LK WASHER USA	8-94279-050-0	02	1	9810-9905
146	NUT; EXH BRK VLV 4JG2 ENG(RJC) M8 W/LK WASHER USA	8-94279-050-0	02	1	9906-0201
146	NUT; EXH BRK VLV 4JG2 ENG(RJC) M8 FLANGE	0-91150-108-0	02	1	0202-0207
146	NUT; EXH BRK VLV 4JH1 ENG(RJX) M8 FLANGE	0-91150-108-0	02	1	0208-0411
146	NUT; EXH BRK VLV 4JH1 ENG(RJX) M8 FLANGE	0-91150-108-0	02	1	0412-0511
146	NUT; EXH BRK VLV 4JH1-TC ENG(RDM) M8 FLANGE	0-91150-108-0	02	1	0512-0610
146	NUT; EXH BRK VLV 4JJ1 ENG(LFB) M8 FLANGE	0-91150-108-0	04	1	0611-0611
146	NUT; EXH BRK VLV 4JJ1 ENG(LFB) M8 FLANGE	0-91150-108-0	02	1	0612-
184	COVER; BRKT 4JG2 ENG(RJC) (A)	8-97311-447-0	01	1	9906-0207
184	COVER; BRKT 4JH1 ENG(RJX) (A)	8-97311-447-0	01	1	0208-0411
184	COVER; BRKT 4JH1 ENG(RJX) (A)	8-97311-447-0	01	1	0412-0511
184	COVER; BRKT 4JH1-TC ENG(RDM) (A)	8-97311-447-0	01	1	0512-0610
184	COVER; BRKT 4JJ1 ENG(LFB) (B)	8-97370-068-0	01	1	0611-
184	COVER; BRKT 4JJ1 ENG(LFB) (C)	8-98037-493-0	01	1	0611-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
