◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50760 - NHR/NKR TAIWAN ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#139050) — 1512 parça
çizim 420370
70 144 105 97 168 143 88 94 126 211 165 166 164 162 105 357 88 104 95 137 94
BalonParca AdiParca NoAdetTipApplied Date
70 BOLT; BRKT
4JJ1 ENG(LFB) (A) M10X30 FLANGE 		0-28651-030-0 04 1 0703-
70 BOLT; BRKT
4JG2 ENG(RJC) (A) M10X30 FLANGE 		0-28681-030-0 02 1 9906-0207
70 BOLT; BRKT
4JJ1 ENG(LFB) (C) M10X30 FLANGE 		0-28651-030-0 02 1 0611-0702
70 BOLT; BRKT
4JJ1 ENG(LFB) (C) M10X30 FLANGE 		0-28651-030-0 02 1 0611-0702
70 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 01 1 0703-
70 BOLT; BRKT
4JH1 ENG(RJX) (B) M8X25 FLANGE 		0-28680-825-0 02 1 0412-0511
70 BOLT; BRKT
4JH1-TC ENG(RDM) (B) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512
70 BOLT; BRKT
4JH1-TC ENG(RDM) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0610
70 BOLT; BRKT
4JJ1 ENG(LFB) (D) M8X25 FLANGE 		0-28650-825-0 02 1 0611-
88 CLAMP; EXH PIPE
ID=51.5 		8-97016-034-0 01 1 9701-9903
88 CLAMP; EXH PIPE
ID=51.5 		8-97222-648-0 01 1 9904-9905
88 CLAMP; EXH PIPE
4JG2 ENG(RJC) ID=51.5 		8-97222-648-0 01 1 9906-0112
88 CLAMP; EXH PIPE
4JG2 ENG(RJC) ID=51.5 		8-97222-648-0 01 1 9906-0112
88 CLAMP; EXH PIPE
4JG2 ENG(RJC) ID=51.5 		8-97325-352-0 01 1 0201-0207
88 CLAMP; EXH PIPE
4JG2 ENG(RJC) ID=51.5 		8-97325-352-0 01 1 0201-0207
88 CLAMP; EXH PIPE
4JH1 ENG(RJX) ID=61.6 		8-97010-307-0 01 1 0208-0411
88 CLAMP; EXH PIPE
4JH1 ENG(RJX) ID=61.6 		8-97010-307-0 01 1 0412-0511
88 CLAMP; EXH PIPE
4JH1 ENG(RJX) ID=61.6 		8-97010-307-0 01 1 0412-0511
88 CLAMP; EXH PIPE
4JH1-TC ENG(RDM) ID=61.6 		8-97010-307-0 01 1 0512-0610
88 CLAMP; EXH PIPE
4JH1-TC ENG(RDM) ID=61.6 		8-97010-307-0 01 1 0512-0610
88 CLAMP; EXH PIPE
4JJ1 ENG(LFB) 		8-97373-158-0 01 1 0611-
94 BOLT; CLAMP
(A) M8X65 		0-10805-865-0 01 1 9701-9905
94 BOLT; CLAMP
(B) M8X45 		0-20800-845-0 01 1 9701-9905
94 BOLT; CLAMP
(C) M8X45 		0-20800-845-0 01 1 9906-0207
94 BOLT; CLAMP
4JG2 ENG(RJC) (C) M8X45 		0-20800-845-0 01 1 9906-0207
94 BOLT; CLAMP
(C) M8X45 		0-20800-845-0 01 1 0208-0411
94 BOLT; CLAMP
(C) M8X45 		0-20800-845-0 01 1 0412-0511
94 BOLT; CLAMP
4JH1 ENG(RJX) (C) M8X45 		0-20800-845-0 01 1 0412-0511
94 BOLT; CLAMP
(C) M8X45 		0-20800-845-0 01 1 0512-0610
94 BOLT; CLAMP
4JH1-TC ENG(RDM) (C) M8X45 		0-20800-845-0 01 1 0512-0610
94 BOLT; CLAMP
4JJ1 ENG(LFB) (E) M10X50 FLANGE 		8-97301-165-0 01 1 0611-
94 BOLT; CLAMP
(D) M10X45 FLANGE 		0-28051-045-0 01 1 0611-
95 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9701-0411
95 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0412-0512
95 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
97 WASHER; PL,CLAMP
ID=8.4 		9-09164-508-0 02 1 9701-9905
97 WASHER; PL,CLAMP
4JG2 ENG(RJC) ID=8.4 OD=18 		9-09164-608-0 01 1 9906-0207
97 WASHER; PL,CLAMP
4JH1 ENG(RJX) ID=8.4 OD=18 		9-09164-608-0 01 1 0412-0511
97 WASHER; PL,CLAMP
4JH1-TC ENG(RDM) ID=8.4 OD=18 		9-09164-608-0 01 1 0512-0605
97 WASHER; PL,CLAMP
4JH1-TC ENG(RDM) ID=8.4 OD=18 		0-91614-608-0 01 1 0606-0610
97 WASHER; PL,CLAMP
4JJ1 ENG(LFB) ID=10.5 OD=22 		0-91614-610-0 01 1 0611-
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9701-0411
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0412-0602
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-0610
104 NUT; BRKT
M8 FLANGE 		0-91180-208-0 02 1 0611-0612
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0701-
105 NUT; CLAMP
(A) M8 		9-09110-408-0 02 1 9701-9905
105 NUT; CLAMP
(A) M8 		9-09110-408-0 01 1 9906-0207
105 NUT; CLAMP
4JG2 ENG(RJC) (A) M8 		9-09110-408-0 01 1 9906-0207
105 NUT; CLAMP
(A) M8 		9-09110-408-0 01 1 0208-0411
105 NUT; CLAMP
(A) M8 		9-09110-408-0 01 1 0412-0512
105 NUT; CLAMP
(A) M8 		0-91110-508-0 01 1 0601-0610
105 NUT; CLAMP
(C) M10 		0-91110-510-0 01 1 0611-
105 NUT; CLAMP
4JH1 ENG(RJX) (B) M10 FLANGE 		0-91150-110-0 02 1 0208-0411
105 NUT; CLAMP
4JH1 ENG(RJX) (B) M10 FLANGE 		0-91150-110-0 02 1 0412-0511
105 NUT; CLAMP
4JH1-TC ENG(RDM) (B) M10 FLANGE 		0-91150-110-0 02 1 0512-0602
105 NUT; CLAMP
4JH1-TC ENG(RDM) (B) M10 FLANGE 		0-91180-110-0 02 1 0603-0610
126 PIPE; EXH,RR
(A) TAI 		8-97965-150-0 01 1 9701-9905
126 PIPE; EXH,RR
4JG2 ENG(RJC) (B) 		8-97212-562-1 01 1 9906-0207
126 PIPE; EXH,RR
4JH1 ENG(RJX) (C) TAI 		8-97967-226-0 01 1 0208-0511
126 PIPE; EXH,RR
4JH1-TC ENG(RDM) (C) TAI 		8-97967-226-0 01 1 0512-0610
126 PIPE; EXH,RR
4JJ1 ENG(LFB) (E) 		8-98035-092-0 01 1 0611-
126 PIPE; EXH,RR
4JH1 ENG(RJX) (D) TAI 		8-97260-001-1 01 1 0412-0511
126 PIPE; EXH,RR
4JH1-TC ENG(RDM) (D) TAI 		8-97260-001-1 01 1 0512-0610
126 PIPE; EXH,RR
4JJ1 ENG(LFB) (F) 		8-98025-643-1 01 1 0611-
137 BRACKET; TAIL PIPE
(A) 		9-22121-146-1 01 1 9701-9707
137 BRACKET; TAIL PIPE
(A) TAI 		8-97965-877-0 01 1 9708-0610
137 BRACKET; TAIL PIPE
(C) TAI 		8-97967-584-0 01 1 0611-
137 BRACKET; TAIL PIPE
4JH1 ENG(RJX) (B) 		8-94468-175-0 01 1 0412-0511
137 BRACKET; TAIL PIPE
4JH1-TC ENG(RDM) (B) 		8-94468-175-0 01 1 0512-0610
137 BRACKET; TAIL PIPE
4JJ1 ENG(LFB) (D) TAI 		8-97967-583-0 01 1 0611-
143 RUBBER; SUPPORT
4JG2 ENG(RJC) (A) 		8-97046-148-1 01 1 9906-9908
143 RUBBER; SUPPORT
4JG2 ENG(RJC) (A) 		8-97229-586-0 01 1 9909-0207
143 RUBBER; SUPPORT
4JJ1 ENG(LFB) (D) 		8-98034-767-0 01 1 0611-
143 RUBBER; SUPPORT
4JH1 ENG(RJX) (B) 		8-97371-655-0 01 1 0412-0511
143 RUBBER; SUPPORT
4JH1-TC ENG(RDM) (B) 		8-97371-655-0 01 1 0512-0610
143 RUBBER; SUPPORT
4JJ1 ENG(LFB) (C) 		8-97080-694-0 01 1 0611-
144 NUT; MTG RUBBER
4JG2 ENG(RJC) M8 FLANGE 		0-91150-108-0 01 1 9906-0207
144 NUT; MTG RUBBER
4JH1 ENG(RJX) M8 FLANGE 		0-91150-108-0 01 1 0412-0511
144 NUT; MTG RUBBER
4JH1-TC ENG(RDM) M8 FLANGE 		0-91150-108-0 01 1 0512-0602
144 NUT; MTG RUBBER
4JH1-TC ENG(RDM) M8 FLANGE 		0-91180-108-0 01 1 0603-0610
144 NUT; MTG RUBBER
4JJ1 ENG(LFB) M8 FLANGE 		0-91180-208-0 01 1 0611-0612
144 NUT; MTG RUBBER
4JJ1 ENG(LFB) M8 FLANGE 		0-91180-108-0 01 1 0701-
162 RUBBER; SUPPORT,TAIL PIPE
(A) TAI 		8-97965-410-0 01 1 9701-0610
162 RUBBER; SUPPORT,TAIL PIPE
(C) L=150 TAI 		8-97373-139-1 01 1 0611-
162 RUBBER; SUPPORT,TAIL PIPE
4JH1 ENG(RJX) (B) L=115 		8-94156-256-0 01 1 0412-0511
162 RUBBER; SUPPORT,TAIL PIPE
4JH1-TC ENG(RDM) (B) L=115 		8-94156-256-0 01 1 0512-0610
162 RUBBER; SUPPORT,TAIL PIPE
4JJ1 ENG(LFB) (D) L=115 		8-98034-765-0 01 1 0611-
164 COLLAR; DIST,TAIL PIPE
(A) L=23 		9-22151-175-0 01 1 9701-0610
164 COLLAR; DIST,TAIL PIPE
(A) L=23 		8-98006-011-0 01 1 0611-
164 COLLAR; DIST,TAIL PIPE
4JH1 ENG(RJX) (B) L=37.5 		9-22151-217-0 01 1 0412-0511
164 COLLAR; DIST,TAIL PIPE
4JH1-TC ENG(RDM) (B) L=37.5 		9-22151-217-0 01 1 0512-0610
164 COLLAR; DIST,TAIL PIPE
4JJ1 ENG(LFB) (B) L=37.5 		9-22151-217-0 01 1 0611-
165 BOLT; SUPPORT RUBBER
M8X45 FLANGE 		0-28080-845-0 01 1 9701-0512
165 BOLT; SUPPORT RUBBER
M8X45 FLANGE 		0-28050-845-0 01 1 0601-0610
165 BOLT; SUPPORT RUBBER
M10X45 FLANGE 		0-28051-045-0 01 1 0611-
165 BOLT; SUPPORT RUBBER
4JH1 ENG(RJX) M10X70 FLANGE 		0-28081-070-0 01 1 0412-0511
165 BOLT; SUPPORT RUBBER
4JH1-TC ENG(RDM) M10X70 FLANGE 		0-28081-070-0 01 1 0512-0512
165 BOLT; SUPPORT RUBBER
4JH1-TC ENG(RDM) M10X70 FLANGE 		0-28051-070-0 01 1 0601-0610
165 BOLT; SUPPORT RUBBER
4JJ1 ENG(LFB) M10X70 FLANGE 		0-28051-070-0 01 1 0611-
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
ID=8.4 OD=26 		9-09164-808-0 01 1 9701-0605
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
ID=8.4 OD=26 		0-91614-808-0 01 1 0606-0610
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
4JH1 ENG(RJX) ID=10.5 OD=32 		9-09164-810-0 01 1 0412-0511
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
4JH1-TC ENG(RDM) ID=10.5 OD=32 		9-09164-810-0 01 1 0512-0605
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
4JH1-TC ENG(RDM) ID=10.5 OD=32 		0-91614-810-0 01 1 0606-0610
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
4JJ1 ENG(LFB) ID=10.5 OD=32 		0-91614-810-0 01 1 0611-
168 BRACKET; EXH PIPE,FRT
(A) 		8-97084-346-2 01 1 9701-9905
168 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC) (A) 		8-97084-346-2 01 1 9906-0207
168 BRACKET; EXH PIPE,FRT
4JH1 ENG(RJX) (C) TAI 		8-97240-857-0 01 1 0208-0411
168 BRACKET; EXH PIPE,FRT
4JH1 ENG(RJX) (C) TAI 		8-97240-857-0 01 1 0412-0511
168 BRACKET; EXH PIPE,FRT
4JH1-TC ENG(RDM) (C) TAI 		8-97240-857-0 01 1 0512-0610
168 BRACKET; EXH PIPE,FRT
4JJ1 ENG(LFB) (E) TAI 		8-98026-063-0 01 1 0611-
168 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC) (B) 		8-97210-476-0 01 1 9906-0207
168 BRACKET; EXH PIPE,FRT
4JJ1 ENG(LFB) (B) 		8-97210-476-0 01 1 0611-
168 BRACKET; EXH PIPE,FRT
4JH1 ENG(RJX) (D) 		8-94468-174-1 01 1 0412-0511
168 BRACKET; EXH PIPE,FRT
4JH1-TC ENG(RDM) (D) 		8-94468-174-1 01 1 0512-0610
168 BRACKET; EXH PIPE,FRT
4JJ1 ENG(LFB) (D) 		8-94468-174-1 01 1 0611-
211 NUT; CONV
4JG2 ENG(RJC) M10 FLANGE 		0-91150-110-0 04 1 9906-0207
357 WASHER; PL,CLAMP
ID=8.4 OD=18 		9-09164-608-0 01 1 9701-0411
357 WASHER; PL,CLAMP
ID=8.4 OD=18 		9-09164-608-0 01 1 0412-0605
357 WASHER; PL,CLAMP
ID=8.4 OD=18 		0-91614-608-0 01 1 0606-0610
357 WASHER; PL,CLAMP
ID=10.5 OD=22 		0-91614-610-0 01 1 0611-

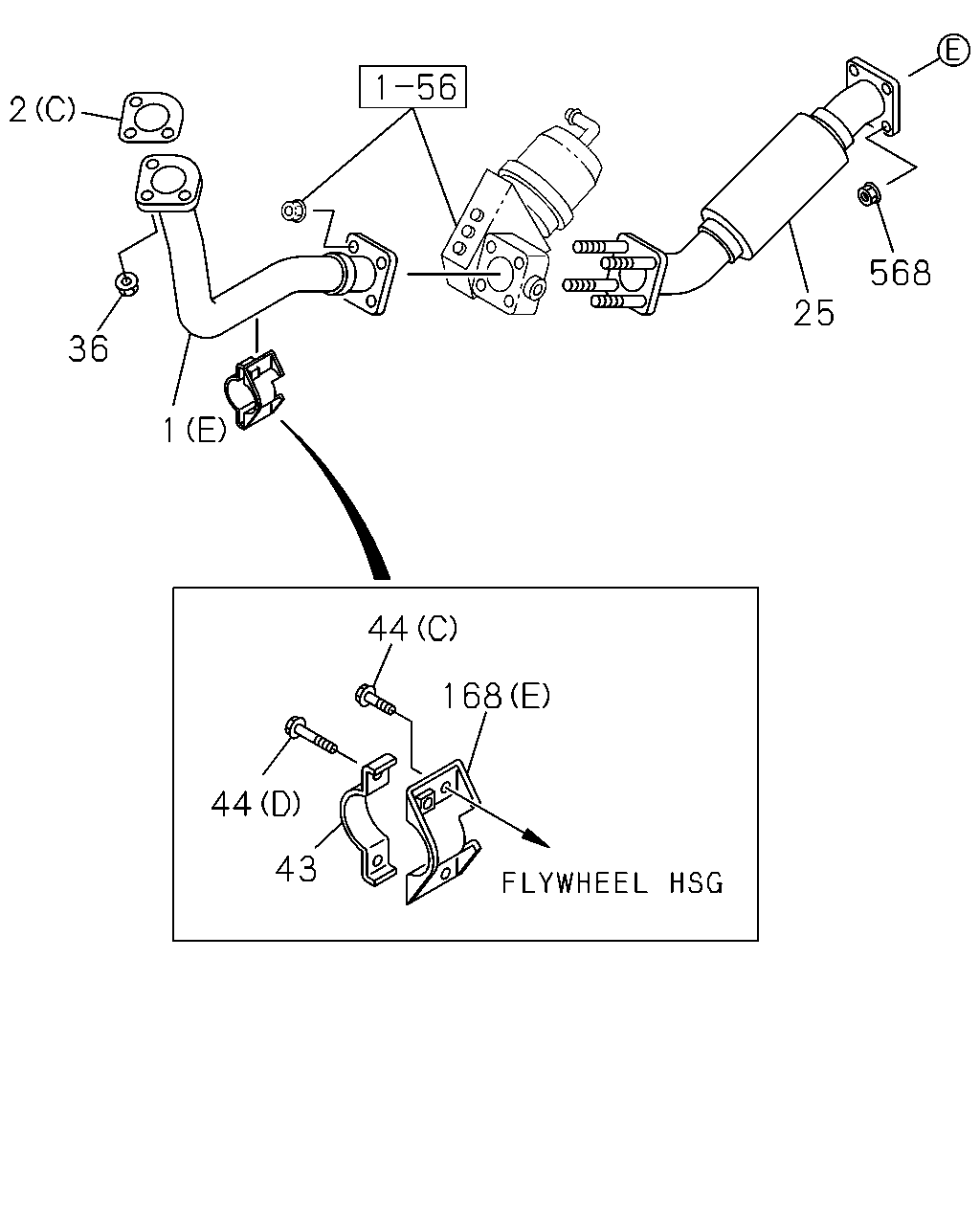

çizim 420371
1 56 2 568 25 36 1 44 168 44 43
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
EXHAUST BRAKE<NF8> (A) 		8-97034-086-1 01 1 9701-9809
1 PIPE; EXH
(A) 		8-97214-685-0 01 1 9810-9905
1 PIPE; EXH
4JG2 ENG(RJC) (B) 		8-97212-561-1 01 1 9906-0207
1 PIPE; EXH
4JH1 ENG(RJX) (C) 		8-97311-667-0 01 1 0208-0211
1 PIPE; EXH
4JH1 ENG(RJX) (C) 		8-97356-339-1 01 1 0212-0511
1 PIPE; EXH
4JH1-TC ENG(RDM) (C) 		8-97356-339-1 01 1 0512-0610
1 PIPE; EXH
4JJ1 ENG(LFB) (E) 		8-98026-060-0 01 1 0611-
1 PIPE; EXH
EXC. EXHAUST BRAKE<NF8> (A) TAI 		8-97965-149-0 01 1 9701-9809
1 PIPE; EXH
4JH1 ENG(RJX) (D) 		8-97305-630-1 01 1 0412-0511
1 PIPE; EXH
4JH1-TC ENG(RDM) (D) 		8-97305-630-1 01 1 0512-0610
1 PIPE; EXH
4JJ1 ENG(LFB) (F) 		8-98005-237-0 01 1 0611-
2 GASKET; PIPE TO MANIF
EXC. EXHAUST BRAKE<NF8> (A) 		8-97069-287-0 01 1 9701-9709
2 GASKET; PIPE TO MANIF
EXC. EXHAUST BRAKE<NF8> (A) 		8-97180-750-2 01 1 9710-9809
2 GASKET; PIPE TO MANIF
4JG2 ENG(RJC) (B) ID=71 		8-94324-194-0 02 1 9906-0207
2 GASKET; PIPE TO MANIF
4JG2 ENG(RJC) (A) 		8-97180-750-2 01 1 9906-0207
2 GASKET; PIPE TO MANIF
4JH1 ENG(RJX) (A) 		8-97180-750-2 01 1 0208-0408
2 GASKET; PIPE TO MANIF
4JH1 ENG(RJX) (A) 		8-97381-456-0 01 1 0409-0411
2 GASKET; PIPE TO MANIF
4JH1 ENG(RJX) (A) 		8-97381-456-0 01 1 0412-0511
2 GASKET; PIPE TO MANIF
4JH1-TC ENG(RDM) (A) 		8-97381-456-0 01 1 0512-0610
2 GASKET; PIPE TO MANIF
4JJ1 ENG(LFB) (C) 		8-97384-590-0 01 1 0611-
25 PIPE; EXH,BRK VLV TO SILENCER
4JG2 ENG(RJC) 		8-97206-030-0 01 1 9906-0207
25 PIPE; EXH,BRK VLV TO SILENCER
4JH1 ENG(RJX) 		8-97320-579-0 01 1 0208-0511
25 PIPE; EXH,BRK VLV TO SILENCER
4JH1-TC ENG(RDM) 		8-97320-579-0 01 1 0512-0610
25 PIPE; EXH,BRK VLV TO SILENCER
4JH1 ENG(RJX) 		8-97320-578-0 01 1 0412-0511
25 PIPE; EXH,BRK VLV TO SILENCER
4JH1-TC ENG(RDM) 		8-97320-578-0 01 1 0512-0610
25 PIPE; EXH,BRK VLV TO SILENCER
4JJ1 ENG(LFB) 		8-98026-061-2 01 1 0611-
36 NUT; EXH PIPE
EXHAUST BRAKE<NF8> M10 H=18 		9-09640-014-0 02 1 9701-9809
36 NUT; EXH PIPE
M10 H=18 		9-09640-014-0 02 1 9810-9905
36 NUT; EXH PIPE
4JG2 ENG(RJC) M10 FLANGE 		8-97096-192-1 02 1 9906-0207
36 NUT; EXH PIPE
4JH1 ENG(RJX) M10 FLANGE 		8-97096-192-1 02 1 0208-0411
36 NUT; EXH PIPE
4JH1 ENG(RJX) M10 FLANGE 		8-97096-192-1 02 1 0412-0511
36 NUT; EXH PIPE
4JH1-TC ENG(RDM) M10 FLANGE 		8-97096-192-1 02 1 0512-0610
36 NUT; EXH PIPE
4JJ1 ENG(LFB) M10 FLANGE 		8-97096-192-1 03 1 0611-
36 NUT; EXH PIPE
EXC. EXHAUST BRAKE<NF8> M10 FLANGE 		8-97096-192-1 02 1 9701-9809
43 CLAMP; EXH PIPE
4JJ1 ENG(LFB) 		8-97351-200-1 01 1 0611-
44 BOLT; BRKT
(A) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9701-9905
44 BOLT; BRKT
4JG2 ENG(RJC) (A) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9906-0207
44 BOLT; BRKT
4JH1 ENG(RJX) (A) M8X16 FLANGE 		0-28080-816-0 02 1 0208-0411
44 BOLT; BRKT
4JH1 ENG(RJX) (A) M8X16 FLANGE 		0-28080-816-0 02 1 0412-0511
44 BOLT; BRKT
4JH1-TC ENG(RDM) (A) M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512
44 BOLT; BRKT
4JH1-TC ENG(RDM) (A) M8X16 FLANGE 		0-28050-816-0 02 1 0601-0610
44 BOLT; BRKT
4JJ1 ENG(LFB) (C) M10X25 FLANGE 		0-28151-025-0 02 1 0611-
44 BOLT; BRKT
(B) M8X40 W/LK WASHER 		0-50040-840-0 01 1 9701-9905
44 BOLT; BRKT
4JG2 ENG(RJC) (B) M8X40 W/LK WASHER 		0-50040-840-0 01 1 9906-0207
44 BOLT; BRKT
4JH1 ENG(RJX) (B) M8X40 W/LK WASHER 		0-50040-840-0 01 1 0208-0404
44 BOLT; BRKT
4JH1 ENG(RJX) (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0405-0411
44 BOLT; BRKT
4JH1 ENG(RJX) (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0412-0511
44 BOLT; BRKT
4JH1-TC ENG(RDM) (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0512-0610
44 BOLT; BRKT
4JJ1 ENG(LFB) (D) M10X30 FLANGE 		0-28651-030-0 02 1 0611-
44 BOLT; BRKT
4JJ1 ENG(LFB) (E) M10X35 FLANGE 		0-28651-035-0 02 1 0611-
168 BRACKET; EXH PIPE,FRT
(A) 		8-97084-346-2 01 1 9701-9905
168 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC) (A) 		8-97084-346-2 01 1 9906-0207
168 BRACKET; EXH PIPE,FRT
4JH1 ENG(RJX) (C) TAI 		8-97240-857-0 01 1 0208-0411
168 BRACKET; EXH PIPE,FRT
4JH1 ENG(RJX) (C) TAI 		8-97240-857-0 01 1 0412-0511
168 BRACKET; EXH PIPE,FRT
4JH1-TC ENG(RDM) (C) TAI 		8-97240-857-0 01 1 0512-0610
168 BRACKET; EXH PIPE,FRT
4JJ1 ENG(LFB) (E) TAI 		8-98026-063-0 01 1 0611-
168 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC) (B) 		8-97210-476-0 01 1 9906-0207
168 BRACKET; EXH PIPE,FRT
4JJ1 ENG(LFB) (B) 		8-97210-476-0 01 1 0611-
168 BRACKET; EXH PIPE,FRT
4JH1 ENG(RJX) (D) 		8-94468-174-1 01 1 0412-0511
168 BRACKET; EXH PIPE,FRT
4JH1-TC ENG(RDM) (D) 		8-94468-174-1 01 1 0512-0610
168 BRACKET; EXH PIPE,FRT
4JJ1 ENG(LFB) (D) 		8-94468-174-1 01 1 0611-
568 NUT; DPD
4JJ1 ENG(LFB) M8 FLANGE 		0-91180-208-0 04 1 0611-0612
568 NUT; DPD
4JJ1 ENG(LFB) M8 FLANGE 		0-91180-108-0 04 1 0701-

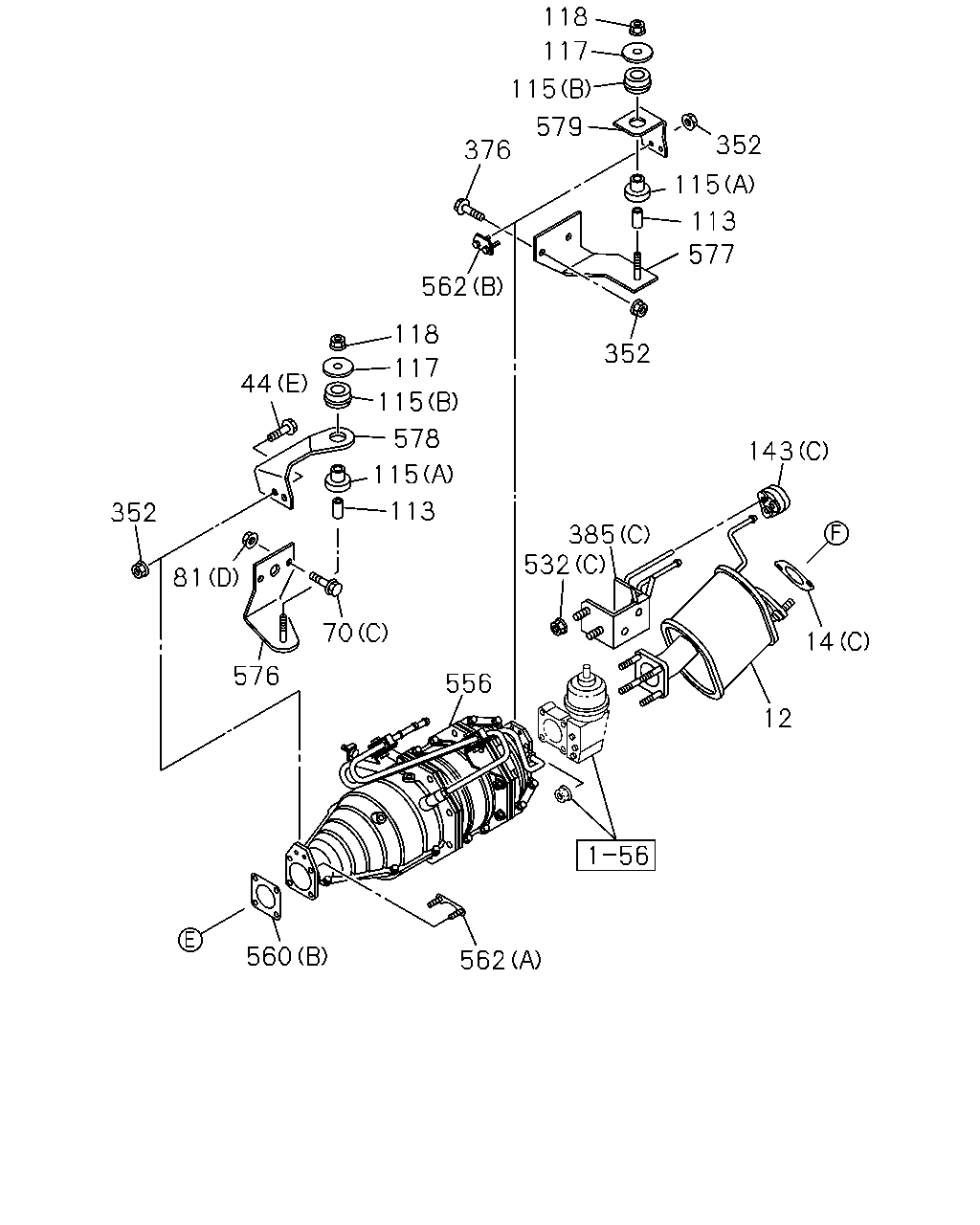

çizim 420378
118 117 115 579 352 376 115 113 577 562 118 352 117 44 115 578 143 115 113 352 385 532 81 70 14 576 556 12 1 56 560 562
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
EXHAUST BRAKE<NF8> (A) 		8-97034-086-1 01 1 9701-9809
1 PIPE; EXH
(A) 		8-97214-685-0 01 1 9810-9905
1 PIPE; EXH
4JG2 ENG(RJC) (B) 		8-97212-561-1 01 1 9906-0207
1 PIPE; EXH
4JH1 ENG(RJX) (C) 		8-97311-667-0 01 1 0208-0211
1 PIPE; EXH
4JH1 ENG(RJX) (C) 		8-97356-339-1 01 1 0212-0511
1 PIPE; EXH
4JH1-TC ENG(RDM) (C) 		8-97356-339-1 01 1 0512-0610
1 PIPE; EXH
4JJ1 ENG(LFB) (E) 		8-98026-060-0 01 1 0611-
1 PIPE; EXH
EXC. EXHAUST BRAKE<NF8> (A) TAI 		8-97965-149-0 01 1 9701-9809
1 PIPE; EXH
4JH1 ENG(RJX) (D) 		8-97305-630-1 01 1 0412-0511
1 PIPE; EXH
4JH1-TC ENG(RDM) (D) 		8-97305-630-1 01 1 0512-0610
1 PIPE; EXH
4JJ1 ENG(LFB) (F) 		8-98005-237-0 01 1 0611-
12 SILENCER ASM; EXH
TAI 		8-97965-379-1 01 1 9701-9905
12 SILENCER ASM; EXH
4JG2 ENG(RJC) 		8-97221-923-0 01 1 9906-0207
12 SILENCER ASM; EXH
4JH1 ENG(RJX) 		8-97309-650-0 01 1 0208-0411
12 SILENCER ASM; EXH
4JH1 ENG(RJX) 		8-97309-650-0 01 1 0412-0511
12 SILENCER ASM; EXH
4JH1-TC ENG(RDM) 		8-97309-650-0 01 1 0512-0610
12 SILENCER ASM; EXH
4JJ1 ENG(LFB) 		8-98021-917-1 01 1 0611-
12 SILENCER ASM; EXH
4JJ1 ENG(LFB) 		8-98001-836-1 01 1 0611-
14 GASKET; SILENCER TO EXH PIPE
4JH1 ENG(RJX) (A) ID=64.7 		8-94328-352-0 01 1 0208-0411
14 GASKET; SILENCER TO EXH PIPE
4JH1 ENG(RJX) (A) ID=64.7 		8-94328-352-0 01 1 0412-0511
14 GASKET; SILENCER TO EXH PIPE
4JH1-TC ENG(RDM) (A) ID=64.7 		8-94328-352-0 01 1 0512-0610
14 GASKET; SILENCER TO EXH PIPE
4JJ1 ENG(LFB) (C) ID=65 		8-97148-757-1 01 1 0611-
14 GASKET; SILENCER TO EXH PIPE
4JJ1 ENG(LFB) (C) ID=65 		8-97148-757-1 01 1 0611-
14 GASKET; SILENCER TO EXH PIPE
4JH1 ENG(RJX) (B) ID=54 		8-94328-354-0 01 1 0412-0511
14 GASKET; SILENCER TO EXH PIPE
4JH1-TC ENG(RDM) (B) ID=54 		8-94328-354-0 01 1 0512-0610
44 BOLT; BRKT
(A) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9701-9905
44 BOLT; BRKT
4JG2 ENG(RJC) (A) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9906-0207
44 BOLT; BRKT
4JH1 ENG(RJX) (A) M8X16 FLANGE 		0-28080-816-0 02 1 0208-0411
44 BOLT; BRKT
4JH1 ENG(RJX) (A) M8X16 FLANGE 		0-28080-816-0 02 1 0412-0511
44 BOLT; BRKT
4JH1-TC ENG(RDM) (A) M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512
44 BOLT; BRKT
4JH1-TC ENG(RDM) (A) M8X16 FLANGE 		0-28050-816-0 02 1 0601-0610
44 BOLT; BRKT
4JJ1 ENG(LFB) (C) M10X25 FLANGE 		0-28151-025-0 02 1 0611-
44 BOLT; BRKT
(B) M8X40 W/LK WASHER 		0-50040-840-0 01 1 9701-9905
44 BOLT; BRKT
4JG2 ENG(RJC) (B) M8X40 W/LK WASHER 		0-50040-840-0 01 1 9906-0207
44 BOLT; BRKT
4JH1 ENG(RJX) (B) M8X40 W/LK WASHER 		0-50040-840-0 01 1 0208-0404
44 BOLT; BRKT
4JH1 ENG(RJX) (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0405-0411
44 BOLT; BRKT
4JH1 ENG(RJX) (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0412-0511
44 BOLT; BRKT
4JH1-TC ENG(RDM) (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0512-0610
44 BOLT; BRKT
4JJ1 ENG(LFB) (D) M10X30 FLANGE 		0-28651-030-0 02 1 0611-
44 BOLT; BRKT
4JJ1 ENG(LFB) (E) M10X35 FLANGE 		0-28651-035-0 02 1 0611-
70 BOLT; BRKT
4JJ1 ENG(LFB) (A) M10X30 FLANGE 		0-28651-030-0 04 1 0703-
70 BOLT; BRKT
4JG2 ENG(RJC) (A) M10X30 FLANGE 		0-28681-030-0 02 1 9906-0207
70 BOLT; BRKT
4JJ1 ENG(LFB) (C) M10X30 FLANGE 		0-28651-030-0 02 1 0611-0702
70 BOLT; BRKT
4JJ1 ENG(LFB) (C) M10X30 FLANGE 		0-28651-030-0 02 1 0611-0702
70 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 01 1 0703-
70 BOLT; BRKT
4JH1 ENG(RJX) (B) M8X25 FLANGE 		0-28680-825-0 02 1 0412-0511
70 BOLT; BRKT
4JH1-TC ENG(RDM) (B) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512
70 BOLT; BRKT
4JH1-TC ENG(RDM) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0610
70 BOLT; BRKT
4JJ1 ENG(LFB) (D) M8X25 FLANGE 		0-28650-825-0 02 1 0611-
81 NUT; BRKT
4JJ1 ENG(LFB) (B) M10 FLANGE 		0-91180-110-0 02 1 0703-
81 NUT; BRKT
4JG2 ENG(RJC) (A) M8 FLANGE 		0-91150-108-0 02 1 9906-0207
81 NUT; BRKT
4JH1 ENG(RJX) (B) M10 FLANGE 		0-91150-110-0 01 1 0208-0511
81 NUT; BRKT
4JH1-TC ENG(RDM) (B) M10 FLANGE 		0-91150-110-0 01 1 0512-0602
81 NUT; BRKT
4JH1-TC ENG(RDM) (B) M10 FLANGE 		0-91180-110-0 01 1 0603-0610
81 NUT; BRKT
4JJ1 ENG(LFB) (D) M10 FLANGE 		0-91180-210-0 02 1 0611-0612
81 NUT; BRKT
4JJ1 ENG(LFB) (B) M10 FLANGE 		0-91180-110-0 02 1 0701-0702
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-110-0 01 1 0703-
81 NUT; BRKT
4JH1 ENG(RJX) (C) M8 FLANGE 		0-91150-108-0 04 1 0412-0511
81 NUT; BRKT
4JH1-TC ENG(RDM) (C) M8 FLANGE 		0-91150-108-0 04 1 0512-0602
81 NUT; BRKT
4JH1-TC ENG(RDM) (C) M8 FLANGE 		0-91180-108-0 04 1 0603-0610
81 NUT; BRKT
4JJ1 ENG(LFB) (E) M8 FLANGE 		0-91180-208-0 02 1 0611-0612
81 NUT; BRKT
4JJ1 ENG(LFB) (C) M8 FLANGE 		0-91180-108-0 02 1 0701-
113 COLLAR; DIST,MTG BRKT
L=37.5 		9-22151-217-0 01 1 9701-0411
113 COLLAR; DIST,MTG BRKT
L=37.5 		9-22151-217-0 01 1 0412-0610
113 COLLAR; DIST,MTG BRKT
4JJ1 ENG(LFB) L=37.5 		9-22151-217-0 02 1 0611-
115 RUBBER; MTG,SILENCER
(A) TAI 		8-97965-421-0 01 1 9701-0207
115 RUBBER; MTG,SILENCER
(A) TAI 		8-97965-421-0 01 1 0208-0411
115 RUBBER; MTG,SILENCER
4JH1 ENG(RJX) (A) TAI 		8-97965-421-0 01 1 0208-0411
115 RUBBER; MTG,SILENCER
(A) TAI 		8-97965-421-0 01 1 0412-0511
115 RUBBER; MTG,SILENCER
4JH1 ENG(RJX) (A) TAI 		8-97965-421-0 01 1 0412-0511
115 RUBBER; MTG,SILENCER
(A) TAI 		8-97965-421-0 01 1 0512-0610
115 RUBBER; MTG,SILENCER
4JH1-TC ENG(RDM) (A) TAI 		8-97965-421-0 01 1 0512-0610
115 RUBBER; MTG,SILENCER
4JJ1 ENG(LFB) (A) TAI 		8-97965-421-0 02 1 0611-
115 RUBBER; MTG,SILENCER
(B) TAI 		8-97965-422-0 01 1 9701-0207
115 RUBBER; MTG,SILENCER
(B) TAI 		8-97965-422-0 01 1 0208-0411
115 RUBBER; MTG,SILENCER
4JH1 ENG(RJX) (B) TAI 		8-97965-422-0 01 1 0208-0411
115 RUBBER; MTG,SILENCER
(B) TAI 		8-97965-422-0 01 1 0412-0511
115 RUBBER; MTG,SILENCER
4JH1 ENG(RJX) (B) TAI 		8-97965-422-0 01 1 0412-0511
115 RUBBER; MTG,SILENCER
(B) TAI 		8-97965-422-0 01 1 0512-0610
115 RUBBER; MTG,SILENCER
4JH1-TC ENG(RDM) (B) TAI 		8-97965-422-0 01 1 0512-0610
115 RUBBER; MTG,SILENCER
4JJ1 ENG(LFB) (B) TAI 		8-97965-422-0 02 1 0611-
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 01 1 9701-0207
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 01 1 0208-0411
117 WASHER; PL,SILENCER MTG BRKT
4JH1 ENG(RJX) OD=55 		9-09852-169-0 01 1 0208-0411
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 01 1 0412-0511
117 WASHER; PL,SILENCER MTG BRKT
4JH1 ENG(RJX) OD=55 		9-09852-169-0 01 1 0412-0511
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 01 1 0512-0610
117 WASHER; PL,SILENCER MTG BRKT
4JH1-TC ENG(RDM) OD=55 		9-09852-169-0 01 1 0512-0610
117 WASHER; PL,SILENCER MTG BRKT
4JJ1 ENG(LFB) OD=55 		9-09852-169-0 02 1 0611-
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		5-09440-006-0 01 1 9701-0411
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		5-09440-006-0 01 1 0412-0610
118 NUT; SILENCER MTG BRKT
4JJ1 ENG(LFB) M10 FLANGE 		5-09440-006-0 02 1 0611-
143 RUBBER; SUPPORT
4JG2 ENG(RJC) (A) 		8-97046-148-1 01 1 9906-9908
143 RUBBER; SUPPORT
4JG2 ENG(RJC) (A) 		8-97229-586-0 01 1 9909-0207
143 RUBBER; SUPPORT
4JJ1 ENG(LFB) (D) 		8-98034-767-0 01 1 0611-
143 RUBBER; SUPPORT
4JH1 ENG(RJX) (B) 		8-97371-655-0 01 1 0412-0511
143 RUBBER; SUPPORT
4JH1-TC ENG(RDM) (B) 		8-97371-655-0 01 1 0512-0610
143 RUBBER; SUPPORT
4JJ1 ENG(LFB) (C) 		8-97080-694-0 01 1 0611-
352 NUT; BRKT
4JJ1 ENG(LFB) M10 FLANGE 		0-91180-210-0 06 1 0611-0612
352 NUT; BRKT
4JJ1 ENG(LFB) M10 FLANGE 		0-91180-110-0 06 1 0701-
376 BOLT; BRKT
4JJ1 ENG(LFB) M10X30 FLANGE 		0-28651-030-0 02 1 0611-
385 BRACKET; SILENCER MTG
4JH1 ENG(RJX) (A) 		8-97172-313-0 01 1 0208-0511
385 BRACKET; SILENCER MTG
4JH1-TC ENG(RDM) (A) 		8-97172-313-0 01 1 0512-0610
385 BRACKET; SILENCER MTG
4JJ1 ENG(LFB) (C) 		8-98018-970-1 01 1 0611-
385 BRACKET; SILENCER MTG
4JH1 ENG(RJX) (B) 		8-97260-094-1 01 1 0412-0511
385 BRACKET; SILENCER MTG
4JH1-TC ENG(RDM) (B) 		8-97260-094-1 01 1 0512-0610
385 BRACKET; SILENCER MTG
4JJ1 ENG(LFB) (C) 		8-98018-972-1 01 1 0611-
532 NUT
4JH1 ENG(RJX) (A) M8 FLANGE 		0-91150-108-0 04 1 0208-0404
532 NUT
4JH1 ENG(RJX) (A) M8 FLANGE 		0-91150-108-0 02 1 0405-0411
532 NUT
4JH1 ENG(RJX) (A) M8 FLANGE 		0-91150-108-0 02 1 0405-0411
532 NUT
4JH1 ENG(RJX) (A) M8 FLANGE 		0-91150-108-0 02 1 0412-0511
532 NUT
4JH1 ENG(RJX) (A) M8 FLANGE 		0-91150-108-0 02 1 0412-0511
532 NUT
4JH1-TC ENG(RDM) (A) M8 FLANGE 		0-91150-108-0 02 1 0512-0602
532 NUT
4JH1-TC ENG(RDM) (A) M8 FLANGE 		0-91150-108-0 02 1 0512-0602
532 NUT
4JH1-TC ENG(RDM) (A) M8 FLANGE 		0-91180-108-0 02 1 0603-0610
532 NUT
4JH1-TC ENG(RDM) (A) M8 FLANGE 		0-91180-108-0 02 1 0603-0610
532 NUT
4JH1 ENG(RJX) (B) M10 FLANGE 		5-09440-006-0 01 1 0208-0411
532 NUT
4JH1 ENG(RJX) (B) M10 FLANGE 		5-09440-006-0 01 1 0412-0511
532 NUT
4JH1-TC ENG(RDM) (B) M10 FLANGE 		5-09440-006-0 01 1 0512-0610
532 NUT
4JJ1 ENG(LFB) (C) M8 FLANGE 		0-91180-208-0 02 1 0611-0612
532 NUT
4JJ1 ENG(LFB) (A) M8 FLANGE 		0-91180-108-0 02 1 0701-
556 DPD ASM
4JJ1 ENG(LFB) 		8-98036-810-7 01 1 0611-
560 GASKET; DPD
4JJ1 ENG(LFB) (B) ID=64 		8-97373-108-0 01 1 0611-
560 GASKET; DPD
4JJ1 ENG(LFB) (A) 		8-97331-947-0 02 1 0611-
562 PLATE; STUD,BOLT
4JJ1 ENG(LFB) (A) 		8-97373-966-0 02 1 0611-
562 PLATE; STUD,BOLT
4JJ1 ENG(LFB) (B) 		8-98005-985-0 01 1 0611-
576 BRACKET; DPD FRT TO FRAME
4JJ1 ENG(LFB) 		8-98035-089-0 01 1 0611-
576 BRACKET; DPD FRT TO FRAME
4JJ1 ENG(LFB) 		8-98018-965-0 01 1 0611-
577 BRACKET; DPD RR TO FRAME
4JJ1 ENG(LFB) 		8-98035-090-0 01 1 0611-
577 BRACKET; DPD RR TO FRAME
4JJ1 ENG(LFB) 		8-98018-969-0 01 1 0611-
578 BRACKET; DPD FRT
4JJ1 ENG(LFB) 		8-98001-873-1 01 1 0611-
579 BRACKET; DPD RR
4JJ1 ENG(LFB) 		8-98001-883-1 01 1 0611-

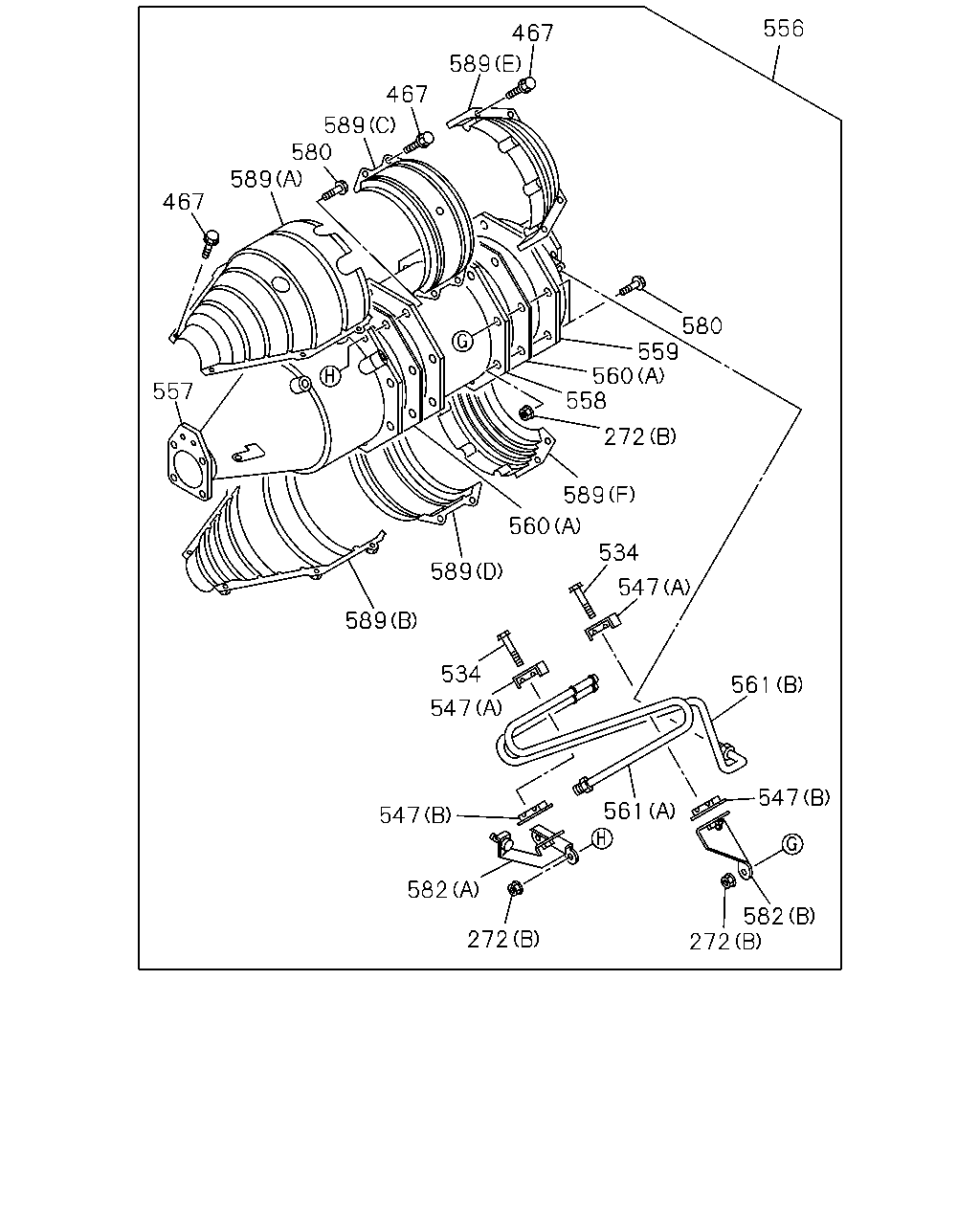

çizim 420384
556 467 589 467 589 50 589 467 580 559 560 558 557 272 589 560 534 589 547 589 534 561 547 547 561 547 582 582 272 272
BalonParca AdiParca NoAdetTipApplied Date
50 WASHER; PL,FRT PIPE TO SILENCER
ID=8.4 		9-09164-508-0 02 1 9701-9905
272 NUT; FLANGE
4JJ1 ENG(LFB) (A) M6 FLANGE 		0-91180-106-0 01 1 0611-
272 NUT; FLANGE
4JJ1 ENG(LFB) (B) M8 FLANGE 		0-91180-108-0 16 1 0611-
467 BOLT; PROTECTOR
4JJ1 ENG(LFB) M6X16 		8-98019-179-0 14 1 0611-
534 BOLT; CLIP
4JJ1 ENG(LFB) M6X35 FLANGE 		0-28650-635-0 02 1 0611-
547 CLIP; PIPE
4JJ1 ENG(LFB) (A) 		8-97381-635-0 02 1 0611-
547 CLIP; PIPE
4JJ1 ENG(LFB) (B) 		8-97381-636-0 02 1 0611-
556 DPD ASM
4JJ1 ENG(LFB) 		8-98036-810-7 01 1 0611-
557 CATALYST ASM
4JJ1 ENG(LFB) 		8-98036-815-6 01 1 0611-
558 FILTER ASM
4JJ1 ENG(LFB) 		8-98032-908-2 01 1 0611-
559 COVER; RR
4JJ1 ENG(LFB) 		8-98032-909-0 01 1 0611-0708
559 COVER; RR
4JJ1 ENG(LFB) 		8-98084-599-0 01 1 0709-
560 GASKET; DPD
4JJ1 ENG(LFB) (B) ID=64 		8-97373-108-0 01 1 0611-
560 GASKET; DPD
4JJ1 ENG(LFB) (A) 		8-97331-947-0 02 1 0611-
561 PIPE; DPD
4JJ1 ENG(LFB) (A) 		8-98032-910-0 01 1 0611-
561 PIPE; DPD
4JJ1 ENG(LFB) (B) 		8-98032-911-1 01 1 0611-
580 BOLT; FLANGE
4JJ1 ENG(LFB) M8X35 FLANGE 		0-28650-835-0 16 1 0611-
582 BRACKET; PIPE
4JJ1 ENG(LFB) (A) 		8-98032-919-0 01 1 0611-
582 BRACKET; PIPE
4JJ1 ENG(LFB) (B) 		8-98032-920-0 01 1 0611-
589 PROTECTOR; HEAT,DPD
4JJ1 ENG(LFB) (C) 		8-97383-660-0 01 1 0611-
589 PROTECTOR; HEAT,DPD
4JJ1 ENG(LFB) (F) 		8-97383-663-0 01 1 0611-
589 PROTECTOR; HEAT,DPD
4JJ1 ENG(LFB) (A) 		8-98032-921-0 01 1 0611-
589 PROTECTOR; HEAT,DPD
4JJ1 ENG(LFB) (B) 		8-98032-923-0 01 1 0611-
589 PROTECTOR; HEAT,DPD
4JJ1 ENG(LFB) (D) 		8-98032-924-0 01 1 0611-
589 PROTECTOR; HEAT,DPD
4JJ1 ENG(LFB) (E) 		8-98032-926-0 01 1 0611-

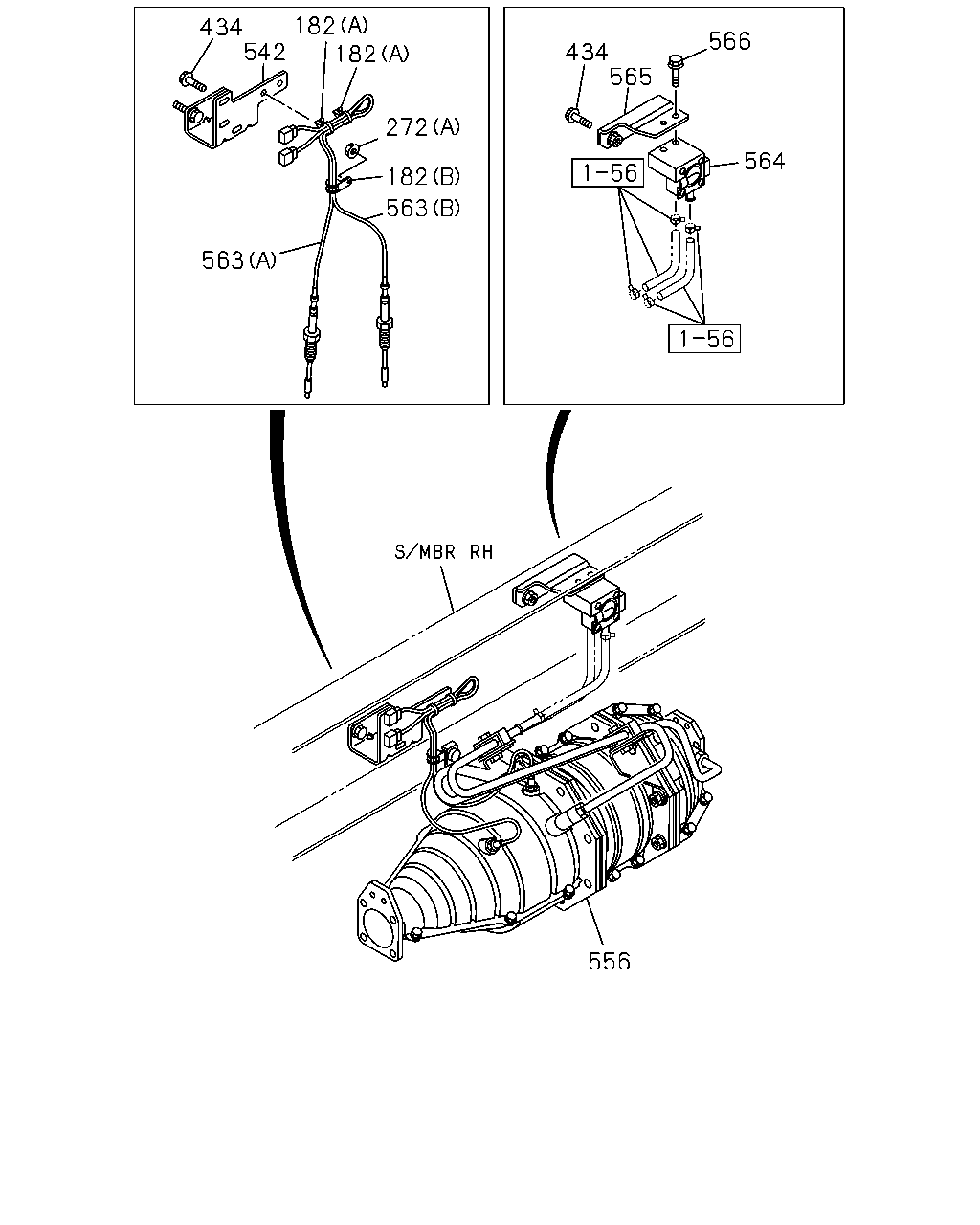

çizim 420385
182 182 434 542 566 434 565 272 564 1 56 182 563 563 1 56 556
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
EXHAUST BRAKE<NF8> (A) 		8-97034-086-1 01 1 9701-9809
1 PIPE; EXH
(A) 		8-97214-685-0 01 1 9810-9905
1 PIPE; EXH
4JG2 ENG(RJC) (B) 		8-97212-561-1 01 1 9906-0207
1 PIPE; EXH
4JH1 ENG(RJX) (C) 		8-97311-667-0 01 1 0208-0211
1 PIPE; EXH
4JH1 ENG(RJX) (C) 		8-97356-339-1 01 1 0212-0511
1 PIPE; EXH
4JH1-TC ENG(RDM) (C) 		8-97356-339-1 01 1 0512-0610
1 PIPE; EXH
4JJ1 ENG(LFB) (E) 		8-98026-060-0 01 1 0611-
1 PIPE; EXH
EXC. EXHAUST BRAKE<NF8> (A) TAI 		8-97965-149-0 01 1 9701-9809
1 PIPE; EXH
4JH1 ENG(RJX) (D) 		8-97305-630-1 01 1 0412-0511
1 PIPE; EXH
4JH1-TC ENG(RDM) (D) 		8-97305-630-1 01 1 0512-0610
1 PIPE; EXH
4JJ1 ENG(LFB) (F) 		8-98005-237-0 01 1 0611-
182 CLIP; HARNESS
4JJ1 ENG(LFB) (A) L=112 USA 		8-94232-618-0 01 1 0611-
182 CLIP; HARNESS
4JJ1 ENG(LFB) (B) ID=7 		8-98002-767-0 01 1 0611-
182 CLIP; HARNESS
4JJ1 ENG(LFB) (A) L=112 USA 		8-94232-618-0 02 1 0611-
272 NUT; FLANGE
4JJ1 ENG(LFB) (A) M6 FLANGE 		0-91180-106-0 01 1 0611-
272 NUT; FLANGE
4JJ1 ENG(LFB) (B) M8 FLANGE 		0-91180-108-0 16 1 0611-
434 BOLT; BRKT
4JJ1 ENG(LFB) M10X30 FLANGE 		0-28651-030-0 01 1 0611-
434 BOLT; BRKT
4JJ1 ENG(LFB) M10X30 FLANGE 		0-28651-030-0 02 1 0611-
542 BRACKET
4JH1 ENG(RJX) TAI 		8-97967-282-0 01 1 0208-0411
542 BRACKET
4JH1 ENG(RJX) TAI 		8-97967-282-0 01 1 0412-0511
542 BRACKET
4JH1-TC ENG(RDM) TAI 		8-97967-282-0 01 1 0512-0610
542 BRACKET
4JJ1 ENG(LFB) 		8-98018-933-1 01 1 0611-
556 DPD ASM
4JJ1 ENG(LFB) 		8-98036-810-7 01 1 0611-
563 SENSOR; TEMPERATURE,DPD
4JJ1 ENG(LFB) (A) 		8-98004-329-0 01 1 0611-
563 SENSOR; TEMPERATURE,DPD
4JJ1 ENG(LFB) (B) 		8-98004-330-0 01 1 0611-
564 SENSOR; PRESSURE,DPD
4JJ1 ENG(LFB) 		8-97360-368-2 01 1 0611-
564 SENSOR; PRESSURE,DPD
4JJ1 ENG(LFB) 		8-97359-985-2 01 1 0611-
565 BRACKET; SENSOR,PRESSURE
4JJ1 ENG(LFB) 		8-98034-600-0 01 1 0611-
565 BRACKET; SENSOR,PRESSURE
4JJ1 ENG(LFB) 		8-98018-924-1 01 1 0611-
566 BOLT; SENSOR
4JJ1 ENG(LFB) M8X16 FLANGE 		0-28050-816-0 02 1 0611-

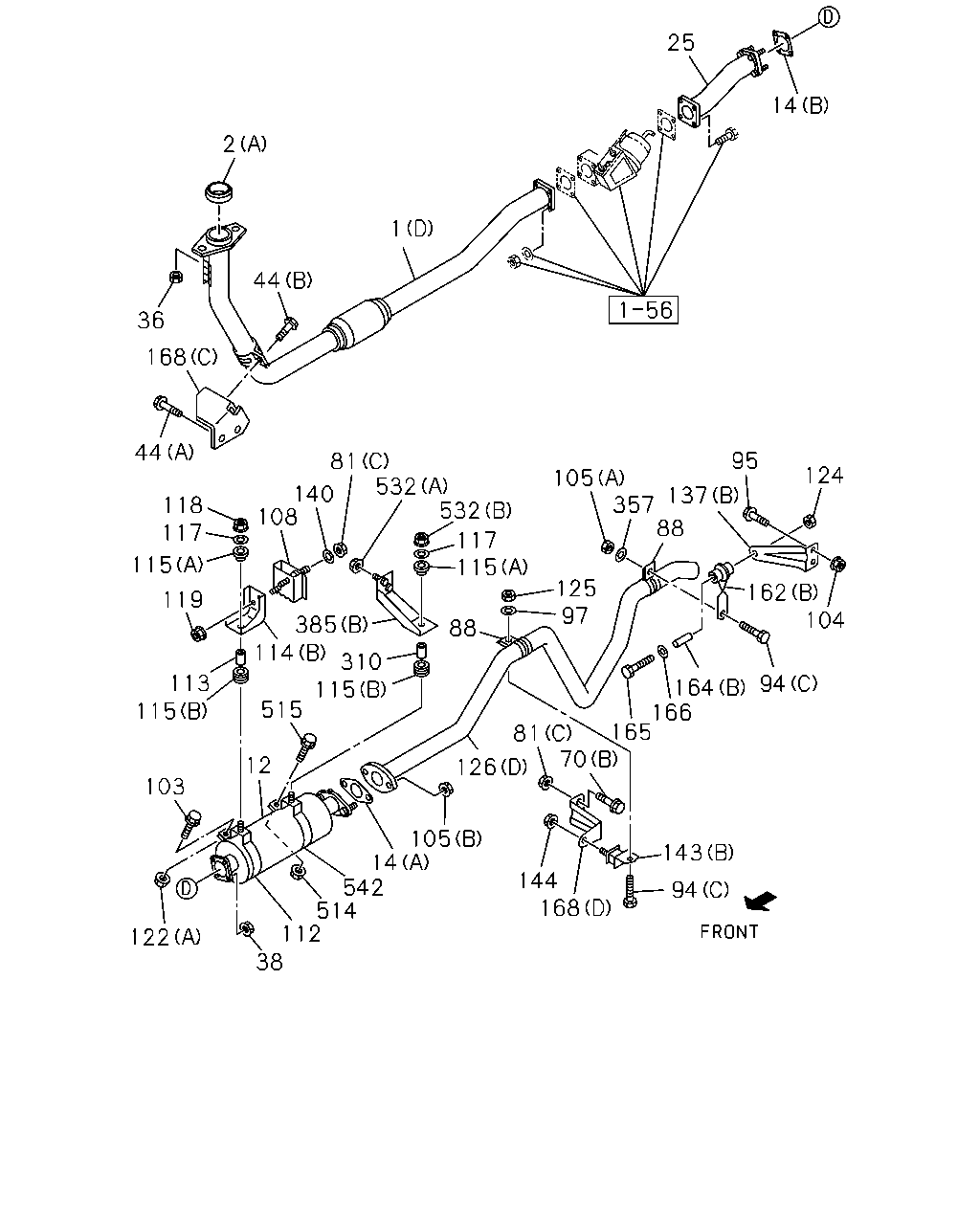

çizim 420663
25 14 2 1 44 1 56 36 168 44 95 81 532 124 105 357 88 532 140 108 137 118 117 117 115 115 125 97 162 104 119 385 114 88 310 115 113 115 94 164 166 81 165 70 515 12 126 103 105 14 542 514 112 143 144 168 94 122 38
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
EXHAUST BRAKE<NF8> (A) 		8-97034-086-1 01 1 9701-9809
1 PIPE; EXH
(A) 		8-97214-685-0 01 1 9810-9905
1 PIPE; EXH
4JG2 ENG(RJC) (B) 		8-97212-561-1 01 1 9906-0207
1 PIPE; EXH
4JH1 ENG(RJX) (C) 		8-97311-667-0 01 1 0208-0211
1 PIPE; EXH
4JH1 ENG(RJX) (C) 		8-97356-339-1 01 1 0212-0511
1 PIPE; EXH
4JH1-TC ENG(RDM) (C) 		8-97356-339-1 01 1 0512-0610
1 PIPE; EXH
4JJ1 ENG(LFB) (E) 		8-98026-060-0 01 1 0611-
1 PIPE; EXH
EXC. EXHAUST BRAKE<NF8> (A) TAI 		8-97965-149-0 01 1 9701-9809
1 PIPE; EXH
4JH1 ENG(RJX) (D) 		8-97305-630-1 01 1 0412-0511
1 PIPE; EXH
4JH1-TC ENG(RDM) (D) 		8-97305-630-1 01 1 0512-0610
1 PIPE; EXH
4JJ1 ENG(LFB) (F) 		8-98005-237-0 01 1 0611-
2 GASKET; PIPE TO MANIF
EXC. EXHAUST BRAKE<NF8> (A) 		8-97069-287-0 01 1 9701-9709
2 GASKET; PIPE TO MANIF
EXC. EXHAUST BRAKE<NF8> (A) 		8-97180-750-2 01 1 9710-9809
2 GASKET; PIPE TO MANIF
4JG2 ENG(RJC) (B) ID=71 		8-94324-194-0 02 1 9906-0207
2 GASKET; PIPE TO MANIF
4JG2 ENG(RJC) (A) 		8-97180-750-2 01 1 9906-0207
2 GASKET; PIPE TO MANIF
4JH1 ENG(RJX) (A) 		8-97180-750-2 01 1 0208-0408
2 GASKET; PIPE TO MANIF
4JH1 ENG(RJX) (A) 		8-97381-456-0 01 1 0409-0411
2 GASKET; PIPE TO MANIF
4JH1 ENG(RJX) (A) 		8-97381-456-0 01 1 0412-0511
2 GASKET; PIPE TO MANIF
4JH1-TC ENG(RDM) (A) 		8-97381-456-0 01 1 0512-0610
2 GASKET; PIPE TO MANIF
4JJ1 ENG(LFB) (C) 		8-97384-590-0 01 1 0611-
12 SILENCER ASM; EXH
TAI 		8-97965-379-1 01 1 9701-9905
12 SILENCER ASM; EXH
4JG2 ENG(RJC) 		8-97221-923-0 01 1 9906-0207
12 SILENCER ASM; EXH
4JH1 ENG(RJX) 		8-97309-650-0 01 1 0208-0411
12 SILENCER ASM; EXH
4JH1 ENG(RJX) 		8-97309-650-0 01 1 0412-0511
12 SILENCER ASM; EXH
4JH1-TC ENG(RDM) 		8-97309-650-0 01 1 0512-0610
12 SILENCER ASM; EXH
4JJ1 ENG(LFB) 		8-98021-917-1 01 1 0611-
12 SILENCER ASM; EXH
4JJ1 ENG(LFB) 		8-98001-836-1 01 1 0611-
14 GASKET; SILENCER TO EXH PIPE
4JH1 ENG(RJX) (A) ID=64.7 		8-94328-352-0 01 1 0208-0411
14 GASKET; SILENCER TO EXH PIPE
4JH1 ENG(RJX) (A) ID=64.7 		8-94328-352-0 01 1 0412-0511
14 GASKET; SILENCER TO EXH PIPE
4JH1-TC ENG(RDM) (A) ID=64.7 		8-94328-352-0 01 1 0512-0610
14 GASKET; SILENCER TO EXH PIPE
4JJ1 ENG(LFB) (C) ID=65 		8-97148-757-1 01 1 0611-
14 GASKET; SILENCER TO EXH PIPE
4JJ1 ENG(LFB) (C) ID=65 		8-97148-757-1 01 1 0611-
14 GASKET; SILENCER TO EXH PIPE
4JH1 ENG(RJX) (B) ID=54 		8-94328-354-0 01 1 0412-0511
14 GASKET; SILENCER TO EXH PIPE
4JH1-TC ENG(RDM) (B) ID=54 		8-94328-354-0 01 1 0512-0610
25 PIPE; EXH,BRK VLV TO SILENCER
4JG2 ENG(RJC) 		8-97206-030-0 01 1 9906-0207
25 PIPE; EXH,BRK VLV TO SILENCER
4JH1 ENG(RJX) 		8-97320-579-0 01 1 0208-0511
25 PIPE; EXH,BRK VLV TO SILENCER
4JH1-TC ENG(RDM) 		8-97320-579-0 01 1 0512-0610
25 PIPE; EXH,BRK VLV TO SILENCER
4JH1 ENG(RJX) 		8-97320-578-0 01 1 0412-0511
25 PIPE; EXH,BRK VLV TO SILENCER
4JH1-TC ENG(RDM) 		8-97320-578-0 01 1 0512-0610
25 PIPE; EXH,BRK VLV TO SILENCER
4JJ1 ENG(LFB) 		8-98026-061-2 01 1 0611-
36 NUT; EXH PIPE
EXHAUST BRAKE<NF8> M10 H=18 		9-09640-014-0 02 1 9701-9809
36 NUT; EXH PIPE
M10 H=18 		9-09640-014-0 02 1 9810-9905
36 NUT; EXH PIPE
4JG2 ENG(RJC) M10 FLANGE 		8-97096-192-1 02 1 9906-0207
36 NUT; EXH PIPE
4JH1 ENG(RJX) M10 FLANGE 		8-97096-192-1 02 1 0208-0411
36 NUT; EXH PIPE
4JH1 ENG(RJX) M10 FLANGE 		8-97096-192-1 02 1 0412-0511
36 NUT; EXH PIPE
4JH1-TC ENG(RDM) M10 FLANGE 		8-97096-192-1 02 1 0512-0610
36 NUT; EXH PIPE
4JJ1 ENG(LFB) M10 FLANGE 		8-97096-192-1 03 1 0611-
36 NUT; EXH PIPE
EXC. EXHAUST BRAKE<NF8> M10 FLANGE 		8-97096-192-1 02 1 9701-9809
38 NUT; SILENCER
M8 		9-09110-408-0 01 1 9701-9905
38 NUT; SILENCER
4JH1 ENG(RJX) M8 FLANGE 		0-91150-108-0 04 1 0412-0511
38 NUT; SILENCER
4JH1-TC ENG(RDM) M8 FLANGE 		0-91150-108-0 04 1 0512-0602
38 NUT; SILENCER
4JH1-TC ENG(RDM) M8 FLANGE 		0-91180-108-0 04 1 0603-0610
38 NUT; SILENCER
4JJ1 ENG(LFB) M10 FLANGE 		0-91180-210-0 02 1 0611-0612
38 NUT; SILENCER
4JJ1 ENG(LFB) M10 FLANGE 		0-91180-210-0 02 1 0611-0612
38 NUT; SILENCER
4JJ1 ENG(LFB) M10 FLANGE 		0-91180-110-0 02 1 0701-
38 NUT; SILENCER
4JJ1 ENG(LFB) M10 FLANGE 		0-91180-110-0 02 1 0701-
44 BOLT; BRKT
(A) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9701-9905
44 BOLT; BRKT
4JG2 ENG(RJC) (A) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9906-0207
44 BOLT; BRKT
4JH1 ENG(RJX) (A) M8X16 FLANGE 		0-28080-816-0 02 1 0208-0411
44 BOLT; BRKT
4JH1 ENG(RJX) (A) M8X16 FLANGE 		0-28080-816-0 02 1 0412-0511
44 BOLT; BRKT
4JH1-TC ENG(RDM) (A) M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512
44 BOLT; BRKT
4JH1-TC ENG(RDM) (A) M8X16 FLANGE 		0-28050-816-0 02 1 0601-0610
44 BOLT; BRKT
4JJ1 ENG(LFB) (C) M10X25 FLANGE 		0-28151-025-0 02 1 0611-
44 BOLT; BRKT
(B) M8X40 W/LK WASHER 		0-50040-840-0 01 1 9701-9905
44 BOLT; BRKT
4JG2 ENG(RJC) (B) M8X40 W/LK WASHER 		0-50040-840-0 01 1 9906-0207
44 BOLT; BRKT
4JH1 ENG(RJX) (B) M8X40 W/LK WASHER 		0-50040-840-0 01 1 0208-0404
44 BOLT; BRKT
4JH1 ENG(RJX) (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0405-0411
44 BOLT; BRKT
4JH1 ENG(RJX) (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0412-0511
44 BOLT; BRKT
4JH1-TC ENG(RDM) (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0512-0610
44 BOLT; BRKT
4JJ1 ENG(LFB) (D) M10X30 FLANGE 		0-28651-030-0 02 1 0611-
44 BOLT; BRKT
4JJ1 ENG(LFB) (E) M10X35 FLANGE 		0-28651-035-0 02 1 0611-
70 BOLT; BRKT
4JJ1 ENG(LFB) (A) M10X30 FLANGE 		0-28651-030-0 04 1 0703-
70 BOLT; BRKT
4JG2 ENG(RJC) (A) M10X30 FLANGE 		0-28681-030-0 02 1 9906-0207
70 BOLT; BRKT
4JJ1 ENG(LFB) (C) M10X30 FLANGE 		0-28651-030-0 02 1 0611-0702
70 BOLT; BRKT
4JJ1 ENG(LFB) (C) M10X30 FLANGE 		0-28651-030-0 02 1 0611-0702
70 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 01 1 0703-
70 BOLT; BRKT
4JH1 ENG(RJX) (B) M8X25 FLANGE 		0-28680-825-0 02 1 0412-0511
70 BOLT; BRKT
4JH1-TC ENG(RDM) (B) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512
70 BOLT; BRKT
4JH1-TC ENG(RDM) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0610
70 BOLT; BRKT
4JJ1 ENG(LFB) (D) M8X25 FLANGE 		0-28650-825-0 02 1 0611-
81 NUT; BRKT
4JJ1 ENG(LFB) (B) M10 FLANGE 		0-91180-110-0 02 1 0703-
81 NUT; BRKT
4JG2 ENG(RJC) (A) M8 FLANGE 		0-91150-108-0 02 1 9906-0207
81 NUT; BRKT
4JH1 ENG(RJX) (B) M10 FLANGE 		0-91150-110-0 01 1 0208-0511
81 NUT; BRKT
4JH1-TC ENG(RDM) (B) M10 FLANGE 		0-91150-110-0 01 1 0512-0602
81 NUT; BRKT
4JH1-TC ENG(RDM) (B) M10 FLANGE 		0-91180-110-0 01 1 0603-0610
81 NUT; BRKT
4JJ1 ENG(LFB) (D) M10 FLANGE 		0-91180-210-0 02 1 0611-0612
81 NUT; BRKT
4JJ1 ENG(LFB) (B) M10 FLANGE 		0-91180-110-0 02 1 0701-0702
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-110-0 01 1 0703-
81 NUT; BRKT
4JH1 ENG(RJX) (C) M8 FLANGE 		0-91150-108-0 04 1 0412-0511
81 NUT; BRKT
4JH1-TC ENG(RDM) (C) M8 FLANGE 		0-91150-108-0 04 1 0512-0602
81 NUT; BRKT
4JH1-TC ENG(RDM) (C) M8 FLANGE 		0-91180-108-0 04 1 0603-0610
81 NUT; BRKT
4JJ1 ENG(LFB) (E) M8 FLANGE 		0-91180-208-0 02 1 0611-0612
81 NUT; BRKT
4JJ1 ENG(LFB) (C) M8 FLANGE 		0-91180-108-0 02 1 0701-

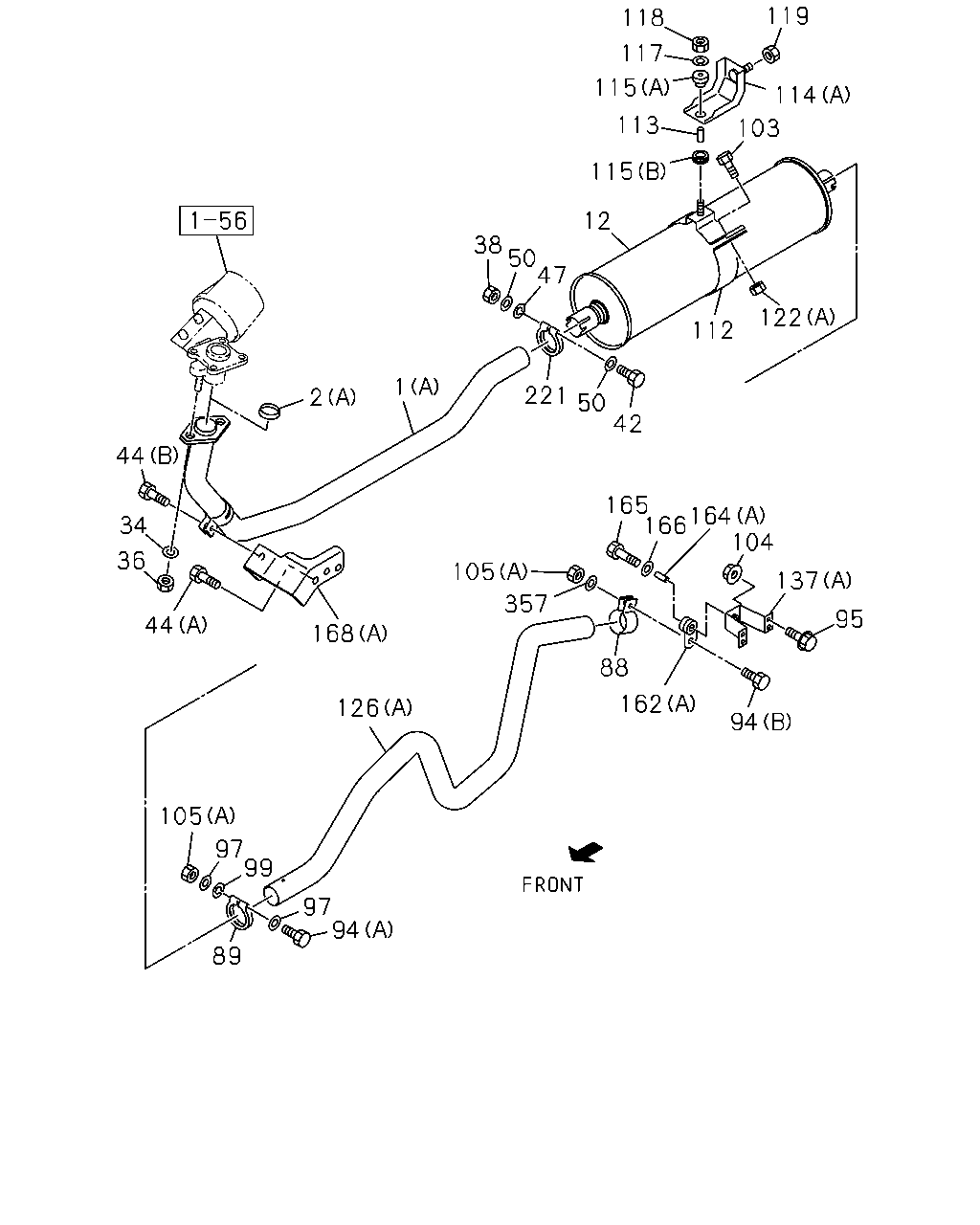

88 CLAMP; EXH PIPE
ID=51.5 		8-97016-034-0 01 1 9701-9903
88 CLAMP; EXH PIPE
ID=51.5 		8-97222-648-0 01 1 9904-9905
88 CLAMP; EXH PIPE
4JG2 ENG(RJC) ID=51.5 		8-97222-648-0 01 1 9906-0112
88 CLAMP; EXH PIPE
4JG2 ENG(RJC) ID=51.5 		8-97222-648-0 01 1 9906-0112
88 CLAMP; EXH PIPE
4JG2 ENG(RJC) ID=51.5 		8-97325-352-0 01 1 0201-0207
88 CLAMP; EXH PIPE
4JG2 ENG(RJC) ID=51.5 		8-97325-352-0 01 1 0201-0207
88 CLAMP; EXH PIPE
4JH1 ENG(RJX) ID=61.6 		8-97010-307-0 01 1 0208-0411
88 CLAMP; EXH PIPE
4JH1 ENG(RJX) ID=61.6 		8-97010-307-0 01 1 0412-0511
88 CLAMP; EXH PIPE
4JH1 ENG(RJX) ID=61.6 		8-97010-307-0 01 1 0412-0511
88 CLAMP; EXH PIPE
4JH1-TC ENG(RDM) ID=61.6 		8-97010-307-0 01 1 0512-0610
88 CLAMP; EXH PIPE
4JH1-TC ENG(RDM) ID=61.6 		8-97010-307-0 01 1 0512-0610
88 CLAMP; EXH PIPE
4JJ1 ENG(LFB) 		8-97373-158-0 01 1 0611-
94 BOLT; CLAMP
(A) M8X65 		0-10805-865-0 01 1 9701-9905
94 BOLT; CLAMP
(B) M8X45 		0-20800-845-0 01 1 9701-9905
94 BOLT; CLAMP
(C) M8X45 		0-20800-845-0 01 1 9906-0207
94 BOLT; CLAMP
4JG2 ENG(RJC) (C) M8X45 		0-20800-845-0 01 1 9906-0207
94 BOLT; CLAMP
(C) M8X45 		0-20800-845-0 01 1 0208-0411
94 BOLT; CLAMP
(C) M8X45 		0-20800-845-0 01 1 0412-0511
94 BOLT; CLAMP
4JH1 ENG(RJX) (C) M8X45 		0-20800-845-0 01 1 0412-0511
94 BOLT; CLAMP
(C) M8X45 		0-20800-845-0 01 1 0512-0610
94 BOLT; CLAMP
4JH1-TC ENG(RDM) (C) M8X45 		0-20800-845-0 01 1 0512-0610
94 BOLT; CLAMP
4JJ1 ENG(LFB) (E) M10X50 FLANGE 		8-97301-165-0 01 1 0611-
94 BOLT; CLAMP
(D) M10X45 FLANGE 		0-28051-045-0 01 1 0611-
95 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9701-0411
95 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0412-0512
95 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
97 WASHER; PL,CLAMP
ID=8.4 		9-09164-508-0 02 1 9701-9905
97 WASHER; PL,CLAMP
4JG2 ENG(RJC) ID=8.4 OD=18 		9-09164-608-0 01 1 9906-0207
97 WASHER; PL,CLAMP
4JH1 ENG(RJX) ID=8.4 OD=18 		9-09164-608-0 01 1 0412-0511
97 WASHER; PL,CLAMP
4JH1-TC ENG(RDM) ID=8.4 OD=18 		9-09164-608-0 01 1 0512-0605
97 WASHER; PL,CLAMP
4JH1-TC ENG(RDM) ID=8.4 OD=18 		0-91614-608-0 01 1 0606-0610
97 WASHER; PL,CLAMP
4JJ1 ENG(LFB) ID=10.5 OD=22 		0-91614-610-0 01 1 0611-
103 BOLT; SILENCER BRKT FIX
M8X45 W/LK WASHER 		0-50040-845-0 01 1 9701-0411
103 BOLT; SILENCER BRKT FIX
M8X45 W/LK WASHER 		0-50040-845-0 01 1 0412-0610
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9701-0411
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0412-0602
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-0610
104 NUT; BRKT
M8 FLANGE 		0-91180-208-0 02 1 0611-0612
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0701-
105 NUT; CLAMP
(A) M8 		9-09110-408-0 02 1 9701-9905
105 NUT; CLAMP
(A) M8 		9-09110-408-0 01 1 9906-0207
105 NUT; CLAMP
4JG2 ENG(RJC) (A) M8 		9-09110-408-0 01 1 9906-0207
105 NUT; CLAMP
(A) M8 		9-09110-408-0 01 1 0208-0411
105 NUT; CLAMP
(A) M8 		9-09110-408-0 01 1 0412-0512
105 NUT; CLAMP
(A) M8 		0-91110-508-0 01 1 0601-0610
105 NUT; CLAMP
(C) M10 		0-91110-510-0 01 1 0611-
105 NUT; CLAMP
4JH1 ENG(RJX) (B) M10 FLANGE 		0-91150-110-0 02 1 0208-0411
105 NUT; CLAMP
4JH1 ENG(RJX) (B) M10 FLANGE 		0-91150-110-0 02 1 0412-0511
105 NUT; CLAMP
4JH1-TC ENG(RDM) (B) M10 FLANGE 		0-91150-110-0 02 1 0512-0602
105 NUT; CLAMP
4JH1-TC ENG(RDM) (B) M10 FLANGE 		0-91180-110-0 02 1 0603-0610
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
4JH1 ENG(RJX) 		8-97179-737-0 01 1 0412-0511
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
4JH1-TC ENG(RDM) 		8-97179-737-0 01 1 0512-0610
112 BRACKET; HANGER 8-97081-457-0 01 1 9701-9702
112 BRACKET; HANGER 8-97076-018-0 01 1 9703-9905
112 BRACKET; HANGER
4JG2 ENG(RJC) TAI 		8-97966-891-0 01 1 9906-0207
112 BRACKET; HANGER
4JH1 ENG(RJX) TAI 		8-97967-282-0 01 1 0208-0411
112 BRACKET; HANGER
4JH1 ENG(RJX) TAI 		8-97967-282-0 01 1 0412-0511
112 BRACKET; HANGER
4JH1-TC ENG(RDM) TAI 		8-97967-282-0 01 1 0512-0610
113 COLLAR; DIST,MTG BRKT
L=37.5 		9-22151-217-0 01 1 9701-0411
113 COLLAR; DIST,MTG BRKT
L=37.5 		9-22151-217-0 01 1 0412-0610
113 COLLAR; DIST,MTG BRKT
4JJ1 ENG(LFB) L=37.5 		9-22151-217-0 02 1 0611-

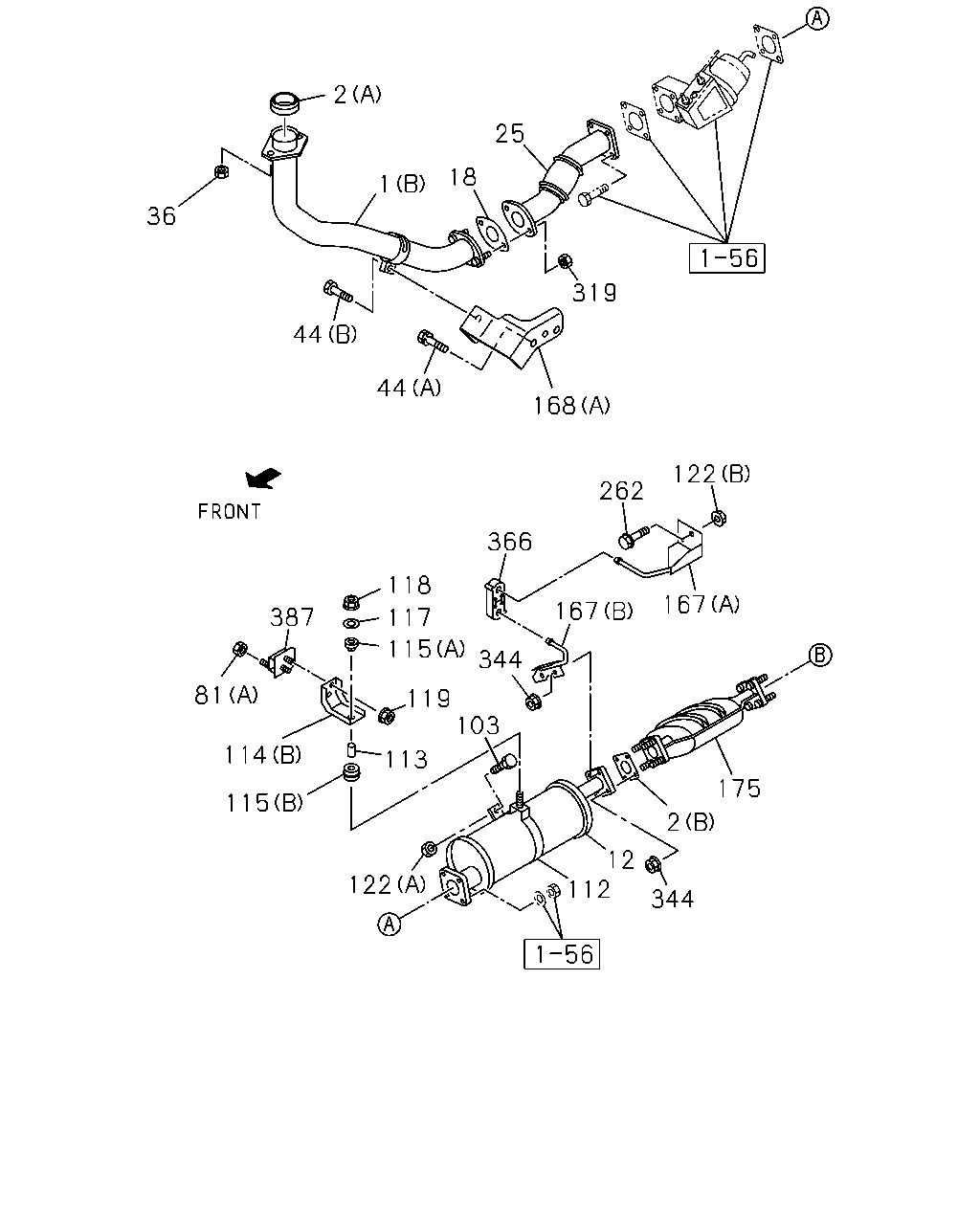

114 BRACKET; EXH SILENCER
(A) 		8-94329-856-0 01 1 9701-9707
114 BRACKET; EXH SILENCER
(A) TAI 		8-97965-876-0 01 1 9708-9905
114 BRACKET; EXH SILENCER
4JG2 ENG(RJC) (B) 		8-97073-758-0 01 1 9906-0207
114 BRACKET; EXH SILENCER
4JH1 ENG(RJX) (B) 		8-97073-758-0 01 1 0208-0511
114 BRACKET; EXH SILENCER
4JH1-TC ENG(RDM) (B) 		8-97073-758-0 01 1 0512-0610
114 BRACKET; EXH SILENCER
4JH1 ENG(RJX) (C) 		8-97312-902-0 01 1 0208-0511
114 BRACKET; EXH SILENCER
4JH1-TC ENG(RDM) (C) 		8-97312-902-0 01 1 0512-0610
114 BRACKET; EXH SILENCER
4JH1 ENG(RJX) (B) 		8-97172-313-0 01 1 0412-0511
114 BRACKET; EXH SILENCER
4JH1-TC ENG(RDM) (B) 		8-97172-313-0 01 1 0512-0610
115 RUBBER; MTG,SILENCER
(A) TAI 		8-97965-421-0 01 1 9701-0207
115 RUBBER; MTG,SILENCER
(A) TAI 		8-97965-421-0 01 1 0208-0411
115 RUBBER; MTG,SILENCER
4JH1 ENG(RJX) (A) TAI 		8-97965-421-0 01 1 0208-0411
115 RUBBER; MTG,SILENCER
(A) TAI 		8-97965-421-0 01 1 0412-0511
115 RUBBER; MTG,SILENCER
4JH1 ENG(RJX) (A) TAI 		8-97965-421-0 01 1 0412-0511
115 RUBBER; MTG,SILENCER
(A) TAI 		8-97965-421-0 01 1 0512-0610
115 RUBBER; MTG,SILENCER
4JH1-TC ENG(RDM) (A) TAI 		8-97965-421-0 01 1 0512-0610
115 RUBBER; MTG,SILENCER
4JJ1 ENG(LFB) (A) TAI 		8-97965-421-0 02 1 0611-
115 RUBBER; MTG,SILENCER
(B) TAI 		8-97965-422-0 01 1 9701-0207
115 RUBBER; MTG,SILENCER
(B) TAI 		8-97965-422-0 01 1 0208-0411
115 RUBBER; MTG,SILENCER
4JH1 ENG(RJX) (B) TAI 		8-97965-422-0 01 1 0208-0411
115 RUBBER; MTG,SILENCER
(B) TAI 		8-97965-422-0 01 1 0412-0511
115 RUBBER; MTG,SILENCER
4JH1 ENG(RJX) (B) TAI 		8-97965-422-0 01 1 0412-0511
115 RUBBER; MTG,SILENCER
(B) TAI 		8-97965-422-0 01 1 0512-0610
115 RUBBER; MTG,SILENCER
4JH1-TC ENG(RDM) (B) TAI 		8-97965-422-0 01 1 0512-0610
115 RUBBER; MTG,SILENCER
4JJ1 ENG(LFB) (B) TAI 		8-97965-422-0 02 1 0611-
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 01 1 9701-0207
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 01 1 0208-0411
117 WASHER; PL,SILENCER MTG BRKT
4JH1 ENG(RJX) OD=55 		9-09852-169-0 01 1 0208-0411
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 01 1 0412-0511
117 WASHER; PL,SILENCER MTG BRKT
4JH1 ENG(RJX) OD=55 		9-09852-169-0 01 1 0412-0511
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 01 1 0512-0610
117 WASHER; PL,SILENCER MTG BRKT
4JH1-TC ENG(RDM) OD=55 		9-09852-169-0 01 1 0512-0610
117 WASHER; PL,SILENCER MTG BRKT
4JJ1 ENG(LFB) OD=55 		9-09852-169-0 02 1 0611-
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		5-09440-006-0 01 1 9701-0411
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		5-09440-006-0 01 1 0412-0610
118 NUT; SILENCER MTG BRKT
4JJ1 ENG(LFB) M10 FLANGE 		5-09440-006-0 02 1 0611-
119 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9701-0411
119 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0412-0602
119 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-0610
122 NUT; HANGER BRKT
(A) M8 		9-09110-408-0 01 1 9701-0411
122 NUT; HANGER BRKT
(A) M8 		9-09110-408-0 01 1 0412-0512
122 NUT; HANGER BRKT
(A) M8 		0-91110-508-0 01 1 0601-0610
122 NUT; HANGER BRKT
4JG2 ENG(RJC) (B) M8 FLANGE 		0-91150-108-0 02 1 9906-0207
124 NUT; SUPPORT RUBBER
4JH1 ENG(RJX) M10 		9-09110-410-0 01 1 0412-0511
124 NUT; SUPPORT RUBBER
4JH1-TC ENG(RDM) M10 		9-09110-410-0 01 1 0512-0512
124 NUT; SUPPORT RUBBER
4JH1-TC ENG(RDM) M10 		0-91110-510-0 01 1 0601-0610
124 NUT; SUPPORT RUBBER
4JJ1 ENG(LFB) M10 FLANGE 		0-91180-210-0 01 1 0611-0612
124 NUT; SUPPORT RUBBER
4JJ1 ENG(LFB) M10 FLANGE 		0-91180-110-0 01 1 0701-
125 NUT; CLAMP
4JH1 ENG(RJX) M8 		9-09110-408-0 01 1 0412-0511
125 NUT; CLAMP
4JH1-TC ENG(RDM) M8 		9-09110-408-0 01 1 0512-0512
125 NUT; CLAMP
4JH1-TC ENG(RDM) M8 		0-91110-508-0 01 1 0601-0610
125 NUT; CLAMP
4JJ1 ENG(LFB) M10 		0-91110-510-0 01 1 0611-

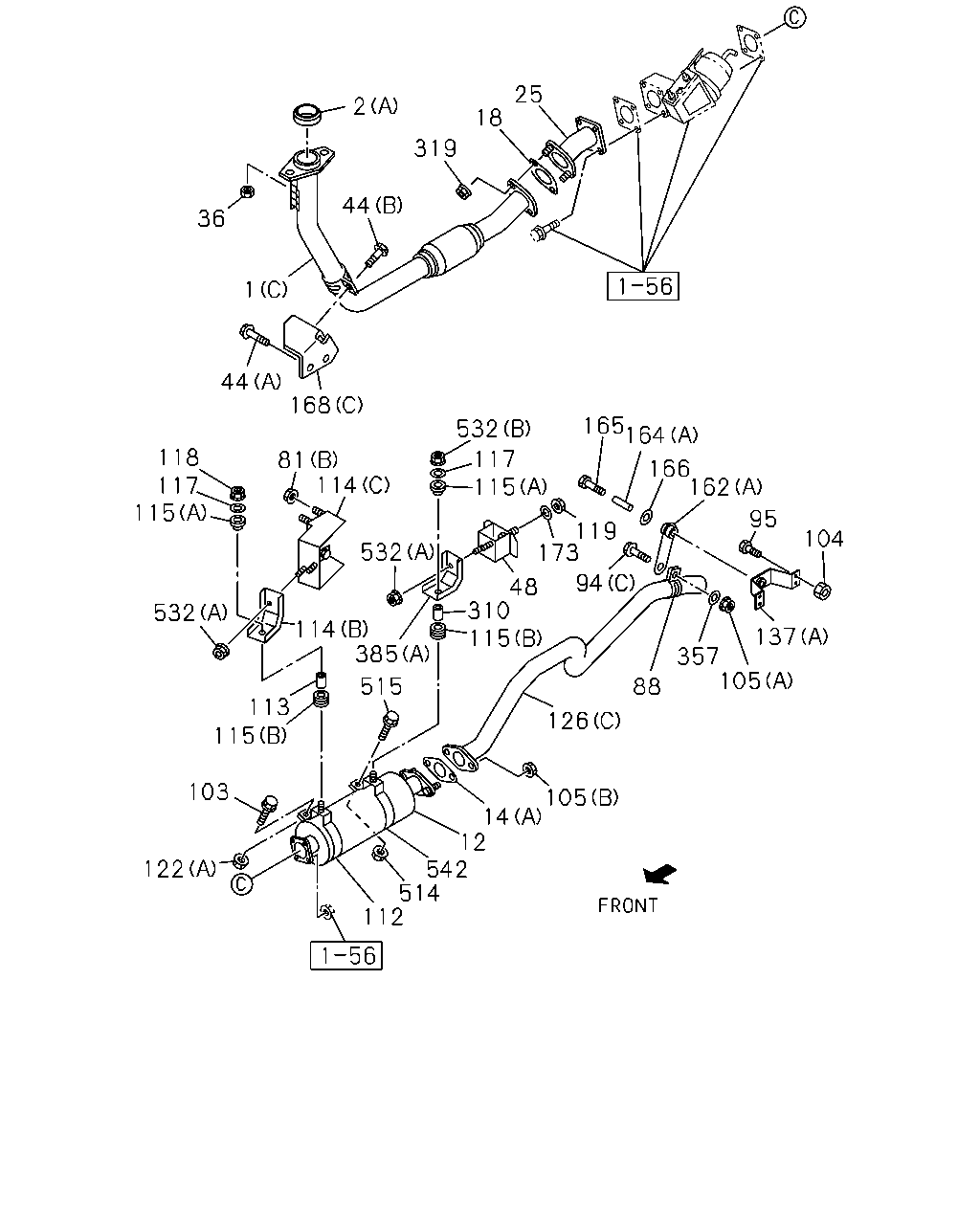

126 PIPE; EXH,RR
(A) TAI 		8-97965-150-0 01 1 9701-9905
126 PIPE; EXH,RR
4JG2 ENG(RJC) (B) 		8-97212-562-1 01 1 9906-0207
126 PIPE; EXH,RR
4JH1 ENG(RJX) (C) TAI 		8-97967-226-0 01 1 0208-0511
126 PIPE; EXH,RR
4JH1-TC ENG(RDM) (C) TAI 		8-97967-226-0 01 1 0512-0610
126 PIPE; EXH,RR
4JJ1 ENG(LFB) (E) 		8-98035-092-0 01 1 0611-
126 PIPE; EXH,RR
4JH1 ENG(RJX) (D) TAI 		8-97260-001-1 01 1 0412-0511
126 PIPE; EXH,RR
4JH1-TC ENG(RDM) (D) TAI 		8-97260-001-1 01 1 0512-0610
126 PIPE; EXH,RR
4JJ1 ENG(LFB) (F) 		8-98025-643-1 01 1 0611-
137 BRACKET; TAIL PIPE
(A) 		9-22121-146-1 01 1 9701-9707
137 BRACKET; TAIL PIPE
(A) TAI 		8-97965-877-0 01 1 9708-0610
137 BRACKET; TAIL PIPE
(C) TAI 		8-97967-584-0 01 1 0611-
137 BRACKET; TAIL PIPE
4JH1 ENG(RJX) (B) 		8-94468-175-0 01 1 0412-0511
137 BRACKET; TAIL PIPE
4JH1-TC ENG(RDM) (B) 		8-94468-175-0 01 1 0512-0610
137 BRACKET; TAIL PIPE
4JJ1 ENG(LFB) (D) TAI 		8-97967-583-0 01 1 0611-
140 WASHER; LK,BRKT TO FRAME
4JH1 ENG(RJX) ID=8.4 OD=26 		9-09164-808-0 01 1 0412-0412
140 WASHER; LK,BRKT TO FRAME
4JH1 ENG(RJX) ID=8.4 OD=26 		9-09164-808-0 02 1 0501-0511
140 WASHER; LK,BRKT TO FRAME
4JH1-TC ENG(RDM) ID=8.4 OD=26 		9-09164-808-0 02 1 0512-0605
140 WASHER; LK,BRKT TO FRAME
4JH1-TC ENG(RDM) ID=8.4 OD=26 		0-91614-808-0 02 1 0606-0610

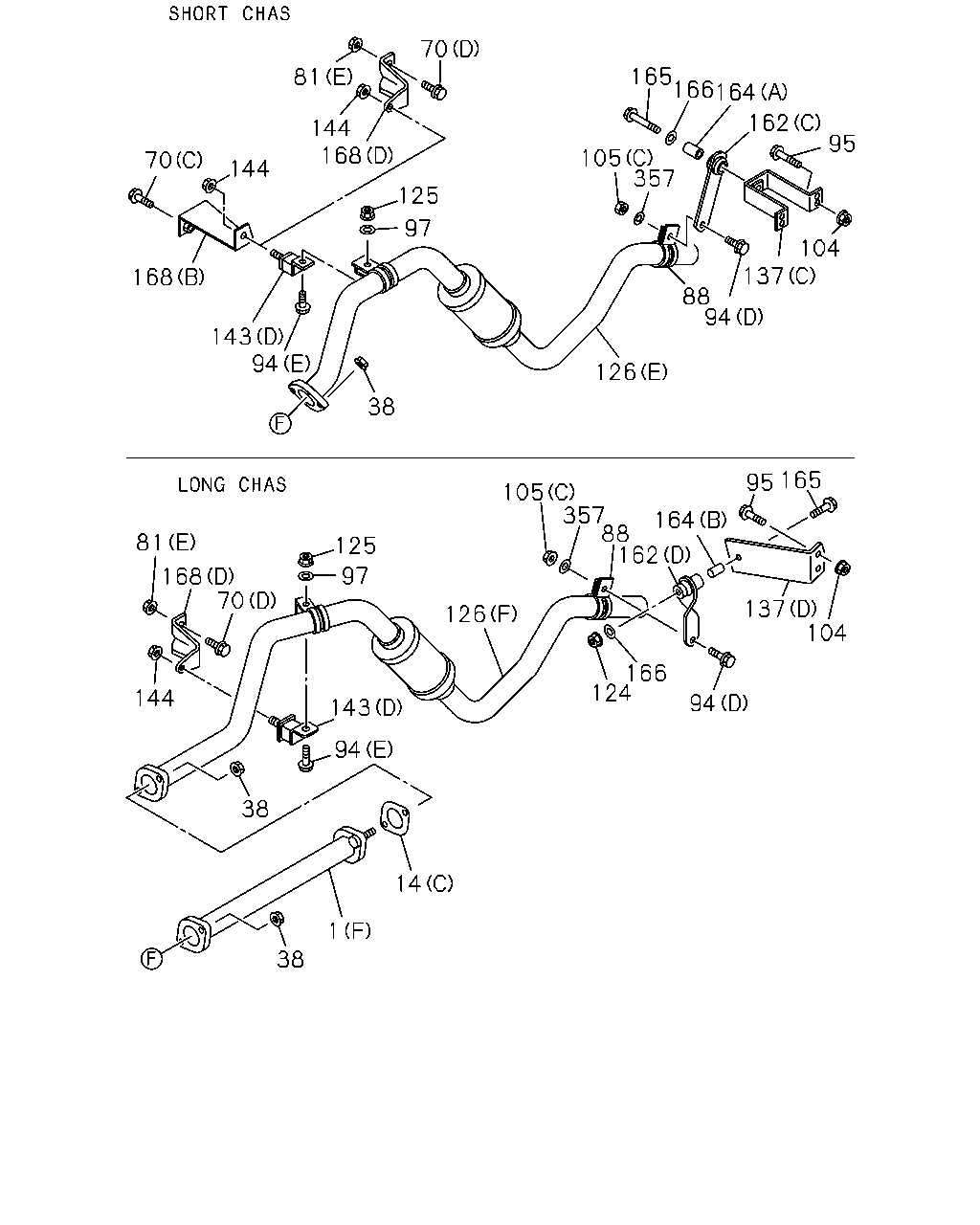

143 RUBBER; SUPPORT
4JG2 ENG(RJC) (A) 		8-97046-148-1 01 1 9906-9908
143 RUBBER; SUPPORT
4JG2 ENG(RJC) (A) 		8-97229-586-0 01 1 9909-0207
143 RUBBER; SUPPORT
4JJ1 ENG(LFB) (D) 		8-98034-767-0 01 1 0611-
143 RUBBER; SUPPORT
4JH1 ENG(RJX) (B) 		8-97371-655-0 01 1 0412-0511
143 RUBBER; SUPPORT
4JH1-TC ENG(RDM) (B) 		8-97371-655-0 01 1 0512-0610
143 RUBBER; SUPPORT
4JJ1 ENG(LFB) (C) 		8-97080-694-0 01 1 0611-
144 NUT; MTG RUBBER
4JG2 ENG(RJC) M8 FLANGE 		0-91150-108-0 01 1 9906-0207
144 NUT; MTG RUBBER
4JH1 ENG(RJX) M8 FLANGE 		0-91150-108-0 01 1 0412-0511
144 NUT; MTG RUBBER
4JH1-TC ENG(RDM) M8 FLANGE 		0-91150-108-0 01 1 0512-0602
144 NUT; MTG RUBBER
4JH1-TC ENG(RDM) M8 FLANGE 		0-91180-108-0 01 1 0603-0610
144 NUT; MTG RUBBER
4JJ1 ENG(LFB) M8 FLANGE 		0-91180-208-0 01 1 0611-0612
144 NUT; MTG RUBBER
4JJ1 ENG(LFB) M8 FLANGE 		0-91180-108-0 01 1 0701-
162 RUBBER; SUPPORT,TAIL PIPE
(A) TAI 		8-97965-410-0 01 1 9701-0610
162 RUBBER; SUPPORT,TAIL PIPE
(C) L=150 TAI 		8-97373-139-1 01 1 0611-
162 RUBBER; SUPPORT,TAIL PIPE
4JH1 ENG(RJX) (B) L=115 		8-94156-256-0 01 1 0412-0511
162 RUBBER; SUPPORT,TAIL PIPE
4JH1-TC ENG(RDM) (B) L=115 		8-94156-256-0 01 1 0512-0610
162 RUBBER; SUPPORT,TAIL PIPE
4JJ1 ENG(LFB) (D) L=115 		8-98034-765-0 01 1 0611-
164 COLLAR; DIST,TAIL PIPE
(A) L=23 		9-22151-175-0 01 1 9701-0610
164 COLLAR; DIST,TAIL PIPE
(A) L=23 		8-98006-011-0 01 1 0611-
164 COLLAR; DIST,TAIL PIPE
4JH1 ENG(RJX) (B) L=37.5 		9-22151-217-0 01 1 0412-0511
164 COLLAR; DIST,TAIL PIPE
4JH1-TC ENG(RDM) (B) L=37.5 		9-22151-217-0 01 1 0512-0610
164 COLLAR; DIST,TAIL PIPE
4JJ1 ENG(LFB) (B) L=37.5 		9-22151-217-0 01 1 0611-
165 BOLT; SUPPORT RUBBER
M8X45 FLANGE 		0-28080-845-0 01 1 9701-0512
165 BOLT; SUPPORT RUBBER
M8X45 FLANGE 		0-28050-845-0 01 1 0601-0610
165 BOLT; SUPPORT RUBBER
M10X45 FLANGE 		0-28051-045-0 01 1 0611-
165 BOLT; SUPPORT RUBBER
4JH1 ENG(RJX) M10X70 FLANGE 		0-28081-070-0 01 1 0412-0511
165 BOLT; SUPPORT RUBBER
4JH1-TC ENG(RDM) M10X70 FLANGE 		0-28081-070-0 01 1 0512-0512
165 BOLT; SUPPORT RUBBER
4JH1-TC ENG(RDM) M10X70 FLANGE 		0-28051-070-0 01 1 0601-0610
165 BOLT; SUPPORT RUBBER
4JJ1 ENG(LFB) M10X70 FLANGE 		0-28051-070-0 01 1 0611-
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
ID=8.4 OD=26 		9-09164-808-0 01 1 9701-0605
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
ID=8.4 OD=26 		0-91614-808-0 01 1 0606-0610
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
4JH1 ENG(RJX) ID=10.5 OD=32 		9-09164-810-0 01 1 0412-0511
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
4JH1-TC ENG(RDM) ID=10.5 OD=32 		9-09164-810-0 01 1 0512-0605
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
4JH1-TC ENG(RDM) ID=10.5 OD=32 		0-91614-810-0 01 1 0606-0610
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
4JJ1 ENG(LFB) ID=10.5 OD=32 		0-91614-810-0 01 1 0611-
168 BRACKET; EXH PIPE,FRT
(A) 		8-97084-346-2 01 1 9701-9905
168 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC) (A) 		8-97084-346-2 01 1 9906-0207
168 BRACKET; EXH PIPE,FRT
4JH1 ENG(RJX) (C) TAI 		8-97240-857-0 01 1 0208-0411
168 BRACKET; EXH PIPE,FRT
4JH1 ENG(RJX) (C) TAI 		8-97240-857-0 01 1 0412-0511
168 BRACKET; EXH PIPE,FRT
4JH1-TC ENG(RDM) (C) TAI 		8-97240-857-0 01 1 0512-0610
168 BRACKET; EXH PIPE,FRT
4JJ1 ENG(LFB) (E) TAI 		8-98026-063-0 01 1 0611-
168 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC) (B) 		8-97210-476-0 01 1 9906-0207
168 BRACKET; EXH PIPE,FRT
4JJ1 ENG(LFB) (B) 		8-97210-476-0 01 1 0611-
168 BRACKET; EXH PIPE,FRT
4JH1 ENG(RJX) (D) 		8-94468-174-1 01 1 0412-0511
168 BRACKET; EXH PIPE,FRT
4JH1-TC ENG(RDM) (D) 		8-94468-174-1 01 1 0512-0610
168 BRACKET; EXH PIPE,FRT
4JJ1 ENG(LFB) (D) 		8-94468-174-1 01 1 0611-
310 TUBE; DIST,EXH PIPE
4JH1 ENG(RJX) L=37.5 		9-22151-217-0 01 1 0208-0411
310 TUBE; DIST,EXH PIPE
4JH1 ENG(RJX) L=37.5 		9-22151-217-0 01 1 0412-0511
310 TUBE; DIST,EXH PIPE
4JH1-TC ENG(RDM) L=37.5 		9-22151-217-0 01 1 0512-0610
357 WASHER; PL,CLAMP
ID=8.4 OD=18 		9-09164-608-0 01 1 9701-0411
357 WASHER; PL,CLAMP
ID=8.4 OD=18 		9-09164-608-0 01 1 0412-0605
357 WASHER; PL,CLAMP
ID=8.4 OD=18 		0-91614-608-0 01 1 0606-0610
357 WASHER; PL,CLAMP
ID=10.5 OD=22 		0-91614-610-0 01 1 0611-
385 BRACKET; SILENCER MTG
4JH1 ENG(RJX) (A) 		8-97172-313-0 01 1 0208-0511
385 BRACKET; SILENCER MTG
4JH1-TC ENG(RDM) (A) 		8-97172-313-0 01 1 0512-0610
385 BRACKET; SILENCER MTG
4JJ1 ENG(LFB) (C) 		8-98018-970-1 01 1 0611-
385 BRACKET; SILENCER MTG
4JH1 ENG(RJX) (B) 		8-97260-094-1 01 1 0412-0511
385 BRACKET; SILENCER MTG
4JH1-TC ENG(RDM) (B) 		8-97260-094-1 01 1 0512-0610
385 BRACKET; SILENCER MTG
4JJ1 ENG(LFB) (C) 		8-98018-972-1 01 1 0611-
514 NUT; BAND
4JH1 ENG(RJX) M8 		9-09110-408-0 01 1 0208-0411
514 NUT; BAND
4JH1 ENG(RJX) M8 		9-09110-408-0 01 1 0412-0511
514 NUT; BAND
4JH1-TC ENG(RDM) M8 		9-09110-408-0 01 1 0512-0512
514 NUT; BAND
4JH1-TC ENG(RDM) M8 		0-91110-508-0 01 1 0601-0610
515 BOLT; BAND
4JH1 ENG(RJX) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0208-0411
515 BOLT; BAND
4JH1 ENG(RJX) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0412-0511
515 BOLT; BAND
4JH1-TC ENG(RDM) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0512-0610
532 NUT
4JH1 ENG(RJX) (A) M8 FLANGE 		0-91150-108-0 04 1 0208-0404
532 NUT
4JH1 ENG(RJX) (A) M8 FLANGE 		0-91150-108-0 02 1 0405-0411
532 NUT
4JH1 ENG(RJX) (A) M8 FLANGE 		0-91150-108-0 02 1 0405-0411
532 NUT
4JH1 ENG(RJX) (A) M8 FLANGE 		0-91150-108-0 02 1 0412-0511
532 NUT
4JH1 ENG(RJX) (A) M8 FLANGE 		0-91150-108-0 02 1 0412-0511
532 NUT
4JH1-TC ENG(RDM) (A) M8 FLANGE 		0-91150-108-0 02 1 0512-0602
532 NUT
4JH1-TC ENG(RDM) (A) M8 FLANGE 		0-91150-108-0 02 1 0512-0602
532 NUT
4JH1-TC ENG(RDM) (A) M8 FLANGE 		0-91180-108-0 02 1 0603-0610
532 NUT
4JH1-TC ENG(RDM) (A) M8 FLANGE 		0-91180-108-0 02 1 0603-0610
532 NUT
4JH1 ENG(RJX) (B) M10 FLANGE 		5-09440-006-0 01 1 0208-0411
532 NUT
4JH1 ENG(RJX) (B) M10 FLANGE 		5-09440-006-0 01 1 0412-0511
532 NUT
4JH1-TC ENG(RDM) (B) M10 FLANGE 		5-09440-006-0 01 1 0512-0610
532 NUT
4JJ1 ENG(LFB) (C) M8 FLANGE 		0-91180-208-0 02 1 0611-0612
532 NUT
4JJ1 ENG(LFB) (A) M8 FLANGE 		0-91180-108-0 02 1 0701-
542 BRACKET
4JH1 ENG(RJX) TAI 		8-97967-282-0 01 1 0208-0411
542 BRACKET
4JH1 ENG(RJX) TAI 		8-97967-282-0 01 1 0412-0511
542 BRACKET
4JH1-TC ENG(RDM) TAI 		8-97967-282-0 01 1 0512-0610
542 BRACKET
4JJ1 ENG(LFB) 		8-98018-933-1 01 1 0611-
çizim 420669
25 2 18 319 44 36 1 56 1 44 168 165 164 532 118 117 115 117 115 81 114 166 162 95 119 173 104 532 94 48 310 115 532 114 385 137 357 105 515 88 113 115 126 103 105 14 12 542 514 112 122 1 56
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
EXHAUST BRAKE<NF8> (A) 		8-97034-086-1 01 1 9701-9809
1 PIPE; EXH
(A) 		8-97214-685-0 01 1 9810-9905
1 PIPE; EXH
4JG2 ENG(RJC) (B) 		8-97212-561-1 01 1 9906-0207
1 PIPE; EXH
4JH1 ENG(RJX) (C) 		8-97311-667-0 01 1 0208-0211
1 PIPE; EXH
4JH1 ENG(RJX) (C) 		8-97356-339-1 01 1 0212-0511
1 PIPE; EXH
4JH1-TC ENG(RDM) (C) 		8-97356-339-1 01 1 0512-0610
1 PIPE; EXH
4JJ1 ENG(LFB) (E) 		8-98026-060-0 01 1 0611-
1 PIPE; EXH
EXC. EXHAUST BRAKE<NF8> (A) TAI 		8-97965-149-0 01 1 9701-9809
1 PIPE; EXH
4JH1 ENG(RJX) (D) 		8-97305-630-1 01 1 0412-0511
1 PIPE; EXH
4JH1-TC ENG(RDM) (D) 		8-97305-630-1 01 1 0512-0610
1 PIPE; EXH
4JJ1 ENG(LFB) (F) 		8-98005-237-0 01 1 0611-
2 GASKET; PIPE TO MANIF
EXC. EXHAUST BRAKE<NF8> (A) 		8-97069-287-0 01 1 9701-9709
2 GASKET; PIPE TO MANIF
EXC. EXHAUST BRAKE<NF8> (A) 		8-97180-750-2 01 1 9710-9809
2 GASKET; PIPE TO MANIF
4JG2 ENG(RJC) (B) ID=71 		8-94324-194-0 02 1 9906-0207
2 GASKET; PIPE TO MANIF
4JG2 ENG(RJC) (A) 		8-97180-750-2 01 1 9906-0207
2 GASKET; PIPE TO MANIF
4JH1 ENG(RJX) (A) 		8-97180-750-2 01 1 0208-0408
2 GASKET; PIPE TO MANIF
4JH1 ENG(RJX) (A) 		8-97381-456-0 01 1 0409-0411
2 GASKET; PIPE TO MANIF
4JH1 ENG(RJX) (A) 		8-97381-456-0 01 1 0412-0511
2 GASKET; PIPE TO MANIF
4JH1-TC ENG(RDM) (A) 		8-97381-456-0 01 1 0512-0610
2 GASKET; PIPE TO MANIF
4JJ1 ENG(LFB) (C) 		8-97384-590-0 01 1 0611-
12 SILENCER ASM; EXH
TAI 		8-97965-379-1 01 1 9701-9905
12 SILENCER ASM; EXH
4JG2 ENG(RJC) 		8-97221-923-0 01 1 9906-0207
12 SILENCER ASM; EXH
4JH1 ENG(RJX) 		8-97309-650-0 01 1 0208-0411
12 SILENCER ASM; EXH
4JH1 ENG(RJX) 		8-97309-650-0 01 1 0412-0511
12 SILENCER ASM; EXH
4JH1-TC ENG(RDM) 		8-97309-650-0 01 1 0512-0610
12 SILENCER ASM; EXH
4JJ1 ENG(LFB) 		8-98021-917-1 01 1 0611-
12 SILENCER ASM; EXH
4JJ1 ENG(LFB) 		8-98001-836-1 01 1 0611-
14 GASKET; SILENCER TO EXH PIPE
4JH1 ENG(RJX) (A) ID=64.7 		8-94328-352-0 01 1 0208-0411
14 GASKET; SILENCER TO EXH PIPE
4JH1 ENG(RJX) (A) ID=64.7 		8-94328-352-0 01 1 0412-0511
14 GASKET; SILENCER TO EXH PIPE
4JH1-TC ENG(RDM) (A) ID=64.7 		8-94328-352-0 01 1 0512-0610
14 GASKET; SILENCER TO EXH PIPE
4JJ1 ENG(LFB) (C) ID=65 		8-97148-757-1 01 1 0611-
14 GASKET; SILENCER TO EXH PIPE
4JJ1 ENG(LFB) (C) ID=65 		8-97148-757-1 01 1 0611-
14 GASKET; SILENCER TO EXH PIPE
4JH1 ENG(RJX) (B) ID=54 		8-94328-354-0 01 1 0412-0511
14 GASKET; SILENCER TO EXH PIPE
4JH1-TC ENG(RDM) (B) ID=54 		8-94328-354-0 01 1 0512-0610
18 GASKET; EXH PIPE TO PIPE
4JG2 ENG(RJC) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9906-0207
18 GASKET; EXH PIPE TO PIPE
4JH1 ENG(RJX) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 0208-0511
18 GASKET; EXH PIPE TO PIPE
4JH1-TC ENG(RDM) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 0512-0610
25 PIPE; EXH,BRK VLV TO SILENCER
4JG2 ENG(RJC) 		8-97206-030-0 01 1 9906-0207
25 PIPE; EXH,BRK VLV TO SILENCER
4JH1 ENG(RJX) 		8-97320-579-0 01 1 0208-0511
25 PIPE; EXH,BRK VLV TO SILENCER
4JH1-TC ENG(RDM) 		8-97320-579-0 01 1 0512-0610
25 PIPE; EXH,BRK VLV TO SILENCER
4JH1 ENG(RJX) 		8-97320-578-0 01 1 0412-0511
25 PIPE; EXH,BRK VLV TO SILENCER
4JH1-TC ENG(RDM) 		8-97320-578-0 01 1 0512-0610
25 PIPE; EXH,BRK VLV TO SILENCER
4JJ1 ENG(LFB) 		8-98026-061-2 01 1 0611-
36 NUT; EXH PIPE
EXHAUST BRAKE<NF8> M10 H=18 		9-09640-014-0 02 1 9701-9809
36 NUT; EXH PIPE
M10 H=18 		9-09640-014-0 02 1 9810-9905
36 NUT; EXH PIPE
4JG2 ENG(RJC) M10 FLANGE 		8-97096-192-1 02 1 9906-0207
36 NUT; EXH PIPE
4JH1 ENG(RJX) M10 FLANGE 		8-97096-192-1 02 1 0208-0411
36 NUT; EXH PIPE
4JH1 ENG(RJX) M10 FLANGE 		8-97096-192-1 02 1 0412-0511
36 NUT; EXH PIPE
4JH1-TC ENG(RDM) M10 FLANGE 		8-97096-192-1 02 1 0512-0610
36 NUT; EXH PIPE
4JJ1 ENG(LFB) M10 FLANGE 		8-97096-192-1 03 1 0611-
36 NUT; EXH PIPE
EXC. EXHAUST BRAKE<NF8> M10 FLANGE 		8-97096-192-1 02 1 9701-9809
44 BOLT; BRKT
(A) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9701-9905
44 BOLT; BRKT
4JG2 ENG(RJC) (A) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9906-0207
44 BOLT; BRKT
4JH1 ENG(RJX) (A) M8X16 FLANGE 		0-28080-816-0 02 1 0208-0411
44 BOLT; BRKT
4JH1 ENG(RJX) (A) M8X16 FLANGE 		0-28080-816-0 02 1 0412-0511
44 BOLT; BRKT
4JH1-TC ENG(RDM) (A) M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512
44 BOLT; BRKT
4JH1-TC ENG(RDM) (A) M8X16 FLANGE 		0-28050-816-0 02 1 0601-0610
44 BOLT; BRKT
4JJ1 ENG(LFB) (C) M10X25 FLANGE 		0-28151-025-0 02 1 0611-
44 BOLT; BRKT
(B) M8X40 W/LK WASHER 		0-50040-840-0 01 1 9701-9905
44 BOLT; BRKT
4JG2 ENG(RJC) (B) M8X40 W/LK WASHER 		0-50040-840-0 01 1 9906-0207
44 BOLT; BRKT
4JH1 ENG(RJX) (B) M8X40 W/LK WASHER 		0-50040-840-0 01 1 0208-0404
44 BOLT; BRKT
4JH1 ENG(RJX) (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0405-0411
44 BOLT; BRKT
4JH1 ENG(RJX) (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0412-0511
44 BOLT; BRKT
4JH1-TC ENG(RDM) (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0512-0610
44 BOLT; BRKT
4JJ1 ENG(LFB) (D) M10X30 FLANGE 		0-28651-030-0 02 1 0611-
44 BOLT; BRKT
4JJ1 ENG(LFB) (E) M10X35 FLANGE 		0-28651-035-0 02 1 0611-
48 BRACKET; EXH PIPE TO MTG
4JH1 ENG(RJX) 		8-97179-737-0 01 1 0208-0511
48 BRACKET; EXH PIPE TO MTG
4JH1-TC ENG(RDM) 		8-97179-737-0 01 1 0512-0610
81 NUT; BRKT
4JJ1 ENG(LFB) (B) M10 FLANGE 		0-91180-110-0 02 1 0703-
81 NUT; BRKT
4JG2 ENG(RJC) (A) M8 FLANGE 		0-91150-108-0 02 1 9906-0207
81 NUT; BRKT
4JH1 ENG(RJX) (B) M10 FLANGE 		0-91150-110-0 01 1 0208-0511
81 NUT; BRKT
4JH1-TC ENG(RDM) (B) M10 FLANGE 		0-91150-110-0 01 1 0512-0602
81 NUT; BRKT
4JH1-TC ENG(RDM) (B) M10 FLANGE 		0-91180-110-0 01 1 0603-0610
81 NUT; BRKT
4JJ1 ENG(LFB) (D) M10 FLANGE 		0-91180-210-0 02 1 0611-0612
81 NUT; BRKT
4JJ1 ENG(LFB) (B) M10 FLANGE 		0-91180-110-0 02 1 0701-0702
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-110-0 01 1 0703-
81 NUT; BRKT
4JH1 ENG(RJX) (C) M8 FLANGE 		0-91150-108-0 04 1 0412-0511
81 NUT; BRKT
4JH1-TC ENG(RDM) (C) M8 FLANGE 		0-91150-108-0 04 1 0512-0602
81 NUT; BRKT
4JH1-TC ENG(RDM) (C) M8 FLANGE 		0-91180-108-0 04 1 0603-0610
81 NUT; BRKT
4JJ1 ENG(LFB) (E) M8 FLANGE 		0-91180-208-0 02 1 0611-0612
81 NUT; BRKT
4JJ1 ENG(LFB) (C) M8 FLANGE 		0-91180-108-0 02 1 0701-
88 CLAMP; EXH PIPE
ID=51.5 		8-97016-034-0 01 1 9701-9903
88 CLAMP; EXH PIPE
ID=51.5 		8-97222-648-0 01 1 9904-9905
88 CLAMP; EXH PIPE
4JG2 ENG(RJC) ID=51.5 		8-97222-648-0 01 1 9906-0112
88 CLAMP; EXH PIPE
4JG2 ENG(RJC) ID=51.5 		8-97222-648-0 01 1 9906-0112
88 CLAMP; EXH PIPE
4JG2 ENG(RJC) ID=51.5 		8-97325-352-0 01 1 0201-0207
88 CLAMP; EXH PIPE
4JG2 ENG(RJC) ID=51.5 		8-97325-352-0 01 1 0201-0207
88 CLAMP; EXH PIPE
4JH1 ENG(RJX) ID=61.6 		8-97010-307-0 01 1 0208-0411
88 CLAMP; EXH PIPE
4JH1 ENG(RJX) ID=61.6 		8-97010-307-0 01 1 0412-0511
88 CLAMP; EXH PIPE
4JH1 ENG(RJX) ID=61.6 		8-97010-307-0 01 1 0412-0511
88 CLAMP; EXH PIPE
4JH1-TC ENG(RDM) ID=61.6 		8-97010-307-0 01 1 0512-0610
88 CLAMP; EXH PIPE
4JH1-TC ENG(RDM) ID=61.6 		8-97010-307-0 01 1 0512-0610
88 CLAMP; EXH PIPE
4JJ1 ENG(LFB) 		8-97373-158-0 01 1 0611-
94 BOLT; CLAMP
(A) M8X65 		0-10805-865-0 01 1 9701-9905
94 BOLT; CLAMP
(B) M8X45 		0-20800-845-0 01 1 9701-9905
94 BOLT; CLAMP
(C) M8X45 		0-20800-845-0 01 1 9906-0207
94 BOLT; CLAMP
4JG2 ENG(RJC) (C) M8X45 		0-20800-845-0 01 1 9906-0207
94 BOLT; CLAMP
(C) M8X45 		0-20800-845-0 01 1 0208-0411
94 BOLT; CLAMP
(C) M8X45 		0-20800-845-0 01 1 0412-0511
94 BOLT; CLAMP
4JH1 ENG(RJX) (C) M8X45 		0-20800-845-0 01 1 0412-0511
94 BOLT; CLAMP
(C) M8X45 		0-20800-845-0 01 1 0512-0610
94 BOLT; CLAMP
4JH1-TC ENG(RDM) (C) M8X45 		0-20800-845-0 01 1 0512-0610
94 BOLT; CLAMP
4JJ1 ENG(LFB) (E) M10X50 FLANGE 		8-97301-165-0 01 1 0611-
94 BOLT; CLAMP
(D) M10X45 FLANGE 		0-28051-045-0 01 1 0611-
95 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9701-0411
95 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0412-0512
95 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
103 BOLT; SILENCER BRKT FIX
M8X45 W/LK WASHER 		0-50040-845-0 01 1 9701-0411
103 BOLT; SILENCER BRKT FIX
M8X45 W/LK WASHER 		0-50040-845-0 01 1 0412-0610
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9701-0411
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0412-0602
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-0610
104 NUT; BRKT
M8 FLANGE 		0-91180-208-0 02 1 0611-0612
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0701-
105 NUT; CLAMP
(A) M8 		9-09110-408-0 02 1 9701-9905
105 NUT; CLAMP
(A) M8 		9-09110-408-0 01 1 9906-0207
105 NUT; CLAMP
4JG2 ENG(RJC) (A) M8 		9-09110-408-0 01 1 9906-0207
105 NUT; CLAMP
(A) M8 		9-09110-408-0 01 1 0208-0411
105 NUT; CLAMP
(A) M8 		9-09110-408-0 01 1 0412-0512
105 NUT; CLAMP
(A) M8 		0-91110-508-0 01 1 0601-0610
105 NUT; CLAMP
(C) M10 		0-91110-510-0 01 1 0611-
105 NUT; CLAMP
4JH1 ENG(RJX) (B) M10 FLANGE 		0-91150-110-0 02 1 0208-0411
105 NUT; CLAMP
4JH1 ENG(RJX) (B) M10 FLANGE 		0-91150-110-0 02 1 0412-0511
105 NUT; CLAMP
4JH1-TC ENG(RDM) (B) M10 FLANGE 		0-91150-110-0 02 1 0512-0602
105 NUT; CLAMP
4JH1-TC ENG(RDM) (B) M10 FLANGE 		0-91180-110-0 02 1 0603-0610
112 BRACKET; HANGER 8-97081-457-0 01 1 9701-9702
112 BRACKET; HANGER 8-97076-018-0 01 1 9703-9905
112 BRACKET; HANGER
4JG2 ENG(RJC) TAI 		8-97966-891-0 01 1 9906-0207
112 BRACKET; HANGER
4JH1 ENG(RJX) TAI 		8-97967-282-0 01 1 0208-0411
112 BRACKET; HANGER
4JH1 ENG(RJX) TAI 		8-97967-282-0 01 1 0412-0511
112 BRACKET; HANGER
4JH1-TC ENG(RDM) TAI 		8-97967-282-0 01 1 0512-0610
113 COLLAR; DIST,MTG BRKT
L=37.5 		9-22151-217-0 01 1 9701-0411
113 COLLAR; DIST,MTG BRKT
L=37.5 		9-22151-217-0 01 1 0412-0610
113 COLLAR; DIST,MTG BRKT
4JJ1 ENG(LFB) L=37.5 		9-22151-217-0 02 1 0611-
114 BRACKET; EXH SILENCER
(A) 		8-94329-856-0 01 1 9701-9707
114 BRACKET; EXH SILENCER
(A) TAI 		8-97965-876-0 01 1 9708-9905
114 BRACKET; EXH SILENCER
4JG2 ENG(RJC) (B) 		8-97073-758-0 01 1 9906-0207
114 BRACKET; EXH SILENCER
4JH1 ENG(RJX) (B) 		8-97073-758-0 01 1 0208-0511
114 BRACKET; EXH SILENCER
4JH1-TC ENG(RDM) (B) 		8-97073-758-0 01 1 0512-0610
114 BRACKET; EXH SILENCER
4JH1 ENG(RJX) (C) 		8-97312-902-0 01 1 0208-0511
114 BRACKET; EXH SILENCER
4JH1-TC ENG(RDM) (C) 		8-97312-902-0 01 1 0512-0610
114 BRACKET; EXH SILENCER
4JH1 ENG(RJX) (B) 		8-97172-313-0 01 1 0412-0511
114 BRACKET; EXH SILENCER
4JH1-TC ENG(RDM) (B) 		8-97172-313-0 01 1 0512-0610
115 RUBBER; MTG,SILENCER
(A) TAI 		8-97965-421-0 01 1 9701-0207
115 RUBBER; MTG,SILENCER
(A) TAI 		8-97965-421-0 01 1 0208-0411
115 RUBBER; MTG,SILENCER
4JH1 ENG(RJX) (A) TAI 		8-97965-421-0 01 1 0208-0411
115 RUBBER; MTG,SILENCER
(A) TAI 		8-97965-421-0 01 1 0412-0511
115 RUBBER; MTG,SILENCER
4JH1 ENG(RJX) (A) TAI 		8-97965-421-0 01 1 0412-0511
115 RUBBER; MTG,SILENCER
(A) TAI 		8-97965-421-0 01 1 0512-0610
115 RUBBER; MTG,SILENCER
4JH1-TC ENG(RDM) (A) TAI 		8-97965-421-0 01 1 0512-0610
115 RUBBER; MTG,SILENCER
4JJ1 ENG(LFB) (A) TAI 		8-97965-421-0 02 1 0611-
115 RUBBER; MTG,SILENCER
(B) TAI 		8-97965-422-0 01 1 9701-0207
115 RUBBER; MTG,SILENCER
(B) TAI 		8-97965-422-0 01 1 0208-0411
115 RUBBER; MTG,SILENCER
4JH1 ENG(RJX) (B) TAI 		8-97965-422-0 01 1 0208-0411
115 RUBBER; MTG,SILENCER
(B) TAI 		8-97965-422-0 01 1 0412-0511
115 RUBBER; MTG,SILENCER
4JH1 ENG(RJX) (B) TAI 		8-97965-422-0 01 1 0412-0511
115 RUBBER; MTG,SILENCER
(B) TAI 		8-97965-422-0 01 1 0512-0610
115 RUBBER; MTG,SILENCER
4JH1-TC ENG(RDM) (B) TAI 		8-97965-422-0 01 1 0512-0610
115 RUBBER; MTG,SILENCER
4JJ1 ENG(LFB) (B) TAI 		8-97965-422-0 02 1 0611-
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 01 1 9701-0207
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 01 1 0208-0411
117 WASHER; PL,SILENCER MTG BRKT
4JH1 ENG(RJX) OD=55 		9-09852-169-0 01 1 0208-0411
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 01 1 0412-0511
117 WASHER; PL,SILENCER MTG BRKT
4JH1 ENG(RJX) OD=55 		9-09852-169-0 01 1 0412-0511
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 01 1 0512-0610
117 WASHER; PL,SILENCER MTG BRKT
4JH1-TC ENG(RDM) OD=55 		9-09852-169-0 01 1 0512-0610
117 WASHER; PL,SILENCER MTG BRKT
4JJ1 ENG(LFB) OD=55 		9-09852-169-0 02 1 0611-
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		5-09440-006-0 01 1 9701-0411
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		5-09440-006-0 01 1 0412-0610
118 NUT; SILENCER MTG BRKT
4JJ1 ENG(LFB) M10 FLANGE 		5-09440-006-0 02 1 0611-
119 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9701-0411
119 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0412-0602
119 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-0610
122 NUT; HANGER BRKT
(A) M8 		9-09110-408-0 01 1 9701-0411
122 NUT; HANGER BRKT
(A) M8 		9-09110-408-0 01 1 0412-0512
122 NUT; HANGER BRKT
(A) M8 		0-91110-508-0 01 1 0601-0610
122 NUT; HANGER BRKT
4JG2 ENG(RJC) (B) M8 FLANGE 		0-91150-108-0 02 1 9906-0207
126 PIPE; EXH,RR
(A) TAI 		8-97965-150-0 01 1 9701-9905
126 PIPE; EXH,RR
4JG2 ENG(RJC) (B) 		8-97212-562-1 01 1 9906-0207
126 PIPE; EXH,RR
4JH1 ENG(RJX) (C) TAI 		8-97967-226-0 01 1 0208-0511
126 PIPE; EXH,RR
4JH1-TC ENG(RDM) (C) TAI 		8-97967-226-0 01 1 0512-0610
126 PIPE; EXH,RR
4JJ1 ENG(LFB) (E) 		8-98035-092-0 01 1 0611-
126 PIPE; EXH,RR
4JH1 ENG(RJX) (D) TAI 		8-97260-001-1 01 1 0412-0511
126 PIPE; EXH,RR
4JH1-TC ENG(RDM) (D) TAI 		8-97260-001-1 01 1 0512-0610
126 PIPE; EXH,RR
4JJ1 ENG(LFB) (F) 		8-98025-643-1 01 1 0611-
137 BRACKET; TAIL PIPE
(A) 		9-22121-146-1 01 1 9701-9707
137 BRACKET; TAIL PIPE
(A) TAI 		8-97965-877-0 01 1 9708-0610
137 BRACKET; TAIL PIPE
(C) TAI 		8-97967-584-0 01 1 0611-
137 BRACKET; TAIL PIPE
4JH1 ENG(RJX) (B) 		8-94468-175-0 01 1 0412-0511
137 BRACKET; TAIL PIPE
4JH1-TC ENG(RDM) (B) 		8-94468-175-0 01 1 0512-0610
137 BRACKET; TAIL PIPE
4JJ1 ENG(LFB) (D) TAI 		8-97967-583-0 01 1 0611-
162 RUBBER; SUPPORT,TAIL PIPE
(A) TAI 		8-97965-410-0 01 1 9701-0610
162 RUBBER; SUPPORT,TAIL PIPE
(C) L=150 TAI 		8-97373-139-1 01 1 0611-
162 RUBBER; SUPPORT,TAIL PIPE
4JH1 ENG(RJX) (B) L=115 		8-94156-256-0 01 1 0412-0511
162 RUBBER; SUPPORT,TAIL PIPE
4JH1-TC ENG(RDM) (B) L=115 		8-94156-256-0 01 1 0512-0610
162 RUBBER; SUPPORT,TAIL PIPE
4JJ1 ENG(LFB) (D) L=115 		8-98034-765-0 01 1 0611-
164 COLLAR; DIST,TAIL PIPE
(A) L=23 		9-22151-175-0 01 1 9701-0610
164 COLLAR; DIST,TAIL PIPE
(A) L=23 		8-98006-011-0 01 1 0611-
164 COLLAR; DIST,TAIL PIPE
4JH1 ENG(RJX) (B) L=37.5 		9-22151-217-0 01 1 0412-0511
164 COLLAR; DIST,TAIL PIPE
4JH1-TC ENG(RDM) (B) L=37.5 		9-22151-217-0 01 1 0512-0610
164 COLLAR; DIST,TAIL PIPE
4JJ1 ENG(LFB) (B) L=37.5 		9-22151-217-0 01 1 0611-
165 BOLT; SUPPORT RUBBER
M8X45 FLANGE 		0-28080-845-0 01 1 9701-0512
165 BOLT; SUPPORT RUBBER
M8X45 FLANGE 		0-28050-845-0 01 1 0601-0610
165 BOLT; SUPPORT RUBBER
M10X45 FLANGE 		0-28051-045-0 01 1 0611-
165 BOLT; SUPPORT RUBBER
4JH1 ENG(RJX) M10X70 FLANGE 		0-28081-070-0 01 1 0412-0511
165 BOLT; SUPPORT RUBBER
4JH1-TC ENG(RDM) M10X70 FLANGE 		0-28081-070-0 01 1 0512-0512
165 BOLT; SUPPORT RUBBER
4JH1-TC ENG(RDM) M10X70 FLANGE 		0-28051-070-0 01 1 0601-0610
165 BOLT; SUPPORT RUBBER
4JJ1 ENG(LFB) M10X70 FLANGE 		0-28051-070-0 01 1 0611-
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
ID=8.4 OD=26 		9-09164-808-0 01 1 9701-0605
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
ID=8.4 OD=26 		0-91614-808-0 01 1 0606-0610
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
4JH1 ENG(RJX) ID=10.5 OD=32 		9-09164-810-0 01 1 0412-0511
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
4JH1-TC ENG(RDM) ID=10.5 OD=32 		9-09164-810-0 01 1 0512-0605
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
4JH1-TC ENG(RDM) ID=10.5 OD=32 		0-91614-810-0 01 1 0606-0610
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
4JJ1 ENG(LFB) ID=10.5 OD=32 		0-91614-810-0 01 1 0611-
168 BRACKET; EXH PIPE,FRT
(A) 		8-97084-346-2 01 1 9701-9905
168 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC) (A) 		8-97084-346-2 01 1 9906-0207
168 BRACKET; EXH PIPE,FRT
4JH1 ENG(RJX) (C) TAI 		8-97240-857-0 01 1 0208-0411
168 BRACKET; EXH PIPE,FRT
4JH1 ENG(RJX) (C) TAI 		8-97240-857-0 01 1 0412-0511
168 BRACKET; EXH PIPE,FRT
4JH1-TC ENG(RDM) (C) TAI 		8-97240-857-0 01 1 0512-0610
168 BRACKET; EXH PIPE,FRT
4JJ1 ENG(LFB) (E) TAI 		8-98026-063-0 01 1 0611-
168 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC) (B) 		8-97210-476-0 01 1 9906-0207
168 BRACKET; EXH PIPE,FRT
4JJ1 ENG(LFB) (B) 		8-97210-476-0 01 1 0611-
168 BRACKET; EXH PIPE,FRT
4JH1 ENG(RJX) (D) 		8-94468-174-1 01 1 0412-0511
168 BRACKET; EXH PIPE,FRT
4JH1-TC ENG(RDM) (D) 		8-94468-174-1 01 1 0512-0610
168 BRACKET; EXH PIPE,FRT
4JJ1 ENG(LFB) (D) 		8-94468-174-1 01 1 0611-
173 WASHER; PL
4JH1 ENG(RJX) ID=8.4 OD=26 		9-09164-808-0 02 1 0208-0511
173 WASHER; PL
4JH1-TC ENG(RDM) ID=8.4 OD=26 		9-09164-808-0 02 1 0512-0605
173 WASHER; PL
4JH1-TC ENG(RDM) ID=8.4 OD=26 		0-91614-808-0 02 1 0606-0610
310 TUBE; DIST,EXH PIPE
4JH1 ENG(RJX) L=37.5 		9-22151-217-0 01 1 0208-0411
310 TUBE; DIST,EXH PIPE
4JH1 ENG(RJX) L=37.5 		9-22151-217-0 01 1 0412-0511
310 TUBE; DIST,EXH PIPE
4JH1-TC ENG(RDM) L=37.5 		9-22151-217-0 01 1 0512-0610
319 NUT; PROTECTOR
4JG2 ENG(RJC) M10 FLANGE 		0-91150-110-0 02 1 9906-0207
319 NUT; PROTECTOR
4JH1 ENG(RJX) M10 FLANGE 		0-91150-110-0 02 1 0208-0511
319 NUT; PROTECTOR
4JH1-TC ENG(RDM) M10 FLANGE 		0-91150-110-0 02 1 0512-0602
319 NUT; PROTECTOR
4JH1-TC ENG(RDM) M10 FLANGE 		0-91180-110-0 02 1 0603-0610
357 WASHER; PL,CLAMP
ID=8.4 OD=18 		9-09164-608-0 01 1 9701-0411
357 WASHER; PL,CLAMP
ID=8.4 OD=18 		9-09164-608-0 01 1 0412-0605
357 WASHER; PL,CLAMP
ID=8.4 OD=18 		0-91614-608-0 01 1 0606-0610
357 WASHER; PL,CLAMP
ID=10.5 OD=22 		0-91614-610-0 01 1 0611-
385 BRACKET; SILENCER MTG
4JH1 ENG(RJX) (A) 		8-97172-313-0 01 1 0208-0511
385 BRACKET; SILENCER MTG
4JH1-TC ENG(RDM) (A) 		8-97172-313-0 01 1 0512-0610
385 BRACKET; SILENCER MTG
4JJ1 ENG(LFB) (C) 		8-98018-970-1 01 1 0611-
385 BRACKET; SILENCER MTG
4JH1 ENG(RJX) (B) 		8-97260-094-1 01 1 0412-0511
385 BRACKET; SILENCER MTG
4JH1-TC ENG(RDM) (B) 		8-97260-094-1 01 1 0512-0610
385 BRACKET; SILENCER MTG
4JJ1 ENG(LFB) (C) 		8-98018-972-1 01 1 0611-
514 NUT; BAND
4JH1 ENG(RJX) M8 		9-09110-408-0 01 1 0208-0411
514 NUT; BAND
4JH1 ENG(RJX) M8 		9-09110-408-0 01 1 0412-0511
514 NUT; BAND
4JH1-TC ENG(RDM) M8 		9-09110-408-0 01 1 0512-0512
514 NUT; BAND
4JH1-TC ENG(RDM) M8 		0-91110-508-0 01 1 0601-0610
515 BOLT; BAND
4JH1 ENG(RJX) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0208-0411
515 BOLT; BAND
4JH1 ENG(RJX) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0412-0511
515 BOLT; BAND
4JH1-TC ENG(RDM) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0512-0610
532 NUT
4JH1 ENG(RJX) (A) M8 FLANGE 		0-91150-108-0 04 1 0208-0404
532 NUT
4JH1 ENG(RJX) (A) M8 FLANGE 		0-91150-108-0 02 1 0405-0411
532 NUT
4JH1 ENG(RJX) (A) M8 FLANGE 		0-91150-108-0 02 1 0405-0411
532 NUT
4JH1 ENG(RJX) (A) M8 FLANGE 		0-91150-108-0 02 1 0412-0511
532 NUT
4JH1 ENG(RJX) (A) M8 FLANGE 		0-91150-108-0 02 1 0412-0511
532 NUT
4JH1-TC ENG(RDM) (A) M8 FLANGE 		0-91150-108-0 02 1 0512-0602
532 NUT
4JH1-TC ENG(RDM) (A) M8 FLANGE 		0-91150-108-0 02 1 0512-0602
532 NUT
4JH1-TC ENG(RDM) (A) M8 FLANGE 		0-91180-108-0 02 1 0603-0610
532 NUT
4JH1-TC ENG(RDM) (A) M8 FLANGE 		0-91180-108-0 02 1 0603-0610
532 NUT
4JH1 ENG(RJX) (B) M10 FLANGE 		5-09440-006-0 01 1 0208-0411
532 NUT
4JH1 ENG(RJX) (B) M10 FLANGE 		5-09440-006-0 01 1 0412-0511
532 NUT
4JH1-TC ENG(RDM) (B) M10 FLANGE 		5-09440-006-0 01 1 0512-0610
532 NUT
4JJ1 ENG(LFB) (C) M8 FLANGE 		0-91180-208-0 02 1 0611-0612
532 NUT
4JJ1 ENG(LFB) (A) M8 FLANGE 		0-91180-108-0 02 1 0701-
542 BRACKET
4JH1 ENG(RJX) TAI 		8-97967-282-0 01 1 0208-0411
542 BRACKET
4JH1 ENG(RJX) TAI 		8-97967-282-0 01 1 0412-0511
542 BRACKET
4JH1-TC ENG(RDM) TAI 		8-97967-282-0 01 1 0512-0610
542 BRACKET
4JJ1 ENG(LFB) 		8-98018-933-1 01 1 0611-
çizim 420685
2 25 18 1 36 1 56 319 44 44 168 122 262 366 118 167 167 387 117 115 344 81 119 103 114 113 175 115 2 12 112 122 344 1 56
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
EXHAUST BRAKE<NF8> (A) 		8-97034-086-1 01 1 9701-9809
1 PIPE; EXH
(A) 		8-97214-685-0 01 1 9810-9905
1 PIPE; EXH
4JG2 ENG(RJC) (B) 		8-97212-561-1 01 1 9906-0207
1 PIPE; EXH
4JH1 ENG(RJX) (C) 		8-97311-667-0 01 1 0208-0211
1 PIPE; EXH
4JH1 ENG(RJX) (C) 		8-97356-339-1 01 1 0212-0511
1 PIPE; EXH
4JH1-TC ENG(RDM) (C) 		8-97356-339-1 01 1 0512-0610
1 PIPE; EXH
4JJ1 ENG(LFB) (E) 		8-98026-060-0 01 1 0611-
1 PIPE; EXH
EXC. EXHAUST BRAKE<NF8> (A) TAI 		8-97965-149-0 01 1 9701-9809
1 PIPE; EXH
4JH1 ENG(RJX) (D) 		8-97305-630-1 01 1 0412-0511
1 PIPE; EXH
4JH1-TC ENG(RDM) (D) 		8-97305-630-1 01 1 0512-0610
1 PIPE; EXH
4JJ1 ENG(LFB) (F) 		8-98005-237-0 01 1 0611-
2 GASKET; PIPE TO MANIF
EXC. EXHAUST BRAKE<NF8> (A) 		8-97069-287-0 01 1 9701-9709
2 GASKET; PIPE TO MANIF
EXC. EXHAUST BRAKE<NF8> (A) 		8-97180-750-2 01 1 9710-9809
2 GASKET; PIPE TO MANIF
4JG2 ENG(RJC) (B) ID=71 		8-94324-194-0 02 1 9906-0207
2 GASKET; PIPE TO MANIF
4JG2 ENG(RJC) (A) 		8-97180-750-2 01 1 9906-0207
2 GASKET; PIPE TO MANIF
4JH1 ENG(RJX) (A) 		8-97180-750-2 01 1 0208-0408
2 GASKET; PIPE TO MANIF
4JH1 ENG(RJX) (A) 		8-97381-456-0 01 1 0409-0411
2 GASKET; PIPE TO MANIF
4JH1 ENG(RJX) (A) 		8-97381-456-0 01 1 0412-0511
2 GASKET; PIPE TO MANIF
4JH1-TC ENG(RDM) (A) 		8-97381-456-0 01 1 0512-0610
2 GASKET; PIPE TO MANIF
4JJ1 ENG(LFB) (C) 		8-97384-590-0 01 1 0611-
12 SILENCER ASM; EXH
TAI 		8-97965-379-1 01 1 9701-9905
12 SILENCER ASM; EXH
4JG2 ENG(RJC) 		8-97221-923-0 01 1 9906-0207
12 SILENCER ASM; EXH
4JH1 ENG(RJX) 		8-97309-650-0 01 1 0208-0411
12 SILENCER ASM; EXH
4JH1 ENG(RJX) 		8-97309-650-0 01 1 0412-0511
12 SILENCER ASM; EXH
4JH1-TC ENG(RDM) 		8-97309-650-0 01 1 0512-0610
12 SILENCER ASM; EXH
4JJ1 ENG(LFB) 		8-98021-917-1 01 1 0611-
12 SILENCER ASM; EXH
4JJ1 ENG(LFB) 		8-98001-836-1 01 1 0611-
18 GASKET; EXH PIPE TO PIPE
4JG2 ENG(RJC) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9906-0207
18 GASKET; EXH PIPE TO PIPE
4JH1 ENG(RJX) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 0208-0511
18 GASKET; EXH PIPE TO PIPE
4JH1-TC ENG(RDM) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 0512-0610
25 PIPE; EXH,BRK VLV TO SILENCER
4JG2 ENG(RJC) 		8-97206-030-0 01 1 9906-0207
25 PIPE; EXH,BRK VLV TO SILENCER
4JH1 ENG(RJX) 		8-97320-579-0 01 1 0208-0511
25 PIPE; EXH,BRK VLV TO SILENCER
4JH1-TC ENG(RDM) 		8-97320-579-0 01 1 0512-0610
25 PIPE; EXH,BRK VLV TO SILENCER
4JH1 ENG(RJX) 		8-97320-578-0 01 1 0412-0511
25 PIPE; EXH,BRK VLV TO SILENCER
4JH1-TC ENG(RDM) 		8-97320-578-0 01 1 0512-0610
25 PIPE; EXH,BRK VLV TO SILENCER
4JJ1 ENG(LFB) 		8-98026-061-2 01 1 0611-
36 NUT; EXH PIPE
EXHAUST BRAKE<NF8> M10 H=18 		9-09640-014-0 02 1 9701-9809
36 NUT; EXH PIPE
M10 H=18 		9-09640-014-0 02 1 9810-9905
36 NUT; EXH PIPE
4JG2 ENG(RJC) M10 FLANGE 		8-97096-192-1 02 1 9906-0207
36 NUT; EXH PIPE
4JH1 ENG(RJX) M10 FLANGE 		8-97096-192-1 02 1 0208-0411
36 NUT; EXH PIPE
4JH1 ENG(RJX) M10 FLANGE 		8-97096-192-1 02 1 0412-0511
36 NUT; EXH PIPE
4JH1-TC ENG(RDM) M10 FLANGE 		8-97096-192-1 02 1 0512-0610
36 NUT; EXH PIPE
4JJ1 ENG(LFB) M10 FLANGE 		8-97096-192-1 03 1 0611-
36 NUT; EXH PIPE
EXC. EXHAUST BRAKE<NF8> M10 FLANGE 		8-97096-192-1 02 1 9701-9809
44 BOLT; BRKT
(A) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9701-9905
44 BOLT; BRKT
4JG2 ENG(RJC) (A) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9906-0207
44 BOLT; BRKT
4JH1 ENG(RJX) (A) M8X16 FLANGE 		0-28080-816-0 02 1 0208-0411
44 BOLT; BRKT
4JH1 ENG(RJX) (A) M8X16 FLANGE 		0-28080-816-0 02 1 0412-0511
44 BOLT; BRKT
4JH1-TC ENG(RDM) (A) M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512
44 BOLT; BRKT
4JH1-TC ENG(RDM) (A) M8X16 FLANGE 		0-28050-816-0 02 1 0601-0610
44 BOLT; BRKT
4JJ1 ENG(LFB) (C) M10X25 FLANGE 		0-28151-025-0 02 1 0611-
44 BOLT; BRKT
(B) M8X40 W/LK WASHER 		0-50040-840-0 01 1 9701-9905
44 BOLT; BRKT
4JG2 ENG(RJC) (B) M8X40 W/LK WASHER 		0-50040-840-0 01 1 9906-0207
44 BOLT; BRKT
4JH1 ENG(RJX) (B) M8X40 W/LK WASHER 		0-50040-840-0 01 1 0208-0404
44 BOLT; BRKT
4JH1 ENG(RJX) (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0405-0411
44 BOLT; BRKT
4JH1 ENG(RJX) (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0412-0511
44 BOLT; BRKT
4JH1-TC ENG(RDM) (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0512-0610
44 BOLT; BRKT
4JJ1 ENG(LFB) (D) M10X30 FLANGE 		0-28651-030-0 02 1 0611-
44 BOLT; BRKT
4JJ1 ENG(LFB) (E) M10X35 FLANGE 		0-28651-035-0 02 1 0611-
81 NUT; BRKT
4JJ1 ENG(LFB) (B) M10 FLANGE 		0-91180-110-0 02 1 0703-
81 NUT; BRKT
4JG2 ENG(RJC) (A) M8 FLANGE 		0-91150-108-0 02 1 9906-0207
81 NUT; BRKT
4JH1 ENG(RJX) (B) M10 FLANGE 		0-91150-110-0 01 1 0208-0511
81 NUT; BRKT
4JH1-TC ENG(RDM) (B) M10 FLANGE 		0-91150-110-0 01 1 0512-0602
81 NUT; BRKT
4JH1-TC ENG(RDM) (B) M10 FLANGE 		0-91180-110-0 01 1 0603-0610
81 NUT; BRKT
4JJ1 ENG(LFB) (D) M10 FLANGE 		0-91180-210-0 02 1 0611-0612
81 NUT; BRKT
4JJ1 ENG(LFB) (B) M10 FLANGE 		0-91180-110-0 02 1 0701-0702
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-110-0 01 1 0703-
81 NUT; BRKT
4JH1 ENG(RJX) (C) M8 FLANGE 		0-91150-108-0 04 1 0412-0511
81 NUT; BRKT
4JH1-TC ENG(RDM) (C) M8 FLANGE 		0-91150-108-0 04 1 0512-0602
81 NUT; BRKT
4JH1-TC ENG(RDM) (C) M8 FLANGE 		0-91180-108-0 04 1 0603-0610
81 NUT; BRKT
4JJ1 ENG(LFB) (E) M8 FLANGE 		0-91180-208-0 02 1 0611-0612
81 NUT; BRKT
4JJ1 ENG(LFB) (C) M8 FLANGE 		0-91180-108-0 02 1 0701-
103 BOLT; SILENCER BRKT FIX
M8X45 W/LK WASHER 		0-50040-845-0 01 1 9701-0411
103 BOLT; SILENCER BRKT FIX
M8X45 W/LK WASHER 		0-50040-845-0 01 1 0412-0610
112 BRACKET; HANGER 8-97081-457-0 01 1 9701-9702
112 BRACKET; HANGER 8-97076-018-0 01 1 9703-9905
112 BRACKET; HANGER
4JG2 ENG(RJC) TAI 		8-97966-891-0 01 1 9906-0207
112 BRACKET; HANGER
4JH1 ENG(RJX) TAI 		8-97967-282-0 01 1 0208-0411
112 BRACKET; HANGER
4JH1 ENG(RJX) TAI 		8-97967-282-0 01 1 0412-0511
112 BRACKET; HANGER
4JH1-TC ENG(RDM) TAI 		8-97967-282-0 01 1 0512-0610
113 COLLAR; DIST,MTG BRKT
L=37.5 		9-22151-217-0 01 1 9701-0411
113 COLLAR; DIST,MTG BRKT
L=37.5 		9-22151-217-0 01 1 0412-0610
113 COLLAR; DIST,MTG BRKT
4JJ1 ENG(LFB) L=37.5 		9-22151-217-0 02 1 0611-
114 BRACKET; EXH SILENCER
(A) 		8-94329-856-0 01 1 9701-9707
114 BRACKET; EXH SILENCER
(A) TAI 		8-97965-876-0 01 1 9708-9905
114 BRACKET; EXH SILENCER
4JG2 ENG(RJC) (B) 		8-97073-758-0 01 1 9906-0207
114 BRACKET; EXH SILENCER
4JH1 ENG(RJX) (B) 		8-97073-758-0 01 1 0208-0511
114 BRACKET; EXH SILENCER
4JH1-TC ENG(RDM) (B) 		8-97073-758-0 01 1 0512-0610
114 BRACKET; EXH SILENCER
4JH1 ENG(RJX) (C) 		8-97312-902-0 01 1 0208-0511
114 BRACKET; EXH SILENCER
4JH1-TC ENG(RDM) (C) 		8-97312-902-0 01 1 0512-0610
114 BRACKET; EXH SILENCER
4JH1 ENG(RJX) (B) 		8-97172-313-0 01 1 0412-0511
114 BRACKET; EXH SILENCER
4JH1-TC ENG(RDM) (B) 		8-97172-313-0 01 1 0512-0610
115 RUBBER; MTG,SILENCER
(A) TAI 		8-97965-421-0 01 1 9701-0207
115 RUBBER; MTG,SILENCER
(A) TAI 		8-97965-421-0 01 1 0208-0411
115 RUBBER; MTG,SILENCER
4JH1 ENG(RJX) (A) TAI 		8-97965-421-0 01 1 0208-0411
115 RUBBER; MTG,SILENCER
(A) TAI 		8-97965-421-0 01 1 0412-0511
115 RUBBER; MTG,SILENCER
4JH1 ENG(RJX) (A) TAI 		8-97965-421-0 01 1 0412-0511
115 RUBBER; MTG,SILENCER
(A) TAI 		8-97965-421-0 01 1 0512-0610
115 RUBBER; MTG,SILENCER
4JH1-TC ENG(RDM) (A) TAI 		8-97965-421-0 01 1 0512-0610
115 RUBBER; MTG,SILENCER
4JJ1 ENG(LFB) (A) TAI 		8-97965-421-0 02 1 0611-
115 RUBBER; MTG,SILENCER
(B) TAI 		8-97965-422-0 01 1 9701-0207
115 RUBBER; MTG,SILENCER
(B) TAI 		8-97965-422-0 01 1 0208-0411
115 RUBBER; MTG,SILENCER
4JH1 ENG(RJX) (B) TAI 		8-97965-422-0 01 1 0208-0411
115 RUBBER; MTG,SILENCER
(B) TAI 		8-97965-422-0 01 1 0412-0511
115 RUBBER; MTG,SILENCER
4JH1 ENG(RJX) (B) TAI 		8-97965-422-0 01 1 0412-0511
115 RUBBER; MTG,SILENCER
(B) TAI 		8-97965-422-0 01 1 0512-0610
115 RUBBER; MTG,SILENCER
4JH1-TC ENG(RDM) (B) TAI 		8-97965-422-0 01 1 0512-0610
115 RUBBER; MTG,SILENCER
4JJ1 ENG(LFB) (B) TAI 		8-97965-422-0 02 1 0611-
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 01 1 9701-0207
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 01 1 0208-0411
117 WASHER; PL,SILENCER MTG BRKT
4JH1 ENG(RJX) OD=55 		9-09852-169-0 01 1 0208-0411
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 01 1 0412-0511
117 WASHER; PL,SILENCER MTG BRKT
4JH1 ENG(RJX) OD=55 		9-09852-169-0 01 1 0412-0511
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 01 1 0512-0610
117 WASHER; PL,SILENCER MTG BRKT
4JH1-TC ENG(RDM) OD=55 		9-09852-169-0 01 1 0512-0610
117 WASHER; PL,SILENCER MTG BRKT
4JJ1 ENG(LFB) OD=55 		9-09852-169-0 02 1 0611-
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		5-09440-006-0 01 1 9701-0411
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		5-09440-006-0 01 1 0412-0610
118 NUT; SILENCER MTG BRKT
4JJ1 ENG(LFB) M10 FLANGE 		5-09440-006-0 02 1 0611-
119 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9701-0411
119 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0412-0602
119 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-0610
122 NUT; HANGER BRKT
(A) M8 		9-09110-408-0 01 1 9701-0411
122 NUT; HANGER BRKT
(A) M8 		9-09110-408-0 01 1 0412-0512
122 NUT; HANGER BRKT
(A) M8 		0-91110-508-0 01 1 0601-0610
122 NUT; HANGER BRKT
4JG2 ENG(RJC) (B) M8 FLANGE 		0-91150-108-0 02 1 9906-0207
167 HANGER; EXH PIPE
4JG2 ENG(RJC) (A) 		8-97144-952-0 01 1 9906-0207
167 HANGER; EXH PIPE
4JG2 ENG(RJC) (B) 		8-97206-510-1 01 1 9906-0207
168 BRACKET; EXH PIPE,FRT
(A) 		8-97084-346-2 01 1 9701-9905
168 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC) (A) 		8-97084-346-2 01 1 9906-0207
168 BRACKET; EXH PIPE,FRT
4JH1 ENG(RJX) (C) TAI 		8-97240-857-0 01 1 0208-0411
168 BRACKET; EXH PIPE,FRT
4JH1 ENG(RJX) (C) TAI 		8-97240-857-0 01 1 0412-0511
168 BRACKET; EXH PIPE,FRT
4JH1-TC ENG(RDM) (C) TAI 		8-97240-857-0 01 1 0512-0610
168 BRACKET; EXH PIPE,FRT
4JJ1 ENG(LFB) (E) TAI 		8-98026-063-0 01 1 0611-
168 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC) (B) 		8-97210-476-0 01 1 9906-0207
168 BRACKET; EXH PIPE,FRT
4JJ1 ENG(LFB) (B) 		8-97210-476-0 01 1 0611-
168 BRACKET; EXH PIPE,FRT
4JH1 ENG(RJX) (D) 		8-94468-174-1 01 1 0412-0511
168 BRACKET; EXH PIPE,FRT
4JH1-TC ENG(RDM) (D) 		8-94468-174-1 01 1 0512-0610
168 BRACKET; EXH PIPE,FRT
4JJ1 ENG(LFB) (D) 		8-94468-174-1 01 1 0611-
175 CONVERTER; CATALYST
4JG2 ENG(RJC) 		8-97212-843-0 01 1 9906-0207
262 BOLT; HANGER TO BODY
4JG2 ENG(RJC) M8X25 FLANGE 		0-28680-825-0 02 1 9906-0207
319 NUT; PROTECTOR
4JG2 ENG(RJC) M10 FLANGE 		0-91150-110-0 02 1 9906-0207
319 NUT; PROTECTOR
4JH1 ENG(RJX) M10 FLANGE 		0-91150-110-0 02 1 0208-0511
319 NUT; PROTECTOR
4JH1-TC ENG(RDM) M10 FLANGE 		0-91150-110-0 02 1 0512-0602
319 NUT; PROTECTOR
4JH1-TC ENG(RDM) M10 FLANGE 		0-91180-110-0 02 1 0603-0610
344 NUT; SILENCER
4JG2 ENG(RJC) M10 FLANGE 		0-91150-110-0 04 1 9906-0207
366 RUBBER; SUPPORT,EXH PIPE
4JG2 ENG(RJC) 		8-97166-498-0 01 1 9906-0207
387 SPACER; BRKT
4JG2 ENG(RJC) 		8-97212-760-0 01 1 9906-0207
çizim 420704
564 566 434 565 1 56 182 272 1 56 182 563 563 556
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
EXHAUST BRAKE<NF8> (A) 		8-97034-086-1 01 1 9701-9809
1 PIPE; EXH
(A) 		8-97214-685-0 01 1 9810-9905
1 PIPE; EXH
4JG2 ENG(RJC) (B) 		8-97212-561-1 01 1 9906-0207
1 PIPE; EXH
4JH1 ENG(RJX) (C) 		8-97311-667-0 01 1 0208-0211
1 PIPE; EXH
4JH1 ENG(RJX) (C) 		8-97356-339-1 01 1 0212-0511
1 PIPE; EXH
4JH1-TC ENG(RDM) (C) 		8-97356-339-1 01 1 0512-0610
1 PIPE; EXH
4JJ1 ENG(LFB) (E) 		8-98026-060-0 01 1 0611-
1 PIPE; EXH
EXC. EXHAUST BRAKE<NF8> (A) TAI 		8-97965-149-0 01 1 9701-9809
1 PIPE; EXH
4JH1 ENG(RJX) (D) 		8-97305-630-1 01 1 0412-0511
1 PIPE; EXH
4JH1-TC ENG(RDM) (D) 		8-97305-630-1 01 1 0512-0610
1 PIPE; EXH
4JJ1 ENG(LFB) (F) 		8-98005-237-0 01 1 0611-
182 CLIP; HARNESS
4JJ1 ENG(LFB) (A) L=112 USA 		8-94232-618-0 01 1 0611-
182 CLIP; HARNESS
4JJ1 ENG(LFB) (B) ID=7 		8-98002-767-0 01 1 0611-
182 CLIP; HARNESS
4JJ1 ENG(LFB) (A) L=112 USA 		8-94232-618-0 02 1 0611-
272 NUT; FLANGE
4JJ1 ENG(LFB) (A) M6 FLANGE 		0-91180-106-0 01 1 0611-
272 NUT; FLANGE
4JJ1 ENG(LFB) (B) M8 FLANGE 		0-91180-108-0 16 1 0611-
434 BOLT; BRKT
4JJ1 ENG(LFB) M10X30 FLANGE 		0-28651-030-0 01 1 0611-
434 BOLT; BRKT
4JJ1 ENG(LFB) M10X30 FLANGE 		0-28651-030-0 02 1 0611-
556 DPD ASM
4JJ1 ENG(LFB) 		8-98036-810-7 01 1 0611-
563 SENSOR; TEMPERATURE,DPD
4JJ1 ENG(LFB) (A) 		8-98004-329-0 01 1 0611-
563 SENSOR; TEMPERATURE,DPD
4JJ1 ENG(LFB) (B) 		8-98004-330-0 01 1 0611-
564 SENSOR; PRESSURE,DPD
4JJ1 ENG(LFB) 		8-97360-368-2 01 1 0611-
564 SENSOR; PRESSURE,DPD
4JJ1 ENG(LFB) 		8-97359-985-2 01 1 0611-
565 BRACKET; SENSOR,PRESSURE
4JJ1 ENG(LFB) 		8-98034-600-0 01 1 0611-
565 BRACKET; SENSOR,PRESSURE
4JJ1 ENG(LFB) 		8-98018-924-1 01 1 0611-
566 BOLT; SENSOR
4JJ1 ENG(LFB) M8X16 FLANGE 		0-28050-816-0 02 1 0611-
çizim 420723
70 165 166 164 81 162 95 144 168 105 357 70 144 125 97 104 137 168 88 4 143 94 126 38 95 165 105 357 88 162 164 81 15 97 168 70 137 104 126 166 124 144 94 143 94 38 14 1 38
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
EXHAUST BRAKE<NF8> (A) 		8-97034-086-1 01 1 9701-9809
1 PIPE; EXH
(A) 		8-97214-685-0 01 1 9810-9905
1 PIPE; EXH
4JG2 ENG(RJC) (B) 		8-97212-561-1 01 1 9906-0207
1 PIPE; EXH
4JH1 ENG(RJX) (C) 		8-97311-667-0 01 1 0208-0211
1 PIPE; EXH
4JH1 ENG(RJX) (C) 		8-97356-339-1 01 1 0212-0511
1 PIPE; EXH
4JH1-TC ENG(RDM) (C) 		8-97356-339-1 01 1 0512-0610
1 PIPE; EXH
4JJ1 ENG(LFB) (E) 		8-98026-060-0 01 1 0611-
1 PIPE; EXH
EXC. EXHAUST BRAKE<NF8> (A) TAI 		8-97965-149-0 01 1 9701-9809
1 PIPE; EXH
4JH1 ENG(RJX) (D) 		8-97305-630-1 01 1 0412-0511
1 PIPE; EXH
4JH1-TC ENG(RDM) (D) 		8-97305-630-1 01 1 0512-0610
1 PIPE; EXH
4JJ1 ENG(LFB) (F) 		8-98005-237-0 01 1 0611-
14 GASKET; SILENCER TO EXH PIPE
4JH1 ENG(RJX) (A) ID=64.7 		8-94328-352-0 01 1 0208-0411
14 GASKET; SILENCER TO EXH PIPE
4JH1 ENG(RJX) (A) ID=64.7 		8-94328-352-0 01 1 0412-0511
14 GASKET; SILENCER TO EXH PIPE
4JH1-TC ENG(RDM) (A) ID=64.7 		8-94328-352-0 01 1 0512-0610
14 GASKET; SILENCER TO EXH PIPE
4JJ1 ENG(LFB) (C) ID=65 		8-97148-757-1 01 1 0611-
14 GASKET; SILENCER TO EXH PIPE
4JJ1 ENG(LFB) (C) ID=65 		8-97148-757-1 01 1 0611-
14 GASKET; SILENCER TO EXH PIPE
4JH1 ENG(RJX) (B) ID=54 		8-94328-354-0 01 1 0412-0511
14 GASKET; SILENCER TO EXH PIPE
4JH1-TC ENG(RDM) (B) ID=54 		8-94328-354-0 01 1 0512-0610
38 NUT; SILENCER
M8 		9-09110-408-0 01 1 9701-9905
38 NUT; SILENCER
4JH1 ENG(RJX) M8 FLANGE 		0-91150-108-0 04 1 0412-0511
38 NUT; SILENCER
4JH1-TC ENG(RDM) M8 FLANGE 		0-91150-108-0 04 1 0512-0602
38 NUT; SILENCER
4JH1-TC ENG(RDM) M8 FLANGE 		0-91180-108-0 04 1 0603-0610
38 NUT; SILENCER
4JJ1 ENG(LFB) M10 FLANGE 		0-91180-210-0 02 1 0611-0612
38 NUT; SILENCER
4JJ1 ENG(LFB) M10 FLANGE 		0-91180-210-0 02 1 0611-0612
38 NUT; SILENCER
4JJ1 ENG(LFB) M10 FLANGE 		0-91180-110-0 02 1 0701-
38 NUT; SILENCER
4JJ1 ENG(LFB) M10 FLANGE 		0-91180-110-0 02 1 0701-
70 BOLT; BRKT
4JJ1 ENG(LFB) (A) M10X30 FLANGE 		0-28651-030-0 04 1 0703-
70 BOLT; BRKT
4JG2 ENG(RJC) (A) M10X30 FLANGE 		0-28681-030-0 02 1 9906-0207
70 BOLT; BRKT
4JJ1 ENG(LFB) (C) M10X30 FLANGE 		0-28651-030-0 02 1 0611-0702
70 BOLT; BRKT
4JJ1 ENG(LFB) (C) M10X30 FLANGE 		0-28651-030-0 02 1 0611-0702
70 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 01 1 0703-
70 BOLT; BRKT
4JH1 ENG(RJX) (B) M8X25 FLANGE 		0-28680-825-0 02 1 0412-0511
70 BOLT; BRKT
4JH1-TC ENG(RDM) (B) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512
70 BOLT; BRKT
4JH1-TC ENG(RDM) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0610
70 BOLT; BRKT
4JJ1 ENG(LFB) (D) M8X25 FLANGE 		0-28650-825-0 02 1 0611-
81 NUT; BRKT
4JJ1 ENG(LFB) (B) M10 FLANGE 		0-91180-110-0 02 1 0703-
81 NUT; BRKT
4JG2 ENG(RJC) (A) M8 FLANGE 		0-91150-108-0 02 1 9906-0207
81 NUT; BRKT
4JH1 ENG(RJX) (B) M10 FLANGE 		0-91150-110-0 01 1 0208-0511
81 NUT; BRKT
4JH1-TC ENG(RDM) (B) M10 FLANGE 		0-91150-110-0 01 1 0512-0602
81 NUT; BRKT
4JH1-TC ENG(RDM) (B) M10 FLANGE 		0-91180-110-0 01 1 0603-0610
81 NUT; BRKT
4JJ1 ENG(LFB) (D) M10 FLANGE 		0-91180-210-0 02 1 0611-0612
81 NUT; BRKT
4JJ1 ENG(LFB) (B) M10 FLANGE 		0-91180-110-0 02 1 0701-0702
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-110-0 01 1 0703-
81 NUT; BRKT
4JH1 ENG(RJX) (C) M8 FLANGE 		0-91150-108-0 04 1 0412-0511
81 NUT; BRKT
4JH1-TC ENG(RDM) (C) M8 FLANGE 		0-91150-108-0 04 1 0512-0602
81 NUT; BRKT
4JH1-TC ENG(RDM) (C) M8 FLANGE 		0-91180-108-0 04 1 0603-0610
81 NUT; BRKT
4JJ1 ENG(LFB) (E) M8 FLANGE 		0-91180-208-0 02 1 0611-0612
81 NUT; BRKT
4JJ1 ENG(LFB) (C) M8 FLANGE 		0-91180-108-0 02 1 0701-
88 CLAMP; EXH PIPE
ID=51.5 		8-97016-034-0 01 1 9701-9903
88 CLAMP; EXH PIPE
ID=51.5 		8-97222-648-0 01 1 9904-9905
88 CLAMP; EXH PIPE
4JG2 ENG(RJC) ID=51.5 		8-97222-648-0 01 1 9906-0112
88 CLAMP; EXH PIPE
4JG2 ENG(RJC) ID=51.5 		8-97222-648-0 01 1 9906-0112
88 CLAMP; EXH PIPE
4JG2 ENG(RJC) ID=51.5 		8-97325-352-0 01 1 0201-0207
88 CLAMP; EXH PIPE
4JG2 ENG(RJC) ID=51.5 		8-97325-352-0 01 1 0201-0207
88 CLAMP; EXH PIPE
4JH1 ENG(RJX) ID=61.6 		8-97010-307-0 01 1 0208-0411
88 CLAMP; EXH PIPE
4JH1 ENG(RJX) ID=61.6 		8-97010-307-0 01 1 0412-0511
88 CLAMP; EXH PIPE
4JH1 ENG(RJX) ID=61.6 		8-97010-307-0 01 1 0412-0511
88 CLAMP; EXH PIPE
4JH1-TC ENG(RDM) ID=61.6 		8-97010-307-0 01 1 0512-0610
88 CLAMP; EXH PIPE
4JH1-TC ENG(RDM) ID=61.6 		8-97010-307-0 01 1 0512-0610
88 CLAMP; EXH PIPE
4JJ1 ENG(LFB) 		8-97373-158-0 01 1 0611-
94 BOLT; CLAMP
(A) M8X65 		0-10805-865-0 01 1 9701-9905
94 BOLT; CLAMP
(B) M8X45 		0-20800-845-0 01 1 9701-9905
94 BOLT; CLAMP
(C) M8X45 		0-20800-845-0 01 1 9906-0207
94 BOLT; CLAMP
4JG2 ENG(RJC) (C) M8X45 		0-20800-845-0 01 1 9906-0207
94 BOLT; CLAMP
(C) M8X45 		0-20800-845-0 01 1 0208-0411
94 BOLT; CLAMP
(C) M8X45 		0-20800-845-0 01 1 0412-0511
94 BOLT; CLAMP
4JH1 ENG(RJX) (C) M8X45 		0-20800-845-0 01 1 0412-0511
94 BOLT; CLAMP
(C) M8X45 		0-20800-845-0 01 1 0512-0610
94 BOLT; CLAMP
4JH1-TC ENG(RDM) (C) M8X45 		0-20800-845-0 01 1 0512-0610
94 BOLT; CLAMP
4JJ1 ENG(LFB) (E) M10X50 FLANGE 		8-97301-165-0 01 1 0611-
94 BOLT; CLAMP
(D) M10X45 FLANGE 		0-28051-045-0 01 1 0611-
95 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9701-0411
95 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0412-0512
95 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
97 WASHER; PL,CLAMP
ID=8.4 		9-09164-508-0 02 1 9701-9905
97 WASHER; PL,CLAMP
4JG2 ENG(RJC) ID=8.4 OD=18 		9-09164-608-0 01 1 9906-0207
97 WASHER; PL,CLAMP
4JH1 ENG(RJX) ID=8.4 OD=18 		9-09164-608-0 01 1 0412-0511
97 WASHER; PL,CLAMP
4JH1-TC ENG(RDM) ID=8.4 OD=18 		9-09164-608-0 01 1 0512-0605
97 WASHER; PL,CLAMP
4JH1-TC ENG(RDM) ID=8.4 OD=18 		0-91614-608-0 01 1 0606-0610
97 WASHER; PL,CLAMP
4JJ1 ENG(LFB) ID=10.5 OD=22 		0-91614-610-0 01 1 0611-
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9701-0411
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0412-0602
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-0610
104 NUT; BRKT
M8 FLANGE 		0-91180-208-0 02 1 0611-0612
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0701-
105 NUT; CLAMP
(A) M8 		9-09110-408-0 02 1 9701-9905
105 NUT; CLAMP
(A) M8 		9-09110-408-0 01 1 9906-0207
105 NUT; CLAMP
4JG2 ENG(RJC) (A) M8 		9-09110-408-0 01 1 9906-0207
105 NUT; CLAMP
(A) M8 		9-09110-408-0 01 1 0208-0411
105 NUT; CLAMP
(A) M8 		9-09110-408-0 01 1 0412-0512
105 NUT; CLAMP
(A) M8 		0-91110-508-0 01 1 0601-0610
105 NUT; CLAMP
(C) M10 		0-91110-510-0 01 1 0611-
105 NUT; CLAMP
4JH1 ENG(RJX) (B) M10 FLANGE 		0-91150-110-0 02 1 0208-0411
105 NUT; CLAMP
4JH1 ENG(RJX) (B) M10 FLANGE 		0-91150-110-0 02 1 0412-0511
105 NUT; CLAMP
4JH1-TC ENG(RDM) (B) M10 FLANGE 		0-91150-110-0 02 1 0512-0602
105 NUT; CLAMP
4JH1-TC ENG(RDM) (B) M10 FLANGE 		0-91180-110-0 02 1 0603-0610
124 NUT; SUPPORT RUBBER
4JH1 ENG(RJX) M10 		9-09110-410-0 01 1 0412-0511
124 NUT; SUPPORT RUBBER
4JH1-TC ENG(RDM) M10 		9-09110-410-0 01 1 0512-0512
124 NUT; SUPPORT RUBBER
4JH1-TC ENG(RDM) M10 		0-91110-510-0 01 1 0601-0610
124 NUT; SUPPORT RUBBER
4JJ1 ENG(LFB) M10 FLANGE 		0-91180-210-0 01 1 0611-0612
124 NUT; SUPPORT RUBBER
4JJ1 ENG(LFB) M10 FLANGE 		0-91180-110-0 01 1 0701-
125 NUT; CLAMP
4JH1 ENG(RJX) M8 		9-09110-408-0 01 1 0412-0511
125 NUT; CLAMP
4JH1-TC ENG(RDM) M8 		9-09110-408-0 01 1 0512-0512
125 NUT; CLAMP
4JH1-TC ENG(RDM) M8 		0-91110-508-0 01 1 0601-0610
125 NUT; CLAMP
4JJ1 ENG(LFB) M10 		0-91110-510-0 01 1 0611-
126 PIPE; EXH,RR
(A) TAI 		8-97965-150-0 01 1 9701-9905
126 PIPE; EXH,RR
4JG2 ENG(RJC) (B) 		8-97212-562-1 01 1 9906-0207
126 PIPE; EXH,RR
4JH1 ENG(RJX) (C) TAI 		8-97967-226-0 01 1 0208-0511
126 PIPE; EXH,RR
4JH1-TC ENG(RDM) (C) TAI 		8-97967-226-0 01 1 0512-0610
126 PIPE; EXH,RR
4JJ1 ENG(LFB) (E) 		8-98035-092-0 01 1 0611-
126 PIPE; EXH,RR
4JH1 ENG(RJX) (D) TAI 		8-97260-001-1 01 1 0412-0511
126 PIPE; EXH,RR
4JH1-TC ENG(RDM) (D) TAI 		8-97260-001-1 01 1 0512-0610
126 PIPE; EXH,RR
4JJ1 ENG(LFB) (F) 		8-98025-643-1 01 1 0611-
137 BRACKET; TAIL PIPE
(A) 		9-22121-146-1 01 1 9701-9707
137 BRACKET; TAIL PIPE
(A) TAI 		8-97965-877-0 01 1 9708-0610
137 BRACKET; TAIL PIPE
(C) TAI 		8-97967-584-0 01 1 0611-
137 BRACKET; TAIL PIPE
4JH1 ENG(RJX) (B) 		8-94468-175-0 01 1 0412-0511
137 BRACKET; TAIL PIPE
4JH1-TC ENG(RDM) (B) 		8-94468-175-0 01 1 0512-0610
137 BRACKET; TAIL PIPE
4JJ1 ENG(LFB) (D) TAI 		8-97967-583-0 01 1 0611-
143 RUBBER; SUPPORT
4JG2 ENG(RJC) (A) 		8-97046-148-1 01 1 9906-9908
143 RUBBER; SUPPORT
4JG2 ENG(RJC) (A) 		8-97229-586-0 01 1 9909-0207
143 RUBBER; SUPPORT
4JJ1 ENG(LFB) (D) 		8-98034-767-0 01 1 0611-
143 RUBBER; SUPPORT
4JH1 ENG(RJX) (B) 		8-97371-655-0 01 1 0412-0511
143 RUBBER; SUPPORT
4JH1-TC ENG(RDM) (B) 		8-97371-655-0 01 1 0512-0610
143 RUBBER; SUPPORT
4JJ1 ENG(LFB) (C) 		8-97080-694-0 01 1 0611-
144 NUT; MTG RUBBER
4JG2 ENG(RJC) M8 FLANGE 		0-91150-108-0 01 1 9906-0207
144 NUT; MTG RUBBER
4JH1 ENG(RJX) M8 FLANGE 		0-91150-108-0 01 1 0412-0511
144 NUT; MTG RUBBER
4JH1-TC ENG(RDM) M8 FLANGE 		0-91150-108-0 01 1 0512-0602
144 NUT; MTG RUBBER
4JH1-TC ENG(RDM) M8 FLANGE 		0-91180-108-0 01 1 0603-0610
144 NUT; MTG RUBBER
4JJ1 ENG(LFB) M8 FLANGE 		0-91180-208-0 01 1 0611-0612
144 NUT; MTG RUBBER
4JJ1 ENG(LFB) M8 FLANGE 		0-91180-108-0 01 1 0701-
162 RUBBER; SUPPORT,TAIL PIPE
(A) TAI 		8-97965-410-0 01 1 9701-0610
162 RUBBER; SUPPORT,TAIL PIPE
(C) L=150 TAI 		8-97373-139-1 01 1 0611-
162 RUBBER; SUPPORT,TAIL PIPE
4JH1 ENG(RJX) (B) L=115 		8-94156-256-0 01 1 0412-0511
162 RUBBER; SUPPORT,TAIL PIPE
4JH1-TC ENG(RDM) (B) L=115 		8-94156-256-0 01 1 0512-0610
162 RUBBER; SUPPORT,TAIL PIPE
4JJ1 ENG(LFB) (D) L=115 		8-98034-765-0 01 1 0611-
164 COLLAR; DIST,TAIL PIPE
(A) L=23 		9-22151-175-0 01 1 9701-0610
164 COLLAR; DIST,TAIL PIPE
(A) L=23 		8-98006-011-0 01 1 0611-
164 COLLAR; DIST,TAIL PIPE
4JH1 ENG(RJX) (B) L=37.5 		9-22151-217-0 01 1 0412-0511
164 COLLAR; DIST,TAIL PIPE
4JH1-TC ENG(RDM) (B) L=37.5 		9-22151-217-0 01 1 0512-0610
164 COLLAR; DIST,TAIL PIPE
4JJ1 ENG(LFB) (B) L=37.5 		9-22151-217-0 01 1 0611-
165 BOLT; SUPPORT RUBBER
M8X45 FLANGE 		0-28080-845-0 01 1 9701-0512
165 BOLT; SUPPORT RUBBER
M8X45 FLANGE 		0-28050-845-0 01 1 0601-0610
165 BOLT; SUPPORT RUBBER
M10X45 FLANGE 		0-28051-045-0 01 1 0611-
165 BOLT; SUPPORT RUBBER
4JH1 ENG(RJX) M10X70 FLANGE 		0-28081-070-0 01 1 0412-0511
165 BOLT; SUPPORT RUBBER
4JH1-TC ENG(RDM) M10X70 FLANGE 		0-28081-070-0 01 1 0512-0512
165 BOLT; SUPPORT RUBBER
4JH1-TC ENG(RDM) M10X70 FLANGE 		0-28051-070-0 01 1 0601-0610
165 BOLT; SUPPORT RUBBER
4JJ1 ENG(LFB) M10X70 FLANGE 		0-28051-070-0 01 1 0611-
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
ID=8.4 OD=26 		9-09164-808-0 01 1 9701-0605
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
ID=8.4 OD=26 		0-91614-808-0 01 1 0606-0610
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
4JH1 ENG(RJX) ID=10.5 OD=32 		9-09164-810-0 01 1 0412-0511
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
4JH1-TC ENG(RDM) ID=10.5 OD=32 		9-09164-810-0 01 1 0512-0605
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
4JH1-TC ENG(RDM) ID=10.5 OD=32 		0-91614-810-0 01 1 0606-0610
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
4JJ1 ENG(LFB) ID=10.5 OD=32 		0-91614-810-0 01 1 0611-
168 BRACKET; EXH PIPE,FRT
(A) 		8-97084-346-2 01 1 9701-9905
168 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC) (A) 		8-97084-346-2 01 1 9906-0207
168 BRACKET; EXH PIPE,FRT
4JH1 ENG(RJX) (C) TAI 		8-97240-857-0 01 1 0208-0411
168 BRACKET; EXH PIPE,FRT
4JH1 ENG(RJX) (C) TAI 		8-97240-857-0 01 1 0412-0511
168 BRACKET; EXH PIPE,FRT
4JH1-TC ENG(RDM) (C) TAI 		8-97240-857-0 01 1 0512-0610
168 BRACKET; EXH PIPE,FRT
4JJ1 ENG(LFB) (E) TAI 		8-98026-063-0 01 1 0611-
168 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC) (B) 		8-97210-476-0 01 1 9906-0207
168 BRACKET; EXH PIPE,FRT
4JJ1 ENG(LFB) (B) 		8-97210-476-0 01 1 0611-
168 BRACKET; EXH PIPE,FRT
4JH1 ENG(RJX) (D) 		8-94468-174-1 01 1 0412-0511
168 BRACKET; EXH PIPE,FRT
4JH1-TC ENG(RDM) (D) 		8-94468-174-1 01 1 0512-0610
168 BRACKET; EXH PIPE,FRT
4JJ1 ENG(LFB) (D) 		8-94468-174-1 01 1 0611-
357 WASHER; PL,CLAMP
ID=8.4 OD=18 		9-09164-608-0 01 1 9701-0411
357 WASHER; PL,CLAMP
ID=8.4 OD=18 		9-09164-608-0 01 1 0412-0605
357 WASHER; PL,CLAMP
ID=8.4 OD=18 		0-91614-608-0 01 1 0606-0610
357 WASHER; PL,CLAMP
ID=10.5 OD=22 		0-91614-610-0 01 1 0611-
çizim 420731
119 118 117 115 114 113 103 115 1 56 12 38 50 47 122 112 1 221 2 50 42 44 165 164 166 104 34 36 105 137 357 95 44 168 88 162 126 94 105 97 99 97 94 89
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
EXHAUST BRAKE<NF8> (A) 		8-97034-086-1 01 1 9701-9809
1 PIPE; EXH
(A) 		8-97214-685-0 01 1 9810-9905
1 PIPE; EXH
4JG2 ENG(RJC) (B) 		8-97212-561-1 01 1 9906-0207
1 PIPE; EXH
4JH1 ENG(RJX) (C) 		8-97311-667-0 01 1 0208-0211
1 PIPE; EXH
4JH1 ENG(RJX) (C) 		8-97356-339-1 01 1 0212-0511
1 PIPE; EXH
4JH1-TC ENG(RDM) (C) 		8-97356-339-1 01 1 0512-0610
1 PIPE; EXH
4JJ1 ENG(LFB) (E) 		8-98026-060-0 01 1 0611-
1 PIPE; EXH
EXC. EXHAUST BRAKE<NF8> (A) TAI 		8-97965-149-0 01 1 9701-9809
1 PIPE; EXH
4JH1 ENG(RJX) (D) 		8-97305-630-1 01 1 0412-0511
1 PIPE; EXH
4JH1-TC ENG(RDM) (D) 		8-97305-630-1 01 1 0512-0610
1 PIPE; EXH
4JJ1 ENG(LFB) (F) 		8-98005-237-0 01 1 0611-
2 GASKET; PIPE TO MANIF
EXC. EXHAUST BRAKE<NF8> (A) 		8-97069-287-0 01 1 9701-9709
2 GASKET; PIPE TO MANIF
EXC. EXHAUST BRAKE<NF8> (A) 		8-97180-750-2 01 1 9710-9809
2 GASKET; PIPE TO MANIF
4JG2 ENG(RJC) (B) ID=71 		8-94324-194-0 02 1 9906-0207
2 GASKET; PIPE TO MANIF
4JG2 ENG(RJC) (A) 		8-97180-750-2 01 1 9906-0207
2 GASKET; PIPE TO MANIF
4JH1 ENG(RJX) (A) 		8-97180-750-2 01 1 0208-0408
2 GASKET; PIPE TO MANIF
4JH1 ENG(RJX) (A) 		8-97381-456-0 01 1 0409-0411
2 GASKET; PIPE TO MANIF
4JH1 ENG(RJX) (A) 		8-97381-456-0 01 1 0412-0511
2 GASKET; PIPE TO MANIF
4JH1-TC ENG(RDM) (A) 		8-97381-456-0 01 1 0512-0610
2 GASKET; PIPE TO MANIF
4JJ1 ENG(LFB) (C) 		8-97384-590-0 01 1 0611-
12 SILENCER ASM; EXH
TAI 		8-97965-379-1 01 1 9701-9905
12 SILENCER ASM; EXH
4JG2 ENG(RJC) 		8-97221-923-0 01 1 9906-0207
12 SILENCER ASM; EXH
4JH1 ENG(RJX) 		8-97309-650-0 01 1 0208-0411
12 SILENCER ASM; EXH
4JH1 ENG(RJX) 		8-97309-650-0 01 1 0412-0511
12 SILENCER ASM; EXH
4JH1-TC ENG(RDM) 		8-97309-650-0 01 1 0512-0610
12 SILENCER ASM; EXH
4JJ1 ENG(LFB) 		8-98021-917-1 01 1 0611-
12 SILENCER ASM; EXH
4JJ1 ENG(LFB) 		8-98001-836-1 01 1 0611-
34 WASHER; EXH PIPE
ID=10.5 		5-09500-013-0 02 1 9810-9905
36 NUT; EXH PIPE
EXHAUST BRAKE<NF8> M10 H=18 		9-09640-014-0 02 1 9701-9809
36 NUT; EXH PIPE
M10 H=18 		9-09640-014-0 02 1 9810-9905
36 NUT; EXH PIPE
4JG2 ENG(RJC) M10 FLANGE 		8-97096-192-1 02 1 9906-0207
36 NUT; EXH PIPE
4JH1 ENG(RJX) M10 FLANGE 		8-97096-192-1 02 1 0208-0411
36 NUT; EXH PIPE
4JH1 ENG(RJX) M10 FLANGE 		8-97096-192-1 02 1 0412-0511
36 NUT; EXH PIPE
4JH1-TC ENG(RDM) M10 FLANGE 		8-97096-192-1 02 1 0512-0610
36 NUT; EXH PIPE
4JJ1 ENG(LFB) M10 FLANGE 		8-97096-192-1 03 1 0611-
36 NUT; EXH PIPE
EXC. EXHAUST BRAKE<NF8> M10 FLANGE 		8-97096-192-1 02 1 9701-9809
38 NUT; SILENCER
M8 		9-09110-408-0 01 1 9701-9905
38 NUT; SILENCER
4JH1 ENG(RJX) M8 FLANGE 		0-91150-108-0 04 1 0412-0511
38 NUT; SILENCER
4JH1-TC ENG(RDM) M8 FLANGE 		0-91150-108-0 04 1 0512-0602
38 NUT; SILENCER
4JH1-TC ENG(RDM) M8 FLANGE 		0-91180-108-0 04 1 0603-0610
38 NUT; SILENCER
4JJ1 ENG(LFB) M10 FLANGE 		0-91180-210-0 02 1 0611-0612
38 NUT; SILENCER
4JJ1 ENG(LFB) M10 FLANGE 		0-91180-210-0 02 1 0611-0612
38 NUT; SILENCER
4JJ1 ENG(LFB) M10 FLANGE 		0-91180-110-0 02 1 0701-
38 NUT; SILENCER
4JJ1 ENG(LFB) M10 FLANGE 		0-91180-110-0 02 1 0701-
42 BOLT; EXH PIPE TO EXH SILENCER
M8X65 		0-10805-865-0 01 1 9701-9905
44 BOLT; BRKT
(A) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9701-9905
44 BOLT; BRKT
4JG2 ENG(RJC) (A) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9906-0207
44 BOLT; BRKT
4JH1 ENG(RJX) (A) M8X16 FLANGE 		0-28080-816-0 02 1 0208-0411
44 BOLT; BRKT
4JH1 ENG(RJX) (A) M8X16 FLANGE 		0-28080-816-0 02 1 0412-0511
44 BOLT; BRKT
4JH1-TC ENG(RDM) (A) M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512
44 BOLT; BRKT
4JH1-TC ENG(RDM) (A) M8X16 FLANGE 		0-28050-816-0 02 1 0601-0610
44 BOLT; BRKT
4JJ1 ENG(LFB) (C) M10X25 FLANGE 		0-28151-025-0 02 1 0611-
44 BOLT; BRKT
(B) M8X40 W/LK WASHER 		0-50040-840-0 01 1 9701-9905
44 BOLT; BRKT
4JG2 ENG(RJC) (B) M8X40 W/LK WASHER 		0-50040-840-0 01 1 9906-0207
44 BOLT; BRKT
4JH1 ENG(RJX) (B) M8X40 W/LK WASHER 		0-50040-840-0 01 1 0208-0404
44 BOLT; BRKT
4JH1 ENG(RJX) (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0405-0411
44 BOLT; BRKT
4JH1 ENG(RJX) (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0412-0511
44 BOLT; BRKT
4JH1-TC ENG(RDM) (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0512-0610
44 BOLT; BRKT
4JJ1 ENG(LFB) (D) M10X30 FLANGE 		0-28651-030-0 02 1 0611-
44 BOLT; BRKT
4JJ1 ENG(LFB) (E) M10X35 FLANGE 		0-28651-035-0 02 1 0611-
47 WASHER; LK,FRT PIPE TO SILENCER
ID=8.2 		9-09150-508-0 01 1 9701-9905
50 WASHER; PL,FRT PIPE TO SILENCER
ID=8.4 		9-09164-508-0 02 1 9701-9905
88 CLAMP; EXH PIPE
ID=51.5 		8-97016-034-0 01 1 9701-9903
88 CLAMP; EXH PIPE
ID=51.5 		8-97222-648-0 01 1 9904-9905
88 CLAMP; EXH PIPE
4JG2 ENG(RJC) ID=51.5 		8-97222-648-0 01 1 9906-0112
88 CLAMP; EXH PIPE
4JG2 ENG(RJC) ID=51.5 		8-97222-648-0 01 1 9906-0112
88 CLAMP; EXH PIPE
4JG2 ENG(RJC) ID=51.5 		8-97325-352-0 01 1 0201-0207
88 CLAMP; EXH PIPE
4JG2 ENG(RJC) ID=51.5 		8-97325-352-0 01 1 0201-0207
88 CLAMP; EXH PIPE
4JH1 ENG(RJX) ID=61.6 		8-97010-307-0 01 1 0208-0411
88 CLAMP; EXH PIPE
4JH1 ENG(RJX) ID=61.6 		8-97010-307-0 01 1 0412-0511
88 CLAMP; EXH PIPE
4JH1 ENG(RJX) ID=61.6 		8-97010-307-0 01 1 0412-0511
88 CLAMP; EXH PIPE
4JH1-TC ENG(RDM) ID=61.6 		8-97010-307-0 01 1 0512-0610
88 CLAMP; EXH PIPE
4JH1-TC ENG(RDM) ID=61.6 		8-97010-307-0 01 1 0512-0610
88 CLAMP; EXH PIPE
4JJ1 ENG(LFB) 		8-97373-158-0 01 1 0611-
89 CLAMP; EXH SILENCER,RR
TAI 		8-97965-482-0 01 1 9701-9905
94 BOLT; CLAMP
(A) M8X65 		0-10805-865-0 01 1 9701-9905
94 BOLT; CLAMP
(B) M8X45 		0-20800-845-0 01 1 9701-9905
94 BOLT; CLAMP
(C) M8X45 		0-20800-845-0 01 1 9906-0207
94 BOLT; CLAMP
4JG2 ENG(RJC) (C) M8X45 		0-20800-845-0 01 1 9906-0207
94 BOLT; CLAMP
(C) M8X45 		0-20800-845-0 01 1 0208-0411
94 BOLT; CLAMP
(C) M8X45 		0-20800-845-0 01 1 0412-0511
94 BOLT; CLAMP
4JH1 ENG(RJX) (C) M8X45 		0-20800-845-0 01 1 0412-0511
94 BOLT; CLAMP
(C) M8X45 		0-20800-845-0 01 1 0512-0610
94 BOLT; CLAMP
4JH1-TC ENG(RDM) (C) M8X45 		0-20800-845-0 01 1 0512-0610
94 BOLT; CLAMP
4JJ1 ENG(LFB) (E) M10X50 FLANGE 		8-97301-165-0 01 1 0611-
94 BOLT; CLAMP
(D) M10X45 FLANGE 		0-28051-045-0 01 1 0611-
95 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9701-0411
95 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0412-0512
95 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
97 WASHER; PL,CLAMP
ID=8.4 		9-09164-508-0 02 1 9701-9905
97 WASHER; PL,CLAMP
4JG2 ENG(RJC) ID=8.4 OD=18 		9-09164-608-0 01 1 9906-0207
97 WASHER; PL,CLAMP
4JH1 ENG(RJX) ID=8.4 OD=18 		9-09164-608-0 01 1 0412-0511
97 WASHER; PL,CLAMP
4JH1-TC ENG(RDM) ID=8.4 OD=18 		9-09164-608-0 01 1 0512-0605
97 WASHER; PL,CLAMP
4JH1-TC ENG(RDM) ID=8.4 OD=18 		0-91614-608-0 01 1 0606-0610
97 WASHER; PL,CLAMP
4JJ1 ENG(LFB) ID=10.5 OD=22 		0-91614-610-0 01 1 0611-
99 WASHER; LK,TAIL PIPE TO SILENCER
ID=8.2 		9-09150-508-0 01 1 9701-9905
103 BOLT; SILENCER BRKT FIX
M8X45 W/LK WASHER 		0-50040-845-0 01 1 9701-0411
103 BOLT; SILENCER BRKT FIX
M8X45 W/LK WASHER 		0-50040-845-0 01 1 0412-0610
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9701-0411
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0412-0602
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-0610
104 NUT; BRKT
M8 FLANGE 		0-91180-208-0 02 1 0611-0612
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0701-
105 NUT; CLAMP
(A) M8 		9-09110-408-0 02 1 9701-9905
105 NUT; CLAMP
(A) M8 		9-09110-408-0 01 1 9906-0207
105 NUT; CLAMP
4JG2 ENG(RJC) (A) M8 		9-09110-408-0 01 1 9906-0207
105 NUT; CLAMP
(A) M8 		9-09110-408-0 01 1 0208-0411
105 NUT; CLAMP
(A) M8 		9-09110-408-0 01 1 0412-0512
105 NUT; CLAMP
(A) M8 		0-91110-508-0 01 1 0601-0610
105 NUT; CLAMP
(C) M10 		0-91110-510-0 01 1 0611-
105 NUT; CLAMP
4JH1 ENG(RJX) (B) M10 FLANGE 		0-91150-110-0 02 1 0208-0411
105 NUT; CLAMP
4JH1 ENG(RJX) (B) M10 FLANGE 		0-91150-110-0 02 1 0412-0511
105 NUT; CLAMP
4JH1-TC ENG(RDM) (B) M10 FLANGE 		0-91150-110-0 02 1 0512-0602
105 NUT; CLAMP
4JH1-TC ENG(RDM) (B) M10 FLANGE 		0-91180-110-0 02 1 0603-0610
112 BRACKET; HANGER 8-97081-457-0 01 1 9701-9702
112 BRACKET; HANGER 8-97076-018-0 01 1 9703-9905
112 BRACKET; HANGER
4JG2 ENG(RJC) TAI 		8-97966-891-0 01 1 9906-0207
112 BRACKET; HANGER
4JH1 ENG(RJX) TAI 		8-97967-282-0 01 1 0208-0411
112 BRACKET; HANGER
4JH1 ENG(RJX) TAI 		8-97967-282-0 01 1 0412-0511
112 BRACKET; HANGER
4JH1-TC ENG(RDM) TAI 		8-97967-282-0 01 1 0512-0610
113 COLLAR; DIST,MTG BRKT
L=37.5 		9-22151-217-0 01 1 9701-0411
113 COLLAR; DIST,MTG BRKT
L=37.5 		9-22151-217-0 01 1 0412-0610
113 COLLAR; DIST,MTG BRKT
4JJ1 ENG(LFB) L=37.5 		9-22151-217-0 02 1 0611-
114 BRACKET; EXH SILENCER
(A) 		8-94329-856-0 01 1 9701-9707
114 BRACKET; EXH SILENCER
(A) TAI 		8-97965-876-0 01 1 9708-9905
114 BRACKET; EXH SILENCER
4JG2 ENG(RJC) (B) 		8-97073-758-0 01 1 9906-0207
114 BRACKET; EXH SILENCER
4JH1 ENG(RJX) (B) 		8-97073-758-0 01 1 0208-0511
114 BRACKET; EXH SILENCER
4JH1-TC ENG(RDM) (B) 		8-97073-758-0 01 1 0512-0610
114 BRACKET; EXH SILENCER
4JH1 ENG(RJX) (C) 		8-97312-902-0 01 1 0208-0511
114 BRACKET; EXH SILENCER
4JH1-TC ENG(RDM) (C) 		8-97312-902-0 01 1 0512-0610
114 BRACKET; EXH SILENCER
4JH1 ENG(RJX) (B) 		8-97172-313-0 01 1 0412-0511
114 BRACKET; EXH SILENCER
4JH1-TC ENG(RDM) (B) 		8-97172-313-0 01 1 0512-0610
115 RUBBER; MTG,SILENCER
(A) TAI 		8-97965-421-0 01 1 9701-0207
115 RUBBER; MTG,SILENCER
(A) TAI 		8-97965-421-0 01 1 0208-0411
115 RUBBER; MTG,SILENCER
4JH1 ENG(RJX) (A) TAI 		8-97965-421-0 01 1 0208-0411
115 RUBBER; MTG,SILENCER
(A) TAI 		8-97965-421-0 01 1 0412-0511
115 RUBBER; MTG,SILENCER
4JH1 ENG(RJX) (A) TAI 		8-97965-421-0 01 1 0412-0511
115 RUBBER; MTG,SILENCER
(A) TAI 		8-97965-421-0 01 1 0512-0610
115 RUBBER; MTG,SILENCER
4JH1-TC ENG(RDM) (A) TAI 		8-97965-421-0 01 1 0512-0610
115 RUBBER; MTG,SILENCER
4JJ1 ENG(LFB) (A) TAI 		8-97965-421-0 02 1 0611-
115 RUBBER; MTG,SILENCER
(B) TAI 		8-97965-422-0 01 1 9701-0207
115 RUBBER; MTG,SILENCER
(B) TAI 		8-97965-422-0 01 1 0208-0411
115 RUBBER; MTG,SILENCER
4JH1 ENG(RJX) (B) TAI 		8-97965-422-0 01 1 0208-0411
115 RUBBER; MTG,SILENCER
(B) TAI 		8-97965-422-0 01 1 0412-0511
115 RUBBER; MTG,SILENCER
4JH1 ENG(RJX) (B) TAI 		8-97965-422-0 01 1 0412-0511
115 RUBBER; MTG,SILENCER
(B) TAI 		8-97965-422-0 01 1 0512-0610
115 RUBBER; MTG,SILENCER
4JH1-TC ENG(RDM) (B) TAI 		8-97965-422-0 01 1 0512-0610
115 RUBBER; MTG,SILENCER
4JJ1 ENG(LFB) (B) TAI 		8-97965-422-0 02 1 0611-
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 01 1 9701-0207
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 01 1 0208-0411
117 WASHER; PL,SILENCER MTG BRKT
4JH1 ENG(RJX) OD=55 		9-09852-169-0 01 1 0208-0411
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 01 1 0412-0511
117 WASHER; PL,SILENCER MTG BRKT
4JH1 ENG(RJX) OD=55 		9-09852-169-0 01 1 0412-0511
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 01 1 0512-0610
117 WASHER; PL,SILENCER MTG BRKT
4JH1-TC ENG(RDM) OD=55 		9-09852-169-0 01 1 0512-0610
117 WASHER; PL,SILENCER MTG BRKT
4JJ1 ENG(LFB) OD=55 		9-09852-169-0 02 1 0611-
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		5-09440-006-0 01 1 9701-0411
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		5-09440-006-0 01 1 0412-0610
118 NUT; SILENCER MTG BRKT
4JJ1 ENG(LFB) M10 FLANGE 		5-09440-006-0 02 1 0611-
119 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9701-0411
119 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0412-0602
119 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-0610
122 NUT; HANGER BRKT
(A) M8 		9-09110-408-0 01 1 9701-0411
122 NUT; HANGER BRKT
(A) M8 		9-09110-408-0 01 1 0412-0512
122 NUT; HANGER BRKT
(A) M8 		0-91110-508-0 01 1 0601-0610
122 NUT; HANGER BRKT
4JG2 ENG(RJC) (B) M8 FLANGE 		0-91150-108-0 02 1 9906-0207
126 PIPE; EXH,RR
(A) TAI 		8-97965-150-0 01 1 9701-9905
126 PIPE; EXH,RR
4JG2 ENG(RJC) (B) 		8-97212-562-1 01 1 9906-0207
126 PIPE; EXH,RR
4JH1 ENG(RJX) (C) TAI 		8-97967-226-0 01 1 0208-0511
126 PIPE; EXH,RR
4JH1-TC ENG(RDM) (C) TAI 		8-97967-226-0 01 1 0512-0610
126 PIPE; EXH,RR
4JJ1 ENG(LFB) (E) 		8-98035-092-0 01 1 0611-
126 PIPE; EXH,RR
4JH1 ENG(RJX) (D) TAI 		8-97260-001-1 01 1 0412-0511
126 PIPE; EXH,RR
4JH1-TC ENG(RDM) (D) TAI 		8-97260-001-1 01 1 0512-0610
126 PIPE; EXH,RR
4JJ1 ENG(LFB) (F) 		8-98025-643-1 01 1 0611-
137 BRACKET; TAIL PIPE
(A) 		9-22121-146-1 01 1 9701-9707
137 BRACKET; TAIL PIPE
(A) TAI 		8-97965-877-0 01 1 9708-0610
137 BRACKET; TAIL PIPE
(C) TAI 		8-97967-584-0 01 1 0611-
137 BRACKET; TAIL PIPE
4JH1 ENG(RJX) (B) 		8-94468-175-0 01 1 0412-0511
137 BRACKET; TAIL PIPE
4JH1-TC ENG(RDM) (B) 		8-94468-175-0 01 1 0512-0610
137 BRACKET; TAIL PIPE
4JJ1 ENG(LFB) (D) TAI 		8-97967-583-0 01 1 0611-
162 RUBBER; SUPPORT,TAIL PIPE
(A) TAI 		8-97965-410-0 01 1 9701-0610
162 RUBBER; SUPPORT,TAIL PIPE
(C) L=150 TAI 		8-97373-139-1 01 1 0611-
162 RUBBER; SUPPORT,TAIL PIPE
4JH1 ENG(RJX) (B) L=115 		8-94156-256-0 01 1 0412-0511
162 RUBBER; SUPPORT,TAIL PIPE
4JH1-TC ENG(RDM) (B) L=115 		8-94156-256-0 01 1 0512-0610
162 RUBBER; SUPPORT,TAIL PIPE
4JJ1 ENG(LFB) (D) L=115 		8-98034-765-0 01 1 0611-
164 COLLAR; DIST,TAIL PIPE
(A) L=23 		9-22151-175-0 01 1 9701-0610
164 COLLAR; DIST,TAIL PIPE
(A) L=23 		8-98006-011-0 01 1 0611-
164 COLLAR; DIST,TAIL PIPE
4JH1 ENG(RJX) (B) L=37.5 		9-22151-217-0 01 1 0412-0511
164 COLLAR; DIST,TAIL PIPE
4JH1-TC ENG(RDM) (B) L=37.5 		9-22151-217-0 01 1 0512-0610
164 COLLAR; DIST,TAIL PIPE
4JJ1 ENG(LFB) (B) L=37.5 		9-22151-217-0 01 1 0611-
165 BOLT; SUPPORT RUBBER
M8X45 FLANGE 		0-28080-845-0 01 1 9701-0512
165 BOLT; SUPPORT RUBBER
M8X45 FLANGE 		0-28050-845-0 01 1 0601-0610
165 BOLT; SUPPORT RUBBER
M10X45 FLANGE 		0-28051-045-0 01 1 0611-
165 BOLT; SUPPORT RUBBER
4JH1 ENG(RJX) M10X70 FLANGE 		0-28081-070-0 01 1 0412-0511
165 BOLT; SUPPORT RUBBER
4JH1-TC ENG(RDM) M10X70 FLANGE 		0-28081-070-0 01 1 0512-0512
165 BOLT; SUPPORT RUBBER
4JH1-TC ENG(RDM) M10X70 FLANGE 		0-28051-070-0 01 1 0601-0610
165 BOLT; SUPPORT RUBBER
4JJ1 ENG(LFB) M10X70 FLANGE 		0-28051-070-0 01 1 0611-
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
ID=8.4 OD=26 		9-09164-808-0 01 1 9701-0605
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
ID=8.4 OD=26 		0-91614-808-0 01 1 0606-0610
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
4JH1 ENG(RJX) ID=10.5 OD=32 		9-09164-810-0 01 1 0412-0511
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
4JH1-TC ENG(RDM) ID=10.5 OD=32 		9-09164-810-0 01 1 0512-0605
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
4JH1-TC ENG(RDM) ID=10.5 OD=32 		0-91614-810-0 01 1 0606-0610
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
4JJ1 ENG(LFB) ID=10.5 OD=32 		0-91614-810-0 01 1 0611-
168 BRACKET; EXH PIPE,FRT
(A) 		8-97084-346-2 01 1 9701-9905
168 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC) (A) 		8-97084-346-2 01 1 9906-0207
168 BRACKET; EXH PIPE,FRT
4JH1 ENG(RJX) (C) TAI 		8-97240-857-0 01 1 0208-0411
168 BRACKET; EXH PIPE,FRT
4JH1 ENG(RJX) (C) TAI 		8-97240-857-0 01 1 0412-0511
168 BRACKET; EXH PIPE,FRT
4JH1-TC ENG(RDM) (C) TAI 		8-97240-857-0 01 1 0512-0610
168 BRACKET; EXH PIPE,FRT
4JJ1 ENG(LFB) (E) TAI 		8-98026-063-0 01 1 0611-
168 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC) (B) 		8-97210-476-0 01 1 9906-0207
168 BRACKET; EXH PIPE,FRT
4JJ1 ENG(LFB) (B) 		8-97210-476-0 01 1 0611-
168 BRACKET; EXH PIPE,FRT
4JH1 ENG(RJX) (D) 		8-94468-174-1 01 1 0412-0511
168 BRACKET; EXH PIPE,FRT
4JH1-TC ENG(RDM) (D) 		8-94468-174-1 01 1 0512-0610
168 BRACKET; EXH PIPE,FRT
4JJ1 ENG(LFB) (D) 		8-94468-174-1 01 1 0611-
221 CLAMP; EXH SILENCER
TAI 		8-97965-482-0 01 1 9701-9905
357 WASHER; PL,CLAMP
ID=8.4 OD=18 		9-09164-608-0 01 1 9701-0411
357 WASHER; PL,CLAMP
ID=8.4 OD=18 		9-09164-608-0 01 1 0412-0605
357 WASHER; PL,CLAMP
ID=8.4 OD=18 		0-91614-608-0 01 1 0606-0610
357 WASHER; PL,CLAMP
ID=10.5 OD=22 		0-91614-610-0 01 1 0611-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
