1-45 — WATER SEDIMENTER; FUEL (#139049) — 111 parça

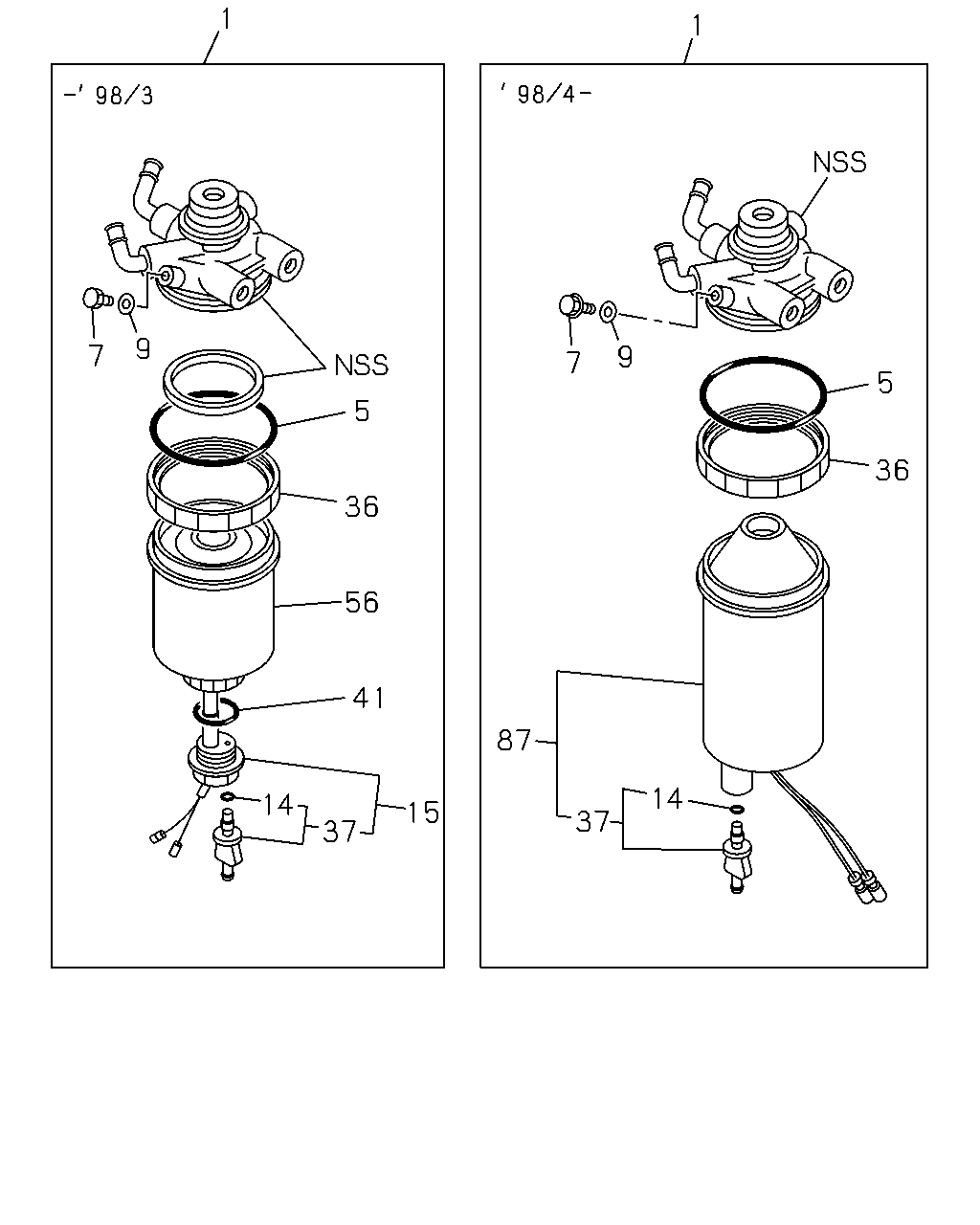

1 1 8 83 9 7 9 7 5 5 36 36 56 41 87 14 14 15 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SEDIMENTER; FUEL	8-97081-814-1	01	1	9701-9905
1	SEDIMENTER; FUEL 4JG2 ENG(RJC)	8-97081-814-1	01	1	9906-0207
1	SEDIMENTER; FUEL 4JH1 ENG(RJX)	8-97240-126-2	01	1	0208-0411
1	SEDIMENTER; FUEL 4JH1 ENG(RJX)	8-97240-126-2	01	1	0412-0511
1	SEDIMENTER; FUEL 4JH1-TC ENG(RDM)	8-97240-126-2	01	1	0512-0610
5	GASKET; UPR COVER,SEDIMENTER	5-09623-075-0	01	1	9701-9905
5	GASKET; UPR COVER,SEDIMENTER 4JG2 ENG(RJC)	5-09623-075-0	01	1	9906-0207
7	PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	9701-9905
7	PLUG; DRAIN,SEDIMENTER 4JG2 ENG(RJC)	8-94132-674-0	01	1	9906-0207
7	PLUG; DRAIN,SEDIMENTER 4JH1 ENG(RJX)	8-94132-674-0	01	1	0208-0411
7	PLUG; DRAIN,SEDIMENTER 4JH1 ENG(RJX)	8-94132-674-0	01	1	0412-0511
7	PLUG; DRAIN,SEDIMENTER 4JH1-TC ENG(RDM)	8-94132-674-0	01	1	0512-0610
9	GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	9701-9905
9	GASKET; DRAIN PLUG & CONNECTOR 4JG2 ENG(RJC)	8-94132-675-0	01	1	9906-0207
9	GASKET; DRAIN PLUG & CONNECTOR 4JH1 ENG(RJX)	8-94132-675-0	01	1	0208-0411
9	GASKET; DRAIN PLUG & CONNECTOR 4JH1 ENG(RJX)	8-94132-675-0	01	1	0412-0511
9	GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM)	8-94132-675-0	01	1	0512-0610
14	GASKET; SENSOR TO CENTER BOLT	8-94447-156-0	01	1	9701-9905
14	GASKET; SENSOR TO CENTER BOLT 4JG2 ENG(RJC)	8-94447-156-0	01	1	9906-0207
14	GASKET; SENSOR TO CENTER BOLT 4JH1 ENG(RJX)	8-94447-156-0	01	1	0208-0411
14	GASKET; SENSOR TO CENTER BOLT 4JH1 ENG(RJX)	8-94447-156-0	01	1	0412-0511
14	GASKET; SENSOR TO CENTER BOLT 4JH1-TC ENG(RDM)	8-94447-156-0	01	1	0512-0610
15	SENSOR ASM; SEDIMENTER	8-97103-765-0	01	1	9701-9803
15	SENSOR ASM; SEDIMENTER 4JH1 ENG(RJX)	8-97079-821-0	01	1	0208-0411
15	SENSOR ASM; SEDIMENTER 4JH1 ENG(RJX)	8-97079-821-0	01	1	0412-0511
15	SENSOR ASM; SEDIMENTER 4JH1-TC ENG(RDM)	8-97079-821-0	01	1	0512-0610
36	RING; BODY TO CASE	5-13234-001-0	01	1	9701-9905
36	RING; BODY TO CASE 4JG2 ENG(RJC)	5-13234-001-0	01	1	9906-0207
37	PLUG; SENSOR	8-94450-148-0	01	1	9701-9803
37	PLUG; SENSOR	8-94453-746-0	01	1	9804-9905
37	PLUG; SENSOR 4JG2 ENG(RJC)	8-94453-746-0	01	1	9906-0207
37	PLUG; SENSOR 4JH1 ENG(RJX)	8-97123-549-0	01	1	0208-0411
37	PLUG; SENSOR 4JH1 ENG(RJX)	8-97123-549-0	01	1	0412-0511
37	PLUG; SENSOR 4JH1-TC ENG(RDM)	8-97123-549-0	01	1	0512-0610
41	GASKET; SENSOR TO CASE	9-09563-334-0	01	1	9701-9803
41	GASKET; SENSOR TO CASE 4JH1 ENG(RJX)	9-09563-334-0	01	1	0208-0411
41	GASKET; SENSOR TO CASE 4JH1 ENG(RJX)	9-09563-334-0	01	1	0412-0511
41	GASKET; SENSOR TO CASE 4JH1-TC ENG(RDM)	9-09563-334-0	01	1	0512-0610
56	CASE; FUEL SEDIMENTER	5-13211-030-0	01	1	9701-9803
87	CASE ASM; SEDIMENTER	8-97103-765-1	01	1	9804-9905
87	CASE ASM; SEDIMENTER 4JG2 ENG(RJC)	8-97219-363-0	01	1	9906-0207

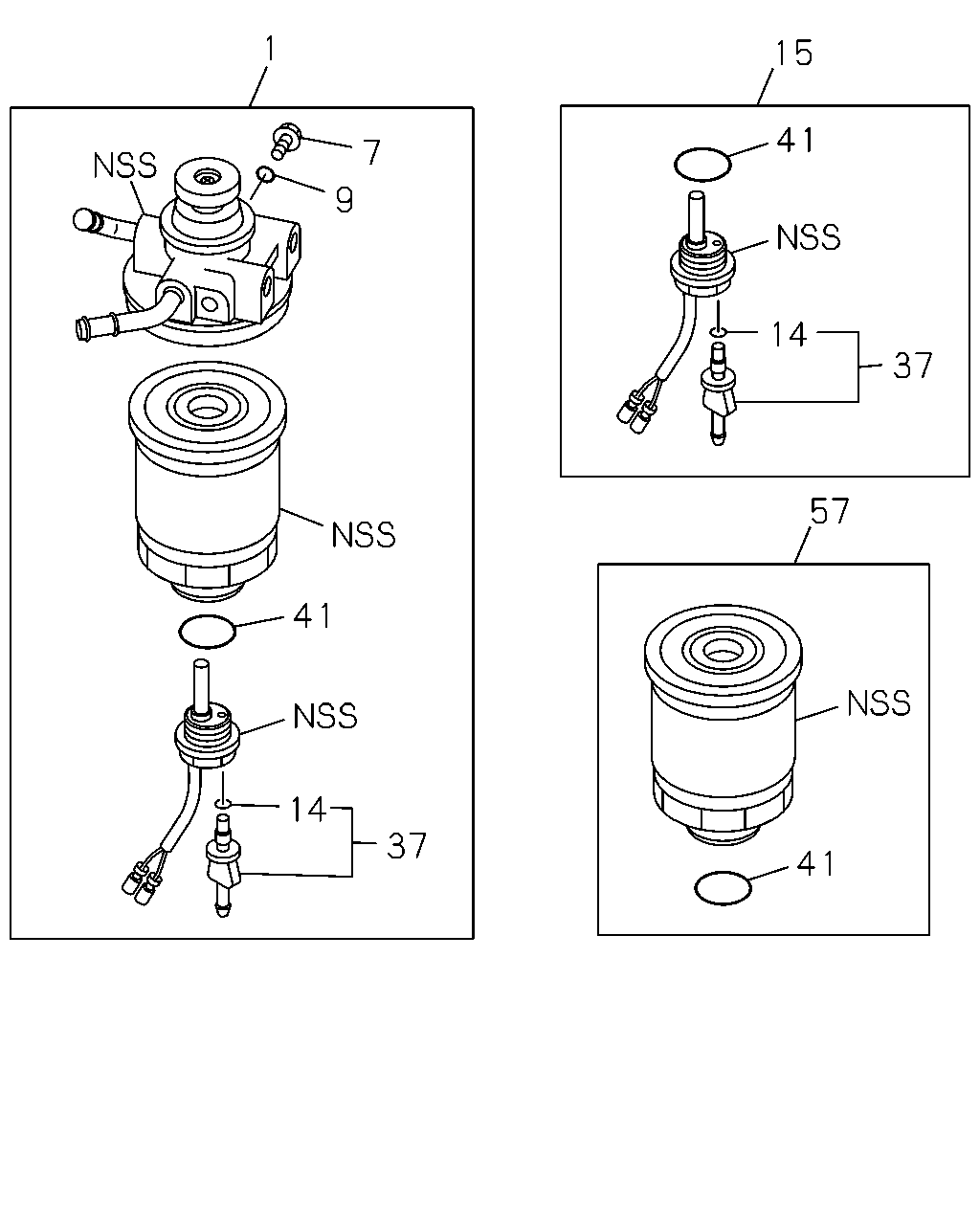

1 15 41 7 9 14 37 57 41 14 37 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SEDIMENTER; FUEL	8-97081-814-1	01	1	9701-9905
1	SEDIMENTER; FUEL 4JG2 ENG(RJC)	8-97081-814-1	01	1	9906-0207
1	SEDIMENTER; FUEL 4JH1 ENG(RJX)	8-97240-126-2	01	1	0208-0411
1	SEDIMENTER; FUEL 4JH1 ENG(RJX)	8-97240-126-2	01	1	0412-0511
1	SEDIMENTER; FUEL 4JH1-TC ENG(RDM)	8-97240-126-2	01	1	0512-0610
7	PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	9701-9905
7	PLUG; DRAIN,SEDIMENTER 4JG2 ENG(RJC)	8-94132-674-0	01	1	9906-0207
7	PLUG; DRAIN,SEDIMENTER 4JH1 ENG(RJX)	8-94132-674-0	01	1	0208-0411
7	PLUG; DRAIN,SEDIMENTER 4JH1 ENG(RJX)	8-94132-674-0	01	1	0412-0511
7	PLUG; DRAIN,SEDIMENTER 4JH1-TC ENG(RDM)	8-94132-674-0	01	1	0512-0610
9	GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	9701-9905
9	GASKET; DRAIN PLUG & CONNECTOR 4JG2 ENG(RJC)	8-94132-675-0	01	1	9906-0207
9	GASKET; DRAIN PLUG & CONNECTOR 4JH1 ENG(RJX)	8-94132-675-0	01	1	0208-0411
9	GASKET; DRAIN PLUG & CONNECTOR 4JH1 ENG(RJX)	8-94132-675-0	01	1	0412-0511
9	GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM)	8-94132-675-0	01	1	0512-0610
14	GASKET; SENSOR TO CENTER BOLT	8-94447-156-0	01	1	9701-9905
14	GASKET; SENSOR TO CENTER BOLT 4JG2 ENG(RJC)	8-94447-156-0	01	1	9906-0207
14	GASKET; SENSOR TO CENTER BOLT 4JH1 ENG(RJX)	8-94447-156-0	01	1	0208-0411
14	GASKET; SENSOR TO CENTER BOLT 4JH1 ENG(RJX)	8-94447-156-0	01	1	0412-0511
14	GASKET; SENSOR TO CENTER BOLT 4JH1-TC ENG(RDM)	8-94447-156-0	01	1	0512-0610
15	SENSOR ASM; SEDIMENTER	8-97103-765-0	01	1	9701-9803
15	SENSOR ASM; SEDIMENTER 4JH1 ENG(RJX)	8-97079-821-0	01	1	0208-0411
15	SENSOR ASM; SEDIMENTER 4JH1 ENG(RJX)	8-97079-821-0	01	1	0412-0511
15	SENSOR ASM; SEDIMENTER 4JH1-TC ENG(RDM)	8-97079-821-0	01	1	0512-0610
37	PLUG; SENSOR	8-94450-148-0	01	1	9701-9803
37	PLUG; SENSOR	8-94453-746-0	01	1	9804-9905
37	PLUG; SENSOR 4JG2 ENG(RJC)	8-94453-746-0	01	1	9906-0207
37	PLUG; SENSOR 4JH1 ENG(RJX)	8-97123-549-0	01	1	0208-0411
37	PLUG; SENSOR 4JH1 ENG(RJX)	8-97123-549-0	01	1	0412-0511
37	PLUG; SENSOR 4JH1-TC ENG(RDM)	8-97123-549-0	01	1	0512-0610
41	GASKET; SENSOR TO CASE	9-09563-334-0	01	1	9701-9803
41	GASKET; SENSOR TO CASE 4JH1 ENG(RJX)	9-09563-334-0	01	1	0208-0411
41	GASKET; SENSOR TO CASE 4JH1 ENG(RJX)	9-09563-334-0	01	1	0412-0511
41	GASKET; SENSOR TO CASE 4JH1-TC ENG(RDM)	9-09563-334-0	01	1	0512-0610
57	CARTRIDGE KIT; FUEL FILTER 4JH1 ENG(RJX)	8-94369-299-3	01	1	0208-0411
57	CARTRIDGE KIT; FUEL FILTER 4JH1 ENG(RJX)	8-94369-299-3	01	1	0412-0511
57	CARTRIDGE KIT; FUEL FILTER 4JH1-TC ENG(RDM)	8-94369-299-3	01	1	0512-0610

21 21 21 20 20 20 19 20 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	BRACKET; FUEL SEDIMENTER TAI	8-97965-389-2	01	1	9701-9905
19	BRACKET; FUEL SEDIMENTER 4JG2 ENG(RJC) TAI	8-97965-389-3	01	1	9906-0207
19	BRACKET; FUEL SEDIMENTER 4JH1 ENG(RJX) TAI	8-97965-389-3	01	1	0208-0511
19	BRACKET; FUEL SEDIMENTER 4JH1-TC ENG(RDM) TAI	8-97965-389-3	01	1	0512-0610
20	BOLT; BRKT TO SEDIMENTER (A) M8X25 FLANGE	0-28080-825-0	01	1	9701-9905
20	BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) (A) M8X25 FLANGE	0-28080-825-0	01	1	9906-0207
20	BOLT; BRKT TO SEDIMENTER 4JH1 ENG(RJX) (A) M10X30 FLANGE	0-28081-030-0	04	1	0208-0511
20	BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM) (A) M10X30 FLANGE	0-28081-030-0	04	1	0512-0512
20	BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM) (A) M10X30 FLANGE	0-28051-030-0	04	1	0601-0610
20	BOLT; BRKT TO SEDIMENTER (C) M10X30 FLANGE	0-28081-030-0	02	1	9701-9905
20	BOLT; BRKT TO SEDIMENTER (C) M10X30 FLANGE	0-28081-030-0	02	1	9701-9905
20	BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) (C) M10X30 FLANGE	0-28081-030-0	02	1	9906-0207
20	BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) (C) M10X30 FLANGE	0-28081-030-0	02	1	9906-0207
20	BOLT; BRKT TO SEDIMENTER (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	9701-9905
20	BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	9906-0207
20	BOLT; BRKT TO SEDIMENTER 4JH1 ENG(RJX) (B) M8X20 FLANGE	0-28680-820-0	02	1	0208-0411
20	BOLT; BRKT TO SEDIMENTER 4JH1 ENG(RJX) (B) M8X20 FLANGE	0-28680-820-0	02	1	0412-0511
20	BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM) (B) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
20	BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM) (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-0610
20	BOLT; BRKT TO SEDIMENTER 4JH1 ENG(RJX) (A) M10X30 FLANGE	0-28081-030-0	02	1	0412-0511
20	BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM) (A) M10X30 FLANGE	0-28081-030-0	02	1	0512-0512
20	BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM) (A) M10X30 FLANGE	0-28051-030-0	02	1	0601-0610
21	NUT; BRKT TO FRAME (A) M8 FLANGE	0-91150-108-0	01	1	9701-9905
21	NUT; BRKT TO FRAME 4JG2 ENG(RJC) (A) M8 FLANGE	0-91150-108-0	01	1	9906-0207
21	NUT; BRKT TO FRAME (B) M10 FLANGE	0-91150-110-0	02	1	9701-9905
21	NUT; BRKT TO FRAME 4JG2 ENG(RJC) (B) M10 FLANGE	0-91150-110-0	02	1	9906-0207
21	NUT; BRKT TO FRAME 4JH1 ENG(RJX) (B) M10 FLANGE	0-91150-110-0	04	1	0208-0511
21	NUT; BRKT TO FRAME 4JH1-TC ENG(RDM) (B) M10 FLANGE	0-91150-110-0	04	1	0512-0602
21	NUT; BRKT TO FRAME 4JH1-TC ENG(RDM) (B) M10 FLANGE	0-91180-110-0	04	1	0603-0610
41	GASKET; SENSOR TO CASE	9-09563-334-0	01	1	9701-9803
41	GASKET; SENSOR TO CASE 4JH1 ENG(RJX)	9-09563-334-0	01	1	0208-0411
41	GASKET; SENSOR TO CASE 4JH1 ENG(RJX)	9-09563-334-0	01	1	0412-0511
41	GASKET; SENSOR TO CASE 4JH1-TC ENG(RDM)	9-09563-334-0	01	1	0512-0610
