Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#139048) — 732 parça

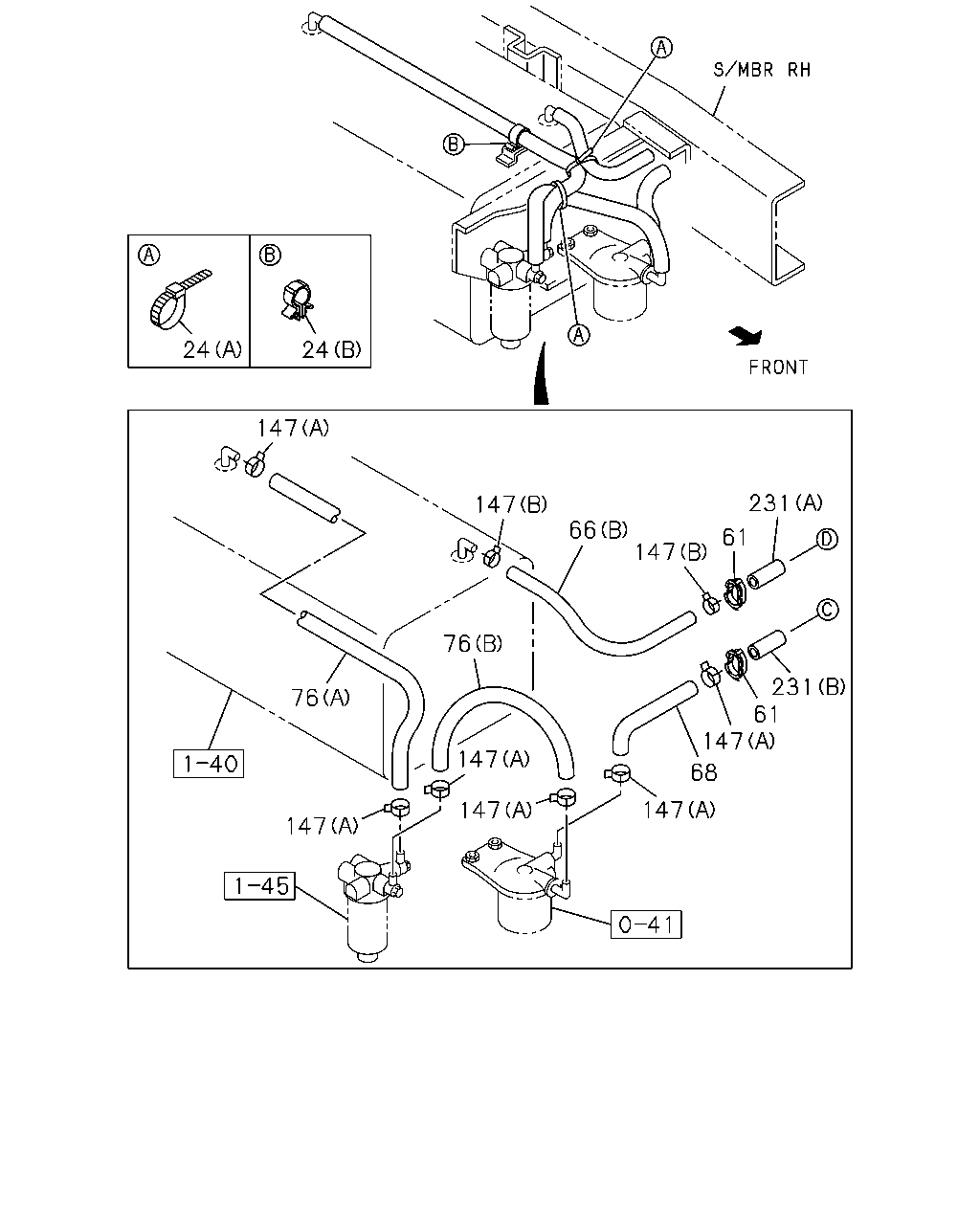

24 24 147 231 147 66 147 61 76 231 61 147 76 147 1 40 68 147 147 147 1 45 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE (A) L=140	5-09707-031-0	02	1	9701-9703
24	CLIP; FUEL HOSE (A) L=140	5-09707-031-0	01	1	9704-9710
24	CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	9711-9905
24	CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	02	1	9906-0207
24	CLIP; FUEL HOSE 4JH1 ENG(RJX) (A) L=140	5-09707-031-1	01	1	0208-0411
24	CLIP; FUEL HOSE 4JH1 ENG(RJX) (A) L=140	5-09707-031-1	01	1	0412-0511
24	CLIP; FUEL HOSE 4JH1-TC ENG(RDM) (A) L=140	5-09707-031-1	01	1	0512-0610
24	CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0611-
24	CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9701-0207
24	CLIP; FUEL HOSE 4JH1 ENG(RJX) (B)	8-97254-204-1	01	1	0208-0411
24	CLIP; FUEL HOSE 4JH1 ENG(RJX) (B)	8-97254-204-1	01	1	0412-0511
24	CLIP; FUEL HOSE 4JH1-TC ENG(RDM) (B)	8-97254-204-1	01	1	0512-0610
45	PIPE; FUEL,DELIVERY (A) TAI	8-97965-147-0	01	1	9701-9905
45	PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) (A) TAI	8-97965-147-0	01	1	9906-0207
45	PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) (B) TAI	8-97967-234-1	01	1	0208-0511
45	PIPE; FUEL,DELIVERY 4JH1-TC ENG(RDM) (B) TAI	8-97967-234-1	01	1	0512-0610
45	PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER<8GF> (E)	8-98035-574-0	01	1	0611-
45	PIPE; FUEL,DELIVERY (D) TAI	8-98025-782-0	01	1	0611-
45	PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (E) TAI	8-98025-788-0	01	1	0611-
45	PIPE; FUEL,DELIVERY (D) TAI	8-98000-534-2	01	1	0611-
45	PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (E) TAI	8-98023-729-0	01	1	0611-
45	PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) (C) TAI	8-97326-020-0	01	1	0412-0511
45	PIPE; FUEL,DELIVERY 4JH1-TC ENG(RDM) (C) TAI	8-97326-020-0	01	1	0512-0610
45	PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER<8GF> (E)	8-98027-871-0	01	1	0611-
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	9701-0411
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0412-
66	HOSE; FUEL,RETURN PIPE (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9701-9905
66	HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0207
66	HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	0208-0511
66	HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	0512-0610
66	HOSE; FUEL,RETURN PIPE (C) L=350 SERVICED BY L=3000	0-01256-300-0	01	1	0611-0701
66	HOSE; FUEL,RETURN PIPE (C) L=350 SERVICED BY L=3000 TAI	0-01855-300-0	01	1	0702-
66	HOSE; FUEL,RETURN PIPE (A) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9701-0207
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0208-0411
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0412-0701
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000 TAI	0-01855-300-0	01	1	0702-
66	HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0412-0511
66	HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0512-0610
66	HOSE; FUEL,RETURN PIPE (C) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0611-0701
66	HOSE; FUEL,RETURN PIPE (C) L=440 SERVICED BY L=3000 TAI	0-01855-300-0	01	1	0702-
68	HOSE; FUEL,FILTER TO PIPE TAI	8-97965-366-0	01	1	9701-9905
68	HOSE; FUEL,FILTER TO PIPE 4JG2 ENG(RJC) TAI	8-97965-366-0	01	1	9906-0207
76	HOSE; FUEL,TANK (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9701-9905
76	HOSE; FUEL,TANK 4JG2 ENG(RJC) (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0207
76	HOSE; FUEL,TANK 4JH1 ENG(RJX) (A) L=500 SERVICED BY L=3000	0-01262-300-0	01	1	0208-0511
76	HOSE; FUEL,TANK 4JH1-TC ENG(RDM) (A) L=500 SERVICED BY L=3000	0-01262-300-0	01	1	0512-0610
76	HOSE; FUEL,TANK (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9701-9905
76	HOSE; FUEL,TANK 4JG2 ENG(RJC) (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0207
76	HOSE; FUEL,TANK 4JH1 ENG(RJX) (A) L=600 SERVICED BY L=3000	0-01262-300-0	01	1	0412-0511
76	HOSE; FUEL,TANK 4JH1-TC ENG(RDM) (A) L=600 SERVICED BY L=3000	0-01262-300-0	01	1	0512-0610
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (E) ID=13 & 7 L=16 & 14	1-09700-070-0	03	1	0208-0511
147	CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (E) ID=13 & 7 L=16 & 14	1-09700-070-0	03	1	0512-0610
147	CLIP; FUEL PIPE TO HOSE (I) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0611-
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	10	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (A) ID=16	8-94238-568-0	10	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (A) ID=19	8-94238-569-0	08	1	0208-0411
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (A) ID=19	8-94238-569-0	08	1	0412-0511
147	CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (A) ID=19	8-94238-569-0	08	1	0512-0610
147	CLIP; FUEL PIPE TO HOSE (A) ID=19	8-94238-569-0	01	1	0611-
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (B) ID=13	8-94238-571-0	06	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0208-0411
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0412-0701
147	CLIP; FUEL PIPE TO HOSE (B) ID=12	8-94238-610-0	06	1	0702-
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE (H) ID=16	8-94238-568-0	09	1	0611-
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (F) ID=12 & 6.35	8-97215-437-0	03	1	0412-0511
147	CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (F) ID=12 & 6.35	8-97215-437-0	03	1	0512-0610
147	CLIP; FUEL PIPE TO HOSE (F) ID=12 & 6.35	8-97215-437-0	03	1	0611-
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0412-0511
147	CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0512-0610
147	CLIP; FUEL PIPE TO HOSE TRANSMISSION CONTROL-SMOOTHER<8GF> (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0611-
147	CLIP; FUEL PIPE TO HOSE (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0611-
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9701-0411
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0412-
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9701-0207
231	RUBBER; SUPPORT,FUEL PIPE 4JH1 ENG(RJX) (B) OD=16.5 L=50	8-97214-235-0	01	1	0208-0411
231	RUBBER; SUPPORT,FUEL PIPE 4JH1 ENG(RJX) (B) OD=16.5 L=50	8-97214-235-0	01	1	0412-0511
231	RUBBER; SUPPORT,FUEL PIPE 4JH1-TC ENG(RDM) (B) OD=16.5 L=50	8-97214-235-0	01	1	0512-0610
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	0611-

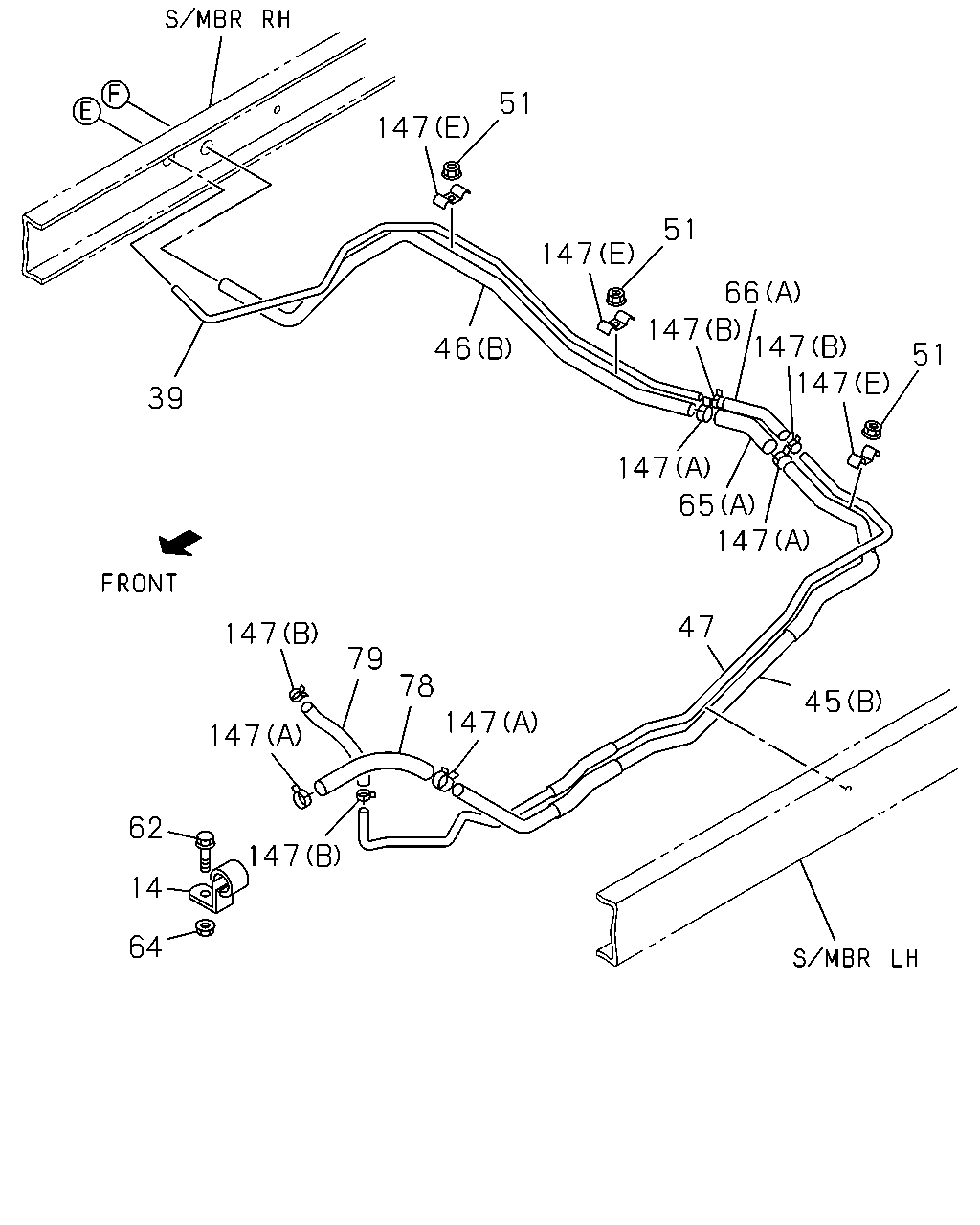

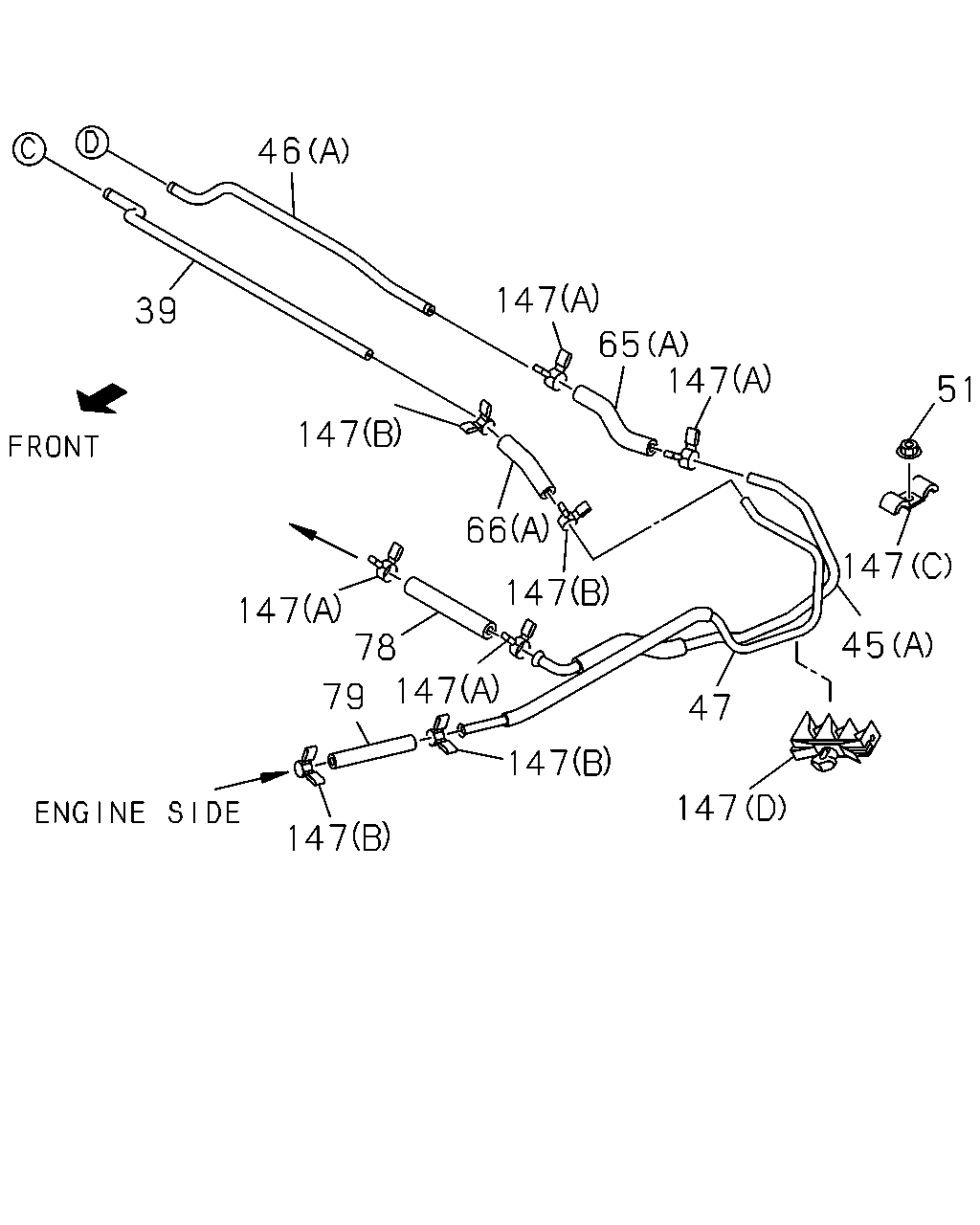

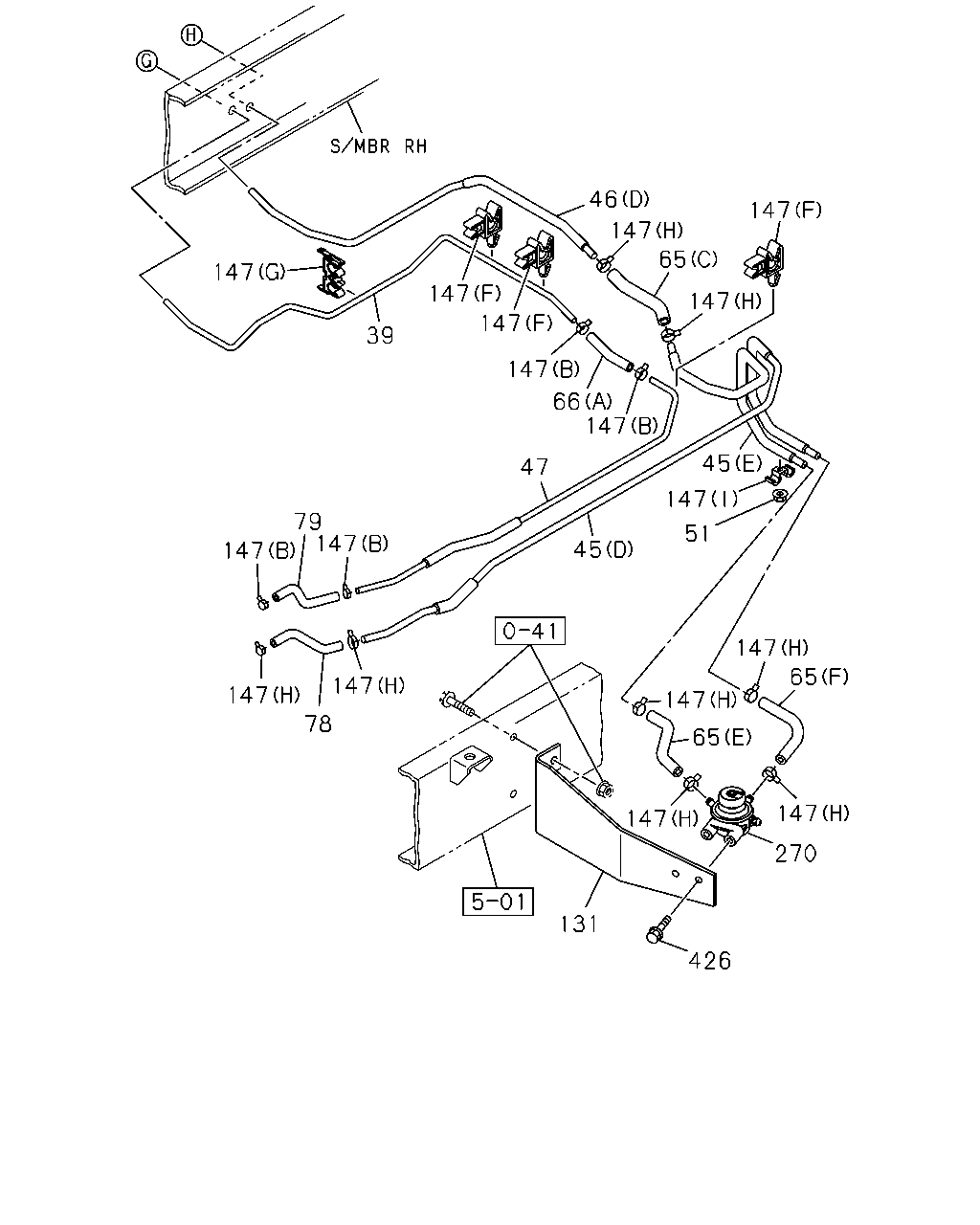

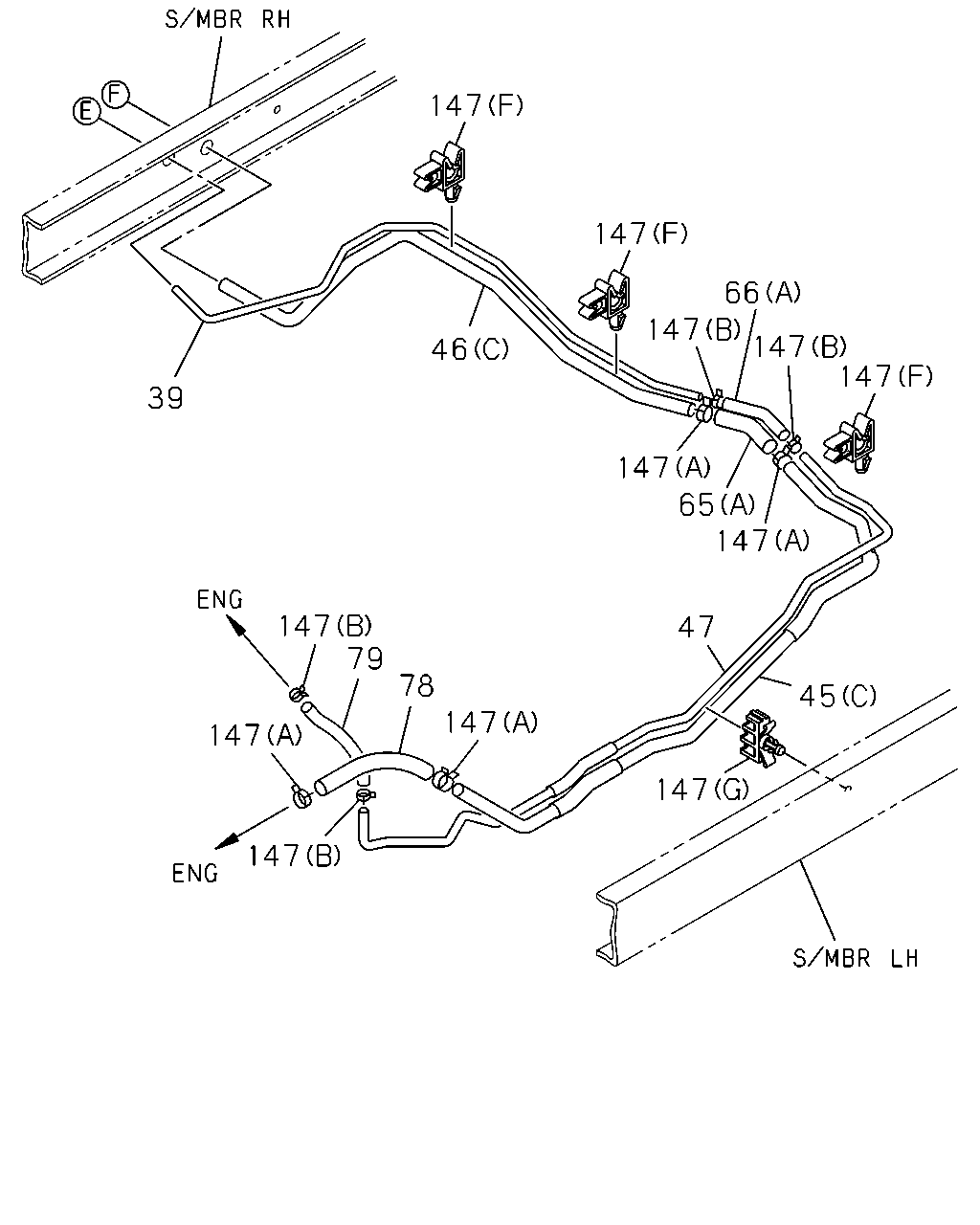

46 147 39 65 147 51 147 66 147 147 147 45 78 147 79 47 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PIPE; FUEL TAI	8-97965-148-1	01	1	9701-9905
39	PIPE; FUEL 4JG2 ENG(RJC) TAI	8-97965-148-1	01	1	9906-0207
39	PIPE; FUEL 4JH1 ENG(RJX) TAI	8-97967-235-0	01	1	0208-0511
39	PIPE; FUEL 4JH1-TC ENG(RDM) TAI	8-97967-235-0	01	1	0512-0610
39	PIPE; FUEL TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98035-576-0	01	1	0611-
39	PIPE; FUEL EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI	8-98025-784-0	01	1	0611-
39	PIPE; FUEL EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI	8-98000-542-0	01	1	0611-
39	PIPE; FUEL 4JH1 ENG(RJX) TAI	8-97363-971-1	01	1	0412-0511
39	PIPE; FUEL 4JH1-TC ENG(RDM) TAI	8-97363-971-1	01	1	0512-0610
39	PIPE; FUEL TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98027-869-0	01	1	0611-
45	PIPE; FUEL,DELIVERY (A) TAI	8-97965-147-0	01	1	9701-9905
45	PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) (A) TAI	8-97965-147-0	01	1	9906-0207
45	PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) (B) TAI	8-97967-234-1	01	1	0208-0511
45	PIPE; FUEL,DELIVERY 4JH1-TC ENG(RDM) (B) TAI	8-97967-234-1	01	1	0512-0610
45	PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER<8GF> (E)	8-98035-574-0	01	1	0611-
45	PIPE; FUEL,DELIVERY (D) TAI	8-98025-782-0	01	1	0611-
45	PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (E) TAI	8-98025-788-0	01	1	0611-
45	PIPE; FUEL,DELIVERY (D) TAI	8-98000-534-2	01	1	0611-
45	PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (E) TAI	8-98023-729-0	01	1	0611-
45	PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) (C) TAI	8-97326-020-0	01	1	0412-0511
45	PIPE; FUEL,DELIVERY 4JH1-TC ENG(RDM) (C) TAI	8-97326-020-0	01	1	0512-0610
45	PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER<8GF> (E)	8-98027-871-0	01	1	0611-
46	PIPE; FUEL,TANK SIDE (A) TAI	8-97965-146-0	01	1	9701-9905
46	PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC) (A) TAI	8-97965-146-0	01	1	9906-0207
46	PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) (B) TAI	8-97967-233-0	01	1	0208-0511
46	PIPE; FUEL,TANK SIDE 4JH1-TC ENG(RDM) (B) TAI	8-97967-233-0	01	1	0512-0610
46	PIPE; FUEL,TANK SIDE TRANSMISSION CONTROL-SMOOTHER<8GF> (D)	8-98035-573-0	01	1	0611-0710
46	PIPE; FUEL,TANK SIDE TRANSMISSION CONTROL-SMOOTHER<8GF> (D)	8-98096-455-0	01	1	0711-
46	PIPE; FUEL,TANK SIDE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (D) TAI	8-98025-783-0	01	1	0611-
46	PIPE; FUEL,TANK SIDE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (D) TAI	8-98000-535-1	01	1	0611-
46	PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) (C) TAI	8-97363-970-0	01	1	0412-0511
46	PIPE; FUEL,TANK SIDE 4JH1-TC ENG(RDM) (C) TAI	8-97363-970-0	01	1	0512-0610
46	PIPE; FUEL,TANK SIDE TRANSMISSION CONTROL-SMOOTHER<8GF> (D)	8-98027-868-1	01	1	0611-
47	PIPE; FUEL,RETURN TAI	8-97965-143-0	01	1	9701-9702
47	PIPE; FUEL,RETURN TAI	8-97965-145-0	01	1	9703-9905
47	PIPE; FUEL,RETURN 4JG2 ENG(RJC) TAI	8-97965-145-0	01	1	9906-0207
47	PIPE; FUEL,RETURN 4JH1 ENG(RJX) TAI	8-97967-236-1	01	1	0208-0511
47	PIPE; FUEL,RETURN 4JH1-TC ENG(RDM) TAI	8-97967-236-1	01	1	0512-0610
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98035-575-0	01	1	0611-
47	PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI	8-98025-785-0	01	1	0611-
47	PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI	8-98000-541-0	01	1	0611-
47	PIPE; FUEL,RETURN 4JH1 ENG(RJX) TAI	8-97326-026-0	01	1	0412-0511
47	PIPE; FUEL,RETURN 4JH1-TC ENG(RDM) TAI	8-97326-026-0	01	1	0512-0610
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98027-870-0	01	1	0611-
51	NUT; CLIP,PIPE M6 FLANGE	0-91150-106-0	03	1	9701-9905
51	NUT; CLIP,PIPE 4JG2 ENG(RJC) M6 FLANGE	0-91150-106-0	03	1	9906-0207
51	NUT; CLIP,PIPE M6 FLANGE	0-91150-106-0	03	1	0208-0602
51	NUT; CLIP,PIPE M6 FLANGE	0-91180-106-0	03	1	0603-0610
51	NUT; CLIP,PIPE M6 FLANGE	0-91180-106-0	01	1	0611-
65	HOSE; FUEL,DELIVERY PIPE (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9701-9905
65	HOSE; FUEL,DELIVERY PIPE 4JG2 ENG(RJC) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0207
65	HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0208-0411
65	HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0412-0511
65	HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) (A) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0512-0610
65	HOSE; FUEL,DELIVERY PIPE (C) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0611-
65	HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=250 SERVICED BY L=3000	0-01262-300-0	01	1	0208-0511
65	HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) (B) L=250 SERVICED BY L=3000	0-01262-300-0	01	1	0512-0610
65	HOSE; FUEL,DELIVERY PIPE (F) L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0611-
65	HOSE; FUEL,DELIVERY PIPE (D) L=320	8-97363-055-0	01	1	0611-
65	HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0412-0511
65	HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) (B) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0512-0610
65	HOSE; FUEL,DELIVERY PIPE (E) L=220 SERVICED BY L=3000	0-01259-300-0	01	1	0611-
66	HOSE; FUEL,RETURN PIPE (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9701-9905
66	HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0207
66	HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	0208-0511
66	HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	0512-0610
66	HOSE; FUEL,RETURN PIPE (C) L=350 SERVICED BY L=3000	0-01256-300-0	01	1	0611-0701
66	HOSE; FUEL,RETURN PIPE (C) L=350 SERVICED BY L=3000 TAI	0-01855-300-0	01	1	0702-
66	HOSE; FUEL,RETURN PIPE (A) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9701-0207
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0208-0411
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0412-0701
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000 TAI	0-01855-300-0	01	1	0702-
66	HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0412-0511
66	HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0512-0610
66	HOSE; FUEL,RETURN PIPE (C) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0611-0701
66	HOSE; FUEL,RETURN PIPE (C) L=440 SERVICED BY L=3000 TAI	0-01855-300-0	01	1	0702-
78	HOSE; FUEL,PUMP TO PIPE L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9701-9905
78	HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0207
78	HOSE; FUEL,PUMP TO PIPE 4JH1 ENG(RJX) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0208-0411
78	HOSE; FUEL,PUMP TO PIPE 4JH1 ENG(RJX) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0412-0511
78	HOSE; FUEL,PUMP TO PIPE 4JH1-TC ENG(RDM) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0512-0610
78	HOSE; FUEL,PUMP TO PIPE L=220 SERVICED BY L=3000	0-01259-300-0	01	1	0611-
79	HOSE; FUEL,PUMP TO PIPE,RETURN L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9701-9905
79	HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0207
79	HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1 ENG(RJX) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0208-0411
79	HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1 ENG(RJX) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0412-0511
79	HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1-TC ENG(RDM) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0512-0610
79	HOSE; FUEL,PUMP TO PIPE,RETURN	8-98023-329-1	01	1	0611-0701
79	HOSE; FUEL,PUMP TO PIPE,RETURN	8-98065-039-1	01	1	0702-
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (E) ID=13 & 7 L=16 & 14	1-09700-070-0	03	1	0208-0511
147	CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (E) ID=13 & 7 L=16 & 14	1-09700-070-0	03	1	0512-0610
147	CLIP; FUEL PIPE TO HOSE (I) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0611-
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	10	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (A) ID=16	8-94238-568-0	10	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (A) ID=19	8-94238-569-0	08	1	0208-0411
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (A) ID=19	8-94238-569-0	08	1	0412-0511
147	CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (A) ID=19	8-94238-569-0	08	1	0512-0610
147	CLIP; FUEL PIPE TO HOSE (A) ID=19	8-94238-569-0	01	1	0611-
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (B) ID=13	8-94238-571-0	06	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0208-0411
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0412-0701
147	CLIP; FUEL PIPE TO HOSE (B) ID=12	8-94238-610-0	06	1	0702-
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE (H) ID=16	8-94238-568-0	09	1	0611-
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (F) ID=12 & 6.35	8-97215-437-0	03	1	0412-0511
147	CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (F) ID=12 & 6.35	8-97215-437-0	03	1	0512-0610
147	CLIP; FUEL PIPE TO HOSE (F) ID=12 & 6.35	8-97215-437-0	03	1	0611-
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0412-0511
147	CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0512-0610
147	CLIP; FUEL PIPE TO HOSE TRANSMISSION CONTROL-SMOOTHER<8GF> (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0611-
147	CLIP; FUEL PIPE TO HOSE (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0611-

231 61 147 66 231 61 147 65 65 76 66 147 147 147 147 24 1 45 24 1 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE (A) L=140	5-09707-031-0	02	1	9701-9703
24	CLIP; FUEL HOSE (A) L=140	5-09707-031-0	01	1	9704-9710
24	CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	9711-9905
24	CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	02	1	9906-0207
24	CLIP; FUEL HOSE 4JH1 ENG(RJX) (A) L=140	5-09707-031-1	01	1	0208-0411
24	CLIP; FUEL HOSE 4JH1 ENG(RJX) (A) L=140	5-09707-031-1	01	1	0412-0511
24	CLIP; FUEL HOSE 4JH1-TC ENG(RDM) (A) L=140	5-09707-031-1	01	1	0512-0610
24	CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0611-
24	CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9701-0207
24	CLIP; FUEL HOSE 4JH1 ENG(RJX) (B)	8-97254-204-1	01	1	0208-0411
24	CLIP; FUEL HOSE 4JH1 ENG(RJX) (B)	8-97254-204-1	01	1	0412-0511
24	CLIP; FUEL HOSE 4JH1-TC ENG(RDM) (B)	8-97254-204-1	01	1	0512-0610
45	PIPE; FUEL,DELIVERY (A) TAI	8-97965-147-0	01	1	9701-9905
45	PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) (A) TAI	8-97965-147-0	01	1	9906-0207
45	PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) (B) TAI	8-97967-234-1	01	1	0208-0511
45	PIPE; FUEL,DELIVERY 4JH1-TC ENG(RDM) (B) TAI	8-97967-234-1	01	1	0512-0610
45	PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER<8GF> (E)	8-98035-574-0	01	1	0611-
45	PIPE; FUEL,DELIVERY (D) TAI	8-98025-782-0	01	1	0611-
45	PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (E) TAI	8-98025-788-0	01	1	0611-
45	PIPE; FUEL,DELIVERY (D) TAI	8-98000-534-2	01	1	0611-
45	PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (E) TAI	8-98023-729-0	01	1	0611-
45	PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) (C) TAI	8-97326-020-0	01	1	0412-0511
45	PIPE; FUEL,DELIVERY 4JH1-TC ENG(RDM) (C) TAI	8-97326-020-0	01	1	0512-0610
45	PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER<8GF> (E)	8-98027-871-0	01	1	0611-
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	9701-0411
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0412-
65	HOSE; FUEL,DELIVERY PIPE (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9701-9905
65	HOSE; FUEL,DELIVERY PIPE 4JG2 ENG(RJC) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0207
65	HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0208-0411
65	HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0412-0511
65	HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) (A) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0512-0610
65	HOSE; FUEL,DELIVERY PIPE (C) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0611-
65	HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=250 SERVICED BY L=3000	0-01262-300-0	01	1	0208-0511
65	HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) (B) L=250 SERVICED BY L=3000	0-01262-300-0	01	1	0512-0610
65	HOSE; FUEL,DELIVERY PIPE (F) L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0611-
65	HOSE; FUEL,DELIVERY PIPE (D) L=320	8-97363-055-0	01	1	0611-
65	HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0412-0511
65	HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) (B) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0512-0610
65	HOSE; FUEL,DELIVERY PIPE (E) L=220 SERVICED BY L=3000	0-01259-300-0	01	1	0611-
66	HOSE; FUEL,RETURN PIPE (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9701-9905
66	HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0207
66	HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	0208-0511
66	HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	0512-0610
66	HOSE; FUEL,RETURN PIPE (C) L=350 SERVICED BY L=3000	0-01256-300-0	01	1	0611-0701
66	HOSE; FUEL,RETURN PIPE (C) L=350 SERVICED BY L=3000 TAI	0-01855-300-0	01	1	0702-
66	HOSE; FUEL,RETURN PIPE (A) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9701-0207
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0208-0411
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0412-0701
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000 TAI	0-01855-300-0	01	1	0702-
66	HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0412-0511
66	HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0512-0610
66	HOSE; FUEL,RETURN PIPE (C) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0611-0701
66	HOSE; FUEL,RETURN PIPE (C) L=440 SERVICED BY L=3000 TAI	0-01855-300-0	01	1	0702-
76	HOSE; FUEL,TANK (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9701-9905
76	HOSE; FUEL,TANK 4JG2 ENG(RJC) (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0207
76	HOSE; FUEL,TANK 4JH1 ENG(RJX) (A) L=500 SERVICED BY L=3000	0-01262-300-0	01	1	0208-0511
76	HOSE; FUEL,TANK 4JH1-TC ENG(RDM) (A) L=500 SERVICED BY L=3000	0-01262-300-0	01	1	0512-0610
76	HOSE; FUEL,TANK (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9701-9905
76	HOSE; FUEL,TANK 4JG2 ENG(RJC) (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0207
76	HOSE; FUEL,TANK 4JH1 ENG(RJX) (A) L=600 SERVICED BY L=3000	0-01262-300-0	01	1	0412-0511
76	HOSE; FUEL,TANK 4JH1-TC ENG(RDM) (A) L=600 SERVICED BY L=3000	0-01262-300-0	01	1	0512-0610
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (E) ID=13 & 7 L=16 & 14	1-09700-070-0	03	1	0208-0511
147	CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (E) ID=13 & 7 L=16 & 14	1-09700-070-0	03	1	0512-0610
147	CLIP; FUEL PIPE TO HOSE (I) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0611-
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	10	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (A) ID=16	8-94238-568-0	10	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (A) ID=19	8-94238-569-0	08	1	0208-0411
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (A) ID=19	8-94238-569-0	08	1	0412-0511
147	CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (A) ID=19	8-94238-569-0	08	1	0512-0610
147	CLIP; FUEL PIPE TO HOSE (A) ID=19	8-94238-569-0	01	1	0611-
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (B) ID=13	8-94238-571-0	06	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0208-0411
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0412-0701
147	CLIP; FUEL PIPE TO HOSE (B) ID=12	8-94238-610-0	06	1	0702-
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE (H) ID=16	8-94238-568-0	09	1	0611-
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (F) ID=12 & 6.35	8-97215-437-0	03	1	0412-0511
147	CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (F) ID=12 & 6.35	8-97215-437-0	03	1	0512-0610
147	CLIP; FUEL PIPE TO HOSE (F) ID=12 & 6.35	8-97215-437-0	03	1	0611-
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0412-0511
147	CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0512-0610
147	CLIP; FUEL PIPE TO HOSE TRANSMISSION CONTROL-SMOOTHER<8GF> (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0611-
147	CLIP; FUEL PIPE TO HOSE (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0611-
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9701-0411
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0412-
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9701-0207
231	RUBBER; SUPPORT,FUEL PIPE 4JH1 ENG(RJX) (B) OD=16.5 L=50	8-97214-235-0	01	1	0208-0411
231	RUBBER; SUPPORT,FUEL PIPE 4JH1 ENG(RJX) (B) OD=16.5 L=50	8-97214-235-0	01	1	0412-0511
231	RUBBER; SUPPORT,FUEL PIPE 4JH1-TC ENG(RDM) (B) OD=16.5 L=50	8-97214-235-0	01	1	0512-0610
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	0611-

51 147 51 147 66 147 147 147 46 51 39 147 65 147 47 147 79 78 147 45 147 62 147 14 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; HOSE 4JH1 ENG(RJX) ID=19 H=25 L=25	1-09700-464-0	01	1	0208-0511
14	CLIP; HOSE 4JH1-TC ENG(RDM) ID=19 H=25 L=25	1-09700-464-0	01	1	0512-0610
39	PIPE; FUEL TAI	8-97965-148-1	01	1	9701-9905
39	PIPE; FUEL 4JG2 ENG(RJC) TAI	8-97965-148-1	01	1	9906-0207
39	PIPE; FUEL 4JH1 ENG(RJX) TAI	8-97967-235-0	01	1	0208-0511
39	PIPE; FUEL 4JH1-TC ENG(RDM) TAI	8-97967-235-0	01	1	0512-0610
39	PIPE; FUEL TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98035-576-0	01	1	0611-
39	PIPE; FUEL EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI	8-98025-784-0	01	1	0611-
39	PIPE; FUEL EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI	8-98000-542-0	01	1	0611-
39	PIPE; FUEL 4JH1 ENG(RJX) TAI	8-97363-971-1	01	1	0412-0511
39	PIPE; FUEL 4JH1-TC ENG(RDM) TAI	8-97363-971-1	01	1	0512-0610
39	PIPE; FUEL TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98027-869-0	01	1	0611-
45	PIPE; FUEL,DELIVERY (A) TAI	8-97965-147-0	01	1	9701-9905
45	PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) (A) TAI	8-97965-147-0	01	1	9906-0207
45	PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) (B) TAI	8-97967-234-1	01	1	0208-0511
45	PIPE; FUEL,DELIVERY 4JH1-TC ENG(RDM) (B) TAI	8-97967-234-1	01	1	0512-0610
45	PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER<8GF> (E)	8-98035-574-0	01	1	0611-
45	PIPE; FUEL,DELIVERY (D) TAI	8-98025-782-0	01	1	0611-
45	PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (E) TAI	8-98025-788-0	01	1	0611-
45	PIPE; FUEL,DELIVERY (D) TAI	8-98000-534-2	01	1	0611-
45	PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (E) TAI	8-98023-729-0	01	1	0611-
45	PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) (C) TAI	8-97326-020-0	01	1	0412-0511
45	PIPE; FUEL,DELIVERY 4JH1-TC ENG(RDM) (C) TAI	8-97326-020-0	01	1	0512-0610
45	PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER<8GF> (E)	8-98027-871-0	01	1	0611-
46	PIPE; FUEL,TANK SIDE (A) TAI	8-97965-146-0	01	1	9701-9905
46	PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC) (A) TAI	8-97965-146-0	01	1	9906-0207
46	PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) (B) TAI	8-97967-233-0	01	1	0208-0511
46	PIPE; FUEL,TANK SIDE 4JH1-TC ENG(RDM) (B) TAI	8-97967-233-0	01	1	0512-0610
46	PIPE; FUEL,TANK SIDE TRANSMISSION CONTROL-SMOOTHER<8GF> (D)	8-98035-573-0	01	1	0611-0710
46	PIPE; FUEL,TANK SIDE TRANSMISSION CONTROL-SMOOTHER<8GF> (D)	8-98096-455-0	01	1	0711-
46	PIPE; FUEL,TANK SIDE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (D) TAI	8-98025-783-0	01	1	0611-
46	PIPE; FUEL,TANK SIDE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (D) TAI	8-98000-535-1	01	1	0611-
46	PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) (C) TAI	8-97363-970-0	01	1	0412-0511
46	PIPE; FUEL,TANK SIDE 4JH1-TC ENG(RDM) (C) TAI	8-97363-970-0	01	1	0512-0610
46	PIPE; FUEL,TANK SIDE TRANSMISSION CONTROL-SMOOTHER<8GF> (D)	8-98027-868-1	01	1	0611-
47	PIPE; FUEL,RETURN TAI	8-97965-143-0	01	1	9701-9702
47	PIPE; FUEL,RETURN TAI	8-97965-145-0	01	1	9703-9905
47	PIPE; FUEL,RETURN 4JG2 ENG(RJC) TAI	8-97965-145-0	01	1	9906-0207
47	PIPE; FUEL,RETURN 4JH1 ENG(RJX) TAI	8-97967-236-1	01	1	0208-0511
47	PIPE; FUEL,RETURN 4JH1-TC ENG(RDM) TAI	8-97967-236-1	01	1	0512-0610
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98035-575-0	01	1	0611-
47	PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI	8-98025-785-0	01	1	0611-
47	PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI	8-98000-541-0	01	1	0611-
47	PIPE; FUEL,RETURN 4JH1 ENG(RJX) TAI	8-97326-026-0	01	1	0412-0511
47	PIPE; FUEL,RETURN 4JH1-TC ENG(RDM) TAI	8-97326-026-0	01	1	0512-0610
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98027-870-0	01	1	0611-
51	NUT; CLIP,PIPE M6 FLANGE	0-91150-106-0	03	1	9701-9905
51	NUT; CLIP,PIPE 4JG2 ENG(RJC) M6 FLANGE	0-91150-106-0	03	1	9906-0207
51	NUT; CLIP,PIPE M6 FLANGE	0-91150-106-0	03	1	0208-0602
51	NUT; CLIP,PIPE M6 FLANGE	0-91180-106-0	03	1	0603-0610
51	NUT; CLIP,PIPE M6 FLANGE	0-91180-106-0	01	1	0611-
62	BOLT; CLIP FIX 4JH1 ENG(RJX) M6X20 FLANGE	0-28680-620-0	01	1	0208-0511
62	BOLT; CLIP FIX 4JH1-TC ENG(RDM) M6X20 FLANGE	0-28680-620-0	01	1	0512-0512
62	BOLT; CLIP FIX 4JH1-TC ENG(RDM) M6X20 FLANGE	0-28650-620-0	01	1	0601-0610
64	NUT; CLIP 4JH1 ENG(RJX) M6 FLANGE	0-91150-106-0	01	1	0208-0511
64	NUT; CLIP 4JH1-TC ENG(RDM) M6 FLANGE	0-91150-106-0	01	1	0512-0602
64	NUT; CLIP 4JH1-TC ENG(RDM) M6 FLANGE	0-91180-106-0	01	1	0603-0610
65	HOSE; FUEL,DELIVERY PIPE (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9701-9905
65	HOSE; FUEL,DELIVERY PIPE 4JG2 ENG(RJC) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0207
65	HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0208-0411
65	HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0412-0511
65	HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) (A) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0512-0610
65	HOSE; FUEL,DELIVERY PIPE (C) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0611-
65	HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=250 SERVICED BY L=3000	0-01262-300-0	01	1	0208-0511
65	HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) (B) L=250 SERVICED BY L=3000	0-01262-300-0	01	1	0512-0610
65	HOSE; FUEL,DELIVERY PIPE (F) L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0611-
65	HOSE; FUEL,DELIVERY PIPE (D) L=320	8-97363-055-0	01	1	0611-
65	HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0412-0511
65	HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) (B) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0512-0610
65	HOSE; FUEL,DELIVERY PIPE (E) L=220 SERVICED BY L=3000	0-01259-300-0	01	1	0611-
66	HOSE; FUEL,RETURN PIPE (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9701-9905
66	HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0207
66	HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	0208-0511
66	HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	0512-0610
66	HOSE; FUEL,RETURN PIPE (C) L=350 SERVICED BY L=3000	0-01256-300-0	01	1	0611-0701
66	HOSE; FUEL,RETURN PIPE (C) L=350 SERVICED BY L=3000 TAI	0-01855-300-0	01	1	0702-
66	HOSE; FUEL,RETURN PIPE (A) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9701-0207
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0208-0411
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0412-0701
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000 TAI	0-01855-300-0	01	1	0702-
66	HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0412-0511
66	HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0512-0610
66	HOSE; FUEL,RETURN PIPE (C) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0611-0701
66	HOSE; FUEL,RETURN PIPE (C) L=440 SERVICED BY L=3000 TAI	0-01855-300-0	01	1	0702-
78	HOSE; FUEL,PUMP TO PIPE L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9701-9905
78	HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0207
78	HOSE; FUEL,PUMP TO PIPE 4JH1 ENG(RJX) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0208-0411
78	HOSE; FUEL,PUMP TO PIPE 4JH1 ENG(RJX) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0412-0511
78	HOSE; FUEL,PUMP TO PIPE 4JH1-TC ENG(RDM) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0512-0610
78	HOSE; FUEL,PUMP TO PIPE L=220 SERVICED BY L=3000	0-01259-300-0	01	1	0611-
79	HOSE; FUEL,PUMP TO PIPE,RETURN L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9701-9905
79	HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0207
79	HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1 ENG(RJX) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0208-0411
79	HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1 ENG(RJX) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0412-0511
79	HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1-TC ENG(RDM) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0512-0610
79	HOSE; FUEL,PUMP TO PIPE,RETURN	8-98023-329-1	01	1	0611-0701
79	HOSE; FUEL,PUMP TO PIPE,RETURN	8-98065-039-1	01	1	0702-
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (E) ID=13 & 7 L=16 & 14	1-09700-070-0	03	1	0208-0511
147	CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (E) ID=13 & 7 L=16 & 14	1-09700-070-0	03	1	0512-0610
147	CLIP; FUEL PIPE TO HOSE (I) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0611-
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	10	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (A) ID=16	8-94238-568-0	10	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (A) ID=19	8-94238-569-0	08	1	0208-0411
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (A) ID=19	8-94238-569-0	08	1	0412-0511
147	CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (A) ID=19	8-94238-569-0	08	1	0512-0610
147	CLIP; FUEL PIPE TO HOSE (A) ID=19	8-94238-569-0	01	1	0611-
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (B) ID=13	8-94238-571-0	06	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0208-0411
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0412-0701
147	CLIP; FUEL PIPE TO HOSE (B) ID=12	8-94238-610-0	06	1	0702-
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE (H) ID=16	8-94238-568-0	09	1	0611-
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (F) ID=12 & 6.35	8-97215-437-0	03	1	0412-0511
147	CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (F) ID=12 & 6.35	8-97215-437-0	03	1	0512-0610
147	CLIP; FUEL PIPE TO HOSE (F) ID=12 & 6.35	8-97215-437-0	03	1	0611-
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0412-0511
147	CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0512-0610
147	CLIP; FUEL PIPE TO HOSE TRANSMISSION CONTROL-SMOOTHER<8GF> (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0611-
147	CLIP; FUEL PIPE TO HOSE (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0611-

147 147 66 147 147 147 46 39 147 65 147 147 79 47 78 147 45 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PIPE; FUEL TAI	8-97965-148-1	01	1	9701-9905
39	PIPE; FUEL 4JG2 ENG(RJC) TAI	8-97965-148-1	01	1	9906-0207
39	PIPE; FUEL 4JH1 ENG(RJX) TAI	8-97967-235-0	01	1	0208-0511
39	PIPE; FUEL 4JH1-TC ENG(RDM) TAI	8-97967-235-0	01	1	0512-0610
39	PIPE; FUEL TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98035-576-0	01	1	0611-
39	PIPE; FUEL EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI	8-98025-784-0	01	1	0611-
39	PIPE; FUEL EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI	8-98000-542-0	01	1	0611-
39	PIPE; FUEL 4JH1 ENG(RJX) TAI	8-97363-971-1	01	1	0412-0511
39	PIPE; FUEL 4JH1-TC ENG(RDM) TAI	8-97363-971-1	01	1	0512-0610
39	PIPE; FUEL TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98027-869-0	01	1	0611-
45	PIPE; FUEL,DELIVERY (A) TAI	8-97965-147-0	01	1	9701-9905
45	PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) (A) TAI	8-97965-147-0	01	1	9906-0207
45	PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) (B) TAI	8-97967-234-1	01	1	0208-0511
45	PIPE; FUEL,DELIVERY 4JH1-TC ENG(RDM) (B) TAI	8-97967-234-1	01	1	0512-0610
45	PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER<8GF> (E)	8-98035-574-0	01	1	0611-
45	PIPE; FUEL,DELIVERY (D) TAI	8-98025-782-0	01	1	0611-
45	PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (E) TAI	8-98025-788-0	01	1	0611-
45	PIPE; FUEL,DELIVERY (D) TAI	8-98000-534-2	01	1	0611-
45	PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (E) TAI	8-98023-729-0	01	1	0611-
45	PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) (C) TAI	8-97326-020-0	01	1	0412-0511
45	PIPE; FUEL,DELIVERY 4JH1-TC ENG(RDM) (C) TAI	8-97326-020-0	01	1	0512-0610
45	PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER<8GF> (E)	8-98027-871-0	01	1	0611-
46	PIPE; FUEL,TANK SIDE (A) TAI	8-97965-146-0	01	1	9701-9905
46	PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC) (A) TAI	8-97965-146-0	01	1	9906-0207
46	PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) (B) TAI	8-97967-233-0	01	1	0208-0511
46	PIPE; FUEL,TANK SIDE 4JH1-TC ENG(RDM) (B) TAI	8-97967-233-0	01	1	0512-0610
46	PIPE; FUEL,TANK SIDE TRANSMISSION CONTROL-SMOOTHER<8GF> (D)	8-98035-573-0	01	1	0611-0710
46	PIPE; FUEL,TANK SIDE TRANSMISSION CONTROL-SMOOTHER<8GF> (D)	8-98096-455-0	01	1	0711-
46	PIPE; FUEL,TANK SIDE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (D) TAI	8-98025-783-0	01	1	0611-
46	PIPE; FUEL,TANK SIDE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (D) TAI	8-98000-535-1	01	1	0611-
46	PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) (C) TAI	8-97363-970-0	01	1	0412-0511
46	PIPE; FUEL,TANK SIDE 4JH1-TC ENG(RDM) (C) TAI	8-97363-970-0	01	1	0512-0610
46	PIPE; FUEL,TANK SIDE TRANSMISSION CONTROL-SMOOTHER<8GF> (D)	8-98027-868-1	01	1	0611-
47	PIPE; FUEL,RETURN TAI	8-97965-143-0	01	1	9701-9702
47	PIPE; FUEL,RETURN TAI	8-97965-145-0	01	1	9703-9905
47	PIPE; FUEL,RETURN 4JG2 ENG(RJC) TAI	8-97965-145-0	01	1	9906-0207
47	PIPE; FUEL,RETURN 4JH1 ENG(RJX) TAI	8-97967-236-1	01	1	0208-0511
47	PIPE; FUEL,RETURN 4JH1-TC ENG(RDM) TAI	8-97967-236-1	01	1	0512-0610
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98035-575-0	01	1	0611-
47	PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI	8-98025-785-0	01	1	0611-
47	PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI	8-98000-541-0	01	1	0611-
47	PIPE; FUEL,RETURN 4JH1 ENG(RJX) TAI	8-97326-026-0	01	1	0412-0511
47	PIPE; FUEL,RETURN 4JH1-TC ENG(RDM) TAI	8-97326-026-0	01	1	0512-0610
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98027-870-0	01	1	0611-
65	HOSE; FUEL,DELIVERY PIPE (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9701-9905
65	HOSE; FUEL,DELIVERY PIPE 4JG2 ENG(RJC) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0207
65	HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0208-0411
65	HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0412-0511
65	HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) (A) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0512-0610
65	HOSE; FUEL,DELIVERY PIPE (C) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0611-
65	HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=250 SERVICED BY L=3000	0-01262-300-0	01	1	0208-0511
65	HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) (B) L=250 SERVICED BY L=3000	0-01262-300-0	01	1	0512-0610
65	HOSE; FUEL,DELIVERY PIPE (F) L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0611-
65	HOSE; FUEL,DELIVERY PIPE (D) L=320	8-97363-055-0	01	1	0611-
65	HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0412-0511
65	HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) (B) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0512-0610
65	HOSE; FUEL,DELIVERY PIPE (E) L=220 SERVICED BY L=3000	0-01259-300-0	01	1	0611-
66	HOSE; FUEL,RETURN PIPE (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9701-9905
66	HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0207
66	HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	0208-0511
66	HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	0512-0610
66	HOSE; FUEL,RETURN PIPE (C) L=350 SERVICED BY L=3000	0-01256-300-0	01	1	0611-0701
66	HOSE; FUEL,RETURN PIPE (C) L=350 SERVICED BY L=3000 TAI	0-01855-300-0	01	1	0702-
66	HOSE; FUEL,RETURN PIPE (A) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9701-0207
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0208-0411
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0412-0701
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000 TAI	0-01855-300-0	01	1	0702-
66	HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0412-0511
66	HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0512-0610
66	HOSE; FUEL,RETURN PIPE (C) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0611-0701
66	HOSE; FUEL,RETURN PIPE (C) L=440 SERVICED BY L=3000 TAI	0-01855-300-0	01	1	0702-
78	HOSE; FUEL,PUMP TO PIPE L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9701-9905
78	HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0207
78	HOSE; FUEL,PUMP TO PIPE 4JH1 ENG(RJX) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0208-0411
78	HOSE; FUEL,PUMP TO PIPE 4JH1 ENG(RJX) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0412-0511
78	HOSE; FUEL,PUMP TO PIPE 4JH1-TC ENG(RDM) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0512-0610
78	HOSE; FUEL,PUMP TO PIPE L=220 SERVICED BY L=3000	0-01259-300-0	01	1	0611-
79	HOSE; FUEL,PUMP TO PIPE,RETURN L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9701-9905
79	HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0207
79	HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1 ENG(RJX) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0208-0411
79	HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1 ENG(RJX) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0412-0511
79	HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1-TC ENG(RDM) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0512-0610
79	HOSE; FUEL,PUMP TO PIPE,RETURN	8-98023-329-1	01	1	0611-0701
79	HOSE; FUEL,PUMP TO PIPE,RETURN	8-98065-039-1	01	1	0702-
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (E) ID=13 & 7 L=16 & 14	1-09700-070-0	03	1	0208-0511
147	CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (E) ID=13 & 7 L=16 & 14	1-09700-070-0	03	1	0512-0610
147	CLIP; FUEL PIPE TO HOSE (I) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0611-
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	10	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (A) ID=16	8-94238-568-0	10	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (A) ID=19	8-94238-569-0	08	1	0208-0411
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (A) ID=19	8-94238-569-0	08	1	0412-0511
147	CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (A) ID=19	8-94238-569-0	08	1	0512-0610
147	CLIP; FUEL PIPE TO HOSE (A) ID=19	8-94238-569-0	01	1	0611-
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (B) ID=13	8-94238-571-0	06	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0208-0411
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0412-0701
147	CLIP; FUEL PIPE TO HOSE (B) ID=12	8-94238-610-0	06	1	0702-
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE (H) ID=16	8-94238-568-0	09	1	0611-
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (F) ID=12 & 6.35	8-97215-437-0	03	1	0412-0511
147	CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (F) ID=12 & 6.35	8-97215-437-0	03	1	0512-0610
147	CLIP; FUEL PIPE TO HOSE (F) ID=12 & 6.35	8-97215-437-0	03	1	0611-
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0412-0511
147	CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0512-0610
147	CLIP; FUEL PIPE TO HOSE TRANSMISSION CONTROL-SMOOTHER<8GF> (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0611-
147	CLIP; FUEL PIPE TO HOSE (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0611-

231 61 147 66 231 61 147 65 147 65 24 147 147 147 66 1 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE (A) L=140	5-09707-031-0	02	1	9701-9703
24	CLIP; FUEL HOSE (A) L=140	5-09707-031-0	01	1	9704-9710
24	CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	9711-9905
24	CLIP; FUEL HOSE 4JG2 ENG(RJC) (A) L=140	5-09707-031-1	02	1	9906-0207
24	CLIP; FUEL HOSE 4JH1 ENG(RJX) (A) L=140	5-09707-031-1	01	1	0208-0411
24	CLIP; FUEL HOSE 4JH1 ENG(RJX) (A) L=140	5-09707-031-1	01	1	0412-0511
24	CLIP; FUEL HOSE 4JH1-TC ENG(RDM) (A) L=140	5-09707-031-1	01	1	0512-0610
24	CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0611-
24	CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9701-0207
24	CLIP; FUEL HOSE 4JH1 ENG(RJX) (B)	8-97254-204-1	01	1	0208-0411
24	CLIP; FUEL HOSE 4JH1 ENG(RJX) (B)	8-97254-204-1	01	1	0412-0511
24	CLIP; FUEL HOSE 4JH1-TC ENG(RDM) (B)	8-97254-204-1	01	1	0512-0610
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	9701-0411
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0412-
65	HOSE; FUEL,DELIVERY PIPE (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9701-9905
65	HOSE; FUEL,DELIVERY PIPE 4JG2 ENG(RJC) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0207
65	HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0208-0411
65	HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0412-0511
65	HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) (A) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0512-0610
65	HOSE; FUEL,DELIVERY PIPE (C) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0611-
65	HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=250 SERVICED BY L=3000	0-01262-300-0	01	1	0208-0511
65	HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) (B) L=250 SERVICED BY L=3000	0-01262-300-0	01	1	0512-0610
65	HOSE; FUEL,DELIVERY PIPE (F) L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0611-
65	HOSE; FUEL,DELIVERY PIPE (D) L=320	8-97363-055-0	01	1	0611-
65	HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0412-0511
65	HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) (B) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0512-0610
65	HOSE; FUEL,DELIVERY PIPE (E) L=220 SERVICED BY L=3000	0-01259-300-0	01	1	0611-
66	HOSE; FUEL,RETURN PIPE (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9701-9905
66	HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0207
66	HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	0208-0511
66	HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	0512-0610
66	HOSE; FUEL,RETURN PIPE (C) L=350 SERVICED BY L=3000	0-01256-300-0	01	1	0611-0701
66	HOSE; FUEL,RETURN PIPE (C) L=350 SERVICED BY L=3000 TAI	0-01855-300-0	01	1	0702-
66	HOSE; FUEL,RETURN PIPE (A) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9701-0207
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0208-0411
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0412-0701
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000 TAI	0-01855-300-0	01	1	0702-
66	HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0412-0511
66	HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0512-0610
66	HOSE; FUEL,RETURN PIPE (C) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0611-0701
66	HOSE; FUEL,RETURN PIPE (C) L=440 SERVICED BY L=3000 TAI	0-01855-300-0	01	1	0702-
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (E) ID=13 & 7 L=16 & 14	1-09700-070-0	03	1	0208-0511
147	CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (E) ID=13 & 7 L=16 & 14	1-09700-070-0	03	1	0512-0610
147	CLIP; FUEL PIPE TO HOSE (I) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0611-
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	10	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (A) ID=16	8-94238-568-0	10	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (A) ID=19	8-94238-569-0	08	1	0208-0411
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (A) ID=19	8-94238-569-0	08	1	0412-0511
147	CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (A) ID=19	8-94238-569-0	08	1	0512-0610
147	CLIP; FUEL PIPE TO HOSE (A) ID=19	8-94238-569-0	01	1	0611-
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (B) ID=13	8-94238-571-0	06	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0208-0411
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0412-0701
147	CLIP; FUEL PIPE TO HOSE (B) ID=12	8-94238-610-0	06	1	0702-
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE (H) ID=16	8-94238-568-0	09	1	0611-
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (F) ID=12 & 6.35	8-97215-437-0	03	1	0412-0511
147	CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (F) ID=12 & 6.35	8-97215-437-0	03	1	0512-0610
147	CLIP; FUEL PIPE TO HOSE (F) ID=12 & 6.35	8-97215-437-0	03	1	0611-
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0412-0511
147	CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0512-0610
147	CLIP; FUEL PIPE TO HOSE TRANSMISSION CONTROL-SMOOTHER<8GF> (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0611-
147	CLIP; FUEL PIPE TO HOSE (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0611-
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9701-0411
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0412-
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9701-0207
231	RUBBER; SUPPORT,FUEL PIPE 4JH1 ENG(RJX) (B) OD=16.5 L=50	8-97214-235-0	01	1	0208-0411
231	RUBBER; SUPPORT,FUEL PIPE 4JH1 ENG(RJX) (B) OD=16.5 L=50	8-97214-235-0	01	1	0412-0511
231	RUBBER; SUPPORT,FUEL PIPE 4JH1-TC ENG(RDM) (B) OD=16.5 L=50	8-97214-235-0	01	1	0512-0610
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	0611-

46 147 147 65 147 147 147 147 39 147 66 147 45 47 147 79 147 51 45 147 41 147 65 147 147 147 78 65 147 147 270 5 131 426

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PIPE; FUEL TAI	8-97965-148-1	01	1	9701-9905
39	PIPE; FUEL 4JG2 ENG(RJC) TAI	8-97965-148-1	01	1	9906-0207
39	PIPE; FUEL 4JH1 ENG(RJX) TAI	8-97967-235-0	01	1	0208-0511
39	PIPE; FUEL 4JH1-TC ENG(RDM) TAI	8-97967-235-0	01	1	0512-0610
39	PIPE; FUEL TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98035-576-0	01	1	0611-
39	PIPE; FUEL EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI	8-98025-784-0	01	1	0611-
39	PIPE; FUEL EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI	8-98000-542-0	01	1	0611-
39	PIPE; FUEL 4JH1 ENG(RJX) TAI	8-97363-971-1	01	1	0412-0511
39	PIPE; FUEL 4JH1-TC ENG(RDM) TAI	8-97363-971-1	01	1	0512-0610
39	PIPE; FUEL TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98027-869-0	01	1	0611-
45	PIPE; FUEL,DELIVERY (A) TAI	8-97965-147-0	01	1	9701-9905
45	PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) (A) TAI	8-97965-147-0	01	1	9906-0207
45	PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) (B) TAI	8-97967-234-1	01	1	0208-0511
45	PIPE; FUEL,DELIVERY 4JH1-TC ENG(RDM) (B) TAI	8-97967-234-1	01	1	0512-0610
45	PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER<8GF> (E)	8-98035-574-0	01	1	0611-
45	PIPE; FUEL,DELIVERY (D) TAI	8-98025-782-0	01	1	0611-
45	PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (E) TAI	8-98025-788-0	01	1	0611-
45	PIPE; FUEL,DELIVERY (D) TAI	8-98000-534-2	01	1	0611-
45	PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (E) TAI	8-98023-729-0	01	1	0611-
45	PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) (C) TAI	8-97326-020-0	01	1	0412-0511
45	PIPE; FUEL,DELIVERY 4JH1-TC ENG(RDM) (C) TAI	8-97326-020-0	01	1	0512-0610
45	PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER<8GF> (E)	8-98027-871-0	01	1	0611-
46	PIPE; FUEL,TANK SIDE (A) TAI	8-97965-146-0	01	1	9701-9905
46	PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC) (A) TAI	8-97965-146-0	01	1	9906-0207
46	PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) (B) TAI	8-97967-233-0	01	1	0208-0511
46	PIPE; FUEL,TANK SIDE 4JH1-TC ENG(RDM) (B) TAI	8-97967-233-0	01	1	0512-0610
46	PIPE; FUEL,TANK SIDE TRANSMISSION CONTROL-SMOOTHER<8GF> (D)	8-98035-573-0	01	1	0611-0710
46	PIPE; FUEL,TANK SIDE TRANSMISSION CONTROL-SMOOTHER<8GF> (D)	8-98096-455-0	01	1	0711-
46	PIPE; FUEL,TANK SIDE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (D) TAI	8-98025-783-0	01	1	0611-
46	PIPE; FUEL,TANK SIDE EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (D) TAI	8-98000-535-1	01	1	0611-
46	PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) (C) TAI	8-97363-970-0	01	1	0412-0511
46	PIPE; FUEL,TANK SIDE 4JH1-TC ENG(RDM) (C) TAI	8-97363-970-0	01	1	0512-0610
46	PIPE; FUEL,TANK SIDE TRANSMISSION CONTROL-SMOOTHER<8GF> (D)	8-98027-868-1	01	1	0611-
47	PIPE; FUEL,RETURN TAI	8-97965-143-0	01	1	9701-9702
47	PIPE; FUEL,RETURN TAI	8-97965-145-0	01	1	9703-9905
47	PIPE; FUEL,RETURN 4JG2 ENG(RJC) TAI	8-97965-145-0	01	1	9906-0207
47	PIPE; FUEL,RETURN 4JH1 ENG(RJX) TAI	8-97967-236-1	01	1	0208-0511
47	PIPE; FUEL,RETURN 4JH1-TC ENG(RDM) TAI	8-97967-236-1	01	1	0512-0610
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98035-575-0	01	1	0611-
47	PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI	8-98025-785-0	01	1	0611-
47	PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI	8-98000-541-0	01	1	0611-
47	PIPE; FUEL,RETURN 4JH1 ENG(RJX) TAI	8-97326-026-0	01	1	0412-0511
47	PIPE; FUEL,RETURN 4JH1-TC ENG(RDM) TAI	8-97326-026-0	01	1	0512-0610
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98027-870-0	01	1	0611-
51	NUT; CLIP,PIPE M6 FLANGE	0-91150-106-0	03	1	9701-9905
51	NUT; CLIP,PIPE 4JG2 ENG(RJC) M6 FLANGE	0-91150-106-0	03	1	9906-0207
51	NUT; CLIP,PIPE M6 FLANGE	0-91150-106-0	03	1	0208-0602
51	NUT; CLIP,PIPE M6 FLANGE	0-91180-106-0	03	1	0603-0610
51	NUT; CLIP,PIPE M6 FLANGE	0-91180-106-0	01	1	0611-
65	HOSE; FUEL,DELIVERY PIPE (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9701-9905
65	HOSE; FUEL,DELIVERY PIPE 4JG2 ENG(RJC) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0207
65	HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0208-0411
65	HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0412-0511
65	HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) (A) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0512-0610
65	HOSE; FUEL,DELIVERY PIPE (C) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0611-
65	HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=250 SERVICED BY L=3000	0-01262-300-0	01	1	0208-0511
65	HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) (B) L=250 SERVICED BY L=3000	0-01262-300-0	01	1	0512-0610
65	HOSE; FUEL,DELIVERY PIPE (F) L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0611-
65	HOSE; FUEL,DELIVERY PIPE (D) L=320	8-97363-055-0	01	1	0611-
65	HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0412-0511
65	HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) (B) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0512-0610
65	HOSE; FUEL,DELIVERY PIPE (E) L=220 SERVICED BY L=3000	0-01259-300-0	01	1	0611-
66	HOSE; FUEL,RETURN PIPE (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9701-9905
66	HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0207
66	HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	0208-0511
66	HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	0512-0610
66	HOSE; FUEL,RETURN PIPE (C) L=350 SERVICED BY L=3000	0-01256-300-0	01	1	0611-0701
66	HOSE; FUEL,RETURN PIPE (C) L=350 SERVICED BY L=3000 TAI	0-01855-300-0	01	1	0702-
66	HOSE; FUEL,RETURN PIPE (A) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9701-0207
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0208-0411
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0412-0701
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000 TAI	0-01855-300-0	01	1	0702-
66	HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0412-0511
66	HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0512-0610
66	HOSE; FUEL,RETURN PIPE (C) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0611-0701
66	HOSE; FUEL,RETURN PIPE (C) L=440 SERVICED BY L=3000 TAI	0-01855-300-0	01	1	0702-
78	HOSE; FUEL,PUMP TO PIPE L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9701-9905
78	HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0207
78	HOSE; FUEL,PUMP TO PIPE 4JH1 ENG(RJX) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0208-0411
78	HOSE; FUEL,PUMP TO PIPE 4JH1 ENG(RJX) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0412-0511
78	HOSE; FUEL,PUMP TO PIPE 4JH1-TC ENG(RDM) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0512-0610
78	HOSE; FUEL,PUMP TO PIPE L=220 SERVICED BY L=3000	0-01259-300-0	01	1	0611-
79	HOSE; FUEL,PUMP TO PIPE,RETURN L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9701-9905
79	HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0207
79	HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1 ENG(RJX) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0208-0411
79	HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1 ENG(RJX) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0412-0511
79	HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1-TC ENG(RDM) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0512-0610
79	HOSE; FUEL,PUMP TO PIPE,RETURN	8-98023-329-1	01	1	0611-0701
79	HOSE; FUEL,PUMP TO PIPE,RETURN	8-98065-039-1	01	1	0702-
131	BRACKET; SUB PUMP 4JJ1 ENG(LFB) TAI	8-98054-263-0	01	1	0611-
131	BRACKET; SUB PUMP 4JJ1 ENG(LFB) TAI	8-98025-989-0	01	1	0611-
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (E) ID=13 & 7 L=16 & 14	1-09700-070-0	03	1	0208-0511
147	CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (E) ID=13 & 7 L=16 & 14	1-09700-070-0	03	1	0512-0610
147	CLIP; FUEL PIPE TO HOSE (I) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0611-
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	10	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (A) ID=16	8-94238-568-0	10	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (A) ID=19	8-94238-569-0	08	1	0208-0411
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (A) ID=19	8-94238-569-0	08	1	0412-0511
147	CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (A) ID=19	8-94238-569-0	08	1	0512-0610
147	CLIP; FUEL PIPE TO HOSE (A) ID=19	8-94238-569-0	01	1	0611-
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (B) ID=13	8-94238-571-0	06	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0208-0411
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0412-0701
147	CLIP; FUEL PIPE TO HOSE (B) ID=12	8-94238-610-0	06	1	0702-
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9701-9905
147	CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9906-0207
147	CLIP; FUEL PIPE TO HOSE (H) ID=16	8-94238-568-0	09	1	0611-
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (F) ID=12 & 6.35	8-97215-437-0	03	1	0412-0511
147	CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (F) ID=12 & 6.35	8-97215-437-0	03	1	0512-0610
147	CLIP; FUEL PIPE TO HOSE (F) ID=12 & 6.35	8-97215-437-0	03	1	0611-
147	CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0412-0511
147	CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0512-0610
147	CLIP; FUEL PIPE TO HOSE TRANSMISSION CONTROL-SMOOTHER<8GF> (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0611-
147	CLIP; FUEL PIPE TO HOSE (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0611-
270	PUMP ASM; FUEL 4JJ1 ENG(LFB)	8-98018-187-3	01	1	0611-
426	BOLT; FUEL PUMP 4JJ1 ENG(LFB) M8X20 FLANGE	0-28650-820-0	02	1	0611-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
