Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#139045) — 555 parça

258 8 45 1 10 1 10 209 297 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	CLIP; AIR DUCT ID=87	8-97087-432-0	01	1	9701-9905
5	CLIP; AIR DUCT 4JG2 ENG(RJC) ID=87	8-97087-432-0	01	1	9906-0207
5	CLIP; AIR DUCT 4JJ1 ENG(LFB) D=101.6	9-09915-502-1	01	1	0611-
209	BRACKET; ACL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97072-530-0	01	1	9701-0207
209	BRACKET; ACL AIR CONDITIONER MANUAL CONT(C60) (A)	8-97072-530-0	01	1	0208-0411
209	BRACKET; ACL AIR CONDITIONER MANUAL CONT(C60) (A)	8-97072-530-0	01	1	0412-0610
209	BRACKET; ACL 4JJ1 ENG(LFB) (E)	8-98035-263-0	01	1	0611-
209	BRACKET; ACL 4JH1 ENG(RJX) (B) TAI	8-97965-387-0	01	1	0208-0505
209	BRACKET; ACL 4JH1 ENG(RJX) (D) TAI	8-97967-465-0	01	1	0506-0511
209	BRACKET; ACL 4JH1-TC ENG(RDM) (D) TAI	8-97967-465-0	01	1	0512-0610
209	BRACKET; ACL 4JH1 ENG(RJX) (C)	8-97107-139-0	01	1	0412-0511
209	BRACKET; ACL 4JH1-TC ENG(RDM) (C)	8-97107-139-0	01	1	0512-0610
209	BRACKET; ACL 4JJ1 ENG(LFB) (E)	8-98019-234-1	01	1	0611-
258	NUT; AIR DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91150-108-0	01	1	9701-0207
258	NUT; AIR DUCT AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91150-108-0	01	1	0208-0411
258	NUT; AIR DUCT AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91150-108-0	01	1	0412-0602
258	NUT; AIR DUCT AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91180-108-0	01	1	0603-0610
297	BOLT; DUCT M8X14 W/LK WASHER	0-50040-814-0	01	1	9701-9905
297	BOLT; DUCT M10X20 W/LK WASHER	0-50041-020-0	02	1	9701-9905
297	BOLT; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8X35 FLANGE	0-28680-835-0	01	1	9701-0207
297	BOLT; DUCT AIR CONDITIONER MANUAL CONT(C60) M8X35 FLANGE	0-28680-835-0	01	1	0208-0411
297	BOLT; DUCT AIR CONDITIONER MANUAL CONT(C60) M8X35 FLANGE	0-28680-835-0	01	1	0412-0512
297	BOLT; DUCT AIR CONDITIONER MANUAL CONT(C60) M8X35 FLANGE	0-28650-835-0	01	1	0601-0610

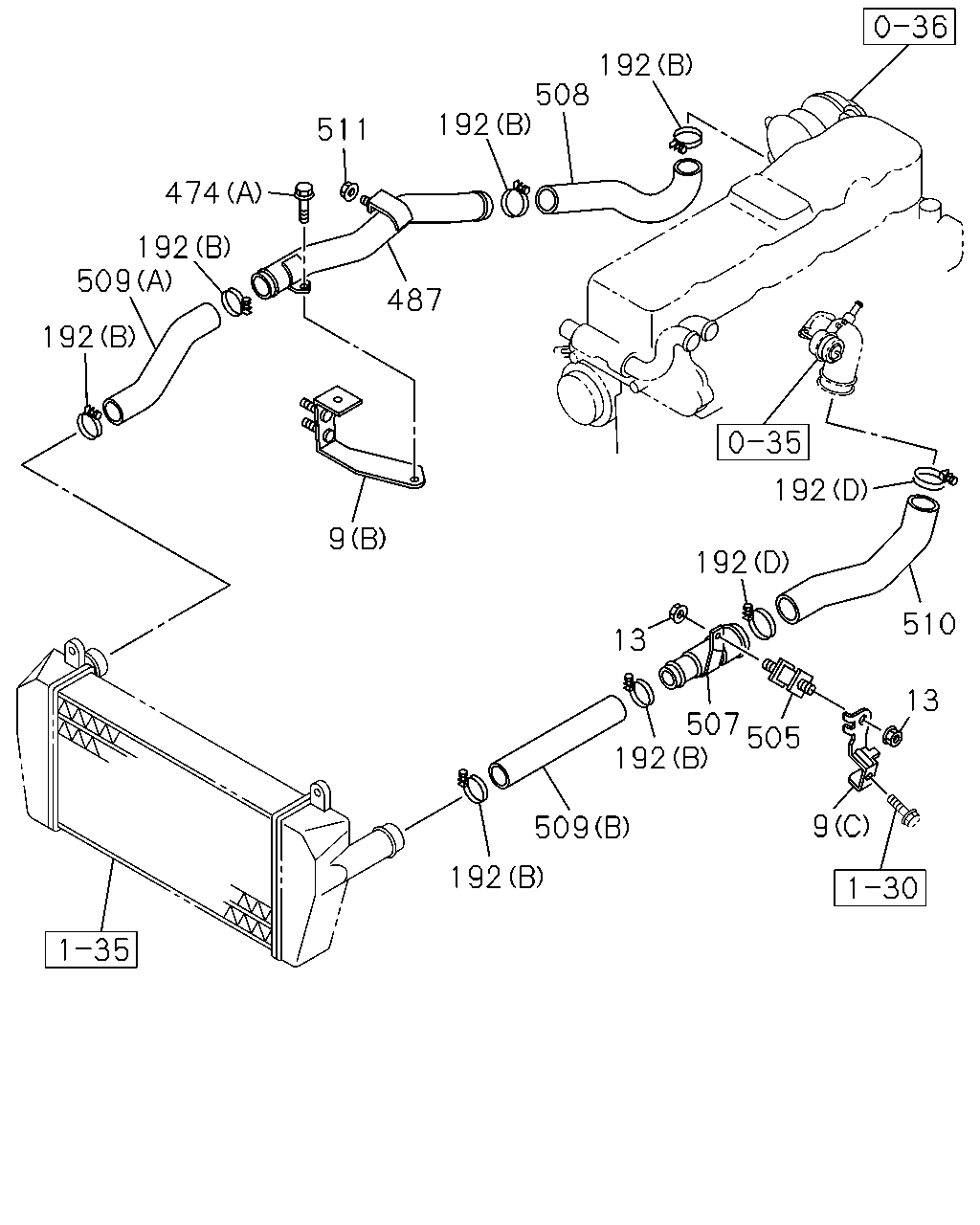

36 192 508 192 511 474 192 509 487 192 35 192 9 192 510 13 13 507 505 192 9 509 192 1 30 1 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	BRACKET; INT PIPE (A) TAI	8-97965-435-0	01	1	9701-9905
9	BRACKET; INT PIPE 4JH1 ENG(RJX) (C)	8-97300-771-1	01	1	0208-0411
9	BRACKET; INT PIPE 4JH1 ENG(RJX) (C)	8-97300-771-1	01	1	0412-0511
9	BRACKET; INT PIPE 4JH1-TC ENG(RDM) (C)	8-97300-771-1	01	1	0512-0610
9	BRACKET; INT PIPE 4JH1 ENG(RJX) (B)	8-97312-472-0	01	1	0208-0411
9	BRACKET; INT PIPE 4JH1 ENG(RJX) (B)	8-97312-472-0	01	1	0412-0511
9	BRACKET; INT PIPE 4JH1-TC ENG(RDM) (B)	8-97312-472-0	01	1	0512-0610
9	BRACKET; INT PIPE 4JJ1 ENG(LFB) (D)	8-98009-086-0	01	1	0611-
13	NUT; BRKT FIX 4JH1 ENG(RJX) M8 FLANGE	0-91150-108-0	02	1	0208-0411
13	NUT; BRKT FIX 4JH1 ENG(RJX) M8 FLANGE	0-91150-108-0	02	1	0412-0511
13	NUT; BRKT FIX 4JH1-TC ENG(RDM) M8 FLANGE	0-91150-108-0	02	1	0512-0602
13	NUT; BRKT FIX 4JH1-TC ENG(RDM) M8 FLANGE	0-91180-108-0	02	1	0603-0610
192	CLIP; HOSE (A) ID=79	9-09915-734-1	02	1	9701-9905
192	CLIP; HOSE 4JH1 ENG(RJX) (B) ID=50-69	1-09707-135-0	06	1	0208-0410
192	CLIP; HOSE 4JH1 ENG(RJX) (B) ID=50-65	1-09707-204-0	06	1	0411-0411
192	CLIP; HOSE 4JH1 ENG(RJX) (B) ID=50-65	1-09707-204-0	06	1	0412-0511
192	CLIP; HOSE 4JH1-TC ENG(RDM) (B) ID=50-65	1-09707-204-0	06	1	0512-0610
192	CLIP; HOSE 4JH1 ENG(RJX) (D) ID=58-79	8-94126-771-0	02	1	0208-0403
192	CLIP; HOSE 4JH1 ENG(RJX) (D) ID=58-76	1-09707-203-0	02	1	0404-0411
192	CLIP; HOSE 4JH1 ENG(RJX) (D) ID=58-76	1-09707-203-0	02	1	0412-0511
192	CLIP; HOSE 4JH1-TC ENG(RDM) (D) ID=58-76	1-09707-203-0	02	1	0512-0610
192	CLIP; HOSE 4JJ1 ENG(LFB) (E) ID=117	9-09915-075-1	01	1	0611-
192	CLIP; HOSE 4JH1 ENG(RJX) (C) ID=112	9-09915-074-1	01	1	0208-0411
192	CLIP; HOSE 4JH1 ENG(RJX) (C) ID=112	9-09915-074-1	01	1	0412-0511
192	CLIP; HOSE 4JH1-TC ENG(RDM) (C) ID=112	9-09915-074-1	01	1	0512-0610
474	BOLT; PIPE 4JH1 ENG(RJX) (A) M8X20 FLANGE	0-28680-820-0	01	1	0208-0411
474	BOLT; PIPE 4JH1 ENG(RJX) (A) M8X20 FLANGE	0-28680-820-0	01	1	0412-0511
474	BOLT; PIPE 4JH1-TC ENG(RDM) (A) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
474	BOLT; PIPE 4JH1-TC ENG(RDM) (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-0610
474	BOLT; PIPE 4JJ1 ENG(LFB) (D) M8X16 FLANGE	0-28050-816-0	01	1	0611-
474	BOLT; PIPE 4JJ1 ENG(LFB) (B) M6X70 FLANGE	0-28050-670-0	02	1	0611-
474	BOLT; PIPE 4JJ1 ENG(LFB) (C) M6X30 FLANGE	0-28650-630-0	01	1	0611-
487	PIPE; TURBO TO CHARGE AIR COOLER 4JH1 ENG(RJX)	8-97312-536-0	01	1	0208-0411
487	PIPE; TURBO TO CHARGE AIR COOLER 4JH1 ENG(RJX)	8-97312-536-0	01	1	0412-0511
487	PIPE; TURBO TO CHARGE AIR COOLER 4JH1-TC ENG(RDM)	8-97312-536-0	01	1	0512-0610
505	RUBBER; MTG 4JH1 ENG(RJX)	8-94158-155-1	01	1	0208-0411
505	RUBBER; MTG 4JH1 ENG(RJX)	8-94158-155-1	01	1	0412-0511
505	RUBBER; MTG 4JH1-TC ENG(RDM)	8-94158-155-1	01	1	0512-0610
505	RUBBER; MTG 4JJ1 ENG(LFB)	8-97077-387-0	02	1	0611-
507	PIPE; CHARGE AIR COOLER TO INL MANIF 4JH1 ENG(RJX)	8-97240-053-0	01	1	0208-0411
507	PIPE; CHARGE AIR COOLER TO INL MANIF 4JH1 ENG(RJX)	8-97240-053-0	01	1	0412-0511
507	PIPE; CHARGE AIR COOLER TO INL MANIF 4JH1-TC ENG(RDM)	8-97240-053-0	01	1	0512-0610
508	HOSE; AIR,TURBO TO PIPE 4JG2 ENG(RJC)	8-97217-291-0	01	1	9906-0207
508	HOSE; AIR,TURBO TO PIPE 4JH1 ENG(RJX)	8-97258-837-3	01	1	0208-0411
508	HOSE; AIR,TURBO TO PIPE 4JH1 ENG(RJX)	8-97258-837-3	01	1	0412-0511
508	HOSE; AIR,TURBO TO PIPE 4JH1-TC ENG(RDM)	8-97258-837-4	01	1	0512-0610
509	HOSE; AIR,PIPE TO CHARGE AIR COOLER 4JH1 ENG(RJX) (A)	8-97260-314-5	01	1	0208-0411
509	HOSE; AIR,PIPE TO CHARGE AIR COOLER 4JH1 ENG(RJX) (A)	8-97260-314-5	01	1	0412-0511
509	HOSE; AIR,PIPE TO CHARGE AIR COOLER 4JH1-TC ENG(RDM) (A)	8-97260-314-6	01	1	0512-0610
509	HOSE; AIR,PIPE TO CHARGE AIR COOLER 4JH1 ENG(RJX) (B)	8-97300-859-3	01	1	0208-0411
509	HOSE; AIR,PIPE TO CHARGE AIR COOLER 4JH1 ENG(RJX) (B)	8-97300-859-3	01	1	0412-0511
509	HOSE; AIR,PIPE TO CHARGE AIR COOLER 4JH1-TC ENG(RDM) (B)	8-97300-859-4	01	1	0512-0610
510	HOSE; AIR,PIPE TO INL MANIF 4JH1 ENG(RJX)	8-97300-858-3	01	1	0208-0411
510	HOSE; AIR,PIPE TO INL MANIF 4JH1 ENG(RJX)	8-97300-858-3	01	1	0412-0511
510	HOSE; AIR,PIPE TO INL MANIF 4JH1-TC ENG(RDM)	8-97300-858-4	01	1	0512-0610
511	NUT; PIPE 4JH1 ENG(RJX) M8 FLANGE	0-91150-108-0	02	1	0208-0411
511	NUT; PIPE 4JH1 ENG(RJX) M8 FLANGE	0-91150-108-0	02	1	0412-0511
511	NUT; PIPE 4JH1-TC ENG(RDM) M8 FLANGE	0-91150-108-0	02	1	0512-0602
511	NUT; PIPE 4JH1-TC ENG(RDM) M8 FLANGE	0-91180-108-0	02	1	0603-0610

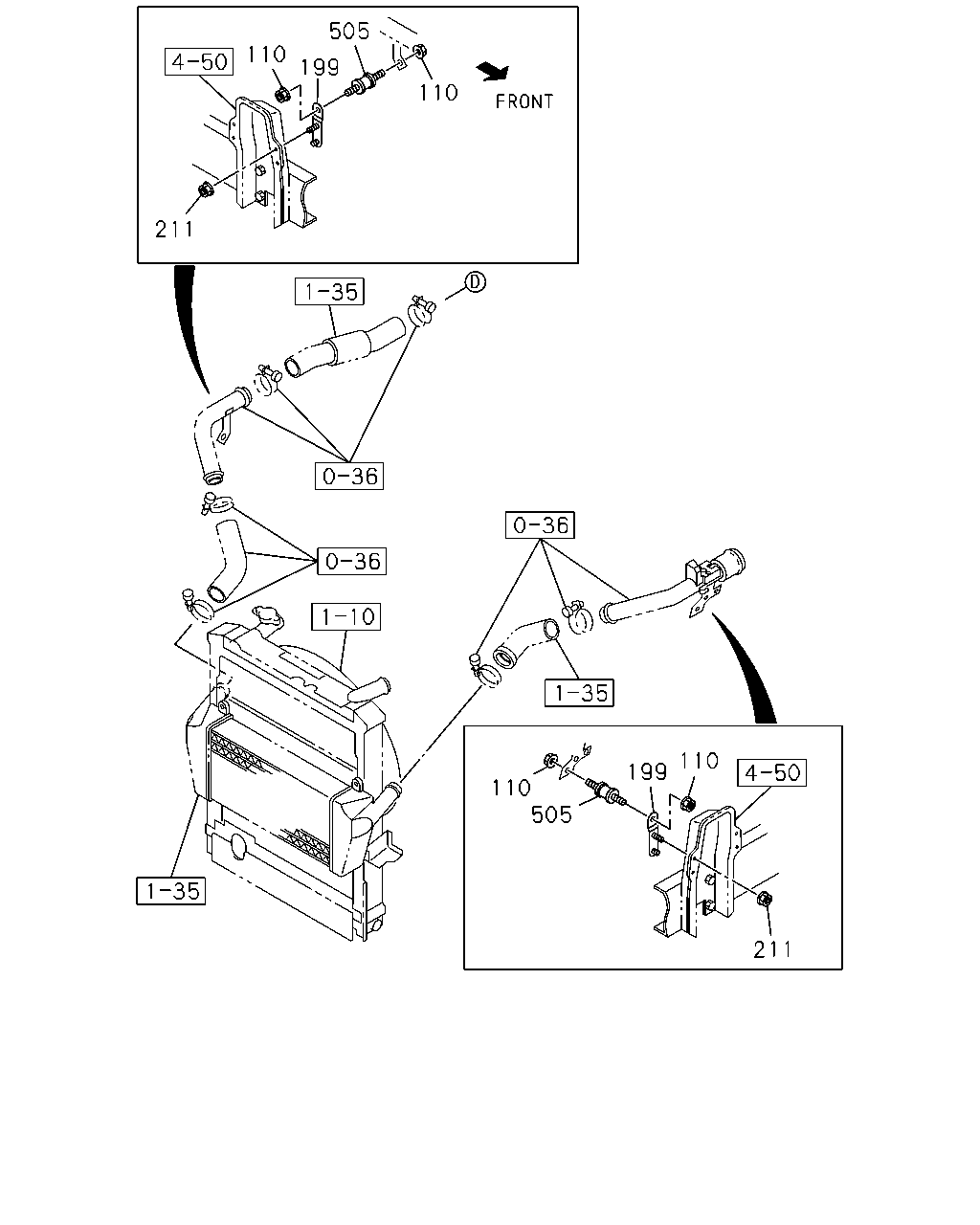

505 110 4 50 199 110 211 1 35 36 36 36 1 10 1 35 110 199 4 50 110 505 1 35 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
110	NUT; RUBBER MTG 4JJ1 ENG(LFB) M8 FLANGE	0-91180-108-0	04	1	0611-
199	BRACKET; PIPE 4JJ1 ENG(LFB)	8-98018-807-1	01	1	0611-
199	BRACKET; PIPE 4JJ1 ENG(LFB)	8-98018-806-1	01	1	0611-
211	NUT; BRKT 4JJ1 ENG(LFB) M8 FLANGE TAI	8-97046-127-0	02	1	0611-0611
211	NUT; BRKT 4JJ1 ENG(LFB) M8 W/DISHED WASHER	8-97329-625-0	02	1	0611-
505	RUBBER; MTG 4JH1 ENG(RJX)	8-94158-155-1	01	1	0208-0411
505	RUBBER; MTG 4JH1 ENG(RJX)	8-94158-155-1	01	1	0412-0511
505	RUBBER; MTG 4JH1-TC ENG(RDM)	8-94158-155-1	01	1	0512-0610
505	RUBBER; MTG 4JJ1 ENG(LFB)	8-97077-387-0	02	1	0611-

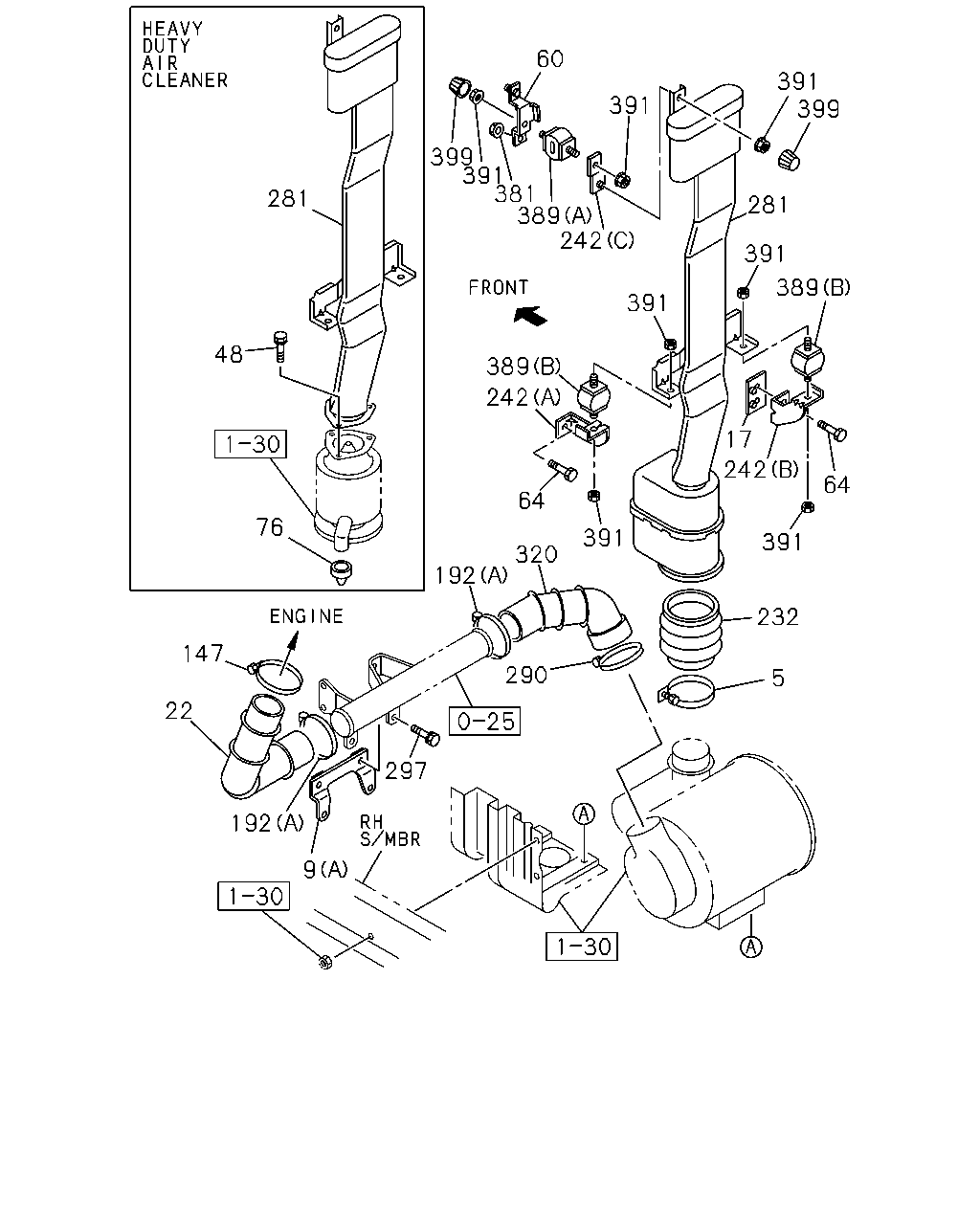

60 391 399 391 399 391 381 389 242 281 281 391 389 391 48 389 242 17 1 30 242 64 64 76 391 391 320 192 232 147 290 5 22 25 297 192 9 1 30 1 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	CLIP; AIR DUCT ID=87	8-97087-432-0	01	1	9701-9905
5	CLIP; AIR DUCT 4JG2 ENG(RJC) ID=87	8-97087-432-0	01	1	9906-0207
5	CLIP; AIR DUCT 4JJ1 ENG(LFB) D=101.6	9-09915-502-1	01	1	0611-
9	BRACKET; INT PIPE (A) TAI	8-97965-435-0	01	1	9701-9905
9	BRACKET; INT PIPE 4JH1 ENG(RJX) (C)	8-97300-771-1	01	1	0208-0411
9	BRACKET; INT PIPE 4JH1 ENG(RJX) (C)	8-97300-771-1	01	1	0412-0511
9	BRACKET; INT PIPE 4JH1-TC ENG(RDM) (C)	8-97300-771-1	01	1	0512-0610
9	BRACKET; INT PIPE 4JH1 ENG(RJX) (B)	8-97312-472-0	01	1	0208-0411
9	BRACKET; INT PIPE 4JH1 ENG(RJX) (B)	8-97312-472-0	01	1	0412-0511
9	BRACKET; INT PIPE 4JH1-TC ENG(RDM) (B)	8-97312-472-0	01	1	0512-0610
9	BRACKET; INT PIPE 4JJ1 ENG(LFB) (D)	8-98009-086-0	01	1	0611-
17	GASKET; AIR DUCT	8-97853-699-2	01	1	9701-9905
17	GASKET; AIR DUCT 4JG2 ENG(RJC)	8-97853-699-2	01	1	9906-0207
17	GASKET; AIR DUCT 4JH1 ENG(RJX)	8-97853-699-2	01	1	0208-0411
17	GASKET; AIR DUCT 4JH1 ENG(RJX)	8-97853-699-2	01	1	0412-0511
17	GASKET; AIR DUCT 4JH1-TC ENG(RDM)	8-97853-699-2	01	1	0512-0610
17	GASKET; AIR DUCT 4JJ1 ENG(LFB)	8-97853-699-2	01	1	0611-
22	HOSE; CONNECTOR,ENG TO PIPE TAI	8-97965-321-0	01	1	9701-9905
48	BOLT; AIR DUCT HEAVY DUTY AIR CLEANER<K46> M8X18 W/LK WASHER	0-50040-818-0	03	1	9701-9905
60	BRACKET; AIR DUCT,UPR	8-97867-792-0	01	1	9701-9809
60	BRACKET; AIR DUCT,UPR CAB-LOW ROOF<6XQ>	8-97867-792-0	01	1	9810-9905
60	BRACKET; AIR DUCT,UPR 4JG2 ENG(RJC) CAB-LOW ROOF<6XQ>	8-97867-792-0	01	1	9906-0207
60	BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX) CAB-LOW ROOF<6XQ>	8-97867-792-0	01	1	0208-0511
60	BRACKET; AIR DUCT,UPR 4JH1-TC ENG(RDM) CAB-LOW ROOF<6XQ>	8-97867-792-0	01	1	0512-0610
60	BRACKET; AIR DUCT,UPR EXC. CAB-LOW ROOF<6XQ>	8-97856-956-0	01	1	9810-9905
60	BRACKET; AIR DUCT,UPR 4JG2 ENG(RJC) EXC. CAB-LOW ROOF<6XQ>	8-97856-956-0	01	1	9906-0207
60	BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX) CAB-HIGH ROOF<S2F>	8-97856-956-0	01	1	0208-0411
60	BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX) CAB-HIGH ROOF<S2F>	8-97856-956-0	01	1	0412-0511
60	BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX)	8-97856-956-0	01	1	0412-0511
60	BRACKET; AIR DUCT,UPR 4JH1-TC ENG(RDM) CAB-HIGH ROOF<S2F>	8-97856-956-0	01	1	0512-0610
60	BRACKET; AIR DUCT,UPR 4JH1-TC ENG(RDM)	8-97856-956-0	01	1	0512-0610
64	BOLT; BRKT,AIR DUCT M8X20.5 W/LK&PL WASHER TAI	8-94279-207-0	03	1	9701-9905
64	BOLT; BRKT,AIR DUCT 4JG2 ENG(RJC) M8X20.5 W/LK&PL WASHER TAI	8-94279-207-0	03	1	9906-0207
64	BOLT; BRKT,AIR DUCT 4JH1 ENG(RJX) M8X20.5 W/LK&PL WASHER TAI	8-94279-207-0	03	1	0208-0411
64	BOLT; BRKT,AIR DUCT 4JH1 ENG(RJX) M8X20.5 W/LK&PL WASHER TAI	8-94279-207-0	03	1	0412-0511
64	BOLT; BRKT,AIR DUCT 4JH1-TC ENG(RDM) M8X20.5 W/LK&PL WASHER TAI	8-94279-207-0	03	1	0512-0610
64	BOLT; BRKT,AIR DUCT 4JJ1 ENG(LFB) M8X20.5 W/LK&PL WASHER TAI	8-94279-207-0	03	1	0611-
76	VALVE; PRE ACL HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	01	1	9701-9905
147	CLIP; HOSE TO ENG ID=79	9-09915-734-1	01	1	9701-9905
147	CLIP; HOSE TO ENG 4JJ1 ENG(LFB) ID=68-85	1-09707-202-0	01	1	0611-
192	CLIP; HOSE (A) ID=79	9-09915-734-1	02	1	9701-9905
192	CLIP; HOSE 4JH1 ENG(RJX) (B) ID=50-69	1-09707-135-0	06	1	0208-0410
192	CLIP; HOSE 4JH1 ENG(RJX) (B) ID=50-65	1-09707-204-0	06	1	0411-0411
192	CLIP; HOSE 4JH1 ENG(RJX) (B) ID=50-65	1-09707-204-0	06	1	0412-0511
192	CLIP; HOSE 4JH1-TC ENG(RDM) (B) ID=50-65	1-09707-204-0	06	1	0512-0610
192	CLIP; HOSE 4JH1 ENG(RJX) (D) ID=58-79	8-94126-771-0	02	1	0208-0403
192	CLIP; HOSE 4JH1 ENG(RJX) (D) ID=58-76	1-09707-203-0	02	1	0404-0411
192	CLIP; HOSE 4JH1 ENG(RJX) (D) ID=58-76	1-09707-203-0	02	1	0412-0511
192	CLIP; HOSE 4JH1-TC ENG(RDM) (D) ID=58-76	1-09707-203-0	02	1	0512-0610
192	CLIP; HOSE 4JJ1 ENG(LFB) (E) ID=117	9-09915-075-1	01	1	0611-
192	CLIP; HOSE 4JH1 ENG(RJX) (C) ID=112	9-09915-074-1	01	1	0208-0411
192	CLIP; HOSE 4JH1 ENG(RJX) (C) ID=112	9-09915-074-1	01	1	0412-0511
192	CLIP; HOSE 4JH1-TC ENG(RDM) (C) ID=112	9-09915-074-1	01	1	0512-0610
232	HOSE; CONN TAI	8-97965-340-0	01	1	9701-9905
232	HOSE; CONN 4JG2 ENG(RJC) TAI	8-97965-340-0	01	1	9906-0207
232	HOSE; CONN 4JH1 ENG(RJX)	8-94456-844-0	01	1	0208-0411
232	HOSE; CONN 4JH1 ENG(RJX)	8-94456-844-0	01	1	0412-0511
232	HOSE; CONN 4JH1-TC ENG(RDM)	8-94456-844-1	01	1	0512-0610
232	HOSE; CONN 4JJ1 ENG(LFB)	8-97109-423-0	01	1	0611-
242	BRACKET; AIR DUCT (B)	8-97856-935-0	01	1	9701-9905
242	BRACKET; AIR DUCT 4JG2 ENG(RJC) (B)	8-97856-935-0	01	1	9906-0207
242	BRACKET; AIR DUCT 4JH1 ENG(RJX) (D)	8-97856-932-0	01	1	0208-0411
242	BRACKET; AIR DUCT 4JH1 ENG(RJX) (D)	8-97856-932-0	01	1	0412-0511
242	BRACKET; AIR DUCT 4JH1-TC ENG(RDM) (D)	8-97856-932-0	01	1	0512-0610
242	BRACKET; AIR DUCT 4JJ1 ENG(LFB) (G)	8-97312-894-1	01	1	0611-
242	BRACKET; AIR DUCT (C)	8-97856-958-0	01	1	9701-9905
242	BRACKET; AIR DUCT 4JG2 ENG(RJC) (C)	8-97856-958-0	01	1	9906-0207
242	BRACKET; AIR DUCT 4JH1 ENG(RJX) (C)	8-97856-958-0	01	1	0208-0411
242	BRACKET; AIR DUCT 4JH1 ENG(RJX) (C)	8-97856-958-0	01	1	0412-0511
242	BRACKET; AIR DUCT 4JH1-TC ENG(RDM) (C)	8-97856-958-0	01	1	0512-0610
242	BRACKET; AIR DUCT 4JJ1 ENG(LFB) CAB-HIGH ROOF<S2F> (H)	8-97329-306-0	01	1	0611-
242	BRACKET; AIR DUCT 4JJ1 ENG(LFB) (H)	8-97329-306-0	01	1	0611-
242	BRACKET; AIR DUCT (A)	8-97856-967-1	01	1	9701-9905
242	BRACKET; AIR DUCT 4JG2 ENG(RJC) (A)	8-97856-967-1	01	1	9906-0207
242	BRACKET; AIR DUCT 4JH1 ENG(RJX) (E)	8-97856-933-0	01	1	0208-0411
242	BRACKET; AIR DUCT 4JH1 ENG(RJX) (E)	8-97856-933-0	01	1	0412-0511
242	BRACKET; AIR DUCT 4JH1-TC ENG(RDM) (E)	8-97856-933-0	01	1	0512-0610
242	BRACKET; AIR DUCT 4JJ1 ENG(LFB) (I)	8-97329-201-0	01	1	0611-
242	BRACKET; AIR DUCT 4JJ1 ENG(LFB) CAB-LOW ROOF<6XQ> (F)	8-98035-264-1	01	1	0611-
281	DUCT; AIR,VERTICAL INT TAI	8-97965-169-1	01	1	9701-9905
281	DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC) TAI	8-97965-169-1	01	1	9906-0207
281	DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX)	8-97300-255-0	01	1	0208-0411
281	DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX)	8-97300-255-0	01	1	0412-0511
281	DUCT; AIR,VERTICAL INT 4JH1-TC ENG(RDM)	8-97300-255-1	01	1	0512-0610
281	DUCT; AIR,VERTICAL INT 4JJ1 ENG(LFB)	8-97369-706-0	01	1	0611-
290	CLIP; ACL TO AIR DUCT ID=92	9-09915-072-1	01	1	9701-9905
290	CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC) ID=92	9-09915-072-1	01	1	9906-9910
290	CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC) ID=87	8-97087-432-0	01	1	9911-0207
297	BOLT; DUCT M8X14 W/LK WASHER	0-50040-814-0	01	1	9701-9905
297	BOLT; DUCT M10X20 W/LK WASHER	0-50041-020-0	02	1	9701-9905
297	BOLT; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8X35 FLANGE	0-28680-835-0	01	1	9701-0207
297	BOLT; DUCT AIR CONDITIONER MANUAL CONT(C60) M8X35 FLANGE	0-28680-835-0	01	1	0208-0411
297	BOLT; DUCT AIR CONDITIONER MANUAL CONT(C60) M8X35 FLANGE	0-28680-835-0	01	1	0412-0512
297	BOLT; DUCT AIR CONDITIONER MANUAL CONT(C60) M8X35 FLANGE	0-28650-835-0	01	1	0601-0610
320	HOSE; CONN,ACL TAI	8-97965-339-0	01	1	9701-9905
320	HOSE; CONN,ACL 4JG2 ENG(RJC)	8-97168-373-0	01	1	9906-0207
320	HOSE; CONN,ACL 4JJ1 ENG(LFB)	8-98048-136-1	01	1	0611-
381	NUT; BRKT,AIR DUCT M6 FLANGE	1-09984-018-0	02	1	9701-9905
381	NUT; BRKT,AIR DUCT 4JG2 ENG(RJC) M6 FLANGE	1-09984-018-0	02	1	9906-0207
381	NUT; BRKT,AIR DUCT 4JH1 ENG(RJX) M6 FLANGE	1-09984-018-0	02	1	0208-0411
381	NUT; BRKT,AIR DUCT 4JH1 ENG(RJX) M6 FLANGE	1-09984-018-0	02	1	0412-0511
381	NUT; BRKT,AIR DUCT 4JH1-TC ENG(RDM) M6 FLANGE	1-09984-018-0	02	1	0512-0610
381	NUT; BRKT,AIR DUCT 4JJ1 ENG(LFB) M6 FLANGE	1-09984-018-0	02	1	0611-
389	RUBBER; SUPPORT,AIR INT UPR (A) TAI	8-97965-411-0	01	1	9701-0411
389	RUBBER; SUPPORT,AIR INT UPR (A) TAI	8-97965-411-0	01	1	0412-0610
389	RUBBER; SUPPORT,AIR INT UPR 4JJ1 ENG(LFB) (A) TAI	8-97965-411-0	01	1	0611-
389	RUBBER; SUPPORT,AIR INT UPR (B) TAI	8-97965-412-0	02	1	9701-0411
389	RUBBER; SUPPORT,AIR INT UPR (B) TAI	8-97965-412-0	02	1	0412-0610
389	RUBBER; SUPPORT,AIR INT UPR 4JJ1 ENG(LFB) (B) TAI	8-97965-412-0	02	1	0611-
391	NUT; SUPPORT RUBBER,UPR M8 FLANGE	8-94279-517-0	07	1	9701-9905
391	NUT; SUPPORT RUBBER,UPR 4JG2 ENG(RJC) M8 FLANGE	8-94279-517-0	07	1	9906-0207
391	NUT; SUPPORT RUBBER,UPR 4JH1 ENG(RJX) M8 FLANGE	8-94279-517-0	07	1	0208-0411
391	NUT; SUPPORT RUBBER,UPR 4JH1 ENG(RJX) M8 FLANGE	8-94279-517-0	07	1	0412-0511
391	NUT; SUPPORT RUBBER,UPR 4JH1-TC ENG(RDM) M8 FLANGE	8-94279-517-0	07	1	0512-0610
391	NUT; SUPPORT RUBBER,UPR 4JJ1 ENG(LFB) M8 FLANGE	8-94279-517-0	06	1	0611-
399	CAP; BRKT,AIR DUCT	8-94273-605-0	02	1	9701-9905
399	CAP; BRKT,AIR DUCT 4JG2 ENG(RJC)	8-94273-605-0	02	1	9906-0207
399	CAP; BRKT,AIR DUCT 4JH1 ENG(RJX)	8-94273-605-0	02	1	0208-0411
399	CAP; BRKT,AIR DUCT 4JH1 ENG(RJX)	8-94273-605-0	02	1	0412-0511
399	CAP; BRKT,AIR DUCT 4JH1-TC ENG(RDM)	8-94273-605-0	02	1	0512-0610
399	CAP; BRKT,AIR DUCT 4JJ1 ENG(LFB)	8-94273-605-0	02	1	0611-

242 399 381 242 391 389 314 391 391 64 381 281 17 391 399 381 42 389 314 391 391 314 391 242 64 389 232 5 1 30 351 147 426 192 320 480 209 1 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	CLIP; AIR DUCT ID=87	8-97087-432-0	01	1	9701-9905
5	CLIP; AIR DUCT 4JG2 ENG(RJC) ID=87	8-97087-432-0	01	1	9906-0207
5	CLIP; AIR DUCT 4JJ1 ENG(LFB) D=101.6	9-09915-502-1	01	1	0611-
17	GASKET; AIR DUCT	8-97853-699-2	01	1	9701-9905
17	GASKET; AIR DUCT 4JG2 ENG(RJC)	8-97853-699-2	01	1	9906-0207
17	GASKET; AIR DUCT 4JH1 ENG(RJX)	8-97853-699-2	01	1	0208-0411
17	GASKET; AIR DUCT 4JH1 ENG(RJX)	8-97853-699-2	01	1	0412-0511
17	GASKET; AIR DUCT 4JH1-TC ENG(RDM)	8-97853-699-2	01	1	0512-0610
17	GASKET; AIR DUCT 4JJ1 ENG(LFB)	8-97853-699-2	01	1	0611-
64	BOLT; BRKT,AIR DUCT M8X20.5 W/LK&PL WASHER TAI	8-94279-207-0	03	1	9701-9905
64	BOLT; BRKT,AIR DUCT 4JG2 ENG(RJC) M8X20.5 W/LK&PL WASHER TAI	8-94279-207-0	03	1	9906-0207
64	BOLT; BRKT,AIR DUCT 4JH1 ENG(RJX) M8X20.5 W/LK&PL WASHER TAI	8-94279-207-0	03	1	0208-0411
64	BOLT; BRKT,AIR DUCT 4JH1 ENG(RJX) M8X20.5 W/LK&PL WASHER TAI	8-94279-207-0	03	1	0412-0511
64	BOLT; BRKT,AIR DUCT 4JH1-TC ENG(RDM) M8X20.5 W/LK&PL WASHER TAI	8-94279-207-0	03	1	0512-0610
64	BOLT; BRKT,AIR DUCT 4JJ1 ENG(LFB) M8X20.5 W/LK&PL WASHER TAI	8-94279-207-0	03	1	0611-
147	CLIP; HOSE TO ENG ID=79	9-09915-734-1	01	1	9701-9905
147	CLIP; HOSE TO ENG 4JJ1 ENG(LFB) ID=68-85	1-09707-202-0	01	1	0611-
192	CLIP; HOSE (A) ID=79	9-09915-734-1	02	1	9701-9905
192	CLIP; HOSE 4JH1 ENG(RJX) (B) ID=50-69	1-09707-135-0	06	1	0208-0410
192	CLIP; HOSE 4JH1 ENG(RJX) (B) ID=50-65	1-09707-204-0	06	1	0411-0411
192	CLIP; HOSE 4JH1 ENG(RJX) (B) ID=50-65	1-09707-204-0	06	1	0412-0511
192	CLIP; HOSE 4JH1-TC ENG(RDM) (B) ID=50-65	1-09707-204-0	06	1	0512-0610
192	CLIP; HOSE 4JH1 ENG(RJX) (D) ID=58-79	8-94126-771-0	02	1	0208-0403
192	CLIP; HOSE 4JH1 ENG(RJX) (D) ID=58-76	1-09707-203-0	02	1	0404-0411
192	CLIP; HOSE 4JH1 ENG(RJX) (D) ID=58-76	1-09707-203-0	02	1	0412-0511
192	CLIP; HOSE 4JH1-TC ENG(RDM) (D) ID=58-76	1-09707-203-0	02	1	0512-0610
192	CLIP; HOSE 4JJ1 ENG(LFB) (E) ID=117	9-09915-075-1	01	1	0611-
192	CLIP; HOSE 4JH1 ENG(RJX) (C) ID=112	9-09915-074-1	01	1	0208-0411
192	CLIP; HOSE 4JH1 ENG(RJX) (C) ID=112	9-09915-074-1	01	1	0412-0511
192	CLIP; HOSE 4JH1-TC ENG(RDM) (C) ID=112	9-09915-074-1	01	1	0512-0610
209	BRACKET; ACL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97072-530-0	01	1	9701-0207
209	BRACKET; ACL AIR CONDITIONER MANUAL CONT(C60) (A)	8-97072-530-0	01	1	0208-0411
209	BRACKET; ACL AIR CONDITIONER MANUAL CONT(C60) (A)	8-97072-530-0	01	1	0412-0610
209	BRACKET; ACL 4JJ1 ENG(LFB) (E)	8-98035-263-0	01	1	0611-
209	BRACKET; ACL 4JH1 ENG(RJX) (B) TAI	8-97965-387-0	01	1	0208-0505
209	BRACKET; ACL 4JH1 ENG(RJX) (D) TAI	8-97967-465-0	01	1	0506-0511
209	BRACKET; ACL 4JH1-TC ENG(RDM) (D) TAI	8-97967-465-0	01	1	0512-0610
209	BRACKET; ACL 4JH1 ENG(RJX) (C)	8-97107-139-0	01	1	0412-0511
209	BRACKET; ACL 4JH1-TC ENG(RDM) (C)	8-97107-139-0	01	1	0512-0610
209	BRACKET; ACL 4JJ1 ENG(LFB) (E)	8-98019-234-1	01	1	0611-
232	HOSE; CONN TAI	8-97965-340-0	01	1	9701-9905
232	HOSE; CONN 4JG2 ENG(RJC) TAI	8-97965-340-0	01	1	9906-0207
232	HOSE; CONN 4JH1 ENG(RJX)	8-94456-844-0	01	1	0208-0411
232	HOSE; CONN 4JH1 ENG(RJX)	8-94456-844-0	01	1	0412-0511
232	HOSE; CONN 4JH1-TC ENG(RDM)	8-94456-844-1	01	1	0512-0610
232	HOSE; CONN 4JJ1 ENG(LFB)	8-97109-423-0	01	1	0611-
242	BRACKET; AIR DUCT (B)	8-97856-935-0	01	1	9701-9905
242	BRACKET; AIR DUCT 4JG2 ENG(RJC) (B)	8-97856-935-0	01	1	9906-0207
242	BRACKET; AIR DUCT 4JH1 ENG(RJX) (D)	8-97856-932-0	01	1	0208-0411
242	BRACKET; AIR DUCT 4JH1 ENG(RJX) (D)	8-97856-932-0	01	1	0412-0511
242	BRACKET; AIR DUCT 4JH1-TC ENG(RDM) (D)	8-97856-932-0	01	1	0512-0610
242	BRACKET; AIR DUCT 4JJ1 ENG(LFB) (G)	8-97312-894-1	01	1	0611-
242	BRACKET; AIR DUCT (C)	8-97856-958-0	01	1	9701-9905
242	BRACKET; AIR DUCT 4JG2 ENG(RJC) (C)	8-97856-958-0	01	1	9906-0207
242	BRACKET; AIR DUCT 4JH1 ENG(RJX) (C)	8-97856-958-0	01	1	0208-0411
242	BRACKET; AIR DUCT 4JH1 ENG(RJX) (C)	8-97856-958-0	01	1	0412-0511
242	BRACKET; AIR DUCT 4JH1-TC ENG(RDM) (C)	8-97856-958-0	01	1	0512-0610
242	BRACKET; AIR DUCT 4JJ1 ENG(LFB) CAB-HIGH ROOF<S2F> (H)	8-97329-306-0	01	1	0611-
242	BRACKET; AIR DUCT 4JJ1 ENG(LFB) (H)	8-97329-306-0	01	1	0611-
242	BRACKET; AIR DUCT (A)	8-97856-967-1	01	1	9701-9905
242	BRACKET; AIR DUCT 4JG2 ENG(RJC) (A)	8-97856-967-1	01	1	9906-0207
242	BRACKET; AIR DUCT 4JH1 ENG(RJX) (E)	8-97856-933-0	01	1	0208-0411
242	BRACKET; AIR DUCT 4JH1 ENG(RJX) (E)	8-97856-933-0	01	1	0412-0511
242	BRACKET; AIR DUCT 4JH1-TC ENG(RDM) (E)	8-97856-933-0	01	1	0512-0610
242	BRACKET; AIR DUCT 4JJ1 ENG(LFB) (I)	8-97329-201-0	01	1	0611-
242	BRACKET; AIR DUCT 4JJ1 ENG(LFB) CAB-LOW ROOF<6XQ> (F)	8-98035-264-1	01	1	0611-
281	DUCT; AIR,VERTICAL INT TAI	8-97965-169-1	01	1	9701-9905
281	DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC) TAI	8-97965-169-1	01	1	9906-0207
281	DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX)	8-97300-255-0	01	1	0208-0411
281	DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX)	8-97300-255-0	01	1	0412-0511
281	DUCT; AIR,VERTICAL INT 4JH1-TC ENG(RDM)	8-97300-255-1	01	1	0512-0610
281	DUCT; AIR,VERTICAL INT 4JJ1 ENG(LFB)	8-97369-706-0	01	1	0611-
314	WASHER; PL,AIR INT DUCT 4JJ1 ENG(LFB) ID=10.2 T=3.2	8-94279-642-0	03	1	0611-
320	HOSE; CONN,ACL TAI	8-97965-339-0	01	1	9701-9905
320	HOSE; CONN,ACL 4JG2 ENG(RJC)	8-97168-373-0	01	1	9906-0207
320	HOSE; CONN,ACL 4JJ1 ENG(LFB)	8-98048-136-1	01	1	0611-
351	DUCT; AIR 4JJ1 ENG(LFB)	8-98019-067-1	01	1	0611-
381	NUT; BRKT,AIR DUCT M6 FLANGE	1-09984-018-0	02	1	9701-9905
381	NUT; BRKT,AIR DUCT 4JG2 ENG(RJC) M6 FLANGE	1-09984-018-0	02	1	9906-0207
381	NUT; BRKT,AIR DUCT 4JH1 ENG(RJX) M6 FLANGE	1-09984-018-0	02	1	0208-0411
381	NUT; BRKT,AIR DUCT 4JH1 ENG(RJX) M6 FLANGE	1-09984-018-0	02	1	0412-0511
381	NUT; BRKT,AIR DUCT 4JH1-TC ENG(RDM) M6 FLANGE	1-09984-018-0	02	1	0512-0610
381	NUT; BRKT,AIR DUCT 4JJ1 ENG(LFB) M6 FLANGE	1-09984-018-0	02	1	0611-
389	RUBBER; SUPPORT,AIR INT UPR (A) TAI	8-97965-411-0	01	1	9701-0411
389	RUBBER; SUPPORT,AIR INT UPR (A) TAI	8-97965-411-0	01	1	0412-0610
389	RUBBER; SUPPORT,AIR INT UPR 4JJ1 ENG(LFB) (A) TAI	8-97965-411-0	01	1	0611-
389	RUBBER; SUPPORT,AIR INT UPR (B) TAI	8-97965-412-0	02	1	9701-0411
389	RUBBER; SUPPORT,AIR INT UPR (B) TAI	8-97965-412-0	02	1	0412-0610
389	RUBBER; SUPPORT,AIR INT UPR 4JJ1 ENG(LFB) (B) TAI	8-97965-412-0	02	1	0611-
391	NUT; SUPPORT RUBBER,UPR M8 FLANGE	8-94279-517-0	07	1	9701-9905
391	NUT; SUPPORT RUBBER,UPR 4JG2 ENG(RJC) M8 FLANGE	8-94279-517-0	07	1	9906-0207
391	NUT; SUPPORT RUBBER,UPR 4JH1 ENG(RJX) M8 FLANGE	8-94279-517-0	07	1	0208-0411
391	NUT; SUPPORT RUBBER,UPR 4JH1 ENG(RJX) M8 FLANGE	8-94279-517-0	07	1	0412-0511
391	NUT; SUPPORT RUBBER,UPR 4JH1-TC ENG(RDM) M8 FLANGE	8-94279-517-0	07	1	0512-0610
391	NUT; SUPPORT RUBBER,UPR 4JJ1 ENG(LFB) M8 FLANGE	8-94279-517-0	06	1	0611-
399	CAP; BRKT,AIR DUCT	8-94273-605-0	02	1	9701-9905
399	CAP; BRKT,AIR DUCT 4JG2 ENG(RJC)	8-94273-605-0	02	1	9906-0207
399	CAP; BRKT,AIR DUCT 4JH1 ENG(RJX)	8-94273-605-0	02	1	0208-0411
399	CAP; BRKT,AIR DUCT 4JH1 ENG(RJX)	8-94273-605-0	02	1	0412-0511
399	CAP; BRKT,AIR DUCT 4JH1-TC ENG(RDM)	8-94273-605-0	02	1	0512-0610
399	CAP; BRKT,AIR DUCT 4JJ1 ENG(LFB)	8-94273-605-0	02	1	0611-
426	CLIP; DUCT 4JG2 ENG(RJC) ID=44-60	8-94175-940-0	01	1	9906-0207
426	CLIP; DUCT 4JJ1 ENG(LFB)	9-09915-504-1	01	1	0611-
480	ADAPTER 4JJ1 ENG(LFB)	8-97093-075-0	01	1	0611-

381 60 391 399 399 391 391 381 389 242 281 391 36 391 389 23 508 23 17 242 64 389 391 242 64 391 232 25 426 5 320 290 1 30 1 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	CLIP; AIR DUCT ID=87	8-97087-432-0	01	1	9701-9905
5	CLIP; AIR DUCT 4JG2 ENG(RJC) ID=87	8-97087-432-0	01	1	9906-0207
5	CLIP; AIR DUCT 4JJ1 ENG(LFB) D=101.6	9-09915-502-1	01	1	0611-
17	GASKET; AIR DUCT	8-97853-699-2	01	1	9701-9905
17	GASKET; AIR DUCT 4JG2 ENG(RJC)	8-97853-699-2	01	1	9906-0207
17	GASKET; AIR DUCT 4JH1 ENG(RJX)	8-97853-699-2	01	1	0208-0411
17	GASKET; AIR DUCT 4JH1 ENG(RJX)	8-97853-699-2	01	1	0412-0511
17	GASKET; AIR DUCT 4JH1-TC ENG(RDM)	8-97853-699-2	01	1	0512-0610
17	GASKET; AIR DUCT 4JJ1 ENG(LFB)	8-97853-699-2	01	1	0611-
23	CLIP; HOSE 4JG2 ENG(RJC) ID=45.5-56.5	8-97131-943-0	02	1	9906-0207
60	BRACKET; AIR DUCT,UPR	8-97867-792-0	01	1	9701-9809
60	BRACKET; AIR DUCT,UPR CAB-LOW ROOF<6XQ>	8-97867-792-0	01	1	9810-9905
60	BRACKET; AIR DUCT,UPR 4JG2 ENG(RJC) CAB-LOW ROOF<6XQ>	8-97867-792-0	01	1	9906-0207
60	BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX) CAB-LOW ROOF<6XQ>	8-97867-792-0	01	1	0208-0511
60	BRACKET; AIR DUCT,UPR 4JH1-TC ENG(RDM) CAB-LOW ROOF<6XQ>	8-97867-792-0	01	1	0512-0610
60	BRACKET; AIR DUCT,UPR EXC. CAB-LOW ROOF<6XQ>	8-97856-956-0	01	1	9810-9905
60	BRACKET; AIR DUCT,UPR 4JG2 ENG(RJC) EXC. CAB-LOW ROOF<6XQ>	8-97856-956-0	01	1	9906-0207
60	BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX) CAB-HIGH ROOF<S2F>	8-97856-956-0	01	1	0208-0411
60	BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX) CAB-HIGH ROOF<S2F>	8-97856-956-0	01	1	0412-0511
60	BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX)	8-97856-956-0	01	1	0412-0511
60	BRACKET; AIR DUCT,UPR 4JH1-TC ENG(RDM) CAB-HIGH ROOF<S2F>	8-97856-956-0	01	1	0512-0610
60	BRACKET; AIR DUCT,UPR 4JH1-TC ENG(RDM)	8-97856-956-0	01	1	0512-0610
64	BOLT; BRKT,AIR DUCT M8X20.5 W/LK&PL WASHER TAI	8-94279-207-0	03	1	9701-9905
64	BOLT; BRKT,AIR DUCT 4JG2 ENG(RJC) M8X20.5 W/LK&PL WASHER TAI	8-94279-207-0	03	1	9906-0207
64	BOLT; BRKT,AIR DUCT 4JH1 ENG(RJX) M8X20.5 W/LK&PL WASHER TAI	8-94279-207-0	03	1	0208-0411
64	BOLT; BRKT,AIR DUCT 4JH1 ENG(RJX) M8X20.5 W/LK&PL WASHER TAI	8-94279-207-0	03	1	0412-0511
64	BOLT; BRKT,AIR DUCT 4JH1-TC ENG(RDM) M8X20.5 W/LK&PL WASHER TAI	8-94279-207-0	03	1	0512-0610
64	BOLT; BRKT,AIR DUCT 4JJ1 ENG(LFB) M8X20.5 W/LK&PL WASHER TAI	8-94279-207-0	03	1	0611-
232	HOSE; CONN TAI	8-97965-340-0	01	1	9701-9905
232	HOSE; CONN 4JG2 ENG(RJC) TAI	8-97965-340-0	01	1	9906-0207
232	HOSE; CONN 4JH1 ENG(RJX)	8-94456-844-0	01	1	0208-0411
232	HOSE; CONN 4JH1 ENG(RJX)	8-94456-844-0	01	1	0412-0511
232	HOSE; CONN 4JH1-TC ENG(RDM)	8-94456-844-1	01	1	0512-0610
232	HOSE; CONN 4JJ1 ENG(LFB)	8-97109-423-0	01	1	0611-
242	BRACKET; AIR DUCT (B)	8-97856-935-0	01	1	9701-9905
242	BRACKET; AIR DUCT 4JG2 ENG(RJC) (B)	8-97856-935-0	01	1	9906-0207
242	BRACKET; AIR DUCT 4JH1 ENG(RJX) (D)	8-97856-932-0	01	1	0208-0411
242	BRACKET; AIR DUCT 4JH1 ENG(RJX) (D)	8-97856-932-0	01	1	0412-0511
242	BRACKET; AIR DUCT 4JH1-TC ENG(RDM) (D)	8-97856-932-0	01	1	0512-0610
242	BRACKET; AIR DUCT 4JJ1 ENG(LFB) (G)	8-97312-894-1	01	1	0611-
242	BRACKET; AIR DUCT (C)	8-97856-958-0	01	1	9701-9905
242	BRACKET; AIR DUCT 4JG2 ENG(RJC) (C)	8-97856-958-0	01	1	9906-0207
242	BRACKET; AIR DUCT 4JH1 ENG(RJX) (C)	8-97856-958-0	01	1	0208-0411
242	BRACKET; AIR DUCT 4JH1 ENG(RJX) (C)	8-97856-958-0	01	1	0412-0511
242	BRACKET; AIR DUCT 4JH1-TC ENG(RDM) (C)	8-97856-958-0	01	1	0512-0610
242	BRACKET; AIR DUCT 4JJ1 ENG(LFB) CAB-HIGH ROOF<S2F> (H)	8-97329-306-0	01	1	0611-
242	BRACKET; AIR DUCT 4JJ1 ENG(LFB) (H)	8-97329-306-0	01	1	0611-
242	BRACKET; AIR DUCT (A)	8-97856-967-1	01	1	9701-9905
242	BRACKET; AIR DUCT 4JG2 ENG(RJC) (A)	8-97856-967-1	01	1	9906-0207
242	BRACKET; AIR DUCT 4JH1 ENG(RJX) (E)	8-97856-933-0	01	1	0208-0411
242	BRACKET; AIR DUCT 4JH1 ENG(RJX) (E)	8-97856-933-0	01	1	0412-0511
242	BRACKET; AIR DUCT 4JH1-TC ENG(RDM) (E)	8-97856-933-0	01	1	0512-0610
242	BRACKET; AIR DUCT 4JJ1 ENG(LFB) (I)	8-97329-201-0	01	1	0611-
242	BRACKET; AIR DUCT 4JJ1 ENG(LFB) CAB-LOW ROOF<6XQ> (F)	8-98035-264-1	01	1	0611-
281	DUCT; AIR,VERTICAL INT TAI	8-97965-169-1	01	1	9701-9905
281	DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC) TAI	8-97965-169-1	01	1	9906-0207
281	DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX)	8-97300-255-0	01	1	0208-0411
281	DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX)	8-97300-255-0	01	1	0412-0511
281	DUCT; AIR,VERTICAL INT 4JH1-TC ENG(RDM)	8-97300-255-1	01	1	0512-0610
281	DUCT; AIR,VERTICAL INT 4JJ1 ENG(LFB)	8-97369-706-0	01	1	0611-
290	CLIP; ACL TO AIR DUCT ID=92	9-09915-072-1	01	1	9701-9905
290	CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC) ID=92	9-09915-072-1	01	1	9906-9910
290	CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC) ID=87	8-97087-432-0	01	1	9911-0207
320	HOSE; CONN,ACL TAI	8-97965-339-0	01	1	9701-9905
320	HOSE; CONN,ACL 4JG2 ENG(RJC)	8-97168-373-0	01	1	9906-0207
320	HOSE; CONN,ACL 4JJ1 ENG(LFB)	8-98048-136-1	01	1	0611-
381	NUT; BRKT,AIR DUCT M6 FLANGE	1-09984-018-0	02	1	9701-9905
381	NUT; BRKT,AIR DUCT 4JG2 ENG(RJC) M6 FLANGE	1-09984-018-0	02	1	9906-0207
381	NUT; BRKT,AIR DUCT 4JH1 ENG(RJX) M6 FLANGE	1-09984-018-0	02	1	0208-0411
381	NUT; BRKT,AIR DUCT 4JH1 ENG(RJX) M6 FLANGE	1-09984-018-0	02	1	0412-0511
381	NUT; BRKT,AIR DUCT 4JH1-TC ENG(RDM) M6 FLANGE	1-09984-018-0	02	1	0512-0610
381	NUT; BRKT,AIR DUCT 4JJ1 ENG(LFB) M6 FLANGE	1-09984-018-0	02	1	0611-
389	RUBBER; SUPPORT,AIR INT UPR (A) TAI	8-97965-411-0	01	1	9701-0411
389	RUBBER; SUPPORT,AIR INT UPR (A) TAI	8-97965-411-0	01	1	0412-0610
389	RUBBER; SUPPORT,AIR INT UPR 4JJ1 ENG(LFB) (A) TAI	8-97965-411-0	01	1	0611-
389	RUBBER; SUPPORT,AIR INT UPR (B) TAI	8-97965-412-0	02	1	9701-0411
389	RUBBER; SUPPORT,AIR INT UPR (B) TAI	8-97965-412-0	02	1	0412-0610
389	RUBBER; SUPPORT,AIR INT UPR 4JJ1 ENG(LFB) (B) TAI	8-97965-412-0	02	1	0611-
391	NUT; SUPPORT RUBBER,UPR M8 FLANGE	8-94279-517-0	07	1	9701-9905
391	NUT; SUPPORT RUBBER,UPR 4JG2 ENG(RJC) M8 FLANGE	8-94279-517-0	07	1	9906-0207
391	NUT; SUPPORT RUBBER,UPR 4JH1 ENG(RJX) M8 FLANGE	8-94279-517-0	07	1	0208-0411
391	NUT; SUPPORT RUBBER,UPR 4JH1 ENG(RJX) M8 FLANGE	8-94279-517-0	07	1	0412-0511
391	NUT; SUPPORT RUBBER,UPR 4JH1-TC ENG(RDM) M8 FLANGE	8-94279-517-0	07	1	0512-0610
391	NUT; SUPPORT RUBBER,UPR 4JJ1 ENG(LFB) M8 FLANGE	8-94279-517-0	06	1	0611-
399	CAP; BRKT,AIR DUCT	8-94273-605-0	02	1	9701-9905
399	CAP; BRKT,AIR DUCT 4JG2 ENG(RJC)	8-94273-605-0	02	1	9906-0207
399	CAP; BRKT,AIR DUCT 4JH1 ENG(RJX)	8-94273-605-0	02	1	0208-0411
399	CAP; BRKT,AIR DUCT 4JH1 ENG(RJX)	8-94273-605-0	02	1	0412-0511
399	CAP; BRKT,AIR DUCT 4JH1-TC ENG(RDM)	8-94273-605-0	02	1	0512-0610
399	CAP; BRKT,AIR DUCT 4JJ1 ENG(LFB)	8-94273-605-0	02	1	0611-
426	CLIP; DUCT 4JG2 ENG(RJC) ID=44-60	8-94175-940-0	01	1	9906-0207
426	CLIP; DUCT 4JJ1 ENG(LFB)	9-09915-504-1	01	1	0611-
508	HOSE; AIR,TURBO TO PIPE 4JG2 ENG(RJC)	8-97217-291-0	01	1	9906-0207
508	HOSE; AIR,TURBO TO PIPE 4JH1 ENG(RJX)	8-97258-837-3	01	1	0208-0411
508	HOSE; AIR,TURBO TO PIPE 4JH1 ENG(RJX)	8-97258-837-3	01	1	0412-0511
508	HOSE; AIR,TURBO TO PIPE 4JH1-TC ENG(RDM)	8-97258-837-4	01	1	0512-0610

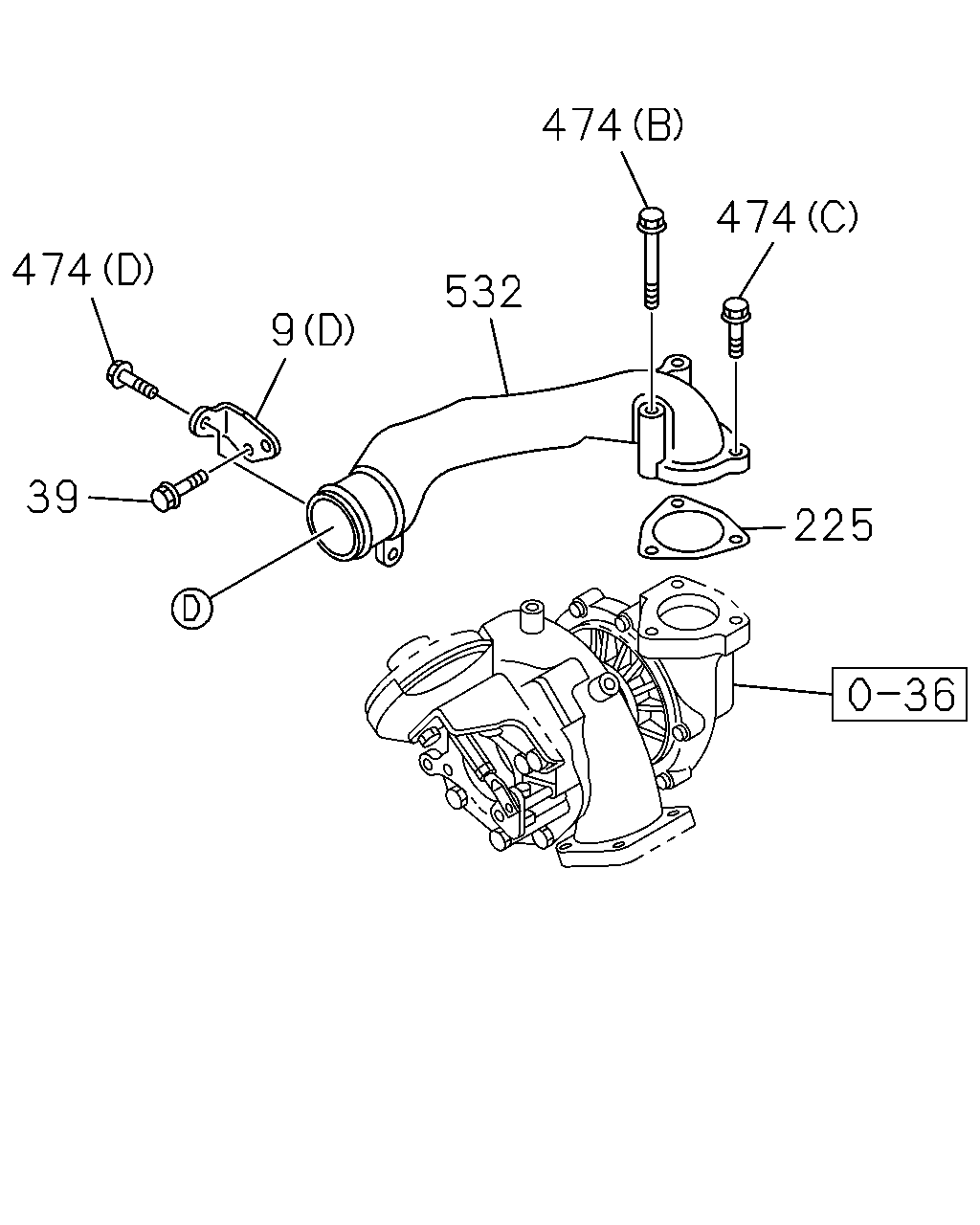

474 474 474 532 9 39 225 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	BRACKET; INT PIPE (A) TAI	8-97965-435-0	01	1	9701-9905
9	BRACKET; INT PIPE 4JH1 ENG(RJX) (C)	8-97300-771-1	01	1	0208-0411
9	BRACKET; INT PIPE 4JH1 ENG(RJX) (C)	8-97300-771-1	01	1	0412-0511
9	BRACKET; INT PIPE 4JH1-TC ENG(RDM) (C)	8-97300-771-1	01	1	0512-0610
9	BRACKET; INT PIPE 4JH1 ENG(RJX) (B)	8-97312-472-0	01	1	0208-0411
9	BRACKET; INT PIPE 4JH1 ENG(RJX) (B)	8-97312-472-0	01	1	0412-0511
9	BRACKET; INT PIPE 4JH1-TC ENG(RDM) (B)	8-97312-472-0	01	1	0512-0610
9	BRACKET; INT PIPE 4JJ1 ENG(LFB) (D)	8-98009-086-0	01	1	0611-
39	BOLT; BRKT 4JJ1 ENG(LFB) M8X14 FLANGE	8-97378-075-0	01	1	0611-
225	GASKET; AIR PIPE 4JJ1 ENG(LFB)	8-97202-328-1	01	1	0611-
474	BOLT; PIPE 4JH1 ENG(RJX) (A) M8X20 FLANGE	0-28680-820-0	01	1	0208-0411
474	BOLT; PIPE 4JH1 ENG(RJX) (A) M8X20 FLANGE	0-28680-820-0	01	1	0412-0511
474	BOLT; PIPE 4JH1-TC ENG(RDM) (A) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
474	BOLT; PIPE 4JH1-TC ENG(RDM) (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-0610
474	BOLT; PIPE 4JJ1 ENG(LFB) (D) M8X16 FLANGE	0-28050-816-0	01	1	0611-
474	BOLT; PIPE 4JJ1 ENG(LFB) (B) M6X70 FLANGE	0-28050-670-0	02	1	0611-
474	BOLT; PIPE 4JJ1 ENG(LFB) (C) M6X30 FLANGE	0-28650-630-0	01	1	0611-
532	PIPE; INTAKE 4JJ1 ENG(LFB)	8-97385-203-1	01	1	0611-

60 399 391 391 381 281 389 391 2 242 242 17 64 64 391 391 242 389 391 39 391 252 327 174 232 402 209 327 192 171 209 1 30 209 1 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	GASKET; AIR DUCT	8-97853-699-2	01	1	9701-9905
17	GASKET; AIR DUCT 4JG2 ENG(RJC)	8-97853-699-2	01	1	9906-0207
17	GASKET; AIR DUCT 4JH1 ENG(RJX)	8-97853-699-2	01	1	0208-0411
17	GASKET; AIR DUCT 4JH1 ENG(RJX)	8-97853-699-2	01	1	0412-0511
17	GASKET; AIR DUCT 4JH1-TC ENG(RDM)	8-97853-699-2	01	1	0512-0610
17	GASKET; AIR DUCT 4JJ1 ENG(LFB)	8-97853-699-2	01	1	0611-
39	BOLT; BRKT 4JJ1 ENG(LFB) M8X14 FLANGE	8-97378-075-0	01	1	0611-
60	BRACKET; AIR DUCT,UPR	8-97867-792-0	01	1	9701-9809
60	BRACKET; AIR DUCT,UPR CAB-LOW ROOF<6XQ>	8-97867-792-0	01	1	9810-9905
60	BRACKET; AIR DUCT,UPR 4JG2 ENG(RJC) CAB-LOW ROOF<6XQ>	8-97867-792-0	01	1	9906-0207
60	BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX) CAB-LOW ROOF<6XQ>	8-97867-792-0	01	1	0208-0511
60	BRACKET; AIR DUCT,UPR 4JH1-TC ENG(RDM) CAB-LOW ROOF<6XQ>	8-97867-792-0	01	1	0512-0610
60	BRACKET; AIR DUCT,UPR EXC. CAB-LOW ROOF<6XQ>	8-97856-956-0	01	1	9810-9905
60	BRACKET; AIR DUCT,UPR 4JG2 ENG(RJC) EXC. CAB-LOW ROOF<6XQ>	8-97856-956-0	01	1	9906-0207
60	BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX) CAB-HIGH ROOF<S2F>	8-97856-956-0	01	1	0208-0411
60	BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX) CAB-HIGH ROOF<S2F>	8-97856-956-0	01	1	0412-0511
60	BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX)	8-97856-956-0	01	1	0412-0511
60	BRACKET; AIR DUCT,UPR 4JH1-TC ENG(RDM) CAB-HIGH ROOF<S2F>	8-97856-956-0	01	1	0512-0610
60	BRACKET; AIR DUCT,UPR 4JH1-TC ENG(RDM)	8-97856-956-0	01	1	0512-0610
64	BOLT; BRKT,AIR DUCT M8X20.5 W/LK&PL WASHER TAI	8-94279-207-0	03	1	9701-9905
64	BOLT; BRKT,AIR DUCT 4JG2 ENG(RJC) M8X20.5 W/LK&PL WASHER TAI	8-94279-207-0	03	1	9906-0207
64	BOLT; BRKT,AIR DUCT 4JH1 ENG(RJX) M8X20.5 W/LK&PL WASHER TAI	8-94279-207-0	03	1	0208-0411
64	BOLT; BRKT,AIR DUCT 4JH1 ENG(RJX) M8X20.5 W/LK&PL WASHER TAI	8-94279-207-0	03	1	0412-0511
64	BOLT; BRKT,AIR DUCT 4JH1-TC ENG(RDM) M8X20.5 W/LK&PL WASHER TAI	8-94279-207-0	03	1	0512-0610
64	BOLT; BRKT,AIR DUCT 4JJ1 ENG(LFB) M8X20.5 W/LK&PL WASHER TAI	8-94279-207-0	03	1	0611-
171	BOLT; BRKT,AIR FLOW CONT SENSOR 4JH1 ENG(RJX) M6X20 FLANGE	0-28680-620-0	04	1	0208-0411
171	BOLT; BRKT,AIR FLOW CONT SENSOR 4JH1 ENG(RJX) M6X20 FLANGE	0-28680-620-0	04	1	0412-0511
171	BOLT; BRKT,AIR FLOW CONT SENSOR 4JH1-TC ENG(RDM) M6X20 FLANGE	0-28680-620-0	04	1	0512-0512
171	BOLT; BRKT,AIR FLOW CONT SENSOR 4JH1-TC ENG(RDM) M6X20 FLANGE	0-28650-620-0	04	1	0601-0610
174	SENSOR; AIR FLOW CONT 4JH1 ENG(RJX)	8-97240-057-0	01	1	0208-0411
174	SENSOR; AIR FLOW CONT 4JH1 ENG(RJX)	8-97240-057-0	01	1	0412-0511
174	SENSOR; AIR FLOW CONT 4JH1-TC ENG(RDM)	8-97240-057-1	01	1	0512-0610
192	CLIP; HOSE (A) ID=79	9-09915-734-1	02	1	9701-9905
192	CLIP; HOSE 4JH1 ENG(RJX) (B) ID=50-69	1-09707-135-0	06	1	0208-0410
192	CLIP; HOSE 4JH1 ENG(RJX) (B) ID=50-65	1-09707-204-0	06	1	0411-0411
192	CLIP; HOSE 4JH1 ENG(RJX) (B) ID=50-65	1-09707-204-0	06	1	0412-0511
192	CLIP; HOSE 4JH1-TC ENG(RDM) (B) ID=50-65	1-09707-204-0	06	1	0512-0610
192	CLIP; HOSE 4JH1 ENG(RJX) (D) ID=58-79	8-94126-771-0	02	1	0208-0403
192	CLIP; HOSE 4JH1 ENG(RJX) (D) ID=58-76	1-09707-203-0	02	1	0404-0411
192	CLIP; HOSE 4JH1 ENG(RJX) (D) ID=58-76	1-09707-203-0	02	1	0412-0511
192	CLIP; HOSE 4JH1-TC ENG(RDM) (D) ID=58-76	1-09707-203-0	02	1	0512-0610
192	CLIP; HOSE 4JJ1 ENG(LFB) (E) ID=117	9-09915-075-1	01	1	0611-
192	CLIP; HOSE 4JH1 ENG(RJX) (C) ID=112	9-09915-074-1	01	1	0208-0411
192	CLIP; HOSE 4JH1 ENG(RJX) (C) ID=112	9-09915-074-1	01	1	0412-0511
192	CLIP; HOSE 4JH1-TC ENG(RDM) (C) ID=112	9-09915-074-1	01	1	0512-0610
209	BRACKET; ACL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97072-530-0	01	1	9701-0207
209	BRACKET; ACL AIR CONDITIONER MANUAL CONT(C60) (A)	8-97072-530-0	01	1	0208-0411
209	BRACKET; ACL AIR CONDITIONER MANUAL CONT(C60) (A)	8-97072-530-0	01	1	0412-0610
209	BRACKET; ACL 4JJ1 ENG(LFB) (E)	8-98035-263-0	01	1	0611-
209	BRACKET; ACL 4JH1 ENG(RJX) (B) TAI	8-97965-387-0	01	1	0208-0505
209	BRACKET; ACL 4JH1 ENG(RJX) (D) TAI	8-97967-465-0	01	1	0506-0511
209	BRACKET; ACL 4JH1-TC ENG(RDM) (D) TAI	8-97967-465-0	01	1	0512-0610
209	BRACKET; ACL 4JH1 ENG(RJX) (C)	8-97107-139-0	01	1	0412-0511
209	BRACKET; ACL 4JH1-TC ENG(RDM) (C)	8-97107-139-0	01	1	0512-0610
209	BRACKET; ACL 4JJ1 ENG(LFB) (E)	8-98019-234-1	01	1	0611-
232	HOSE; CONN TAI	8-97965-340-0	01	1	9701-9905
232	HOSE; CONN 4JG2 ENG(RJC) TAI	8-97965-340-0	01	1	9906-0207
232	HOSE; CONN 4JH1 ENG(RJX)	8-94456-844-0	01	1	0208-0411
232	HOSE; CONN 4JH1 ENG(RJX)	8-94456-844-0	01	1	0412-0511
232	HOSE; CONN 4JH1-TC ENG(RDM)	8-94456-844-1	01	1	0512-0610
232	HOSE; CONN 4JJ1 ENG(LFB)	8-97109-423-0	01	1	0611-
242	BRACKET; AIR DUCT (B)	8-97856-935-0	01	1	9701-9905
242	BRACKET; AIR DUCT 4JG2 ENG(RJC) (B)	8-97856-935-0	01	1	9906-0207
242	BRACKET; AIR DUCT 4JH1 ENG(RJX) (D)	8-97856-932-0	01	1	0208-0411
242	BRACKET; AIR DUCT 4JH1 ENG(RJX) (D)	8-97856-932-0	01	1	0412-0511
242	BRACKET; AIR DUCT 4JH1-TC ENG(RDM) (D)	8-97856-932-0	01	1	0512-0610
242	BRACKET; AIR DUCT 4JJ1 ENG(LFB) (G)	8-97312-894-1	01	1	0611-
242	BRACKET; AIR DUCT (C)	8-97856-958-0	01	1	9701-9905
242	BRACKET; AIR DUCT 4JG2 ENG(RJC) (C)	8-97856-958-0	01	1	9906-0207
242	BRACKET; AIR DUCT 4JH1 ENG(RJX) (C)	8-97856-958-0	01	1	0208-0411
242	BRACKET; AIR DUCT 4JH1 ENG(RJX) (C)	8-97856-958-0	01	1	0412-0511
242	BRACKET; AIR DUCT 4JH1-TC ENG(RDM) (C)	8-97856-958-0	01	1	0512-0610
242	BRACKET; AIR DUCT 4JJ1 ENG(LFB) CAB-HIGH ROOF<S2F> (H)	8-97329-306-0	01	1	0611-
242	BRACKET; AIR DUCT 4JJ1 ENG(LFB) (H)	8-97329-306-0	01	1	0611-
242	BRACKET; AIR DUCT (A)	8-97856-967-1	01	1	9701-9905
242	BRACKET; AIR DUCT 4JG2 ENG(RJC) (A)	8-97856-967-1	01	1	9906-0207
242	BRACKET; AIR DUCT 4JH1 ENG(RJX) (E)	8-97856-933-0	01	1	0208-0411
242	BRACKET; AIR DUCT 4JH1 ENG(RJX) (E)	8-97856-933-0	01	1	0412-0511
242	BRACKET; AIR DUCT 4JH1-TC ENG(RDM) (E)	8-97856-933-0	01	1	0512-0610
242	BRACKET; AIR DUCT 4JJ1 ENG(LFB) (I)	8-97329-201-0	01	1	0611-
242	BRACKET; AIR DUCT 4JJ1 ENG(LFB) CAB-LOW ROOF<6XQ> (F)	8-98035-264-1	01	1	0611-
252	DUCT; AIR INT 4JH1 ENG(RJX)	8-97312-540-2	01	1	0208-0411
252	DUCT; AIR INT 4JH1 ENG(RJX)	8-97312-540-2	01	1	0412-0511
252	DUCT; AIR INT 4JH1-TC ENG(RDM)	8-97312-540-3	01	1	0512-0610
281	DUCT; AIR,VERTICAL INT TAI	8-97965-169-1	01	1	9701-9905
281	DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC) TAI	8-97965-169-1	01	1	9906-0207
281	DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX)	8-97300-255-0	01	1	0208-0411
281	DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX)	8-97300-255-0	01	1	0412-0511
281	DUCT; AIR,VERTICAL INT 4JH1-TC ENG(RDM)	8-97300-255-1	01	1	0512-0610
281	DUCT; AIR,VERTICAL INT 4JJ1 ENG(LFB)	8-97369-706-0	01	1	0611-
327	CLIP; AIR INT 4JH1 ENG(RJX) (A) ID=77-95	1-09707-114-0	01	1	0208-0403
327	CLIP; AIR INT 4JH1 ENG(RJX) (A) ID=77-95	1-09707-198-0	01	1	0404-0411
327	CLIP; AIR INT 4JH1 ENG(RJX) (A) ID=77-95	1-09707-198-0	01	1	0412-0511
327	CLIP; AIR INT 4JH1-TC ENG(RDM) (A) ID=77-95	1-09707-198-0	01	1	0512-0610
327	CLIP; AIR INT 4JH1 ENG(RJX) (B) ID=58-79	8-94126-771-0	01	1	0208-0403
327	CLIP; AIR INT 4JH1 ENG(RJX) (B) ID=58-76	1-09707-203-0	01	1	0404-0411
327	CLIP; AIR INT 4JH1 ENG(RJX) (B) ID=58-76	1-09707-203-0	01	1	0412-0511
327	CLIP; AIR INT 4JH1-TC ENG(RDM) (B) ID=58-76	1-09707-203-0	01	1	0512-0610
381	NUT; BRKT,AIR DUCT M6 FLANGE	1-09984-018-0	02	1	9701-9905
381	NUT; BRKT,AIR DUCT 4JG2 ENG(RJC) M6 FLANGE	1-09984-018-0	02	1	9906-0207
381	NUT; BRKT,AIR DUCT 4JH1 ENG(RJX) M6 FLANGE	1-09984-018-0	02	1	0208-0411
381	NUT; BRKT,AIR DUCT 4JH1 ENG(RJX) M6 FLANGE	1-09984-018-0	02	1	0412-0511
381	NUT; BRKT,AIR DUCT 4JH1-TC ENG(RDM) M6 FLANGE	1-09984-018-0	02	1	0512-0610
381	NUT; BRKT,AIR DUCT 4JJ1 ENG(LFB) M6 FLANGE	1-09984-018-0	02	1	0611-
389	RUBBER; SUPPORT,AIR INT UPR (A) TAI	8-97965-411-0	01	1	9701-0411
389	RUBBER; SUPPORT,AIR INT UPR (A) TAI	8-97965-411-0	01	1	0412-0610
389	RUBBER; SUPPORT,AIR INT UPR 4JJ1 ENG(LFB) (A) TAI	8-97965-411-0	01	1	0611-
389	RUBBER; SUPPORT,AIR INT UPR (B) TAI	8-97965-412-0	02	1	9701-0411
389	RUBBER; SUPPORT,AIR INT UPR (B) TAI	8-97965-412-0	02	1	0412-0610
389	RUBBER; SUPPORT,AIR INT UPR 4JJ1 ENG(LFB) (B) TAI	8-97965-412-0	02	1	0611-
391	NUT; SUPPORT RUBBER,UPR M8 FLANGE	8-94279-517-0	07	1	9701-9905
391	NUT; SUPPORT RUBBER,UPR 4JG2 ENG(RJC) M8 FLANGE	8-94279-517-0	07	1	9906-0207
391	NUT; SUPPORT RUBBER,UPR 4JH1 ENG(RJX) M8 FLANGE	8-94279-517-0	07	1	0208-0411
391	NUT; SUPPORT RUBBER,UPR 4JH1 ENG(RJX) M8 FLANGE	8-94279-517-0	07	1	0412-0511
391	NUT; SUPPORT RUBBER,UPR 4JH1-TC ENG(RDM) M8 FLANGE	8-94279-517-0	07	1	0512-0610
391	NUT; SUPPORT RUBBER,UPR 4JJ1 ENG(LFB) M8 FLANGE	8-94279-517-0	06	1	0611-
399	CAP; BRKT,AIR DUCT	8-94273-605-0	02	1	9701-9905
399	CAP; BRKT,AIR DUCT 4JG2 ENG(RJC)	8-94273-605-0	02	1	9906-0207
399	CAP; BRKT,AIR DUCT 4JH1 ENG(RJX)	8-94273-605-0	02	1	0208-0411
399	CAP; BRKT,AIR DUCT 4JH1 ENG(RJX)	8-94273-605-0	02	1	0412-0511
399	CAP; BRKT,AIR DUCT 4JH1-TC ENG(RDM)	8-94273-605-0	02	1	0512-0610
399	CAP; BRKT,AIR DUCT 4JJ1 ENG(LFB)	8-94273-605-0	02	1	0611-
402	GASKET; RUBBER 4JH1 ENG(RJX)	8-97240-056-0	01	1	0208-0411
402	GASKET; RUBBER 4JH1 ENG(RJX)	8-97240-056-0	01	1	0412-0511
402	GASKET; RUBBER 4JH1-TC ENG(RDM)	8-97240-056-0	01	1	0512-0610

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
