1-30 — AIR CLEANER (#139044) — 179 parça

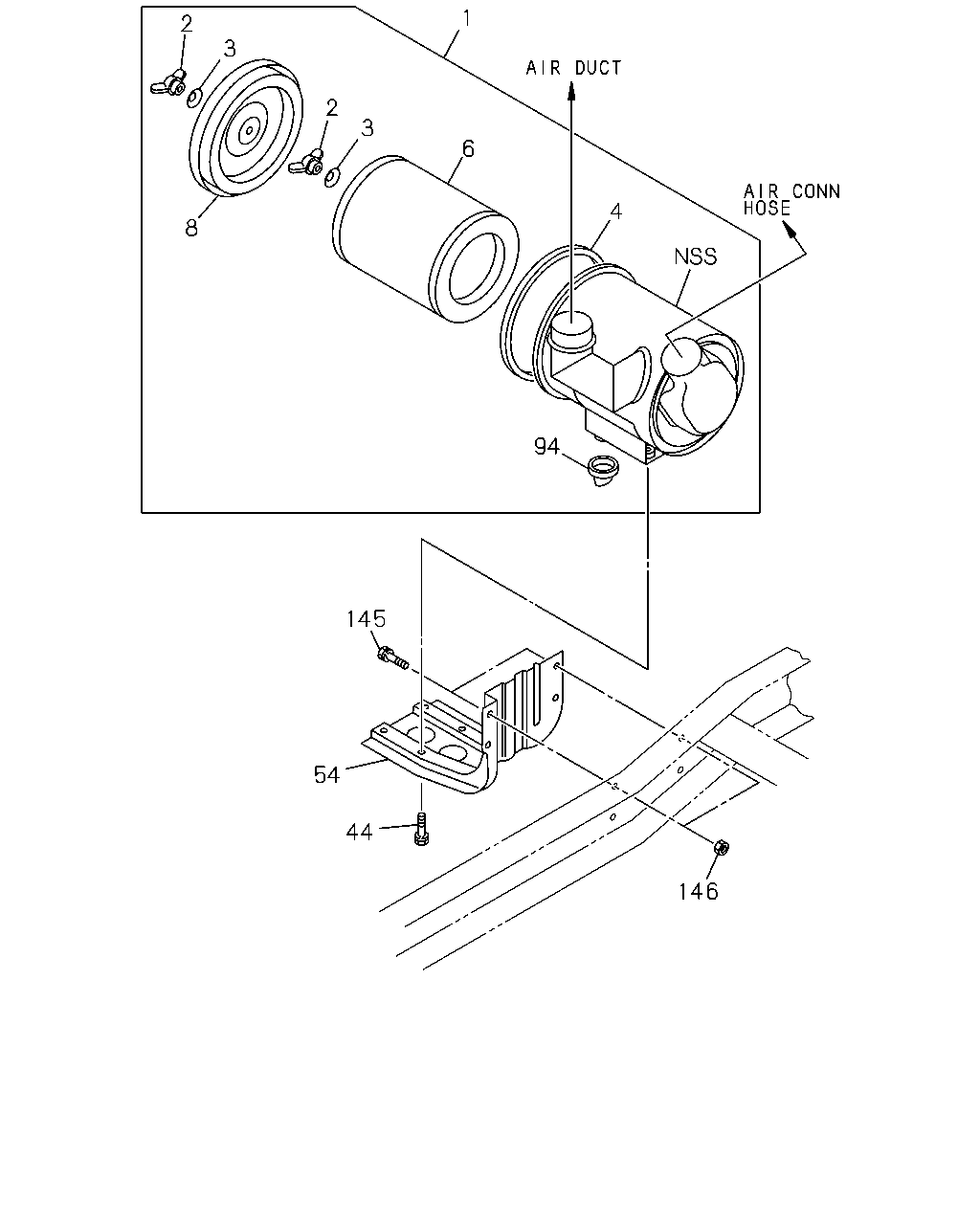

1 2 3 2 3 6 4 8 94 145 54 44 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLEANER ASM; AIR TAI	8-97965-434-1	01	1	9701-9905
1	CLEANER ASM; AIR 4JG2 ENG(RJC) TAI	8-97965-434-1	01	1	9906-0207
1	CLEANER ASM; AIR 4JH1 ENG(RJX) TAI	8-97967-283-0	01	1	0208-0411
1	CLEANER ASM; AIR 4JH1 ENG(RJX) TAI	8-97967-283-0	01	1	0412-0511
1	CLEANER ASM; AIR 4JH1-TC ENG(RDM) TAI	8-97967-283-0	01	1	0512-0610
1	CLEANER ASM; AIR 4JJ1 ENG(LFB)	8-98050-415-2	01	1	0611-
2	NUT; WING,ELEMENT TAI	8-97967-067-0	02	1	9701-9905
2	NUT; WING,ELEMENT 4JG2 ENG(RJC) TAI	8-97967-067-0	02	1	9906-0207
2	NUT; WING,ELEMENT 4JH1 ENG(RJX) TAI	8-97967-067-0	02	1	0208-0411
2	NUT; WING,ELEMENT 4JH1 ENG(RJX) TAI	8-97967-067-0	02	1	0412-0511
2	NUT; WING,ELEMENT 4JH1-TC ENG(RDM) TAI	8-97967-067-0	02	1	0512-0610
3	WASHER; SEAL,WING NUT TAI	8-97967-068-0	02	1	9701-9905
3	WASHER; SEAL,WING NUT 4JG2 ENG(RJC) TAI	8-97967-068-0	02	1	9906-0207
3	WASHER; SEAL,WING NUT 4JH1 ENG(RJX) TAI	8-97967-068-0	02	1	0208-0411
3	WASHER; SEAL,WING NUT 4JH1 ENG(RJX) TAI	8-97967-068-0	02	1	0412-0511
3	WASHER; SEAL,WING NUT 4JH1-TC ENG(RDM) TAI	8-97967-068-0	02	1	0512-0610
4	GASKET; COVER TO BODY TAI	8-97967-064-0	01	1	9701-9905
4	GASKET; COVER TO BODY 4JG2 ENG(RJC) TAI	8-97967-064-0	01	1	9906-0207
4	GASKET; COVER TO BODY 4JH1 ENG(RJX) TAI	8-97967-064-0	01	1	0208-0411
4	GASKET; COVER TO BODY 4JH1 ENG(RJX) TAI	8-97967-064-0	01	1	0412-0511
4	GASKET; COVER TO BODY 4JH1-TC ENG(RDM) TAI	8-97967-064-0	01	1	0512-0610
4	GASKET; COVER TO BODY 4JJ1 ENG(LFB)	8-97352-113-0	01	1	0611-
6	FILTER; ACL TAI	8-97967-065-0	01	1	9701-9905
6	FILTER; ACL 4JG2 ENG(RJC) TAI	8-97967-065-0	01	1	9906-0207
6	FILTER; ACL 4JH1 ENG(RJX) TAI	8-97967-065-0	01	1	0208-0411
6	FILTER; ACL 4JH1 ENG(RJX) TAI	8-97967-065-0	01	1	0412-0511
6	FILTER; ACL 4JH1-TC ENG(RDM) TAI	8-97967-065-0	01	1	0512-0610
6	FILTER; ACL 4JJ1 ENG(LFB)	8-97062-294-0	01	1	0611-
8	COVER ASM; ACL TAI	8-97967-063-0	01	1	9701-9905
8	COVER ASM; ACL 4JG2 ENG(RJC) TAI	8-97967-063-0	01	1	9906-0207
8	COVER ASM; ACL 4JH1 ENG(RJX) TAI	8-97967-293-0	01	1	0208-0411
8	COVER ASM; ACL 4JH1 ENG(RJX) TAI	8-97967-293-0	01	1	0412-0511
8	COVER ASM; ACL 4JH1-TC ENG(RDM) TAI	8-97967-293-0	01	1	0512-0610
8	COVER ASM; ACL 4JJ1 ENG(LFB)	8-98050-434-1	01	1	0611-
44	BOLT; ACL M8X18 W/LK WASHER	0-50040-818-0	04	1	9701-9905
44	BOLT; ACL 4JG2 ENG(RJC) M8X18 W/LK WASHER	0-50040-818-0	04	1	9906-0207
44	BOLT; ACL 4JH1 ENG(RJX) M8X18 W/LK WASHER	0-50040-818-0	04	1	0208-0411
44	BOLT; ACL 4JH1 ENG(RJX) M8X18 W/LK WASHER	0-50040-818-0	04	1	0412-0511
44	BOLT; ACL 4JH1-TC ENG(RDM) M8X18 W/LK WASHER	0-50040-818-0	04	1	0512-0610
54	BRACKET; ACL TAI	8-97965-387-0	01	1	9701-9905
54	BRACKET; ACL 4JG2 ENG(RJC) TAI	8-97965-387-0	01	1	9906-0207
94	VALVE; VACUATOR TAI	8-97967-066-0	01	1	9701-9905
94	VALVE; VACUATOR 4JG2 ENG(RJC) TAI	8-97967-066-0	01	1	9906-0207
94	VALVE; VACUATOR 4JH1 ENG(RJX) TAI	8-97967-066-0	01	1	0208-0411
94	VALVE; VACUATOR 4JH1 ENG(RJX) TAI	8-97967-066-0	01	1	0412-0511
94	VALVE; VACUATOR 4JH1-TC ENG(RDM) TAI	8-97967-066-0	01	1	0512-0610
94	VALVE; VACUATOR 4JJ1 ENG(LFB)	8-97352-112-0	01	1	0611-
145	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28681-035-0	04	1	9701-9905
145	BOLT; BRKT TO FRAME 4JG2 ENG(RJC) M10X35 FLANGE	0-28681-035-0	04	1	9906-0207
145	BOLT; BRKT TO FRAME 4JH1 ENG(RJX) M10X35 FLANGE	0-28681-035-0	04	1	0208-0411
145	BOLT; BRKT TO FRAME 4JH1 ENG(RJX) M10X35 FLANGE	0-28681-035-0	04	1	0412-0511
145	BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) M10X35 FLANGE	0-28681-035-0	04	1	0512-0512
145	BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) M10X35 FLANGE	0-28651-035-0	04	1	0601-0610
145	BOLT; BRKT TO FRAME 4JJ1 ENG(LFB) M10X30 FLANGE	0-28651-030-0	04	1	0611-
146	NUT; BRKT TO FRAME M10 FLANGE	0-91150-110-0	04	1	9701-9905
146	NUT; BRKT TO FRAME 4JG2 ENG(RJC) M10 FLANGE	0-91150-110-0	04	1	9906-0207

36 35 1 31 1 31 1 31 1 31 196 1 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLEANER ASM; AIR TAI	8-97965-434-1	01	1	9701-9905
1	CLEANER ASM; AIR 4JG2 ENG(RJC) TAI	8-97965-434-1	01	1	9906-0207
1	CLEANER ASM; AIR 4JH1 ENG(RJX) TAI	8-97967-283-0	01	1	0208-0411
1	CLEANER ASM; AIR 4JH1 ENG(RJX) TAI	8-97967-283-0	01	1	0412-0511
1	CLEANER ASM; AIR 4JH1-TC ENG(RDM) TAI	8-97967-283-0	01	1	0512-0610
1	CLEANER ASM; AIR 4JJ1 ENG(LFB)	8-98050-415-2	01	1	0611-
196	BOLT; BRKT,ACL 4JH1 ENG(RJX) M8X12 FLANGE	0-28080-812-0	01	1	0208-0411
196	BOLT; BRKT,ACL 4JH1 ENG(RJX) M8X12 FLANGE	0-28080-812-0	01	1	0412-0511
196	BOLT; BRKT,ACL 4JH1-TC ENG(RDM) M8X12 FLANGE	0-28080-812-0	01	1	0512-0512
196	BOLT; BRKT,ACL 4JH1-TC ENG(RDM) M8X12 FLANGE	0-28050-812-0	01	1	0601-0610

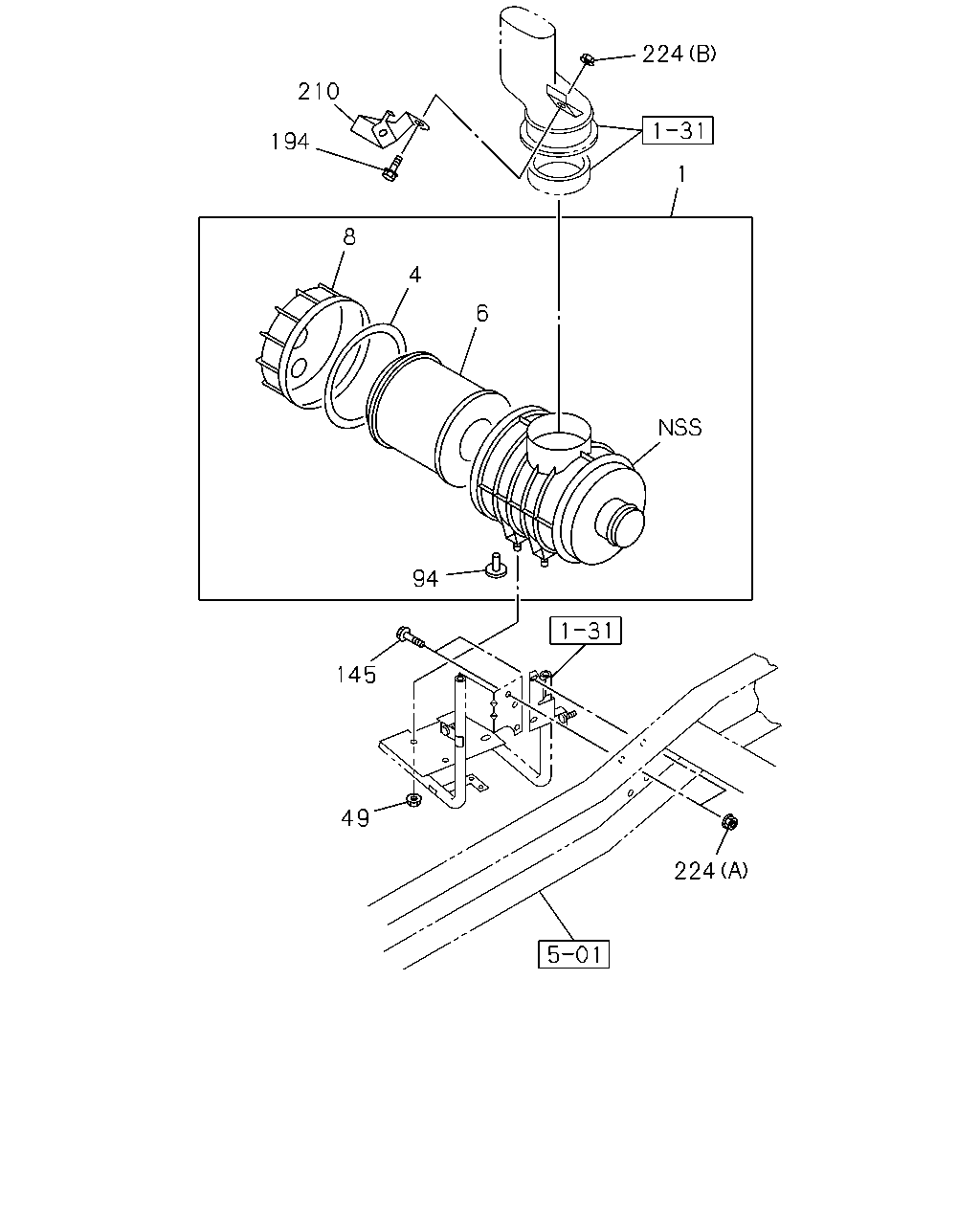

224 210 1 31 194 1 8 4 6 94 1 31 145 49 224 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLEANER ASM; AIR TAI	8-97965-434-1	01	1	9701-9905
1	CLEANER ASM; AIR 4JG2 ENG(RJC) TAI	8-97965-434-1	01	1	9906-0207
1	CLEANER ASM; AIR 4JH1 ENG(RJX) TAI	8-97967-283-0	01	1	0208-0411
1	CLEANER ASM; AIR 4JH1 ENG(RJX) TAI	8-97967-283-0	01	1	0412-0511
1	CLEANER ASM; AIR 4JH1-TC ENG(RDM) TAI	8-97967-283-0	01	1	0512-0610
1	CLEANER ASM; AIR 4JJ1 ENG(LFB)	8-98050-415-2	01	1	0611-
4	GASKET; COVER TO BODY TAI	8-97967-064-0	01	1	9701-9905
4	GASKET; COVER TO BODY 4JG2 ENG(RJC) TAI	8-97967-064-0	01	1	9906-0207
4	GASKET; COVER TO BODY 4JH1 ENG(RJX) TAI	8-97967-064-0	01	1	0208-0411
4	GASKET; COVER TO BODY 4JH1 ENG(RJX) TAI	8-97967-064-0	01	1	0412-0511
4	GASKET; COVER TO BODY 4JH1-TC ENG(RDM) TAI	8-97967-064-0	01	1	0512-0610
4	GASKET; COVER TO BODY 4JJ1 ENG(LFB)	8-97352-113-0	01	1	0611-
6	FILTER; ACL TAI	8-97967-065-0	01	1	9701-9905
6	FILTER; ACL 4JG2 ENG(RJC) TAI	8-97967-065-0	01	1	9906-0207
6	FILTER; ACL 4JH1 ENG(RJX) TAI	8-97967-065-0	01	1	0208-0411
6	FILTER; ACL 4JH1 ENG(RJX) TAI	8-97967-065-0	01	1	0412-0511
6	FILTER; ACL 4JH1-TC ENG(RDM) TAI	8-97967-065-0	01	1	0512-0610
6	FILTER; ACL 4JJ1 ENG(LFB)	8-97062-294-0	01	1	0611-
8	COVER ASM; ACL TAI	8-97967-063-0	01	1	9701-9905
8	COVER ASM; ACL 4JG2 ENG(RJC) TAI	8-97967-063-0	01	1	9906-0207
8	COVER ASM; ACL 4JH1 ENG(RJX) TAI	8-97967-293-0	01	1	0208-0411
8	COVER ASM; ACL 4JH1 ENG(RJX) TAI	8-97967-293-0	01	1	0412-0511
8	COVER ASM; ACL 4JH1-TC ENG(RDM) TAI	8-97967-293-0	01	1	0512-0610
8	COVER ASM; ACL 4JJ1 ENG(LFB)	8-98050-434-1	01	1	0611-
49	NUT; ACL 4JJ1 ENG(LFB) M8 FLANGE	0-91180-108-0	04	1	0611-
94	VALVE; VACUATOR TAI	8-97967-066-0	01	1	9701-9905
94	VALVE; VACUATOR 4JG2 ENG(RJC) TAI	8-97967-066-0	01	1	9906-0207
94	VALVE; VACUATOR 4JH1 ENG(RJX) TAI	8-97967-066-0	01	1	0208-0411
94	VALVE; VACUATOR 4JH1 ENG(RJX) TAI	8-97967-066-0	01	1	0412-0511
94	VALVE; VACUATOR 4JH1-TC ENG(RDM) TAI	8-97967-066-0	01	1	0512-0610
94	VALVE; VACUATOR 4JJ1 ENG(LFB)	8-97352-112-0	01	1	0611-
145	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28681-035-0	04	1	9701-9905
145	BOLT; BRKT TO FRAME 4JG2 ENG(RJC) M10X35 FLANGE	0-28681-035-0	04	1	9906-0207
145	BOLT; BRKT TO FRAME 4JH1 ENG(RJX) M10X35 FLANGE	0-28681-035-0	04	1	0208-0411
145	BOLT; BRKT TO FRAME 4JH1 ENG(RJX) M10X35 FLANGE	0-28681-035-0	04	1	0412-0511
145	BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) M10X35 FLANGE	0-28681-035-0	04	1	0512-0512
145	BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) M10X35 FLANGE	0-28651-035-0	04	1	0601-0610
145	BOLT; BRKT TO FRAME 4JJ1 ENG(LFB) M10X30 FLANGE	0-28651-030-0	04	1	0611-
194	BOLT; BRKT 4JJ1 ENG(LFB) M8X20 FLANGE	0-28650-820-0	01	1	0611-
210	BRACKET; ACL MTG 4JJ1 ENG(LFB)	8-98019-069-1	01	1	0611-
224	NUT; BRKT 4JH1 ENG(RJX) (A) M10 FLANGE	0-91150-110-0	04	1	0208-0411
224	NUT; BRKT 4JH1 ENG(RJX) (A) M10 FLANGE	0-91150-110-0	04	1	0412-0511
224	NUT; BRKT 4JH1-TC ENG(RDM) (A) M10 FLANGE	0-91150-110-0	04	1	0512-0602
224	NUT; BRKT 4JH1-TC ENG(RDM) (A) M10 FLANGE	0-91180-110-0	04	1	0603-0610
224	NUT; BRKT 4JJ1 ENG(LFB) (A) M10 FLANGE	0-91180-110-0	03	1	0611-
224	NUT; BRKT 4JJ1 ENG(LFB) (A) M10 FLANGE	0-91180-110-0	04	1	0611-
224	NUT; BRKT 4JJ1 ENG(LFB) (B) M8 FLANGE	0-91180-108-0	01	1	0611-

1 31 164 1 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLEANER ASM; AIR TAI	8-97965-434-1	01	1	9701-9905
1	CLEANER ASM; AIR 4JG2 ENG(RJC) TAI	8-97965-434-1	01	1	9906-0207
1	CLEANER ASM; AIR 4JH1 ENG(RJX) TAI	8-97967-283-0	01	1	0208-0411
1	CLEANER ASM; AIR 4JH1 ENG(RJX) TAI	8-97967-283-0	01	1	0412-0511
1	CLEANER ASM; AIR 4JH1-TC ENG(RDM) TAI	8-97967-283-0	01	1	0512-0610
1	CLEANER ASM; AIR 4JJ1 ENG(LFB)	8-98050-415-2	01	1	0611-
164	CLEANER ASM; AIR,SUB HEAVY DUTY AIR CLEANER<K46>	8-94144-273-2	01	1	9701-9905

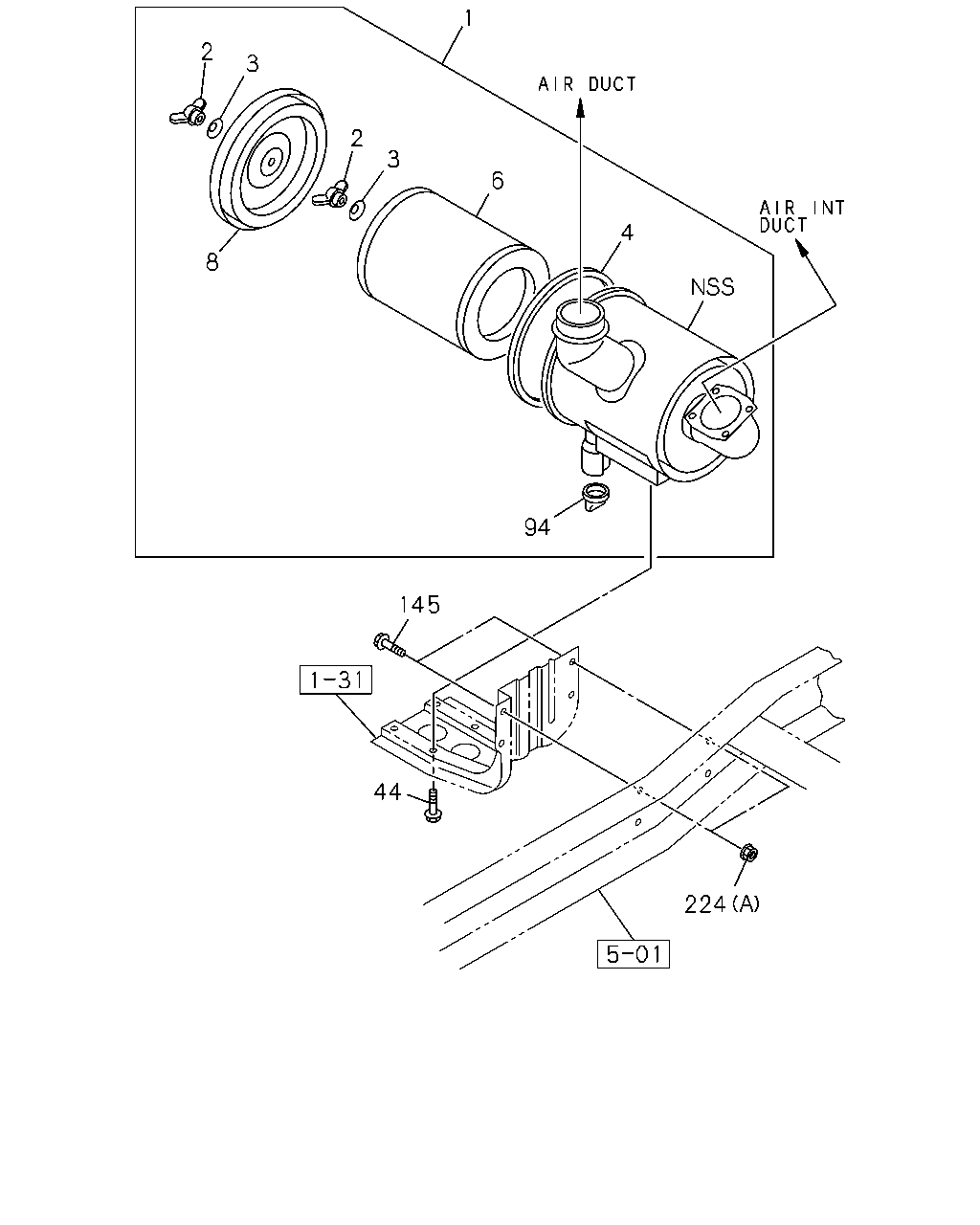

1 2 3 2 3 6 4 8 94 145 1 31 44 224 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLEANER ASM; AIR TAI	8-97965-434-1	01	1	9701-9905
1	CLEANER ASM; AIR 4JG2 ENG(RJC) TAI	8-97965-434-1	01	1	9906-0207
1	CLEANER ASM; AIR 4JH1 ENG(RJX) TAI	8-97967-283-0	01	1	0208-0411
1	CLEANER ASM; AIR 4JH1 ENG(RJX) TAI	8-97967-283-0	01	1	0412-0511
1	CLEANER ASM; AIR 4JH1-TC ENG(RDM) TAI	8-97967-283-0	01	1	0512-0610
1	CLEANER ASM; AIR 4JJ1 ENG(LFB)	8-98050-415-2	01	1	0611-
2	NUT; WING,ELEMENT TAI	8-97967-067-0	02	1	9701-9905
2	NUT; WING,ELEMENT 4JG2 ENG(RJC) TAI	8-97967-067-0	02	1	9906-0207
2	NUT; WING,ELEMENT 4JH1 ENG(RJX) TAI	8-97967-067-0	02	1	0208-0411
2	NUT; WING,ELEMENT 4JH1 ENG(RJX) TAI	8-97967-067-0	02	1	0412-0511
2	NUT; WING,ELEMENT 4JH1-TC ENG(RDM) TAI	8-97967-067-0	02	1	0512-0610
3	WASHER; SEAL,WING NUT TAI	8-97967-068-0	02	1	9701-9905
3	WASHER; SEAL,WING NUT 4JG2 ENG(RJC) TAI	8-97967-068-0	02	1	9906-0207
3	WASHER; SEAL,WING NUT 4JH1 ENG(RJX) TAI	8-97967-068-0	02	1	0208-0411
3	WASHER; SEAL,WING NUT 4JH1 ENG(RJX) TAI	8-97967-068-0	02	1	0412-0511
3	WASHER; SEAL,WING NUT 4JH1-TC ENG(RDM) TAI	8-97967-068-0	02	1	0512-0610
4	GASKET; COVER TO BODY TAI	8-97967-064-0	01	1	9701-9905
4	GASKET; COVER TO BODY 4JG2 ENG(RJC) TAI	8-97967-064-0	01	1	9906-0207
4	GASKET; COVER TO BODY 4JH1 ENG(RJX) TAI	8-97967-064-0	01	1	0208-0411
4	GASKET; COVER TO BODY 4JH1 ENG(RJX) TAI	8-97967-064-0	01	1	0412-0511
4	GASKET; COVER TO BODY 4JH1-TC ENG(RDM) TAI	8-97967-064-0	01	1	0512-0610
4	GASKET; COVER TO BODY 4JJ1 ENG(LFB)	8-97352-113-0	01	1	0611-
6	FILTER; ACL TAI	8-97967-065-0	01	1	9701-9905
6	FILTER; ACL 4JG2 ENG(RJC) TAI	8-97967-065-0	01	1	9906-0207
6	FILTER; ACL 4JH1 ENG(RJX) TAI	8-97967-065-0	01	1	0208-0411
6	FILTER; ACL 4JH1 ENG(RJX) TAI	8-97967-065-0	01	1	0412-0511
6	FILTER; ACL 4JH1-TC ENG(RDM) TAI	8-97967-065-0	01	1	0512-0610
6	FILTER; ACL 4JJ1 ENG(LFB)	8-97062-294-0	01	1	0611-
8	COVER ASM; ACL TAI	8-97967-063-0	01	1	9701-9905
8	COVER ASM; ACL 4JG2 ENG(RJC) TAI	8-97967-063-0	01	1	9906-0207
8	COVER ASM; ACL 4JH1 ENG(RJX) TAI	8-97967-293-0	01	1	0208-0411
8	COVER ASM; ACL 4JH1 ENG(RJX) TAI	8-97967-293-0	01	1	0412-0511
8	COVER ASM; ACL 4JH1-TC ENG(RDM) TAI	8-97967-293-0	01	1	0512-0610
8	COVER ASM; ACL 4JJ1 ENG(LFB)	8-98050-434-1	01	1	0611-
44	BOLT; ACL M8X18 W/LK WASHER	0-50040-818-0	04	1	9701-9905
44	BOLT; ACL 4JG2 ENG(RJC) M8X18 W/LK WASHER	0-50040-818-0	04	1	9906-0207
44	BOLT; ACL 4JH1 ENG(RJX) M8X18 W/LK WASHER	0-50040-818-0	04	1	0208-0411
44	BOLT; ACL 4JH1 ENG(RJX) M8X18 W/LK WASHER	0-50040-818-0	04	1	0412-0511
44	BOLT; ACL 4JH1-TC ENG(RDM) M8X18 W/LK WASHER	0-50040-818-0	04	1	0512-0610
94	VALVE; VACUATOR TAI	8-97967-066-0	01	1	9701-9905
94	VALVE; VACUATOR 4JG2 ENG(RJC) TAI	8-97967-066-0	01	1	9906-0207
94	VALVE; VACUATOR 4JH1 ENG(RJX) TAI	8-97967-066-0	01	1	0208-0411
94	VALVE; VACUATOR 4JH1 ENG(RJX) TAI	8-97967-066-0	01	1	0412-0511
94	VALVE; VACUATOR 4JH1-TC ENG(RDM) TAI	8-97967-066-0	01	1	0512-0610
94	VALVE; VACUATOR 4JJ1 ENG(LFB)	8-97352-112-0	01	1	0611-
145	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28681-035-0	04	1	9701-9905
145	BOLT; BRKT TO FRAME 4JG2 ENG(RJC) M10X35 FLANGE	0-28681-035-0	04	1	9906-0207
145	BOLT; BRKT TO FRAME 4JH1 ENG(RJX) M10X35 FLANGE	0-28681-035-0	04	1	0208-0411
145	BOLT; BRKT TO FRAME 4JH1 ENG(RJX) M10X35 FLANGE	0-28681-035-0	04	1	0412-0511
145	BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) M10X35 FLANGE	0-28681-035-0	04	1	0512-0512
145	BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) M10X35 FLANGE	0-28651-035-0	04	1	0601-0610
145	BOLT; BRKT TO FRAME 4JJ1 ENG(LFB) M10X30 FLANGE	0-28651-030-0	04	1	0611-
224	NUT; BRKT 4JH1 ENG(RJX) (A) M10 FLANGE	0-91150-110-0	04	1	0208-0411
224	NUT; BRKT 4JH1 ENG(RJX) (A) M10 FLANGE	0-91150-110-0	04	1	0412-0511
224	NUT; BRKT 4JH1-TC ENG(RDM) (A) M10 FLANGE	0-91150-110-0	04	1	0512-0602
224	NUT; BRKT 4JH1-TC ENG(RDM) (A) M10 FLANGE	0-91180-110-0	04	1	0603-0610
224	NUT; BRKT 4JJ1 ENG(LFB) (A) M10 FLANGE	0-91180-110-0	03	1	0611-
224	NUT; BRKT 4JJ1 ENG(LFB) (A) M10 FLANGE	0-91180-110-0	04	1	0611-
224	NUT; BRKT 4JJ1 ENG(LFB) (B) M8 FLANGE	0-91180-108-0	01	1	0611-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
