Sayfa 1-11 - Isuzu EPC

1-11 — RADIATOR HOSE AND SUB TANK (#139043) — 212 parça

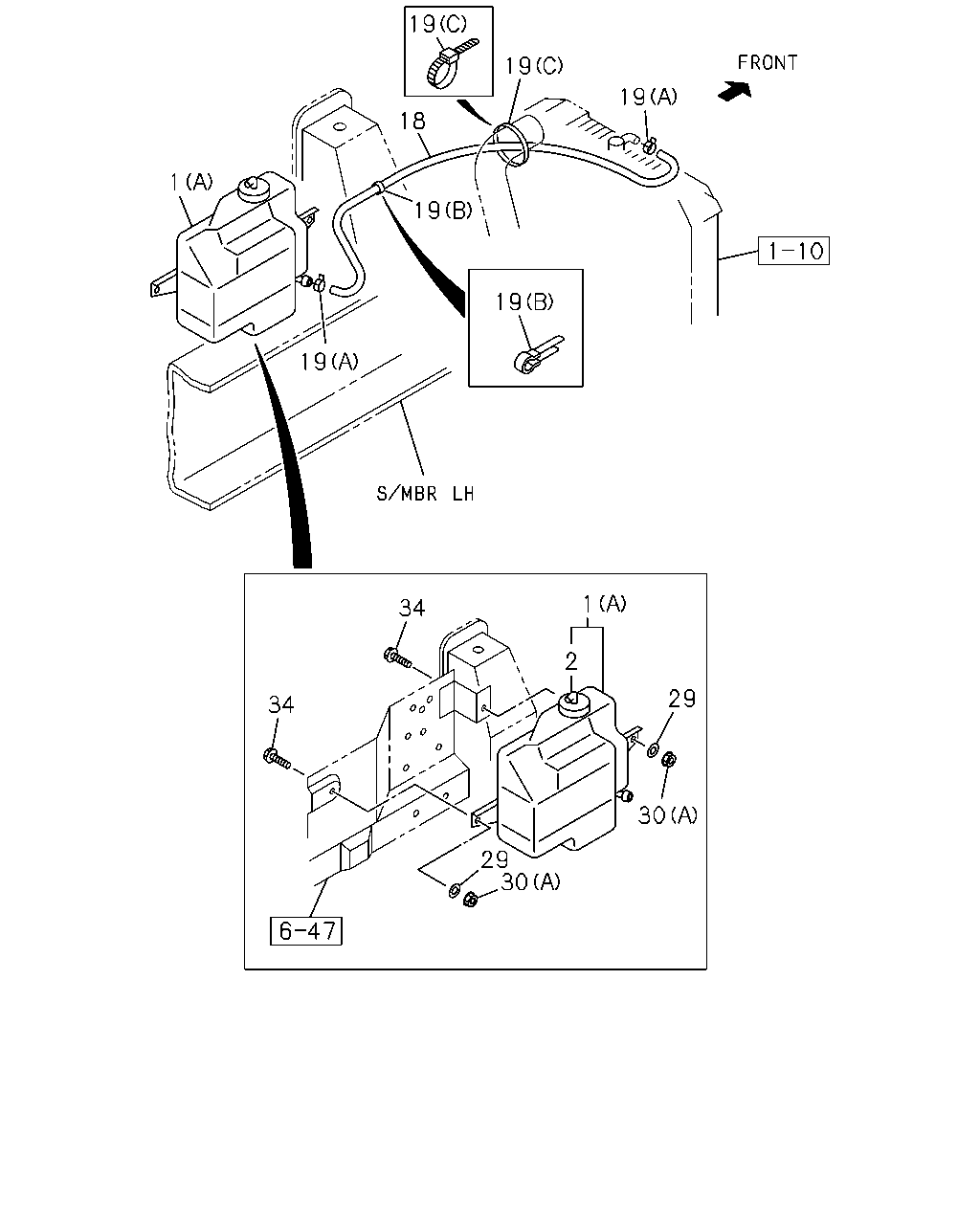

19 19 19 18 1 19 1 10 19 19 1 34 2 29 34 30 29 30 6 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; SURGE,RAD (A)	8-97138-509-0	01	1	9701-9905
1	TANK; SURGE,RAD 4JG2 ENG(RJC) (A)	8-97138-509-0	01	1	9906-0207
1	TANK; SURGE,RAD 4JH1 ENG(RJX) (B)	8-97205-136-0	01	1	0208-0411
1	TANK; SURGE,RAD 4JH1 ENG(RJX) (B)	8-97205-136-1	01	1	0412-0511
1	TANK; SURGE,RAD 4JH1-TC ENG(RDM) (B)	8-97205-136-1	01	1	0512-0610
1	TANK; SURGE,RAD 4JJ1 ENG(LFB) (B)	8-97205-136-1	01	1	0611-
2	CAP; SURGE TANK	8-94449-363-0	01	1	9701-9905
2	CAP; SURGE TANK 4JG2 ENG(RJC)	8-94449-363-0	01	1	9906-0207
18	HOSE; RAD TO SURGE TANK TAI	8-97965-414-2	01	1	9701-9905
18	HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) TAI	8-97965-414-2	01	1	9906-0207
18	HOSE; RAD TO SURGE TANK 4JH1 ENG(RJX) L=1700 TAI	8-97967-323-0	01	1	0208-0411
18	HOSE; RAD TO SURGE TANK 4JH1 ENG(RJX) L=1700 TAI	8-97967-323-0	01	1	0412-0511
18	HOSE; RAD TO SURGE TANK 4JH1-TC ENG(RDM) L=1700 TAI	8-97967-323-0	01	1	0512-0610
18	HOSE; RAD TO SURGE TANK 4JJ1 ENG(LFB) L=2060 TAI	8-98018-435-3	01	1	0611-
19	CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9701-9905
19	CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) (B) ID=14 L=47	5-09700-319-0	01	1	9906-0207
19	CLIP; HOSE,SURGE TANK 4JH1 ENG(RJX) (B) ID=14 L=47	5-09700-319-0	02	1	0208-0411
19	CLIP; HOSE,SURGE TANK 4JH1 ENG(RJX) (B) ID=14 L=47	5-09700-319-0	02	1	0412-0511
19	CLIP; HOSE,SURGE TANK 4JH1-TC ENG(RDM) (B) ID=14 L=47	5-09700-319-0	02	1	0512-0610
19	CLIP; HOSE,SURGE TANK 4JJ1 ENG(LFB) (F) ID=13-18 L=14.5	1-09709-290-0	02	1	0611-
19	CLIP; HOSE,SURGE TANK (C) L=217	8-94235-793-0	01	1	9701-9905
19	CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) (C) L=217	8-94235-793-0	01	1	9906-0207
19	CLIP; HOSE,SURGE TANK (A) ID=12	8-94238-610-0	02	1	9701-0411
19	CLIP; HOSE,SURGE TANK (A) ID=12	8-94238-610-0	02	1	0412-0610
19	CLIP; HOSE,SURGE TANK (E) L=250 TAI	5-09707-030-1	02	1	0611-
19	CLIP; HOSE,SURGE TANK 4JJ1 ENG(LFB) (A) ID=12	8-94238-610-0	02	1	0611-
19	CLIP; HOSE,SURGE TANK 4JJ1 ENG(LFB) (D) ID=12	8-98029-256-0	03	1	0611-
29	WASHER; PL,RESERVE TANK ID=6.4 OD=18	9-09160-706-0	03	1	9701-9905
29	WASHER; PL,RESERVE TANK 4JG2 ENG(RJC) ID=6.4 OD=18	9-09160-706-0	03	1	9906-0207
30	NUT (A) M6 FLANGE	0-91150-106-0	03	1	9701-9905
30	NUT 4JG2 ENG(RJC) (A) M6 FLANGE	0-91150-106-0	03	1	9906-0207
30	NUT 4JH1 ENG(RJX) (C) M8 FLANGE	0-91150-108-0	04	1	0208-0411
30	NUT 4JH1 ENG(RJX) (C) M8 FLANGE	0-91150-108-0	04	1	0412-0511
30	NUT 4JH1-TC ENG(RDM) (C) M8 FLANGE	0-91150-108-0	04	1	0512-0602
30	NUT 4JH1-TC ENG(RDM) (C) M8 FLANGE	0-91180-108-0	04	1	0603-0610
30	NUT 4JJ1 ENG(LFB) (C) M8 FLANGE	0-91180-108-0	07	1	0611-
30	NUT 4JH1 ENG(RJX) (B) M8 FLANGE	0-91150-208-0	03	1	0208-0411
30	NUT 4JH1 ENG(RJX) (B) M8 FLANGE	0-91150-208-0	03	1	0412-0511
30	NUT 4JH1-TC ENG(RDM) (B) M8 FLANGE	0-91150-208-0	03	1	0512-0602
30	NUT 4JH1-TC ENG(RDM) (B) M8 FLANGE	0-91180-208-0	03	1	0603-0610
34	BOLT; RESERVE TANK M6X16 W/LK WASHER	0-50040-616-0	03	1	9701-9905
34	BOLT; RESERVE TANK 4JG2 ENG(RJC) M6X16 W/LK WASHER	0-50040-616-0	03	1	9906-0207
34	BOLT; RESERVE TANK 4JH1 ENG(RJX) M8X25 FLANGE	0-28680-825-0	04	1	0208-0411
34	BOLT; RESERVE TANK 4JH1 ENG(RJX) M8X25 FLANGE	0-28680-825-0	04	1	0412-0511
34	BOLT; RESERVE TANK 4JH1-TC ENG(RDM) M8X25 FLANGE	0-28680-825-0	04	1	0512-0512
34	BOLT; RESERVE TANK 4JH1-TC ENG(RDM) M8X25 FLANGE	0-28650-825-0	04	1	0601-0610
34	BOLT; RESERVE TANK 4JJ1 ENG(LFB) M8X25 FLANGE	0-28650-825-0	04	1	0611-

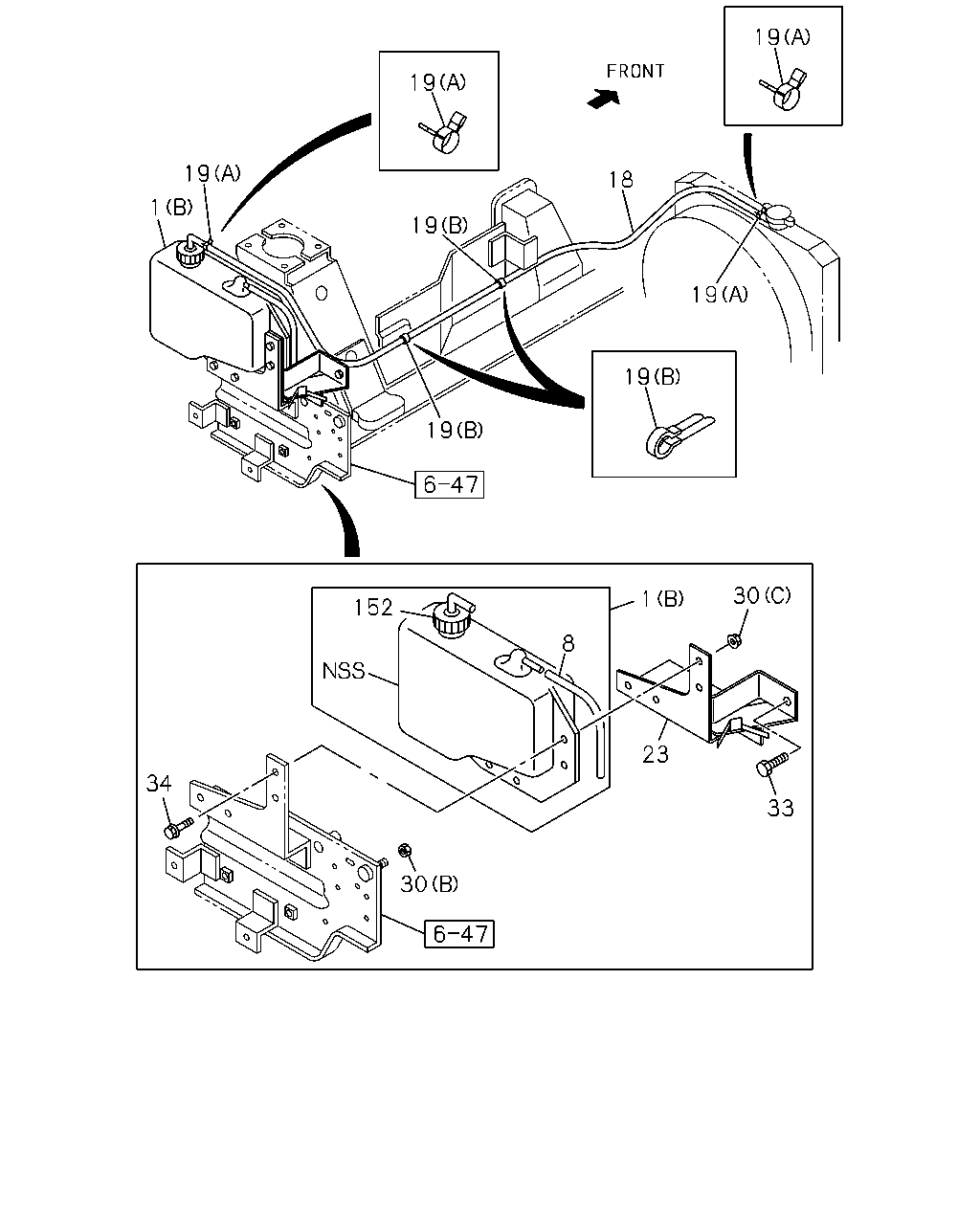

19 19 19 18 1 19 19 19 19 6 47 30 1 152 8 23 34 33 30 6 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; SURGE,RAD (A)	8-97138-509-0	01	1	9701-9905
1	TANK; SURGE,RAD 4JG2 ENG(RJC) (A)	8-97138-509-0	01	1	9906-0207
1	TANK; SURGE,RAD 4JH1 ENG(RJX) (B)	8-97205-136-0	01	1	0208-0411
1	TANK; SURGE,RAD 4JH1 ENG(RJX) (B)	8-97205-136-1	01	1	0412-0511
1	TANK; SURGE,RAD 4JH1-TC ENG(RDM) (B)	8-97205-136-1	01	1	0512-0610
1	TANK; SURGE,RAD 4JJ1 ENG(LFB) (B)	8-97205-136-1	01	1	0611-
8	HOSE; VINYL 4JH1 ENG(RJX) L=500	1-09366-179-0	01	1	0208-0411
8	HOSE; VINYL 4JH1 ENG(RJX) L=500	1-09366-179-0	01	1	0412-0511
8	HOSE; VINYL 4JH1-TC ENG(RDM) L=500	1-09366-179-0	01	1	0512-0610
8	HOSE; VINYL 4JJ1 ENG(LFB) L=500	1-09366-179-0	01	1	0611-
18	HOSE; RAD TO SURGE TANK TAI	8-97965-414-2	01	1	9701-9905
18	HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) TAI	8-97965-414-2	01	1	9906-0207
18	HOSE; RAD TO SURGE TANK 4JH1 ENG(RJX) L=1700 TAI	8-97967-323-0	01	1	0208-0411
18	HOSE; RAD TO SURGE TANK 4JH1 ENG(RJX) L=1700 TAI	8-97967-323-0	01	1	0412-0511
18	HOSE; RAD TO SURGE TANK 4JH1-TC ENG(RDM) L=1700 TAI	8-97967-323-0	01	1	0512-0610
18	HOSE; RAD TO SURGE TANK 4JJ1 ENG(LFB) L=2060 TAI	8-98018-435-3	01	1	0611-
19	CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9701-9905
19	CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) (B) ID=14 L=47	5-09700-319-0	01	1	9906-0207
19	CLIP; HOSE,SURGE TANK 4JH1 ENG(RJX) (B) ID=14 L=47	5-09700-319-0	02	1	0208-0411
19	CLIP; HOSE,SURGE TANK 4JH1 ENG(RJX) (B) ID=14 L=47	5-09700-319-0	02	1	0412-0511
19	CLIP; HOSE,SURGE TANK 4JH1-TC ENG(RDM) (B) ID=14 L=47	5-09700-319-0	02	1	0512-0610
19	CLIP; HOSE,SURGE TANK 4JJ1 ENG(LFB) (F) ID=13-18 L=14.5	1-09709-290-0	02	1	0611-
19	CLIP; HOSE,SURGE TANK (C) L=217	8-94235-793-0	01	1	9701-9905
19	CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) (C) L=217	8-94235-793-0	01	1	9906-0207
19	CLIP; HOSE,SURGE TANK (A) ID=12	8-94238-610-0	02	1	9701-0411
19	CLIP; HOSE,SURGE TANK (A) ID=12	8-94238-610-0	02	1	0412-0610
19	CLIP; HOSE,SURGE TANK (E) L=250 TAI	5-09707-030-1	02	1	0611-
19	CLIP; HOSE,SURGE TANK 4JJ1 ENG(LFB) (A) ID=12	8-94238-610-0	02	1	0611-
19	CLIP; HOSE,SURGE TANK 4JJ1 ENG(LFB) (D) ID=12	8-98029-256-0	03	1	0611-
23	BRACKET; RESERVE TANK 4JH1 ENG(RJX)	8-97225-271-1	01	1	0208-0411
23	BRACKET; RESERVE TANK 4JH1 ENG(RJX)	8-97225-271-1	01	1	0412-0511
23	BRACKET; RESERVE TANK 4JH1-TC ENG(RDM)	8-97225-271-1	01	1	0512-0610
23	BRACKET; RESERVE TANK 4JJ1 ENG(LFB)	8-98044-159-0	01	1	0611-
30	NUT (A) M6 FLANGE	0-91150-106-0	03	1	9701-9905
30	NUT 4JG2 ENG(RJC) (A) M6 FLANGE	0-91150-106-0	03	1	9906-0207
30	NUT 4JH1 ENG(RJX) (C) M8 FLANGE	0-91150-108-0	04	1	0208-0411
30	NUT 4JH1 ENG(RJX) (C) M8 FLANGE	0-91150-108-0	04	1	0412-0511
30	NUT 4JH1-TC ENG(RDM) (C) M8 FLANGE	0-91150-108-0	04	1	0512-0602
30	NUT 4JH1-TC ENG(RDM) (C) M8 FLANGE	0-91180-108-0	04	1	0603-0610
30	NUT 4JJ1 ENG(LFB) (C) M8 FLANGE	0-91180-108-0	07	1	0611-
30	NUT 4JH1 ENG(RJX) (B) M8 FLANGE	0-91150-208-0	03	1	0208-0411
30	NUT 4JH1 ENG(RJX) (B) M8 FLANGE	0-91150-208-0	03	1	0412-0511
30	NUT 4JH1-TC ENG(RDM) (B) M8 FLANGE	0-91150-208-0	03	1	0512-0602
30	NUT 4JH1-TC ENG(RDM) (B) M8 FLANGE	0-91180-208-0	03	1	0603-0610
33	BOLT; BRKT 4JH1 ENG(RJX) M8X25 FLANGE	0-28680-825-0	01	1	0208-0411
33	BOLT; BRKT 4JH1 ENG(RJX) M8X25 FLANGE	0-28680-825-0	01	1	0412-0511
33	BOLT; BRKT 4JH1-TC ENG(RDM) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512
33	BOLT; BRKT 4JH1-TC ENG(RDM) M8X25 FLANGE	0-28650-825-0	01	1	0601-0610
33	BOLT; BRKT 4JJ1 ENG(LFB) M8X25 FLANGE	0-28650-825-0	01	1	0611-
34	BOLT; RESERVE TANK M6X16 W/LK WASHER	0-50040-616-0	03	1	9701-9905
34	BOLT; RESERVE TANK 4JG2 ENG(RJC) M6X16 W/LK WASHER	0-50040-616-0	03	1	9906-0207
34	BOLT; RESERVE TANK 4JH1 ENG(RJX) M8X25 FLANGE	0-28680-825-0	04	1	0208-0411
34	BOLT; RESERVE TANK 4JH1 ENG(RJX) M8X25 FLANGE	0-28680-825-0	04	1	0412-0511
34	BOLT; RESERVE TANK 4JH1-TC ENG(RDM) M8X25 FLANGE	0-28680-825-0	04	1	0512-0512
34	BOLT; RESERVE TANK 4JH1-TC ENG(RDM) M8X25 FLANGE	0-28650-825-0	04	1	0601-0610
34	BOLT; RESERVE TANK 4JJ1 ENG(LFB) M8X25 FLANGE	0-28650-825-0	04	1	0611-
152	CAP ASM; SURGE TANK 4JH1 ENG(RJX)	8-97217-799-0	01	1	0208-0411
152	CAP ASM; SURGE TANK 4JH1 ENG(RJX)	8-97217-799-0	01	1	0412-0511
152	CAP ASM; SURGE TANK 4JH1-TC ENG(RDM)	8-97217-799-0	01	1	0512-0610
152	CAP ASM; SURGE TANK 4JJ1 ENG(LFB)	8-97217-799-0	01	1	0611-

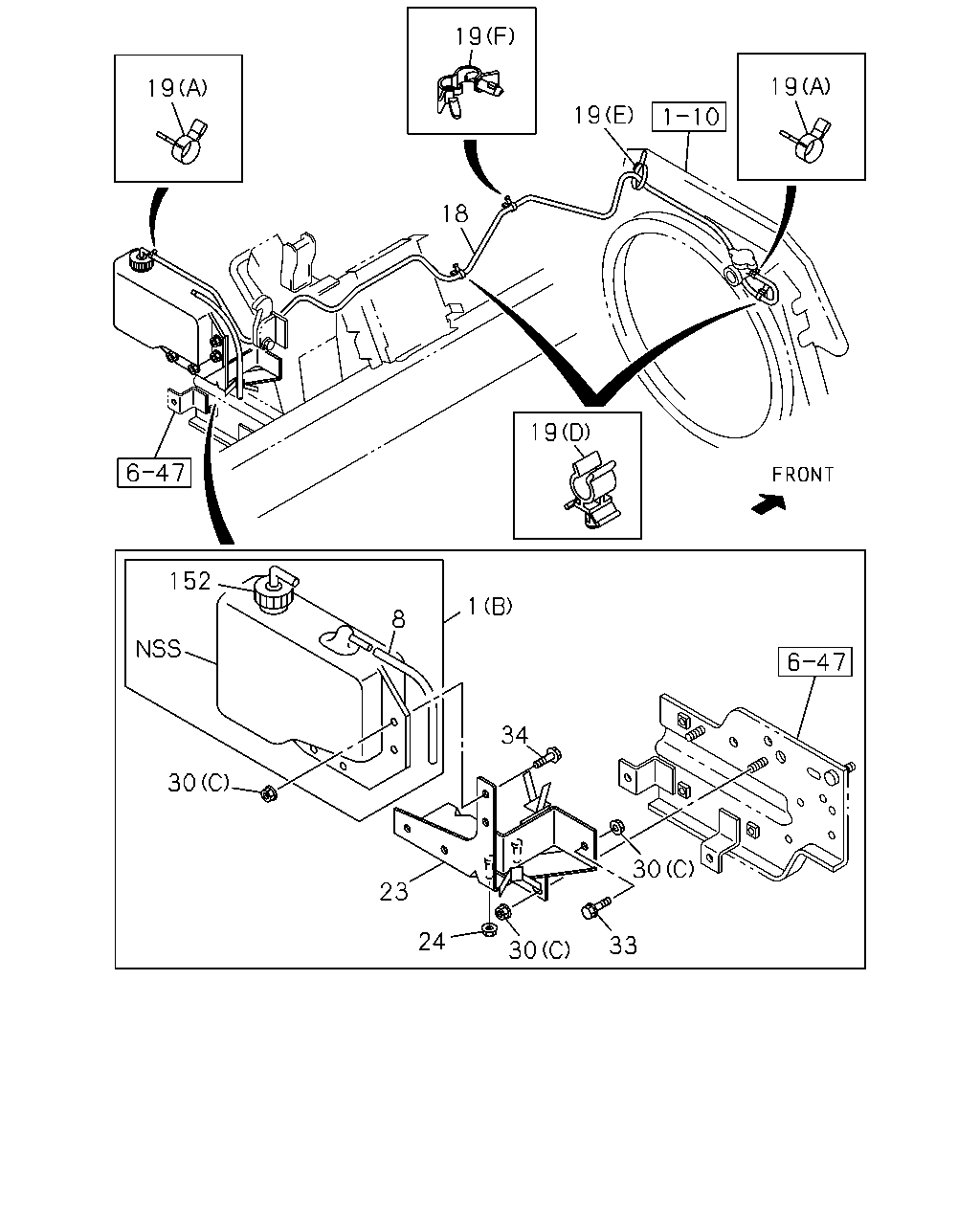

19 19 19 19 1 10 18 19 6 47 52 1 8 6 47 34 30 30 23 24 33 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; SURGE,RAD (A)	8-97138-509-0	01	1	9701-9905
1	TANK; SURGE,RAD 4JG2 ENG(RJC) (A)	8-97138-509-0	01	1	9906-0207
1	TANK; SURGE,RAD 4JH1 ENG(RJX) (B)	8-97205-136-0	01	1	0208-0411
1	TANK; SURGE,RAD 4JH1 ENG(RJX) (B)	8-97205-136-1	01	1	0412-0511
1	TANK; SURGE,RAD 4JH1-TC ENG(RDM) (B)	8-97205-136-1	01	1	0512-0610
1	TANK; SURGE,RAD 4JJ1 ENG(LFB) (B)	8-97205-136-1	01	1	0611-
8	HOSE; VINYL 4JH1 ENG(RJX) L=500	1-09366-179-0	01	1	0208-0411
8	HOSE; VINYL 4JH1 ENG(RJX) L=500	1-09366-179-0	01	1	0412-0511
8	HOSE; VINYL 4JH1-TC ENG(RDM) L=500	1-09366-179-0	01	1	0512-0610
8	HOSE; VINYL 4JJ1 ENG(LFB) L=500	1-09366-179-0	01	1	0611-
18	HOSE; RAD TO SURGE TANK TAI	8-97965-414-2	01	1	9701-9905
18	HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) TAI	8-97965-414-2	01	1	9906-0207
18	HOSE; RAD TO SURGE TANK 4JH1 ENG(RJX) L=1700 TAI	8-97967-323-0	01	1	0208-0411
18	HOSE; RAD TO SURGE TANK 4JH1 ENG(RJX) L=1700 TAI	8-97967-323-0	01	1	0412-0511
18	HOSE; RAD TO SURGE TANK 4JH1-TC ENG(RDM) L=1700 TAI	8-97967-323-0	01	1	0512-0610
18	HOSE; RAD TO SURGE TANK 4JJ1 ENG(LFB) L=2060 TAI	8-98018-435-3	01	1	0611-
19	CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9701-9905
19	CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) (B) ID=14 L=47	5-09700-319-0	01	1	9906-0207
19	CLIP; HOSE,SURGE TANK 4JH1 ENG(RJX) (B) ID=14 L=47	5-09700-319-0	02	1	0208-0411
19	CLIP; HOSE,SURGE TANK 4JH1 ENG(RJX) (B) ID=14 L=47	5-09700-319-0	02	1	0412-0511
19	CLIP; HOSE,SURGE TANK 4JH1-TC ENG(RDM) (B) ID=14 L=47	5-09700-319-0	02	1	0512-0610
19	CLIP; HOSE,SURGE TANK 4JJ1 ENG(LFB) (F) ID=13-18 L=14.5	1-09709-290-0	02	1	0611-
19	CLIP; HOSE,SURGE TANK (C) L=217	8-94235-793-0	01	1	9701-9905
19	CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) (C) L=217	8-94235-793-0	01	1	9906-0207
19	CLIP; HOSE,SURGE TANK (A) ID=12	8-94238-610-0	02	1	9701-0411
19	CLIP; HOSE,SURGE TANK (A) ID=12	8-94238-610-0	02	1	0412-0610
19	CLIP; HOSE,SURGE TANK (E) L=250 TAI	5-09707-030-1	02	1	0611-
19	CLIP; HOSE,SURGE TANK 4JJ1 ENG(LFB) (A) ID=12	8-94238-610-0	02	1	0611-
19	CLIP; HOSE,SURGE TANK 4JJ1 ENG(LFB) (D) ID=12	8-98029-256-0	03	1	0611-
23	BRACKET; RESERVE TANK 4JH1 ENG(RJX)	8-97225-271-1	01	1	0208-0411
23	BRACKET; RESERVE TANK 4JH1 ENG(RJX)	8-97225-271-1	01	1	0412-0511
23	BRACKET; RESERVE TANK 4JH1-TC ENG(RDM)	8-97225-271-1	01	1	0512-0610
23	BRACKET; RESERVE TANK 4JJ1 ENG(LFB)	8-98044-159-0	01	1	0611-
24	NUT 4JJ1 ENG(LFB) M6 FLANGE	0-91180-106-0	02	1	0611-
30	NUT (A) M6 FLANGE	0-91150-106-0	03	1	9701-9905
30	NUT 4JG2 ENG(RJC) (A) M6 FLANGE	0-91150-106-0	03	1	9906-0207
30	NUT 4JH1 ENG(RJX) (C) M8 FLANGE	0-91150-108-0	04	1	0208-0411
30	NUT 4JH1 ENG(RJX) (C) M8 FLANGE	0-91150-108-0	04	1	0412-0511
30	NUT 4JH1-TC ENG(RDM) (C) M8 FLANGE	0-91150-108-0	04	1	0512-0602
30	NUT 4JH1-TC ENG(RDM) (C) M8 FLANGE	0-91180-108-0	04	1	0603-0610
30	NUT 4JJ1 ENG(LFB) (C) M8 FLANGE	0-91180-108-0	07	1	0611-
30	NUT 4JH1 ENG(RJX) (B) M8 FLANGE	0-91150-208-0	03	1	0208-0411
30	NUT 4JH1 ENG(RJX) (B) M8 FLANGE	0-91150-208-0	03	1	0412-0511
30	NUT 4JH1-TC ENG(RDM) (B) M8 FLANGE	0-91150-208-0	03	1	0512-0602
30	NUT 4JH1-TC ENG(RDM) (B) M8 FLANGE	0-91180-208-0	03	1	0603-0610
33	BOLT; BRKT 4JH1 ENG(RJX) M8X25 FLANGE	0-28680-825-0	01	1	0208-0411
33	BOLT; BRKT 4JH1 ENG(RJX) M8X25 FLANGE	0-28680-825-0	01	1	0412-0511
33	BOLT; BRKT 4JH1-TC ENG(RDM) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512
33	BOLT; BRKT 4JH1-TC ENG(RDM) M8X25 FLANGE	0-28650-825-0	01	1	0601-0610
33	BOLT; BRKT 4JJ1 ENG(LFB) M8X25 FLANGE	0-28650-825-0	01	1	0611-
34	BOLT; RESERVE TANK M6X16 W/LK WASHER	0-50040-616-0	03	1	9701-9905
34	BOLT; RESERVE TANK 4JG2 ENG(RJC) M6X16 W/LK WASHER	0-50040-616-0	03	1	9906-0207
34	BOLT; RESERVE TANK 4JH1 ENG(RJX) M8X25 FLANGE	0-28680-825-0	04	1	0208-0411
34	BOLT; RESERVE TANK 4JH1 ENG(RJX) M8X25 FLANGE	0-28680-825-0	04	1	0412-0511
34	BOLT; RESERVE TANK 4JH1-TC ENG(RDM) M8X25 FLANGE	0-28680-825-0	04	1	0512-0512
34	BOLT; RESERVE TANK 4JH1-TC ENG(RDM) M8X25 FLANGE	0-28650-825-0	04	1	0601-0610
34	BOLT; RESERVE TANK 4JJ1 ENG(LFB) M8X25 FLANGE	0-28650-825-0	04	1	0611-

1 10 56 1 10 128 56 55 56 1 10 56 1 10 128 56 55 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; SURGE,RAD (A)	8-97138-509-0	01	1	9701-9905
1	TANK; SURGE,RAD 4JG2 ENG(RJC) (A)	8-97138-509-0	01	1	9906-0207
1	TANK; SURGE,RAD 4JH1 ENG(RJX) (B)	8-97205-136-0	01	1	0208-0411
1	TANK; SURGE,RAD 4JH1 ENG(RJX) (B)	8-97205-136-1	01	1	0412-0511
1	TANK; SURGE,RAD 4JH1-TC ENG(RDM) (B)	8-97205-136-1	01	1	0512-0610
1	TANK; SURGE,RAD 4JJ1 ENG(LFB) (B)	8-97205-136-1	01	1	0611-
55	HOSE; WATER,RAD OUTLET TAI	8-97965-320-0	01	1	9701-9905
55	HOSE; WATER,RAD OUTLET 4JG2 ENG(RJC) TAI	8-97966-597-0	01	1	9906-0207
55	HOSE; WATER,RAD OUTLET 4JH1 ENG(RJX) TAI	8-97967-322-1	01	1	0208-0411
55	HOSE; WATER,RAD OUTLET 4JH1 ENG(RJX) TAI	8-97967-322-1	01	1	0412-0511
55	HOSE; WATER,RAD OUTLET 4JH1-TC ENG(RDM) TAI	8-97967-322-1	01	1	0512-0610
55	HOSE; WATER,RAD OUTLET 4JJ1 ENG(LFB) TAI	8-97383-814-1	01	1	0611-
56	CLIP; WATER HOSE,RAD ID=48	5-09704-049-0	03	1	9701-9905
56	CLIP; WATER HOSE,RAD 4JG2 ENG(RJC) ID=48	5-09704-049-0	03	1	9906-0207
56	CLIP; WATER HOSE,RAD 4JH1 ENG(RJX) ID=48	5-09704-049-0	03	1	0208-0411
56	CLIP; WATER HOSE,RAD 4JH1 ENG(RJX) ID=48	5-09704-049-0	03	1	0412-0511
56	CLIP; WATER HOSE,RAD 4JH1-TC ENG(RDM) ID=48	5-09704-049-0	03	1	0512-0610
56	CLIP; WATER HOSE,RAD 4JJ1 ENG(LFB) ID=48	5-09704-049-0	02	1	0611-
128	HOSE; WATER,RAD INL TAI	8-97965-319-0	01	1	9701-9905
128	HOSE; WATER,RAD INL 4JG2 ENG(RJC) TAI	8-97965-319-0	01	1	9906-0207
128	HOSE; WATER,RAD INL 4JH1 ENG(RJX) TAI	8-97967-321-0	01	1	0208-0411
128	HOSE; WATER,RAD INL 4JH1 ENG(RJX) TAI	8-97967-321-0	01	1	0412-0511
128	HOSE; WATER,RAD INL 4JH1-TC ENG(RDM) TAI	8-97967-321-0	01	1	0512-0610
128	HOSE; WATER,RAD INL 4JJ1 ENG(LFB) TAI	8-97383-812-1	01	1	0611-

55 1 10 56 56 128 1 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; SURGE,RAD (A)	8-97138-509-0	01	1	9701-9905
1	TANK; SURGE,RAD 4JG2 ENG(RJC) (A)	8-97138-509-0	01	1	9906-0207
1	TANK; SURGE,RAD 4JH1 ENG(RJX) (B)	8-97205-136-0	01	1	0208-0411
1	TANK; SURGE,RAD 4JH1 ENG(RJX) (B)	8-97205-136-1	01	1	0412-0511
1	TANK; SURGE,RAD 4JH1-TC ENG(RDM) (B)	8-97205-136-1	01	1	0512-0610
1	TANK; SURGE,RAD 4JJ1 ENG(LFB) (B)	8-97205-136-1	01	1	0611-
55	HOSE; WATER,RAD OUTLET TAI	8-97965-320-0	01	1	9701-9905
55	HOSE; WATER,RAD OUTLET 4JG2 ENG(RJC) TAI	8-97966-597-0	01	1	9906-0207
55	HOSE; WATER,RAD OUTLET 4JH1 ENG(RJX) TAI	8-97967-322-1	01	1	0208-0411
55	HOSE; WATER,RAD OUTLET 4JH1 ENG(RJX) TAI	8-97967-322-1	01	1	0412-0511
55	HOSE; WATER,RAD OUTLET 4JH1-TC ENG(RDM) TAI	8-97967-322-1	01	1	0512-0610
55	HOSE; WATER,RAD OUTLET 4JJ1 ENG(LFB) TAI	8-97383-814-1	01	1	0611-
56	CLIP; WATER HOSE,RAD ID=48	5-09704-049-0	03	1	9701-9905
56	CLIP; WATER HOSE,RAD 4JG2 ENG(RJC) ID=48	5-09704-049-0	03	1	9906-0207
56	CLIP; WATER HOSE,RAD 4JH1 ENG(RJX) ID=48	5-09704-049-0	03	1	0208-0411
56	CLIP; WATER HOSE,RAD 4JH1 ENG(RJX) ID=48	5-09704-049-0	03	1	0412-0511
56	CLIP; WATER HOSE,RAD 4JH1-TC ENG(RDM) ID=48	5-09704-049-0	03	1	0512-0610
56	CLIP; WATER HOSE,RAD 4JJ1 ENG(LFB) ID=48	5-09704-049-0	02	1	0611-
128	HOSE; WATER,RAD INL TAI	8-97965-319-0	01	1	9701-9905
128	HOSE; WATER,RAD INL 4JG2 ENG(RJC) TAI	8-97965-319-0	01	1	9906-0207
128	HOSE; WATER,RAD INL 4JH1 ENG(RJX) TAI	8-97967-321-0	01	1	0208-0411
128	HOSE; WATER,RAD INL 4JH1 ENG(RJX) TAI	8-97967-321-0	01	1	0412-0511
128	HOSE; WATER,RAD INL 4JH1-TC ENG(RDM) TAI	8-97967-321-0	01	1	0512-0610
128	HOSE; WATER,RAD INL 4JJ1 ENG(LFB) TAI	8-97383-812-1	01	1	0611-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
