Sayfa 1-10 - Isuzu EPC

1-10 — RADIATOR (#139042) — 595 parça

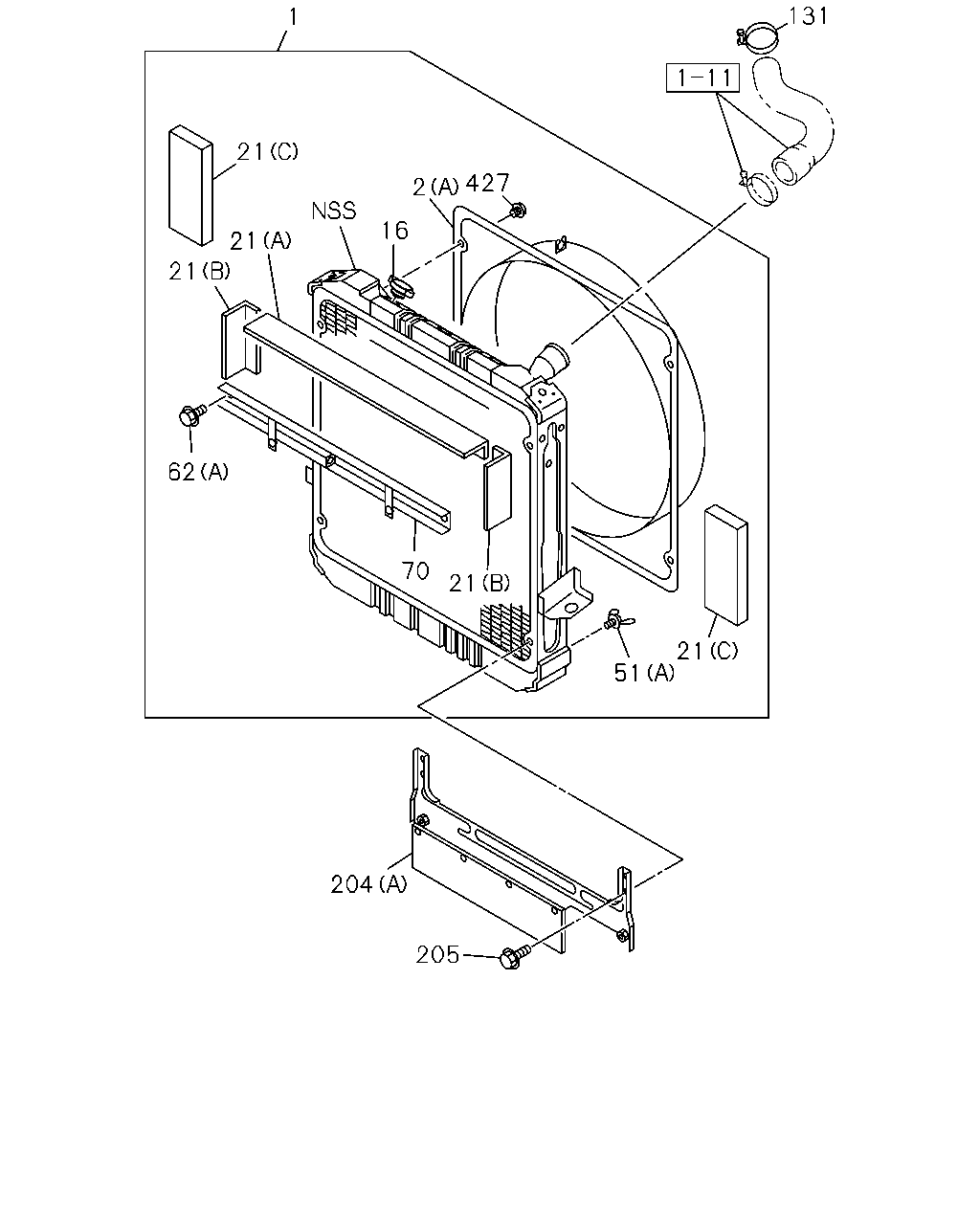

131 1 1 11 21 427 2 16 21 21 62 70 21 21 51 204 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	RADIATOR ASM TAI	8-97965-365-0	01	1	9701-9905
1	RADIATOR ASM 4JG2 ENG(RJC) TAI	8-97966-590-4	01	1	9906-0207
1	RADIATOR ASM 4JH1 ENG(RJX)	8-97354-444-1	01	1	0208-0211
1	RADIATOR ASM 4JH1 ENG(RJX)	8-97357-419-0	01	1	0212-0305
1	RADIATOR ASM 4JH1 ENG(RJX)	8-97370-181-0	01	1	0306-0411
1	RADIATOR ASM 4JH1 ENG(RJX)	8-97370-181-0	01	1	0412-0511
1	RADIATOR ASM 4JH1-TC ENG(RDM)	8-97370-181-0	01	1	0512-0610
1	RADIATOR ASM 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98018-953-3	01	1	0611-
1	RADIATOR ASM 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98018-952-2	01	1	0611-
2	GUIDE; FAN (A) TAI	8-97967-006-0	01	1	9701-9905
2	GUIDE; FAN 4JG2 ENG(RJC) (B) TAI	8-97967-007-0	01	1	9906-0207
2	GUIDE; FAN 4JH1 ENG(RJX) (C)	8-97287-037-2	01	1	0208-0411
2	GUIDE; FAN 4JH1 ENG(RJX) (C)	8-97287-037-2	01	1	0412-0511
2	GUIDE; FAN 4JH1-TC ENG(RDM) (C)	8-97287-037-2	01	1	0512-0610
2	GUIDE; FAN 4JJ1 ENG(LFB) (E)	8-97381-547-2	01	1	0611-0611
2	GUIDE; FAN 4JJ1 ENG(LFB) (E)	8-98054-659-0	01	1	0611-
2	GUIDE; FAN 4JH1 ENG(RJX) (D)	8-97314-778-0	01	1	0208-0211
2	GUIDE; FAN 4JH1 ENG(RJX) (D)	8-97350-179-0	01	1	0212-0411
2	GUIDE; FAN 4JH1 ENG(RJX) (D)	8-97350-179-0	01	1	0412-0511
2	GUIDE; FAN 4JH1-TC ENG(RDM) (D)	8-97350-179-0	01	1	0512-0610
16	CAP; RAD TAI	8-97967-012-0	01	1	9701-9905
16	CAP; RAD 4JG2 ENG(RJC) TAI	8-97967-012-0	01	1	9906-0207
16	CAP; RAD 4JH1 ENG(RJX)	8-97177-872-0	01	1	0208-0211
16	CAP; RAD 4JH1 ENG(RJX)	8-97239-187-0	01	1	0212-0411
16	CAP; RAD 4JH1 ENG(RJX)	8-97239-187-0	01	1	0412-0511
16	CAP; RAD 4JH1-TC ENG(RDM)	8-97239-187-0	01	1	0512-0610
16	CAP; RAD 4JJ1 ENG(LFB)	8-97239-187-0	01	1	0611-
21	SEAL; RAD (A) TAI	8-97967-008-0	01	1	9701-9905
21	SEAL; RAD 4JG2 ENG(RJC) (D) TAI	8-97222-103-1	01	1	9906-0011
21	SEAL; RAD 4JG2 ENG(RJC) (D) TAI	8-97222-103-1	01	1	0012-0207
21	SEAL; RAD 4JH1 ENG(RJX) (E)	8-97260-450-1	01	1	0208-0208
21	SEAL; RAD 4JH1 ENG(RJX) (E)	8-97260-449-3	01	1	0209-0211
21	SEAL; RAD 4JH1 ENG(RJX) (E)	8-97351-774-0	01	1	0212-0305
21	SEAL; RAD 4JH1 ENG(RJX) (E)	8-97370-182-0	01	1	0306-0411
21	SEAL; RAD 4JH1 ENG(RJX) (E)	8-97370-182-0	01	1	0412-0511
21	SEAL; RAD 4JH1-TC ENG(RDM) (E)	8-97370-182-0	01	1	0512-0610
21	SEAL; RAD 4JJ1 ENG(LFB) (F)	8-98000-813-1	01	1	0611-
21	SEAL; RAD (B) TAI	8-97967-009-0	02	1	9701-9905
21	SEAL; RAD (C) TAI	8-97967-010-0	02	1	9701-9905
51	PLUG; DRAIN (A) TAI	8-97967-014-0	01	1	9701-9905
51	PLUG; DRAIN 4JG2 ENG(RJC) (A) TAI	8-97967-014-0	01	1	9906-0207
51	PLUG; DRAIN 4JH1 ENG(RJX) (B)	8-94321-236-0	01	1	0208-0211
51	PLUG; DRAIN 4JH1 ENG(RJX) (C) W/GASKET	8-97171-437-0	01	1	0212-0411
51	PLUG; DRAIN 4JH1 ENG(RJX) (C) W/GASKET	8-97171-437-0	01	1	0412-0511
51	PLUG; DRAIN 4JH1-TC ENG(RDM) (C) W/GASKET	8-97171-437-0	01	1	0512-0610
51	PLUG; DRAIN 4JJ1 ENG(LFB) (C) W/GASKET	8-97171-437-0	01	1	0611-
62	BOLT; STAY (B) M8X45	8-94401-350-0	01	1	9701-0411
62	BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0412-
62	BOLT; STAY (A) TAI	8-97967-015-0	02	1	9701-9905
62	BOLT; STAY 4JG2 ENG(RJC) (A) TAI	8-97967-015-0	02	1	9906-0207
62	BOLT; STAY 4JH1 ENG(RJX) (A) M8X12 FLANGE	0-28080-812-0	02	1	0208-0411
62	BOLT; STAY 4JH1 ENG(RJX) (A) M8X12 FLANGE	0-28080-812-0	02	1	0412-0511
62	BOLT; STAY 4JH1-TC ENG(RDM) (A) M8X12 FLANGE	0-28080-812-0	02	1	0512-0610
62	BOLT; STAY 4JJ1 ENG(LFB) (A) M8X12 FLANGE	0-28050-812-0	02	1	0611-
70	STAY; RAD TAI	8-97967-013-0	01	1	9701-9905
70	STAY; RAD 4JG2 ENG(RJC) TAI	8-97967-013-0	01	1	9906-0207
70	STAY; RAD 4JH1 ENG(RJX)	8-97354-442-0	01	1	0208-0411
70	STAY; RAD 4JH1 ENG(RJX)	8-97354-442-0	01	1	0412-0511
70	STAY; RAD 4JH1-TC ENG(RDM)	8-97354-442-0	01	1	0512-0610
70	STAY; RAD 4JJ1 ENG(LFB)	8-98018-940-0	01	1	0611-
131	CLIP; ENG SIDE TOP ID=42	5-09704-047-1	01	1	9701-9905
131	CLIP; ENG SIDE TOP 4JG2 ENG(RJC) ID=42	5-09704-047-1	01	1	9906-0207
131	CLIP; ENG SIDE TOP 4JH1 ENG(RJX) ID=42	5-09704-047-1	01	1	0208-0411
131	CLIP; ENG SIDE TOP 4JH1 ENG(RJX) ID=42	5-09704-047-1	01	1	0412-0511
131	CLIP; ENG SIDE TOP 4JH1-TC ENG(RDM) ID=42	5-09704-047-1	01	1	0512-0610
131	CLIP; ENG SIDE TOP 4JJ1 ENG(LFB) ID=48	5-09704-049-0	01	1	0611-
204	GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97965-498-0	01	1	9701-9905
204	GUIDE ASM; AIR 4JH1 ENG(RJX) (B)	8-97260-121-0	01	1	0208-0411
204	GUIDE ASM; AIR 4JH1 ENG(RJX) (B)	8-97260-121-0	01	1	0412-0511
204	GUIDE ASM; AIR 4JH1-TC ENG(RDM) (B)	8-97260-121-0	01	1	0512-0610
204	GUIDE ASM; AIR 4JJ1 ENG(LFB) (C)	8-97383-928-1	01	1	0611-
205	BOLT; AIR GUIDE AIR CONDITIONER MANUAL CONT(C60) M6X10 FLANGE	0-28080-610-0	04	1	9701-9709
205	BOLT; AIR GUIDE AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE	0-28080-612-0	04	1	9710-9905
297	WASHER; PL,FAN GUIDE 4JH1 ENG(RJX) ID=6.4 OD=18	9-09160-706-0	04	1	0208-0211
427	CLIP; FAN GUIDE TAI	8-97967-011-0	04	1	9701-9905
427	CLIP; FAN GUIDE 4JG2 ENG(RJC) TAI	8-97967-011-0	04	1	9906-0207

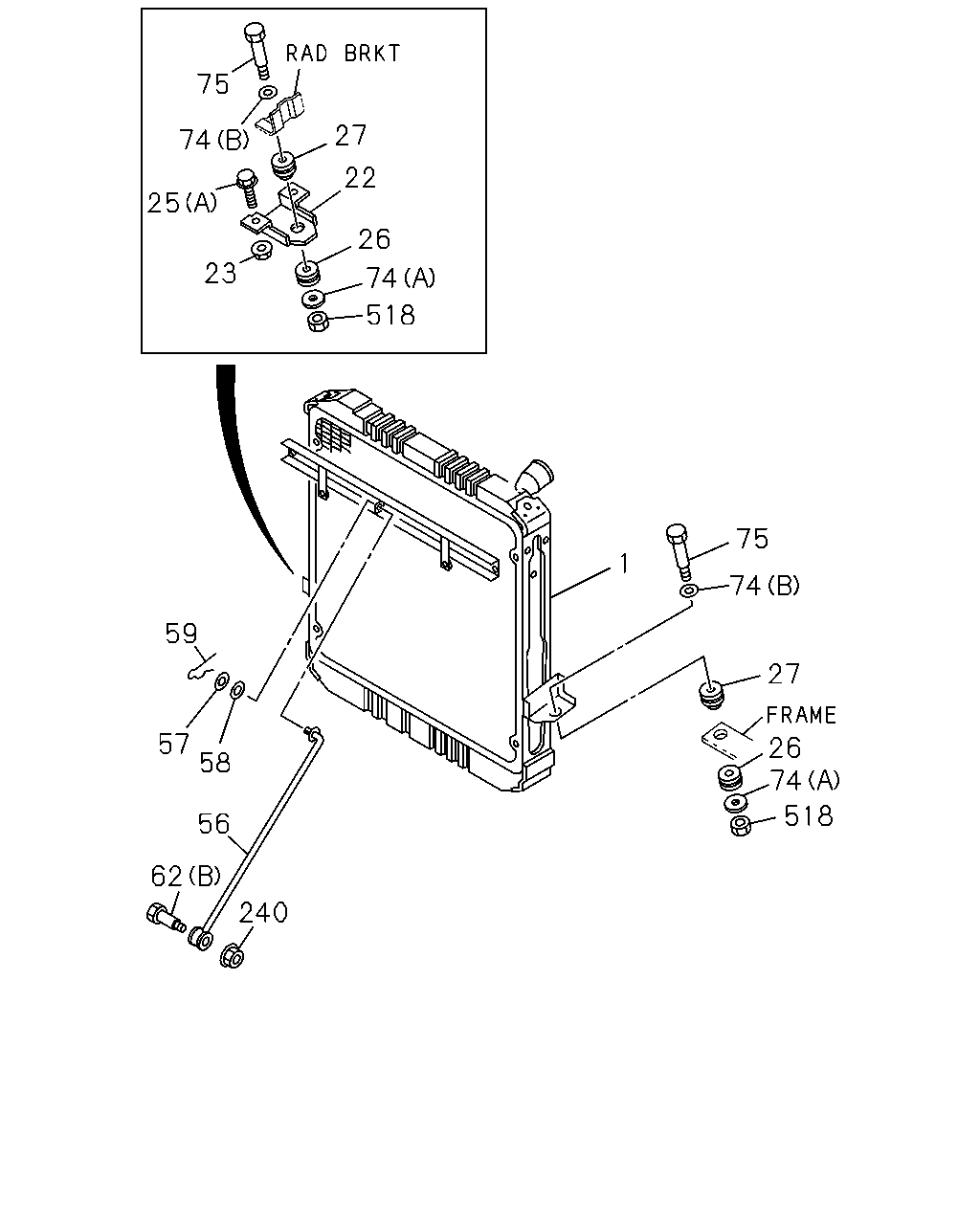

75 27 74 22 25 26 23 74 518 75 1 74 59 27 57 58 26 74 518 56 62 240

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	RADIATOR ASM TAI	8-97965-365-0	01	1	9701-9905
1	RADIATOR ASM 4JG2 ENG(RJC) TAI	8-97966-590-4	01	1	9906-0207
1	RADIATOR ASM 4JH1 ENG(RJX)	8-97354-444-1	01	1	0208-0211
1	RADIATOR ASM 4JH1 ENG(RJX)	8-97357-419-0	01	1	0212-0305
1	RADIATOR ASM 4JH1 ENG(RJX)	8-97370-181-0	01	1	0306-0411
1	RADIATOR ASM 4JH1 ENG(RJX)	8-97370-181-0	01	1	0412-0511
1	RADIATOR ASM 4JH1-TC ENG(RDM)	8-97370-181-0	01	1	0512-0610
1	RADIATOR ASM 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98018-953-3	01	1	0611-
1	RADIATOR ASM 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98018-952-2	01	1	0611-
22	BRACKET; RAD MTG	8-94257-949-1	01	1	9701-0411
22	BRACKET; RAD MTG	8-94257-949-1	01	1	0412-0610
22	BRACKET; RAD MTG	8-97386-340-1	01	1	0611-
23	NUT; RAD MTG M10 FLANGE	5-09440-006-0	02	1	9701-0411
23	NUT; RAD MTG M10 FLANGE	5-09440-006-0	02	1	0412-0610
23	NUT; RAD MTG M10 FLANGE	0-91180-210-0	02	1	0611-
25	BOLT; BRKT (A) M10X25 FLANGE	0-28081-025-0	02	1	9701-0411
25	BOLT; BRKT (A) M10X25 FLANGE	0-28081-025-0	02	1	0412-0512
25	BOLT; BRKT (A) M10X25 FLANGE	0-28051-025-0	02	1	0601-0610
25	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	02	1	0611-
25	BOLT; BRKT 4JH1 ENG(RJX) (B) M6X12 FLANGE	0-28080-612-0	04	1	0208-0411
25	BOLT; BRKT 4JH1 ENG(RJX) (B) M6X12 FLANGE	0-28080-612-0	04	1	0412-0511
25	BOLT; BRKT 4JH1-TC ENG(RDM) (B) M6X12 FLANGE	0-28080-612-0	04	1	0512-0610
25	BOLT; BRKT 4JJ1 ENG(LFB) (B) M6X12 FLANGE	0-28050-612-0	04	1	0611-
26	BUFFER; RAD,LWR TAI	8-97965-424-0	02	1	9701-0411
26	BUFFER; RAD,LWR TAI	8-97965-424-0	02	1	0412-
27	BUFFER; RAD,UPR TAI	8-97965-423-0	02	1	9701-0411
27	BUFFER; RAD,UPR TAI	8-97965-423-0	02	1	0412-
56	STAY; RAD TAI	8-97965-385-1	01	1	9701-9905
56	STAY; RAD 4JG2 ENG(RJC) TAI	8-97965-385-1	01	1	9906-0207
56	STAY; RAD 4JH1 ENG(RJX)	8-97260-123-0	01	1	0208-0411
56	STAY; RAD 4JH1 ENG(RJX)	8-97260-123-0	01	1	0412-0511
56	STAY; RAD 4JH1-TC ENG(RDM)	8-97260-123-0	01	1	0512-0610
56	STAY; RAD 4JJ1 ENG(LFB)	8-97386-344-0	01	1	0611-
57	WASHER; PL,STAY ID=10.5 OD=18	9-09160-510-0	01	1	9701-9905
57	WASHER; PL,STAY 4JG2 ENG(RJC) ID=10.5 OD=18	9-09160-510-0	01	1	9906-0207
57	WASHER; PL,STAY ID=10.5 OD=18	9-09160-510-0	01	1	0208-0411
57	WASHER; PL,STAY ID=10.5 OD=18	9-09160-510-0	01	1	0412-0605
57	WASHER; PL,STAY ID=10.5	0-91610-510-0	01	1	0606-
58	WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	9701-9905
58	WASHER; CURVED,STAY 4JG2 ENG(RJC) ID=12	8-97011-676-0	01	1	9906-0207
58	WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0208-0411
58	WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0412-
59	PIN; SNAP,STAY L=32.6	8-94202-777-0	01	1	9701-9905
59	PIN; SNAP,STAY 4JG2 ENG(RJC) L=32.6	8-94202-777-0	01	1	9906-0207
59	PIN; SNAP,STAY L=32.6	8-94202-777-0	01	1	0208-0411
59	PIN; SNAP,STAY L=32.6	8-94202-777-0	01	1	0412-
62	BOLT; STAY (B) M8X45	8-94401-350-0	01	1	9701-0411
62	BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0412-
62	BOLT; STAY (A) TAI	8-97967-015-0	02	1	9701-9905
62	BOLT; STAY 4JG2 ENG(RJC) (A) TAI	8-97967-015-0	02	1	9906-0207
62	BOLT; STAY 4JH1 ENG(RJX) (A) M8X12 FLANGE	0-28080-812-0	02	1	0208-0411
62	BOLT; STAY 4JH1 ENG(RJX) (A) M8X12 FLANGE	0-28080-812-0	02	1	0412-0511
62	BOLT; STAY 4JH1-TC ENG(RDM) (A) M8X12 FLANGE	0-28080-812-0	02	1	0512-0610
62	BOLT; STAY 4JJ1 ENG(LFB) (A) M8X12 FLANGE	0-28050-812-0	02	1	0611-
74	WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-94221-082-0	02	1	9701-0411
74	WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-94221-082-0	02	1	0412-0610
74	WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-94221-082-0	01	1	0611-
74	WASHER; PL,CUSHION RUBBER (B) ID=10.5 OD=26	9-09160-710-0	02	1	9701-0207
74	WASHER; PL,CUSHION RUBBER (B) ID=10.5 OD=26	9-09160-710-0	01	1	0208-0411
74	WASHER; PL,CUSHION RUBBER (B) ID=10.5 OD=26	9-09160-710-0	01	1	0412-0610
74	WASHER; PL,CUSHION RUBBER (B) ID=10.5 OD=36	8-97031-437-0	01	1	0611-
75	BOLT; CUSHION RUBBER,RAD MTG M8X63	8-94249-446-0	02	1	9701-0207
75	BOLT; CUSHION RUBBER,RAD MTG M8X63	8-94249-446-0	01	1	0208-0411
75	BOLT; CUSHION RUBBER,RAD MTG M8X63	8-94249-446-0	01	1	0412-
240	NUT; STAY M8 FLANGE	8-94178-701-0	01	1	9701-0411
240	NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0412-
297	WASHER; PL,FAN GUIDE 4JH1 ENG(RJX) ID=6.4 OD=18	9-09160-706-0	04	1	0208-0211
518	NUT M8 FLANGE TAI	5-09440-005-0	02	1	9701-0411
518	NUT M8 FLANGE TAI	5-09440-005-0	02	1	0412-

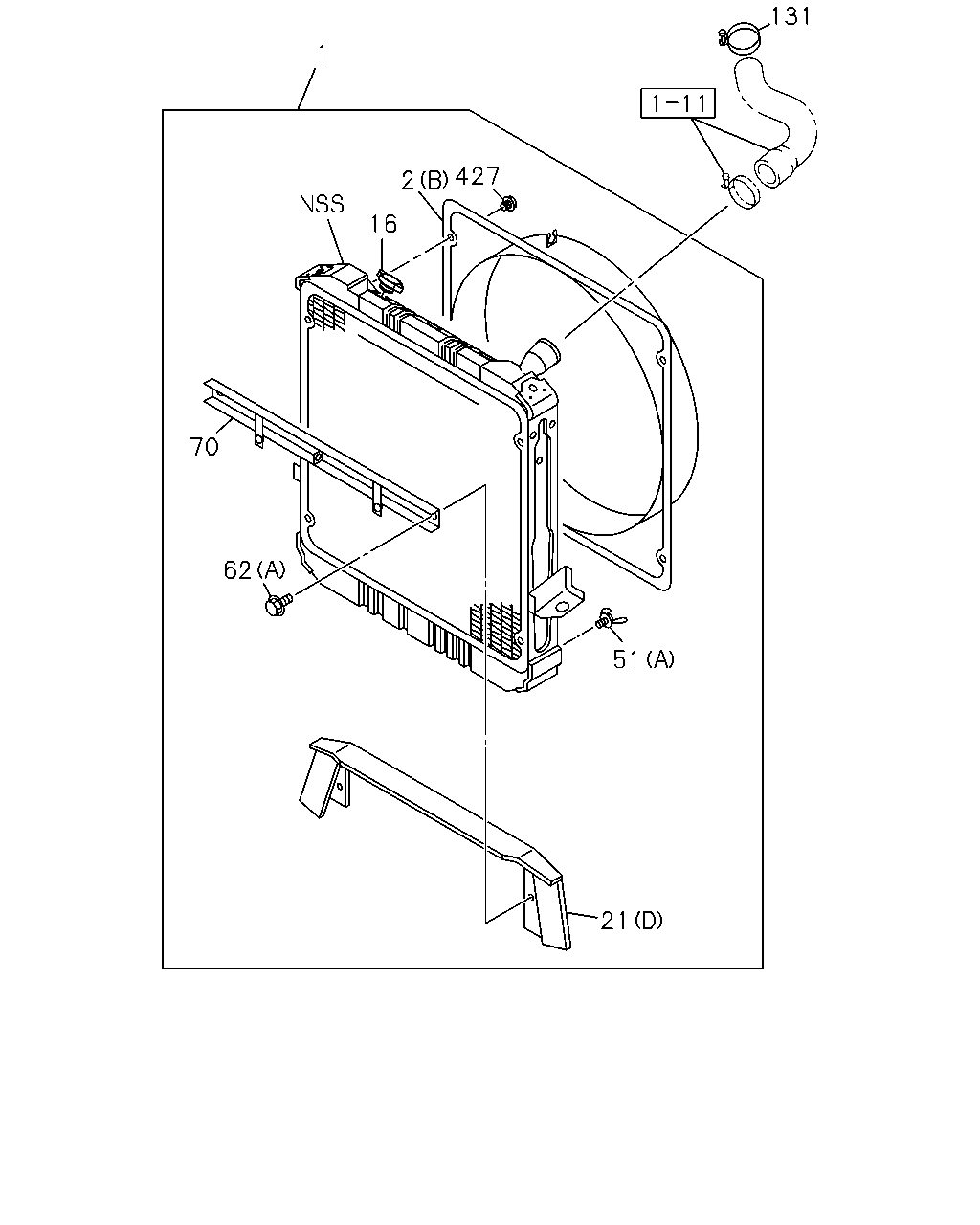

131 1 1 11 2 427 16 70 62 51 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	RADIATOR ASM TAI	8-97965-365-0	01	1	9701-9905
1	RADIATOR ASM 4JG2 ENG(RJC) TAI	8-97966-590-4	01	1	9906-0207
1	RADIATOR ASM 4JH1 ENG(RJX)	8-97354-444-1	01	1	0208-0211
1	RADIATOR ASM 4JH1 ENG(RJX)	8-97357-419-0	01	1	0212-0305
1	RADIATOR ASM 4JH1 ENG(RJX)	8-97370-181-0	01	1	0306-0411
1	RADIATOR ASM 4JH1 ENG(RJX)	8-97370-181-0	01	1	0412-0511
1	RADIATOR ASM 4JH1-TC ENG(RDM)	8-97370-181-0	01	1	0512-0610
1	RADIATOR ASM 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98018-953-3	01	1	0611-
1	RADIATOR ASM 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98018-952-2	01	1	0611-
2	GUIDE; FAN (A) TAI	8-97967-006-0	01	1	9701-9905
2	GUIDE; FAN 4JG2 ENG(RJC) (B) TAI	8-97967-007-0	01	1	9906-0207
2	GUIDE; FAN 4JH1 ENG(RJX) (C)	8-97287-037-2	01	1	0208-0411
2	GUIDE; FAN 4JH1 ENG(RJX) (C)	8-97287-037-2	01	1	0412-0511
2	GUIDE; FAN 4JH1-TC ENG(RDM) (C)	8-97287-037-2	01	1	0512-0610
2	GUIDE; FAN 4JJ1 ENG(LFB) (E)	8-97381-547-2	01	1	0611-0611
2	GUIDE; FAN 4JJ1 ENG(LFB) (E)	8-98054-659-0	01	1	0611-
2	GUIDE; FAN 4JH1 ENG(RJX) (D)	8-97314-778-0	01	1	0208-0211
2	GUIDE; FAN 4JH1 ENG(RJX) (D)	8-97350-179-0	01	1	0212-0411
2	GUIDE; FAN 4JH1 ENG(RJX) (D)	8-97350-179-0	01	1	0412-0511
2	GUIDE; FAN 4JH1-TC ENG(RDM) (D)	8-97350-179-0	01	1	0512-0610
16	CAP; RAD TAI	8-97967-012-0	01	1	9701-9905
16	CAP; RAD 4JG2 ENG(RJC) TAI	8-97967-012-0	01	1	9906-0207
16	CAP; RAD 4JH1 ENG(RJX)	8-97177-872-0	01	1	0208-0211
16	CAP; RAD 4JH1 ENG(RJX)	8-97239-187-0	01	1	0212-0411
16	CAP; RAD 4JH1 ENG(RJX)	8-97239-187-0	01	1	0412-0511
16	CAP; RAD 4JH1-TC ENG(RDM)	8-97239-187-0	01	1	0512-0610
16	CAP; RAD 4JJ1 ENG(LFB)	8-97239-187-0	01	1	0611-
21	SEAL; RAD (A) TAI	8-97967-008-0	01	1	9701-9905
21	SEAL; RAD 4JG2 ENG(RJC) (D) TAI	8-97222-103-1	01	1	9906-0011
21	SEAL; RAD 4JG2 ENG(RJC) (D) TAI	8-97222-103-1	01	1	0012-0207
21	SEAL; RAD 4JH1 ENG(RJX) (E)	8-97260-450-1	01	1	0208-0208
21	SEAL; RAD 4JH1 ENG(RJX) (E)	8-97260-449-3	01	1	0209-0211
21	SEAL; RAD 4JH1 ENG(RJX) (E)	8-97351-774-0	01	1	0212-0305
21	SEAL; RAD 4JH1 ENG(RJX) (E)	8-97370-182-0	01	1	0306-0411
21	SEAL; RAD 4JH1 ENG(RJX) (E)	8-97370-182-0	01	1	0412-0511
21	SEAL; RAD 4JH1-TC ENG(RDM) (E)	8-97370-182-0	01	1	0512-0610
21	SEAL; RAD 4JJ1 ENG(LFB) (F)	8-98000-813-1	01	1	0611-
21	SEAL; RAD (B) TAI	8-97967-009-0	02	1	9701-9905
21	SEAL; RAD (C) TAI	8-97967-010-0	02	1	9701-9905
51	PLUG; DRAIN (A) TAI	8-97967-014-0	01	1	9701-9905
51	PLUG; DRAIN 4JG2 ENG(RJC) (A) TAI	8-97967-014-0	01	1	9906-0207
51	PLUG; DRAIN 4JH1 ENG(RJX) (B)	8-94321-236-0	01	1	0208-0211
51	PLUG; DRAIN 4JH1 ENG(RJX) (C) W/GASKET	8-97171-437-0	01	1	0212-0411
51	PLUG; DRAIN 4JH1 ENG(RJX) (C) W/GASKET	8-97171-437-0	01	1	0412-0511
51	PLUG; DRAIN 4JH1-TC ENG(RDM) (C) W/GASKET	8-97171-437-0	01	1	0512-0610
51	PLUG; DRAIN 4JJ1 ENG(LFB) (C) W/GASKET	8-97171-437-0	01	1	0611-
62	BOLT; STAY (B) M8X45	8-94401-350-0	01	1	9701-0411
62	BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0412-
62	BOLT; STAY (A) TAI	8-97967-015-0	02	1	9701-9905
62	BOLT; STAY 4JG2 ENG(RJC) (A) TAI	8-97967-015-0	02	1	9906-0207
62	BOLT; STAY 4JH1 ENG(RJX) (A) M8X12 FLANGE	0-28080-812-0	02	1	0208-0411
62	BOLT; STAY 4JH1 ENG(RJX) (A) M8X12 FLANGE	0-28080-812-0	02	1	0412-0511
62	BOLT; STAY 4JH1-TC ENG(RDM) (A) M8X12 FLANGE	0-28080-812-0	02	1	0512-0610
62	BOLT; STAY 4JJ1 ENG(LFB) (A) M8X12 FLANGE	0-28050-812-0	02	1	0611-
70	STAY; RAD TAI	8-97967-013-0	01	1	9701-9905
70	STAY; RAD 4JG2 ENG(RJC) TAI	8-97967-013-0	01	1	9906-0207
70	STAY; RAD 4JH1 ENG(RJX)	8-97354-442-0	01	1	0208-0411
70	STAY; RAD 4JH1 ENG(RJX)	8-97354-442-0	01	1	0412-0511
70	STAY; RAD 4JH1-TC ENG(RDM)	8-97354-442-0	01	1	0512-0610
70	STAY; RAD 4JJ1 ENG(LFB)	8-98018-940-0	01	1	0611-
131	CLIP; ENG SIDE TOP ID=42	5-09704-047-1	01	1	9701-9905
131	CLIP; ENG SIDE TOP 4JG2 ENG(RJC) ID=42	5-09704-047-1	01	1	9906-0207
131	CLIP; ENG SIDE TOP 4JH1 ENG(RJX) ID=42	5-09704-047-1	01	1	0208-0411
131	CLIP; ENG SIDE TOP 4JH1 ENG(RJX) ID=42	5-09704-047-1	01	1	0412-0511
131	CLIP; ENG SIDE TOP 4JH1-TC ENG(RDM) ID=42	5-09704-047-1	01	1	0512-0610
131	CLIP; ENG SIDE TOP 4JJ1 ENG(LFB) ID=48	5-09704-049-0	01	1	0611-
297	WASHER; PL,FAN GUIDE 4JH1 ENG(RJX) ID=6.4 OD=18	9-09160-706-0	04	1	0208-0211
427	CLIP; FAN GUIDE TAI	8-97967-011-0	04	1	9701-9905
427	CLIP; FAN GUIDE 4JG2 ENG(RJC) TAI	8-97967-011-0	04	1	9906-0207

518 74 27 1 26 23 22 25 1 75 74 59 57 27 58 26 56 240 518 62 204 482

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	RADIATOR ASM TAI	8-97965-365-0	01	1	9701-9905
1	RADIATOR ASM 4JG2 ENG(RJC) TAI	8-97966-590-4	01	1	9906-0207
1	RADIATOR ASM 4JH1 ENG(RJX)	8-97354-444-1	01	1	0208-0211
1	RADIATOR ASM 4JH1 ENG(RJX)	8-97357-419-0	01	1	0212-0305
1	RADIATOR ASM 4JH1 ENG(RJX)	8-97370-181-0	01	1	0306-0411
1	RADIATOR ASM 4JH1 ENG(RJX)	8-97370-181-0	01	1	0412-0511
1	RADIATOR ASM 4JH1-TC ENG(RDM)	8-97370-181-0	01	1	0512-0610
1	RADIATOR ASM 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98018-953-3	01	1	0611-
1	RADIATOR ASM 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98018-952-2	01	1	0611-
22	BRACKET; RAD MTG	8-94257-949-1	01	1	9701-0411
22	BRACKET; RAD MTG	8-94257-949-1	01	1	0412-0610
22	BRACKET; RAD MTG	8-97386-340-1	01	1	0611-
23	NUT; RAD MTG M10 FLANGE	5-09440-006-0	02	1	9701-0411
23	NUT; RAD MTG M10 FLANGE	5-09440-006-0	02	1	0412-0610
23	NUT; RAD MTG M10 FLANGE	0-91180-210-0	02	1	0611-
25	BOLT; BRKT (A) M10X25 FLANGE	0-28081-025-0	02	1	9701-0411
25	BOLT; BRKT (A) M10X25 FLANGE	0-28081-025-0	02	1	0412-0512
25	BOLT; BRKT (A) M10X25 FLANGE	0-28051-025-0	02	1	0601-0610
25	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	02	1	0611-
25	BOLT; BRKT 4JH1 ENG(RJX) (B) M6X12 FLANGE	0-28080-612-0	04	1	0208-0411
25	BOLT; BRKT 4JH1 ENG(RJX) (B) M6X12 FLANGE	0-28080-612-0	04	1	0412-0511
25	BOLT; BRKT 4JH1-TC ENG(RDM) (B) M6X12 FLANGE	0-28080-612-0	04	1	0512-0610
25	BOLT; BRKT 4JJ1 ENG(LFB) (B) M6X12 FLANGE	0-28050-612-0	04	1	0611-
26	BUFFER; RAD,LWR TAI	8-97965-424-0	02	1	9701-0411
26	BUFFER; RAD,LWR TAI	8-97965-424-0	02	1	0412-
27	BUFFER; RAD,UPR TAI	8-97965-423-0	02	1	9701-0411
27	BUFFER; RAD,UPR TAI	8-97965-423-0	02	1	0412-
56	STAY; RAD TAI	8-97965-385-1	01	1	9701-9905
56	STAY; RAD 4JG2 ENG(RJC) TAI	8-97965-385-1	01	1	9906-0207
56	STAY; RAD 4JH1 ENG(RJX)	8-97260-123-0	01	1	0208-0411
56	STAY; RAD 4JH1 ENG(RJX)	8-97260-123-0	01	1	0412-0511
56	STAY; RAD 4JH1-TC ENG(RDM)	8-97260-123-0	01	1	0512-0610
56	STAY; RAD 4JJ1 ENG(LFB)	8-97386-344-0	01	1	0611-
57	WASHER; PL,STAY ID=10.5 OD=18	9-09160-510-0	01	1	9701-9905
57	WASHER; PL,STAY 4JG2 ENG(RJC) ID=10.5 OD=18	9-09160-510-0	01	1	9906-0207
57	WASHER; PL,STAY ID=10.5 OD=18	9-09160-510-0	01	1	0208-0411
57	WASHER; PL,STAY ID=10.5 OD=18	9-09160-510-0	01	1	0412-0605
57	WASHER; PL,STAY ID=10.5	0-91610-510-0	01	1	0606-
58	WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	9701-9905
58	WASHER; CURVED,STAY 4JG2 ENG(RJC) ID=12	8-97011-676-0	01	1	9906-0207
58	WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0208-0411
58	WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0412-
59	PIN; SNAP,STAY L=32.6	8-94202-777-0	01	1	9701-9905
59	PIN; SNAP,STAY 4JG2 ENG(RJC) L=32.6	8-94202-777-0	01	1	9906-0207
59	PIN; SNAP,STAY L=32.6	8-94202-777-0	01	1	0208-0411
59	PIN; SNAP,STAY L=32.6	8-94202-777-0	01	1	0412-
62	BOLT; STAY (B) M8X45	8-94401-350-0	01	1	9701-0411
62	BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0412-
62	BOLT; STAY (A) TAI	8-97967-015-0	02	1	9701-9905
62	BOLT; STAY 4JG2 ENG(RJC) (A) TAI	8-97967-015-0	02	1	9906-0207
62	BOLT; STAY 4JH1 ENG(RJX) (A) M8X12 FLANGE	0-28080-812-0	02	1	0208-0411
62	BOLT; STAY 4JH1 ENG(RJX) (A) M8X12 FLANGE	0-28080-812-0	02	1	0412-0511
62	BOLT; STAY 4JH1-TC ENG(RDM) (A) M8X12 FLANGE	0-28080-812-0	02	1	0512-0610
62	BOLT; STAY 4JJ1 ENG(LFB) (A) M8X12 FLANGE	0-28050-812-0	02	1	0611-
74	WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-94221-082-0	02	1	9701-0411
74	WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-94221-082-0	02	1	0412-0610
74	WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-94221-082-0	01	1	0611-
74	WASHER; PL,CUSHION RUBBER (B) ID=10.5 OD=26	9-09160-710-0	02	1	9701-0207
74	WASHER; PL,CUSHION RUBBER (B) ID=10.5 OD=26	9-09160-710-0	01	1	0208-0411
74	WASHER; PL,CUSHION RUBBER (B) ID=10.5 OD=26	9-09160-710-0	01	1	0412-0610
74	WASHER; PL,CUSHION RUBBER (B) ID=10.5 OD=36	8-97031-437-0	01	1	0611-
75	BOLT; CUSHION RUBBER,RAD MTG M8X63	8-94249-446-0	02	1	9701-0207
75	BOLT; CUSHION RUBBER,RAD MTG M8X63	8-94249-446-0	01	1	0208-0411
75	BOLT; CUSHION RUBBER,RAD MTG M8X63	8-94249-446-0	01	1	0412-
204	GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97965-498-0	01	1	9701-9905
204	GUIDE ASM; AIR 4JH1 ENG(RJX) (B)	8-97260-121-0	01	1	0208-0411
204	GUIDE ASM; AIR 4JH1 ENG(RJX) (B)	8-97260-121-0	01	1	0412-0511
204	GUIDE ASM; AIR 4JH1-TC ENG(RDM) (B)	8-97260-121-0	01	1	0512-0610
204	GUIDE ASM; AIR 4JJ1 ENG(LFB) (C)	8-97383-928-1	01	1	0611-
240	NUT; STAY M8 FLANGE	8-94178-701-0	01	1	9701-0411
240	NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0412-
297	WASHER; PL,FAN GUIDE 4JH1 ENG(RJX) ID=6.4 OD=18	9-09160-706-0	04	1	0208-0211
482	NUT; AIR GUIDE 4JH1 ENG(RJX) M6 FLANGE	0-91150-106-0	04	1	0208-0411
482	NUT; AIR GUIDE 4JH1 ENG(RJX) M6 FLANGE	0-91150-106-0	04	1	0412-0511
482	NUT; AIR GUIDE 4JH1-TC ENG(RDM) M6 FLANGE	0-91150-106-0	04	1	0512-0602
482	NUT; AIR GUIDE 4JH1-TC ENG(RDM) M6 FLANGE	0-91180-106-0	04	1	0603-0610
482	NUT; AIR GUIDE 4JJ1 ENG(LFB) M8 FLANGE	0-91180-108-0	02	1	0611-
518	NUT M8 FLANGE TAI	5-09440-005-0	02	1	9701-0411
518	NUT M8 FLANGE TAI	5-09440-005-0	02	1	0412-

89 232 267 25 51 62 70 89 16 79 82 80 80 100 100 100 2 100 100 80 92 80 100 80 1 21 549

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	RADIATOR ASM TAI	8-97965-365-0	01	1	9701-9905
1	RADIATOR ASM 4JG2 ENG(RJC) TAI	8-97966-590-4	01	1	9906-0207
1	RADIATOR ASM 4JH1 ENG(RJX)	8-97354-444-1	01	1	0208-0211
1	RADIATOR ASM 4JH1 ENG(RJX)	8-97357-419-0	01	1	0212-0305
1	RADIATOR ASM 4JH1 ENG(RJX)	8-97370-181-0	01	1	0306-0411
1	RADIATOR ASM 4JH1 ENG(RJX)	8-97370-181-0	01	1	0412-0511
1	RADIATOR ASM 4JH1-TC ENG(RDM)	8-97370-181-0	01	1	0512-0610
1	RADIATOR ASM 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98018-953-3	01	1	0611-
1	RADIATOR ASM 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98018-952-2	01	1	0611-
2	GUIDE; FAN (A) TAI	8-97967-006-0	01	1	9701-9905
2	GUIDE; FAN 4JG2 ENG(RJC) (B) TAI	8-97967-007-0	01	1	9906-0207
2	GUIDE; FAN 4JH1 ENG(RJX) (C)	8-97287-037-2	01	1	0208-0411
2	GUIDE; FAN 4JH1 ENG(RJX) (C)	8-97287-037-2	01	1	0412-0511
2	GUIDE; FAN 4JH1-TC ENG(RDM) (C)	8-97287-037-2	01	1	0512-0610
2	GUIDE; FAN 4JJ1 ENG(LFB) (E)	8-97381-547-2	01	1	0611-0611
2	GUIDE; FAN 4JJ1 ENG(LFB) (E)	8-98054-659-0	01	1	0611-
2	GUIDE; FAN 4JH1 ENG(RJX) (D)	8-97314-778-0	01	1	0208-0211
2	GUIDE; FAN 4JH1 ENG(RJX) (D)	8-97350-179-0	01	1	0212-0411
2	GUIDE; FAN 4JH1 ENG(RJX) (D)	8-97350-179-0	01	1	0412-0511
2	GUIDE; FAN 4JH1-TC ENG(RDM) (D)	8-97350-179-0	01	1	0512-0610
16	CAP; RAD TAI	8-97967-012-0	01	1	9701-9905
16	CAP; RAD 4JG2 ENG(RJC) TAI	8-97967-012-0	01	1	9906-0207
16	CAP; RAD 4JH1 ENG(RJX)	8-97177-872-0	01	1	0208-0211
16	CAP; RAD 4JH1 ENG(RJX)	8-97239-187-0	01	1	0212-0411
16	CAP; RAD 4JH1 ENG(RJX)	8-97239-187-0	01	1	0412-0511
16	CAP; RAD 4JH1-TC ENG(RDM)	8-97239-187-0	01	1	0512-0610
16	CAP; RAD 4JJ1 ENG(LFB)	8-97239-187-0	01	1	0611-
21	SEAL; RAD (A) TAI	8-97967-008-0	01	1	9701-9905
21	SEAL; RAD 4JG2 ENG(RJC) (D) TAI	8-97222-103-1	01	1	9906-0011
21	SEAL; RAD 4JG2 ENG(RJC) (D) TAI	8-97222-103-1	01	1	0012-0207
21	SEAL; RAD 4JH1 ENG(RJX) (E)	8-97260-450-1	01	1	0208-0208
21	SEAL; RAD 4JH1 ENG(RJX) (E)	8-97260-449-3	01	1	0209-0211
21	SEAL; RAD 4JH1 ENG(RJX) (E)	8-97351-774-0	01	1	0212-0305
21	SEAL; RAD 4JH1 ENG(RJX) (E)	8-97370-182-0	01	1	0306-0411
21	SEAL; RAD 4JH1 ENG(RJX) (E)	8-97370-182-0	01	1	0412-0511
21	SEAL; RAD 4JH1-TC ENG(RDM) (E)	8-97370-182-0	01	1	0512-0610
21	SEAL; RAD 4JJ1 ENG(LFB) (F)	8-98000-813-1	01	1	0611-
21	SEAL; RAD (B) TAI	8-97967-009-0	02	1	9701-9905
21	SEAL; RAD (C) TAI	8-97967-010-0	02	1	9701-9905
25	BOLT; BRKT (A) M10X25 FLANGE	0-28081-025-0	02	1	9701-0411
25	BOLT; BRKT (A) M10X25 FLANGE	0-28081-025-0	02	1	0412-0512
25	BOLT; BRKT (A) M10X25 FLANGE	0-28051-025-0	02	1	0601-0610
25	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	02	1	0611-
25	BOLT; BRKT 4JH1 ENG(RJX) (B) M6X12 FLANGE	0-28080-612-0	04	1	0208-0411
25	BOLT; BRKT 4JH1 ENG(RJX) (B) M6X12 FLANGE	0-28080-612-0	04	1	0412-0511
25	BOLT; BRKT 4JH1-TC ENG(RDM) (B) M6X12 FLANGE	0-28080-612-0	04	1	0512-0610
25	BOLT; BRKT 4JJ1 ENG(LFB) (B) M6X12 FLANGE	0-28050-612-0	04	1	0611-
51	PLUG; DRAIN (A) TAI	8-97967-014-0	01	1	9701-9905
51	PLUG; DRAIN 4JG2 ENG(RJC) (A) TAI	8-97967-014-0	01	1	9906-0207
51	PLUG; DRAIN 4JH1 ENG(RJX) (B)	8-94321-236-0	01	1	0208-0211
51	PLUG; DRAIN 4JH1 ENG(RJX) (C) W/GASKET	8-97171-437-0	01	1	0212-0411
51	PLUG; DRAIN 4JH1 ENG(RJX) (C) W/GASKET	8-97171-437-0	01	1	0412-0511
51	PLUG; DRAIN 4JH1-TC ENG(RDM) (C) W/GASKET	8-97171-437-0	01	1	0512-0610
51	PLUG; DRAIN 4JJ1 ENG(LFB) (C) W/GASKET	8-97171-437-0	01	1	0611-
62	BOLT; STAY (B) M8X45	8-94401-350-0	01	1	9701-0411
62	BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0412-
62	BOLT; STAY (A) TAI	8-97967-015-0	02	1	9701-9905
62	BOLT; STAY 4JG2 ENG(RJC) (A) TAI	8-97967-015-0	02	1	9906-0207
62	BOLT; STAY 4JH1 ENG(RJX) (A) M8X12 FLANGE	0-28080-812-0	02	1	0208-0411
62	BOLT; STAY 4JH1 ENG(RJX) (A) M8X12 FLANGE	0-28080-812-0	02	1	0412-0511
62	BOLT; STAY 4JH1-TC ENG(RDM) (A) M8X12 FLANGE	0-28080-812-0	02	1	0512-0610
62	BOLT; STAY 4JJ1 ENG(LFB) (A) M8X12 FLANGE	0-28050-812-0	02	1	0611-
70	STAY; RAD TAI	8-97967-013-0	01	1	9701-9905
70	STAY; RAD 4JG2 ENG(RJC) TAI	8-97967-013-0	01	1	9906-0207
70	STAY; RAD 4JH1 ENG(RJX)	8-97354-442-0	01	1	0208-0411
70	STAY; RAD 4JH1 ENG(RJX)	8-97354-442-0	01	1	0412-0511
70	STAY; RAD 4JH1-TC ENG(RDM)	8-97354-442-0	01	1	0512-0610
70	STAY; RAD 4JJ1 ENG(LFB)	8-98018-940-0	01	1	0611-
79	GUIDE; FAN,RAD 4JJ1 ENG(LFB)	8-97387-081-1	01	1	0611-
80	BOLT; FAN GUIDE 4JH1 ENG(RJX) (A) M6X12 FLANGE	0-28080-612-0	04	1	0208-0211
80	BOLT; FAN GUIDE 4JH1 ENG(RJX) (A) M6X16 FLANGE	0-28080-616-0	04	1	0212-0411
80	BOLT; FAN GUIDE 4JH1 ENG(RJX) (A) M6X16 FLANGE	0-28080-616-0	04	1	0412-0511
80	BOLT; FAN GUIDE 4JH1-TC ENG(RDM) (A) M6X16 FLANGE	0-28080-616-0	04	1	0512-0610
80	BOLT; FAN GUIDE 4JJ1 ENG(LFB) (G) M8X130 FLANGE	0-28055-813-0	01	1	0611-
80	BOLT; FAN GUIDE 4JH1 ENG(RJX) (E) M8X20 FLANGE	0-28680-820-0	01	1	0208-0411
80	BOLT; FAN GUIDE 4JH1 ENG(RJX) (E) M8X20 FLANGE	0-28680-820-0	01	1	0412-0511
80	BOLT; FAN GUIDE 4JH1-TC ENG(RDM) (E) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
80	BOLT; FAN GUIDE 4JH1-TC ENG(RDM) (E) M8X20 FLANGE	0-28650-820-0	01	1	0601-0610
80	BOLT; FAN GUIDE 4JJ1 ENG(LFB) (H) M8X30 FLANGE	0-28650-830-0	03	1	0611-
80	BOLT; FAN GUIDE 4JH1 ENG(RJX) (B) M8X41 W/PL WASHER	8-97264-622-0	03	1	0208-0411
80	BOLT; FAN GUIDE 4JH1 ENG(RJX) (B) M8X41 W/PL WASHER	8-97264-622-0	03	1	0412-0511
80	BOLT; FAN GUIDE 4JH1-TC ENG(RDM) (B) M8X41 W/PL WASHER	8-97264-622-0	03	1	0512-0610
80	BOLT; FAN GUIDE 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) (C) M8X60 FLANGE	0-28080-860-0	01	1	0208-0411
80	BOLT; FAN GUIDE 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) (C) M8X60 FLANGE	0-28080-860-0	01	1	0412-0511
80	BOLT; FAN GUIDE 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) (C) M8X60 FLANGE	0-28080-860-0	01	1	0512-0512
80	BOLT; FAN GUIDE 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) (C) M8X60 FLANGE	0-28050-860-0	01	1	0601-0610
80	BOLT; FAN GUIDE 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) (D) M10X60 FLANGE	0-28081-060-0	01	1	0208-0411
80	BOLT; FAN GUIDE 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) (D) M10X60 FLANGE	0-28081-060-0	01	1	0412-0511
80	BOLT; FAN GUIDE 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) (D) M10X60 FLANGE	0-28081-060-0	01	1	0512-0512
80	BOLT; FAN GUIDE 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) (D) M10X60 FLANGE	0-28051-060-0	01	1	0601-0610
80	BOLT; FAN GUIDE 4JJ1 ENG(LFB) (I) M6X12	8-98039-672-0	02	1	0611-
80	BOLT; FAN GUIDE 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) (F) M10X25 FLANGE	0-28681-025-0	02	1	0208-0411
80	BOLT; FAN GUIDE 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) (F) M10X25 FLANGE	0-28681-025-0	02	1	0412-0511
80	BOLT; FAN GUIDE 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) (F) M10X25 FLANGE	0-28681-025-0	02	1	0512-0512
80	BOLT; FAN GUIDE 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) (F) M10X25 FLANGE	0-28651-025-0	02	1	0601-0610
82	COVER; FAN,RAD 4JH1 ENG(RJX)	8-97260-451-0	01	1	0208-0411
82	COVER; FAN,RAD 4JH1 ENG(RJX)	8-97260-451-0	01	1	0412-0511
82	COVER; FAN,RAD 4JH1-TC ENG(RDM)	8-97260-451-0	01	1	0512-0610
82	COVER; FAN,RAD 4JJ1 ENG(LFB)	8-97387-085-1	01	1	0611-
89	BOLT 4JJ1 ENG(LFB) (A) M8X12 FLANGE	0-28050-812-0	02	1	0611-
89	BOLT 4JJ1 ENG(LFB) (B) M8X25	1-21469-153-0	02	1	0611-
92	BRACKET; FAN GUIDE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D)	8-97319-478-0	01	1	0208-0411
92	BRACKET; FAN GUIDE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D)	8-97319-478-0	01	1	0412-0511
92	BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97319-478-0	01	1	0512-0610
92	BRACKET; FAN GUIDE 4JH1 ENG(RJX) (C) WHITE TAI	8-97967-331-0	01	1	0208-0411
92	BRACKET; FAN GUIDE 4JH1 ENG(RJX) (C) WHITE TAI	8-97967-331-0	01	1	0412-0511
92	BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (C) WHITE TAI	8-97967-331-0	01	1	0512-0610
92	BRACKET; FAN GUIDE 4JJ1 ENG(LFB) (F)	8-97381-550-1	01	1	0611-
92	BRACKET; FAN GUIDE 4JH1 ENG(RJX) (B) TAI	8-97967-332-1	01	1	0208-0411
92	BRACKET; FAN GUIDE 4JH1 ENG(RJX) (B) TAI	8-97967-332-1	01	1	0412-0511
92	BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (B) TAI	8-97967-332-1	01	1	0512-0610
92	BRACKET; FAN GUIDE 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) (E)	8-94478-881-1	01	1	0208-0411
92	BRACKET; FAN GUIDE 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) (E)	8-94478-881-1	01	1	0412-0511
92	BRACKET; FAN GUIDE 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-284-0	01	1	0208-0411
92	BRACKET; FAN GUIDE 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-284-0	01	1	0412-0511
92	BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-284-0	01	1	0512-0610
92	BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) (E)	8-94478-881-1	01	1	0512-0610
100	RUBBER; MTG 4JJ1 ENG(LFB)	8-98058-502-1	03	1	0701-
100	RUBBER; MTG 4JJ1 ENG(LFB)	1-09337-027-0	06	1	0611-0612
100	RUBBER; MTG 4JJ1 ENG(LFB)	8-94395-766-0	03	1	0701-
232	COLLAR; DIST,CUSHION RUBBER 4JJ1 ENG(LFB)	1-87410-723-0	02	1	0611-
267	RUBBER; CUSHION 4JJ1 ENG(LFB)	1-21467-023-0	02	1	0611-
297	WASHER; PL,FAN GUIDE 4JH1 ENG(RJX) ID=6.4 OD=18	9-09160-706-0	04	1	0208-0211
549	CLIP; SEAL,RAD 4JJ1 ENG(LFB)	8-97228-568-0	05	1	0611-

1 1 11 132 1 11 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	RADIATOR ASM TAI	8-97965-365-0	01	1	9701-9905
1	RADIATOR ASM 4JG2 ENG(RJC) TAI	8-97966-590-4	01	1	9906-0207
1	RADIATOR ASM 4JH1 ENG(RJX)	8-97354-444-1	01	1	0208-0211
1	RADIATOR ASM 4JH1 ENG(RJX)	8-97357-419-0	01	1	0212-0305
1	RADIATOR ASM 4JH1 ENG(RJX)	8-97370-181-0	01	1	0306-0411
1	RADIATOR ASM 4JH1 ENG(RJX)	8-97370-181-0	01	1	0412-0511
1	RADIATOR ASM 4JH1-TC ENG(RDM)	8-97370-181-0	01	1	0512-0610
1	RADIATOR ASM 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98018-953-3	01	1	0611-
1	RADIATOR ASM 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98018-952-2	01	1	0611-
131	CLIP; ENG SIDE TOP ID=42	5-09704-047-1	01	1	9701-9905
131	CLIP; ENG SIDE TOP 4JG2 ENG(RJC) ID=42	5-09704-047-1	01	1	9906-0207
131	CLIP; ENG SIDE TOP 4JH1 ENG(RJX) ID=42	5-09704-047-1	01	1	0208-0411
131	CLIP; ENG SIDE TOP 4JH1 ENG(RJX) ID=42	5-09704-047-1	01	1	0412-0511
131	CLIP; ENG SIDE TOP 4JH1-TC ENG(RDM) ID=42	5-09704-047-1	01	1	0512-0610
131	CLIP; ENG SIDE TOP 4JJ1 ENG(LFB) ID=48	5-09704-049-0	01	1	0611-
132	CLIP; HOSE,ENG SIDE BOTTOM 4JJ1 ENG(LFB) ID=48	5-09704-049-0	01	1	0611-
297	WASHER; PL,FAN GUIDE 4JH1 ENG(RJX) ID=6.4 OD=18	9-09160-706-0	04	1	0208-0211

92 131 80 92 243 80 92 80 532 80 92 421 92 1 11 80 2 80 80 27 1 21 16 305 62 82 2 51 52 51 70 85 242 1 35 25 242 482 91 25 204

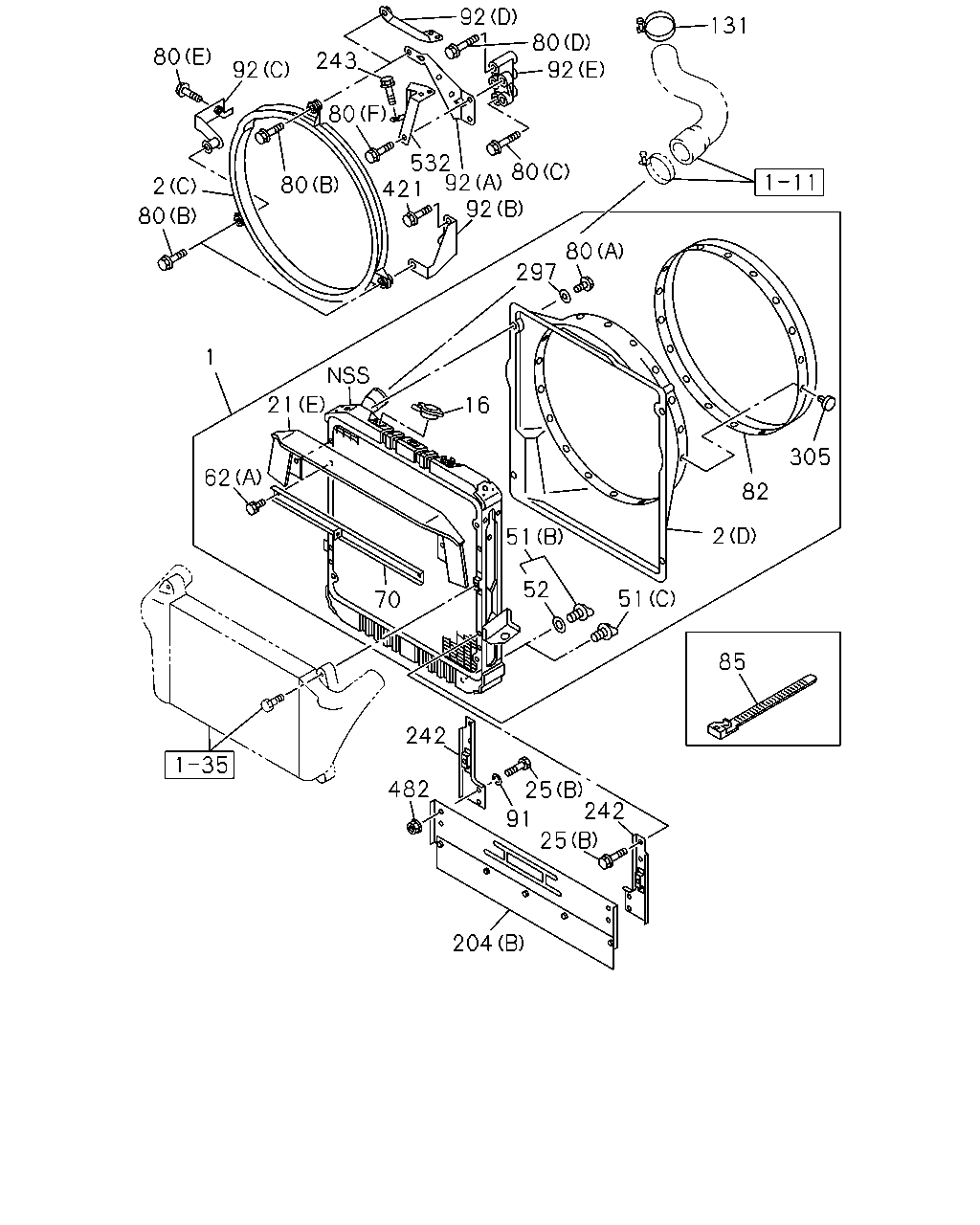

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	RADIATOR ASM TAI	8-97965-365-0	01	1	9701-9905
1	RADIATOR ASM 4JG2 ENG(RJC) TAI	8-97966-590-4	01	1	9906-0207
1	RADIATOR ASM 4JH1 ENG(RJX)	8-97354-444-1	01	1	0208-0211
1	RADIATOR ASM 4JH1 ENG(RJX)	8-97357-419-0	01	1	0212-0305
1	RADIATOR ASM 4JH1 ENG(RJX)	8-97370-181-0	01	1	0306-0411
1	RADIATOR ASM 4JH1 ENG(RJX)	8-97370-181-0	01	1	0412-0511
1	RADIATOR ASM 4JH1-TC ENG(RDM)	8-97370-181-0	01	1	0512-0610
1	RADIATOR ASM 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98018-953-3	01	1	0611-
1	RADIATOR ASM 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98018-952-2	01	1	0611-
2	GUIDE; FAN (A) TAI	8-97967-006-0	01	1	9701-9905
2	GUIDE; FAN 4JG2 ENG(RJC) (B) TAI	8-97967-007-0	01	1	9906-0207
2	GUIDE; FAN 4JH1 ENG(RJX) (C)	8-97287-037-2	01	1	0208-0411
2	GUIDE; FAN 4JH1 ENG(RJX) (C)	8-97287-037-2	01	1	0412-0511
2	GUIDE; FAN 4JH1-TC ENG(RDM) (C)	8-97287-037-2	01	1	0512-0610
2	GUIDE; FAN 4JJ1 ENG(LFB) (E)	8-97381-547-2	01	1	0611-0611
2	GUIDE; FAN 4JJ1 ENG(LFB) (E)	8-98054-659-0	01	1	0611-
2	GUIDE; FAN 4JH1 ENG(RJX) (D)	8-97314-778-0	01	1	0208-0211
2	GUIDE; FAN 4JH1 ENG(RJX) (D)	8-97350-179-0	01	1	0212-0411
2	GUIDE; FAN 4JH1 ENG(RJX) (D)	8-97350-179-0	01	1	0412-0511
2	GUIDE; FAN 4JH1-TC ENG(RDM) (D)	8-97350-179-0	01	1	0512-0610
16	CAP; RAD TAI	8-97967-012-0	01	1	9701-9905
16	CAP; RAD 4JG2 ENG(RJC) TAI	8-97967-012-0	01	1	9906-0207
16	CAP; RAD 4JH1 ENG(RJX)	8-97177-872-0	01	1	0208-0211
16	CAP; RAD 4JH1 ENG(RJX)	8-97239-187-0	01	1	0212-0411
16	CAP; RAD 4JH1 ENG(RJX)	8-97239-187-0	01	1	0412-0511
16	CAP; RAD 4JH1-TC ENG(RDM)	8-97239-187-0	01	1	0512-0610
16	CAP; RAD 4JJ1 ENG(LFB)	8-97239-187-0	01	1	0611-
21	SEAL; RAD (A) TAI	8-97967-008-0	01	1	9701-9905
21	SEAL; RAD 4JG2 ENG(RJC) (D) TAI	8-97222-103-1	01	1	9906-0011
21	SEAL; RAD 4JG2 ENG(RJC) (D) TAI	8-97222-103-1	01	1	0012-0207
21	SEAL; RAD 4JH1 ENG(RJX) (E)	8-97260-450-1	01	1	0208-0208
21	SEAL; RAD 4JH1 ENG(RJX) (E)	8-97260-449-3	01	1	0209-0211
21	SEAL; RAD 4JH1 ENG(RJX) (E)	8-97351-774-0	01	1	0212-0305
21	SEAL; RAD 4JH1 ENG(RJX) (E)	8-97370-182-0	01	1	0306-0411
21	SEAL; RAD 4JH1 ENG(RJX) (E)	8-97370-182-0	01	1	0412-0511
21	SEAL; RAD 4JH1-TC ENG(RDM) (E)	8-97370-182-0	01	1	0512-0610
21	SEAL; RAD 4JJ1 ENG(LFB) (F)	8-98000-813-1	01	1	0611-
21	SEAL; RAD (B) TAI	8-97967-009-0	02	1	9701-9905
21	SEAL; RAD (C) TAI	8-97967-010-0	02	1	9701-9905
25	BOLT; BRKT (A) M10X25 FLANGE	0-28081-025-0	02	1	9701-0411
25	BOLT; BRKT (A) M10X25 FLANGE	0-28081-025-0	02	1	0412-0512
25	BOLT; BRKT (A) M10X25 FLANGE	0-28051-025-0	02	1	0601-0610
25	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	02	1	0611-
25	BOLT; BRKT 4JH1 ENG(RJX) (B) M6X12 FLANGE	0-28080-612-0	04	1	0208-0411
25	BOLT; BRKT 4JH1 ENG(RJX) (B) M6X12 FLANGE	0-28080-612-0	04	1	0412-0511
25	BOLT; BRKT 4JH1-TC ENG(RDM) (B) M6X12 FLANGE	0-28080-612-0	04	1	0512-0610
25	BOLT; BRKT 4JJ1 ENG(LFB) (B) M6X12 FLANGE	0-28050-612-0	04	1	0611-
27	BUFFER; RAD,UPR TAI	8-97965-423-0	02	1	9701-0411
27	BUFFER; RAD,UPR TAI	8-97965-423-0	02	1	0412-
51	PLUG; DRAIN (A) TAI	8-97967-014-0	01	1	9701-9905
51	PLUG; DRAIN 4JG2 ENG(RJC) (A) TAI	8-97967-014-0	01	1	9906-0207
51	PLUG; DRAIN 4JH1 ENG(RJX) (B)	8-94321-236-0	01	1	0208-0211
51	PLUG; DRAIN 4JH1 ENG(RJX) (C) W/GASKET	8-97171-437-0	01	1	0212-0411
51	PLUG; DRAIN 4JH1 ENG(RJX) (C) W/GASKET	8-97171-437-0	01	1	0412-0511
51	PLUG; DRAIN 4JH1-TC ENG(RDM) (C) W/GASKET	8-97171-437-0	01	1	0512-0610
51	PLUG; DRAIN 4JJ1 ENG(LFB) (C) W/GASKET	8-97171-437-0	01	1	0611-
52	GASKET; DRAIN PLUG 4JH1 ENG(RJX) ID=10	9-09720-557-0	01	1	0208-0211
62	BOLT; STAY (B) M8X45	8-94401-350-0	01	1	9701-0411
62	BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0412-
62	BOLT; STAY (A) TAI	8-97967-015-0	02	1	9701-9905
62	BOLT; STAY 4JG2 ENG(RJC) (A) TAI	8-97967-015-0	02	1	9906-0207
62	BOLT; STAY 4JH1 ENG(RJX) (A) M8X12 FLANGE	0-28080-812-0	02	1	0208-0411
62	BOLT; STAY 4JH1 ENG(RJX) (A) M8X12 FLANGE	0-28080-812-0	02	1	0412-0511
62	BOLT; STAY 4JH1-TC ENG(RDM) (A) M8X12 FLANGE	0-28080-812-0	02	1	0512-0610
62	BOLT; STAY 4JJ1 ENG(LFB) (A) M8X12 FLANGE	0-28050-812-0	02	1	0611-
70	STAY; RAD TAI	8-97967-013-0	01	1	9701-9905
70	STAY; RAD 4JG2 ENG(RJC) TAI	8-97967-013-0	01	1	9906-0207
70	STAY; RAD 4JH1 ENG(RJX)	8-97354-442-0	01	1	0208-0411
70	STAY; RAD 4JH1 ENG(RJX)	8-97354-442-0	01	1	0412-0511
70	STAY; RAD 4JH1-TC ENG(RDM)	8-97354-442-0	01	1	0512-0610
70	STAY; RAD 4JJ1 ENG(LFB)	8-98018-940-0	01	1	0611-
80	BOLT; FAN GUIDE 4JH1 ENG(RJX) (A) M6X12 FLANGE	0-28080-612-0	04	1	0208-0211
80	BOLT; FAN GUIDE 4JH1 ENG(RJX) (A) M6X16 FLANGE	0-28080-616-0	04	1	0212-0411
80	BOLT; FAN GUIDE 4JH1 ENG(RJX) (A) M6X16 FLANGE	0-28080-616-0	04	1	0412-0511
80	BOLT; FAN GUIDE 4JH1-TC ENG(RDM) (A) M6X16 FLANGE	0-28080-616-0	04	1	0512-0610
80	BOLT; FAN GUIDE 4JJ1 ENG(LFB) (G) M8X130 FLANGE	0-28055-813-0	01	1	0611-
80	BOLT; FAN GUIDE 4JH1 ENG(RJX) (E) M8X20 FLANGE	0-28680-820-0	01	1	0208-0411
80	BOLT; FAN GUIDE 4JH1 ENG(RJX) (E) M8X20 FLANGE	0-28680-820-0	01	1	0412-0511
80	BOLT; FAN GUIDE 4JH1-TC ENG(RDM) (E) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
80	BOLT; FAN GUIDE 4JH1-TC ENG(RDM) (E) M8X20 FLANGE	0-28650-820-0	01	1	0601-0610
80	BOLT; FAN GUIDE 4JJ1 ENG(LFB) (H) M8X30 FLANGE	0-28650-830-0	03	1	0611-
80	BOLT; FAN GUIDE 4JH1 ENG(RJX) (B) M8X41 W/PL WASHER	8-97264-622-0	03	1	0208-0411
80	BOLT; FAN GUIDE 4JH1 ENG(RJX) (B) M8X41 W/PL WASHER	8-97264-622-0	03	1	0412-0511
80	BOLT; FAN GUIDE 4JH1-TC ENG(RDM) (B) M8X41 W/PL WASHER	8-97264-622-0	03	1	0512-0610
80	BOLT; FAN GUIDE 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) (C) M8X60 FLANGE	0-28080-860-0	01	1	0208-0411
80	BOLT; FAN GUIDE 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) (C) M8X60 FLANGE	0-28080-860-0	01	1	0412-0511
80	BOLT; FAN GUIDE 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) (C) M8X60 FLANGE	0-28080-860-0	01	1	0512-0512
80	BOLT; FAN GUIDE 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) (C) M8X60 FLANGE	0-28050-860-0	01	1	0601-0610
80	BOLT; FAN GUIDE 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) (D) M10X60 FLANGE	0-28081-060-0	01	1	0208-0411
80	BOLT; FAN GUIDE 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) (D) M10X60 FLANGE	0-28081-060-0	01	1	0412-0511
80	BOLT; FAN GUIDE 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) (D) M10X60 FLANGE	0-28081-060-0	01	1	0512-0512
80	BOLT; FAN GUIDE 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) (D) M10X60 FLANGE	0-28051-060-0	01	1	0601-0610
80	BOLT; FAN GUIDE 4JJ1 ENG(LFB) (I) M6X12	8-98039-672-0	02	1	0611-
80	BOLT; FAN GUIDE 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) (F) M10X25 FLANGE	0-28681-025-0	02	1	0208-0411
80	BOLT; FAN GUIDE 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) (F) M10X25 FLANGE	0-28681-025-0	02	1	0412-0511
80	BOLT; FAN GUIDE 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) (F) M10X25 FLANGE	0-28681-025-0	02	1	0512-0512
80	BOLT; FAN GUIDE 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) (F) M10X25 FLANGE	0-28651-025-0	02	1	0601-0610
82	COVER; FAN,RAD 4JH1 ENG(RJX)	8-97260-451-0	01	1	0208-0411
82	COVER; FAN,RAD 4JH1 ENG(RJX)	8-97260-451-0	01	1	0412-0511
82	COVER; FAN,RAD 4JH1-TC ENG(RDM)	8-97260-451-0	01	1	0512-0610
82	COVER; FAN,RAD 4JJ1 ENG(LFB)	8-97387-085-1	01	1	0611-
85	CLIP 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) L=140	5-09707-031-1	01	1	0208-0411
85	CLIP 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) L=140	5-09707-031-1	01	1	0412-0511
85	CLIP 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) L=140	5-09707-031-1	01	1	0512-0610
91	WASHER; PL 4JH1 ENG(RJX) ID=6.4 OD=18	9-09160-706-0	04	1	0208-0411
91	WASHER; PL 4JH1 ENG(RJX) ID=6.4 OD=18	9-09160-706-0	04	1	0412-0511
91	WASHER; PL 4JH1-TC ENG(RDM) ID=6.4 OD=18	9-09160-706-0	04	1	0512-0605
91	WASHER; PL 4JH1-TC ENG(RDM) ID=6.4 OD=18	0-91610-706-0	04	1	0606-0610

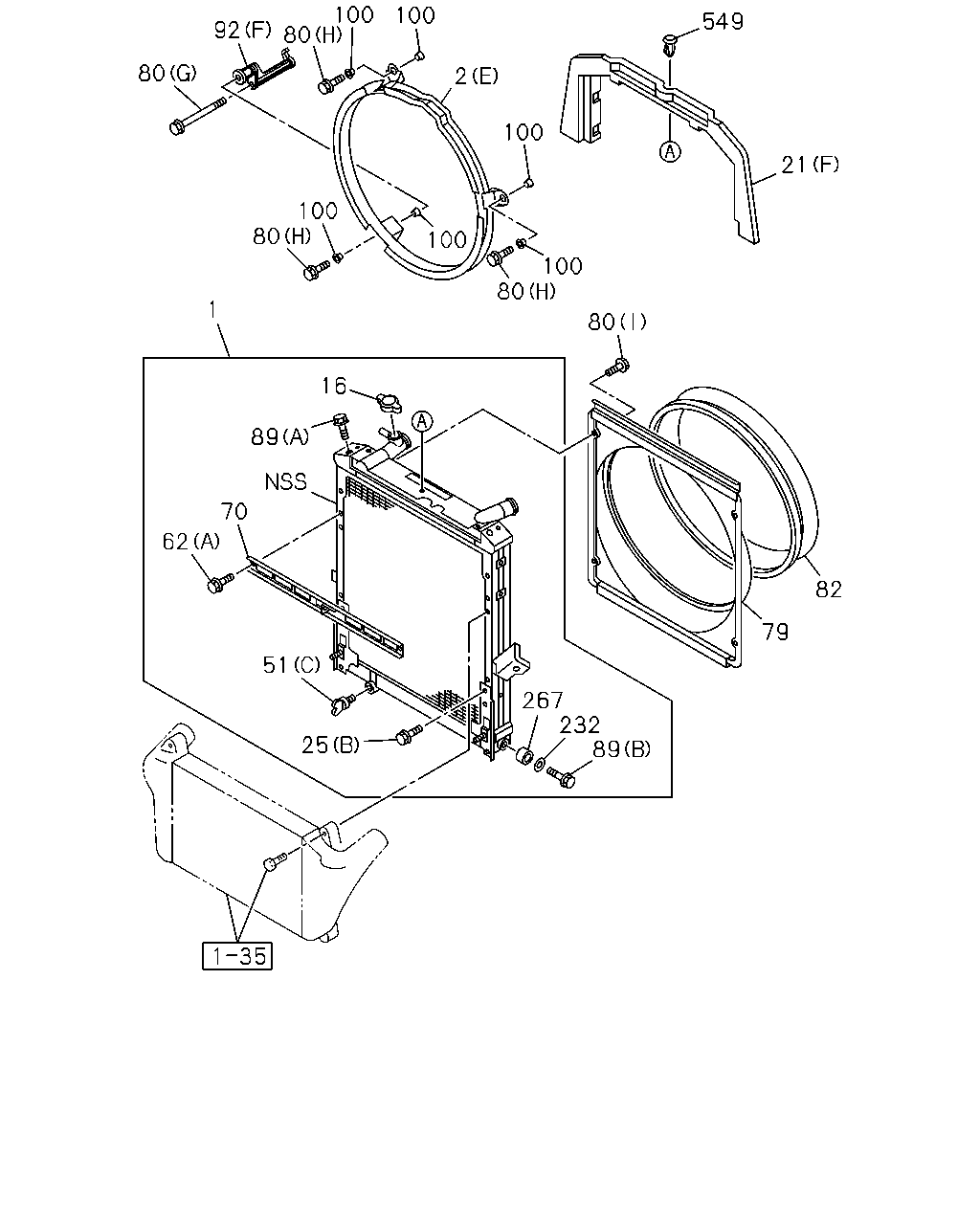

92	BRACKET; FAN GUIDE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D)	8-97319-478-0	01	1	0208-0411
92	BRACKET; FAN GUIDE AIR CONDITIONER MANUAL CONT(C60) 4JH1 ENG(RJX) (D)	8-97319-478-0	01	1	0412-0511
92	BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97319-478-0	01	1	0512-0610
92	BRACKET; FAN GUIDE 4JH1 ENG(RJX) (C) WHITE TAI	8-97967-331-0	01	1	0208-0411
92	BRACKET; FAN GUIDE 4JH1 ENG(RJX) (C) WHITE TAI	8-97967-331-0	01	1	0412-0511
92	BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (C) WHITE TAI	8-97967-331-0	01	1	0512-0610
92	BRACKET; FAN GUIDE 4JJ1 ENG(LFB) (F)	8-97381-550-1	01	1	0611-
92	BRACKET; FAN GUIDE 4JH1 ENG(RJX) (B) TAI	8-97967-332-1	01	1	0208-0411
92	BRACKET; FAN GUIDE 4JH1 ENG(RJX) (B) TAI	8-97967-332-1	01	1	0412-0511
92	BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (B) TAI	8-97967-332-1	01	1	0512-0610
92	BRACKET; FAN GUIDE 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) (E)	8-94478-881-1	01	1	0208-0411
92	BRACKET; FAN GUIDE 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) (E)	8-94478-881-1	01	1	0412-0511
92	BRACKET; FAN GUIDE 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-284-0	01	1	0208-0411
92	BRACKET; FAN GUIDE 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-284-0	01	1	0412-0511
92	BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97967-284-0	01	1	0512-0610
92	BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) (E)	8-94478-881-1	01	1	0512-0610
131	CLIP; ENG SIDE TOP ID=42	5-09704-047-1	01	1	9701-9905
131	CLIP; ENG SIDE TOP 4JG2 ENG(RJC) ID=42	5-09704-047-1	01	1	9906-0207
131	CLIP; ENG SIDE TOP 4JH1 ENG(RJX) ID=42	5-09704-047-1	01	1	0208-0411
131	CLIP; ENG SIDE TOP 4JH1 ENG(RJX) ID=42	5-09704-047-1	01	1	0412-0511
131	CLIP; ENG SIDE TOP 4JH1-TC ENG(RDM) ID=42	5-09704-047-1	01	1	0512-0610
131	CLIP; ENG SIDE TOP 4JJ1 ENG(LFB) ID=48	5-09704-049-0	01	1	0611-
204	GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60) (A) TAI	8-97965-498-0	01	1	9701-9905
204	GUIDE ASM; AIR 4JH1 ENG(RJX) (B)	8-97260-121-0	01	1	0208-0411
204	GUIDE ASM; AIR 4JH1 ENG(RJX) (B)	8-97260-121-0	01	1	0412-0511
204	GUIDE ASM; AIR 4JH1-TC ENG(RDM) (B)	8-97260-121-0	01	1	0512-0610
204	GUIDE ASM; AIR 4JJ1 ENG(LFB) (C)	8-97383-928-1	01	1	0611-
242	BRACKET; RAD 4JH1 ENG(RJX)	8-97260-453-0	01	1	0208-0411
242	BRACKET; RAD 4JH1 ENG(RJX)	8-97260-453-0	01	1	0412-0511
242	BRACKET; RAD 4JH1-TC ENG(RDM)	8-97260-453-0	01	1	0512-0610
242	BRACKET; RAD 4JH1 ENG(RJX)	8-97260-452-0	01	1	0208-0411
242	BRACKET; RAD 4JH1 ENG(RJX)	8-97260-452-0	01	1	0412-0511
242	BRACKET; RAD 4JH1-TC ENG(RDM)	8-97260-452-0	01	1	0512-0610
243	BOLT; BRKT 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28080-816-0	01	1	0208-0411
243	BOLT; BRKT 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28080-816-0	01	1	0412-0511
243	BOLT; BRKT 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28080-816-0	01	1	0512-0512
243	BOLT; BRKT 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28050-816-0	01	1	0601-0610
297	WASHER; PL,FAN GUIDE 4JH1 ENG(RJX) ID=6.4 OD=18	9-09160-706-0	04	1	0208-0211
305	CLIP; FAN COVER TO FAN GUIDE 4JH1 ENG(RJX)	1-09470-009-0	12	1	0208-0411
305	CLIP; FAN COVER TO FAN GUIDE 4JH1 ENG(RJX)	1-09470-009-0	12	1	0412-0511
305	CLIP; FAN COVER TO FAN GUIDE 4JH1-TC ENG(RDM)	1-09470-009-0	12	1	0512-0610
421	BOLT; BRKT FAN GUIDE 4JH1 ENG(RJX) M8X80 FLANGE	0-28080-880-0	02	1	0208-0411
421	BOLT; BRKT FAN GUIDE 4JH1 ENG(RJX) M8X80 FLANGE	0-28080-880-0	02	1	0412-0511
421	BOLT; BRKT FAN GUIDE 4JH1-TC ENG(RDM) M8X80 FLANGE	0-28080-880-0	02	1	0512-0512
421	BOLT; BRKT FAN GUIDE 4JH1-TC ENG(RDM) M8X80 FLANGE	0-28050-880-0	02	1	0601-0610
482	NUT; AIR GUIDE 4JH1 ENG(RJX) M6 FLANGE	0-91150-106-0	04	1	0208-0411
482	NUT; AIR GUIDE 4JH1 ENG(RJX) M6 FLANGE	0-91150-106-0	04	1	0412-0511
482	NUT; AIR GUIDE 4JH1-TC ENG(RDM) M6 FLANGE	0-91150-106-0	04	1	0512-0602
482	NUT; AIR GUIDE 4JH1-TC ENG(RDM) M6 FLANGE	0-91180-106-0	04	1	0603-0610
482	NUT; AIR GUIDE 4JJ1 ENG(LFB) M8 FLANGE	0-91180-108-0	02	1	0611-
532	BRACKET; HEATER PIPE 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97302-265-1	01	1	0208-0411
532	BRACKET; HEATER PIPE 4JH1 ENG(RJX) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97302-265-1	01	1	0412-0511
532	BRACKET; HEATER PIPE 4JH1-TC ENG(RDM) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97302-265-1	01	1	0512-0610

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
