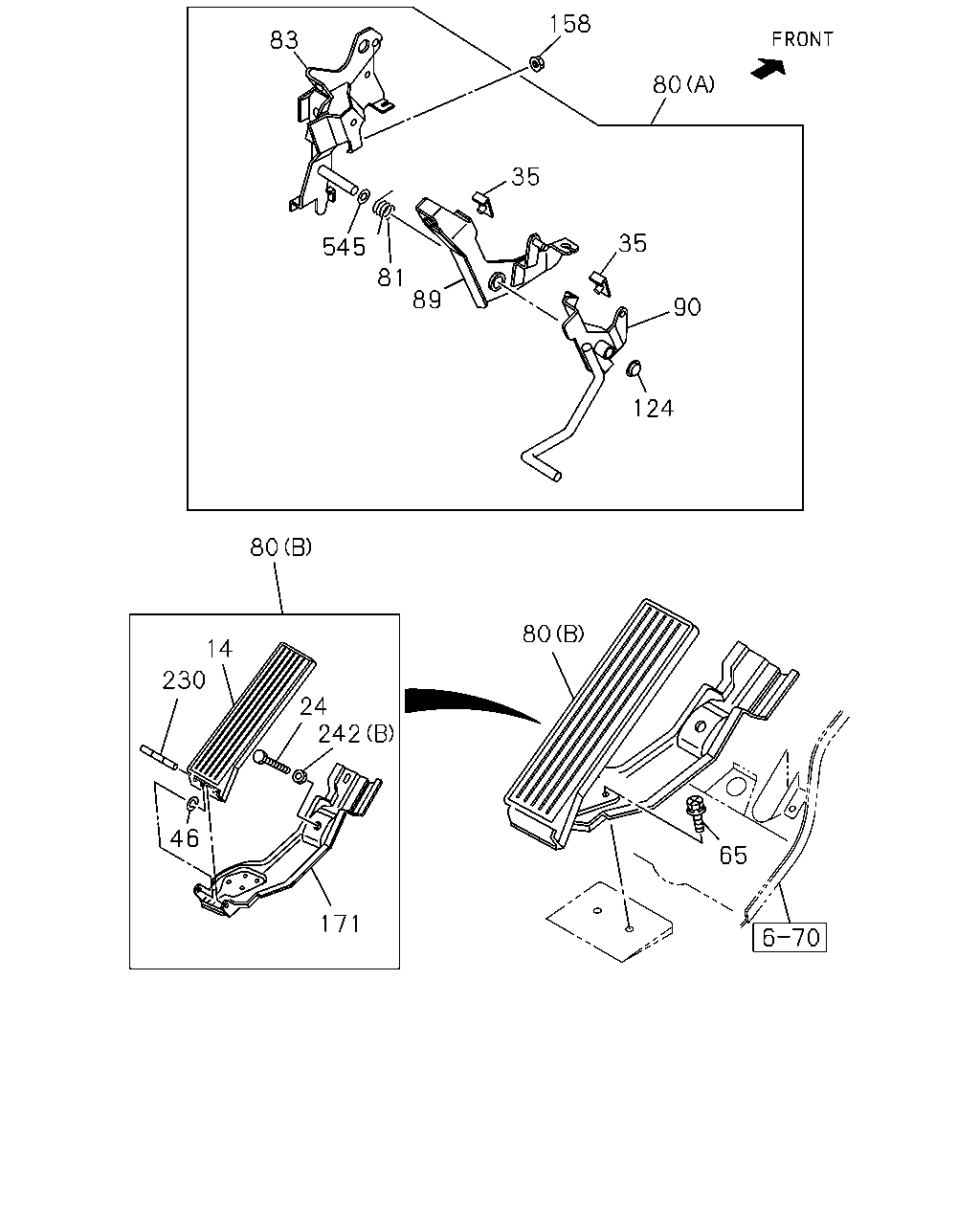

1-01 — ACCELERATOR PEDAL AND CONTROL (#139041) — 159 parça

158 83 80 35 35 545 81 89 90 124 80 80 14 230 24 242 46 65 171 6 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	PAD; PEDAL,ACCEL	8-97859-101-0	01	1	9701-0411
14	PAD; PEDAL,ACCEL	8-97859-101-0	01	1	0412-
24	BOLT; BRKT	0-20800-840-0	01	1	9701-0411
24	BOLT; BRKT	0-20800-840-0	01	1	0412-
35	STOPPER; ACCEL PEDAL	8-97857-401-1	02	1	9701-0012
35	STOPPER; ACCEL PEDAL	8-97302-305-0	02	1	0101-0207
46	RING; SNAP,ACCEL CONT PEDAL ID=4	9-09185-404-0	01	1	9701-0411
46	RING; SNAP,ACCEL CONT PEDAL ID=4	9-09185-404-0	01	1	0412-0604
46	RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-
65	BOLT M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	9701-0411
65	BOLT M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	0412-
70	NUT; CONT CABLE M18	8-97853-233-0	01	1	9701-0207
80	LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	9701-0411
80	LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	0412-
80	LINK ASM; ENG CONT (A)	8-97859-518-3	01	1	9701-0207
80	LINK ASM; ENG CONT 4JH1 ENG(RJX) (C)	8-97994-589-4	01	1	0208-0411
80	LINK ASM; ENG CONT 4JH1 ENG(RJX) (C)	8-97994-589-5	01	1	0412-0511
80	LINK ASM; ENG CONT 4JH1-TC ENG(RDM) (C)	8-97994-589-5	01	1	0512-0610
80	LINK ASM; ENG CONT 4JJ1 ENG(LFB) (C)	8-98032-148-1	01	1	0611-
81	SPRING; RETURN,ENG CONT LEVER TAI	8-97853-205-1	01	1	9701-0207
81	SPRING; RETURN,ENG CONT LEVER 4JH1 ENG(RJX) TAI	8-97853-205-1	01	1	0208-0411
81	SPRING; RETURN,ENG CONT LEVER 4JH1 ENG(RJX) TAI	8-97853-205-1	01	1	0412-0511
81	SPRING; RETURN,ENG CONT LEVER 4JH1-TC ENG(RDM) TAI	8-97853-205-1	01	1	0512-0610
81	SPRING; RETURN,ENG CONT LEVER 4JJ1 ENG(LFB) TAI	8-97853-205-1	01	1	0611-
83	BRACKET; CONT LINK	8-97859-519-0	01	1	9701-0207
83	BRACKET; CONT LINK 4JH1 ENG(RJX)	8-97994-592-3	01	1	0208-0411
83	BRACKET; CONT LINK 4JH1 ENG(RJX)	8-97994-592-4	01	1	0412-0511
83	BRACKET; CONT LINK 4JH1-TC ENG(RDM)	8-97994-592-4	01	1	0512-0610
83	BRACKET; CONT LINK 4JJ1 ENG(LFB)	8-98032-263-1	01	1	0611-
89	LEVER; RELAY	8-97857-617-4	01	1	9701-0207
90	LEVER; RELAY,ENG CONT	8-97857-613-6	01	1	9701-0207
90	LEVER; RELAY,ENG CONT 4JH1 ENG(RJX)	8-97994-590-2	01	1	0208-0411
90	LEVER; RELAY,ENG CONT 4JH1 ENG(RJX)	8-97994-590-3	01	1	0412-0511
90	LEVER; RELAY,ENG CONT 4JH1-TC ENG(RDM)	8-97994-590-3	01	1	0512-0610
90	LEVER; RELAY,ENG CONT 4JJ1 ENG(LFB)	8-97994-590-3	01	1	0611-
124	NUT; LEVER ID=9.9 PUSH NUT	8-97012-098-0	01	1	9701-0207
124	NUT; LEVER 4JH1 ENG(RJX) ID=9.9 PUSH NUT	8-97012-098-0	01	1	0208-0411
124	NUT; LEVER 4JH1 ENG(RJX) ID=9.9 PUSH NUT	8-97012-098-0	01	1	0412-0511
124	NUT; LEVER 4JH1-TC ENG(RDM) ID=9.9 PUSH NUT	8-97012-098-0	01	1	0512-0610
124	NUT; LEVER 4JJ1 ENG(LFB) ID=9.9 PUSH NUT	8-97012-098-0	01	1	0611-
158	NUT; BRKT M8 FLANGE	8-94279-060-0	02	1	9701-0411
158	NUT; BRKT M8 FLANGE	8-94279-060-0	02	1	0412-
171	BRACKET ASM; ACCEL PEDAL	8-97857-482-1	01	1	9701-0411
171	BRACKET ASM; ACCEL PEDAL	8-97857-482-1	01	1	0412-
230	PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	9701-0411
230	PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0412-
242	NUT; ACCEL PEDAL (B) M8	9-09110-408-0	01	1	9701-0411
242	NUT; ACCEL PEDAL (B) M8	9-09110-408-0	01	1	0412-0512
242	NUT; ACCEL PEDAL (B) M8	0-91110-508-0	01	1	0601-
242	NUT; ACCEL PEDAL 4JH1 ENG(RJX) (A) M6 W/DISHED WASHER	8-94423-325-0	01	1	0208-0411
242	NUT; ACCEL PEDAL 4JH1 ENG(RJX) (A) M6 W/DISHED WASHER	8-94423-325-0	01	1	0412-0511
242	NUT; ACCEL PEDAL 4JH1-TC ENG(RDM) (A) M6 W/DISHED WASHER	8-94423-325-0	01	1	0512-0610
242	NUT; ACCEL PEDAL 4JJ1 ENG(LFB) (A) M6 W/DISHED WASHER	8-94423-325-0	01	1	0611-
545	WASHER; NYLON ID=10.5 OD=16	9-09855-178-0	01	1	9701-0207

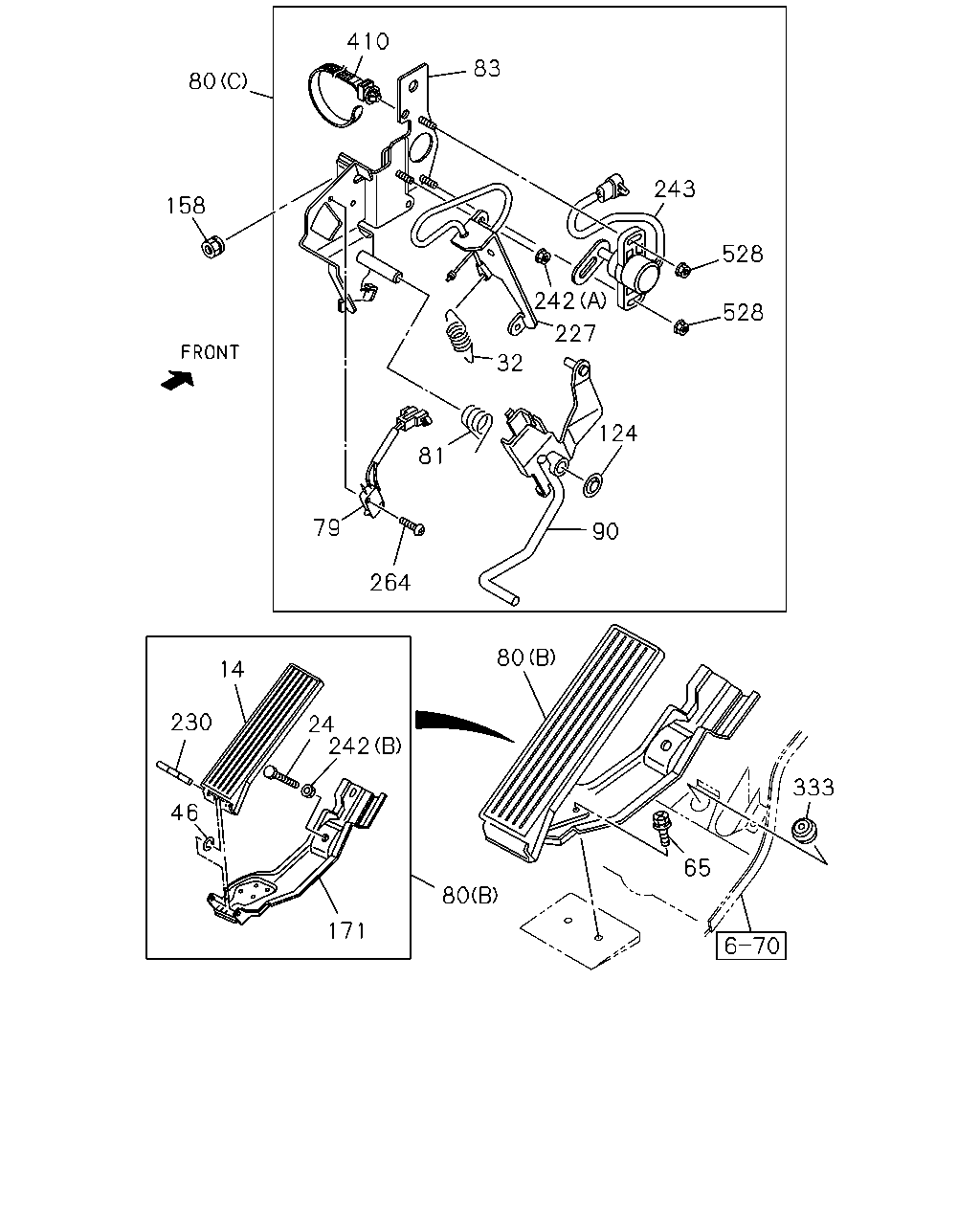

410 83 80 243 158 528 242 528 227 32 124 81 79 90 264 80 14 230 24 242 333 46 65 80 171 6 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	PAD; PEDAL,ACCEL	8-97859-101-0	01	1	9701-0411
14	PAD; PEDAL,ACCEL	8-97859-101-0	01	1	0412-
24	BOLT; BRKT	0-20800-840-0	01	1	9701-0411
24	BOLT; BRKT	0-20800-840-0	01	1	0412-
32	SPRING; RETURN,ACCEL PEDAL 4JH1 ENG(RJX)	1-71907-268-0	01	1	0208-0208
32	SPRING; RETURN,ACCEL PEDAL 4JH1 ENG(RJX)	8-97997-917-0	01	1	0209-0411
32	SPRING; RETURN,ACCEL PEDAL 4JH1 ENG(RJX)	8-97997-917-0	01	1	0412-0511
32	SPRING; RETURN,ACCEL PEDAL 4JH1-TC ENG(RDM)	8-97997-917-0	01	1	0512-0610
32	SPRING; RETURN,ACCEL PEDAL 4JJ1 ENG(LFB)	8-97997-917-0	01	1	0611-
46	RING; SNAP,ACCEL CONT PEDAL ID=4	9-09185-404-0	01	1	9701-0411
46	RING; SNAP,ACCEL CONT PEDAL ID=4	9-09185-404-0	01	1	0412-0604
46	RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-
65	BOLT M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	9701-0411
65	BOLT M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	0412-
70	NUT; CONT CABLE M18	8-97853-233-0	01	1	9701-0207
79	SWITCH; ACCEL PEDAL 4JH1 ENG(RJX)	8-97224-056-0	01	1	0208-0411
79	SWITCH; ACCEL PEDAL 4JH1 ENG(RJX)	8-97224-056-0	01	1	0412-0511
79	SWITCH; ACCEL PEDAL 4JH1-TC ENG(RDM)	8-97224-056-0	01	1	0512-0610
80	LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	9701-0411
80	LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	0412-
80	LINK ASM; ENG CONT (A)	8-97859-518-3	01	1	9701-0207
80	LINK ASM; ENG CONT 4JH1 ENG(RJX) (C)	8-97994-589-4	01	1	0208-0411
80	LINK ASM; ENG CONT 4JH1 ENG(RJX) (C)	8-97994-589-5	01	1	0412-0511
80	LINK ASM; ENG CONT 4JH1-TC ENG(RDM) (C)	8-97994-589-5	01	1	0512-0610
80	LINK ASM; ENG CONT 4JJ1 ENG(LFB) (C)	8-98032-148-1	01	1	0611-
81	SPRING; RETURN,ENG CONT LEVER TAI	8-97853-205-1	01	1	9701-0207
81	SPRING; RETURN,ENG CONT LEVER 4JH1 ENG(RJX) TAI	8-97853-205-1	01	1	0208-0411
81	SPRING; RETURN,ENG CONT LEVER 4JH1 ENG(RJX) TAI	8-97853-205-1	01	1	0412-0511
81	SPRING; RETURN,ENG CONT LEVER 4JH1-TC ENG(RDM) TAI	8-97853-205-1	01	1	0512-0610
81	SPRING; RETURN,ENG CONT LEVER 4JJ1 ENG(LFB) TAI	8-97853-205-1	01	1	0611-
83	BRACKET; CONT LINK	8-97859-519-0	01	1	9701-0207
83	BRACKET; CONT LINK 4JH1 ENG(RJX)	8-97994-592-3	01	1	0208-0411
83	BRACKET; CONT LINK 4JH1 ENG(RJX)	8-97994-592-4	01	1	0412-0511
83	BRACKET; CONT LINK 4JH1-TC ENG(RDM)	8-97994-592-4	01	1	0512-0610
83	BRACKET; CONT LINK 4JJ1 ENG(LFB)	8-98032-263-1	01	1	0611-
90	LEVER; RELAY,ENG CONT	8-97857-613-6	01	1	9701-0207
90	LEVER; RELAY,ENG CONT 4JH1 ENG(RJX)	8-97994-590-2	01	1	0208-0411
90	LEVER; RELAY,ENG CONT 4JH1 ENG(RJX)	8-97994-590-3	01	1	0412-0511
90	LEVER; RELAY,ENG CONT 4JH1-TC ENG(RDM)	8-97994-590-3	01	1	0512-0610
90	LEVER; RELAY,ENG CONT 4JJ1 ENG(LFB)	8-97994-590-3	01	1	0611-
124	NUT; LEVER ID=9.9 PUSH NUT	8-97012-098-0	01	1	9701-0207
124	NUT; LEVER 4JH1 ENG(RJX) ID=9.9 PUSH NUT	8-97012-098-0	01	1	0208-0411
124	NUT; LEVER 4JH1 ENG(RJX) ID=9.9 PUSH NUT	8-97012-098-0	01	1	0412-0511
124	NUT; LEVER 4JH1-TC ENG(RDM) ID=9.9 PUSH NUT	8-97012-098-0	01	1	0512-0610
124	NUT; LEVER 4JJ1 ENG(LFB) ID=9.9 PUSH NUT	8-97012-098-0	01	1	0611-
158	NUT; BRKT M8 FLANGE	8-94279-060-0	02	1	9701-0411
158	NUT; BRKT M8 FLANGE	8-94279-060-0	02	1	0412-
171	BRACKET ASM; ACCEL PEDAL	8-97857-482-1	01	1	9701-0411
171	BRACKET ASM; ACCEL PEDAL	8-97857-482-1	01	1	0412-
227	CABLE ASM; RETURN,ACCEL PEDAL 4JH1 ENG(RJX)	8-97892-203-5	01	1	0208-0411
227	CABLE ASM; RETURN,ACCEL PEDAL 4JH1 ENG(RJX)	8-97892-203-5	01	1	0412-0511
227	CABLE ASM; RETURN,ACCEL PEDAL 4JH1-TC ENG(RDM)	8-97892-203-5	01	1	0512-0610
227	CABLE ASM; RETURN,ACCEL PEDAL 4JJ1 ENG(LFB)	8-97892-203-5	01	1	0611-
230	PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	9701-0411
230	PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0412-
242	NUT; ACCEL PEDAL (B) M8	9-09110-408-0	01	1	9701-0411
242	NUT; ACCEL PEDAL (B) M8	9-09110-408-0	01	1	0412-0512
242	NUT; ACCEL PEDAL (B) M8	0-91110-508-0	01	1	0601-
242	NUT; ACCEL PEDAL 4JH1 ENG(RJX) (A) M6 W/DISHED WASHER	8-94423-325-0	01	1	0208-0411
242	NUT; ACCEL PEDAL 4JH1 ENG(RJX) (A) M6 W/DISHED WASHER	8-94423-325-0	01	1	0412-0511
242	NUT; ACCEL PEDAL 4JH1-TC ENG(RDM) (A) M6 W/DISHED WASHER	8-94423-325-0	01	1	0512-0610
242	NUT; ACCEL PEDAL 4JJ1 ENG(LFB) (A) M6 W/DISHED WASHER	8-94423-325-0	01	1	0611-
243	SENSOR; ACCEL 4JH1 ENG(RJX)	8-97305-922-0	01	1	0208-0411
243	SENSOR; ACCEL 4JH1 ENG(RJX)	8-97305-922-0	01	1	0412-0511
243	SENSOR; ACCEL 4JH1-TC ENG(RDM)	8-97305-922-0	01	1	0512-0610
243	SENSOR; ACCEL 4JJ1 ENG(LFB)	8-97384-127-1	01	1	0611-
264	SCREW; ACCEL SW 4JH1 ENG(RJX) M3X16 TAPPING	0-71280-316-0	02	1	0208-0411
264	SCREW; ACCEL SW 4JH1 ENG(RJX) M3X16 TAPPING	0-71280-316-0	02	1	0412-0511
264	SCREW; ACCEL SW 4JH1-TC ENG(RDM) M3X16 TAPPING	0-71280-316-0	02	1	0512-0603
264	SCREW; ACCEL SW 4JH1-TC ENG(RDM) M3X16 TAPPING	0-71340-316-0	02	1	0604-0610
333	GROMMET; HOLE,CABLE 4JH1 ENG(RJX) OD=24.5 T=7.5	8-97224-683-0	01	1	0208-0411
333	GROMMET; HOLE,CABLE 4JH1 ENG(RJX) OD=24.5 T=7.5	8-97224-683-0	01	1	0412-0511
333	GROMMET; HOLE,CABLE 4JH1-TC ENG(RDM) OD=24.5 T=7.5	8-97224-683-0	01	1	0512-0610
333	GROMMET; HOLE,CABLE 4JJ1 ENG(LFB) OD=24.5 T=7.5	8-97224-683-0	01	1	0611-
410	CLIP; BAND 4JJ1 ENG(LFB) L=155 TAI	8-97173-307-0	01	1	0611-
528	NUT; ACCEL SENSOR 4JH1 ENG(RJX) M6 W/DISHED WASHER	8-94423-325-0	02	1	0208-0411
528	NUT; ACCEL SENSOR 4JH1 ENG(RJX) M6 W/DISHED WASHER	8-94423-325-0	02	1	0412-0511
528	NUT; ACCEL SENSOR 4JH1-TC ENG(RDM) M6 W/DISHED WASHER	8-94423-325-0	02	1	0512-0610
528	NUT; ACCEL SENSOR 4JJ1 ENG(LFB) M5	8-94169-022-0	02	1	0611-

8 45 4 35 61 54 60 320 395

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
35	STOPPER; ACCEL PEDAL	8-97857-401-1	02	1	9701-0012
35	STOPPER; ACCEL PEDAL	8-97302-305-0	02	1	0101-0207

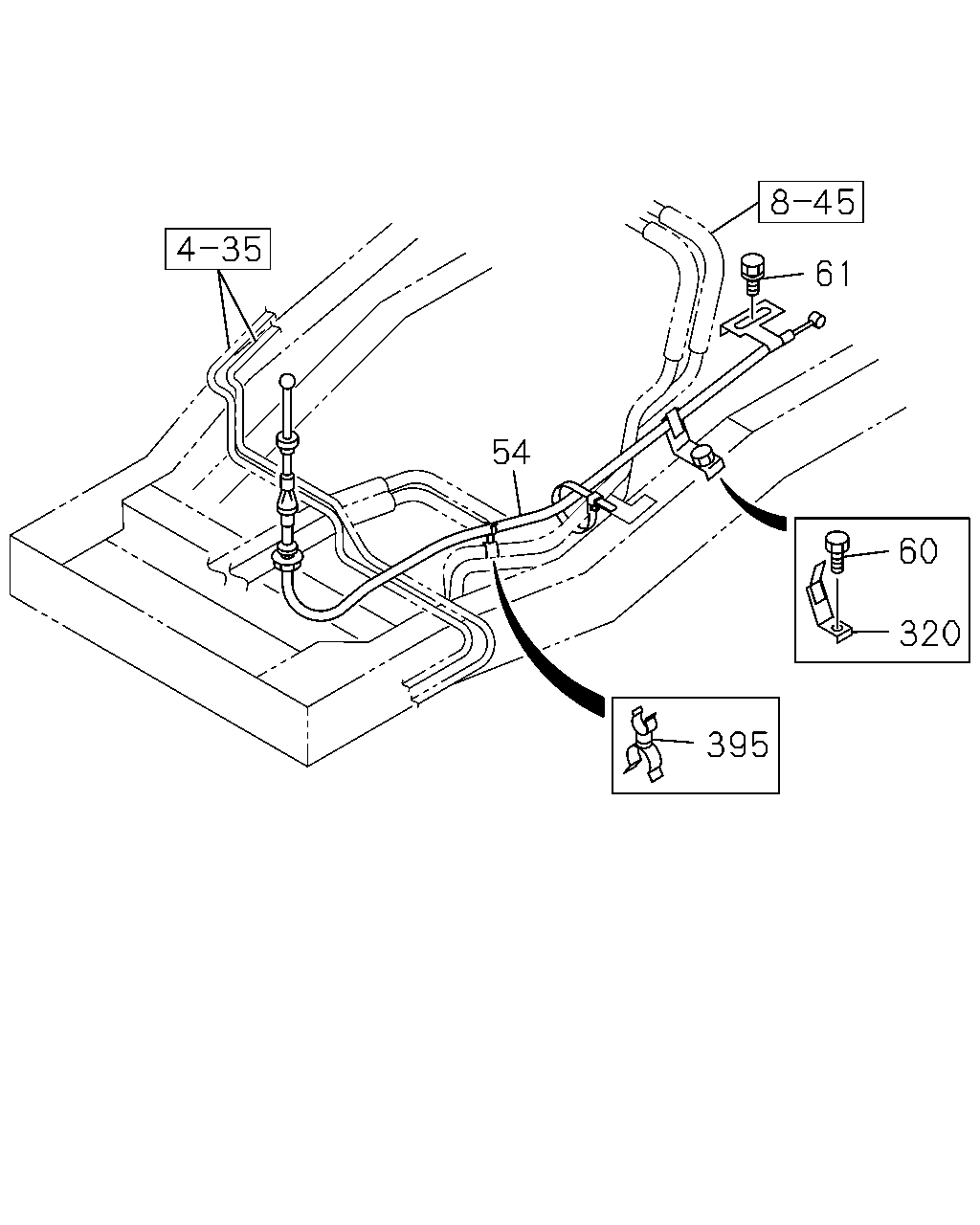

54	CABLE; ENG CONT TAI	8-97965-470-0	01	1	9701-9905
54	CABLE; ENG CONT 4JG2 ENG(RJC) TAI	8-97965-470-0	01	1	9906-0207
60	BOLT; CABLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8X20 FLANGE	0-28680-820-0	01	1	9701-9905
60	BOLT; CABLE 4JG2 ENG(RJC) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8X20 FLANGE	0-28680-820-0	01	1	9906-0207
61	BOLT; BRKT TO FRAME ENG CONT CABLE M6X12 FLANGE	0-28080-612-0	01	1	9701-9905
61	BOLT; BRKT TO FRAME ENG CONT CABLE 4JG2 ENG(RJC) M6X12 FLANGE	0-28080-612-0	01	1	9906-0207
320	CLIP; FRAME EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94167-969-2	01	1	9701-9905
320	CLIP; FRAME 4JG2 ENG(RJC) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94167-969-2	01	1	9906-0207
395	CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=10 & 16.5	8-94360-745-0	01	1	9701-9905
395	CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=10 & 16.5	8-94360-745-0	01	1	9906-0207

8 15 60 391 8 10 8 15 60 8 10 391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
60	BOLT; CABLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8X20 FLANGE	0-28680-820-0	01	1	9701-9905
60	BOLT; CABLE 4JG2 ENG(RJC) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8X20 FLANGE	0-28680-820-0	01	1	9906-0207

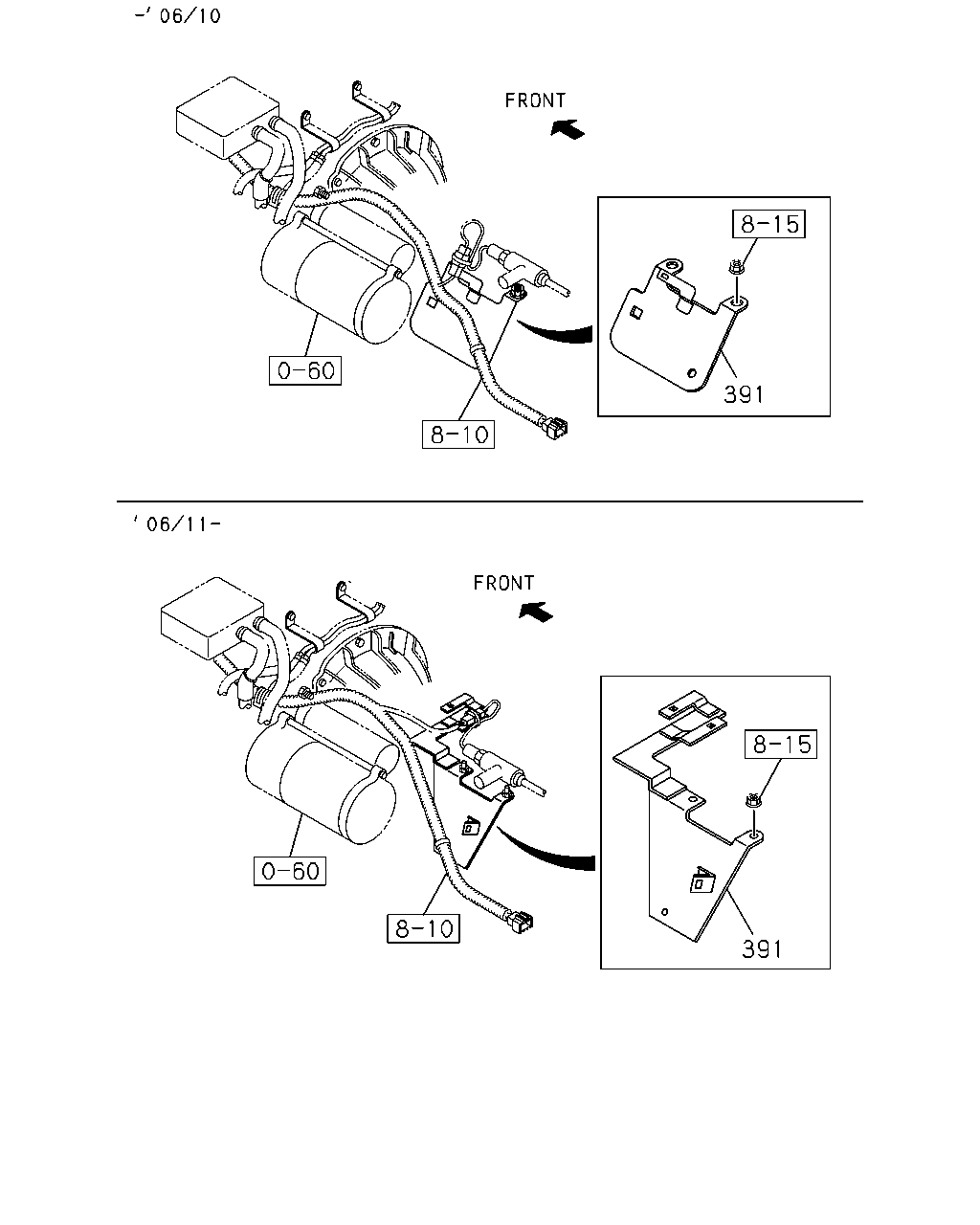

391	BRACKET; ENG CONT 4JH1 ENG(RJX)	8-97322-369-0	01	1	0208-0411
391	BRACKET; ENG CONT 4JH1 ENG(RJX)	8-97322-369-0	01	1	0412-0511
391	BRACKET; ENG CONT 4JH1-TC ENG(RDM)	8-97322-369-0	01	1	0512-0610
391	BRACKET; ENG CONT 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97357-141-0	01	1	0611-

7 40 262 773 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

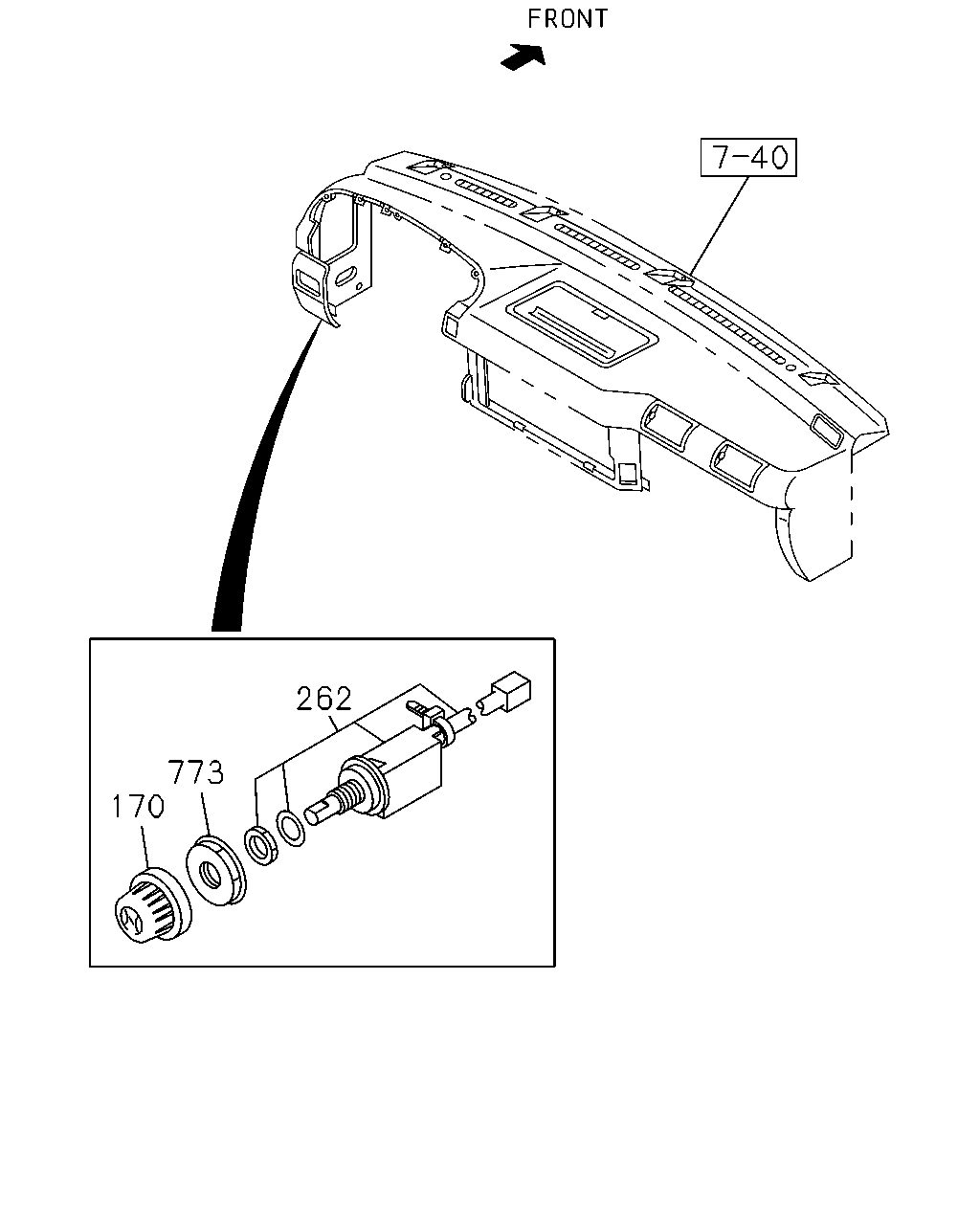

170	KNOB 4JJ1 ENG(LFB)	8-97310-165-0	01	1	0611-
262	SWITCH; ACCEL,IDLE 4JJ1 ENG(LFB)	8-97215-119-1	01	1	0611-
773	HOLDER; ACCEL PEDAL 4JJ1 ENG(LFB)	8-97352-127-0	01	1	0611-

537 537 70 68 67 2 3 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
67	CABLE ASM; IDLE CONT L=945 TAI	8-97856-223-4	01	1	9701-9701
67	CABLE ASM; IDLE CONT L=945 TAI	8-97840-245-0	01	1	9702-0207
68	KNOB; IDLE CONT	8-97853-765-1	01	1	9701-0207
70	NUT; CONT CABLE M18	8-97853-233-0	01	1	9701-0207
537	CLIP; IDLING CONT CABLE ID=7	5-09707-053-0	02	1	9701-0207
