50760 - NHR/NKR TAIWAN
▶
0 - Engine, Emission, Engine Electrical
▶

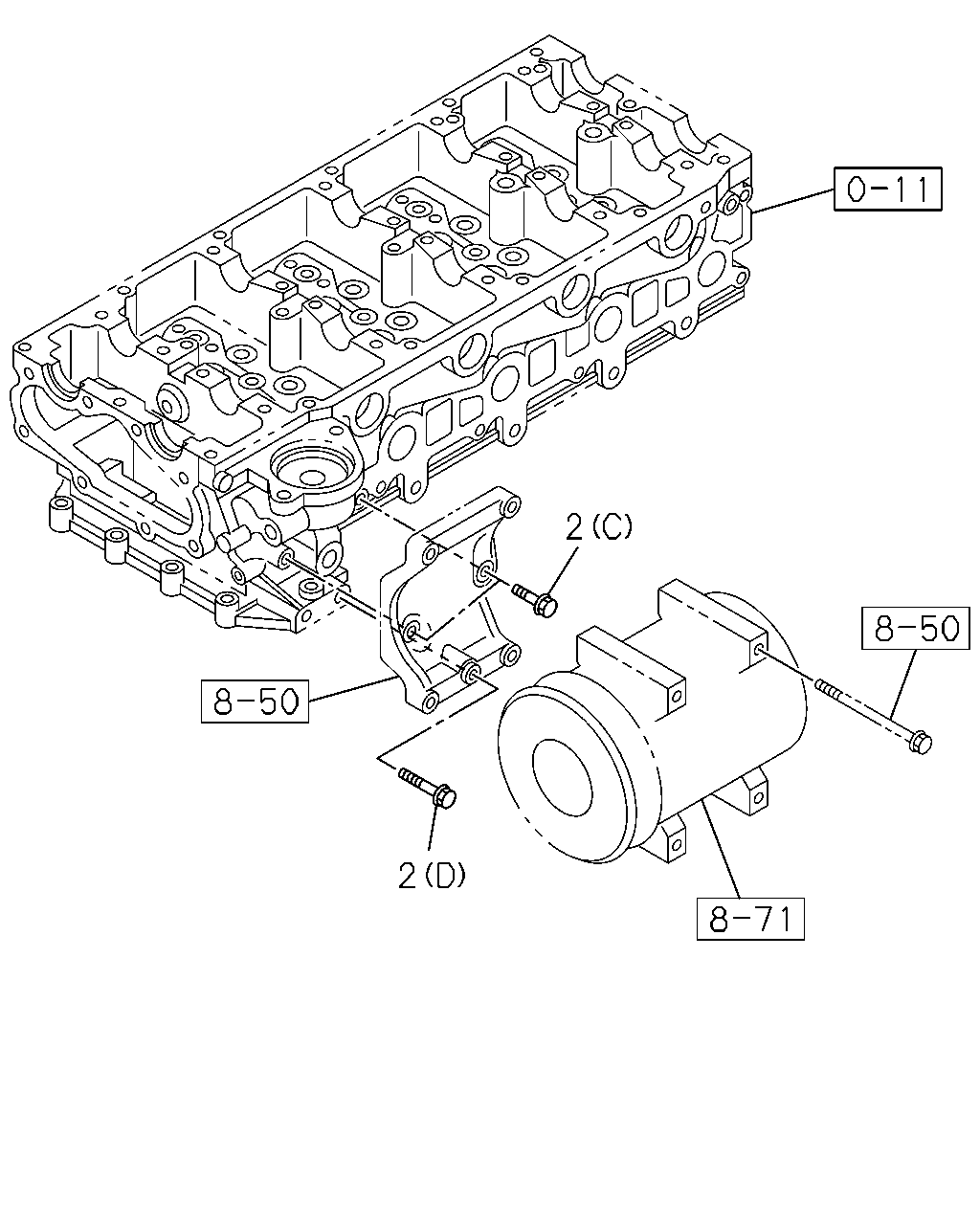

0-91 - REFRIGERATION
▶
0-91 — REFRIGERATION
(#139040) — 19 parça
Tümü
A - 4JH1 ENG
B - 4JH1-TC ENG
C - 4JJ1 ENG
D - 4JG2 ENG
◀
[091A] 4JG2,4JH1 (11 parça)
[091A] 4JJ1 (8 parça)
▶
11
2
2
8
50
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
2
BOLT; BRKT TO CYL HD
AIR CONDITIONER MANUAL CONT(C60) (A) M8X60 FLANGE
0-28080-860-0
01
1
0208-0511
●
2
BOLT; BRKT TO CYL HD
AIR CONDITIONER MANUAL CONT(C60) (A) M8X60 FLANGE
0-28080-860-0
01
1
0512-0512
●
2
BOLT; BRKT TO CYL HD
AIR CONDITIONER MANUAL CONT(C60) (A) M8X60 FLANGE
0-28050-860-0
01
1
0601-0610
●
2
BOLT; BRKT TO CYL HD
AIR CONDITIONER MANUAL CONT(C60) (D) M8X45 FLANGE
0-28050-845-0
01
1
0611-
●
2
BOLT; BRKT TO CYL HD
AIR CONDITIONER MANUAL CONT(C60) (B) M10X70 FLANGE
0-28081-070-0
01
1
0208-0511
●
2
BOLT; BRKT TO CYL HD
AIR CONDITIONER MANUAL CONT(C60) (B) M10X70 FLANGE
0-28081-070-0
01
1
0512-0512
●
2
BOLT; BRKT TO CYL HD
AIR CONDITIONER MANUAL CONT(C60) (B) M10X70 FLANGE
0-28051-070-0
01
1
0601-0610
●
2
BOLT; BRKT TO CYL HD
AIR CONDITIONER MANUAL CONT(C60) (C) M8X25 FLANGE
0-28650-825-0
02
1
0611-
●
4
BELT; CMPR,REFRIGERATION
AIR CONDITIONER MANUAL CONT(C60) L=1369 MITSUBOSHI
8-94252-342-0
01
1
9701-0207
●
4
BELT; CMPR,REFRIGERATION
AIR CONDITIONER MANUAL CONT(C60) L=1464
8-94482-166-0
01
1
0208-0511
●
4
BELT; CMPR,REFRIGERATION
AIR CONDITIONER MANUAL CONT(C60) L=1464
8-94482-166-0
01
1
0512-0610
●
11
2
8
50
8
50
2
8
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
2
BOLT; BRKT TO CYL HD
AIR CONDITIONER MANUAL CONT(C60) (A) M8X60 FLANGE
0-28080-860-0
01
1
0208-0511
●
2
BOLT; BRKT TO CYL HD
AIR CONDITIONER MANUAL CONT(C60) (A) M8X60 FLANGE
0-28080-860-0
01
1
0512-0512
●
2
BOLT; BRKT TO CYL HD
AIR CONDITIONER MANUAL CONT(C60) (A) M8X60 FLANGE
0-28050-860-0
01
1
0601-0610
●
2
BOLT; BRKT TO CYL HD
AIR CONDITIONER MANUAL CONT(C60) (D) M8X45 FLANGE
0-28050-845-0
01
1
0611-
●
2
BOLT; BRKT TO CYL HD
AIR CONDITIONER MANUAL CONT(C60) (B) M10X70 FLANGE
0-28081-070-0
01
1
0208-0511
●
2
BOLT; BRKT TO CYL HD
AIR CONDITIONER MANUAL CONT(C60) (B) M10X70 FLANGE
0-28081-070-0
01
1
0512-0512
●
2
BOLT; BRKT TO CYL HD
AIR CONDITIONER MANUAL CONT(C60) (B) M10X70 FLANGE
0-28051-070-0
01
1
0601-0610
●
2
BOLT; BRKT TO CYL HD
AIR CONDITIONER MANUAL CONT(C60) (C) M8X25 FLANGE
0-28650-825-0
02
1
0611-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
