0-85A — AUTO TIMER; INJECTION PUMP (#139039) — 84 parça

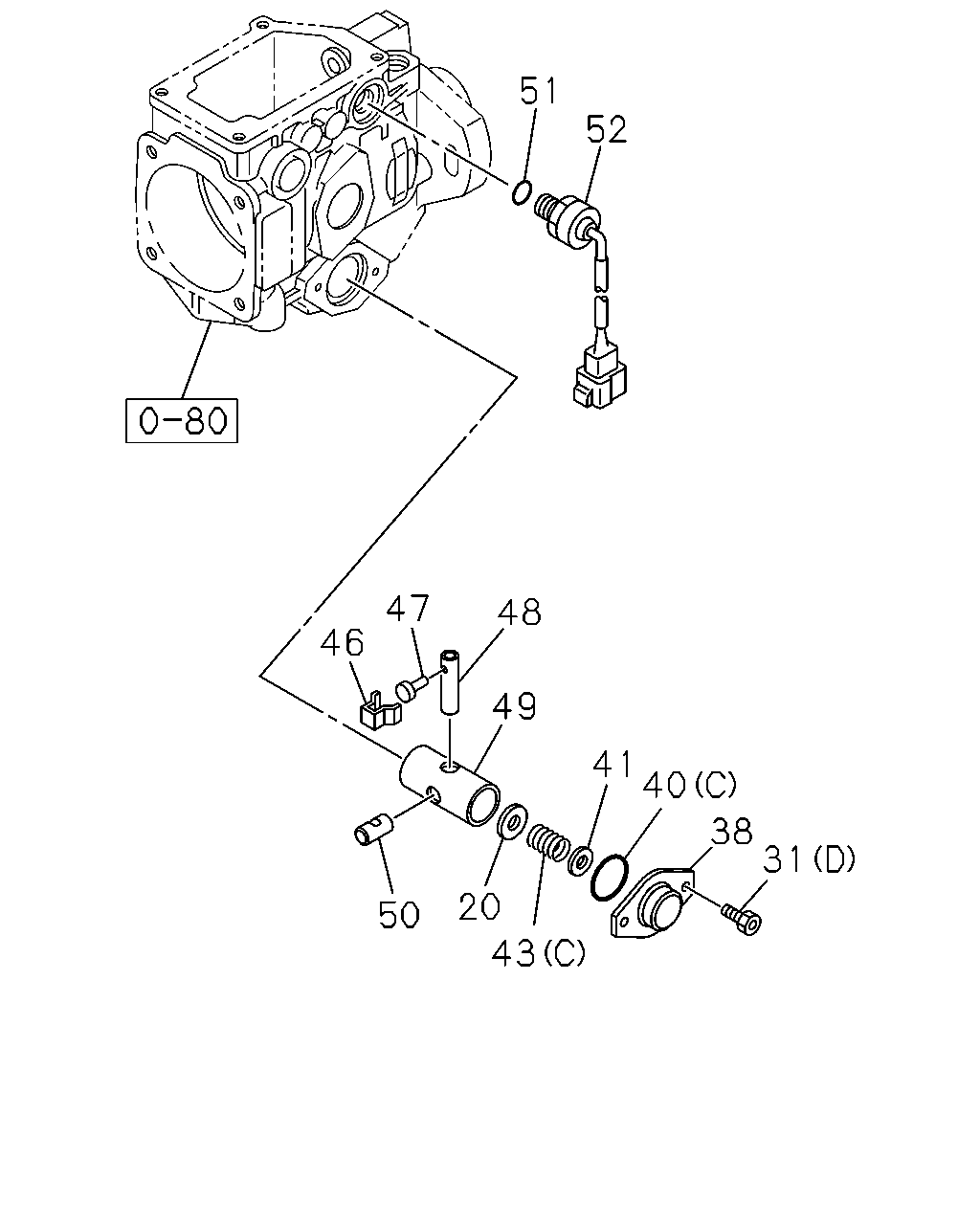

51 52 1 80 47 48 46 49 41 40 38 31 20 50 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=2.40 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94121-620-0	01	1	-
31	SCREW; TIMER COVER,INJ PUMP (D) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94313-276-0	02	1	-
31	SCREW; TIMER COVER,INJ PUMP (A), M6X16 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-853-0	02	1	-
31	SCREW; TIMER COVER,INJ PUMP (B), M6X45 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-258-0	01	1	-
31	SCREW; TIMER COVER,INJ PUMP (C), M6X10 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-456-0	02	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94473-120-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-886-0	01	1	-
40	GASKET; TIMER COVER,INJ PUMP (C) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-491-0	01	1	-
40	GASKET; TIMER COVER,INJ PUMP (A), ID=27.5 ASM PART: D = 8-97213-671-2	8-97140-980-0	02	1	-
40	GASKET; TIMER COVER,INJ PUMP (A), ID=27.5 ASM PART: C = 8-97212-840-2	8-97140-980-0	03	1	-
40	GASKET; TIMER COVER,INJ PUMP (B), ID=8.8 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-897-0	01	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=2.40 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94121-620-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-495-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-496-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-497-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-498-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.20 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-499-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.5 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-954-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP (C), L=35.7 EFFECT TURN=5.1 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94313-200-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP (C), L=35.6 EFFECT TURN=5.4 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94313-241-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP (C), L=35.8 EFFECT TURN=5.7 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94386-591-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP (A) BLUE, L=33.6 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-899-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP (A) WHITE, L=33.1 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-901-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP (B) ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-961-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP (A) PINK ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97228-055-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP (A) GREEN ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97228-056-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP (A) RED ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97228-057-0	01	1	-
46	CLIP; HOLDER PIN,TIMER,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-488-0	01	1	-
46	CLIP; HOLDER PIN,TIMER,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-961-0	01	1	-
47	PIN; HOLDER PIN,TIMER,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-487-0	01	1	-
47	PIN; HOLDER PIN,TIMER,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-952-0	01	1	-
48	PIN; ROLLER HOLDER,TIMER,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-486-0	01	1	-
48	PIN; ROLLER HOLDER,TIMER,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-951-0	01	1	-
49	PISTON; TIMER,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94424-182-0	01	1	-
49	PISTON; TIMER,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-881-0	01	1	-
50	SLIDER; TIMER PISTON,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-493-0	01	1	-
50	SLIDER; TIMER PISTON,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-944-0	01	1	-
51	GASKET; TIMING SENSOR,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-671-0	01	1	-
51	GASKET; TIMING SENSOR,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-962-0	01	1	-
52	SENSOR; TIMING,TACHOMETER,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94343-307-0	01	1	-
52	SENSOR; TIMING,TACHOMETER,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-903-0	01	1	-

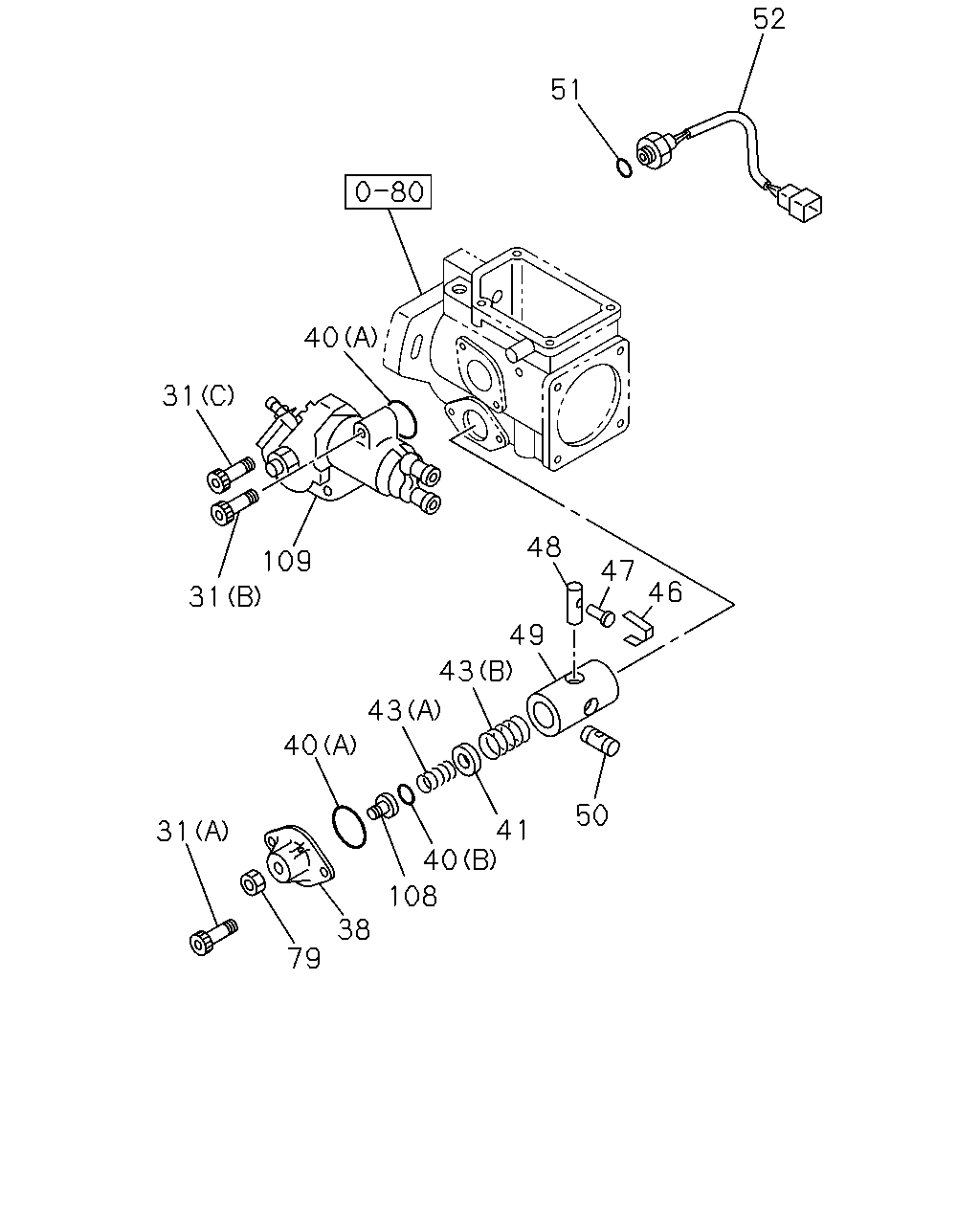

52 51 80 40 31 48 109 47 46 31 49 43 43 40 50 41 40 31 108 38 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	SCREW; TIMER COVER,INJ PUMP (D) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94313-276-0	02	1	-
31	SCREW; TIMER COVER,INJ PUMP (A), M6X16 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-853-0	02	1	-
31	SCREW; TIMER COVER,INJ PUMP (B), M6X45 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-258-0	01	1	-
31	SCREW; TIMER COVER,INJ PUMP (C), M6X10 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-456-0	02	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94473-120-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-886-0	01	1	-
40	GASKET; TIMER COVER,INJ PUMP (C) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-491-0	01	1	-
40	GASKET; TIMER COVER,INJ PUMP (A), ID=27.5 ASM PART: D = 8-97213-671-2	8-97140-980-0	02	1	-
40	GASKET; TIMER COVER,INJ PUMP (A), ID=27.5 ASM PART: C = 8-97212-840-2	8-97140-980-0	03	1	-
40	GASKET; TIMER COVER,INJ PUMP (B), ID=8.8 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-897-0	01	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=2.40 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94121-620-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-495-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-496-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-497-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-498-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.20 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-499-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.5 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-954-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP (C), L=35.7 EFFECT TURN=5.1 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94313-200-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP (C), L=35.6 EFFECT TURN=5.4 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94313-241-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP (C), L=35.8 EFFECT TURN=5.7 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94386-591-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP (A) BLUE, L=33.6 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-899-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP (A) WHITE, L=33.1 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-901-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP (B) ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-961-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP (A) PINK ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97228-055-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP (A) GREEN ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97228-056-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP (A) RED ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97228-057-0	01	1	-
46	CLIP; HOLDER PIN,TIMER,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-488-0	01	1	-
46	CLIP; HOLDER PIN,TIMER,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-961-0	01	1	-
47	PIN; HOLDER PIN,TIMER,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-487-0	01	1	-
47	PIN; HOLDER PIN,TIMER,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-952-0	01	1	-
48	PIN; ROLLER HOLDER,TIMER,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-486-0	01	1	-
48	PIN; ROLLER HOLDER,TIMER,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-951-0	01	1	-
49	PISTON; TIMER,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94424-182-0	01	1	-
49	PISTON; TIMER,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-881-0	01	1	-
50	SLIDER; TIMER PISTON,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-493-0	01	1	-
50	SLIDER; TIMER PISTON,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-944-0	01	1	-
51	GASKET; TIMING SENSOR,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-671-0	01	1	-
51	GASKET; TIMING SENSOR,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-962-0	01	1	-
52	SENSOR; TIMING,TACHOMETER,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94343-307-0	01	1	-
52	SENSOR; TIMING,TACHOMETER,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-903-0	01	1	-
79	NUT; CAP,TIMER COVER,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-898-0	01	1	-
108	STOPPER; TIMER,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-896-0	01	1	-
109	COVER SUB ASM; TIMER ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-963-0	01	1	-
