◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50760 - NHR/NKR TAIWAN ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-84A - FEED PUMP; INJECTION PUMP ▶
0-84A — FEED PUMP; INJECTION PUMP (#139037) — 13 parça

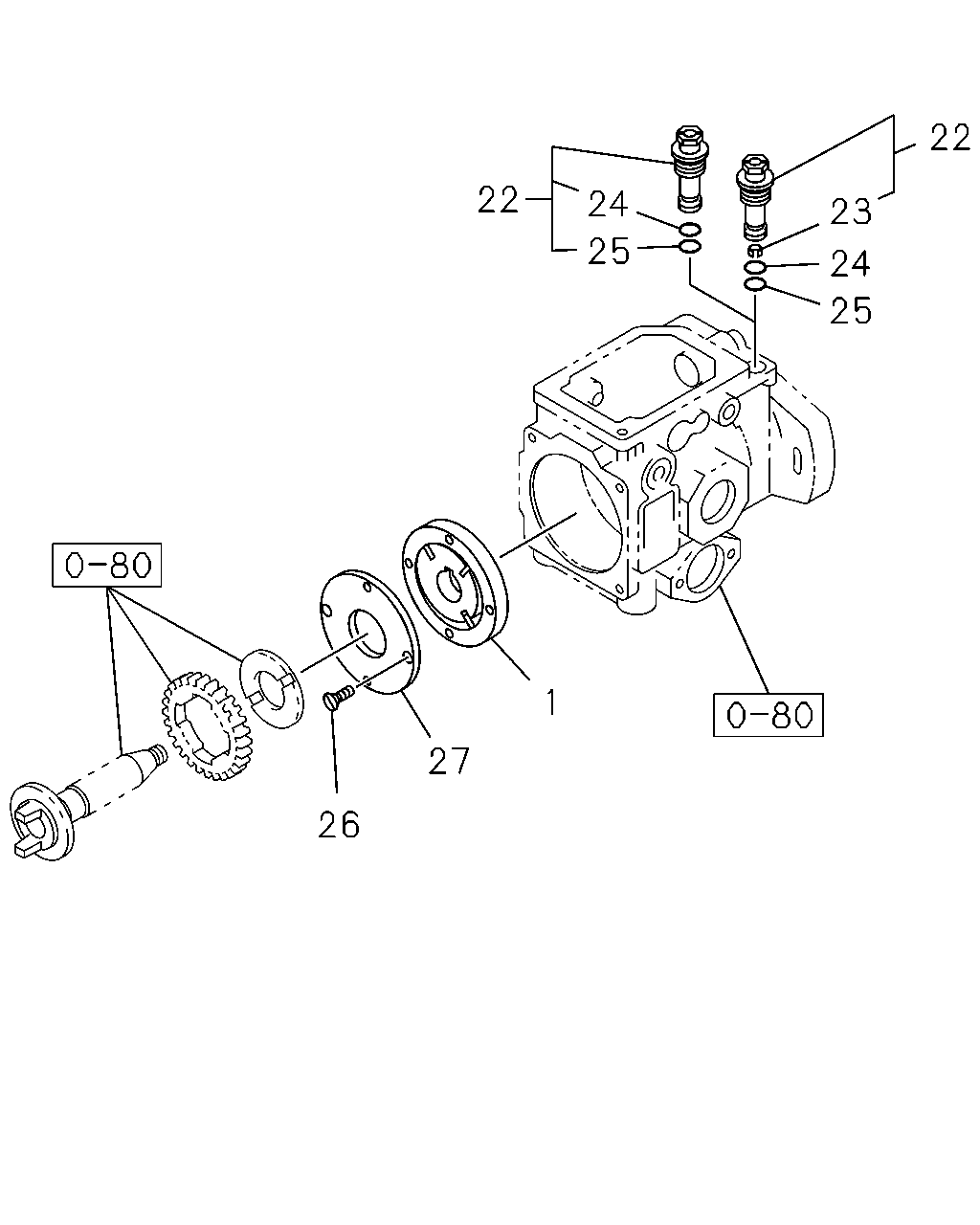

çizim 420747
22 22 24 23 25 24 25 80 1 80 27 26
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 8-97091-746-1, B = 8-97177-036-0 		8-94227-477-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: C = 8-97212-840-2, D = 8-97213-671-2 		8-97140-765-0 01 1 -
22 VALVE; REGULATING,INJ PUMP
ASM PART: A = 8-97091-746-1, B = 8-97177-036-0 		8-94424-194-0 01 1 -
22 VALVE; REGULATING,INJ PUMP
ASM PART: C = 8-97212-840-2, D = 8-97213-671-2 		8-97161-916-0 01 1 -
23 RING; SPRING,REGULATING VLV,INJ PUMP
ASM PART: A = 8-97091-746-1, B = 8-97177-036-0 		8-94227-643-0 01 1 -
24 GASKET; REGULATING VLV,INJ PUMP
ASM PART: A = 8-97091-746-1, B = 8-97177-036-0 		8-94227-641-0 01 1 -
24 GASKET; REGULATING VLV,INJ PUMP
ASM PART: C = 8-97212-840-2, D = 8-97213-671-2 		8-97141-212-0 01 1 -
25 GASKET; REGULATING VLV,INJ PUMP
ASM PART: A = 8-97091-746-1, B = 8-97177-036-0 		8-94227-640-0 01 1 -
25 GASKET; REGULATING VLV,INJ PUMP
ASM PART: C = 8-97212-840-2, D = 8-97213-671-2 		8-97209-534-0 01 1 -
26 SCREW; COVER FIX,FUEL FEED PUMP
ASM PART: A = 8-97091-746-1, B = 8-97177-036-0 		8-94227-479-0 02 1 -
26 SCREW; COVER FIX,FUEL FEED PUMP
ASM PART: C = 8-97212-840-2, D = 8-97213-671-2 		8-97141-184-0 02 1 -
27 COVER; FUEL FEED PUMP
ASM PART: A = 8-97091-746-1, B = 8-97177-036-0 		8-94227-478-0 01 1 -
27 COVER; FUEL FEED PUMP
ASM PART: C = 8-97212-840-2, D = 8-97213-671-2 		8-97140-932-0 01 1 -
