◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50760 - NHR/NKR TAIWAN ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-82A - BOOST COMPENSATOR; INJECTION GOVERNOR ▶
0-82A — BOOST COMPENSATOR; INJECTION GOVERNOR (#139036) — 22 parça

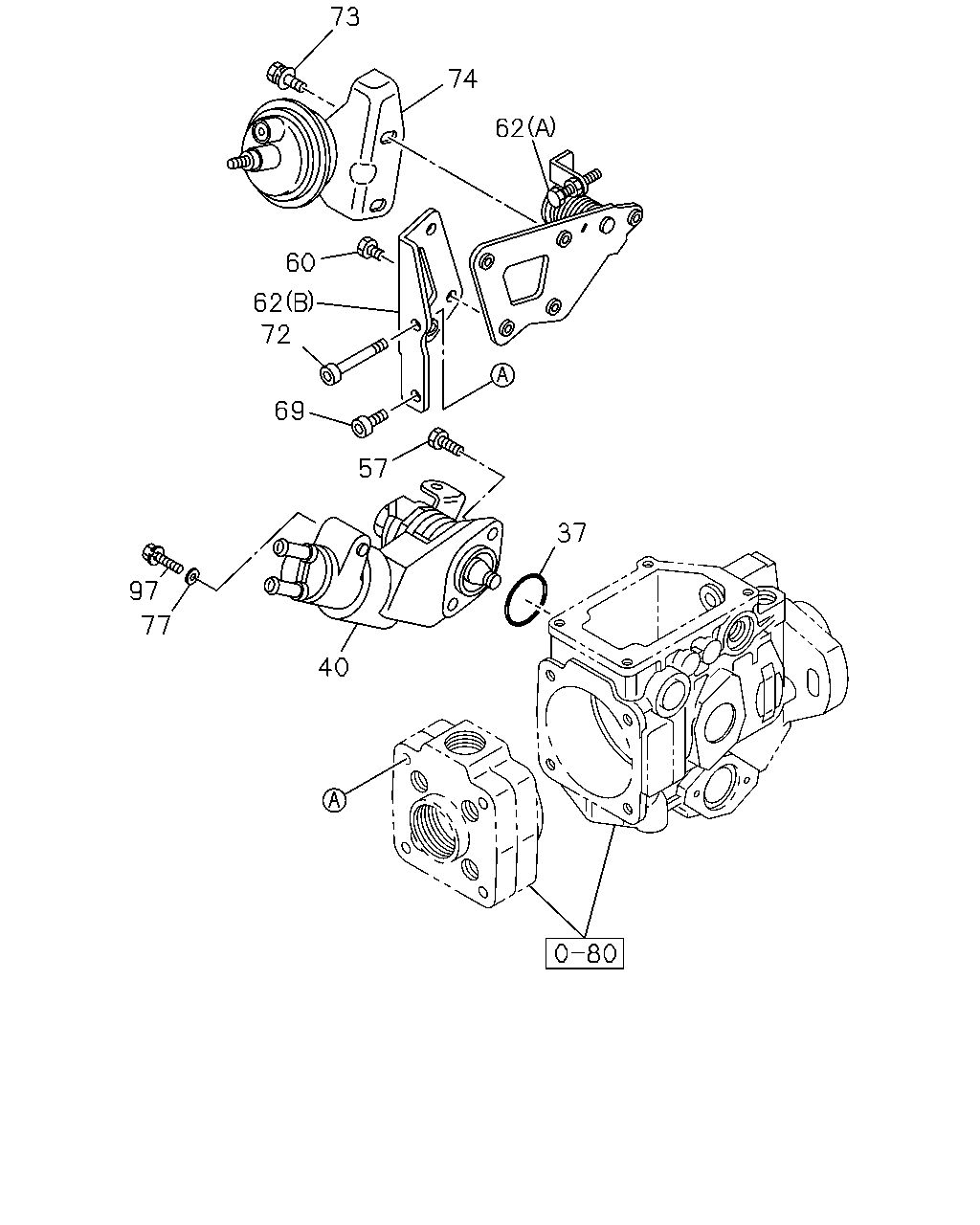

çizim 420473
73 74 62 60 62 72 69 57 37 97 77 40 80
BalonParca AdiParca NoAdetTipApplied Date
37 GASKET; STARTING ADVANCER,INJ PUMP
ASM PART: A = 8-97091-746-1, B = 8-97177-036-0 		8-94227-491-0 01 1 -
40 ADVANCER ASM; STARTING,GOV
ASM PART: A = 8-97091-746-1, B = 8-97177-036-0 		8-97105-393-1 01 1 -
57 BOLT; START ADVANCE
ASM PART: A = 8-97091-746-1, B = 8-97177-036-0 		1-15619-276-0 02 1 -
60 BOLT; BRKT
ASM PART: B = 8-97177-036-0 		8-94313-203-0 03 1 -
60 BOLT; BRKT
M6X16 ASM PART: C = 8-97213-671-2 		8-97140-853-0 02 1 -
62 BRACKET; ACTUATOR
(A) ASM PART: B = 8-97177-036-0 		8-97086-128-1 01 1 -
62 BRACKET; ACTUATOR
(B) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0 		8-97086-129-0 01 1 -
62 BRACKET; ACTUATOR
(C) ASM PART: C = 8-97213-671-2 		8-97174-616-0 01 1 -
69 SCREW; BRKT,INJ PUMP
ASM PART: A = 8-97091-746-1, B = 8-97177-036-0 		8-94325-497-0 01 1 -
72 BOLT; BRKT FIX,INJ PUMP
ASM PART: A = 8-97091-746-1, B = 8-97177-036-0 		8-94242-278-0 01 1 -
73 BOLT; ACTUATOR
ASM PART: B = 8-97177-036-0 		8-97094-111-0 02 1 -
74 ACTUATOR ASM; FAST IDLE,A/C,INJ PUMP
ASM PART: B = 8-97177-036-0 		8-97086-134-0 01 1 -
74 ACTUATOR ASM; FAST IDLE,A/C,INJ PUMP
ASM PART: C = 8-97213-671-2 		8-97174-615-0 01 1 -
77 WASHER; LK,START ADVANCE FIX
ID=6.4 OD=14 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0 		9-09160-606-0 01 1 -
97 BOLT; PLATE,START ADVANCE
ASM PART: A = 8-97091-746-1, B = 8-97177-036-0 		8-97029-204-0 01 1 -

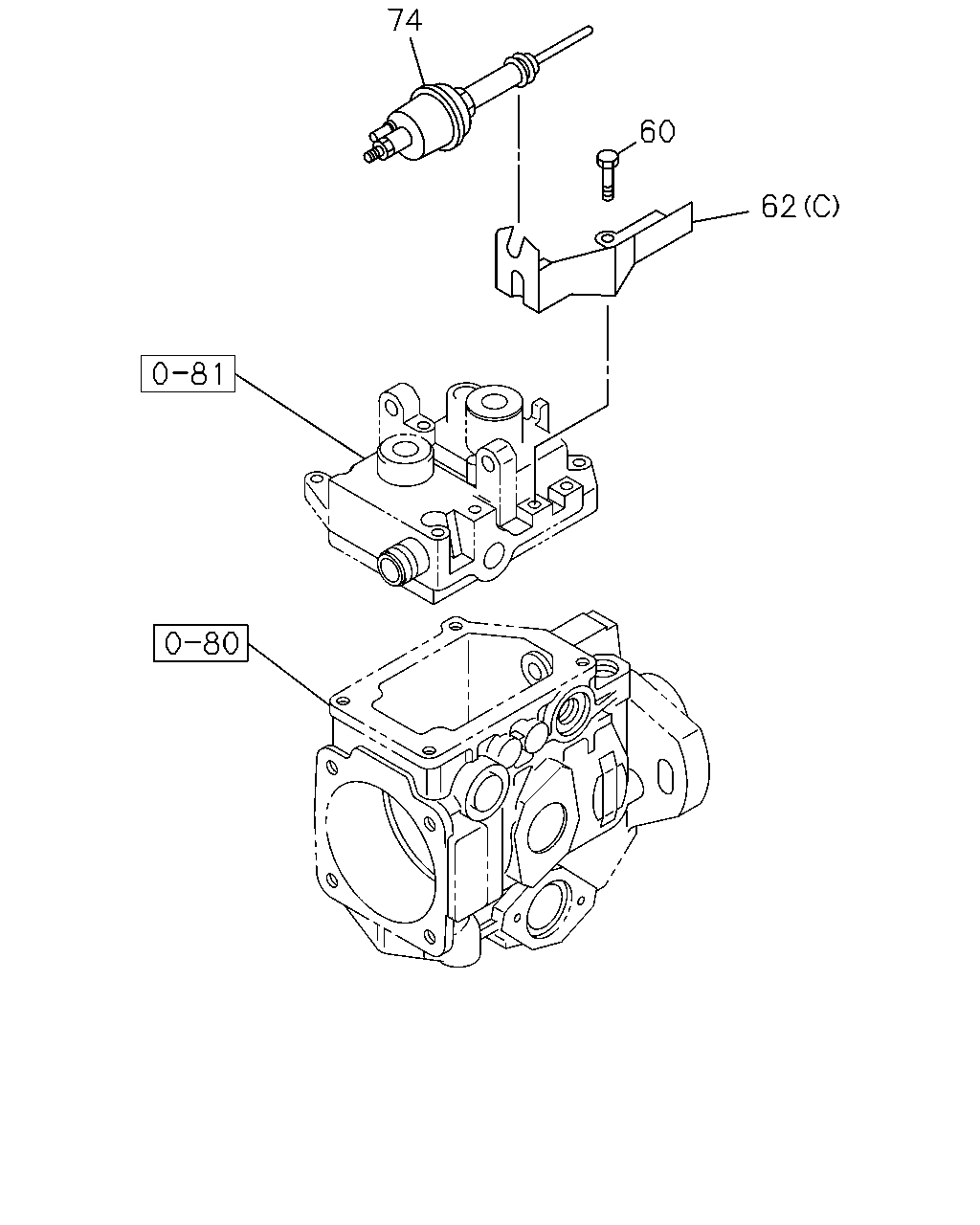

çizim 420641
74 60 62 81 80
BalonParca AdiParca NoAdetTipApplied Date
60 BOLT; BRKT
ASM PART: B = 8-97177-036-0 		8-94313-203-0 03 1 -
60 BOLT; BRKT
M6X16 ASM PART: C = 8-97213-671-2 		8-97140-853-0 02 1 -
62 BRACKET; ACTUATOR
(A) ASM PART: B = 8-97177-036-0 		8-97086-128-1 01 1 -
62 BRACKET; ACTUATOR
(B) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0 		8-97086-129-0 01 1 -
62 BRACKET; ACTUATOR
(C) ASM PART: C = 8-97213-671-2 		8-97174-616-0 01 1 -
74 ACTUATOR ASM; FAST IDLE,A/C,INJ PUMP
ASM PART: B = 8-97177-036-0 		8-97086-134-0 01 1 -
74 ACTUATOR ASM; FAST IDLE,A/C,INJ PUMP
ASM PART: C = 8-97213-671-2 		8-97174-615-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
