Sayfa 0-81A - Isuzu EPC

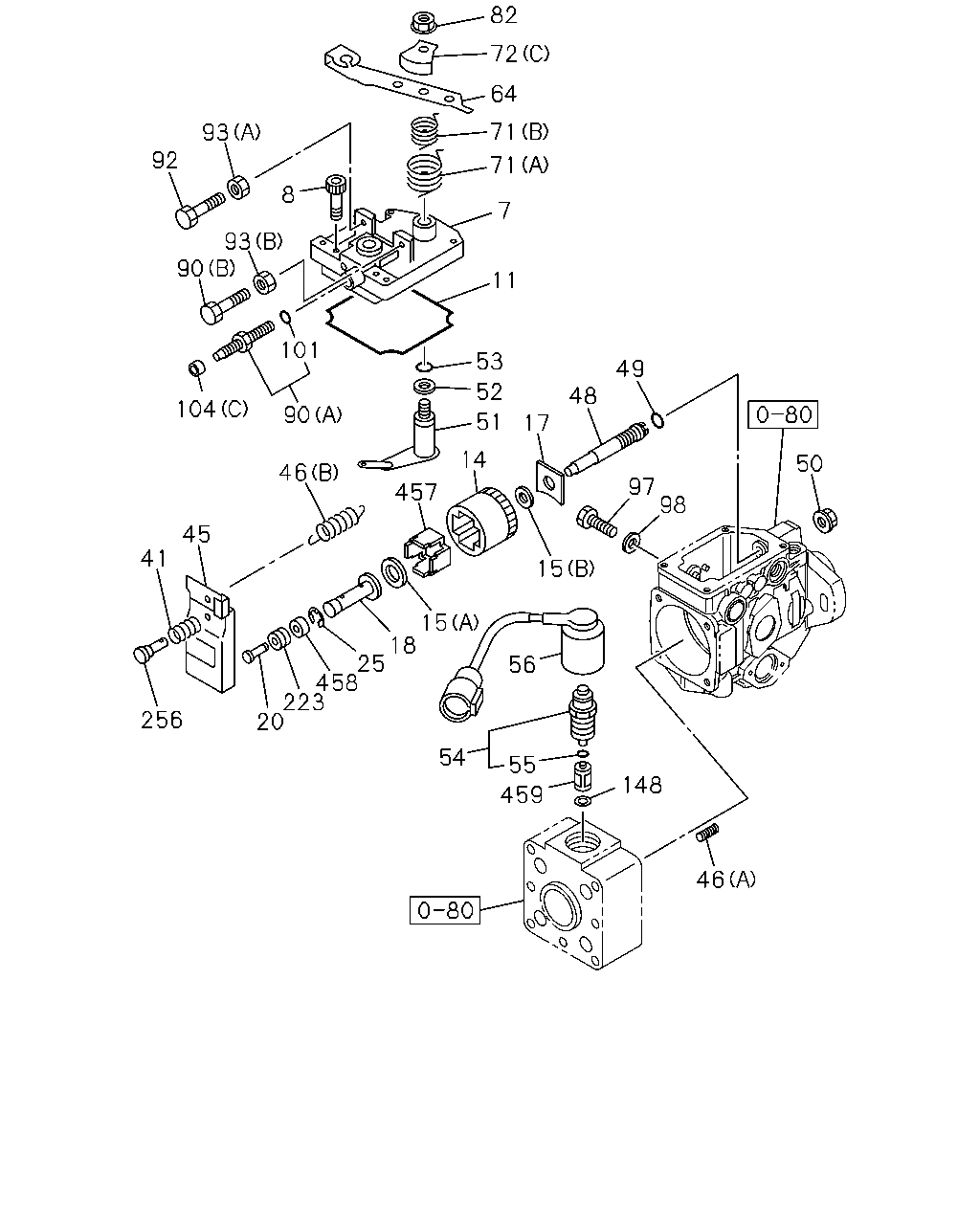

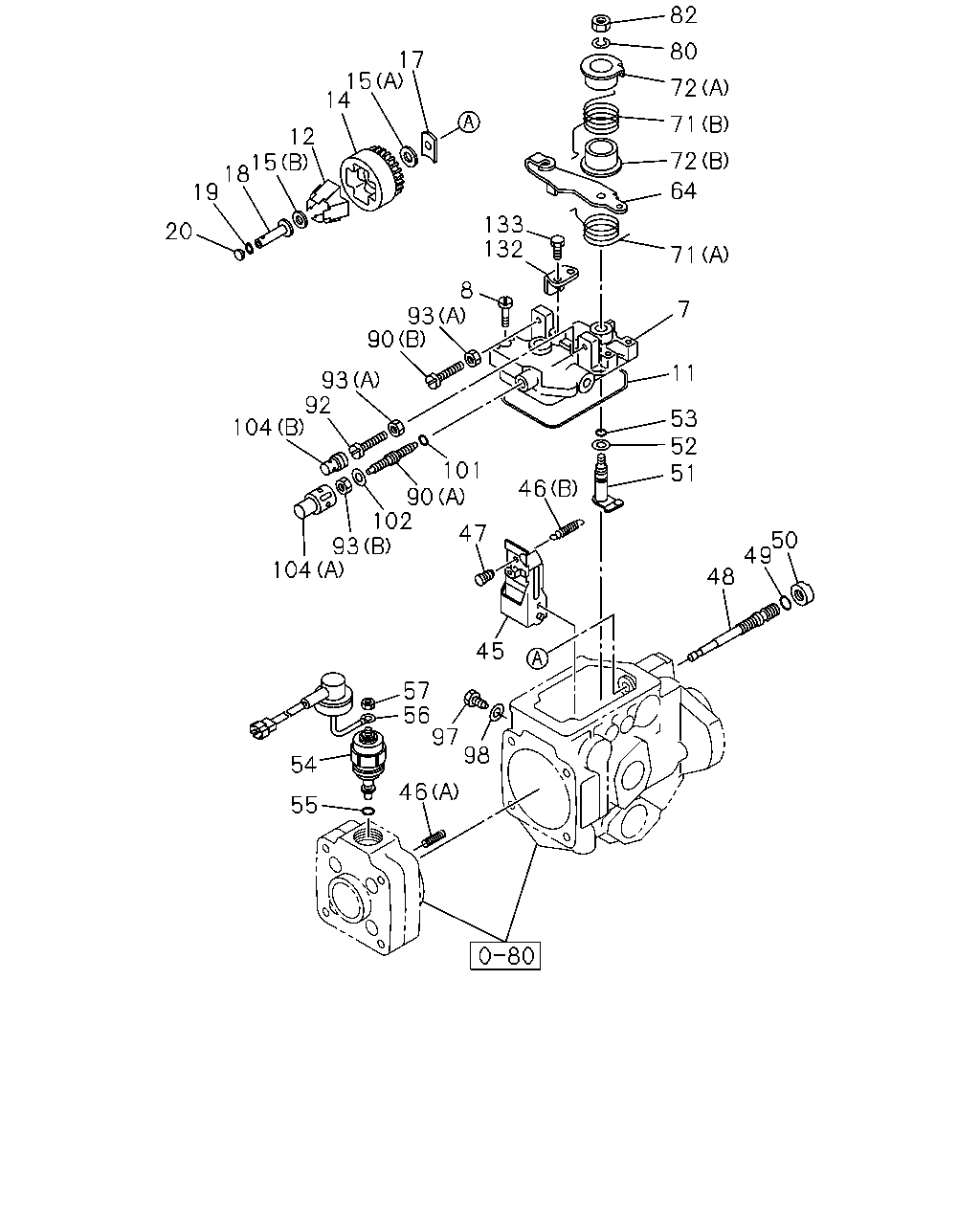

0-81A — GOVERNOR; INJECTION PUMP (#139034) — 383 parça

82 80 17 15 14 72 71 12 15 18 19 72 64 133 132 20 71 8 7 93 90 11 93 92 104 53 52 51 101 90 102 93 104 46 47 50 49 48 45 57 56 97 98 54 46 55 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94327-336-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97228-053-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-636-0	04	1	-
8	BOLT; GOV COVER,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-178-0	04	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 8-97091-746-1	8-94227-599-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: B = 8-97177-036-0	8-97136-413-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-201-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94228-403-0	01	1	-
14	HOLDER; GOV FLYWEIGHT,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-613-0	01	1	-
14	HOLDER; GOV FLYWEIGHT,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-921-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV (A) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-612-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV (B) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-614-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV (A) ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-828-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV (B) ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-830-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.05 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-607-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.25 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-608-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.45 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-609-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.65 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-610-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.85 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-611-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.15 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94231-123-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.35 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94231-124-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.55 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94231-125-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.75 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94231-126-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.05 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-308-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.25 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-311-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.45 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-313-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.65 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-314-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.85 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-316-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.55 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-318-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.75 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-319-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=2.05 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-320-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.30 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-323-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.40 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-324-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-325-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.60 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-326-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.15 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97228-067-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.20 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97228-068-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.70 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97228-069-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.80 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97228-070-0	01	1	-
18	SLEEVE; GOV ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-97102-532-0	01	1	-
18	SLEEVE; GOV D=0.50 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-863-0	01	1	-
18	SLEEVE; GOV D=0.55 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97212-361-0	01	1	-
18	SLEEVE; GOV D=0.60 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97212-362-0	01	1	-
19	CAP; GOV SLEEVE,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-519-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.20 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94372-499-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.30 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94372-500-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.40 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94372-501-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.50 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94372-502-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.10 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-520-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.30 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-521-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.50 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-522-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.70 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-523-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.90 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-524-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.10 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-525-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.30 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-526-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.50 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-527-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.70 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-528-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.90 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-529-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.10 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-530-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.30 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-531-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.50 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-532-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.70 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-533-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.90 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-534-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.10 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-535-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.20 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94428-868-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.40 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94428-869-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.60 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94428-870-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.80 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94428-871-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.00 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94428-872-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.20 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94428-873-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.40 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94428-874-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.60 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94428-875-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.80 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94428-876-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.00 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94428-877-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.20 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94428-878-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.40 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94428-879-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.60 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94428-880-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.80 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94428-881-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.00 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94428-882-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.80 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-381-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.90 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-384-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.00 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-386-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.10 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-387-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.20 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-388-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.30 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-389-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.40 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-390-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.00 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-923-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.10 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-925-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.20 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-926-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.30 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-927-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.40 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-928-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.50 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-929-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.60 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-930-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.70 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-931-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.50 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-932-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.60 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-933-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.70 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-934-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.80 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-935-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.90 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-936-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.00 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-937-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.10 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-938-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.20 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-939-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.30 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-940-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.40 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-941-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.50 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-942-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.60 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-943-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.70 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-944-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.80 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-945-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.90 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-946-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=6.00 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-947-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=6.10 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-948-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=6.20 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-949-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=6.30 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-950-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=6.40 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-951-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=6.50 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-952-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=6.60 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-953-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.60 ASM PART: B = 8-97177-036-0	8-97163-167-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.70 ASM PART: B = 8-97177-036-0	8-97163-168-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.80 ASM PART: B = 8-97177-036-0	8-97163-169-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.90 ASM PART: B = 8-97177-036-0	8-97163-170-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-97095-334-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97228-054-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94473-128-0	02	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-97086-126-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-159-0	02	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97228-058-0	01	1	-
47	PIN; RET ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94313-234-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94473-130-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-865-0	01	1	-
49	GASKET; GOV SHAFT,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-606-0	01	1	-
49	GASKET; GOV SHAFT,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-848-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94473-129-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-864-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94450-997-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-860-0	01	1	-
52	WASHER; CONT SHAFT,GOV ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-590-0	01	1	-
52	WASHER; CONT SHAFT,GOV ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-264-0	01	1	-
53	GASKET; CONT SHAFT,GOV ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-585-0	01	1	-
53	GASKET; CONT SHAFT,GOV ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-190-0	01	1	-
54	VALVE; MAG,ENG STOP,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94242-275-0	01	1	-
54	VALVE; MAG,ENG STOP,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97202-042-0	01	1	-
55	GASKET; MAG VLV,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94239-373-0	01	1	-
55	GASKET; MAG VLV,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97202-044-0	01	1	-
56	WIRE; LEAD,MAG VLV,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94470-582-0	01	1	-
56	WIRE; LEAD,MAG VLV,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-439-0	01	1	-
57	NUT; VLV ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94473-135-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 042 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-97086-120-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 043 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-97086-121-0	01	1	-
64	LEVER; LOAD CONT,GOV MARK 605 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-912-0	01	1	-
64	LEVER; LOAD CONT,GOV MARK 606 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-913-0	01	1	-
64	LEVER; LOAD CONT,GOV MARK 607 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-914-0	01	1	-
71	SPRING; CONT LEVER,GOV (A) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-97086-122-0	01	1	-
71	SPRING; CONT LEVER,GOV (B) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-97086-123-0	01	1	-
71	SPRING; CONT LEVER,GOV (A) ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-909-0	01	1	-
71	SPRING; CONT LEVER,GOV (B) ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-910-0	01	1	-
72	SEAT; SPRING,CONT LEVER,GOV (A) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94389-432-0	01	1	-
72	SEAT; SPRING,CONT LEVER,GOV (B) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94389-434-0	01	1	-
72	SEAT; SPRING,CONT LEVER,GOV (C) ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-907-0	01	1	-
80	WASHER; LK,CONT LEVER,GOV ID=6.1 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	9-09150-506-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: B = 8-97177-036-0	1-15729-006-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-567-0	01	1	-
82	NUT; CONT LEVER FIX,GOV M6 ASM PART: A = 8-97091-746-1	9-09110-406-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), L=53.0 ASM PART: A = 8-97091-746-1	8-94316-274-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), L=55.0 ASM PART: A = 8-97091-746-1	8-94316-275-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), L=57.0 ASM PART: A = 8-97091-746-1	8-94316-276-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94426-049-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), L=53 ASM PART: B = 8-97177-036-0	8-97123-312-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), L=55 ASM PART: B = 8-97177-036-0	8-97123-313-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), L=57 ASM PART: B = 8-97177-036-0	8-97123-314-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B) ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-437-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A) ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-873-0	01	1	-
92	BOLT; FULL LOAD STOPPER,GOV ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94426-049-0	01	1	-
92	BOLT; FULL LOAD STOPPER,GOV ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-438-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94316-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94426-047-1	02	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-177-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-216-0	01	1	-
97	BOLT; PIVOT,GOV LEVER ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-601-0	02	1	-
97	BOLT; PIVOT,GOV LEVER ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-250-0	02	1	-
98	GASKET; PIVOT BOLT,GOV LEVER ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-602-0	02	1	-
98	GASKET; PIVOT BOLT,GOV LEVER ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97202-045-0	02	1	-
101	GASKET; ADJ SPRING CAPSULE,GOV ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-598-0	01	1	-
101	GASKET; ADJ SPRING CAPSULE,GOV ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97209-533-0	01	1	-
102	WASHER; FULL LOAD ADJ SCREW,GOV ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-593-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (A), L=16.5 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94316-262-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B), L=18.0 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94316-263-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B), L=21.0 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94316-264-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B), L=24.0 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94316-265-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B), L=27.0 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94316-266-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (C), ID=7.9 L=8 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-372-0	01	1	-
132	BRACKET; ADJ SCREW,GOV ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-97100-914-0	01	1	-
133	BOLT; BRKT FIX,GOV ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94313-203-0	01	1	-

82 72 64 71 93 92 71 8 7 93 90 11 101 53 49 52 48 104 90 80 51 17 14 46 97 98 457 45 41 15 15 18 25 458 223 20 56 256 54 55 148 459 46 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94327-336-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97228-053-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-636-0	04	1	-
8	BOLT; GOV COVER,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-178-0	04	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 8-97091-746-1	8-94227-599-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: B = 8-97177-036-0	8-97136-413-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-201-0	01	1	-
14	HOLDER; GOV FLYWEIGHT,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-613-0	01	1	-
14	HOLDER; GOV FLYWEIGHT,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-921-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV (A) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-612-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV (B) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-614-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV (A) ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-828-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV (B) ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-830-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.05 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-607-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.25 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-608-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.45 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-609-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.65 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-610-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.85 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-611-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.15 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94231-123-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.35 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94231-124-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.55 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94231-125-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.75 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94231-126-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.05 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-308-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.25 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-311-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.45 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-313-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.65 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-314-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.85 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-316-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.55 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-318-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.75 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-319-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=2.05 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-320-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.30 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-323-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.40 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-324-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-325-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.60 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-326-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.15 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97228-067-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.20 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97228-068-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.70 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97228-069-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.80 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97228-070-0	01	1	-
18	SLEEVE; GOV ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-97102-532-0	01	1	-
18	SLEEVE; GOV D=0.50 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-863-0	01	1	-
18	SLEEVE; GOV D=0.55 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97212-361-0	01	1	-
18	SLEEVE; GOV D=0.60 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97212-362-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.20 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94372-499-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.30 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94372-500-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.40 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94372-501-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.50 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94372-502-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.10 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-520-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.30 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-521-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.50 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-522-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.70 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-523-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.90 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-524-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.10 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-525-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.30 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-526-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.50 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-527-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.70 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-528-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.90 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-529-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.10 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-530-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.30 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-531-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.50 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-532-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.70 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-533-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.90 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-534-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.10 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94408-535-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.20 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94428-868-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.40 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94428-869-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.60 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94428-870-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.80 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94428-871-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.00 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94428-872-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.20 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94428-873-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.40 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94428-874-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.60 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94428-875-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.80 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94428-876-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.00 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94428-877-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.20 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94428-878-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.40 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94428-879-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.60 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94428-880-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.80 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94428-881-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.00 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94428-882-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.80 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-381-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.90 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-384-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.00 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-386-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.10 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-387-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.20 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-388-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.30 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-389-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.40 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-390-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.00 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-923-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.10 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-925-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.20 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-926-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.30 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-927-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.40 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-928-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.50 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-929-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.60 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-930-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.70 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-931-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.50 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-932-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.60 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-933-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.70 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-934-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.80 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-935-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.90 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-936-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.00 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-937-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.10 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-938-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.20 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-939-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.30 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-940-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.40 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-941-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.50 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-942-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.60 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-943-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.70 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-944-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.80 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-945-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.90 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-946-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=6.00 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-947-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=6.10 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-948-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=6.20 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-949-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=6.30 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-950-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=6.40 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-951-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=6.50 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-952-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=6.60 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-953-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.60 ASM PART: B = 8-97177-036-0	8-97163-167-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.70 ASM PART: B = 8-97177-036-0	8-97163-168-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.80 ASM PART: B = 8-97177-036-0	8-97163-169-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.90 ASM PART: B = 8-97177-036-0	8-97163-170-0	01	1	-
25	RING; SNAP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-563-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-904-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-97095-334-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97228-054-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94473-128-0	02	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-97086-126-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-159-0	02	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97228-058-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94473-130-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-865-0	01	1	-
49	GASKET; GOV SHAFT,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-606-0	01	1	-
49	GASKET; GOV SHAFT,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-848-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94450-997-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-860-0	01	1	-
52	WASHER; CONT SHAFT,GOV ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-590-0	01	1	-
52	WASHER; CONT SHAFT,GOV ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-264-0	01	1	-
53	GASKET; CONT SHAFT,GOV ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-585-0	01	1	-
53	GASKET; CONT SHAFT,GOV ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-190-0	01	1	-
54	VALVE; MAG,ENG STOP,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94242-275-0	01	1	-
54	VALVE; MAG,ENG STOP,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97202-042-0	01	1	-
55	GASKET; MAG VLV,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94239-373-0	01	1	-
55	GASKET; MAG VLV,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97202-044-0	01	1	-
56	WIRE; LEAD,MAG VLV,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94470-582-0	01	1	-
56	WIRE; LEAD,MAG VLV,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-439-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 042 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-97086-120-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 043 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-97086-121-0	01	1	-
64	LEVER; LOAD CONT,GOV MARK 605 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-912-0	01	1	-
64	LEVER; LOAD CONT,GOV MARK 606 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-913-0	01	1	-
64	LEVER; LOAD CONT,GOV MARK 607 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-914-0	01	1	-
71	SPRING; CONT LEVER,GOV (A) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-97086-122-0	01	1	-
71	SPRING; CONT LEVER,GOV (B) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-97086-123-0	01	1	-
71	SPRING; CONT LEVER,GOV (A) ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-909-0	01	1	-
71	SPRING; CONT LEVER,GOV (B) ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-910-0	01	1	-
72	SEAT; SPRING,CONT LEVER,GOV (A) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94389-432-0	01	1	-
72	SEAT; SPRING,CONT LEVER,GOV (B) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94389-434-0	01	1	-
72	SEAT; SPRING,CONT LEVER,GOV (C) ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-907-0	01	1	-
80	WASHER; LK,CONT LEVER,GOV ID=6.1 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	9-09150-506-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: B = 8-97177-036-0	1-15729-006-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-567-0	01	1	-
82	NUT; CONT LEVER FIX,GOV M6 ASM PART: A = 8-97091-746-1	9-09110-406-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), L=53.0 ASM PART: A = 8-97091-746-1	8-94316-274-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), L=55.0 ASM PART: A = 8-97091-746-1	8-94316-275-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), L=57.0 ASM PART: A = 8-97091-746-1	8-94316-276-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94426-049-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), L=53 ASM PART: B = 8-97177-036-0	8-97123-312-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), L=55 ASM PART: B = 8-97177-036-0	8-97123-313-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), L=57 ASM PART: B = 8-97177-036-0	8-97123-314-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B) ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-437-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A) ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-873-0	01	1	-
92	BOLT; FULL LOAD STOPPER,GOV ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94426-049-0	01	1	-
92	BOLT; FULL LOAD STOPPER,GOV ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-438-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94316-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94426-047-1	02	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-177-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-216-0	01	1	-
97	BOLT; PIVOT,GOV LEVER ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-601-0	02	1	-
97	BOLT; PIVOT,GOV LEVER ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-250-0	02	1	-
98	GASKET; PIVOT BOLT,GOV LEVER ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-602-0	02	1	-
98	GASKET; PIVOT BOLT,GOV LEVER ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97202-045-0	02	1	-
101	GASKET; ADJ SPRING CAPSULE,GOV ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-598-0	01	1	-
101	GASKET; ADJ SPRING CAPSULE,GOV ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97209-533-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (A), L=16.5 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94316-262-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B), L=18.0 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94316-263-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B), L=21.0 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94316-264-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B), L=24.0 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94316-265-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B), L=27.0 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94316-266-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (C), ID=7.9 L=8 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-372-0	01	1	-
148	WASHER; VLV ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-573-0	01	1	-
223	BEARING; SLEEVE ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-564-0	01	1	-
256	SEAT; GOV SPRING ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-905-0	01	1	-
457	FLYWEIGHT; GOV ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-822-0	04	1	-
458	RING; SLEEVE,GOV ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-859-0	01	1	-
459	FILTER; SOLENOID ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-571-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
