Sayfa 0-80A - Isuzu EPC

0-80A — INJECTION PUMP (#139032) — 400 parça

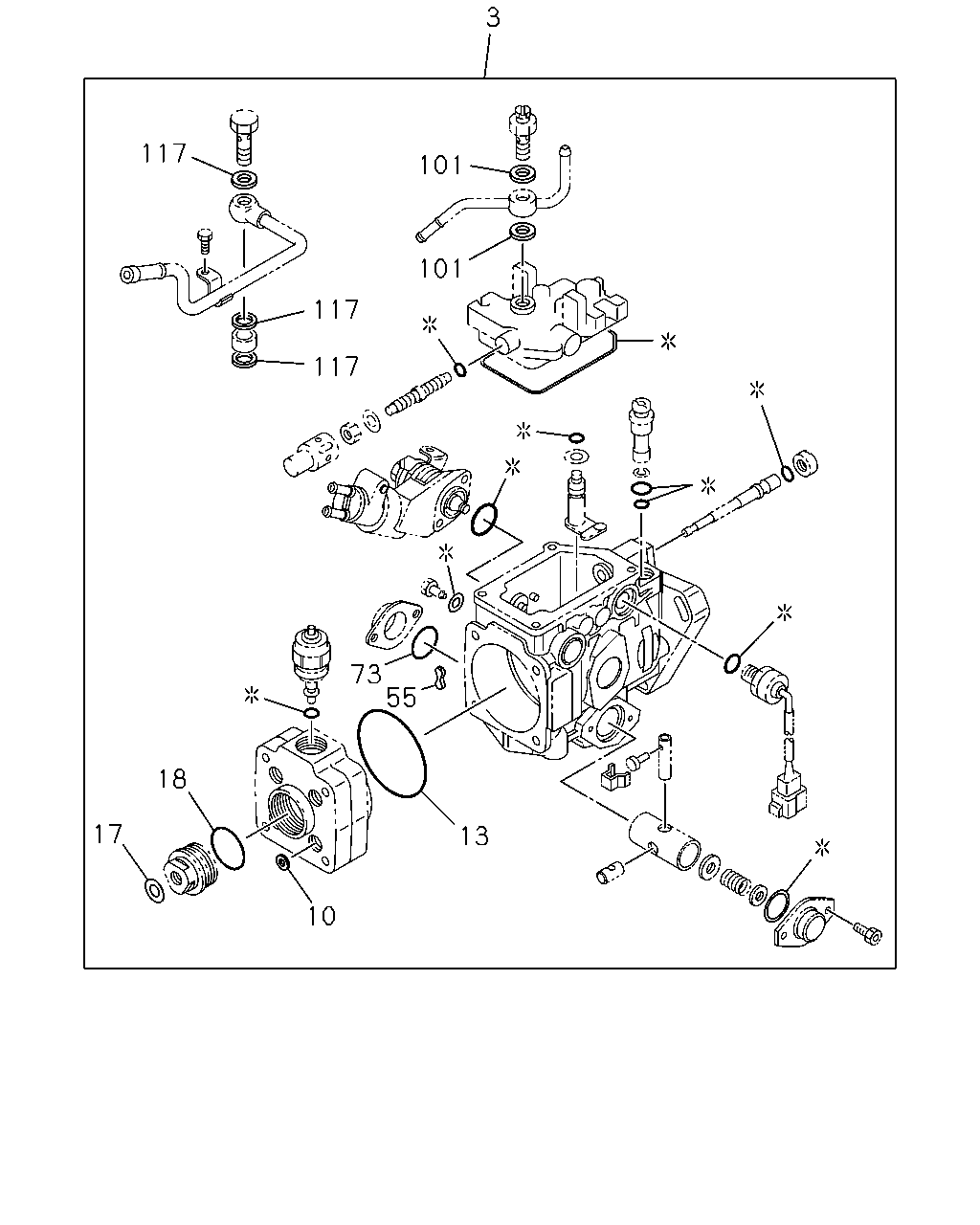

3 117 101 101 117 117 73 55 18 17 13 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; FUEL INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94228-545-0	01	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94247-716-0	04	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-880-0	04	1	-
13	GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-527-0	01	1	-
13	GASKET; DISTR HD,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-158-0	01	1	-
17	GASKET; BOLT,DISTR PLUG,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-602-0	01	1	-
17	GASKET; BOLT,DISTR PLUG,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-149-0	01	1	-
18	GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-637-0	01	1	-
18	GASKET; DISTR PLUG,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97209-532-0	01	1	-
55	DAMPER; CAM DRIVE,INJ PUMP ASM PART: B = 8-97177-036-0	8-94169-528-0	02	1	-
55	DAMPER; CAM DRIVE,INJ PUMP ASM PART: A = 8-97091-746-1	8-94227-482-1	02	1	-
55	DAMPER; CAM DRIVE,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-928-0	02	1	-
73	GASKET; COVER TO HSG ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-491-0	01	1	-
73	GASKET; COVER TO HSG ID=27.5 ASM PART: D = 8-97213-671-2	8-97140-980-0	01	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 8-97091-746-1	8-94227-645-0	02	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: B = 8-97177-036-0	8-97119-187-0	02	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ID=12.2 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-182-0	02	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: A = 8-97091-746-1	8-94227-645-0	03	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: B = 8-97177-036-0	8-97119-187-0	03	1	-
117	GASKET; EYE BOLT,INJ PUMP ID=12.2 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-182-0	03	1	-

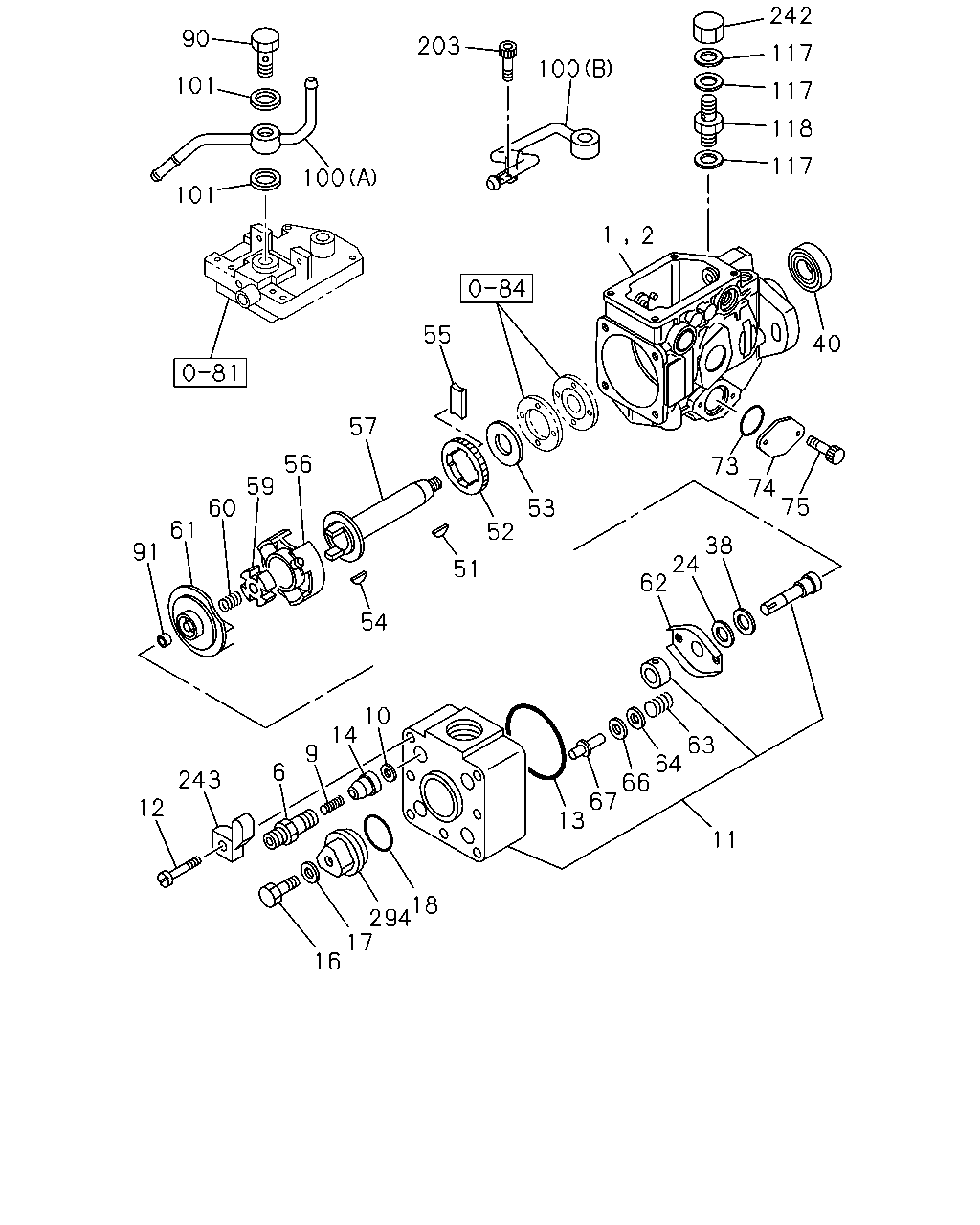

242 90 203 117 100 101 117 118 117 100 101 1 2 84 55 40 81 57 56 73 74 75 59 60 53 61 52 38 24 62 91 51 54 10 14 63 64 66 67 13 9 6 243 12 11 18 294 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: C = 8-97212-840-2	8-97161-855-0	01	1	-
2	HOUSING ASM; PUMP,FUEL INJ ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-97102-537-0	01	1	-
2	HOUSING ASM; PUMP,FUEL INJ ASM PART: D = 8-97213-671-2	8-97161-855-0	01	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-582-0	04	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-866-0	04	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-581-0	04	1	-
9	SPRING; DELIVERY VLV ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-868-0	04	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94247-716-0	04	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-880-0	04	1	-
11	HEAD ASM; DISTR,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-97102-536-0	01	1	-
11	HEAD ASM; DISTR,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97174-574-0	01	1	-
12	SCREW; DISTR HD,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94257-670-0	03	1	-
12	SCREW; DISTR HD,INJ PUMP M6X45 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-258-0	04	1	-
13	GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-527-0	01	1	-
13	GASKET; DISTR HD,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-158-0	01	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94460-298-0	04	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-867-0	04	1	-
16	BOLT; DISTR PLUG,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-639-0	01	1	-
16	BOLT; DISTR PLUG,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-902-0	01	1	-
17	GASKET; BOLT,DISTR PLUG,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-602-0	01	1	-
17	GASKET; BOLT,DISTR PLUG,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-149-0	01	1	-
18	GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-637-0	01	1	-
18	GASKET; DISTR PLUG,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97209-532-0	01	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-515-0	01	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-905-0	01	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-514-0	01	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-903-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 8-97091-746-1	8-94227-475-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-940-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 8-97177-036-0	8-97147-034-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94239-370-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-939-0	01	1	-
52	GEAR; GOV DRIVE,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-483-0	01	1	-
52	GEAR; GOV DRIVE,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-927-0	01	1	-
53	WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-484-0	01	1	-
53	WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-930-0	01	1	-
54	KEY; FEED PUMP,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-481-0	01	1	-
54	KEY; FEED PUMP,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-936-0	01	1	-
55	DAMPER; CAM DRIVE,INJ PUMP ASM PART: B = 8-97177-036-0	8-94169-528-0	02	1	-
55	DAMPER; CAM DRIVE,INJ PUMP ASM PART: A = 8-97091-746-1	8-94227-482-1	02	1	-
55	DAMPER; CAM DRIVE,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-928-0	02	1	-
56	ROLLER ASM; TIMER,INJ PUMP ASM PART: A = 8-97091-746-1	8-97105-391-0	01	1	-
56	ROLLER ASM; TIMER,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-858-0	01	1	-
56	ROLLER ASM; TIMER,INJ PUMP ASM PART: B = 8-97177-036-0	8-97180-274-0	01	1	-
57	SHAFT; DRIVE,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-480-0	01	1	-
57	SHAFT; DRIVE,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97174-577-0	01	1	-
59	DISC; DRIVE,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-489-0	01	1	-
59	DISC; DRIVE,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-877-0	01	1	-
60	SPRING; DRIVE DISC,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-647-0	01	1	-
60	SPRING; DRIVE DISC,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-876-0	01	1	-
61	CAM; DISC,PLUNGER,INJ PUMP ASM PART: A = 8-97091-746-1	8-97094-103-0	01	1	-
61	CAM; DISC,PLUNGER,INJ PUMP ASM PART: B = 8-97177-036-0	8-97123-310-0	01	1	-
61	CAM; DISC,PLUNGER,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97174-582-0	01	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-516-1	01	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-151-0	01	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-155-0	02	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-517-0	02	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-156-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.50 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-518-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.80 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-519-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.00 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-520-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.20 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-521-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.50 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-522-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.80 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-523-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.00 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-524-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.90 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94433-204-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.10 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94433-205-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.30 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94433-206-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.40 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94433-207-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.60 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94433-208-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.70 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94433-209-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.50 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-265-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.80 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-266-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.00 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-267-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.20 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-268-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.50 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-269-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.80 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-270-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.00 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-271-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.90 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-272-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.10 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-273-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.30 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-274-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.40 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-275-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.40 ASM PART: B = 8-97177-036-0	8-97146-139-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.60 ASM PART: B = 8-97177-036-0	8-97146-140-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.70 ASM PART: B = 8-97177-036-0	8-97146-141-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.90 ASM PART: B = 8-97177-036-0	8-97146-142-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.20 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-918-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.30 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-919-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.40 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-920-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.60 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-921-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.70 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-922-0	02	1	-
67	PIN; GUIDE,PLUNGER SPRING ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-525-0	02	1	-
67	PIN; GUIDE,PLUNGER SPRING ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-152-0	02	1	-
73	GASKET; COVER TO HSG ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-491-0	01	1	-
73	GASKET; COVER TO HSG ID=27.5 ASM PART: D = 8-97213-671-2	8-97140-980-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94242-967-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-967-0	01	1	-
75	SCREW; COVER TO HSG ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94313-276-0	02	1	-
75	SCREW; COVER TO HSG M6X16 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-853-0	02	1	-
84	GASKET; BRKT TO HSG ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94247-722-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-97091-746-1	8-94389-430-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 8-97177-036-0	8-97144-333-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-906-0	01	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.74 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94111-658-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.76 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94111-659-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.78 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94111-660-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.80 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94111-661-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.82 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94111-662-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.84 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94111-663-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.86 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94111-664-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.88 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94111-665-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.90 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-528-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.92 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-529-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.94 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-530-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.96 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-531-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.98 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-532-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.00 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-533-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.02 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-534-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.04 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-535-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.06 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-536-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.08 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-537-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.10 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-538-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.12 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-539-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.14 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-540-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.16 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-541-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.18 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-542-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.20 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-543-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.22 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-544-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.24 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-545-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.26 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-546-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.28 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-547-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.30 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-548-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.32 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-549-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.34 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-550-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.36 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-551-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.38 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-552-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.40 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-553-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.42 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-554-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.44 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-555-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.46 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-556-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.48 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-557-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.50 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-558-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.52 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-559-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.54 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-560-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.56 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-561-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.58 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-562-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.60 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-563-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.62 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-564-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.64 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-565-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.66 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-566-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.68 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-567-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.70 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-568-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.72 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-569-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.74 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-570-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.76 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-571-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.78 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-572-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.80 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-573-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.82 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-574-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.84 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-575-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.86 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-576-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.88 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-577-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.90 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-578-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.90 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-431-0	01	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.20 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-955-0	01	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.40 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-956-0	01	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.70 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-957-0	01	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.90 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-958-0	01	1	-
100	PIPE; FUEL INJ PUMP (A) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-97086-127-0	01	1	-
100	PIPE; FUEL INJ PUMP (B) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-97094-109-0	01	1	-
100	PIPE; FUEL INJ PUMP (A) ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-964-1	01	1	-
100	PIPE; FUEL INJ PUMP (B) ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-965-0	01	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 8-97091-746-1	8-94227-645-0	02	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: B = 8-97177-036-0	8-97119-187-0	02	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ID=12.2 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-182-0	02	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: A = 8-97091-746-1	8-94227-645-0	03	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: B = 8-97177-036-0	8-97119-187-0	03	1	-
117	GASKET; EYE BOLT,INJ PUMP ID=12.2 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-182-0	03	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94174-824-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-240-0	01	1	-
203	BOLT; FUEL INL ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94313-203-0	01	1	-
203	BOLT; FUEL INL ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-960-0	01	1	-
242	NUT; CAP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-252-0	01	1	-
243	CLIP; DISTR HD,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-968-0	01	1	-
294	PLUG; DISTR,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-143-0	01	1	-

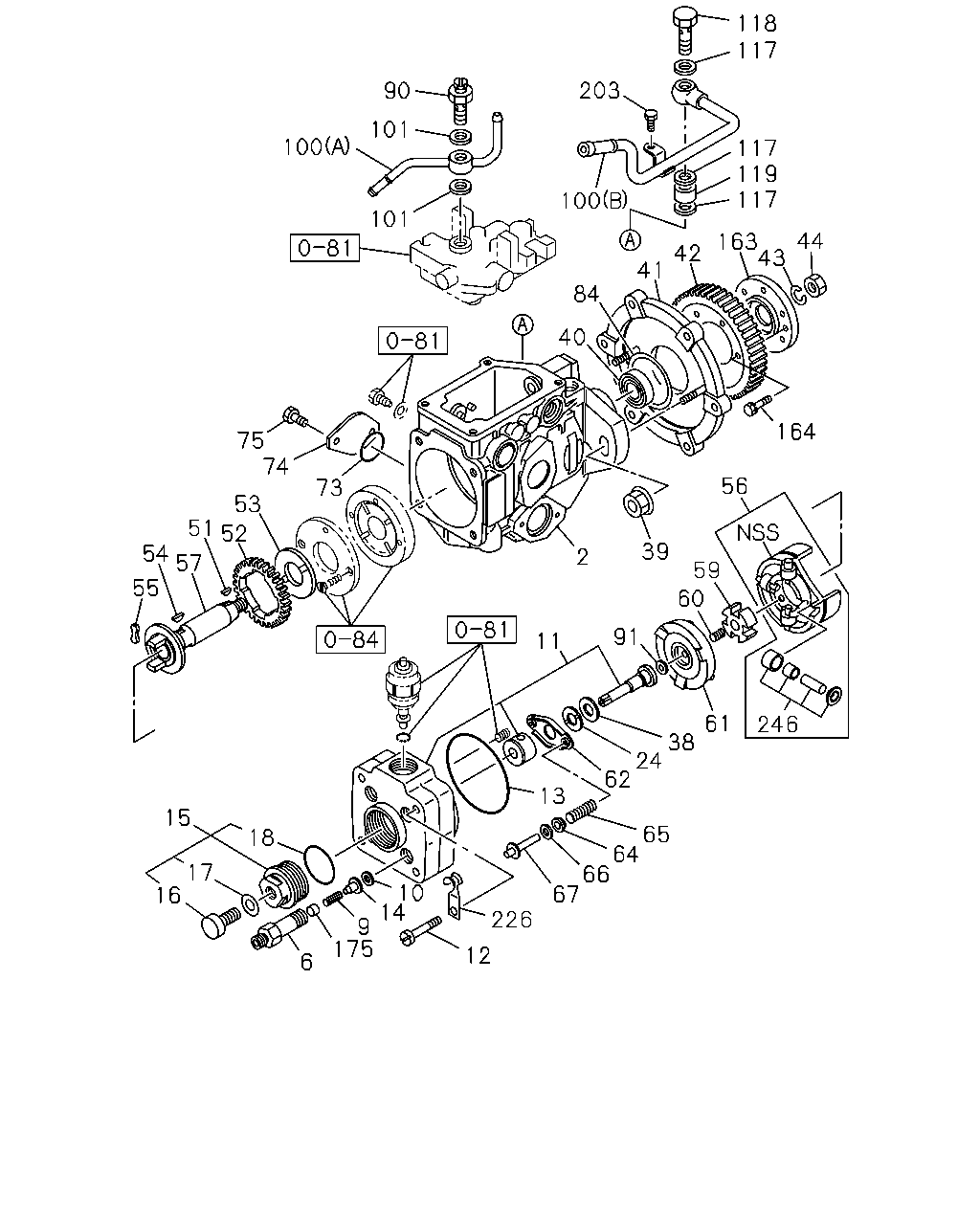

118 117 203 90 101 100 117 119 117 100 101 44 163 43 81 42 41 84 40 81 164 75 74 56 73 53 51 52 39 54 57 2 59 55 60 81 91 84 11 61 246 38 24 62 13 15 65 64 66 67 18 17 16 10 14 226 9 175 12 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING ASM; PUMP,FUEL INJ ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-97102-537-0	01	1	-
2	HOUSING ASM; PUMP,FUEL INJ ASM PART: D = 8-97213-671-2	8-97161-855-0	01	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-582-0	04	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-866-0	04	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-581-0	04	1	-
9	SPRING; DELIVERY VLV ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-868-0	04	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94247-716-0	04	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-880-0	04	1	-
11	HEAD ASM; DISTR,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-97102-536-0	01	1	-
11	HEAD ASM; DISTR,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97174-574-0	01	1	-
12	SCREW; DISTR HD,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94257-670-0	03	1	-
12	SCREW; DISTR HD,INJ PUMP M6X45 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-258-0	04	1	-
13	GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-527-0	01	1	-
13	GASKET; DISTR HD,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-158-0	01	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94460-298-0	04	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-867-0	04	1	-
15	PLUG ASM; DISTR,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-638-0	01	1	-
16	BOLT; DISTR PLUG,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-639-0	01	1	-
16	BOLT; DISTR PLUG,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-902-0	01	1	-
17	GASKET; BOLT,DISTR PLUG,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-602-0	01	1	-
17	GASKET; BOLT,DISTR PLUG,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-149-0	01	1	-
18	GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-637-0	01	1	-
18	GASKET; DISTR PLUG,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97209-532-0	01	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-515-0	01	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-905-0	01	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-514-0	01	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-903-0	01	1	-
39	NUT; MTG BRKT FIX ASM PART: A = 8-97091-746-1	8-94244-829-0	02	1	-
39	NUT; MTG BRKT FIX ASM PART: B = 8-97177-036-0	8-97119-344-0	02	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 8-97091-746-1	8-94227-475-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-940-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 8-97177-036-0	8-97147-034-0	01	1	-
41	BRACKET; INJ PUMP HSG ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94174-843-0	01	1	-
42	GEAR; DRIVE,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94458-257-0	01	1	-
43	WASHER; LK,DRIVE GEAR,INJ PUMP ASM PART: B = 8-97177-036-0	8-94226-554-0	01	1	-
43	WASHER; LK,DRIVE GEAR,INJ PUMP ASM PART: A = 8-97091-746-1	8-94227-648-0	01	1	-
44	NUT; DRIVE GEAR FIX,INJ PUMP ASM PART: A = 8-97091-746-1	1-15629-006-0	01	1	-
44	NUT; DRIVE GEAR FIX,INJ PUMP M14 ASM PART: B = 8-97177-036-0	8-94226-565-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94239-370-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-939-0	01	1	-
52	GEAR; GOV DRIVE,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-483-0	01	1	-
52	GEAR; GOV DRIVE,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-927-0	01	1	-
53	WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-484-0	01	1	-
53	WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-930-0	01	1	-
54	KEY; FEED PUMP,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-481-0	01	1	-
54	KEY; FEED PUMP,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-936-0	01	1	-
55	DAMPER; CAM DRIVE,INJ PUMP ASM PART: B = 8-97177-036-0	8-94169-528-0	02	1	-
55	DAMPER; CAM DRIVE,INJ PUMP ASM PART: A = 8-97091-746-1	8-94227-482-1	02	1	-
55	DAMPER; CAM DRIVE,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-928-0	02	1	-
56	ROLLER ASM; TIMER,INJ PUMP ASM PART: A = 8-97091-746-1	8-97105-391-0	01	1	-
56	ROLLER ASM; TIMER,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-858-0	01	1	-
56	ROLLER ASM; TIMER,INJ PUMP ASM PART: B = 8-97177-036-0	8-97180-274-0	01	1	-
57	SHAFT; DRIVE,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-480-0	01	1	-
57	SHAFT; DRIVE,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97174-577-0	01	1	-
59	DISC; DRIVE,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-489-0	01	1	-
59	DISC; DRIVE,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-877-0	01	1	-
60	SPRING; DRIVE DISC,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-647-0	01	1	-
60	SPRING; DRIVE DISC,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-876-0	01	1	-
61	CAM; DISC,PLUNGER,INJ PUMP ASM PART: A = 8-97091-746-1	8-97094-103-0	01	1	-
61	CAM; DISC,PLUNGER,INJ PUMP ASM PART: B = 8-97177-036-0	8-97123-310-0	01	1	-
61	CAM; DISC,PLUNGER,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97174-582-0	01	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-516-1	01	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-151-0	01	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-517-0	02	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-156-0	02	1	-
65	SPRING KIT; PLUNGER,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94228-404-0	01	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.50 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-518-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.80 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-519-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.00 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-520-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.20 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-521-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.50 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-522-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.80 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-523-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.00 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-524-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.90 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94433-204-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.10 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94433-205-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.30 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94433-206-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.40 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94433-207-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.60 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94433-208-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.70 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94433-209-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.50 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-265-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.80 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-266-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.00 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-267-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.20 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-268-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.50 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-269-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.80 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-270-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.00 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-271-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.90 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-272-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.10 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-273-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.30 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-274-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.40 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-275-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.40 ASM PART: B = 8-97177-036-0	8-97146-139-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.60 ASM PART: B = 8-97177-036-0	8-97146-140-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.70 ASM PART: B = 8-97177-036-0	8-97146-141-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.90 ASM PART: B = 8-97177-036-0	8-97146-142-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.20 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-918-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.30 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-919-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.40 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-920-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.60 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-921-0	02	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.70 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-922-0	02	1	-
67	PIN; GUIDE,PLUNGER SPRING ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-525-0	02	1	-
67	PIN; GUIDE,PLUNGER SPRING ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-152-0	02	1	-
73	GASKET; COVER TO HSG ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-491-0	01	1	-
73	GASKET; COVER TO HSG ID=27.5 ASM PART: D = 8-97213-671-2	8-97140-980-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94242-967-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-967-0	01	1	-
75	SCREW; COVER TO HSG ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94313-276-0	02	1	-
75	SCREW; COVER TO HSG M6X16 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97140-853-0	02	1	-
84	GASKET; BRKT TO HSG ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94247-722-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-97091-746-1	8-94389-430-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 8-97177-036-0	8-97144-333-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-906-0	01	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.74 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94111-658-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.76 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94111-659-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.78 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94111-660-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.80 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94111-661-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.82 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94111-662-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.84 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94111-663-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.86 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94111-664-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.88 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94111-665-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.90 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-528-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.92 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-529-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.94 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-530-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.96 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-531-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.98 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-532-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.00 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-533-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.02 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-534-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.04 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-535-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.06 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-536-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.08 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-537-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.10 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-538-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.12 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-539-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.14 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-540-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.16 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-541-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.18 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-542-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.20 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-543-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.22 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-544-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.24 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-545-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.26 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-546-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.28 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-547-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.30 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-548-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.32 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-549-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.34 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-550-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.36 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-551-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.38 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-552-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.40 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-553-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.42 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-554-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.44 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-555-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.46 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-556-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.48 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-557-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.50 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-558-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.52 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-559-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.54 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-560-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.56 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-561-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.58 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-562-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.60 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-563-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.62 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-564-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.64 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-565-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.66 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-566-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.68 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-567-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.70 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-568-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.72 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-569-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.74 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-570-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.76 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-571-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.78 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-572-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.80 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-573-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.82 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-574-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.84 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-575-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.86 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-576-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.88 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-577-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.90 ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-578-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.90 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-431-0	01	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.20 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-955-0	01	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.40 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-956-0	01	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.70 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-957-0	01	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.90 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-958-0	01	1	-
100	PIPE; FUEL INJ PUMP (A) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-97086-127-0	01	1	-
100	PIPE; FUEL INJ PUMP (B) ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-97094-109-0	01	1	-
100	PIPE; FUEL INJ PUMP (A) ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-964-1	01	1	-
100	PIPE; FUEL INJ PUMP (B) ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-965-0	01	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 8-97091-746-1	8-94227-645-0	02	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: B = 8-97177-036-0	8-97119-187-0	02	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ID=12.2 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-182-0	02	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: A = 8-97091-746-1	8-94227-645-0	03	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: B = 8-97177-036-0	8-97119-187-0	03	1	-
117	GASKET; EYE BOLT,INJ PUMP ID=12.2 ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-182-0	03	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94174-824-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97141-240-0	01	1	-
119	SPACER; FUEL INL,INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94227-662-0	01	1	-
163	COUPLING; INJ PUMP ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-97102-606-0	01	1	-
164	BOLT; GEAR TO COUPLING ASM PART: A = 8-97091-746-1	5-15619-112-0	06	1	-
164	BOLT; GEAR TO COUPLING M6X18 ASM PART: B = 8-97177-036-0	9-01910-618-0	06	1	-
175	STOPPER; SPR ASM PART: A = 8-97091-746-1	8-94317-496-0	04	1	-
203	BOLT; FUEL INL ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-94313-203-0	01	1	-
203	BOLT; FUEL INL ASM PART: C = 8-97212-840-2, D = 8-97213-671-2	8-97161-960-0	01	1	-
226	BRACKET; DISTR HEAD ASM PART: A = 8-97091-746-1, B = 8-97177-036-0	8-97105-395-0	01	1	-
246	ROLLER KIT; INJ PUMP ASM PART: B = 8-97177-036-0	8-97163-172-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
