0-66 — GENERATOR (#139031) — 167 parça

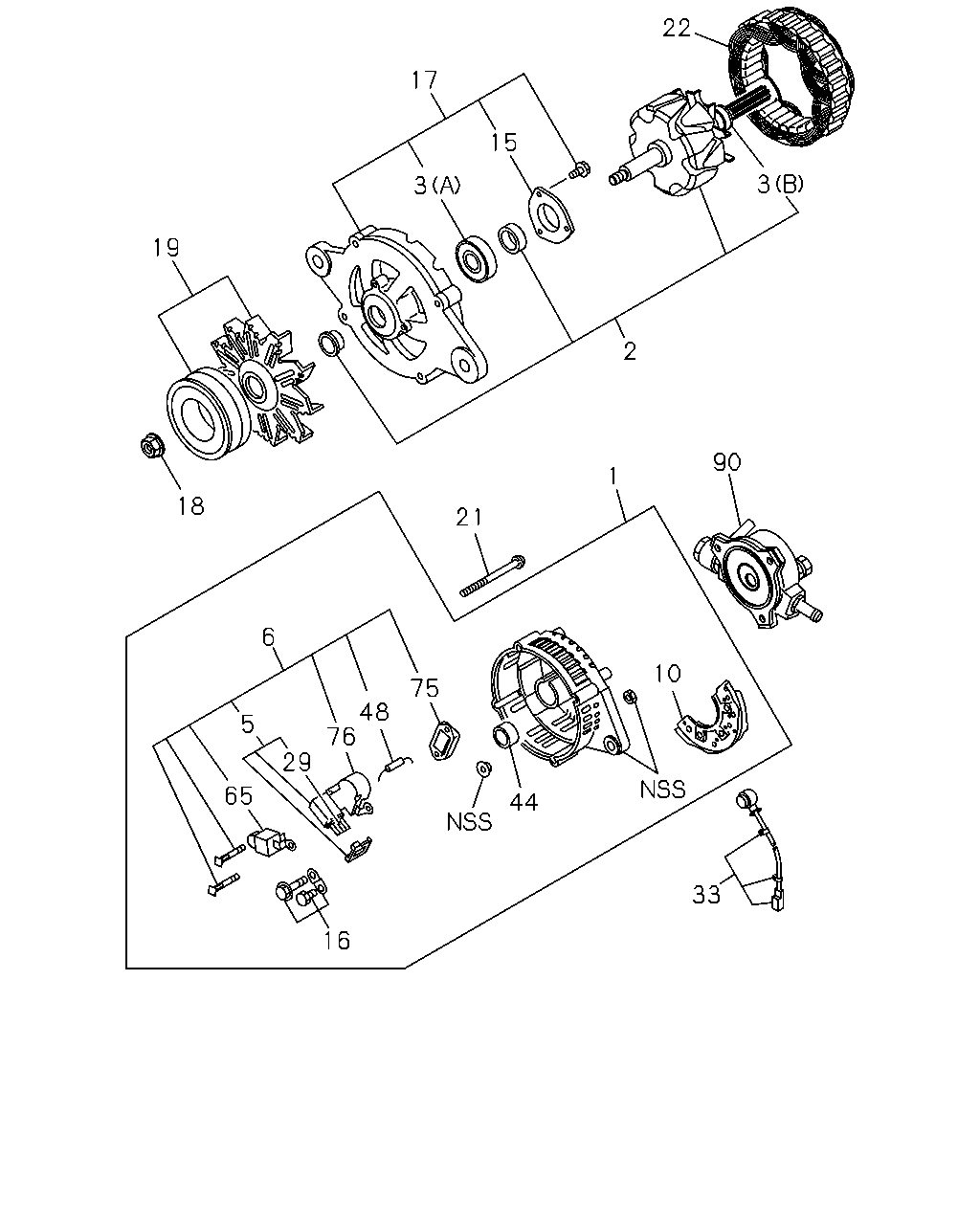

22 17 15 3 3 19 2 90 1 18 21 6 10 75 48 76 5 29 65 44 33 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN TAI ASM PART: A = 8-97965-432-0	8-97083-007-0	01	1	-
1	COVER ASM; RR,GEN TAI ASM PART: B = 8-97967-301-1	8-97313-441-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: C = 8-98029-887-2	8-98046-185-0	01	1	-1208
1	COVER ASM; RR,GEN ASM PART: D = 8-98029-889-2	8-98046-187-0	01	1	-
2	ROTOR; GEN TAI ASM PART: A = 8-97965-432-0	8-97083-006-0	01	1	-
2	ROTOR; GEN TAI ASM PART: B = 8-97967-301-1	8-97313-436-0	01	1	-
2	ROTOR; GEN ASM PART: C = 8-98029-887-2	8-98038-914-0	01	1	-
2	ROTOR; GEN ASM PART: D = 8-98029-889-2	8-98038-916-1	01	1	-
3	BEARING; ROTOR,GEN (A), TAI ASM PART: A = 8-97965-432-0	8-97062-654-0	01	1	-
3	BEARING; ROTOR,GEN (B), TAI ASM PART: A = 8-97965-432-0, C = 8-98029-887-2, D = 8-98029-889-2	8-97062-744-0	01	1	-
3	BEARING; ROTOR,GEN (C), TAI ASM PART: B = 8-97967-301-1	8-97148-112-0	01	1	-
3	BEARING; ROTOR,GEN (E) ASM PART: C = 8-98029-887-2, D = 8-98029-889-2	8-97161-473-0	01	1	-
3	BEARING; ROTOR,GEN (D), TAI ASM PART: B = 8-97967-301-1	8-97248-128-0	01	1	-
5	HOLDER; BRUSH,GEN TAI ASM PART: A = 8-97965-432-0	8-94156-592-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN TAI ASM PART: A = 8-97965-432-0	8-94167-410-0	01	1	-
10	RECTIFIER; GEN TAI ASM PART: A = 8-97965-432-0	8-94408-376-0	01	1	-
10	RECTIFIER; GEN TAI ASM PART: B = 8-97967-301-1	8-97313-444-0	01	1	-
10	RECTIFIER; GEN ASM PART: C = 8-98029-887-2	8-98046-188-0	01	1	-1208
10	RECTIFIER; GEN ASM PART: D = 8-98029-889-2	8-98046-190-0	01	1	-
15	RETAINER; ROTOR,GEN TAI ASM PART: A = 8-97965-432-0	8-94223-974-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN TAI ASM PART: A = 8-97965-432-0	8-97111-390-0	01	1	-
17	COVER ASM; FRT,GEN TAI ASM PART: A = 8-97965-432-0	8-97071-214-0	01	1	-
17	COVER ASM; FRT,GEN TAI ASM PART: B = 8-97967-301-1	8-97313-447-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: C = 8-98029-887-2	8-98038-922-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 8-98029-889-2	8-98038-924-0	01	1	-
18	NUT; PULLEY,GEN TAI ASM PART: A = 8-97965-432-0	8-97016-301-0	01	1	-
19	PULLEY; GEN TAI ASM PART: A = 8-97965-432-0	8-97029-004-0	01	1	-
19	PULLEY; GEN TAI ASM PART: B = 8-97967-301-1	8-97313-448-0	01	1	-
19	PULLEY; GEN ASM PART: C = 8-98029-887-2	8-98038-925-0	01	1	-
19	PULLEY; GEN ASM PART: D = 8-98029-889-2	8-98040-132-0	01	1	-
21	BOLT; THROUGH,GEN TAI ASM PART: A = 8-97965-432-0	8-94156-602-0	04	1	-
22	STATOR; GEN TAI ASM PART: A = 8-97965-432-0	8-94167-406-0	01	1	-
22	STATOR; GEN ASM PART: C = 8-98029-887-2	8-97192-850-0	01	1	-
22	STATOR; GEN ASM PART: D = 8-98029-889-2	8-97249-331-1	01	1	-
22	STATOR; GEN TAI ASM PART: B = 8-97967-301-1	8-97313-438-0	01	1	-
29	BRUSH; GEN TAI ASM PART: A = 8-97965-432-0	8-94156-593-0	02	1	-
33	WIRE; LEAD,GEN TAI ASM PART: A = 8-97965-432-0	8-97071-213-0	01	1	-
44	SEAL; RR COVER,GEN TAI ASM PART: A = 8-97965-432-0, B = 8-97967-301-1	8-94156-589-0	01	1	-
48	DIODE; GEN TAI ASM PART: A = 8-97965-432-0	8-94237-727-0	01	1	-
65	CONDENSER; GEN TAI ASM PART: A = 8-97965-432-0	8-94156-594-0	01	1	-
75	REGULATOR; VOLTAGE,GEN TAI ASM PART: A = 8-97965-432-0	8-94250-964-0	01	1	-
76	BLOCK; REG,GEN TAI ASM PART: A = 8-97965-432-0	8-94156-591-0	01	1	-
90	PUMP ASM; VAC,GEN TAI ASM PART: A = 8-97965-432-0	8-97083-009-0	01	1	-
90	PUMP ASM; VAC,GEN TAI ASM PART: B = 8-97967-301-1	8-97313-450-0	01	1	-

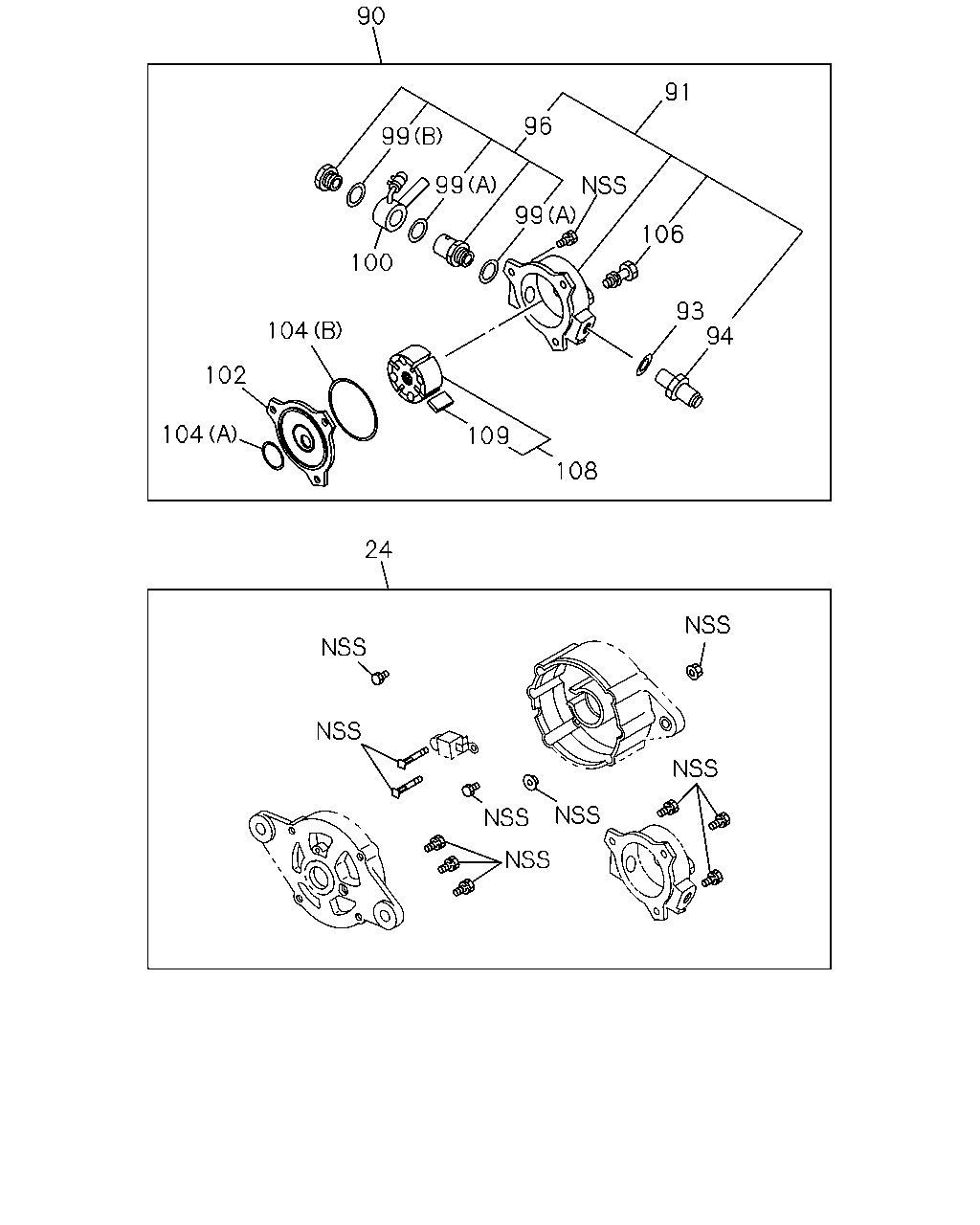

90 91 96 99 99 99 106 100 93 94 104 102 104 109 108 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	SCREW; RECTIFIER,GEN TAI ASM PART: A = 8-97965-432-0	8-94156-603-0	01	1	-
24	SCREW; RECTIFIER,GEN TAI ASM PART: B = 8-97967-301-1	8-97161-697-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: C = 8-98029-887-2	8-98038-927-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: D = 8-98029-889-2	8-98038-928-0	01	1	-
90	PUMP ASM; VAC,GEN TAI ASM PART: A = 8-97965-432-0	8-97083-009-0	01	1	-
90	PUMP ASM; VAC,GEN TAI ASM PART: B = 8-97967-301-1	8-97313-450-0	01	1	-
91	BODY; VAC PUMP TAI ASM PART: A = 8-97965-432-0	8-94424-381-0	01	1	-
91	BODY; VAC PUMP TAI ASM PART: B = 8-97967-301-1	8-97236-694-0	01	1	-
93	GASKET; CONN,VAC PUMP ID=16 OD=22, TAI ASM PART: A = 8-97965-432-0	5-19679-004-2	01	1	-
94	CONNECTOR; VAC PUMP TAI ASM PART: A = 8-97965-432-0	5-19619-034-0	01	1	-
96	VALVE ASM; VAC PUMP TAI ASM PART: A = 8-97965-432-0, B = 8-97967-301-1	8-94223-991-0	01	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97965-432-0, B = 8-97967-301-1	8-94223-992-0	02	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97965-432-0, B = 8-97967-301-1	8-94223-993-0	01	1	-
100	CONNECTOR; VAC PUMP TAI ASM PART: A = 8-97965-432-0	5-19619-040-0	01	1	-
100	CONNECTOR; VAC PUMP TAI ASM PART: B = 8-97967-301-1	8-97313-452-0	01	1	-
102	COVER; FRT,VAC PUMP TAI ASM PART: A = 8-97965-432-0	8-94424-380-0	01	1	-
102	COVER; FRT,VAC PUMP TAI ASM PART: B = 8-97967-301-1	8-97137-334-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A), TAI ASM PART: A = 8-97965-432-0, B = 8-97967-301-1	8-94156-608-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B), TAI ASM PART: A = 8-97965-432-0, B = 8-97967-301-1	8-94223-994-0	01	1	-
106	BOLT; OIL CONN,VAC PUMP TAI ASM PART: A = 8-97965-432-0, B = 8-97967-301-1	8-94223-989-0	01	1	-
108	ROTOR; VAC PUMP TAI ASM PART: A = 8-97965-432-0	8-94380-632-0	01	1	-
108	ROTOR; VAC PUMP TAI ASM PART: B = 8-97967-301-1	8-97236-693-0	01	1	-
109	VANE; VAC PUMP TAI ASM PART: A = 8-97965-432-0	8-94223-985-0	04	1	-
109	VANE; VAC PUMP TAI ASM PART: B = 8-97967-301-1	8-94223-985-0	03	1	-

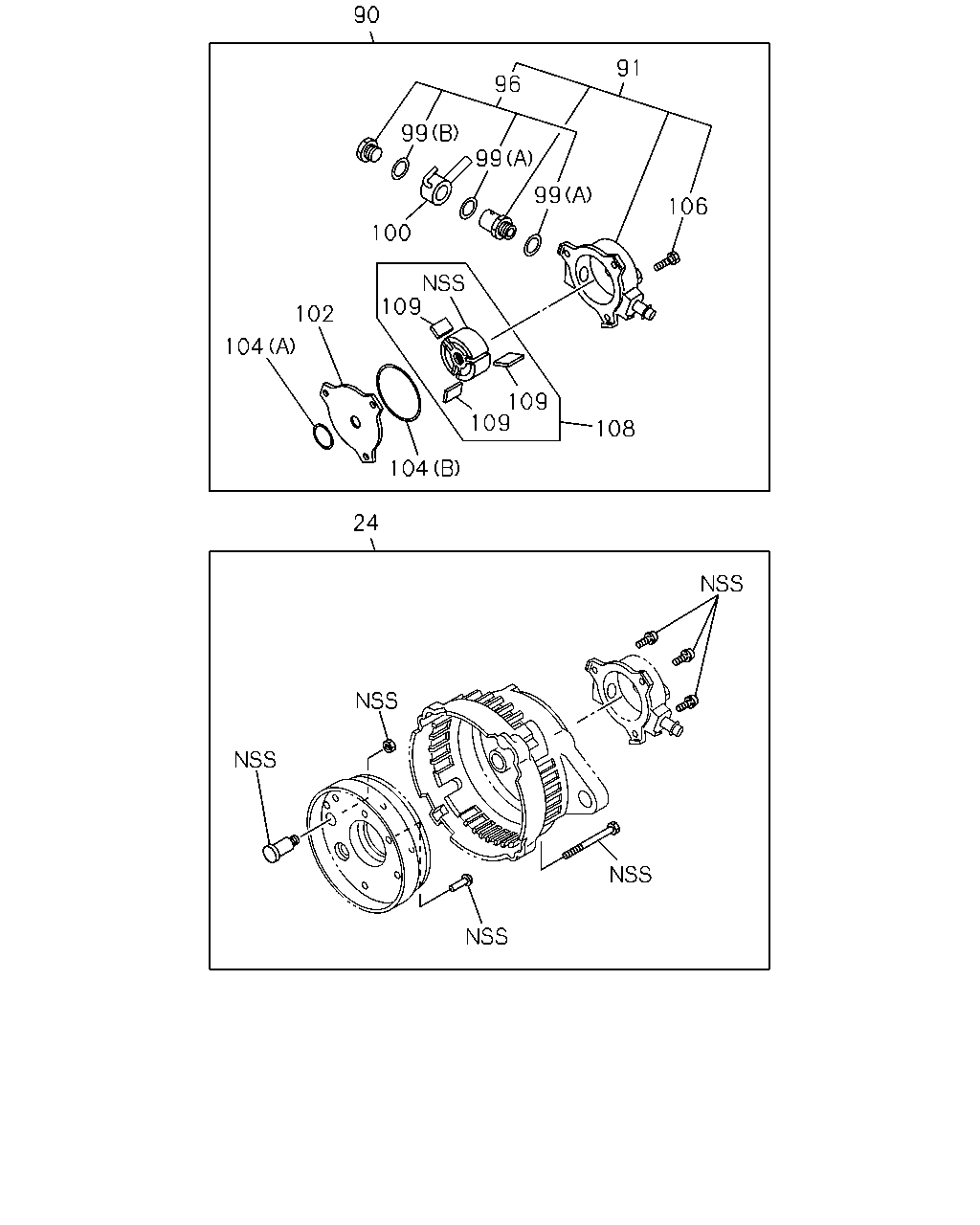

90 91 96 99 99 99 106 100 109 102 104 109 109 108 104 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	SCREW; RECTIFIER,GEN TAI ASM PART: A = 8-97965-432-0	8-94156-603-0	01	1	-
24	SCREW; RECTIFIER,GEN TAI ASM PART: B = 8-97967-301-1	8-97161-697-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: C = 8-98029-887-2	8-98038-927-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: D = 8-98029-889-2	8-98038-928-0	01	1	-
90	PUMP ASM; VAC,GEN TAI ASM PART: A = 8-97965-432-0	8-97083-009-0	01	1	-
90	PUMP ASM; VAC,GEN TAI ASM PART: B = 8-97967-301-1	8-97313-450-0	01	1	-
91	BODY; VAC PUMP TAI ASM PART: A = 8-97965-432-0	8-94424-381-0	01	1	-
91	BODY; VAC PUMP TAI ASM PART: B = 8-97967-301-1	8-97236-694-0	01	1	-
96	VALVE ASM; VAC PUMP TAI ASM PART: A = 8-97965-432-0, B = 8-97967-301-1	8-94223-991-0	01	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97965-432-0, B = 8-97967-301-1	8-94223-992-0	02	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97965-432-0, B = 8-97967-301-1	8-94223-993-0	01	1	-
100	CONNECTOR; VAC PUMP TAI ASM PART: A = 8-97965-432-0	5-19619-040-0	01	1	-
100	CONNECTOR; VAC PUMP TAI ASM PART: B = 8-97967-301-1	8-97313-452-0	01	1	-
102	COVER; FRT,VAC PUMP TAI ASM PART: A = 8-97965-432-0	8-94424-380-0	01	1	-
102	COVER; FRT,VAC PUMP TAI ASM PART: B = 8-97967-301-1	8-97137-334-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A), TAI ASM PART: A = 8-97965-432-0, B = 8-97967-301-1	8-94156-608-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B), TAI ASM PART: A = 8-97965-432-0, B = 8-97967-301-1	8-94223-994-0	01	1	-
106	BOLT; OIL CONN,VAC PUMP TAI ASM PART: A = 8-97965-432-0, B = 8-97967-301-1	8-94223-989-0	01	1	-
108	ROTOR; VAC PUMP TAI ASM PART: A = 8-97965-432-0	8-94380-632-0	01	1	-
108	ROTOR; VAC PUMP TAI ASM PART: B = 8-97967-301-1	8-97236-693-0	01	1	-
109	VANE; VAC PUMP TAI ASM PART: A = 8-97965-432-0	8-94223-985-0	04	1	-
109	VANE; VAC PUMP TAI ASM PART: B = 8-97967-301-1	8-94223-985-0	03	1	-

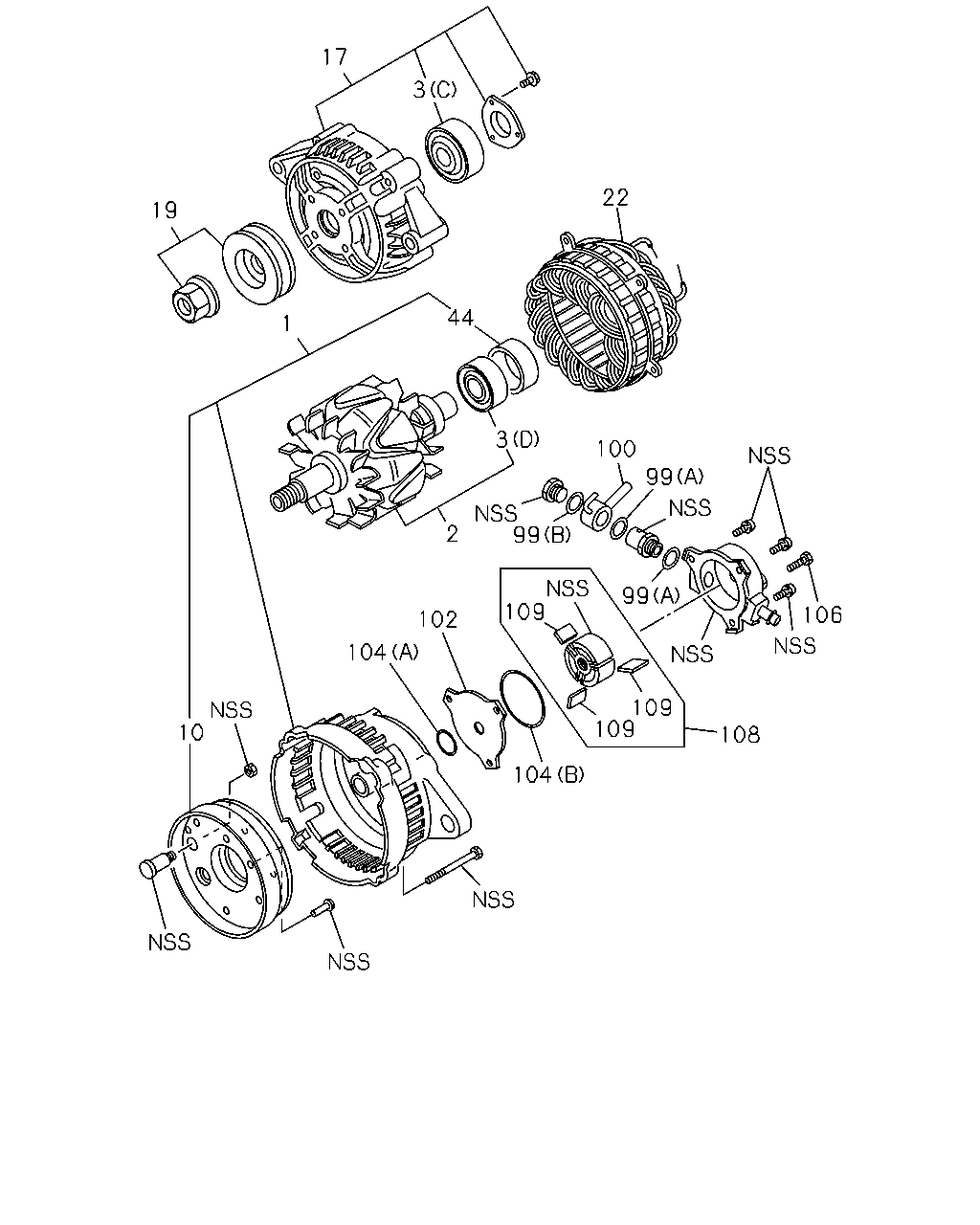

17 3 22 19 44 1 3 100 99 99 2 109 99 106 102 104 109 109 10 108 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN TAI ASM PART: A = 8-97965-432-0	8-97083-007-0	01	1	-
1	COVER ASM; RR,GEN TAI ASM PART: B = 8-97967-301-1	8-97313-441-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: C = 8-98029-887-2	8-98046-185-0	01	1	-1208
1	COVER ASM; RR,GEN ASM PART: D = 8-98029-889-2	8-98046-187-0	01	1	-
2	ROTOR; GEN TAI ASM PART: A = 8-97965-432-0	8-97083-006-0	01	1	-
2	ROTOR; GEN TAI ASM PART: B = 8-97967-301-1	8-97313-436-0	01	1	-
2	ROTOR; GEN ASM PART: C = 8-98029-887-2	8-98038-914-0	01	1	-
2	ROTOR; GEN ASM PART: D = 8-98029-889-2	8-98038-916-1	01	1	-
3	BEARING; ROTOR,GEN (A), TAI ASM PART: A = 8-97965-432-0	8-97062-654-0	01	1	-
3	BEARING; ROTOR,GEN (B), TAI ASM PART: A = 8-97965-432-0, C = 8-98029-887-2, D = 8-98029-889-2	8-97062-744-0	01	1	-
3	BEARING; ROTOR,GEN (C), TAI ASM PART: B = 8-97967-301-1	8-97148-112-0	01	1	-
3	BEARING; ROTOR,GEN (E) ASM PART: C = 8-98029-887-2, D = 8-98029-889-2	8-97161-473-0	01	1	-
3	BEARING; ROTOR,GEN (D), TAI ASM PART: B = 8-97967-301-1	8-97248-128-0	01	1	-
10	RECTIFIER; GEN TAI ASM PART: A = 8-97965-432-0	8-94408-376-0	01	1	-
10	RECTIFIER; GEN TAI ASM PART: B = 8-97967-301-1	8-97313-444-0	01	1	-
10	RECTIFIER; GEN ASM PART: C = 8-98029-887-2	8-98046-188-0	01	1	-1208
10	RECTIFIER; GEN ASM PART: D = 8-98029-889-2	8-98046-190-0	01	1	-
17	COVER ASM; FRT,GEN TAI ASM PART: A = 8-97965-432-0	8-97071-214-0	01	1	-
17	COVER ASM; FRT,GEN TAI ASM PART: B = 8-97967-301-1	8-97313-447-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: C = 8-98029-887-2	8-98038-922-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 8-98029-889-2	8-98038-924-0	01	1	-
19	PULLEY; GEN TAI ASM PART: A = 8-97965-432-0	8-97029-004-0	01	1	-
19	PULLEY; GEN TAI ASM PART: B = 8-97967-301-1	8-97313-448-0	01	1	-
19	PULLEY; GEN ASM PART: C = 8-98029-887-2	8-98038-925-0	01	1	-
19	PULLEY; GEN ASM PART: D = 8-98029-889-2	8-98040-132-0	01	1	-
22	STATOR; GEN TAI ASM PART: A = 8-97965-432-0	8-94167-406-0	01	1	-
22	STATOR; GEN ASM PART: C = 8-98029-887-2	8-97192-850-0	01	1	-
22	STATOR; GEN ASM PART: D = 8-98029-889-2	8-97249-331-1	01	1	-
22	STATOR; GEN TAI ASM PART: B = 8-97967-301-1	8-97313-438-0	01	1	-
44	SEAL; RR COVER,GEN TAI ASM PART: A = 8-97965-432-0, B = 8-97967-301-1	8-94156-589-0	01	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97965-432-0, B = 8-97967-301-1	8-94223-992-0	02	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97965-432-0, B = 8-97967-301-1	8-94223-993-0	01	1	-
100	CONNECTOR; VAC PUMP TAI ASM PART: A = 8-97965-432-0	5-19619-040-0	01	1	-
100	CONNECTOR; VAC PUMP TAI ASM PART: B = 8-97967-301-1	8-97313-452-0	01	1	-
102	COVER; FRT,VAC PUMP TAI ASM PART: A = 8-97965-432-0	8-94424-380-0	01	1	-
102	COVER; FRT,VAC PUMP TAI ASM PART: B = 8-97967-301-1	8-97137-334-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A), TAI ASM PART: A = 8-97965-432-0, B = 8-97967-301-1	8-94156-608-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B), TAI ASM PART: A = 8-97965-432-0, B = 8-97967-301-1	8-94223-994-0	01	1	-
106	BOLT; OIL CONN,VAC PUMP TAI ASM PART: A = 8-97965-432-0, B = 8-97967-301-1	8-94223-989-0	01	1	-
108	ROTOR; VAC PUMP TAI ASM PART: A = 8-97965-432-0	8-94380-632-0	01	1	-
108	ROTOR; VAC PUMP TAI ASM PART: B = 8-97967-301-1	8-97236-693-0	01	1	-
109	VANE; VAC PUMP TAI ASM PART: A = 8-97965-432-0	8-94223-985-0	04	1	-
109	VANE; VAC PUMP TAI ASM PART: B = 8-97967-301-1	8-94223-985-0	03	1	-

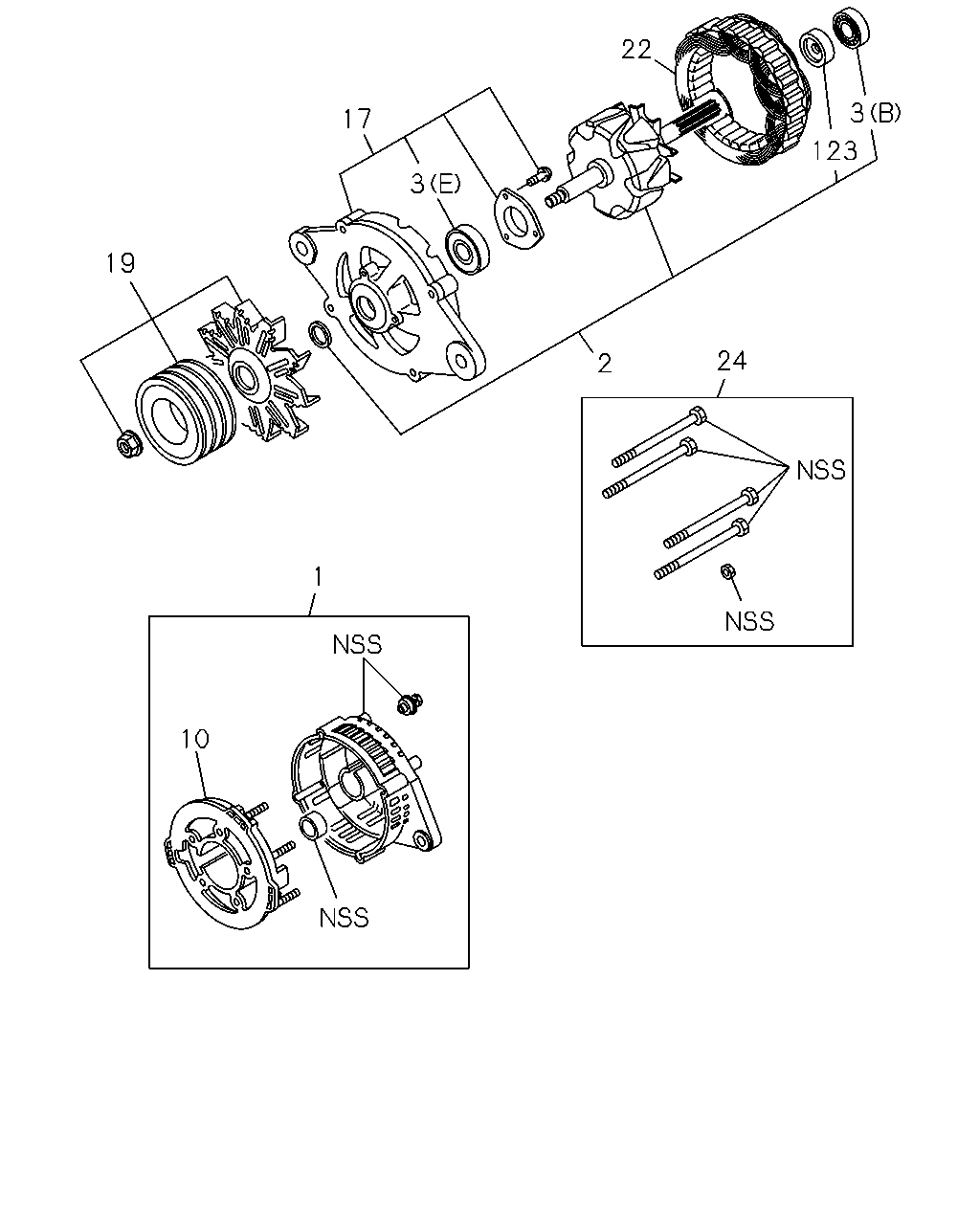

22 3 17 123 3 19 24 2 1 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN TAI ASM PART: A = 8-97965-432-0	8-97083-007-0	01	1	-
1	COVER ASM; RR,GEN TAI ASM PART: B = 8-97967-301-1	8-97313-441-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: C = 8-98029-887-2	8-98046-185-0	01	1	-1208
1	COVER ASM; RR,GEN ASM PART: D = 8-98029-889-2	8-98046-187-0	01	1	-
2	ROTOR; GEN TAI ASM PART: A = 8-97965-432-0	8-97083-006-0	01	1	-
2	ROTOR; GEN TAI ASM PART: B = 8-97967-301-1	8-97313-436-0	01	1	-
2	ROTOR; GEN ASM PART: C = 8-98029-887-2	8-98038-914-0	01	1	-
2	ROTOR; GEN ASM PART: D = 8-98029-889-2	8-98038-916-1	01	1	-
3	BEARING; ROTOR,GEN (A), TAI ASM PART: A = 8-97965-432-0	8-97062-654-0	01	1	-
3	BEARING; ROTOR,GEN (B), TAI ASM PART: A = 8-97965-432-0, C = 8-98029-887-2, D = 8-98029-889-2	8-97062-744-0	01	1	-
3	BEARING; ROTOR,GEN (C), TAI ASM PART: B = 8-97967-301-1	8-97148-112-0	01	1	-
3	BEARING; ROTOR,GEN (E) ASM PART: C = 8-98029-887-2, D = 8-98029-889-2	8-97161-473-0	01	1	-
3	BEARING; ROTOR,GEN (D), TAI ASM PART: B = 8-97967-301-1	8-97248-128-0	01	1	-
10	RECTIFIER; GEN TAI ASM PART: A = 8-97965-432-0	8-94408-376-0	01	1	-
10	RECTIFIER; GEN TAI ASM PART: B = 8-97967-301-1	8-97313-444-0	01	1	-
10	RECTIFIER; GEN ASM PART: C = 8-98029-887-2	8-98046-188-0	01	1	-1208
10	RECTIFIER; GEN ASM PART: D = 8-98029-889-2	8-98046-190-0	01	1	-
17	COVER ASM; FRT,GEN TAI ASM PART: A = 8-97965-432-0	8-97071-214-0	01	1	-
17	COVER ASM; FRT,GEN TAI ASM PART: B = 8-97967-301-1	8-97313-447-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: C = 8-98029-887-2	8-98038-922-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 8-98029-889-2	8-98038-924-0	01	1	-
19	PULLEY; GEN TAI ASM PART: A = 8-97965-432-0	8-97029-004-0	01	1	-
19	PULLEY; GEN TAI ASM PART: B = 8-97967-301-1	8-97313-448-0	01	1	-
19	PULLEY; GEN ASM PART: C = 8-98029-887-2	8-98038-925-0	01	1	-
19	PULLEY; GEN ASM PART: D = 8-98029-889-2	8-98040-132-0	01	1	-
22	STATOR; GEN TAI ASM PART: A = 8-97965-432-0	8-94167-406-0	01	1	-
22	STATOR; GEN ASM PART: C = 8-98029-887-2	8-97192-850-0	01	1	-
22	STATOR; GEN ASM PART: D = 8-98029-889-2	8-97249-331-1	01	1	-
22	STATOR; GEN TAI ASM PART: B = 8-97967-301-1	8-97313-438-0	01	1	-
24	SCREW; RECTIFIER,GEN TAI ASM PART: A = 8-97965-432-0	8-94156-603-0	01	1	-
24	SCREW; RECTIFIER,GEN TAI ASM PART: B = 8-97967-301-1	8-97161-697-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: C = 8-98029-887-2	8-98038-927-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: D = 8-98029-889-2	8-98038-928-0	01	1	-
123	GUIDE; BRUSH ASM PART: C = 8-98029-887-2, D = 8-98029-889-2	8-97062-644-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
