Sayfa 0-65 - Isuzu EPC

0-65 — STARTER (#139030) — 176 parça

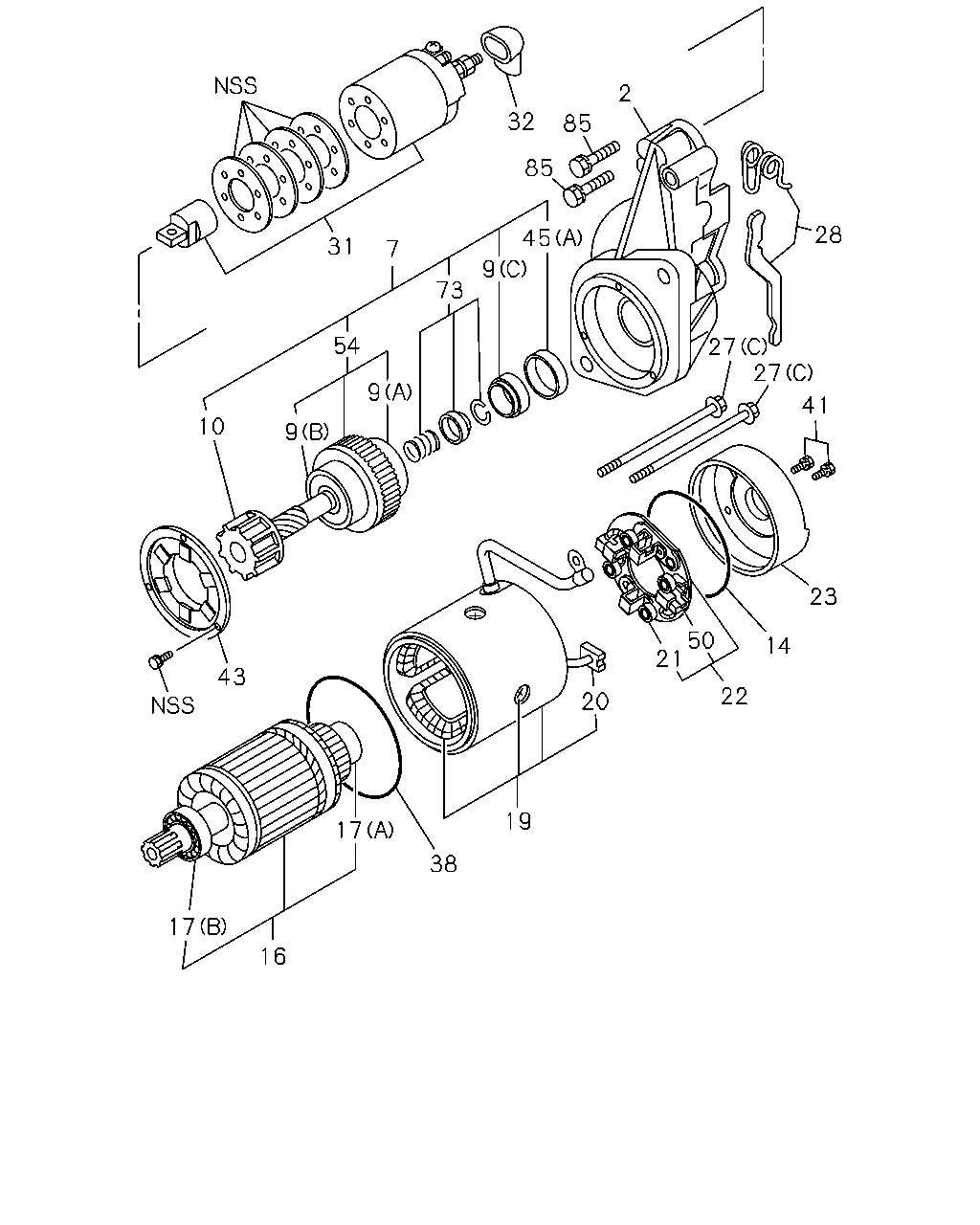

2 32 85 85 28 45 31 7 9 73 54 27 27 9 41 10 9 23 50 21 14 43 22 20 19 17 38 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 8-97042-997-2	8-94167-435-0	01	1	-
2	CASE; PINION,STARTER TAI ASM PART: B = 8-97965-433-0	8-97112-560-0	01	1	-
2	CASE; PINION,STARTER ASM PART: D = 8-98054-984-0	8-97227-902-0	01	1	-
2	CASE; PINION,STARTER TAI ASM PART: C = 8-97967-190-0	8-97247-465-0	01	1	-
2	CASE; PINION,STARTER ASM PART: E = 8-98055-279-1	8-98055-786-1	01	1	-
7	CLUTCH ASM; PINION,STARTER TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-97047-547-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97179-770-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (D) ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97025-673-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (E) ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97025-674-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (F) ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97025-676-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (A), TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-97047-549-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (B), TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-97047-550-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (C), TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-97047-551-0	01	1	-
10	SHAFT; GEAR STARTER TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-94324-622-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97179-772-0	01	1	-
14	GASKET; YOKE,STARTER ASM PART: A = 8-97042-997-2	8-94167-428-0	01	1	-
14	GASKET; YOKE,STARTER TAI ASM PART: C = 8-97967-190-0	8-97115-763-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 8-97042-997-2	8-97083-193-0	01	1	-
16	ARMATURE; STARTER TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-97112-555-0	01	1	-
16	ARMATURE; STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97192-299-0	01	1	-
17	BEARING; ARMATURE,STARTER (A), TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0, D = 8-98054-984-0, E = 8-98055-279-1	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (B), TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-94228-437-0	01	1	-
17	BEARING; ARMATURE,STARTER (D) ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97030-387-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) ASM PART: A = 8-97042-997-2	8-97083-195-0	01	1	-
19	COIL; FIELD,STARTER TAI ASM PART: B = 8-97965-433-0	8-97118-543-0	01	1	-
19	COIL; FIELD,STARTER TAI ASM PART: C = 8-97967-190-0	8-97247-462-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-98055-295-0	01	1	-
20	BRUSH; (+),STARTER TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-97113-285-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-98055-296-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97042-997-2	5-81117-015-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-94152-972-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-94242-064-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-97042-997-2	8-94167-430-0	01	1	-
22	HOLDER; BRUSH STARTER TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-97118-544-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-98055-298-0	01	1	-
23	COVER; RR COVER STARTER TAI ASM PART: B = 8-97965-433-0	8-97112-558-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97227-901-0	01	1	-
23	COVER; RR COVER STARTER TAI ASM PART: C = 8-97967-190-0	8-97247-463-0	01	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: A = 8-97042-997-2	8-94167-433-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: A = 8-97042-997-2	8-94167-434-0	02	1	-
27	BOLT; THROUGH,STARTER (C), TAI ASM PART: B = 8-97965-433-0	8-97112-565-0	02	1	-
27	BOLT; THROUGH,STARTER (C), TAI ASM PART: C = 8-97967-190-0	8-97184-222-0	02	1	-
27	BOLT; THROUGH,STARTER (D) ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97192-423-0	02	1	-
28	LEVER; SHIFT,STARTER TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-94435-571-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97179-776-0	01	1	-
31	SWITCH; ENGAGE STARTER TAI ASM PART: B = 8-97965-433-0	8-94337-444-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-97042-997-2	8-97083-196-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97161-789-0	01	1	-
31	SWITCH; ENGAGE STARTER TAI ASM PART: C = 8-97967-190-0	8-97247-464-0	01	1	-
32	COVER; RUBBER,STARTER HITACHI, TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0, D = 8-98054-984-0, E = 8-98055-279-1	5-81129-069-0	01	1	-
38	GASKET; RR COVER,STARTER TAI ASM PART: C = 8-97967-190-0, D = 8-98054-984-0, E = 8-98055-279-1	8-97115-763-0	01	1	-
41	SCREW; RR COVER,STARTER TAI ASM PART: C = 8-97967-190-0, D = 8-98054-984-0, E = 8-98055-279-1	8-97117-107-0	02	1	-
43	RETAINER; PINION STARTER ASM PART: A = 8-97042-997-2	5-81129-100-0	01	1	-
43	RETAINER; PINION STARTER TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-94435-570-0	01	1	-
45	RETAINER; BEARING,STARTER (A), TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0, D = 8-98054-984-0, E = 8-98055-279-1	8-94435-567-0	01	1	-
45	RETAINER; BEARING,STARTER (B) ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97179-774-0	01	1	-
50	BRUSH; (-),STARTER TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-97113-285-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-98055-296-0	02	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-97042-997-2	5-81124-003-1	01	1	-
54	CLUTCH; PINION,STARTER TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-97047-548-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97179-771-0	01	1	-
73	STOPPER SET; PINION TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-94228-450-0	01	1	-
73	STOPPER SET; PINION ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97030-396-0	01	1	-
85	BOLT; ENGAGE SW FIX,STARTER TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	5-81129-294-0	02	1	-
85	BOLT; ENGAGE SW FIX,STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-94408-500-0	02	1	-

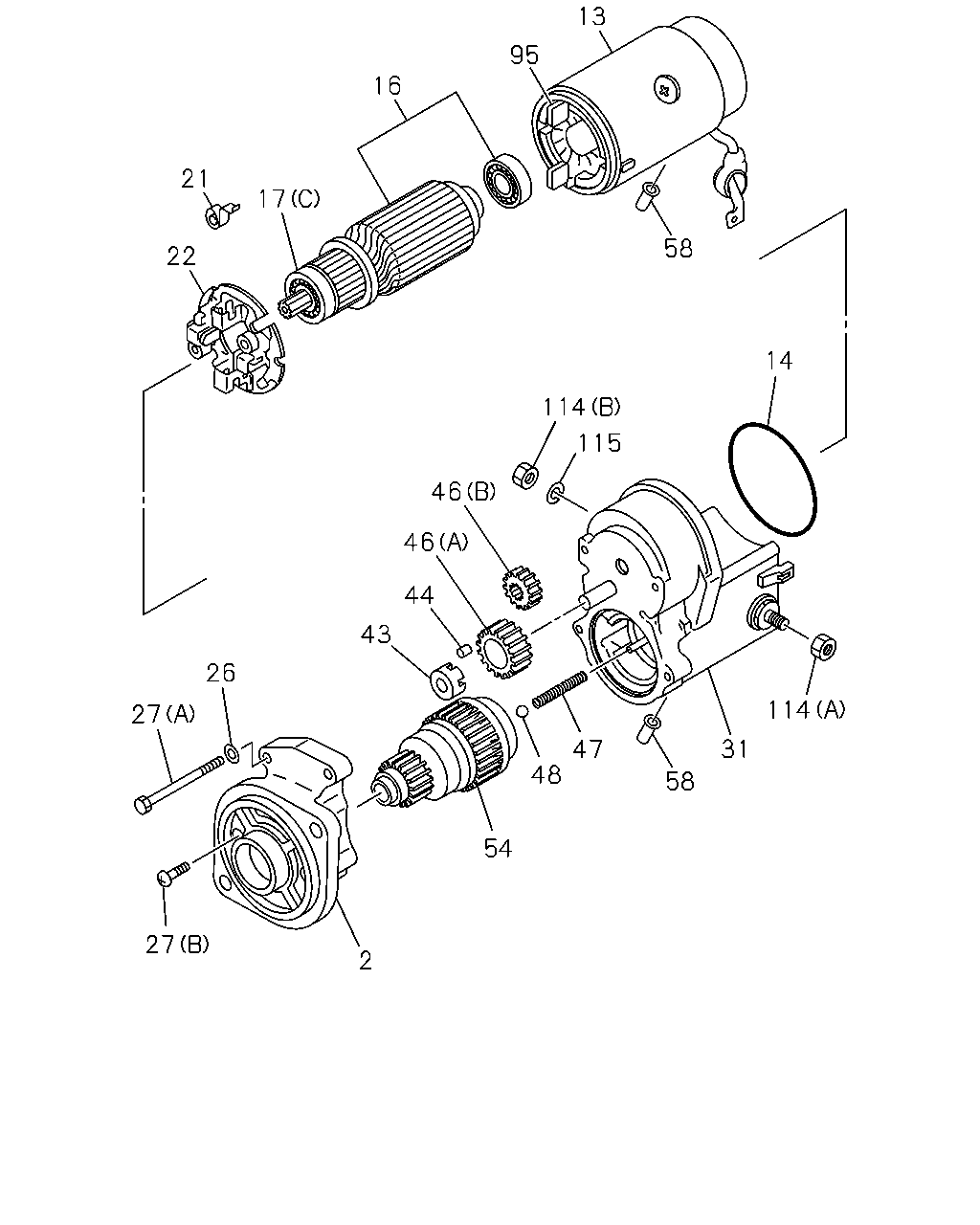

13 95 16 21 17 58 22 14 114 115 46 46 44 43 26 114 27 31 47 48 58 54 27 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 8-97042-997-2	8-94167-435-0	01	1	-
2	CASE; PINION,STARTER TAI ASM PART: B = 8-97965-433-0	8-97112-560-0	01	1	-
2	CASE; PINION,STARTER ASM PART: D = 8-98054-984-0	8-97227-902-0	01	1	-
2	CASE; PINION,STARTER TAI ASM PART: C = 8-97967-190-0	8-97247-465-0	01	1	-
2	CASE; PINION,STARTER ASM PART: E = 8-98055-279-1	8-98055-786-1	01	1	-
13	YOKE; STARTER ASM PART: A = 8-97042-997-2	8-94167-425-0	01	1	-
14	GASKET; YOKE,STARTER ASM PART: A = 8-97042-997-2	8-94167-428-0	01	1	-
14	GASKET; YOKE,STARTER TAI ASM PART: C = 8-97967-190-0	8-97115-763-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 8-97042-997-2	8-97083-193-0	01	1	-
16	ARMATURE; STARTER TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-97112-555-0	01	1	-
16	ARMATURE; STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97192-299-0	01	1	-
17	BEARING; ARMATURE,STARTER (A), TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0, D = 8-98054-984-0, E = 8-98055-279-1	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (B), TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-94228-437-0	01	1	-
17	BEARING; ARMATURE,STARTER (D) ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97030-387-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) ASM PART: A = 8-97042-997-2	8-97083-195-0	01	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97042-997-2	5-81117-015-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-94152-972-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-94242-064-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-97042-997-2	8-94167-430-0	01	1	-
22	HOLDER; BRUSH STARTER TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-97118-544-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-98055-298-0	01	1	-
26	SEAL; THROUGH BOLT STARTER ASM PART: A = 8-97042-997-2	5-81129-211-0	02	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: A = 8-97042-997-2	8-94167-433-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: A = 8-97042-997-2	8-94167-434-0	02	1	-
27	BOLT; THROUGH,STARTER (C), TAI ASM PART: B = 8-97965-433-0	8-97112-565-0	02	1	-
27	BOLT; THROUGH,STARTER (C), TAI ASM PART: C = 8-97967-190-0	8-97184-222-0	02	1	-
27	BOLT; THROUGH,STARTER (D) ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97192-423-0	02	1	-
31	SWITCH; ENGAGE STARTER TAI ASM PART: B = 8-97965-433-0	8-94337-444-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-97042-997-2	8-97083-196-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97161-789-0	01	1	-
31	SWITCH; ENGAGE STARTER TAI ASM PART: C = 8-97967-190-0	8-97247-464-0	01	1	-
43	RETAINER; PINION STARTER ASM PART: A = 8-97042-997-2	5-81129-100-0	01	1	-
43	RETAINER; PINION STARTER TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-94435-570-0	01	1	-
44	ROLLER; PINION STARTER USA ASM PART: A = 8-97042-997-2	5-81129-099-0	05	1	-
46	GEAR; CLU STARTER (B) ASM PART: A = 8-97042-997-2	5-81123-010-0	01	1	-
46	GEAR; CLU STARTER (A) ASM PART: A = 8-97042-997-2	8-94167-427-0	01	1	-
47	SPRING; PINION STARTER ASM PART: A = 8-97042-997-2	5-81129-096-0	01	1	-
48	BALL; PINION,STARTER USA ASM PART: A = 8-97042-997-2	5-81129-092-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-97042-997-2	5-81124-003-1	01	1	-
54	CLUTCH; PINION,STARTER TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-97047-548-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97179-771-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER ASM PART: A = 8-97042-997-2	1-81129-677-0	02	1	-
95	BRUSH ASM; STARTER ASM PART: A = 8-97042-997-2	8-97083-194-0	01	1	-
114	NUT; TERMINAL (A) ASM PART: A = 8-97042-997-2	5-09400-042-0	01	1	-
114	NUT; TERMINAL (B), M8 ASM PART: A = 8-97042-997-2	9-09110-508-0	01	1	-
115	WASHER; TERMINAL ID=8.2 ASM PART: A = 8-97042-997-2	9-09150-508-0	01	1	-

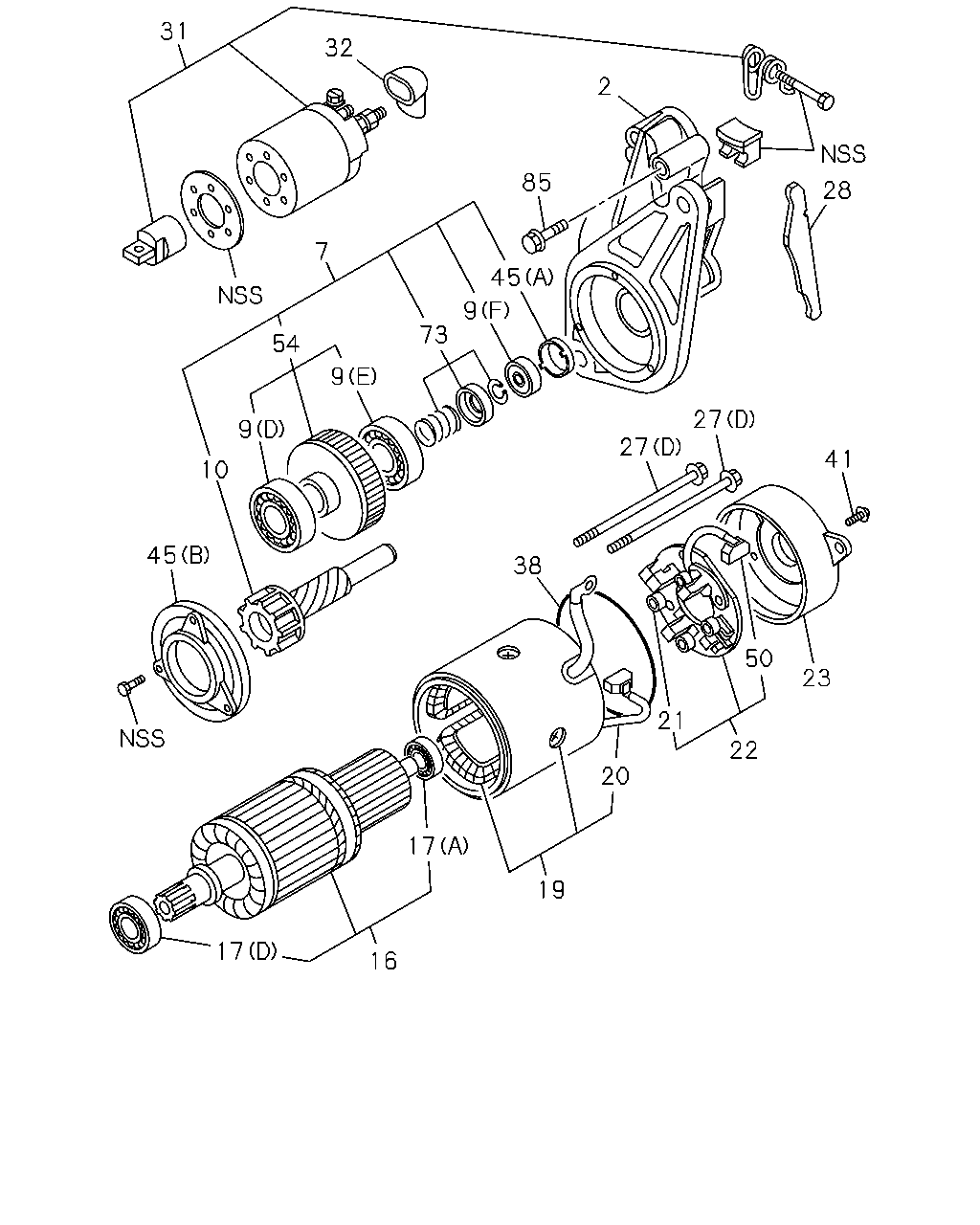

31 32 2 85 28 7 45 9 73 54 9 27 9 27 41 10 45 38 50 23 21 22 20 17 19 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 8-97042-997-2	8-94167-435-0	01	1	-
2	CASE; PINION,STARTER TAI ASM PART: B = 8-97965-433-0	8-97112-560-0	01	1	-
2	CASE; PINION,STARTER ASM PART: D = 8-98054-984-0	8-97227-902-0	01	1	-
2	CASE; PINION,STARTER TAI ASM PART: C = 8-97967-190-0	8-97247-465-0	01	1	-
2	CASE; PINION,STARTER ASM PART: E = 8-98055-279-1	8-98055-786-1	01	1	-
7	CLUTCH ASM; PINION,STARTER TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-97047-547-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97179-770-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (D) ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97025-673-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (E) ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97025-674-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (F) ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97025-676-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (A), TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-97047-549-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (B), TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-97047-550-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (C), TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-97047-551-0	01	1	-
10	SHAFT; GEAR STARTER TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-94324-622-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97179-772-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 8-97042-997-2	8-97083-193-0	01	1	-
16	ARMATURE; STARTER TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-97112-555-0	01	1	-
16	ARMATURE; STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97192-299-0	01	1	-
17	BEARING; ARMATURE,STARTER (A), TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0, D = 8-98054-984-0, E = 8-98055-279-1	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (B), TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-94228-437-0	01	1	-
17	BEARING; ARMATURE,STARTER (D) ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97030-387-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) ASM PART: A = 8-97042-997-2	8-97083-195-0	01	1	-
19	COIL; FIELD,STARTER TAI ASM PART: B = 8-97965-433-0	8-97118-543-0	01	1	-
19	COIL; FIELD,STARTER TAI ASM PART: C = 8-97967-190-0	8-97247-462-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-98055-295-0	01	1	-
20	BRUSH; (+),STARTER TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-97113-285-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-98055-296-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97042-997-2	5-81117-015-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-94152-972-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-94242-064-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-97042-997-2	8-94167-430-0	01	1	-
22	HOLDER; BRUSH STARTER TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-97118-544-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-98055-298-0	01	1	-
23	COVER; RR COVER STARTER TAI ASM PART: B = 8-97965-433-0	8-97112-558-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97227-901-0	01	1	-
23	COVER; RR COVER STARTER TAI ASM PART: C = 8-97967-190-0	8-97247-463-0	01	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: A = 8-97042-997-2	8-94167-433-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: A = 8-97042-997-2	8-94167-434-0	02	1	-
27	BOLT; THROUGH,STARTER (C), TAI ASM PART: B = 8-97965-433-0	8-97112-565-0	02	1	-
27	BOLT; THROUGH,STARTER (C), TAI ASM PART: C = 8-97967-190-0	8-97184-222-0	02	1	-
27	BOLT; THROUGH,STARTER (D) ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97192-423-0	02	1	-
28	LEVER; SHIFT,STARTER TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-94435-571-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97179-776-0	01	1	-
31	SWITCH; ENGAGE STARTER TAI ASM PART: B = 8-97965-433-0	8-94337-444-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-97042-997-2	8-97083-196-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97161-789-0	01	1	-
31	SWITCH; ENGAGE STARTER TAI ASM PART: C = 8-97967-190-0	8-97247-464-0	01	1	-
32	COVER; RUBBER,STARTER HITACHI, TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0, D = 8-98054-984-0, E = 8-98055-279-1	5-81129-069-0	01	1	-
38	GASKET; RR COVER,STARTER TAI ASM PART: C = 8-97967-190-0, D = 8-98054-984-0, E = 8-98055-279-1	8-97115-763-0	01	1	-
41	SCREW; RR COVER,STARTER TAI ASM PART: C = 8-97967-190-0, D = 8-98054-984-0, E = 8-98055-279-1	8-97117-107-0	02	1	-
45	RETAINER; BEARING,STARTER (A), TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0, D = 8-98054-984-0, E = 8-98055-279-1	8-94435-567-0	01	1	-
45	RETAINER; BEARING,STARTER (B) ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97179-774-0	01	1	-
50	BRUSH; (-),STARTER TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-97113-285-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-98055-296-0	02	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-97042-997-2	5-81124-003-1	01	1	-
54	CLUTCH; PINION,STARTER TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-97047-548-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97179-771-0	01	1	-
73	STOPPER SET; PINION TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-94228-450-0	01	1	-
73	STOPPER SET; PINION ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97030-396-0	01	1	-
85	BOLT; ENGAGE SW FIX,STARTER TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	5-81129-294-0	02	1	-
85	BOLT; ENGAGE SW FIX,STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-94408-500-0	02	1	-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	51	COVER SET; DUST ENGAGE SW STARTER TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-94435-572-0	01	1	-
	51	COVER SET; DUST ENGAGE SW STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97179-778-0	01	1	-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	51	COVER SET; DUST ENGAGE SW STARTER TAI ASM PART: B = 8-97965-433-0, C = 8-97967-190-0	8-94435-572-0	01	1	-
	51	COVER SET; DUST ENGAGE SW STARTER ASM PART: D = 8-98054-984-0, E = 8-98055-279-1	8-97179-778-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
