0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#139029) — 148 parça
çizim 420415
3 60 5 49 62 31 30 104 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 HARNESS; CABLE,BATTERY TO STARTER
TAI 		8-97965-448-0 01 1 9701-9903 ●
3 HARNESS; CABLE,BATTERY TO STARTER
TAI 		8-97214-206-0 01 1 9904-9905 ●
3 HARNESS; CABLE,BATTERY TO STARTER
TAI 		8-97967-183-0 01 1 9906-0207 ●
3 HARNESS; CABLE,BATTERY TO STARTER
TAI 		8-97967-257-0 01 1 0208-0305 ●
3 HARNESS; CABLE,BATTERY TO STARTER
TAI 		8-97967-421-0 01 1 0306-0411 ●
3 HARNESS; CABLE,BATTERY TO STARTER
SHORT CHAS(NH***C) TAI 		8-97967-421-0 01 1 0412-0511 ●
3 HARNESS; CABLE,BATTERY TO STARTER
SHORT CHAS(NH***C) TAI 		8-97967-421-0 01 1 0512-0610 ●
3 HARNESS; CABLE,BATTERY TO STARTER
SHORT CHAS(NH***C) TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-512-0 01 1 0611- ●
3 HARNESS; CABLE,BATTERY TO STARTER
LONG CHAS(NH***F & NK***F) TAI 		8-97967-452-0 01 1 0412-0511 ●
3 HARNESS; CABLE,BATTERY TO STARTER
LONG CHAS(NH***F & NK***F) TAI 		8-97967-452-0 01 1 0512-0610 ●
3 HARNESS; CABLE,BATTERY TO STARTER
LONG CHAS(NH***F & NK***F) TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-513-0 01 1 0611- ●
3 HARNESS; CABLE,BATTERY TO STARTER
SHORT CHAS(NH***C) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-510-0 01 1 0611- ●
3 HARNESS; CABLE,BATTERY TO STARTER
LONG CHAS(NH***F & NK***F) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-511-0 01 1 0611- ●
5 CLIP; BATTERY CABLE TO BODY
ID=13 L=90 		8-97015-782-1 01 1 9701-0207 ●
6 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 9701-0207 ●
6 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 0208-0511 ●
6 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 0512-0610 ●
30 NUT; CABLE,STARTER TO BATTERY
M8 		9-09110-408-0 01 1 9701-0207 ●
30 NUT; CABLE,STARTER TO BATTERY
M8 		9-09110-408-0 01 1 0208-0511 ●
30 NUT; CABLE,STARTER TO BATTERY
M8 		9-09110-408-0 01 1 0512-0512 ●
30 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0601-0610 ●
30 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0611- ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		9-09150-508-0 01 1 9701-0207 ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		9-09150-508-0 01 1 0208-0511 ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		9-09150-508-0 01 1 0512-0603 ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		0-91510-508-0 01 1 0604-0610 ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		0-91510-808-0 01 1 0611- ●
49 CABLE; BATTERY TO S/MBR,RH
TAI 		8-97965-449-0 01 1 9701-0207 ●
49 CABLE; BATTERY TO S/MBR,RH
TAI 		8-97967-317-0 01 1 0208-0511 ●
49 CABLE; BATTERY TO S/MBR,RH
TAI 		8-97967-317-0 01 1 0512-0610 ●
49 CABLE; BATTERY TO S/MBR,RH
TAI 		8-97967-514-0 01 1 0611- ●
62 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9701-0207 ●
62 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0208-0511 ●
62 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0512-0610 ●
62 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0611- ●
104 NUT; BATTERY CABLE
M8 FLANGE 		0-91150-108-0 01 1 9701-0207 ●
104 NUT; BATTERY CABLE
M6 FLANGE 		0-91150-106-0 01 1 0208-0511 ●
104 NUT; BATTERY CABLE
M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ●
104 NUT; BATTERY CABLE
M6 FLANGE 		0-91180-106-0 01 1 0603-0610 ●

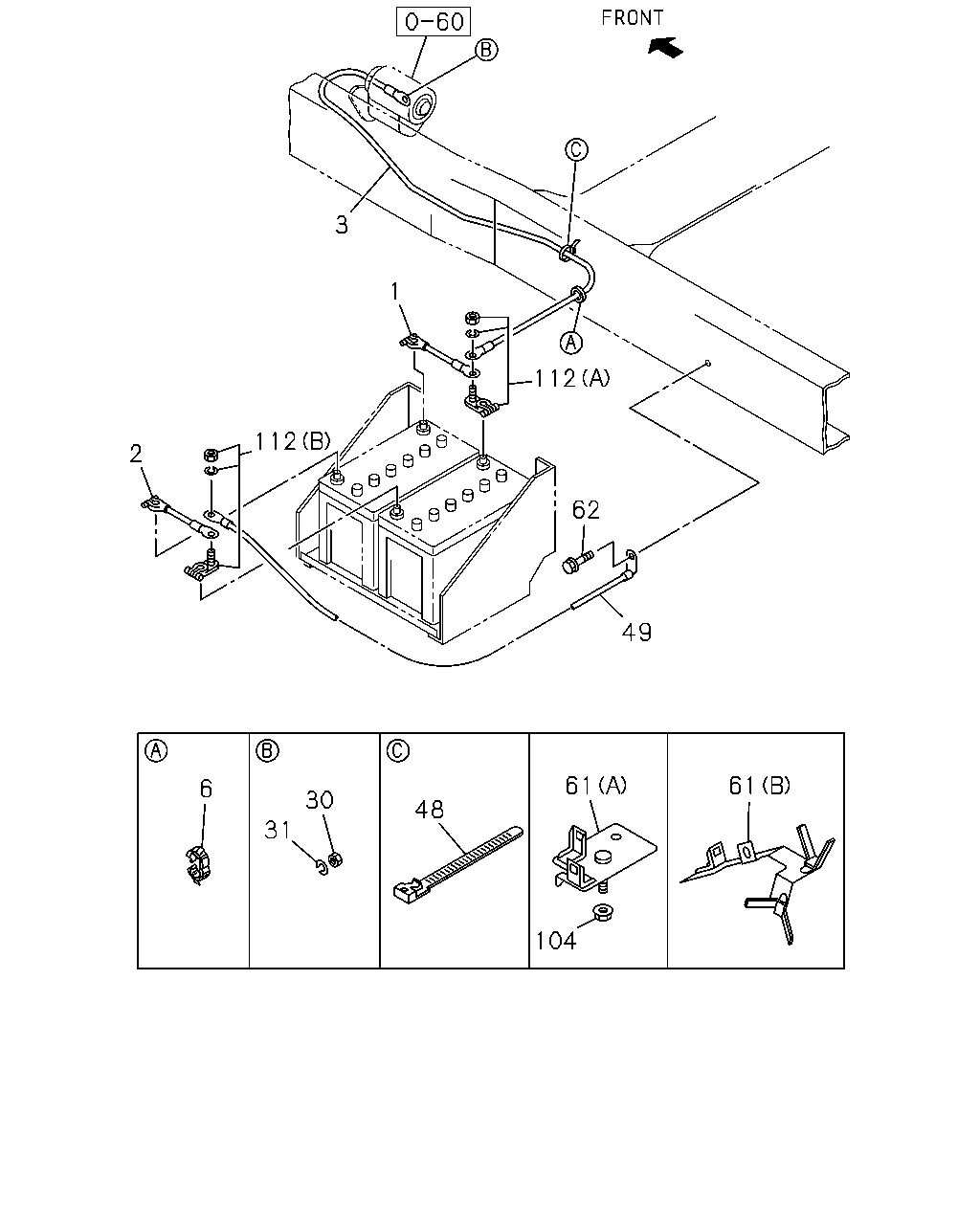

çizim 420416
60 3 1 112 112 2 62 49 61 61 6 30 48 31 104
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CABLE; BATTERY
TAI 		8-97967-316-0 01 1 0208-0511 ●
1 CABLE; BATTERY
TAI 		8-97967-316-0 01 1 0512-0610 ●
1 CABLE; BATTERY
L=280 		8-97230-719-2 01 1 0611- ●
2 CABLE; BATTERY
TAI 		8-97967-318-0 01 1 0208-0511 ●
2 CABLE; BATTERY
TAI 		8-97967-318-0 01 1 0512-0610 ●
3 HARNESS; CABLE,BATTERY TO STARTER
TAI 		8-97965-448-0 01 1 9701-9903 ●
3 HARNESS; CABLE,BATTERY TO STARTER
TAI 		8-97214-206-0 01 1 9904-9905 ●
3 HARNESS; CABLE,BATTERY TO STARTER
TAI 		8-97967-183-0 01 1 9906-0207 ●
3 HARNESS; CABLE,BATTERY TO STARTER
TAI 		8-97967-257-0 01 1 0208-0305 ●
3 HARNESS; CABLE,BATTERY TO STARTER
TAI 		8-97967-421-0 01 1 0306-0411 ●
3 HARNESS; CABLE,BATTERY TO STARTER
SHORT CHAS(NH***C) TAI 		8-97967-421-0 01 1 0412-0511 ●
3 HARNESS; CABLE,BATTERY TO STARTER
SHORT CHAS(NH***C) TAI 		8-97967-421-0 01 1 0512-0610 ●
3 HARNESS; CABLE,BATTERY TO STARTER
SHORT CHAS(NH***C) TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-512-0 01 1 0611- ●
3 HARNESS; CABLE,BATTERY TO STARTER
LONG CHAS(NH***F & NK***F) TAI 		8-97967-452-0 01 1 0412-0511 ●
3 HARNESS; CABLE,BATTERY TO STARTER
LONG CHAS(NH***F & NK***F) TAI 		8-97967-452-0 01 1 0512-0610 ●
3 HARNESS; CABLE,BATTERY TO STARTER
LONG CHAS(NH***F & NK***F) TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-513-0 01 1 0611- ●
3 HARNESS; CABLE,BATTERY TO STARTER
SHORT CHAS(NH***C) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-510-0 01 1 0611- ●
3 HARNESS; CABLE,BATTERY TO STARTER
LONG CHAS(NH***F & NK***F) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-511-0 01 1 0611- ●
6 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 9701-0207 ●
6 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 0208-0511 ●
6 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 0512-0610 ●
30 NUT; CABLE,STARTER TO BATTERY
M8 		9-09110-408-0 01 1 9701-0207 ●
30 NUT; CABLE,STARTER TO BATTERY
M8 		9-09110-408-0 01 1 0208-0511 ●
30 NUT; CABLE,STARTER TO BATTERY
M8 		9-09110-408-0 01 1 0512-0512 ●
30 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0601-0610 ●
30 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0611- ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		9-09150-508-0 01 1 9701-0207 ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		9-09150-508-0 01 1 0208-0511 ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		9-09150-508-0 01 1 0512-0603 ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		0-91510-508-0 01 1 0604-0610 ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		0-91510-808-0 01 1 0611- ●
48 CLIP; CABLE
LONG CHAS(NH***F & NK***F) L=250 TAI 		5-09707-030-1 01 1 0412-0511 ●
48 CLIP; CABLE
LONG CHAS(NH***F & NK***F) L=250 TAI 		5-09707-030-1 01 1 0512-0610 ●
48 CLIP; CABLE
L=140 		5-09707-031-1 01 1 0611- ●
48 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER<8GF> L=140 		5-09707-031-1 01 1 0611- ●
49 CABLE; BATTERY TO S/MBR,RH
TAI 		8-97965-449-0 01 1 9701-0207 ●
49 CABLE; BATTERY TO S/MBR,RH
TAI 		8-97967-317-0 01 1 0208-0511 ●
49 CABLE; BATTERY TO S/MBR,RH
TAI 		8-97967-317-0 01 1 0512-0610 ●
49 CABLE; BATTERY TO S/MBR,RH
TAI 		8-97967-514-0 01 1 0611- ●
61 BRACKET; BATTERY CABLE
(A) TAI 		8-97312-770-0 01 1 0208-0511 ●
61 BRACKET; BATTERY CABLE
(A) TAI 		8-97312-770-0 01 1 0512-0610 ●
61 BRACKET; BATTERY CABLE
(C) TAI 		8-97967-565-0 01 1 0611- ●
61 BRACKET; BATTERY CABLE
(B) 		8-97322-370-0 01 1 0208-0211 ●
61 BRACKET; BATTERY CABLE
(B) TAI 		8-97362-323-0 01 1 0212-0511 ●
61 BRACKET; BATTERY CABLE
(B) TAI 		8-97362-323-0 01 1 0512-0610 ●
62 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9701-0207 ●
62 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0208-0511 ●
62 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0512-0610 ●
62 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0611- ●
104 NUT; BATTERY CABLE
M8 FLANGE 		0-91150-108-0 01 1 9701-0207 ●
104 NUT; BATTERY CABLE
M6 FLANGE 		0-91150-106-0 01 1 0208-0511 ●
104 NUT; BATTERY CABLE
M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ●
104 NUT; BATTERY CABLE
M6 FLANGE 		0-91180-106-0 01 1 0603-0610 ●
112 TERMINAL; BATTERY
(A) <+> 		8-94361-935-0 01 1 0208-0511 ●
112 TERMINAL; BATTERY
(A) <+> 		8-94361-935-0 01 1 0512-0610 ●
112 TERMINAL; BATTERY
(A) <+> 		8-97356-925-1 01 1 0611- ●
112 TERMINAL; BATTERY
(B) <-> 		8-97035-508-0 01 1 0208-0511 ●
112 TERMINAL; BATTERY
(B) <-> 		8-97035-508-0 01 1 0512-0610 ●
çizim 420427
60 62 49 3 5 1 5 20 61 48 75 30 31 112 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CABLE; BATTERY
TAI 		8-97967-316-0 01 1 0208-0511 ●
1 CABLE; BATTERY
TAI 		8-97967-316-0 01 1 0512-0610 ●
1 CABLE; BATTERY
L=280 		8-97230-719-2 01 1 0611- ●
3 HARNESS; CABLE,BATTERY TO STARTER
TAI 		8-97965-448-0 01 1 9701-9903 ●
3 HARNESS; CABLE,BATTERY TO STARTER
TAI 		8-97214-206-0 01 1 9904-9905 ●
3 HARNESS; CABLE,BATTERY TO STARTER
TAI 		8-97967-183-0 01 1 9906-0207 ●
3 HARNESS; CABLE,BATTERY TO STARTER
TAI 		8-97967-257-0 01 1 0208-0305 ●
3 HARNESS; CABLE,BATTERY TO STARTER
TAI 		8-97967-421-0 01 1 0306-0411 ●
3 HARNESS; CABLE,BATTERY TO STARTER
SHORT CHAS(NH***C) TAI 		8-97967-421-0 01 1 0412-0511 ●
3 HARNESS; CABLE,BATTERY TO STARTER
SHORT CHAS(NH***C) TAI 		8-97967-421-0 01 1 0512-0610 ●
3 HARNESS; CABLE,BATTERY TO STARTER
SHORT CHAS(NH***C) TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-512-0 01 1 0611- ●
3 HARNESS; CABLE,BATTERY TO STARTER
LONG CHAS(NH***F & NK***F) TAI 		8-97967-452-0 01 1 0412-0511 ●
3 HARNESS; CABLE,BATTERY TO STARTER
LONG CHAS(NH***F & NK***F) TAI 		8-97967-452-0 01 1 0512-0610 ●
3 HARNESS; CABLE,BATTERY TO STARTER
LONG CHAS(NH***F & NK***F) TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-513-0 01 1 0611- ●
3 HARNESS; CABLE,BATTERY TO STARTER
SHORT CHAS(NH***C) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-510-0 01 1 0611- ●
3 HARNESS; CABLE,BATTERY TO STARTER
LONG CHAS(NH***F & NK***F) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> TAI 		8-97967-511-0 01 1 0611- ●
5 CLIP; BATTERY CABLE TO BODY
ID=13 L=90 		8-97015-782-1 01 1 9701-0207 ●
30 NUT; CABLE,STARTER TO BATTERY
M8 		9-09110-408-0 01 1 9701-0207 ●
30 NUT; CABLE,STARTER TO BATTERY
M8 		9-09110-408-0 01 1 0208-0511 ●
30 NUT; CABLE,STARTER TO BATTERY
M8 		9-09110-408-0 01 1 0512-0512 ●
30 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0601-0610 ●
30 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0611- ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		9-09150-508-0 01 1 9701-0207 ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		9-09150-508-0 01 1 0208-0511 ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		9-09150-508-0 01 1 0512-0603 ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		0-91510-508-0 01 1 0604-0610 ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		0-91510-808-0 01 1 0611- ●
48 CLIP; CABLE
LONG CHAS(NH***F & NK***F) L=250 TAI 		5-09707-030-1 01 1 0412-0511 ●
48 CLIP; CABLE
LONG CHAS(NH***F & NK***F) L=250 TAI 		5-09707-030-1 01 1 0512-0610 ●
48 CLIP; CABLE
L=140 		5-09707-031-1 01 1 0611- ●
48 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER<8GF> L=140 		5-09707-031-1 01 1 0611- ●
49 CABLE; BATTERY TO S/MBR,RH
TAI 		8-97965-449-0 01 1 9701-0207 ●
49 CABLE; BATTERY TO S/MBR,RH
TAI 		8-97967-317-0 01 1 0208-0511 ●
49 CABLE; BATTERY TO S/MBR,RH
TAI 		8-97967-317-0 01 1 0512-0610 ●
49 CABLE; BATTERY TO S/MBR,RH
TAI 		8-97967-514-0 01 1 0611- ●
61 BRACKET; BATTERY CABLE
(A) TAI 		8-97312-770-0 01 1 0208-0511 ●
61 BRACKET; BATTERY CABLE
(A) TAI 		8-97312-770-0 01 1 0512-0610 ●
61 BRACKET; BATTERY CABLE
(C) TAI 		8-97967-565-0 01 1 0611- ●
61 BRACKET; BATTERY CABLE
(B) 		8-97322-370-0 01 1 0208-0211 ●
61 BRACKET; BATTERY CABLE
(B) TAI 		8-97362-323-0 01 1 0212-0511 ●
61 BRACKET; BATTERY CABLE
(B) TAI 		8-97362-323-0 01 1 0512-0610 ●
62 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9701-0207 ●
62 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0208-0511 ●
62 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0512-0610 ●
62 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0611- ●
75 BOLT; BRKT
M6X25 FLANGE 		0-28650-625-0 01 1 0611- ●
112 TERMINAL; BATTERY
(A) <+> 		8-94361-935-0 01 1 0208-0511 ●
112 TERMINAL; BATTERY
(A) <+> 		8-94361-935-0 01 1 0512-0610 ●
112 TERMINAL; BATTERY
(A) <+> 		8-97356-925-1 01 1 0611- ●
112 TERMINAL; BATTERY
(B) <-> 		8-97035-508-0 01 1 0208-0511 ●
112 TERMINAL; BATTERY
(B) <-> 		8-97035-508-0 01 1 0512-0610 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
