Sayfa 0-60 - Isuzu EPC

0-60 — ENGINE ELECTRICAL CONTROL PARTS (#139028) — 217 parça

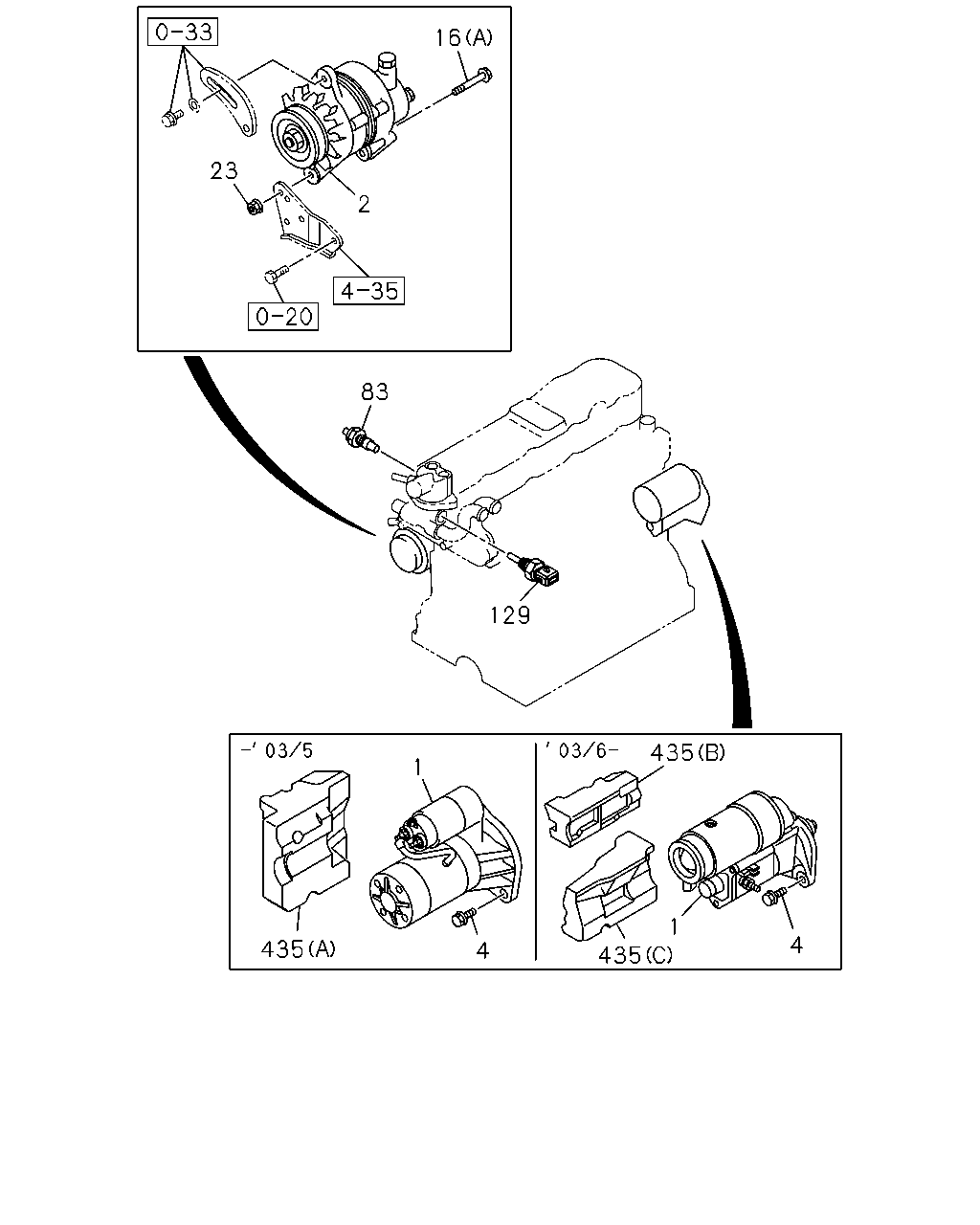

23 16 2 4 35 20 729 83 33 4 7 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW TAI	8-97965-433-0	01	1	9701-9910	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW TAI	8-97967-190-0	01	1	9911-0207	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW TAI	8-97967-190-0	01	1	0208-0305		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO	8-97042-997-2	01	1	0306-0511		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO	8-97042-997-2	01	1	0512-0610			●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER<8GF> 24V 4.0KW HITACHI	8-98055-279-1	01	1	0611-				●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 24V 4.0KW HITACHI	8-98054-984-0	01	1	0611-				●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 80A TAI	8-97965-432-0	01	1	9701-0207	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A TAI	8-97967-301-1	01	1	0208-0511		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A TAI	8-97967-301-1	01	1	0512-0610			●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A	8-98029-889-2	01	1	0611-				●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V80A(7YN) 24V 50A	8-98029-887-2	01	1	0611-				●
4	BOLT; STARTER M12X84	8-94107-769-2	02	1	9701-0207	●
4	BOLT; STARTER M12X35 FLANGE	0-28781-235-0	02	1	0208-0511		●
4	BOLT; STARTER M12X35 FLANGE	0-28781-235-0	02	1	0512-0512			●
4	BOLT; STARTER M12X35 FLANGE	0-28751-235-0	02	1	0601-0610			●
4	BOLT; STARTER M10X15,M14X75 L=103	8-97212-602-0	02	1	0611-				●
7	NUT; STARTER M12 FLANGE	0-91150-112-0	02	1	9701-0207	●
16	BOLT; GEN (A) M8X130 FLANGE	0-28085-813-0	01	1	9701-9701	●
16	BOLT; GEN (A) M10X130 FLANGE	0-28086-013-0	01	1	9702-0207	●
16	BOLT; GEN (A) M10X130 FLANGE	0-28086-013-0	01	1	0208-0511		●
16	BOLT; GEN (A) M10X130 FLANGE	0-28086-013-0	01	1	0512-0512			●
16	BOLT; GEN (A) M10X130 FLANGE	0-28056-013-0	01	1	0601-0610			●
16	BOLT; GEN (B) M10X120 FLANGE	0-28056-012-0	01	1	0611-				●
16	BOLT; GEN (C) M8X50 FLANGE	8-98050-130-0	01	1	0611-				●
23	NUT; GEN M8 FLANGE	0-91150-208-0	01	1	9701-9701	●
23	NUT; GEN M10 FLANGE	0-91150-210-0	01	1	9702-0207	●
23	NUT; GEN M10 FLANGE	0-91150-210-0	01	1	0208-0511		●
23	NUT; GEN M10 FLANGE	0-91150-210-0	01	1	0512-0602			●
23	NUT; GEN M10 FLANGE	0-91180-210-0	01	1	0603-0610			●
83	THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9701-0207	●
83	THERMOMETER UNIT DENSO	8-94235-691-0	01	1	0208-0511		●
83	THERMOMETER UNIT DENSO	8-94235-691-0	01	1	0512-0610			●
83	THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9701-0207	●
83	THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	0208-0511		●
83	THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	0512-0610			●
729	SENSOR; QOS THERMO	8-97018-064-0	01	1	9701-0207	●

33 16 23 2 4 35 20 83 129 435 1 1 435 4 435 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW TAI	8-97965-433-0	01	1	9701-9910	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW TAI	8-97967-190-0	01	1	9911-0207	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW TAI	8-97967-190-0	01	1	0208-0305		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO	8-97042-997-2	01	1	0306-0511		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO	8-97042-997-2	01	1	0512-0610			●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER<8GF> 24V 4.0KW HITACHI	8-98055-279-1	01	1	0611-				●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 24V 4.0KW HITACHI	8-98054-984-0	01	1	0611-				●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 80A TAI	8-97965-432-0	01	1	9701-0207	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A TAI	8-97967-301-1	01	1	0208-0511		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A TAI	8-97967-301-1	01	1	0512-0610			●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A	8-98029-889-2	01	1	0611-				●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V80A(7YN) 24V 50A	8-98029-887-2	01	1	0611-				●
4	BOLT; STARTER M12X84	8-94107-769-2	02	1	9701-0207	●
4	BOLT; STARTER M12X35 FLANGE	0-28781-235-0	02	1	0208-0511		●
4	BOLT; STARTER M12X35 FLANGE	0-28781-235-0	02	1	0512-0512			●
4	BOLT; STARTER M12X35 FLANGE	0-28751-235-0	02	1	0601-0610			●
4	BOLT; STARTER M10X15,M14X75 L=103	8-97212-602-0	02	1	0611-				●
16	BOLT; GEN (A) M8X130 FLANGE	0-28085-813-0	01	1	9701-9701	●
16	BOLT; GEN (A) M10X130 FLANGE	0-28086-013-0	01	1	9702-0207	●
16	BOLT; GEN (A) M10X130 FLANGE	0-28086-013-0	01	1	0208-0511		●
16	BOLT; GEN (A) M10X130 FLANGE	0-28086-013-0	01	1	0512-0512			●
16	BOLT; GEN (A) M10X130 FLANGE	0-28056-013-0	01	1	0601-0610			●
16	BOLT; GEN (B) M10X120 FLANGE	0-28056-012-0	01	1	0611-				●
16	BOLT; GEN (C) M8X50 FLANGE	8-98050-130-0	01	1	0611-				●
23	NUT; GEN M8 FLANGE	0-91150-208-0	01	1	9701-9701	●
23	NUT; GEN M10 FLANGE	0-91150-210-0	01	1	9702-0207	●
23	NUT; GEN M10 FLANGE	0-91150-210-0	01	1	0208-0511		●
23	NUT; GEN M10 FLANGE	0-91150-210-0	01	1	0512-0602			●
23	NUT; GEN M10 FLANGE	0-91180-210-0	01	1	0603-0610			●
83	THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9701-0207	●
83	THERMOMETER UNIT DENSO	8-94235-691-0	01	1	0208-0511		●
83	THERMOMETER UNIT DENSO	8-94235-691-0	01	1	0512-0610			●
83	THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9701-0207	●
83	THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	0208-0511		●
83	THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	0512-0610			●
129	SENSOR; GLOW PLUG,THERMO	8-97069-786-1	01	1	0208-0511		●
129	SENSOR; GLOW PLUG,THERMO	8-97069-786-1	01	1	0512-0610			●
129	SENSOR; GLOW PLUG,THERMO NIPPON THERMOSTAT	8-98023-717-0	01	1	0611-				●
435	RUBBER; CUSHION (A)	8-97324-837-0	01	1	0208-0305		●
435	RUBBER; CUSHION (C)	8-97259-609-3	01	1	0306-0511		●
435	RUBBER; CUSHION (C)	8-97259-609-3	01	1	0512-0610			●
435	RUBBER; CUSHION (B)	8-97308-356-0	01	1	0306-0511		●
435	RUBBER; CUSHION (B)	8-97308-356-0	01	1	0512-0610			●

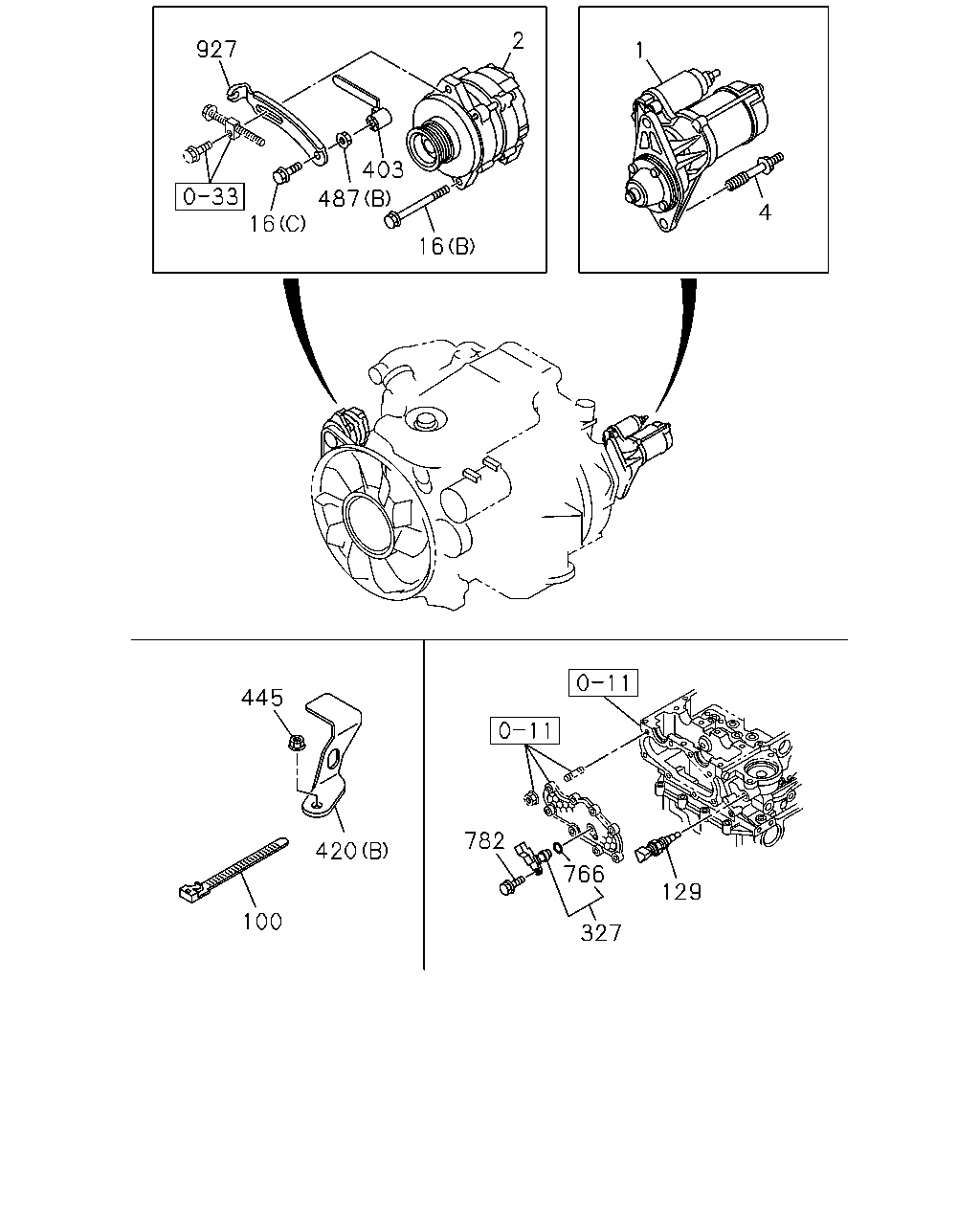

2 927 1 403 33 487 4 16 16 11 445 11 782 420 766 129 100 327

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW TAI	8-97965-433-0	01	1	9701-9910	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW TAI	8-97967-190-0	01	1	9911-0207	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW TAI	8-97967-190-0	01	1	0208-0305		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO	8-97042-997-2	01	1	0306-0511		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO	8-97042-997-2	01	1	0512-0610			●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER<8GF> 24V 4.0KW HITACHI	8-98055-279-1	01	1	0611-				●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 24V 4.0KW HITACHI	8-98054-984-0	01	1	0611-				●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 80A TAI	8-97965-432-0	01	1	9701-0207	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A TAI	8-97967-301-1	01	1	0208-0511		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A TAI	8-97967-301-1	01	1	0512-0610			●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A	8-98029-889-2	01	1	0611-				●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V80A(7YN) 24V 50A	8-98029-887-2	01	1	0611-				●
4	BOLT; STARTER M12X84	8-94107-769-2	02	1	9701-0207	●
4	BOLT; STARTER M12X35 FLANGE	0-28781-235-0	02	1	0208-0511		●
4	BOLT; STARTER M12X35 FLANGE	0-28781-235-0	02	1	0512-0512			●
4	BOLT; STARTER M12X35 FLANGE	0-28751-235-0	02	1	0601-0610			●
4	BOLT; STARTER M10X15,M14X75 L=103	8-97212-602-0	02	1	0611-				●
16	BOLT; GEN (A) M8X130 FLANGE	0-28085-813-0	01	1	9701-9701	●
16	BOLT; GEN (A) M10X130 FLANGE	0-28086-013-0	01	1	9702-0207	●
16	BOLT; GEN (A) M10X130 FLANGE	0-28086-013-0	01	1	0208-0511		●
16	BOLT; GEN (A) M10X130 FLANGE	0-28086-013-0	01	1	0512-0512			●
16	BOLT; GEN (A) M10X130 FLANGE	0-28056-013-0	01	1	0601-0610			●
16	BOLT; GEN (B) M10X120 FLANGE	0-28056-012-0	01	1	0611-				●
16	BOLT; GEN (C) M8X50 FLANGE	8-98050-130-0	01	1	0611-				●
100	CLIP; HARNESS L=140	5-09707-031-1	01	1	0611-				●
100	CLIP; HARNESS L=100	5-09707-036-1	01	1	0611-				●
129	SENSOR; GLOW PLUG,THERMO	8-97069-786-1	01	1	0208-0511		●
129	SENSOR; GLOW PLUG,THERMO	8-97069-786-1	01	1	0512-0610			●
129	SENSOR; GLOW PLUG,THERMO NIPPON THERMOSTAT	8-98023-717-0	01	1	0611-				●
327	SENSOR; CAMSHAFT POSITION	8-97312-108-1	01	1	0611-				●
403	CLIP; CABLE L=119.5	1-09707-197-0	01	1	0611-				●
420	BRACKET; HARNESS (A)	8-98024-050-0	01	1	0611-				●
420	BRACKET; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-98030-725-1	01	1	0611-				●
445	NUT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M10 FLANGE	0-91180-110-0	01	1	0611-				●
487	NUT (A) M6 FLANGE	0-91180-106-0	02	1	0611-				●
487	NUT (B) M8 FLANGE	0-91180-108-0	01	1	0611-				●
766	GASKET; SENSOR ID=14.2 OD=18.8	8-97369-404-0	01	1	0611-				●
782	BOLT; SENSOR M6X16 FLANGE	0-28680-616-0	01	1	0208-0511		●
782	BOLT; SENSOR M6X16 FLANGE	0-28680-616-0	01	1	0512-0512			●
782	BOLT; SENSOR M6X16 FLANGE	0-28650-616-0	01	1	0601-0610			●
782	BOLT; SENSOR M6X16 FLANGE	0-28050-616-0	01	1	0611-				●
927	PLATE	8-98039-816-1	01	1	0611-				●

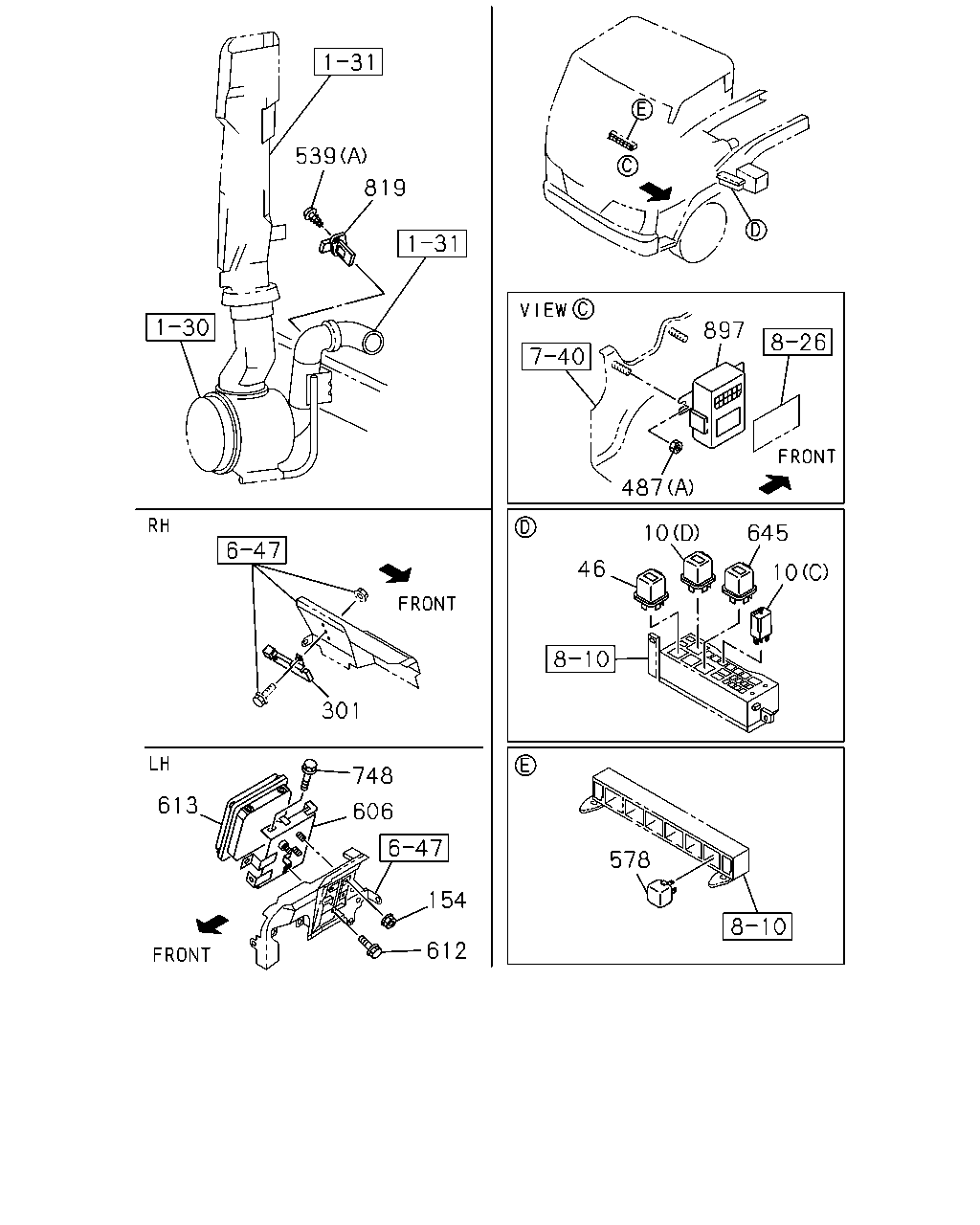

1 31 539 819 1 31 1 30 897 8 26 7 40 487 10 645 6 47 46 10 8 10 301 748 613 606 6 47 578 154 8 10 612

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW TAI	8-97965-433-0	01	1	9701-9910	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW TAI	8-97967-190-0	01	1	9911-0207	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW TAI	8-97967-190-0	01	1	0208-0305		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO	8-97042-997-2	01	1	0306-0511		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO	8-97042-997-2	01	1	0512-0610			●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER<8GF> 24V 4.0KW HITACHI	8-98055-279-1	01	1	0611-				●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 24V 4.0KW HITACHI	8-98054-984-0	01	1	0611-				●
7	NUT; STARTER M12 FLANGE	0-91150-112-0	02	1	9701-0207	●
10	RELAY; STARTER (A) 12V 80A	8-97036-358-1	01	1	9701-9704	●
10	RELAY; STARTER (A) 12V 80A	8-97173-951-0	01	1	9705-0207	●
10	RELAY; STARTER (B) 12V 80A	8-97173-951-0	01	1	0208-0511		●
10	RELAY; STARTER (B) 12V 80A	8-97173-951-0	01	1	0512-0610			●
10	RELAY; STARTER (D) 24V 50A	8-97264-947-0	01	1	0611-				●
10	RELAY; STARTER (C) 24V 10A PANASONIC TAI	8-97173-035-1	01	1	0611-				●
46	RELAY; GLOW PLUG 12V 80A	8-97036-358-1	02	1	9701-9704	●
46	RELAY; GLOW PLUG 12V 80A	8-97173-951-0	02	1	9705-0207	●
46	RELAY; GLOW PLUG 12V 80A	8-97173-951-0	01	1	0208-0511		●
46	RELAY; GLOW PLUG 12V 80A	8-97173-951-0	01	1	0512-0610			●
46	RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	0611-				●
154	NUT; BRKT FIX M6 W/DISHED WASHER	8-94423-325-0	03	1	0611-0611				●
154	NUT; BRKT FIX M6 W/DISHED WASHER	8-98029-921-0	03	1	0612-				●
301	RESISTOR; DROPPING	8-94389-802-1	01	1	9701-0207	●
301	RESISTOR; DROPPING	8-97357-613-0	01	1	0611-				●
487	NUT (A) M6 FLANGE	0-91180-106-0	02	1	0611-				●
487	NUT (B) M8 FLANGE	0-91180-108-0	01	1	0611-				●
539	SCREW; SENSOR (A) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0611-				●
539	SCREW; SENSOR (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0611-				●
578	RELAY; CHARGE WARNING 12V	8-97063-441-2	01	1	9701-0207	●
578	RELAY; CHARGE WARNING 12V	8-97063-441-2	01	1	0208-0511		●
578	RELAY; CHARGE WARNING 12V	8-97063-441-2	01	1	0512-0610			●
578	RELAY; CHARGE WARNING 24V 10A PANASONIC TAI	8-97173-035-1	01	1	0611-				●
606	BRACKET; CONT UNIT	8-98018-868-2	01	1	0611-				●
612	BOLT; BRKT M6X22 W/LK&PL WASHER	8-97892-370-0	01	1	0611-				●
613	CONTROL UNIT; ENG M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98037-508-9	01	1	0611-				●
613	CONTROL UNIT; ENG M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98037-497-9	01	1	0611-				●
645	RELAY; ENG CONT 24V 30A MITUBA	8-97238-540-0	01	1	0611-				●
748	BOLT; CONT UNIT M6X10	0-35050-610-0	03	1	0611-				●
819	SENSOR; MASS AIR FLOW (MAF)	8-97601-967-0	01	1	0611-				●
897	DRM	8-98013-144-7	01	1	0611-				●

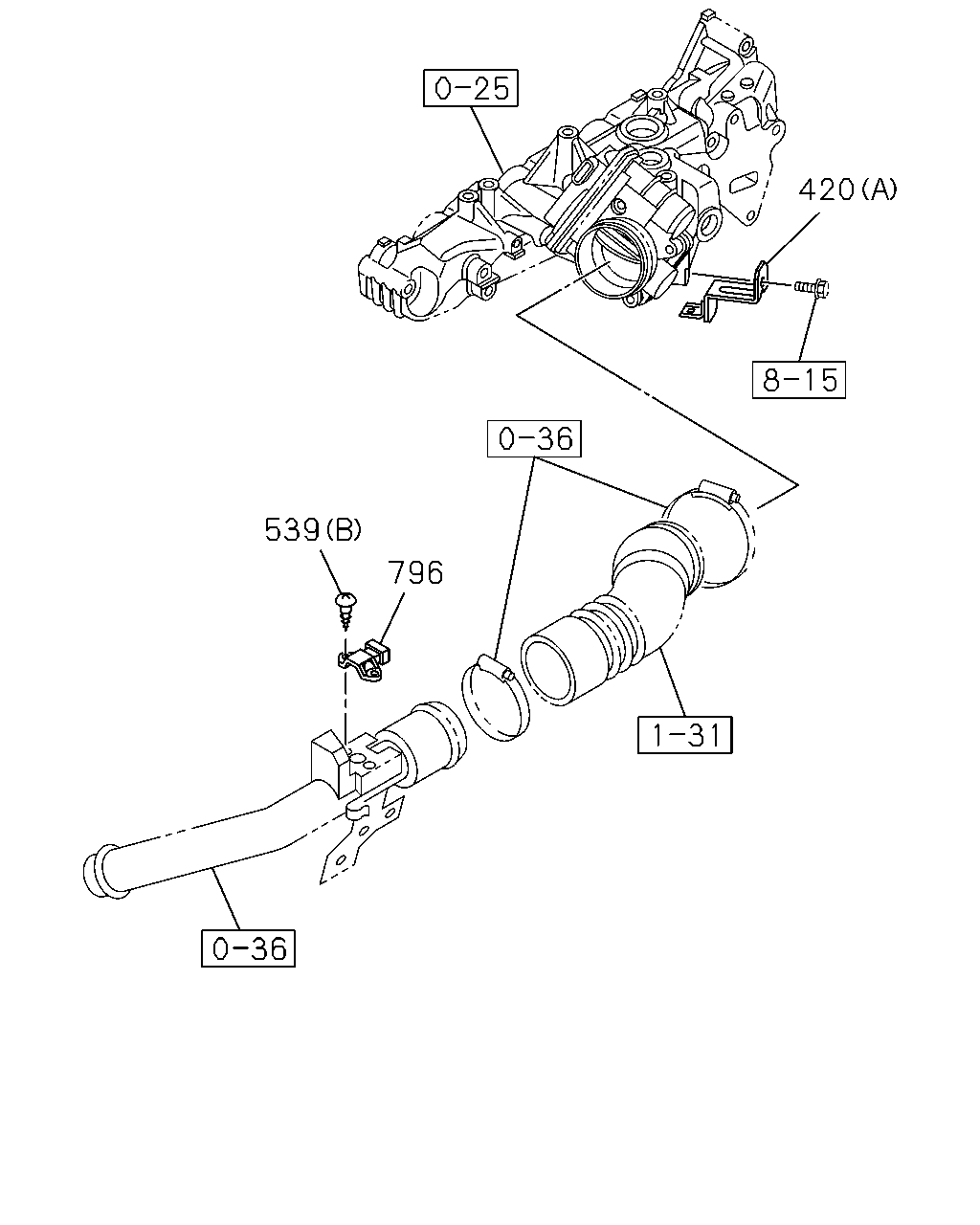

25 420 8 15 36 539 796 1 31 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW TAI	8-97965-433-0	01	1	9701-9910	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW TAI	8-97967-190-0	01	1	9911-0207	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW TAI	8-97967-190-0	01	1	0208-0305		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO	8-97042-997-2	01	1	0306-0511		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO	8-97042-997-2	01	1	0512-0610			●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER<8GF> 24V 4.0KW HITACHI	8-98055-279-1	01	1	0611-				●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 24V 4.0KW HITACHI	8-98054-984-0	01	1	0611-				●
420	BRACKET; HARNESS (A)	8-98024-050-0	01	1	0611-				●
420	BRACKET; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-98030-725-1	01	1	0611-				●
539	SCREW; SENSOR (A) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0611-				●
539	SCREW; SENSOR (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0611-				●
796	SENSOR; MAP	8-98009-418-0	01	1	0611-				●

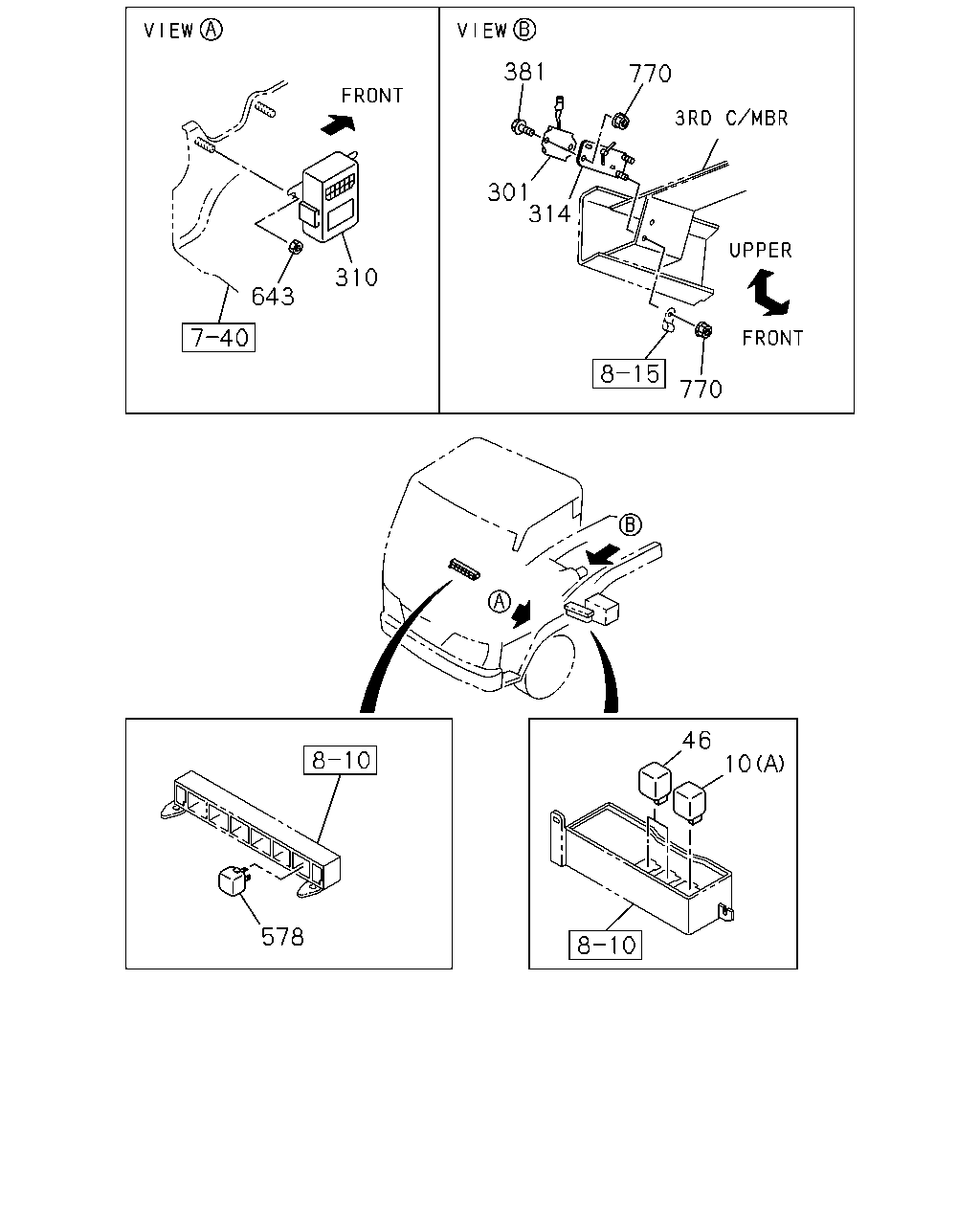

381 770 30 301 314 310 643 7 40 8 15 770 46 8 10 10 578 8 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
7	NUT; STARTER M12 FLANGE	0-91150-112-0	02	1	9701-0207	●
10	RELAY; STARTER (A) 12V 80A	8-97036-358-1	01	1	9701-9704	●
10	RELAY; STARTER (A) 12V 80A	8-97173-951-0	01	1	9705-0207	●
10	RELAY; STARTER (B) 12V 80A	8-97173-951-0	01	1	0208-0511		●
10	RELAY; STARTER (B) 12V 80A	8-97173-951-0	01	1	0512-0610			●
10	RELAY; STARTER (D) 24V 50A	8-97264-947-0	01	1	0611-				●
10	RELAY; STARTER (C) 24V 10A PANASONIC TAI	8-97173-035-1	01	1	0611-				●
46	RELAY; GLOW PLUG 12V 80A	8-97036-358-1	02	1	9701-9704	●
46	RELAY; GLOW PLUG 12V 80A	8-97173-951-0	02	1	9705-0207	●
46	RELAY; GLOW PLUG 12V 80A	8-97173-951-0	01	1	0208-0511		●
46	RELAY; GLOW PLUG 12V 80A	8-97173-951-0	01	1	0512-0610			●
46	RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	0611-				●
301	RESISTOR; DROPPING	8-94389-802-1	01	1	9701-0207	●
301	RESISTOR; DROPPING	8-97357-613-0	01	1	0611-				●
310	CONTROLLER; QOS	8-97047-029-0	01	1	9701-0207	●
314	BRACKET; DROPPING RESISTOR	8-97061-910-2	01	1	9701-0207	●
381	BOLT; DROPPING RESISTOR M6X25 FLANGE	0-28680-625-0	02	1	9701-0207	●
578	RELAY; CHARGE WARNING 12V	8-97063-441-2	01	1	9701-0207	●
578	RELAY; CHARGE WARNING 12V	8-97063-441-2	01	1	0208-0511		●
578	RELAY; CHARGE WARNING 12V	8-97063-441-2	01	1	0512-0610			●
578	RELAY; CHARGE WARNING 24V 10A PANASONIC TAI	8-97173-035-1	01	1	0611-				●
643	NUT; TIMER,QOS M6 FLANGE	0-91150-106-0	02	1	9701-0207	●
770	NUT; DROPPING REGISTER M6 FLANGE	0-91150-106-0	04	1	9701-0207	●

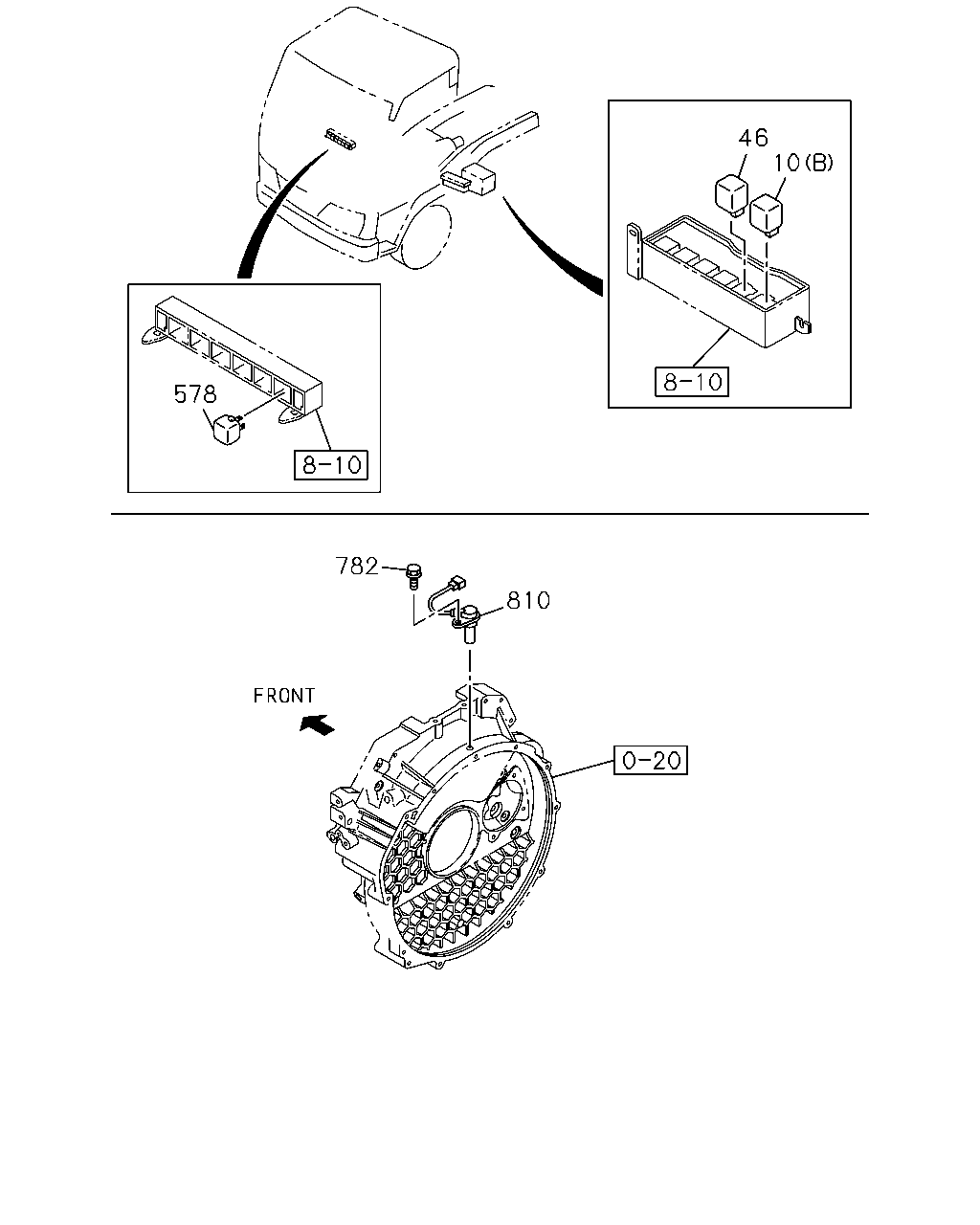

46 10 8 10 578 8 10 782 810 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
10	RELAY; STARTER (A) 12V 80A	8-97036-358-1	01	1	9701-9704	●
10	RELAY; STARTER (A) 12V 80A	8-97173-951-0	01	1	9705-0207	●
10	RELAY; STARTER (B) 12V 80A	8-97173-951-0	01	1	0208-0511		●
10	RELAY; STARTER (B) 12V 80A	8-97173-951-0	01	1	0512-0610			●
10	RELAY; STARTER (D) 24V 50A	8-97264-947-0	01	1	0611-				●
10	RELAY; STARTER (C) 24V 10A PANASONIC TAI	8-97173-035-1	01	1	0611-				●
46	RELAY; GLOW PLUG 12V 80A	8-97036-358-1	02	1	9701-9704	●
46	RELAY; GLOW PLUG 12V 80A	8-97173-951-0	02	1	9705-0207	●
46	RELAY; GLOW PLUG 12V 80A	8-97173-951-0	01	1	0208-0511		●
46	RELAY; GLOW PLUG 12V 80A	8-97173-951-0	01	1	0512-0610			●
46	RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	0611-				●
578	RELAY; CHARGE WARNING 12V	8-97063-441-2	01	1	9701-0207	●
578	RELAY; CHARGE WARNING 12V	8-97063-441-2	01	1	0208-0511		●
578	RELAY; CHARGE WARNING 12V	8-97063-441-2	01	1	0512-0610			●
578	RELAY; CHARGE WARNING 24V 10A PANASONIC TAI	8-97173-035-1	01	1	0611-				●
782	BOLT; SENSOR M6X16 FLANGE	0-28680-616-0	01	1	0208-0511		●
782	BOLT; SENSOR M6X16 FLANGE	0-28680-616-0	01	1	0512-0512			●
782	BOLT; SENSOR M6X16 FLANGE	0-28650-616-0	01	1	0601-0610			●
782	BOLT; SENSOR M6X16 FLANGE	0-28050-616-0	01	1	0611-				●
810	SENSOR; CRANK ANGLE	8-97306-601-1	01	1	0208-0511		●
810	SENSOR; CRANK ANGLE	8-97306-601-1	01	1	0512-0610			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
