◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50760 - NHR/NKR TAIWAN ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-57 - EMISSION PIPING ▶
0-57 — EMISSION PIPING (#139027) — 197 parça
çizim 420365
56 56 56 6 47 49 49 49 49 49 244
BalonParca AdiParca NoAdetTipApplied Date A B C D
49 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60) (A) ID=8 & 23 		5-09707-002-0 02 1 9701-9702 ●
49 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60) (A) ID=8 & 23 		5-09707-002-0 01 1 9703-9905 ●
49 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60) (B) L=140 TAI 		5-09707-008-0 05 1 9701-9701 ●
49 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60) (B) TAI 		8-97965-628-0 05 1 9702-9702 ●
49 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60) (B) L=140 		5-09707-031-1 01 1 9703-9905 ●
49 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60) (C) ID=6 		8-94144-843-0 01 1 9701-9702 ●
49 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60) (D) ID=6 & 6 		8-94463-708-0 01 1 9703-9905 ●
49 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60) (A) ID=30 & 8 		8-94167-439-0 01 1 9701-9702 ●
49 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60) (E) ID=6 & 16.5 		8-94165-402-0 01 1 9703-9905 ●
244 HARNESS; ADAPTER
AIR CONDITIONER MANUAL CONT(C60) TAI 		8-94135-181-1 01 1 9701-9701 ●
244 HARNESS; ADAPTER
AIR CONDITIONER MANUAL CONT(C60) TAI 		8-97965-626-0 01 1 9702-9706 ●

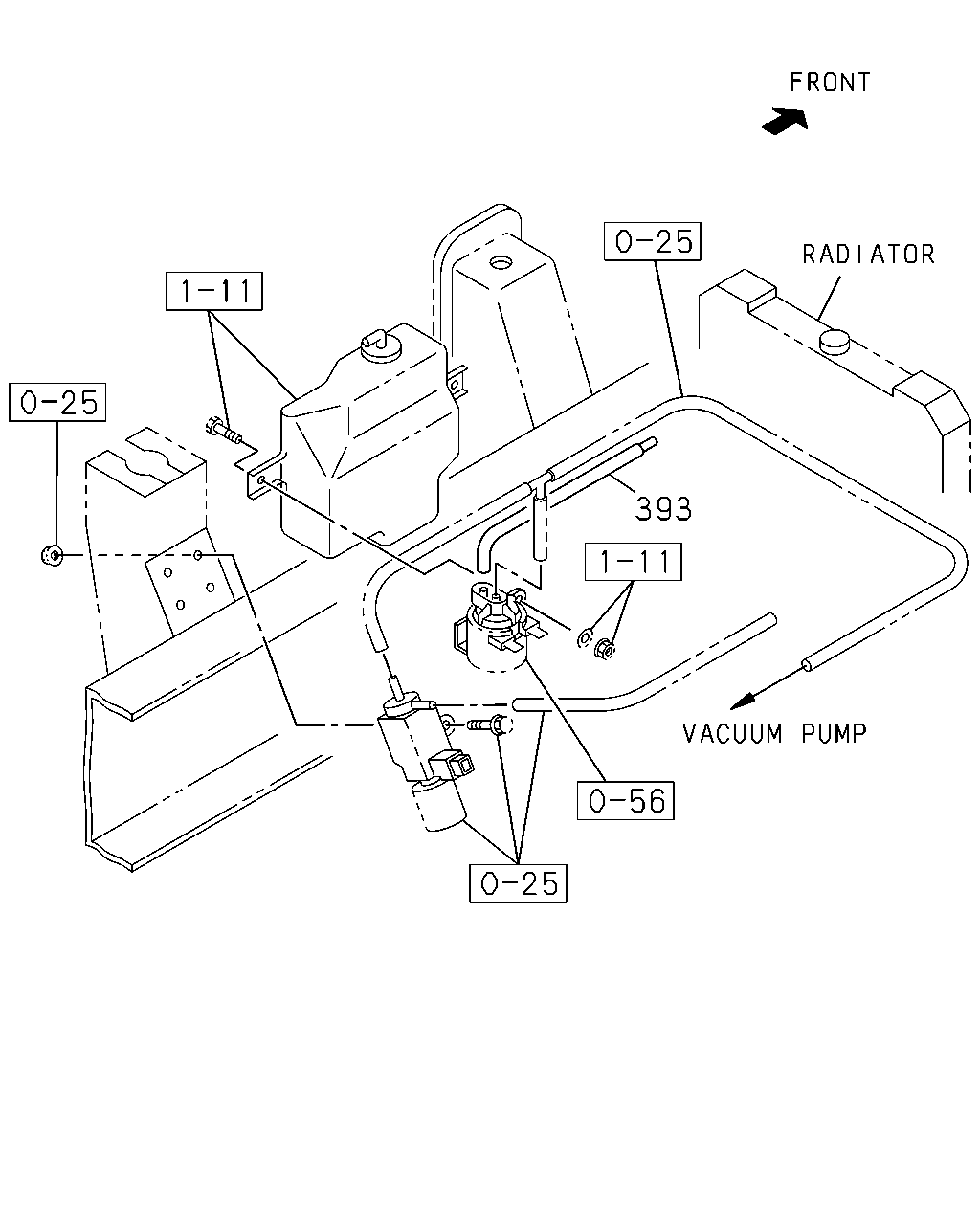

çizim 420366
25 1 11 25 393 1 11 56 25
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 VALVE; EGR 8-97208-656-3 01 1 0208-0511 ●
1 VALVE; EGR 8-97208-656-3 01 1 0512-0610 ●
1 VALVE; EGR 8-97381-560-7 01 1 0611- ●
393 HOSE; FICD
AIR CONDITIONER MANUAL CONT(C60) 		8-97212-992-0 01 1 9906-0006 ●
393 HOSE; FICD
AIR CONDITIONER MANUAL CONT(C60) 		8-97259-551-0 01 1 0007-0207 ●

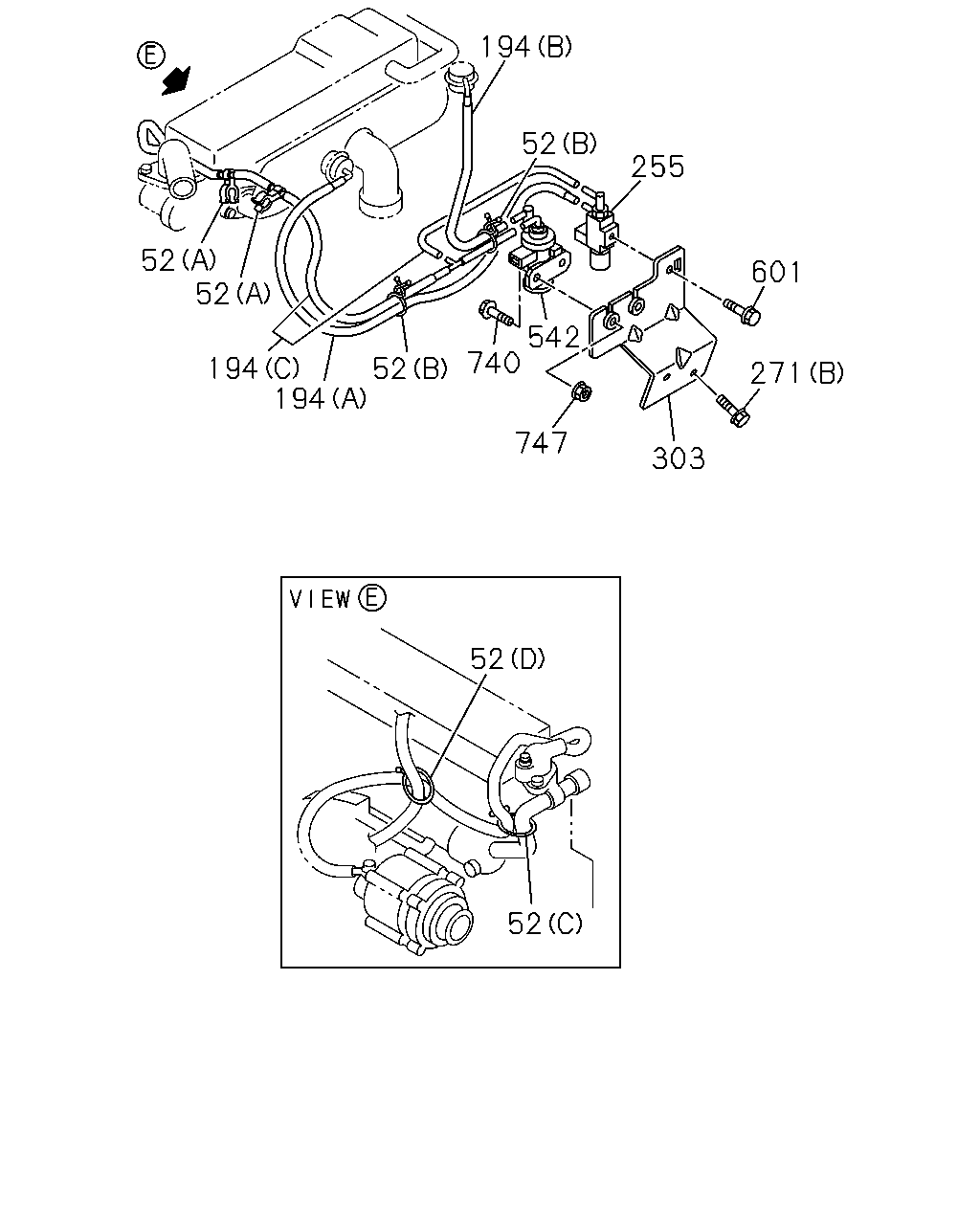

çizim 420374
194 52 255 52 52 601 542 740 194 194 52 271 747 303 52 52
BalonParca AdiParca NoAdetTipApplied Date A B C D
52 CLIP; VSV HOSE
(A) ID=6 & 16.5 		8-94165-402-0 02 1 0208-0511 ●
52 CLIP; VSV HOSE
(A) ID=6 & 16.5 		8-94165-402-0 02 1 0512-0610 ●
52 CLIP; VSV HOSE
(B) ID=30 		8-94315-423-0 02 1 0208-0511 ●
52 CLIP; VSV HOSE
(B) ID=30 		8-94315-423-0 02 1 0512-0610 ●
52 CLIP; VSV HOSE
(C) ID=37 		8-94481-468-0 01 1 0208-0511 ●
52 CLIP; VSV HOSE
(C) ID=37 		8-94481-468-0 01 1 0512-0610 ●
52 CLIP; VSV HOSE
(D) ID=16.5 & 7 		8-97226-171-0 01 1 0208-0511 ●
52 CLIP; VSV HOSE
(D) ID=16.5 & 7 		8-97226-171-0 01 1 0512-0610 ●
194 HOSE; VAC
(C) 		8-97249-368-2 01 1 0208-0511 ●
194 HOSE; VAC
(C) 		8-97249-368-2 01 1 0512-0610 ●
194 HOSE; VAC
(D) 		0-04420-270-0 01 1 0611- ●
194 HOSE; VAC
(B) 		8-97249-369-1 01 1 0208-0511 ●
194 HOSE; VAC
(B) 		8-97249-369-1 01 1 0512-0610 ●
194 HOSE; VAC
(E) 		8-98031-057-1 01 1 0611-0705 ●
194 HOSE; VAC
(E) 		8-98085-688-0 01 1 0706- ●
194 HOSE; VAC
(A) 		8-97249-370-2 01 1 0208-0511 ●
194 HOSE; VAC
(A) 		8-97249-370-2 01 1 0512-0610 ●
194 HOSE; VAC
(F) 		8-98036-856-0 01 1 0611- ●
255 VALVE; VAC SW,EGR CONT 8-97171-030-0 01 1 0208-0511 ●
255 VALVE; VAC SW,EGR CONT 8-97171-030-0 01 1 0512-0610 ●
271 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 03 1 0208-0511 ●
271 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 03 1 0512-0512 ●
271 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 03 1 0601-0610 ●
271 BOLT; BRKT
(C) M10X45 FLANGE 		0-28151-045-0 01 1 0611- ●
271 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0208-0511 ●
271 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
271 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0610 ●
271 BOLT; BRKT
(D) M8X16 FLANGE 		0-28050-816-0 01 1 0611- ●
303 BRACKET; VAC SW 8-97240-156-1 01 1 0208-0211 ●
303 BRACKET; VAC SW 8-97361-243-0 01 1 0212-0511 ●
303 BRACKET; VAC SW 8-97361-243-0 01 1 0512-0610 ●
542 VALVE; VAC REGULATING 8-97240-699-0 01 1 0208-0511 ●
542 VALVE; VAC REGULATING 8-97240-699-0 01 1 0512-0610 ●
601 SCREW; VSV
M5X10 W/LK+PL WASHER 		9-03920-510-0 01 1 0208-0511 ●
601 SCREW; VSV
M5X10 W/LK+PL WASHER 		9-03920-510-0 01 1 0512-0604 ●
601 SCREW; VSV
M5X10 W/LK+PL WASHER 		0-36230-510-0 01 1 0605-0610 ●
740 BOLT; VAC REG VALVE
M6X30 FLANGE 		0-28680-630-0 02 1 0208-0211 ●
740 BOLT; VAC REG VALVE
M6X20 FLANGE 		0-28680-620-0 02 1 0212-0511 ●
740 BOLT; VAC REG VALVE
M6X20 FLANGE 		0-28680-620-0 02 1 0512-0512 ●
740 BOLT; VAC REG VALVE
M6X20 FLANGE 		0-28650-620-0 02 1 0601-0610 ●
747 NUT; VAC REG VALVE
M6 FLANGE 		0-91150-106-0 02 1 0208-0211 ●
747 NUT; VAC REG VALVE
M8 FLANGE 		0-91180-108-0 02 1 0611- ●

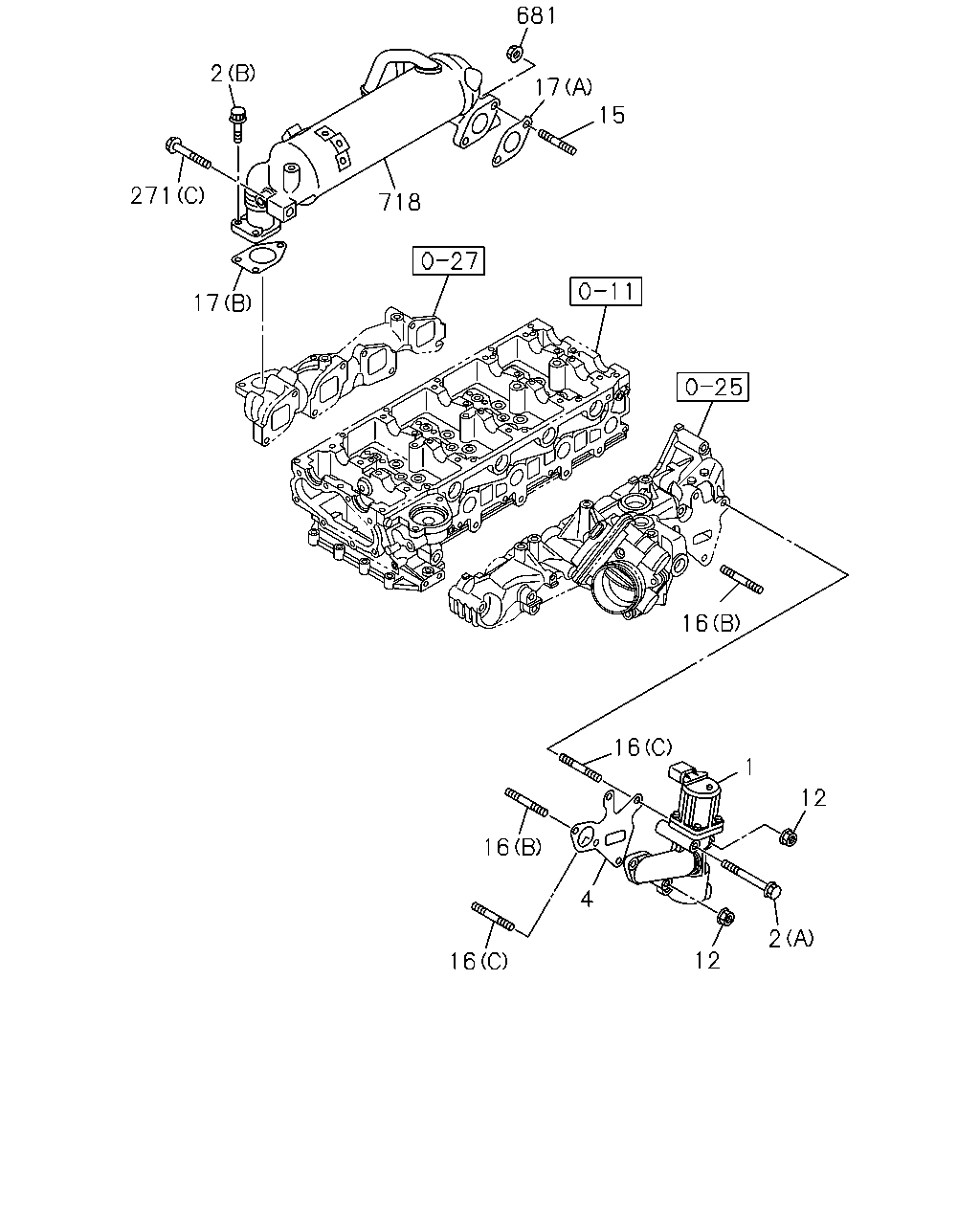

çizim 420375
681 2 17 15 271 718 27 11 17 25 16 16 1 12 16 4 2 12 16
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 VALVE; EGR 8-97208-656-3 01 1 0208-0511 ●
1 VALVE; EGR 8-97208-656-3 01 1 0512-0610 ●
1 VALVE; EGR 8-97381-560-7 01 1 0611- ●
2 BOLT; EGR VLV
(A) M8X80 FLANGE 		0-28050-880-0 01 1 0611- ●
2 BOLT; EGR VLV
(B) M8X23 FLANGE 		8-97378-077-0 03 1 0611- ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97192-765-0 04 1 0208-0511 ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97192-765-0 04 1 0512-0610 ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97384-119-1 01 1 0611-0708 ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98094-528-2 01 1 0709- ●
12 NUT; EGR VLV
M8 FLANGE 		0-91150-208-0 02 1 0208-0511 ●
12 NUT; EGR VLV
M8 FLANGE 		0-91150-208-0 02 1 0512-0602 ●
12 NUT; EGR VLV
M8 FLANGE 		0-91180-208-0 02 1 0603-0610 ●
12 NUT; EGR VLV
M8 FLANGE 		0-91180-208-0 04 1 0611- ●
15 STUD; EGR PIPE
M8X25 L=36 		8-97378-062-0 02 1 0611- ●
15 STUD; EGR PIPE
M8X20 L=31 		8-97104-508-1 04 1 0208-0408 ●
15 STUD; EGR PIPE
M8X20 L=31 		8-97378-060-0 04 1 0409-0511 ●
15 STUD; EGR PIPE
M8X20 L=31 		8-97378-060-0 04 1 0512-0610 ●
16 STUD; EGR VLV
(A) M8X55 L=67 		9-04110-855-0 02 1 0208-0511 ●
16 STUD; EGR VLV
(A) M8X55 L=67 		9-04110-855-0 02 1 0512-0604 ●
16 STUD; EGR VLV
(A) M8X55 L=67 		0-41010-855-0 02 1 0605-0610 ●
16 STUD; EGR VLV
(B) M8X25 L=37 		0-40210-825-0 02 1 0611- ●
16 STUD; EGR VLV
(C) M8X50 L=62 		0-40210-850-0 02 1 0611- ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97357-684-3 01 1 0611- ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98017-551-0 01 1 0611- ●
271 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 03 1 0208-0511 ●
271 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 03 1 0512-0512 ●
271 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 03 1 0601-0610 ●
271 BOLT; BRKT
(C) M10X45 FLANGE 		0-28151-045-0 01 1 0611- ●
271 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0208-0511 ●
271 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
271 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0610 ●
271 BOLT; BRKT
(D) M8X16 FLANGE 		0-28050-816-0 01 1 0611- ●
681 NUT; EGR PIPE
M8 FLANGE 		8-97161-607-0 04 1 0208-0511 ●
681 NUT; EGR PIPE
M8 FLANGE 		8-97161-607-0 04 1 0512-0610 ●
681 NUT; EGR PIPE
M8 FLANGE 		0-91180-208-0 02 1 0611- ●
718 COOLER; EGR 8-98011-524-3 01 1 0611- ●
çizim 420382
271 697 10 667 738 52 472 753 36 752 779 747 194 82 73 73 194 25 73 36 194
BalonParca AdiParca NoAdetTipApplied Date A B C D
52 CLIP; VSV HOSE
(A) ID=6 & 16.5 		8-94165-402-0 02 1 0208-0511 ●
52 CLIP; VSV HOSE
(A) ID=6 & 16.5 		8-94165-402-0 02 1 0512-0610 ●
52 CLIP; VSV HOSE
(B) ID=30 		8-94315-423-0 02 1 0208-0511 ●
52 CLIP; VSV HOSE
(B) ID=30 		8-94315-423-0 02 1 0512-0610 ●
52 CLIP; VSV HOSE
(C) ID=37 		8-94481-468-0 01 1 0208-0511 ●
52 CLIP; VSV HOSE
(C) ID=37 		8-94481-468-0 01 1 0512-0610 ●
52 CLIP; VSV HOSE
(D) ID=16.5 & 7 		8-97226-171-0 01 1 0208-0511 ●
52 CLIP; VSV HOSE
(D) ID=16.5 & 7 		8-97226-171-0 01 1 0512-0610 ●
73 CLIP; VAC HOSE
(A) ID=11.8 & 7.5 		1-09709-182-0 01 1 0611- ●
73 CLIP; VAC HOSE
(B) ID=8.3 & 10 		8-94176-792-0 01 1 0611- ●
73 CLIP; VAC HOSE
(C) ID=13.2 & 7.5 		8-94315-426-0 01 1 0611- ●
82 JOINT; 3 WAY
3WAY 		8-98045-385-0 01 1 0611- ●
194 HOSE; VAC
(C) 		8-97249-368-2 01 1 0208-0511 ●
194 HOSE; VAC
(C) 		8-97249-368-2 01 1 0512-0610 ●
194 HOSE; VAC
(D) 		0-04420-270-0 01 1 0611- ●
194 HOSE; VAC
(B) 		8-97249-369-1 01 1 0208-0511 ●
194 HOSE; VAC
(B) 		8-97249-369-1 01 1 0512-0610 ●
194 HOSE; VAC
(E) 		8-98031-057-1 01 1 0611-0705 ●
194 HOSE; VAC
(E) 		8-98085-688-0 01 1 0706- ●
194 HOSE; VAC
(A) 		8-97249-370-2 01 1 0208-0511 ●
194 HOSE; VAC
(A) 		8-97249-370-2 01 1 0512-0610 ●
194 HOSE; VAC
(F) 		8-98036-856-0 01 1 0611- ●
271 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 03 1 0208-0511 ●
271 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 03 1 0512-0512 ●
271 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 03 1 0601-0610 ●
271 BOLT; BRKT
(C) M10X45 FLANGE 		0-28151-045-0 01 1 0611- ●
271 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0208-0511 ●
271 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
271 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0610 ●
271 BOLT; BRKT
(D) M8X16 FLANGE 		0-28050-816-0 01 1 0611- ●
472 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0611- ●
667 SENSOR; VAC 8-98044-520-0 01 1 0611- ●
697 BOLT; SENSOR
M6X20 FLANGE 		0-28650-620-0 02 1 0611- ●
738 BRACKET; SENSOR,VAC 8-98044-607-0 01 1 0611- ●
747 NUT; VAC REG VALVE
M6 FLANGE 		0-91150-106-0 02 1 0208-0211 ●
747 NUT; VAC REG VALVE
M8 FLANGE 		0-91180-108-0 02 1 0611- ●
752 VALVE; EVRV 8-97184-183-0 01 1 0611- ●
753 BRACKET; VALVE 8-97381-571-1 01 1 0611- ●
779 WASHER; VALVE
ID=8.4 OD=18 		0-91610-608-0 02 1 0611- ●

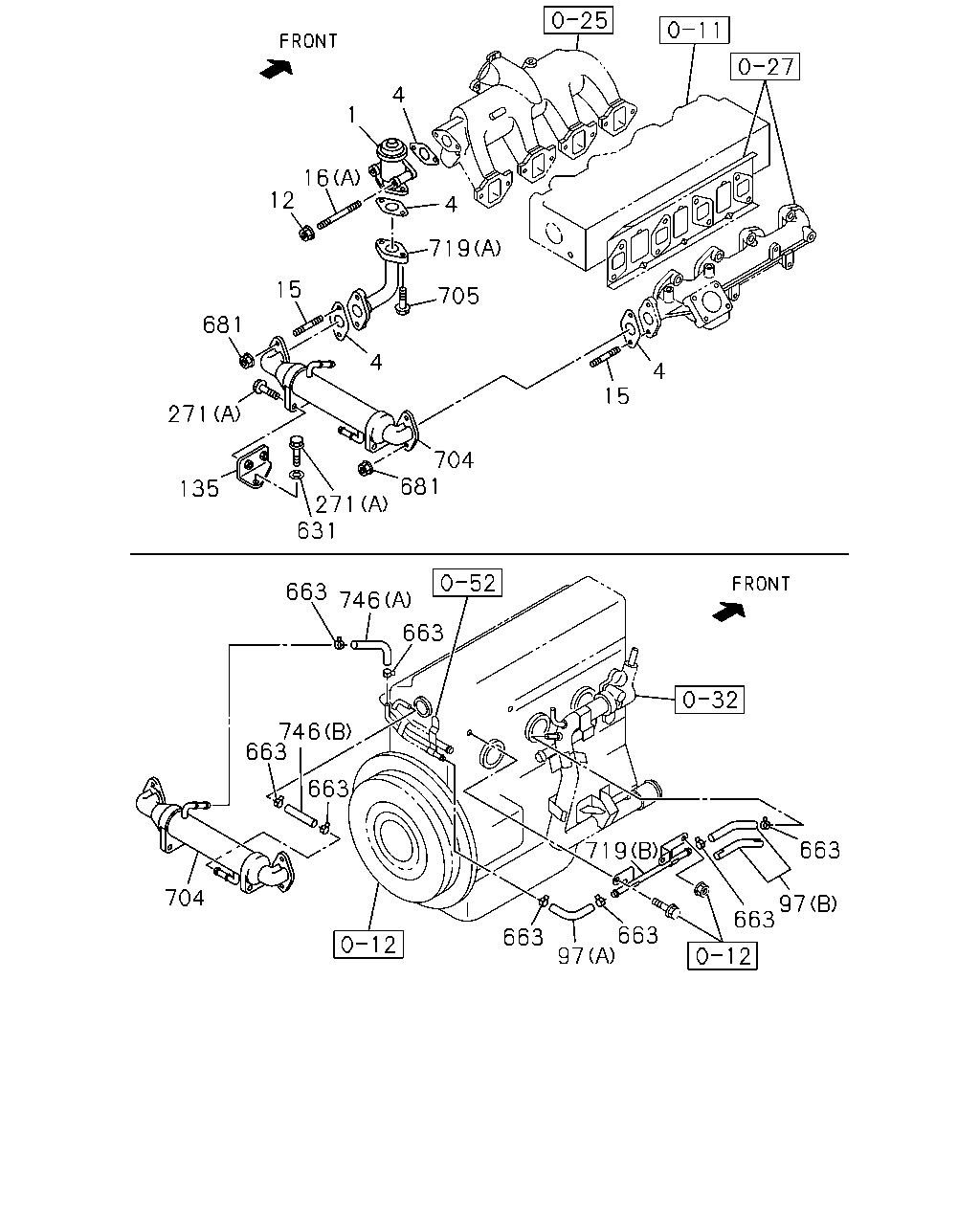

çizim 420720
25 11 27 4 1 16 12 4 719 15 705 681 4 4 15 271 704 681 135 271 631 52 663 746 663 32 746 663 663 719 663 704 97 663 663 663 12 97 12
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 VALVE; EGR 8-97208-656-3 01 1 0208-0511 ●
1 VALVE; EGR 8-97208-656-3 01 1 0512-0610 ●
1 VALVE; EGR 8-97381-560-7 01 1 0611- ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97192-765-0 04 1 0208-0511 ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97192-765-0 04 1 0512-0610 ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97384-119-1 01 1 0611-0708 ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98094-528-2 01 1 0709- ●
12 NUT; EGR VLV
M8 FLANGE 		0-91150-208-0 02 1 0208-0511 ●
12 NUT; EGR VLV
M8 FLANGE 		0-91150-208-0 02 1 0512-0602 ●
12 NUT; EGR VLV
M8 FLANGE 		0-91180-208-0 02 1 0603-0610 ●
12 NUT; EGR VLV
M8 FLANGE 		0-91180-208-0 04 1 0611- ●
15 STUD; EGR PIPE
M8X25 L=36 		8-97378-062-0 02 1 0611- ●
15 STUD; EGR PIPE
M8X20 L=31 		8-97104-508-1 04 1 0208-0408 ●
15 STUD; EGR PIPE
M8X20 L=31 		8-97378-060-0 04 1 0409-0511 ●
15 STUD; EGR PIPE
M8X20 L=31 		8-97378-060-0 04 1 0512-0610 ●
16 STUD; EGR VLV
(A) M8X55 L=67 		9-04110-855-0 02 1 0208-0511 ●
16 STUD; EGR VLV
(A) M8X55 L=67 		9-04110-855-0 02 1 0512-0604 ●
16 STUD; EGR VLV
(A) M8X55 L=67 		0-41010-855-0 02 1 0605-0610 ●
16 STUD; EGR VLV
(B) M8X25 L=37 		0-40210-825-0 02 1 0611- ●
16 STUD; EGR VLV
(C) M8X50 L=62 		0-40210-850-0 02 1 0611- ●
52 CLIP; VSV HOSE
(A) ID=6 & 16.5 		8-94165-402-0 02 1 0208-0511 ●
52 CLIP; VSV HOSE
(A) ID=6 & 16.5 		8-94165-402-0 02 1 0512-0610 ●
52 CLIP; VSV HOSE
(B) ID=30 		8-94315-423-0 02 1 0208-0511 ●
52 CLIP; VSV HOSE
(B) ID=30 		8-94315-423-0 02 1 0512-0610 ●
52 CLIP; VSV HOSE
(C) ID=37 		8-94481-468-0 01 1 0208-0511 ●
52 CLIP; VSV HOSE
(C) ID=37 		8-94481-468-0 01 1 0512-0610 ●
52 CLIP; VSV HOSE
(D) ID=16.5 & 7 		8-97226-171-0 01 1 0208-0511 ●
52 CLIP; VSV HOSE
(D) ID=16.5 & 7 		8-97226-171-0 01 1 0512-0610 ●
97 HOSE; RUBBER
(A) 		8-97240-636-0 01 1 0208-0511 ●
97 HOSE; RUBBER
(A) 		8-97240-636-0 01 1 0512-0610 ●
97 HOSE; RUBBER
(B) 		8-97312-730-0 01 1 0208-0511 ●
97 HOSE; RUBBER
(B) 		8-97312-730-0 01 1 0512-0610 ●
135 BRACKET; EGR 8-97247-717-2 01 1 0208-0511 ●
135 BRACKET; EGR 8-97247-717-2 01 1 0512-0610 ●
271 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 03 1 0208-0511 ●
271 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 03 1 0512-0512 ●
271 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 03 1 0601-0610 ●
271 BOLT; BRKT
(C) M10X45 FLANGE 		0-28151-045-0 01 1 0611- ●
271 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0208-0511 ●
271 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
271 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0610 ●
271 BOLT; BRKT
(D) M8X16 FLANGE 		0-28050-816-0 01 1 0611- ●
631 WASHER; PL,BRKT
ID=8.4 OD=18 		9-09160-608-0 01 1 0208-0511 ●
631 WASHER; PL,BRKT
ID=8.4 OD=18 		9-09160-608-0 01 1 0512-0605 ●
631 WASHER; PL,BRKT
ID=8.4 OD=18 		0-91610-608-0 01 1 0606-0610 ●
663 CLIP; HOSE
ID=12.8 		8-94367-943-0 08 1 0208-0511 ●
663 CLIP; HOSE
ID=12.8 		8-94367-943-0 08 1 0512-0610 ●
681 NUT; EGR PIPE
M8 FLANGE 		8-97161-607-0 04 1 0208-0511 ●
681 NUT; EGR PIPE
M8 FLANGE 		8-97161-607-0 04 1 0512-0610 ●
681 NUT; EGR PIPE
M8 FLANGE 		0-91180-208-0 02 1 0611- ●
704 COOLER ASM; EGR 8-97239-982-3 01 1 0208-0511 ●
704 COOLER ASM; EGR 8-97239-982-3 01 1 0512-0610 ●
705 BOLT; EGR VLV TO EGR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0208-0511 ●
705 BOLT; EGR VLV TO EGR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ●
705 BOLT; EGR VLV TO EGR PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0601-0610 ●
719 PIPE; EGR
(B) 		8-97240-635-2 01 1 0208-0208 ●
719 PIPE; EGR
(A) 		8-97245-757-2 01 1 0208-0511 ●
719 PIPE; EGR
(A) 		8-97245-757-2 01 1 0512-0610 ●
719 PIPE; EGR
(B) 		8-97240-635-2 01 1 0209-0511 ●
719 PIPE; EGR
(B) 		8-97240-635-2 01 1 0512-0610 ●
746 HOSE; WATER,EGR COOLER
(B) L=90 SERVICED BY L=3000 		0-03559-300-0 01 1 0208-0511 ●
746 HOSE; WATER,EGR COOLER
(B) L=90 SERVICED BY L=3000 		0-03559-300-0 01 1 0512-0610 ●
746 HOSE; WATER,EGR COOLER
(A) 		8-97313-126-1 01 1 0208-0511 ●
746 HOSE; WATER,EGR COOLER
(A) 		8-97313-126-1 01 1 0512-0610 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
