Isuzu WW
▶
TRUCKS
▶
NHR
▶
50760 - NHR/NKR TAIWAN
▶
0 - Engine, Emission, Engine Electrical
▶
0-56 - EMISSION SYSTEM
▶

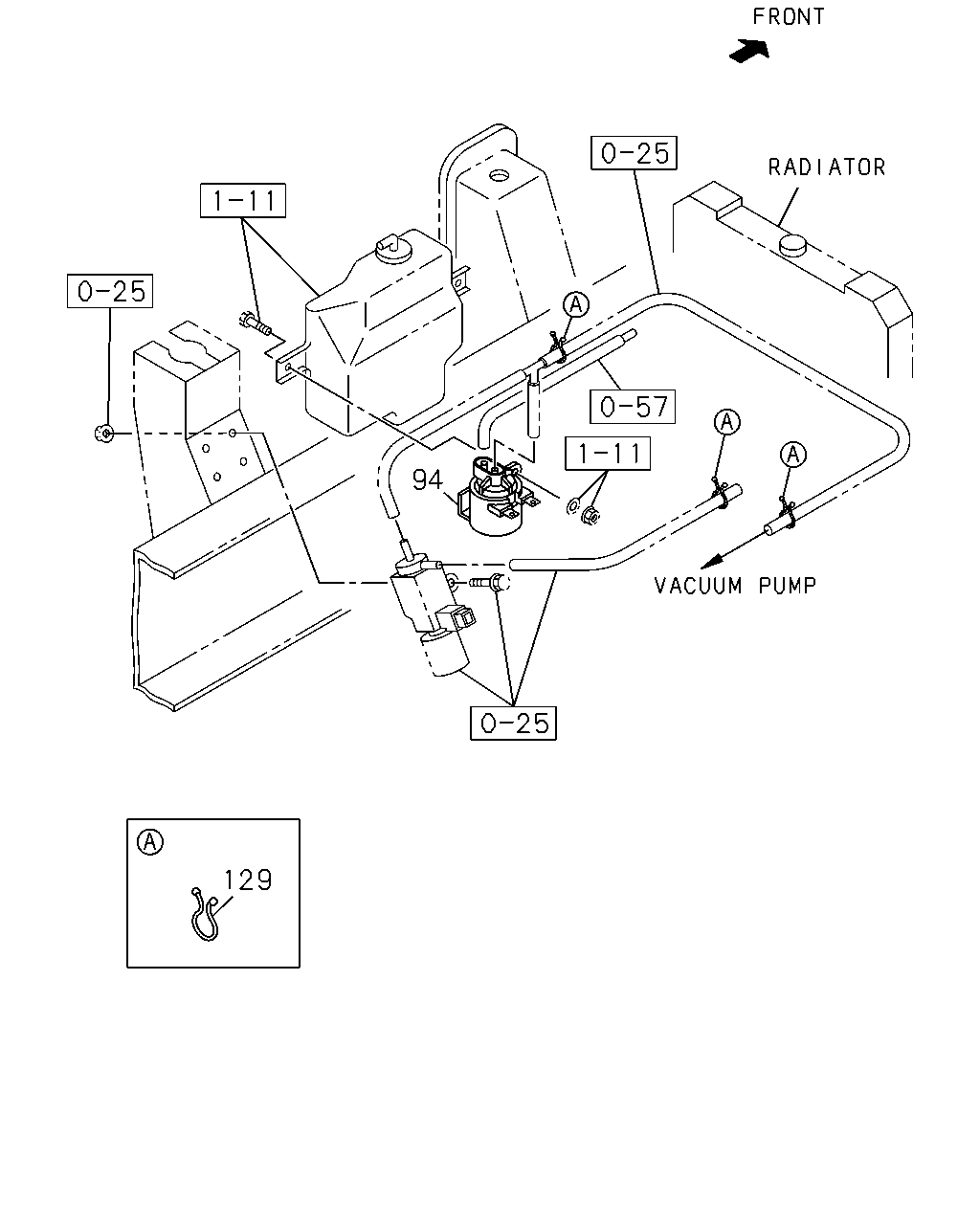

0-56 — EMISSION SYSTEM
(#139026) — 10 parça
◀
[056A] -'99/5 4JG2 (7 parça)
[056A] '99/6- 4JG2 (3 parça)
▶
10
3
10
94
102
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
BOLT; VSV
AIR CONDITIONER MANUAL CONT(C60) M6X16 FLANGE
0-28680-616-0
01
1
9701-9905
10
HOSE; RUBBER,PUMP TO VSV
AIR CONDITIONER MANUAL CONT(C60) (A) L=350 SERVICED BY L=3050
8-94239-712-0
01
1
9701-9703
10
HOSE; RUBBER,PUMP TO VSV
AIR CONDITIONER MANUAL CONT(C60) (B) L=1500 SERVICED BY L=3050
8-94239-712-0
01
1
9701-9703
10
HOSE; RUBBER,PUMP TO VSV
AIR CONDITIONER MANUAL CONT(C60) (A) L=270
8-97167-278-0
01
1
9704-9905
10
HOSE; RUBBER,PUMP TO VSV
AIR CONDITIONER MANUAL CONT(C60) (B)
8-97179-136-0
01
1
9704-9905
94
VALVE; VAC SWITCH,FAST IDLE
AIR CONDITIONER MANUAL CONT(C60)
8-94253-907-0
01
1
9701-0207
102
NUT; VSV
AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE
0-91150-106-0
01
1
9701-9905
25
1
11
25
57
1
11
94
25
129
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
94
VALVE; VAC SWITCH,FAST IDLE
AIR CONDITIONER MANUAL CONT(C60)
8-94253-907-0
01
1
9701-0207
129
CLIP; VAC HOSE
AIR CONDITIONER MANUAL CONT(C60) ID=30
8-94315-423-0
03
1
9906-0207
129
CLIP; VAC HOSE
SHORT CHAS(NH***C) EXC. AIR CONDITIONER MANUAL CONT(C60) ID=30
8-94315-423-0
02
1
9906-0207
