Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#139025) — 282 parça

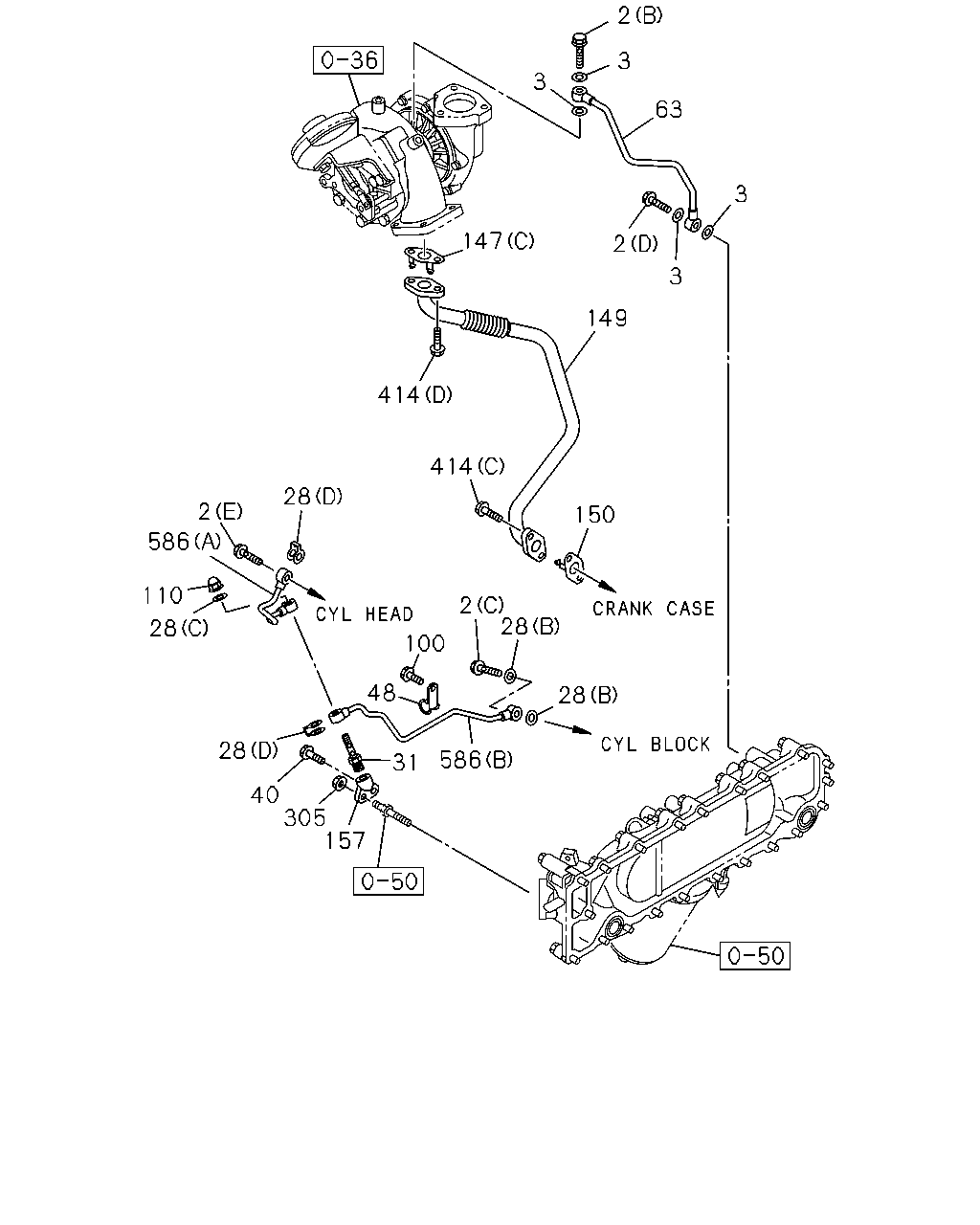

2 36 3 3 63 3 147 2 3 149 414 414 28 2 150 586 110 2 28 28 100 48 28 28 586 31 40 305 157 50 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	BOLT; EYE,OIL PIPE (A) M10X23 FLANGE	8-94332-831-1	01	1	9906-0207	●
2	BOLT; EYE,OIL PIPE (B) M10X27	8-94443-535-0	01	1	0208-0511		●
2	BOLT; EYE,OIL PIPE (B) M10X27	8-94443-535-0	01	1	0512-0610			●
2	BOLT; EYE,OIL PIPE (B) M10X27	8-94443-535-0	01	1	0611-				●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0611-				●
2	BOLT; EYE,OIL PIPE (E) M8X20 EYE-BOLT	5-09675-018-1	01	1	0611-				●
2	BOLT; EYE,OIL PIPE (D) M10X24	9-09906-205-1	01	1	0611-				●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0	9-09571-414-0	02	1	9906-0207	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0	9-09571-414-0	02	1	0208-0511		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0	9-09571-414-0	02	1	0512-0610			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=16.0	9-09571-410-0	04	1	0611-				●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=11	5-09623-002-0	02	1	9701-0207	●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=11	5-09623-002-0	02	1	0208-0511		●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=11	5-09623-002-0	02	1	0512-0610			●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=8.2 OD=13.2	1-09630-082-0	01	1	0611-				●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97251-046-0	02	1	0611-				●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0611-				●
31	NIPPLE; OIL PIPE	8-98044-067-1	01	1	0611-				●
40	BOLT; OIL PIPE M6X10 FLANGE	0-28080-610-0	01	1	9906-0207	●
40	BOLT; OIL PIPE M6X12 FLANGE	0-28050-612-0	01	1	0611-				●
48	CLIP; OIL PIPE ID=7 L=28	0-95234-655-0	01	1	0611-0611				●
48	CLIP; OIL PIPE ID=7 L=28	8-98068-212-0	01	1	0611-				●
63	PIPE; OIL,TURBOCHARGER FEED	8-97218-545-0	01	1	9906-0207	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97239-974-4	01	1	0208-0511		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97239-974-4	01	1	0512-0610			●
63	PIPE; OIL,TURBOCHARGER FEED	8-97381-488-0	01	1	0611-				●
100	BOLT; CLIP M8X12 FLANGE	0-28050-812-0	01	1	0611-				●
110	NUT; CAP OIL PIPE M8 CAP NUT FLANGE	8-97372-242-0	01	1	0611-				●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94362-672-0	01	1	9906-0207	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14	8-97041-638-0	01	1	0208-0511		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14	8-97041-638-0	01	1	0512-0610			●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=16	8-98029-475-0	01	1	0611-				●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9906-0207	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0208-0511		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0512-0610			●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97192-313-0	01	1	9906-0207	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97258-833-0	01	1	0208-0511		●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97258-833-0	01	1	0512-0610			●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97381-489-2	01	1	0611-				●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98029-476-0	01	1	0611-				●
157	BRACKET; OIL PIPE	8-98043-093-0	01	1	0611-				●
305	NUT; BRKT,OIL PIPE M6 FLANGE	0-91180-106-0	01	1	0611-				●
414	BOLT; OIL PIPE (A) M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9906-0207	●
414	BOLT; OIL PIPE (B) M6X16 FLANGE	0-28080-616-0	02	1	0208-0511		●
414	BOLT; OIL PIPE (B) M6X16 FLANGE	0-28080-616-0	02	1	0512-0512			●
414	BOLT; OIL PIPE (B) M6X16 FLANGE	0-28050-616-0	02	1	0601-0610			●
414	BOLT; OIL PIPE (D) M6X18 HEX SOCKET	0-58330-618-0	02	1	0611-				●
414	BOLT; OIL PIPE (C) M8X20 HEX SOCKET	0-58330-820-0	02	1	0611-				●
586	PIPE; OIL,TENSIONER (A)	8-98039-566-0	01	1	0611-				●
586	PIPE; OIL,TENSIONER (B)	8-98039-567-0	01	1	0611-				●

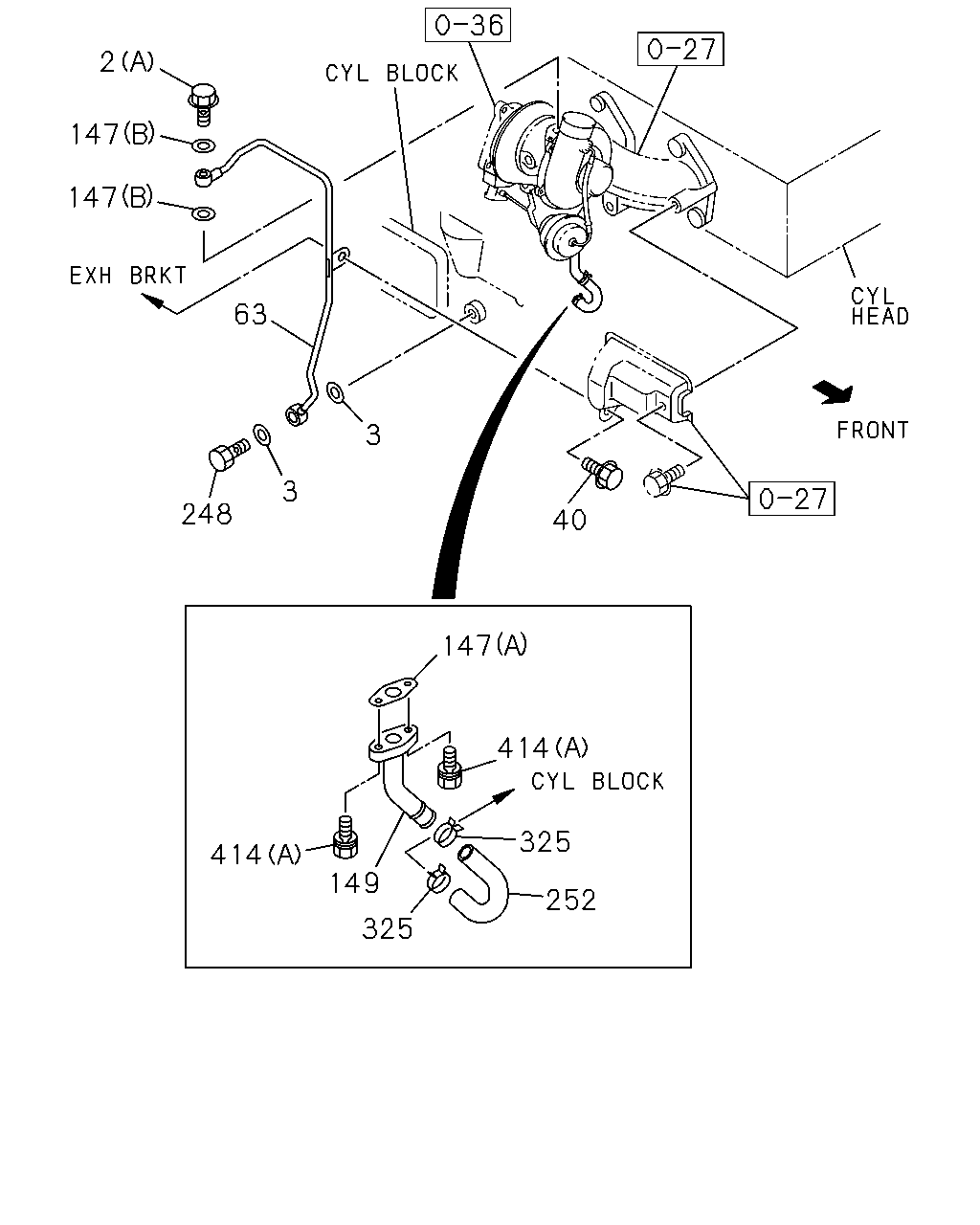

36 27 2 147 147 63 3 3 27 248 40 147 414 325 414 149 252 325

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	BOLT; EYE,OIL PIPE (A) M10X23 FLANGE	8-94332-831-1	01	1	9906-0207	●
2	BOLT; EYE,OIL PIPE (B) M10X27	8-94443-535-0	01	1	0208-0511		●
2	BOLT; EYE,OIL PIPE (B) M10X27	8-94443-535-0	01	1	0512-0610			●
2	BOLT; EYE,OIL PIPE (B) M10X27	8-94443-535-0	01	1	0611-				●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0611-				●
2	BOLT; EYE,OIL PIPE (E) M8X20 EYE-BOLT	5-09675-018-1	01	1	0611-				●
2	BOLT; EYE,OIL PIPE (D) M10X24	9-09906-205-1	01	1	0611-				●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0	9-09571-414-0	02	1	9906-0207	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0	9-09571-414-0	02	1	0208-0511		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0	9-09571-414-0	02	1	0512-0610			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=16.0	9-09571-410-0	04	1	0611-				●
40	BOLT; OIL PIPE M6X10 FLANGE	0-28080-610-0	01	1	9906-0207	●
40	BOLT; OIL PIPE M6X12 FLANGE	0-28050-612-0	01	1	0611-				●
63	PIPE; OIL,TURBOCHARGER FEED	8-97218-545-0	01	1	9906-0207	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97239-974-4	01	1	0208-0511		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97239-974-4	01	1	0512-0610			●
63	PIPE; OIL,TURBOCHARGER FEED	8-97381-488-0	01	1	0611-				●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94362-672-0	01	1	9906-0207	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14	8-97041-638-0	01	1	0208-0511		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14	8-97041-638-0	01	1	0512-0610			●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=16	8-98029-475-0	01	1	0611-				●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9906-0207	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0208-0511		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0512-0610			●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97192-313-0	01	1	9906-0207	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97258-833-0	01	1	0208-0511		●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97258-833-0	01	1	0512-0610			●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97381-489-2	01	1	0611-				●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M14X27 FLANGE	1-09675-086-0	01	1	9906-0207	●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M14X27 FLANGE	1-09675-086-0	01	1	0208-0511		●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M14X27 FLANGE	1-09675-086-0	01	1	0512-0610			●
252	HOSE; RUBBER,TURBOCHARGER RETURN L=200	0-02814-200-0	01	1	9906-0207	●
252	HOSE; RUBBER,TURBOCHARGER RETURN	8-97258-872-1	01	1	0208-0511		●
252	HOSE; RUBBER,TURBOCHARGER RETURN	8-97258-872-1	01	1	0512-0610			●
325	CLIP; RUBBER HOSE,OIL RETURN ID=20.8	8-94125-862-1	02	1	9906-0207	●
325	CLIP; RUBBER HOSE,OIL RETURN ID=20.8	8-94125-862-1	02	1	0208-0511		●
325	CLIP; RUBBER HOSE,OIL RETURN ID=20.8	8-94125-862-1	02	1	0512-0610			●
414	BOLT; OIL PIPE (A) M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9906-0207	●
414	BOLT; OIL PIPE (B) M6X16 FLANGE	0-28080-616-0	02	1	0208-0511		●
414	BOLT; OIL PIPE (B) M6X16 FLANGE	0-28080-616-0	02	1	0512-0512			●
414	BOLT; OIL PIPE (B) M6X16 FLANGE	0-28050-616-0	02	1	0601-0610			●
414	BOLT; OIL PIPE (D) M6X18 HEX SOCKET	0-58330-618-0	02	1	0611-				●
414	BOLT; OIL PIPE (C) M8X20 HEX SOCKET	0-58330-820-0	02	1	0611-				●

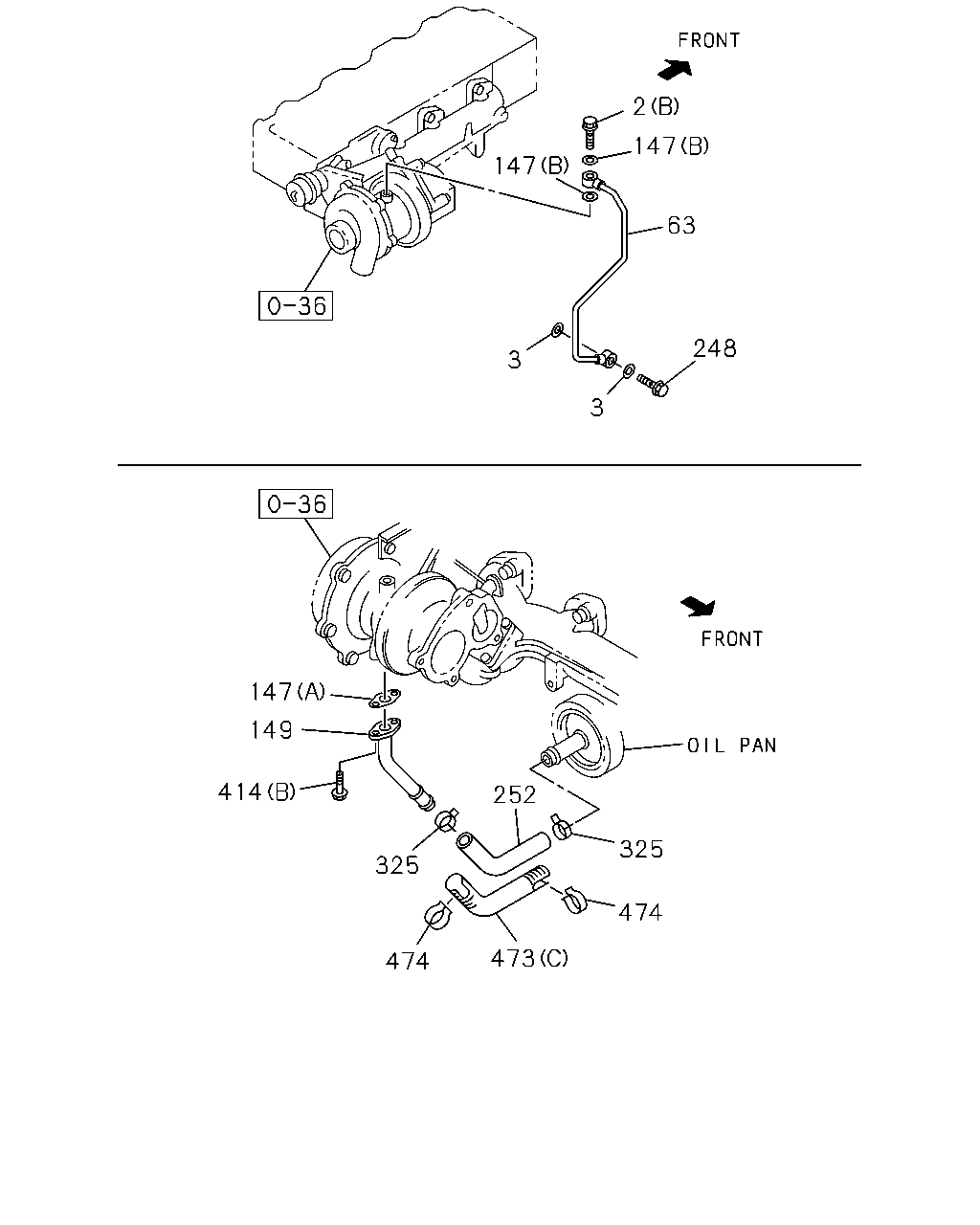

2 147 47 63 36 248 3 3 36 147 149 414 252 325 325 474 473 474

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	BOLT; EYE,OIL PIPE (A) M10X23 FLANGE	8-94332-831-1	01	1	9906-0207	●
2	BOLT; EYE,OIL PIPE (B) M10X27	8-94443-535-0	01	1	0208-0511		●
2	BOLT; EYE,OIL PIPE (B) M10X27	8-94443-535-0	01	1	0512-0610			●
2	BOLT; EYE,OIL PIPE (B) M10X27	8-94443-535-0	01	1	0611-				●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0611-				●
2	BOLT; EYE,OIL PIPE (E) M8X20 EYE-BOLT	5-09675-018-1	01	1	0611-				●
2	BOLT; EYE,OIL PIPE (D) M10X24	9-09906-205-1	01	1	0611-				●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0	9-09571-414-0	02	1	9906-0207	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0	9-09571-414-0	02	1	0208-0511		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0	9-09571-414-0	02	1	0512-0610			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=16.0	9-09571-410-0	04	1	0611-				●
63	PIPE; OIL,TURBOCHARGER FEED	8-97218-545-0	01	1	9906-0207	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97239-974-4	01	1	0208-0511		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97239-974-4	01	1	0512-0610			●
63	PIPE; OIL,TURBOCHARGER FEED	8-97381-488-0	01	1	0611-				●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94362-672-0	01	1	9906-0207	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14	8-97041-638-0	01	1	0208-0511		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14	8-97041-638-0	01	1	0512-0610			●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=16	8-98029-475-0	01	1	0611-				●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9906-0207	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0208-0511		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0512-0610			●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97192-313-0	01	1	9906-0207	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97258-833-0	01	1	0208-0511		●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97258-833-0	01	1	0512-0610			●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97381-489-2	01	1	0611-				●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M14X27 FLANGE	1-09675-086-0	01	1	9906-0207	●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M14X27 FLANGE	1-09675-086-0	01	1	0208-0511		●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M14X27 FLANGE	1-09675-086-0	01	1	0512-0610			●
252	HOSE; RUBBER,TURBOCHARGER RETURN L=200	0-02814-200-0	01	1	9906-0207	●
252	HOSE; RUBBER,TURBOCHARGER RETURN	8-97258-872-1	01	1	0208-0511		●
252	HOSE; RUBBER,TURBOCHARGER RETURN	8-97258-872-1	01	1	0512-0610			●
325	CLIP; RUBBER HOSE,OIL RETURN ID=20.8	8-94125-862-1	02	1	9906-0207	●
325	CLIP; RUBBER HOSE,OIL RETURN ID=20.8	8-94125-862-1	02	1	0208-0511		●
325	CLIP; RUBBER HOSE,OIL RETURN ID=20.8	8-94125-862-1	02	1	0512-0610			●
414	BOLT; OIL PIPE (A) M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9906-0207	●
414	BOLT; OIL PIPE (B) M6X16 FLANGE	0-28080-616-0	02	1	0208-0511		●
414	BOLT; OIL PIPE (B) M6X16 FLANGE	0-28080-616-0	02	1	0512-0512			●
414	BOLT; OIL PIPE (B) M6X16 FLANGE	0-28050-616-0	02	1	0601-0610			●
414	BOLT; OIL PIPE (D) M6X18 HEX SOCKET	0-58330-618-0	02	1	0611-				●
414	BOLT; OIL PIPE (C) M8X20 HEX SOCKET	0-58330-820-0	02	1	0611-				●
473	INSULATOR; HOSE (A)	8-97101-331-0	01	1	9701-9905	●
473	INSULATOR; HOSE (A),(B)	8-97101-331-0	02	1	9906-0207	●
473	INSULATOR; HOSE (A)	8-97101-331-0	01	1	0208-0511		●
473	INSULATOR; HOSE (A)	8-97101-331-0	01	1	0512-0610			●
473	INSULATOR; HOSE (B)	8-97101-333-1	01	1	9701-9905	●
473	INSULATOR; HOSE (B)	8-97101-333-1	01	1	0208-0511		●
473	INSULATOR; HOSE (B)	8-97101-333-1	01	1	0512-0610			●
473	INSULATOR; HOSE (C)	8-97305-283-1	01	1	0208-0511		●
473	INSULATOR; HOSE (C)	8-97305-283-1	01	1	0512-0610			●
474	CLIP; INSULATOR	8-97101-337-0	04	1	9701-0207	●
474	CLIP; INSULATOR	8-97101-337-0	06	1	0208-0511		●
474	CLIP; INSULATOR	8-97101-337-0	06	1	0512-0610			●

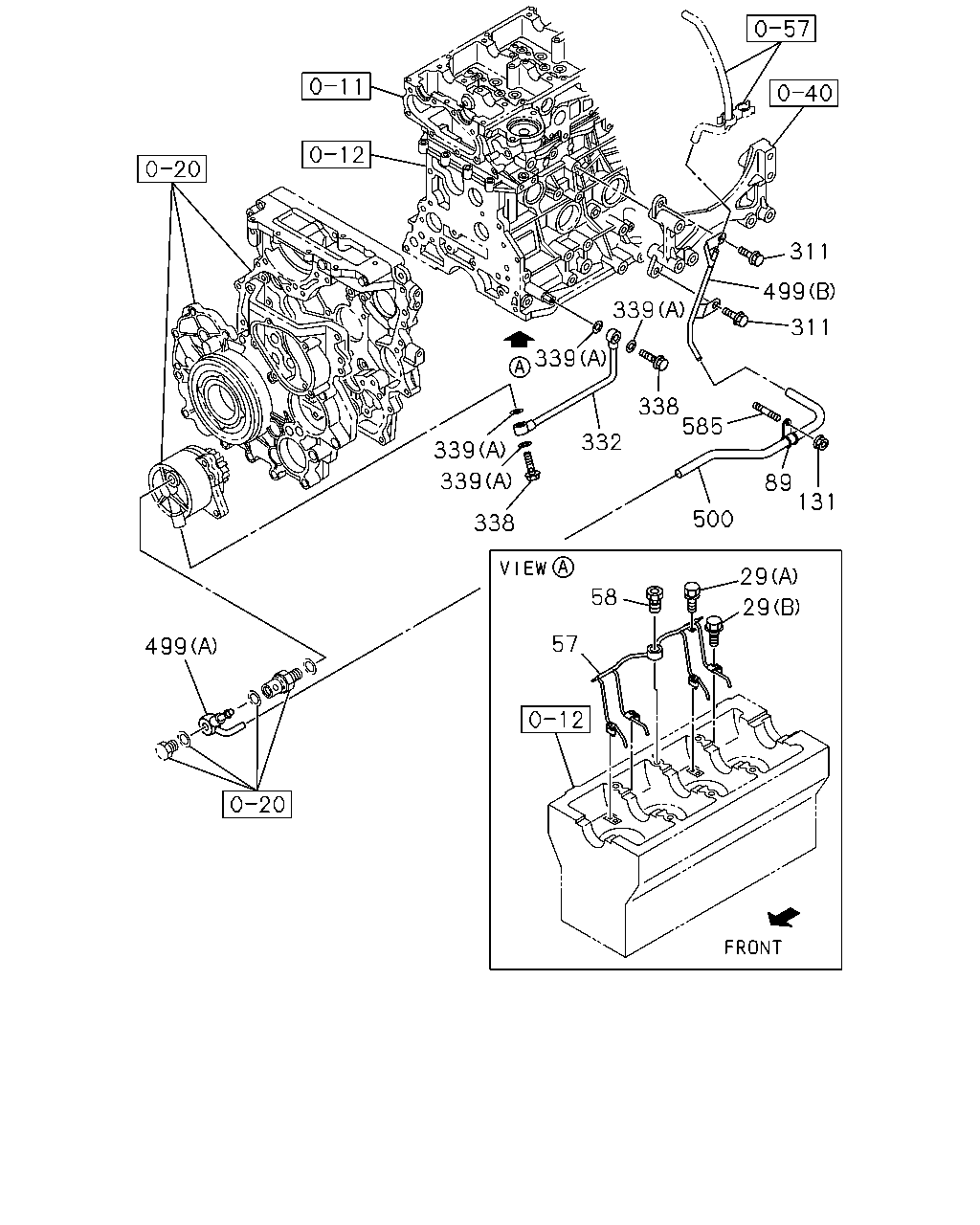

57 11 40 12 20 311 499 339 311 339 338 585 339 332 339 89 131 500 338 29 58 29 57 499 12 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
29	BOLT; OIL PIPE,OIL JET (A) M8X12 W/LK WASHER	0-50040-812-0	02	1	9701-9804	●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE	0-28080-810-0	02	1	9805-0202	●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE	0-28080-810-0	01	1	0203-0207	●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE	0-28080-810-0	01	1	0208-0511		●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE	0-28080-810-0	01	1	0512-0512			●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE	0-28050-810-0	01	1	0601-0610			●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE	0-28050-810-0	01	1	0611-				●
29	BOLT; OIL PIPE,OIL JET (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9701-0207	●
29	BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	0208-0511		●
29	BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	0512-0610			●
29	BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	0611-				●
40	BOLT; OIL PIPE M6X10 FLANGE	0-28080-610-0	01	1	9906-0207	●
40	BOLT; OIL PIPE M6X12 FLANGE	0-28050-612-0	01	1	0611-				●
57	PIPE; OIL,OIL JET	8-97043-741-2	01	1	9701-0207	●
57	PIPE; OIL,OIL JET	8-97116-971-1	01	1	0208-0511		●
57	PIPE; OIL,OIL JET	8-97116-971-1	01	1	0512-0610			●
57	PIPE; OIL,OIL JET	8-97312-132-3	01	1	0611-				●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-97239-048-1	01	1	0208-0511		●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-97239-048-1	01	1	0512-0610			●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-97239-048-1	01	1	0611-				●
89	CLIP; VAC HOSE	9-09520-835-0	01	1	0611-				●
131	NUT; UNION M8 FLANGE	5-09440-010-0	01	1	0611-				●
311	BOLT; PIPE FIX M8X14 FLANGE	0-28080-814-0	01	1	9701-0207	●
311	BOLT; PIPE FIX M8X14 FLANGE	0-28080-814-0	01	1	0208-0511		●
311	BOLT; PIPE FIX M8X14 FLANGE	0-28080-814-0	01	1	0512-0610			●
311	BOLT; PIPE FIX M6X12 FLANGE	0-28050-612-0	02	1	0611-				●
332	PIPE; OIL,C/BL TO VAC PUMP	8-94443-644-1	01	1	9701-0207	●
332	PIPE; OIL,C/BL TO VAC PUMP	8-94443-644-1	01	1	0208-0511		●
332	PIPE; OIL,C/BL TO VAC PUMP	8-94443-644-1	01	1	0512-0610			●
332	PIPE; OIL,C/BL TO VAC PUMP	8-98038-097-0	01	1	0611-				●
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	01	1	9701-0207	●
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	01	1	0208-0511		●
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	01	1	0512-0610			●
338	BOLT; JOINT,OIL PIPE M8X18 EYE-BOLT	1-09675-037-1	02	1	0611-				●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9701-0207	●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	0208-0511		●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	0512-0610			●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	0611-				●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9701-0207	●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0208-0511		●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0512-0610			●
499	PIPE; VACUUM (A)	8-97381-661-3	01	1	0611-				●
499	PIPE; VACUUM (B)	8-97385-434-1	01	1	0611-				●
500	HOSE; VACUUM	8-97369-587-1	01	1	0611-				●
585	STUD; CLIP M8X18 L=30	0-41010-818-0	01	1	0611-				●

474 473 474 308 310 473 311 474 474 306 310 312 32 309 307 11 32 51 58 60 339 66 29 339 29 332 338 51 339 339 57 12 331 26 331 330 28 12 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
26	PIPE; OIL,PUMP TO C/BL	8-97080-301-2	01	1	9701-0207	●
26	PIPE; OIL,PUMP TO C/BL	8-97080-301-2	01	1	0208-0308		●
26	PIPE; OIL,PUMP TO C/BL	8-97920-470-0	01	1	0309-0511		●
26	PIPE; OIL,PUMP TO C/BL	8-97920-470-0	01	1	0512-0610			●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=11	5-09623-002-0	02	1	9701-0207	●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=11	5-09623-002-0	02	1	0208-0511		●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=11	5-09623-002-0	02	1	0512-0610			●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=8.2 OD=13.2	1-09630-082-0	01	1	0611-				●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97251-046-0	02	1	0611-				●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0611-				●
29	BOLT; OIL PIPE,OIL JET (A) M8X12 W/LK WASHER	0-50040-812-0	02	1	9701-9804	●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE	0-28080-810-0	02	1	9805-0202	●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE	0-28080-810-0	01	1	0203-0207	●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE	0-28080-810-0	01	1	0208-0511		●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE	0-28080-810-0	01	1	0512-0512			●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE	0-28050-810-0	01	1	0601-0610			●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE	0-28050-810-0	01	1	0611-				●
29	BOLT; OIL PIPE,OIL JET (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9701-0207	●
29	BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	0208-0511		●
29	BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	0512-0610			●
29	BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	0611-				●
57	PIPE; OIL,OIL JET	8-97043-741-2	01	1	9701-0207	●
57	PIPE; OIL,OIL JET	8-97116-971-1	01	1	0208-0511		●
57	PIPE; OIL,OIL JET	8-97116-971-1	01	1	0512-0610			●
57	PIPE; OIL,OIL JET	8-97312-132-3	01	1	0611-				●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-97239-048-1	01	1	0208-0511		●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-97239-048-1	01	1	0512-0610			●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-97239-048-1	01	1	0611-				●
306	PIPE ASM; CYL HD TO OIL COOLER	8-97176-316-1	01	1	9701-0201	●
306	PIPE ASM; CYL HD TO OIL COOLER	8-97225-604-1	01	1	0202-0207	●
306	PIPE ASM; CYL HD TO OIL COOLER	8-97239-979-2	01	1	0208-0511		●
306	PIPE ASM; CYL HD TO OIL COOLER	8-97239-979-2	01	1	0512-0610			●
307	GASKET; WATER PIPE	8-97124-640-0	01	1	9701-0105	●
307	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97264-168-0	01	1	0106-0207	●
307	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97264-168-0	01	1	0208-0511		●
307	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97264-168-0	01	1	0512-0610			●
308	HOSE; OIL COOLER FEED	8-97078-193-3	01	1	9701-9905	●
308	HOSE; OIL COOLER FEED	8-94174-464-0	01	1	9906-0207	●
308	HOSE; OIL COOLER FEED	8-97300-062-0	01	1	0208-0511		●
308	HOSE; OIL COOLER FEED	8-97300-062-0	01	1	0512-0610			●
309	HOSE; OIL COOLER RETURN	8-97147-960-0	01	1	9701-9905	●
309	HOSE; OIL COOLER RETURN	8-97176-138-0	01	1	9906-0207	●
309	HOSE; OIL COOLER RETURN	8-97300-063-0	01	1	0208-0511		●
309	HOSE; OIL COOLER RETURN	8-97300-063-0	01	1	0512-0610			●
310	CLIP; WATER HOSE FIX ID=20.8	8-94125-862-1	04	1	9701-0207	●
310	CLIP; WATER HOSE FIX ID=20.8	8-94125-862-1	04	1	0208-0511		●
310	CLIP; WATER HOSE FIX ID=20.8	8-94125-862-1	04	1	0512-0610			●
311	BOLT; PIPE FIX M8X14 FLANGE	0-28080-814-0	01	1	9701-0207	●
311	BOLT; PIPE FIX M8X14 FLANGE	0-28080-814-0	01	1	0208-0511		●
311	BOLT; PIPE FIX M8X14 FLANGE	0-28080-814-0	01	1	0512-0610			●
311	BOLT; PIPE FIX M6X12 FLANGE	0-28050-612-0	02	1	0611-				●
312	NUT; PIPE FIX M8 FLANGE TAI	5-09440-005-0	01	1	9701-0207	●
312	NUT; PIPE FIX M8 FLANGE TAI	5-09440-005-0	01	1	0208-0511		●
312	NUT; PIPE FIX M8 FLANGE TAI	5-09440-005-0	01	1	0512-0610			●
330	HOSE; VAC PUMP,RETURN	8-97073-920-1	01	1	9701-0207	●
330	HOSE; VAC PUMP,RETURN	8-97073-920-1	01	1	0208-0511		●
330	HOSE; VAC PUMP,RETURN	8-97073-920-1	01	1	0512-0610			●
331	CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	9701-0207	●
331	CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	0208-0511		●
331	CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	0512-0610			●
332	PIPE; OIL,C/BL TO VAC PUMP	8-94443-644-1	01	1	9701-0207	●
332	PIPE; OIL,C/BL TO VAC PUMP	8-94443-644-1	01	1	0208-0511		●
332	PIPE; OIL,C/BL TO VAC PUMP	8-94443-644-1	01	1	0512-0610			●
332	PIPE; OIL,C/BL TO VAC PUMP	8-98038-097-0	01	1	0611-				●
335	STOPPER; OIL PIPE	8-94443-643-0	01	1	9701-9804	●
335	STOPPER; OIL PIPE	8-97203-568-0	01	1	9805-0207	●
335	STOPPER; OIL PIPE	8-97203-568-0	01	1	0208-0511		●
335	STOPPER; OIL PIPE	8-97203-568-0	01	1	0512-0610			●
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	01	1	9701-0207	●
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	01	1	0208-0511		●
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	01	1	0512-0610			●
338	BOLT; JOINT,OIL PIPE M8X18 EYE-BOLT	1-09675-037-1	02	1	0611-				●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9701-0207	●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	0208-0511		●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	0512-0610			●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	0611-				●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9701-0207	●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0208-0511		●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0512-0610			●
473	INSULATOR; HOSE (A)	8-97101-331-0	01	1	9701-9905	●
473	INSULATOR; HOSE (A),(B)	8-97101-331-0	02	1	9906-0207	●
473	INSULATOR; HOSE (A)	8-97101-331-0	01	1	0208-0511		●
473	INSULATOR; HOSE (A)	8-97101-331-0	01	1	0512-0610			●
473	INSULATOR; HOSE (B)	8-97101-333-1	01	1	9701-9905	●
473	INSULATOR; HOSE (B)	8-97101-333-1	01	1	0208-0511		●
473	INSULATOR; HOSE (B)	8-97101-333-1	01	1	0512-0610			●
473	INSULATOR; HOSE (C)	8-97305-283-1	01	1	0208-0511		●
473	INSULATOR; HOSE (C)	8-97305-283-1	01	1	0512-0610			●
474	CLIP; INSULATOR	8-97101-337-0	04	1	9701-0207	●
474	CLIP; INSULATOR	8-97101-337-0	06	1	0208-0511		●
474	CLIP; INSULATOR	8-97101-337-0	06	1	0512-0610			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
