0-41 — FUEL FILTER AND BRACKET (#139022) — 21 parça

1 45 1 8 62 2 1 45 1 45 40 1 45 1 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	FILTER ASM; FUEL	8-98060-050-1	01	1	0611-	●
1	FILTER ASM; FUEL TAI	8-97965-437-0	01	1	9701-0207		●
2	ELEMENT KIT; FUEL FILTER TAI	8-97966-276-0	01	1	9701-0207		●
2	ELEMENT KIT; FUEL FILTER	8-98037-011-0	01	1	0611-	●
8	COVER; FUEL FILTER TAI	8-97966-277-0	01	1	9701-0207		●
40	BRACKET; FUEL FILTER LONG CHAS(NH*F & NK*F) TAI	8-97370-090-0	01	1	0412-0511			●
40	BRACKET; FUEL FILTER LONG CHAS(NH*F & NK*F) TAI	8-97370-090-0	01	1	0512-0610				●
62	NUT; FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9701-0207		●

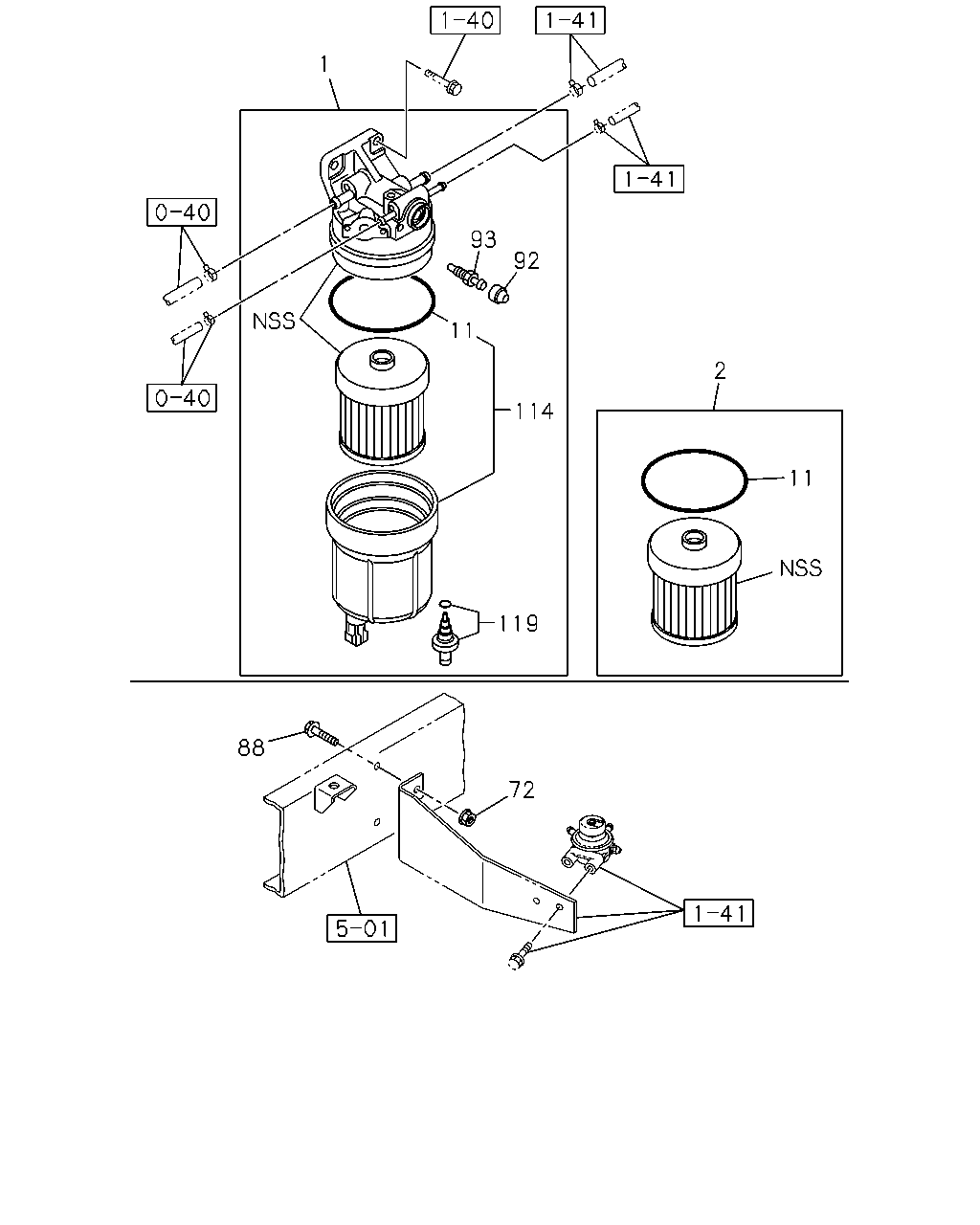

1 40 1 41 1 1 41 40 93 92 11 2 40 114 11 119 88 72 1 41 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	FILTER ASM; FUEL	8-98060-050-1	01	1	0611-	●
1	FILTER ASM; FUEL TAI	8-97965-437-0	01	1	9701-0207		●
2	ELEMENT KIT; FUEL FILTER TAI	8-97966-276-0	01	1	9701-0207		●
2	ELEMENT KIT; FUEL FILTER	8-98037-011-0	01	1	0611-	●
11	GASKET; CASE TO BODY,FUEL FILTER	8-98037-015-0	01	1	0611-	●
40	BRACKET; FUEL FILTER LONG CHAS(NH*F & NK*F) TAI	8-97370-090-0	01	1	0412-0511			●
40	BRACKET; FUEL FILTER LONG CHAS(NH*F & NK*F) TAI	8-97370-090-0	01	1	0512-0610				●
72	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-110-0	01	1	0611-	●
88	BOLT; BRKT,FUEL FILTER M10X30 FLANGE	0-28051-030-0	02	1	0611-	●
92	CAP; FUEL FILTER	8-98034-314-0	01	1	0611-	●
93	CONNECTOR; FUEL FILTER M8X10	8-98034-312-0	01	1	0611-	●
114	CASE ASM; FUEL FILTER	8-98039-987-0	01	1	0611-	●
119	PLUG; DRAIN,FUEL FILTER	8-98037-095-0	01	1	0611-	●
