Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#139021) — 316 parça

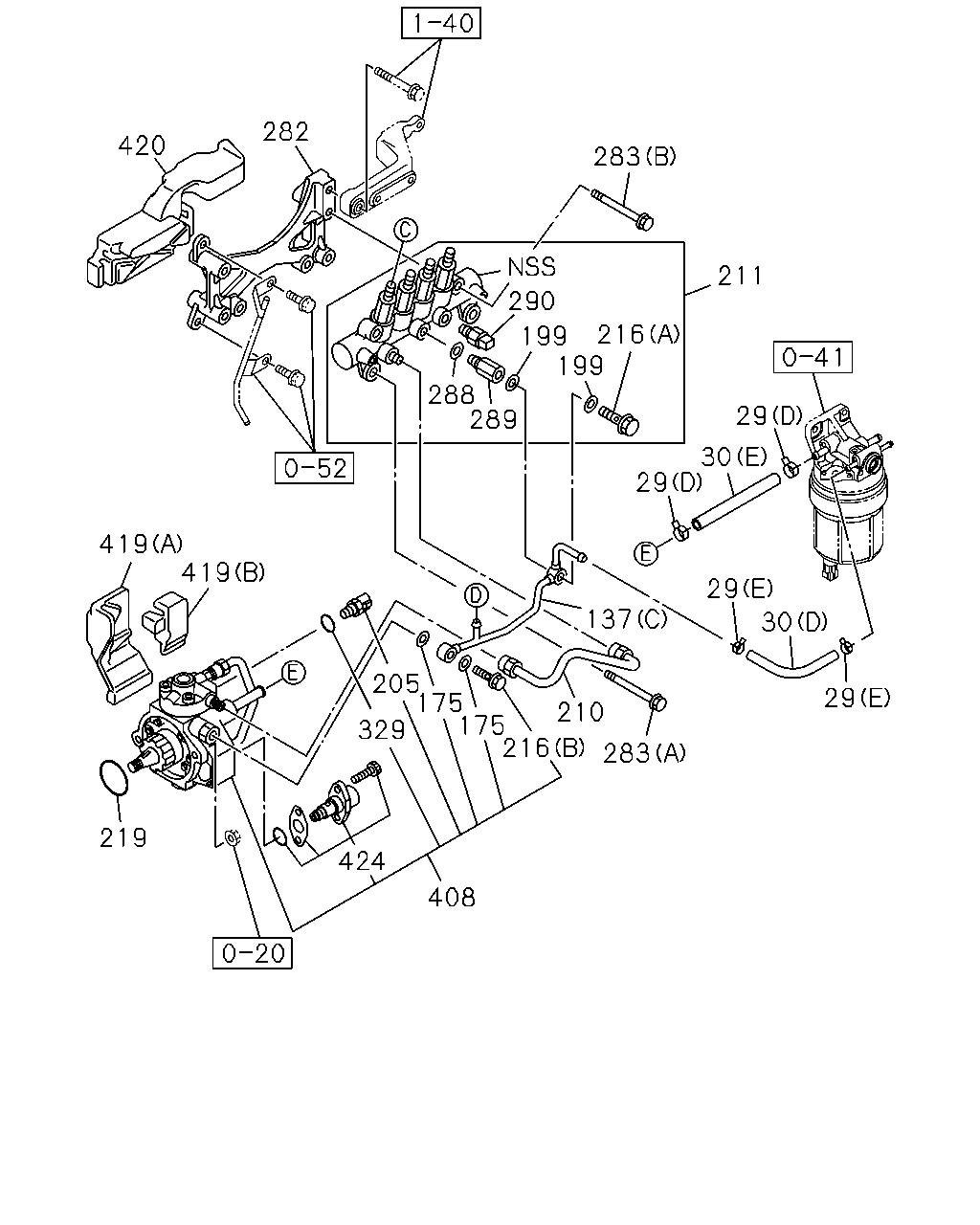

1 40 282 420 283 211 290 199 41 288 289 29 30 29 52 419 419 29 137 30 205 175 175 216 29 210 329 283 219 424 408 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97091-746-1	01	1	9701-9701	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97091-746-1	01	1	9702-9905	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60)	8-97213-671-2	01	1	9906-0207	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97252-341-4	01	1	0208-0511		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97252-341-5	01	1	0512-0610			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40>	8-97177-036-0	01	1	9702-9905	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97212-840-2	01	1	9906-0207	●
29	CLIP; HOSE (A) ID=12	8-94238-610-0	02	1	9701-0207	●
29	CLIP; HOSE (B) ID=12	8-94238-610-0	02	1	0208-0301		●
29	CLIP; HOSE (B) ID=11	8-97173-219-0	02	1	0302-0511		●
29	CLIP; HOSE (B) ID=11	8-97173-219-0	02	1	0512-0610			●
29	CLIP; HOSE (E) ID=12 WO/PVC COATING	8-94123-526-1	02	1	0611-				●
29	CLIP; HOSE (D) ID=16	8-94392-924-0	02	1	0611-				●
29	CLIP; HOSE (C) ID=10.5	8-97019-473-0	10	1	0611-				●
30	HOSE; RUBBER,FUEL LEAK (A) L=350	8-94339-948-2	01	1	9701-0207	●
30	HOSE; RUBBER,FUEL LEAK (B) L=320 W/INSULATOR	8-94427-501-2	01	1	0208-0301		●
30	HOSE; RUBBER,FUEL LEAK (B) L=320	8-97364-773-0	01	1	0302-0511		●
30	HOSE; RUBBER,FUEL LEAK (B) L=320	8-97364-773-0	01	1	0512-0610			●
30	HOSE; RUBBER,FUEL LEAK (G) L=130	0-01804-130-0	01	1	0611-				●
30	HOSE; RUBBER,FUEL LEAK (F) L=98	8-97354-652-0	03	1	0611-				●
30	HOSE; RUBBER,FUEL LEAK (C)	8-97362-306-2	01	1	0611-				●
30	HOSE; RUBBER,FUEL LEAK (D) L=110	8-97377-894-0	01	1	0611-				●
30	HOSE; RUBBER,FUEL LEAK (E) L=265	8-98009-700-2	01	1	0611-				●
137	PIPE ASM; LEAK OFF (A)	8-97315-230-2	01	1	0611-				●
137	PIPE ASM; LEAK OFF (B)	8-97315-231-2	03	1	0611-				●
137	PIPE ASM; LEAK OFF (C)	8-98009-699-0	01	1	0611-				●
137	PIPE ASM; LEAK OFF (D)	8-98036-510-0	01	1	0611-				●
175	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ID=10.2 OD=15.2	1-09630-083-0	02	1	0611-				●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-218-0	02	1	0611-				●
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	0611-				●
210	PIPE; INJ,C/R	8-97388-902-0	01	1	0611-				●
211	RAIL ASM; COMMON	8-98011-888-2	01	1	0611-				●
216	BOLT; EYE (B)	9-88130-088-0	01	1	0611-				●
216	BOLT; EYE (A)	8-98043-033-0	01	1	0611-				●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7	1-09623-541-0	01	1	0611-				●
282	BRACKET; COMMON RAIL	8-98053-912-0	01	1	0611-				●
283	BOLT; COMMON RAIL (A) M8X70 FLANGE	0-28050-870-0	02	1	0611-				●
283	BOLT; COMMON RAIL (B) M8X81 FLANGE	8-97354-584-0	02	1	0611-				●
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	0611-				●
289	LIMITER; FUEL PRESS	8-98032-549-0	01	1	0611-				●
290	SENSOR; PRESS	8-97318-684-0	01	1	0611-				●
329	GASKET; SENSOR,FUEL TEMP ID=9.8 OD=11.7	9-09566-110-0	01	1	0611-				●
408	PUMP ASM; FUEL,SUPPLY	8-97381-555-5	01	1	0611-				●
419	RUBBER; SPACE,PUMP (A)	8-98037-442-0	01	1	0611-				●
419	RUBBER; SPACE,PUMP (B)	8-98037-443-0	01	1	0611-				●
420	RUBBER; SPACE,COMMON RAIL	8-98037-444-1	01	1	0611-				●
424	OVERHAUL KIT; SUPPLY PUMP W/ADAPTER	8-98145-484-0	01	1	0611-				●

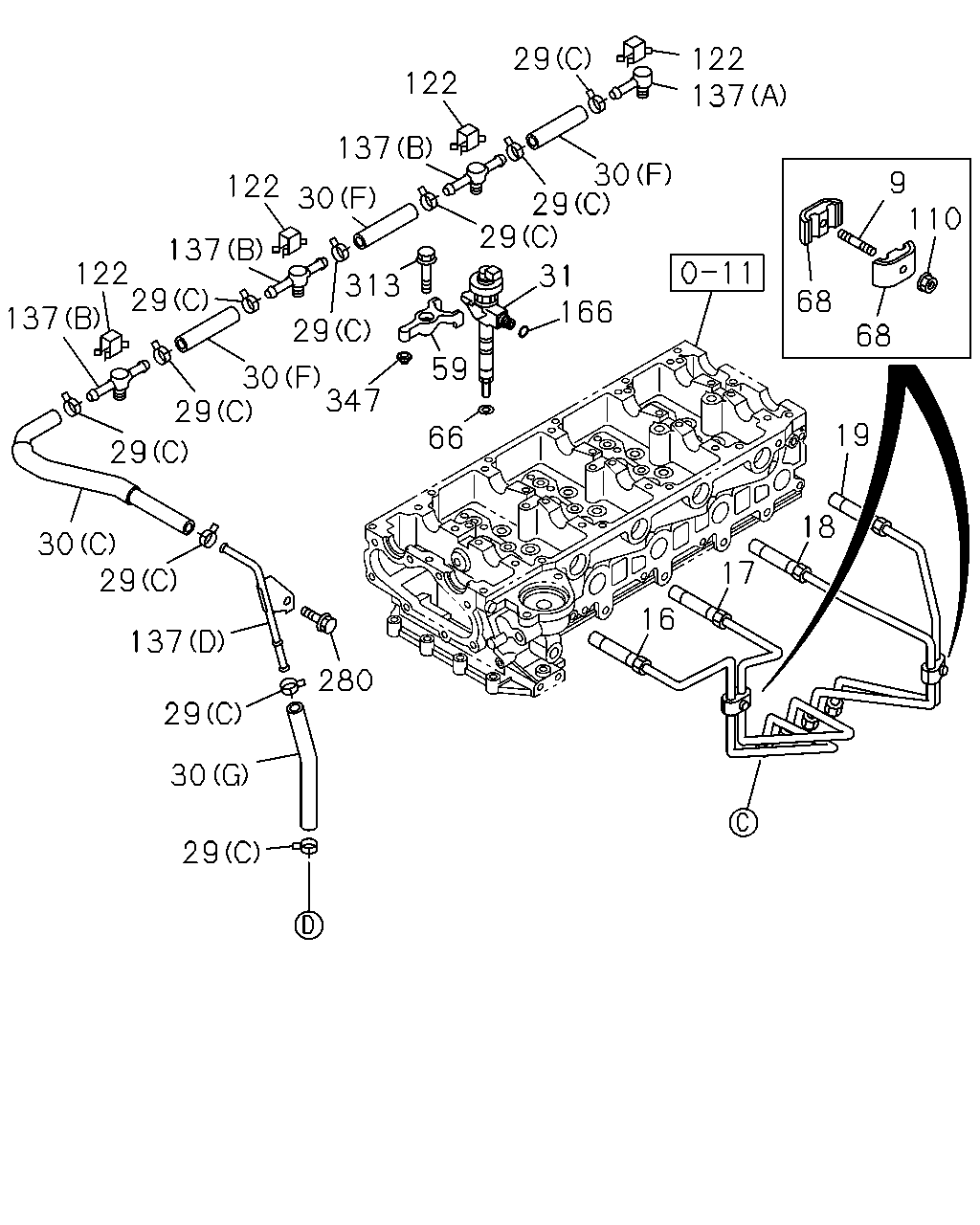

29 122 137 122 137 30 29 29 9 110 122 30 137 11 122 29 31 166 313 68 137 29 68 59 30 347 29 19 66 29 18 30 29 17 16 137 280 29 30 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	STUD; CLIP M6X25 L=36	8-97214-234-1	02	1	0611-				●
16	PIPE; INJ NO.1	8-97101-873-2	01	1	9701-9905	●
16	PIPE; INJ NO.1	8-97169-365-0	01	1	9906-0207	●
16	PIPE; INJ NO.1	8-97255-017-2	01	1	0208-0511		●
16	PIPE; INJ NO.1	8-97255-017-2	01	1	0512-0610			●
16	PIPE; INJ NO.1	8-98011-606-0	01	1	0611-				●
17	PIPE; INJ NO.2	8-97094-692-2	01	1	9701-9905	●
17	PIPE; INJ NO.2	8-97169-366-0	01	1	9906-0207	●
17	PIPE; INJ NO.2	8-97255-018-2	01	1	0208-0511		●
17	PIPE; INJ NO.2	8-97255-018-2	01	1	0512-0610			●
17	PIPE; INJ NO.2	8-98011-607-0	01	1	0611-				●
18	PIPE; INJ NO.3	8-97094-693-2	01	1	9701-9905	●
18	PIPE; INJ NO.3	8-97169-367-0	01	1	9906-0207	●
18	PIPE; INJ NO.3	8-97255-019-2	01	1	0208-0511		●
18	PIPE; INJ NO.3	8-97255-019-2	01	1	0512-0610			●
18	PIPE; INJ NO.3	8-98011-608-0	01	1	0611-				●
19	PIPE; INJ NO.4	8-97094-690-2	01	1	9701-9905	●
19	PIPE; INJ NO.4	8-97169-368-0	01	1	9906-0207	●
19	PIPE; INJ NO.4	8-97255-020-2	01	1	0208-0511		●
19	PIPE; INJ NO.4	8-97255-020-2	01	1	0512-0610			●
19	PIPE; INJ NO.4	8-98011-609-0	01	1	0611-				●
29	CLIP; HOSE (A) ID=12	8-94238-610-0	02	1	9701-0207	●
29	CLIP; HOSE (B) ID=12	8-94238-610-0	02	1	0208-0301		●
29	CLIP; HOSE (B) ID=11	8-97173-219-0	02	1	0302-0511		●
29	CLIP; HOSE (B) ID=11	8-97173-219-0	02	1	0512-0610			●
29	CLIP; HOSE (E) ID=12 WO/PVC COATING	8-94123-526-1	02	1	0611-				●
29	CLIP; HOSE (D) ID=16	8-94392-924-0	02	1	0611-				●
29	CLIP; HOSE (C) ID=10.5	8-97019-473-0	10	1	0611-				●
30	HOSE; RUBBER,FUEL LEAK (A) L=350	8-94339-948-2	01	1	9701-0207	●
30	HOSE; RUBBER,FUEL LEAK (B) L=320 W/INSULATOR	8-94427-501-2	01	1	0208-0301		●
30	HOSE; RUBBER,FUEL LEAK (B) L=320	8-97364-773-0	01	1	0302-0511		●
30	HOSE; RUBBER,FUEL LEAK (B) L=320	8-97364-773-0	01	1	0512-0610			●
30	HOSE; RUBBER,FUEL LEAK (G) L=130	0-01804-130-0	01	1	0611-				●
30	HOSE; RUBBER,FUEL LEAK (F) L=98	8-97354-652-0	03	1	0611-				●
30	HOSE; RUBBER,FUEL LEAK (C)	8-97362-306-2	01	1	0611-				●
30	HOSE; RUBBER,FUEL LEAK (D) L=110	8-97377-894-0	01	1	0611-				●
30	HOSE; RUBBER,FUEL LEAK (E) L=265	8-98009-700-2	01	1	0611-				●
31	NOZZLE ASM; INJ	8-97088-673-0	04	1	9701-9905	●
31	NOZZLE ASM; INJ	8-97212-841-0	04	1	9906-0207	●
31	NOZZLE ASM; INJ	8-97329-340-0	04	1	0208-0501		●
31	NOZZLE ASM; INJ	8-97382-949-0	04	1	0502-0511		●
31	NOZZLE ASM; INJ	8-97382-949-0	04	1	0512-0610			●
31	NOZZLE ASM; INJ	8-98011-604-4	04	1	0611-				●
59	CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	0208-0511		●
59	CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	0512-0610			●
59	CLAMP; NOZZLE HOLDER	8-98011-528-2	04	1	0611-				●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0208-0511		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0512-0610			●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98057-731-0	04	1	0611-0702				●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98077-165-0	04	1	0703-				●
68	CLIP; INJ PIPE	8-97213-481-0	04	1	0611-				●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	02	1	0208-0511		●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	02	1	0512-0602			●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	02	1	0603-0610			●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	02	1	0611-				●
122	CLIP; LEAK OFF PIPE	8-97315-286-0	04	1	0611-				●
137	PIPE ASM; LEAK OFF (A)	8-97315-230-2	01	1	0611-				●
137	PIPE ASM; LEAK OFF (B)	8-97315-231-2	03	1	0611-				●
137	PIPE ASM; LEAK OFF (C)	8-98009-699-0	01	1	0611-				●
137	PIPE ASM; LEAK OFF (D)	8-98036-510-0	01	1	0611-				●
166	GASKET; FUEL INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11 OD=14.8	9-09566-111-0	04	1	0611-				●
280	BOLT; CLIP,FUEL HOSE M8X12 FLANGE	0-28050-812-0	01	1	0611-				●
313	BOLT; BRKT,INJ NOZZLE M8X50 W/WASHER	8-97372-144-0	04	1	0611-				●
347	PIN	8-97383-286-0	04	1	0611-				●

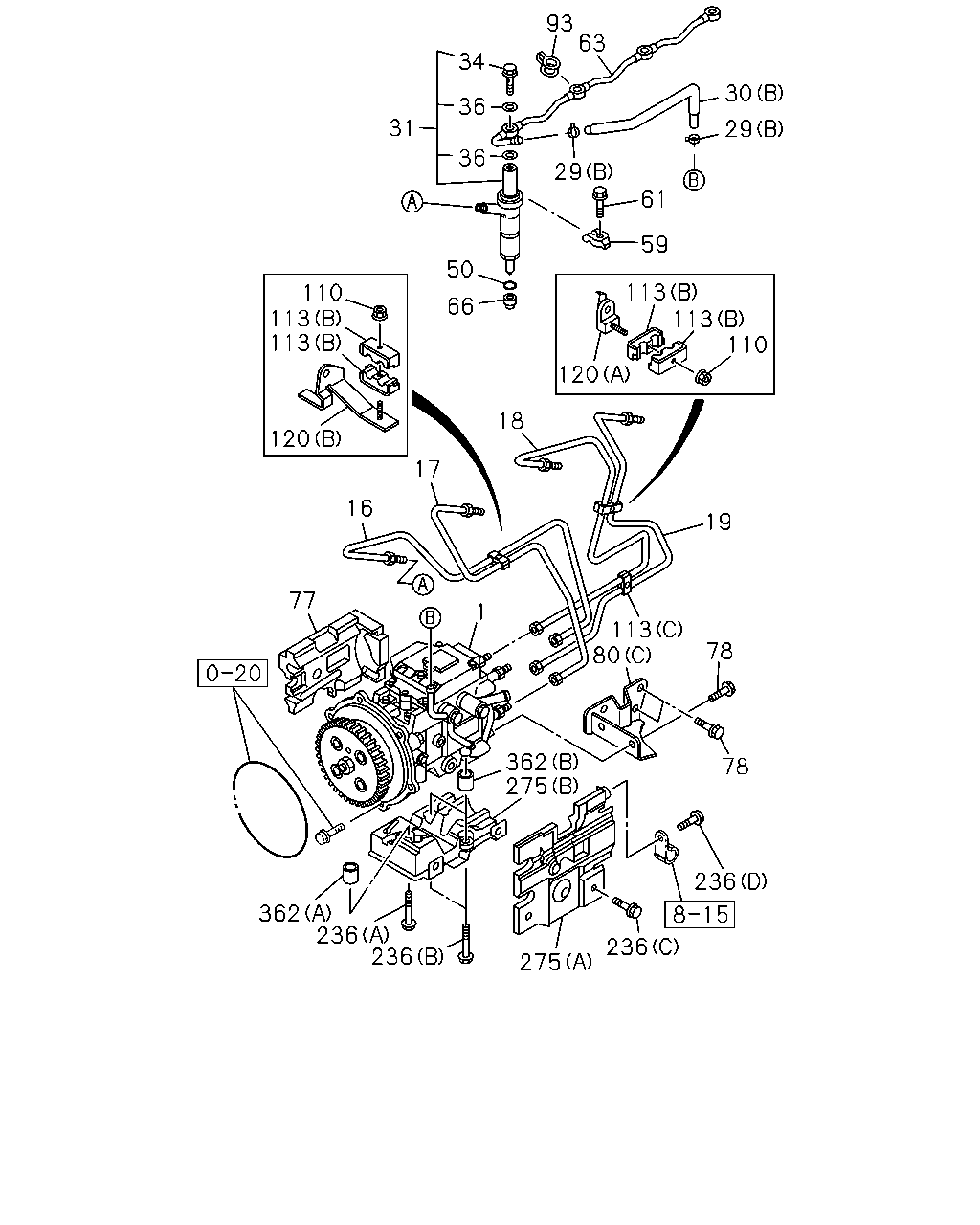

93 63 34 30 36 31 29 36 29 61 59 50 113 113 110 110 113 113 66 120 18 120 17 16 1 77 1 113 80 78 20 362 275 78 236 362 236 236 8 15 236 275

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97091-746-1	01	1	9701-9701	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97091-746-1	01	1	9702-9905	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60)	8-97213-671-2	01	1	9906-0207	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97252-341-4	01	1	0208-0511		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97252-341-5	01	1	0512-0610			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40>	8-97177-036-0	01	1	9702-9905	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97212-840-2	01	1	9906-0207	●
16	PIPE; INJ NO.1	8-97101-873-2	01	1	9701-9905	●
16	PIPE; INJ NO.1	8-97169-365-0	01	1	9906-0207	●
16	PIPE; INJ NO.1	8-97255-017-2	01	1	0208-0511		●
16	PIPE; INJ NO.1	8-97255-017-2	01	1	0512-0610			●
16	PIPE; INJ NO.1	8-98011-606-0	01	1	0611-				●
17	PIPE; INJ NO.2	8-97094-692-2	01	1	9701-9905	●
17	PIPE; INJ NO.2	8-97169-366-0	01	1	9906-0207	●
17	PIPE; INJ NO.2	8-97255-018-2	01	1	0208-0511		●
17	PIPE; INJ NO.2	8-97255-018-2	01	1	0512-0610			●
17	PIPE; INJ NO.2	8-98011-607-0	01	1	0611-				●
18	PIPE; INJ NO.3	8-97094-693-2	01	1	9701-9905	●
18	PIPE; INJ NO.3	8-97169-367-0	01	1	9906-0207	●
18	PIPE; INJ NO.3	8-97255-019-2	01	1	0208-0511		●
18	PIPE; INJ NO.3	8-97255-019-2	01	1	0512-0610			●
18	PIPE; INJ NO.3	8-98011-608-0	01	1	0611-				●
29	CLIP; HOSE (A) ID=12	8-94238-610-0	02	1	9701-0207	●
29	CLIP; HOSE (B) ID=12	8-94238-610-0	02	1	0208-0301		●
29	CLIP; HOSE (B) ID=11	8-97173-219-0	02	1	0302-0511		●
29	CLIP; HOSE (B) ID=11	8-97173-219-0	02	1	0512-0610			●
29	CLIP; HOSE (E) ID=12 WO/PVC COATING	8-94123-526-1	02	1	0611-				●
29	CLIP; HOSE (D) ID=16	8-94392-924-0	02	1	0611-				●
29	CLIP; HOSE (C) ID=10.5	8-97019-473-0	10	1	0611-				●
30	HOSE; RUBBER,FUEL LEAK (A) L=350	8-94339-948-2	01	1	9701-0207	●
30	HOSE; RUBBER,FUEL LEAK (B) L=320 W/INSULATOR	8-94427-501-2	01	1	0208-0301		●
30	HOSE; RUBBER,FUEL LEAK (B) L=320	8-97364-773-0	01	1	0302-0511		●
30	HOSE; RUBBER,FUEL LEAK (B) L=320	8-97364-773-0	01	1	0512-0610			●
30	HOSE; RUBBER,FUEL LEAK (G) L=130	0-01804-130-0	01	1	0611-				●
30	HOSE; RUBBER,FUEL LEAK (F) L=98	8-97354-652-0	03	1	0611-				●
30	HOSE; RUBBER,FUEL LEAK (C)	8-97362-306-2	01	1	0611-				●
30	HOSE; RUBBER,FUEL LEAK (D) L=110	8-97377-894-0	01	1	0611-				●
30	HOSE; RUBBER,FUEL LEAK (E) L=265	8-98009-700-2	01	1	0611-				●
31	NOZZLE ASM; INJ	8-97088-673-0	04	1	9701-9905	●
31	NOZZLE ASM; INJ	8-97212-841-0	04	1	9906-0207	●
31	NOZZLE ASM; INJ	8-97329-340-0	04	1	0208-0501		●
31	NOZZLE ASM; INJ	8-97382-949-0	04	1	0502-0511		●
31	NOZZLE ASM; INJ	8-97382-949-0	04	1	0512-0610			●
31	NOZZLE ASM; INJ	8-98011-604-4	04	1	0611-				●
34	BOLT; EYE,NOZZLE HOLDER	8-94320-307-0	04	1	0208-0511		●
34	BOLT; EYE,NOZZLE HOLDER	8-94320-307-0	04	1	0512-0610			●
36	GASKET; RETURN PIPE,NOZZLE HOLDER	8-97084-347-0	08	1	0208-0501		●
50	GASKET; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97287-402-2	04	1	0208-0511		●
50	GASKET; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97287-402-2	04	1	0512-0610			●
59	CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	0208-0511		●
59	CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	0512-0610			●
59	CLAMP; NOZZLE HOLDER	8-98011-528-2	04	1	0611-				●
61	BOLT; CLAMP NOZZLE HOLDER	8-94468-020-2	04	1	0208-0511		●
61	BOLT; CLAMP NOZZLE HOLDER	8-94468-020-2	04	1	0512-0610			●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-94368-249-2	01	1	9701-0207	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97288-702-0	01	1	0208-0511		●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97288-702-0	01	1	0512-0610			●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0208-0511		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0512-0610			●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98057-731-0	04	1	0611-0702				●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98077-165-0	04	1	0703-				●
77	RUBBER; SPACE,INJ PUMP	8-97256-838-1	01	1	0208-0511		●
77	RUBBER; SPACE,INJ PUMP	8-97256-838-1	01	1	0512-0610			●
78	BOLT; BRKT TO C/BL M8X22 W/LK&PL WASHER	0-50140-822-0	02	1	9701-0207	●
78	BOLT; BRKT TO C/BL M8X20 FLANGE	0-28680-820-0	04	1	0208-0511		●
78	BOLT; BRKT TO C/BL M8X20 FLANGE	0-28680-820-0	04	1	0512-0512			●
78	BOLT; BRKT TO C/BL M8X20 FLANGE	0-28650-820-0	04	1	0601-0610			●
80	BRACKET; PUMP (A)	8-94133-761-1	01	1	9701-0207	●
80	BRACKET; PUMP (C)	8-97287-698-3	01	1	0208-0511		●
80	BRACKET; PUMP (C)	8-97287-698-3	01	1	0512-0610			●
80	BRACKET; PUMP (B)	8-94133-762-2	01	1	9701-0207	●
93	GASKET; LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97375-236-0	04	1	0403-0511		●
93	GASKET; LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97375-236-0	04	1	0512-0610			●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	02	1	0208-0511		●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	02	1	0512-0602			●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	02	1	0603-0610			●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	02	1	0611-				●
113	CLIP; INJ PIPE (A)	5-15419-013-1	02	1	9701-0207	●
113	CLIP; INJ PIPE (C)	8-97224-041-1	01	1	0208-0511		●
113	CLIP; INJ PIPE (C)	8-97224-041-1	01	1	0512-0610			●
113	CLIP; INJ PIPE (B)	1-09701-132-1	04	1	0208-0511		●
113	CLIP; INJ PIPE (B)	1-09701-132-1	04	1	0512-0610			●
120	BRACKET; INJ PIPE (A)	8-97224-300-0	01	1	0208-0505		●
120	BRACKET; INJ PIPE (A)	8-98015-024-0	01	1	0506-0511		●
120	BRACKET; INJ PIPE (A)	8-98015-024-0	01	1	0512-0610			●
120	BRACKET; INJ PIPE (B)	8-97257-906-0	01	1	0208-0511		●
120	BRACKET; INJ PIPE (B)	8-97257-906-0	01	1	0512-0610			●
236	BOLT; COVER (C) M8X10 FLANGE	0-28080-810-0	02	1	0208-0511		●
236	BOLT; COVER (C) M8X10 FLANGE	0-28080-810-0	02	1	0512-0512			●
236	BOLT; COVER (C) M8X10 FLANGE	0-28050-810-0	02	1	0601-0610			●
236	BOLT; COVER (A) M10X45 FLANGE	0-28181-045-0	01	1	0208-0511		●
236	BOLT; COVER (A) M10X45 FLANGE	0-28181-045-0	01	1	0512-0512			●
236	BOLT; COVER (A) M10X45 FLANGE	0-28151-045-0	01	1	0601-0610			●
236	BOLT; COVER (B) M10X50 FLANGE	0-28181-050-0	02	1	0208-0511		●
236	BOLT; COVER (B) M10X50 FLANGE	0-28181-050-0	02	1	0512-0512			●
236	BOLT; COVER (B) M10X50 FLANGE	0-28151-050-0	02	1	0601-0610			●
236	BOLT; COVER (D) M8X20 FLANGE	0-28680-820-0	01	1	0208-0511		●
236	BOLT; COVER (D) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512			●
236	BOLT; COVER (D) M8X20 FLANGE	0-28650-820-0	01	1	0601-0610			●
275	COVER; INJ PUMP (A)	8-97259-887-2	01	1	0208-0302		●
275	COVER; INJ PUMP (A)	8-97329-014-0	01	1	0303-0511		●
275	COVER; INJ PUMP (A)	8-97329-014-0	01	1	0512-0610			●
275	COVER; INJ PUMP (B)	8-97259-888-2	01	1	0208-0302		●
275	COVER; INJ PUMP (B)	8-97329-016-0	01	1	0303-0511		●
275	COVER; INJ PUMP (B)	8-97329-016-0	01	1	0512-0610			●
362	PIPE; GUIDE (A)	8-97287-007-0	01	1	0208-0511		●
362	PIPE; GUIDE (A)	8-97287-007-0	01	1	0512-0610			●
362	PIPE; GUIDE (B)	8-97287-008-0	02	1	0208-0511		●
362	PIPE; GUIDE (B)	8-97287-008-0	02	1	0512-0610			●

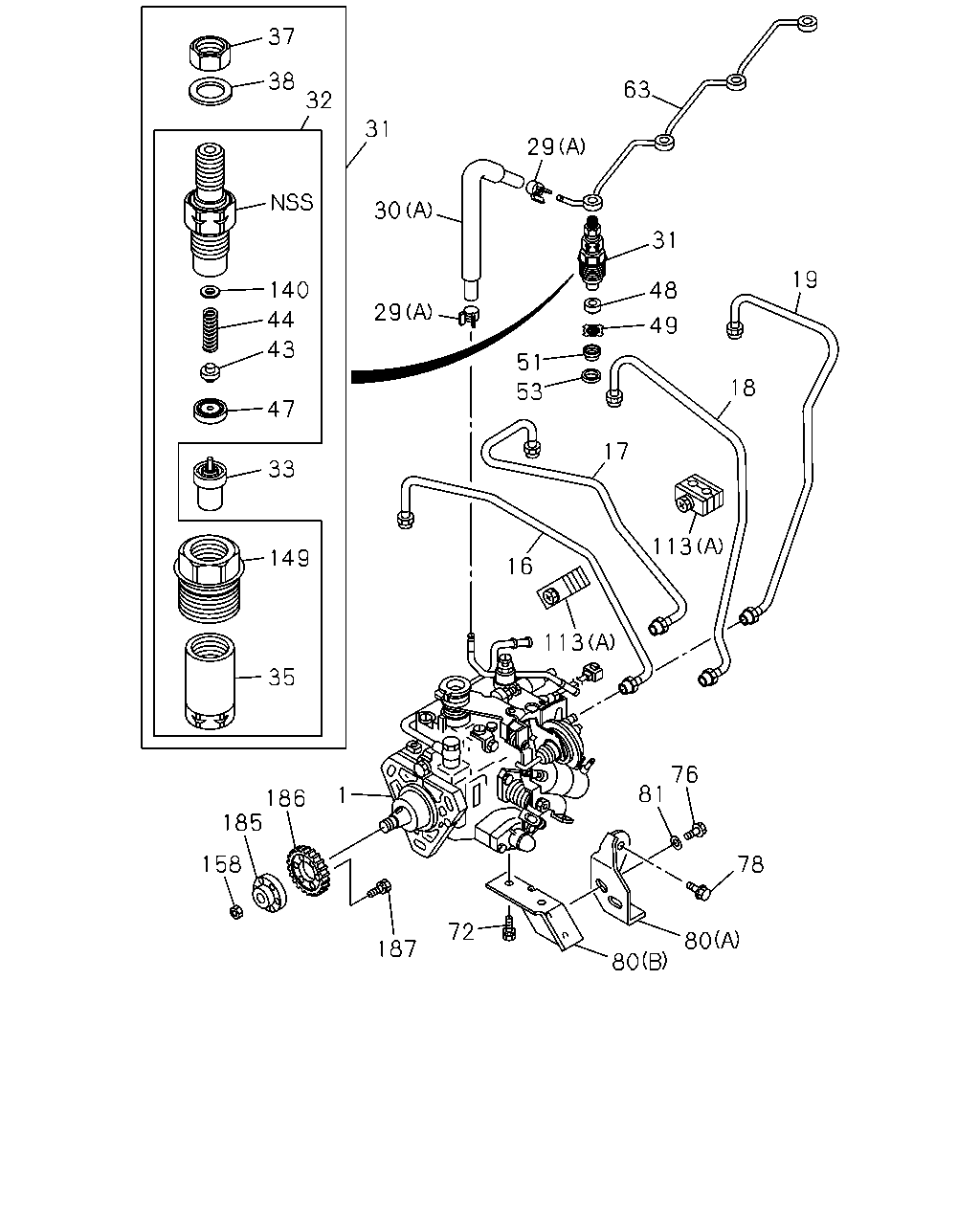

37 38 63 32 31 29 30 31 19 140 48 29 44 49 43 51 18 53 47 17 33 113 149 16 113 35 76 81 1 186 185 158 78 72 80 187 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97091-746-1	01	1	9701-9701	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97091-746-1	01	1	9702-9905	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60)	8-97213-671-2	01	1	9906-0207	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97252-341-4	01	1	0208-0511		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97252-341-5	01	1	0512-0610			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40>	8-97177-036-0	01	1	9702-9905	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97212-840-2	01	1	9906-0207	●
16	PIPE; INJ NO.1	8-97101-873-2	01	1	9701-9905	●
16	PIPE; INJ NO.1	8-97169-365-0	01	1	9906-0207	●
16	PIPE; INJ NO.1	8-97255-017-2	01	1	0208-0511		●
16	PIPE; INJ NO.1	8-97255-017-2	01	1	0512-0610			●
16	PIPE; INJ NO.1	8-98011-606-0	01	1	0611-				●
17	PIPE; INJ NO.2	8-97094-692-2	01	1	9701-9905	●
17	PIPE; INJ NO.2	8-97169-366-0	01	1	9906-0207	●
17	PIPE; INJ NO.2	8-97255-018-2	01	1	0208-0511		●
17	PIPE; INJ NO.2	8-97255-018-2	01	1	0512-0610			●
17	PIPE; INJ NO.2	8-98011-607-0	01	1	0611-				●
18	PIPE; INJ NO.3	8-97094-693-2	01	1	9701-9905	●
18	PIPE; INJ NO.3	8-97169-367-0	01	1	9906-0207	●
18	PIPE; INJ NO.3	8-97255-019-2	01	1	0208-0511		●
18	PIPE; INJ NO.3	8-97255-019-2	01	1	0512-0610			●
18	PIPE; INJ NO.3	8-98011-608-0	01	1	0611-				●
19	PIPE; INJ NO.4	8-97094-690-2	01	1	9701-9905	●
19	PIPE; INJ NO.4	8-97169-368-0	01	1	9906-0207	●
19	PIPE; INJ NO.4	8-97255-020-2	01	1	0208-0511		●
19	PIPE; INJ NO.4	8-97255-020-2	01	1	0512-0610			●
19	PIPE; INJ NO.4	8-98011-609-0	01	1	0611-				●
29	CLIP; HOSE (A) ID=12	8-94238-610-0	02	1	9701-0207	●
29	CLIP; HOSE (B) ID=12	8-94238-610-0	02	1	0208-0301		●
29	CLIP; HOSE (B) ID=11	8-97173-219-0	02	1	0302-0511		●
29	CLIP; HOSE (B) ID=11	8-97173-219-0	02	1	0512-0610			●
29	CLIP; HOSE (E) ID=12 WO/PVC COATING	8-94123-526-1	02	1	0611-				●
29	CLIP; HOSE (D) ID=16	8-94392-924-0	02	1	0611-				●
29	CLIP; HOSE (C) ID=10.5	8-97019-473-0	10	1	0611-				●
30	HOSE; RUBBER,FUEL LEAK (A) L=350	8-94339-948-2	01	1	9701-0207	●
30	HOSE; RUBBER,FUEL LEAK (B) L=320 W/INSULATOR	8-94427-501-2	01	1	0208-0301		●
30	HOSE; RUBBER,FUEL LEAK (B) L=320	8-97364-773-0	01	1	0302-0511		●
30	HOSE; RUBBER,FUEL LEAK (B) L=320	8-97364-773-0	01	1	0512-0610			●
30	HOSE; RUBBER,FUEL LEAK (G) L=130	0-01804-130-0	01	1	0611-				●
30	HOSE; RUBBER,FUEL LEAK (F) L=98	8-97354-652-0	03	1	0611-				●
30	HOSE; RUBBER,FUEL LEAK (C)	8-97362-306-2	01	1	0611-				●
30	HOSE; RUBBER,FUEL LEAK (D) L=110	8-97377-894-0	01	1	0611-				●
30	HOSE; RUBBER,FUEL LEAK (E) L=265	8-98009-700-2	01	1	0611-				●
31	NOZZLE ASM; INJ	8-97088-673-0	04	1	9701-9905	●
31	NOZZLE ASM; INJ	8-97212-841-0	04	1	9906-0207	●
31	NOZZLE ASM; INJ	8-97329-340-0	04	1	0208-0501		●
31	NOZZLE ASM; INJ	8-97382-949-0	04	1	0502-0511		●
31	NOZZLE ASM; INJ	8-97382-949-0	04	1	0512-0610			●
31	NOZZLE ASM; INJ	8-98011-604-4	04	1	0611-				●
32	HOLDER ASM; NOZZLE	8-97089-066-0	04	1	9701-9905	●
32	HOLDER ASM; NOZZLE	8-97217-442-0	04	1	9906-0207	●
33	NOZZLE; INJ	8-97081-158-1	04	1	9701-0207	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94482-217-0	04	1	9701-0207	●
37	NUT; CAP,NOZZLE HOLDER M12	8-94174-344-0	04	1	9701-0207	●
38	GASKET; CAP NUT,NOZZLE HOLDER ID=12 W/2-HOLE	8-94104-993-0	04	1	9701-0207	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94128-963-0	04	1	9701-0207	●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94128-964-0	04	1	9701-0207	●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	8-97086-141-0	04	1	9701-0207	●
48	WASHER; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97139-710-0	04	1	9701-0207	●
49	WASHER; CORRUGATED,NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=5.4 OD=10.6 CORRUGATED WASHER	8-94420-247-0	04	1	9701-0207	●
51	SHIELD; HEAT,INJ NOZZLE	8-97139-711-0	04	1	9701-0207	●
53	WASHER; HEAT SHIELD ID=14.2 OD=17.3	8-94257-593-0	04	1	9701-0207	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-94368-249-2	01	1	9701-0207	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97288-702-0	01	1	0208-0511		●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97288-702-0	01	1	0512-0610			●
72	BOLT; BRKT TO INJ PUMP M10X20 W/LK WASHER	0-50051-020-0	02	1	9701-0207	●
76	BOLT; BRKT TO BRKT M8X25 W/LK WASHER	0-50040-825-0	02	1	9701-0207	●
78	BOLT; BRKT TO C/BL M8X22 W/LK&PL WASHER	0-50140-822-0	02	1	9701-0207	●
78	BOLT; BRKT TO C/BL M8X20 FLANGE	0-28680-820-0	04	1	0208-0511		●
78	BOLT; BRKT TO C/BL M8X20 FLANGE	0-28680-820-0	04	1	0512-0512			●
78	BOLT; BRKT TO C/BL M8X20 FLANGE	0-28650-820-0	04	1	0601-0610			●
80	BRACKET; PUMP (A)	8-94133-761-1	01	1	9701-0207	●
80	BRACKET; PUMP (C)	8-97287-698-3	01	1	0208-0511		●
80	BRACKET; PUMP (C)	8-97287-698-3	01	1	0512-0610			●
80	BRACKET; PUMP (B)	8-94133-762-2	01	1	9701-0207	●
81	WASHER; PL,BRKT TO PUMP ID=8.4 OD=22	9-09164-708-0	02	1	9701-0207	●
113	CLIP; INJ PIPE (A)	5-15419-013-1	02	1	9701-0207	●
113	CLIP; INJ PIPE (C)	8-97224-041-1	01	1	0208-0511		●
113	CLIP; INJ PIPE (C)	8-97224-041-1	01	1	0512-0610			●
113	CLIP; INJ PIPE (B)	1-09701-132-1	04	1	0208-0511		●
113	CLIP; INJ PIPE (B)	1-09701-132-1	04	1	0512-0610			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-94176-962-0	AR	1	9701-0207	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-94176-963-0	AR	1	9701-0207	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-94176-964-0	AR	1	9701-0207	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-94176-965-0	AR	1	9701-0207	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-94176-966-0	AR	1	9701-0207	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-94176-967-0	AR	1	9701-0207	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-94176-968-0	AR	1	9701-0207	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-94176-969-0	AR	1	9701-0207	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-94176-970-0	AR	1	9701-0207	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.80	8-94176-971-0	AR	1	9701-0207	●
149	SCREW; SETTING,NOZZLE HOLDER	8-94424-217-0	04	1	9701-0207	●
158	NUT; INJ PUMP M14	8-94226-565-0	01	1	9701-9905	●
185	BLOCK; CENTER	8-97102-606-0	01	1	9701-9905	●
186	GEAR; INJ PUMP	8-94458-257-0	01	1	9701-9905	●
187	BOLT; GEAR M6X18 W/LK WASHER	0-50040-618-0	06	1	9701-9905	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
