Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#139019) — 217 parça

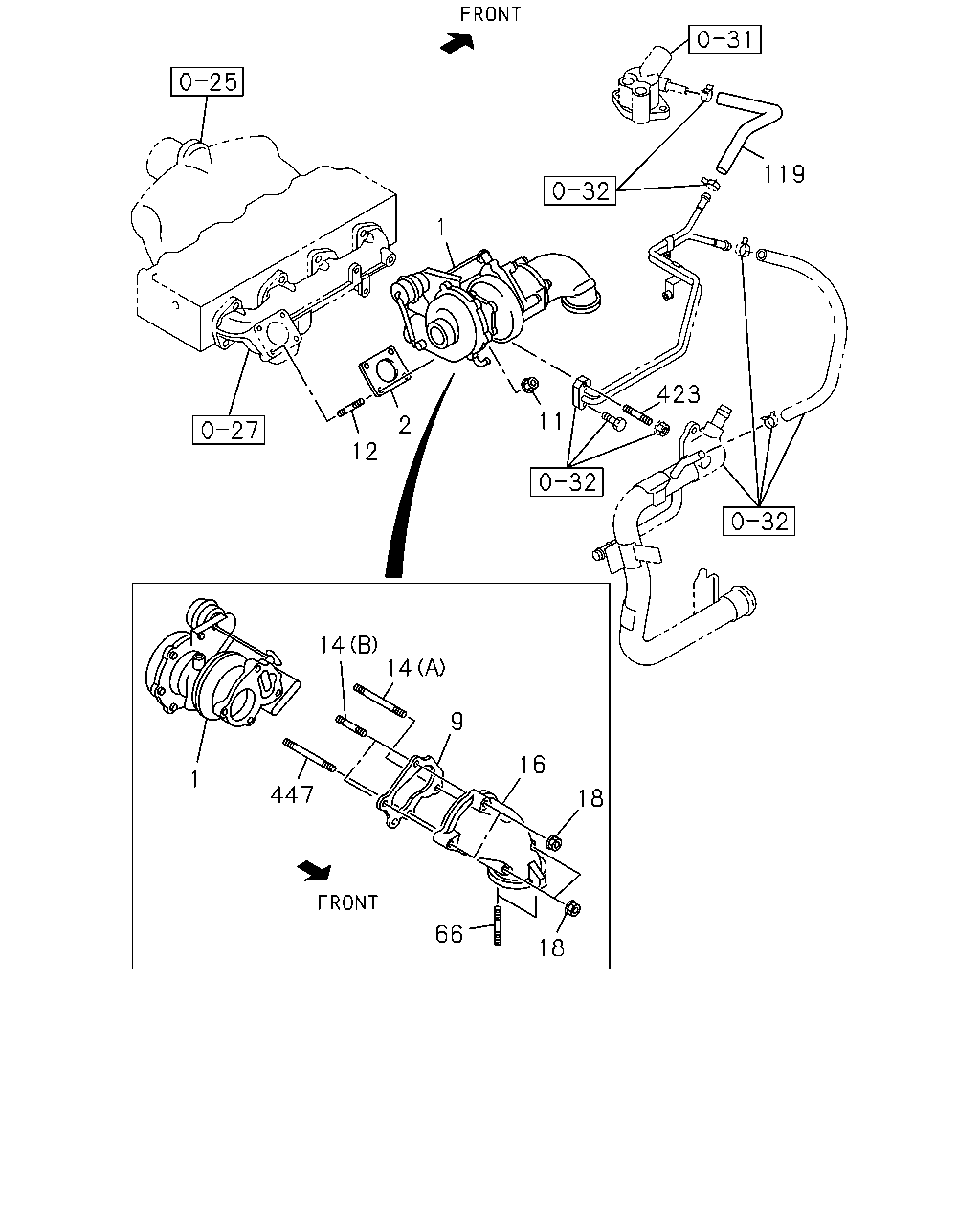

31 25 119 32 1 423 11 2 27 12 32 32 14 14 9 16 1 447 18 66 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TURBOCHARGER ASM	8-97212-842-3	01	1	9906-0207	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0208-0511		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0512-0610			●
1	TURBOCHARGER ASM	8-97381-507-4	01	1	0611-				●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	9906-0207	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97288-577-0	01	1	0208-0511		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97288-577-0	01	1	0512-0610			●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	0611-				●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-604-0	01	1	9906-0207	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97263-123-0	01	1	0208-0511		●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97263-123-0	01	1	0512-0610			●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98011-532-0	01	1	0611-				●
11	NUT; TURBOCHARGER M8 FLANGE	8-97161-607-0	04	1	9906-0207	●
11	NUT; TURBOCHARGER M8 FLANGE	8-97161-607-0	04	1	0208-0511		●
11	NUT; TURBOCHARGER M8 FLANGE	8-97161-607-0	04	1	0512-0610			●
11	NUT; TURBOCHARGER M8 FLANGE	8-97161-607-0	02	1	0611-				●
12	STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	9906-0207	●
12	STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	0208-0408		●
12	STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0409-0511		●
12	STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0512-0610			●
12	STUD; TURBOCHARGER M8X25 L=36	8-97378-062-0	02	1	0611-				●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X105 L=116	8-94362-047-0	01	1	9906-0207	●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X81	8-94107-532-1	02	1	0208-0408		●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X81 L=92	8-97378-068-0	02	1	0409-0511		●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X81 L=92	8-97378-068-0	02	1	0512-0610			●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X41 L=52	8-97188-452-0	02	1	9906-0207	●
14	STUD; TURBOCHARGER TO EXH PIPE (C) M8X41 L=52	8-97188-452-0	02	1	0208-0406		●
14	STUD; TURBOCHARGER TO EXH PIPE (C) M8X43 L=54	8-97104-507-1	02	1	0407-0511		●
14	STUD; TURBOCHARGER TO EXH PIPE (C) M8X43 L=54	8-97104-507-1	02	1	0512-0607			●
14	STUD; TURBOCHARGER TO EXH PIPE (C) M8X43 L=54	8-97378-067-0	02	1	0608-0610			●
14	STUD; TURBOCHARGER TO EXH PIPE (D) M8X25 L=36	8-97378-062-0	03	1	0611-				●
16	ADAPTER; EXH PIPE	8-97176-079-0	01	1	9906-0207	●
16	ADAPTER; EXH PIPE	8-97240-009-0	01	1	0208-0511		●
16	ADAPTER; EXH PIPE	8-97240-009-0	01	1	0512-0610			●
16	ADAPTER; EXH PIPE	8-98009-717-3	01	1	0611-				●
18	NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	9906-0207	●
18	NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0208-0511		●
18	NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0512-0610			●
18	NUT; EXH PIPE M8 FLANGE	8-97161-607-0	03	1	0611-				●
32	PROTECTOR; HEAT,TURBOCHARGER (A)	8-97258-821-0	01	1	0208-0511		●
32	PROTECTOR; HEAT,TURBOCHARGER (A)	8-97258-821-0	01	1	0512-0610			●
32	PROTECTOR; HEAT,TURBOCHARGER (C)	8-98034-990-3	01	1	0611-				●
32	PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	0611-				●
66	STUD; EXH PIPE M10X45 L=60 PLATING	5-09302-008-1	02	1	9906-0207	●
66	STUD; EXH PIPE M10X45 L=60 PLATING	5-09302-008-1	02	1	0208-0511		●
66	STUD; EXH PIPE M10X45 L=60 PLATING	5-09302-008-1	02	1	0512-0610			●
66	STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0611-				●
119	HOSE; WATER,TURBOCHARGER L=250 W/INSULATOR	8-94340-669-1	01	1	9906-0207	●
119	HOSE; WATER,TURBOCHARGER	8-97312-729-0	01	1	0208-0511		●
119	HOSE; WATER,TURBOCHARGER	8-97312-729-0	01	1	0512-0610			●
119	HOSE; WATER,TURBOCHARGER	8-98022-074-0	01	1	0611-				●
423	STUD; WATER PIPE M6X20 L=29	9-04110-620-0	01	1	9906-0207	●
447	STUD; ADAPTER M8X126 L=137	8-97200-763-0	01	1	9906-0207	●

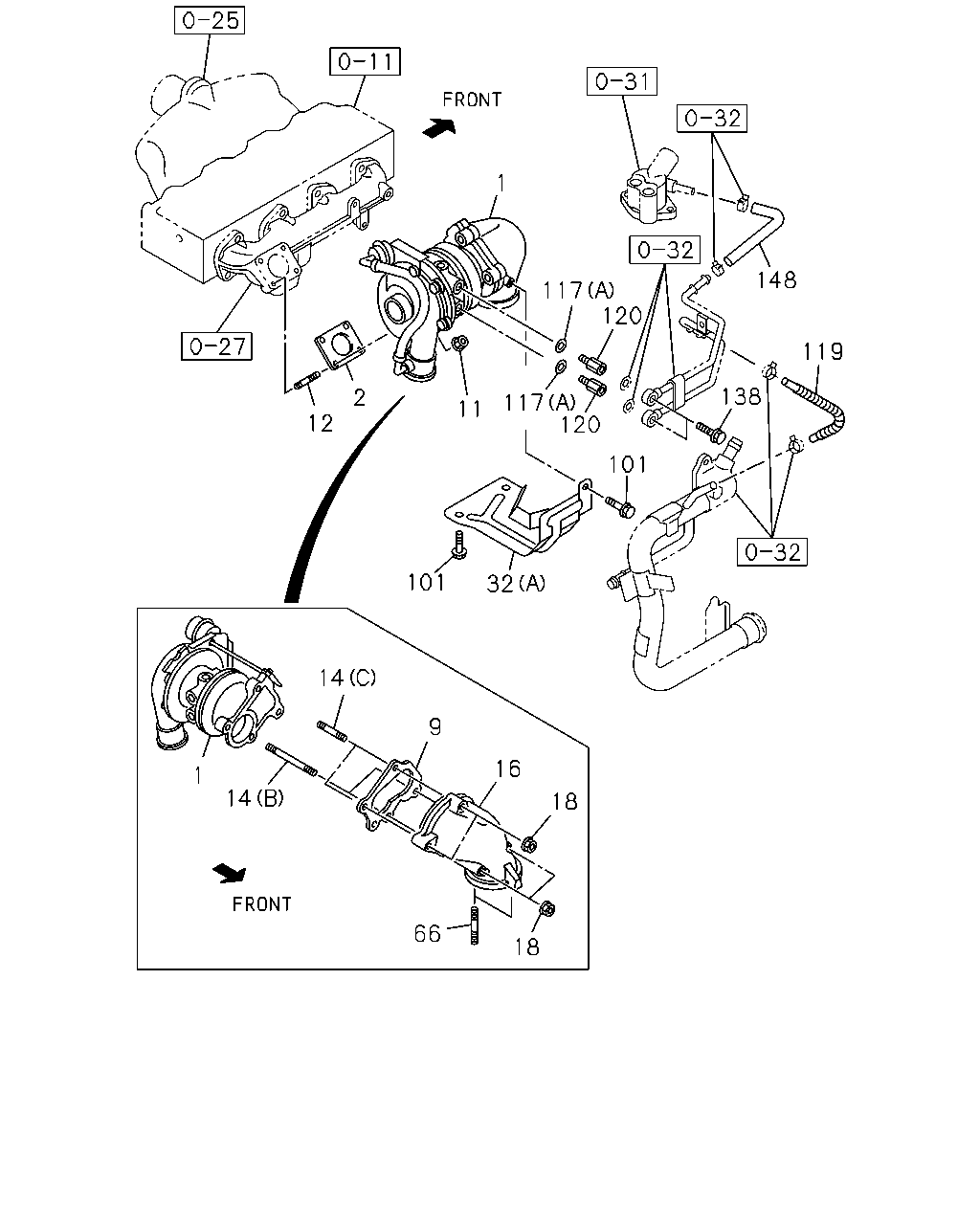

25 11 31 32 1 32 148 117 120 27 119 138 2 117 120 11 12 101 32 101 32 14 9 16 1 14 18 66 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TURBOCHARGER ASM	8-97212-842-3	01	1	9906-0207	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0208-0511		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0512-0610			●
1	TURBOCHARGER ASM	8-97381-507-4	01	1	0611-				●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	9906-0207	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97288-577-0	01	1	0208-0511		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97288-577-0	01	1	0512-0610			●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	0611-				●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-604-0	01	1	9906-0207	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97263-123-0	01	1	0208-0511		●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97263-123-0	01	1	0512-0610			●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98011-532-0	01	1	0611-				●
11	NUT; TURBOCHARGER M8 FLANGE	8-97161-607-0	04	1	9906-0207	●
11	NUT; TURBOCHARGER M8 FLANGE	8-97161-607-0	04	1	0208-0511		●
11	NUT; TURBOCHARGER M8 FLANGE	8-97161-607-0	04	1	0512-0610			●
11	NUT; TURBOCHARGER M8 FLANGE	8-97161-607-0	02	1	0611-				●
12	STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	9906-0207	●
12	STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	0208-0408		●
12	STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0409-0511		●
12	STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0512-0610			●
12	STUD; TURBOCHARGER M8X25 L=36	8-97378-062-0	02	1	0611-				●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X105 L=116	8-94362-047-0	01	1	9906-0207	●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X81	8-94107-532-1	02	1	0208-0408		●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X81 L=92	8-97378-068-0	02	1	0409-0511		●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X81 L=92	8-97378-068-0	02	1	0512-0610			●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X41 L=52	8-97188-452-0	02	1	9906-0207	●
14	STUD; TURBOCHARGER TO EXH PIPE (C) M8X41 L=52	8-97188-452-0	02	1	0208-0406		●
14	STUD; TURBOCHARGER TO EXH PIPE (C) M8X43 L=54	8-97104-507-1	02	1	0407-0511		●
14	STUD; TURBOCHARGER TO EXH PIPE (C) M8X43 L=54	8-97104-507-1	02	1	0512-0607			●
14	STUD; TURBOCHARGER TO EXH PIPE (C) M8X43 L=54	8-97378-067-0	02	1	0608-0610			●
14	STUD; TURBOCHARGER TO EXH PIPE (D) M8X25 L=36	8-97378-062-0	03	1	0611-				●
16	ADAPTER; EXH PIPE	8-97176-079-0	01	1	9906-0207	●
16	ADAPTER; EXH PIPE	8-97240-009-0	01	1	0208-0511		●
16	ADAPTER; EXH PIPE	8-97240-009-0	01	1	0512-0610			●
16	ADAPTER; EXH PIPE	8-98009-717-3	01	1	0611-				●
18	NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	9906-0207	●
18	NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0208-0511		●
18	NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0512-0610			●
18	NUT; EXH PIPE M8 FLANGE	8-97161-607-0	03	1	0611-				●
32	PROTECTOR; HEAT,TURBOCHARGER (A)	8-97258-821-0	01	1	0208-0511		●
32	PROTECTOR; HEAT,TURBOCHARGER (A)	8-97258-821-0	01	1	0512-0610			●
32	PROTECTOR; HEAT,TURBOCHARGER (C)	8-98034-990-3	01	1	0611-				●
32	PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	0611-				●
66	STUD; EXH PIPE M10X45 L=60 PLATING	5-09302-008-1	02	1	9906-0207	●
66	STUD; EXH PIPE M10X45 L=60 PLATING	5-09302-008-1	02	1	0208-0511		●
66	STUD; EXH PIPE M10X45 L=60 PLATING	5-09302-008-1	02	1	0512-0610			●
66	STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0611-				●
101	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	03	1	0208-0511		●
101	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	03	1	0512-0512			●
101	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28050-812-0	03	1	0601-0610			●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) T=2.5	8-94472-584-1	02	1	0208-0511		●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) T=2.5	8-94472-584-1	02	1	0512-0610			●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97262-117-0	01	1	0611-				●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	9-09571-412-0	04	1	0611-				●
119	HOSE; WATER,TURBOCHARGER L=250 W/INSULATOR	8-94340-669-1	01	1	9906-0207	●
119	HOSE; WATER,TURBOCHARGER	8-97312-729-0	01	1	0208-0511		●
119	HOSE; WATER,TURBOCHARGER	8-97312-729-0	01	1	0512-0610			●
119	HOSE; WATER,TURBOCHARGER	8-98022-074-0	01	1	0611-				●
120	ADAPTER; WATER	8-94472-583-0	02	1	0208-0402		●
138	BOLT; EYE,WATER PIPE M12X24 EYE-BOLT	1-09675-081-0	02	1	0208-0511		●
138	BOLT; EYE,WATER PIPE M12X24 EYE-BOLT	1-09675-081-0	02	1	0512-0610			●
138	BOLT; EYE,WATER PIPE M12X24 EYE-BOLT	1-09675-081-0	02	1	0611-				●
148	HOSE; TURBOCHARGER,INL L=280 SERVICED BY L=3000	0-03559-300-0	01	1	0208-0511		●
148	HOSE; TURBOCHARGER,INL L=280 SERVICED BY L=3000	0-03559-300-0	01	1	0512-0610			●

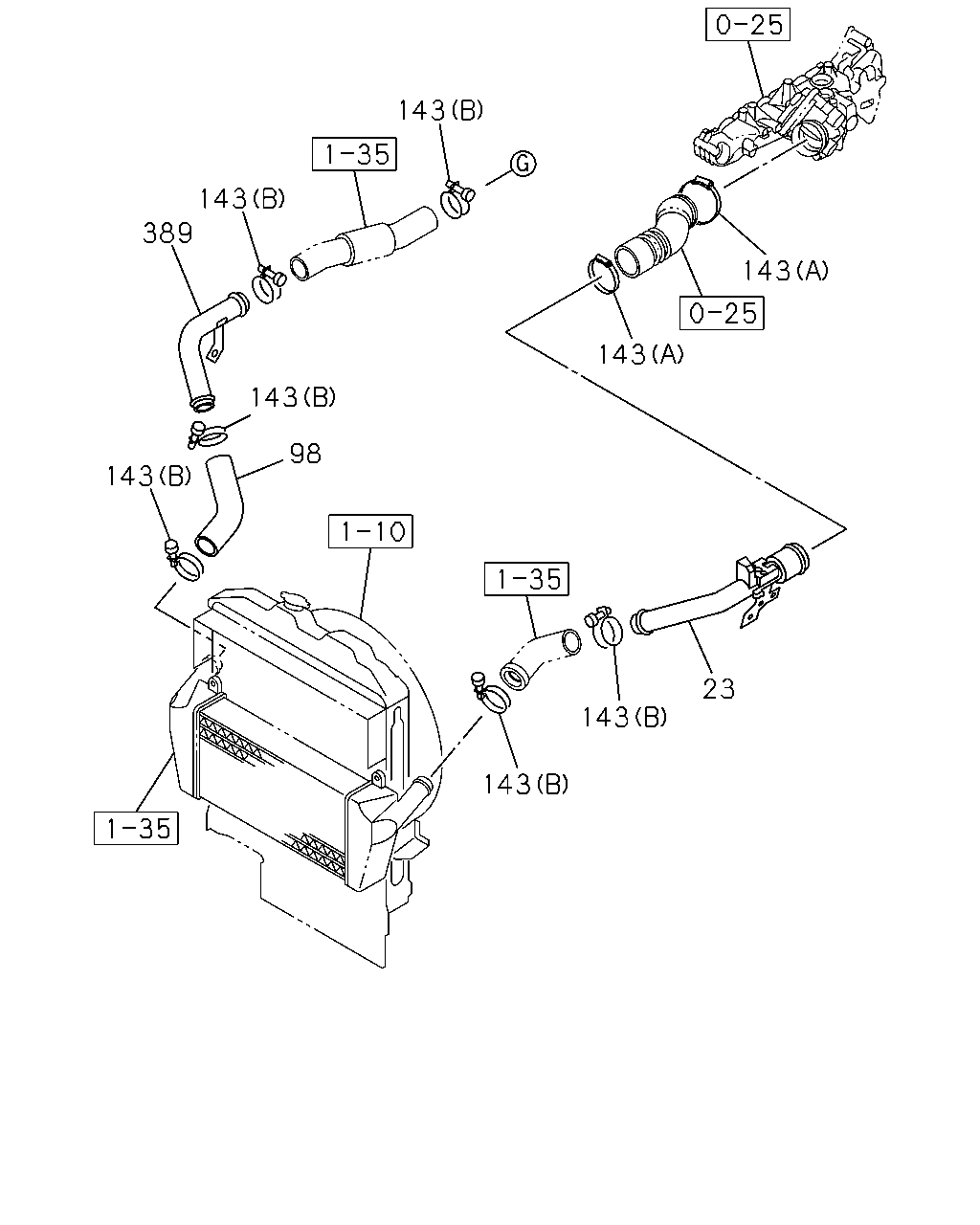

25 143 1 35 143 389 143 25 143 143 98 143 1 10 1 35 23 143 143 1 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TURBOCHARGER ASM	8-97212-842-3	01	1	9906-0207	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0208-0511		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0512-0610			●
1	TURBOCHARGER ASM	8-97381-507-4	01	1	0611-				●
23	PIPE; INTAKE,TURBOCHARGER	8-98048-021-2	01	1	0611-				●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	8-98040-182-2	01	1	0611-				●
143	CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=68-85	1-09707-202-0	02	1	0611-				●
143	CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=50-65	1-09707-204-0	06	1	0611-				●
389	PIPE; INL,TURBOCHARGER TO CAC	8-98048-096-0	01	1	0611-				●

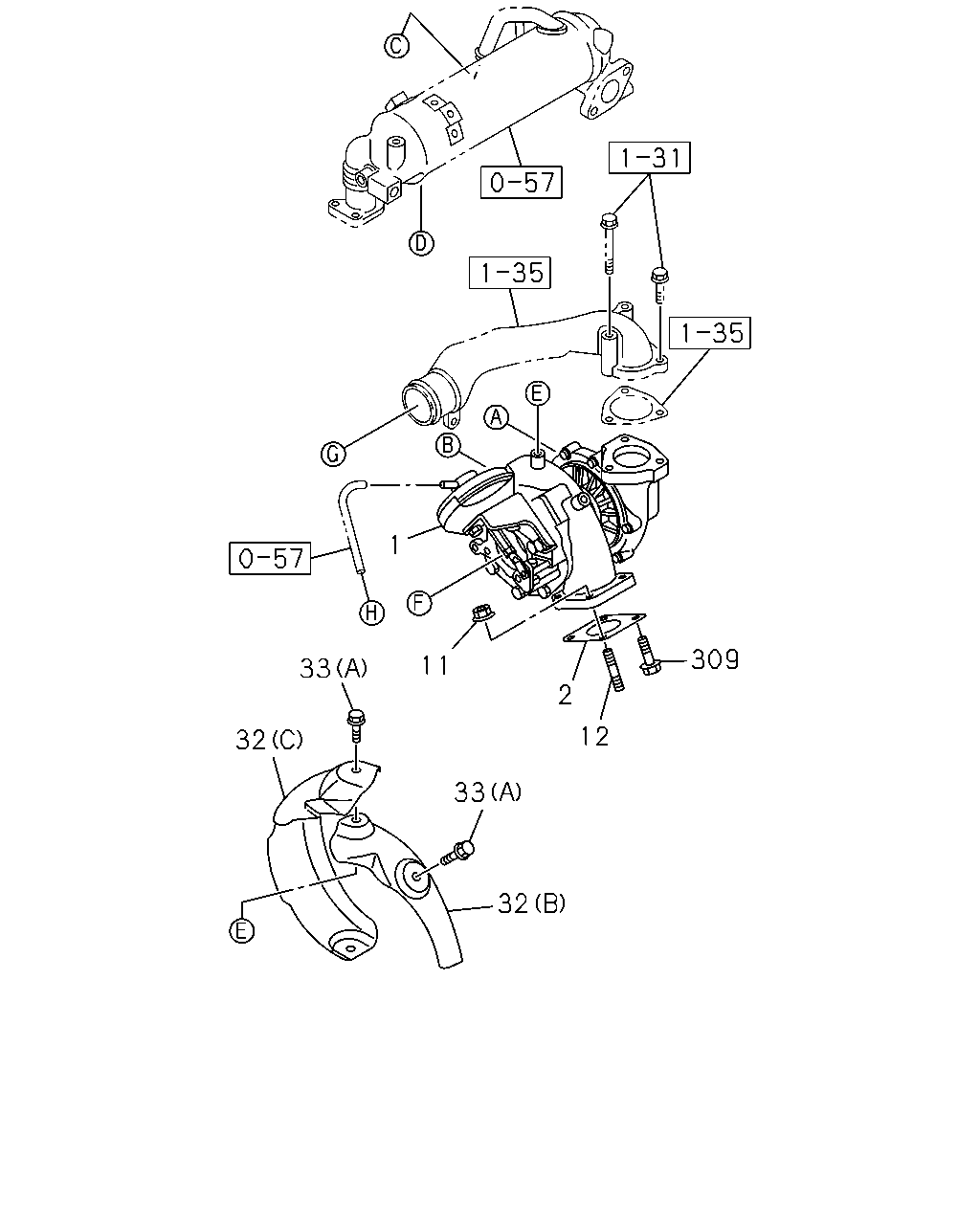

1 31 57 1 35 1 35 1 57 309 11 33 2 12 32 33 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TURBOCHARGER ASM	8-97212-842-3	01	1	9906-0207	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0208-0511		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0512-0610			●
1	TURBOCHARGER ASM	8-97381-507-4	01	1	0611-				●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	9906-0207	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97288-577-0	01	1	0208-0511		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97288-577-0	01	1	0512-0610			●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	0611-				●
11	NUT; TURBOCHARGER M8 FLANGE	8-97161-607-0	04	1	9906-0207	●
11	NUT; TURBOCHARGER M8 FLANGE	8-97161-607-0	04	1	0208-0511		●
11	NUT; TURBOCHARGER M8 FLANGE	8-97161-607-0	04	1	0512-0610			●
11	NUT; TURBOCHARGER M8 FLANGE	8-97161-607-0	02	1	0611-				●
12	STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	9906-0207	●
12	STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	0208-0408		●
12	STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0409-0511		●
12	STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0512-0610			●
12	STUD; TURBOCHARGER M8X25 L=36	8-97378-062-0	02	1	0611-				●
32	PROTECTOR; HEAT,TURBOCHARGER (A)	8-97258-821-0	01	1	0208-0511		●
32	PROTECTOR; HEAT,TURBOCHARGER (A)	8-97258-821-0	01	1	0512-0610			●
32	PROTECTOR; HEAT,TURBOCHARGER (C)	8-98034-990-3	01	1	0611-				●
32	PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	0611-				●
33	BOLT; HEAT PROTECTOR (A) M6X12 FLANGE	0-28050-612-0	03	1	0611-				●
33	BOLT; HEAT PROTECTOR (B) M8X12 FLANGE	0-28050-812-0	07	1	0611-				●
309	BOLT; TURBOCHARGER M8X28 FLANGE	8-94396-974-0	02	1	0611-0701				●
309	BOLT; TURBOCHARGER M8X28 FLANGE	8-98043-528-0	02	1	0702-				●

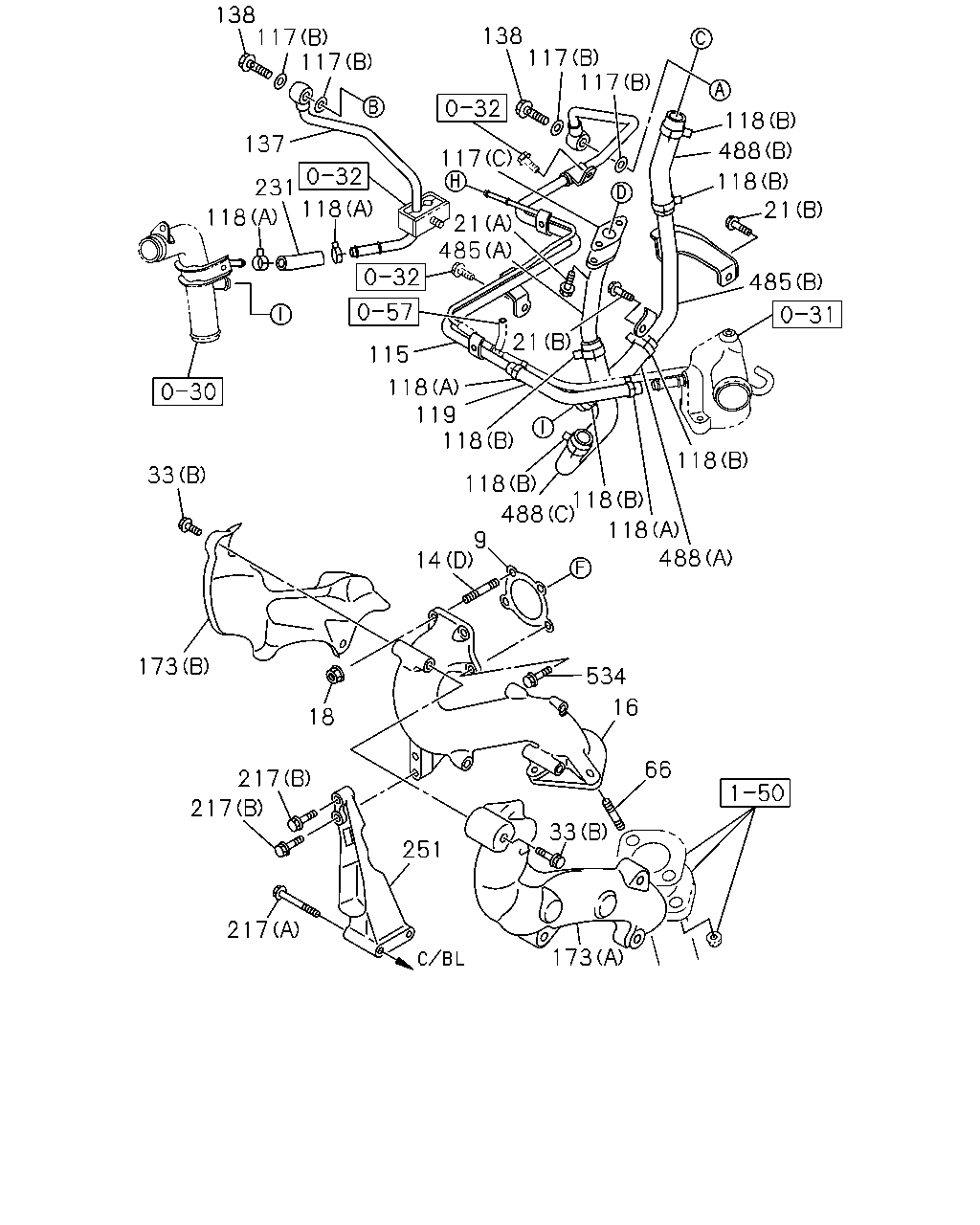

138 117 117 138 117 117 32 118 137 488 117 32 118 21 231 118 118 21 485 32 485 57 31 21 115 118 119 118 30 118 33 118 118 488 118 488 9 14 173 534 16 18 66 217 1 50 217 33 251 217 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TURBOCHARGER ASM	8-97212-842-3	01	1	9906-0207	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0208-0511		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0512-0610			●
1	TURBOCHARGER ASM	8-97381-507-4	01	1	0611-				●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-604-0	01	1	9906-0207	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97263-123-0	01	1	0208-0511		●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97263-123-0	01	1	0512-0610			●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98011-532-0	01	1	0611-				●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X105 L=116	8-94362-047-0	01	1	9906-0207	●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X81	8-94107-532-1	02	1	0208-0408		●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X81 L=92	8-97378-068-0	02	1	0409-0511		●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X81 L=92	8-97378-068-0	02	1	0512-0610			●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X41 L=52	8-97188-452-0	02	1	9906-0207	●
14	STUD; TURBOCHARGER TO EXH PIPE (C) M8X41 L=52	8-97188-452-0	02	1	0208-0406		●
14	STUD; TURBOCHARGER TO EXH PIPE (C) M8X43 L=54	8-97104-507-1	02	1	0407-0511		●
14	STUD; TURBOCHARGER TO EXH PIPE (C) M8X43 L=54	8-97104-507-1	02	1	0512-0607			●
14	STUD; TURBOCHARGER TO EXH PIPE (C) M8X43 L=54	8-97378-067-0	02	1	0608-0610			●
14	STUD; TURBOCHARGER TO EXH PIPE (D) M8X25 L=36	8-97378-062-0	03	1	0611-				●
16	ADAPTER; EXH PIPE	8-97176-079-0	01	1	9906-0207	●
16	ADAPTER; EXH PIPE	8-97240-009-0	01	1	0208-0511		●
16	ADAPTER; EXH PIPE	8-97240-009-0	01	1	0512-0610			●
16	ADAPTER; EXH PIPE	8-98009-717-3	01	1	0611-				●
18	NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	9906-0207	●
18	NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0208-0511		●
18	NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0512-0610			●
18	NUT; EXH PIPE M8 FLANGE	8-97161-607-0	03	1	0611-				●
21	BOLT; PIPE (B) M8X16 FLANGE	0-28050-816-0	02	1	0611-				●
21	BOLT; PIPE (A) M6X20 HEX SOCKET	0-58330-620-0	02	1	0611-				●
32	PROTECTOR; HEAT,TURBOCHARGER (A)	8-97258-821-0	01	1	0208-0511		●
32	PROTECTOR; HEAT,TURBOCHARGER (A)	8-97258-821-0	01	1	0512-0610			●
32	PROTECTOR; HEAT,TURBOCHARGER (C)	8-98034-990-3	01	1	0611-				●
32	PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	0611-				●
33	BOLT; HEAT PROTECTOR (A) M6X12 FLANGE	0-28050-612-0	03	1	0611-				●
33	BOLT; HEAT PROTECTOR (B) M8X12 FLANGE	0-28050-812-0	07	1	0611-				●
66	STUD; EXH PIPE M10X45 L=60 PLATING	5-09302-008-1	02	1	9906-0207	●
66	STUD; EXH PIPE M10X45 L=60 PLATING	5-09302-008-1	02	1	0208-0511		●
66	STUD; EXH PIPE M10X45 L=60 PLATING	5-09302-008-1	02	1	0512-0610			●
66	STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0611-				●
115	PIPE; WATER,TURBOCHARGER OUT	8-97381-648-2	01	1	0611-0708				●
115	PIPE; WATER,TURBOCHARGER OUT	8-98091-838-0	01	1	0709-				●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) T=2.5	8-94472-584-1	02	1	0208-0511		●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) T=2.5	8-94472-584-1	02	1	0512-0610			●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97262-117-0	01	1	0611-				●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	9-09571-412-0	04	1	0611-				●
118	CLIP; WATER HOSE (A) ID=12.8	8-94367-943-0	04	1	0611-				●
118	CLIP; WATER HOSE (B) ID=22 TAI	8-94382-401-0	06	1	0611-				●
119	HOSE; WATER,TURBOCHARGER L=250 W/INSULATOR	8-94340-669-1	01	1	9906-0207	●
119	HOSE; WATER,TURBOCHARGER	8-97312-729-0	01	1	0208-0511		●
119	HOSE; WATER,TURBOCHARGER	8-97312-729-0	01	1	0512-0610			●
119	HOSE; WATER,TURBOCHARGER	8-98022-074-0	01	1	0611-				●
137	PIPE; WATER,TURBOCHARGER IN	8-97381-650-0	01	1	0611-				●
138	BOLT; EYE,WATER PIPE M12X24 EYE-BOLT	1-09675-081-0	02	1	0208-0511		●
138	BOLT; EYE,WATER PIPE M12X24 EYE-BOLT	1-09675-081-0	02	1	0512-0610			●
138	BOLT; EYE,WATER PIPE M12X24 EYE-BOLT	1-09675-081-0	02	1	0611-				●
173	PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-022-3	01	1	0611-				●
173	PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	0611-				●
217	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	0611-				●
217	BOLT; BRKT (B) M10X30 FLANGE	8-98032-158-0	02	1	0611-				●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	0611-				●
251	BRACKET; ADAPTER	8-98009-098-1	01	1	0611-				●
485	PIPE; WATER EGR (A)	8-97381-651-0	01	1	0611-				●
485	PIPE; WATER EGR (B)	8-97381-652-0	01	1	0611-				●
488	HOSE; RUBBER (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	0611-				●
488	HOSE; RUBBER (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	0611-				●
488	HOSE; RUBBER (C)	8-98015-118-0	01	1	0611-				●
534	BOLT; TURBOCHARGER TO EXH PIPE M8X23 FLANGE	8-97378-077-0	01	1	0611-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
