0-32 — WATER PIPING; ENGINE (#139016) — 155 parça

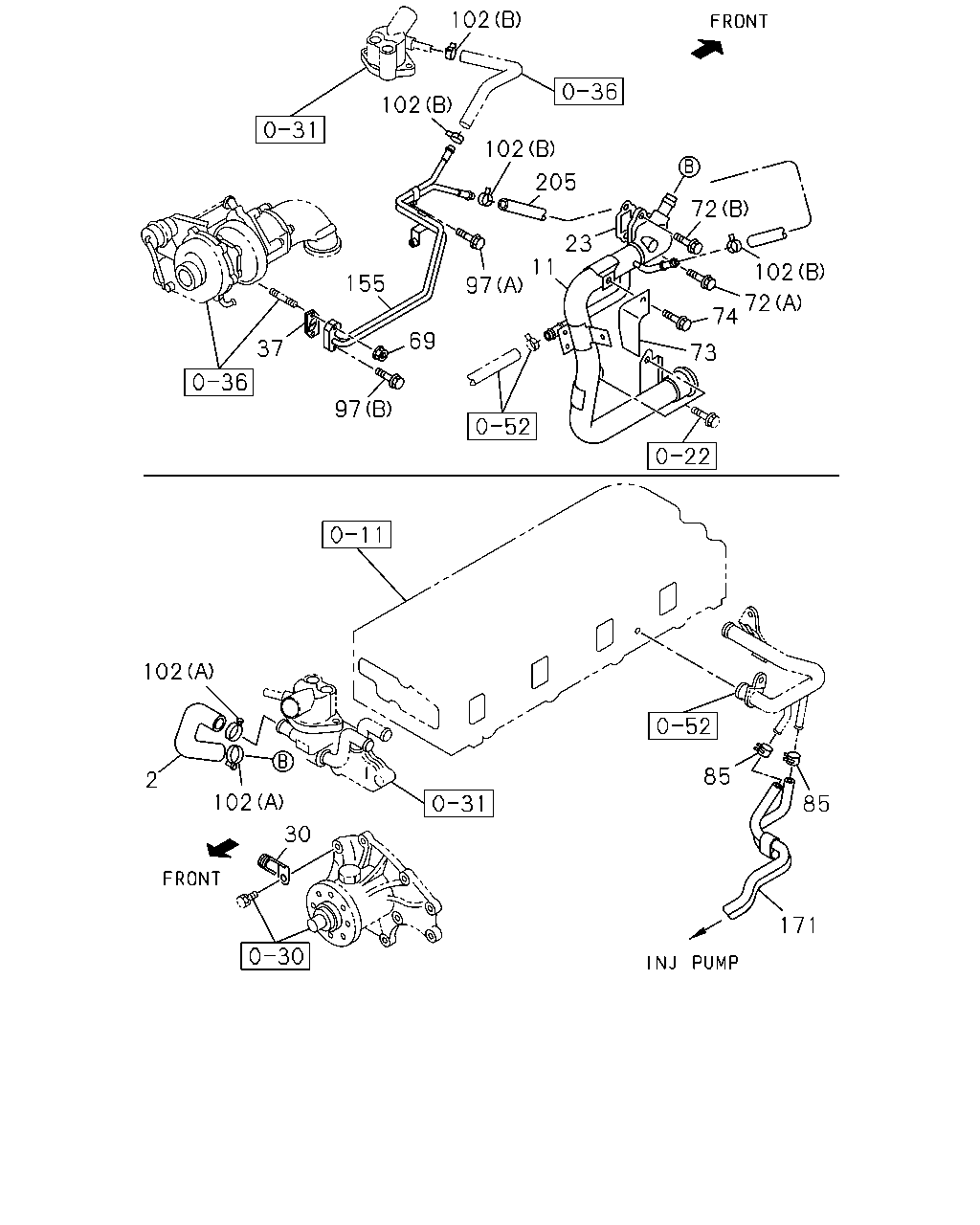

102 36 31 102 205 72 23 11 102 155 97 72 74 69 37 73 36 97 52 22 11 102 52 85 2 102 85 31 30 171 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	HOSE; WATER,BY-PASS	8-97037-464-0	01	1	9701-0207	●
2	HOSE; WATER,BY-PASS	8-97037-464-0	01	1	0208-0511		●
2	HOSE; WATER,BY-PASS	8-97037-464-0	01	1	0512-0610			●
11	PIPE; INL,WATER PUMP	8-97063-639-2	01	1	9701-9905	●
11	PIPE; INL,WATER PUMP	8-97192-319-1	01	1	9906-0207	●
11	PIPE; INL,WATER PUMP	8-97239-994-3	01	1	0208-0511		●
11	PIPE; INL,WATER PUMP	8-97239-994-3	01	1	0512-0610			●
23	GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-2	01	1	9701-0207	●
23	GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-3	01	1	0208-0511		●
23	GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-3	01	1	0512-0610			●
23	GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	0-95690-338-0	01	1	0611-				●
30	CLIP; HARNESS ID=12	5-09700-331-0	01	1	9701-0207	●
37	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94321-135-1	01	1	9906-0207	●
37	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	9-09571-412-0	04	1	0208-0511		●
37	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	9-09571-412-0	04	1	0512-0610			●
69	NUT; WATER PIPE M6 FLANGE	0-91150-106-0	01	1	9906-0207	●
69	NUT; WATER PIPE M6 FLANGE	0-91180-206-0	01	1	0611-				●
72	BOLT; WATER PIPE (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	9701-0207	●
72	BOLT; WATER PIPE (C) M8X20 FLANGE	0-28080-820-0	01	1	0208-0511		●
72	BOLT; WATER PIPE (C) M8X20 FLANGE	0-28080-820-0	01	1	0512-0512			●
72	BOLT; WATER PIPE (C) M8X20 FLANGE	0-28050-820-0	01	1	0601-0610			●
72	BOLT; WATER PIPE (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	9701-0207	●
72	BOLT; WATER PIPE (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0208-0511		●
72	BOLT; WATER PIPE (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0512-0610			●
73	PROTECTOR; HEAT,WATER PIPE	8-97043-743-1	01	1	9701-0207	●
73	PROTECTOR; HEAT,WATER PIPE	8-97043-743-1	01	1	0208-0511		●
73	PROTECTOR; HEAT,WATER PIPE	8-97043-743-1	01	1	0512-0610			●
74	BOLT; HEAT PROTECTOR FIX M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	9701-0207	●
74	BOLT; HEAT PROTECTOR FIX M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	0208-0511		●
74	BOLT; HEAT PROTECTOR FIX M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	0512-0512			●
74	BOLT; HEAT PROTECTOR FIX M8X16 W/LK&PL WASHER	0-50640-816-0	03	1	0601-0610			●
85	CLIP; RUBBER,WAX CSD ID=15.5	8-94221-519-0	04	1	9701-9907	●
85	CLIP; RUBBER,WAX CSD ID=12.8	8-94367-943-0	04	1	9908-0207	●
97	BOLT; WATER PIPE (B) M6X12 FLANGE	0-28080-612-0	01	1	9906-0207	●
97	BOLT; WATER PIPE (C) M8X12 FLANGE	0-28080-812-0	01	1	0208-0511		●
97	BOLT; WATER PIPE (C) M8X12 FLANGE	0-28080-812-0	01	1	0512-0512			●
97	BOLT; WATER PIPE (C) M8X12 FLANGE	0-28050-812-0	01	1	0601-0610			●
97	BOLT; WATER PIPE (A) M6X20 FLANGE	0-28680-620-0	01	1	9906-0207	●
102	CLIP; WATER HOSE (A) ID=20.8	8-94125-862-1	02	1	9701-0207	●
102	CLIP; WATER HOSE (A) ID=20.8	8-94125-862-1	02	1	0208-0511		●
102	CLIP; WATER HOSE (A) ID=20.8	8-94125-862-1	02	1	0512-0610			●
102	CLIP; WATER HOSE (B) ID=15.5	8-94221-519-0	04	1	9906-9907	●
102	CLIP; WATER HOSE (B) ID=12.8	8-94367-943-0	04	1	9908-0207	●
102	CLIP; WATER HOSE (B) ID=12.8	8-94367-943-0	04	1	0208-0511		●
102	CLIP; WATER HOSE (B) ID=12.8	8-94367-943-0	04	1	0512-0610			●
155	PIPE ASM; WATER	8-97223-605-0	01	1	9906-0207	●
155	PIPE ASM; WATER	8-97239-995-0	01	1	0208-0511		●
155	PIPE ASM; WATER	8-97239-995-0	01	1	0512-0610			●
171	HOSE; RUBBER,WAX CSD	8-97089-269-0	01	1	9701-9710	●
171	HOSE; RUBBER,WAX CSD	8-97189-478-0	01	1	9711-0207	●
205	HOSE; WATER,TURBOCHARGER RETURN L=150	0-03209-150-0	01	1	9906-0204	●
205	HOSE; WATER,TURBOCHARGER RETURN L=150 SERVICED BY L=3000	0-03559-300-0	01	1	0205-0207	●

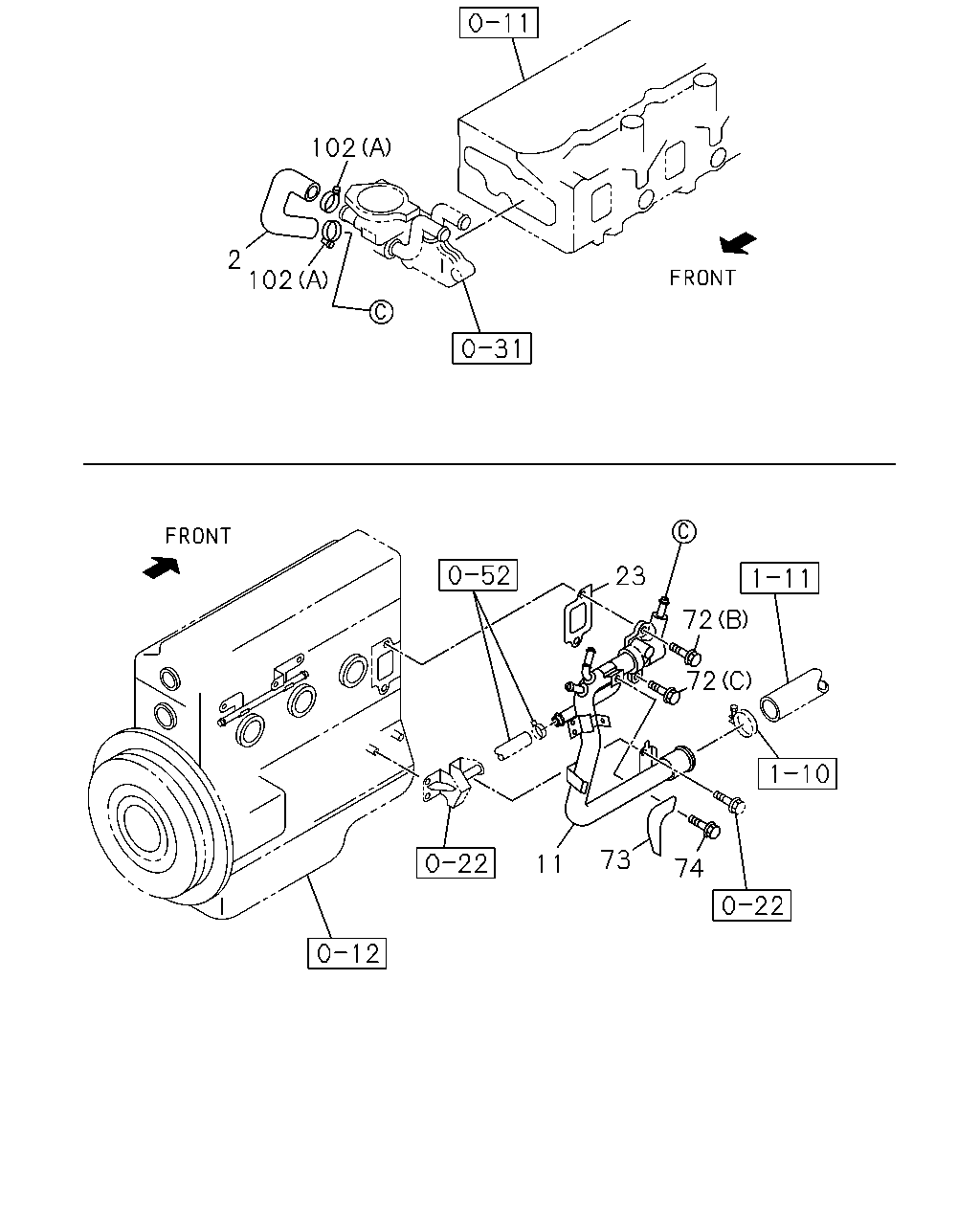

11 102 2 102 31 52 23 1 11 72 72 1 10 73 22 11 74 22 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	HOSE; WATER,BY-PASS	8-97037-464-0	01	1	9701-0207	●
2	HOSE; WATER,BY-PASS	8-97037-464-0	01	1	0208-0511		●
2	HOSE; WATER,BY-PASS	8-97037-464-0	01	1	0512-0610			●
11	PIPE; INL,WATER PUMP	8-97063-639-2	01	1	9701-9905	●
11	PIPE; INL,WATER PUMP	8-97192-319-1	01	1	9906-0207	●
11	PIPE; INL,WATER PUMP	8-97239-994-3	01	1	0208-0511		●
11	PIPE; INL,WATER PUMP	8-97239-994-3	01	1	0512-0610			●
23	GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-2	01	1	9701-0207	●
23	GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-3	01	1	0208-0511		●
23	GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-3	01	1	0512-0610			●
23	GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	0-95690-338-0	01	1	0611-				●
72	BOLT; WATER PIPE (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	9701-0207	●
72	BOLT; WATER PIPE (C) M8X20 FLANGE	0-28080-820-0	01	1	0208-0511		●
72	BOLT; WATER PIPE (C) M8X20 FLANGE	0-28080-820-0	01	1	0512-0512			●
72	BOLT; WATER PIPE (C) M8X20 FLANGE	0-28050-820-0	01	1	0601-0610			●
72	BOLT; WATER PIPE (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	9701-0207	●
72	BOLT; WATER PIPE (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0208-0511		●
72	BOLT; WATER PIPE (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0512-0610			●
73	PROTECTOR; HEAT,WATER PIPE	8-97043-743-1	01	1	9701-0207	●
73	PROTECTOR; HEAT,WATER PIPE	8-97043-743-1	01	1	0208-0511		●
73	PROTECTOR; HEAT,WATER PIPE	8-97043-743-1	01	1	0512-0610			●
74	BOLT; HEAT PROTECTOR FIX M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	9701-0207	●
74	BOLT; HEAT PROTECTOR FIX M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	0208-0511		●
74	BOLT; HEAT PROTECTOR FIX M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	0512-0512			●
74	BOLT; HEAT PROTECTOR FIX M8X16 W/LK&PL WASHER	0-50640-816-0	03	1	0601-0610			●
102	CLIP; WATER HOSE (A) ID=20.8	8-94125-862-1	02	1	9701-0207	●
102	CLIP; WATER HOSE (A) ID=20.8	8-94125-862-1	02	1	0208-0511		●
102	CLIP; WATER HOSE (A) ID=20.8	8-94125-862-1	02	1	0512-0610			●
102	CLIP; WATER HOSE (B) ID=15.5	8-94221-519-0	04	1	9906-9907	●
102	CLIP; WATER HOSE (B) ID=12.8	8-94367-943-0	04	1	9908-0207	●
102	CLIP; WATER HOSE (B) ID=12.8	8-94367-943-0	04	1	0208-0511		●
102	CLIP; WATER HOSE (B) ID=12.8	8-94367-943-0	04	1	0512-0610			●

57 36 36 57 95 27 94 95 94 95 11 94 69 31 12 50 23 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
11	PIPE; INL,WATER PUMP	8-97063-639-2	01	1	9701-9905	●
11	PIPE; INL,WATER PUMP	8-97192-319-1	01	1	9906-0207	●
11	PIPE; INL,WATER PUMP	8-97239-994-3	01	1	0208-0511		●
11	PIPE; INL,WATER PUMP	8-97239-994-3	01	1	0512-0610			●
23	GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-2	01	1	9701-0207	●
23	GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-3	01	1	0208-0511		●
23	GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-3	01	1	0512-0610			●
23	GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	0-95690-338-0	01	1	0611-				●
30	CLIP; HARNESS ID=12	5-09700-331-0	01	1	9701-0207	●
69	NUT; WATER PIPE M6 FLANGE	0-91150-106-0	01	1	9906-0207	●
69	NUT; WATER PIPE M6 FLANGE	0-91180-206-0	01	1	0611-				●
94	CLIP; WATER PIPE (A)	1-09700-911-1	01	1	0611-				●
94	CLIP; WATER PIPE (B)	1-09701-228-3	01	1	0611-				●
94	CLIP; WATER PIPE (C)	1-09701-229-2	01	1	0611-				●
95	BOLT; CLIP (A) M6X12 FLANGE	0-28050-612-0	02	1	0611-				●
95	BOLT; CLIP (B) M6X35 FLANGE	0-28650-635-0	01	1	0611-				●

31 102 102 36 97 102 155 36 102 37 37 37 37 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
37	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94321-135-1	01	1	9906-0207	●
37	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	9-09571-412-0	04	1	0208-0511		●
37	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	9-09571-412-0	04	1	0512-0610			●
97	BOLT; WATER PIPE (B) M6X12 FLANGE	0-28080-612-0	01	1	9906-0207	●
97	BOLT; WATER PIPE (C) M8X12 FLANGE	0-28080-812-0	01	1	0208-0511		●
97	BOLT; WATER PIPE (C) M8X12 FLANGE	0-28080-812-0	01	1	0512-0512			●
97	BOLT; WATER PIPE (C) M8X12 FLANGE	0-28050-812-0	01	1	0601-0610			●
97	BOLT; WATER PIPE (A) M6X20 FLANGE	0-28680-620-0	01	1	9906-0207	●
102	CLIP; WATER HOSE (A) ID=20.8	8-94125-862-1	02	1	9701-0207	●
102	CLIP; WATER HOSE (A) ID=20.8	8-94125-862-1	02	1	0208-0511		●
102	CLIP; WATER HOSE (A) ID=20.8	8-94125-862-1	02	1	0512-0610			●
102	CLIP; WATER HOSE (B) ID=15.5	8-94221-519-0	04	1	9906-9907	●
102	CLIP; WATER HOSE (B) ID=12.8	8-94367-943-0	04	1	9908-0207	●
102	CLIP; WATER HOSE (B) ID=12.8	8-94367-943-0	04	1	0208-0511		●
102	CLIP; WATER HOSE (B) ID=12.8	8-94367-943-0	04	1	0512-0610			●
155	PIPE ASM; WATER	8-97223-605-0	01	1	9906-0207	●
155	PIPE ASM; WATER	8-97239-995-0	01	1	0208-0511		●
155	PIPE ASM; WATER	8-97239-995-0	01	1	0512-0610			●

74 73 52 72 72 23 22 52 11 1 11 102 85 11 85 2 102 85 31 171 30 85 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	HOSE; WATER,BY-PASS	8-97037-464-0	01	1	9701-0207	●
2	HOSE; WATER,BY-PASS	8-97037-464-0	01	1	0208-0511		●
2	HOSE; WATER,BY-PASS	8-97037-464-0	01	1	0512-0610			●
11	PIPE; INL,WATER PUMP	8-97063-639-2	01	1	9701-9905	●
11	PIPE; INL,WATER PUMP	8-97192-319-1	01	1	9906-0207	●
11	PIPE; INL,WATER PUMP	8-97239-994-3	01	1	0208-0511		●
11	PIPE; INL,WATER PUMP	8-97239-994-3	01	1	0512-0610			●
23	GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-2	01	1	9701-0207	●
23	GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-3	01	1	0208-0511		●
23	GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-3	01	1	0512-0610			●
23	GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	0-95690-338-0	01	1	0611-				●
30	CLIP; HARNESS ID=12	5-09700-331-0	01	1	9701-0207	●
72	BOLT; WATER PIPE (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	9701-0207	●
72	BOLT; WATER PIPE (C) M8X20 FLANGE	0-28080-820-0	01	1	0208-0511		●
72	BOLT; WATER PIPE (C) M8X20 FLANGE	0-28080-820-0	01	1	0512-0512			●
72	BOLT; WATER PIPE (C) M8X20 FLANGE	0-28050-820-0	01	1	0601-0610			●
72	BOLT; WATER PIPE (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	9701-0207	●
72	BOLT; WATER PIPE (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0208-0511		●
72	BOLT; WATER PIPE (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0512-0610			●
73	PROTECTOR; HEAT,WATER PIPE	8-97043-743-1	01	1	9701-0207	●
73	PROTECTOR; HEAT,WATER PIPE	8-97043-743-1	01	1	0208-0511		●
73	PROTECTOR; HEAT,WATER PIPE	8-97043-743-1	01	1	0512-0610			●
74	BOLT; HEAT PROTECTOR FIX M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	9701-0207	●
74	BOLT; HEAT PROTECTOR FIX M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	0208-0511		●
74	BOLT; HEAT PROTECTOR FIX M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	0512-0512			●
74	BOLT; HEAT PROTECTOR FIX M8X16 W/LK&PL WASHER	0-50640-816-0	03	1	0601-0610			●
85	CLIP; RUBBER,WAX CSD ID=15.5	8-94221-519-0	04	1	9701-9907	●
85	CLIP; RUBBER,WAX CSD ID=12.8	8-94367-943-0	04	1	9908-0207	●
102	CLIP; WATER HOSE (A) ID=20.8	8-94125-862-1	02	1	9701-0207	●
102	CLIP; WATER HOSE (A) ID=20.8	8-94125-862-1	02	1	0208-0511		●
102	CLIP; WATER HOSE (A) ID=20.8	8-94125-862-1	02	1	0512-0610			●
102	CLIP; WATER HOSE (B) ID=15.5	8-94221-519-0	04	1	9906-9907	●
102	CLIP; WATER HOSE (B) ID=12.8	8-94367-943-0	04	1	9908-0207	●
102	CLIP; WATER HOSE (B) ID=12.8	8-94367-943-0	04	1	0208-0511		●
102	CLIP; WATER HOSE (B) ID=12.8	8-94367-943-0	04	1	0512-0610			●
171	HOSE; RUBBER,WAX CSD	8-97089-269-0	01	1	9701-9710	●
171	HOSE; RUBBER,WAX CSD	8-97189-478-0	01	1	9711-0207	●
