0-31 — THERMOSTAT AND HOUSING (#139015) — 120 parça

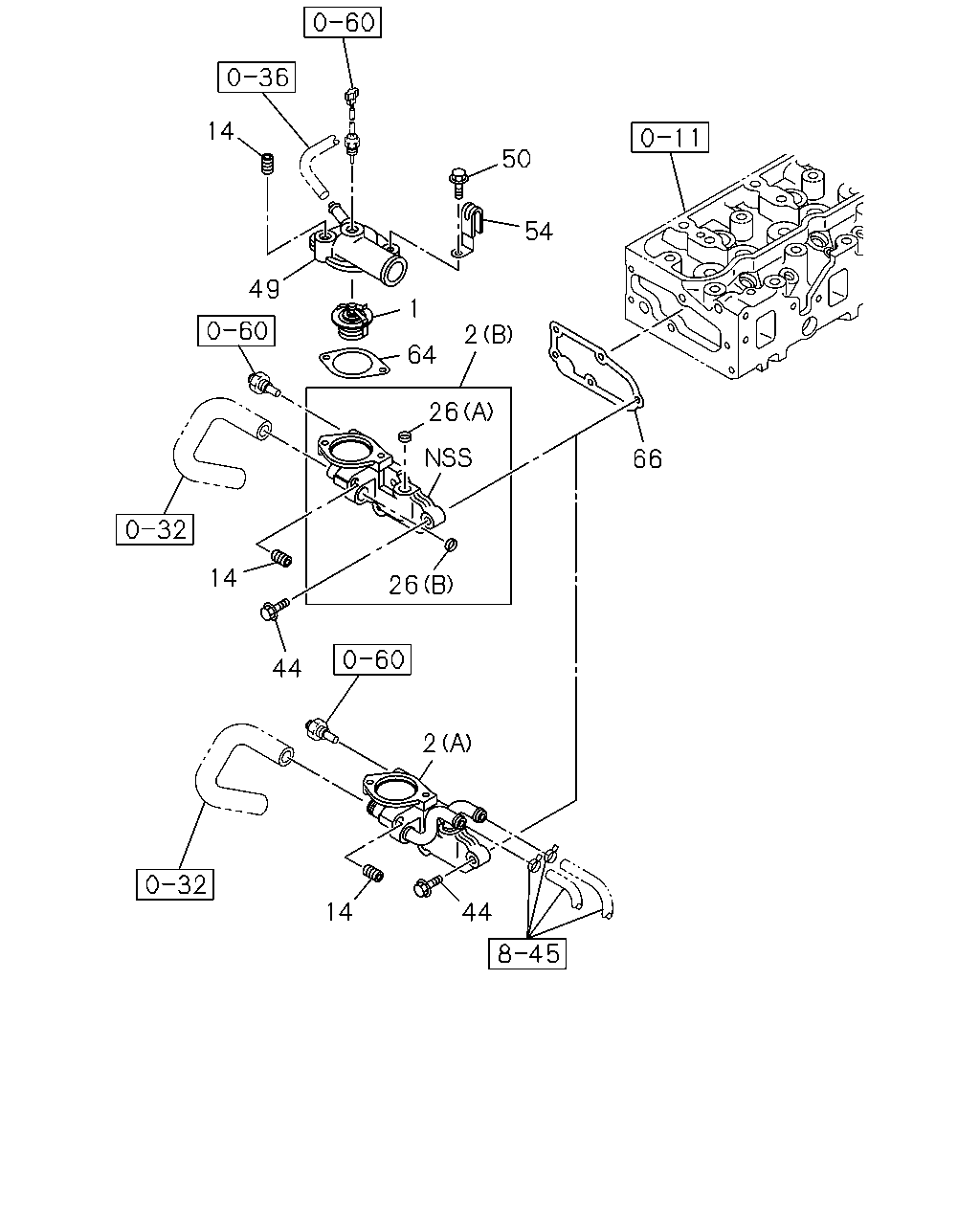

60 36 14 11 50 54 49 1 60 2 64 26 66 32 14 26 60 44 2 32 14 44 8 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	THERMOSTAT POWER STEERING<N40> 82 CELSIUS	8-97089-891-0	01	1	9701-9905	●
1	THERMOSTAT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 82 CELSIUS	8-97089-891-0	01	1	9906-0207	●
1	THERMOSTAT 82 CELSIUS	8-97089-891-0	01	1	0208-0211		●
1	THERMOSTAT 82 CELSIUS	8-97361-770-0	01	1	0212-0511		●
1	THERMOSTAT 82 CELSIUS	8-97361-770-0	01	1	0512-0610			●
1	THERMOSTAT 85 CELSIUS	8-98017-027-1	01	1	0611-				●
1	THERMOSTAT EXC. POWER STEERING<N40> 82 CELSIUS	8-94482-277-0	01	1	9701-9905	●
1	THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 82 CELSIUS	8-94482-277-1	01	1	9906-0207	●
2	HOUSING; THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97139-604-2	01	1	9906-0207	●
2	HOUSING; THERMOSTAT POWER STEERING<N40> (A)	8-97139-602-0	01	1	9701-9905	●
2	HOUSING; THERMOSTAT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97139-602-0	01	1	9906-0207	●
2	HOUSING; THERMOSTAT (C)	8-97252-416-2	01	1	0208-0312		●
2	HOUSING; THERMOSTAT (C)	8-97372-989-1	01	1	0401-0511		●
2	HOUSING; THERMOSTAT (C)	8-97372-989-1	01	1	0512-0610			●
2	HOUSING; THERMOSTAT EXC. POWER STEERING<N40> (B)	8-97139-604-0	01	1	9701-9905	●
14	PLUG; SW PT3/8	5-09605-005-0	02	1	9701-0207	●
26	CUP; SEALING,VLV,VENTILATION EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) OD=18	9-11129-082-0	02	1	9906-0207	●
26	CUP; SEALING,VLV,VENTILATION EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) OD=18	5-11219-008-0	01	1	0011-0207	●
26	CUP; SEALING,VLV,VENTILATION EXC. POWER STEERING<N40> (A) OD=18	9-11129-082-0	02	1	9701-9905	●
44	BOLT; HSG TO HD M8X30 W/LK WASHER	0-50040-830-0	05	1	9701-0207	●
44	BOLT; HSG TO HD AIR CONDITIONER MANUAL CONT(C60) M8X30 W/LK WASHER	0-50040-830-0	02	1	0208-0511		●
44	BOLT; HSG TO HD AIR CONDITIONER MANUAL CONT(C60) M8X30 W/LK WASHER	0-50040-830-0	02	1	0512-0512			●
44	BOLT; HSG TO HD AIR CONDITIONER MANUAL CONT(C60) M8X30 W/LK WASHER	0-50540-830-0	02	1	0601-0610			●
44	BOLT; HSG TO HD EXC. AIR CONDITIONER MANUAL CONT(C60) M8X30 W/LK WASHER	0-50040-830-0	05	1	0208-0511		●
44	BOLT; HSG TO HD EXC. AIR CONDITIONER MANUAL CONT(C60) M8X30 W/LK WASHER	0-50040-830-0	05	1	0512-0512			●
44	BOLT; HSG TO HD EXC. AIR CONDITIONER MANUAL CONT(C60) M8X30 W/LK WASHER	0-50540-830-0	05	1	0601-0610			●
49	PIPE; WATER OUTLET	8-94254-601-1	01	1	9701-9905	●
49	PIPE; WATER OUTLET	8-97183-181-0	01	1	9906-0207	●
49	PIPE; WATER OUTLET	8-97289-011-0	01	1	0208-0511		●
49	PIPE; WATER OUTLET	8-97289-011-0	01	1	0512-0610			●
49	PIPE; WATER OUTLET	8-98028-252-1	01	1	0611-				●
50	BOLT; OUTLET PIPE M8X30 FLANGE	0-28680-830-0	02	1	9701-9708	●
50	BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9709-0207	●
50	BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0208-0511		●
50	BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0512-0512			●
50	BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0601-0610			●
50	BOLT; OUTLET PIPE M8X30 FLANGE	0-28650-830-0	02	1	0611-				●
54	CLIP; THERMO SWITCH,OUTLET PIPE ID=13 H=50 L=27	8-94130-076-0	01	1	9701-0207	●
54	CLIP; THERMO SWITCH,OUTLET PIPE ID=13 H=50 L=27	8-94130-076-0	01	1	0208-0511		●
54	CLIP; THERMO SWITCH,OUTLET PIPE ID=13 H=50 L=27	8-94130-076-0	01	1	0512-0610			●
64	GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94365-674-2	01	1	9701-0207	●
64	GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94365-674-2	01	1	0208-0511		●
64	GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94365-674-2	01	1	0512-0610			●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94365-675-1	01	1	9701-9902	●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97216-156-0	01	1	9903-0207	●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97216-156-0	01	1	0208-0511		●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97216-156-0	01	1	0512-0610			●

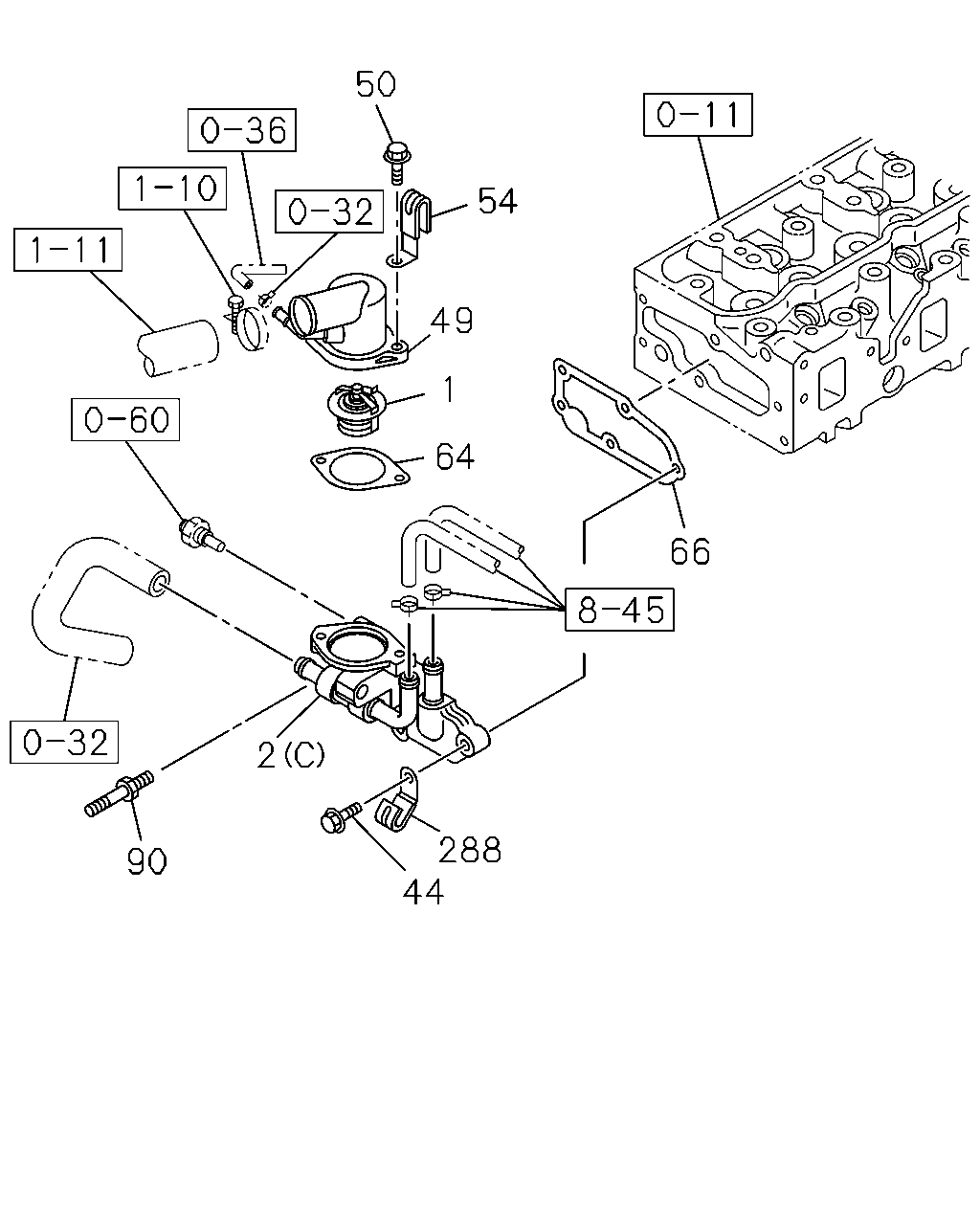

50 11 36 1 10 54 32 1 11 49 1 60 64 66 8 45 2 32 288 44 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	THERMOSTAT POWER STEERING<N40> 82 CELSIUS	8-97089-891-0	01	1	9701-9905	●
1	THERMOSTAT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 82 CELSIUS	8-97089-891-0	01	1	9906-0207	●
1	THERMOSTAT 82 CELSIUS	8-97089-891-0	01	1	0208-0211		●
1	THERMOSTAT 82 CELSIUS	8-97361-770-0	01	1	0212-0511		●
1	THERMOSTAT 82 CELSIUS	8-97361-770-0	01	1	0512-0610			●
1	THERMOSTAT 85 CELSIUS	8-98017-027-1	01	1	0611-				●
1	THERMOSTAT EXC. POWER STEERING<N40> 82 CELSIUS	8-94482-277-0	01	1	9701-9905	●
1	THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 82 CELSIUS	8-94482-277-1	01	1	9906-0207	●
2	HOUSING; THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97139-604-2	01	1	9906-0207	●
2	HOUSING; THERMOSTAT POWER STEERING<N40> (A)	8-97139-602-0	01	1	9701-9905	●
2	HOUSING; THERMOSTAT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97139-602-0	01	1	9906-0207	●
2	HOUSING; THERMOSTAT (C)	8-97252-416-2	01	1	0208-0312		●
2	HOUSING; THERMOSTAT (C)	8-97372-989-1	01	1	0401-0511		●
2	HOUSING; THERMOSTAT (C)	8-97372-989-1	01	1	0512-0610			●
2	HOUSING; THERMOSTAT EXC. POWER STEERING<N40> (B)	8-97139-604-0	01	1	9701-9905	●
44	BOLT; HSG TO HD M8X30 W/LK WASHER	0-50040-830-0	05	1	9701-0207	●
44	BOLT; HSG TO HD AIR CONDITIONER MANUAL CONT(C60) M8X30 W/LK WASHER	0-50040-830-0	02	1	0208-0511		●
44	BOLT; HSG TO HD AIR CONDITIONER MANUAL CONT(C60) M8X30 W/LK WASHER	0-50040-830-0	02	1	0512-0512			●
44	BOLT; HSG TO HD AIR CONDITIONER MANUAL CONT(C60) M8X30 W/LK WASHER	0-50540-830-0	02	1	0601-0610			●
44	BOLT; HSG TO HD EXC. AIR CONDITIONER MANUAL CONT(C60) M8X30 W/LK WASHER	0-50040-830-0	05	1	0208-0511		●
44	BOLT; HSG TO HD EXC. AIR CONDITIONER MANUAL CONT(C60) M8X30 W/LK WASHER	0-50040-830-0	05	1	0512-0512			●
44	BOLT; HSG TO HD EXC. AIR CONDITIONER MANUAL CONT(C60) M8X30 W/LK WASHER	0-50540-830-0	05	1	0601-0610			●
49	PIPE; WATER OUTLET	8-94254-601-1	01	1	9701-9905	●
49	PIPE; WATER OUTLET	8-97183-181-0	01	1	9906-0207	●
49	PIPE; WATER OUTLET	8-97289-011-0	01	1	0208-0511		●
49	PIPE; WATER OUTLET	8-97289-011-0	01	1	0512-0610			●
49	PIPE; WATER OUTLET	8-98028-252-1	01	1	0611-				●
50	BOLT; OUTLET PIPE M8X30 FLANGE	0-28680-830-0	02	1	9701-9708	●
50	BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9709-0207	●
50	BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0208-0511		●
50	BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0512-0512			●
50	BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0601-0610			●
50	BOLT; OUTLET PIPE M8X30 FLANGE	0-28650-830-0	02	1	0611-				●
54	CLIP; THERMO SWITCH,OUTLET PIPE ID=13 H=50 L=27	8-94130-076-0	01	1	9701-0207	●
54	CLIP; THERMO SWITCH,OUTLET PIPE ID=13 H=50 L=27	8-94130-076-0	01	1	0208-0511		●
54	CLIP; THERMO SWITCH,OUTLET PIPE ID=13 H=50 L=27	8-94130-076-0	01	1	0512-0610			●
64	GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94365-674-2	01	1	9701-0207	●
64	GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94365-674-2	01	1	0208-0511		●
64	GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94365-674-2	01	1	0512-0610			●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94365-675-1	01	1	9701-9902	●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97216-156-0	01	1	9903-0207	●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97216-156-0	01	1	0208-0511		●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97216-156-0	01	1	0512-0610			●
90	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60)	8-97038-624-0	03	1	0208-0511		●
90	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60)	8-97038-624-0	03	1	0512-0610			●
288	CLIP ID=12	5-09700-331-0	01	1	0208-0302		●
288	CLIP ID=12	8-97367-983-0	01	1	0303-0511		●
288	CLIP ID=12	8-97367-983-0	01	1	0512-0610			●

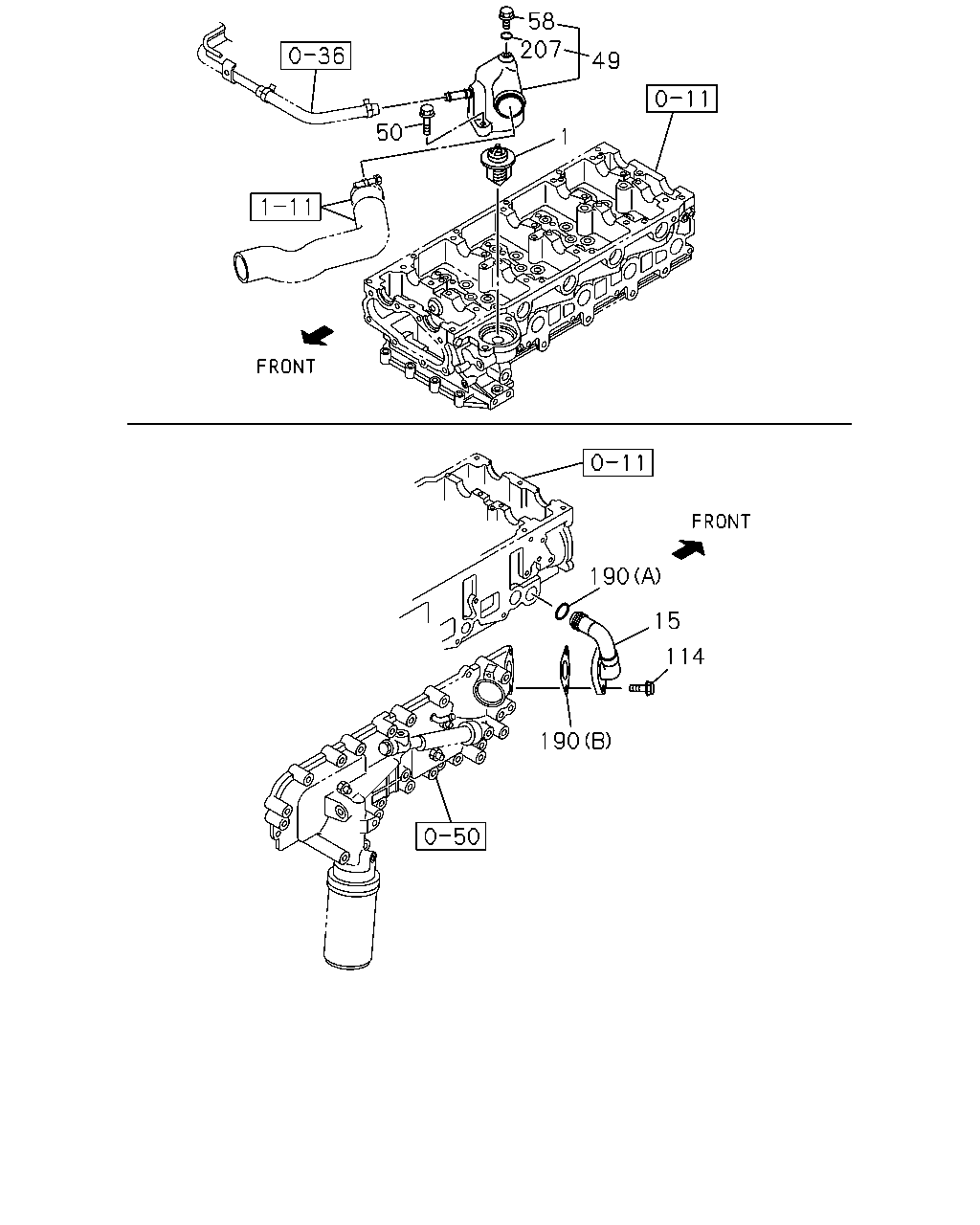

58 207 36 49 11 50 1 1 11 11 190 15 114 1 190 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	THERMOSTAT POWER STEERING<N40> 82 CELSIUS	8-97089-891-0	01	1	9701-9905	●
1	THERMOSTAT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 82 CELSIUS	8-97089-891-0	01	1	9906-0207	●
1	THERMOSTAT 82 CELSIUS	8-97089-891-0	01	1	0208-0211		●
1	THERMOSTAT 82 CELSIUS	8-97361-770-0	01	1	0212-0511		●
1	THERMOSTAT 82 CELSIUS	8-97361-770-0	01	1	0512-0610			●
1	THERMOSTAT 85 CELSIUS	8-98017-027-1	01	1	0611-				●
1	THERMOSTAT EXC. POWER STEERING<N40> 82 CELSIUS	8-94482-277-0	01	1	9701-9905	●
1	THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 82 CELSIUS	8-94482-277-1	01	1	9906-0207	●
15	PIPE; BYPASS	8-97318-732-2	01	1	0611-				●
49	PIPE; WATER OUTLET	8-94254-601-1	01	1	9701-9905	●
49	PIPE; WATER OUTLET	8-97183-181-0	01	1	9906-0207	●
49	PIPE; WATER OUTLET	8-97289-011-0	01	1	0208-0511		●
49	PIPE; WATER OUTLET	8-97289-011-0	01	1	0512-0610			●
49	PIPE; WATER OUTLET	8-98028-252-1	01	1	0611-				●
50	BOLT; OUTLET PIPE M8X30 FLANGE	0-28680-830-0	02	1	9701-9708	●
50	BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9709-0207	●
50	BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0208-0511		●
50	BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0512-0512			●
50	BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0601-0610			●
50	BOLT; OUTLET PIPE M8X30 FLANGE	0-28650-830-0	02	1	0611-				●
58	PLUG; WATER OUTLET PIPE M8X12 FLANGE	0-28050-812-0	01	1	0611-				●
114	BOLT; BYPASS PIPE M8X25 FLANGE	0-28650-825-0	02	1	0611-				●
190	GASKET; BYPASS PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	0-95690-226-0	01	1	0611-				●
190	GASKET; BYPASS PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98009-322-0	01	1	0611-				●
207	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2	1-09630-082-0	01	1	0611-				●
