0-25 — INLET MANIFOLD (#139011) — 186 parça

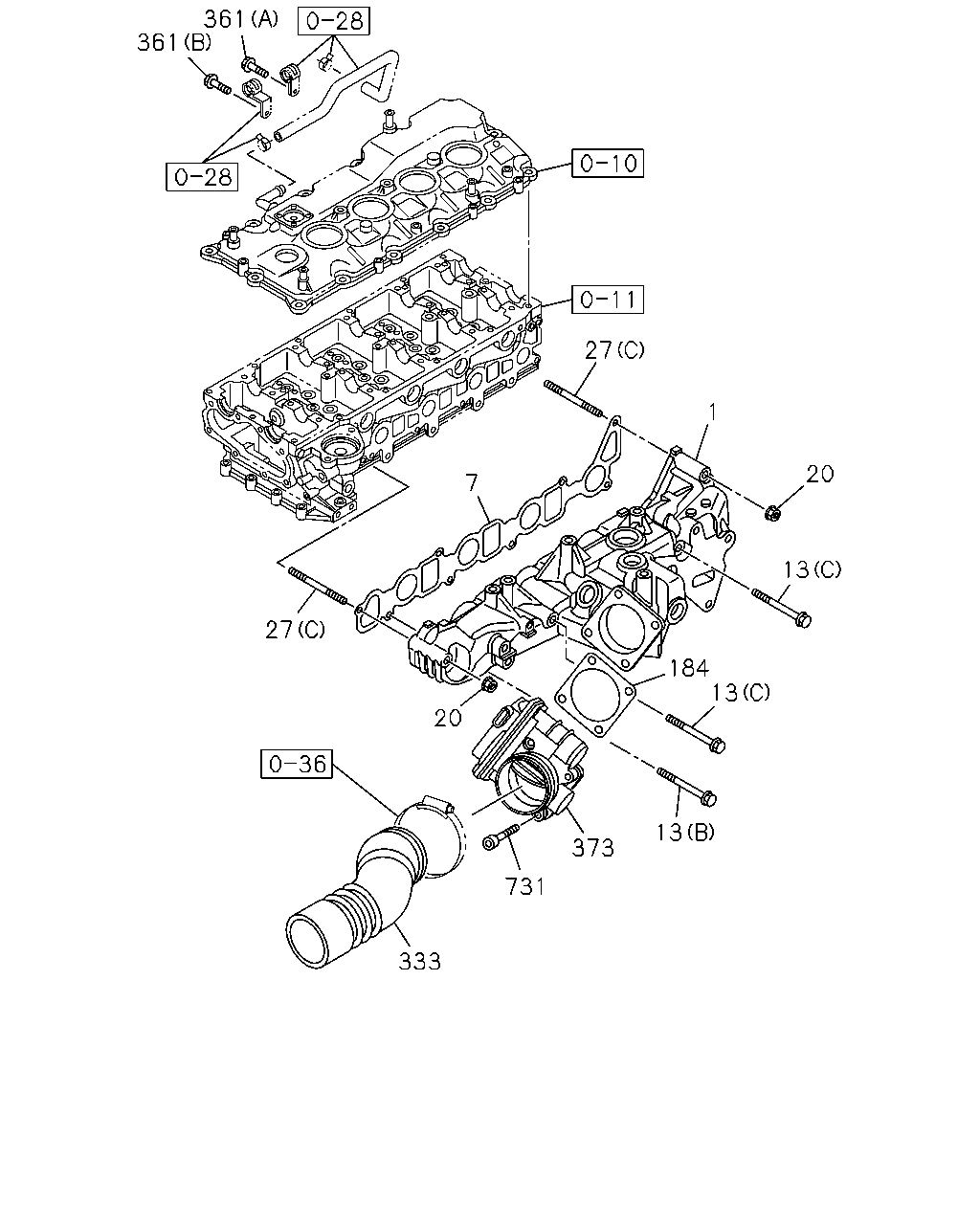

361 361 28 10 28 11 27 1 20 7 13 27 184 13 20 36 13 373 731 333

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	MANIFOLD; INL	8-97107-744-1	01	1	9701-0207	●
1	MANIFOLD; INL	8-97192-327-1	01	1	0208-0511		●
1	MANIFOLD; INL	8-97192-327-1	01	1	0512-0610			●
1	MANIFOLD; INL	8-98024-411-1	01	1	0611-				●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97066-741-1	01	1	9701-9905	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97228-044-0	01	1	9906-0101	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-0	01	1	0102-0207	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-1	01	1	0208-0511		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-1	01	1	0512-0610			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97312-067-1	01	1	0611-				●
10	GASKET; INL PIPE TO MANIF	8-97035-883-0	01	1	9701-9905	●
13	BOLT; INL MANIF (A) M8X25 W/LK WASHER	0-50040-825-0	06	1	9701-0207	●
13	BOLT; INL MANIF (A) M8X25 W/LK WASHER	0-50040-825-0	04	1	0208-0511		●
13	BOLT; INL MANIF (A) M8X25 W/LK WASHER	0-50040-825-0	04	1	0512-0512			●
13	BOLT; INL MANIF (A) M8X25 W/LK WASHER	0-50540-825-0	04	1	0601-0610			●
13	BOLT; INL MANIF (C) M8X110 FLANGE	0-28055-811-0	02	1	0611-				●
13	BOLT; INL MANIF (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	0208-0511		●
13	BOLT; INL MANIF (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	0512-0512			●
13	BOLT; INL MANIF (A) M8X30 W/LK WASHER	0-50540-830-0	02	1	0601-0610			●
13	BOLT; INL MANIF (B) M8X70 12-POINT HEAD	8-97101-065-0	04	1	0611-				●
20	NUT; INL MANIF M8 FLANGE TAI	5-09440-005-0	02	1	9701-0207	●
20	NUT; INL MANIF M8 FLANGE TAI	5-09440-005-0	02	1	0208-0511		●
20	NUT; INL MANIF M8 FLANGE TAI	5-09440-005-0	02	1	0512-0610			●
20	NUT; INL MANIF M8 FLANGE	0-91180-208-0	02	1	0611-				●
27	STUD; INL MANIF (A) M8X25 L=37	9-04110-825-0	01	1	9701-0207	●
27	STUD; INL MANIF (A) M8X25 L=37	9-04110-825-0	01	1	0208-0511		●
27	STUD; INL MANIF (A) M8X25 L=37	9-04110-825-0	01	1	0512-0604			●
27	STUD; INL MANIF (A) M8X25 L=37	0-41010-825-0	01	1	0605-0610			●
27	STUD; INL MANIF (C) M8X71 L=83	8-98017-063-0	02	1	0611-				●
27	STUD; INL MANIF (B) M8X35 L=46	9-09630-034-1	01	1	9701-0207	●
27	STUD; INL MANIF (B) M8X35 L=46	9-09630-034-1	01	1	0208-0511		●
27	STUD; INL MANIF (B) M8X35 L=46	9-09630-034-1	01	1	0512-0610			●
184	GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97035-883-0	01	1	9906-0207	●
184	GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97035-883-1	01	1	0208-0511		●
184	GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97035-883-1	01	1	0512-0610			●
184	GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97366-784-1	01	1	0611-				●
333	HOSE; RUBBER,INL PIPE	8-98056-469-0	01	1	0611-				●
361	BOLT; CLIP (A) M6X10 FLANGE	0-28050-610-0	01	1	0611-				●
361	BOLT; CLIP (B) M8X12 HEX SOCKET	0-58330-812-0	01	1	0611-				●
373	THROTTLE ASM; INT	8-98040-003-4	01	1	0611-				●
731	BOLT; THROTTLE ASM M6X50 HEX SOCKET	0-58330-650-0	04	1	0611-				●

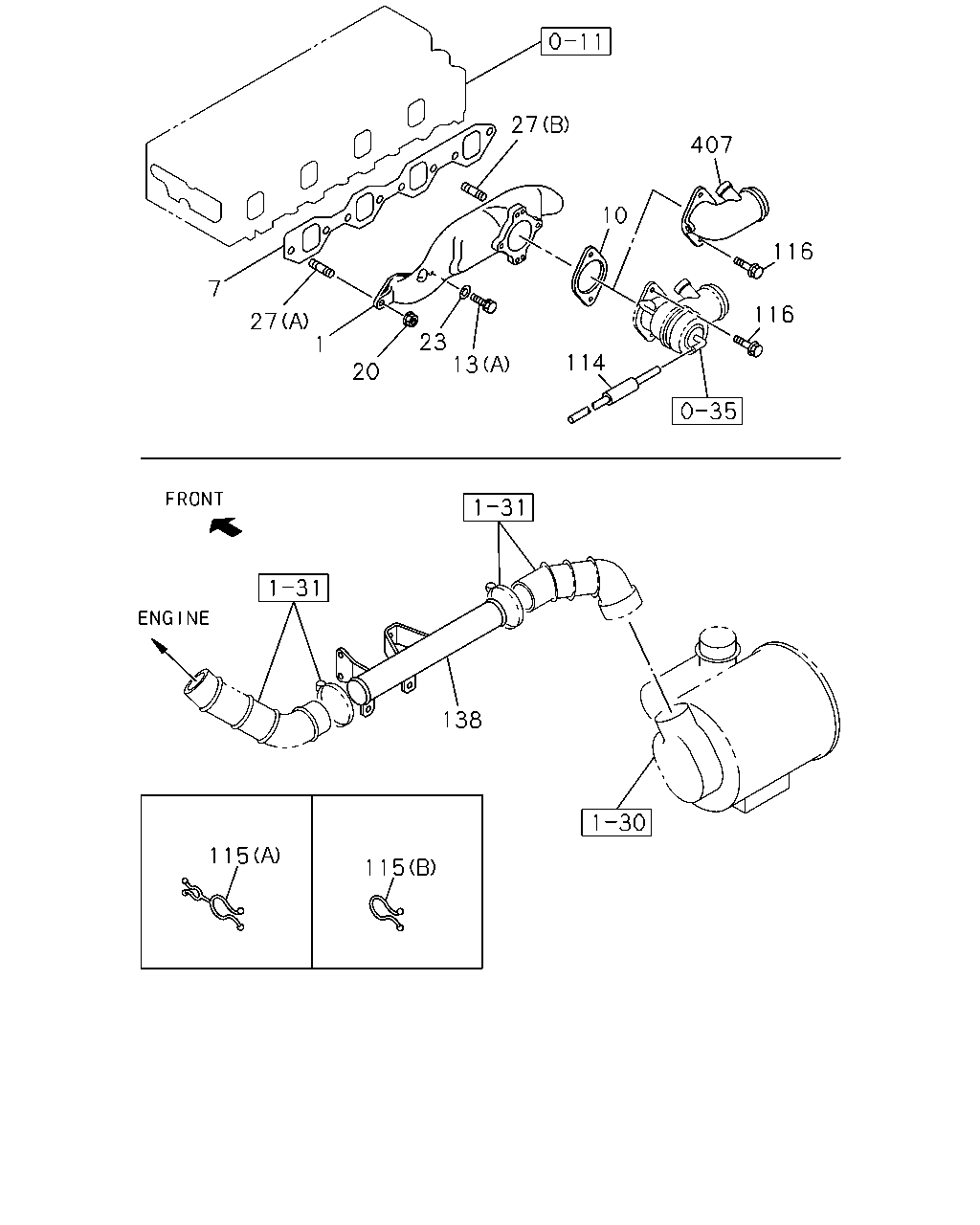

11 27 407 10 116 7 116 27 1 23 13 114 20 35 1 31 1 31 138 1 30 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	MANIFOLD; INL	8-97107-744-1	01	1	9701-0207	●
1	MANIFOLD; INL	8-97192-327-1	01	1	0208-0511		●
1	MANIFOLD; INL	8-97192-327-1	01	1	0512-0610			●
1	MANIFOLD; INL	8-98024-411-1	01	1	0611-				●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97066-741-1	01	1	9701-9905	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97228-044-0	01	1	9906-0101	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-0	01	1	0102-0207	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-1	01	1	0208-0511		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-1	01	1	0512-0610			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97312-067-1	01	1	0611-				●
10	GASKET; INL PIPE TO MANIF	8-97035-883-0	01	1	9701-9905	●
13	BOLT; INL MANIF (A) M8X25 W/LK WASHER	0-50040-825-0	06	1	9701-0207	●
13	BOLT; INL MANIF (A) M8X25 W/LK WASHER	0-50040-825-0	04	1	0208-0511		●
13	BOLT; INL MANIF (A) M8X25 W/LK WASHER	0-50040-825-0	04	1	0512-0512			●
13	BOLT; INL MANIF (A) M8X25 W/LK WASHER	0-50540-825-0	04	1	0601-0610			●
13	BOLT; INL MANIF (C) M8X110 FLANGE	0-28055-811-0	02	1	0611-				●
13	BOLT; INL MANIF (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	0208-0511		●
13	BOLT; INL MANIF (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	0512-0512			●
13	BOLT; INL MANIF (A) M8X30 W/LK WASHER	0-50540-830-0	02	1	0601-0610			●
13	BOLT; INL MANIF (B) M8X70 12-POINT HEAD	8-97101-065-0	04	1	0611-				●
20	NUT; INL MANIF M8 FLANGE TAI	5-09440-005-0	02	1	9701-0207	●
20	NUT; INL MANIF M8 FLANGE TAI	5-09440-005-0	02	1	0208-0511		●
20	NUT; INL MANIF M8 FLANGE TAI	5-09440-005-0	02	1	0512-0610			●
20	NUT; INL MANIF M8 FLANGE	0-91180-208-0	02	1	0611-				●
23	WASHER; PL,INL MANIF ID=8.4 OD=22	9-09164-708-0	01	1	9701-0207	●
27	STUD; INL MANIF (A) M8X25 L=37	9-04110-825-0	01	1	9701-0207	●
27	STUD; INL MANIF (A) M8X25 L=37	9-04110-825-0	01	1	0208-0511		●
27	STUD; INL MANIF (A) M8X25 L=37	9-04110-825-0	01	1	0512-0604			●
27	STUD; INL MANIF (A) M8X25 L=37	0-41010-825-0	01	1	0605-0610			●
27	STUD; INL MANIF (C) M8X71 L=83	8-98017-063-0	02	1	0611-				●
27	STUD; INL MANIF (B) M8X35 L=46	9-09630-034-1	01	1	9701-0207	●
27	STUD; INL MANIF (B) M8X35 L=46	9-09630-034-1	01	1	0208-0511		●
27	STUD; INL MANIF (B) M8X35 L=46	9-09630-034-1	01	1	0512-0610			●
114	HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> L=1320	8-97096-148-1	01	1	9701-9809	●
114	HOSE; VAC,INT THROTTLE L=1320	8-97096-148-1	01	1	9810-9904	●
114	HOSE; VAC,INT THROTTLE L=1320	8-97227-211-0	01	1	9905-9905	●
114	HOSE; VAC,INT THROTTLE	8-97226-838-0	01	1	9906-0207	●
115	CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> (A) ID=8 & 23	5-09707-002-0	01	1	9701-9809	●
115	CLIP; VAC HOSE,INT THROTTLE (A) ID=8 & 23	5-09707-002-0	01	1	9810-9905	●
115	CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> (A) ID=8 & 16	5-09707-032-0	03	1	9701-9809	●
115	CLIP; VAC HOSE,INT THROTTLE (A) ID=8 & 16	5-09707-032-0	03	1	9810-9905	●
115	CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> (B) ID=37	8-94481-468-0	01	1	9701-9809	●
115	CLIP; VAC HOSE,INT THROTTLE (B) ID=37	8-94481-468-0	01	1	9810-9905	●
116	BOLT; MANIF TO INL PIPE M10X25 W/LK WASHER	0-50051-025-0	02	1	9701-9905	●
138	PIPE; INL	8-94417-173-1	01	1	9701-9905	●
407	PIPE; INL,REAR EXC. EXHAUST BRAKE<NF8>	8-94152-318-0	01	1	9701-9707	●
407	PIPE; INL,REAR EXC. EXHAUST BRAKE<NF8> TAI	8-97965-849-0	01	1	9708-9809	●

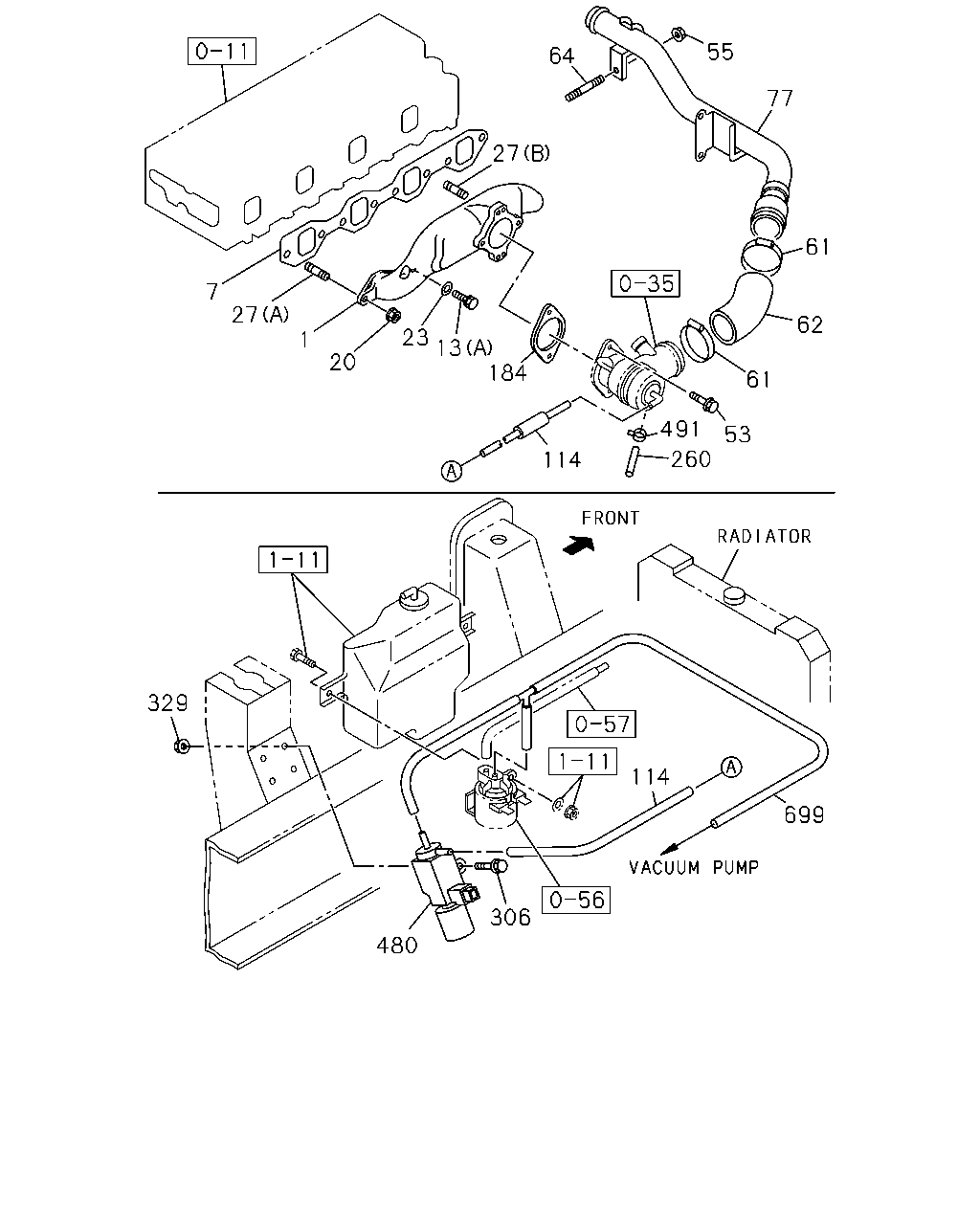

11 55 64 77 27 61 35 7 27 23 13 62 1 184 20 61 491 53 260 114 1 11 329 57 1 11 114 699 56 306 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	MANIFOLD; INL	8-97107-744-1	01	1	9701-0207	●
1	MANIFOLD; INL	8-97192-327-1	01	1	0208-0511		●
1	MANIFOLD; INL	8-97192-327-1	01	1	0512-0610			●
1	MANIFOLD; INL	8-98024-411-1	01	1	0611-				●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97066-741-1	01	1	9701-9905	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97228-044-0	01	1	9906-0101	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-0	01	1	0102-0207	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-1	01	1	0208-0511		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-1	01	1	0512-0610			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97312-067-1	01	1	0611-				●
13	BOLT; INL MANIF (A) M8X25 W/LK WASHER	0-50040-825-0	06	1	9701-0207	●
13	BOLT; INL MANIF (A) M8X25 W/LK WASHER	0-50040-825-0	04	1	0208-0511		●
13	BOLT; INL MANIF (A) M8X25 W/LK WASHER	0-50040-825-0	04	1	0512-0512			●
13	BOLT; INL MANIF (A) M8X25 W/LK WASHER	0-50540-825-0	04	1	0601-0610			●
13	BOLT; INL MANIF (C) M8X110 FLANGE	0-28055-811-0	02	1	0611-				●
13	BOLT; INL MANIF (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	0208-0511		●
13	BOLT; INL MANIF (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	0512-0512			●
13	BOLT; INL MANIF (A) M8X30 W/LK WASHER	0-50540-830-0	02	1	0601-0610			●
13	BOLT; INL MANIF (B) M8X70 12-POINT HEAD	8-97101-065-0	04	1	0611-				●
20	NUT; INL MANIF M8 FLANGE TAI	5-09440-005-0	02	1	9701-0207	●
20	NUT; INL MANIF M8 FLANGE TAI	5-09440-005-0	02	1	0208-0511		●
20	NUT; INL MANIF M8 FLANGE TAI	5-09440-005-0	02	1	0512-0610			●
20	NUT; INL MANIF M8 FLANGE	0-91180-208-0	02	1	0611-				●
23	WASHER; PL,INL MANIF ID=8.4 OD=22	9-09164-708-0	01	1	9701-0207	●
27	STUD; INL MANIF (A) M8X25 L=37	9-04110-825-0	01	1	9701-0207	●
27	STUD; INL MANIF (A) M8X25 L=37	9-04110-825-0	01	1	0208-0511		●
27	STUD; INL MANIF (A) M8X25 L=37	9-04110-825-0	01	1	0512-0604			●
27	STUD; INL MANIF (A) M8X25 L=37	0-41010-825-0	01	1	0605-0610			●
27	STUD; INL MANIF (C) M8X71 L=83	8-98017-063-0	02	1	0611-				●
27	STUD; INL MANIF (B) M8X35 L=46	9-09630-034-1	01	1	9701-0207	●
27	STUD; INL MANIF (B) M8X35 L=46	9-09630-034-1	01	1	0208-0511		●
27	STUD; INL MANIF (B) M8X35 L=46	9-09630-034-1	01	1	0512-0610			●
53	BOLT; INL PIPE M10X25 FLANGE	0-28781-025-0	02	1	9906-0207	●
53	BOLT; INL PIPE M10X25 FLANGE	0-28781-025-0	02	1	0208-0208		●
53	BOLT; INL PIPE M10X25 FLANGE	0-28181-025-0	02	1	0209-0511		●
53	BOLT; INL PIPE M10X25 FLANGE	0-28181-025-0	02	1	0512-0512			●
53	BOLT; INL PIPE M10X25 FLANGE	0-28151-025-0	02	1	0601-0610			●
55	NUT; INL PIPE M8 FLANGE	0-91150-108-0	01	1	9906-0207	●
61	CLIP; CONNECTOR HOSE ID=58-79	8-94126-771-0	02	1	9906-0207	●
62	HOSE; CONNECTOR	8-97176-147-0	01	1	9906-0207	●
64	STUD; INL PIPE M8X22 L=34	9-04110-822-0	01	1	9906-0207	●
77	PIPE; INL,INT SHUTTER TO INL MANIF	8-97229-343-0	01	1	9906-0207	●
114	HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> L=1320	8-97096-148-1	01	1	9701-9809	●
114	HOSE; VAC,INT THROTTLE L=1320	8-97096-148-1	01	1	9810-9904	●
114	HOSE; VAC,INT THROTTLE L=1320	8-97227-211-0	01	1	9905-9905	●
114	HOSE; VAC,INT THROTTLE	8-97226-838-0	01	1	9906-0207	●
184	GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97035-883-0	01	1	9906-0207	●
184	GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97035-883-1	01	1	0208-0511		●
184	GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97035-883-1	01	1	0512-0610			●
184	GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97366-784-1	01	1	0611-				●
260	CAP; RUBBER ID=4	8-94217-809-0	01	1	9906-0207	●
306	BOLT; VLV M8X12 FLANGE	0-28080-812-0	01	1	9906-0207	●
329	NUT; VLV M8 FLANGE	0-91150-108-0	01	1	9906-0207	●
480	VALVE ASM; VAC SW	8-94144-597-1	01	1	9906-0207	●
491	CLIP; CONNECTOR	8-97031-674-0	01	1	9906-0207	●
699	HOSE; VAC SOURCE AIR CONDITIONER MANUAL CONT(C60)	8-97226-837-0	01	1	9906-0006	●
699	HOSE; VAC SOURCE AIR CONDITIONER MANUAL CONT(C60)	8-97259-550-0	01	1	0007-0207	●
699	HOSE; VAC SOURCE SHORT CHAS(NH***C) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97226-836-0	01	1	9906-0207	●

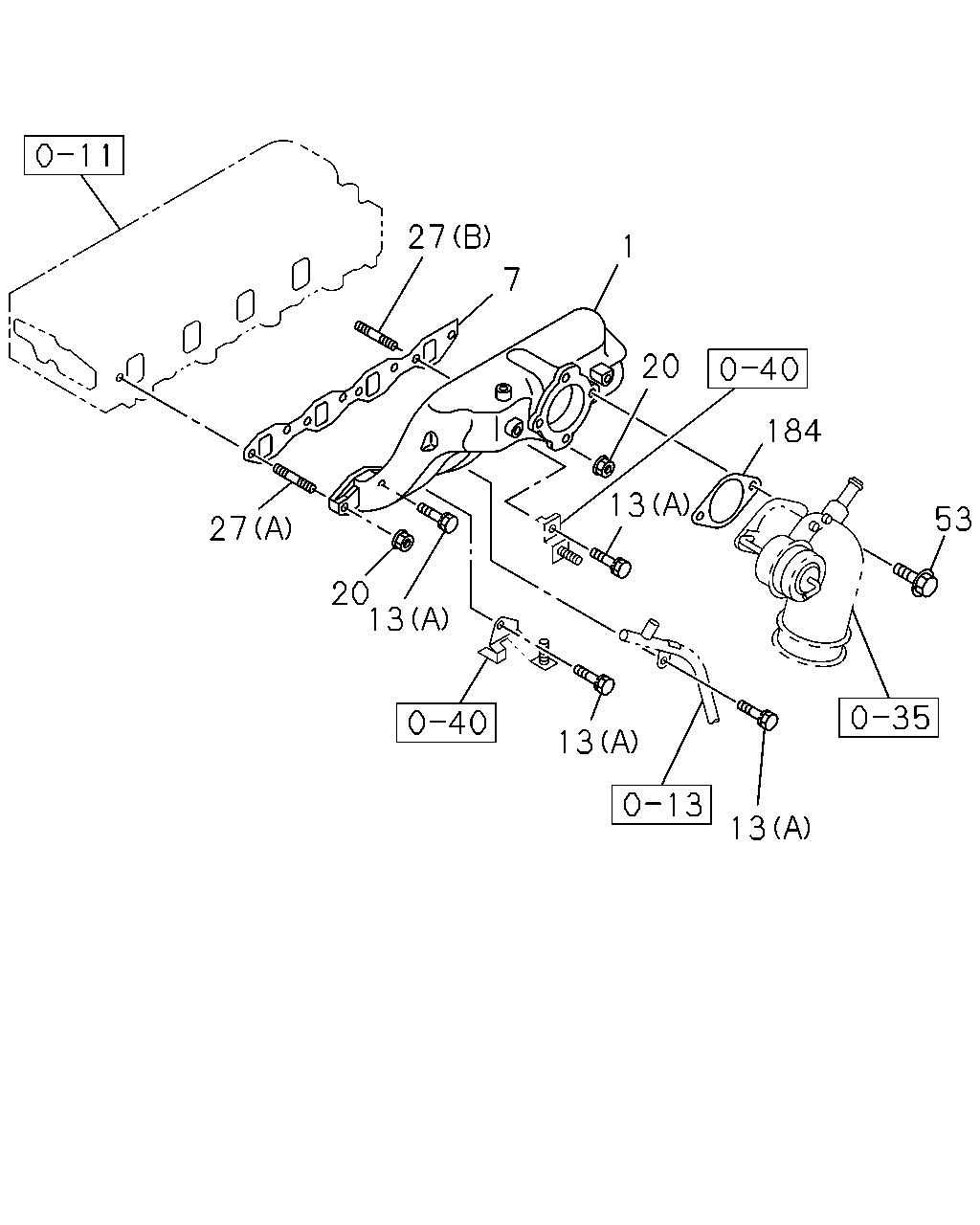

11 27 1 7 20 40 184 13 53 27 20 13 35 40 13 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	MANIFOLD; INL	8-97107-744-1	01	1	9701-0207	●
1	MANIFOLD; INL	8-97192-327-1	01	1	0208-0511		●
1	MANIFOLD; INL	8-97192-327-1	01	1	0512-0610			●
1	MANIFOLD; INL	8-98024-411-1	01	1	0611-				●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97066-741-1	01	1	9701-9905	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97228-044-0	01	1	9906-0101	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-0	01	1	0102-0207	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-1	01	1	0208-0511		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-1	01	1	0512-0610			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97312-067-1	01	1	0611-				●
13	BOLT; INL MANIF (A) M8X25 W/LK WASHER	0-50040-825-0	06	1	9701-0207	●
13	BOLT; INL MANIF (A) M8X25 W/LK WASHER	0-50040-825-0	04	1	0208-0511		●
13	BOLT; INL MANIF (A) M8X25 W/LK WASHER	0-50040-825-0	04	1	0512-0512			●
13	BOLT; INL MANIF (A) M8X25 W/LK WASHER	0-50540-825-0	04	1	0601-0610			●
13	BOLT; INL MANIF (C) M8X110 FLANGE	0-28055-811-0	02	1	0611-				●
13	BOLT; INL MANIF (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	0208-0511		●
13	BOLT; INL MANIF (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	0512-0512			●
13	BOLT; INL MANIF (A) M8X30 W/LK WASHER	0-50540-830-0	02	1	0601-0610			●
13	BOLT; INL MANIF (B) M8X70 12-POINT HEAD	8-97101-065-0	04	1	0611-				●
20	NUT; INL MANIF M8 FLANGE TAI	5-09440-005-0	02	1	9701-0207	●
20	NUT; INL MANIF M8 FLANGE TAI	5-09440-005-0	02	1	0208-0511		●
20	NUT; INL MANIF M8 FLANGE TAI	5-09440-005-0	02	1	0512-0610			●
20	NUT; INL MANIF M8 FLANGE	0-91180-208-0	02	1	0611-				●
27	STUD; INL MANIF (A) M8X25 L=37	9-04110-825-0	01	1	9701-0207	●
27	STUD; INL MANIF (A) M8X25 L=37	9-04110-825-0	01	1	0208-0511		●
27	STUD; INL MANIF (A) M8X25 L=37	9-04110-825-0	01	1	0512-0604			●
27	STUD; INL MANIF (A) M8X25 L=37	0-41010-825-0	01	1	0605-0610			●
27	STUD; INL MANIF (C) M8X71 L=83	8-98017-063-0	02	1	0611-				●
27	STUD; INL MANIF (B) M8X35 L=46	9-09630-034-1	01	1	9701-0207	●
27	STUD; INL MANIF (B) M8X35 L=46	9-09630-034-1	01	1	0208-0511		●
27	STUD; INL MANIF (B) M8X35 L=46	9-09630-034-1	01	1	0512-0610			●
53	BOLT; INL PIPE M10X25 FLANGE	0-28781-025-0	02	1	9906-0207	●
53	BOLT; INL PIPE M10X25 FLANGE	0-28781-025-0	02	1	0208-0208		●
53	BOLT; INL PIPE M10X25 FLANGE	0-28181-025-0	02	1	0209-0511		●
53	BOLT; INL PIPE M10X25 FLANGE	0-28181-025-0	02	1	0512-0512			●
53	BOLT; INL PIPE M10X25 FLANGE	0-28151-025-0	02	1	0601-0610			●
184	GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97035-883-0	01	1	9906-0207	●
184	GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97035-883-1	01	1	0208-0511		●
184	GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97035-883-1	01	1	0512-0610			●
184	GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97366-784-1	01	1	0611-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
