4-50 — FRONT SUSPENSION (#13901) — 107 parça

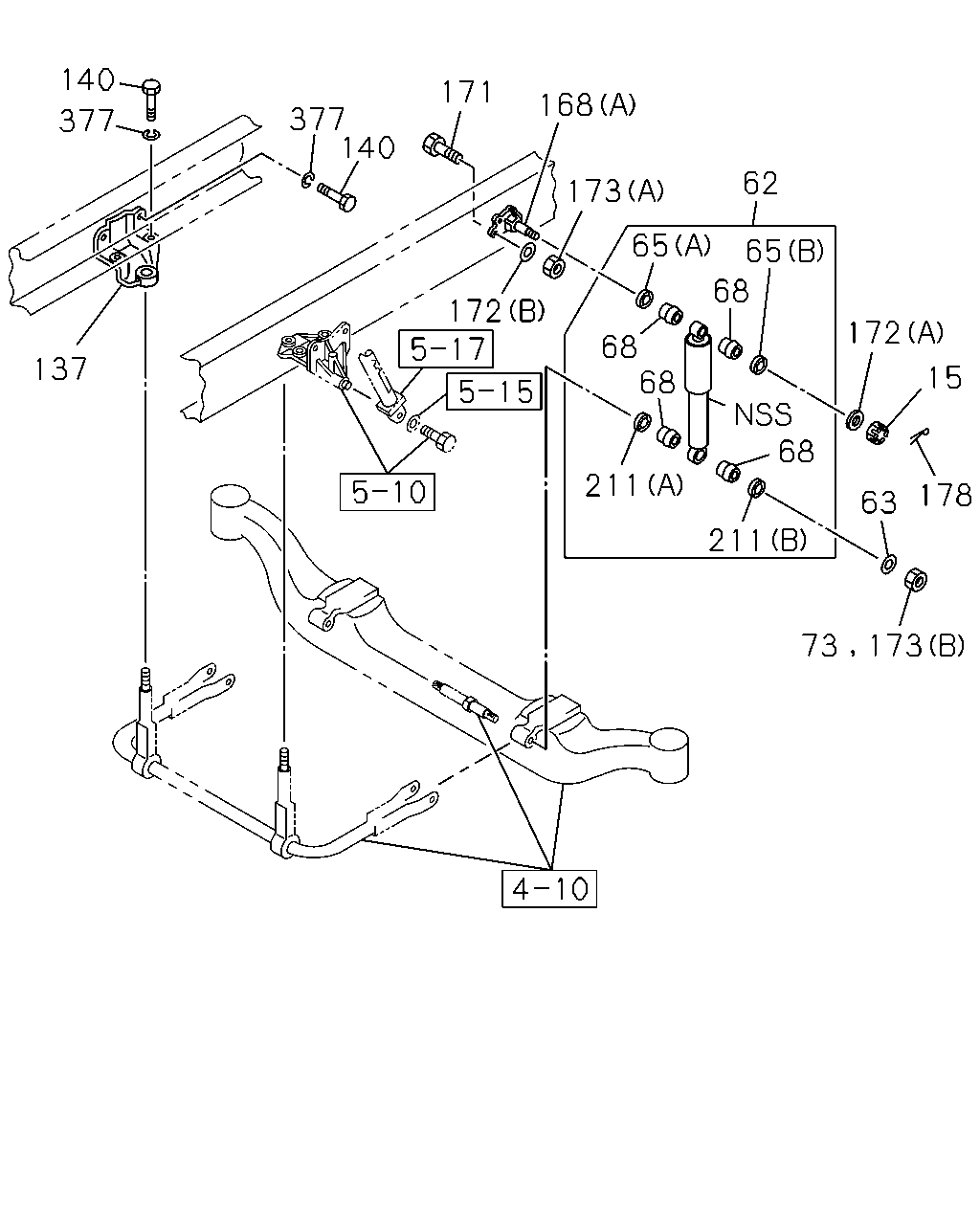

çizim 92911
73 173 63 178 68 211 211 15 172 68 68 68 65 62 173 65 172 168 171 140 377 377 140 137
BalonParca AdiParca NoAdetTipApplied Date
15 NUT; S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 04 1 0710-1107
15 NUT; S/ABS,UPR
M20 		0-91110-520-0 04 1 1108-
62 ABSORBER ASM; SHOCK,FRT 1-51630-805-1 02 1 0710-
63 WASHER; PL,S/ABS,LWR
ID=21 		0-91610-520-0 04 1 0710-
65 WASHER; S/ABS
(A) ID=27 		9-51631-027-0 02 1 0710-
65 WASHER; S/ABS
(B) ID=21 		9-51631-028-0 02 1 0710-
68 BUSHING; S/ABS 9-51631-026-0 08 1 0710-
68 BUSHING; S/ABS 9-51631-026-0 08 1 0710-
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 01 1 0710-
137 BRACKET; STAB BAR TO FRAME 1-51781-111-0 01 1 0710-
140 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 0710-
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-745-0 02 1 0710-1012
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 02 1 1101-
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51681-746-0 02 1 0710-1309
168 BRACKET; S/ABS,FRT SUSP
(B) 		8-98182-384-0 02 1 1310-
171 BOLT; S/ABS BRKT
M14X40 		0-20951-440-0 08 1 0710-
172 WASHER; PL,S/ABS BRKT
(A) ID=21 		0-91610-520-0 04 1 0710-
172 WASHER; PL,S/ABS BRKT
(B) ID=15 		9-09651-069-0 08 1 0710-0910
172 WASHER; PL,S/ABS BRKT
(B) ID=15 		8-98010-627-1 08 1 0911-
173 NUT; S/ABS
(A) M14 		0-91110-514-0 08 1 0710-
173 NUT; S/ABS
(B) M20 		0-91110-520-0 02 1 0710-
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		0-81124-035-0 02 1 0710-1011
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0710-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0710-
377 WASHER; LK,BRKT
ID=15 		9-09651-069-0 04 1 0710-1201
377 WASHER; LK,BRKT
ID=15 		8-98010-627-1 04 1 1202-

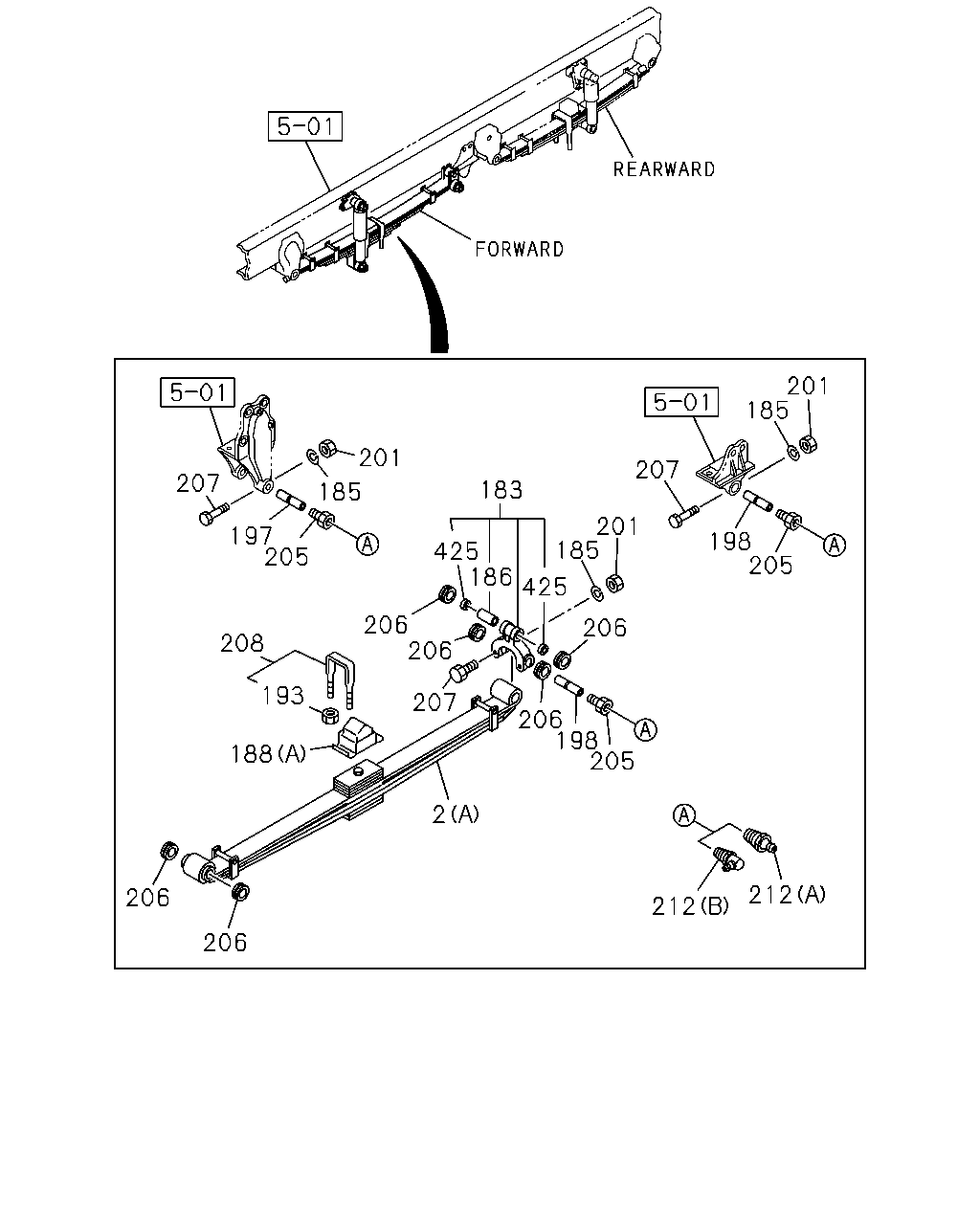

çizim 94617
207 201 185 197 205 208 193 188 2 206 206 207 206 206 206 198 205 212 212 206 425 186 425 183 185 201 198 205 207 185 201
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) FORWARD 		1-51130-924-0 02 1 0710-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) REARWARD 		1-51130-925-0 02 1 0710-
183 SHACKLE; FRT SUSP 1-51162-071-0 04 1 0710-1005
183 SHACKLE; FRT SUSP 1-51162-029-5 04 1 1006-
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 24 1 0710-
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 04 1 0710-1005
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 04 1 1006-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) REARWARD 		1-51172-081-1 02 1 0710-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) FORWARD 		1-51172-096-2 02 1 0710-
193 NUT; U BOLT
M22 		0-91112-822-0 16 1 0710-1206
193 NUT; U BOLT
M22 		8-98179-318-0 16 1 1207-
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 0710-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 0710-
201 NUT; PIN LK
M12 		0-91110-512-0 24 1 0710-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 0710-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 0710-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 24 1 0710-
208 U-BOLT SET; FRT SPRING
FORWARD L=240 		1-87870-376-2 04 1 0712-
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-2 04 1 0710-0711
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-2 04 1 0710-0711
208 U-BOLT SET; FRT SPRING
REARWARD L=230 		1-87870-269-2 04 1 0712-0712
208 U-BOLT SET; FRT SPRING
REARWARD L=210 		1-87870-380-1 04 1 0801-0801
208 U-BOLT SET; FRT SPRING
REARWARD L=230 		1-87870-269-2 04 1 0802-1206
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 04 1 1207-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 07 1 0710-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 05 1 0710-
425 SEAL; DUST 1-51177-321-0 08 1 0710-1005

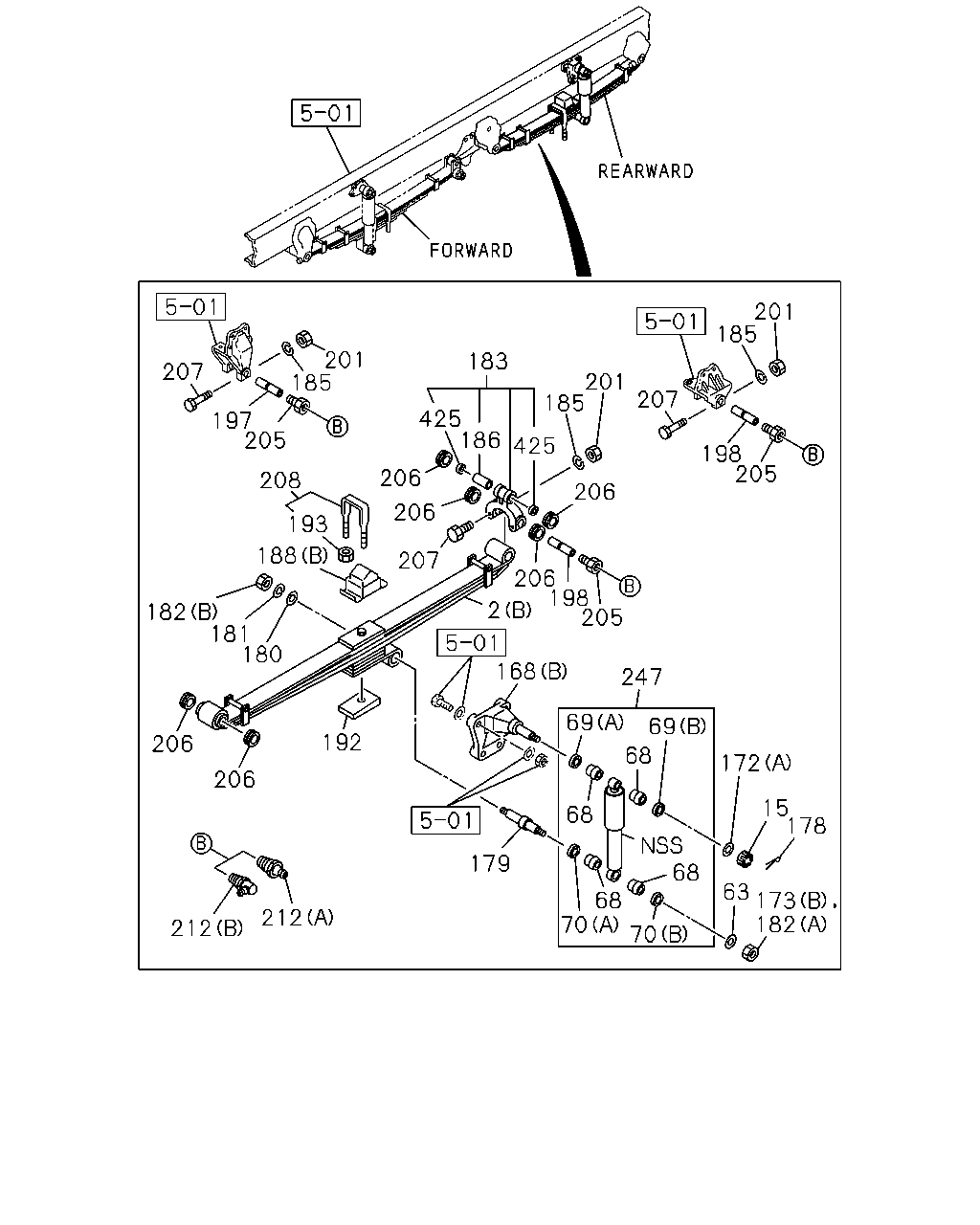

çizim 106722
207 197 185 201 205 183 425 206 206 207 193 208 188 182 181 180 192 206 206 212 212 70 70 179 182 173 178 15 172 63 68 68 69 68 247 69 168 2 206 198 205 206 425 186 185 201 207 198 205 185 201
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) FORWARD 		1-51130-924-0 02 1 0710-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) REARWARD 		1-51130-925-0 02 1 0710-
15 NUT; S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 04 1 0710-1107
15 NUT; S/ABS,UPR
M20 		0-91110-520-0 04 1 1108-
63 WASHER; PL,S/ABS,LWR
ID=21 		0-91610-520-0 04 1 0710-
68 BUSHING; S/ABS 9-51631-026-0 08 1 0710-
68 BUSHING; S/ABS 9-51631-026-0 08 1 0710-
69 WASHER; UPR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 0710-
69 WASHER; UPR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 0710-
70 WASHER; LWR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 0710-
70 WASHER; LWR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 0710-
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-745-0 02 1 0710-1012
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 02 1 1101-
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51681-746-0 02 1 0710-1309
168 BRACKET; S/ABS,FRT SUSP
(B) 		8-98182-384-0 02 1 1310-
172 WASHER; PL,S/ABS BRKT
(A) ID=21 		0-91610-520-0 04 1 0710-
172 WASHER; PL,S/ABS BRKT
(B) ID=15 		9-09651-069-0 08 1 0710-0910
172 WASHER; PL,S/ABS BRKT
(B) ID=15 		8-98010-627-1 08 1 0911-
173 NUT; S/ABS
(A) M14 		0-91110-514-0 08 1 0710-
173 NUT; S/ABS
(B) M20 		0-91110-520-0 02 1 0710-
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		0-81124-035-0 02 1 0710-1011
179 PIN 1-51682-094-1 02 1 0710-
180 WASHER; PL,PIN
ID=25 		1-09503-169-0 02 1 0710-
181 WASHER; LK,PIN
ID=24.5 		0-91510-524-0 02 1 0710-
182 NUT; S/ABS LWR
(A) M20 		0-91110-520-0 01 1 0710-
182 NUT; S/ABS LWR
(B) M24 		0-91110-524-0 02 1 0710-
183 SHACKLE; FRT SUSP 1-51162-071-0 04 1 0710-1005
183 SHACKLE; FRT SUSP 1-51162-029-5 04 1 1006-
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 24 1 0710-
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 04 1 0710-1005
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 04 1 1006-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) REARWARD 		1-51172-081-1 02 1 0710-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) FORWARD 		1-51172-096-2 02 1 0710-
192 PIECE; DIST 1-51177-281-1 02 1 0710-1308
192 PIECE; DIST 8-98200-748-0 02 1 1309-
193 NUT; U BOLT
M22 		0-91112-822-0 16 1 0710-1206
193 NUT; U BOLT
M22 		8-98179-318-0 16 1 1207-
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 0710-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 0710-
201 NUT; PIN LK
M12 		0-91110-512-0 24 1 0710-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 0710-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 0710-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 24 1 0710-
208 U-BOLT SET; FRT SPRING
FORWARD L=240 		1-87870-376-2 04 1 0712-
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-2 04 1 0710-0711
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-2 04 1 0710-0711
208 U-BOLT SET; FRT SPRING
REARWARD L=230 		1-87870-269-2 04 1 0712-0712
208 U-BOLT SET; FRT SPRING
REARWARD L=210 		1-87870-380-1 04 1 0801-0801
208 U-BOLT SET; FRT SPRING
REARWARD L=230 		1-87870-269-2 04 1 0802-1206
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 04 1 1207-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 07 1 0710-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 05 1 0710-
247 ABSORBER ASM; SHOCK,RWD FRT 1-51630-805-1 02 1 0710-
425 SEAL; DUST 1-51177-321-0 08 1 0710-1005
