Sayfa 0-20 - Isuzu EPC

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#139009) — 390 parça

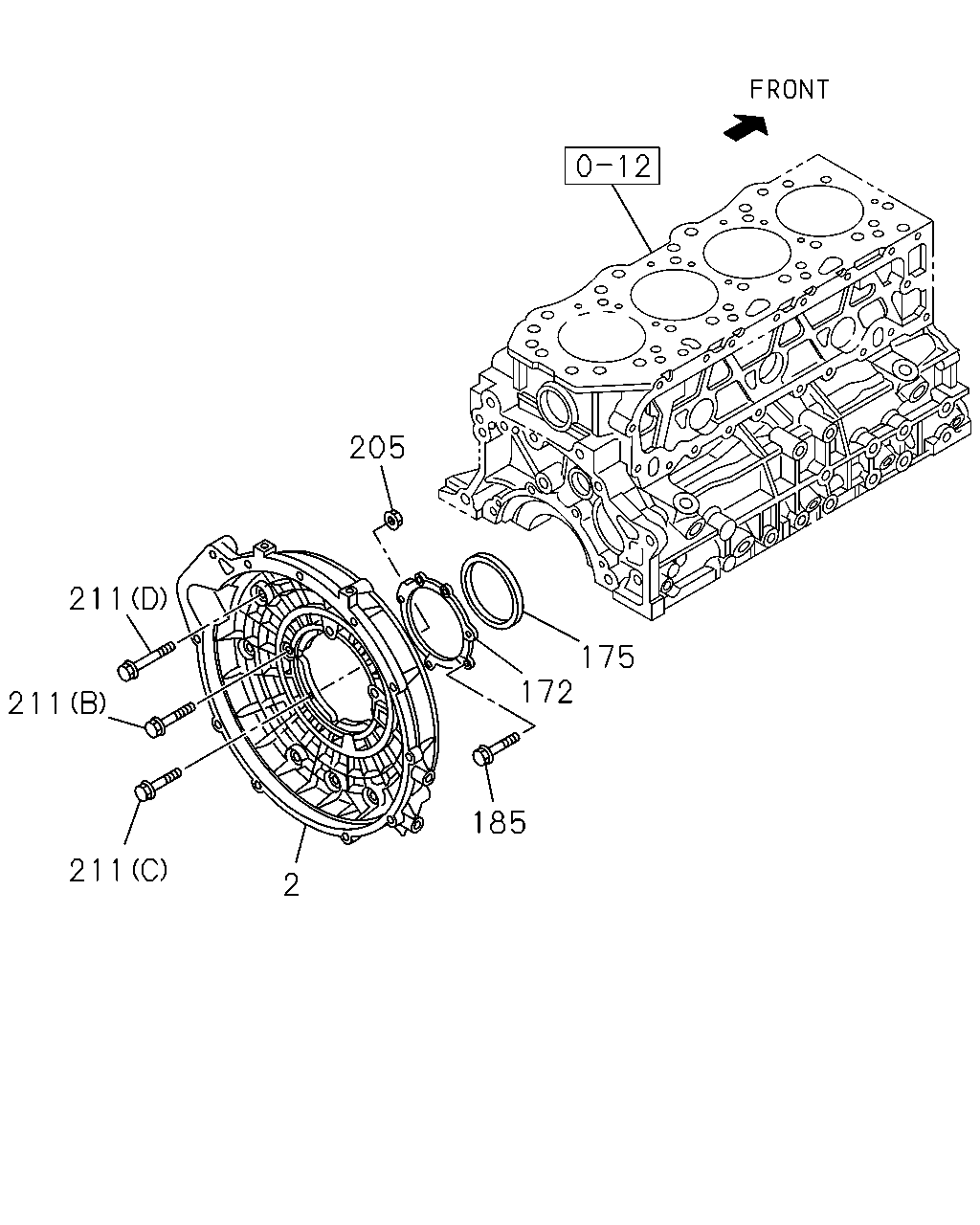

12 205 211 175 172 211 185 211 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	HOUSING; FLYWHEEL	8-97240-094-1	01	1	0208-0511	●
2	HOUSING; FLYWHEEL	8-97240-094-1	01	1	0512-0610		●
2	HOUSING; FLYWHEEL	8-97381-492-3	01	1	0611-			●
172	RETAINER; CR/SHF	8-97175-986-3	01	1	0611-			●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9701-0207				●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0208-0511	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0512-0610		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0611-			●
185	BOLT; RET TO C/BL M8X25 FLANGE	0-28650-825-0	05	1	0611-			●
205	NUT; HSG M10 FLANGE	0-91150-210-0	01	1	0208-0511	●
205	NUT; HSG M10 FLANGE	0-91150-210-0	01	1	0512-0602		●
205	NUT; HSG M10 FLANGE	0-91180-210-0	01	1	0603-0610		●
205	NUT; HSG M10 FLANGE	0-91180-210-0	01	1	0611-			●
211	BOLT; HSG (A) M10X30 FLANGE	0-28081-030-0	03	1	0208-0511	●
211	BOLT; HSG (A) M10X30 FLANGE	0-28081-030-0	03	1	0512-0512		●
211	BOLT; HSG (A) M10X30 FLANGE	0-28051-030-0	03	1	0601-0610		●
211	BOLT; HSG (D) M12X35 FLANGE	0-28651-235-0	06	1	0611-			●
211	BOLT; HSG (B) M12X25	5-09000-227-0	03	1	0208-0511	●
211	BOLT; HSG (B) M12X25	5-09000-227-0	03	1	0512-0610		●
211	BOLT; HSG (B) M12X25	5-09000-227-0	03	1	0611-			●
211	BOLT; HSG (C) M10X43	9-09606-535-0	01	1	0611-			●

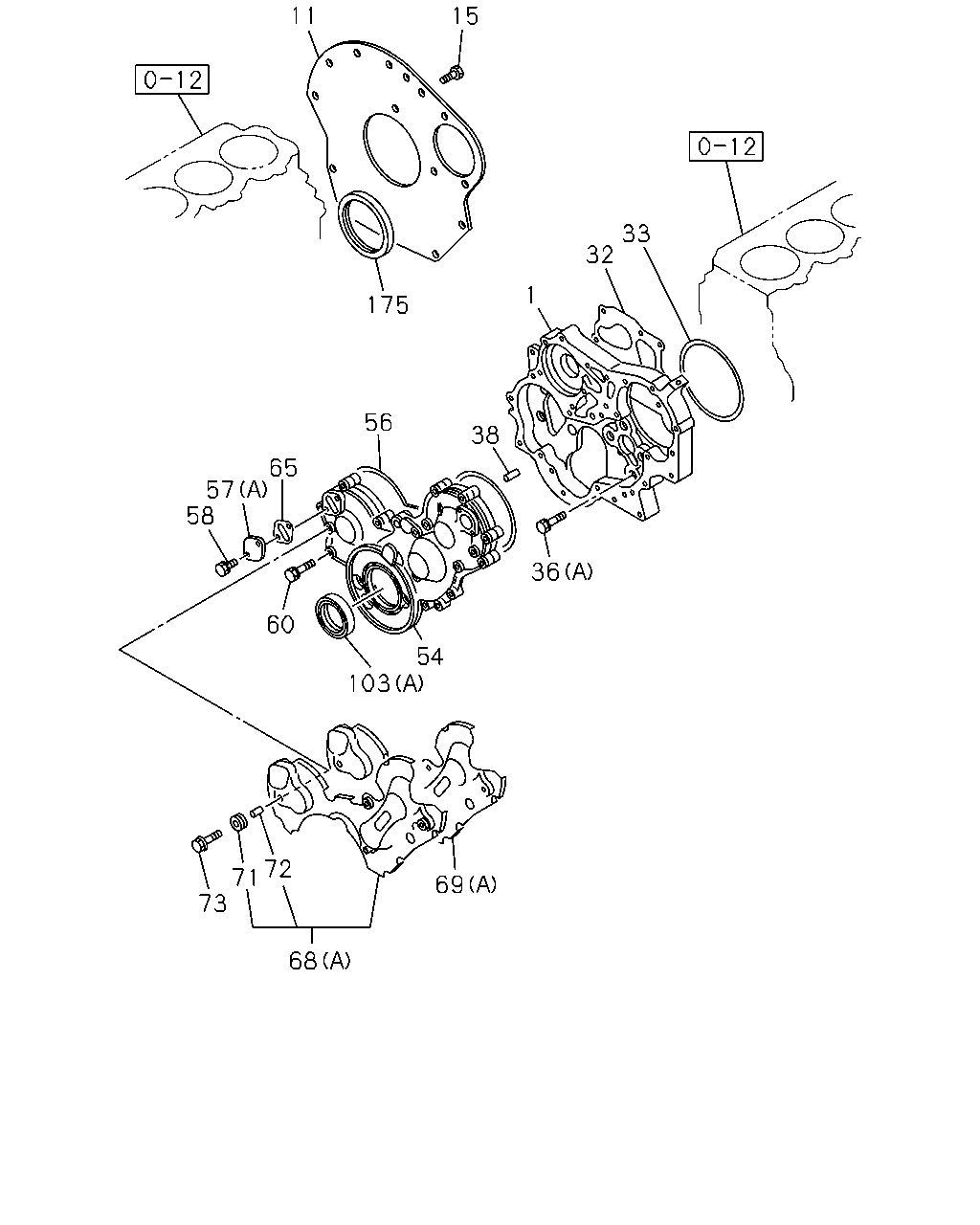

15 11 12 12 33 32 1 175 56 38 65 57 58 36 60 54 103 72 71 73 69 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CASE; TIMING GEAR	8-97129-982-2	01	1	9701-9905				●
1	CASE; TIMING GEAR	8-97141-532-2	01	1	9906-0207				●
1	CASE; TIMING GEAR	8-97239-983-2	01	1	0208-0511	●
1	CASE; TIMING GEAR	8-97239-983-2	01	1	0512-0610		●
1	CASE; TIMING GEAR	8-97945-261-2	01	1	0611-			●
11	PLATE; RR,C/BL	8-94437-923-2	01	1	9701-0207				●
15	BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9701-0207				●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-0	01	1	9701-9905				●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	0208-0511	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	0512-0610		●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-221-2	01	1	0611-			●
33	GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94109-707-0	01	1	9701-9905				●
33	GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-672-0	01	1	0208-0511	●
33	GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-672-0	01	1	0512-0610		●
36	BOLT; GEAR CASE (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	9701-9905				●
36	BOLT; GEAR CASE POWER STEERING<N40> (A) M8X45 W/LK WASHER	0-50040-845-0	01	1	9701-0207				●
36	BOLT; GEAR CASE (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0208-0503	●
36	BOLT; GEAR CASE (B) M8X45 W/LK WASHER	0-50040-845-0	02	1	0504-0511	●
36	BOLT; GEAR CASE (B) M8X45 W/LK WASHER	0-50040-845-0	02	1	0512-0610		●
36	BOLT; GEAR CASE (G) M8X16 FLANGE	0-28050-816-0	01	1	0611-			●
36	BOLT; GEAR CASE EXC. POWER STEERING<N40> (A) M8X45 W/LK WASHER	0-50040-845-0	02	1	9701-0207				●
36	BOLT; GEAR CASE (C) M8X20 W/LK WASHER	0-50040-820-0	06	1	0208-0511	●
36	BOLT; GEAR CASE (C) M8X20 W/LK WASHER	0-50040-820-0	06	1	0512-0610		●
36	BOLT; GEAR CASE (J) M8X20 FLANGE	0-28050-820-0	12	1	0611-			●
36	BOLT; GEAR CASE (H) M8X35 FLANGE	0-28050-835-0	01	1	0611-			●
36	BOLT; GEAR CASE (F) M8X45 FLANGE	0-28050-845-0	02	1	0611-			●
36	BOLT; GEAR CASE (I) M8X60 FLANGE	0-28050-860-0	01	1	0611-			●
36	BOLT; GEAR CASE (D) M8X25 FLANGE	0-28650-825-0	01	1	0611-			●
36	BOLT; GEAR CASE (E) M8X30 FLANGE	0-28650-830-0	03	1	0611-			●
38	PIN; GEAR CASE COVER OD=10 L=20	9-08151-020-0	02	1	9701-9905				●
38	PIN; GEAR CASE COVER OD=10 L=20 USA	8-97135-423-0	02	1	0208-0511	●
38	PIN; GEAR CASE COVER OD=10 L=20 USA	8-97135-423-0	02	1	0512-0610		●
38	PIN; GEAR CASE COVER OD=10 L=20 USA	8-97135-423-0	02	1	0611-			●
54	COVER; GEAR CASE	8-94155-360-2	01	1	9701-9903				●
54	COVER; GEAR CASE	8-97219-278-0	01	1	9904-9905				●
54	COVER; GEAR CASE	8-97239-984-4	01	1	0208-0511	●
54	COVER; GEAR CASE	8-97239-984-4	01	1	0512-0610		●
54	COVER; GEAR CASE	8-98012-960-2	01	1	0611-			●
56	GASKET; GEAR CASE TO COVER	8-94140-117-1	01	1	9701-9905				●
56	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	0208-0511	●
56	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	0512-0610		●
57	COVER; TIMING CHECK HOLE (A)	5-11321-009-0	02	1	9701-9905				●
57	COVER; TIMING CHECK HOLE (B)	5-11321-009-0	02	1	0208-0511	●
57	COVER; TIMING CHECK HOLE (B)	5-11321-009-0	02	1	0512-0610		●
57	COVER; TIMING CHECK HOLE (C)	8-97304-608-1	01	1	0208-0511	●
57	COVER; TIMING CHECK HOLE (C)	8-97304-608-1	01	1	0512-0610		●
58	BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	04	1	9701-9905				●
58	BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	06	1	0208-0403	●
58	BOLT; CHECK HOLE COVER M6X12 FLANGE	0-28080-612-0	06	1	0404-0511	●
58	BOLT; CHECK HOLE COVER M6X12 FLANGE	0-28080-612-0	06	1	0512-0512		●
58	BOLT; CHECK HOLE COVER M6X12 FLANGE	0-28050-612-0	06	1	0601-0610		●
60	BOLT; COVER TO CASE M8X32 W/LK WASHER	0-50040-832-0	08	1	9701-9905				●
60	BOLT; COVER TO CASE M8X60 W/LK WASHER	0-50040-860-0	01	1	9701-9905				●
60	BOLT; COVER TO CASE M8X65 W/LK WASHER	8-94205-986-1	06	1	9701-9903				●
60	BOLT; COVER TO CASE M8X60 FLANGE	0-28080-860-0	06	1	9904-9905				●
60	BOLT; COVER TO CASE M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9701-9905				●
65	GASKET; COVER,TIMING CHECK HOLE	8-97118-698-0	02	1	9701-9905				●
65	GASKET; COVER,TIMING CHECK HOLE	8-97027-601-1	03	1	0208-0311	●
65	GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97118-698-1	03	1	0312-0511	●
65	GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97118-698-1	03	1	0512-0610		●
68	COVER ASM; GEAR CASE COVER (A)	8-94155-721-1	01	1	9701-9905				●
68	COVER ASM; GEAR CASE COVER (B)	8-97255-034-1	01	1	0208-0511	●
68	COVER ASM; GEAR CASE COVER (B)	8-97255-034-1	01	1	0512-0610		●
68	COVER ASM; GEAR CASE COVER (D)	8-98009-466-3	01	1	0611-			●
68	COVER ASM; GEAR CASE COVER (C)	8-97239-987-1	01	1	0208-0208	●
68	COVER ASM; GEAR CASE COVER (C)	8-97358-022-0	01	1	0209-0511	●
68	COVER ASM; GEAR CASE COVER (C)	8-97358-022-0	01	1	0512-0610		●
69	SEAL; RUBBER,COVER TO COVER (A)	8-94155-722-3	01	1	9701-9905				●
69	SEAL; RUBBER,COVER TO COVER (B)	8-97255-035-1	01	1	0208-0302	●
69	SEAL; RUBBER,COVER TO COVER (B)	8-97329-009-0	01	1	0303-0511	●
69	SEAL; RUBBER,COVER TO COVER (B)	8-97329-009-0	01	1	0512-0610		●
69	SEAL; RUBBER,COVER TO COVER (C)	8-97239-992-0	01	1	0208-0211	●
69	SEAL; RUBBER,COVER TO COVER (C)	8-97358-025-0	01	1	0212-0302	●
69	SEAL; RUBBER,COVER TO COVER (C)	8-97329-011-0	01	1	0303-0511	●
69	SEAL; RUBBER,COVER TO COVER (C)	8-97329-011-0	01	1	0512-0610		●
71	RUBBER; MTG,COVER	5-19389-002-0	04	1	9701-9905				●
71	RUBBER; MTG,COVER	5-19389-002-0	05	1	0208-0511	●
71	RUBBER; MTG,COVER	5-19389-002-0	05	1	0512-0610		●
72	BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	9701-9905				●
72	BUSHING; SPACER,COVER TO COVER	5-19389-009-0	05	1	0208-0511	●
72	BUSHING; SPACER,COVER TO COVER	5-19389-009-0	05	1	0512-0610		●
73	BOLT; COVER FIX M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	9701-9905				●
73	BOLT; COVER FIX M6X18 W/LK&PL WASHER	0-50140-618-0	05	1	0208-0403	●
73	BOLT; COVER FIX M6X16 FLANGE	0-28080-616-0	05	1	0404-0511	●
73	BOLT; COVER FIX M6X16 FLANGE	0-28080-616-0	05	1	0512-0512		●
73	BOLT; COVER FIX M6X16 FLANGE	0-28050-616-0	05	1	0601-0610		●
73	BOLT; COVER FIX M6X12 FLANGE	0-28050-612-0	02	1	0611-			●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97049-145-0	01	1	9701-9905				●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97071-560-1	01	1	9906-0207				●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97351-704-0	01	1	0208-0511	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97351-704-0	01	1	0512-0610		●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-97382-606-0	01	1	0611-			●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97386-601-0	01	1	0611-			●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9701-0207				●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0208-0511	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0512-0610		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0611-			●

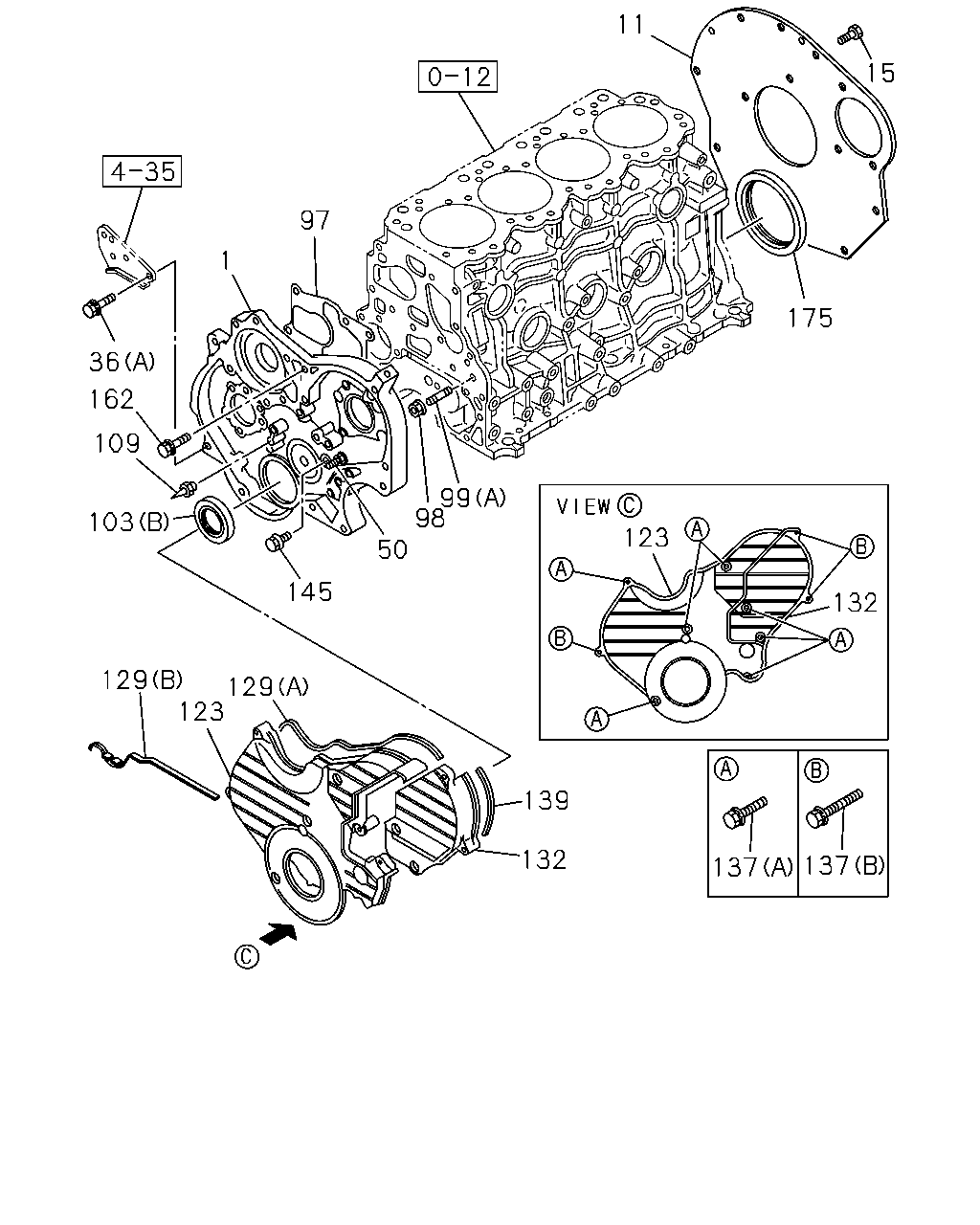

11 15 12 4 35 97 1 175 36 162 109 99 98 50 103 123 145 132 129 129 123 139 132 137 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CASE; TIMING GEAR	8-97129-982-2	01	1	9701-9905				●
1	CASE; TIMING GEAR	8-97141-532-2	01	1	9906-0207				●
1	CASE; TIMING GEAR	8-97239-983-2	01	1	0208-0511	●
1	CASE; TIMING GEAR	8-97239-983-2	01	1	0512-0610		●
1	CASE; TIMING GEAR	8-97945-261-2	01	1	0611-			●
4	VALVE ASM; CHECK	8-98049-521-0	01	1	0611-			●
11	PLATE; RR,C/BL	8-94437-923-2	01	1	9701-0207				●
15	BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9701-0207				●
36	BOLT; GEAR CASE (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	9701-9905				●
36	BOLT; GEAR CASE POWER STEERING<N40> (A) M8X45 W/LK WASHER	0-50040-845-0	01	1	9701-0207				●
36	BOLT; GEAR CASE (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0208-0503	●
36	BOLT; GEAR CASE (B) M8X45 W/LK WASHER	0-50040-845-0	02	1	0504-0511	●
36	BOLT; GEAR CASE (B) M8X45 W/LK WASHER	0-50040-845-0	02	1	0512-0610		●
36	BOLT; GEAR CASE (G) M8X16 FLANGE	0-28050-816-0	01	1	0611-			●
36	BOLT; GEAR CASE EXC. POWER STEERING<N40> (A) M8X45 W/LK WASHER	0-50040-845-0	02	1	9701-0207				●
36	BOLT; GEAR CASE (C) M8X20 W/LK WASHER	0-50040-820-0	06	1	0208-0511	●
36	BOLT; GEAR CASE (C) M8X20 W/LK WASHER	0-50040-820-0	06	1	0512-0610		●
36	BOLT; GEAR CASE (J) M8X20 FLANGE	0-28050-820-0	12	1	0611-			●
36	BOLT; GEAR CASE (H) M8X35 FLANGE	0-28050-835-0	01	1	0611-			●
36	BOLT; GEAR CASE (F) M8X45 FLANGE	0-28050-845-0	02	1	0611-			●
36	BOLT; GEAR CASE (I) M8X60 FLANGE	0-28050-860-0	01	1	0611-			●
36	BOLT; GEAR CASE (D) M8X25 FLANGE	0-28650-825-0	01	1	0611-			●
36	BOLT; GEAR CASE (E) M8X30 FLANGE	0-28650-830-0	03	1	0611-			●
50	STUD M8X42.5 L=69	8-97148-539-0	01	1	9906-0207				●
50	STUD M8X27,M8X14 L=64.5	8-97354-808-2	06	1	0611-			●
97	GASKET; BLOCK TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-429-0	01	1	9906-0207				●
98	NUT; STUD,INJ PUMP M8	8-94224-829-0	02	1	9906-0207				●
98	NUT; STUD,INJ PUMP M8 FLANGE	0-91180-208-0	02	1	0611-			●
99	STUD; INJ PUMP (A) M8X28 L=44	9-04020-828-0	02	1	9906-0207				●
99	STUD; INJ PUMP (C) M8X30 L=41	8-97369-449-0	01	1	0611-			●
99	STUD; INJ PUMP (B) M8X45 L=56	8-97369-450-0	01	1	0611-			●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97049-145-0	01	1	9701-9905				●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97071-560-1	01	1	9906-0207				●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97351-704-0	01	1	0208-0511	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97351-704-0	01	1	0512-0610		●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-97382-606-0	01	1	0611-			●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97386-601-0	01	1	0611-			●
109	POINTER; TIMING M5X7.5	8-94133-500-0	01	1	9906-0207				●
123	COVER; TIMING,LWR	8-97038-105-1	01	1	9906-0207				●
123	COVER; TIMING,LWR	8-97371-720-1	01	1	0611-			●
129	GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). (A) L=560	8-94464-695-1	01	1	9906-0203				●
129	GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). (A) L=560	8-97318-925-0	01	1	0204-0207				●
129	GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). (B) L=366	8-94464-696-0	01	1	9906-0207				●
132	COVER; TIMING,UPR	8-97038-103-1	01	1	9906-0207				●
137	BOLT; FRT PLATE (A) M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	9906-0207				●
137	BOLT; FRT PLATE (B) M6X50 W/LK WASHER	8-94152-616-1	03	1	9906-0207				●
139	GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE). L=215	8-94139-961-0	01	1	9906-0203				●
139	GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE). L=215	8-97318-924-0	01	1	0204-0207				●
145	BOLT; TENSIONER GUIDE M8X20	8-94152-617-1	01	1	9906-0207				●
162	BOLT; FRT PLATE M8X45 W/LK WASHER	0-50040-845-0	03	1	9906-0207				●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9701-0207				●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0208-0511	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0512-0610		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0611-			●

12 2 211 15 2 12 205 211 32 36 36 175 124 124 33 65 57 58 38 124 56 1 69 69 68 54 72 71 73 124 124 103 65 57 58 65 57 58 72 71 73 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CASE; TIMING GEAR	8-97129-982-2	01	1	9701-9905				●
1	CASE; TIMING GEAR	8-97141-532-2	01	1	9906-0207				●
1	CASE; TIMING GEAR	8-97239-983-2	01	1	0208-0511	●
1	CASE; TIMING GEAR	8-97239-983-2	01	1	0512-0610		●
1	CASE; TIMING GEAR	8-97945-261-2	01	1	0611-			●
2	HOUSING; FLYWHEEL	8-97240-094-1	01	1	0208-0511	●
2	HOUSING; FLYWHEEL	8-97240-094-1	01	1	0512-0610		●
2	HOUSING; FLYWHEEL	8-97381-492-3	01	1	0611-			●
15	BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9701-0207				●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-0	01	1	9701-9905				●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	0208-0511	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	0512-0610		●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-221-2	01	1	0611-			●
33	GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94109-707-0	01	1	9701-9905				●
33	GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-672-0	01	1	0208-0511	●
33	GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-672-0	01	1	0512-0610		●
36	BOLT; GEAR CASE (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	9701-9905				●
36	BOLT; GEAR CASE POWER STEERING<N40> (A) M8X45 W/LK WASHER	0-50040-845-0	01	1	9701-0207				●
36	BOLT; GEAR CASE (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0208-0503	●
36	BOLT; GEAR CASE (B) M8X45 W/LK WASHER	0-50040-845-0	02	1	0504-0511	●
36	BOLT; GEAR CASE (B) M8X45 W/LK WASHER	0-50040-845-0	02	1	0512-0610		●
36	BOLT; GEAR CASE (G) M8X16 FLANGE	0-28050-816-0	01	1	0611-			●
36	BOLT; GEAR CASE EXC. POWER STEERING<N40> (A) M8X45 W/LK WASHER	0-50040-845-0	02	1	9701-0207				●
36	BOLT; GEAR CASE (C) M8X20 W/LK WASHER	0-50040-820-0	06	1	0208-0511	●
36	BOLT; GEAR CASE (C) M8X20 W/LK WASHER	0-50040-820-0	06	1	0512-0610		●
36	BOLT; GEAR CASE (J) M8X20 FLANGE	0-28050-820-0	12	1	0611-			●
36	BOLT; GEAR CASE (H) M8X35 FLANGE	0-28050-835-0	01	1	0611-			●
36	BOLT; GEAR CASE (F) M8X45 FLANGE	0-28050-845-0	02	1	0611-			●
36	BOLT; GEAR CASE (I) M8X60 FLANGE	0-28050-860-0	01	1	0611-			●
36	BOLT; GEAR CASE (D) M8X25 FLANGE	0-28650-825-0	01	1	0611-			●
36	BOLT; GEAR CASE (E) M8X30 FLANGE	0-28650-830-0	03	1	0611-			●
38	PIN; GEAR CASE COVER OD=10 L=20	9-08151-020-0	02	1	9701-9905				●
38	PIN; GEAR CASE COVER OD=10 L=20 USA	8-97135-423-0	02	1	0208-0511	●
38	PIN; GEAR CASE COVER OD=10 L=20 USA	8-97135-423-0	02	1	0512-0610		●
38	PIN; GEAR CASE COVER OD=10 L=20 USA	8-97135-423-0	02	1	0611-			●
54	COVER; GEAR CASE	8-94155-360-2	01	1	9701-9903				●
54	COVER; GEAR CASE	8-97219-278-0	01	1	9904-9905				●
54	COVER; GEAR CASE	8-97239-984-4	01	1	0208-0511	●
54	COVER; GEAR CASE	8-97239-984-4	01	1	0512-0610		●
54	COVER; GEAR CASE	8-98012-960-2	01	1	0611-			●
56	GASKET; GEAR CASE TO COVER	8-94140-117-1	01	1	9701-9905				●
56	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	0208-0511	●
56	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	0512-0610		●
57	COVER; TIMING CHECK HOLE (A)	5-11321-009-0	02	1	9701-9905				●
57	COVER; TIMING CHECK HOLE (B)	5-11321-009-0	02	1	0208-0511	●
57	COVER; TIMING CHECK HOLE (B)	5-11321-009-0	02	1	0512-0610		●
57	COVER; TIMING CHECK HOLE (C)	8-97304-608-1	01	1	0208-0511	●
57	COVER; TIMING CHECK HOLE (C)	8-97304-608-1	01	1	0512-0610		●
58	BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	04	1	9701-9905				●
58	BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	06	1	0208-0403	●
58	BOLT; CHECK HOLE COVER M6X12 FLANGE	0-28080-612-0	06	1	0404-0511	●
58	BOLT; CHECK HOLE COVER M6X12 FLANGE	0-28080-612-0	06	1	0512-0512		●
58	BOLT; CHECK HOLE COVER M6X12 FLANGE	0-28050-612-0	06	1	0601-0610		●
65	GASKET; COVER,TIMING CHECK HOLE	8-97118-698-0	02	1	9701-9905				●
65	GASKET; COVER,TIMING CHECK HOLE	8-97027-601-1	03	1	0208-0311	●
65	GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97118-698-1	03	1	0312-0511	●
65	GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97118-698-1	03	1	0512-0610		●
68	COVER ASM; GEAR CASE COVER (A)	8-94155-721-1	01	1	9701-9905				●
68	COVER ASM; GEAR CASE COVER (B)	8-97255-034-1	01	1	0208-0511	●
68	COVER ASM; GEAR CASE COVER (B)	8-97255-034-1	01	1	0512-0610		●
68	COVER ASM; GEAR CASE COVER (D)	8-98009-466-3	01	1	0611-			●
68	COVER ASM; GEAR CASE COVER (C)	8-97239-987-1	01	1	0208-0208	●
68	COVER ASM; GEAR CASE COVER (C)	8-97358-022-0	01	1	0209-0511	●
68	COVER ASM; GEAR CASE COVER (C)	8-97358-022-0	01	1	0512-0610		●
69	SEAL; RUBBER,COVER TO COVER (A)	8-94155-722-3	01	1	9701-9905				●
69	SEAL; RUBBER,COVER TO COVER (B)	8-97255-035-1	01	1	0208-0302	●
69	SEAL; RUBBER,COVER TO COVER (B)	8-97329-009-0	01	1	0303-0511	●
69	SEAL; RUBBER,COVER TO COVER (B)	8-97329-009-0	01	1	0512-0610		●
69	SEAL; RUBBER,COVER TO COVER (C)	8-97239-992-0	01	1	0208-0211	●
69	SEAL; RUBBER,COVER TO COVER (C)	8-97358-025-0	01	1	0212-0302	●
69	SEAL; RUBBER,COVER TO COVER (C)	8-97329-011-0	01	1	0303-0511	●
69	SEAL; RUBBER,COVER TO COVER (C)	8-97329-011-0	01	1	0512-0610		●
71	RUBBER; MTG,COVER	5-19389-002-0	04	1	9701-9905				●
71	RUBBER; MTG,COVER	5-19389-002-0	05	1	0208-0511	●
71	RUBBER; MTG,COVER	5-19389-002-0	05	1	0512-0610		●
72	BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	9701-9905				●
72	BUSHING; SPACER,COVER TO COVER	5-19389-009-0	05	1	0208-0511	●
72	BUSHING; SPACER,COVER TO COVER	5-19389-009-0	05	1	0512-0610		●
73	BOLT; COVER FIX M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	9701-9905				●
73	BOLT; COVER FIX M6X18 W/LK&PL WASHER	0-50140-618-0	05	1	0208-0403	●
73	BOLT; COVER FIX M6X16 FLANGE	0-28080-616-0	05	1	0404-0511	●
73	BOLT; COVER FIX M6X16 FLANGE	0-28080-616-0	05	1	0512-0512		●
73	BOLT; COVER FIX M6X16 FLANGE	0-28050-616-0	05	1	0601-0610		●
73	BOLT; COVER FIX M6X12 FLANGE	0-28050-612-0	02	1	0611-			●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97049-145-0	01	1	9701-9905				●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97071-560-1	01	1	9906-0207				●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97351-704-0	01	1	0208-0511	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97351-704-0	01	1	0512-0610		●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-97382-606-0	01	1	0611-			●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97386-601-0	01	1	0611-			●
124	BOLT; TIMING COVER (A) M8X30 FLANGE	0-28080-830-0	08	1	0208-0511	●
124	BOLT; TIMING COVER (A) M8X30 FLANGE	0-28080-830-0	08	1	0512-0512		●
124	BOLT; TIMING COVER (A) M8X30 FLANGE	0-28050-830-0	08	1	0601-0610		●
124	BOLT; TIMING COVER (E) M6X16 FLANGE	0-28050-616-0	03	1	0611-			●
124	BOLT; TIMING COVER (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0208-0511	●
124	BOLT; TIMING COVER (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0512-0512		●
124	BOLT; TIMING COVER (B) M8X70 W/LK WASHER	0-50540-870-0	06	1	0601-0610		●
124	BOLT; TIMING COVER (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0208-0511	●
124	BOLT; TIMING COVER (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0512-0512		●
124	BOLT; TIMING COVER (C) M12X55 HEX SOCKET	0-58331-255-0	01	1	0601-0610		●
124	BOLT; TIMING COVER (D) M8X58 FLANGE	8-94130-055-1	01	1	0208-0511	●
124	BOLT; TIMING COVER (D) M8X58 FLANGE	8-94130-055-1	01	1	0512-0610		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9701-0207				●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0208-0511	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0512-0610		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0611-			●
205	NUT; HSG M10 FLANGE	0-91150-210-0	01	1	0208-0511	●
205	NUT; HSG M10 FLANGE	0-91150-210-0	01	1	0512-0602		●
205	NUT; HSG M10 FLANGE	0-91180-210-0	01	1	0603-0610		●
205	NUT; HSG M10 FLANGE	0-91180-210-0	01	1	0611-			●
211	BOLT; HSG (A) M10X30 FLANGE	0-28081-030-0	03	1	0208-0511	●
211	BOLT; HSG (A) M10X30 FLANGE	0-28081-030-0	03	1	0512-0512		●
211	BOLT; HSG (A) M10X30 FLANGE	0-28051-030-0	03	1	0601-0610		●
211	BOLT; HSG (D) M12X35 FLANGE	0-28651-235-0	06	1	0611-			●
211	BOLT; HSG (B) M12X25	5-09000-227-0	03	1	0208-0511	●
211	BOLT; HSG (B) M12X25	5-09000-227-0	03	1	0512-0610		●
211	BOLT; HSG (B) M12X25	5-09000-227-0	03	1	0611-			●
211	BOLT; HSG (C) M10X43	9-09606-535-0	01	1	0611-			●

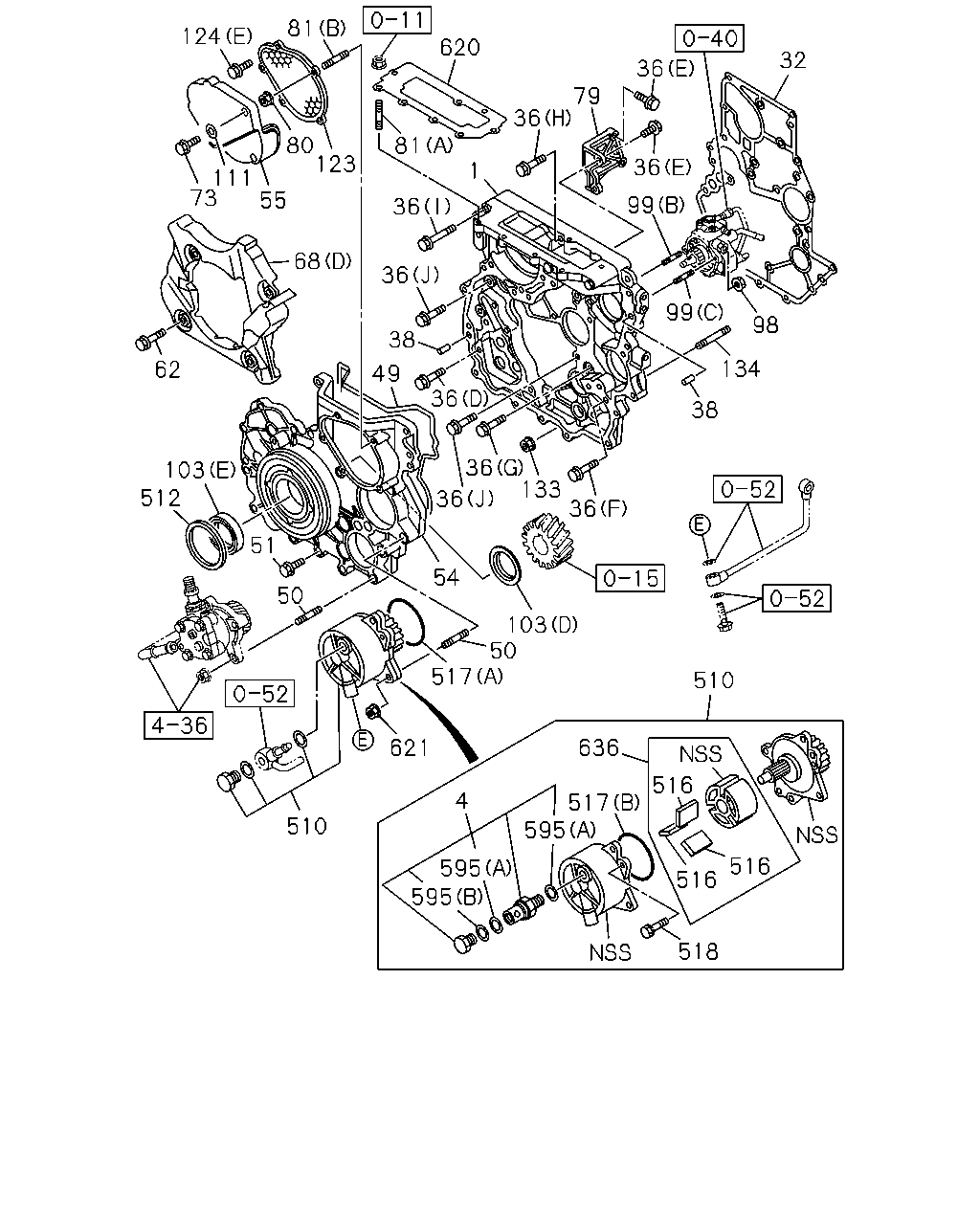

11 81 124 40 620 32 36 79 36 80 123 81 36 111 73 1 55 99 36 68 36 99 98 38 134 62 49 36 38 133 36 103 512 36 52 36 51 54 15 50 52 103 50 517 510 52 4 36 636 621 516 4 517 595 510 516 595 516 595 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CASE; TIMING GEAR	8-97129-982-2	01	1	9701-9905				●
1	CASE; TIMING GEAR	8-97141-532-2	01	1	9906-0207				●
1	CASE; TIMING GEAR	8-97239-983-2	01	1	0208-0511	●
1	CASE; TIMING GEAR	8-97239-983-2	01	1	0512-0610		●
1	CASE; TIMING GEAR	8-97945-261-2	01	1	0611-			●
4	VALVE ASM; CHECK	8-98049-521-0	01	1	0611-			●
11	PLATE; RR,C/BL	8-94437-923-2	01	1	9701-0207				●
15	BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9701-0207				●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-0	01	1	9701-9905				●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	0208-0511	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	0512-0610		●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-221-2	01	1	0611-			●
36	BOLT; GEAR CASE (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	9701-9905				●
36	BOLT; GEAR CASE POWER STEERING<N40> (A) M8X45 W/LK WASHER	0-50040-845-0	01	1	9701-0207				●
36	BOLT; GEAR CASE (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0208-0503	●
36	BOLT; GEAR CASE (B) M8X45 W/LK WASHER	0-50040-845-0	02	1	0504-0511	●
36	BOLT; GEAR CASE (B) M8X45 W/LK WASHER	0-50040-845-0	02	1	0512-0610		●
36	BOLT; GEAR CASE (G) M8X16 FLANGE	0-28050-816-0	01	1	0611-			●
36	BOLT; GEAR CASE EXC. POWER STEERING<N40> (A) M8X45 W/LK WASHER	0-50040-845-0	02	1	9701-0207				●
36	BOLT; GEAR CASE (C) M8X20 W/LK WASHER	0-50040-820-0	06	1	0208-0511	●
36	BOLT; GEAR CASE (C) M8X20 W/LK WASHER	0-50040-820-0	06	1	0512-0610		●
36	BOLT; GEAR CASE (J) M8X20 FLANGE	0-28050-820-0	12	1	0611-			●
36	BOLT; GEAR CASE (H) M8X35 FLANGE	0-28050-835-0	01	1	0611-			●
36	BOLT; GEAR CASE (F) M8X45 FLANGE	0-28050-845-0	02	1	0611-			●
36	BOLT; GEAR CASE (I) M8X60 FLANGE	0-28050-860-0	01	1	0611-			●
36	BOLT; GEAR CASE (D) M8X25 FLANGE	0-28650-825-0	01	1	0611-			●
36	BOLT; GEAR CASE (E) M8X30 FLANGE	0-28650-830-0	03	1	0611-			●
38	PIN; GEAR CASE COVER OD=10 L=20	9-08151-020-0	02	1	9701-9905				●
38	PIN; GEAR CASE COVER OD=10 L=20 USA	8-97135-423-0	02	1	0208-0511	●
38	PIN; GEAR CASE COVER OD=10 L=20 USA	8-97135-423-0	02	1	0512-0610		●
38	PIN; GEAR CASE COVER OD=10 L=20 USA	8-97135-423-0	02	1	0611-			●
49	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97945-298-0	01	1	0611-			●
50	STUD M8X42.5 L=69	8-97148-539-0	01	1	9906-0207				●
50	STUD M8X27,M8X14 L=64.5	8-97354-808-2	06	1	0611-			●
51	BOLT; GEAR CASE COVER	8-97354-697-1	14	1	0611-			●
54	COVER; GEAR CASE	8-94155-360-2	01	1	9701-9903				●
54	COVER; GEAR CASE	8-97219-278-0	01	1	9904-9905				●
54	COVER; GEAR CASE	8-97239-984-4	01	1	0208-0511	●
54	COVER; GEAR CASE	8-97239-984-4	01	1	0512-0610		●
54	COVER; GEAR CASE	8-98012-960-2	01	1	0611-			●
55	COVER; NOISE SHIELD	8-97375-190-1	01	1	0611-			●
62	BOLT; COVER M6X20 FLANGE	0-28650-620-0	04	1	0611-			●
68	COVER ASM; GEAR CASE COVER (A)	8-94155-721-1	01	1	9701-9905				●
68	COVER ASM; GEAR CASE COVER (B)	8-97255-034-1	01	1	0208-0511	●
68	COVER ASM; GEAR CASE COVER (B)	8-97255-034-1	01	1	0512-0610		●
68	COVER ASM; GEAR CASE COVER (D)	8-98009-466-3	01	1	0611-			●
68	COVER ASM; GEAR CASE COVER (C)	8-97239-987-1	01	1	0208-0208	●
68	COVER ASM; GEAR CASE COVER (C)	8-97358-022-0	01	1	0209-0511	●
68	COVER ASM; GEAR CASE COVER (C)	8-97358-022-0	01	1	0512-0610		●
73	BOLT; COVER FIX M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	9701-9905				●
73	BOLT; COVER FIX M6X18 W/LK&PL WASHER	0-50140-618-0	05	1	0208-0403	●
73	BOLT; COVER FIX M6X16 FLANGE	0-28080-616-0	05	1	0404-0511	●
73	BOLT; COVER FIX M6X16 FLANGE	0-28080-616-0	05	1	0512-0512		●
73	BOLT; COVER FIX M6X16 FLANGE	0-28050-616-0	05	1	0601-0610		●
73	BOLT; COVER FIX M6X12 FLANGE	0-28050-612-0	02	1	0611-			●
79	BRACKET; GEAR CASE COVER	8-97370-390-2	01	1	0611-			●
80	NUT; COVER M6 FLANGE	0-91180-206-0	02	1	0611-			●
81	STUD; GEAR CASE COVER FIX (B) M6X16 L=25	0-41010-616-0	02	1	0611-			●
81	STUD; GEAR CASE COVER FIX (A) M8X30 L=48	0-49140-830-0	02	1	0611-			●
98	NUT; STUD,INJ PUMP M8	8-94224-829-0	02	1	9906-0207				●
98	NUT; STUD,INJ PUMP M8 FLANGE	0-91180-208-0	02	1	0611-			●
99	STUD; INJ PUMP (A) M8X28 L=44	9-04020-828-0	02	1	9906-0207				●
99	STUD; INJ PUMP (C) M8X30 L=41	8-97369-449-0	01	1	0611-			●
99	STUD; INJ PUMP (B) M8X45 L=56	8-97369-450-0	01	1	0611-			●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97049-145-0	01	1	9701-9905				●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97071-560-1	01	1	9906-0207				●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97351-704-0	01	1	0208-0511	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97351-704-0	01	1	0512-0610		●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-97382-606-0	01	1	0611-			●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97386-601-0	01	1	0611-			●
111	WASHER; PL ID=6.4 OD=22	9-09164-806-0	02	1	0611-			●
123	COVER; TIMING,LWR	8-97038-105-1	01	1	9906-0207				●
123	COVER; TIMING,LWR	8-97371-720-1	01	1	0611-			●
124	BOLT; TIMING COVER (A) M8X30 FLANGE	0-28080-830-0	08	1	0208-0511	●
124	BOLT; TIMING COVER (A) M8X30 FLANGE	0-28080-830-0	08	1	0512-0512		●
124	BOLT; TIMING COVER (A) M8X30 FLANGE	0-28050-830-0	08	1	0601-0610		●
124	BOLT; TIMING COVER (E) M6X16 FLANGE	0-28050-616-0	03	1	0611-			●
124	BOLT; TIMING COVER (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0208-0511	●
124	BOLT; TIMING COVER (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0512-0512		●
124	BOLT; TIMING COVER (B) M8X70 W/LK WASHER	0-50540-870-0	06	1	0601-0610		●
124	BOLT; TIMING COVER (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0208-0511	●
124	BOLT; TIMING COVER (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0512-0512		●
124	BOLT; TIMING COVER (C) M12X55 HEX SOCKET	0-58331-255-0	01	1	0601-0610		●
124	BOLT; TIMING COVER (D) M8X58 FLANGE	8-94130-055-1	01	1	0208-0511	●
124	BOLT; TIMING COVER (D) M8X58 FLANGE	8-94130-055-1	01	1	0512-0610		●
133	NUT; TIMING GEAR CASE M8 FLANGE	0-91180-208-0	02	1	0611-			●
134	STUD; TIMING GEAR CASE M8X20 L=32	0-41010-820-0	02	1	0611-			●
510	PUMP ASM; VACUUM	8-98005-250-0	01	1	0611-			●
512	RUBBER; SPACE	8-97322-675-0	01	1	0611-			●
516	VANE; VAC PUMP	8-98051-275-0	03	1	0611-			●
517	GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98049-522-0	01	1	0611-			●
517	GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	9-09566-271-0	01	1	0611-			●
518	BOLT; VAC PUMP	8-98049-523-0	03	1	0611-			●
595	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18	8-98018-519-0	02	1	0611-			●
595	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12	8-98018-518-0	01	1	0611-			●
620	GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 1-NOTCH	8-97328-828-2	01	1	0611-			●
620	GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.45 2-NOTCH	8-97331-631-2	01	1	0611-			●
620	GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.50 3-NOTCH	8-97331-632-2	01	1	0611-			●
621	NUT; VAC PUMP M8 FLANGE	0-91180-208-0	03	1	0611-			●
636	ROTOR & VANE ASM; VAC PUMP	8-98049-520-0	01	1	0611-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
