1 |

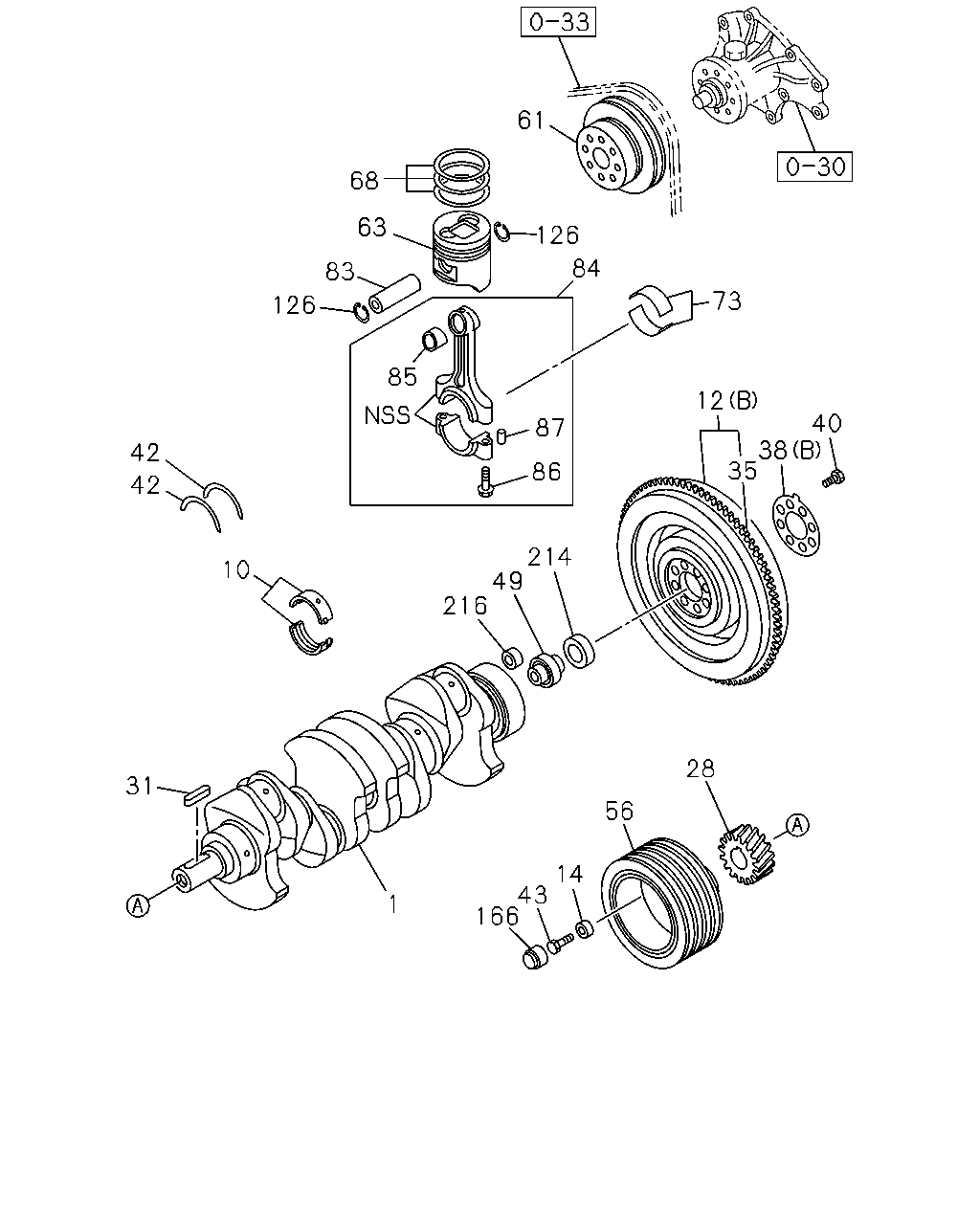

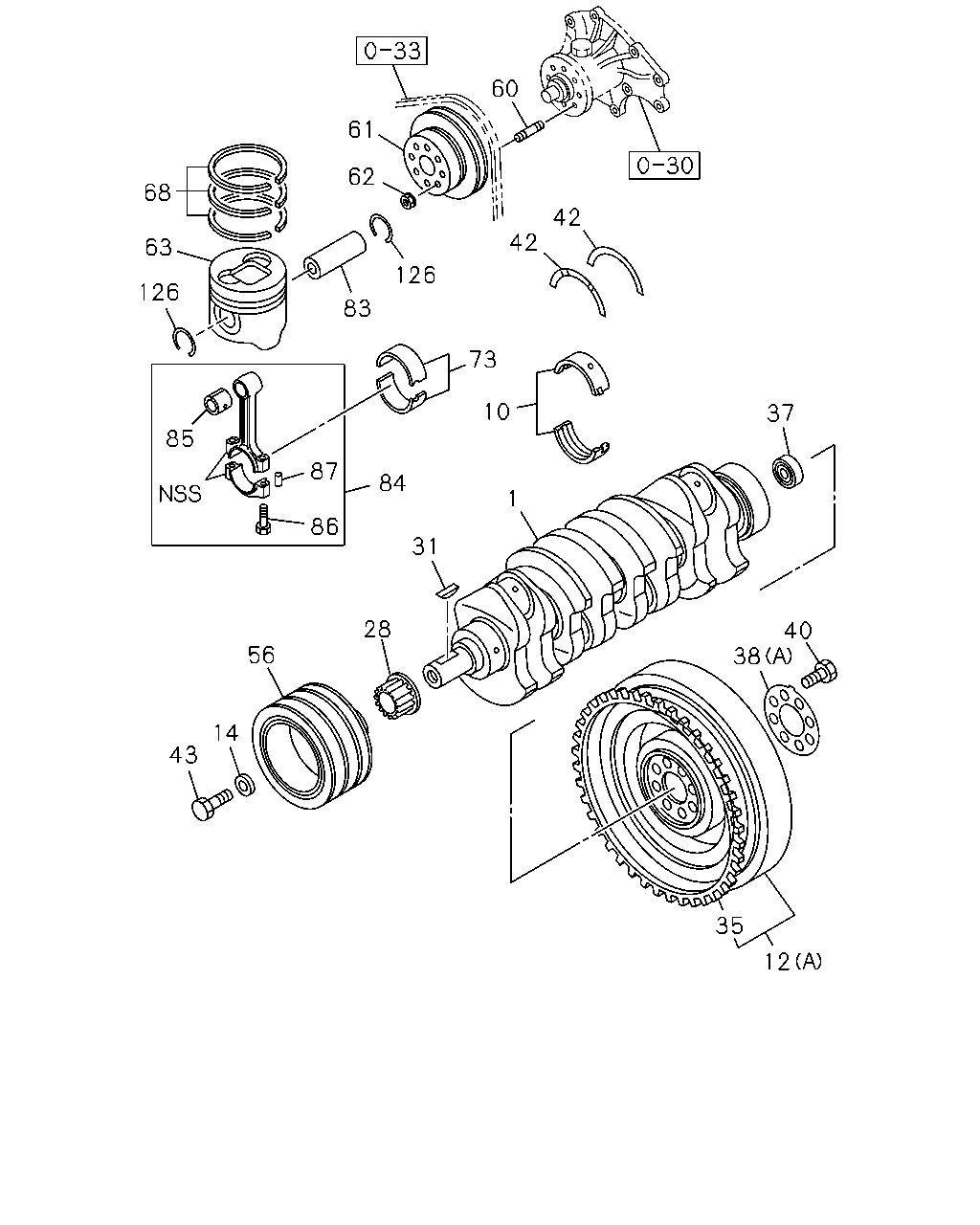

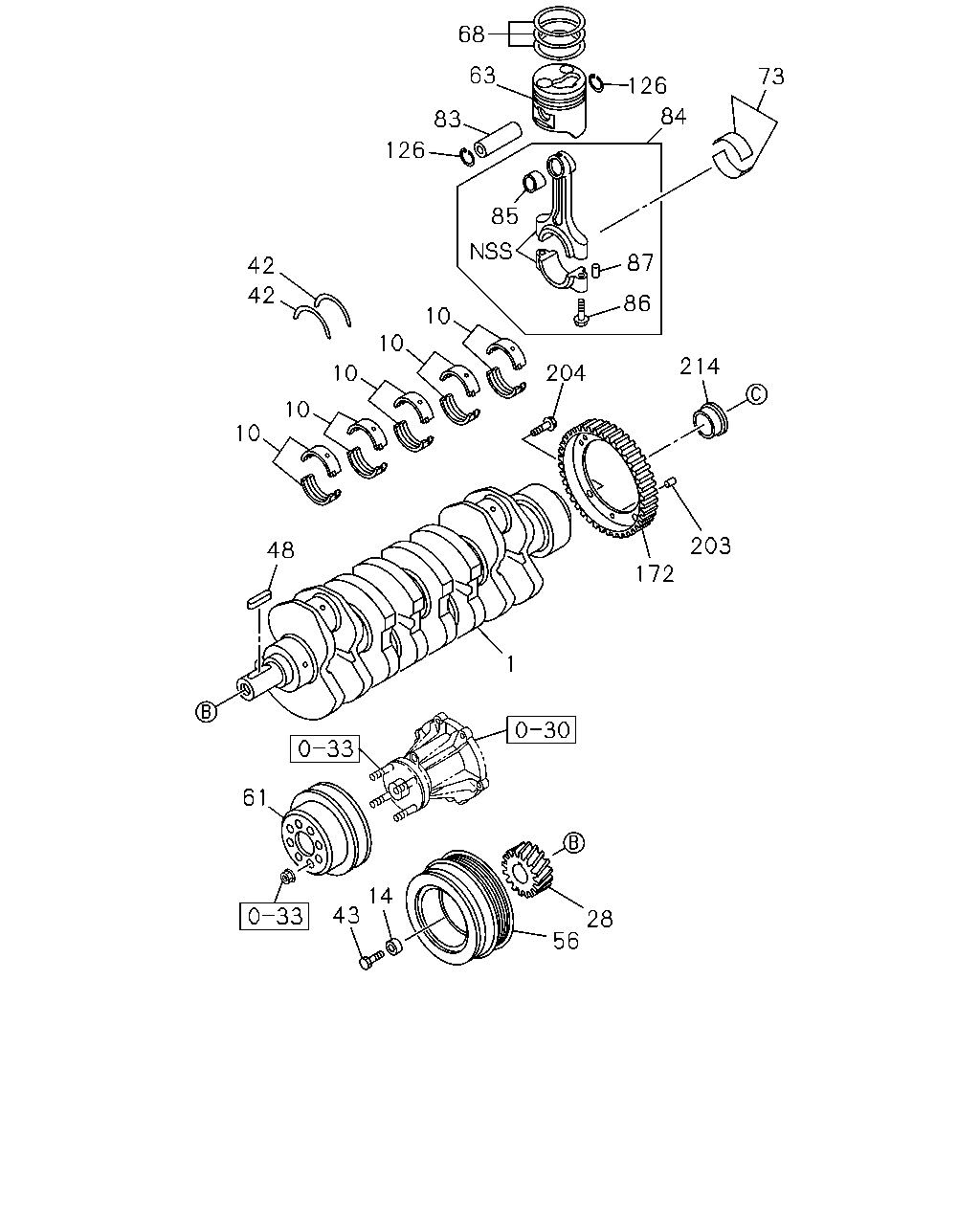

CRANKSHAFT
|
8-97023-182-1 |
01 |
1 |
9701-0008 |
● |
|
|
|
| |
1 |
CRANKSHAFT
|
8-97190-930-1 |
01 |
1 |
0009-0207 |
● |
|
|
|
| |
1 |
CRANKSHAFT
|
8-97254-611-1 |
01 |
1 |
0208-0511 |
|
● |
|
|
| |
1 |
CRANKSHAFT
|
8-97254-611-1 |
01 |
1 |
0512-0610 |
|
|
● |
|
| |
1 |
CRANKSHAFT
|
8-97388-828-4 |
01 |
1 |
0611- |
|
|
|
● |
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
BLUE
|
8-97063-258-0 |
05 |
1 |
9701-0202 |
● |
|
|
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
GRADE 1
|
8-97202-878-0 |
05 |
1 |
0203-0207 |
● |
|
|
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
GRADE 1
|
8-97202-878-0 |
05 |
1 |
0208-0411 |
|
● |
|
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
GRADE 1
|
8-97387-964-0 |
05 |
1 |
0412-0511 |
|
● |
|
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
GRADE 1
|
8-97387-964-0 |
05 |
1 |
0512-0610 |
|
|
● |
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
GRADE 1
|
8-97387-964-0 |
05 |
1 |
0611- |
|
|
|
● |
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
BLACK
|
8-97063-259-0 |
05 |
1 |
9701-0202 |
● |
|
|
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
GRADE 2
|
8-97202-879-0 |
05 |
1 |
0203-0207 |
● |
|
|
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
GRADE 2
|
8-97202-879-0 |
05 |
1 |
0208-0411 |
|
● |
|
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
GRADE 2
|
8-97387-965-0 |
05 |
1 |
0412-0511 |
|
● |
|
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
GRADE 2
|
8-97387-965-0 |
05 |
1 |
0512-0610 |
|
|
● |
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
GRADE 2
|
8-97387-965-0 |
05 |
1 |
0611- |
|
|
|
● |
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
GREEN
|
8-97063-260-0 |
05 |
1 |
9701-0202 |
● |
|
|
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
GRADE 3
|
8-97202-880-0 |
05 |
1 |
0203-0207 |
● |
|
|
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
GRADE 3
|
8-97202-880-0 |
05 |
1 |
0208-0411 |
|
● |
|
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
GRADE 3
|
8-97387-966-0 |
05 |
1 |
0412-0511 |
|
● |
|
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
GRADE 3
|
8-97387-966-0 |
05 |
1 |
0512-0610 |
|
|
● |
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
GRADE 3
|
8-97387-966-0 |
05 |
1 |
0611- |
|
|
|
● |
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
GRADE 4
|
8-97202-881-0 |
05 |
1 |
0203-0207 |
● |
|
|
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
GRADE 4
|
8-97202-881-0 |
05 |
1 |
0208-0411 |
|
● |
|
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
GRADE 4
|
8-97387-967-0 |
05 |
1 |
0412-0511 |
|
● |
|
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
GRADE 4
|
8-97387-967-0 |
05 |
1 |
0512-0610 |
|
|
● |
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
1,2,4,5 JOURNAL
GRADE 4
|
8-97387-967-0 |
04 |
1 |
0611- |
|
|
|
● |
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
GRADE 5
|
8-97202-882-0 |
05 |
1 |
0203-0207 |
● |
|
|
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
GRADE 5
|
8-97202-882-0 |
05 |
1 |
0208-0411 |
|
● |
|
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
GRADE 5
|
8-97387-968-0 |
05 |
1 |
0412-0511 |
|
● |
|
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
GRADE 5
|
8-97387-968-0 |
05 |
1 |
0512-0610 |
|
|
● |
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
1,2,4,5 JOURNAL
GRADE 5
|
8-97387-968-0 |
04 |
1 |
0611- |
|
|
|
● |
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
3 JOURNAL
GRADE 9
|
8-98053-576-0 |
01 |
1 |
0611- |
|
|
|
● |
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
3 JOURNAL
GRADE 0
|
8-98053-578-0 |
01 |
1 |
0611- |
|
|
|
● |
| |
12 |
FLYWHEEL
(A)
|
8-97034-430-2 |
01 |
1 |
9701-0207 |
● |
|
|
|
| |
12 |
FLYWHEEL
(B)
|
8-97333-111-1 |
01 |
1 |
0208-0511 |
|
● |
|
|
| |
12 |
FLYWHEEL
(B)
|
8-97333-111-1 |
01 |
1 |
0512-0610 |
|
|
● |
|
| |
12 |
FLYWHEEL
KD PREPARATORY PACK<6HF>
TRANSMISSION CONTROL-SMOOTHER<8GF>
(D)
|
8-98029-611-0 |
01 |
1 |
0611- |
|
|
|
● |
| |
12 |
FLYWHEEL
KD PREPARATORY PACK<6HF>
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>
(C)
|
8-98012-825-2 |
01 |
1 |
0611- |
|
|
|
● |
| |
14 |
WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12
|
5-09503-127-0 |
01 |
1 |
9701-0207 |
● |
|
|
|
| |
14 |
WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12
|
5-09503-127-0 |
01 |
1 |
0208-0511 |
|
● |
|
|
| |
14 |
WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12
|
5-09503-127-0 |
01 |
1 |
0512-0610 |
|
|
● |
|
| |
14 |
WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12
|
5-09503-127-1 |
01 |
1 |
0611- |
|
|
|
● |
| |
28 |
GEAR; CR/SHF
Z=21
|
8-94139-754-0 |
01 |
1 |
9701-0207 |
● |
|
|
|
| |
28 |
GEAR; CR/SHF
Z=30
|
8-97240-011-2 |
01 |
1 |
0208-0511 |
|
● |
|
|
| |
28 |
GEAR; CR/SHF
Z=30
|
8-97240-011-2 |
01 |
1 |
0512-0610 |
|
|
● |
|
| |
28 |
GEAR; CR/SHF
Z=44
|
8-97386-232-1 |
01 |
1 |
0611- |
|
|
|
● |
| |
31 |
KEY; FEATHER,CR/SHF
|
9-08030-743-0 |
01 |
1 |
9701-0008 |
● |
|
|
|
| |
31 |
KEY; FEATHER,CR/SHF
|
8-94201-641-0 |
01 |
1 |
0009-0207 |
● |
|
|
|
| |
31 |
KEY; FEATHER,CR/SHF
|
8-94201-641-0 |
01 |
1 |
0208-0511 |
|
● |
|
|
| |
31 |
KEY; FEATHER,CR/SHF
|
8-94201-641-0 |
01 |
1 |
0512-0610 |
|
|
● |
|
| |
35 |
GEAR; RING
Z=108
|
8-94419-602-1 |
01 |
1 |
9701-0207 |
● |
|
|
|
| |
35 |
GEAR; RING
Z=122
|
8-94364-395-1 |
01 |
1 |
0208-0511 |
|
● |
|
|
| |
35 |
GEAR; RING
Z=122
|
8-94364-395-1 |
01 |
1 |
0512-0610 |
|
|
● |
|
| |
35 |
GEAR; RING
KD PREPARATORY PACK<6HF>
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>
Z=138
|
8-97046-366-1 |
01 |
1 |
0611- |
|
|
|
● |
| |
37 |
BEARING; PILOT,TOP GEAR SHAFT
NSK
|
9-00090-679-0 |
01 |
1 |
9701-0207 |
● |
|
|
|
| |
38 |
WASHER; FLYWHEEL
(A)
|
8-94133-970-0 |
01 |
1 |
9701-0207 |
● |
|
|
|
| |
38 |
WASHER; FLYWHEEL
(A)
|
8-94133-970-0 |
01 |
1 |
0208-0511 |
|
● |
|
|
| |
38 |
WASHER; FLYWHEEL
(B)
|
8-94133-970-0 |
01 |
1 |
0512-0610 |
|
|
● |
|
| |
38 |
WASHER; FLYWHEEL
KD PREPARATORY PACK<6HF>
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>
(C)
|
8-94133-970-1 |
01 |
1 |
0611- |
|
|
|
● |
| |
38 |
WASHER; FLYWHEEL
KD PREPARATORY PACK<6HF>
TRANSMISSION CONTROL-SMOOTHER<8GF>
(D)
|
8-97386-162-2 |
01 |
1 |
0611- |
|
|
|
● |
| |
40 |
BOLT; FLYWHEEL
M13X36
|
8-97065-984-1 |
08 |
1 |
9701-0207 |
● |
|
|
|
| |
40 |
BOLT; FLYWHEEL
M13X45
|
8-94418-050-0 |
08 |
1 |
0208-0511 |
|
● |
|
|
| |
40 |
BOLT; FLYWHEEL
M13X45
|
8-94418-050-0 |
08 |
1 |
0512-0610 |
|
|
● |
|
| |
40 |
BOLT; FLYWHEEL
M13X45
|
8-94418-050-0 |
08 |
1 |
0611- |
|
|
|
● |
| |
42 |
WASHER; THRUST,CR/SHF
|
8-94453-520-0 |
02 |
1 |
9701-0207 |
● |
|
|
|
| |
42 |
WASHER; THRUST,CR/SHF
|
8-94453-520-0 |
02 |
1 |
0208-0411 |
|
● |
|
|
| |
42 |
WASHER; THRUST,CR/SHF
|
8-97383-740-0 |
02 |
1 |
0412-0511 |
|
● |
|
|
| |
42 |
WASHER; THRUST,CR/SHF
|
8-97383-740-0 |
02 |
1 |
0512-0610 |
|
|
● |
|
| |
42 |
WASHER; THRUST,CR/SHF
|
8-98040-704-0 |
02 |
1 |
0611- |
|
|
|
● |
| |
43 |
BOLT; CR/SHF PULLEY
M16X43
|
5-09000-273-2 |
01 |
1 |
9701-0207 |
● |
|
|
|
| |
43 |
BOLT; CR/SHF PULLEY
M16X43
|
5-09000-273-2 |
01 |
1 |
0208-0511 |
|
● |
|
|
| |
43 |
BOLT; CR/SHF PULLEY
M16X43
|
5-09000-273-2 |
01 |
1 |
0512-0610 |
|
|
● |
|
| |
43 |
BOLT; CR/SHF PULLEY
M16X43
|
5-09000-273-2 |
01 |
1 |
0611- |
|
|
|
● |
| |
56 |
PULLEY; CR/SHF DAMPER
3-GROOVE
|
8-94387-650-2 |
01 |
1 |
9701-9708 |
● |
|
|
|
| |
56 |
PULLEY; CR/SHF DAMPER
3-GROOVE
|
8-97184-135-0 |
01 |
1 |
9709-9905 |
● |
|
|
|
| |
56 |
PULLEY; CR/SHF DAMPER
3-GROOVE
|
8-97182-904-0 |
01 |
1 |
9906-0207 |
● |
|
|
|
| |
56 |
PULLEY; CR/SHF DAMPER
4-GROOVE
|
8-97254-844-0 |
01 |
1 |
0208-0511 |
|
● |
|
|
| |
56 |
PULLEY; CR/SHF DAMPER
4-GROOVE
|
8-97254-844-0 |
01 |
1 |
0512-0610 |
|
|
● |
|
| |
56 |
PULLEY; CR/SHF DAMPER
2-GROOVE
|
8-97361-562-1 |
01 |
1 |
0611- |
|
|
|
● |
| |
60 |
STUD; FAN FIX
M6X18 L=27
|
9-04110-618-0 |
04 |
1 |
9701-0207 |
● |
|
|
|
| |
61 |
PULLEY; FAN DRIVE
1-GROOVE OD=120
|
8-94459-815-3 |
01 |
1 |
9701-0207 |
● |
|
|
|
| |
61 |
PULLEY; FAN DRIVE
1-GROOVE OD=120
|
8-94459-815-4 |
01 |
1 |
0208-0511 |
|
● |
|
|
| |
61 |
PULLEY; FAN DRIVE
1-GROOVE OD=120
|
8-94459-815-4 |
01 |
1 |
0512-0610 |
|
|
● |
|
| |
61 |
PULLEY; FAN DRIVE
2-GROOVE
|
8-97362-215-2 |
01 |
1 |
0611- |
|
|
|
● |
| |
62 |
NUT; FAN PULLEY
M6 FLANGE
|
5-09440-004-0 |
04 |
1 |
9701-0207 |
● |
|
|
|
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
GRADE=AX
|
8-97176-616-0 |
04 |
1 |
9701-9905 |
● |
|
|
|
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
GRADE=AX
|
8-97176-618-0 |
04 |
1 |
9906-0207 |
● |
|
|
|
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
GRADE=AX
|
8-97305-585-3 |
04 |
1 |
0208-0511 |
|
● |
|
|
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
GRADE=AX
|
8-97305-585-3 |
04 |
1 |
0512-0610 |
|
|
● |
|
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
GRADE=A
|
8-98043-703-0 |
04 |
1 |
0611- |
|
|
|
● |
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
GRADE=CX
|
8-97176-617-0 |
04 |
1 |
9701-9905 |
● |
|
|
|
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
GRADE=CX
|
8-97176-619-0 |
04 |
1 |
9906-0207 |
● |
|
|
|
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
GRADE=CX
|
8-97305-586-3 |
04 |
1 |
0208-0511 |
|
● |
|
|
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
GRADE=CX
|
8-97305-586-3 |
04 |
1 |
0512-0610 |
|
|
● |
|
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
GRADE=B
|
8-98043-704-0 |
04 |
1 |
0611- |
|
|
|
● |
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
GRADE=C
|
8-98043-705-0 |
04 |
1 |
0611- |
|
|
|
● |
| |
68 |
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
8-97080-215-0 |
04 |
1 |
9701-9708 |
● |
|
|
|
| |
68 |
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
8-97147-984-0 |
04 |
1 |
9709-0207 |
● |
|
|
|
| |
68 |
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
8-97259-941-0 |
04 |
1 |
0208-0511 |
|
● |
|
|
| |
68 |
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
8-97259-941-0 |
04 |
1 |
0512-0610 |
|
|
● |
|
| |
68 |
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
8-98053-579-0 |
04 |
1 |
0611- |
|
|
|
● |
| |
73 |
METAL SET; CONN ROD,STANDARD
|
8-94372-193-1 |
04 |
1 |
9701-0207 |
● |
|
|
|
| |
73 |
METAL SET; CONN ROD,STANDARD
|
8-97184-534-0 |
04 |
1 |
0208-0511 |
|
● |
|
|
| |
73 |
METAL SET; CONN ROD,STANDARD
|
8-97184-534-0 |
04 |
1 |
0512-0610 |
|
|
● |
|
| |
73 |
METAL SET; CONN ROD,STANDARD
|
8-97358-234-0 |
04 |
1 |
0611- |
|
|
|
● |
| |
83 |
PIN; PISTON
ALSO INCLUDED IN LINER SET.
|
8-94457-008-1 |
04 |
1 |
9701-0207 |
● |
|
|
|
| |
83 |
PIN; PISTON
ALSO INCLUDED IN LINER SET.
|
8-94454-479-0 |
04 |
1 |
0208-0511 |
|
● |
|
|
| |
83 |
PIN; PISTON
ALSO INCLUDED IN LINER SET.
|
8-94454-479-0 |
04 |
1 |
0512-0610 |
|
|
● |
|
| |
83 |
PIN; PISTON
ALSO INCLUDED IN LINER SET.
|
8-98015-193-1 |
04 |
1 |
0611- |
|
|
|
● |
| |
84 |
ROD ASM; CONN
|
8-97062-300-1 |
04 |
1 |
9701-0207 |
● |
|
|
|
| |
84 |
ROD ASM; CONN
|
8-97352-890-1 |
04 |
1 |
0208-0502 |
|
● |
|
|
| |
84 |
ROD ASM; CONN
|
8-98012-602-1 |
04 |
1 |
0503-0511 |
|
● |
|
|
| |
84 |
ROD ASM; CONN
|
8-98012-602-1 |
04 |
1 |
0512-0610 |
|
|
● |
|
| |
84 |
ROD ASM; CONN
|
8-97388-921-2 |
04 |
1 |
0611- |
|
|
|
● |
| |
85 |
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
8-94457-158-0 |
04 |
1 |
9701-0207 |
● |
|
|
|
| |
85 |
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
AFTER PRESS FITTING,SHAPE THE BUSHING.
|
8-97352-889-0 |
04 |
1 |
0208-0511 |
|
● |
|
|
| |
85 |
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
AFTER PRESS FITTING,SHAPE THE BUSHING.
|
8-97352-889-0 |
04 |
1 |
0512-0610 |
|
|
● |
|
| |
85 |
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
AFTER PRESS FITTING,SHAPE THE BUSHING.
|
8-97383-066-0 |
04 |
1 |
0611- |
|
|
|
● |
| |
86 |
BOLT; CONNROD
M11X44.5
|
8-97062-086-0 |
08 |
1 |
9701-0207 |
● |
|
|
|
| |
86 |
BOLT; CONNROD
M11X44.5
|
8-97062-086-0 |
08 |
1 |
0208-0511 |
|
● |
|
|
| |
86 |
BOLT; CONNROD
M11X44.5
|
8-97062-086-0 |
08 |
1 |
0512-0610 |
|
|
● |
|
| |
86 |
BOLT; CONNROD
M11X44.5
|
8-97062-086-0 |
08 |
1 |
0611-0701 |
|
|
|
● |
| |
86 |
BOLT; CONNROD
M11X44.5
|
8-98048-538-0 |
08 |
1 |
0702- |
|
|
|
● |
| |
87 |
PIN; CONNROD BIG END
OD=5 L=8
|
9-08160-508-0 |
08 |
1 |
9701-0207 |
● |
|
|
|
| |
87 |
PIN; CONNROD BIG END
OD=5 L=8
|
9-08160-508-0 |
08 |
1 |
0208-0511 |
|
● |
|
|
| |
87 |
PIN; CONNROD BIG END
OD=5 L=8
|
9-08160-508-0 |
08 |
1 |
0512-0610 |
|
|
● |
|
| |
87 |
PIN; CONNROD BIG END
OD=5 L=8
|
9-08160-508-0 |
08 |
1 |
0611- |
|
|
|
● |
| |
126 |
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
|
8-94460-687-0 |
08 |
1 |
9701-0207 |
● |
|
|
|
| |
126 |
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
|
8-94133-969-0 |
08 |
1 |
0208-0511 |
|
● |
|
|
| |
126 |
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
|
8-94133-969-0 |
08 |
1 |
0512-0610 |
|
|
● |
|
| |
126 |
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
|
8-94460-687-0 |
08 |
1 |
0611- |
|
|
|
● |
