Sayfa 0-14 - Isuzu EPC

0-14 — CAMSHAFT AND VALVE (#139007) — 378 parça

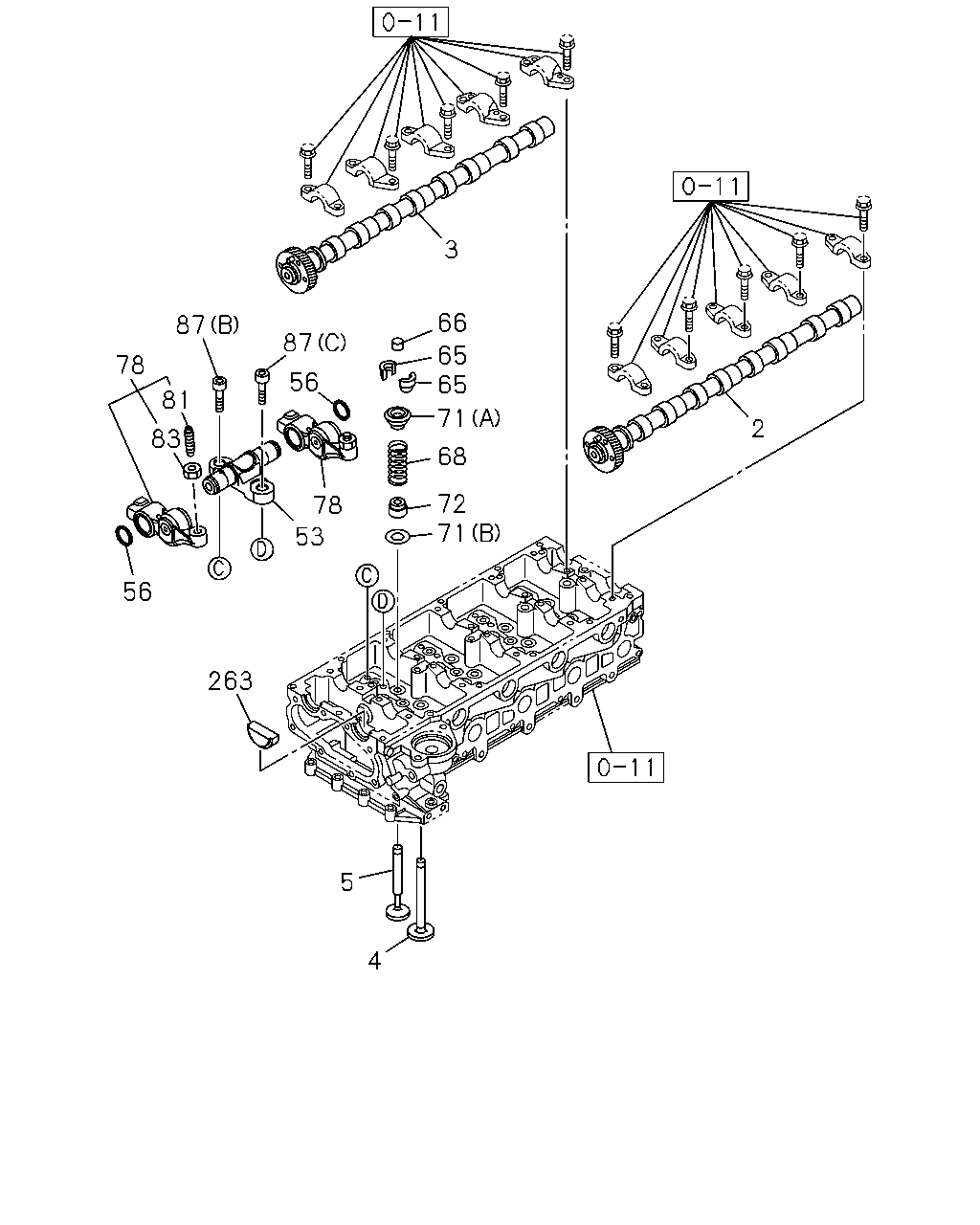

11 1 3 66 87 87 65 65 78 56 81 71 2 83 68 72 71 78 53 56 263 11 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CAMSHAFT	8-94127-797-4	01	1	9701-0012	●
1	CAMSHAFT	8-97287-657-0	01	1	0101-0207	●
1	CAMSHAFT	8-97287-657-1	01	1	0208-0511		●
1	CAMSHAFT	8-97287-657-1	01	1	0512-0610			●
2	CAMSHAFT; INL	8-98003-129-3	01	1	0611-				●
3	CAMSHAFT; EXH	8-98003-130-3	01	1	0611-				●
4	VALVE; INL	8-97131-729-0	04	1	9701-0207	●
4	VALVE; INL	8-97131-729-1	04	1	0208-0511		●
4	VALVE; INL	8-97131-729-2	04	1	0512-0610			●
4	VALVE; INL	8-98016-973-0	08	1	0611-				●
5	VALVE; EXH	8-97118-767-0	04	1	9701-0207	●
5	VALVE; EXH	8-97043-861-2	04	1	0208-0511		●
5	VALVE; EXH	8-97043-861-2	04	1	0512-0610			●
5	VALVE; EXH	8-98016-974-1	08	1	0611-				●
53	SHAFT; ROCKER ARM	8-97036-197-0	01	1	9701-0207	●
53	SHAFT; ROCKER ARM	8-97036-197-0	01	1	0208-0511		●
53	SHAFT; ROCKER ARM	8-97036-197-0	01	1	0512-0610			●
53	SHAFT; ROCKER ARM INLET	8-98025-071-1	04	1	0611-				●
53	SHAFT; ROCKER ARM EXHAUST	8-98025-074-1	04	1	0611-				●
56	RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9701-0207	●
56	RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0208-0511		●
56	RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0512-0610			●
56	RING; SNAP,ROCKER ARM	8-98025-496-0	16	1	0611-				●
65	COLLAR; SPLIT	5-12565-004-0	16	1	9701-0207	●
65	COLLAR; SPLIT	5-12565-004-0	16	1	0208-0511		●
65	COLLAR; SPLIT	5-12565-004-0	16	1	0512-0610			●
65	COLLAR; SPLIT	8-94239-501-0	32	1	0611-				●
66	CAP; VLV STEM END	8-98029-870-1	16	1	0611-				●
68	SPRING; VLV ID=26.25	8-94433-247-0	08	1	9701-0207	●
68	SPRING; VLV ID=26.25	8-94433-247-0	08	1	0208-0511		●
68	SPRING; VLV ID=26.25	8-94433-247-0	08	1	0512-0610			●
68	SPRING; VLV INLET H=49 NATURAL	8-97311-669-0	08	1	0611-				●
68	SPRING; VLV EXHAUST H=57.5 MARK YELLOW	8-97311-675-1	08	1	0611-				●
71	SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9701-0207	●
71	SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0208-0511		●
71	SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0512-0610			●
71	SEAT; SPR (B)	8-97144-584-0	16	1	0611-				●
71	SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9701-0207	●
71	SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0208-0511		●
71	SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0512-0610			●
71	SEAT; SPR (A)	8-98017-067-0	16	1	0611-				●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	9701-0207	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	0208-0511		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	0512-0610			●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97328-647-0	16	1	0611-				●
78	ARM; ROCKER	8-94152-344-0	08	1	9701-0207	●
78	ARM; ROCKER	8-94152-344-0	08	1	0208-0511		●
78	ARM; ROCKER	8-94152-344-0	08	1	0512-0610			●
78	ARM; ROCKER	8-98025-059-3	16	1	0611-				●
81	SCREW; ADJ,ROCKER ARM M8 L=22	8-98025-497-0	16	1	0611-				●
81	SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	9701-0207	●
81	SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	0208-0511		●
81	SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	0512-0610			●
83	NUT; ADJ SCREW,LK M8 FLANGE	9-09844-574-0	16	1	0611-				●
83	NUT; ADJ SCREW,LK M8	9-09111-508-0	08	1	9701-0207	●
83	NUT; ADJ SCREW,LK M8	9-09111-508-0	08	1	0208-0511		●
83	NUT; ADJ SCREW,LK M8	9-09111-508-0	08	1	0512-0512			●
83	NUT; ADJ SCREW,LK M8	0-91111-508-0	08	1	0601-0610			●
87	BOLT; ROCKER SHAFT (A) M10X60	8-94433-302-0	01	1	9701-0207	●
87	BOLT; ROCKER SHAFT (A) M10X60	8-94433-302-0	01	1	0208-0511		●
87	BOLT; ROCKER SHAFT (A) M10X60	8-94433-302-0	01	1	0512-0610			●
87	BOLT; ROCKER SHAFT (C) M8X25 HEX SOCKET	0-58330-825-0	08	1	0611-				●
87	BOLT; ROCKER SHAFT (B) M8X40 HEX SOCKET	0-58330-840-0	08	1	0611-				●
263	GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97259-973-0	04	1	0611-				●

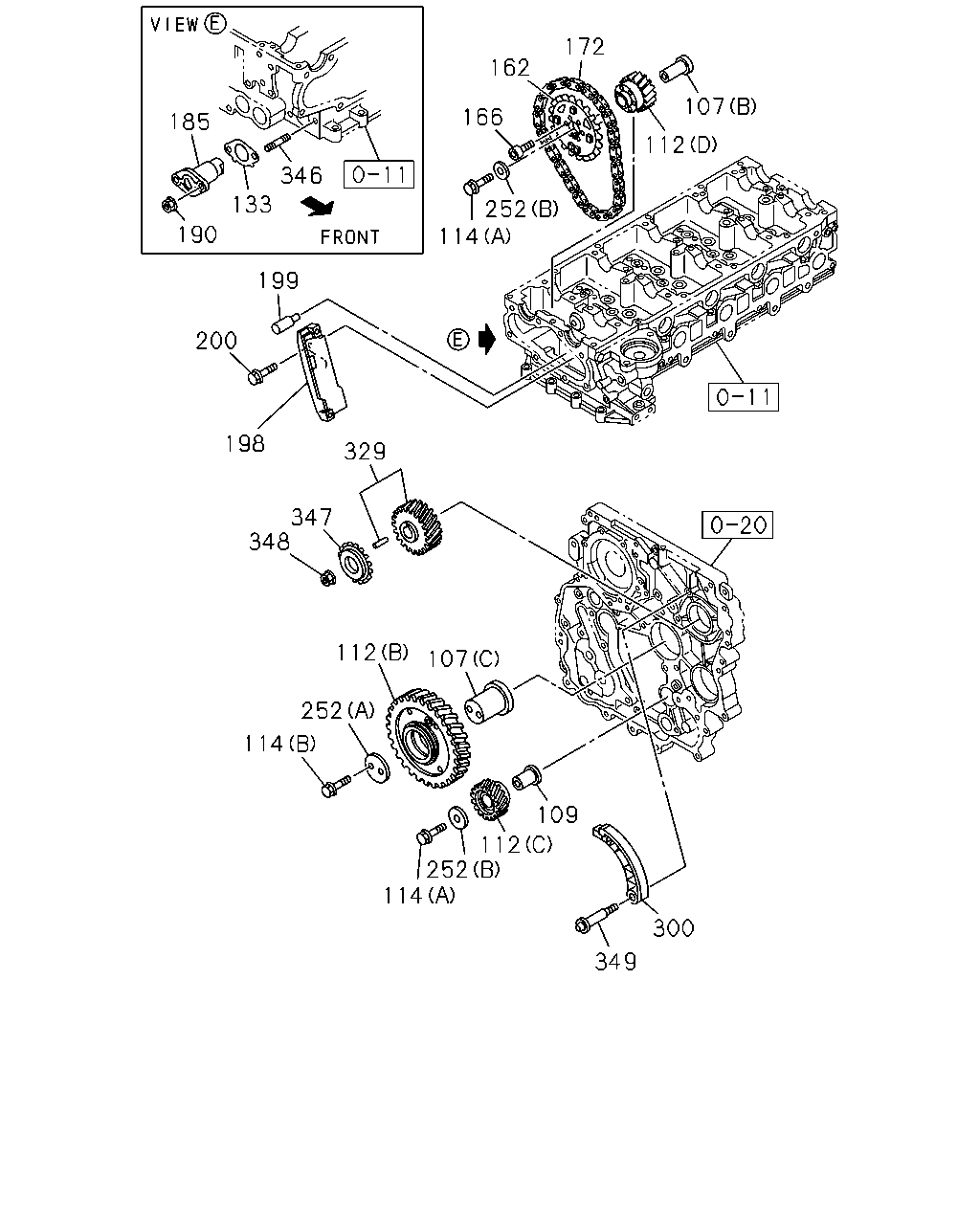

172 162 107 166 185 112 11 346 133 252 114 190 199 200 11 198 329 347 348 20 112 107 252 114 109 112 252 114 300 349

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
107	SHAFT; IDLE GEAR (A)	8-94139-758-1	01	1	9701-9905	●
107	SHAFT; IDLE GEAR (A)	8-97240-021-0	01	1	0208-0309		●
107	SHAFT; IDLE GEAR (A)	8-97943-224-0	01	1	0310-0511		●
107	SHAFT; IDLE GEAR (A)	8-97943-224-0	01	1	0512-0610			●
107	SHAFT; IDLE GEAR (C)	8-97312-315-2	01	1	0611-				●
107	SHAFT; IDLE GEAR (B)	8-97312-322-1	01	1	0611-				●
109	SHAFT; IDLE GEAR	8-94109-913-1	01	1	9701-9905	●
109	SHAFT; IDLE GEAR	8-97240-023-1	01	1	0208-0308		●
109	SHAFT; IDLE GEAR	8-97943-225-0	01	1	0309-0511		●
109	SHAFT; IDLE GEAR	8-97943-225-0	01	1	0512-0610			●
109	SHAFT; IDLE GEAR	8-97312-319-1	01	1	0611-				●
112	GEAR; IDLE (A) Z=31	8-97164-773-0	01	1	9701-9905	●
112	GEAR; IDLE (A) Z=43	8-97240-014-1	01	1	0208-0511		●
112	GEAR; IDLE (A) Z=43	8-97240-014-1	01	1	0512-0610			●
112	GEAR; IDLE (B) Z=80	8-97381-516-1	01	1	0611-				●
112	GEAR; IDLE (C) Z=34	8-97381-518-0	01	1	0611-				●
112	GEAR; IDLE (D) Z=35	8-97381-520-3	01	1	0611-				●
114	BOLT; IDLE GEAR (B) M10X60 FLANGE	0-28061-060-0	02	1	0611-				●
114	BOLT; IDLE GEAR (A) M12X60 FLANGE	0-28161-260-0	02	1	0611-				●
133	GASKET; CHAIN TENSIONER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97312-336-0	01	1	0611-				●
162	SPROCKET; IDLE	8-97312-331-1	01	1	0611-				●
166	BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET	0-58330-616-0	06	1	0611-				●
172	CHAIN; TIMING,CM/SHF	8-97945-067-0	01	1	0611-				●
185	TENSIONER; CHAIN	8-98039-754-1	01	1	0611-				●
190	NUT; CHAIN TENSIONER M6 FLANGE	0-91180-206-0	02	1	0611-				●
198	GUIDE; TIMING CHAIN	8-97945-069-0	01	1	0611-				●
199	JET; OIL,TIMING CHAIN	8-97356-061-1	01	1	0611-				●
200	BOLT; CHAIN GUIDE,LWR M8X20	1-09070-120-1	02	1	0611-				●
252	FLANGE; IDLE SHAFT (A)	8-98016-892-0	01	1	0611-				●
252	FLANGE; IDLE SHAFT (B)	8-98016-893-0	02	1	0611-				●
300	LEVER; TENSION,TIMING CHAIN	8-97945-070-0	01	1	0611-				●
329	GEAR; INJ PUMP Z=44	8-98017-539-1	01	1	0611-				●
346	STUD; CHAIN M6X18 L=27	0-41010-618-0	02	1	0611-				●
347	SPROCKET; I/PUMP	8-97312-330-1	01	1	0611-				●
348	NUT; SPROCKET M14 FLANGE	8-97312-423-2	01	1	0611-				●
349	PIVOT; CHAIN LEVER	8-97312-328-0	01	1	0611-				●

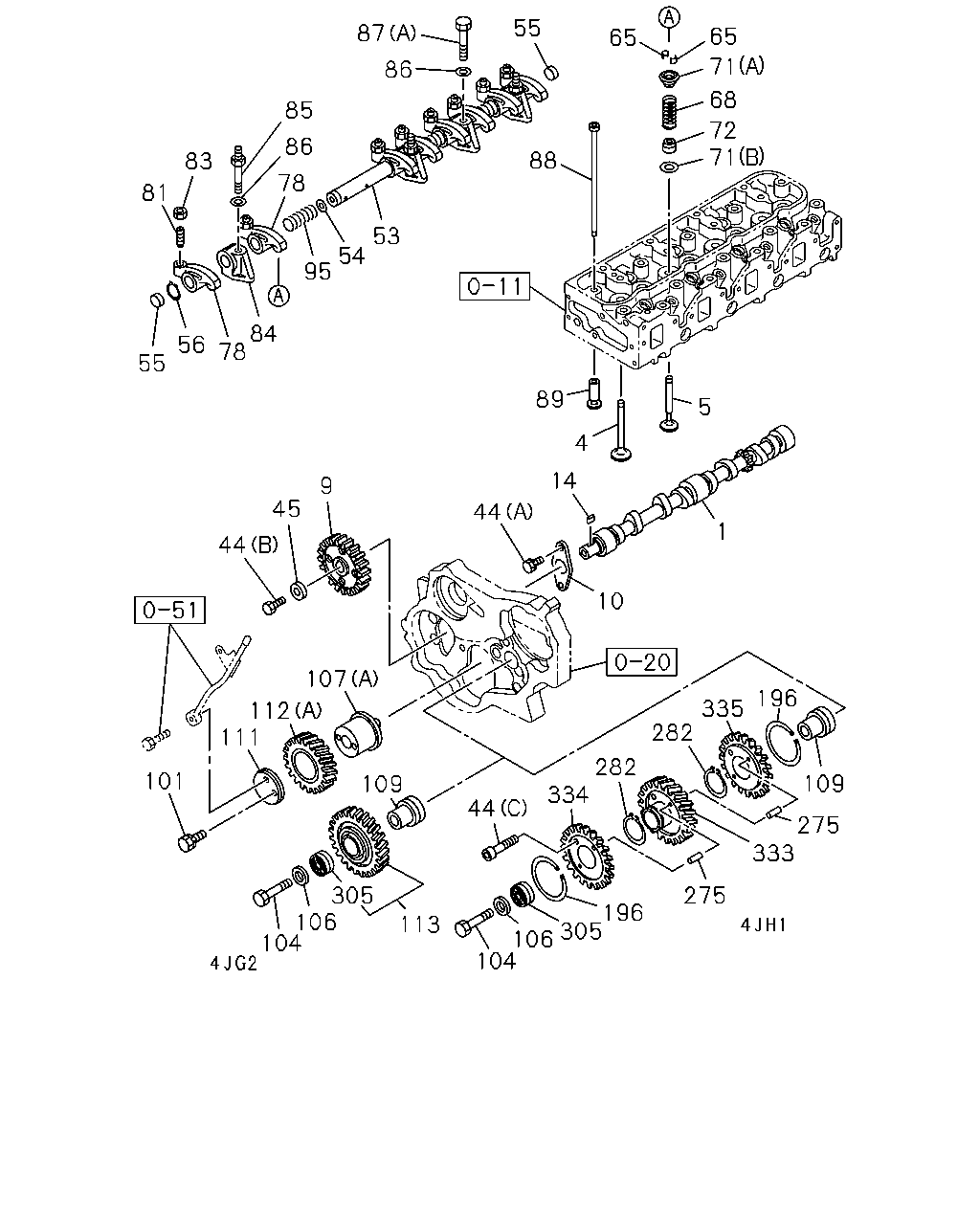

55 87 65 65 71 86 68 85 72 71 86 88 83 78 81 53 54 95 11 84 78 56 55 89 5 4 14 9 45 44 1 44 10 51 20 107 196 335 282 112 111 282 334 101 109 109 44 275 333 275 305 106 104 196 305 106 104 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CAMSHAFT	8-94127-797-4	01	1	9701-0012	●
1	CAMSHAFT	8-97287-657-0	01	1	0101-0207	●
1	CAMSHAFT	8-97287-657-1	01	1	0208-0511		●
1	CAMSHAFT	8-97287-657-1	01	1	0512-0610			●
4	VALVE; INL	8-97131-729-0	04	1	9701-0207	●
4	VALVE; INL	8-97131-729-1	04	1	0208-0511		●
4	VALVE; INL	8-97131-729-2	04	1	0512-0610			●
4	VALVE; INL	8-98016-973-0	08	1	0611-				●
5	VALVE; EXH	8-97118-767-0	04	1	9701-0207	●
5	VALVE; EXH	8-97043-861-2	04	1	0208-0511		●
5	VALVE; EXH	8-97043-861-2	04	1	0512-0610			●
5	VALVE; EXH	8-98016-974-1	08	1	0611-				●
9	GEAR; CM/SHF Z=42	8-97079-212-0	01	1	9701-9905	●
9	GEAR; CM/SHF Z=60	8-97240-012-2	01	1	0208-0511		●
9	GEAR; CM/SHF Z=60	8-97240-012-2	01	1	0512-0610			●
10	PLATE; THRUST	8-94110-480-1	01	1	9701-9905	●
10	PLATE; THRUST	8-94110-480-1	01	1	0208-0511		●
10	PLATE; THRUST	8-94110-480-1	01	1	0512-0610			●
14	KEY; CM/SHF	9-08000-718-0	01	1	9701-0207	●
14	KEY; CM/SHF	9-08000-718-0	01	1	0208-0511		●
14	KEY; CM/SHF	9-08000-718-0	01	1	0512-0610			●
44	BOLT (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9701-9905	●
44	BOLT (B) M12X47	8-94433-407-0	01	1	9701-0207	●
44	BOLT (B) M12X47	8-94433-407-0	01	1	0208-0511		●
44	BOLT (B) M12X47	8-94433-407-0	01	1	0512-0610			●
44	BOLT (A) M8X16 FLANGE	0-28080-816-0	02	1	0208-0511		●
44	BOLT (A) M8X16 FLANGE	0-28080-816-0	02	1	0512-0512			●
44	BOLT (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-0610			●
44	BOLT (C) M6X30 HEX SOCKET	9-05820-630-0	01	1	0208-0511		●
44	BOLT (C) M6X30 HEX SOCKET	9-05820-630-0	01	1	0512-0610			●
45	WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9701-0207	●
45	WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0208-0409		●
45	WASHER; GEAR CAM ID=13 OD=36	8-97918-881-0	01	1	0410-0410		●
45	WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0410-0511		●
45	WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0512-0610			●
53	SHAFT; ROCKER ARM	8-97036-197-0	01	1	9701-0207	●
53	SHAFT; ROCKER ARM	8-97036-197-0	01	1	0208-0511		●
53	SHAFT; ROCKER ARM	8-97036-197-0	01	1	0512-0610			●
53	SHAFT; ROCKER ARM INLET	8-98025-071-1	04	1	0611-				●
53	SHAFT; ROCKER ARM EXHAUST	8-98025-074-1	04	1	0611-				●
54	WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9701-0207	●
54	WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	0208-0511		●
54	WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	0512-0610			●
55	PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9701-0207	●
55	PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	0208-0511		●
55	PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	0512-0610			●
56	RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9701-0207	●
56	RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0208-0511		●
56	RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0512-0610			●
56	RING; SNAP,ROCKER ARM	8-98025-496-0	16	1	0611-				●
65	COLLAR; SPLIT	5-12565-004-0	16	1	9701-0207	●
65	COLLAR; SPLIT	5-12565-004-0	16	1	0208-0511		●
65	COLLAR; SPLIT	5-12565-004-0	16	1	0512-0610			●
65	COLLAR; SPLIT	8-94239-501-0	32	1	0611-				●
68	SPRING; VLV ID=26.25	8-94433-247-0	08	1	9701-0207	●
68	SPRING; VLV ID=26.25	8-94433-247-0	08	1	0208-0511		●
68	SPRING; VLV ID=26.25	8-94433-247-0	08	1	0512-0610			●
68	SPRING; VLV INLET H=49 NATURAL	8-97311-669-0	08	1	0611-				●
68	SPRING; VLV EXHAUST H=57.5 MARK YELLOW	8-97311-675-1	08	1	0611-				●
71	SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9701-0207	●
71	SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0208-0511		●
71	SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0512-0610			●
71	SEAT; SPR (B)	8-97144-584-0	16	1	0611-				●
71	SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9701-0207	●
71	SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0208-0511		●
71	SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0512-0610			●
71	SEAT; SPR (A)	8-98017-067-0	16	1	0611-				●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	9701-0207	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	0208-0511		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	0512-0610			●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97328-647-0	16	1	0611-				●
78	ARM; ROCKER	8-94152-344-0	08	1	9701-0207	●
78	ARM; ROCKER	8-94152-344-0	08	1	0208-0511		●
78	ARM; ROCKER	8-94152-344-0	08	1	0512-0610			●
78	ARM; ROCKER	8-98025-059-3	16	1	0611-				●
81	SCREW; ADJ,ROCKER ARM M8 L=22	8-98025-497-0	16	1	0611-				●
81	SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	9701-0207	●
81	SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	0208-0511		●
81	SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	0512-0610			●
83	NUT; ADJ SCREW,LK M8 FLANGE	9-09844-574-0	16	1	0611-				●
83	NUT; ADJ SCREW,LK M8	9-09111-508-0	08	1	9701-0207	●
83	NUT; ADJ SCREW,LK M8	9-09111-508-0	08	1	0208-0511		●
83	NUT; ADJ SCREW,LK M8	9-09111-508-0	08	1	0512-0512			●
83	NUT; ADJ SCREW,LK M8	0-91111-508-0	08	1	0601-0610			●
84	BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9701-0207	●
84	BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0208-0511		●
84	BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0512-0610			●
85	BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	9701-0207	●
85	BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	0208-0511		●
85	BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	0512-0610			●
86	WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9701-0207	●
86	WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	0208-0511		●
86	WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	0512-0610			●
87	BOLT; ROCKER SHAFT (A) M10X60	8-94433-302-0	01	1	9701-0207	●
87	BOLT; ROCKER SHAFT (A) M10X60	8-94433-302-0	01	1	0208-0511		●
87	BOLT; ROCKER SHAFT (A) M10X60	8-94433-302-0	01	1	0512-0610			●
87	BOLT; ROCKER SHAFT (C) M8X25 HEX SOCKET	0-58330-825-0	08	1	0611-				●
87	BOLT; ROCKER SHAFT (B) M8X40 HEX SOCKET	0-58330-840-0	08	1	0611-				●
88	ROD; PUSH	8-97071-673-0	08	1	9701-0207	●
88	ROD; PUSH	8-97071-673-0	08	1	0208-0511		●
88	ROD; PUSH	8-97071-673-0	08	1	0512-0610			●
89	TAPPET; VLV	8-94438-305-0	08	1	9701-0207	●
89	TAPPET; VLV	8-94438-305-1	08	1	0208-0511		●
89	TAPPET; VLV	8-94438-305-1	08	1	0512-0610			●
95	SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9701-0207	●
95	SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0208-0511		●
95	SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0512-0610			●
101	BOLT; THRUST COLLAR M8X55 W/LK WASHER	5-09000-084-1	02	1	9701-9904	●
101	BOLT; THRUST COLLAR M8X53 FLANGE	8-97223-999-0	02	1	9905-9905	●
101	BOLT; THRUST COLLAR M8X53 FLANGE	8-97223-999-0	02	1	0208-0511		●
101	BOLT; THRUST COLLAR M8X53 FLANGE	8-97223-999-0	02	1	0512-0610			●
104	BOLT; SHAFT IDLE	8-94109-706-1	01	1	9701-9905	●
104	BOLT; SHAFT IDLE M12X77	8-94129-384-1	01	1	0208-0511		●
104	BOLT; SHAFT IDLE M12X77	8-94129-384-1	01	1	0512-0610			●
106	WASHER; IDLE GEAR SHAFT ID=13 OD=36	5-12519-002-1	01	1	9701-9905	●
106	WASHER; IDLE GEAR SHAFT ID=13 OD=36	5-12519-002-1	01	1	0208-0409		●
106	WASHER; IDLE GEAR SHAFT ID=13 OD=36	8-97918-881-0	01	1	0410-0410		●
106	WASHER; IDLE GEAR SHAFT ID=13 OD=36	5-12519-002-1	01	1	0410-0511		●
106	WASHER; IDLE GEAR SHAFT ID=13 OD=36	5-12519-002-1	01	1	0512-0610			●
107	SHAFT; IDLE GEAR (A)	8-94139-758-1	01	1	9701-9905	●
107	SHAFT; IDLE GEAR (A)	8-97240-021-0	01	1	0208-0309		●
107	SHAFT; IDLE GEAR (A)	8-97943-224-0	01	1	0310-0511		●
107	SHAFT; IDLE GEAR (A)	8-97943-224-0	01	1	0512-0610			●
107	SHAFT; IDLE GEAR (C)	8-97312-315-2	01	1	0611-				●
107	SHAFT; IDLE GEAR (B)	8-97312-322-1	01	1	0611-				●
109	SHAFT; IDLE GEAR	8-94109-913-1	01	1	9701-9905	●
109	SHAFT; IDLE GEAR	8-97240-023-1	01	1	0208-0308		●
109	SHAFT; IDLE GEAR	8-97943-225-0	01	1	0309-0511		●
109	SHAFT; IDLE GEAR	8-97943-225-0	01	1	0512-0610			●
109	SHAFT; IDLE GEAR	8-97312-319-1	01	1	0611-				●
111	COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	9701-9905	●
111	COLLAR; THRUST,IDLE GEAR	8-94171-289-0	01	1	0208-0511		●
111	COLLAR; THRUST,IDLE GEAR	8-94171-289-0	01	1	0512-0610			●
112	GEAR; IDLE (A) Z=31	8-97164-773-0	01	1	9701-9905	●
112	GEAR; IDLE (A) Z=43	8-97240-014-1	01	1	0208-0511		●
112	GEAR; IDLE (A) Z=43	8-97240-014-1	01	1	0512-0610			●
112	GEAR; IDLE (B) Z=80	8-97381-516-1	01	1	0611-				●
112	GEAR; IDLE (C) Z=34	8-97381-518-0	01	1	0611-				●
112	GEAR; IDLE (D) Z=35	8-97381-520-3	01	1	0611-				●
113	GEAR; IDLE Z=37	8-94139-761-0	01	1	9701-9905	●
196	RING; SNAP	8-97245-684-1	02	1	0208-0511		●
196	RING; SNAP	8-97245-684-1	02	1	0512-0610			●
275	PIN; IDLE GEAR OD=5 L=7.5	8-97245-683-0	04	1	0208-0511		●
275	PIN; IDLE GEAR OD=5 L=7.5	8-97245-683-0	04	1	0512-0610			●
282	SPRING; GEAR	8-97245-337-0	02	1	0208-0511		●
282	SPRING; GEAR	8-97245-337-0	02	1	0512-0610			●
305	BEARING; IDLE GEAR	8-97240-019-1	01	1	0208-0511		●
305	BEARING; IDLE GEAR	8-97240-019-1	01	1	0512-0610			●
333	GEAR; IDLE,MAIN Z=52	8-97240-018-2	01	1	0208-0511		●
333	GEAR; IDLE,MAIN Z=52	8-97240-018-2	01	1	0512-0610			●
334	GEAR; IDLE,FRT Z=52	8-97245-232-2	01	1	0208-0511		●
334	GEAR; IDLE,FRT Z=52	8-97245-232-2	01	1	0512-0610			●
335	GEAR; IDLE,RR Z=52	8-97245-231-1	01	1	0208-0511		●
335	GEAR; IDLE,RR Z=52	8-97245-231-1	01	1	0512-0610			●

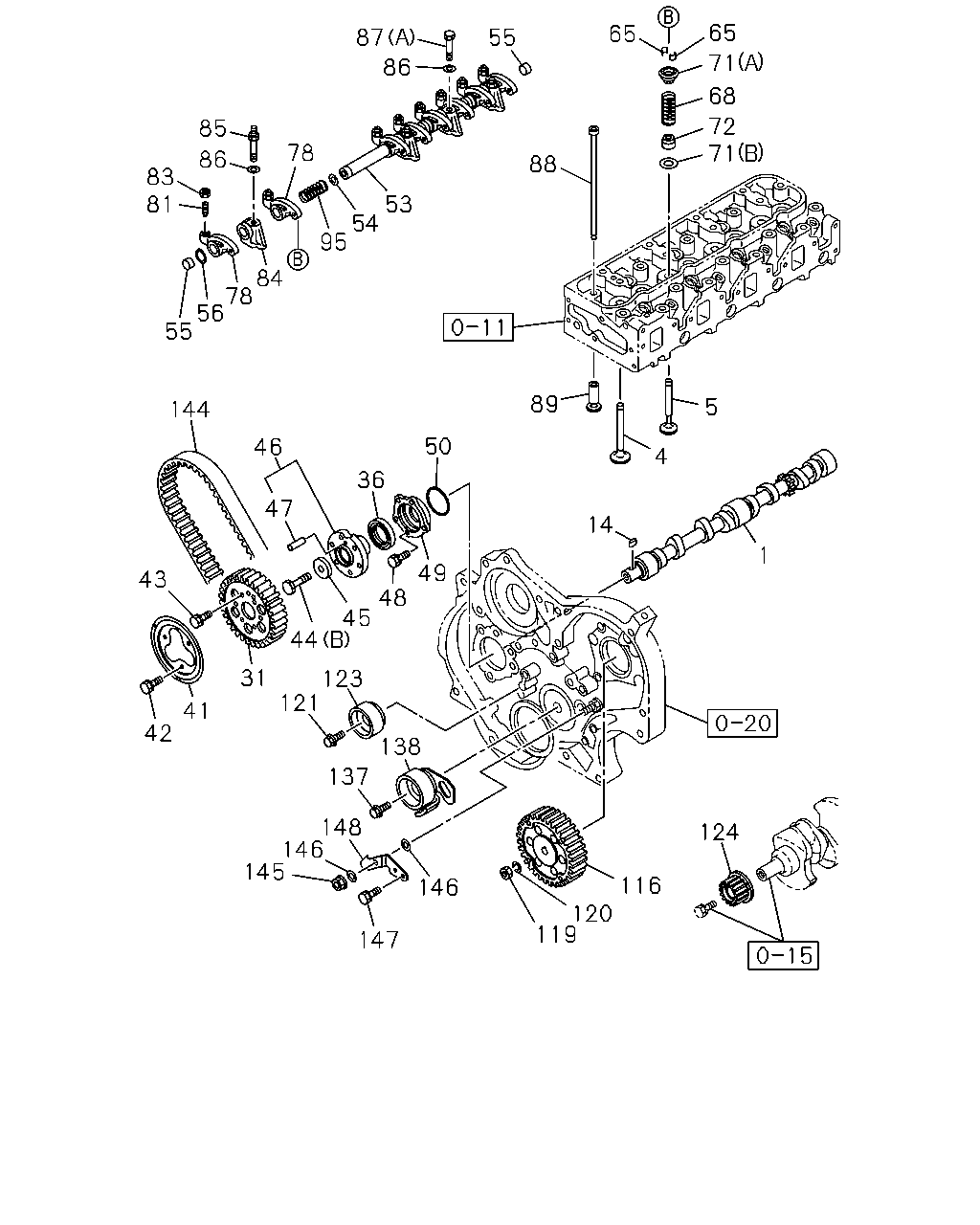

65 65 87 55 71 86 68 72 71 85 78 86 88 83 81 53 54 95 84 78 56 55 11 89 5 144 50 46 4 36 47 14 1 49 43 48 45 44 31 123 121 41 20 42 138 137 148 146 145 124 116 146 120 119 147 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CAMSHAFT	8-94127-797-4	01	1	9701-0012	●
1	CAMSHAFT	8-97287-657-0	01	1	0101-0207	●
1	CAMSHAFT	8-97287-657-1	01	1	0208-0511		●
1	CAMSHAFT	8-97287-657-1	01	1	0512-0610			●
4	VALVE; INL	8-97131-729-0	04	1	9701-0207	●
4	VALVE; INL	8-97131-729-1	04	1	0208-0511		●
4	VALVE; INL	8-97131-729-2	04	1	0512-0610			●
4	VALVE; INL	8-98016-973-0	08	1	0611-				●
5	VALVE; EXH	8-97118-767-0	04	1	9701-0207	●
5	VALVE; EXH	8-97043-861-2	04	1	0208-0511		●
5	VALVE; EXH	8-97043-861-2	04	1	0512-0610			●
5	VALVE; EXH	8-98016-974-1	08	1	0611-				●
14	KEY; CM/SHF	9-08000-718-0	01	1	9701-0207	●
14	KEY; CM/SHF	9-08000-718-0	01	1	0208-0511		●
14	KEY; CM/SHF	9-08000-718-0	01	1	0512-0610			●
31	SPROCKET; CM/SHF Z=44	8-97147-983-0	01	1	9906-0207	●
36	SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=56 T=7.0	8-97080-562-0	01	1	9906-0207	●
41	FLANGE; CAM PULLEY	8-94157-492-0	01	1	9906-0207	●
42	BOLT; FLANGE CAM M8X18 W/LK WASHER	0-50040-818-0	03	1	9906-0207	●
43	BOLT; PULLEY M6X16 W/LK WASHER	0-50040-616-0	03	1	9906-0207	●
44	BOLT (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9701-9905	●
44	BOLT (B) M12X47	8-94433-407-0	01	1	9701-0207	●
44	BOLT (B) M12X47	8-94433-407-0	01	1	0208-0511		●
44	BOLT (B) M12X47	8-94433-407-0	01	1	0512-0610			●
44	BOLT (A) M8X16 FLANGE	0-28080-816-0	02	1	0208-0511		●
44	BOLT (A) M8X16 FLANGE	0-28080-816-0	02	1	0512-0512			●
44	BOLT (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-0610			●
44	BOLT (C) M6X30 HEX SOCKET	9-05820-630-0	01	1	0208-0511		●
44	BOLT (C) M6X30 HEX SOCKET	9-05820-630-0	01	1	0512-0610			●
45	WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9701-0207	●
45	WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0208-0409		●
45	WASHER; GEAR CAM ID=13 OD=36	8-97918-881-0	01	1	0410-0410		●
45	WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0410-0511		●
45	WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0512-0610			●
46	CENTER ASM; TIMING PULLEY	8-97118-491-1	01	1	9906-0207	●
47	PIN; STRAIGHT,CENTER OD=4 L=12	9-08160-412-0	01	1	9906-0207	●
48	BOLT; RET M8X35 W/LK WASHER	0-50040-835-0	05	1	9906-0207	●
49	RETAINER; OIL SEAL,CM/SHF	8-94133-516-2	01	1	9906-0207	●
50	GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97080-893-0	01	1	9906-0207	●
53	SHAFT; ROCKER ARM	8-97036-197-0	01	1	9701-0207	●
53	SHAFT; ROCKER ARM	8-97036-197-0	01	1	0208-0511		●
53	SHAFT; ROCKER ARM	8-97036-197-0	01	1	0512-0610			●
53	SHAFT; ROCKER ARM INLET	8-98025-071-1	04	1	0611-				●
53	SHAFT; ROCKER ARM EXHAUST	8-98025-074-1	04	1	0611-				●
54	WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9701-0207	●
54	WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	0208-0511		●
54	WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	0512-0610			●
55	PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9701-0207	●
55	PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	0208-0511		●
55	PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	0512-0610			●
56	RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9701-0207	●
56	RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0208-0511		●
56	RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0512-0610			●
56	RING; SNAP,ROCKER ARM	8-98025-496-0	16	1	0611-				●
65	COLLAR; SPLIT	5-12565-004-0	16	1	9701-0207	●
65	COLLAR; SPLIT	5-12565-004-0	16	1	0208-0511		●
65	COLLAR; SPLIT	5-12565-004-0	16	1	0512-0610			●
65	COLLAR; SPLIT	8-94239-501-0	32	1	0611-				●
68	SPRING; VLV ID=26.25	8-94433-247-0	08	1	9701-0207	●
68	SPRING; VLV ID=26.25	8-94433-247-0	08	1	0208-0511		●
68	SPRING; VLV ID=26.25	8-94433-247-0	08	1	0512-0610			●
68	SPRING; VLV INLET H=49 NATURAL	8-97311-669-0	08	1	0611-				●
68	SPRING; VLV EXHAUST H=57.5 MARK YELLOW	8-97311-675-1	08	1	0611-				●
71	SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9701-0207	●
71	SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0208-0511		●
71	SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0512-0610			●
71	SEAT; SPR (B)	8-97144-584-0	16	1	0611-				●
71	SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9701-0207	●
71	SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0208-0511		●
71	SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0512-0610			●
71	SEAT; SPR (A)	8-98017-067-0	16	1	0611-				●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	9701-0207	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	0208-0511		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	0512-0610			●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97328-647-0	16	1	0611-				●
78	ARM; ROCKER	8-94152-344-0	08	1	9701-0207	●
78	ARM; ROCKER	8-94152-344-0	08	1	0208-0511		●
78	ARM; ROCKER	8-94152-344-0	08	1	0512-0610			●
78	ARM; ROCKER	8-98025-059-3	16	1	0611-				●
81	SCREW; ADJ,ROCKER ARM M8 L=22	8-98025-497-0	16	1	0611-				●
81	SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	9701-0207	●
81	SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	0208-0511		●
81	SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	0512-0610			●
83	NUT; ADJ SCREW,LK M8 FLANGE	9-09844-574-0	16	1	0611-				●
83	NUT; ADJ SCREW,LK M8	9-09111-508-0	08	1	9701-0207	●
83	NUT; ADJ SCREW,LK M8	9-09111-508-0	08	1	0208-0511		●
83	NUT; ADJ SCREW,LK M8	9-09111-508-0	08	1	0512-0512			●
83	NUT; ADJ SCREW,LK M8	0-91111-508-0	08	1	0601-0610			●
84	BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9701-0207	●
84	BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0208-0511		●
84	BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0512-0610			●
85	BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	9701-0207	●
85	BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	0208-0511		●
85	BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	0512-0610			●
86	WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9701-0207	●
86	WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	0208-0511		●
86	WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	0512-0610			●
87	BOLT; ROCKER SHAFT (A) M10X60	8-94433-302-0	01	1	9701-0207	●
87	BOLT; ROCKER SHAFT (A) M10X60	8-94433-302-0	01	1	0208-0511		●
87	BOLT; ROCKER SHAFT (A) M10X60	8-94433-302-0	01	1	0512-0610			●
87	BOLT; ROCKER SHAFT (C) M8X25 HEX SOCKET	0-58330-825-0	08	1	0611-				●
87	BOLT; ROCKER SHAFT (B) M8X40 HEX SOCKET	0-58330-840-0	08	1	0611-				●
88	ROD; PUSH	8-97071-673-0	08	1	9701-0207	●
88	ROD; PUSH	8-97071-673-0	08	1	0208-0511		●
88	ROD; PUSH	8-97071-673-0	08	1	0512-0610			●
89	TAPPET; VLV	8-94438-305-0	08	1	9701-0207	●
89	TAPPET; VLV	8-94438-305-1	08	1	0208-0511		●
89	TAPPET; VLV	8-94438-305-1	08	1	0512-0610			●
95	SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9701-0207	●
95	SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0208-0511		●
95	SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0512-0610			●
116	PULLEY; TIMING,INJ PUMP Z=44 B=37.7	8-97043-289-0	01	1	9906-0207	●
119	NUT; PULLEY M14	8-94226-565-0	01	1	9906-0207	●
120	WASHER; LK,PULLEY,INJ PUMP	8-94226-554-0	01	1	9906-0207	●
121	BOLT; IDLE PULLEY M12X57 FLANGE	8-94433-408-1	01	1	9906-0207	●
123	PULLEY; IDLE,TIMING	8-94382-215-1	01	1	9906-0207	●
124	PULLEY; TIMING,CR/SHF Z=22	8-94133-501-3	01	1	9906-0207	●
137	BOLT; TENSIONER M12X57 FLANGE	8-94433-408-1	01	1	9906-0207	●
138	TENSIONER; TIMING BELT	8-94382-214-1	01	1	9906-0207	●
144	BELT; TIMING BLUE	8-94380-679-0	01	1	9906-0207	●
145	NUT; FLANGE M8 FLANGE	0-91150-208-0	01	1	9906-0207	●
146	WASHER; PL,TENSION LEVER ID=8.4 OD=22	9-09164-708-0	02	1	9906-0207	●
147	BOLT; TENSION LEVER M6X12 FLANGE	0-28080-612-0	01	1	9906-0207	●
148	LEVER; TENSION,TIMING BELT	8-97146-370-0	01	1	9906-0207	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
