Sayfa 0-12 - Isuzu EPC

0-12 — CYLINDER BLOCK (#139005) — 324 parça

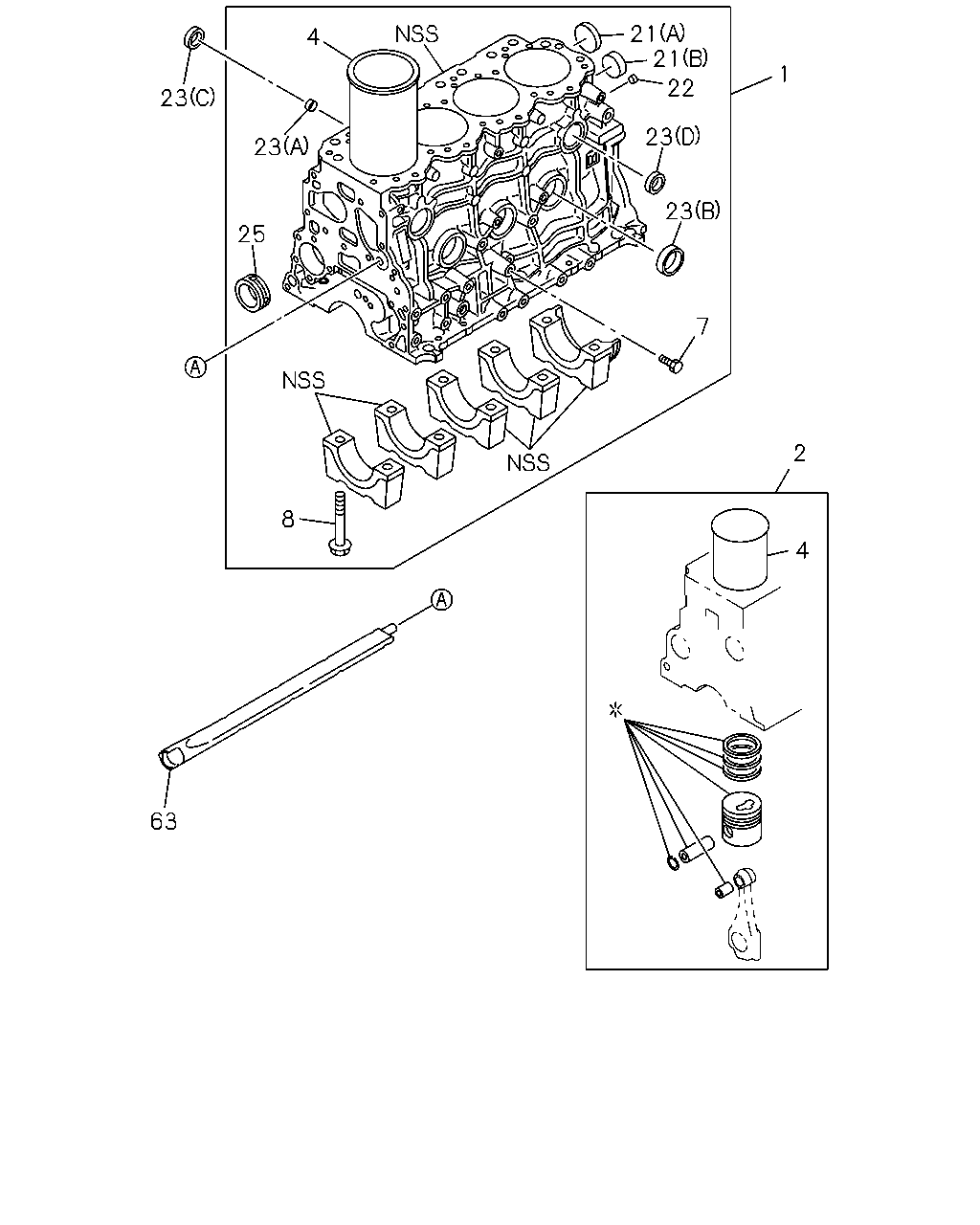

21 2 4 1 22 23 23 23 23 25 7 2 8 4 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BLOCK ASM; CYL	8-97043-280-1	01	1	9701-0202	●
1	BLOCK ASM; CYL	8-97314-579-0	01	1	0203-0207	●
1	BLOCK ASM; CYL	8-97257-264-3	01	1	0208-0511		●
1	BLOCK ASM; CYL	8-97257-264-3	01	1	0512-0610			●
1	BLOCK ASM; CYL	8-98013-824-2	01	1	0611-				●
2	LINER SET; ENG CYL GRADE=1	5-87813-205-0	04	1	9701-9905	●
2	LINER SET; ENG CYL GRADE=1	5-87813-221-0	04	1	9906-0207	●
2	LINER SET; ENG CYL GRADE=1	5-87814-090-2	04	1	0208-0511		●
2	LINER SET; ENG CYL GRADE=1	5-87814-090-2	04	1	0512-0610			●
2	LINER SET; ENG CYL GRADE=2	5-87813-206-0	04	1	9701-9905	●
2	LINER SET; ENG CYL GRADE=2	5-87813-222-0	04	1	9906-0207	●
2	LINER SET; ENG CYL GRADE=2	5-87814-091-2	04	1	0208-0511		●
2	LINER SET; ENG CYL GRADE=2	5-87814-091-2	04	1	0512-0610			●
2	LINER SET; ENG CYL GRADE=3	5-87813-207-0	04	1	9701-9905	●
2	LINER SET; ENG CYL GRADE=3	5-87813-223-0	04	1	9906-0207	●
2	LINER SET; ENG CYL GRADE=3	5-87814-092-2	04	1	0208-0511		●
2	LINER SET; ENG CYL GRADE=3	5-87814-092-2	04	1	0512-0610			●
2	LINER SET; ENG CYL GRADE=4	5-87813-208-0	04	1	9701-9905	●
2	LINER SET; ENG CYL GRADE=4	5-87813-224-0	04	1	9906-0207	●
2	LINER SET; ENG CYL GRADE=4	5-87814-093-2	04	1	0208-0511		●
2	LINER SET; ENG CYL GRADE=4	5-87814-093-2	04	1	0512-0610			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	9701-0207	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	0208-0511		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	0512-0610			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	9701-0207	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	0208-0511		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	0512-0610			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	9701-0207	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	0208-0511		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	0512-0610			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	9701-0207	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	0208-0511		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	0512-0610			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	9701-0207	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	0208-0511		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	0512-0610			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	9701-0207	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	0208-0511		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	0512-0610			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	9701-0207	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	0208-0511		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	0512-0610			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	9701-0207	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	0208-0511		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	0512-0610			●
7	PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9701-0207	●
7	PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0208-0511		●
7	PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0512-0610			●
7	PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0611-				●
8	BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9701-0207	●
8	BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0208-0511		●
8	BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0512-0610			●
8	BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0611-				●
21	CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	9701-0207	●
21	CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0208-0511		●
21	CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0512-0610			●
21	CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0611-				●
21	CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	9701-0207	●
21	CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0208-0511		●
21	CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0512-0610			●
21	CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0611-				●
21	CUP; SEALING,RR (C) OD=12.3	5-09600-013-0	01	1	0611-				●
22	CUP; SEALING,DUCT HOLE OD=12.3	5-09600-013-0	01	1	9701-0207	●
22	CUP; SEALING,DUCT HOLE OD=12.3	5-09600-013-0	01	1	0208-0511		●
22	CUP; SEALING,DUCT HOLE OD=12.3	5-09600-013-0	01	1	0512-0610			●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	1-09600-005-1	03	1	9701-0207	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	1-09600-005-1	03	1	0208-0210		●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0211-0511		●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0512-0610			●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0611-				●
23	CUP; SEALING,C/BL FRT & RR (A) OD=18	5-11219-008-0	03	1	9701-0207	●
23	CUP; SEALING,C/BL FRT & RR (A) OD=18	5-11219-008-0	03	1	0208-0511		●
23	CUP; SEALING,C/BL FRT & RR (A) OD=18	5-11219-008-0	03	1	0512-0610			●
23	CUP; SEALING,C/BL FRT & RR (A) OD=18	5-11219-008-0	02	1	0611-				●
23	CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	9701-0207	●
23	CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	0208-0511		●
23	CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	0512-0610			●
23	CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	04	1	0611-				●
23	CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	9701-9905	●
23	CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	9906-0207	●
23	CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	0208-0511		●
23	CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	0512-0610			●
23	CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	0611-				●
25	METAL; CM/SHF CENTER & REAR	8-94427-201-2	02	1	9701-0207	●
25	METAL; CM/SHF CENTER & REAR	8-94427-201-2	02	1	0208-0411		●
25	METAL; CM/SHF CENTER & REAR	8-97378-147-0	02	1	0412-0511		●
25	METAL; CM/SHF CENTER & REAR	8-97378-147-0	02	1	0512-0610			●
25	METAL; CM/SHF FRONT	8-94427-206-2	01	1	9701-0207	●
25	METAL; CM/SHF FRONT	8-94427-206-2	01	1	0208-0411		●
25	METAL; CM/SHF FRONT	8-97378-148-0	01	1	0412-0511		●
25	METAL; CM/SHF FRONT	8-97378-148-0	01	1	0512-0610			●
63	DUCT; WATER,C/BL	8-94456-794-2	01	1	9701-0207	●
63	DUCT; WATER,C/BL	8-94456-794-3	01	1	0208-0511		●
63	DUCT; WATER,C/BL	8-94456-794-3	01	1	0512-0610			●

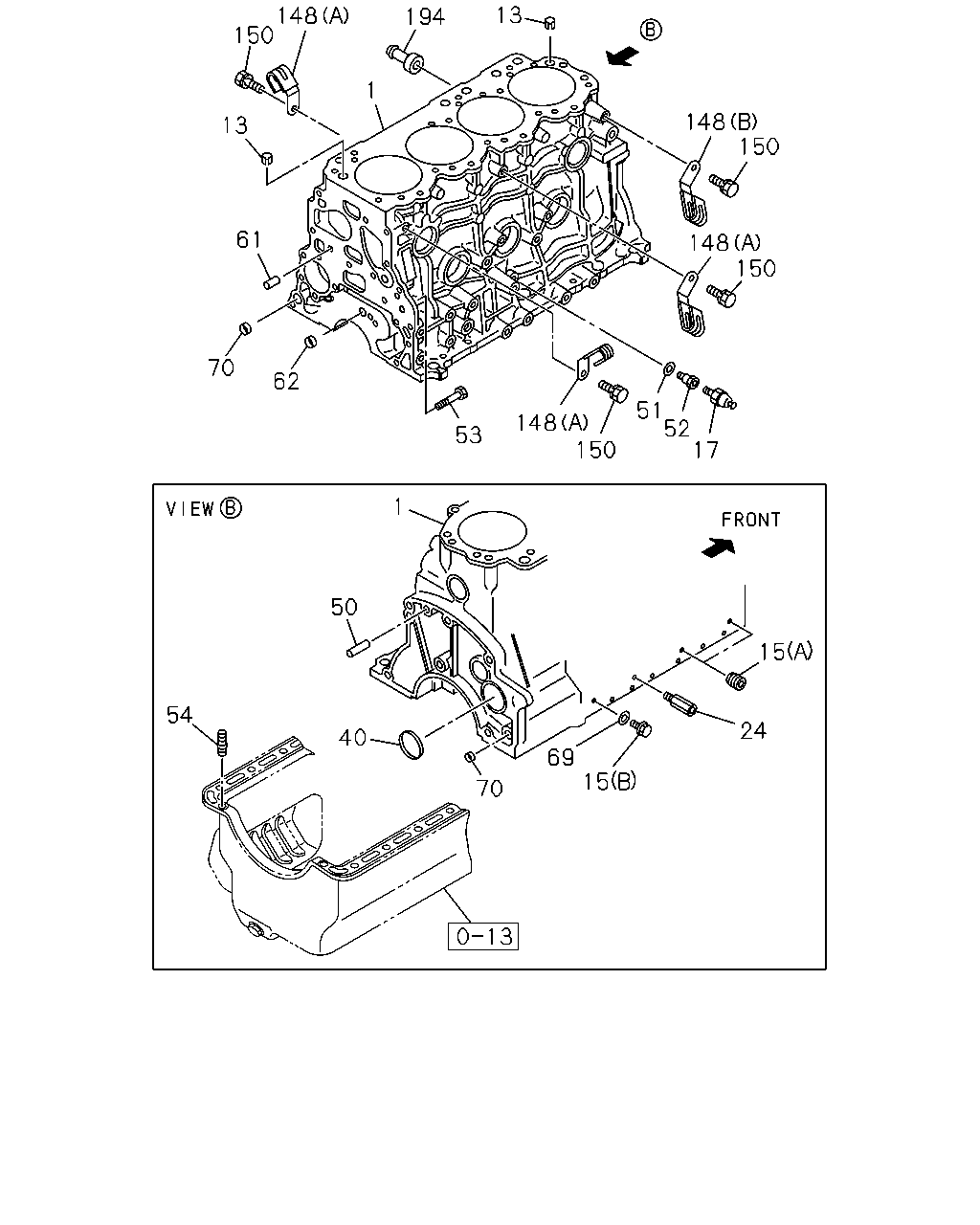

13 148 150 194 1 148 150 13 61 148 150 70 62 51 52 17 148 150 53 1 50 15 54 24 40 69 15 70 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BLOCK ASM; CYL	8-97043-280-1	01	1	9701-0202	●
1	BLOCK ASM; CYL	8-97314-579-0	01	1	0203-0207	●
1	BLOCK ASM; CYL	8-97257-264-3	01	1	0208-0511		●
1	BLOCK ASM; CYL	8-97257-264-3	01	1	0512-0610			●
1	BLOCK ASM; CYL	8-98013-824-2	01	1	0611-				●
13	DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9701-0207	●
13	DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0208-0511		●
13	DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0512-0610			●
13	DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0611-				●
15	PLUG; OIL GALLERY (A) PT1/8	1-09605-050-0	02	1	9701-0207	●
15	PLUG; OIL GALLERY (A) PT1/8	1-09605-050-0	02	1	0208-0511		●
15	PLUG; OIL GALLERY (A) PT1/8	1-09605-050-0	02	1	0512-0610			●
15	PLUG; OIL GALLERY (A) PT1/8	1-09605-050-0	04	1	0611-				●
15	PLUG; OIL GALLERY (B) M14X14	8-94152-613-0	01	1	9701-0207	●
17	SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9701-0207	●
17	SWITCH; OIL PRESSURE	8-97072-947-0	01	1	0208-0511		●
17	SWITCH; OIL PRESSURE	8-97072-947-0	01	1	0512-0610			●
24	NIPPLE; OIL FEED,VAC PUMP	8-94443-670-1	01	1	9701-0207	●
24	NIPPLE; OIL FEED,VAC PUMP	8-94443-670-1	01	1	0208-0511		●
24	NIPPLE; OIL FEED,VAC PUMP	8-94443-670-1	01	1	0512-0610			●
40	CUP; SEALING,C/BL RR OD=56	8-94250-514-0	01	1	9701-0207	●
40	CUP; SEALING,C/BL RR OD=56	8-94250-514-1	01	1	0208-0511		●
40	CUP; SEALING,C/BL RR OD=56	8-94250-514-1	01	1	0512-0610			●
50	PIN; STRAIGHT,RR PLATE OD=10 L=32	9-08161-032-0	01	1	9701-0207	●
50	PIN; STRAIGHT,RR PLATE OD=10 L=32	9-08161-032-0	01	1	0208-0511		●
50	PIN; STRAIGHT,RR PLATE OD=10 L=32	9-08161-032-0	01	1	0512-0610			●
51	GASKET; OIL PRESS WARNING SW,C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	9701-0207	●
51	GASKET; OIL PRESS WARNING SW,C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	0208-0402		●
51	GASKET; OIL PRESS WARNING SW,C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	0611-				●
52	NIPPLE; OIL PRESS WARNING SW,C/BL	8-94167-749-2	01	1	9701-0207	●
52	NIPPLE; OIL PRESS WARNING SW,C/BL	8-94167-750-2	01	1	0208-0511		●
52	NIPPLE; OIL PRESS WARNING SW,C/BL	8-94167-750-2	01	1	0512-0610			●
52	NIPPLE; OIL PRESS WARNING SW,C/BL	8-94167-750-2	01	1	0611-0709				●
52	NIPPLE; OIL PRESS WARNING SW,C/BL	8-98089-872-0	01	1	0710-				●
53	BOLT; REAMER M10X52	9-09806-020-0	01	1	9701-0207	●
53	BOLT; REAMER M10X43	9-09606-535-0	01	1	0208-0511		●
53	BOLT; REAMER M10X43	9-09606-535-0	01	1	0512-0610			●
54	STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9701-0207	●
54	STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	0208-0511		●
54	STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	0512-0610			●
61	PIN; STRAIGHT OD=10 L=20	9-08151-020-0	02	1	9701-0201	●
61	PIN; STRAIGHT OD=10 L=20 USA	8-97135-423-0	02	1	0202-0207	●
61	PIN; STRAIGHT OD=10 L=20 USA	8-97135-423-0	01	1	0208-0511		●
61	PIN; STRAIGHT OD=10 L=20 USA	8-97135-423-0	01	1	0512-0610			●
61	PIN; STRAIGHT	9-09878-597-0	02	1	0611-				●
62	CUP; SEALING,C/BL FRT OD=14	5-11219-011-0	01	1	9906-0207	●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0	9-09571-414-0	01	1	9701-0207	●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	02	1	9701-0207	●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	02	1	0208-0511		●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	02	1	0512-0610			●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	06	1	0611-				●
148	CLIP; HARNESS (A) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9701-9812	●
148	CLIP; HARNESS (A) ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9901-9906	●
148	CLIP; HARNESS (A) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9907-0207	●
148	CLIP; HARNESS (A) ID=12 B=14 ID=8.5	5-09700-350-0	02	1	0208-0504		●
148	CLIP; HARNESS (A) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0505-0511		●
148	CLIP; HARNESS (A) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0512-0610			●
148	CLIP; HARNESS (B) L=91 ID=8.5	8-94329-956-0	01	1	9907-0207	●
148	CLIP; HARNESS (B) ID=21 L=24	8-94176-807-1	01	1	0208-0504		●
148	CLIP; HARNESS (B) ID=18 L=44	8-97367-985-0	01	1	0505-0511		●
148	CLIP; HARNESS (B) ID=18 L=44	8-97367-985-0	01	1	0512-0610			●
148	CLIP; HARNESS (A) ID=13 L=20	9-09525-235-0	01	1	0208-0504		●
150	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	03	1	9701-0207	●
150	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	01	1	0208-0511		●
150	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	01	1	0512-0512			●
150	BOLT; CLIP M8X12 FLANGE	0-28050-812-0	01	1	0601-0610			●
194	PIPE; OIL DRAIN,C/BL	8-97137-781-0	01	1	9906-0207	●
194	PIPE; OIL DRAIN,C/BL	8-97137-781-0	01	1	0208-0511		●
194	PIPE; OIL DRAIN,C/BL	8-97137-781-0	01	1	0512-0610			●

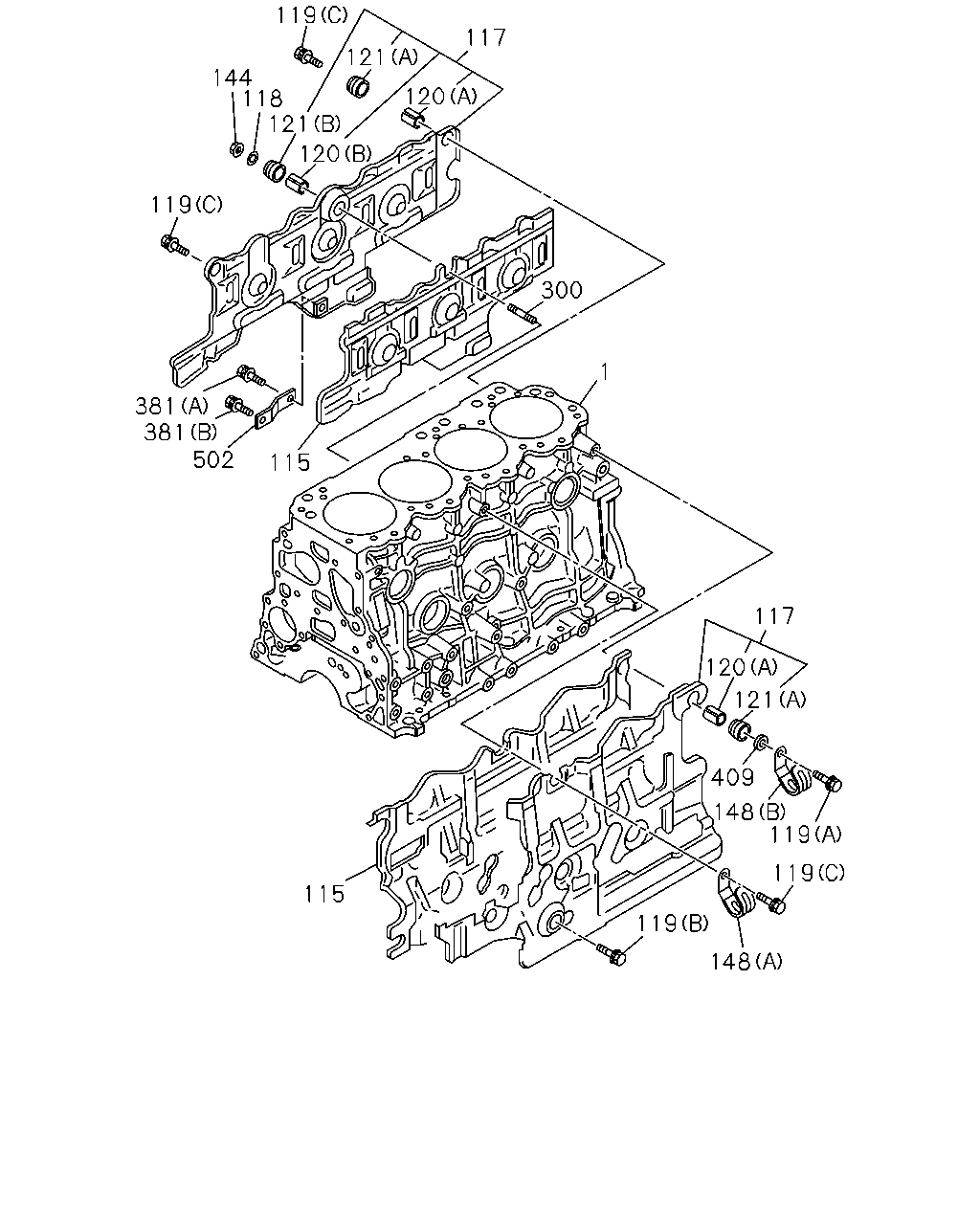

119 117 121 144 118 121 120 120 119 300 1 381 381 502 115 117 120 121 409 148 119 119 115 119 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BLOCK ASM; CYL	8-97043-280-1	01	1	9701-0202	●
1	BLOCK ASM; CYL	8-97314-579-0	01	1	0203-0207	●
1	BLOCK ASM; CYL	8-97257-264-3	01	1	0208-0511		●
1	BLOCK ASM; CYL	8-97257-264-3	01	1	0512-0610			●
1	BLOCK ASM; CYL	8-98013-824-2	01	1	0611-				●
115	RUBBER; SPACE	8-97204-194-0	01	1	0208-0511		●
115	RUBBER; SPACE	8-97204-194-0	01	1	0512-0610			●
115	RUBBER; SPACE	8-97204-193-0	01	1	0208-0511		●
115	RUBBER; SPACE	8-97204-193-0	01	1	0512-0610			●
117	COVER ASM; C/BL	8-97259-600-0	01	1	0208-0511		●
117	COVER ASM; C/BL	8-97259-600-0	01	1	0512-0610			●
117	COVER ASM; C/BL	8-97300-309-1	01	1	0208-0511		●
117	COVER ASM; C/BL	8-97300-309-1	01	1	0512-0610			●
118	WASHER; PL,COVER FIX ID=8.4 OD=26	9-09164-808-0	01	1	0208-0511		●
118	WASHER; PL,COVER FIX ID=8.4 OD=26	9-09164-808-0	01	1	0512-0605			●
118	WASHER; PL,COVER FIX ID=8.4 OD=26	0-91614-808-0	01	1	0606-0610			●
119	BOLT; COVER FIX (A) M8X32 FLANGE	0-28080-832-0	01	1	0208-0511		●
119	BOLT; COVER FIX (A) M8X32 FLANGE	0-28080-832-0	01	1	0512-0610			●
119	BOLT; COVER FIX (B) M10X28	8-94329-952-1	01	1	0208-0511		●
119	BOLT; COVER FIX (B) M10X28	8-94329-952-1	01	1	0512-0610			●
119	BOLT; COVER FIX (C) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	0208-0511		●
119	BOLT; COVER FIX (C) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	0512-0610			●
120	BUSHING; MTG RUBBER (A) OD=13 T=9.5	8-94140-427-1	05	1	0208-0511		●
120	BUSHING; MTG RUBBER (A) OD=13 T=9.5	8-94140-427-1	05	1	0512-0610			●
120	BUSHING; MTG RUBBER (B) OD=18 T=4.5	8-97188-506-0	01	1	0208-0511		●
120	BUSHING; MTG RUBBER (B) OD=18 T=4.5	8-97188-506-0	01	1	0512-0610			●
121	RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	05	1	0208-0511		●
121	RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	05	1	0512-0610			●
121	RUBBER; MTG,COVER (B) OD=16	8-97188-507-0	01	1	0208-0511		●
121	RUBBER; MTG,COVER (B) OD=16	8-97188-507-0	01	1	0512-0610			●
144	NUT; COVER FIX M8 FLANGE	0-91150-208-0	01	1	0208-0511		●
144	NUT; COVER FIX M8 FLANGE	0-91150-208-0	01	1	0512-0602			●
144	NUT; COVER FIX M8 FLANGE	0-91180-208-0	01	1	0603-0610			●
148	CLIP; HARNESS (A) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9701-9812	●
148	CLIP; HARNESS (A) ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9901-9906	●
148	CLIP; HARNESS (A) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9907-0207	●
148	CLIP; HARNESS (A) ID=12 B=14 ID=8.5	5-09700-350-0	02	1	0208-0504		●
148	CLIP; HARNESS (A) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0505-0511		●
148	CLIP; HARNESS (A) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0512-0610			●
148	CLIP; HARNESS (B) L=91 ID=8.5	8-94329-956-0	01	1	9907-0207	●
148	CLIP; HARNESS (B) ID=21 L=24	8-94176-807-1	01	1	0208-0504		●
148	CLIP; HARNESS (B) ID=18 L=44	8-97367-985-0	01	1	0505-0511		●
148	CLIP; HARNESS (B) ID=18 L=44	8-97367-985-0	01	1	0512-0610			●
148	CLIP; HARNESS (A) ID=13 L=20	9-09525-235-0	01	1	0208-0504		●
300	STUD; COVER M8X30 L=41	9-04110-830-0	01	1	0208-0511		●
300	STUD; COVER M8X30 L=41	9-04110-830-0	01	1	0512-0604			●
300	STUD; COVER M8X30 L=41	0-41010-830-0	01	1	0605-0610			●
381	BOLT; BRKT (B) M8X10 FLANGE	0-28080-810-0	01	1	0208-0511		●
381	BOLT; BRKT (B) M8X10 FLANGE	0-28080-810-0	01	1	0512-0512			●
381	BOLT; BRKT (B) M8X10 FLANGE	0-28050-810-0	01	1	0601-0610			●
381	BOLT; BRKT (A) M10X20 W/LK WASHER	0-50041-020-0	01	1	0208-0511		●
381	BOLT; BRKT (A) M10X20 W/LK WASHER	0-50041-020-0	01	1	0512-0512			●
381	BOLT; BRKT (A) M10X20 W/LK WASHER	0-50541-020-0	01	1	0601-0610			●
409	SPACER; COVER ID=8.5 L=10	5-13642-077-0	01	1	0208-0511		●
409	SPACER; COVER ID=8.5 L=10	5-13642-077-0	01	1	0512-0610			●
502	BRACKET; BODY COVER	8-97209-129-0	01	1	0208-0511		●
502	BRACKET; BODY COVER	8-97209-129-0	01	1	0512-0610			●

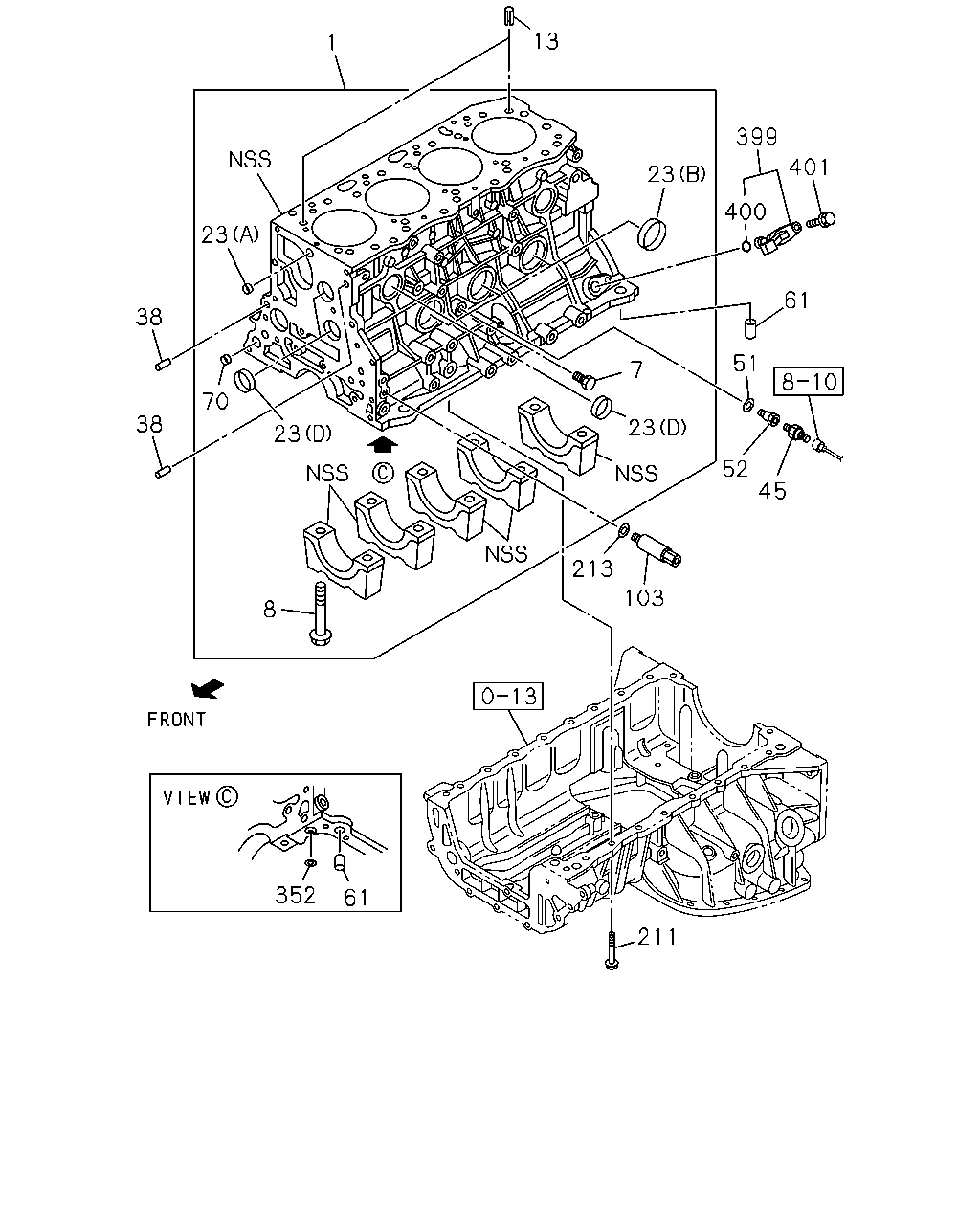

13 1 399 401 23 400 23 61 38 51 7 8 10 70 38 23 23 52 45 213 103 8 13 352 61 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BLOCK ASM; CYL	8-97043-280-1	01	1	9701-0202	●
1	BLOCK ASM; CYL	8-97314-579-0	01	1	0203-0207	●
1	BLOCK ASM; CYL	8-97257-264-3	01	1	0208-0511		●
1	BLOCK ASM; CYL	8-97257-264-3	01	1	0512-0610			●
1	BLOCK ASM; CYL	8-98013-824-2	01	1	0611-				●
7	PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9701-0207	●
7	PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0208-0511		●
7	PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0512-0610			●
7	PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0611-				●
8	BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9701-0207	●
8	BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0208-0511		●
8	BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0512-0610			●
8	BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0611-				●
13	DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9701-0207	●
13	DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0208-0511		●
13	DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0512-0610			●
13	DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0611-				●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	1-09600-005-1	03	1	9701-0207	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	1-09600-005-1	03	1	0208-0210		●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0211-0511		●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0512-0610			●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0611-				●
23	CUP; SEALING,C/BL FRT & RR (A) OD=18	5-11219-008-0	03	1	9701-0207	●
23	CUP; SEALING,C/BL FRT & RR (A) OD=18	5-11219-008-0	03	1	0208-0511		●
23	CUP; SEALING,C/BL FRT & RR (A) OD=18	5-11219-008-0	03	1	0512-0610			●
23	CUP; SEALING,C/BL FRT & RR (A) OD=18	5-11219-008-0	02	1	0611-				●
23	CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	9701-0207	●
23	CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	0208-0511		●
23	CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	0512-0610			●
23	CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	04	1	0611-				●
23	CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	9701-9905	●
23	CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	9906-0207	●
23	CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	0208-0511		●
23	CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	0512-0610			●
23	CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	0611-				●
38	PIN; TIMING GEAR CASE OD=10 L=20 USA	8-97135-423-0	02	1	0611-				●
45	SWITCH; OIL PRESSURE	8-97176-230-0	01	1	0611-				●
51	GASKET; OIL PRESS WARNING SW,C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	9701-0207	●
51	GASKET; OIL PRESS WARNING SW,C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	0208-0402		●
51	GASKET; OIL PRESS WARNING SW,C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	0611-				●
52	NIPPLE; OIL PRESS WARNING SW,C/BL	8-94167-749-2	01	1	9701-0207	●
52	NIPPLE; OIL PRESS WARNING SW,C/BL	8-94167-750-2	01	1	0208-0511		●
52	NIPPLE; OIL PRESS WARNING SW,C/BL	8-94167-750-2	01	1	0512-0610			●
52	NIPPLE; OIL PRESS WARNING SW,C/BL	8-94167-750-2	01	1	0611-0709				●
52	NIPPLE; OIL PRESS WARNING SW,C/BL	8-98089-872-0	01	1	0710-				●
61	PIN; STRAIGHT OD=10 L=20	9-08151-020-0	02	1	9701-0201	●
61	PIN; STRAIGHT OD=10 L=20 USA	8-97135-423-0	02	1	0202-0207	●
61	PIN; STRAIGHT OD=10 L=20 USA	8-97135-423-0	01	1	0208-0511		●
61	PIN; STRAIGHT OD=10 L=20 USA	8-97135-423-0	01	1	0512-0610			●
61	PIN; STRAIGHT	9-09878-597-0	02	1	0611-				●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	02	1	9701-0207	●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	02	1	0208-0511		●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	02	1	0512-0610			●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	06	1	0611-				●
103	NIPPLE; OIL FEED	8-97316-983-4	01	1	0611-				●
211	BOLT; CRANKCASE M8X25 FLANGE	0-28650-825-0	19	1	0611-				●
211	BOLT; CRANKCASE M8X40 FLANGE	0-28650-840-0	01	1	0611-				●
213	GASKET; NIPPLE,OIL FEED ID=10.2 OD=16.0	9-09571-410-0	01	1	0611-				●
352	GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09566-116-0	01	1	0611-				●
399	SENSOR; CRANKSHAFT POSITION	8-97312-108-1	01	1	0611-				●
400	GASKET; CRANKSHAFT POSITION SENSOR ID=14.2 OD=18.8	8-97369-404-0	01	1	0611-				●
401	BOLT; SENSOR M6X16 FLANGE	0-28050-616-0	01	1	0611-				●

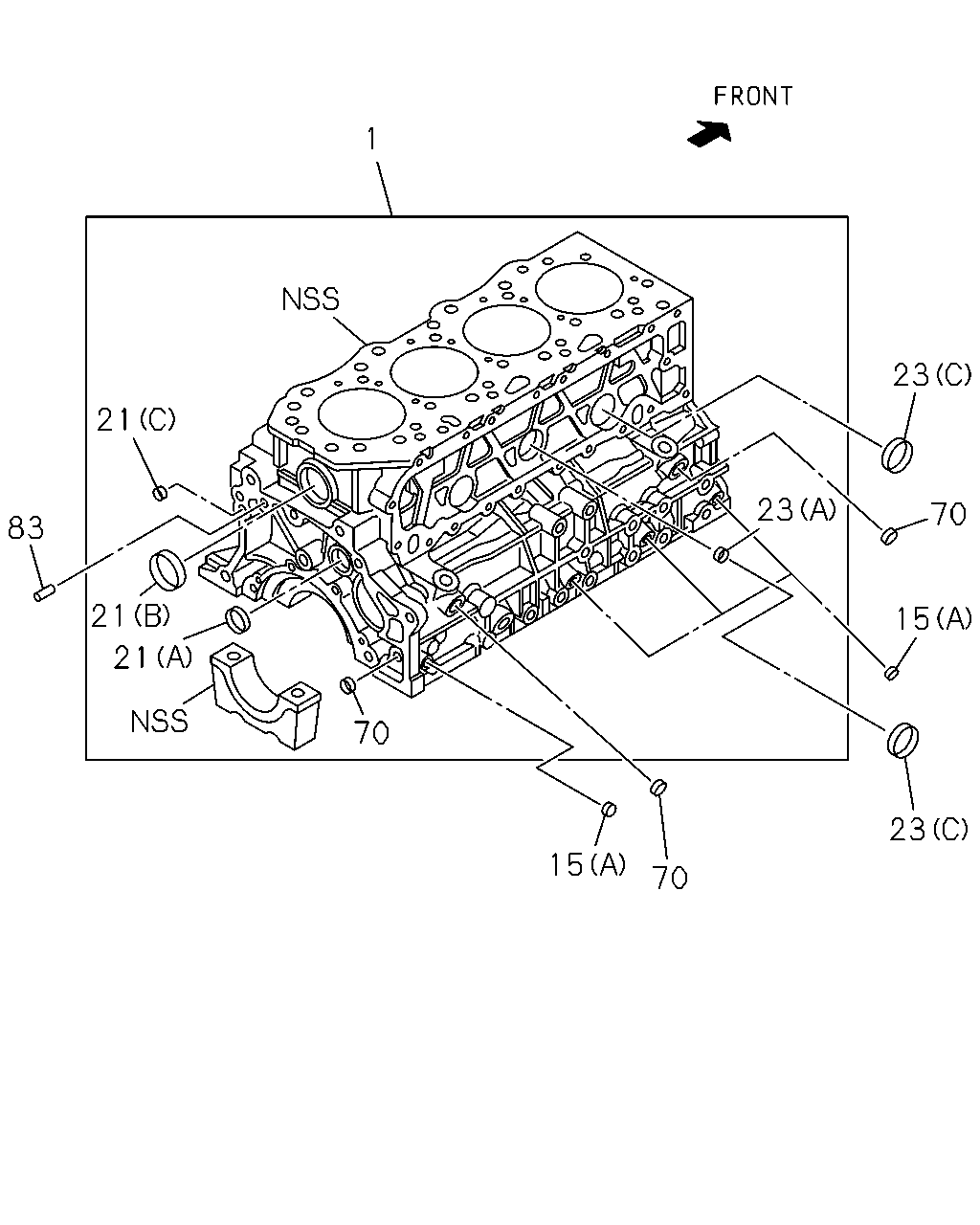

1 23 21 23 70 83 21 15 21 70 23 15 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BLOCK ASM; CYL	8-97043-280-1	01	1	9701-0202	●
1	BLOCK ASM; CYL	8-97314-579-0	01	1	0203-0207	●
1	BLOCK ASM; CYL	8-97257-264-3	01	1	0208-0511		●
1	BLOCK ASM; CYL	8-97257-264-3	01	1	0512-0610			●
1	BLOCK ASM; CYL	8-98013-824-2	01	1	0611-				●
15	PLUG; OIL GALLERY (A) PT1/8	1-09605-050-0	02	1	9701-0207	●
15	PLUG; OIL GALLERY (A) PT1/8	1-09605-050-0	02	1	0208-0511		●
15	PLUG; OIL GALLERY (A) PT1/8	1-09605-050-0	02	1	0512-0610			●
15	PLUG; OIL GALLERY (A) PT1/8	1-09605-050-0	04	1	0611-				●
15	PLUG; OIL GALLERY (B) M14X14	8-94152-613-0	01	1	9701-0207	●
21	CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	9701-0207	●
21	CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0208-0511		●
21	CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0512-0610			●
21	CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0611-				●
21	CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	9701-0207	●
21	CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0208-0511		●
21	CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0512-0610			●
21	CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0611-				●
21	CUP; SEALING,RR (C) OD=12.3	5-09600-013-0	01	1	0611-				●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	1-09600-005-1	03	1	9701-0207	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	1-09600-005-1	03	1	0208-0210		●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0211-0511		●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0512-0610			●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0611-				●
23	CUP; SEALING,C/BL FRT & RR (A) OD=18	5-11219-008-0	03	1	9701-0207	●
23	CUP; SEALING,C/BL FRT & RR (A) OD=18	5-11219-008-0	03	1	0208-0511		●
23	CUP; SEALING,C/BL FRT & RR (A) OD=18	5-11219-008-0	03	1	0512-0610			●
23	CUP; SEALING,C/BL FRT & RR (A) OD=18	5-11219-008-0	02	1	0611-				●
23	CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	9701-0207	●
23	CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	0208-0511		●
23	CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	0512-0610			●
23	CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	04	1	0611-				●
23	CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	9701-9905	●
23	CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	9906-0207	●
23	CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	0208-0511		●
23	CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	0512-0610			●
23	CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	0611-				●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	02	1	9701-0207	●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	02	1	0208-0511		●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	02	1	0512-0610			●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	06	1	0611-				●
83	PIN; FLYWHEEL HSG OD=10 L=32	9-08161-032-0	01	1	0611-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
